USER’S MANUAL

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model No. GGCTL59611.0

Serial No.

Write the serial number in the space

above for reference.

QUESTIONS?

If you have questions, or if parts

are damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 7:30 until 16:30 ET

(excluding holidays)

OR E-MAIL US:

customerservice@iconcanada.ca

www.workoutwarehouse.com

Serial Number

Decal

GOLD’S GYM is a registered trademark of Gold’s Gym International, Inc. This product is manufactured and

distributed under license from Gold’s Gym Merchandising, Inc.

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................14

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLESHOOTING ......................................................................22

EXERCISE GUIDELINES ....................................................................25

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

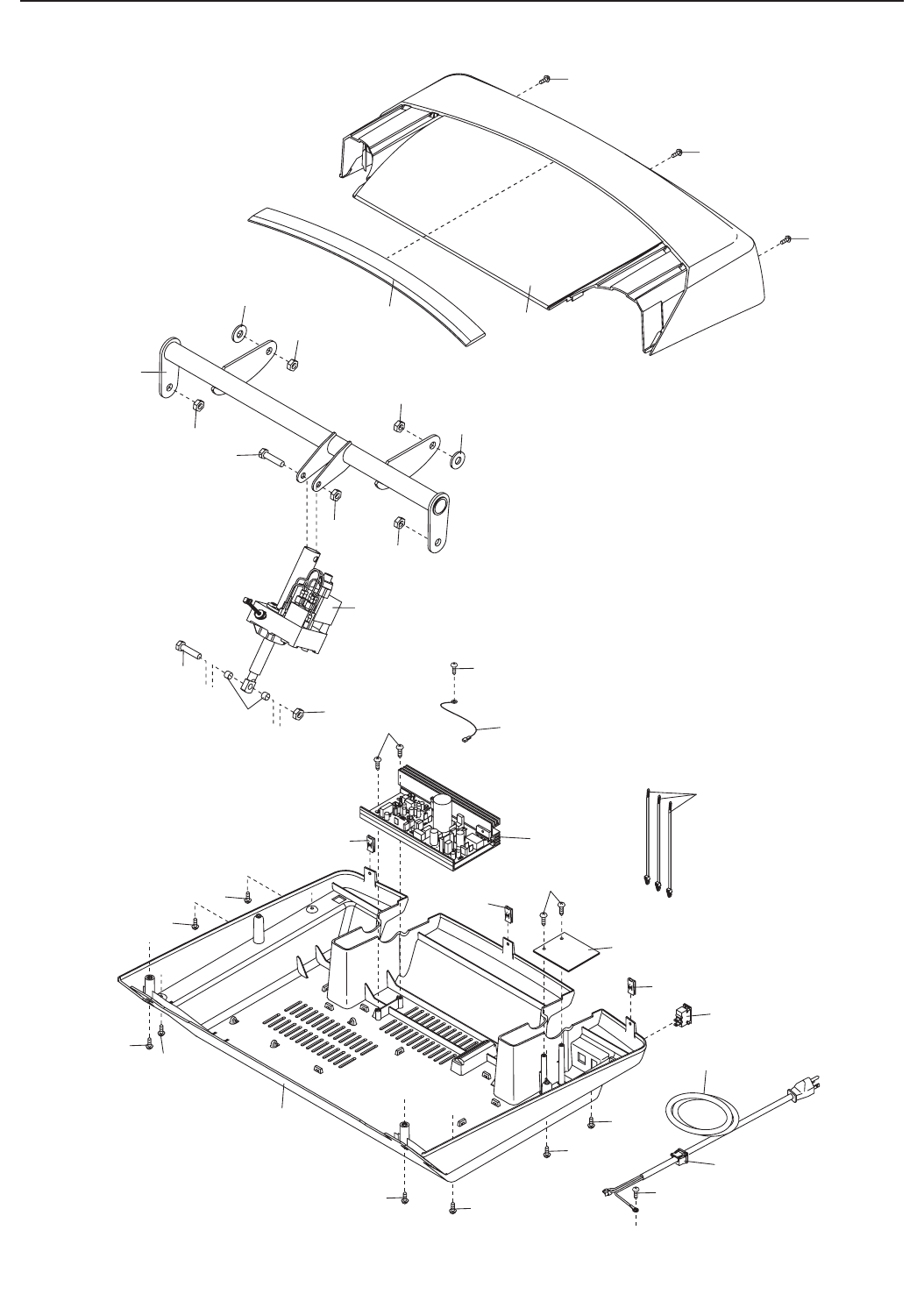

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

This drawing shows the locations of the warning

decals. If a decal is missing or illegible, call

the telephone number on the front cover of

this manual and request a free replacement

decal. Apply the decal in the location shown.

Note: The decals may not be shown at actual

size.

256836

IMPORTANT PRECAUTIONS

1. Before beginning any exercise program, con-

sult your physician. This is especially impor-

tant for persons over age 35 or persons with

pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place

the treadmill on any surface that blocks air

openings. To protect the oor or carpet from

damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 300 lbs. (136 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes while us-

ing the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended

for both men and women. Always wear ath-

letic shoes. Never use the treadmill with bare

feet, wearing only stockings, or in sandals.

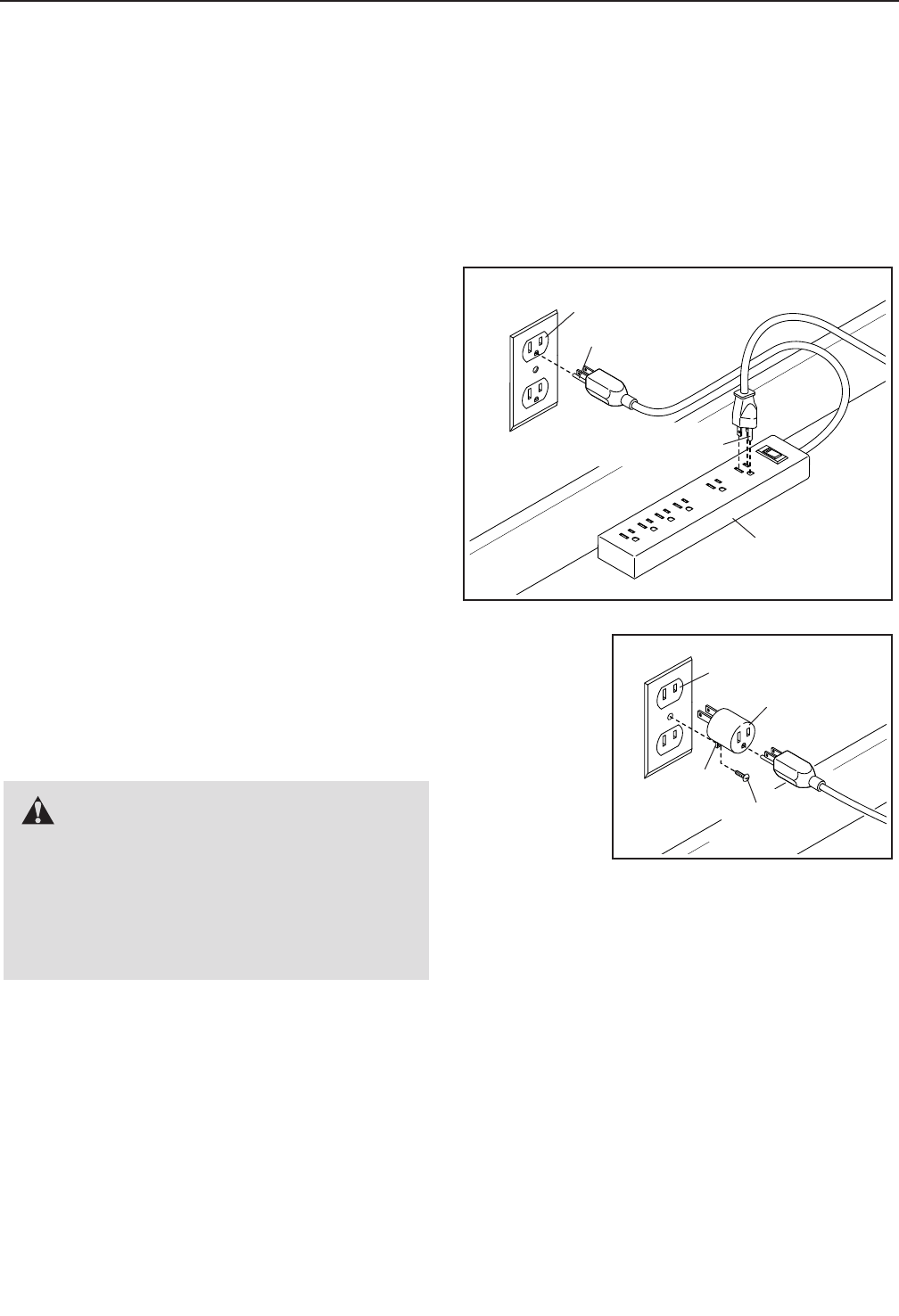

11. Plug the power cord into a surge suppressor

(not included), and plug the surge suppres-

sor into an appropriate outlet (see page 14).

To avoid overloading the circuit, do not plug

other electrical devices, except for low-power

devices such as cell phone chargers, into

the surge suppressor or into an outlet on the

same circuit.

12. Use only a single-outlet surge suppressor

that meets all of the specications described

on page 14. To purchase a surge suppressor

call the telephone number on the front cover

of this manual.

13. Failure to use a properly-functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control

system is damaged, the walking belt may

slow, accelerate, or stop unexpectedly, which

may result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See TROU-

BLESHOOTING on page 22 if the treadmill is

not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 16).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

18. The treadmill is capable of high speeds. Ad-

just the speed in small increments to avoid

sudden jumps in speed.

19. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

WARNING: To reduce the risk of serious injury, read all important precations and in-

structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

20. Never leave the treadmill unattended while

it is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the

location of the power switch.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 7, and HOW TO FOLD

AND MOVE THE TREADMILL on page 21.)

You must be able to safely lift 45 lbs. (20 kg)

to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before clean-

ing the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servic-

ing other than the procedures in this manual

should be performed by an authorized ser-

vice representative only.

26. This treadmill is intended for home use only.

Do not use this treadmill in a commercial,

rental, or institutional setting.

27. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE INSTRUCTIONS

Thank you for selecting the new GOLD’S GYM®

CROSSWALK 570 treadmill. The CROSSWALK 570

treadmill provides an impressive selection of features

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

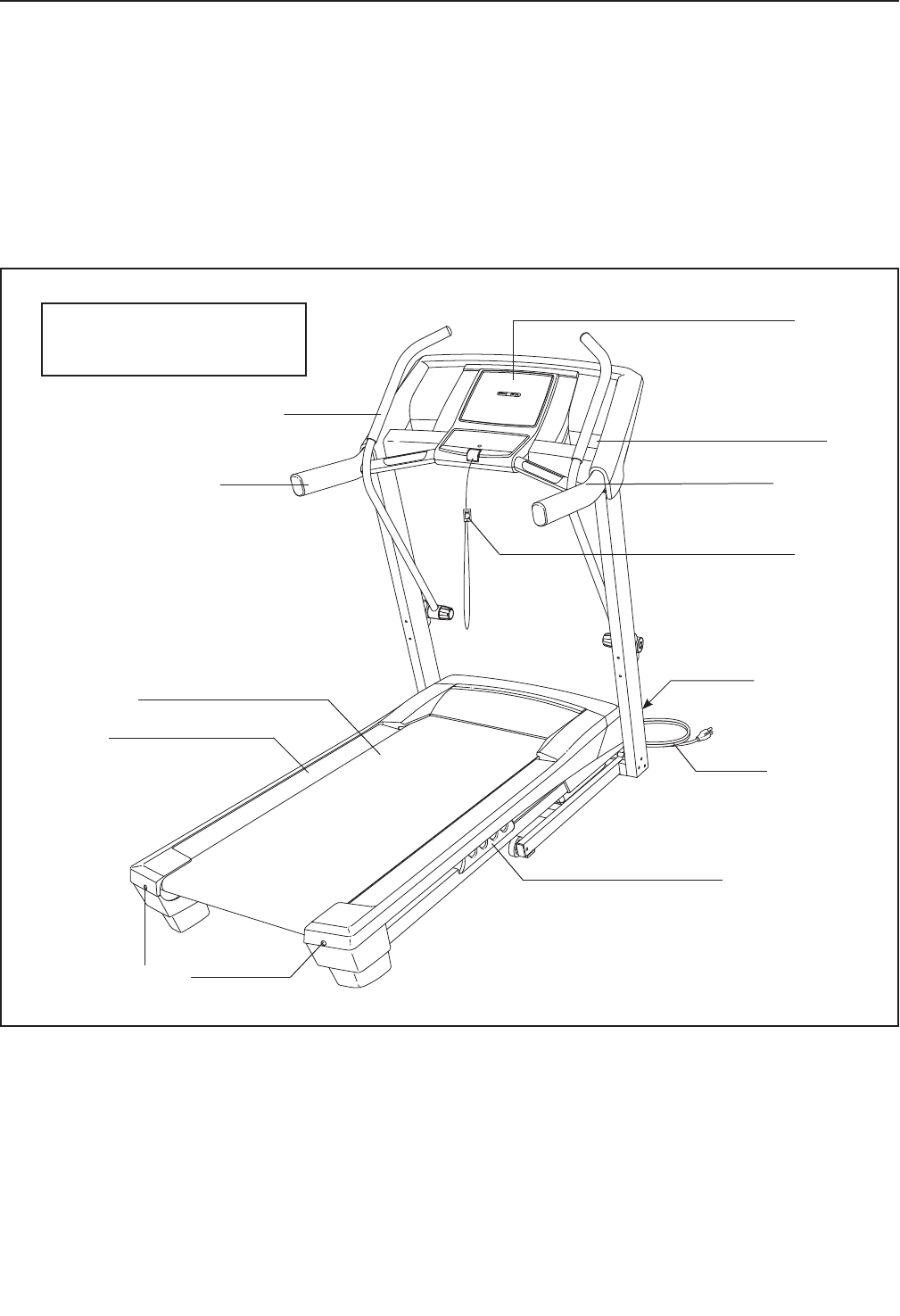

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

Handrail

Upper Body Arm

Tray

Key/Clip

Power Switch

Walking Belt

Platform Cushion

Foot Rail

Power Cord

Idler Roller

Adjustment Screws

Console

Heart Rate

Monitor

Length: 6 ft. (183 cm)

Width: 2 ft. 11 in. (89 cm)

PART IDENTIFICATION CHART

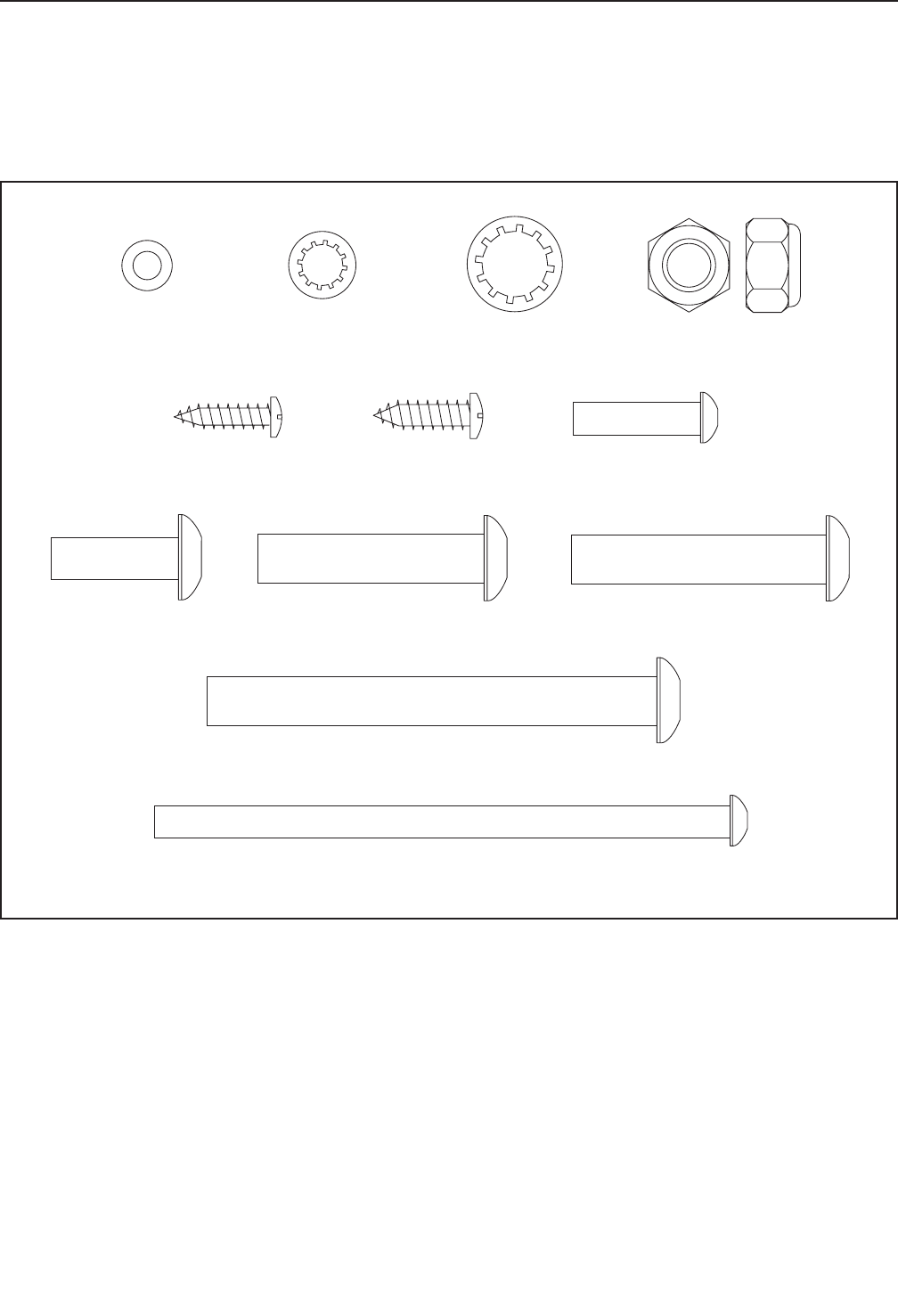

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-

ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key

number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. Extra hardware may be included.

1/4" Washer

(11)—4

#8 x 1/2" Ground

Screw (1)—1

#8 x 3/4" Screw

(6)—12

1/4" x 1"

Screw (9)—4

1/4" x 4 1/2" Screw (10)—4

5/16" x 1"

Bolt (7)—8 3/8" x 1 3/4" Screw (12)—1 3/8" x 2" Bolt (13)—1

3/8" x 3 1/2" Screw (4)—6

5/16" Star

Washer (8)—8 3/8" Star

Washer (5)—10

3/8" Nut (3)—1

#10 x 3/4" Screw

(26)—2

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishallassemblysteps.

• The underside of the walking belt is coated with

high-performance lubricant. After shipping, there

may be some lubricant on top of the walking belt

or on the shipping carton. This is normal. If there

is lubricant on top of the walking belt, wipe it off

with a soft cloth and a mild, non-abrasive cleaner.

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex keys

one adjustable wrench

one Phillips screwdriver

scissors

needlenose pliers

To avoid damaging parts, do not use power tools.

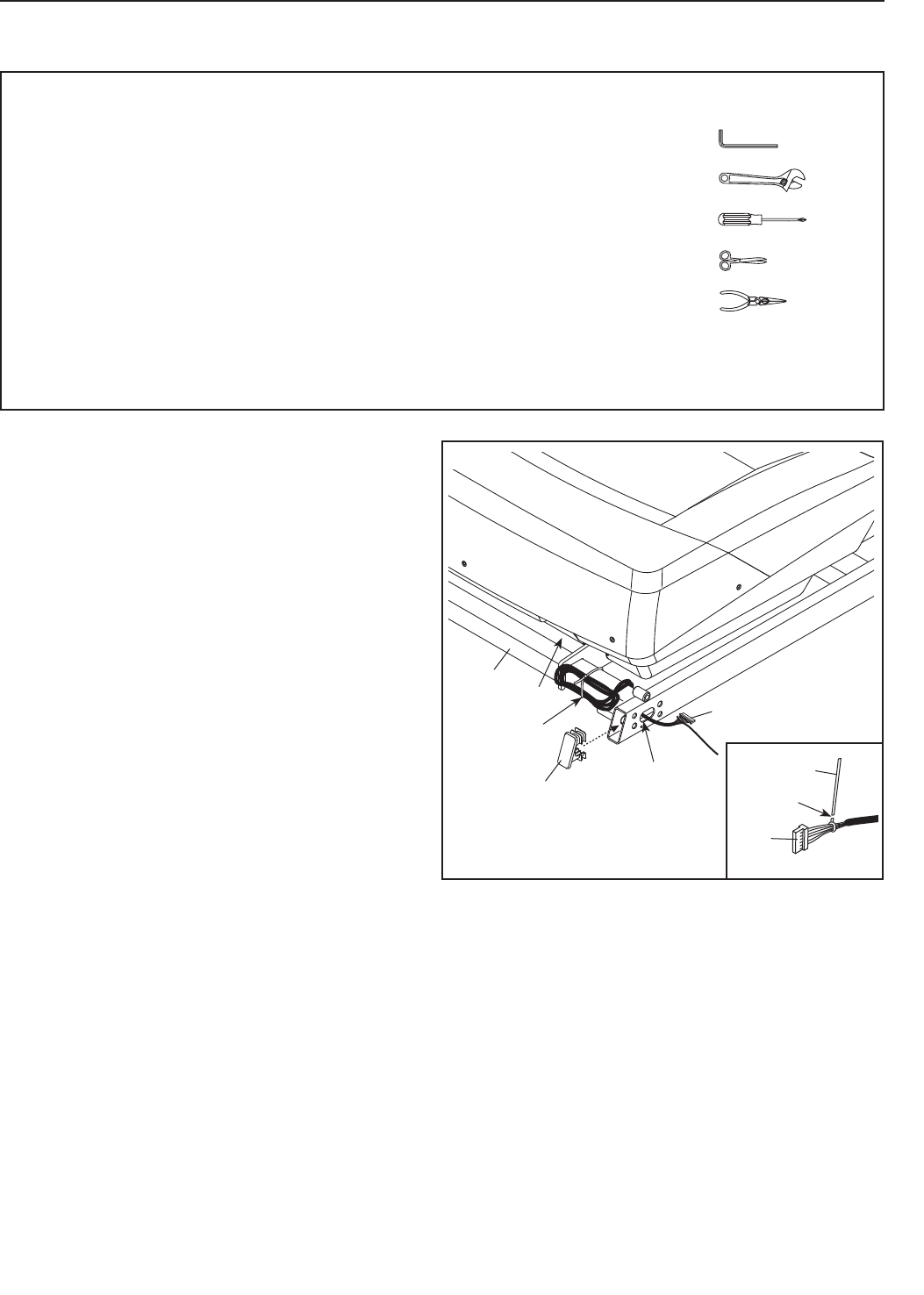

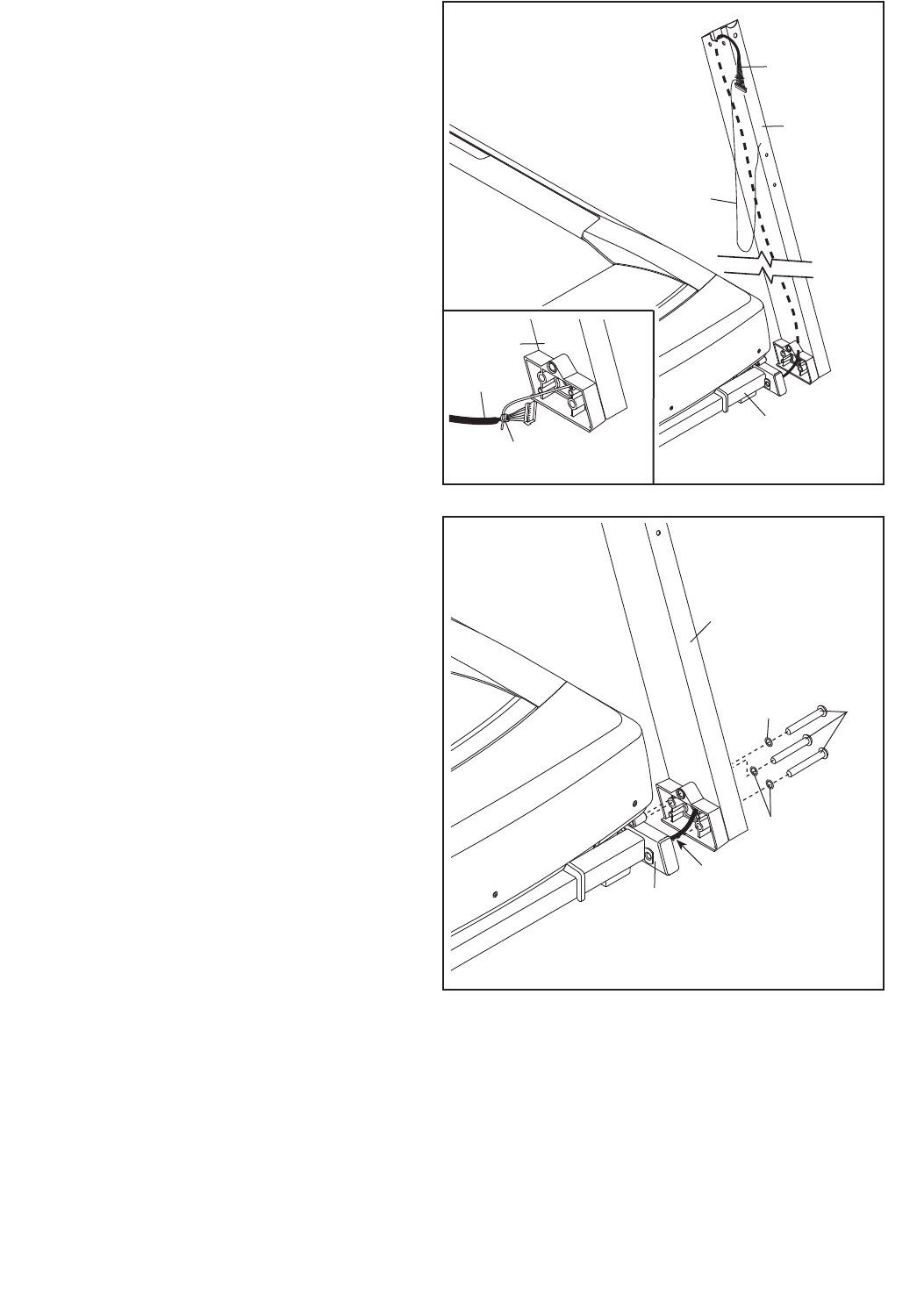

1. Make sure that the power cord is unplugged.

Locate the Upright Wire (70) bundled around the

front of the Base (80) beneath the Belly Pan (68).

Cut the plastic tie securing the Upright Wire.

Route the Upright Wire into the Base and out of

the indicated hole.

Press a Base Cap (77) into each side of the

Base (80).

See the inset drawing. Cut the plastic tie near

the Upright Wire (70). Be careful not to damage

the Upright Wire. 70

Hole

Cut

Tie

Cut

2. Identify the Left Upright (75), which is marked

“Left.” Have a second person hold the Left

Upright near the Base (80).

See the inset drawing. Tie the wire tie in the

Left Upright (75) securely around the end of the

Upright Wire (70). Then, insert the Upright Wire

into the lower end of the Left Upright as you pull

the other end of the wire tie through the Left

Upright.

Wire

Tie

Wire Tie

3. Hold the Left Upright (75) against the Base

(80). Be careful not to pinch the wires.

Partially tighten three 3/8" x 3 1/2" Screws (4)

with three 3/8" Star Washers (5) into the Left

Upright and the Base; do not fully tighten the

Screws yet.

Attach the Right Upright (not shown) in the

same way. Note: There are no wires on the

right side.

Wires

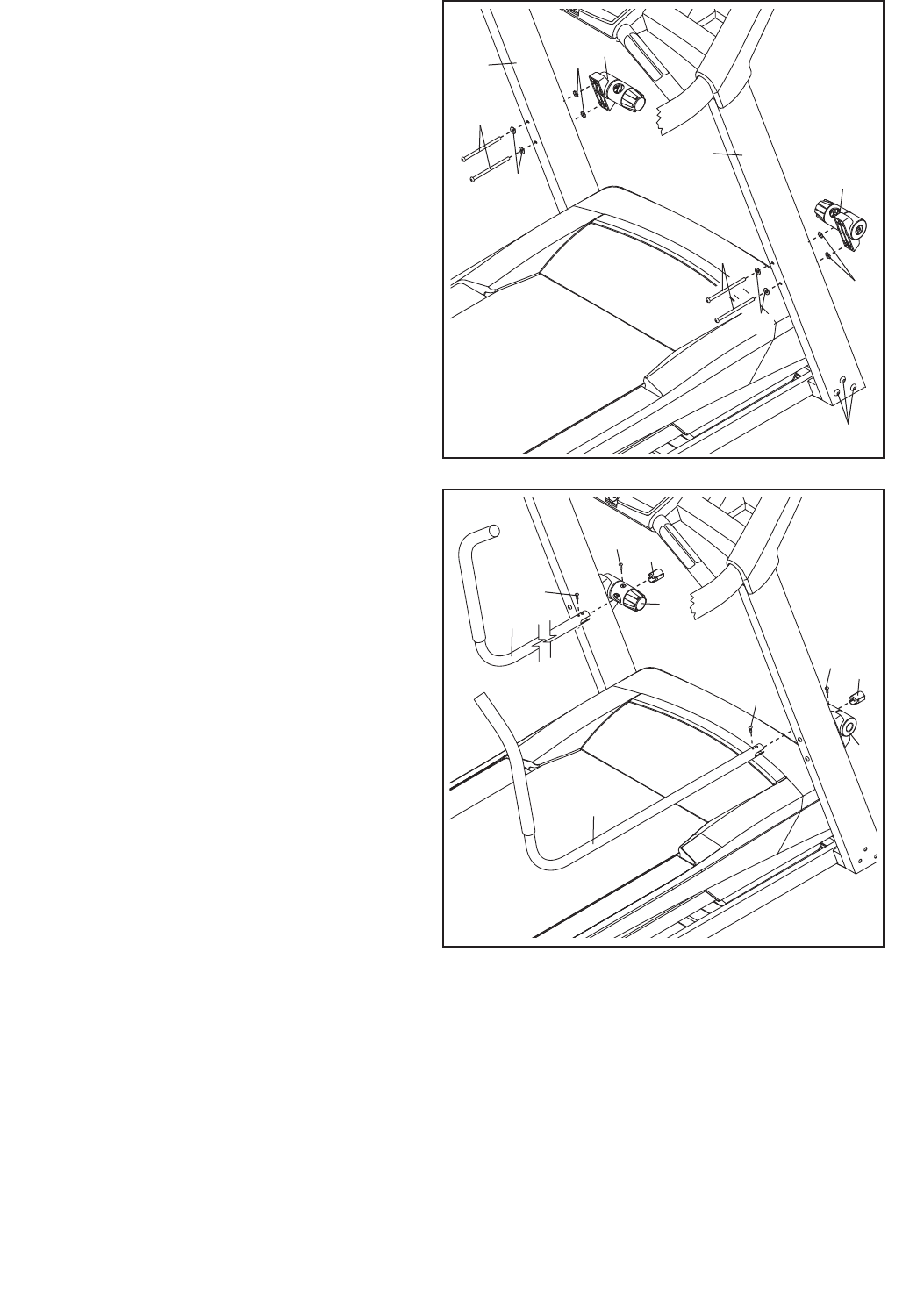

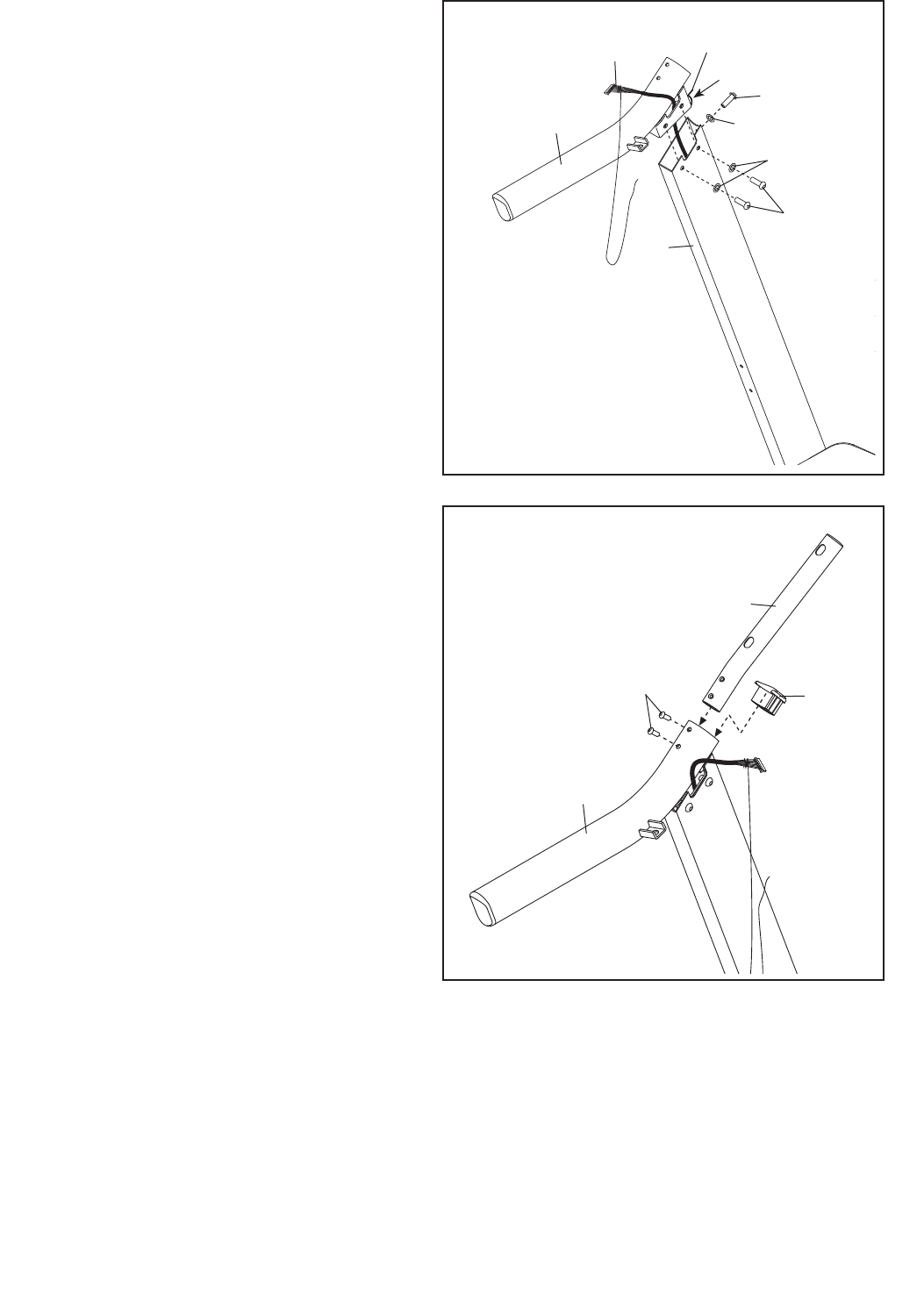

4. Identify the Left Handrail (71), which is marked

“Left.” Remove the tie from the 5/16" Cage Nut

(33). If necessary, press the Cage Nut back into

place.

Hold the Left Handrail (71) near the Left Upright

(75). Insert the Upright Wire (70) through the

bracket on the bottom of the Left Handrail.

Then, pull the Upright Wire out of the end of the

Handrail.

Attach the Left Handrail (71) to the Left Upright

(75) with three 5/16" x 1" Bolts (7) and three

5/16" Star Washers (8) as shown. Be careful

not to pinch the Upright Wire (70). Start all

three Bolts before tightening them.

Attach the Right Handrail (not shown) in the

same way. Note: There are no wires on the

right side.

5. Identify the Left Handrail Tube (98), which is

marked “Left.”

Insert the Left Handrail Tube (98) into the top of

the Left Handrail (71). Attach the Left Handrail

Tube with two 1/4" x 1" Screws (9). Start both

Screws before tightening them. Then, insert

a Handrail Insert (69) into the top of the Left

Handrail.

Attach the Right Handrail Tube (not shown)

in the same way.

Tie

7. Insert the Upright Wire (70) into the Left Upright

(75) as you set the console assembly on the

Left Handrail (71) and the Right Handrail (72).

Make sure that no wires are pinched.

Attach the console assembly to the Left and

Right Handrails (71, 72) with two 5/16" x 1" Bolts

(7) and two 5/16" Star Washers (8). Start both

Bolts before tightening them.

Console

Assembly

Console

Assembly

Wire

Tie

Console

Wire

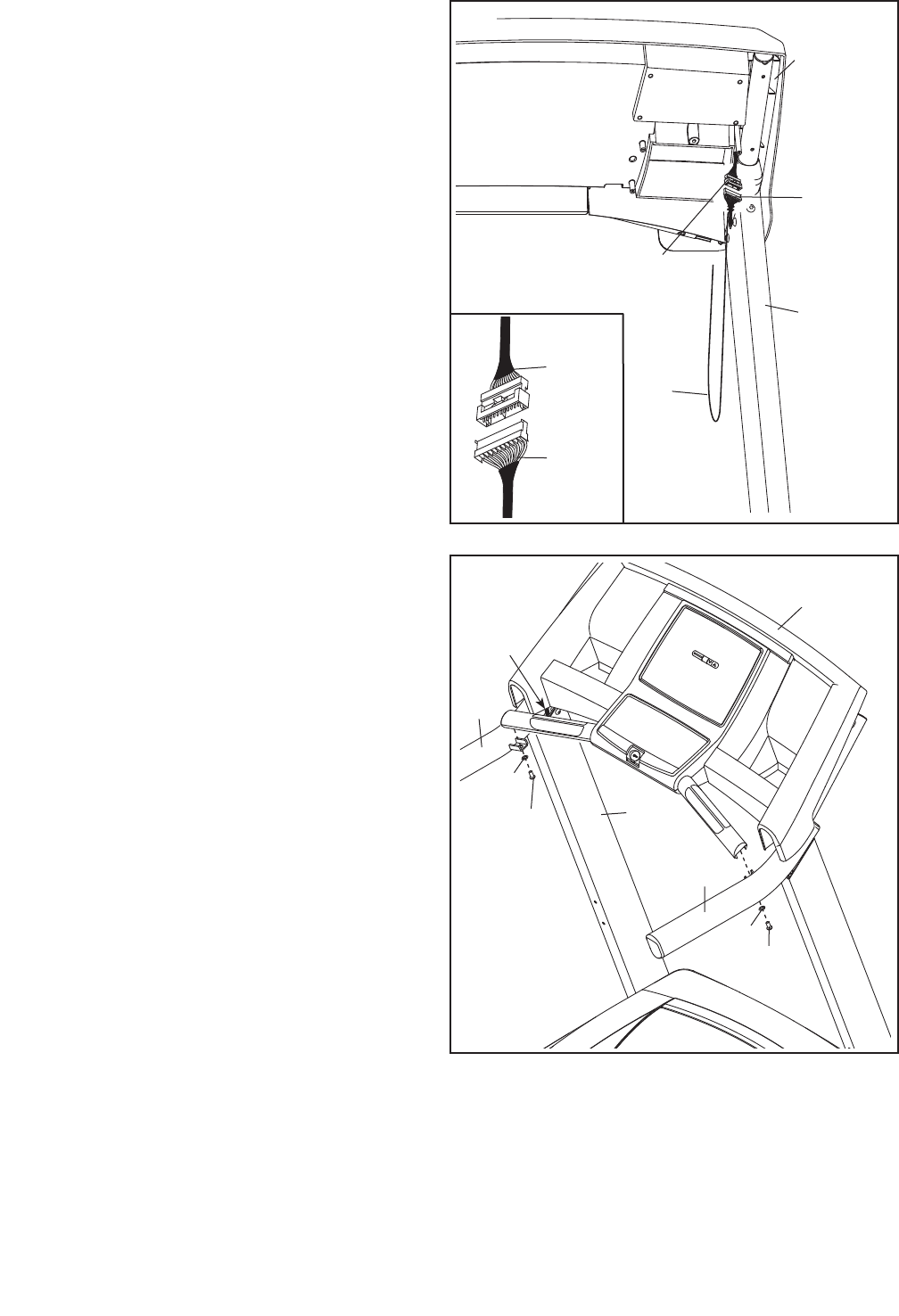

6. With the help of a second person, hold the con-

sole assembly near the Left Upright (75).

Connect the Upright Wire (70) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try

again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY

BECOME DAMAGED WHEN YOU TURN ON

THE POWER.

Remove the wire tie from the Upright Wire (70). Console

Wire

8. Attach the console assembly to the Left Handrail

Tube (99) and the Right Handrail Tube (98) with

four #8 x 3/4" Screws (6); start all four Screws,

and then tighten them. Do not overtighten the

Screws.

8Console

Assembly

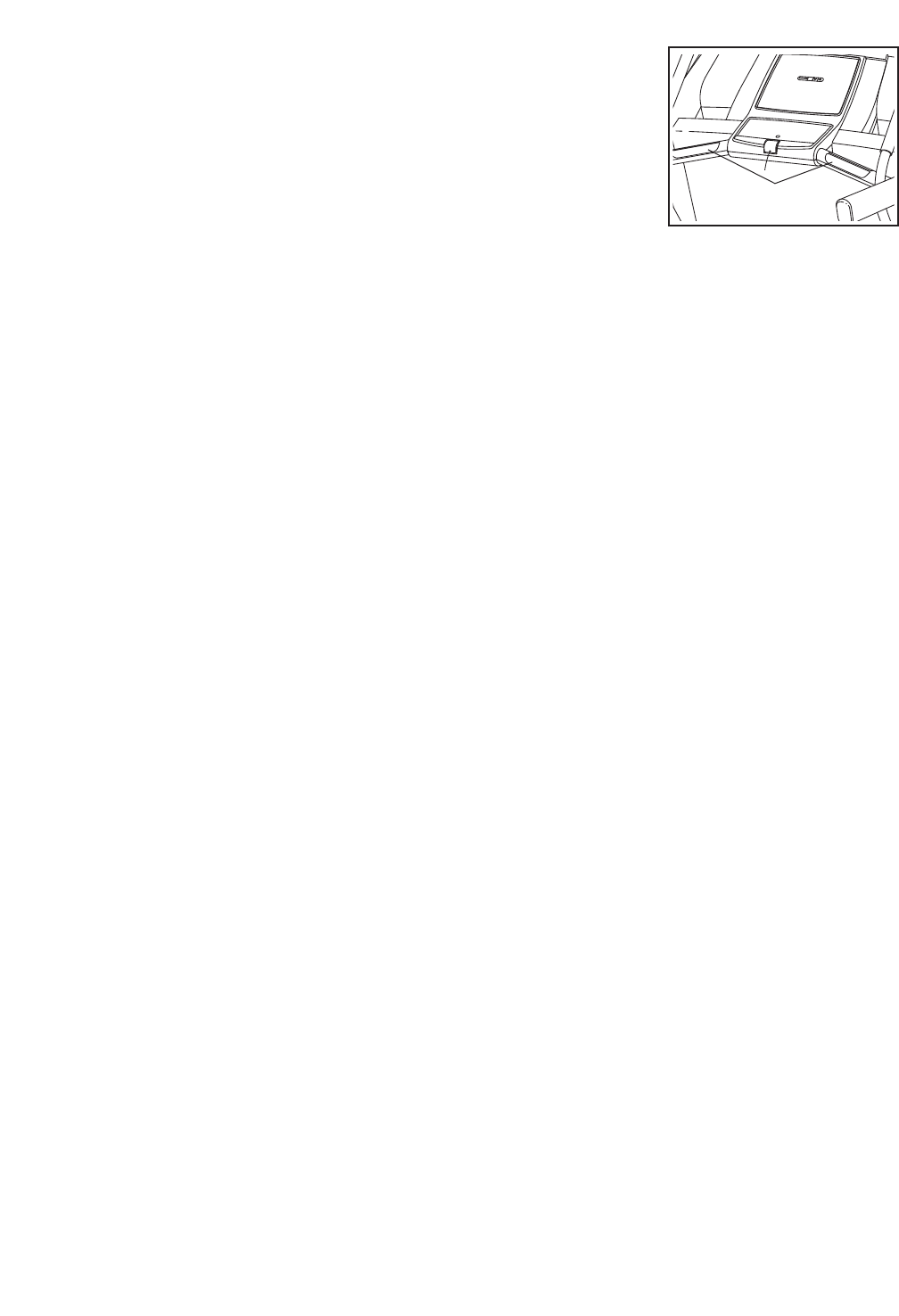

9. Identify the Left Tray (87) and the Right Tray

(88). Make sure that the indicated notch is po-

sitioned as shown. Attach the Trays with eight

#8 x 3/4" Screws (6). Start all eight Screws,

and then tighten them. Do not overtighten the

Screws.

88 87

Notch

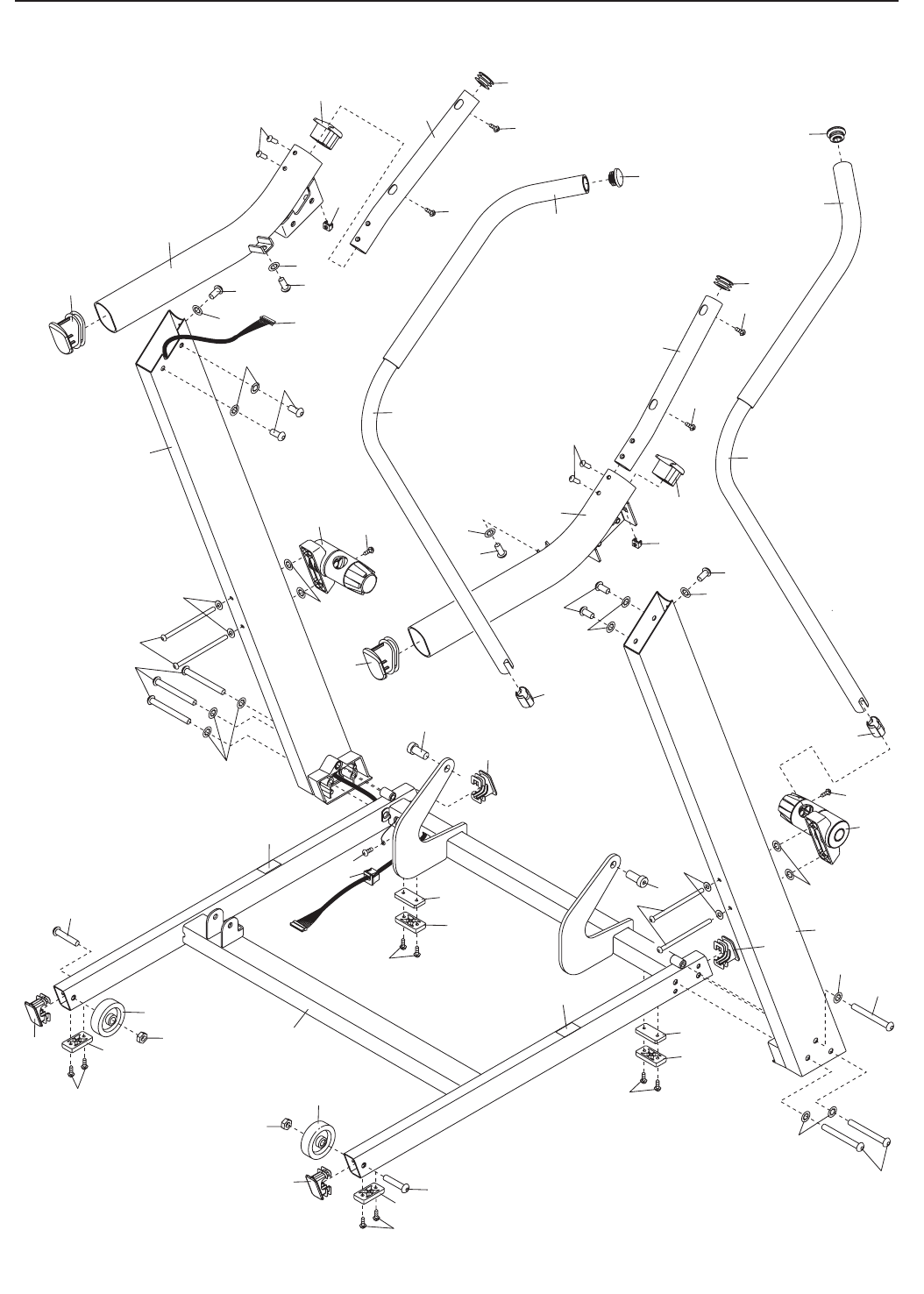

10. Attach the two Resistance Assemblies (54)

to the Uprights (75, 76) with four 1/4" x 4 1/2"

Screws (10), four 1/4" Flat Washers (11), and

four 3/8" Star Washers (5) as shown. Do not

overtighten the Screws.

Fully tighten the six 3/8" x 3 1/2" Screws (4)

(only one side is shown).

11. Identify the Left and Right Upper Body Arms

(100, 101). Remove and discard the two indi-

cated screws (A) from the Arms.

Make sure that the Left Upper Body Arm (100)

is positioned as shown. Insert the lower end of

the Arm into the large hole in the Resistance

Assembly (54). Insert an Upper Body Arm Insert

(55) into the lower end of the Left Upper Body

Arm. Then, tighten a #10 x 3/4" Screw (26) into

the Resistance Assembly. Do not overtighten

the Screw.

Attach the Right Upper Body Arm (101) as de-

scribed above.

100

101

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-

tic on the treadmill decals, remove the plastic. Toprotecttheoororcarpet,placeamatunderthetreadmill.

Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to

adjust the walking belt (see pages 23 and 24).

Large

Barrel

Latch

Knob

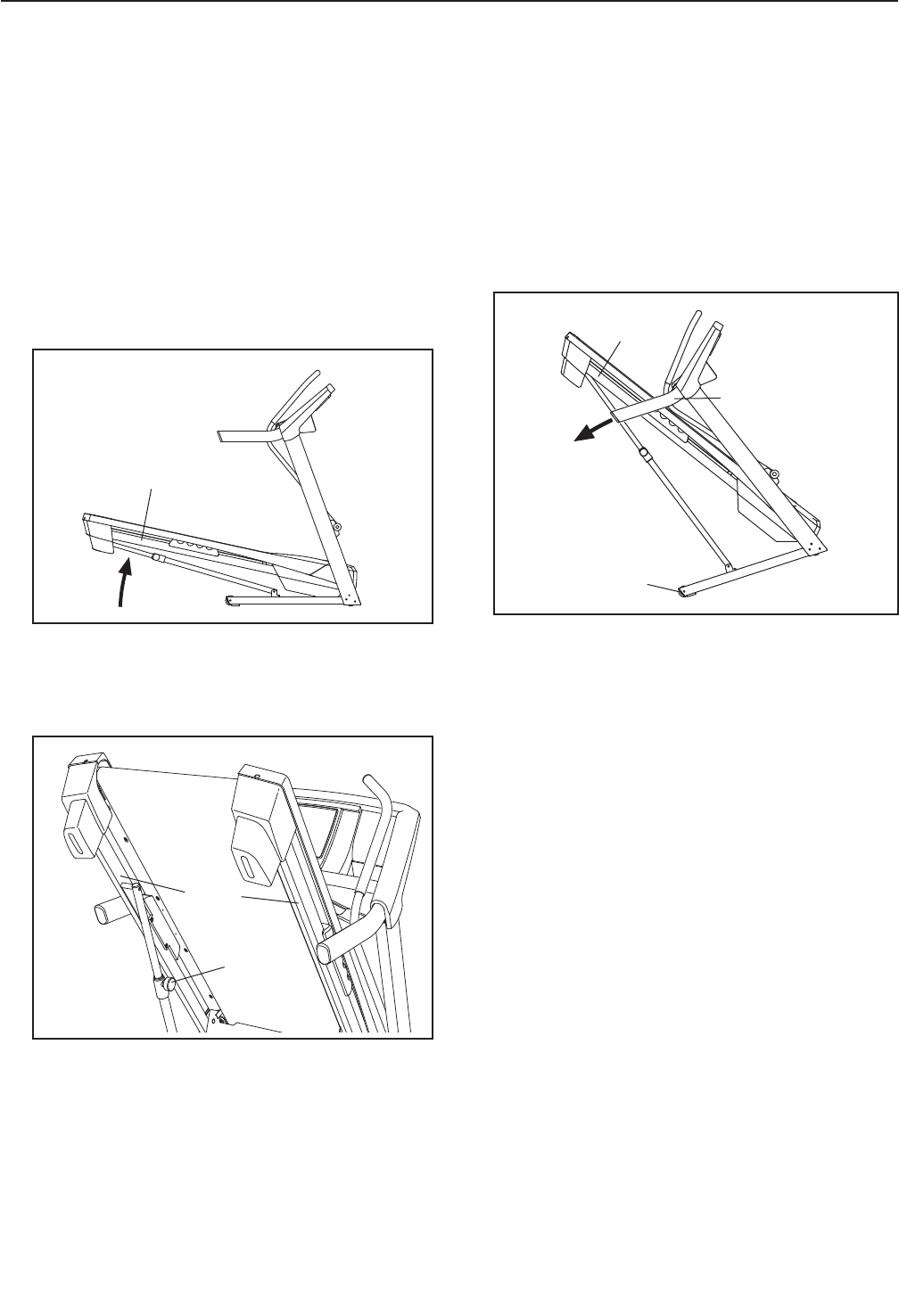

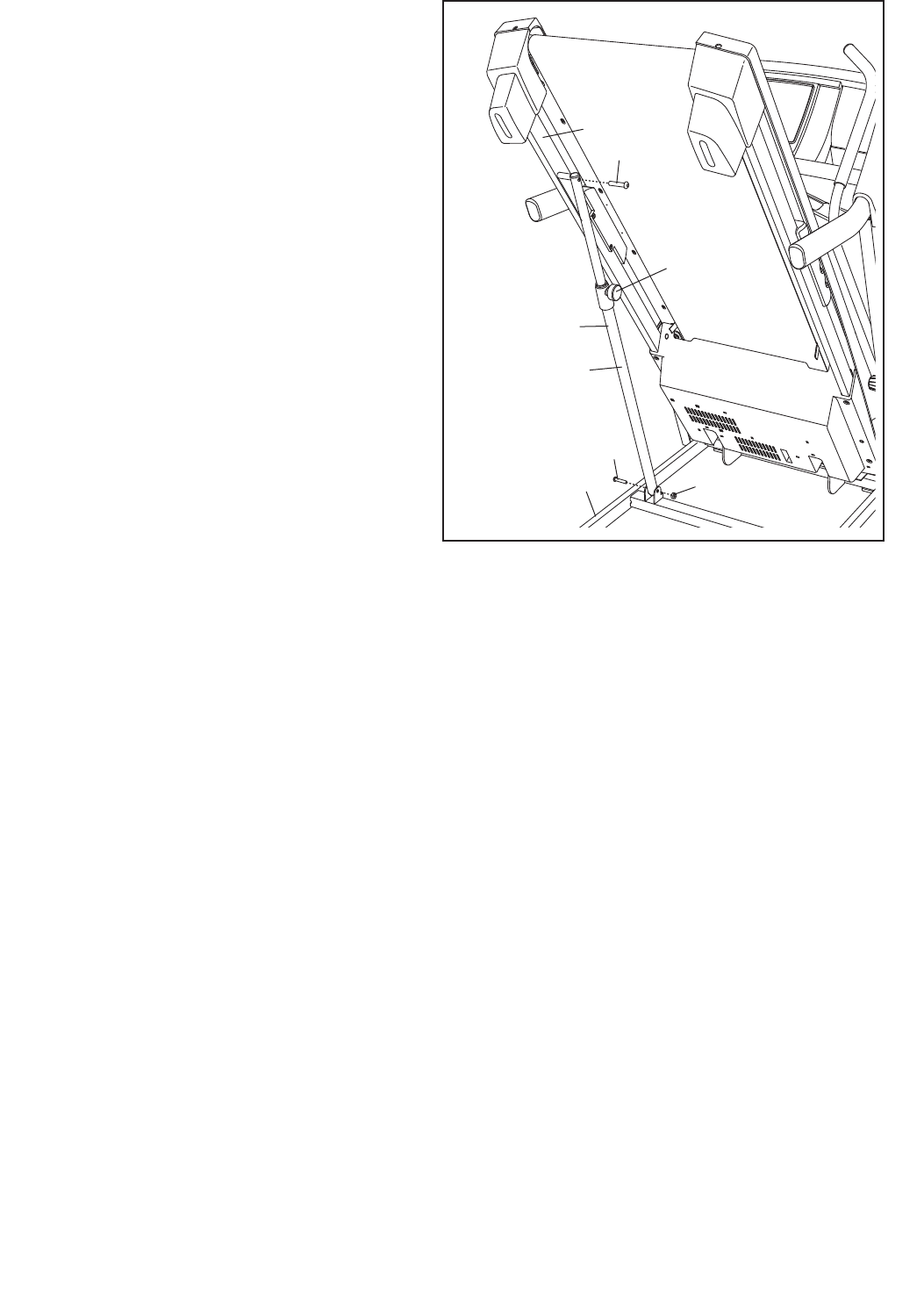

12. Raise the Frame (49) to the position shown.

Have a second person hold the Frame until

this step is completed.

Orient the Storage Latch (51) so that the large

barrel and the latch knob are oriented as shown.

Attach the lower end of the Storage Latch (51)

to the Base (80) with a 3/8" x 2" Bolt (13) and a

3/8" Nut (3).

Attach the upper end of the Storage Latch (51)

to the Frame (49) with a 3/8" x 1 3/4" Screw

(12).

Lower the Frame (not shown) (see HOW TO

LOWER THE TREADMILL FOR USE on page

21).

OPERATION AND ADJUSTMENT

HOW TO CONNECT THE POWER CORD

Use a Surge Suppressor

Your treadmill, like other electronic equipment, can be

damaged by sudden voltage changes in your home’s

power. Voltage surges, spikes, and noise interfer-

ence can result from weather conditions or from other

appliances being turned on or off. To decrease the

risk of damaging the treadmill, always use a surge

suppressor with the treadmill. To purchase a surge

suppressor, see precaution 12 on page 3.

Use only a surge suppressor that is UL 1449 listed as a

transient voltage surge suppressor (TVSS). The surge

suppressor must have a UL suppressed voltage rating

of 400 volts or less and a minimum surge dissipation of

450 joules. The surge suppressor must also be electri-

cally rated for 120 volts AC and 15 amps. There must

be a monitoring light on the surge suppressor to indi-

cate whether it is functioning properly. Failure to use a

properly functioning surge suppressor could result

in damage to the control system of the treadmill

and serious injury to users.

Plug in the Power Cord

The treadmill must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least

resistance for electric current to reduce the risk of elec-

tric shock. The treadmill power cord has a plug with a

grounding pin (see drawing 1 on this page).

Plug the power cord into a surge suppressor, and plug

the surge suppressor into an appropriate outlet that is

properly installed and grounded in accordance with all

local codes and ordinances. The outlet must be on a

nominal 120-volt circuit capable of carrying 15 or

more amps. To avoid overloading the circuit, do

not plug other electrical devices, except for low-

power devices such as cell phone chargers, into

the surge suppressor or into an outlet on the same

circuit. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

A temporary

adapter may

be used to

connect the

surge sup-

pressor to

a 2-pole

receptacle

if a properly

grounded

outlet is not

available.

The lug or wire extending from the adapter must

be connected with a metal screw to a permanent

ground such as a properly grounded outlet box cover.

Some 2-pole receptacle outlet box covers are not

grounded. Before using an adapter, contact a quali-

fied electrician to determine whether the outlet box

cover is grounded. The temporary adapter should

be used only until a properly grounded outlet can

be installed by a qualified electrician.

DANGER: Improper connection

of the power cord increases the risk of elec-

tric shock. Do not modify the plug—if it will

not fit an outlet, have a proper outlet installed

by a qualified electrician. If you are unsure

whether the treadmill is properly grounded,

contact a qualified electrician.

Surge

Suppressor

Grounding Pin

Grounded Outlet

Adapter

2-pole Receptacle

Lug

Grounding Pin

Metal

Screw

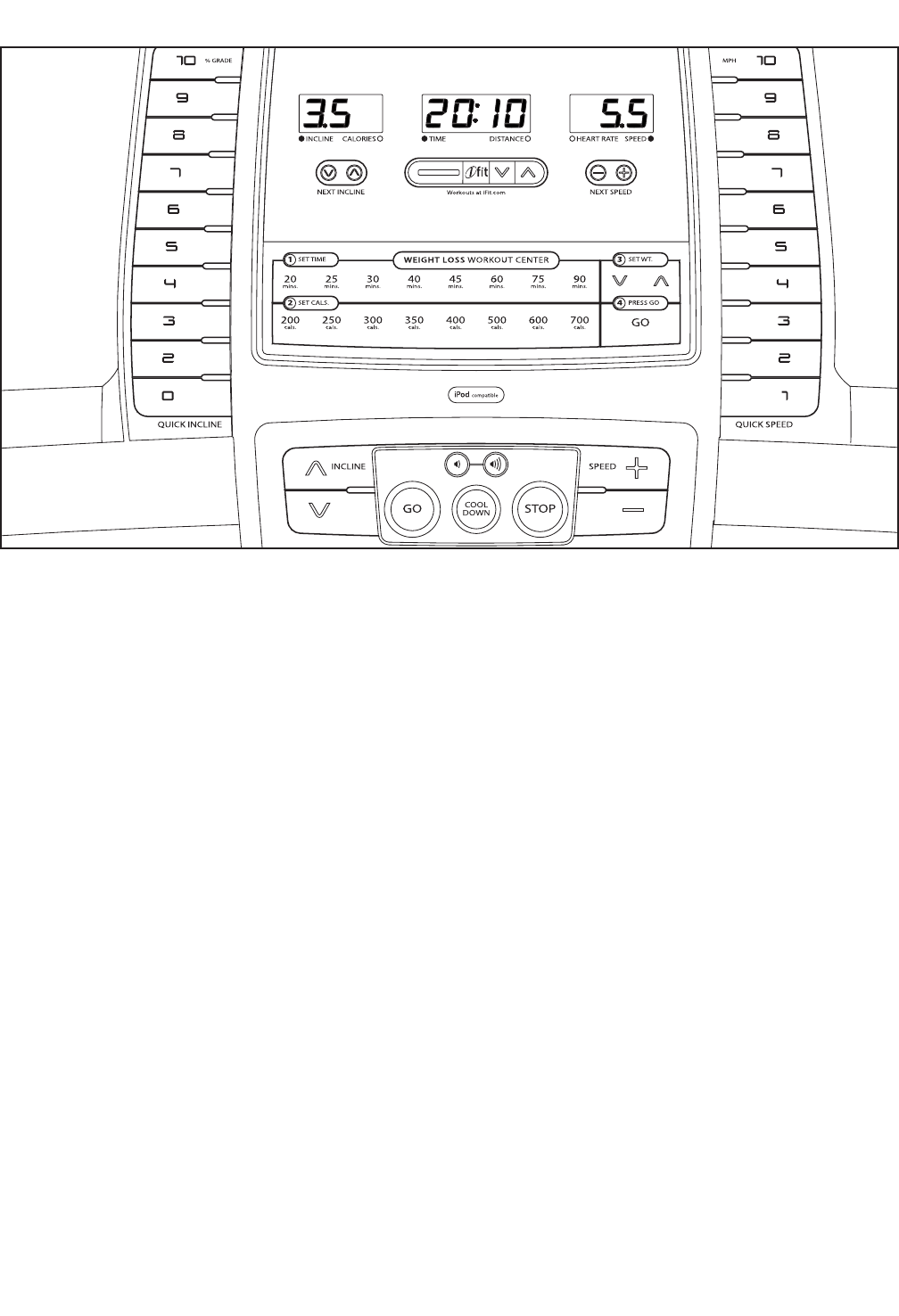

CONSOLE DIAGRAM

ETGT59610

(GGTL59610

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of

features designed to make your workouts more effec-

tive and enjoyable.

When the manual mode of the console is selected, you

can change the speed and incline of the treadmill with

the touch of a button. As you exercise, the console

will display instant exercise feedback. You can even

measure your heart rate using the handgrip heart rate

monitor.

In addition, the console offers a weight-loss workout

center,designedtocreatecustom-tworkoutstohelp

youmeetyourtnessgoals.Eachworkoutautomati-

cally controls the speed and incline of the treadmill as

it guides you through an effective exercise session.

The console also features the iFit interactive work-

out system. The iFit system accepts iFit cards with

workoutsthathelpyouachievespecictnessgoals.

For example, lose unwanted pounds with the 8-week

Weight Loss workout. iFit workouts automatically con-

trol the treadmill. iFit cards are available separately. To

purchase iFit cards at any time, go to www.iFit.com

or call the telephone number on the front cover of

this manual. iFit cards are also available at select

stores.

You can even listen to your favorite workout music or

audio books with the console’s premium stereo sound

system while you get in shape.

To turn on the power, see page 16. To use the

manual mode, see page 16. To use a weight-loss

workout, see page 18. To use an iFit workout, see

page 19. To use the cool-down mode, see page 19.

To use the information mode, see page 20. To use

the stereo sound system, see page 20. To use the

crosswalk arms, see page 20.

IMPORTANT: If there is a sheet of plastic on the

console, remove the plastic. To prevent damage

to the walking platform, wear clean athletic shoes

while using the treadmill. The rst time the tread-

mill is used, observe the alignment of the walking

belt, and center the walking belt if necessary (see

page 24).

Note: The console can display speed and distance

ineithermilesorkilometers.Tondoutwhichunitof

measurement is selected or to change the unit of mea-

surement, see THE INFORMATION MODE on page

20. For simplicity, all instructions in this section refer to

miles.

HOW TO TURN ON THE POWER

IMPORTANT: If the treadmill has been exposed to

cold temperatures, allow it to warm to room tem-

perature before turning on the power. If you do not

do this, you may damage the console displays or

other electrical components.

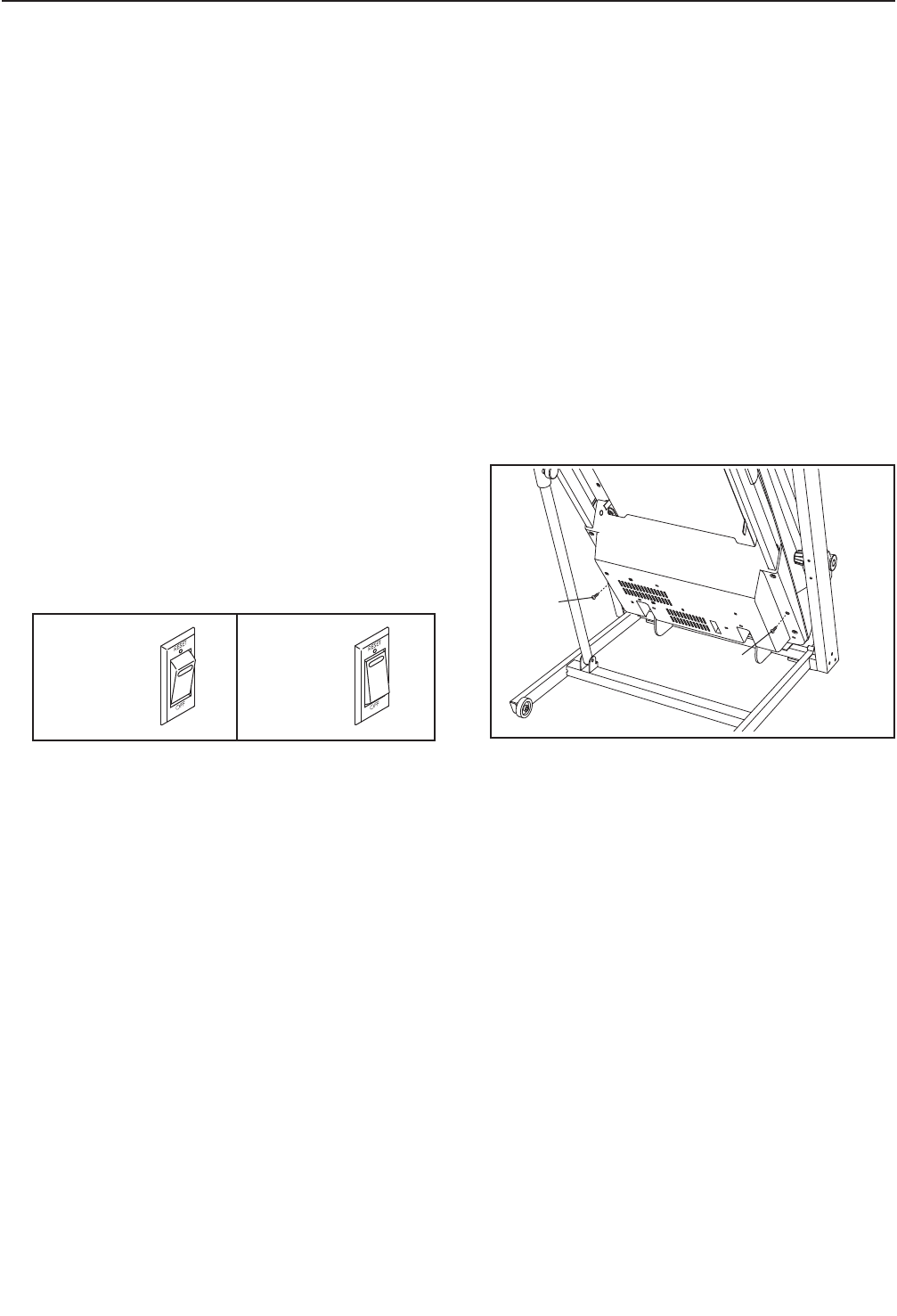

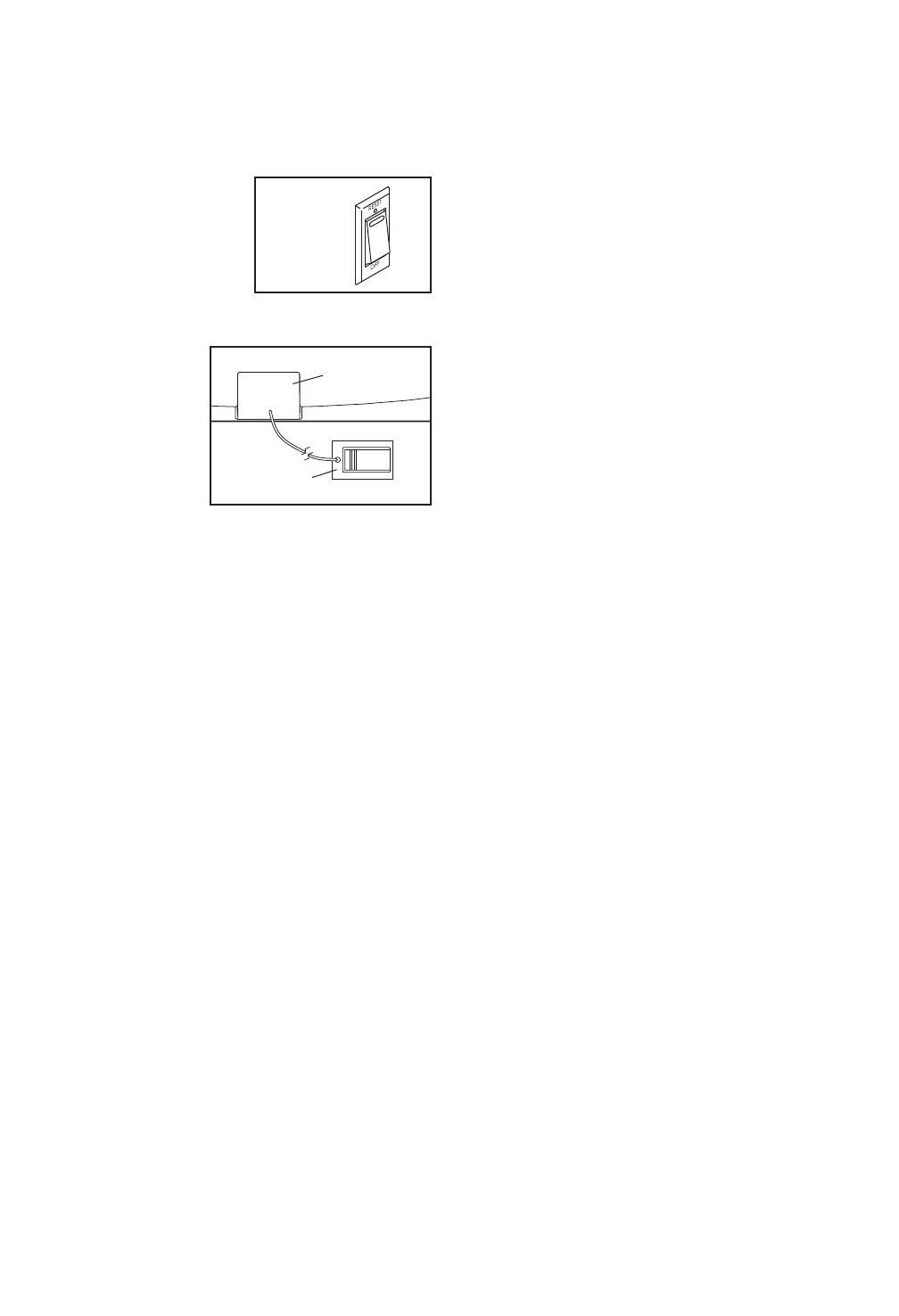

Plug in the power cord (see

page 14). Next, locate the

power switch on the tread-

mill frame near the power

cord. Make sure that the

switch is in the reset

position.

Next, stand on the

foot rails of the tread-

mill. Find the clip

attached to the key

and slide the clip onto

the waistband of your

clothes. Then, insert

the key into the con-

sole. After a moment,

the displays will light. IMPORTANT: In an emergency,

the key can be pulled from the console, causing

the walking belt to slow to a stop. Test the clip by

carefully taking a few steps backward; if the key

is not pulled from the console, adjust the position

of the clip. Note:Thersttimeyouinsertthekeyinto

the console, the incline will automatically rise to the

maximum incline level and then return to the minimum

incline level.

HOW TO USE THE MANUAL MODE

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is inserted, the manual mode will

be selected. If a weight-loss workout has been se-

lected, remove the key and then reinsert it.

3. Start the walking belt.

To start the walking belt, press the Go button, the

Speed increase button, or one of the Quick Speed

buttons numbered 1 through 10.

If you press the Go button or the Speed increase

button, the walking belt will begin to move at 1

mph. As you exercise, change the speed of the

walking belt as desired by pressing the Speed in-

crease and decrease buttons. Each time you press

one of the buttons, the speed setting will change

by 0.1 mph; if you hold down the button, the speed

setting will change in increments of 0.5 mph. Note:

After you press the buttons, it may take a moment

for the walking belt to reach the selected speed

setting.

If you press one of the numbered Quick Speed but-

tons, the walking belt will gradually change speed

until it reaches the selected speed setting. To se-

lect a speed setting that includes a decimal—such

as 3.5 mph—press two numbered buttons in suc-

cession. For example, to select a speed setting of

3.5 mph, press the 3 button and then immediately

press the 5 button.

To stop the walking belt, press the Stop button. To

restart the walking belt, press the Go button, the

Speed increase button, or one of the Quick Speed

buttons numbered 1 through 10.

Reset

ETGT59610

(GGTL59610

Clip

Key

4. Change the incline of the treadmill as desired.

To change the incline of the treadmill, press the

Incline increase and decrease buttons or one of

the numbered Quick Incline buttons. Each time you

press the incline increase or decrease button, the

incline will change by 0.5 percent. If you press one

of the numbered Quick Incline buttons, the tread-

mill will adjust to the selected incline setting. Note:

After you press the buttons, it may take a moment

for the treadmill to reach the selected incline

setting.

5. Monitor your progress with the displays.

Time/Distance display—When the manual mode

is selected, this display will show the elapsed time.

When a workout is selected, the display will show

the time remaining in the workout rather than the

elapsed time. This display will also show the dis-

tance that you have walked or run.

Incline/Calories display—This display will show

the incline setting for several seconds, each time

the incline changes. This display will also show the

approximate amount of calories you have burned.

Heart Rate/Speed display—This display will show

your heart rate when you use the handgrip heart

rate monitor. This display will also show the speed

of the walking belt.

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

6. Measure your heart rate if desired.

Before using the

handgrip heart

rate monitor,

rstremovethe

sheets of plastic

from the metal

contacts. In ad-

dition, make sure

that your hands

are clean.

To use the handgrip heart rate monitor, stand on

the foot rails and hold the metal contacts—avoid

moving your hands. When your pulse is detected,

your heart rate will be shown. For the most ac-

curate heart rate reading, continue to hold the

contacts for about 15 seconds.

7. When you are nished exercising, remove the

key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest

setting. The incline must be at the lowest set-

ting or you may damage the treadmill when you

fold it to the storage position. Next, remove the

key from the console and put it in a secure place.

 Whenyouarenishedusingthetreadmill,press

the power switch into the off position and unplug

the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may

wear prematurely.

Contacts

HOW TO USE A WEIGHT-LOSS WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 16.

2. Select a time for the workout.

 Toselectaweight-lossworkout,rstpressoneof

the Set Time buttons. The duration of the workout

will appear in the Time/Distance display.

3. Select the amount of calories you want to burn.

Next, press one of the Set Cals buttons. Note: The

console will create a custom workout based on the

duration of the workout and the amount of calories

you want to burn. You might not be able to select

a high amount of calories with a short duration for

the workout.

Note: The calorie goal is an estimate of the

number of calories that you will burn during

the workout. The actual number of calories that

you burn will depend on your metabolic rate. In

addition, if you manually change the speed or

incline of the treadmill during the workout, the

number of calories you burn will be affected.

4. Select a user weight.

One of the main factors that contributes to your

metabolic rate is your weight. Press the Set Wt. in-

crease and decrease buttons to enter your weight.

This will allow the console to calculate the amount

of calories you will burn more accurately. The con-

sole will adjust the workout’s intensity level accord-

ing to the weight entered.

5. Start the walking belt.

Press the Go button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rstspeedandinclinesettingsoftheworkout.Hold

the handrails and begin walking.

Each workout is divided into one-minute segments.

One speed setting and one incline setting are

programmed for each segment. Note: The same

speed setting and/or incline setting may be pro-

grammed for consecutive segments.

At the end of each segment, a series of tones will

sound. If a different speed or incline setting is pro-

grammed for the next segment, the Next Incline

and/or Next Speed indicator will alert you. The

speedand/orinclinesettingwillalsoashinthe

display to alert you. The treadmill will then auto-

matically adjust to the speed and incline settings

for the next segment.

The workout will continue in this way until the last

segmentoftheproleashesinthedisplayand

the last segment ends. The walking belt will then

slow to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually

override the setting by pressing the speed or in-

cline buttons; however, when the next segment

of the workout begins, the treadmill will auto-

matically adjust to the speed and incline set-

tings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Go but-

ton. The walking belt will begin to move at 1 mph.

When the next segment of the workout begins, the

treadmill will automatically adjust to the speed and

incline settings for the next segment.

6. Monitor your progress with the displays.

See step 5 on page 17.

7. Measure your heart rate if desired.

See step 6 on page 17.

8. When you are nished exercising, remove the

key from the console.

See step 7 on page 17.

HOW TO USE AN IFIT WORKOUT

To purchase iFit cards at any time, go to www.iFit.com

or call the telephone number on the front cover of this

manual. iFit cards are also available at select stores.

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page

16.

2. Insert an iFit card and select a workout.

To use an iFit workout, insert an iFit card into the

iFit slot; make sure that the iFit card is oriented

so that the metal contacts are face-down and are

inserted into the iFit slot. When the iFit card is cor-

rectly inserted, the iFit logo will light up.

Next, select an iFit workout by pressing the iFit

increase and decrease buttons next to the iFit

slot. When an iFit workout is selected, the workout

duration, the maximum incline setting, the name,

and the maximum speed setting of the workout will

appearinthedisplays.Inaddition,aproleofthe

speed settings of the workout will scroll across the

matrix.

Each iFit workout is divided into several one-min-

ute segments. One speed setting and one incline

setting are programmed for each segment.

Note: The same speed and/or incline setting may

be programmed for consecutive segments.

3. Start the walking belt.

Press the Go button or the Speed increase button

to start the workout. A moment after you press the

button, the treadmill will automatically adjust to the

rstspeedandinclinesettingsoftheworkout.Hold

the handrails and begin walking.

During the workout, the voice of a personal trainer

will guide you through the workout.

If the speed or incline setting for the current seg-

ment is too high or too low, you can manually over-

ride the setting by pressing the Speed or Incline

buttons; however, when the next segment be-

gins, the treadmill will automatically adjust to

the speed and incline settings for the next

segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Go button

or the Speed increase button. The walking belt will

begin to move at 1 mph. When the next segment of

the workout begins, the treadmill will automatically

adjust to the speed and incline settings for the next

segment.

4. Monitor your progress with the displays.

See step 5 on page 17.

5. Measure your heart rate if desired.

See step 6 on page 17.

6. When you are nished exercising, remove the

key from the console.

See step 7 on page 17.

CAUTION: Always remove iFit cards from the

iFit slot when you are not using them.

THE COOL-DOWN MODE

To select the cool-down mode, press the Cool Down

button. The walking belt will begin to slow down incre-

mentally,onceperminuteforveminutes.Thewalk-

ing belt will then slow to a stop.

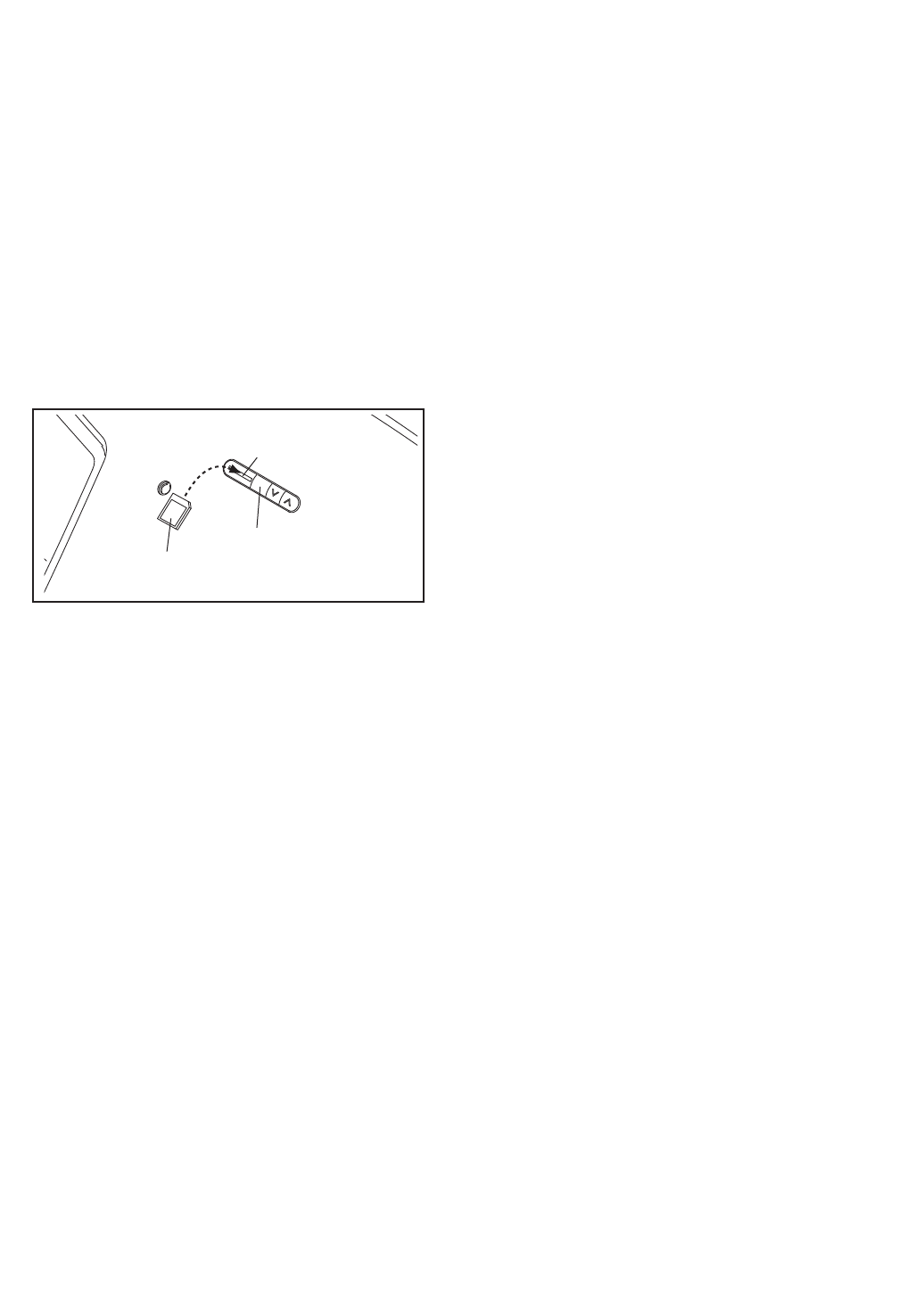

iFit Slot

iFit Card

iFit Logo

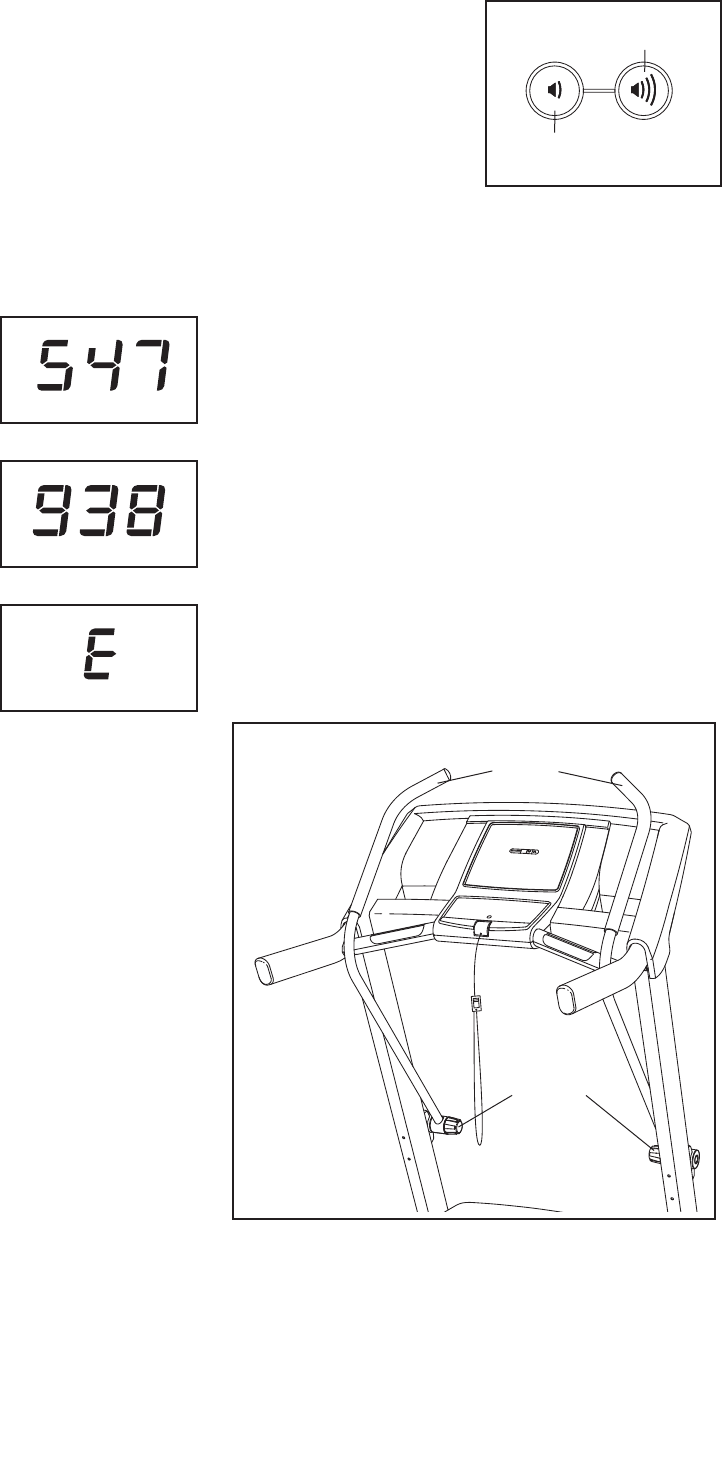

THE INFORMATION MODE

The console features an information mode that keeps

track of the total number of hours that the treadmill has

been used and the total distance that the walking belt

has moved. The information mode also allows you to

select miles or kilometers as the unit of measurement.

To select the information mode, hold down the Stop

button while inserting the key into the console and then

release the Stop button. When the information mode is

selected, the following information will be shown:

The Incline/Calories display

will show the total number

of hours the treadmill has

been used.

The Time/Distance display

will show the total number

of miles (or kilometers) that

the walking belt has moved.

An “E” for English miles or

an “M” for metric kilometers

will appear in the Heart

Rate/Speed display. Press

the Speed increase button

to change the unit of mea-

surement if desired.

To exit the information mode, remove the key from the

console.

HOW TO USE THE STEREO SOUND SYSTEM

To play music or audio books through the console’s

stereo speakers, you must connect your MP3 player,

CD player, or other personal audio player to the con-

sole through the audio jack.

To use the MP3 jack, plug your audio wire into the

MP3 jack. Then, plug your audio wire into a jack

on your MP3 player, CD player, or other personal

audio player. Make sure that the audio wire is fully

inserted.

Next, press the play but-

ton on your MP3 player,

CD player, or other

personal audio player.

Adjust the volume on

your personal audio

player or press the

Volume increase and

decrease buttons on the

console.

If you are using a personal CD player and the CD

skips,settheCDplayerontheoororanotheratsur-

face instead of on the console.

HOW TO USE THE CROSSWALK ARMS

As you walk on the treadmill, you can hold the hand-

rails or use the crosswalk arms. To exercise your

arms, shoulders, and back for a total body workout,

move the crosswalk arms forward and back as you

walk on the treadmill.

To vary the intensity of your upper body exercise, the

resistance of the crosswalk arms can be adjusted.

To increase the resistance, turn the resistance knobs

clockwise; to decrease the resistance, turn the knobs

counterclockwise.

Volume Decrease

Volume Increase

Resistance

Knobs

Crosswalk

Arms

HOW TO FOLD THE TREADMILL

To avoid damaging the treadmill, adjust the incline

to the lowest position before you fold the treadmill.

Then, remove the key and unplug the power cord.

CAUTION: You must be able to safely lift 45 lbs. (20

kg) to raise, lower, or move the treadmill.

1. Holdthemetalframermlyinthelocationshown

by the arrow below. CAUTION: Do not hold the

frame by the plastic foot rails. Bend your legs

and keep your back straight.

2. Raise the frame until the latch knob locks in the

storage position. CAUTION: Make sure that the

latch knob locks.

Toprotecttheoororcarpet,placeamatunderthe

treadmill. Keep the treadmill out of direct sunlight.

Do not leave the treadmill in the storage position in

temperatures above 85° F (30° C).

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the

left. CAUTION: Make sure that the latch knob is

locked in the storage position. Moving the treadmill

may require two people.

1. Hold the frame and one of the handrails, and place

one foot against a wheel.

2. Pull back on the handrail until the treadmill will roll

on the wheels, and carefully move it to the desired

location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame,

and do not move the treadmill over an uneven

surface.

3. Place one foot against a wheel, and carefully lower

the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the tread-

mill frame with your left hand. Then, pull the latch

knob to the right. IMPORTANT: Do not turn the

latch knob. If necessary, push the frame forward

slightly. Pivot the frame downward a few inches,

and release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmlywithbothhands,andlowerittotheoor.

CAUTION: Do not hold the frame by the plastic

foot rails, and do not drop the frame. Bend your

legs and keep your back straight.

HOW TO FOLD AND MOVE THE TREADMILL

Latch

Knob

Frame

Handrail

Frame

Wheel

Most treadmill problems can be solved by following

the simple steps below. Find the symptom that

applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor is

plugged into a properly-grounded outlet (see page

14). Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedonpage

14. IMPORTANT: The treadmill is not compat-

ible with GFCI-equipped outlets and may not be

compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes

as shown, the switch has tripped. To reset the

powerswitch,waitforveminutesandthenpress

the switch back in.

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

Iftheswitchhastripped,waitforveminutesand

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

powercordispluggedin,unplugit,waitforve

minutes, and then plug it back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The displays of the console do not

function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Place the treadmill in

the storage position (see HOW TO FOLD THE

TREADMILL on page 21).

Next, remove the two indicated #8 x 3/4" Screws

(6).

TROUBLESHOOTING

Reset

Tripped

Lower the treadmill (see HOW TO LOWER THE

TREADMILL FOR USE on page 21). Remove

the three #8 x 3/4" Screws (6). Carefully slide the

Motor Hood (57) off.

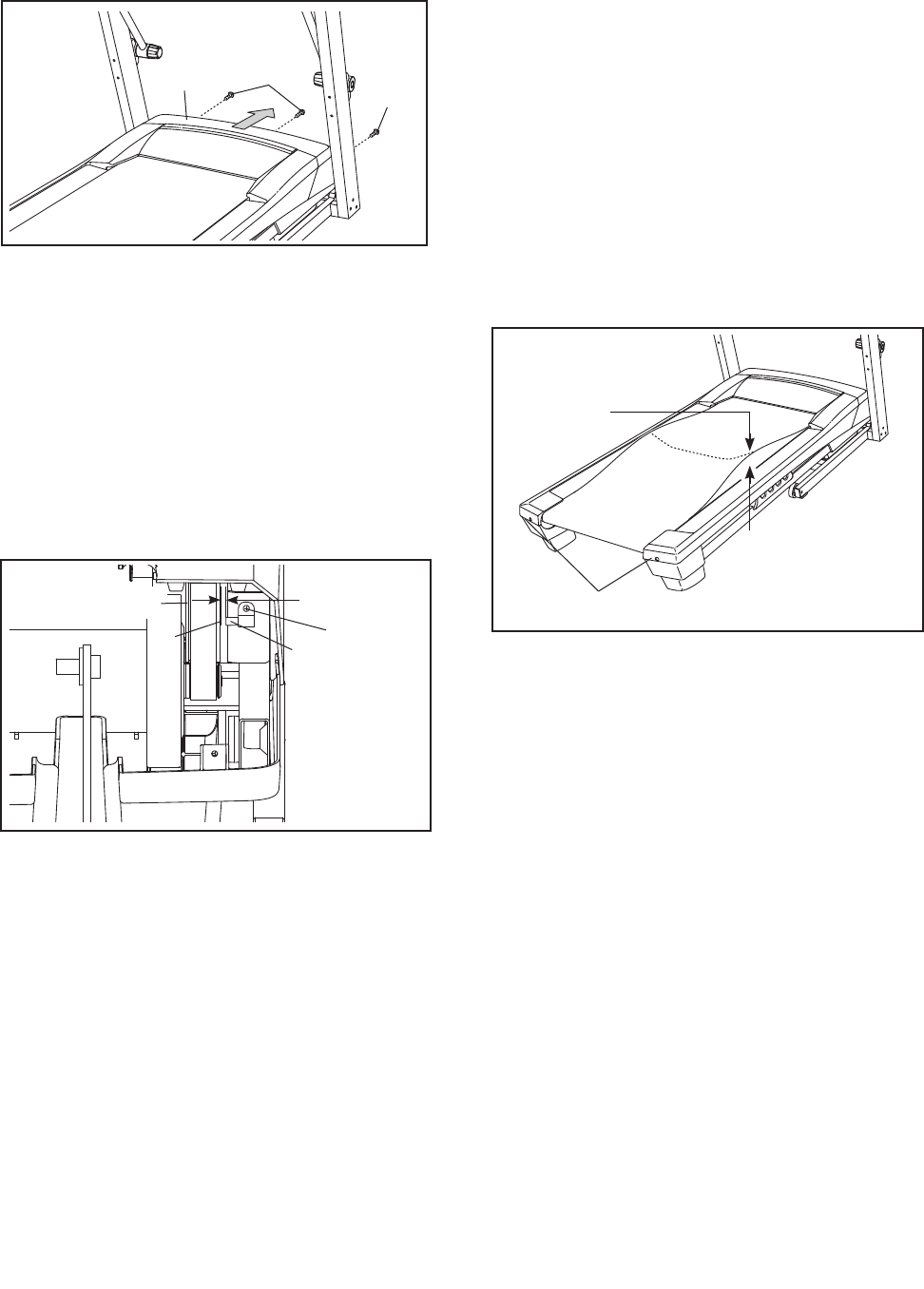

Locate the Reed Switch (95) and the Magnet (44)

on the left side of the Pulley (43). Turn the Pulley

until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet

and the Reed Switch is about 1/8 in. (3 mm). If

necessary, loosen the #8 x 3/4" Truss Head Screw

(19), move the Reed Switch slightly, and then re-

tighten the Screw. Reattach the Motor Hood (not

shown)withtheve#8x3/4" Screws (not shown)

and run the treadmill for a few minutes to check for

a correct speed reading.

SYMPTOM: The incline of the treadmill does not

change correctly

a. With the key in the console, press one of the

Incline buttons. While the incline is changing,

remove the key. After a few seconds, reinsert

the key. The treadmill will automatically rise to the

maximum incline level and then return to the mini-

mum level. This will recalibrate the incline system.

SYMPTOM: The walking belt slows when walked on

a. Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedonpage

14.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may

become damaged. Remove the key and UNPLUG

THE POWER CORD. Using the hex key, turn both

idler roller screws counterclockwise, 1/4 of a turn.

When the walking belt is properly tightened, you

should be able to lift each edge of the walking belt

2 to 3 in. (5 to 7 cm) off the walking platform. Be

careful to keep the walking belt centered. Then,

plug in the power cord, insert the key, and run the

treadmill for a few minutes. Repeat until the walk-

ing belt is properly tightened.

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the

walking belt or the walking platform unless in-

structed to do so by an authorized service rep-

resentative. Such substances may deteriorate

the walking belt and cause excessive wear. If

you suspect that the walking belt needs more lubri-

cant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

Idler Roller Screws

2–3 in.

57 6

Front

View

1/8 in.

SYMPTOM: The walking belt is off-center or slips

when walked on

a. If the walking belt is off-center,rstremovethe

key and UNPLUG THE POWER CORD. If the

walking belt has shifted to the left, use the hex

key to turn the left idler roller screw clockwise 1/2

of a turn; if the walking belt has shifted to the

right, turn the left idler roller screw counterclock-

wise 1/2 of a turn. Be careful not to overtighten the

walking belt. Then, plug in the power cord, insert

the key, and run the treadmill for a few minutes.

Repeat until the walking belt is centered.

b. If the walking belt slips when walked on,rstre-

move the key and UNPLUG THE POWER CORD.

Using the hex key, turn both idler roller screws

clockwise, 1/4 of a turn. When the walking belt is

correctly tightened, you should be able to lift each

edge of the walking belt 2 to 3 in. (5 to 7 cm) off

the walking platform. Be careful to keep the walk-

ing belt centered. Then, plug in the power cord,

insert the key, and carefully walk on the treadmill

for a few minutes. Repeat until the walking belt is

properly tightened.

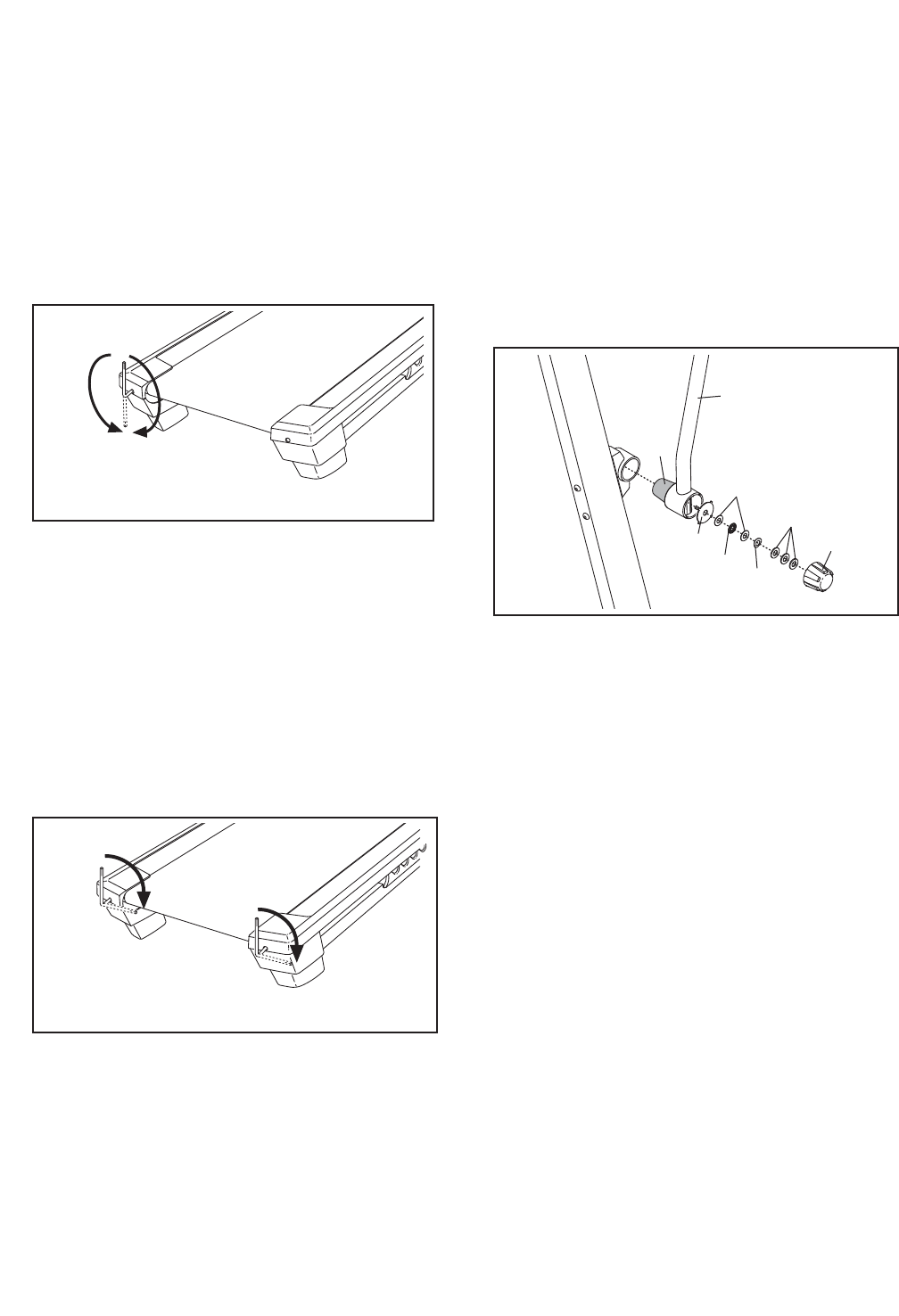

SYMPTOM: The upperbody arms squeak during

use

a. (Note: Correcting this symptom requires a small

amount of marine grease, available at hardware

stores.) Turn the resistance knob (A) counterclock-

wise and remove it. Next, remove the resistance

cone (B) and the upper body arm (C), along with

the resistance plate (D), thrust washers (E), thrust

bearing (F), spring washer (G), and washers (H).

(Note: If the resistance plate [D] comes out of the

resistance cone (B), press it back in.) Apply a thin

layer of white marine grease to the outer surface of

the resistance cone (B). Then reattach all parts in

the order shown below.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise—never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

Key No. Qty. Description Key No. Qty. Description

PART LIST Model No. GGCTL59611.0 R0612A

1 5 #8 x 1/2" Ground Screw

2 2 3/8" x 2 1/2" Bolt

3 5 3/8" Nut

4 6 3/8" x 3 1/2" Screw

5 10 3/8" Star Washer

6 39 #8 x 3/4" Screw

7 8 5/16" x 1" Bolt

8 8 5/16" Star Washer

9 4 1/4" x 1" Screw

10 4 1/4" x 4 1/2" Screw

11 4 1/4" Washer

12 1 3/8" x 1 3/4" Screw

13 1 3/8" x 2" Bolt

14 2 1/4" x 2 1/2" Screw

15 2 3/8" x 1 3/8" Bolt

16 2 1/2" x 2 1/4" Bolt

17 2 1/2" Nut

18 3 Hood Clip

19 17 #8 x 3/4" Truss Head Screw

20 2 3/8" x 1 1/2" Bolt

21 2 3/8" Jam Nut

22 2 Incline Motor Spacer

23 2 1/4" x 3/8" Screw

24 8 #8 x 7/16" Screw

25 2 5/16" x 1 1/4" Bolt

26 2 #10 x 3/4" Screw

27 2 5/16" x 1 3/4" Bolt

28 2 5/16" Washer

29 4 5/16" Nut

30 1 Hood Accent

31 2 Upper Body Arm Foam

32 1 1/4" x 1 3/4" Screw

33 2 5/16” Cage Nut

34 1 Hex Key

35 1 5/32" Hex Key

36 2 Platform Cushion

37 1 Left Foot Rail

38 1 Latch Warning Decal

39 1 Walking Platform

40 1 Walking Belt

41 2 Belt Guide

42 2 Rubber Spacer

43 1 Drive Roller/Pulley

44 1 Magnet

45 1 Reed Switch Clamp

46 1 Drive Motor Belt

47 1 Drive Motor

48 2 Frame Spacer

49 1 Frame

50 1 Right Foot Rail

51 1 Storage Latch

52 1 Right Rear Foot

53 1 Left Rear Foot

54 2 Resistance Assembly

55 2 Upper Body Arm Insert

56 1 Idler Roller

57 1 Hood

58 2 Incline Frame Spacer

59 1 Incline Frame

60 1 Incline Motor

61 1 Controller Ground Wire

62 1 Controller

63 3 Wire Tie

64 1 Belly Pan Plate

65 1 Power Switch

66 1 Power Cord

67 2 Grommet

68 1 Belly Pan

69 2 Handrail Insert

70 1 Upright Wire

71 1 Left Handrail

72 1 Right Handrail

73 2 Handrail Cap

74 2 Handrail Tube Cap

75 1 Left Upright

76 1 Right Upright

77 4 Base Cap

78 2 Caution Decal

79 4 Base Pad

80 1 Base

81 2 Wheel

82 1 Key/Clip

83 1 Console Base

84 2 Speaker

85 0 Not Used

86 1 Console

87 1 Left Tray

88 1 Right Tray

89 1 Console Ground Wire

90 1 Pulse Bar Bottom

91 2 Console Wire Tie

92 0 Not Used

93 2 Upper Body Arm Cap

94 4 #8 x 1/2" Pan Head Screw

95 1 Reed Switch

96 8 #8 x 1" Tek Screw

97 12 #3 x 1/4" Screw

98 1 Left Handrail Tube

99 1 Right Handrail Tube

100 1 Left Upper Body Arm

Key No. Qty. Description Key No. Qty. Description

101 1 Right Upper Body Arm

102 2 Base Pad Spacer

103 1 Left Speaker Cover

104 1 Right Speaker Cover

105 1 Left Speaker Back

106 1 Right Speaker Back

107 1 French Latch Decal

* – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

EXPLODED DRAWING A

107

Model No. GGCTL59611.0 R0612A

EXPLODED DRAWING B

Model No. GGCTL59611.0 R0612A

EXPLODED DRAWING C

77 102

102

100

733

101

631

Model No. GGCTL59611.0 R0612A

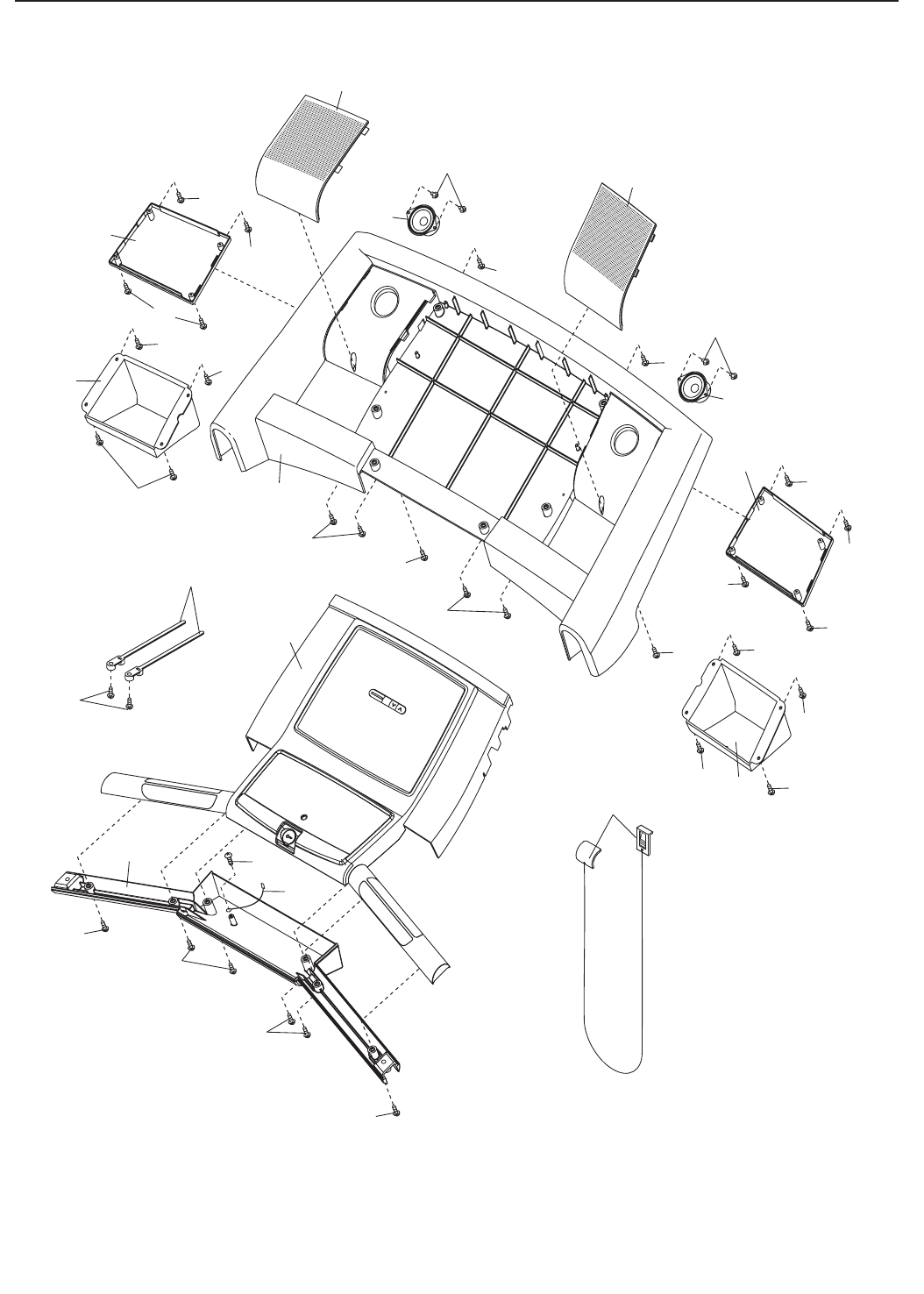

EXPLODED DRAWING D

106

103

105

104

Model No. GGCTL59611.0 R0612A

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)

•thenameoftheproduct(seethefrontcoverofthismanual)

•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODEDDRAWING

near the end of this manual)

ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,

under normal use and service conditions. The frame is warranted for a lifetime. The drive motor is war-

rantedfortwenty-ve(25)yearsfromthedateofpurchase.Partsandlaborarewarrantedforone(1)year

from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty

is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service

centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product

is shipped to a service center, freight charges to and from the service center will be the customer’s re-

sponsibility. If replacement parts are shipped while the product is under warranty, the customer will be

responsible for a minimal handling charge. For in-home service, the customer will be responsible for a

minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will

automatically be voided if the product is used as a store display model, if all instructions in this manual

are not followed, if the product is abused or improperly or abnormally used, or if the product is used for

commercialorrentalpurposes.Nootherwarrantybeyondthatspecicallysetforthaboveisauthorized

by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother

consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset

forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to the customer.

Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromprovince

to province.

ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8

LIMITED WARRANTY

Golds Gym Crosswalk 570 Ggctl59611 0 Users Manual
