Gomtel Science and Technology G69 Smart Watch User Manual

Shenzhen Gomtel Science&Technology; Co., Ltd. Smart Watch

User manual

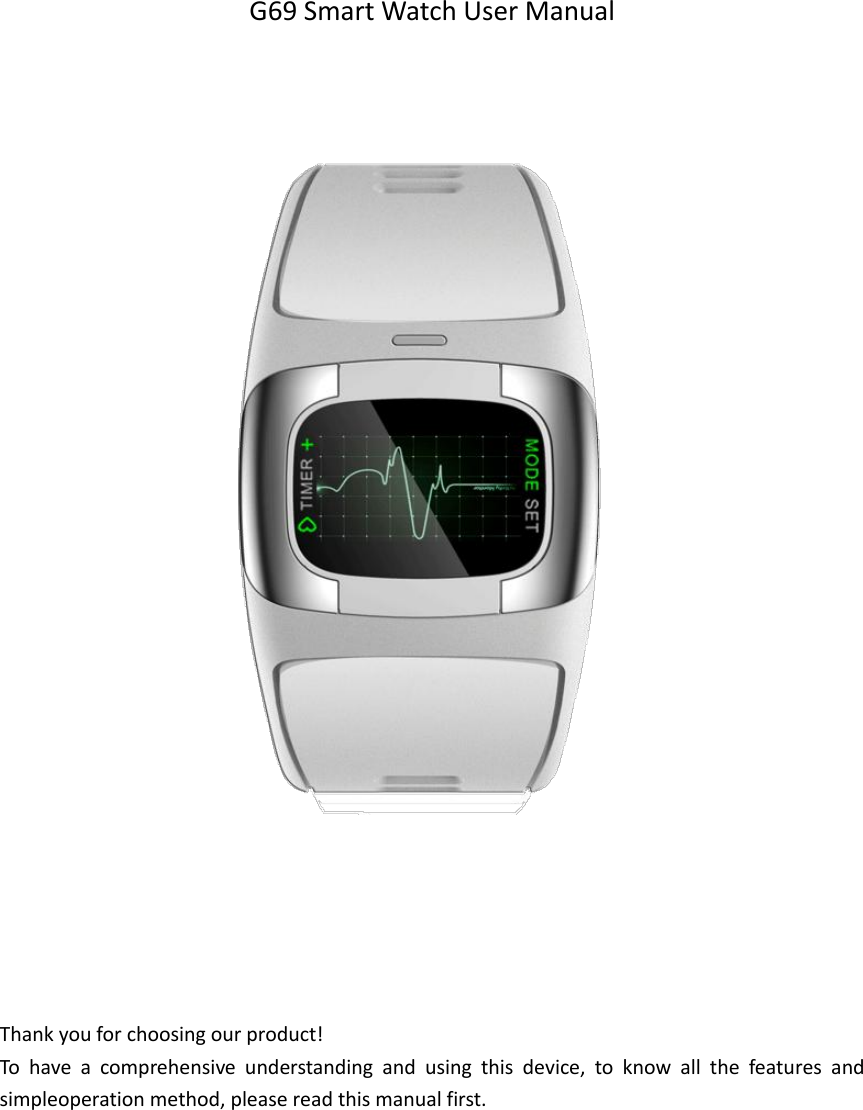

G69 Smart Watch User Manual Thank you for choosing our product! To have a comprehensive understanding and using this device, to know all the features and simpleoperation method, please read this manual first.

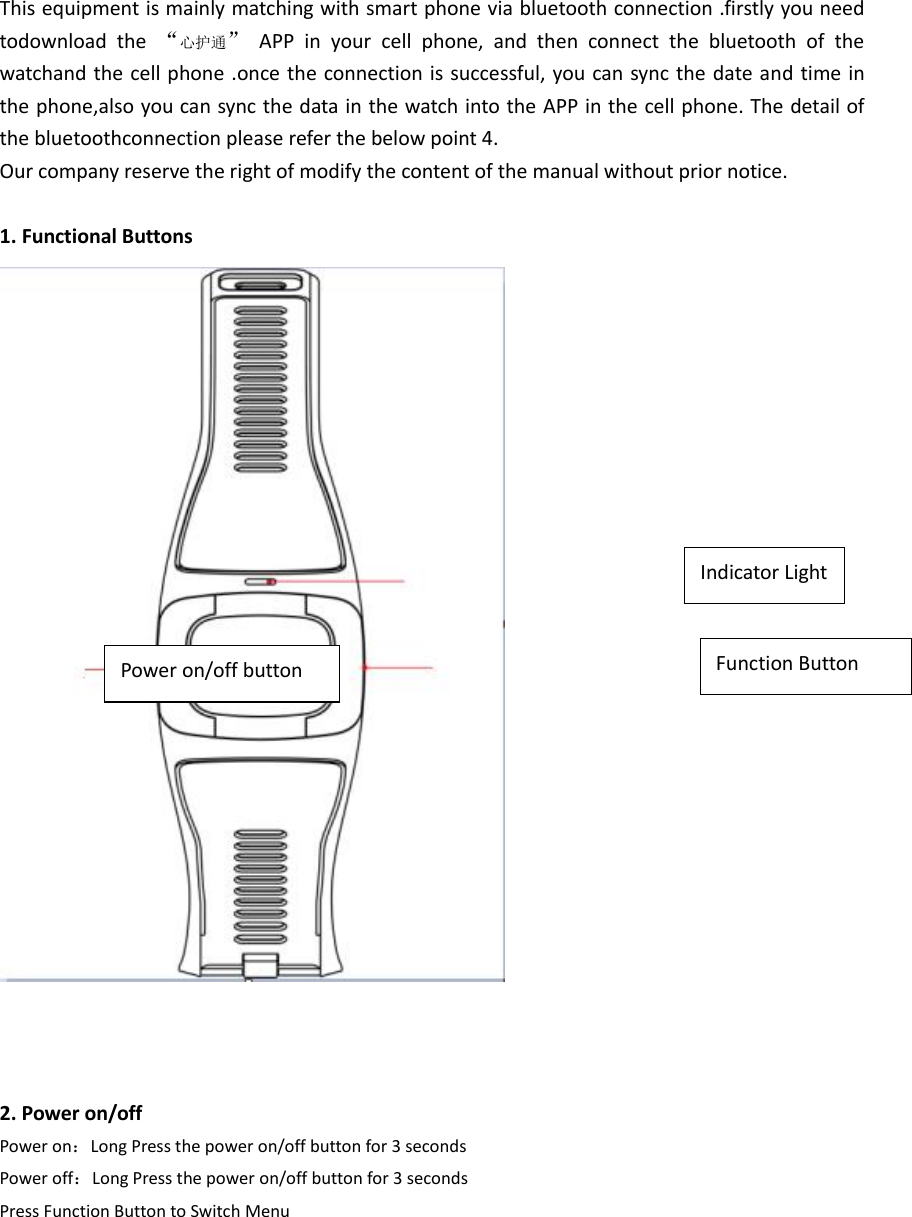

Indicator Light This equipment is mainly matching with smart phone via bluetooth connection .firstly you need todownload the “心护通” APP in your cell phone, and then connect the bluetooth of the watchand the cell phone .once the connection is successful, you can sync the date and time in the phone,also you can sync the data in the watch into the APP in the cell phone. The detail of the bluetoothconnection please refer the below point 4. Our company reserve the right of modify the content of the manual without prior notice. 1. Functional Buttons 2. Power on/off Power on：Long Press the power on/off button for 3 seconds Power off：Long Press the power on/off button for 3 seconds Press Function Button to Switch Menu Power on/off button Function Button

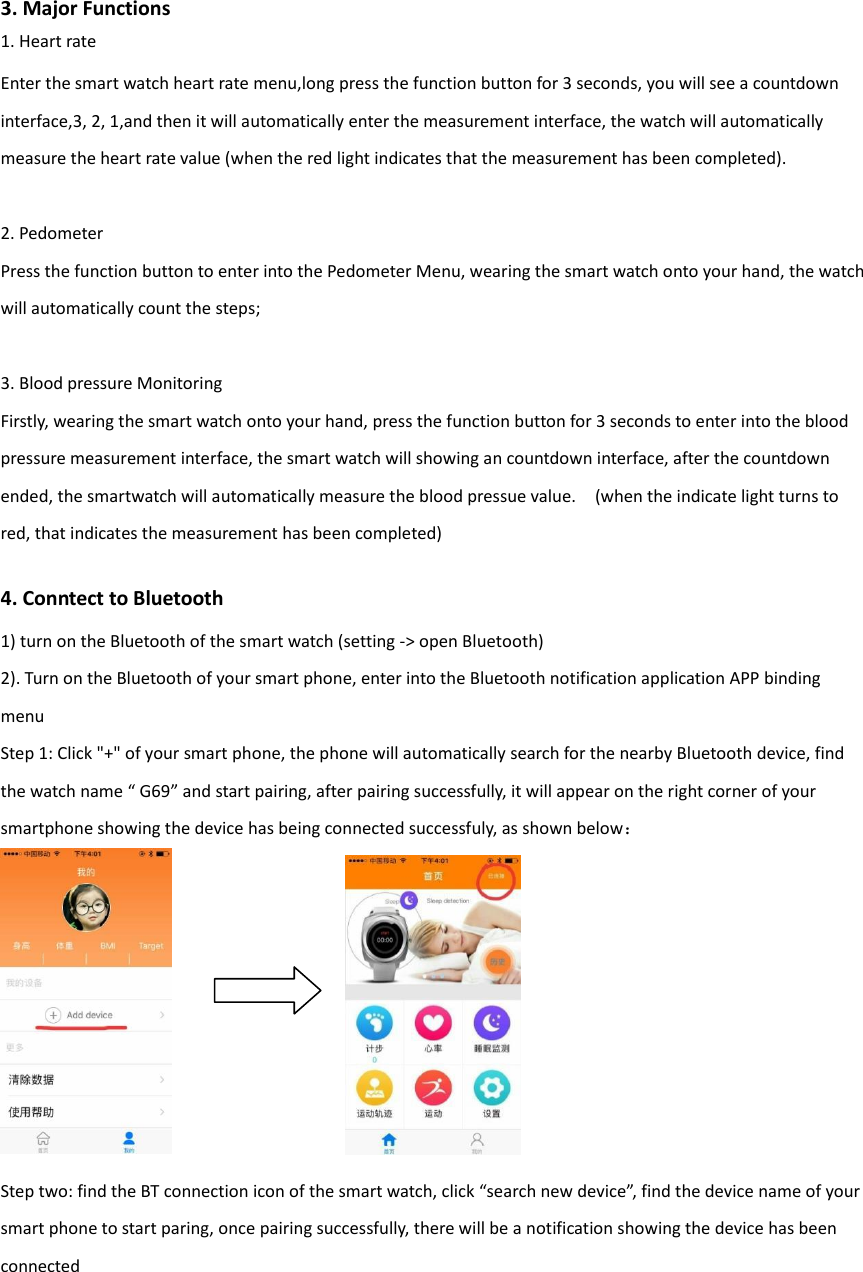

3. Major Functions 1. Heart rate Enter the smart watch heart rate menu,long press the function button for 3 seconds, you will see a countdown interface,3, 2, 1,and then it will automatically enter the measurement interface, the watch will automatically measure the heart rate value (when the red light indicates that the measurement has been completed). 2. Pedometer Press the function button to enter into the Pedometer Menu, wearing the smart watch onto your hand, the watch will automatically count the steps; 3. Blood pressure Monitoring Firstly, wearing the smart watch onto your hand, press the function button for 3 seconds to enter into the blood pressure measurement interface, the smart watch will showing an countdown interface, after the countdown ended, the smartwatch will automatically measure the blood pressue value. (when the indicate light turns to red, that indicates the measurement has been completed) 4. Conntect to Bluetooth 1) turn on the Bluetooth of the smart watch (setting -> open Bluetooth) 2). Turn on the Bluetooth of your smart phone, enter into the Bluetooth notification application APP binding menu Step 1: Click "+" of your smart phone, the phone will automatically search for the nearby Bluetooth device, find the watch name “ G69” and start pairing, after pairing successfully, it will appear on the right corner of your smartphone showing the device has being connected successfuly, as shown below： Step two: find the BT connection icon of the smart watch, click “search new device”, find the device name of your smart phone to start paring, once pairing successfully, there will be a notification showing the device has been connected

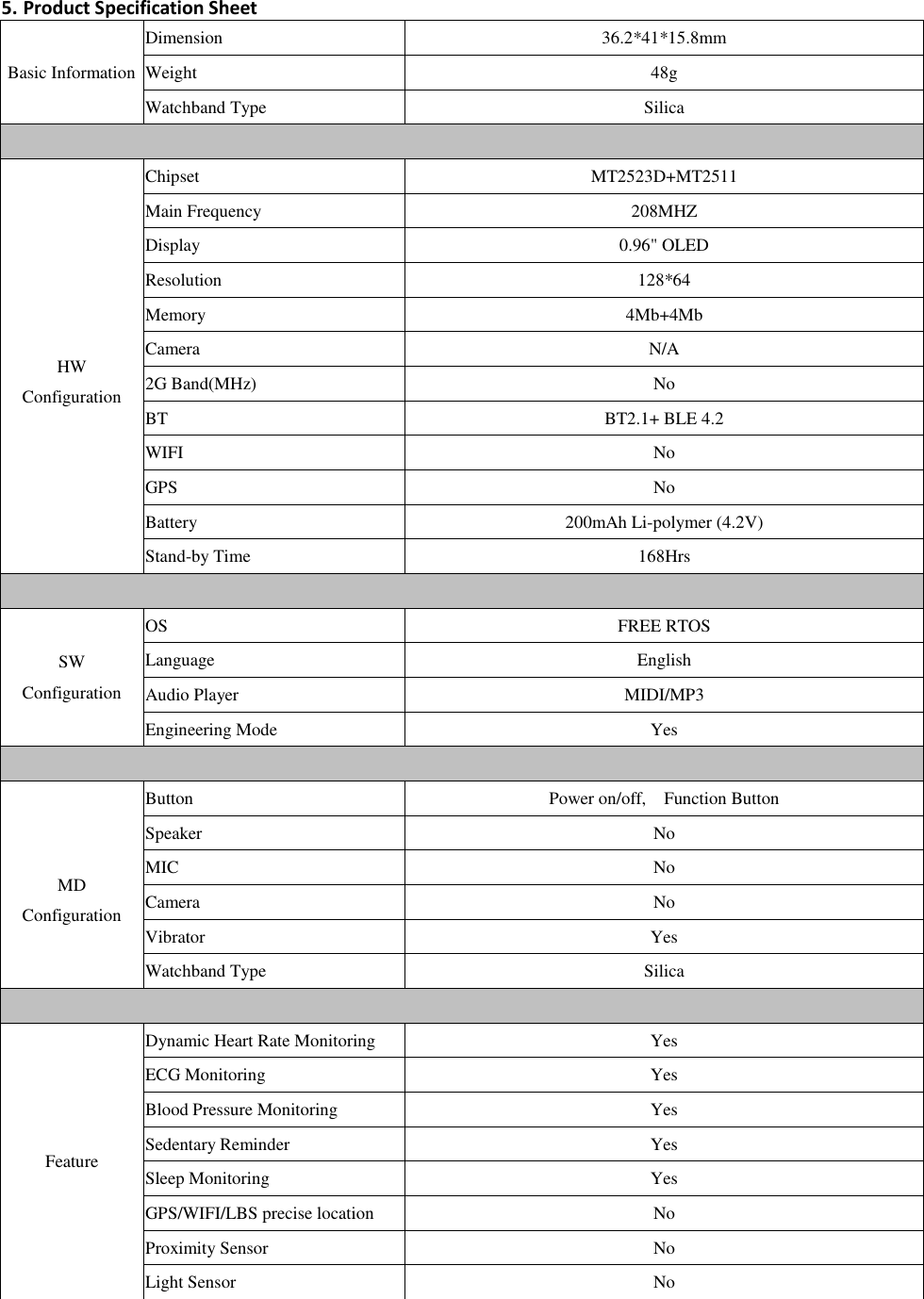

5. Product Specification Sheet Basic Information Dimension 36.2*41*15.8mm Weight 48g Watchband Type Silica HW Configuration Chipset MT2523D+MT2511 Main Frequency 208MHZ Display 0.96" OLED Resolution 128*64 Memory 4Mb+4Mb Camera N/A 2G Band(MHz) No BT BT2.1+ BLE 4.2 WIFI No GPS No Battery 200mAh Li-polymer (4.2V) Stand-by Time 168Hrs SW Configuration OS FREE RTOS Language English Audio Player MIDI/MP3 Engineering Mode Yes MD Configuration Button Power on/off, Function Button Speaker No MIC No Camera No Vibrator Yes Watchband Type Silica Feature Dynamic Heart Rate Monitoring Yes ECG Monitoring Yes Blood Pressure Monitoring Yes Sedentary Reminder Yes Sleep Monitoring Yes GPS/WIFI/LBS precise location No Proximity Sensor No Light Sensor No

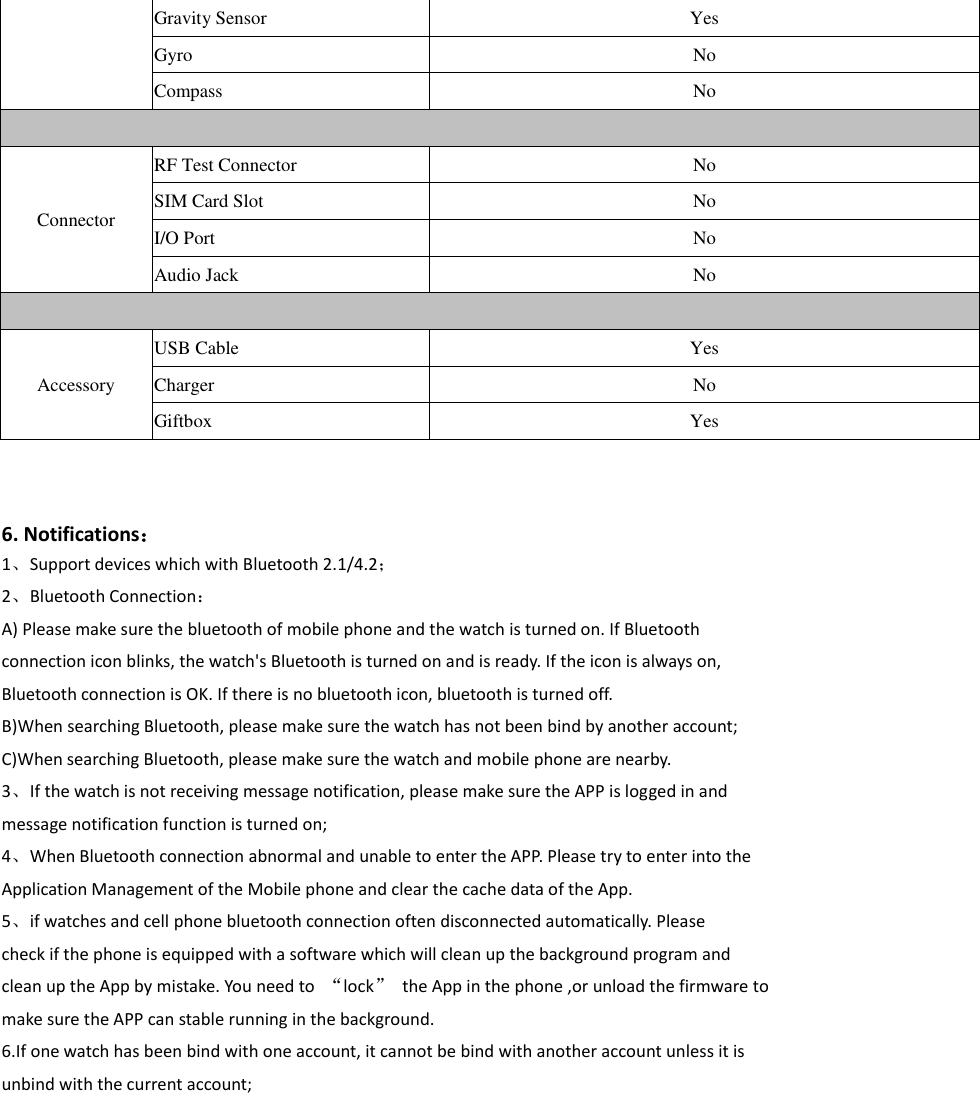

Gravity Sensor Yes Gyro No Compass No Connector RF Test Connector No SIM Card Slot No I/O Port No Audio Jack No Accessory USB Cable Yes Charger No Giftbox Yes 6. Notifications： 1、Support devices which with Bluetooth 2.1/4.2； 2、Bluetooth Connection： A) Please make sure the bluetooth of mobile phone and the watch is turned on. If Bluetooth connection icon blinks, the watch's Bluetooth is turned on and is ready. If the icon is always on, Bluetooth connection is OK. If there is no bluetooth icon, bluetooth is turned off. B)When searching Bluetooth, please make sure the watch has not been bind by another account; C)When searching Bluetooth, please make sure the watch and mobile phone are nearby. 3、If the watch is not receiving message notification, please make sure the APP is logged in and message notification function is turned on; 4、When Bluetooth connection abnormal and unable to enter the APP. Please try to enter into the Application Management of the Mobile phone and clear the cache data of the App. 5、if watches and cell phone bluetooth connection often disconnected automatically. Please check if the phone is equipped with a software which will clean up the background program and clean up the App by mistake. You need to “lock” the App in the phone ,or unload the firmware to make sure the APP can stable running in the background. 6.If one watch has been bind with one account, it cannot be bind with another account unless it is unbind with the current account;
7. Warranty1. If it appears quality problems caused by manufacturing, materials, and design within one year（sincethe day of purchase）, we will offer free warranty. Premise is using normally and correctly. 2. About the fault caused by the user personal reasons, we don't offer free warranty, as follows:1). Disassemble or refit the product. 2). Caused by immodesty drop 3). All artificial damage or misuse (such as: the external force shatter,scratch damage of peripheral components, etc.), all these are beyond the scope of the warranty. If you met problems during use, please contact with our customer service This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
