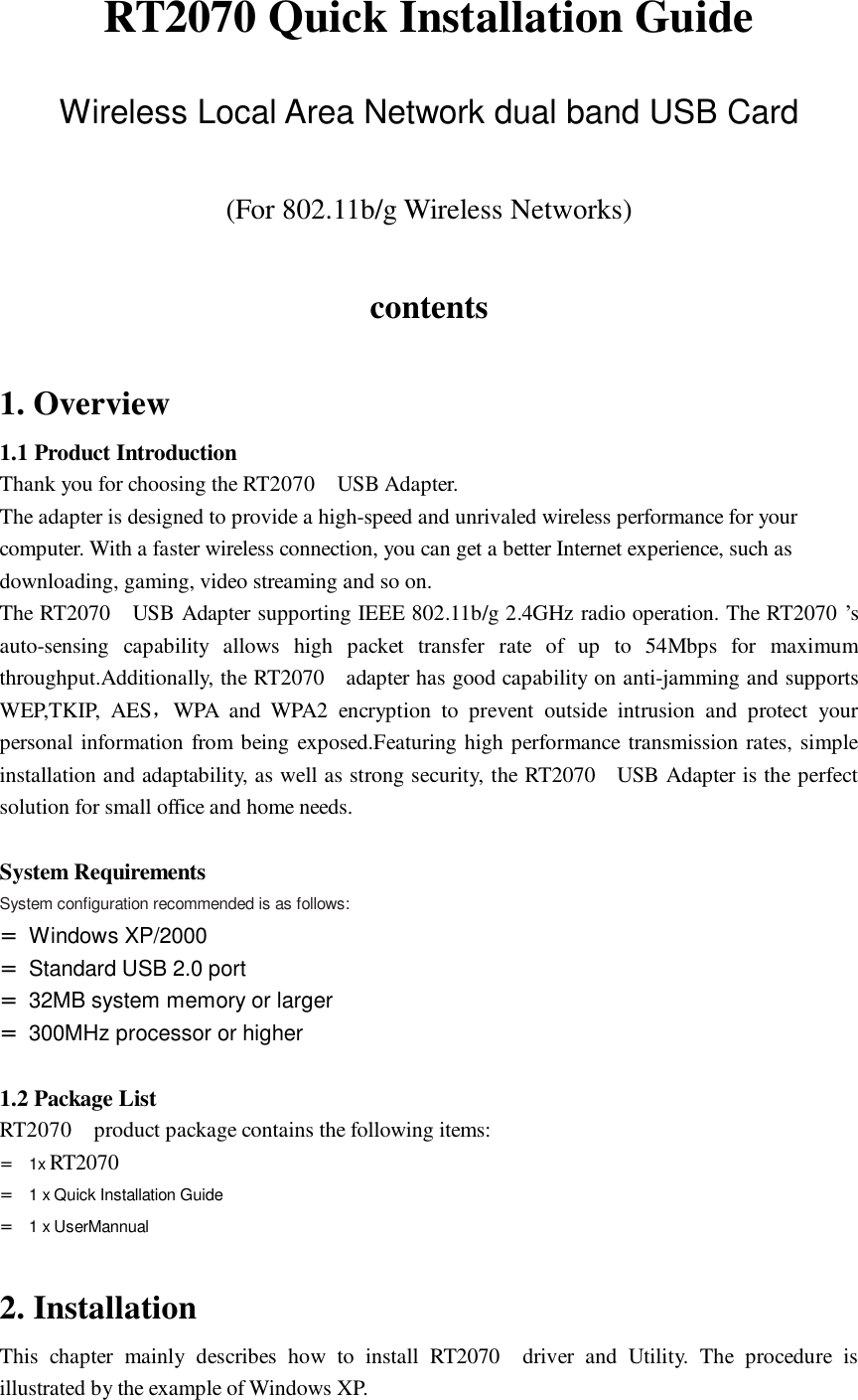

RT2070 Quick Installation Guide Wireless Local Area Network dual band USB Card (For 802.11b/g Wireless Networks) contents 1. Overview 1.1 Product Introduction Thank you for choosing the RT2070 USB Adapter. The adapter is designed to provide a high-speed and unrivaled wireless performance for your computer. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on. The RT2070 USB Adapter supporting IEEE 802.11b/g 2.4GHz radio operation. The RT2070 ’s auto-sensing capability allows high packet transfer rate of up to 54Mbps for maximum throughput.Additionally, the RT2070 adapter has good capability on anti-jamming and supports WEP,TKIP, AES，WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.Featuring high performance transmission rates, simple installation and adaptability, as well as strong security, the RT2070 USB Adapter is the perfect solution for small office and home needs. System Requirements System configuration recommended is as follows: = Windows XP/2000 = Standard USB 2.0 port = 32MB system memory or larger = 300MHz processor or higher 1.2 Package List RT2070 product package contains the following items: = 1x RT2070 = 1 x Quick Installation Guide = 1 x UserMannual 2. Installation This chapter mainly describes how to install RT2070 driver and Utility. The procedure is illustrated by the example of Windows XP.

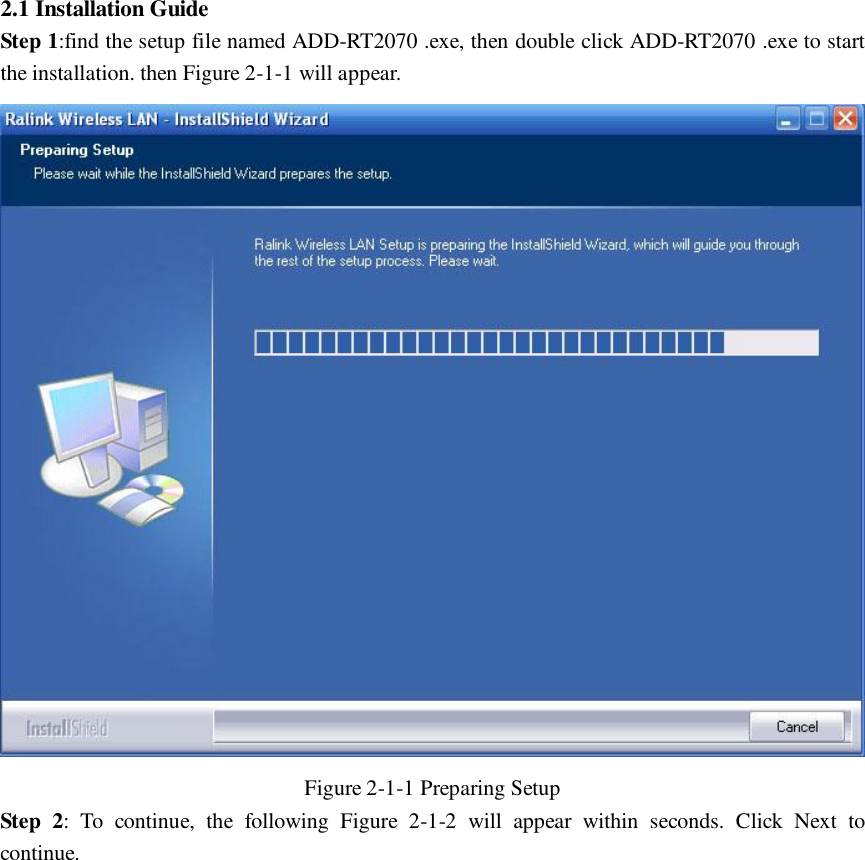

2.1 Installation Guide Step 1:find the setup file named ADD-RT2070 .exe, then double click ADD-RT2070 .exe to start the installation. then Figure 2-1-1 will appear. Figure 2-1-1 Preparing Setup Step 2: To continue, the following Figure 2-1-2 will appear within seconds. Click Next to continue.

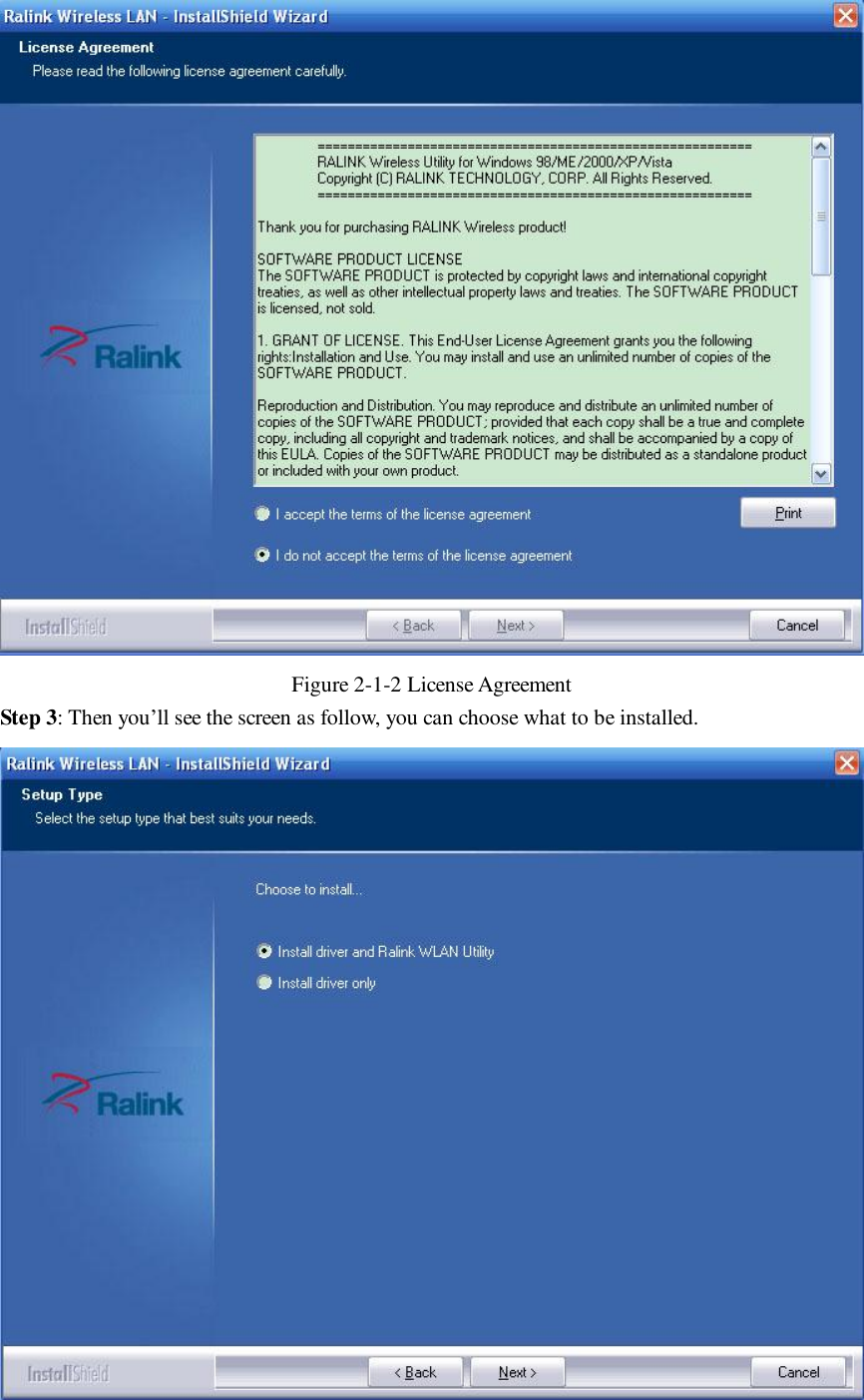

Figure 2-1-2 License Agreement Step 3: Then you’ll see the screen as follow, you can choose what to be installed.

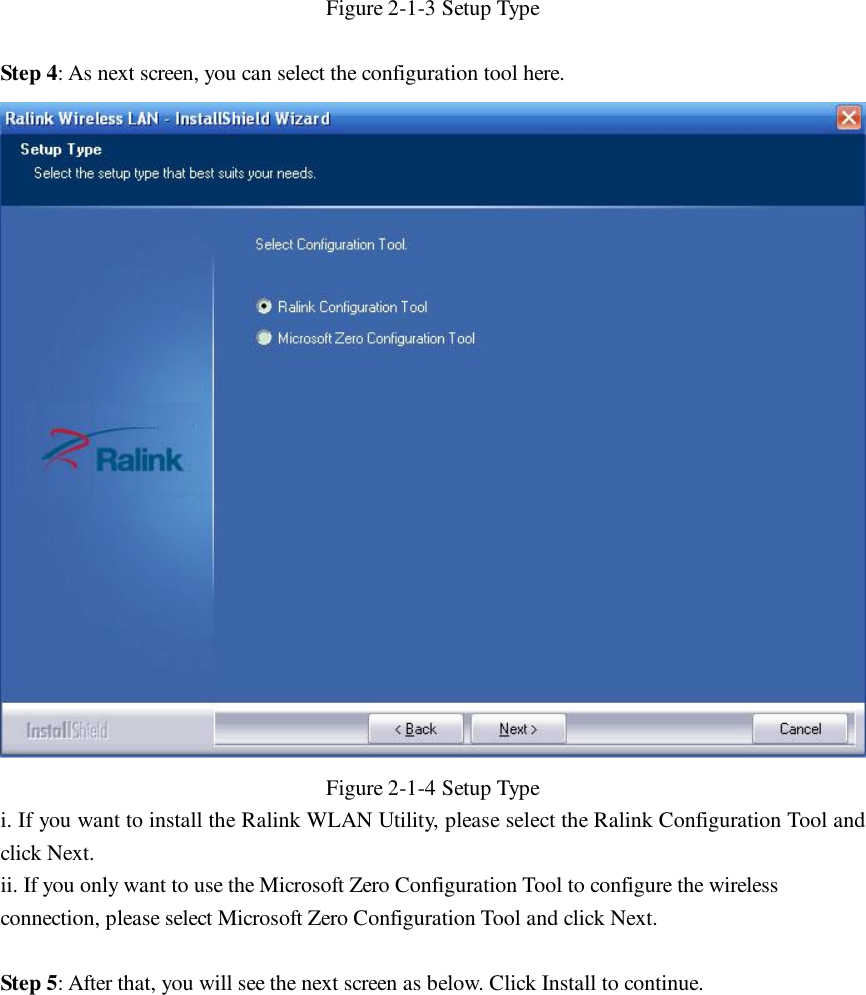

Figure 2-1-3 Setup Type Step 4: As next screen, you can select the configuration tool here. Figure 2-1-4 Setup Type i. If you want to install the Ralink WLAN Utility, please select the Ralink Configuration Tool and click Next. ii. If you only want to use the Microsoft Zero Configuration Tool to configure the wireless connection, please select Microsoft Zero Configuration Tool and click Next. Step 5: After that, you will see the next screen as below. Click Install to continue.

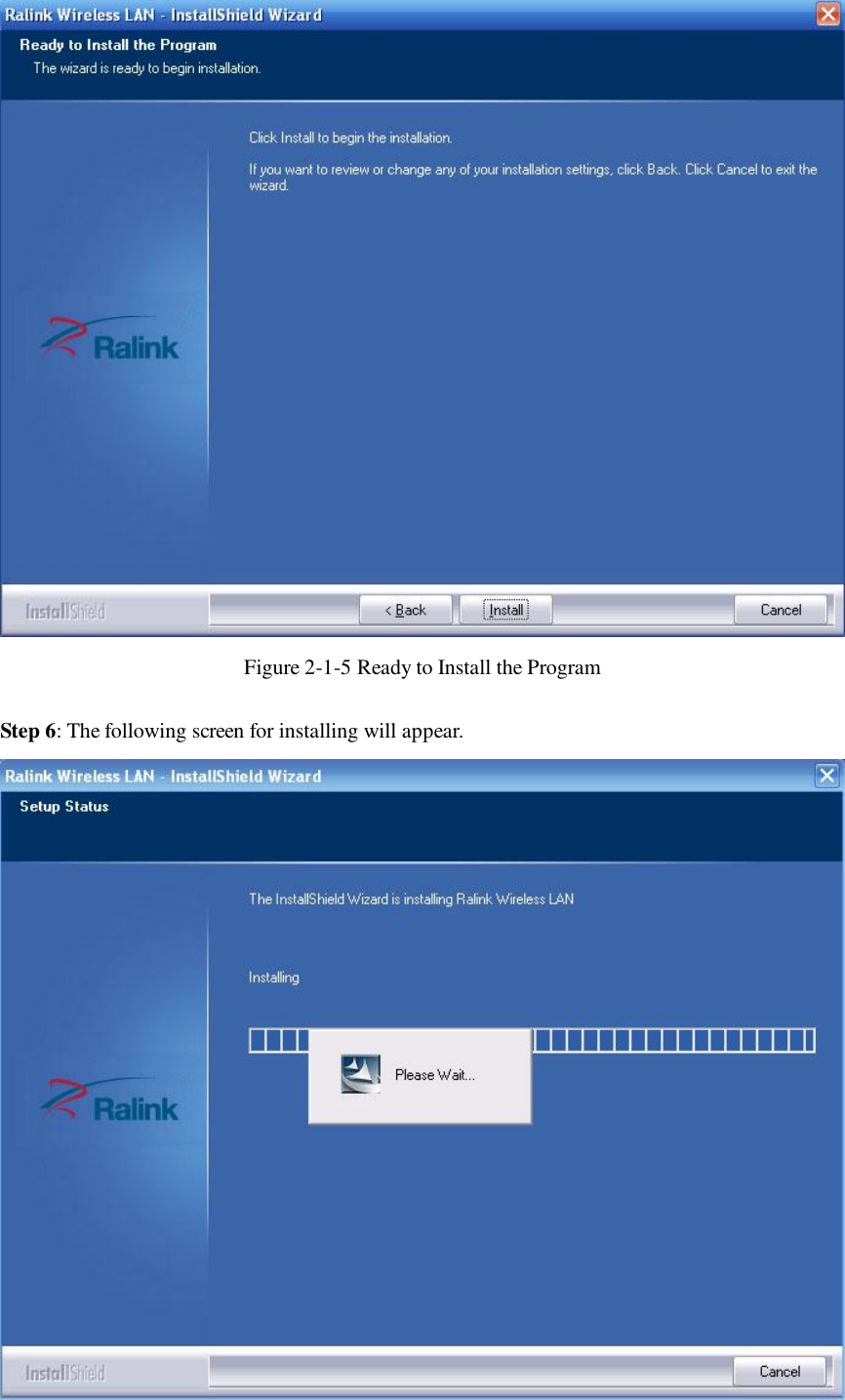

Figure 2-1-5 Ready to Install the Program Step 6: The following screen for installing will appear.

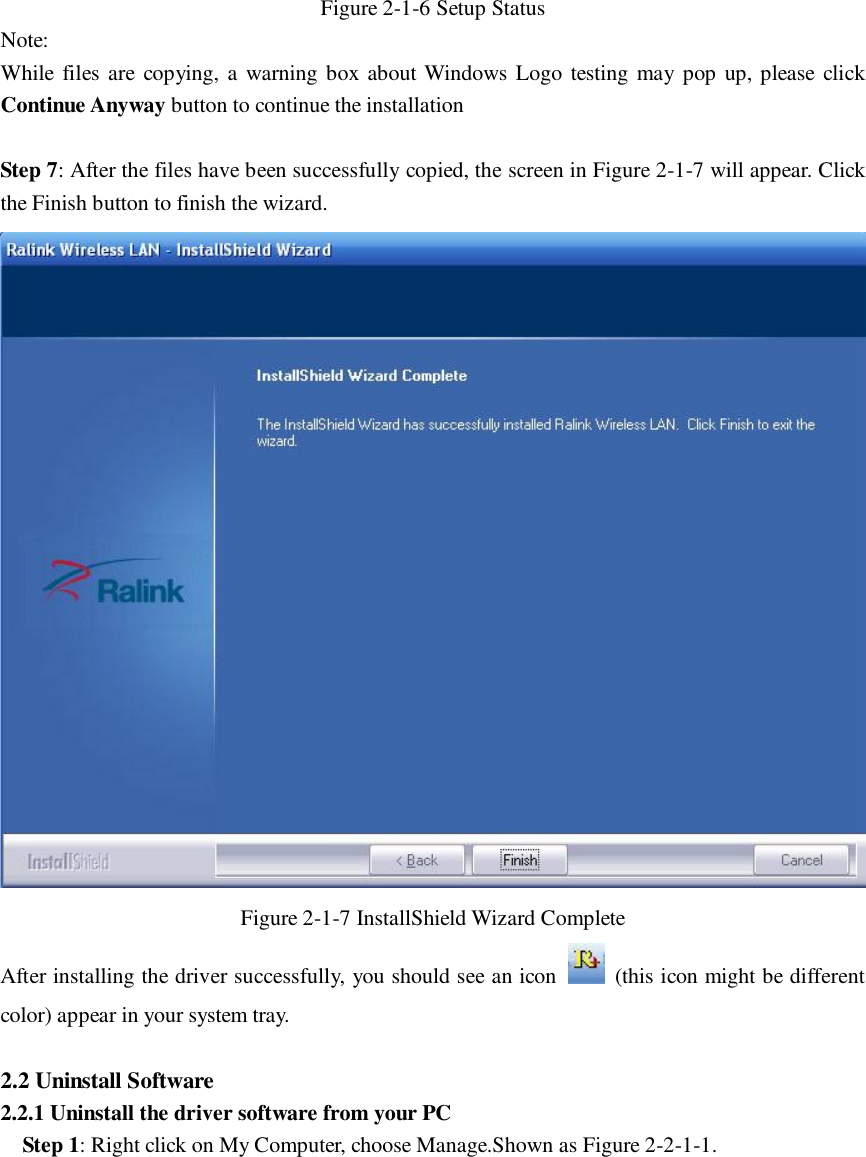

Figure 2-1-6 Setup Status Note: While files are copying, a warning box about Windows Logo testing may pop up, please click Continue Anyway button to continue the installation Step 7: After the files have been successfully copied, the screen in Figure 2-1-7 will appear. Click the Finish button to finish the wizard. Figure 2-1-7 InstallShield Wizard Complete After installing the driver successfully, you should see an icon (this icon might be different color) appear in your system tray. 2.2 Uninstall Software 2.2.1 Uninstall the driver software from your PC Step 1: Right click on My Computer, choose Manage.Shown as Figure 2-2-1-1.
Figure 2-2-1-1 Step 2:Then the follow interface shown as figure 2-2-1-2: figure 2-2-1-2 Step 3:Click on the Device Manager button, double-click Network Adapters, and then right-click 802.11 USB Wireless LAN Card USB Adapter. figure 2-2-1-3. Step 4: Click Uninstall shown in above figure 2-2-1-3, the system will uninstall the driver software of the adapter from your PC.

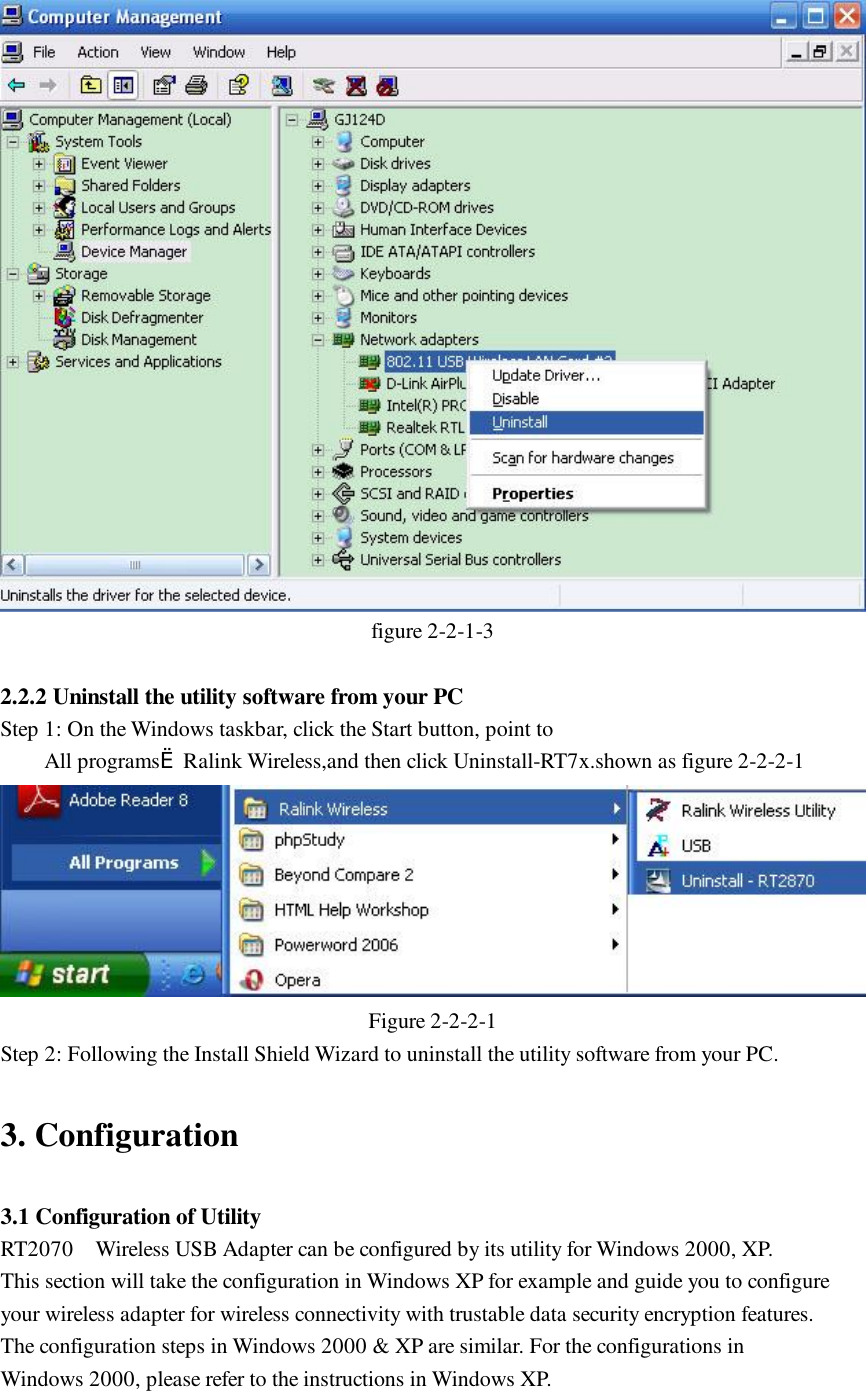

figure 2-2-1-3 2.2.2 Uninstall the utility software from your PC Step 1: On the Windows taskbar, click the Start button, point to All programsèRalink Wireless,and then click Uninstall-RT7x.shown as figure 2-2-2-1 Figure 2-2-2-1 Step 2: Following the Install Shield Wizard to uninstall the utility software from your PC. 3. Configuration 3.1 Configuration of Utility RT2070 Wireless USB Adapter can be configured by its utility for Windows 2000, XP. This section will take the configuration in Windows XP for example and guide you to configure your wireless adapter for wireless connectivity with trustable data security encryption features. The configuration steps in Windows 2000 & XP are similar. For the configurations in Windows 2000, please refer to the instructions in Windows XP.

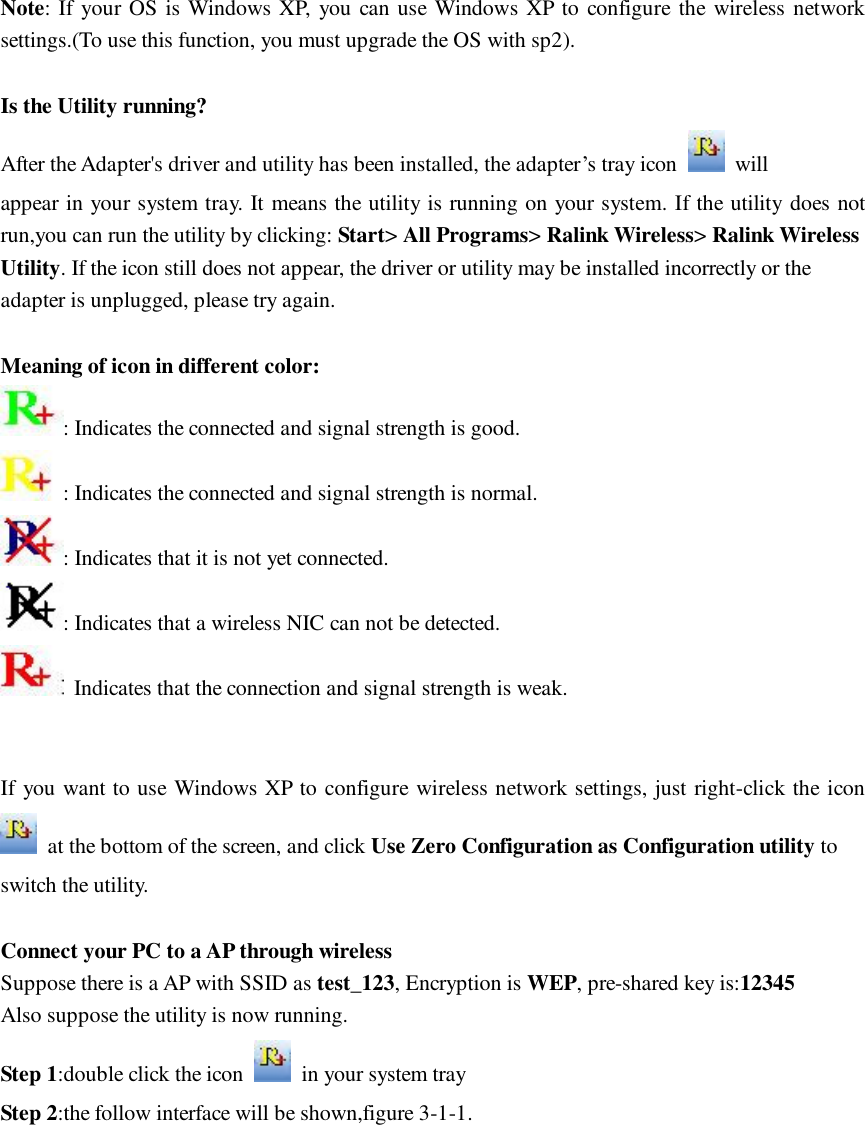

Note: If your OS is Windows XP, you can use Windows XP to configure the wireless network settings.(To use this function, you must upgrade the OS with sp2). Is the Utility running? After the Adapter's driver and utility has been installed, the adapter’s tray icon will appear in your system tray. It means the utility is running on your system. If the utility does not run,you can run the utility by clicking: Start> All Programs> Ralink Wireless> Ralink Wireless Utility. If the icon still does not appear, the driver or utility may be installed incorrectly or the adapter is unplugged, please try again. Meaning of icon in different color: : Indicates the connected and signal strength is good. : Indicates the connected and signal strength is normal. : Indicates that it is not yet connected. : Indicates that a wireless NIC can not be detected. Indicates that the connection and signal strength is weak. If you want to use Windows XP to configure wireless network settings, just right-click the icon at the bottom of the screen, and click Use Zero Configuration as Configuration utility to switch the utility. Connect your PC to a AP through wireless Suppose there is a AP with SSID as test_123, Encryption is WEP, pre-shared key is:12345 Also suppose the utility is now running. Step 1:double click the icon in your system tray Step 2:the follow interface will be shown,figure 3-1-1.

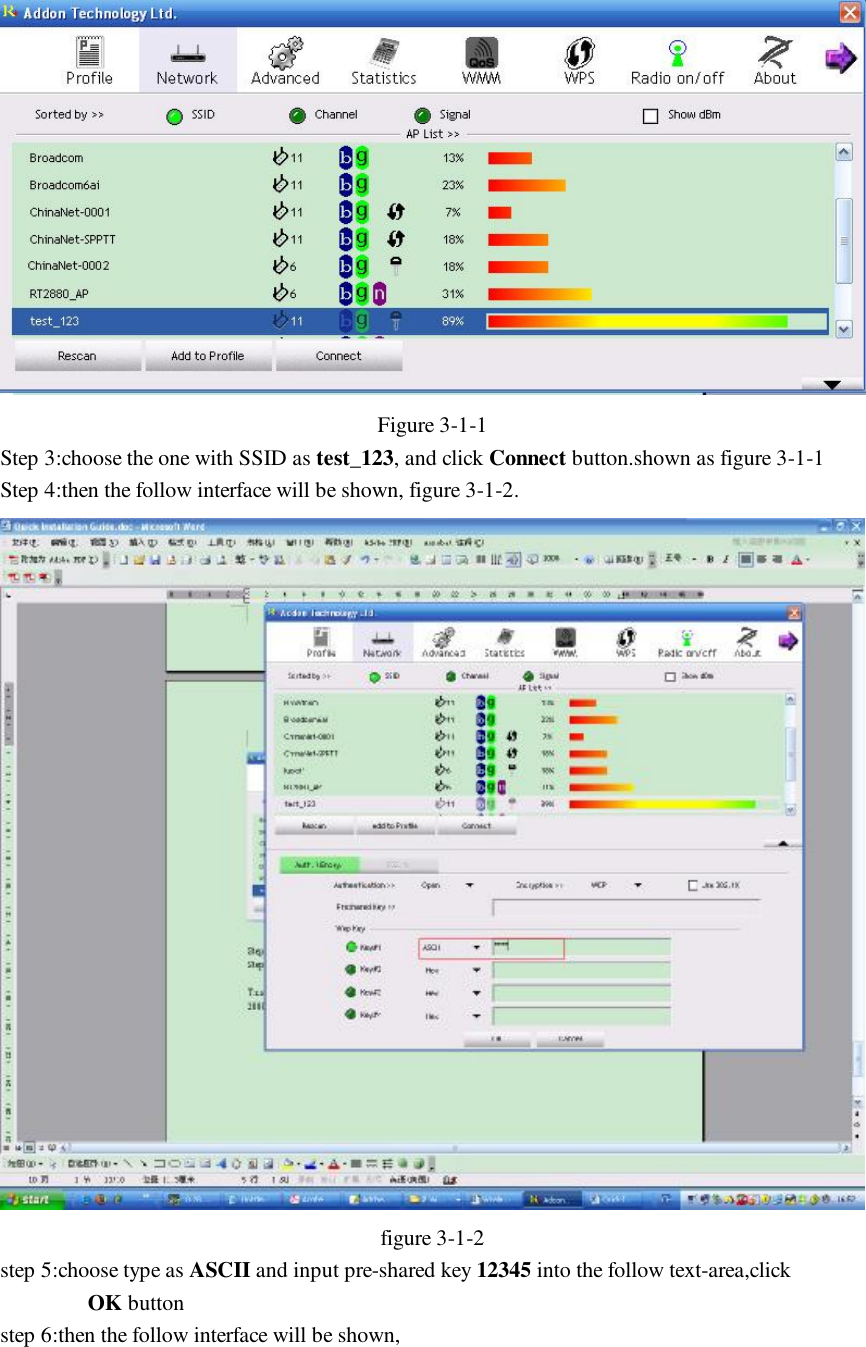

Figure 3-1-1 Step 3:choose the one with SSID as test_123, and click Connect button.shown as figure 3-1-1 Step 4:then the follow interface will be shown, figure 3-1-2. figure 3-1-2 step 5:choose type as ASCII and input pre-shared key 12345 into the follow text-area,click OK button step 6:then the follow interface will be shown,

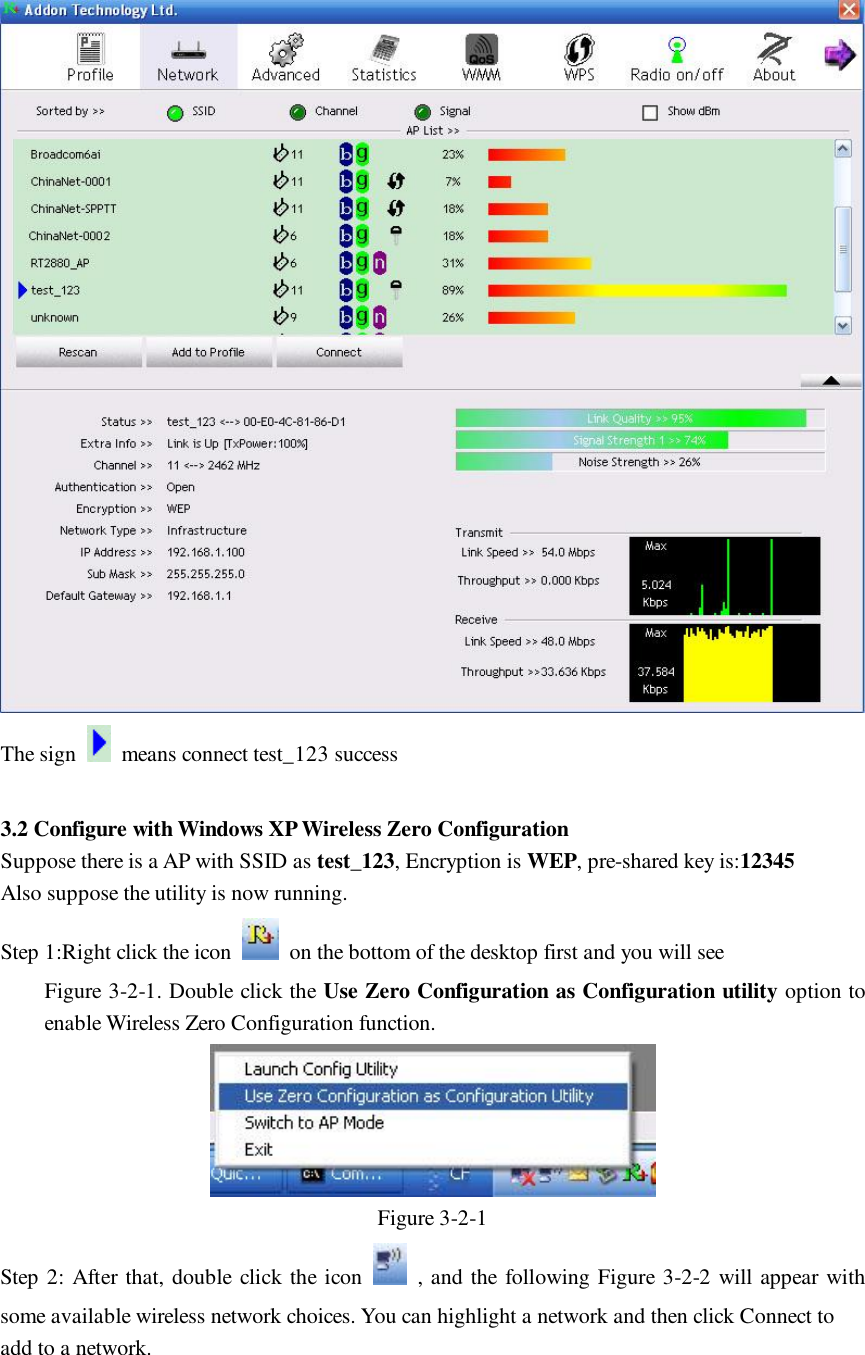

The sign means connect test_123 success 3.2 Configure with Windows XP Wireless Zero Configuration Suppose there is a AP with SSID as test_123, Encryption is WEP, pre-shared key is:12345 Also suppose the utility is now running. Step 1:Right click the icon on the bottom of the desktop first and you will see Figure 3-2-1. Double click the Use Zero Configuration as Configuration utility option to enable Wireless Zero Configuration function. Figure 3-2-1 Step 2: After that, double click the icon , and the following Figure 3-2-2 will appear with some available wireless network choices. You can highlight a network and then click Connect to add to a network.

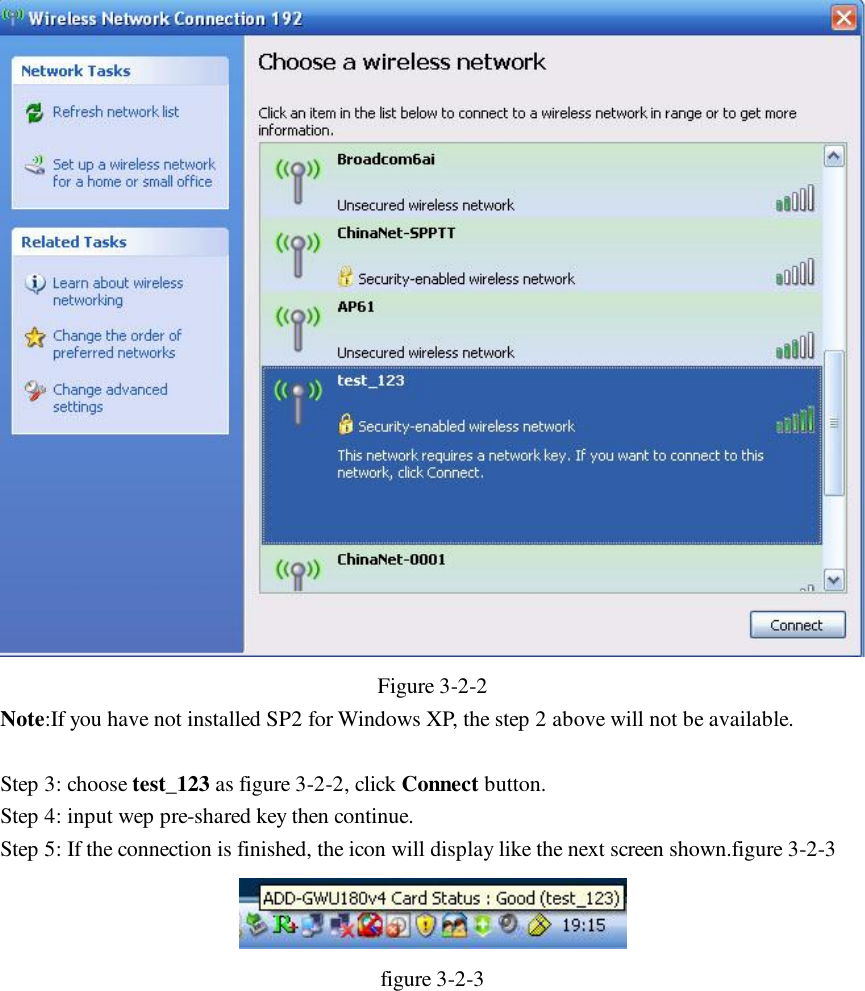

Figure 3-2-2 Note:If you have not installed SP2 for Windows XP, the step 2 above will not be available. Step 3: choose test_123 as figure 3-2-2, click Connect button. Step 4: input wep pre-shared key then continue. Step 5: If the connection is finished, the icon will display like the next screen shown.figure 3-2-3 figure 3-2-3

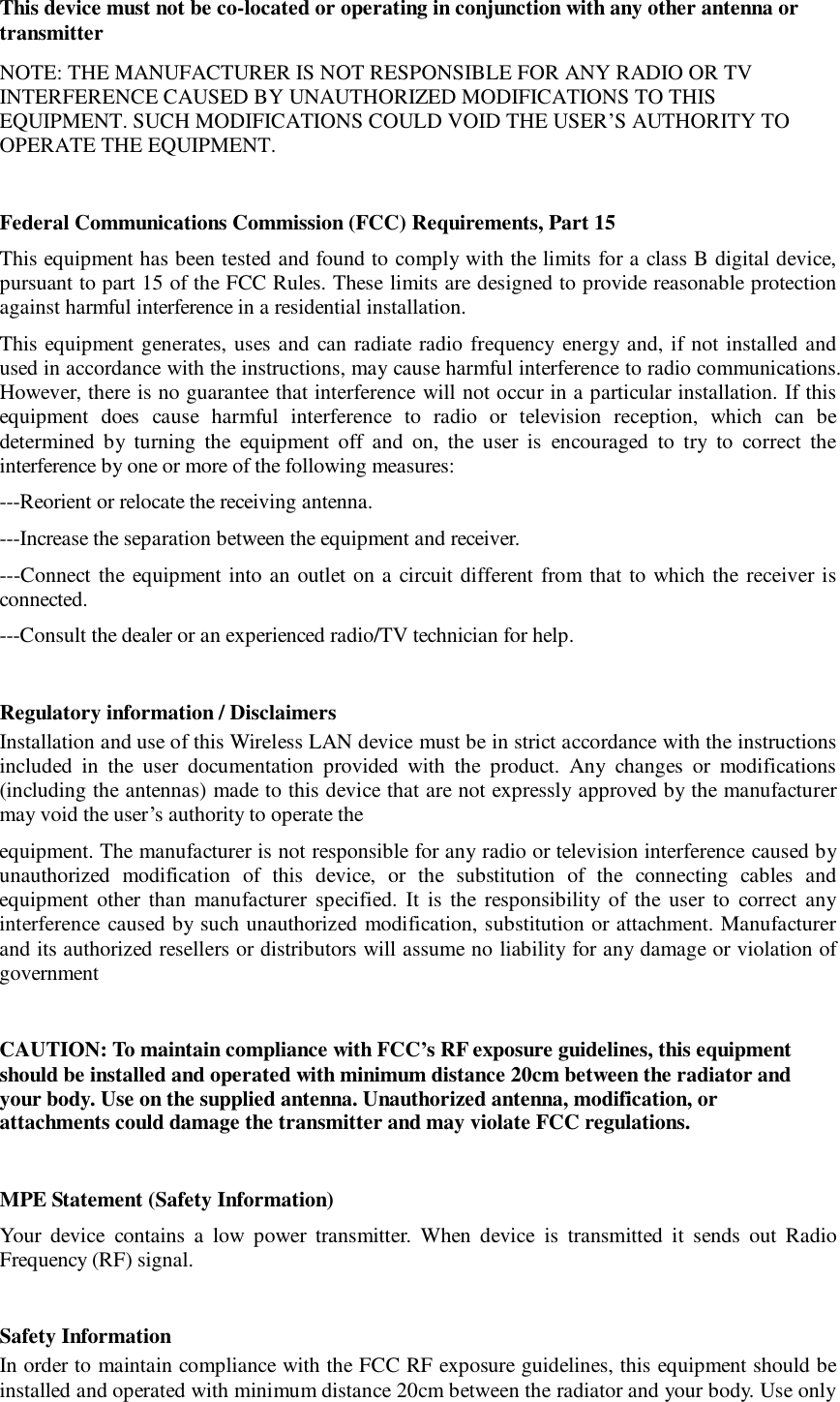

This device must not be co-located or operating in conjunction with any other antenna or transmitter NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory information / Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting cables and equipment other than manufacturer specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only
with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b/g operation of this product in the U.S.A. is firmware -limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).
