Gongjin Electronics WNA699P5G7 WIRELESS MODULE User Manual update

Shenzhen Gongjin Electronics Co., Ltd WIRELESS MODULE Users Manual update

USERS MANUAL

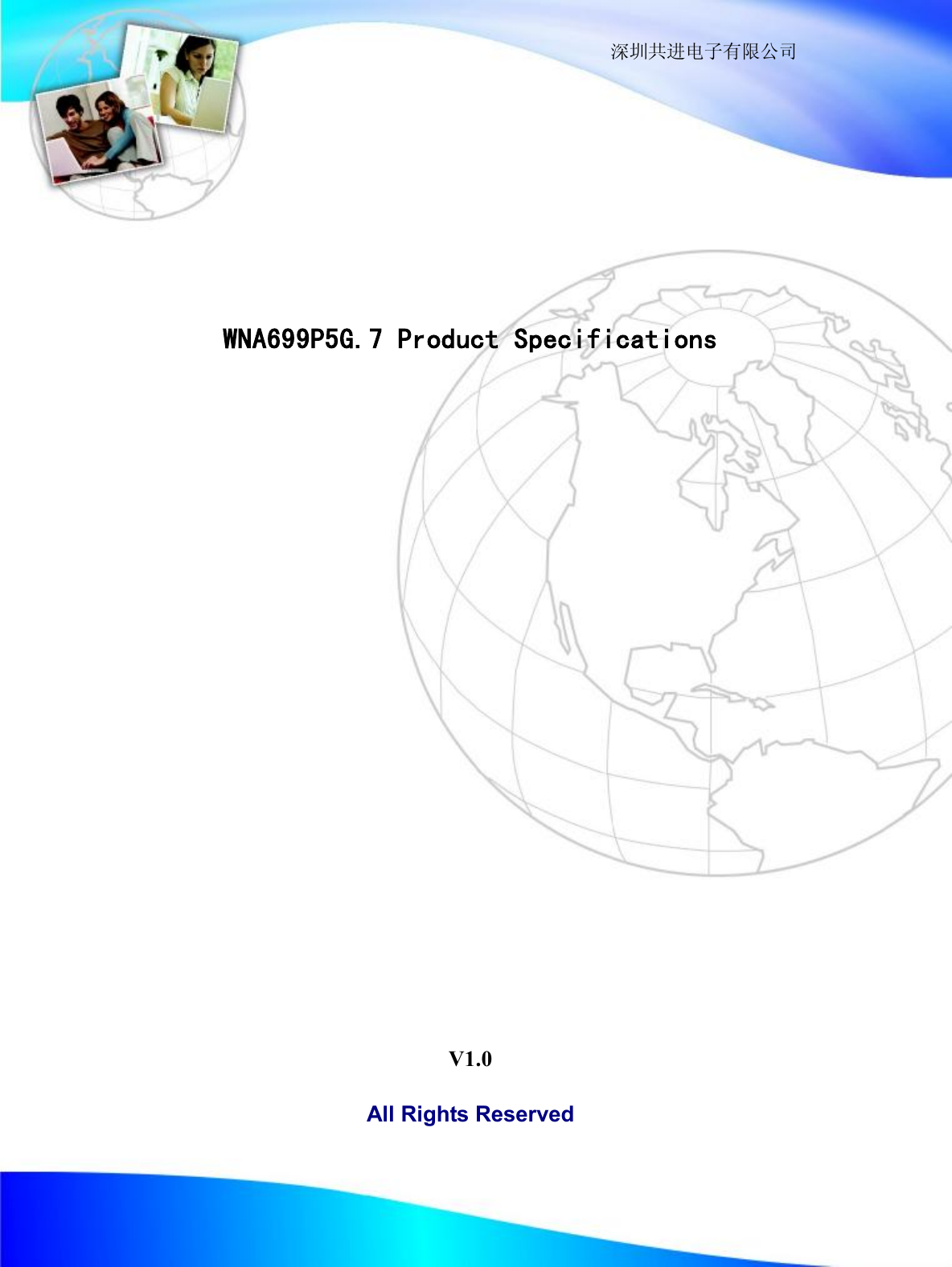

深圳共进电子有限公司 WNA699P5G.7 Product Specifications V1.0 All Rights Reserved

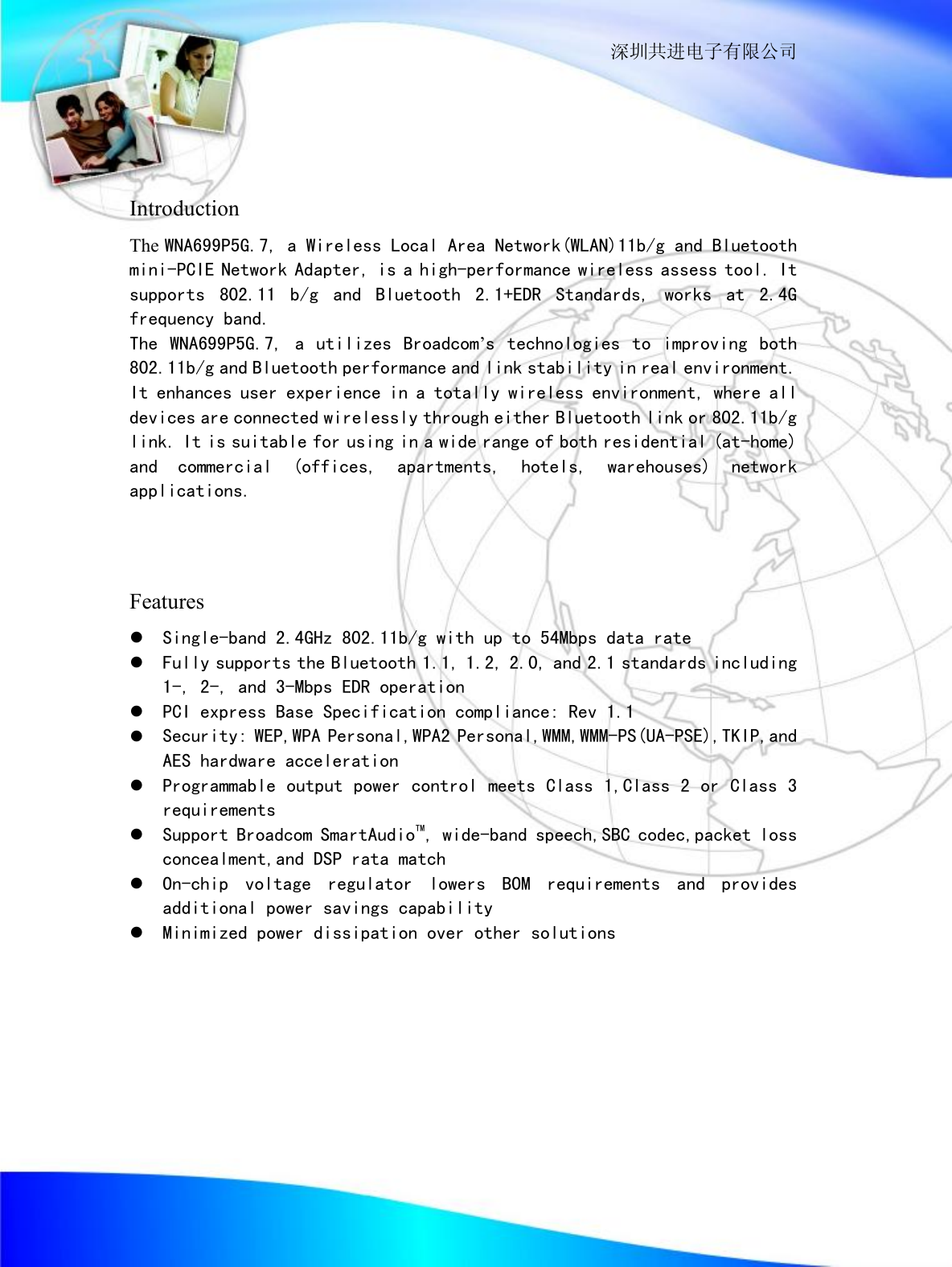

深圳共进电子有限公司 Introduction The WNA699P5G.7, a Wireless Local Area Network(WLAN)11b/g and Bluetooth mini-PCIE Network Adapter, is a high-performance wireless assess tool. It supports 802.11 b/g and Bluetooth 2.1+EDR Standards, works at 2.4G frequency band. The WNA699P5G.7, a utilizes Broadcom’s technologies to improving both 802.11b/g and Bluetooth performance and link stability in real environment. It enhances user experience in a totally wireless environment, where all devices are connected wirelessly through either Bluetooth link or 802.11b/g link. It is suitable for using in a wide range of both residential (at-home) and commercial (offices, apartments, hotels, warehouses) network applications. Features l Single-band 2.4GHz 802.11b/g with up to 54Mbps data rate l Fully supports the Bluetooth 1.1, 1.2, 2.0, and 2.1 standards including 1-, 2-, and 3-Mbps EDR operation l PCI express Base Specification compliance: Rev 1.1 l Security: WEP,WPA Personal,WPA2 Personal,WMM,WMM-PS(UA-PSE),TKIP,and AES hardware acceleration l Programmable output power control meets Class 1,Class 2 or Class 3 requirements l Support Broadcom SmartAudioTM, wide-band speech,SBC codec,packet loss concealment,and DSP rata match l On-chip voltage regulator lowers BOM requirements and provides additional power savings capability l Minimized power dissipation over other solutions

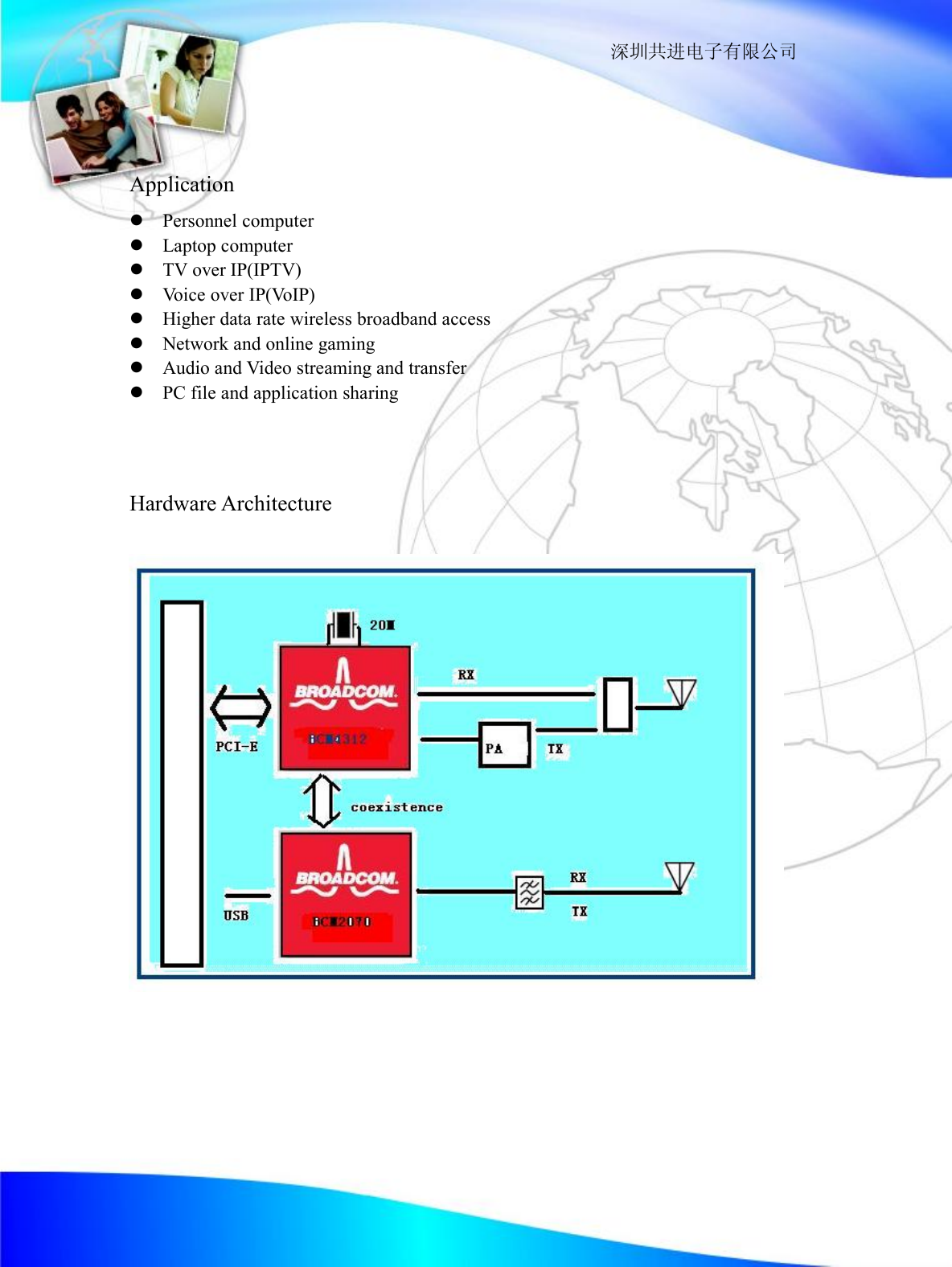

深圳共进电子有限公司 Application l Personnel computer l Laptop computer l TV over IP(IPTV) l Voice over IP(VoIP) l Higher data rate wireless broadband access l Network and online gaming l Audio and Video streaming and transfer l PC file and application sharing Hardware Architecture

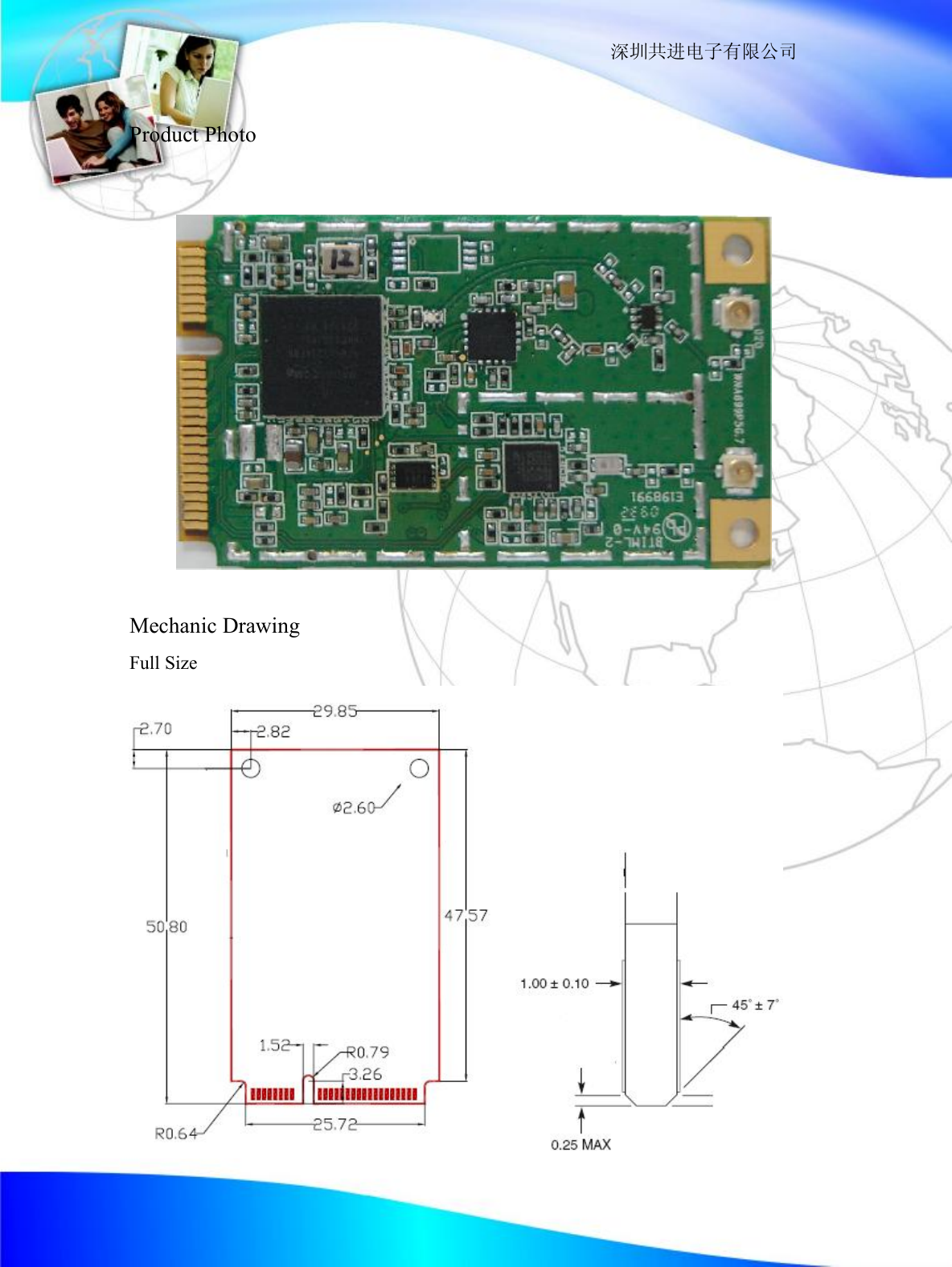

深圳共进电子有限公司 Product Photo Mechanic Drawing Full Size

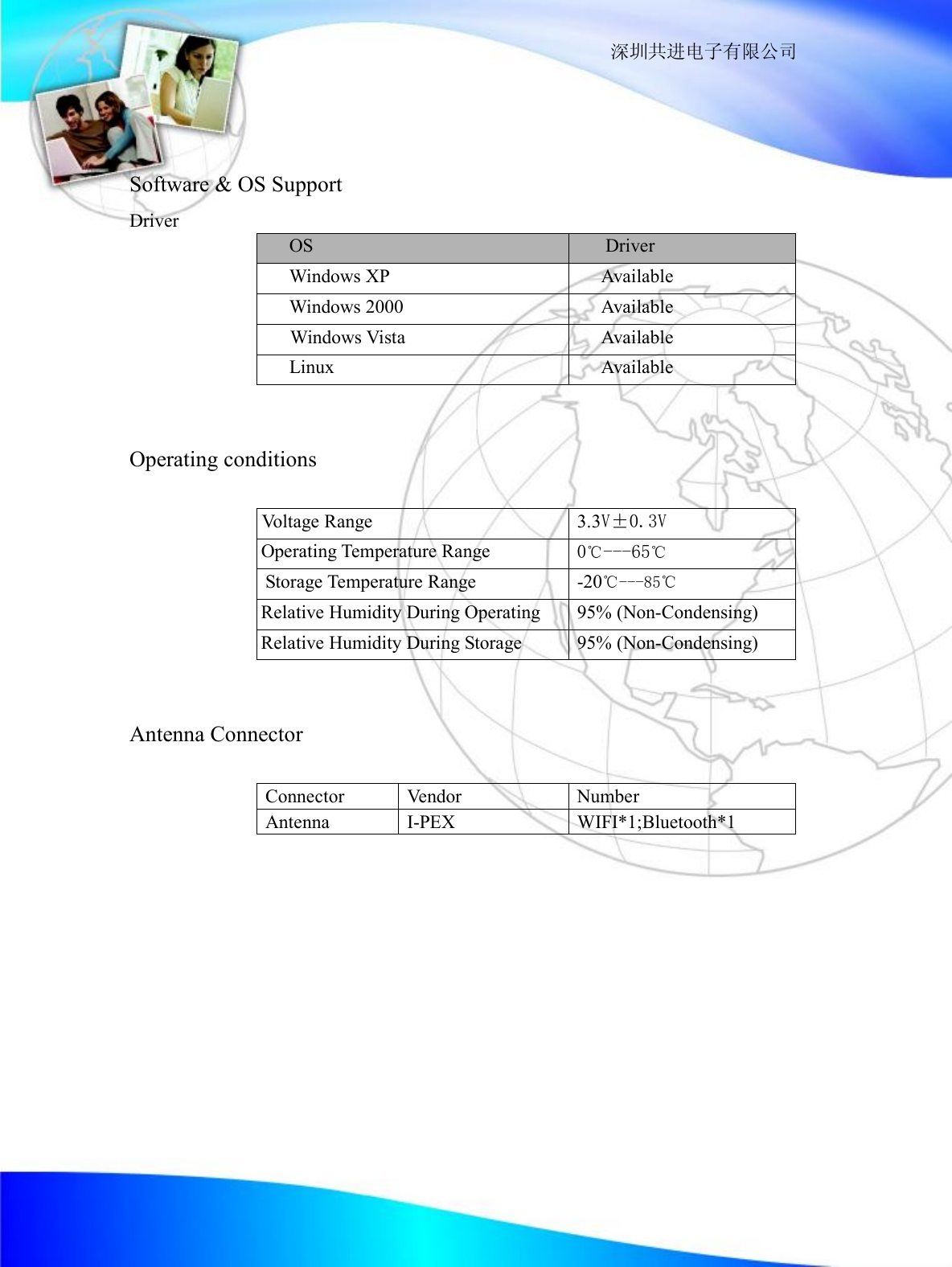

深圳共进电子有限公司 Software & OS Support Driver OS Driver Windows XP Available Windows 2000 Available Windows Vista Available Linux Available Operating conditions Voltage Range 3.3V±0.3V Operating Temperature Range 0℃---65℃ Storage Temperature Range -20℃---85℃ Relative Humidity During Operating 95% (Non-Condensing) Relative Humidity During Storage 95% (Non-Condensing) Antenna Connector Connector Vendor Number Antenna I-PEX WIFI*1;Bluetooth*1

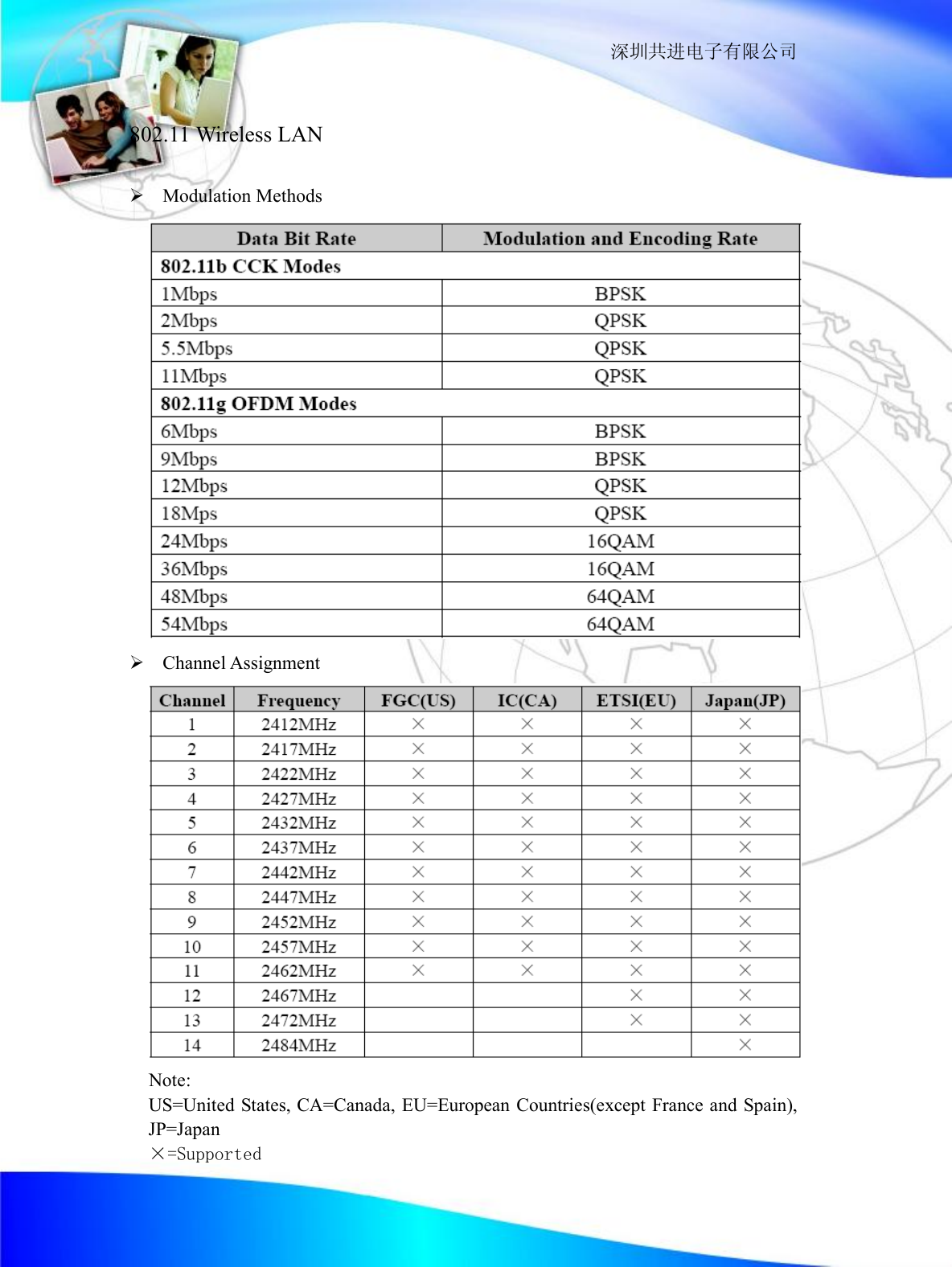

深圳共进电子有限公司 802.11 Wireless LAN Ø Modulation Methods Ø Channel Assignment Note: US=United States, CA=Canada, EU=European Countries(except France and Spain), JP=Japan ×=Supported

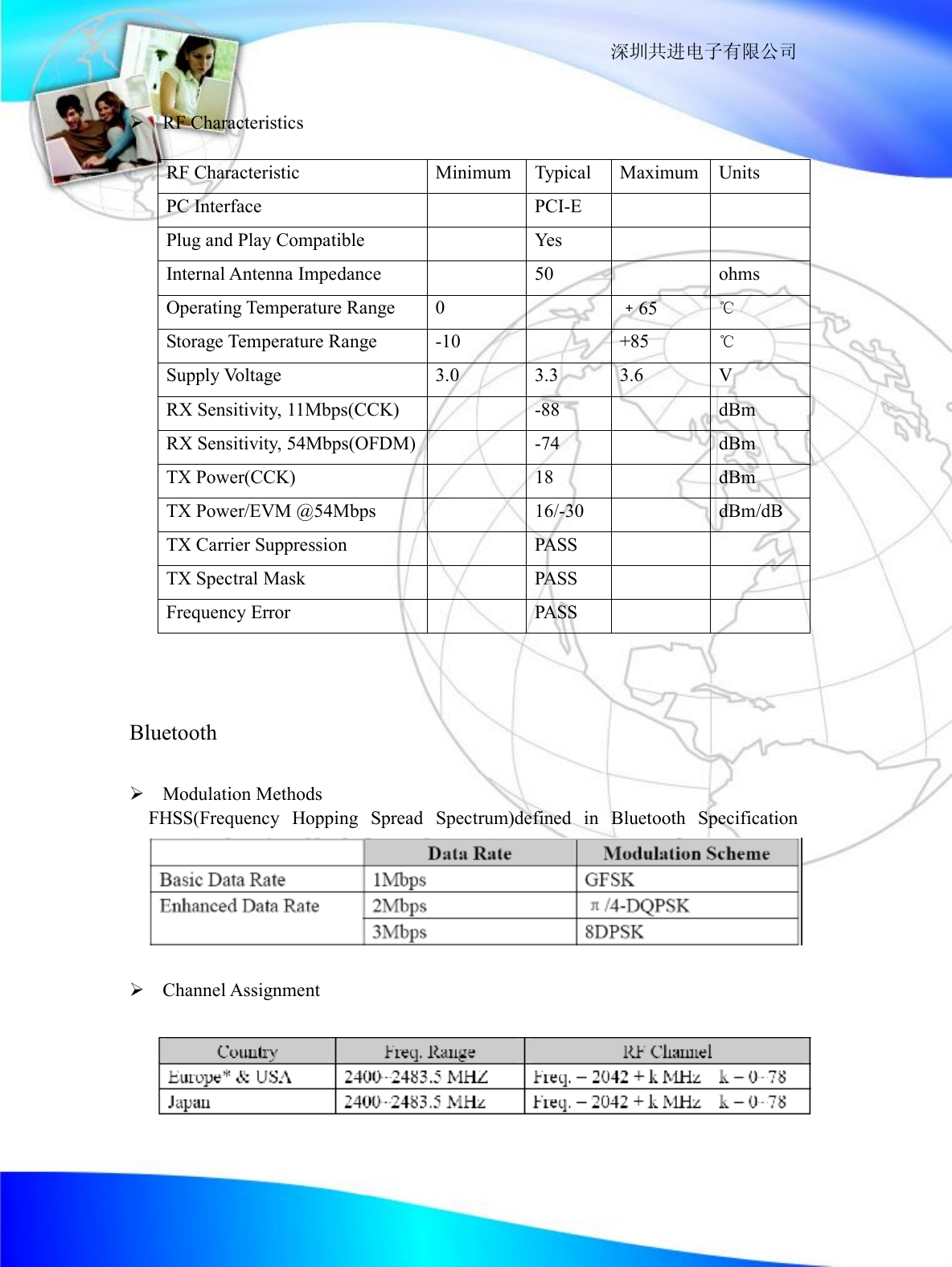

深圳共进电子有限公司 Ø RF Characteristics RF Characteristic Minimum Typical Maximum Units PC Interface PCI-E Plug and Play Compatible Yes Internal Antenna Impedance 50 ohms Operating Temperature Range 0 ﹢65 ℃ Storage Temperature Range -10 +85 ℃ Supply Voltage 3.0 3.3 3.6 V RX Sensitivity, 11Mbps(CCK) -88 dBm RX Sensitivity, 54Mbps(OFDM) -74 dBm TX Power(CCK) 18 dBm TX Power/EVM @54Mbps 16/-30 dBm/dB TX Carrier Suppression PASS TX Spectral Mask PASS Frequency Error PASS Bluetooth Ø Modulation Methods FHSS(Frequency Hopping Spread Spectrum)defined in Bluetooth Specification Ø Channel Assignment

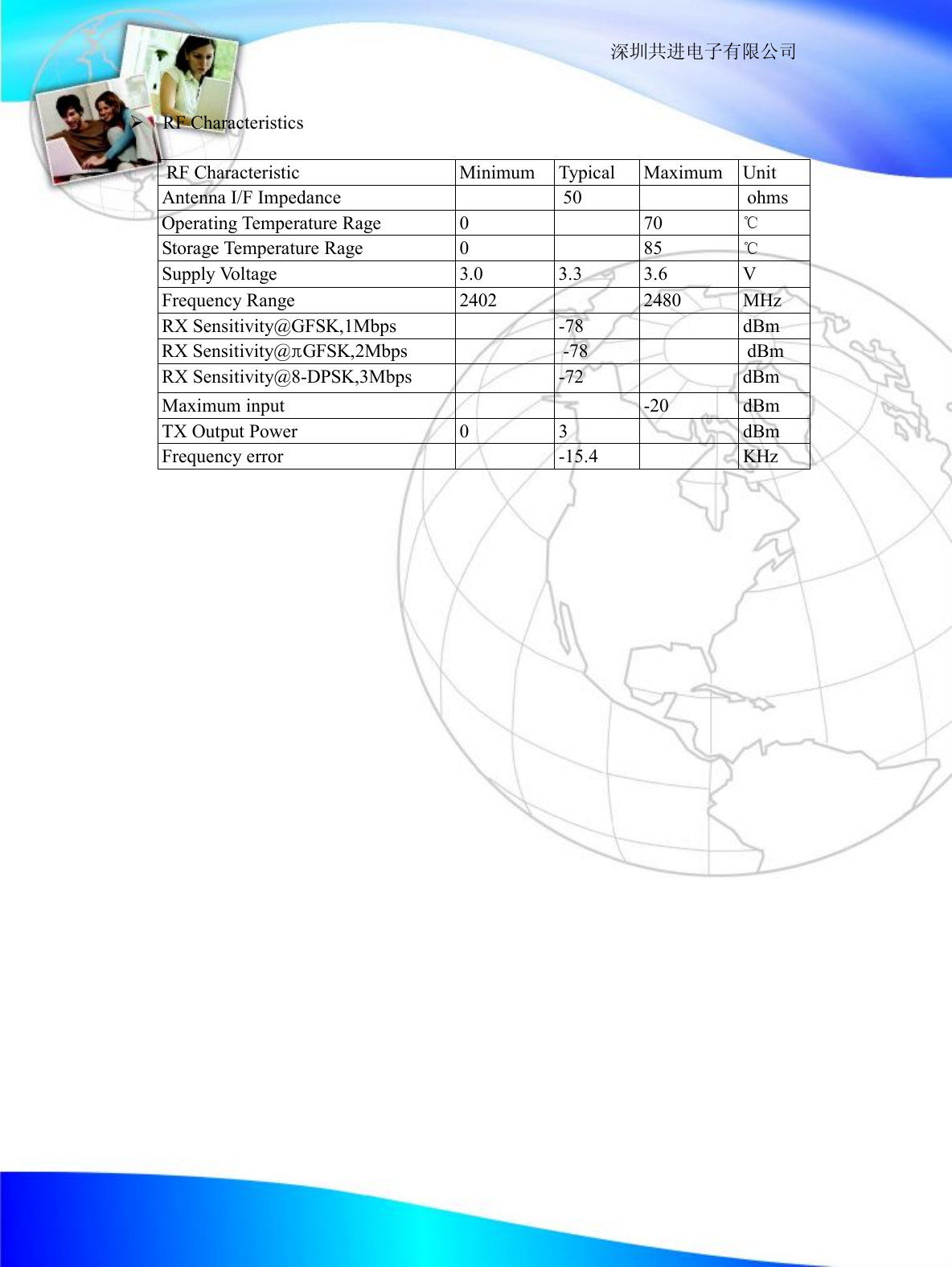

深圳共进电子有限公司 Ø RF Characteristics RF Characteristic Minimum Typical Maximum Unit Antenna I/F Impedance 50 ohms Operating Temperature Rage 0 70 ℃ Storage Temperature Rage 0 85 ℃ Supply Voltage 3.0 3.3 3.6 V Frequency Range 2402 2480 MHz RX Sensitivity@GFSK,1Mbps -78 dBm RX Sensitivity@πGFSK,2Mbps -78 dBm RX Sensitivity@8-DPSK,3Mbps -72 dBm Maximum input -20 dBm TX Output Power 0 3 dBm Frequency error -15.4 KHz

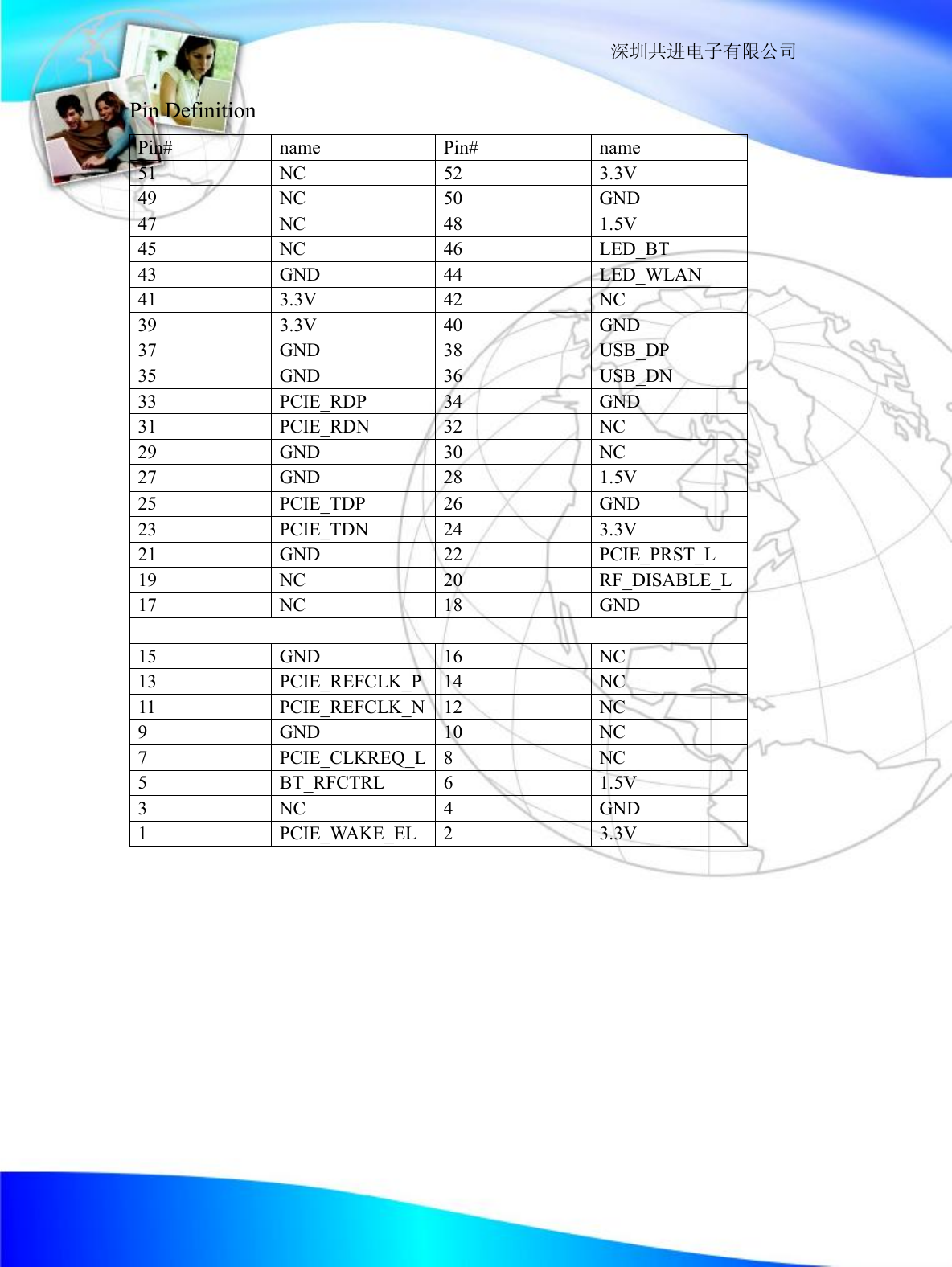

深圳共进电子有限公司 Pin Definition Pin# name Pin# name 51 NC 52 3.3V 49 NC 50 GND 47 NC 48 1.5V 45 NC 46 LED_BT 43 GND 44 LED_WLAN 41 3.3V 42 NC 39 3.3V 40 GND 37 GND 38 USB_DP 35 GND 36 USB_DN 33 PCIE_RDP 34 GND 31 PCIE_RDN 32 NC 29 GND 30 NC 27 GND 28 1.5V 25 PCIE_TDP 26 GND 23 PCIE_TDN 24 3.3V 21 GND 22 PCIE_PRST_L 19 NC 20 RF_DISABLE_L 17 NC 18 GND 15 GND 16 NC 13 PCIE_REFCLK_P 14 NC 11 PCIE_REFCLK_N 12 NC 9 GND 10 NC 7 PCIE_CLKREQ_L 8 NC 5 BT_RFCTRL 6 1.5V 3 NC 4 GND 1 PCIE_WAKE_EL 2 3.3V

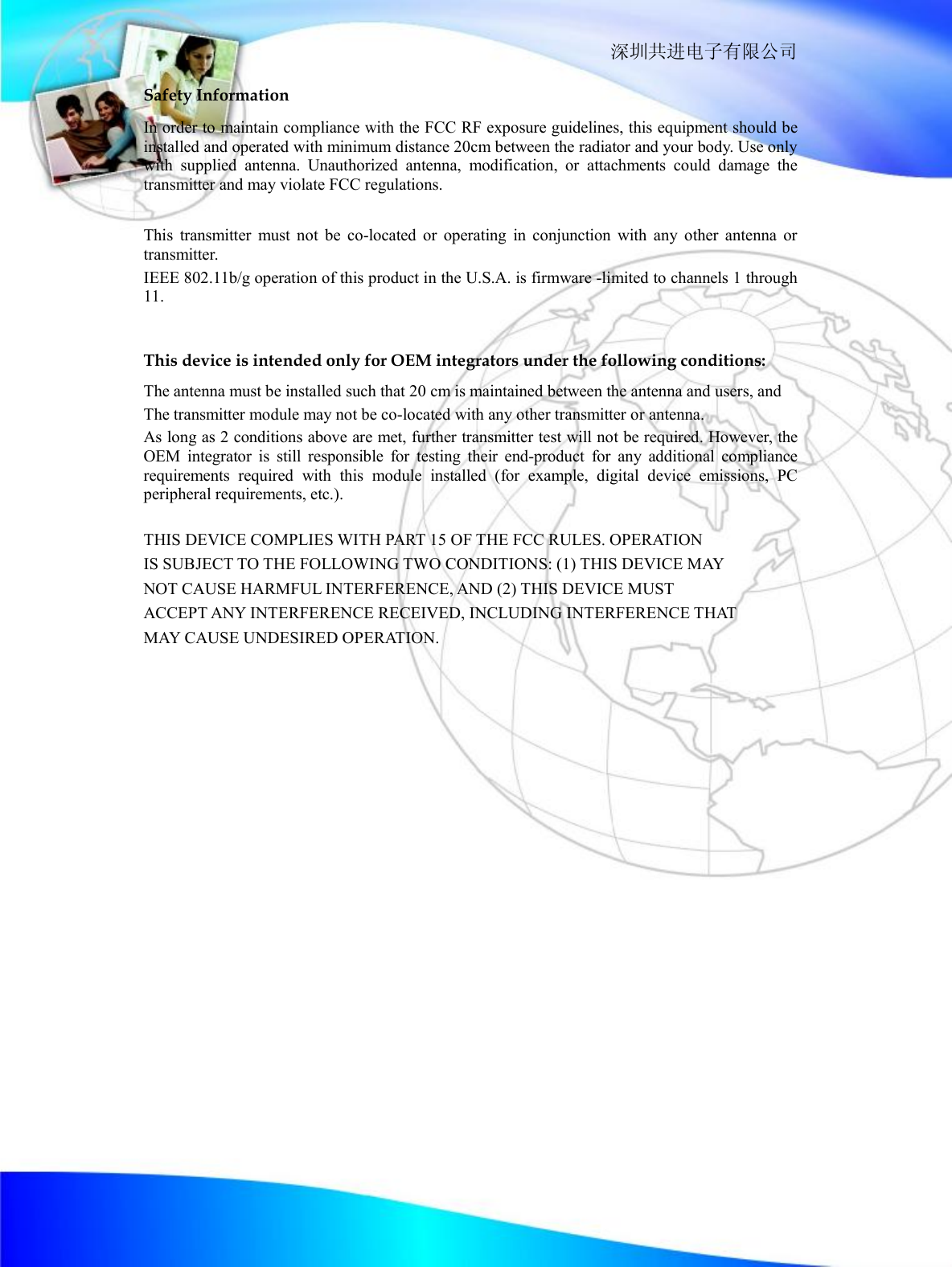

深圳共进电子有限公司 Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b/g operation of this product in the U.S.A. is firmware -limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users, and The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
