Good Better Best as Gioteck SC1PS3-11 SC-1 Wireless Sport Controller; GC-2 Wireless RF Controller User Manual

Goodbetterbest Limited SC-1 Wireless Sport Controller; GC-2 Wireless RF Controller

SC1PS3-11_User manual

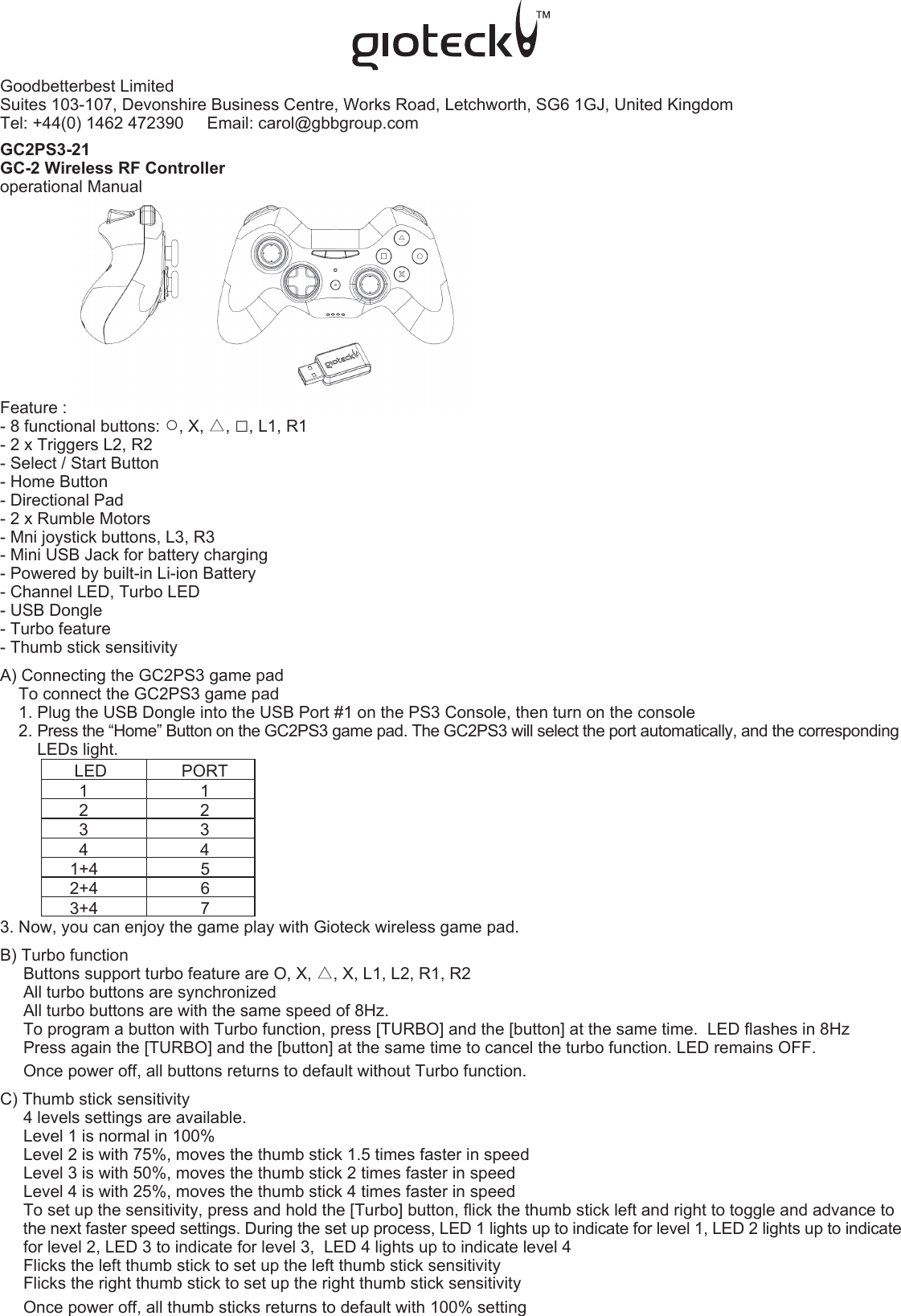

Goodbetterbest LimitedSuites 103-107, Devonshire Business Centre, Works Road, Letchworth, SG6 1GJ, United Kingdom Tel: +44(0) 1462 472390 Email: carol@gbbgroup.com GC2PS3-21GC-2 Wireless RF Controlleroperational ManualFeature :- 8 functional buttons: ○, X, △, □, L1, R1- 2 x Triggers L2, R2- Select / Start Button- Home Button- Directional Pad- 2 x Rumble Motors- Mni joystick buttons, L3, R3- Mini USB Jack for battery charging- Powered by built-in Li-ion Battery- Channel LED, Turbo LED- USB Dongle - Turbo feature- Thumb stick sensitivityA) Connecting the GC2PS3 game pad To connect the GC2PS3 game pad 1. Plug the USB Dongle into the USB Port #1 on the PS3 Console, then turn on the console 2. Press the “Home” Button on the GC2PS3 game pad. The GC2PS3 will select the port automatically, and the corresponding LEDs light. LED PORT 1 1 2 2 3 3 4 4 1+4 5 2+4 6 3+4 73. Now, you can enjoy the game play with Gioteck wireless game pad.B) Turbo function Buttons support turbo feature are O, X, △, X, L1, L2, R1, R2 All turbo buttons are synchronized All turbo buttons are with the same speed of 8Hz. To program a button with Turbo function, press [TURBO] and the [button] at the same time. LED flashes in 8Hz Press again the [TURBO] and the [button] at the same time to cancel the turbo function. LED remains OFF. Once power off, all buttons returns to default without Turbo function.C) Thumb stick sensitivity 4 levels settings are available. Level 1 is normal in 100% Level 2 is with 75%, moves the thumb stick 1.5 times faster in speed Level 3 is with 50%, moves the thumb stick 2 times faster in speed Level 4 is with 25%, moves the thumb stick 4 times faster in speed To set up the sensitivity, press and hold the [Turbo] button, flick the thumb stick left and right to toggle and advance to the next faster speed settings. During the set up process, LED 1 lights up to indicate for level 1, LED 2 lights up to indicate for level 2, LED 3 to indicate for level 3, LED 4 lights up to indicate level 4 Flicks the left thumb stick to set up the left thumb stick sensitivity Flicks the right thumb stick to set up the right thumb stick sensitivity Once power off, all thumb sticks returns to default with 100% setting

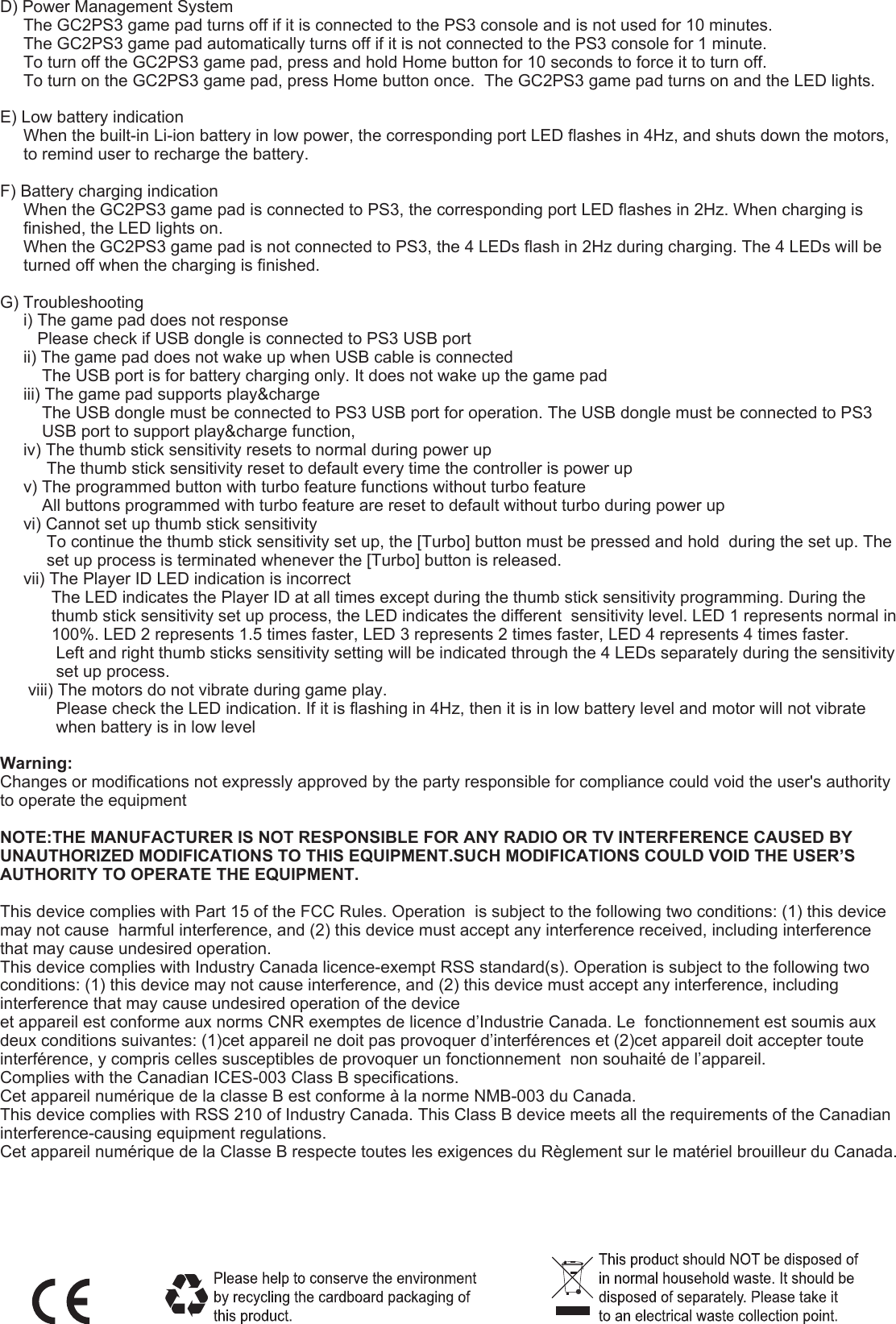

D) Power Management System The GC2PS3 game pad turns off if it is connected to the PS3 console and is not used for 10 minutes. The GC2PS3 game pad automatically turns off if it is not connected to the PS3 console for 1 minute. To turn off the GC2PS3 game pad, press and hold Home button for 10 seconds to force it to turn off. To turn on the GC2PS3 game pad, press Home button once. The GC2PS3 game pad turns on and the LED lights.E) Low battery indication When the built-in Li-ion battery in low power, the corresponding port LED flashes in 4Hz, and shuts down the motors, to remind user to recharge the battery. F) Battery charging indication When the GC2PS3 game pad is connected to PS3, the corresponding port LED flashes in 2Hz. When charging is finished, the LED lights on. When the GC2PS3 game pad is not connected to PS3, the 4 LEDs flash in 2Hz during charging. The 4 LEDs will be turned off when the charging is finished.G) Troubleshooting i) The game pad does not response Please check if USB dongle is connected to PS3 USB port ii) The game pad does not wake up when USB cable is connected The USB port is for battery charging only. It does not wake up the game pad iii) The game pad supports play&charge The USB dongle must be connected to PS3 USB port for operation. The USB dongle must be connected to PS3 USB port to support play&charge function, iv) The thumb stick sensitivity resets to normal during power up The thumb stick sensitivity reset to default every time the controller is power up v) The programmed button with turbo feature functions without turbo feature All buttons programmed with turbo feature are reset to default without turbo during power up vi) Cannot set up thumb stick sensitivity To continue the thumb stick sensitivity set up, the [Turbo] button must be pressed and hold during the set up. The set up process is terminated whenever the [Turbo] button is released. vii) The Player ID LED indication is incorrect The LED indicates the Player ID at all times except during the thumb stick sensitivity programming. During the thumb stick sensitivity set up process, the LED indicates the different sensitivity level. LED 1 represents normal in 100%. LED 2 represents 1.5 times faster, LED 3 represents 2 times faster, LED 4 represents 4 times faster. Left and right thumb sticks sensitivity setting will be indicated through the 4 LEDs separately during the sensitivity set up process. viii) The motors do not vibrate during game play. Please check the LED indication. If it is flashing in 4Hz, then it is in low battery level and motor will not vibrate when battery is in low levelWarning:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the deviceet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: (1)cet appareil ne doit pas provoquer d’interférences et (2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un fonctionnement non souhaité de l’appareil.Complies with the Canadian ICES-003 Class B specifications. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device complies with RSS 210 of Industry Canada. This Class B device meets all the requirements of the Canadian interference-causing equipment regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
