Good Way Technology WD6000 Z-Wave USB Dongle User Manual
Good Way Technology Co., Ltd. Z-Wave USB Dongle
User manual
Z-Wave USB Dongle
User’s Manual
Z-Wave USB Dongle
i
ABOUT THIS MANUAL
This manual is designed for use with the Z-Wave USB Dongle. Information in this document
has been carefully checked for accuracy; however, no guarantee is given to the correctness of
the contents. The information in this document is subject to change without notice. The
manufacturer does not make any representations or warranties (implied or otherwise) regarding
the accuracy and completeness of this document and shall in no event be liable for any loss of
profit or any commercial damage, including but not limited to special, incidental, consequential,
or other damage.
SAFETY INSTRUCTIONS
Always read the safety instructions carefully:
Keep this User’s Manual for future reference
Keep this equipment away from humidity
If any of the following situation arises, get the equipment checked by a service technician:
xThe equipment has been exposed to moisture.
xThe equipment has been dropped and damaged.
xThe equipment has obvious sign of breakage.
xThe equipment has not been working well or you cannot get it to work according to the
User’s Manual.
COPYRIGHT
This document contains proprietary information protected by copyright. All right are reserved. No
part of this manual may be reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer.
TRADEMARKS
All trademarks and registered trademarks are the property of their respective owners or
companies.
Z-Wave USB Dongle
ii
Table of Contents
1. Introduction............................................................................................................1
Features ............................................................................................................................. 1
Package Contents .............................................................................................................. 2
System Requirements........................................................................................................ 2
Applicable for Serial Products of Z-Wave ......................................................................... 2
2. Installation ..............................................................................................................3
On Windows XP and 2000................................................................................................ 3
On Windows Vista and 7................................................................................................... 5
3. Specifications.........................................................................................................7
4. Regulatory Compliance.........................................................................................8
FCC Conditions ................................................................................................................ 8
CE ..................................................................................................................................... 8
WEEE Information ........................................................................................................... 8
Z-Wave USB Dongle
1
1. Introduction

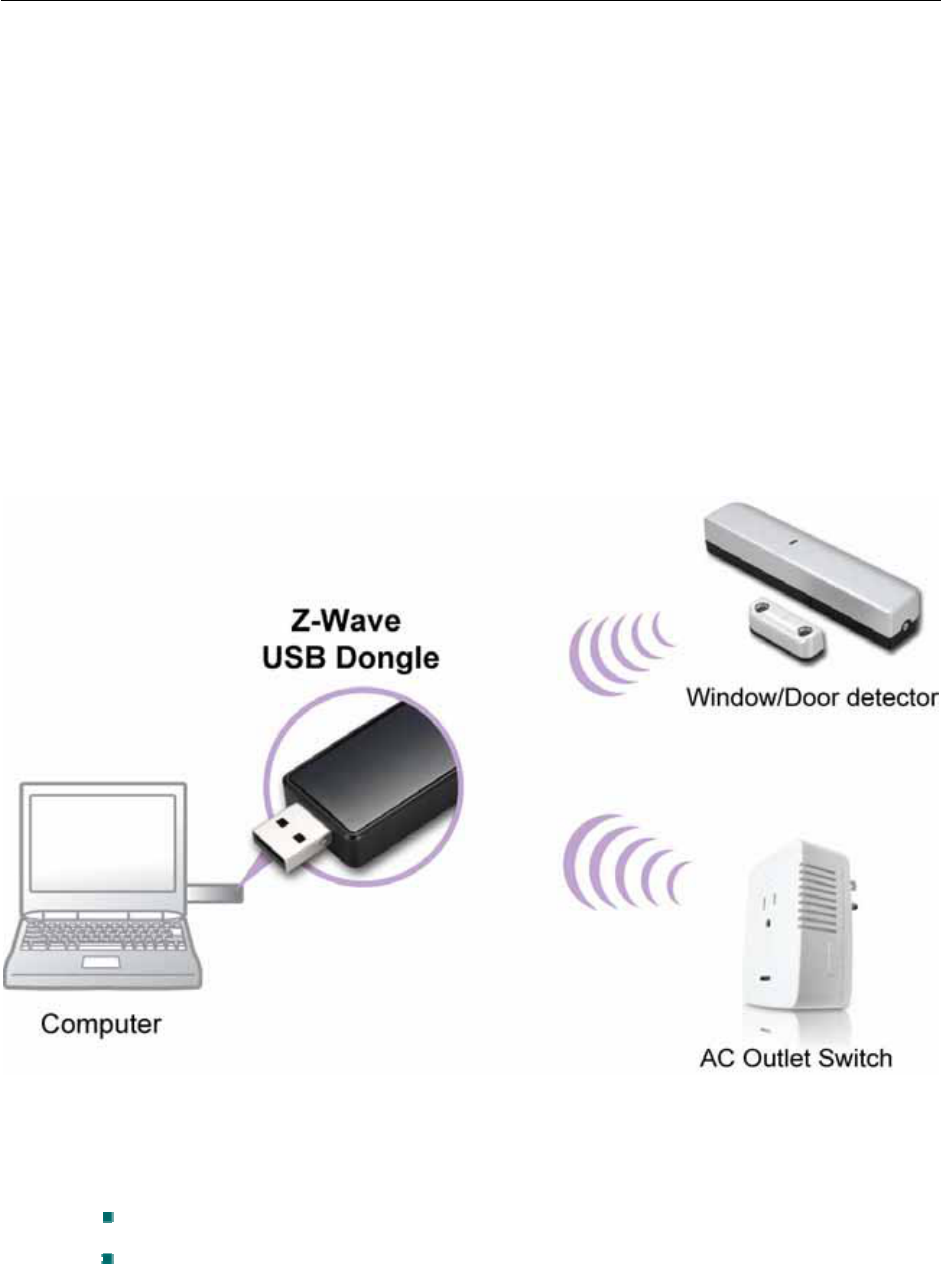

This Z-Wave USB Dongle enables you to access your USB devices without limitation
caused by wire. This Dongle is designed to adapt your regular USB 2.0 interface to a
Wireless USB interface. Simply plug this dongle to your USB socket then the notebook
turns into a wireless USB enabled platform, access your Z-Wave USB devices such as
printer, scanner freely without boundary up to 10 meters. Just plug the dongle in, then
enjoy the freedom and take the advantage of operation wirelessly with the latest
Wireless USB technology.
Features
Simply plug in PC/Notebook USB port with driver installation
Fully compatible with Z-wave enable network that can communicate with
any Z-wave certified device.
Z-Wave USB Dongle
2
Package Contents
Z-Wave USB Dongle x1
CD (Driver and User’s Manual) x1
Quick Installation Guide x1
System Requirements
Windows 2000, XP, Vista¥, Windows 7
Applicable For Serial Product of Z-Wave
Z-Wave dongle is Z-WaveR-Certified software and is compatible with Z-Wave
Cerfied devices. Z-Wave standard is designed to ensure that Z-Wave-Certified
devices work together, regardless of manufacturer. Z-Wave devices can also act
as repeaters, re-transmitting RF signals around obstacles and radio dead spots to
help ensure that messages are successfully delivered.
Z-Wave USB Dongle
2. Installation
On Windows XP and 2000
To install Driver:

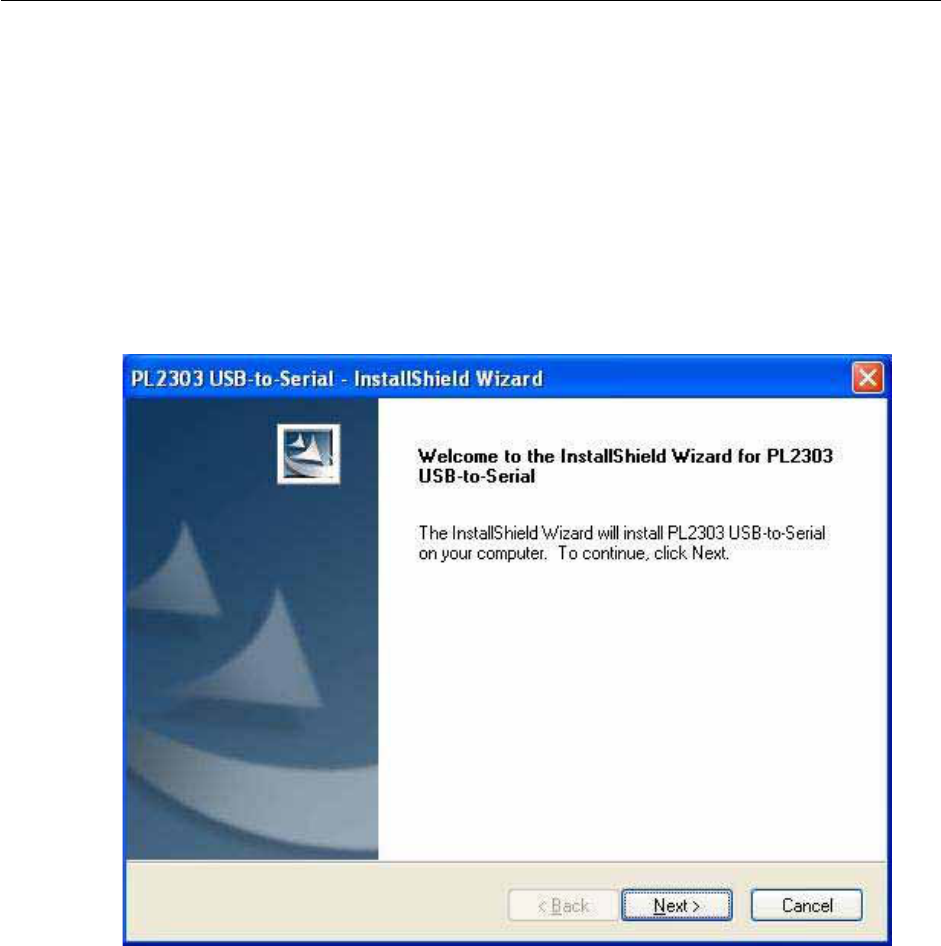

1. Insert the provided CD into disk drive. Click Next to the Next step for
installation.
3
Z-Wave USB Dongle
4

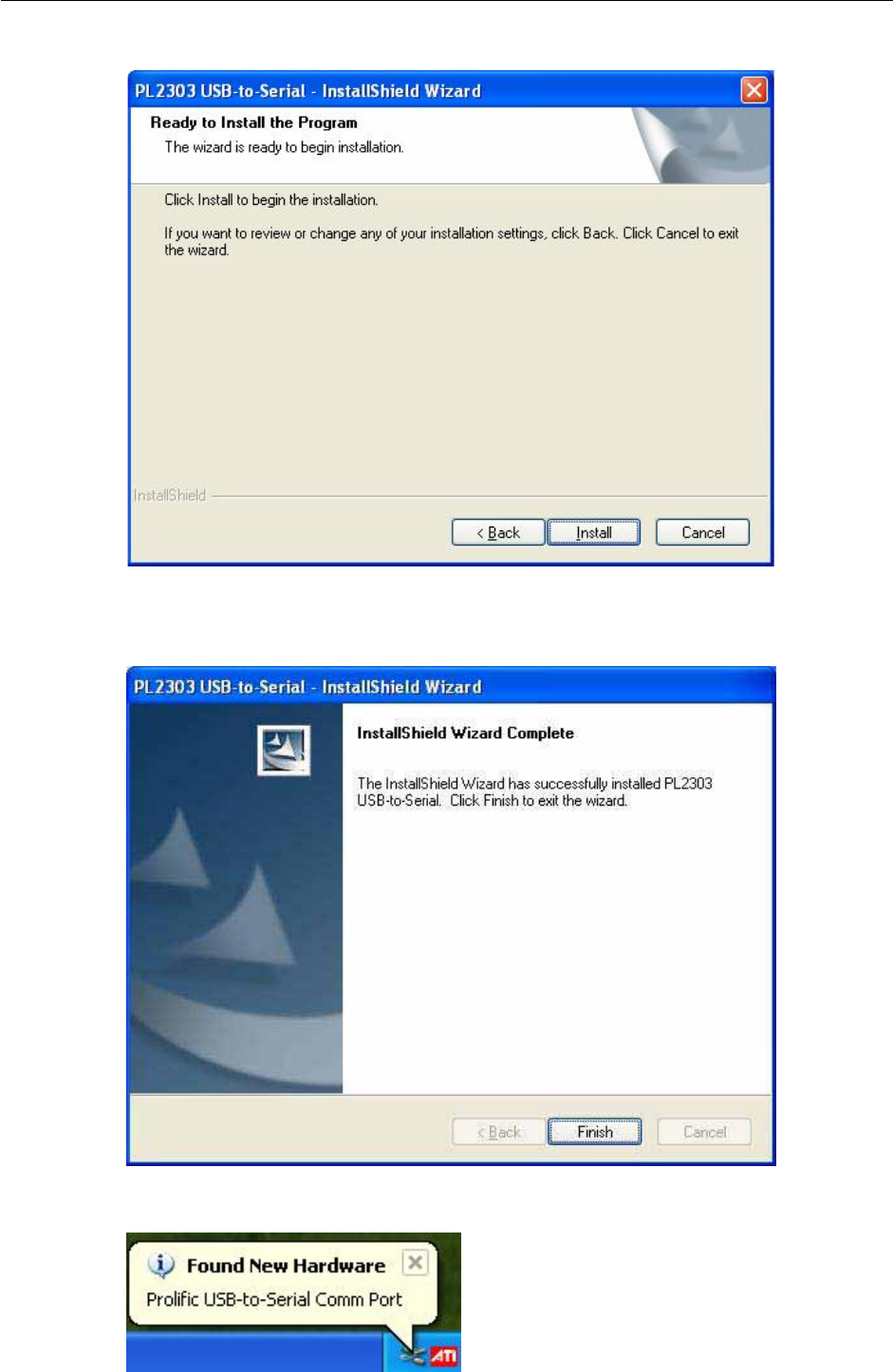

2. Click Install to begin the installation.
3. Click Finish to exit the wizard.
4. Please Plug in Z-Wave USB Dongle to the USB Port on your PC.
Z-Wave USB Dongle
On Windows Vista and 7
To install Driver:

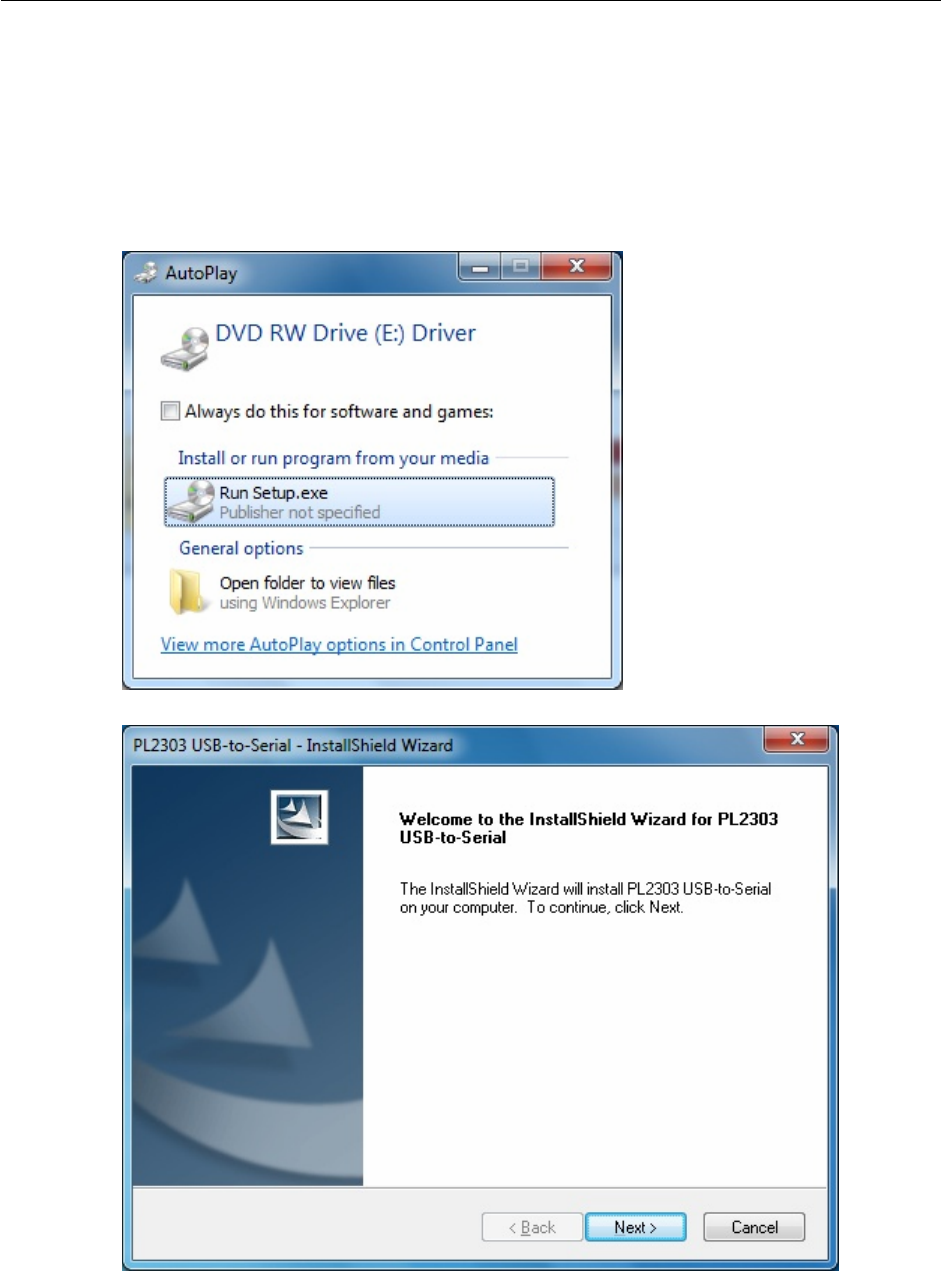

1. Insert the provided CD into your disc drive, locate and double-click the
Setup.exe file under E:\Driver where E is your disc drive letter. Click Next to
the next step for installation.
5
Z-Wave USB Dongle
6

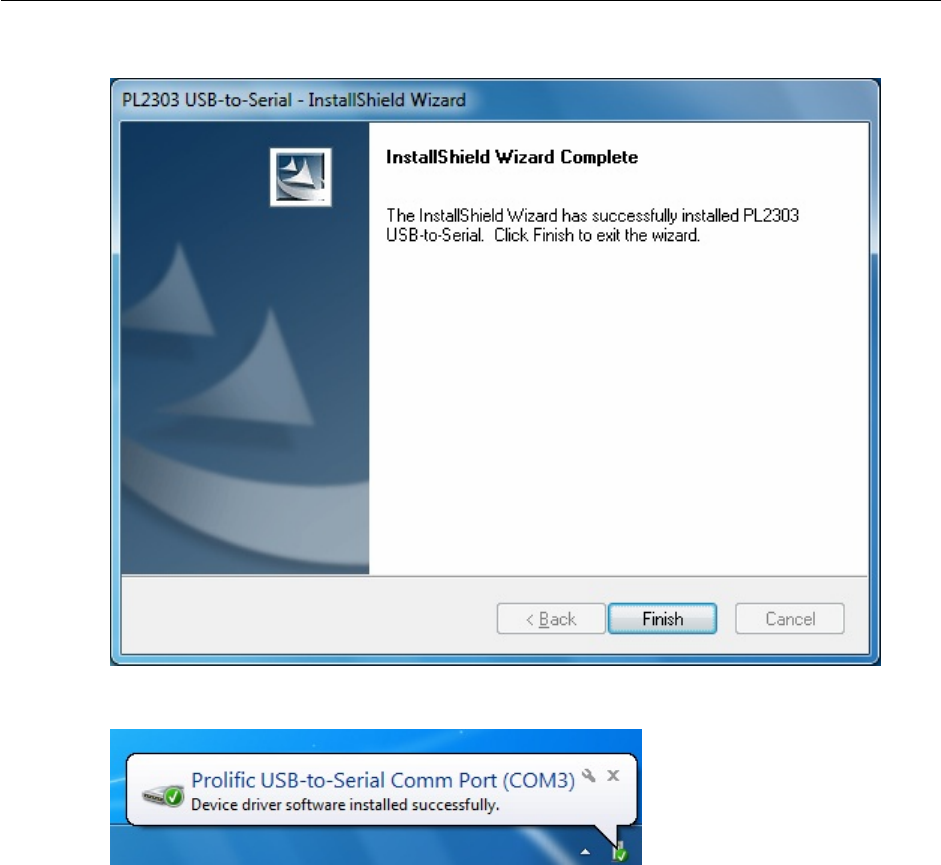

2. Click Finish to exit the wizard.
3. Please Plug in Z-Wave USB Dongle to the USB Port on your PC.
Z-Wave USB Dongle
3. Specifications
Protocol
Z-Wave USB Dongle
User Interface USB A-Type Plug
USB Compliance USB 2.0 specification; backward compatible with USB
1.1
Transmit Power 94.92 dBm
Frequency 908.42MHz
Transmit Data Rate 9.6 kbps, 40 kbps
˥˙ range ˄ˈ̀ʳ˼́˷̂̂̅ʿʳˆ˃̀ʳ̂̈̇˷̂̂̅ʳ ʳ
Housing ˣ˿˴̆̇˼˶
Dimension 59(L)X26(W)X12.4(H)mm
( Not include USB A-Type Plug)
Weight Approximately 11g
Operation temperature 10-40°C
Storage temperature -10~80°C
Relative Humidity 0~80% non-condensing
7
94.92 dBμV/m
Z-Wave USB Dongle
4. Regulatory Compliance
CE
This equipment is in compliance with the requirements of the following
regulations: EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users:
According to the WEEE (Waste electrical and electronic equipment) Directive, do
not dispose of this product as household waste or commercial waste. Waste electrical
and electronic equipment should be appropriately collected and recycled as
required by practices established for your country. For information on recycling of
this product, please contact your local authorities, your household waste disposal
service or the shop where you purchased the product.
8
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
isconnected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept
any interference received, including interference that may cause undesired operation
FCC Conditions
