Good Way Technology ZGATE 802.11b/g/n and Z-WAVE User Manual FG2200 FG3200R1 Manual V1 0 New
Good Way Technology Co., Ltd. 802.11b/g/n and Z-WAVE FG2200 FG3200R1 Manual V1 0 New
User Manual
Z-Gate™
FG2200 (LAN to Z-Wave® Home gateway)
FG3200 (WiFi to Z-Wave® Home gateway)
User's Manual
1
Table of Contents
SAFETYINSTRUCTIONS.........................................1
COPYRIGHT........................................................1
TRADEMARKS.....................................................1
INTRODUCTION...............................................2
FEATURES..........................................................2
PACKAGECONTENTS............................................3
PRODUCTOVERVIEW......................................4
FG2200............................................................4
FG3200............................................................5
CONNECTION..................................................6
SPECIFICATION................................................7
FG2200............................................................7
FG3200............................................................9
REGULATORYCOMPLIANCE...........................12
FCCCONDITIONS..............................................12
CE..................................................................12
WEEEINFORMATION........................................12
1
Before attempting to connect, operate or adjust this product,
please save and read the User's Manual completely. The style
of the product shown in this User's Manual may be different
from the actual unit due to various models.
SafetyInstructions
Always read the safety instructions carefully:
■ Keep this User’s Manual for future reference
■ Keep this equipment away from humidity
■ If any of the following situation arises, get the equipment
checked by a service technician:
• The equipment has been exposed to moisture.
• The equipment has been dropped and damaged.
• The equipment has obvious sign of breakage.
• The equipment has not been working well or cannot get it
to work according to the User’s Manual.
Copyright
This document contains proprietary information protected by
copyright. All right are reserved. No part of this manual may be
reproduced by any mechanical, electronic or other means, in
any form, without prior written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the property of
their respective owners or companies.
2
Introduction
Our Z-GateTM series are designed to connect and
communicate multi Z-Wave® devices. Feature packed,
tiny and powerful Z-Wave® home gateway to
communicate. Monitor and control your home remotely
from anywhere in the world using a mobile phone or
tablet PC. Enhanced expansion capability plus stylish
appearance, the Z-GateTM series are the most versatile
accessories to the Z-Wave® users.
Features
CPU: 400MHz MISPS SoC
Flash NAND 8MB
Memory DDR2 64MB
WAN/LAN Port
Z-Wave® dongle built-in with internal antenna
WiFi (FG3200 only)
Micro SD Slot (internal)
[SD card support up to 64G maximum capacity]
3

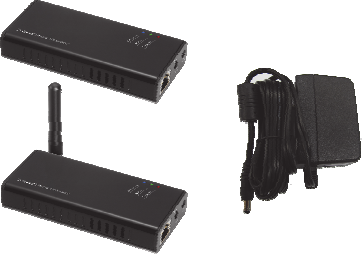

PackageContents
Z-GateTM
Built-in Antenna (FG3200 only)
5V/2.5A Adapter
FG2200
FG3200
Ada
p
ter
4
Product Overview

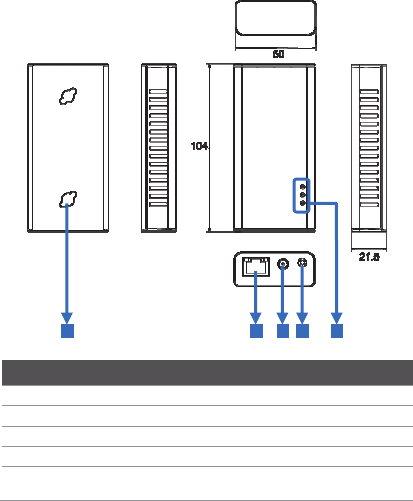

FG2200
Item Description
1 Wall Mount Hole Mounts the device to the wall
2 RJ45 port Connects to an Ethernet
3 DC-in jack Connects to the power adapter
4 Reset Restores to the default settings
5 LED Power (Red); LAN / WAN (Green);
Z-Wave® (Blue)
43215
5

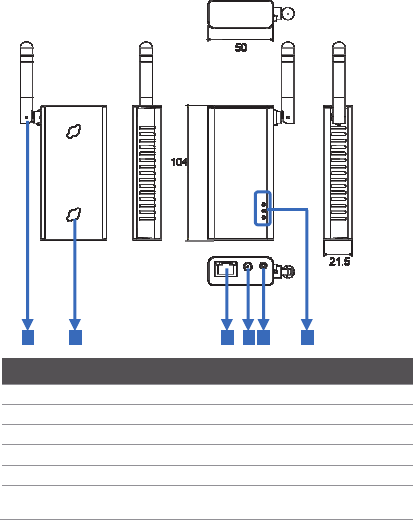

FG3200
Item Description
1 Antenna 2.4GHz Wi-Fi
2 Wall Mount Hole Mounts the device to the wall
3 RJ45 port Connects to an Ethernet
4 DC-in jack Connects to the power adapter
5 Reset Restores to the default settings
6 LED Power (Red); LAN / WAN (Green);
Z-Wave® (Blue)
543261
6
Connection

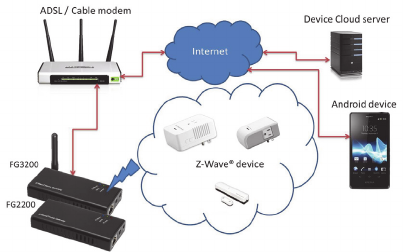

Connect your Z-GateTM with a router using your LAN
cable and start the controller.
From now on Z-GateTM will be visible to all devices within
your local area network (LAN).
To make the connection with cell phone, Ethernet, and
other Z-Wave® devices, please refer to the illustrations
below.
7
Specification
FG2200
Main Function
Core CPU Clock
Rate
400MHz
DDR2
SDRAM
64MBytes
Flash 8MBytes
Ethernet Interface RJ-45
Standard IEEE802.3
Speed 10/100Mbps
LAN For Bridge or Wireless ISP Mode
WAN For Gateway Mode
Z-Wave® RF
Frequency
908.42 MHz (US)
868.42 MHz(EU)
922.5 MHz (JP)
Data Rate 9.6 / 40 / 100kbit/s
Output Power -21…+2.5 dBm
High
Sensitivity
(Typical
Values)
-99 dBm @9.6 kbit/s
-97 dBm @40 kbit/s
-93 dBm @100 kbit/s
LED
Indicator
Display
Red Power
Green LAN / WAN
Blue Z-Wave®
8
Micro SD
Slot (Option)
TF Card Support up to ver. 2.0 (SDHC)
Compatible with ver. 3.0 (SDXC)
Power
DC Jack Input 5VDC
Power
Adapter
Input AC 100-240V
Output DC 5V/2.5A
Power
Consumption
Normal Mode 1.15W
Housing
Physical
Properties
Material ABS (Plastic)
Dimension
(L x W x H)
104 x 50 x 17.5 mm
Weight 55.5g
Working
Environment
Operation
Temperature
0~60 degree
Storage
Temperature
-20~85 degree
Relative
Humidity
5~90% (Non-condensing)
Compliance CE, FCC
9
FG3200
Main Function
Core CPU Clock
Rate
400MHz
DDR2
SDRAM
64MBytes
Flash 8MBytes
Wireless Wi-Fi
Standard
IEEE 802.11 b/g/n Wireless Local
Area Networks
Wi-Fi
Frequency
Range
2.4G~2.5GHz
Measured
Data Rates
1 Mbps, 2 Mbps, 5.5 Mbps, 11
Mbps in 802.11b Modes
6Mbps, 36Mbps, 48Mbps,
54Mbps in 802.11g Modes
MCS0~MCS7 in both HT20 and
HT40 in 802.11n Modes (up to
150Mbps)
Measured
Channels
2.412, 2.442, 2472GHz in 802.11
b/g and 802.11n HT20 modes
2.422, 2.437, 2.452, in 802.11n
HT40 mode
Ethernet Interface RJ-45
Standard IEEE802.3
Speed 10/100Mbps
LAN For Bridge or Wireless ISP Mode
WAN For Gateway Mode
10
Z-Wave® RF
Frequency
908.42 MHz (US)
868.42 MHz(EU)
922.5 MHz (JP)
Data Rate 9.6 / 40 / 100kbit/s
Output Power -21…+2.5 dBm
High
Sensitivity
(Typical
Values)
-99 dBm @9.6 kbit/s
-97 dBm @40 kbit/s
-93 dBm @100 kbit/s
LED
Indicator
Display
Red Power
Green LAN / WAN
Blue Z-Wave®
Micro SD
Slot (Option)
TF Card Support up to ver. 2.0 (SDHC)
Compatible with ver. 3.0 (SDXC)
Power
DC Jack Input 5VDC
Power
Adapter
Input AC 100-240V
Output DC 5V/2.5A
Power
Consumption
Normal Mode 1.70W
Housing
Physical
Properties
Material ABS (Plastic)
Dimension 104(L) x 50(W) x 17.5(H) mm
Weight 64.5g
11
Working
Environment
Operation
Temperature
0~60 degree
Storage
Temperature
-20~85 degree
Relative
Humidity
5~90% (Non-condensing)
Compliance CE, FCC
Regulatory Compliance
FCC Conditions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be so-located or operating in conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm between the radiator and your body.
12
CE
This equipment is in compliance with the requirements of the following regulations: EN 55 022: CLASS B
WEEE Information
For EU (European Union) member users: According to the WEEE (Waste electrical and electronic equipment)
Directive, do not dispose of this product as household waste or commercial waste. Waste electrical and
electronic equipment should be appropriately collected and recycled as required by practices established for
your country. For information on recycling of this product, please contact your local authorities, your
household waste disposal service or the shop where you purchased the product.
13
V1.0
Z-GateTM
User's Manual
