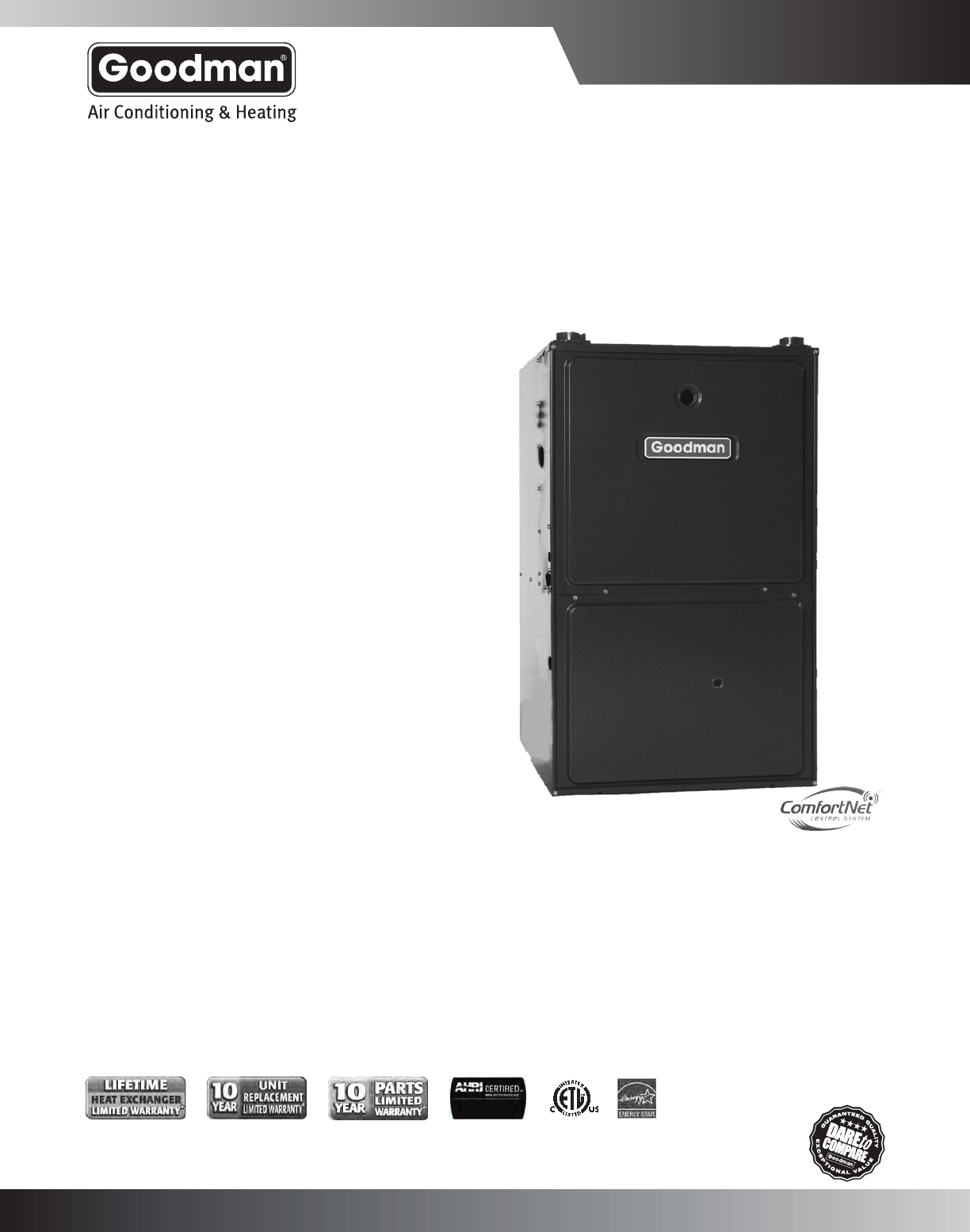

Multi-Position, Modulating
Variable-sPeed gas Furnace
uP to 96% aFue
Contents
Nomenclature .................................................................... 2
Product Specications .......................................................3
Dimensions ........................................................................4
Airow Data .......................................................................6
Wiring Diagrams ..............................................................11
Thermostats ....................................................................12
Accessories .......................................................................12
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime Heat Exchanger Limited Warranty (good
for as long as you own your home), 10-Year Unit Replacement Limited Warranty and 10-Year Parts Limited Warranty, online registration must be completed
within 60 days of installation. Online registration is not required in California or Québec.
Standard Features
• Aluminized-steel, dual-diameter tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Up to 96% AFUE
• ComfortNetTM Communicating Systems compatible
• Self-calibrating, modulating gas valve operates with two-
stage or single-stage thermostats
• Efcient and quiet variable-speed circulator motor gently
ramps up or down according to heating or cooling demand
• Durable Silicon Nitride igniter
• Furnace control board with self-diagnostics, color-coded
low-voltage terminals and provisions for electronic air
cleaners and humidiers
• Low constant fan speed allows homeowner to quietly circu-
late air throughout the home. This setting costs as little as a
100-watt light bulb to operate.
• Dual-certied for sealed combustion direct vent (2-pipe) or
non-direct vent (1-pipe) applications
• Auto-Comfort and enhanced dehumidication modes
provide energy savings and additional comfort during the
cooling months
• Easy-to-install top venting is standard; alternate ue/vent
located on right
• Quiet two-speed induced draft blower
• All models comply with California NOx emissions standards
Cabinet Features
• Fully insulated heavy-gauge steel cabinet with durable baked-
enamel nish
• Foil-faced insulation lines the heat exchanger section
• Designed for multi-position installation: upow, horizontal
left, or right
• Airtight solid bottom for side-return applications and easy-cut
tabs for effortless removal in bottom air-inlet applications
• Convenient left or right connection for gas and electric service
• Coil and furnace t ush for most installations
SS-GMVM96 www.goodmanmfg.com 6/11
gMVM96
& gcVM96
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
2 www.goodmanmfg.com SS-GMVM96
noMenclATuRe
  
 
 
G
Goodman
®
Brandor A Ini.alReleases(Major&Minor)
Dis.nc.ons™ B 1stRevisions(Major&Minor)
C 2ndRevisions

C
Downflow/Horizontal

D DedicatedDownflow N NaturalGas
H HighAirflow X LowNOx
K DedicatedUpflow
M Upflow/Horizontal 
A14”
 B17½”
V TwoStage/Variablespeed C21”
H TwoStage/Mul.speed D24½”
S SingleStage/Mul.speed
E TwoStage/HighEfficiency 
31200
 41600
C ComfortNet™Communica.ngSystem 52000
M Modula.ngFurnace 
045:45,000
 060:60,000
96 96% 9
90%+
080:80,000
95 95% 8 80% 100:100,000
115:115,000









Important EnergyStar Notice: EnergyStar ratings are dependent upon conditions beyond
equipment installation. Proper sizing and installation of equipment is critical to
achieve optimal performance. Split system air conditioners and heat pumps must
be matched with appropriate coil components to meet EnergyStar criteria. Ask your
contractor for details or visit www.energystar.gov.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
SS-GMVM96 www.goodmanmfg.com 3
sPeciFicATions
GMVM96
0603BX
GMVM96
0805CX
GMVM96
1005DX
GMVM96
1155DX
GCVM96
0604CX
GCVM96
0805DX
GCVM96
1005DX

High Fire Input¹ 60,000 80,000 100,000 115,000 60,000 80,000 100,000
High Fire Output¹ 57,600 76,800 96,000 109,250 57,600 76,800 95,000
Low-Fire Steady-State Input¹ 30,000 40,000 50,000 57,500 30,000 40,000 50,000
Low-Fire Steady-State Output¹ 28,800 38,400 48,000 54,625 28,800 38,400 47,500
AFUE² 96 96 96 95 96 96 95
Tons AC @ 0.5” ESP 1.5-3.0 2.0-5.0 2.0-5.0 2.0-5.0 1.5-4.0 2.0-5.0 2.0-5.0
Temperature Rise Range (°F) 20-50 35-65 35-65 35-65 20-50 20-50 25-55

Size (D x W) 10" X 8" 11" X 10" 11" X 10" 11" X 10" 10"X 10" 11" X 10" 11" X 10"
Horespower @ 1050 RPM 3/4 1 1 1 3/4 1 1
Speed Variable Variable Variable Variable Variable Variable Variable
Vent Diameter³ 2" 3" 3" 3" 2" 3" 3"
No. of Burners 3 4 5 5 3 4 5
Disposable Filter (in²) 576 960 960 972 641 854 854

Min. Circuit Ampacity (amps)⁴ 6.0 14.2 14.2 14.2 6.0 14.2 14.2
Max. Overcurrent Protecon⁵ 15.0 15.0 15.0 15.0 15.0 15.0 15.0
 135 145 170 170 139 165 170
¹ Natural Gas BTU/h
² DOE AFUE based upon Isolated Combuson System (ICS)
³ Installer must supply one or two PVC pipes: one for combuson air (oponal) and one for the ue outlet (required). Vent pipe must be either 2” or 3” in
diameter, depending upon furnace input, number of elbows, length of run and installaon (1 or 2 pipes). The oponal Combuson Air Pipe is dependent
on installaon/code requirements and must be 2” or 3” diameter PVC.
⁴ Minimum Circuit Ampacity = (1.25 x Circulator Blower Amps) + ID Blower amps. Wire size should be determined in accordance with Naonal Electrical
Codes. Extensive wire runs will require larger wire sizes.
⁵ Maximum Overcurrent Protecon Device refers to maximum recommended fuse or circuit breaker size. May use fuses or HACR-type circuit breakers of
the same size as noted.

• All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.
• Gas Service Connecon ½” FPT
• Important: Size fuses and wires properly and make electrical connecons in accordance with the Naonal Electrical Code and/or all exisng local codes.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
4 www.goodmanmfg.com SS-GMVM96

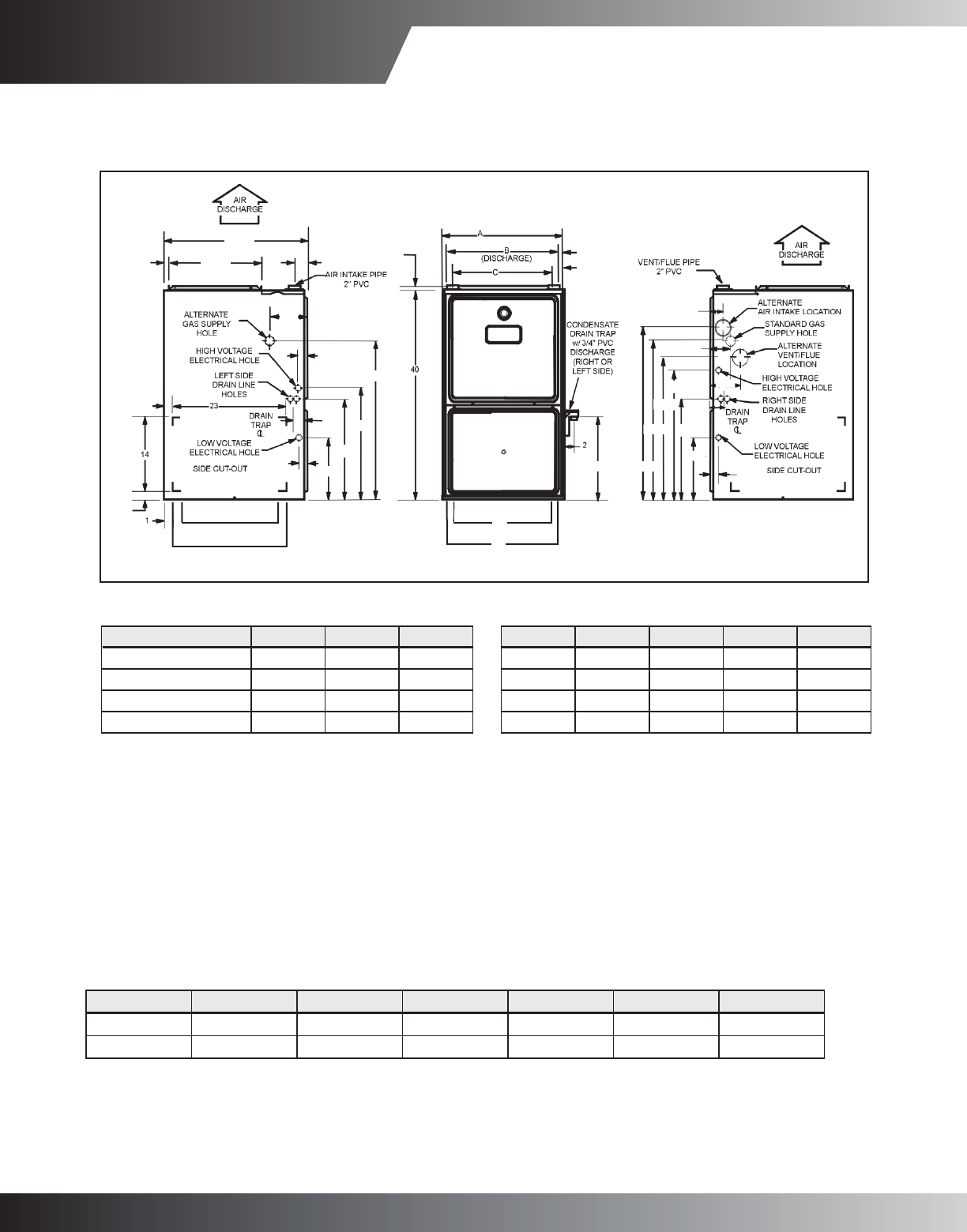

gMVM96 DiMensions
MiniMuM cleARAnces To coMbusTible MATeRiAls
     
Upow 0” 0” 3” C 0” 1”
Horizontal 6” 0” 3” C 0” 6”
C = If placed on combusble oor, the oor MUST be wood ONLY.

• For servicing or cleaning, a 24” front clearance is required.
• Unit connecons (electrical, ue and drain) may necessitate greater clearances than the minimum clearances listed above.
• In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.
28¾
19⅞
RIGHT SIDE VIEW
LEFT SIDE VIEW
22 ¹/₁₁
FOLDED FLANGES
23 ⁹/₁₆
UNFOLDED FLANGES
FRONT VIEW
FOLDED FLANGES
UNFOLDED FLANGES
D
E
1¾
11¾
30¼
¾
¾
30¼
1¾
11¾
1¾ 32¹³/₁₁
19³/₁₁
24₁/₁₁
2¹¹/₁₁
2¹/₁₁
19³/₁₁
¾
1½
21¼
2⅝
7⅜
1⅝
2½
4⅛
16⅝
2⅝
27⅛
6⅛
 D H A B C D E
GMVM960603BX 17½” 28¾" 40¾" 17½” 16" 13⅛" 12⅛" 13⅝"
GMVM960805CX 21" 28¾" 40¾" 21" 19½” 16⅛" 16" 17½”
GMVM961005DX 24½” 28¾" 40¾" 24½” 23" 20⅝" 19⅜" 20⅞"
GMVM961155DX 24½” 28¾" 40¾" 24½” 23" 20⅝" 19⅜" 20⅞"

• Installer must supply one or two PVC pipes: one for combuson air (oponal) and one for the ue outlet (required). Vent pipe must be either 2” or 3”
in diameter, depending upon furnace input, number of elbows, length of run and installaon
(1 or 2 pipes). The oponal Combuson Air Pipe is dependent on installaon/code requirements and must be 2” or 3” diameter PVC.
• Line voltage wiring can enter through the right or le side of the furnace. Low-voltage wiring can enter through the right or le side of furnace.
• Conversion kits for high-altude natural gas operaon are available. Contact your Goodman distributor or dealer for details.
• Installer must supply following gas line ngs, according to which entrance is used:
Le—Two 90º elbows, one close nipple, straight pipe
Right—Straight pipe to reach gas valve
• For boom return: Failure to unfold anges may reduce airow by up to 18%. This could result in performance and noise issues.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
SS-GMVM96 www.goodmanmfg.com 5

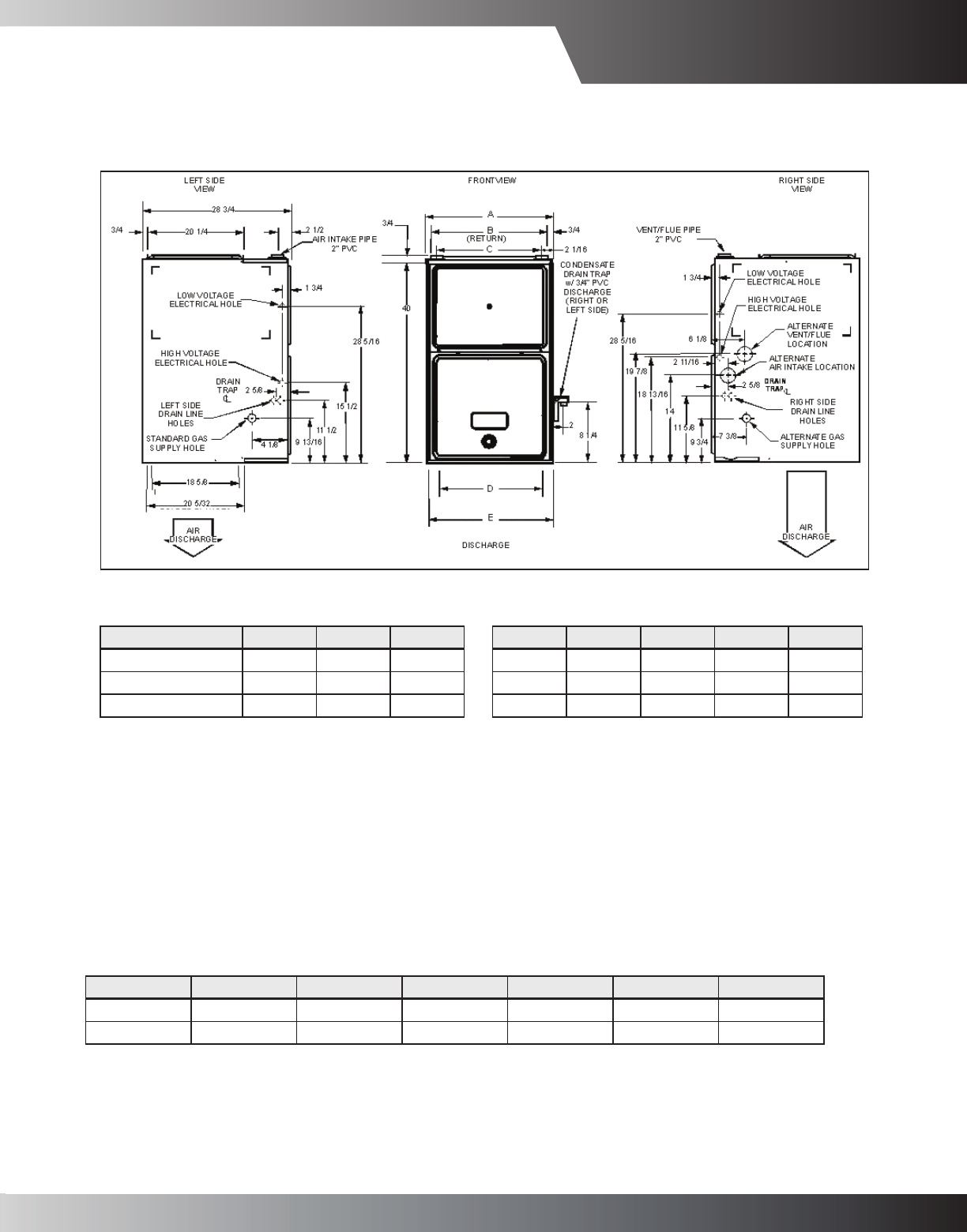

gcVM96 DiMensions
FOLDED FLANGES
UNFOLDED FLANGES
FOLDED FLANGES
UNFOLDED FLANGES
MiniMuM cleARAnces To coMbusTible MATeRiAls
     
Downow 0” 0” 3” NC 0” 1”
Horizontal 6” 0” 3” C 0” 6”
C = If placed on combusble oor, the oor MUST be wood ONLY.
NC = For installaon on non-combusble oors only. A combusble oor sub-base must be used for installaons on combusble ooring.

• For servicing or cleaning, a 24” front clearance is required.
• Unit connecons (electrical, ue and drain) may necessitate greater clearances than the minimum clearances listed above.
• In all cases, accessibility clearance must take precedence over clearances from the enclosure where accessibility clearances are greater.
 D H A B C D E
GCVM960604CX 21" 28¾" 40¾" 21" 19½” 16⅛" 18" 19½”
GCVM960805DX 24½” 28¾" 40¾" 24½” 23" 20⅝" 21½” 23"
GCVM961005DX 24½” 28¾" 40¾" 24½” 23" 20⅝" 21½” 23"

• Installer must supply one or two PVC pipes: one for combuson air (oponal) and one for the ue outlet (required). Vent pipe must be either 2” or
3” in diameter, depending upon furnace input, number of elbows, length of run, and installaon (1 or 2 pipes). The oponal Combuson Air Pipe is
dependent on installaon/code requirements and must be 2” or 3” diameter PVC.
• Line voltage wiring can enter through the right or le side of the furnace. Low-voltage wiring can enter through the right or le side of furnace.
• Conversion kits for high-altude natural gas operaon are available. Contact your Goodman distributor or dealer for details.
• Installer must supply following gas line ngs, according to which entrance is used:
Le—Two 90º elbows, one close nipple, straight pipe
Right—Straight pipe to reach gas valve
• For boom return: Failure to unfold anges may reduce airow by up to 18%. This could result in performance and noise issues.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
6 www.goodmanmfg.com SS-GMVM96
gMVM96 AiRFlow DATA — cooling sPeeDs
GMVM960603BX GVMV960805CX
   
 CFM*  CFM*  CFM*  CFM*
A
Minus(-) 567
A
Minus(-) 351
A
Minus(-) 747
A
Minus(-) 486
Normal 630 Normal 390 Normal 830 Normal 540
Plus (+) 693 Plus (+) 429 Plus (+) 913 Plus (+) 594
B
Minus(-) 720
B
Minus(-) 495
B
Minus(-) 981
B
Minus(-) 675
Normal 800 Normal 550 Normal 1090 Normal 750
Plus (+) 880 Plus (+) 605 Plus (+) 1199 Plus (+) 825
C
Minus(-) 900
C
Minus(-) 612
C
Minus(-) 1314
C
Minus(-) 882
Normal 1000 Normal 680 Normal 1460 Normal 980
Plus (+) 1100 Plus (+) 748 Plus (+) 1606 Plus (+) 1078
D
Minus(-) 1089
D
Minus(-) 720
D
Minus(-) 1620
D
Minus(-) 1089
Normal 1210 Normal 800 Normal 1800 Normal 1210
Plus (+) 1331 Plus (+) 880 Plus (+) 1980 Plus (+) 1331
* @ .1" - .8" w.c. ESP * @ .1" - .8" w.c. ESP
GMVM961005DX GMVM961155DX
   
 CFM*  CFM*  CFM*  CFM*
A
Minus(-) 711
A
Minus(-) 459
A
Minus(-) 711
A
Minus(-) 459
Normal 790 Normal 510 Normal 790 Normal 510
Plus (+) 869 Plus (+) 561 Plus (+) 869 Plus (+) 561
B
Minus(-) 990
B
Minus(-) 639
B
Minus(-) 990
B
Minus(-) 639
Normal 1100 Normal 710 Normal 1100 Normal 710
Plus (+) 1210 Plus (+) 781 Plus (+) 1210 Plus (+) 781
C
Minus(-) 1269
C
Minus(-) 819
C
Minus(-) 1269
C
Minus(-) 819
Normal 1410 Normal 910 Normal 1410 Normal 910
Plus (+) 1551 Plus (+) 1001 Plus (+) 1551 Plus (+) 1001
D
Minus(-) 1647
D
Minus(-) 1044
D
Minus(-) 1647
D
Minus(-) 1044
Normal 1830 Normal 1160 Normal 1830 Normal 1160
Plus (+) 2013 Plus (+) 1276 Plus (+) 2013 Plus (+) 1276
* @ .1" - .8" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Operaon is recommended below .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
SS-GMVM96 www.goodmanmfg.com 7
gMVM96 AiRFlow DATA — HeATing sPeeDs
GMVM960603BX

GMVM960805CX


  
 
Minus(-) 855 62 Minus(-) 1,440 49
Normal 950 56 Normal 1,600 44
Plus (+) 1,045 51 Plus (+) 1,760 40
Minus(-) 945 56 Minus(-) 1,521 47
Normal 1,050 51 Normal 1,690 42
Plus (+) 1,155 46 Plus (+) 1,859 38
Minus(-) 1,053 50 Minus(-) 1,620 44
Normal 1,170 45 Normal 1,800 39
Plus (+) 1,287 41 Plus (+) 1,980 36
Minus(-) 1,143 46 Minus(-) 1,701 42
Normal 1,270 42 Normal 1,890 37
Plus (+) 1,397 38 Plus (+) 2,079 34
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP
GMVM961005DX

GMVM961155DX


  
 
Minus(-) 1,629 54 Minus(-) 1,629 62
Normal 1,810 49 Normal 1,810 56
Plus (+) 1,991 44 Plus (+) 1,991 51
Minus(-) 1,665 53 Minus(-) 1,665 60
Normal 1,850 48 Normal 1,850 54
Plus (+) 2,035 43 Plus (+) 2,035 49
Minus(-) 1,701 52 Minus(-) 1,701 59
Normal 1,890 47 Normal 1,890 53
Plus (+) 2,079 43 Plus (+) 2,079 48
Minus(-) 1,746 51 Minus(-) 1,746 58
Normal 1,940 46 Normal 1,940 52
Plus (+) 2,134 41 Plus (+) 2,134 47
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Operaon is recommended below .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for
cooling purposes only.
• 100% CFM shown. CFM will vary proporonally with the gas valve BTU/H input.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
8 www.goodmanmfg.com SS-GMVM96
gcVM96 AiRFlow DATA — cooling sPeeDs
GCVM960604CX GCVM960805DX
   



 


 


 



A
Minus(-) 594
A
Minus(-) 333
A
Minus(-) 810
A
Minus(-) 477
Normal 660 Normal 370 Normal 900 Normal 530
Plus (+) 726 Plus (+) 407 Plus (+) 990 Plus (+) 583
B
Minus(-) 774
B
Minus(-) 486
B
Minus(-) 990
B
Minus(-) 657
Normal 860 Normal 540 Normal 1100 Normal 730
Plus (+) 946 Plus (+) 594 Plus (+) 1210 Plus (+) 803
C
Minus(-) 1035
C
Minus(-) 711
C
Minus(-) 1287
C
Minus(-) 837
Normal 1150 Normal 790 Normal 1430 Normal 930
Plus (+) 1265 Plus (+) 869 Plus (+) 1573 Plus (+) 1023
D
Minus(-) 1323
D
Minus(-) 882
D
Minus(-) 1692
D
Minus(-) 1098
Normal 1470 Normal 980 Normal 1880 Normal 1220
Plus (+) 1617 Plus (+) 1078 Plus (+) 2068 Plus (+) 1342
* @ .1” - .8” w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Operaon is recommended below .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.
GCVM961005DX
 



 



A
Minus(-) 702
A
Minus(-) 450
Normal 780 Normal 500
Plus (+) 858 Plus (+) 550
B
Minus(-) 963
B
Minus(-) 666
Normal 1070 Normal 740
Plus (+) 1177 Plus (+) 814
C
Minus(-) 1242
C
Minus(-) 828
Normal 1380 Normal 920
Plus (+) 1518 Plus (+) 1012
D
Minus(-) 1602
D
Minus(-) 1044
Normal 1780 Normal 1160
Plus (+) 1958 Plus (+) 1276
* @ .1” - .8” w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Operaon is recommended below .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for cooling purposes only.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
SS-GMVM96 www.goodmanmfg.com 9
gcVM96 AiRFlow DATA — HeATing sPeeDs
GCVM960604CX
ACVM960604CX

GCVM960805DX
ACVM960805DX


  
 
Minus(-) 1,098 48 Minus(-) 1,440 49
Normal 1,220 44 Normal 1,600 44
Plus (+) 1,342 40 Plus (+) 1,760 40
Minus(-) 1,206 44 Minus(-) 1,539 46
Normal 1,340 40 Normal 1,710 41
Plus (+) 1,474 36 Plus (+) 1,881 38
Minus(-) 1,314 40 Minus(-) 1,620 44
Normal 1,460 36 Normal 1,800 39
Plus (+) 1,606 33 Plus (+) 1,980 36
Minus(-) 1,431 37 Minus(-) 1,719 41
Normal 1,590 33 Normal 1,910 37
Plus (+) 1,749 30 Plus (+) 2,101 34
* @ .1" - .5" w.c. ESP * @ .1" - .5" w.c. ESP
GCVM961005DX


 
Minus(-) 1,557 56
Normal 1,730 51
Plus (+) 1,903 46
Minus(-) 1,593 55
Normal 1,770 49
Plus (+) 1,947 45
Minus(-) 1,656 53
Normal 1,840 48
Plus (+) 2,024 43
Minus(-) 1,683 52
Normal 1,870 47
Plus (+) 2,057 43
* @ .1" - .5" w.c. ESP

• All furnaces ship as high speed for cooling. Installer must adjust blower speed as needed.
• For most jobs, about 400 CFM per ton when cooling is desirable.
• Operaon is recommended below .5” w.c. ESP in heang mode. Operang CFM between .5” and .8” w.c. is tabulated for
cooling purposes only.
• 100% CFM shown. CFM will vary proporonally with the gas valve BTU/H input.
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
10 www.goodmanmfg.com SS-GMVM96

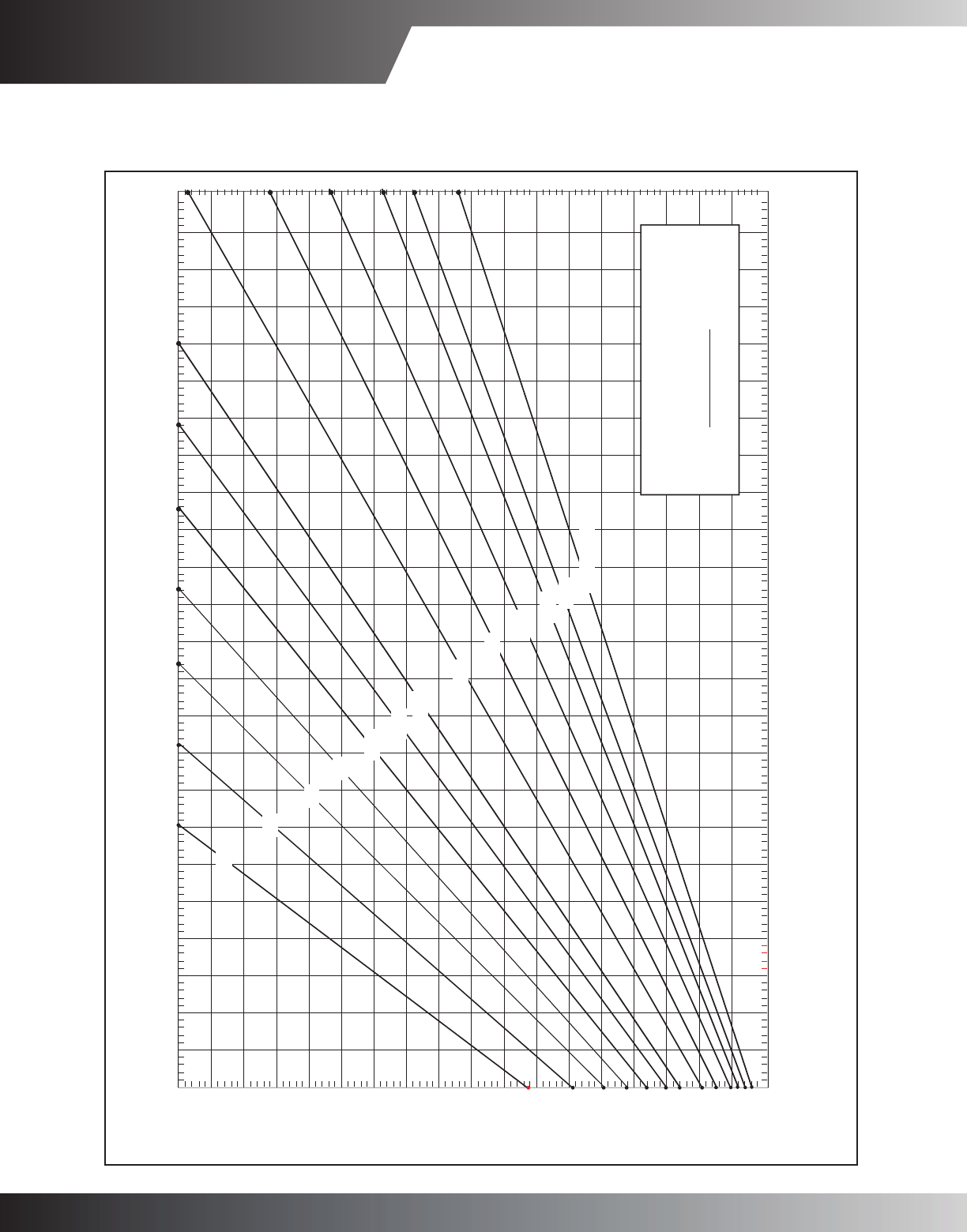

TeMPeRATuRe Rise RAnge cHART
BLOWER PERFORMANCE SPECIFICATIONS
14
30 40 50 60 70 80 90 110 120
100 130 140 150
100
90
80
70
60
50
40
30
20
10
OUTPUT BTU/HR x 1000
BTU OUTPUT vs TEMPERATURE RISE CHART
TEMPERATURE RISE
600 CFM
700
900
1000
1100
1200
1400
1600
1800
2000
2200
2400 CFM
FORMULAS
BTU OUTPUT = CFM x 1.08 x RISE
RISE =
BTU OUTPUT
1.08 ÷ CFM
800
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
SS-GMVM96 www.goodmanmfg.com 11

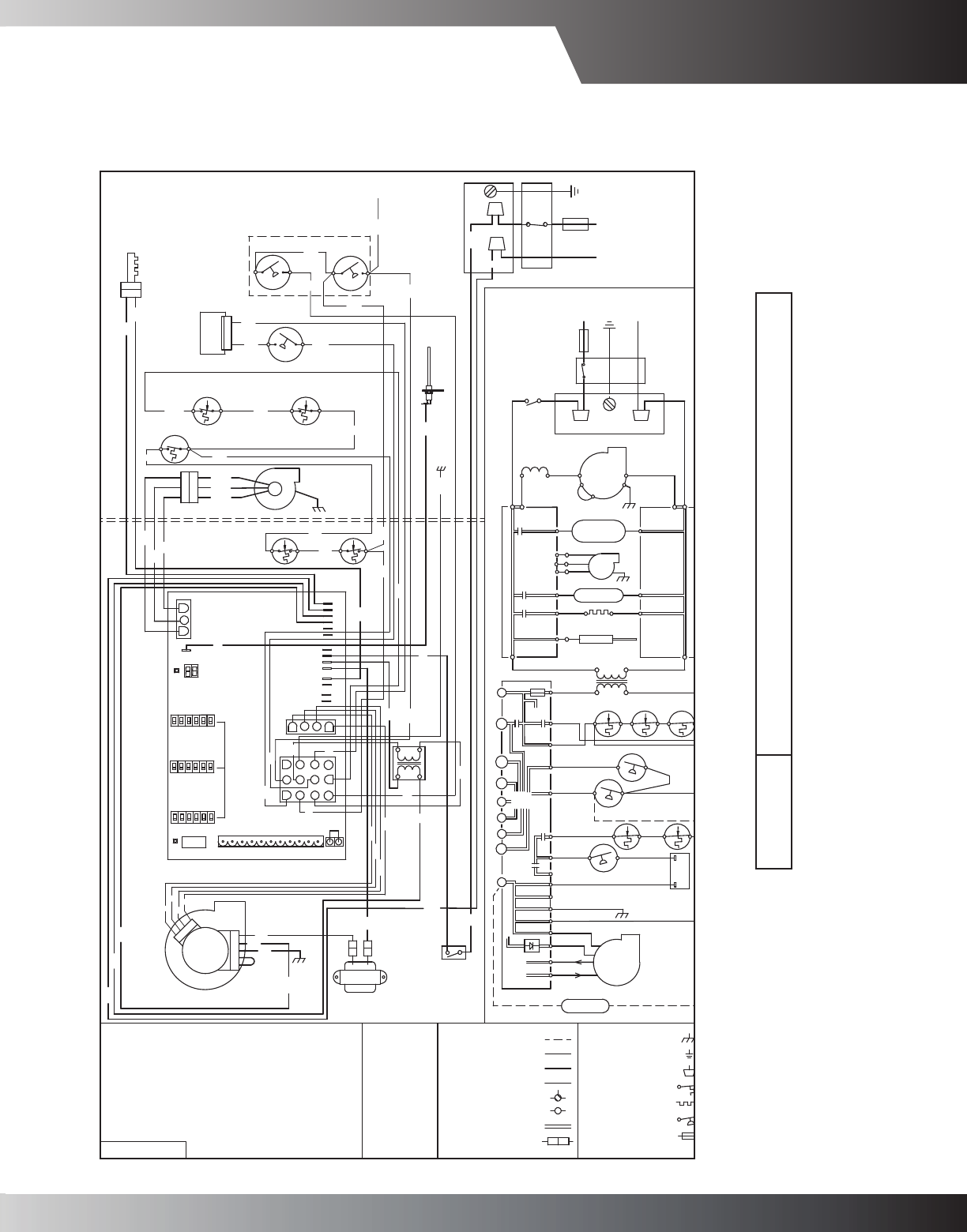

wiRing DiAgRAM
Wiring is subject to change. Always
refer to the wiring diagram or the
unit for the most up-to-date wiring. ⚠
Warning
  Disconnect all power before servicing or installing this unit. Mulple power
sources may be present. Failure to do so may cause property damage, personal injury, or death. ⚡
OPTIONAL
OPTIONAL
OPTIONAL
TR (9)
PRESS. SWITCH
FRONT COVER
LIMITCONTROLS
MANUALRESETROLLOUT
PRESS.SWITCH
LOWFIREPRESS.
LIMITCONTRO
L
AUTORESETPRIMAR
Y
AUTORESETAUXILIARYLIMIT
24VAC
TO+VDC
TR(5)
FUSE3A
40VA
HOTSURFACE
3ØID
INTEGRATED CONTROL MODULE
AIRCLEANER
115kBTUMODELS
POLARIZED AND
MUST BE PROPERLY
WIRING TO UNIT
BEFORE SERVICING
DISCONNECT POWER
OVERCURRENT PROTECTION DEVICE
Ø /60 HZ POWER SUPPLY WITHTO 115VAC/1
SWITCHASSEMBLY
IDBLOWERTWO-STAGEPRESSURE
SWITCH
LOWFIRE
(HONEYWELL)
GASVALVE
2CIRCUIT
PRESSURESWITCH
FRONTCOVER
(SINGLECONTROLON45kBTU)
MANUALRESETROLLOUTLIMITCONTROLS
LIMITCONTROL
AUTORESETPRIMARY
BURNERCOMPARTMENT
BLOWERCOMPARTMENT
AUTORESET
LIMITCONTROL
FURNACE CONTROL MODULE
MODULATING INTERGRATED
COOL TAPS
HEAT TAPS
FAN TAPS
DIP SWITCHES
HEAT OFF
HEAT SETUP
COOL SETUP
PULL UP
PULL DOWN
24VTHERMOSTATCONNECTIONS
24V HUM.
INTEGRATED CONTROL MODULE
24V THERMOSTAT CONNECTIONS
115kBTUMODELS
(OPENWHEN
DOORSWITCH
24V3A
ECMMTR
IN STANDBY(NOTHERMOSTATINPUTS)
RECENT,DEPRESSSWITCHFORMORETHAN2SECONDSWHILE
5.TORECALLTHELAST10FAULTS,MOSTRECENTTOLEAST
N.E.C.ANDLOCALCODES.
4.UNIT MUSTBEPERMANENTLYGROUNDEDANDCONFORMTO
LEAST105°C.USECOPPERCONDUCTORSONLY.
WIRINGMATERIALHAVINGATEMPERATURERATINGOFAT
FURNACEMUSTBEREPLACED,ITMUSTBEREPLACEDWITH
3.IFANYOFTHEORIGINALWIREASSUPPLIEDWITHTHE
USEDWHENSERVICING.
2.MANUFACTURER'S SPECIFIEDREPLACEMENTPARTSMUSTBE
1.SETHEATANTICIPATORONROOMTHERMOSTATAT0.7 AMPS.
BKBLACK
PUPURPLE
YLYELLOW
BLBLUE
WHWHITE
BRBROWN
PKPINK
COLORCODES:
PLUGCONNECTION
INTEGRATEDCONTROL
INTERNALTO
HIVOLTAGEFIELD
HIVOLTAGE(115V)
LOWVOLTAGE(24V)
LOWVOLTAGEFIELD
PROT.DEVICE
SWITCHPRESSURE
SWITCH(TEMP)
FIELDSPLICE
EQUIPMENTGND
PROPERLYPOLARIZED
TOUNIT MUSTBE
SERVICINGWIRING.
POWERBEFORE
POWERSUPPLYWITH
115VAC/1HZ
Ø/60
TO
MICRO
TO
R
GND(4)
+VDC(1)
RX(2)
TX(3)CIRCULATOR
INDOOR
AIR
BLWR
RDGY
BL
BK
HUMIDIFIER
GND
PROTECTION
DEVICE
LINE
RD
TO
C
BK
RD
IGNITER
FLAME
SENSOR
INTEGRATEDCONTROL
MODULE
OR
TERMINAL
ORORANGE
PM
HARNESS
NO
(12)
3
C
CIRCULATOR
BK
BK
OVERCURRENT
24V
HUM.
0140F00863-B
IGNITER
24
PM
INDUCED
DRAFT
BLOWER
EAC
C
115
VAC
INDUCTORCOIL
C
PU
YL
DEHUM
GND
2
HOT
SURFACE
IGNITER
(7)
NEUTRAL
DOOR
SWITCH
4
3
2
CHASSIS
GROUND
WH
VAC
GND
YL
CONNECTOR
HUM
OVERCURRENT
(6)
ONLY
C
MODULATING
DISCONNECT
HIGHFIRE
INDOOR
HUMIDIFIER
N
1
CONTROLS
OR
JUNCTION
BLWR
CIRCULATORBLOWER
R
1
GND
JUNCTIONBOX
NEUTRAL
BLOWER
COMPARTMENT
DOOROPEN)
C
LINE
BK
4
NEUTRAL
C
FS
2
DISCONNECT
PU
HIGHFIRE
PRESSURE
SWITCH
ONLY
W1
70kBTU,90kBTU,
NO
(8)
O
WH
5
GND(4)
BK
3
IGN
PK
GY
(3)
70kBTU,90kBTU,
NOTES:
PU
L
AIR
WH
Y1
GYGRAY
ELECTRONIC
RDRED
Y2
OR
NEUTRAL
1
(11)
WH
SWITCH
NO
WH
TRANSFORMER
BR
BL
GR
2
GROUNDED.
W2
WARNING:
FIELDGND
WH
115
NEUTRAL
BLWR
JUNCTION BOX
GND
1
ANDGROUNDED.
RD
GAS
VALVE
PU
INDUCTORCOIL
C
1
VAC
G
C
GR
GRGREEN
FLAME
SENSOR
(2)
PRESSURE
1
L
BR
NO
3
NO
N
GY
OR
TO
MICRO
WARNING:DISCONNECT
PK
AUXILIARY
2
NO
BL GY
BK
RD
OR
BR
BK
WH
RD
OR
WH
WH WH WH
BK
YL
OR
BIAS
2
FUSE
ADJUST
LINE
DEHUM
2
3
1
NEUTRAL
3
DELAY
1
FLAME
SENSOR
4
DIAGNOSTIC
LED'S
O
G
ID BLOWER
CONNECTOR
Y2
HUM
EAC
W1
R
2
Y1
1
C
W2
DEHUM
10
6
3
45
2
7
11
1
12
89
HSI
AUX
OR
2
GND
(10)
BR
OR
BK
BR
40 VA
TRANSFORMER
GY
RAMPING
BL
GY
PRoDucT sPeciFicATions PRoDucT sPeciFicATions
12 www.goodmanmfg.com SS-GMVM96
Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specications or designs without
notice or without incurring obligations. © 2011 • Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA.
AccessoRies
THeRMosTATs
GTS1175-2
GTS3275-2
GTS 4275-2
Touch-Screen Digital Thermostats
(See Amana Thermostat specication sheets for details.)
G2111-2
G3272-2
G3273-2
Touch-Screen Digital Thermostats
(See Amana Thermostat specication sheets for details.)
G1100-2
G2100-2
G1152-2
G2152-2
Programmable and Non-programmable Digital Thermostats
(See Amana Thermostat specication sheets for details.)
  GMVM96
0603BX
GMVM96
0805CX
GMVM96
1005DX
GMVM96
1155DX
GCVM96
0604CX
GCVM96
0805DX
GCVM96
1005DX
LPKM0D060UF
LP Conversion Kits
√
LPKM0D080UF √
LPKM0D100UF √
LPKM0D115UF √
LPKM0D060CF √
LPKM0D080CF √
LPKM0D100CF √
EFR01 External Filter Rack √√√√√√√
DCVK-20 Horizontal/Vercal Concentric Vent Kit (2”) √√√--- √--- ---
DCVK-30 Horizontal/Vercal Concentric Vent Kit (3”) √√√√√√ √
CFB21 Downow Floor Base --- --- --- --- √--- ---
CFB24 Downow Floor Base --- --- --- --- --- √ √
017K00000S Flush-mount vent kit √ √ √ √ √ √ √

√ Indicates available for this model
• For installaon in Canada, gas furnaces are cered only to 4,500’.

Navigation menu
