GPC 14 SEER R-410A

Package Air Conditioners

with R-410A

RT6322007r6

September 2010

**Note that these tax credits are subject to specific requirements set forth in the American Recovery and

Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman recommends that consumers consult

a tax professional if they have questions about the applicability of these credits.

This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does not

assume any responsibility for property damage or personal injury due to improper service procedures or

services performed by an unqualified person.

•Refer to Service Manual RS6300011 (Horizontal)

for installation, operation, and troubleshooting information.

•All safety information must be followed as provided in the Service Manual.

•Refer to the appropriate Parts Catalog for part number information.

•Models listed on page 3.

•Models qualify for the 2009 and 2010 Federal Tax Credits for Energy Efficiency**

TECHNICAL MANUTECHNICAL MANU

TECHNICAL MANUALAL

ALAL

PRODUCT IDENTIFICATION

The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please

use these numbers when requesting service or parts information.

WARNING

WARNING HIGH VOLTAGE!

Disconnect ALL power before servicing or installing this unit. Multiple power

sources may be present. Failure to do so may cause property damage, personal

injury or death.

Installation and repair of this unit

should be performed ONLY by in-

dividuals meeting (at a minimum) the requirements of an

"entry level technician" as specified by the Air-Condition-

ing, Heating, and Refrigeration Institute (AHRI). Attempt-

ing to install or repair this unit without such background

may result in product damage, personal injury or death.

Goodman will not be responsible

for any injury or property damage

arising from improper service or service procedures. If

you install or perform service on this unit, you assume

responsibility for any personal injury or property damage

which may result. Many jurisdictions require a license to

install or service heating and air conditioning equipment.

WARNING

WARNING WARNING

WARNING

GPC1424H41AA

PRODUCT

TYPE:

Package Unit

PRODUCT

FAMILY:

C: Cooling

PRODUCT

SERIES:

SEER Rating

BRAND:

G: Goodman®

Brand

OMINAL

APACIT

4: 24,000 BTUH

0: 30,000 BTUH

6: 36,000 BTUH

2: 42,000 BTUH

8: 48,000 BTUH

0: 60,000 BTUH

CONFIGURATION:

H: Horizontal

REFRIGERANT:

4: R-410A

VOLTAGE:

1: 208-230v

1ph/60Hz

MAJOR REVISION:

: Initial Release

MINOR REVISION:

: Initial Release

PRODUCT IDENTIFICATION

The model and manufacturing number are used for positive identification of component parts used in manufacturing. Please

use these numbers when requesting service or parts information.

GPC1424H41AA

GPC1430H41AA

GPC1436H41AA

GPC1442H41AA

GPC1448H41AA

GPC1460H41AA

The United States Environmental Protection Agency (“EPA”) has issued various regulations re-

garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow

these regulations may harm the environment and can lead to the imposition of substantial fines.

These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.

WARNING

Do not connect or use any device

that is not design certified by

Goodman for use with this unit.

Serious property damage, personal injury, reduced unit

performance and/or hazardous conditions may result

from the use of such non-approved devices.

WARNING

WARNING To prevent the risk of property

damage, personal injury, or death,

do not store combustible materials or use gasoline or

other flammable liquids or vapors in the vicinity of this

appliance.

WARNING

Models qualify for the 2009 and 2010 Federal Tax Credits

for Energy Efficiency**

**Note that these tax credits are subject to specific requirements set forth in the American

Recovery and Reinvestment Act of 2009 and in the Internal Revenue Code. Goodman

recommends that consumers consult a tax professional if they have questions about the

applicability of these credits.

5mm

GPC1424H41AB

GPC1430H41AB

GPC1436H41AB

GPC1442H41AB

GPC1448H41AB

AB model specific

5 mm information

begins on page 28.

PRODUCT DESIGN

GPC Package Cooling Units are designed for outdoor instal-

lations only in either residential or light commercial applica-

tions.

The connecting ductwork (Supply and Return) can be con-

nected for either horizontal or vertical airflow. In the vertical

application a matching Roof Curb is recommended.

A return air filter must be installed behind the return air grille(s)

or provision must be made for a filter in an accessible loca-

tion within the return air duct. The minimum filter area should

not be less than those sizes listed in the Specification Sec-

tion. Under no circumstances should the unit be operated

without return air filters.

A 3/4” PVC pipe is provided for removal of condensate water

from the indoor coil In order to provide proper condensate

flow, a drain trap is supplied and shipped loose inside the

unit for field installation. (Do not reduce the drain line size.)

Refrigerant flow control is achieved by use of restrictor ori-

fices. GPC units use the FasTest Access Fitting System

with a saddle that is either soldered to the suction and liquid

lines or is fastened with a locking nut to the access fitting

box (core) and then screwed into the saddle. Do not re-

move the core from the saddle until the refrigerant

charge has been removed. Failure to do so could re-

sult in property damage or personal injury.

The single phase units use permanent split capacitor (PSC)

design compressors. Starting components are therefore not

required for these units. A low microfarad run capacitor as-

sists the compressor to start and remains in the circuit dur-

ing operation.

All GPC14 units have X-13 indoor blower motors that are en-

ergized by a 24V signal from the thermostat and are con-

stant torque motors with very low power consumption. The X-

13 features an integral control module.

Air for condensing (cooling cycle) is drawn through the out-

door coil by a propeller fan, and is discharged vertically out

the top of the unit. The outdoor coil is designed for .0 static.

No additional restriction (ductwork) shall be applied.

Conditioned air is drawn through the filter(s), field installed,

across the coil and back into the conditioned space by the

indoor blower.

GPC1424-30H41* use Copeland Reciprocating Compressors.

GPC1436-60H41* use Copeland Scroll Compressors. There

are a number of design characteristics which are different

from the traditional reciprocating compressor.

- Due to their design Scroll Compressors are inherently

more tolerant of liquid refrigerant. NOTE: Even though the

compressor section of a Scroll compressor is more toler-

ant of liquid refrigerant, continued floodback or flooded

start conditions may wash oil from the bearing surfaces

causing premature bearing failure.

- Scroll Compressors use white oil which is compatible

with 3GS oil which may be used if additional oil is re-

quired.

- Operating pressures and amp draws may differ from stan-

dard reciprocating compressors. This information may be

found in the "Cooling Performance Data" section.

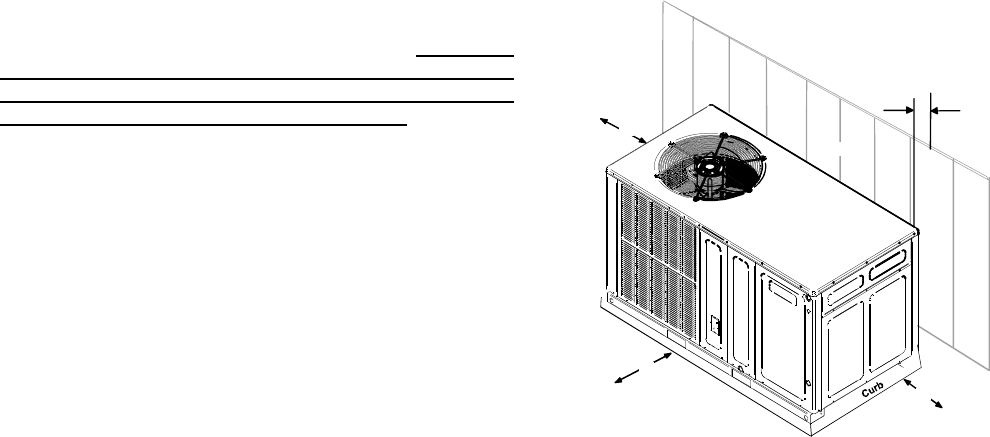

Location and Clearances

NOTE: To ensure proper condensate drainage, unit must be

installed in a level position.

36"

10"

UNIT

WALL

36"

Outside Slab Installation - Horizontal (H)

Minimum clearances are required to avoid air recirculation and

keep the unit operating at peak efficiency.

PRODUCT DESIGN

36"

24"

PLENUM

UNIT

PLATFORM

CURB

Rooftop Installation - Horizontal (H)

In installations where the unit is installed above ground level

and not serviceable from the ground (Example: Roof Top in-

stallations), the installer must provide service platform for ser-

vice person with rails or guards in accordance with local codes

or ordinances or in their absence with the latest edition of the

Uniform Mechanical Code Section 305.

NOTE: Unit can also use roof curb.

WARNING

TO PREVENT POSSIBLE PROPERTY DAMAGE, THE

UNIT SHOULD REMAIN IN AN UPRIGHT POSITION

DURING ALL RIGGING AND MOVING OPERATIONS.

TO FACILITATE LIFTING AND MOVING IF A CRANE

IS USED, PLACE THE UNIT IN AN ADEQUATE CABLE

SLING.

Refer to Roof Curb Installation Instructions for proper curb

installation. Curbing must be installed in compliance with

the National Roofing Contractors Association Manual.

PRODUCT DIMENSIONS GPC14[24-60]H41A*

Chassis Model A B

GPC1424 33 30½

GPC1430 33 30½

GPC1436 33 35½

GPC1442 33 35½

GPC1448 33 38½

GPC1460 33 38½

Dimensions in inches

Large

Small

Medium

34.075

66.542

4.512

14.000

SUPPLY 6.500 RETURN

4.500

BACK VIEW

(DUCT OPENINGS)

14.000

PRODUCT DESIGN

HKR ELECTRICAL DATA

All wires and overcurrent protection devices are sized for use with electric heaters only and without

refrigeration. If heaters are not installed with above wire size, overheating and fire could occur. See

PACKAGE COOLING SPECIFICATIONS section for minimum circuit ampacity and maximum overcurrent

protection during refrigeration cycle.

IMPORTANT NOTE: A separate power supply is required for the HKR heater kit.

WARNING

GPC14[24-60]H41A*

Maximum Maximum

Overcurrent Overcurrent

Protection (amps) Protection (amps)

at 208 / 240V at 208 / 240V

GPH1424H41A*

HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 33 / 28 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 45 / 51 60 / 60 ---- ---- 9.50 / 32,400

GPH1430H41A*

HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 45 / 52 60 / 60 ---- ---- 9.50 / 32,400

HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600

GPH1436H41A*

HKR05*,C* 24 / 27 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 45 / 52 60 / 60 ---- ---- 9.50 / 32,400

HKR15*,C* 45 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600

GPH1442H41A*

HKR05*,C* 25 / 27 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 34 / 39 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 46 / 52 60 / 60 ---- ---- 9.50 / 32,400

HKR15*,C* 46 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600

HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.50 / 66,500

GPH1448H41A*

HKR05*,C* 25 / 28 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 34 / 40 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 46 / 53 60 / 60 ---- ---- 9.50 / 32,400

HKR15*,C* 46 / 52 60 / 60 22 / 25 30 / 30 14.25 / 48,600

HKR20*,C* 46 / 52 60 / 60 43 / 49 60 / 60 19.50 / 66,500

GPH1460H41A*

HKR05*,C* 26 / 30 30 / 30 ---- ---- 4.75 / 16,200

HKR08*,C* 36 / 40 40 / 40 ---- ---- 7.00 / 23,800

HKR10*,C* 48 / 54 60 / 60 ---- ---- 9.50 / 32,400

HKR15*,C* 48 / 54 60 / 60 22 / 25 30 / 30 14.25 / 48,600

HKR20*,C* 48 / 54 60 / 60 43 / 49 60 / 60 19.50 / 66,500

Actual

kW & BTU

at 240V

Minimum Circuit

Ampacity

at 208 / 240V

Minimum Circuit

Ampacity

at 208 / 240V

Model and Heat Kit Usage

Circuit #1 Circuit #2

ACCESSORIES

GPC14[24-60]H41A*

Part Number Description

OT18-60A Outdoor Thermostat Kit w/Lockout Stat

OT/EHR18-60 Emergency Heat Relay Kit

HKR Electric Heat Kit

PCCP101-103 Roof Curb

PCP101-103 Downflow Plenum Kit

PCP101-103R8 Downflow Plenum Kit w/ R-8 Insulation

GPCED101-103 Downflow Economizer for GPC-(H) A/C - To Be Used With PCP101-103

GPHED101-103 Downflow Economizer for GPH-(H) Heat Pump - To Be Used With PCP101-103

GPCEH101-103 Horizontal Economizer for GPC-(H) A/C

GPHEH101-103 Horizontal Economizer for GPH-(H) Heat Pump

PCMD101-103 Manual Damper - To Be Used With PCP101-103

PCMDM101-103 Motorized Damper - To Be Used With PCP101-103

GPHMD101-103 Manual Damper for Horizontal Applications

SQRPCH101 Square to Round Adapters 16"&14"

SQRPCH102-103 Square to Round Adapters 18"&14"

SQRPC101 Square to Round Adapter - For Use With PCCP101-103 Curb 16" Rounds

SQRPC102-103 Square to Round Adapter For Use With PCCP101-103 Curb 18" Rounds

PCFR101-103 External Horizontal Filter Rack

PCEF101-103 Elbow & Flashing w/ R-8 Liner

CDK36 Flush Mount Concentric Duct Kit

CDK36515 Flush Mount Concentric Duct Kit w/ Filter

CDK36530 Step Down Concentric Duct Kit

CDK36535 Step Down Concentric Duct Kit w/ Filter

CDK4872 Flush Mount Concentric Duct Kit

CDK4872515 Flush Mount Concentric Duct Kit w/ Filter

CDK4872530 Step Down Concentric Duct Kit

CDK4872535 Step Down Concentric Duct Kit w/ Filter

BLOWER PERFORMANCE DATA

Dry Coil Data

GPC14[24-60]H41A*

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

CFM 934 759 755 638 581 489 - -

WATTS957776738390 - -

CFM 990 837 801 744 696 652 601 -

WATTS 107 94 105 110 119 133 142 -

CFM 1061 989 947 925 876 - - -

WATTS 126 134 146 158 169 - - -

CFM 1022 929 894 829 797 748 695 643

WATTS 116 114 126 134 144 156 168 173

CFM 1103 1063 1012 962 937 - - -

WATTS 142 154 165 173 185 - - -

CFM 1285 1240 1202 1163 1124 1076 1046 1003

WATTS 205 218 231 244 257 268 280 288

CFM 1234 1111 1071 1024 933 922 - -

WATTS 144 140 152 164 179 183 - -

CFM 1287 1232 1186 1133 1099 1053 - -

WATTS 162 175 187 201 213 221 - -

CFM 1381 1325 1277 1233 1181 1144 - -

WATTS 195 203 217 233 247 258 - -

CFM 1272 1197 1145 1106 1055 998 947 906

WATTS 160 168 183 191 211 220 230 243

CFM 1357 1297 1244 1194 1147 1099 1049 1008

WATTS 188 202 213 228 245 255 267 284

CFM 1537 1478 1431 1386 1336 1293 1253 1208

WATTS 244 258 274 288 303 317 329 341

CFM 1418 1383 1349 1312 1275 1228 1178 1141

WATTS 242 258 273 282 299 308 320 338

CFM 1175 1635 1645 1515 1510 1450 1430 1400

WATTS 395 420 435 445 455 465 470 475

CFM 1845 1790 1715 1685 1590 1580 1530 1500

WATTS 490 505 520 535 550 560 570 575

CFM 1775 1635 1645 1515 1510 1450 1430 1400

WATTS 395 420 435 445 455 465 470 475

CFM 2025 1900 1840 1780 1725 1650 1620 1580

WATTS 575 595 620 630 645 655 660 670

NOTES:

1. Data shown is dry coil. Wet coil pressure drop is approx.

2. 0.1" H2O, for 2 row indoor coil; 0.2” H2O, for 3 row indoor coil; and 0.3” H2O, for 4 row indoor coil.

3. Data shown does not incl ude fil ter pressure drop, approx. 0.08” H2O.

4. Reduce airflow by 2% for 208V operation.

230

GPC1460H41**

T4, T5

T1, T2, T3

GPC1448H41**

T2,T3

T4, T5

GPC1442H41**

T2,T3

T4, T5

GPC1436H41**

T2,T3

T4, T5

GPC1430H41**

T2,T3

T4, T5

GPC1424H41**

T2,T3

T4, T5

Model Speed Volts E.S.P (In. of H2O)

230

BLOWER PERFORMANCE DATA

30 40 50 60 70 80 90 110 120

100 130 140 150

100

OUTPUT BTU/HR x 1000

BTU OUTPUT vs TEMPERATURE RISE CHART

TEMPERATURE RISE

600 CFM

700

900

1000

1100

1200

1400

1600

1800

2000

2200

2400 CFM

FORMULAS

BTU OUTPUT = CFM x 1.08 x RISE

RISE = BTU OUTPUT

1.08 ÷ CFM

800

PACKAGE COOLING SPECIFICATIONS

GPC14[24-30]H41AA

IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers

in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.

(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.

* Calculated external filter size based on air velocity of 300 ft/min.

Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.

Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.

GPC1424H41* GPC1430H41*

COOLING COOLING CAPACITY, BTUH 24,600 28,400

CAPACITY SEER / EER 14.5 / 12.1 14.0 / 12.1

UNIT VOLTAGE (NAMEPLATE) 208-230/1/60 208-230/1/60

ELECTRICAL AMPS (TOTAL) 10.5 13.16

SPECIFICATION MINIMUM CIRCUIT AMPACITY 12.5 15.6

MAXIMUM OVERCURRENT PROTECTION (1) 20 25

COMPRESSOR TYPE RECIP RECIP

RATED LOAD AMPS 7.9 9.8

LOCKED ROTOR AMPS 41 55

CONDENSER HORSEPOWER 1/6 1/4

FAN MOTOR RPM 815 830

FULL LOAD AMPS 1.1 1.5

LOCKED ROTOR AMPS 1.7 3.0

CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 3 22 / 3

CONDENSER FACE AREA - SQ. FT. 13.4 13.4

COIL NUMBER OF ROWS 1 1

FINS PER INCH 24 24

EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5

BLOWER FULL LOAD AMPS 1.5 1.86

MOTOR LOCKED ROTOR AMPS NA NA

MOTOR SPEED TAP - COOLING T2 T2

RPM 1050 1050

EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 X 8

BLOWER HI EFFICIENCY COOLING CFM 850 1,050

5 TON NOMINAL COOLING CFM NA NA

FAN ONLY COOLING CFM 800 950

MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5

EVAPORATOR FACE AREA - SQ. FT. 5.25 5.25

COIL NUMBER OF ROWS 3 3

FINS PER INCH 16 16

GENERAL FILTER SIZE - SQ. FT. * 20 x 20 x 1 20 x 25 x 1

INFORM ATION DRAIN SIZE (INCHES) 3/4" 3/4"

EXPANSION DEVICE ORIFICE (0.057) ORIFICE (0.060)

REFRIGERANT CHARGE R-410A (Oz.) 83 78

POWER SUPPLY CONDUIT KNOCKOUT SIZE (I

3/4, 1, 1-1/4 3/4, 1, 1-1/4

LOW VOLTAGE CONDUIT KNOCKOUT SIZE (IN.

)

1/2 1/2

SHIPPING WEIGHT LBS. 310 310

OPERATING WEIGHT LBS. 300 300

PACKAGE COOLING SPECIFICATIONS

GPC14[36-42]H41AA

IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers

in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.

(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.

* Calculated external filter size based on air velocity of 300 ft/min.

Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.

Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.

GPC1436H41* GPC1442H41*

COOLING COOLING CAPACITY, BTUH 35,600 40,000

CAPACITY SEER / EER 14.0 / 12.0 14.2/ 12.0

UNIT VOLTAGE (NAMEPLATE) 208-230/1/60 208-230/1/60

ELECTRICAL AMPS (TOTAL) 20.06 22.2

SPECIFICATION MINIMUM CIRCUIT AMPACITY 24.2 26.6

MAXIMUM OVERCURRENT PROTECTION (1) 40 40

COMPRESSOR TYPE SCROLL SCROLL

RATED LOAD AMPS 16.7 17.9

LOCKED ROTOR AMPS 79 112

CONDENSER HORSEPOWER 1/4 1/4

FAN MOTOR RPM 830 1075

FULL LOAD AMPS 1.5 1.4

LOCKED ROTOR AMPS 3.0 2.9

CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 3 22 / 4

CONDENSER FACE AREA - SQ. FT. 13.4 17.0

COIL NUMBER OF ROWS 1 1

FINS PER INCH 24 24

EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5

BLOWER FULL LOAD AMPS 1.86 2.9

MOTOR LOCKED ROTOR AMPS NA NA

MOTOR SPEED TAP - COOLING T2 T2

RPM 1050 1050

EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 x 8

BLOWER HI EFFICIENCY COOLING CFM 1,200 1,300

5 TON NOMINAL COOLING CFM NA NA

FAN ONLY COOLING CFM 1,100 1,200

MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5

EVAPORATOR FACE AREA - SQ. FT. 5.2 6.2

COIL NUMBER OF ROWS 3 4

FINS PER INCH 14 14

GENERAL FILTER SIZE - SQ. FT. * 25 x 25 x 1 (2) 20 x 20 x 1

INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4"

EXPANSION DEVICE ORIFICE (0.065) ORIFICE (0.072)

REFRIGERANT CHARGE R-410A (Oz.) 80 118

POWER SUPPLY CONDUIT KNOCKOUT SIZE (I

3/4, 1, 1-1/4 3/4, 1, 1-1/4

LOW VOLTAGE CONDUIT KNOCKOUT SIZE (IN.

)

1/2 1/2

SHIPPING WEIGHT LBS. 370 370

OPERATING WEIGHT LBS. 360 360

PACKAGE COOLING SPECIFICATIONS

IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers

in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.

(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.

* Calculated external filter size based on air velocity of 300 ft/min.

Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.

Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.

GPC14[48-60]H41AA

GPC1448H41* GPC1460H41*

COOLING COOLING CAPACITY, BTUH 46,500 57,500

CAPACITY SEER / EER 14.5 / 12.0 14.5 / 12.0

UNIT VOLTAGE (NAMEPLATE) 208-230/1/60 208-230/1/60

ELECTRICAL AMPS (TOTAL) 24.2 30.7

SPECIFICATION MINIMUM CIRCUIT AMPACITY 29.1 37.3

MAXIMUM OVERCURRENT PROTECTION (1) 45 60

COMPRESSOR TYPE SCROLL SCROLL

RATED LOAD AMPS 19.9 26.4

LOCKED ROTOR AMPS 109 134

CONDENSER HORSEPOWER 1/4 1/4

FAN MOTOR RPM 1075 1075

FULL LOAD AMPS 1.4 1.4

LOCKED ROTOR AMPS 2.9 2.9

CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 4 22 / 4

CONDENSER FACE AREA - SQ. FT. 19.1 19.1

COIL NUMBER OF ROWS 1 2

FINS PER INCH 21 16

EVAPORATOR HORSEPOWER - NO. OF SPEEDS 3/4 - 5 3/4 - 5

BLOWER FULL LOAD AMPS 2.9 2.9

MOTOR LOCKED ROTOR AMPS NA NA

MOTOR SPEED TAP - COOLING T2 T2

RPM 1050 1050

EVAPORATOR DIAMETER X WIDTH (INCHES) 10 x 8 11 x 8

BLOWER HI EFFICIENCY COOLING CFM 1,600 1,600

5 TON NOMINAL COOLING CFM NA 1,800

FAN ONLY COOLING CFM 1,400 1,600

MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5

EVAPORATOR FACE AREA - SQ. FT. 6.2 7.0

COIL NUMBER OF ROWS 4 4

FINS PER INCH 14 14

GENERAL FILTER SIZE - SQ. FT. * (2) 20 x 20 x 1 (2) 20 x 25 x 1

INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4"

EXPANSION DEVICE ORIFICE (0.076) ORIFICE (0.088)

REFRIGERANT CHARGE R-410A (Oz.) 123 188

POWER SUPPLY CONDUIT KNOCKOUT SIZE (IN.) 3/4, 1, 1-1/4 3/4, 1, 1-1/4

LOW VOLTAGE CONDUIT KNOCKOUT SIZE (IN.) 1/2 1/2

SHIPPING WEIGHT LBS. 400 400

OPERATING WEIGHT LBS. 390 390

COOLING PERFORMANCE DATA GPC1424H41AA

MODEL: GPC1424H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 9 ± 2°F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 24.1 25.0 27.4 - 23.5 24.4 26.7 - 23.0 23.8 26.1 - 22.4 23.2 25.5 - 21.3 22.1 24.2 - 19.7 20.5 22.4 -

S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -

Delta T171511 - 171511 - 171511 - 18 15 12 - 171511 - 161411 -

955 KW 1.57 1.60 1.66 - 1.70 1.73 1.79 - 1.81 1.85 1.91 - 1.91 1.95 2.02 - 1.99 2.04 2.11 - 2.06 2.11 2.19 -

AMPS 6.6 6.8 7.0 - 7.1 7.3 7.5 - 7.7 7.9 8.1 - 8.2 8.4 8.7 - 8.7 8.9 9.2 - 9.2 9.4 9.7 -

HI PR 233 251 265 - 262 282 298 - 298 321 338 - 339 365 386 - 382 411 434 - 422 454 479 -

LO PR 111 118 129 - 118 125 137 - 122 130 142 - 128 137 149 - 135 143 156 - 139 148 162 -

MBh 23.4 24.3 26.6 - 22.9 23.7 26.0 - 22.3 23.1 25.3 - 21.8 22.6 24.7 - 20.7 21.4 23.5 - 19.2 19.9 21.8 -

S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -

Delta T181612 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -

70 850 KW 1.56 1.59 1.64 - 1.68 1.72 1.78 - 1.79 1.83 1.90 - 1.89 1.93 2.00 - 1.97 2.02 2.09 - 2.05 2.09 2.17 -

AMPS 6.6 6.7 6.9 - 7.1 7.2 7.5 - 7.7 7.8 8.1 - 8.1 8.3 8.6 - 8.6 8.8 9.1 - 9.1 9.3 9.6 -

HI PR 231 249 263 - 259 279 295 - 295 317 335 - 336 361 382 - 378 407 429 - 418 449 474 -

LO PR 110 117 128 - 116 124 135 - 121 129 141 - 127 135 148 - 133 142 155 - 138 147 160 -

MBh 21.6 22.4 24.5 - 21.1 21.9 24.0 - 20.6 21.3 23.4 - 20.1 20.8 22.8 - 19.1 19.8 21.7 - 17.7 18.3 20.1 -

S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -

Delta T181612 - 181612 - 181612 - 19 16 12 - 181612 - 171511 -

745 KW 1.52 1.55 1.60 - 1.64 1.68 1.73 - 1.75 1.79 1.85 - 1.84 1.88 1.95 - 1.92 1.97 2.03 - 1.99 2.04 2.11 -

AMPS 6.4 6.6 6.8 - 6.9 7.1 7.3 - 7.5 7.6 7.9 - 7.9 8.1 8.4 - 8.4 8.6 8.9 - 8.9 9.1 9.4 -

HI PR 224 241 255 - 252 271 286 - 286 308 325 - 326 351 370 - 367 394 417 - 405 436 460 -

LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 134 142 155 -

MBh 24.5 25.2 27.3 29.3 23.9 24.7 26.7 28.6 23.4 24.1 26.0 28.0 22.8 23.5 25.4 27.3 21.7 22.3 24.1 25.9 20.1 20.7 22.4 24.0

S/T 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42

Delta T20181510201915112019151120 19 15 11 20 18 15 10 19 17 14 10

955 KW 1.58 1.62 1.67 1.73 1.71 1.75 1.81 1.87 1.82 1.87 1.93 2.00 1.92 1.97 2.04 2.11 2.01 2.06 2.13 2.20 2.08 2.13 2.20 2.28

AMPS 6.76.87.17.37.27.47.67.97.88.08.28.58.3 8.5 8.7 9.1 8.8 9.0 9.3 9.6 9.3 9.5 9.8 10.2

HI PR 236 254 268 279 265 285 301 314 301 324 342 357 343 369 389 406 386 415 438 457 426 458 484 505

LO PR 112 120 131 139 119 126 138 147 123 131 143 153 130 138 151 160 136 145 158 168 141 150 163 174

MBh 23.8 24.5 26.5 28.5 23.2 23.9 25.9 27.8 22.7 23.4 25.3 27.1 22.1 22.8 24.7 26.5 21.0 21.7 23.4 25.2 19.5 20.1 21.7 23.3

S/T 0.81 0.72 0.55 0.35 0.83 0.75 0.57 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.92 0.83 0.63 0.40

Delta T21191611211916112119161121 19 16 11 21 19 16 11 19 18 15 10

75 850 KW 1.57 1.60 1.66 1.71 1.70 1.73 1.79 1.85 1.81 1.85 1.91 1.98 1.91 1.95 2.02 2.09 1.99 2.04 2.11 2.18 2.06 2.11 2.19 2.26

AMPS 6.66.87.07.27.17.37.57.87.77.98.18.48.2 8.4 8.7 9.0 8.7 8.9 9.2 9.5 9.2 9.4 9.7 10.1

HI PR 233 251 265 277 262 282 298 310 298 321 339 353 339 365 386 402 382 411 434 452 422 454 479 500

LO PR 111 118 129 138 118 125 137 145 122 130 142 151 128 137 149 159 135 143 156 166 139 148 162 172

MBh 22.0 22.6 24.5 26.3 21.5 22.1 23.9 25.7 20.9 21.6 23.3 25.1 20.4 21.0 22.8 24.4 19.4 20.0 21.6 23.2 18.0 18.5 20.0 21.5

S/T 0.78 0.69 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39

Delta T21191611212016112120161121 20 16 11 21 20 16 11 20 18 15 10

745 KW 1.53 1.56 1.61 1.67 1.65 1.69 1.75 1.81 1.76 1.80 1.86 1.93 1.86 1.90 1.97 2.03 1.94 1.98 2.05 2.12 2.01 2.06 2.13 2.20

AMPS 6.56.66.87.17.07.17.37.67.57.77.98.28.0 8.2 8.4 8.7 8.5 8.7 9.0 9.3 9.0 9.2 9.5 9.8

HI PR 226 244 257 268 254 273 289 301 289 311 328 343 329 354 374 390 370 398 421 439 409 440 465 485

LO PR 108 115 125 134 114 121 133 141 119 126 138 147 125 133 145 154 131 139 152 161 135 144 157 167

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1424H41AA

MODEL: GPC1424H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 9 ± 2°F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 5 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 25.0 25.5 27.2 29.1 24.4 24.9 26.6 28.4 23.8 24.3 26.0 27.8 23.2 23.7 25.3 27.1 22.0 22.5 24.1 25.7 20.4 20.9 22.3 23.8

S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 1.00 0.81 0.60 1.00 1.00 0.81 0.61

Delta T22211915232219152322191522 22 19 152122191520201714

955 KW 1.60 1.63 1.69 1.74 1.72 1.76 1.82 1.89 1.84 1.88 1.95 2.01 1.94 1.99 2.05 2.13 2.03 2.07 2.15 2.22 2.10 2.15 2.22 2.30

AMPS 6.86.97.17.47.37.47.77.97.98.08.38.68.4 8.6 8.8 9.18.99.19.49.79.49.69.910.3

HI PR 238 256 271 282 267 288 304 317 304 327 345 360 346 373 393 410 389 419 443 462 430 463 489 510

LO PR 114 121 132 140 120 128 139 148 125 133 145 154 131 139 152 162 137 146 159 170 142 151 165 176

MBh 24.2 24.8 26.4 28.3 23.7 24.2 25.8 27.6 23.1 23.6 25.2 27.0 22.5 23.0 24.6 26.3 21.4 21.9 23.4 25.0 19.8 20.3 21.6 23.1

S/T 0.88 0.83 0.67 0.50 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58

Delta T23221915232220162322201624 23 20 16 23 22 19 16 21 21 18 14

80 850 KW 1.58 1.62 1.67 1.73 1.71 1.75 1.81 1.87 1.82 1.87 1.93 2.00 1.92 1.97 2.04 2.11 2.01 2.06 2.13 2.20 2.08 2.13 2.21 2.28

AMPS 6.76.87.17.37.27.47.67.97.88.08.28.58.3 8.5 8.8 9.1 8.8 9.0 9.3 9.6 9.3 9.5 9.8 10.2

HI PR 236 254 268 279 265 285 301 314 301 324 342 357 343 369 390 406 386 415 438 457 426 458 484 505

LO PR 112 120 131 139 119 126 138 147 123 131 143 153 130 138 151 160 136 145 158 168 141 150 163 174

MBh 22.4 22.8 24.4 26.1 21.8 22.3 23.8 25.5 21.3 21.8 23.3 24.9 20.8 21.3 22.7 24.3 19.8 20.2 21.6 23.1 18.3 18.7 20.0 21.4

S/T 0.85 0.80 0.65 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.75 0.56

Delta T24232016242320162423201624 23 20 162423201622211815

745 KW 1.54 1.58 1.63 1.68 1.67 1.70 1.76 1.82 1.78 1.82 1.88 1.94 1.87 1.92 1.98 2.05 1.96 2.00 2.07 2.14 2.03 2.07 2.15 2.22

AMPS 6.56.76.97.17.07.27.47.77.67.88.08.38.1 8.3 8.5 8.88.68.89.09.49.09.39.69.9

HI PR 229 246 260 271 257 276 292 304 292 314 332 346 332 358 378 394 374 403 425 443 413 445 470 490

LO PR 109 116 127 135 115 123 134 143 120 127 139 148 126 134 146 156 132 140 153 163 136 145 158 169

NOTE: Shaded area reflects AHRI rating conditions

MBh 25.4 25.9 27.1 28.9 24.8 25.3 26.5 28.2 24.2 24.7 25.8 27.6 23.6 24.1 25.2 26.9 22.4 22.9 24.0 25.6 20.8 21.2 22.2 23.7

S/T 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79

Delta T24232219242422192324221923 23 23 192222221920202118

955 KW 1.61 1.64 1.70 1.76 1.74 1.78 1.84 1.90 1.86 1.90 1.96 2.03 1.96 2.00 2.07 2.14 2.04 2.09 2.16 2.24 2.12 2.17 2.24 2.32

AMPS 6.87.07.27.47.37.57.78.07.98.18.48.78.4 8.6 8.9 9.28.99.29.59.89.59.710.010.4

HI PR 241 259 273 285 270 290 307 320 307 330 349 364 350 376 397 414 393 423 447 466 435 468 494 515

LO PR 115 122 133 142 121 129 141 150 126 134 146 156 132 141 154 164 139 148 161 172 143 153 167 177

MBh 24.6 25.1 26.3 28.1 24.1 24.5 25.7 27.4 23.5 24.0 25.1 26.8 22.9 23.4 24.5 26.1 21.8 22.2 23.3 24.8 20.2 20.6 21.5 23.0

S/T 0.93 0.89 0.81 0.65 0.96 0.93 0.84 0.68 0.98 0.95 0.86 0.70 1.00 0.98 0.88 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75

Delta T25242320252523202525232025 25 23 202424232022222219

85 850 KW 1.60 1.63 1.69 1.74 1.72 1.76 1.82 1.89 1.84 1.88 1.95 2.01 1.94 1.99 2.05 2.13 2.03 2.07 2.15 2.22 2.10 2.15 2.22 2.30

AMPS 6.86.97.17.47.37.47.77.97.98.08.38.68.4 8.6 8.8 9.18.99.19.49.79.49.69.910.3

HI PR 238 256 271 282 267 288 304 317 304 327 345 360 346 373 393 410 389 419 443 462 430 463 489 510

LO PR 114 121 132 140 120 128 139 148 125 133 145 154 131 139 152 162 137 146 159 170 142 151 165 176

MBh 22.7 23.2 24.3 25.9 22.2 22.6 23.7 25.3 21.7 22.1 23.2 24.7 21.2 21.6 22.6 24.1 20.1 20.5 21.5 22.9 18.6 19.0 19.9 21.2

S/T 0.89 0.86 0.78 0.63 0.93 0.89 0.81 0.65 0.95 0.92 0.83 0.67 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 0.99 0.89 0.72

Delta T25252320252524202525242026 25 24 212525232023232219

745 KW 1.56 1.59 1.64 1.70 1.68 1.72 1.78 1.84 1.79 1.83 1.90 1.96 1.89 1.93 2.00 2.07 1.97 2.02 2.09 2.16 2.05 2.09 2.17 2.24

AMPS 6.66.76.97.27.17.27.57.77.77.88.18.48.1 8.3 8.6 8.98.68.89.19.49.19.39.610.0

HI PR 231 249 263 274 259 279 295 307 295 317 335 349 336 361 382 398 378 407 429 448 417 449 474 495

LO PR 110 117 128 136 116 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 170

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Temperature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1430H41AA

MODEL: GPC1430H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ± 2 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 10 ± 2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 27.8 28.8 31.6 - 27.2 28.2 30.9 - 26.5 27.5 30.1 - 25.9 26.8 29.4 - 24.6 25.5 27.9 - 22.8 23.6 25.9 -

S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.87 0.72 0.50 - 0.87 0.73 0.50 -

Delta T161411 - 171411 - 171411 - 17 15 11 - 171411 - 151310 -

1180 KW 1.86 1.90 1.96 - 2.01 2.06 2.12 - 2.14 2.19 2.27 - 2.26 2.31 2.39 - 2.36 2.41 2.50 - 2.44 2.50 2.59 -

AMPS 7.7 7.9 8.1 - 8.3 8.5 8.7 - 8.9 9.1 9.4 - 9.5 9.7 10.0 - 10.1 10.3 10.7 - 10.7 10.9 11.3 -

HI PR 240 258 272 - 269 289 305 - 306 329 347 - 348 375 396 - 392 421 445 - 433 466 492 -

LO PR 111 119 129 - 118 125 137 - 122 130 142 - 128 137 149 - 135 143 156 - 139 148 162 -

MBh 27.0 28.0 30.7 - 26.4 27.4 30.0 - 25.8 26.7 29.3 - 25.1 26.1 28.5 - 23.9 24.7 27.1 - 22.1 22.9 25.1 -

S/T 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.80 0.66 0.46 - 0.83 0.69 0.48 - 0.83 0.70 0.48 -

Delta T171511 - 171511 - 171511 - 18 15 11 - 171511 - 161411 -

70 1050 KW 1.84 1.89 1.95 - 1.99 2.04 2.11 - 2.12 2.17 2.25 - 2.24 2.29 2.37 - 2.34 2.39 2.47 - 2.42 2.48 2.56 -

AMPS 7.6 7.8 8.0 - 8.2 8.4 8.6 - 8.9 9.1 9.3 - 9.4 9.6 10.0 - 10.0 10.2 10.6 - 10.6 10.8 11.2 -

HI PR 237 255 269 - 266 286 302 - 303 326 344 - 345 371 392 - 388 417 441 - 428 461 487 -

LO PR 110 117 128 - 117 124 135 - 121 129 141 - 127 135 148 - 133 142 155 - 138 147 160 -

MBh 24.9 25.8 28.3 - 24.4 25.2 27.7 - 23.8 24.6 27.0 - 23.2 24.0 26.3 - 22.0 22.8 25.0 - 20.4 21.2 23.2 -

S/T 0.70 0.58 0.40 - 0.72 0.61 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.80 0.66 0.46 - 0.80 0.67 0.46 -

Delta T171511 - 181512 - 181512 - 18 15 12 - 181512 - 161411 -

920 KW 1.80 1.84 1.90 - 1.94 1.99 2.05 - 2.07 2.12 2.19 - 2.18 2.23 2.31 - 2.28 2.33 2.41 - 2.36 2.41 2.50 -

AMPS 7.4 7.6 7.8 - 8.0 8.2 8.4 - 8.6 8.8 9.1 - 9.2 9.4 9.7 - 9.7 10.0 10.3 - 10.3 10.5 10.9 -

HI PR 230 248 261 - 258 278 293 - 294 316 334 - 334 360 380 - 376 405 427 - 416 447 472 -

LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 138 150 - 134 142 155 -

MBh 28.3 29.1 31.5 33.9 27.6 28.5 30.8 33.1 27.0 27.8 30.1 32.3 26.3 27.1 29.3 31.5 25.0 25.8 27.9 29.9 23.2 23.9 25.8 27.7

S/T 0.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.98 0.88 0.67 0.43 0.99 0.89 0.67 0.43

Delta T19181410191815101918151019 18 15 10 19 18 14 10 18 16 14 9

1180 KW 1.88 1.92 1.98 2.05 2.03 2.07 2.14 2.22 2.16 2.21 2.29 2.36 2.28 2.33 2.41 2.49 2.38 2.43 2.52 2.61 2.47 2.52 2.61 2.70

AMPS 7.87.98.28.58.38.58.89.19.09.29.59.89.6 9.8 10.1 10.5 10.2 10.4 10.7 11.1 10.8 11.0 11.4 11.8

HI PR 242 260 275 287 272 292 309 322 309 332 351 366 352 378 400 417 396 426 450 469 437 470 497 518

LO PR 113 120 131 139 119 126 138 147 124 131 143 153 130 138 151 161 136 145 158 168 141 150 163 174

MBh 27.5 28.3 30.6 32.9 26.8 27.6 29.9 32.1 26.2 27.0 29.2 31.3 25.6 26.3 28.5 30.6 24.3 25.0 27.1 29.0 22.5 23.2 25.1 26.9

S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.64 0.41 0.95 0.85 0.64 0.41

Delta T20181510201815102019151020 19 15 11 20 18 15 10 19 17 14 10

75 1050 KW 1.86 1.90 1.96 2.03 2.01 2.06 2.12 2.20 2.14 2.19 2.27 2.34 2.26 2.31 2.39 2.47 2.36 2.41 2.50 2.58 2.44 2.50 2.59 2.68

AMPS 7.77.98.18.48.38.58.79.08.99.19.49.89.5 9.7 10.0 10.4 10.1 10.3 10.7 11.0 10.7 10.9 11.3 11.7

HI PR 240 258 272 284 269 289 305 319 306 329 347 362 348 375 396 413 392 422 445 464 433 466 492 513

LO PR 111 119 129 138 118 125 137 146 122 130 142 151 128 137 149 159 135 143 156 167 139 148 162 172

MBh 25.4 26.1 28.3 30.3 24.8 25.5 27.6 29.6 24.2 24.9 26.9 28.9 23.6 24.3 26.3 28.2 22.4 23.1 25.0 26.8 20.8 21.4 23.1 24.8

S/T 0.79 0.71 0.54 0.35 0.82 0.74 0.56 0.36 0.84 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.82 0.62 0.40

Delta T20191510201915112019151121 19 16 11 20 19 15 11 19 17 14 10

920 KW 1.81 1.85 1.92 1.98 1.96 2.00 2.07 2.14 2.09 2.14 2.21 2.28 2.20 2.25 2.33 2.41 2.30 2.35 2.43 2.52 2.38 2.44 2.52 2.61

AMPS 7.57.77.98.28.18.28.58.88.78.99.29.59.3 9.5 9.8 10.1 9.8 10.1 10.4 10.7 10.4 10.6 11.0 11.4

HI PR 232 250 264 275 261 281 296 309 297 319 337 351 338 363 384 400 380 409 432 450 420 452 477 498

LO PR 108 115 126 134 114 121 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1430H41AA

MODEL: GPC1430H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ± 2 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 10 ± 2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 28.8 29.4 31.4 33.6 28.1 28.7 30.7 32.8 27.5 28.1 30.0 32.1 26.8 27.4 29.3 31.3 25.5 26.0 27.8 29.7 23.6 24.1 25.7 27.5

S/T 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 1.00 0.79 0.59 1.00 1.00 0.82 0.62 1.00 1.00 0.83 0.62

Delta T21201814222118142121181421 21 18 142020181418191713

1180 KW 1.89 1.93 2.00 2.07 2.04 2.09 2.16 2.23 2.18 2.23 2.30 2.38 2.30 2.35 2.43 2.52 2.40 2.46 2.54 2.63 2.49 2.55 2.63 2.73

AMPS 7.88.08.28.58.48.68.99.29.19.39.69.99.7 9.9 10.210.610.310.510.811.210.911.111.511.9

HI PR 244 263 278 290 274 295 312 325 312 336 354 370 355 382 404 421 400 430 454 474 442 475 502 523

LO PR 114 121 132 141 120 128 139 149 125 133 145 154 131 139 152 162 137 146 160 170 142 151 165 176

MBh 28.0 28.6 30.5 32.6 27.3 27.9 29.8 31.9 26.7 27.2 29.1 31.1 26.0 26.6 28.4 30.4 24.7 25.3 27.0 28.8 22.9 23.4 25.0 26.7

S/T 0.90 0.85 0.69 0.52 0.94 0.88 0.72 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.97 0.79 0.59

Delta T22211815222119152221191523 22 19 15 22 21 19 15 20 20 17 14

80 1050 KW 1.88 1.92 1.98 2.05 2.03 2.07 2.14 2.22 2.16 2.21 2.29 2.36 2.28 2.33 2.41 2.49 2.38 2.43 2.52 2.61 2.47 2.52 2.61 2.70

AMPS 7.87.98.28.58.38.58.89.19.09.29.59.89.6 9.8 10.1 10.5 10.2 10.4 10.7 11.1 10.8 11.0 11.4 11.8

HI PR 242 260 275 287 272 292 309 322 309 332 351 366 352 379 400 417 396 426 450 469 437 470 497 518

LO PR 113 120 131 139 119 126 138 147 124 131 144 153 130 138 151 161 136 145 158 168 141 150 163 174

MBh 25.8 26.4 28.2 30.1 25.2 25.8 27.5 29.4 24.6 25.1 26.9 28.7 24.0 24.5 26.2 28.0 22.8 23.3 24.9 26.6 21.1 21.6 23.1 24.7

S/T 0.87 0.82 0.67 0.50 0.90 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.57 1.00 0.94 0.76 0.57

Delta T22221915232219152322191523 22 19 152322191521201814

920 KW 1.83 1.87 1.93 2.00 1.98 2.02 2.09 2.16 2.11 2.15 2.23 2.30 2.22 2.27 2.35 2.43 2.32 2.37 2.45 2.54 2.40 2.46 2.54 2.63

AMPS 7.6 7.7 8.0 8.2 8.1 8.3 8.6 8.9 8.8 9.0 9.3 9.6 9.3 9.6 9.9 10.2 9.9 10.1 10.5 10.8 10.5 10.7 11.1 11.5

HI PR 235 253 267 278 263 283 299 312 300 322 340 355 341 367 388 404 384 413 436 455 424 456 482 503

LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 140 153 163 136 145 159 169

NOTE: Shaded area reflects AHRI rating conditions

MBh 29.3 29.9 31.3 33.4 28.6 29.2 30.6 32.6 27.9 28.5 29.8 31.8 27.3 27.8 29.1 31.1 25.9 26.4 27.7 29.5 24.0 24.5 25.6 27.3

S/T 0.99 0.96 0.87 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 0.99 0.81

Delta T23222118222321182222211821 22 22 192021211819192017

1180 KW 1.91 1.95 2.01 2.08 2.06 2.11 2.18 2.25 2.20 2.25 2.32 2.41 2.32 2.37 2.45 2.54 2.42 2.48 2.56 2.65 2.51 2.57 2.66 2.75

AMPS 7.9 8.1 8.3 8.6 8.5 8.7 8.9 9.3 9.2 9.4 9.7 10.0 9.8 10.0 10.3 10.7 10.4 10.6 10.9 11.3 10.9 11.2 11.6 12.0

HI PR 247 266 281 293 277 298 315 328 315 339 358 373 359 386 408 425 404 434 459 478 446 480 507 529

LO PR 115 122 133 142 121 129 141 150 126 134 146 156 132 141 154 164 139 148 161 172 144 153 167 178

MBh 28.5 29.0 30.4 32.4 27.8 28.3 29.7 31.7 27.1 27.7 29.0 30.9 26.5 27.0 28.3 30.1 25.1 25.6 26.8 28.6 23.3 23.7 24.9 26.5

S/T 0.95 0.91 0.83 0.67 0.98 0.95 0.86 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77

Delta T24232219242422192424221923 24 22 192222221920212118

85 1050 KW 1.89 1.93 2.00 2.07 2.04 2.09 2.16 2.23 2.18 2.23 2.30 2.38 2.30 2.35 2.43 2.52 2.40 2.46 2.54 2.63 2.49 2.55 2.63 2.73

AMPS 7.88.08.28.58.48.68.99.29.19.39.69.99.7 9.9 10.210.610.310.510.811.210.911.111.511.9

HI PR 244 263 278 290 274 295 312 325 312 336 354 370 355 382 404 421 400 430 454 474 442 475 502 523

LO PR 114 121 132 141 120 128 139 149 125 133 145 154 131 139 152 162 137 146 160 170 142 151 165 176

MBh 26.3 26.8 28.0 29.9 25.7 26.1 27.4 29.2 25.0 25.5 26.7 28.5 24.4 24.9 26.1 27.8 23.2 23.7 24.8 26.4 21.5 21.9 23.0 24.5

S/T 0.91 0.88 0.80 0.65 0.95 0.91 0.82 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.91 0.73 1.00 1.00 0.91 0.74

Delta T24242219242423202424232024 24 23 202324221921222118

920 KW 1.84 1.89 1.95 2.01 1.99 2.04 2.11 2.18 2.12 2.17 2.25 2.32 2.24 2.29 2.37 2.45 2.34 2.39 2.47 2.56 2.42 2.48 2.56 2.65

AMPS 7.67.88.08.38.28.48.68.98.99.19.39.79.4 9.6 10.010.310.010.210.610.910.610.811.211.6

HI PR 237 255 269 281 266 286 302 315 303 326 344 359 345 371 392 408 388 417 441 459 428 461 487 508

LO PR 110 117 128 136 116 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Temperature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1436H41AA

MODEL: GPC1436H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ±2 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 9 ±2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 34.9 36.2 39.6 - 34.1 35.3 38.7 - 33.3 34.5 37.8 - 32.5 33.6 36.9 - 30.8 32.0 35.0 - 28.6 29.6 32.4 -

S/T 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.48 - 0.87 0.72 0.50 - 0.87 0.73 0.51 -

Delta T181612 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -

1349 KW 2.33 2.38 2.45 - 2.51 2.57 2.65 - 2.67 2.73 2.82 - 2.81 2.88 2.97 - 2.93 3.00 3.10 - 3.04 3.11 3.21 -

AMPS 10.5 10.8 11.0 - 11.3 11.5 11.8 - 12.1 12.3 12.7 - 12.8 13.1 13.4 - 13.5 13.8 14.2 - 14.2 14.5 14.9 -

HI PR 238 256 271 - 267 288 304 - 304 327 345 - 346 372 393 - 389 419 442 - 430 463 489 -

LO PR 107 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -

MBh 33.9 35.1 38.5 - 33.1 34.3 37.6 - 32.3 33.5 36.7 - 31.5 32.7 35.8 - 29.9 31.0 34.0 - 27.7 28.7 31.5 -

S/T 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.77 0.64 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.83 0.70 0.48 -

Delta T191612 - 191713 - 191713 - 19 17 13 - 191612 - 181512 -

70 1200 KW 2.31 2.36 2.43 - 2.49 2.54 2.63 - 2.65 2.71 2.80 - 2.79 2.85 2.95 - 2.91 2.97 3.07 - 3.01 3.08 3.18 -

AMPS 10.5 10.7 11.0 - 11.2 11.4 11.7 - 12.0 12.2 12.6 - 12.7 12.9 13.3 - 13.4 13.7 14.1 - 14.1 14.4 14.8 -

HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 389 - 386 415 438 - 426 458 484 -

LO PR 106 113 124 - 112 120 131 - 117 124 136 - 123 131 143 - 129 137 149 - 133 142 155 -

MBh 31.3 32.4 35.5 - 30.5 31.6 34.7 - 29.8 30.9 33.8 - 29.1 30.1 33.0 - 27.6 28.6 31.4 - 25.6 26.5 29.1 -

S/T 0.70 0.58 0.41 - 0.73 0.61 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.80 0.67 0.46 - 0.80 0.67 0.47 -

Delta T191713 - 191713 - 191713 - 20 17 13 - 191713 - 181612 -

1052 KW 2.25 2.30 2.37 - 2.43 2.48 2.56 - 2.58 2.64 2.73 - 2.72 2.78 2.87 - 2.84 2.90 3.00 - 2.94 3.00 3.10 -

AMPS 10.2 10.4 10.7 - 10.9 11.1 11.4 - 11.7 11.9 12.3 - 12.4 12.6 13.0 - 13.1 13.3 13.7 - 13.7 14.0 14.4 -

HI PR 229 246 260 - 257 276 292 - 292 314 332 - 332 358 378 - 374 402 425 - 413 445 470 -

LO PR 103 110 120 - 109 116 127 - 113 121 132 - 119 127 138 - 125 133 145 - 129 137 150 -

MBh 35.5 36.5 39.5 42.4 34.7 35.7 38.6 41.4 33.8 34.8 37.7 40.5 33.0 34.0 36.8 39.5 31.4 32.3 34.9 37.5 29.0 29.9 32.4 34.7

S/T 0.87 0.77 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.99 0.88 0.67 0.43 0.99 0.89 0.67 0.43

Delta T21191611212016112120161121 20 16 11 21 19 16 11 20 18 15 10

1349 KW 2.35 2.40 2.47 2.56 2.53 2.59 2.67 2.76 2.69 2.75 2.84 2.94 2.84 2.90 3.00 3.10 2.96 3.03 3.13 3.24 3.06 3.13 3.24 3.35

AMPS 10.6 10.8 11.1 11.5 11.3 11.6 11.9 12.3 12.2 12.4 12.8 13.2 12.9 13.2 13.5 14.0 13.6 13.9 14.3 14.8 14.3 14.6 15.1 15.6

HI PR 241 259 273 285 270 290 307 320 307 330 349 364 350 376 397 414 393 423 447 466 435 468 494 515

LO PR 109 116 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168

MBh 34.4 35.5 38.4 41.2 33.6 34.6 37.5 40.2 32.8 33.8 36.6 39.3 32.0 33.0 35.7 38.3 30.4 31.3 33.9 36.4 28.2 29.0 31.4 33.7

S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.78 0.59 0.38 0.91 0.81 0.61 0.39 0.94 0.84 0.64 0.41 0.95 0.85 0.64 0.41

Delta T22201611222017112220171122 20 17 12 22 20 17 11 20 19 15 11

75 1200 KW 2.33 2.38 2.45 2.54 2.51 2.57 2.65 2.74 2.67 2.73 2.82 2.92 2.81 2.88 2.97 3.07 2.93 3.00 3.10 3.21 3.04 3.11 3.21 3.32

AMPS 10.5 10.8 11.0 11.4 11.3 11.5 11.8 12.2 12.1 12.3 12.7 13.1 12.8 13.1 13.4 13.9 13.5 13.8 14.2 14.7 14.2 14.5 14.9 15.4

HI PR 238 256 271 282 267 288 304 317 304 327 345 360 346 373 393 410 389 419 443 462 430 463 489 510

LO PR 107 114 125 133 114 121 132 140 118 126 137 146 124 132 144 153 130 138 151 161 134 143 156 166

MBh 31.8 32.7 35.4 38.0 31.1 32.0 34.6 37.1 30.3 31.2 33.8 36.3 29.6 30.4 33.0 35.4 28.1 28.9 31.3 33.6 26.0 26.8 29.0 31.1

S/T 0.80 0.71 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.91 0.81 0.61 0.39 0.91 0.82 0.62 0.40

Delta T22201712222117122221171223 21 17 12 22 21 17 12 21 19 16 11

1052 KW 2.27 2.32 2.39 2.47 2.45 2.50 2.58 2.67 2.60 2.66 2.75 2.84 2.74 2.80 2.90 2.99 2.86 2.92 3.02 3.12 2.96 3.03 3.13 3.24

AMPS 10.3 10.5 10.8 11.1 11.0 11.2 11.5 11.9 11.8 12.0 12.4 12.8 12.5 12.7 13.1 13.5 13.2 13.4 13.8 14.3 13.8 14.1 14.6 15.0

HI PR 231 249 263 274 259 279 295 307 295 317 335 349 336 361 382 398 378 407 429 448 417 449 474 495

LO PR 104 111 121 129 110 117 128 136 114 122 133 142 120 128 140 149 126 134 146 156 130 139 151 161

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1436H41AA

MODEL: GPC1436H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ±2 °F @ the liquid access fitting connection ARI 95 test conditions. Design Superheat 9 ±2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 36.1 36.9 39.4 42.1 35.3 36.0 38.5 41.2 34.4 35.2 37.6 40.2 33.6 34.3 36.7 39.2 31.9 32.6 34.8 37.2 29.6 30.2 32.3 34.5

S/T 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.59 1.00 1.00 0.83 0.62 1.00 1.00 0.83 0.62

Delta T23221916242320162323201623 23 20 162222201620211815

1349 KW 2.37 2.42 2.50 2.58 2.55 2.61 2.69 2.78 2.72 2.78 2.87 2.97 2.86 2.93 3.02 3.13 2.98 3.05 3.15 3.26 3.09 3.16 3.27 3.38

AMPS 10.7 10.9 11.2 11.6 11.4 11.7 12.0 12.4 12.3 12.5 12.9 13.3 13.0 13.3 13.6 14.1 13.7 14.0 14.4 14.9 14.4 14.7 15.2 15.7

HI PR 243 261 276 288 273 293 310 323 310 334 352 368 353 380 401 419 397 428 451 471 439 472 499 520

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 126 135 147 156 133 141 154 164 137 146 159 170

MBh 35.1 35.8 38.3 40.9 34.2 35.0 37.4 40.0 33.4 34.2 36.5 39.0 32.6 33.3 35.6 38.1 31.0 31.7 33.8 36.2 28.7 29.3 31.3 33.5

S/T 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.97 0.79 0.59

Delta T24232016252421162524211625 24 21 17 24 23 20 16 22 22 19 15

80 1200 KW 2.35 2.40 2.48 2.56 2.53 2.59 2.67 2.76 2.69 2.75 2.84 2.94 2.84 2.90 3.00 3.10 2.96 3.03 3.13 3.24 3.06 3.13 3.24 3.35

AMPS 10.6 10.8 11.1 11.5 11.3 11.6 11.9 12.3 12.2 12.4 12.8 13.2 12.9 13.2 13.5 14.0 13.6 13.9 14.3 14.8 14.3 14.6 15.1 15.6

HI PR 241 259 273 285 270 290 307 320 307 330 349 364 350 376 397 414 393 423 447 466 435 468 494 515

LO PR 109 116 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 140 152 162 136 144 158 168

MBh 32.4 33.1 35.3 37.8 31.6 32.3 34.5 36.9 30.9 31.5 33.7 36.0 30.1 30.8 32.9 35.1 28.6 29.2 31.2 33.4 26.5 27.1 28.9 30.9

S/T 0.87 0.82 0.67 0.50 0.90 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.57 1.00 0.94 0.77 0.57

Delta T25242116252421172524211725 24 21 172524211723221915

1052 KW 2.29 2.34 2.41 2.49 2.47 2.52 2.60 2.69 2.63 2.68 2.77 2.87 2.77 2.83 2.92 3.02 2.88 2.95 3.05 3.15 2.99 3.05 3.16 3.26

AMPS 10.4 10.6 10.9 11.2 11.1 11.3 11.6 12.0 11.9 12.1 12.5 12.9 12.6 12.8 13.2 13.6 13.3 13.6 14.0 14.4 14.0 14.3 14.7 15.2

HI PR 233 251 265 277 262 282 298 310 298 320 338 353 339 365 385 402 382 411 434 452 422 454 479 500

LO PR 105 112 122 130 111 118 129 138 116 123 134 143 121 129 141 150 127 135 148 157 132 140 153 163

NOTE: Shaded area reflects AHRI rating conditions

MBh 36.7 37.4 39.2 41.8 35.9 36.6 38.3 40.9 35.0 35.7 37.4 39.9 34.2 34.8 36.5 38.9 32.5 33.1 34.7 37.0 30.1 30.7 32.1 34.3

S/T 1.00 0.96 0.87 0.70 1.00 1.00 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 1.00 0.81

Delta T25252320242523202424232023 24 24 202223232021212219

1349 KW 2.39 2.44 2.52 2.60 2.57 2.63 2.72 2.81 2.74 2.80 2.89 2.99 2.89 2.95 3.05 3.15 3.01 3.08 3.18 3.29 3.12 3.19 3.30 3.41

AMPS 10.8 11.0 11.3 11.7 11.5 11.8 12.1 12.5 12.4 12.6 13.0 13.4 13.1 13.4 13.8 14.2 13.8 14.1 14.5 15.0 14.5 14.9 15.3 15.8

HI PR 245 264 279 291 275 296 313 326 313 337 356 371 357 384 405 423 401 432 456 476 443 477 504 525

LO PR 111 118 129 137 117 124 136 145 122 129 141 150 128 136 148 158 134 142 155 166 138 147 161 171

MBh 35.7 36.4 38.1 40.6 34.8 35.5 37.2 39.7 34.0 34.7 36.3 38.7 33.2 33.8 35.4 37.8 31.5 32.1 33.7 35.9 29.2 29.8 31.2 33.3

S/T 0.95 0.92 0.83 0.67 0.98 0.95 0.86 0.70 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77

Delta T26262421262624212626242125 26 25 212425242122232320

85 1200 KW 2.37 2.42 2.50 2.58 2.55 2.61 2.69 2.78 2.72 2.78 2.87 2.97 2.86 2.93 3.02 3.13 2.98 3.05 3.15 3.26 3.09 3.16 3.27 3.38

AMPS 10.7 10.9 11.2 11.6 11.4 11.7 12.0 12.4 12.3 12.5 12.9 13.3 13.0 13.3 13.6 14.1 13.7 14.0 14.4 14.9 14.4 14.7 15.2 15.7

HI PR 243 261 276 288 273 293 310 323 310 334 352 368 353 380 401 419 397 428 451 471 439 472 499 520

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 126 135 147 156 133 141 154 164 137 146 159 170

MBh 32.9 33.6 35.1 37.5 32.2 32.8 34.3 36.6 31.4 32.0 33.5 35.8 30.6 31.2 32.7 34.9 29.1 29.7 31.1 33.1 26.9 27.5 28.8 30.7

S/T 0.92 0.88 0.80 0.65 0.95 0.92 0.83 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.74

Delta T26262421272625212726252127 26 25 222526252124242320

1052 KW 2.31 2.36 2.43 2.51 2.49 2.54 2.63 2.71 2.65 2.71 2.80 2.89 2.79 2.85 2.95 3.05 2.91 2.97 3.07 3.18 3.01 3.08 3.18 3.29

AMPS 10.5 10.7 11.0 11.3 11.2 11.4 11.7 12.1 12.0 12.2 12.6 13.0 12.7 12.9 13.3 13.8 13.4 13.7 14.1 14.5 14.1 14.4 14.8 15.3

HI PR 236 254 268 279 264 285 301 313 301 324 342 356 343 369 389 406 385 415 438 457 426 458 484 505

LO PR 106 113 124 132 112 120 131 139 117 124 136 144 123 131 142 152 129 137 149 159 133 141 154 165

* NOTE: Shaded areas is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Tem perature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1442H41AA

MODEL: GPC1442H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 8 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 8 ± 2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 39.7 41.1 45.1 - 38.8 40.2 44.0 - 37.8 39.2 43.0 - 36.9 38.3 41.9 - 35.1 36.4 39.8 - 32.5 33.7 36.9 -

S/T 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.48 - 0.86 0.71 0.49 - 0.86 0.72 0.50 -

Delta T191612 - 191612 - 191612 - 19 17 13 - 191612 - 181512 -

1461 KW 2.54 2.60 2.68 - 2.74 2.80 2.89 - 2.92 2.98 3.08 - 3.07 3.14 3.25 - 3.21 3.28 3.39 - 3.32 3.40 3.51 -

AMPS 11.6 11.8 12.1 - 12.4 12.6 13.0 - 13.3 13.6 14.0 - 14.1 14.4 14.9 - 14.9 15.3 15.7 - 15.7 16.1 16.6 -

HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 415 439 - 426 459 485 -

LO PR 110 116 127 - 116 123 134 - 120 128 140 - 126 134 147 - 132 141 154 - 137 146 159 -

MBh 38.5 39.9 43.8 - 37.6 39.0 42.7 - 36.7 38.1 41.7 - 35.8 37.1 40.7 - 34.1 35.3 38.7 - 31.5 32.7 35.8 -

S/T 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.45 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -

Delta T201713 - 201713 - 201713 - 20 17 13 - 201713 - 181612 -

70 1300 KW 2.52 2.58 2.66 - 2.72 2.78 2.87 - 2.89 2.96 3.06 - 3.05 3.12 3.22 - 3.18 3.25 3.36 - 3.29 3.37 3.48 -

AMPS 11.5 11.7 12.0 - 12.3 12.5 12.9 - 13.2 13.5 13.9 - 14.0 14.3 14.7 - 14.8 15.1 15.6 - 15.6 15.9 16.4 -

HI PR 234 251 266 - 262 282 298 - 298 321 339 - 340 366 386 - 382 411 434 - 422 454 480 -

LO PR 108 115 126 - 115 122 133 - 119 127 138 - 125 133 145 - 131 139 152 - 136 144 157 -

MBh 35.6 36.9 40.4 - 34.7 36.0 39.4 - 33.9 35.1 38.5 - 33.1 34.3 37.6 - 31.4 32.6 35.7 - 29.1 30.2 33.1 -

S/T 0.69 0.58 0.40 - 0.72 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.79 0.66 0.46 -

Delta T201713 - 201713 - 201713 - 20 18 13 - 201713 - 191612 -

1139 KW 2.46 2.51 2.59 - 2.65 2.71 2.80 - 2.82 2.88 2.98 - 2.97 3.04 3.14 - 3.10 3.17 3.27 - 3.21 3.28 3.39 -

AMPS 11.2 11.4 11.8 - 12.0 12.2 12.6 - 12.9 13.2 13.5 - 13.7 14.0 14.4 - 14.4 14.8 15.2 - 15.2 15.5 16.0 -

HI PR 227 244 258 - 254 274 289 - 289 311 329 - 329 355 374 - 371 399 421 - 410 441 465 -

LO PR 105 112 122 - 111 118 129 - 115 123 134 - 121 129 141 - 127 135 148 - 131 140 153 -

MBh 40.4 41.6 45.0 48.3 39.4 40.6 43.9 47.2 38.5 39.6 42.9 46.0 37.5 38.7 41.8 44.9 35.7 36.7 39.7 42.7 33.0 34.0 36.8 39.5

S/T 0.850.760.580.370.880.790.600.390.910.810.610.400.94 0.84 0.63 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.66 0.43

Delta T22201611222017112220171122 20 17 12 22 20 16 11 20 19 15 11

1461 KW 2.562.622.702.792.772.832.923.022.943.013.113.213.10 3.17 3.28 3.39 3.23 3.31 3.42 3.54 3.35 3.43 3.54 3.66

AMPS 11.7 11.9 12.2 12.6 12.5 12.7 13.1 13.5 13.4 13.7 14.1 14.6 14.2 14.5 15.0 15.5 15.1 15.4 15.8 16.4 15.9 16.2 16.7 17.3

HI PR 238 257 271 283 268 288 304 317 304 327 346 361 347 373 394 411 390 420 443 462 431 464 490 511

LO PR 111 118 128 137 117 124 136 145 121 129 141 150 128 136 148 158 134 142 155 165 138 147 161 171

MBh 39.2 40.3 43.7 46.9 38.3 39.4 42.7 45.8 37.4 38.5 41.6 44.7 36.5 37.5 40.6 43.6 34.6 35.7 38.6 41.4 32.1 33.0 35.7 38.4

S/T 0.810.730.550.350.840.750.570.370.870.770.590.380.89 0.80 0.60 0.39 0.93 0.83 0.63 0.40 0.93 0.84 0.63 0.41

Delta T23211712232117122321171223 21 17 12 23 21 17 12 21 20 16 11

75 1300 KW 2.542.602.682.772.742.802.892.992.922.983.083.193.07 3.14 3.25 3.36 3.21 3.28 3.39 3.51 3.32 3.40 3.51 3.63

AMPS 11.6 11.8 12.1 12.5 12.4 12.6 13.0 13.4 13.3 13.6 14.0 14.5 14.1 14.4 14.9 15.4 14.9 15.3 15.7 16.3 15.7 16.1 16.6 17.1

HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506

LO PR 110 117 127 135 116 123 134 143 120 128 140 149 126 134 147 156 132 141 154 164 137 146 159 169

MBh 36.2 37.2 40.3 43.3 35.3 36.4 39.4 42.3 34.5 35.5 38.4 41.2 33.6 34.6 37.5 40.2 32.0 32.9 35.6 38.2 29.6 30.5 33.0 35.4

S/T 0.790.700.530.340.810.730.550.350.830.750.560.360.86 0.77 0.58 0.38 0.89 0.80 0.61 0.39 0.90 0.81 0.61 0.39

Delta T23211712232118122321181223 22 18 12 23 21 17 12 22 20 16 11

1139 KW 2.482.532.622.702.672.732.822.922.852.913.003.113.00 3.06 3.17 3.27 3.13 3.20 3.30 3.42 3.24 3.31 3.42 3.54

AMPS 11.3 11.5 11.9 12.2 12.1 12.3 12.7 13.1 13.0 13.3 13.7 14.1 13.8 14.1 14.5 15.0 14.6 14.9 15.3 15.8 15.3 15.7 16.1 16.7

HI PR 229 246 260 271 257 277 292 305 292 314 332 346 333 358 378 394 374 403 425 444 414 445 470 490

LO PR 106 113 123 131 112 119 130 139 117 124 135 144 123 130 142 152 128 137 149 159 133 141 154 164

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures ar e measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1442H41AA

MODEL: GPC1442H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 8 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 8 ± 2 °F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 41.1 42.0 44.8 47.9 40.1 41.0 43.8 46.8 39.2 40.0 42.8 45.7 38.2 39.0 41.7 44.6 36.3 37.1 39.6 42.4 33.6 34.4 36.7 39.2

S/T 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.93 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.81 0.61 1.00 1.00 0.82 0.61

Delta T24232016252320162524201624 24 21 162323201621221915

1461 KW 2.58 2.64 2.73 2.82 2.79 2.85 2.94 3.04 2.97 3.03 3.14 3.24 3.13 3.20 3.30 3.42 3.26 3.34 3.45 3.57 3.38 3.46 3.57 3.70

AMPS 11.8 12.0 12.3 12.7 12.6 12.8 13.2 13.6 13.5 13.8 14.2 14.7 14.4 14.7 15.1 15.6 15.2 15.5 16.0 16.5 16.0 16.3 16.8 17.4

HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 494 516

LO PR 112 119 130 138 118 126 137 146 123 131 142 152 129 137 150 159 135 144 157 167 140 149 162 173

MBh 39.9 40.8 43.5 46.5 39.0 39.8 42.5 45.5 38.0 38.9 41.5 44.4 37.1 37.9 40.5 43.3 35.2 36.0 38.5 41.1 32.6 33.4 35.6 38.1

S/T 0.89 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 0.96 0.78 0.59

Delta T25242117252421172624211726 25 21 17 25 24 21 17 23 23 20 16

80 1300 KW 2.56 2.62 2.70 2.79 2.77 2.83 2.92 3.02 2.94 3.01 3.11 3.21 3.10 3.17 3.28 3.39 3.23 3.31 3.42 3.54 3.35 3.43 3.54 3.67

AMPS 11.7 11.9 12.2 12.6 12.5 12.7 13.1 13.5 13.4 13.7 14.1 14.6 14.2 14.5 15.0 15.5 15.1 15.4 15.8 16.4 15.9 16.2 16.7 17.3

HI PR 238 257 271 283 268 288 304 317 304 327 346 361 347 373 394 411 390 420 443 462 431 464 490 511

LO PR 111 118 128 137 117 124 136 145 121 129 141 150 128 136 148 158 134 142 155 165 138 147 161 171

MBh 36.8 37.6 40.2 43.0 36.0 36.7 39.3 42.0 35.1 35.9 38.3 41.0 34.2 35.0 37.4 40.0 32.5 33.2 35.5 38.0 30.1 30.8 32.9 35.2

S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.94 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.75 0.56

Delta T26252117262522172625221726 25 22 172625211724232016

1139 KW 2.50 2.56 2.64 2.72 2.70 2.76 2.85 2.94 2.87 2.93 3.03 3.13 3.02 3.09 3.19 3.30 3.15 3.22 3.33 3.45 3.26 3.34 3.45 3.57

AMPS 11.4 11.6 12.0 12.3 12.2 12.4 12.8 13.2 13.1 13.4 13.8 14.2 13.9 14.2 14.6 15.1 14.7 15.0 15.4 16.0 15.5 15.8 16.3 16.8

HI PR 231 249 263 274 260 279 295 308 295 318 335 350 336 362 382 398 378 407 430 448 418 450 475 495

LO PR 107 114 125 133 113 121 132 140 118 125 137 146 124 132 144 153 130 138 151 160 134 143 156 166

NOTE: Shaded area reflects AHRI rating conditions

MBh 41.8 42.6 44.6 47.6 40.8 41.6 43.6 46.5 39.9 40.6 42.5 45.4 38.9 39.6 41.5 44.3 36.9 37.6 39.4 42.1 34.2 34.9 36.5 39.0

S/T 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.79 1.00 1.00 0.98 0.80

Delta T26252421262624212526242124 25 24 212324242122222320

1461 KW 2.61 2.66 2.75 2.84 2.81 2.87 2.97 3.07 2.99 3.06 3.16 3.27 3.15 3.22 3.33 3.45 3.29 3.36 3.48 3.60 3.41 3.49 3.60 3.73

AMPS 11.8 12.1 12.4 12.8 12.7 12.9 13.3 13.8 13.6 13.9 14.3 14.8 14.5 14.8 15.2 15.7 15.3 15.6 16.1 16.7 16.1 16.5 17.0 17.6

HI PR 243 262 276 288 273 294 310 324 310 334 353 368 354 380 402 419 398 428 452 471 439 473 499 521

LO PR 113 120 131 140 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 169 141 150 164 175

MBh 40.6 41.4 43.3 46.2 39.6 40.4 42.3 45.1 38.7 39.4 41.3 44.1 37.7 38.5 40.3 43.0 35.9 36.6 38.3 40.8 33.2 33.9 35.5 37.8

S/T 0.94 0.90 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.70 1.00 0.99 0.89 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.94 0.76

Delta T27262522272725222727252227 27 25 222526252223242320

85 1300 KW 2.58 2.64 2.73 2.82 2.79 2.85 2.94 3.04 2.97 3.03 3.14 3.24 3.13 3.20 3.30 3.42 3.26 3.34 3.45 3.57 3.38 3.46 3.57 3.70

AMPS 11.8 12.0 12.3 12.7 12.6 12.8 13.2 13.6 13.5 13.8 14.2 14.7 14.4 14.7 15.1 15.6 15.2 15.5 16.0 16.5 16.0 16.3 16.8 17.4

HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 494 516

LO PR 112 119 130 138 118 126 137 146 123 131 142 152 129 137 150 159 135 144 157 167 140 149 162 173

MBh 37.5 38.2 40.0 42.7 36.6 37.3 39.1 41.7 35.7 36.4 38.1 40.7 34.8 35.5 37.2 39.7 33.1 33.7 35.3 37.7 30.7 31.3 32.7 34.9

S/T 0.90 0.87 0.79 0.64 0.94 0.90 0.81 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.90 0.73

Delta T27272522282726222827262228 27 26 222727262225252421

1139 KW 2.52 2.58 2.66 2.75 2.72 2.78 2.87 2.97 2.89 2.96 3.06 3.16 3.05 3.12 3.22 3.33 3.18 3.25 3.36 3.48 3.29 3.37 3.48 3.60

AMPS 11.5 11.7 12.0 12.4 12.3 12.5 12.9 13.3 13.2 13.5 13.9 14.3 14.0 14.3 14.7 15.2 14.8 15.1 15.6 16.1 15.6 15.9 16.4 17.0

HI PR 234 251 265 277 262 282 298 311 298 321 339 353 340 365 386 402 382 411 434 453 422 454 480 500

LO PR 108 115 126 134 115 122 133 142 119 127 138 147 125 133 145 155 131 139 152 162 136 144 157 168

* NOTE: Shaded areas is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Tem perature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1448H41AA

MODEL: GPC1448H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 10 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 45.6 47.2 51.7 - 44.5 46.1 50.5 - 43.4 45.0 49.3 - 42.4 43.9 48.1 - 40.3 41.7 45.7 - 37.3 38.7 42.4 -

S/T 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.48 - 0.87 0.73 0.50 - 0.88 0.73 0.51 -

Delta T181512 - 181612 - 181612 - 18 16 12 - 181512 - 171411 -

1800 KW 2.94 3.01 3.10 - 3.17 3.24 3.34 - 3.37 3.44 3.56 - 3.55 3.63 3.75 - 3.70 3.78 3.91 - 3.83 3.91 4.04 -

AMPS 12.7 13.0 13.4 - 13.7 14.0 14.4 - 14.7 15.0 15.5 - 15.6 16.0 16.5 - 16.6 16.9 17.4 - 17.5 17.9 18.4 -

HI PR 236 254 268 - 264 284 300 - 301 324 342 - 342 369 389 - 385 415 438 - 426 458 484 -

LO PR 110 117 128 - 117 124 135 - 121 129 141 - 127 135 148 - 133 142 155 - 138 147 160 -

MBh 44.2 45.9 50.2 - 43.2 44.8 49.1 - 42.2 43.7 47.9 - 41.2 42.7 46.7 - 39.1 40.5 44.4 - 36.2 37.5 41.1 -

S/T 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.77 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.84 0.70 0.48 -

Delta T181612 - 191612 - 191612 - 19 16 12 - 191612 - 171511 -

70 1600 KW 2.92 2.98 3.08 - 3.14 3.21 3.32 - 3.34 3.42 3.53 - 3.52 3.60 3.71 - 3.67 3.75 3.87 - 3.80 3.88 4.01 -

AMPS 12.6 12.9 13.3 - 13.6 13.8 14.3 - 14.6 14.9 15.4 - 15.5 15.9 16.3 - 16.4 16.8 17.3 - 17.3 17.7 18.2 -

HI PR 233 251 265 - 262 282 297 - 298 320 338 - 339 365 385 - 381 410 433 - 421 454 479 -

LO PR 109 116 127 - 116 123 134 - 120 128 139 - 126 134 146 - 132 141 153 - 137 145 159 -

MBh 40.8 42.3 46.4 - 39.9 41.3 45.3 - 38.9 40.4 44.2 - 38.0 39.4 43.1 - 36.1 37.4 41.0 - 33.4 34.6 38.0 -

S/T 0.70 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.62 0.43 - 0.77 0.64 0.45 - 0.80 0.67 0.46 - 0.81 0.67 0.47 -

Delta T191612 - 191613 - 191613 - 19 17 13 - 191612 - 181512 -

1400 KW 2.85 2.91 3.00 - 3.07 3.13 3.23 - 3.26 3.33 3.44 - 3.43 3.51 3.62 - 3.57 3.65 3.78 - 3.70 3.78 3.91 -

AMPS 12.3 12.6 13.0 - 13.2 13.5 13.9 - 14.2 14.5 15.0 - 15.1 15.5 15.9 - 16.0 16.4 16.9 - 16.9 17.2 17.8 -

HI PR 226 243 257 - 254 273 289 - 289 311 328 - 329 354 374 - 370 398 420 - 409 440 465 -

LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -

MBh 46.3 47.7 51.6 55.4 45.3 46.6 50.4 54.1 44.2 45.5 49.2 52.8 43.1 44.4 48.0 51.6 41.0 42.2 45.6 49.0 37.9 39.1 42.3 45.4

S/T 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.99 0.88 0.67 0.43 1.00 0.89 0.67 0.43

Delta T21191511211916112119161121 19 16 11 21 19 16 11 19 18 15 10

1800 KW 2.97 3.03 3.13 3.23 3.20 3.27 3.37 3.48 3.40 3.47 3.59 3.71 3.58 3.66 3.78 3.90 3.73 3.81 3.94 4.07 3.86 3.95 4.08 4.22

AMPS 12.8 13.1 13.5 14.0 13.8 14.1 14.5 15.0 14.8 15.2 15.6 16.2 15.8 16.1 16.6 17.2 16.7 17.1 17.6 18.2 17.6 18.0 18.6 19.2

HI PR 238 256 270 282 267 287 303 317 304 327 345 360 346 372 393 410 389 419 442 461 430 463 489 510

LO PR 112 119 130 138 118 125 137 146 122 130 142 152 129 137 149 159 135 143 157 167 139 148 162 173

MBh 45.0 46.3 50.1 53.8 43.9 45.2 49.0 52.6 42.9 44.2 47.8 51.3 41.9 43.1 46.6 50.1 39.8 40.9 44.3 47.6 36.8 37.9 41.0 44.0

S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.59 0.38 0.91 0.81 0.61 0.40 0.94 0.84 0.64 0.41 0.95 0.85 0.64 0.41

Delta T21201611222016112220161122 20 16 11 22 20 16 11 20 18 15 10

75 1600 KW 2.94 3.01 3.10 3.20 3.17 3.24 3.34 3.45 3.37 3.44 3.56 3.68 3.55 3.63 3.75 3.87 3.70 3.78 3.91 4.04 3.83 3.91 4.05 4.18

AMPS 12.7 13.0 13.4 13.8 13.7 14.0 14.4 14.9 14.7 15.0 15.5 16.0 15.6 16.0 16.5 17.0 16.6 16.9 17.4 18.1 17.5 17.9 18.4 19.1

HI PR 236 254 268 279 264 285 300 313 301 324 342 356 343 369 389 406 385 415 438 457 426 458 484 505

LO PR 110 118 128 137 117 124 136 144 121 129 141 150 127 136 148 158 134 142 155 165 138 147 160 171

MBh 41.5 42.8 46.3 49.7 40.6 41.8 45.2 48.5 39.6 40.8 44.1 47.4 38.6 39.8 43.0 46.2 36.7 37.8 40.9 43.9 34.0 35.0 37.9 40.7

S/T 0.80 0.71 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.91 0.81 0.61 0.40 0.92 0.82 0.62 0.40

Delta T22201611222017112220171122 20 17 12 22 20 17 11 20 19 15 11

1400 KW 2.87 2.93 3.03 3.12 3.09 3.16 3.26 3.37 3.29 3.36 3.47 3.58 3.46 3.54 3.65 3.77 3.61 3.69 3.81 3.94 3.73 3.81 3.94 4.08

AMPS 12.4 12.7 13.1 13.5 13.3 13.6 14.0 14.5 14.4 14.7 15.1 15.6 15.2 15.6 16.1 16.6 16.1 16.5 17.0 17.6 17.0 17.4 17.9 18.6

HI PR 229 246 260 271 256 276 291 304 292 314 331 346 332 358 378 394 374 402 425 443 413 444 469 489

LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 129 138 150 160 134 143 156 166

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1448H41AA

MODEL: GPC1448H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 10 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 10 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 47.2 48.2 51.5 55.0 46.1 47.1 50.3 53.8 45.0 46.0 49.1 52.5 43.9 44.8 47.9 51.2 41.7 42.6 45.5 48.6 38.6 39.5 42.1 45.1

S/T 0.95 0.89 0.73 0.54 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.83 0.62 1.00 1.00 0.83 0.62

Delta T23221915242219152322191522 23 19 162122191520201814

1800 KW 2.99 3.05 3.15 3.25 3.22 3.29 3.40 3.51 3.43 3.50 3.62 3.74 3.61 3.69 3.81 3.94 3.76 3.85 3.97 4.11 3.89 3.98 4.11 4.26

AMPS 13.0 13.2 13.6 14.1 13.9 14.2 14.6 15.1 15.0 15.3 15.8 16.3 15.9 16.3 16.8 17.3 16.8 17.2 17.7 18.4 17.8 18.2 18.7 19.4

HI PR 240 259 273 285 270 290 307 320 307 330 349 364 349 376 397 414 393 423 447 466 434 467 494 515

LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174

MBh 45.8 46.8 50.0 53.4 44.7 45.7 48.8 52.2 43.7 44.6 47.7 51.0 42.6 43.5 46.5 49.7 40.5 41.3 44.2 47.2 37.5 38.3 40.9 43.7

S/T 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.96 0.90 0.74 0.55 0.99 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.98 0.79 0.59

Delta T24232016242320162423201624 23 20 16 23 23 20 16 22 21 19 15

80 1600 KW 2.97 3.03 3.13 3.23 3.20 3.27 3.37 3.48 3.40 3.47 3.59 3.71 3.58 3.66 3.78 3.91 3.73 3.81 3.94 4.07 3.86 3.95 4.08 4.22

AMPS 12.9 13.1 13.5 14.0 13.8 14.1 14.5 15.0 14.8 15.2 15.6 16.2 15.8 16.1 16.6 17.2 16.7 17.1 17.6 18.2 17.6 18.0 18.6 19.2

HI PR 238 256 270 282 267 287 304 317 304 327 345 360 346 372 393 410 389 419 442 461 430 463 489 510

LO PR 112 119 130 138 118 125 137 146 122 130 142 152 129 137 149 159 135 143 157 167 139 148 162 173

MBh 42.3 43.2 46.1 49.3 41.3 42.2 45.1 48.2 40.3 41.2 44.0 47.0 39.3 40.2 42.9 45.9 37.3 38.2 40.8 43.6 34.6 35.4 37.8 40.4

S/T 0.87 0.82 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.93 0.76 0.57 1.00 0.94 0.77 0.57

Delta T24232016252420162524201625 24 21 162423201623221915

1400 KW 2.90 2.96 3.05 3.15 3.12 3.19 3.29 3.40 3.31 3.39 3.50 3.61 3.49 3.57 3.68 3.81 3.64 3.72 3.84 3.97 3.76 3.85 3.98 4.11

AMPS 12.5 12.8 13.2 13.6 13.4 13.7 14.1 14.6 14.5 14.8 15.2 15.8 15.4 15.7 16.2 16.8 16.3 16.6 17.1 17.7 17.2 17.5 18.1 18.7

HI PR 231 248 262 274 259 279 294 307 295 317 335 349 336 361 381 398 378 406 429 447 417 449 474 494

LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167

NOTE: Shaded area reflects AHRI rating conditions

MBh 48.0 48.9 51.2 54.7 46.9 47.8 50.0 53.4 45.8 46.6 48.8 52.1 44.6 45.5 47.7 50.8 42.4 43.2 45.3 48.3 39.3 40.0 41.9 44.7

S/T 1.00 0.96 0.87 0.70 1.00 1.00 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 1.00 0.81

Delta T24242320242423202324232023 23 23 202222232020202118

1800 KW 3.01 3.08 3.18 3.28 3.25 3.32 3.43 3.54 3.46 3.53 3.65 3.77 3.64 3.72 3.84 3.97 3.79 3.88 4.01 4.14 3.93 4.02 4.15 4.29

AMPS 13.1 13.3 13.7 14.2 14.0 14.3 14.7 15.2 15.1 15.4 15.9 16.4 16.0 16.4 16.9 17.5 17.0 17.4 17.9 18.5 17.9 18.3 18.9 19.6

HI PR 243 261 276 288 272 293 310 323 310 333 352 367 353 380 401 418 397 427 451 471 439 472 499 520

LO PR 114 121 132 141 120 128 140 149 125 133 145 155 131 140 152 162 138 146 160 170 142 151 165 176

MBh 46.6 47.5 49.7 53.1 45.5 46.4 48.6 51.8 44.4 45.3 47.4 50.6 43.3 44.2 46.3 49.4 41.2 42.0 44.0 46.9 38.1 38.9 40.7 43.4

S/T 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77

Delta T25252420262524212625242125 25 24 212424242122222219

85 1600 KW 2.99 3.05 3.15 3.25 3.22 3.29 3.40 3.51 3.43 3.50 3.62 3.74 3.61 3.69 3.81 3.94 3.76 3.85 3.97 4.11 3.89 3.98 4.11 4.26

AMPS 13.0 13.2 13.6 14.1 13.9 14.2 14.6 15.1 15.0 15.3 15.8 16.3 15.9 16.3 16.8 17.3 16.8 17.2 17.7 18.4 17.8 18.2 18.7 19.4

HI PR 240 259 273 285 270 290 307 320 307 330 349 364 349 376 397 414 393 423 447 466 434 467 494 515

LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174

MBh 43.0 43.8 45.9 49.0 42.0 42.8 44.8 47.8 41.0 41.8 43.8 46.7 40.0 40.8 42.7 45.6 38.0 38.7 40.6 43.3 35.2 35.9 37.6 40.1

S/T 0.92 0.88 0.80 0.65 0.95 0.92 0.83 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.74

Delta T26252421262624212626242126 26 25 212525242123242320

1400 KW 2.92 2.98 3.07 3.17 3.14 3.21 3.31 3.42 3.34 3.42 3.53 3.64 3.52 3.60 3.71 3.84 3.67 3.75 3.87 4.00 3.79 3.88 4.01 4.15

AMPS 12.6 12.9 13.3 13.7 13.5 13.8 14.2 14.7 14.6 14.9 15.4 15.9 15.5 15.8 16.3 16.9 16.4 16.8 17.3 17.9 17.3 17.7 18.2 18.9

HI PR 233 251 265 276 262 282 297 310 298 320 338 353 339 365 385 402 381 410 433 452 421 453 479 499

LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169

* NOTE: Shaded areas is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Tem perature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1460H41AA

MODEL: GPC1460H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 6 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 9 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 56.3 58.4 64.0 - 55.0 57.0 62.5 - 53.7 55.7 61.0 - 52.4 54.3 59.5 - 49.8 51.6 56.5 - 46.1 47.8 52.4 -

S/T 0.71 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.68 0.47 - 0.82 0.69 0.47 -

Delta T211814 - 211814 - 211814 - 21 18 14 - 211814 - 191713 -

1800 KW 3.70 3.78 3.91 - 4.00 4.09 4.23 - 4.26 4.36 4.51 - 4.49 4.60 4.75 - 4.69 4.80 4.96 - 4.86 4.97 5.14 -

AMPS 15.7 16.0 16.5 - 16.9 17.2 17.8 - 18.2 18.6 19.2 - 19.4 19.9 20.5 - 20.6 21.1 21.7 - 21.7 22.3 23.0 -

HI PR 238 256 271 - 267 288 304 - 304 327 345 - 346 373 393 - 390 419 443 - 430 463 489 -

LO PR 108 115 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 139 151 - 135 143 156 -

MBh 54.7 56.7 62.1 - 53.4 55.4 60.7 - 52.2 54.1 59.2 - 50.9 52.7 57.8 - 48.3 50.1 54.9 - 44.8 46.4 50.9 -

S/T 0.68 0.57 0.39 - 0.71 0.59 0.41 - 0.72 0.60 0.42 - 0.75 0.62 0.43 - 0.78 0.65 0.45 - 0.78 0.65 0.45 -

Delta T211914 - 221914 - 221914 - 22 19 14 - 221914 - 201713 -

70 1600 KW 3.67 3.75 3.88 - 3.97 4.06 4.19 - 4.23 4.32 4.47 - 4.46 4.56 4.71 - 4.65 4.76 4.92 - 4.82 4.93 5.10 -

AMPS 15.6 15.9 16.4 - 16.7 17.1 17.6 - 18.1 18.5 19.1 - 19.2 19.7 20.3 - 20.4 20.9 21.5 - 21.6 22.1 22.8 -

HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 415 438 - 426 459 484 -

LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 133 142 155 -

MBh 50.5 52.3 57.3 - 49.3 51.1 56.0 - 48.1 49.9 54.7 - 47.0 48.7 53.3 - 44.6 46.2 50.7 - 41.3 42.8 46.9 -

S/T 0.66 0.55 0.38 - 0.68 0.57 0.39 - 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.75 0.62 0.43 - 0.75 0.63 0.44 -

Delta T221914 - 221914 - 221915 - 22 19 15 - 221914 - 201813 -

1400 KW 3.58 3.66 3.78 - 3.87 3.95 4.08 - 4.12 4.21 4.35 - 4.34 4.44 4.59 - 4.53 4.63 4.79 - 4.69 4.80 4.97 -

AMPS 15.2 15.5 16.0 - 16.3 16.7 17.2 - 17.6 18.0 18.6 - 18.7 19.2 19.8 - 19.9 20.3 21.0 - 21.0 21.5 22.2 -

HI PR 229 246 260 - 257 276 292 - 292 314 332 - 333 358 378 - 374 403 425 - 413 445 470 -

LO PR 103 110 120 - 109 116 127 - 114 121 132 - 119 127 139 - 125 133 145 - 129 138 150 -

MBh 57.3 59.0 63.9 68.5 56.0 57.6 62.4 66.9 54.6 56.3 60.9 65.3 53.3 54.9 59.4 63.8 50.6 52.1 56.4 60.6 46.9 48.3 52.3 56.1

S/T 0.81 0.73 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.58 0.38 0.89 0.80 0.60 0.39 0.92 0.83 0.63 0.40 0.93 0.83 0.63 0.41

Delta T24221812242218132422181324 22 18 13 24 22 18 12 22 21 17 12

1800 KW 3.73 3.82 3.94 4.07 4.03 4.12 4.26 4.41 4.30 4.40 4.55 4.70 4.53 4.64 4.79 4.96 4.73 4.84 5.01 5.18 4.90 5.02 5.19 5.37

AMPS 15.8 16.2 16.7 17.2 17.0 17.4 17.9 18.6 18.4 18.8 19.4 20.1 19.6 20.0 20.7 21.4 20.8 21.3 21.9 22.7 21.9 22.5 23.2 24.0

HI PR 241 259 273 285 270 291 307 320 307 330 349 364 350 376 397 415 393 423 447 466 435 468 494 515

LO PR 109 116 126 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168

MBh 55.6 57.3 62.0 66.5 54.3 55.9 60.6 65.0 53.0 54.6 59.1 63.4 51.8 53.3 57.7 61.9 49.2 50.6 54.8 58.8 45.5 46.9 50.8 54.5

S/T 0.77 0.69 0.52 0.34 0.80 0.72 0.54 0.35 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.89 0.80 0.60 0.39

Delta T25231913252319132523191325 23 19 13 25 23 19 13 23 21 18 12

75 1600 KW 3.70 3.79 3.91 4.04 4.00 4.09 4.23 4.37 4.26 4.36 4.51 4.66 4.49 4.60 4.75 4.92 4.69 4.80 4.96 5.14 4.86 4.97 5.14 5.32

AMPS 15.7 16.0 16.5 17.1 16.9 17.3 17.8 18.4 18.2 18.6 19.2 19.9 19.4 19.9 20.5 21.2 20.6 21.1 21.7 22.5 21.7 22.3 23.0 23.8

HI PR 238 256 271 282 267 288 304 317 304 327 346 360 346 373 394 410 390 419 443 462 430 463 489 510

LO PR 108 115 125 133 114 121 132 141 118 126 137 146 124 132 144 154 130 139 151 161 135 143 157 167

MBh 51.3 52.9 57.2 61.4 50.2 51.6 55.9 60.0 49.0 50.4 54.6 58.6 47.8 49.2 53.2 57.1 45.4 46.7 50.6 54.3 42.0 43.3 46.8 50.3

S/T 0.75 0.67 0.51 0.33 0.77 0.69 0.52 0.34 0.79 0.71 0.54 0.35 0.82 0.73 0.55 0.36 0.85 0.76 0.58 0.37 0.86 0.77 0.58 0.37

Delta T25231913252319132624191326 24 19 13 25 23 19 13 24 22 18 12

1400 KW 3.61 3.69 3.81 3.94 3.90 3.99 4.12 4.26 4.15 4.25 4.39 4.54 4.38 4.48 4.63 4.79 4.57 4.67 4.83 5.00 4.73 4.84 5.01 5.18

AMPS 15.3 15.6 16.1 16.7 16.4 16.8 17.3 17.9 17.8 18.2 18.7 19.4 18.9 19.3 19.9 20.7 20.0 20.5 21.2 21.9 21.2 21.7 22.4 23.2

HI PR 231 249 263 274 259 279 295 307 295 317 335 350 336 361 382 398 378 407 429 448 418 449 474 495

LO PR 105 111 121 129 110 118 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1460H41AA

MODEL: GPC1460H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Design Subcooling, 6 ± 2 °F @ the liquid access fitting connection AHRI 95 test conditions. Design Superheat 9 ± 2°F @ the compressor suction access fitting connection.

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 58.3 59.6 63.7 68.1 57.0 58.2 62.2 66.5 55.6 56.8 60.7 64.9 54.3 55.4 59.2 63.3 51.5 52.7 56.3 60.1 47.7 48.8 52.1 55.7

S/T 0.89 0.84 0.68 0.51 0.92 0.87 0.70 0.53 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 0.96 0.78 0.58

Delta T27252218272622182726221828 26 23 182626221824242117

1800 KW 3.77 3.85 3.98 4.11 4.07 4.16 4.30 4.45 4.34 4.43 4.58 4.74 4.57 4.68 4.84 5.00 4.77 4.88 5.05 5.23 4.95 5.06 5.24 5.42

AMPS 16.0 16.3 16.8 17.4 17.2 17.5 18.1 18.7 18.5 19.0 19.6 20.3 19.8 20.2 20.8 21.6 21.0 21.4 22.1 22.9 22.1 22.7 23.4 24.2

HI PR 243 262 276 288 273 294 310 323 310 334 352 368 353 380 401 419 397 428 452 471 439 473 499 520

LO PR 110 117 128 136 116 124 135 144 121 128 140 149 127 135 147 157 133 141 154 164 137 146 160 170

MBh 56.6 57.9 61.8 66.1 55.3 56.5 60.4 64.5 54.0 55.2 58.9 63.0 52.7 53.8 57.5 61.5 50.0 51.1 54.6 58.4 46.3 47.4 50.6 54.1

S/T 0.85 0.80 0.65 0.48 0.88 0.83 0.67 0.50 0.90 0.85 0.69 0.52 0.93 0.87 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.91 0.74 0.56

Delta T28262318282723192827231928 27 24 19 28 27 23 19 26 25 22 17

80 1600 KW 3.73 3.82 3.94 4.08 4.03 4.13 4.26 4.41 4.30 4.40 4.55 4.70 4.53 4.64 4.80 4.96 4.73 4.84 5.01 5.18 4.90 5.02 5.19 5.37

AMPS 15.8 16.2 16.7 17.2 17.0 17.4 17.9 18.6 18.4 18.8 19.4 20.1 19.6 20.0 20.7 21.4 20.8 21.3 21.9 22.7 21.9 22.5 23.2 24.0

HI PR 241 259 273 285 270 291 307 320 307 331 349 364 350 376 398 415 394 423 447 466 435 468 494 515

LO PR 109 116 126 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 168

MBh 52.3 53.4 57.1 61.0 51.0 52.2 55.7 59.6 49.8 50.9 54.4 58.2 48.6 49.7 53.1 56.7 46.2 47.2 50.4 53.9 42.8 43.7 46.7 49.9

S/T 0.82 0.77 0.63 0.47 0.85 0.80 0.65 0.48 0.87 0.82 0.66 0.50 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.94 0.88 0.72 0.54

Delta T28272319282724192827241929 27 24 192827241926252218

1400 KW 3.64 3.72 3.84 3.97 3.93 4.02 4.15 4.29 4.19 4.28 4.43 4.58 4.42 4.52 4.67 4.83 4.61 4.71 4.88 5.05 4.78 4.89 5.05 5.23

AMPS 15.4 15.8 16.2 16.8 16.6 17.0 17.5 18.1 17.9 18.3 18.9 19.6 19.1 19.5 20.1 20.8 20.2 20.7 21.3 22.1 21.4 21.9 22.6 23.4

HI PR 233 251 265 277 262 282 298 310 298 321 339 353 339 365 386 402 382 411 434 452 422 454 479 500

LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153 163

NOTE: Shaded area reflects AHRI rating conditions

MBh 59.3 60.5 63.3 67.6 58.0 59.1 61.9 66.0 56.6 57.7 60.4 64.4 55.2 56.3 58.9 62.9 52.4 53.5 56.0 59.7 48.6 49.5 51.9 55.3

S/T 0.93 0.90 0.81 0.66 0.97 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.93 0.75 1.00 1.00 0.93 0.76

Delta T28282623292827232928272328 28 27 232727262325252521

1800 KW 3.80 3.88 4.01 4.14 4.10 4.20 4.34 4.48 4.37 4.47 4.62 4.78 4.61 4.72 4.88 5.05 4.81 4.93 5.09 5.27 4.99 5.10 5.28 5.47

AMPS 16.1 16.5 17.0 17.5 17.3 17.7 18.2 18.9 18.7 19.1 19.7 20.4 19.9 20.4 21.0 21.8 21.1 21.6 22.3 23.1 22.3 22.9 23.6 24.5

HI PR 245 264 279 291 275 296 313 326 313 337 356 371 357 384 405 423 401 432 456 476 444 477 504 526

LO PR 111 118 129 137 117 125 136 145 122 130 142 151 128 136 149 158 134 143 156 166 139 148 161 172

MBh 57.6 58.7 61.5 65.6 56.3 57.4 60.1 64.1 54.9 56.0 58.6 62.6 53.6 54.6 57.2 61.0 50.9 51.9 54.4 58.0 47.2 48.1 50.3 53.7

S/T 0.89 0.86 0.78 0.63 0.92 0.89 0.80 0.65 0.95 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.98 0.88 0.72 1.00 0.99 0.89 0.72

Delta T29292724302928243029282430 30 28 242929282427272622

85 1600 KW 3.77 3.85 3.98 4.11 4.07 4.16 4.30 4.45 4.34 4.43 4.58 4.74 4.57 4.68 4.84 5.00 4.77 4.88 5.05 5.23 4.95 5.06 5.24 5.42

AMPS 16.0 16.3 16.8 17.4 17.2 17.5 18.1 18.7 18.5 19.0 19.6 20.3 19.8 20.2 20.8 21.6 21.0 21.4 22.1 22.9 22.1 22.7 23.4 24.2

HI PR 243 262 276 288 273 294 310 323 310 334 352 368 353 380 401 419 397 428 452 471 439 473 499 520

LO PR 110 117 128 136 116 124 135 144 121 128 140 149 127 135 147 157 133 141 154 164 137 146 160 170

MBh 53.2 54.2 56.8 60.6 51.9 52.9 55.4 59.2 50.7 51.7 54.1 57.7 49.5 50.4 52.8 56.3 47.0 47.9 50.2 53.5 43.5 44.4 46.5 49.6

S/T 0.86 0.83 0.75 0.61 0.89 0.86 0.78 0.63 0.91 0.88 0.79 0.64 0.94 0.91 0.82 0.67 0.98 0.94 0.85 0.69 0.99 0.95 0.86 0.70

Delta T30302824303028243030282431 30 28 253030282428282623

1400 KW 3.67 3.75 3.88 4.01 3.97 4.05 4.19 4.33 4.23 4.32 4.47 4.62 4.45 4.56 4.71 4.87 4.65 4.76 4.92 5.09 4.82 4.93 5.10 5.28

AMPS 15.6 15.9 16.4 17.0 16.7 17.1 17.6 18.2 18.1 18.5 19.1 19.7 19.2 19.7 20.3 21.0 20.4 20.9 21.5 22.3 21.5 22.1 22.8 23.6

HI PR 236 254 268 279 265 285 301 314 301 324 342 357 343 369 389 406 386 415 438 457 426 458 484 505

LO PR 107 113 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 159 133 142 155 165

* NOTE: Shaded areas is AHRI Rating Conditions IDB: Entering Indoor Dr y Bulb Tem perature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA

PERFORMANCE TEST

All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor

air cubic feet per minute (CFM) as listed in the Performance Data Sheets:

If conditions vary from this, results will change as follows:

1. As indoor dry bulb temperatures increase, a slight increase will occur in indoor air temperature drop (Delta T). Low

and high side pressures and power will not change.

2. As indoor CFM decreases, a slight increase will occur in indoor temperature drop (Delta T). A slight decrease will

occur in low and high side pressures and power.

A properly operating unit should be within plus or minus 3 degrees of the typical (Delta T) value shown.

A properly operating unit should be within plus or minus 7 PSIG of the HI PR shown.

A properly operating unit should be within plus or minus 3 PSIG of the LO PR shown.

A properly operating unit should be within plus or minus 3 Amps of the typical value shown.

WIRING DIAGRAMS

WARNING

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

GPC14[24-60]H41AA

NOTE #2

NOTE #4

24V

208-240

240

208-240/1/60

SUPPLY VOLTAGE

COMP

S.A.

NOTE #4

RCCF

T2 C

RCCF

24V

208

COMP

PLF

BK YL

BK RD

LVJB

YL R

NOTE #3

PU BL

GND

208-240/1/60 0140G00871 REV. B

C L G N

12 3

SEE NOTE 2

3 1

RW2 W1 Y G C

PLF

SEE NOTE #2

IF USED

THERMOSTAT

SEE UNIT RATING PLATE FOR TYPE AND SIZE

OF OVER CURRENT PROTECTION

COMPONENT LEGEND

COMP

GND

LVJB

PLF

RCCF

HPS

CONTACTOR

CONDENSER MOTOR

COMPRESSOR

EVAPORATOR MOTOR

EQUIPMENT GROUND

LOW VOLTAGE JUNCTION BOX

FEMALE PLUG / CONNECTOR

RUN CAPACITOR FOR

COMPRESSOR AND FAN

START ASSIST

TRANSFORMER

HIGH PRESSURE SWITCH WIRE CODE

BK BLACK

BL BLUE

BR BROWN

GR GREEN

OR ORANGE

PU PURPLE

RD RED

WH WHITE

YL YELLOW

FACTORY

WIRING

LINE VOLTAGE

LOW VOLTAGE

OPTINAL HIGH

VOLTAGE

FIELD WIRING

HIGH VOLTAGE

LOW VOLTAGE

NOTES:

1. REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE INSULATION AS

ORIGINAL (AT LEAST 105°C) USE COPPER CONDUCTOR ONLY.

2. TO CHANGE EVAPORATOR MOTOR SPEED MOVE WHITE AND YELLOW

LEADS FROM EM "2" AND "3" TO "4" AND "5". IF BOTH LEADS ARE

ENERGIZED, THE HIGHER SPEED SETTING IS USED.

3. FOR 208 VOLT TRANSFORMER OPERATION MOVE PURPLE WIRES

FROM TERMINAL 3 TO TERMINAL 2 ON TRANSFORMER.

4. START ASSIST FACTORY EQUIPPED WHEN REQUIRED

5. USE COPPER CONDUCTORS ONLY.

++ USE N.E.C. CLASS 2 WIRE

2 3

SEE NOTE 5

(IF USED) SEE NOTE 4

4 5

HPS

CONTROL

BOX

HPS

GPC 14 SEER R-410A

5mm Package Air Conditioners

GPC Package Cooling Units are designed for outdoor instal-

lations only in either residential or light commercial applica-

tions.

The connecting ductwork (Supply and Return) can be con-

nected for either horizontal or vertical airflow. In the vertical

application a matching Roof Curb is recommended.

A return air filter must be installed behind the return air grille(s)

or provision must be made for a filter in an accessible loca-

tion within the return air duct. The minimum filter area should

not be less than those sizes listed in the Specification Sec-

tion. Under no circumstances should the unit be operated

without return air filters.

A 3/4” PVC pipe is provided for removal of condensate water

from the indoor coil In order to provide proper condensate

flow, a drain trap is supplied and shipped loose inside the

unit for field installation. (Do not reduce the drain line size.)

Refrigerant flow control is achieved by use of restrictor ori-

fices. GPC units use the FasTest Access Fitting System

with a saddle that is either soldered to the suction and liquid

lines or is fastened with a locking nut to the access fitting

box (core) and then screwed into the saddle. Do not re-

move the core from the saddle until the refrigerant

charge has been removed. Failure to do so could re-

sult in property damage or personal injury.

The single phase units use permanent split capacitor (PSC)

design compressors. Starting components are therefore not

required for these units. A low microfarad run capacitor as-

sists the compressor to start and remains in the circuit dur-

ing operation.

All GPC14 units have X-13 indoor blower motors that are en-

ergized by a 24V signal from the thermostat and are con-

stant torque motors with very low power consumption. The X-

13 features an integral control module.

PRODUCT DESIGN

Air for condensing (cooling cycle) is drawn through the out-

door coil by a propeller fan, and is discharged vertically out

the top of the unit. The outdoor coil is designed for .0 static.

No additional restriction (ductwork) shall be applied.

Conditioned air is drawn through the filter(s), field installed,

across the coil and back into the conditioned space by the

indoor blower.

GPC1424-60H41AB models use Copeland Scroll Compres-

sors. There are a number of design characteristics which

are different from the traditional reciprocating compressor.

- Due to their design Scroll Compressors are inherently

more tolerant of liquid refrigerant. NOTE: Even though

the compressor section of a Scroll compressor is more

tolerant of liquid refrigerant, continued floodback or

flooded start conditions may wash oil from the bearing

surfaces causing premature bearing failure.

- Scroll Compressors use white oil which is compatible

with 3GS oil which may be used if additional oil is re-

quired.

- Operating pressures and amp draws may differ from

standard reciprocating compressors. This information

may be found in the "Cooling Performance Data" sec-

tion.

GPC1442H41AB

GPC1448H41AB

GPC1424H41AB

GPC1430H41AB

GPC1436H41AB

PRODUCT DESIGN

Location and Clearances

NOTE: To ensure proper condensate drainage, unit must be

installed in a level position.

36"

10"

UNIT

WALL

36"

Outside Slab Installation - Horizontal (H)

Minimum clearances are required to avoid air recirculation and

keep the unit operating at peak efficiency.

36"

24"

PLENUM

UNIT

PLATFORM

CURB

Rooftop Installation - Horizontal (H)

In installations where the unit is installed above ground level

and not serviceable from the ground (Example: Roof Top in-

stallations), the installer must provide service platform for ser-

vice person with rails or guards in accordance with local codes

or ordinances or in their absence with the latest edition of the

Uniform Mechanical Code Section 305.

NOTE: Unit can also use roof curb.

WARNING

TO PREVENT POSSIBLE PROPERTY DAMAGE, THE

UNIT SHOULD REMAIN IN AN UPRIGHT POSITION

DURING ALL RIGGING AND MOVING OPERATIONS.

TO FACILITATE LIFTING AND MOVING IF A CRANE

IS USED, PLACE THE UNIT IN AN ADEQUATE CABLE

SLING.

Refer to Roof Curb Installation Instructions for proper curb

installation. Curbing must be installed in compliance with

the National Roofing Contractors Association Manual.

PACKAGE COOLING SPECIFICATIONS

IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers

in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.

(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.

* Calculated external filter size based on air velocity of 300 ft/min.

Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.

Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.

GPC14[24-30]H41AB

MODELS WITH 5MM COILS

GPC1424H41AB GPC1430H41AB

COOLING COOLING CAPACITY, BTUH 24,600 28,400

CAPACITY SEER / EER 14.5 / 12.1 14.0 / 12.1

UNIT VOLTAGE (NAMEPLATE) 208-230/1/60 208-230/1/60

ELECTRICAL AMPS (TOTAL) 16.1 15.76

SPECIFICATION MINIMUM CIRCUIT AMPACITY 19.5 19

MAXIMUM OVERCURRENT PROTECTION (1) 30 30

COMPRESSOR TYPE SCROLL SCROLL

RATED LOAD AMPS 13.5 12.8

LOCKED ROTOR AMPS 58.3 64

CONDENSER HORSEPOWER 1/6 1/6

FAN MOTOR RPM 815 815

FULL LOAD AMPS 1.1 1.1

LOCKED ROTOR AMPS 1.7 1.7

CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 2 22 / 2

CONDENSER FACE AREA - SQ. FT. 12.3 12.3

COIL NUMBER OF ROWS 11

FINS PER INCH 26 26

EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5

BLOWER FULL LOAD AMPS 1.5 1.86

MOTOR LOCKED ROTOR AMPS NA NA

MOTOR SPEED TAP - COOLING T2 T2

RPM 1050 1050

EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 X 8

BLOWER HI EFFICIENCY COOLING CFM 850 1,050

FAN ONLY COOLING CFM 800 950

MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5

EVAPORATOR FACE AREA - SQ. FT. 5.25 5.25

COIL NUMBER OF ROWS 33

FINS PER INCH 16 16

GENERAL FILTER SIZE - SQ. FT. * 20 x 20 x 1 20 x 25 x 1

INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4"

EXPANSION DEVICE ORIFICE (0.057) ORIFICE (0.062)

REFRIGERANT CHARGE R-410A (Oz.) 59 53

POW ER SUPPLY CONDUIT KNOCKOUT SIZE (IN.) 3/4, 1, 1-1/4 3/4, 1, 1-1/4

LOW VOLTAGE CONDUIT KNOCKOUT SIZE (IN.) 1/2 1/2

SHIPPING WEIGHT LBS. 290 290

OPERATING WEIGHT LBS. 280 280

PACKAGE COOLING SPECIFICATIONS

IMPORTANT: While this data is presented as a guide, it is important to electrically connect the unit and properly size wires and fuses/circuit breakers

in accordance with the National Electrical Code and/or all local codes. Data shown is w/o electric heaters.

(1) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.

* Calculated external filter size based on air velocity of 300 ft/min.

Wire size should be determined in accordance with National Electrical Codes. Extensive wire runs will require larger wire sizes.

Unit specifications are subject to change without notice. ALWAYS refer to the units serial plate for the most up-to-date general and electrical information.

GPC14[36-48]H41AB

MODELS WITH 5MM COILS

GPC1436H41AB GPC1442H41AB GPC1448H41AB

COOLING COOLING CAPACITY, BTUH 35,600 40,000 46,500

CAPACITY SEER / EER 14.0 / 12.0 14.2 / 12.0 14.5 / 12.0

UNIT VOLTAGE (NAMEPLATE) 208-230/1/60 208-230/1/60 208-230/1/60

ELECTRICAL AMPS (TOTAL) 20.06 22.2 24.2

SPECIFICATION MINIMUM CIRCUIT AMPACITY 24.2 26.6 29.1

MAXIMUM OVERCURRENT PROTECTION (1) 40 40 45

COMPRESSOR TYPE SCROLL SCROLL SCROLL

RATED LOAD AMPS 16.7 17.9 19.9

LOCKED ROTOR AMPS 79 112 109

CONDENSER HORSEPOWER 1/4 1/4 1/4

FAN MOTOR RPM 830 1075 1075

FULL LOAD AMPS 1.5 1.4 1.4

LOCKED ROTOR AMPS 3.0 2.9 2.9

CONDENSER FAN BLADE DIAMETER (INCHES) / # OF BLADES 22 / 3 22 / 4 22 / 4

CONDENSER FACE AREA - SQ. FT. 12.3 16.0 19.5

COIL NUMBER OF ROWS 1 11

FINS PER INCH 26 28 28

EVAPORATOR HORSEPOWER - NO. OF SPEEDS 1/2 - 5 1/2 - 5 3/4 - 5

BLOWER FULL LOAD AMPS 1.86 2.9 2.9

MOTOR LOCKED ROTOR AMPS NA NA NA

MOTOR SPEED TAP - COOLING T2 T2 T2

RPM 1050 1050 1050

EVAPORATOR DIAMETER X WIDTH (INCHES) 10 X 8 10 x 8 10 x 8

BLOWER HI EFFICIENCY COOLING CFM 1,200 1,300 1,600

5 TON NOMINAL COOLING CFM NA NA NA

FAN ONLY COOLING CFM 1,100 1,200 1,400

MAX EXTERNAL STATIC PRESS ("w.c.) 0.5 0.5 0.5

EVAPORATOR FACE AREA - SQ. FT. 5.2 6.2 6.2

COIL NUMBER OF ROWS 3 4 4

FINS PER INCH 14 14 14

GENERAL FILTER SIZE - SQ. FT. * 25 x 25 x 1 (2) 20 x 20 x 1 (2) 20 x 20 x 1

INFORMATION DRAIN SIZE (INCHES) 3/4" 3/4" 3/4"

EXPANSION DEVICE ORIFICE (0.068) ORIFICE (0.072) ORIFICE (0.078)

REFRIGERANT CHARGE R-410A (Oz.) 65 94 90

POWER SUPPLY CONDUIT KNOCKOUT SIZE (IN.) 3/4, 1, 1-1/4 3/4, 1, 1-1/4 3/4, 1, 1-1/4

LOW VOLTAGE CONDUIT KNOCKOUT SIZE (IN.) 1/2 1/2 1/2

SHIPPING WEIGHT LBS. 370 370 400

OPERATING WEIGHT LBS. 360 360 390

COOLING PERFORMANCE DATA GPC1424H41AB

5MM COILS

MODEL: GPC1424H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 24.1 25.0 27.4 - 23.5 24.4 26.7 - 23.0 23.8 26.1 - 22.4 23.2 25.5 - 21.3 22.1 24.2 - 19.7 20.5 22.4 -

S/T 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -

Delta T181512 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -

920 KW 1.47 1.50 1.55 - 1.58 1.62 1.67 - 1.69 1.73 1.78 - 1.78 1.82 1.88 - 1.86 1.90 1.96 - 1.92 1.97 2.04 -

AMPS 6.6 6.7 6.9 - 7.0 7.2 7.4 - 7.6 7.7 8.0 - 8.0 8.2 8.4 - 8.5 8.7 8.9 - 8.9 9.1 9.4 -

HI PR 223 240 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 414 - 402 433 457 -

LO PR 110 117 128 - 117 124 135 - 121 129 141 - 127 135 148 - 133 142 155 - 138 147 160 -

MBh 23.4 24.3 26.6 - 22.9 23.7 26.0 - 22.3 23.1 25.3 - 21.8 22.6 24.7 - 20.7 21.4 23.5 - 19.2 19.9 21.8 -

S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.77 0.65 0.45 - 0.80 0.67 0.47 - 0.81 0.68 0.47 -

Delta T191612 - 191612 - 191612 - 19 16 12 - 191612 - 171511 -

70 820 KW 1.45 1.49 1.53 - 1.57 1.61 1.66 - 1.67 1.71 1.77 - 1.76 1.80 1.87 - 1.84 1.88 1.95 - 1.91 1.95 2.02 -

AMPS 6.5 6.7 6.9 - 7.0 7.1 7.3 - 7.5 7.7 7.9 - 8.0 8.1 8.4 - 8.4 8.6 8.9 - 8.9 9.1 9.3 -

HI PR 220 237 250 - 247 266 281 - 281 303 320 - 320 345 364 - 360 388 409 - 398 428 452 -

LO PR 109 116 127 - 115 123 134 - 120 128 139 - 126 134 146 - 132 140 153 - 137 145 159 -

MBh 21.6 22.4 24.5 - 21.1 21.9 24.0 - 20.6 21.3 23.4 - 20.1 20.8 22.8 - 19.1 19.8 21.7 - 17.7 18.3 20.1 -

S/T 0.68 0.57 0.39 - 0.71 0.59 0.41 - 0.72 0.60 0.42 - 0.75 0.62 0.43 - 0.78 0.65 0.45 - 0.78 0.65 0.45 -

Delta T191612 - 191612 - 191613 - 19 17 13 - 191612 - 181512 -

720 KW 1.42 1.45 1.50 - 1.53 1.56 1.62 - 1.63 1.67 1.72 - 1.72 1.76 1.82 - 1.79 1.83 1.90 - 1.86 1.90 1.97 -

AMPS 6.4 6.5 6.7 - 6.8 7.0 7.2 - 7.3 7.5 7.7 - 7.8 7.9 8.2 - 8.2 8.4 8.6 - 8.6 8.8 9.1 -

HI PR 214 230 243 - 240 258 273 - 273 294 310 - 311 334 353 - 350 376 397 - 386 416 439 -

LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 132 141 154 -

MBh 24.5 25.2 27.3 29.3 23.9 24.7 26.7 28.6 23.4 24.1 26.0 28.0 22.8 23.5 25.4 27.3 21.7 22.3 24.1 25.9 20.1 20.7 22.4 24.0

S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.89 0.80 0.61 0.39 0.92 0.83 0.62 0.40 0.96 0.86 0.65 0.42 0.97 0.86 0.65 0.42

Delta T21191611211916112119161121 19 16 11 21 19 16 11 19 18 15 10

920 KW 1.48 1.51 1.56 1.61 1.60 1.63 1.69 1.74 1.70 1.74 1.80 1.86 1.79 1.84 1.90 1.96 1.87 1.92 1.98 2.05 1.94 1.99 2.05 2.13

AMPS 6.66.87.07.27.17.27.57.77.67.88.08.38.1 8.3 8.5 8.88.68.79.09.39.09.29.59.8

HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 462 481

LO PR 111 119 129 138 118 125 137 146 122 130 142 151 129 137 149 159 135 143 156 167 139 148 162 172

MBh 23.8 24.5 26.5 28.5 23.2 23.9 25.9 27.8 22.7 23.4 25.3 27.1 22.1 22.8 24.7 26.5 21.0 21.7 23.4 25.2 19.5 20.1 21.7 23.3

S/T 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.82 0.62 0.40 0.92 0.82 0.62 0.40

Delta T21201611222016112220161122 20 16 11 22 20 16 11 20 19 15 10

75 820 KW 1.47 1.50 1.55 1.60 1.58 1.62 1.67 1.73 1.69 1.73 1.78 1.85 1.78 1.82 1.88 1.95 1.86 1.90 1.96 2.03 1.92 1.97 2.04 2.11

AMPS 6.66.76.97.17.07.27.47.67.67.78.08.28.0 8.2 8.4 8.78.58.78.99.28.99.19.49.7

HI PR 223 240 253 264 250 269 284 296 284 306 323 337 324 348 368 383 364 392 414 431 402 433 457 477

LO PR 110 117 128 136 117 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171

MBh 22.0 22.6 24.5 26.3 21.5 22.1 23.9 25.7 20.9 21.6 23.3 25.1 20.4 21.0 22.8 24.4 19.4 20.0 21.6 23.2 18.0 18.5 20.0 21.5

S/T 0.77 0.69 0.52 0.34 0.80 0.72 0.54 0.35 0.82 0.74 0.56 0.36 0.85 0.76 0.57 0.37 0.88 0.79 0.60 0.38 0.89 0.79 0.60 0.39

Delta T22201611222017112220171122 20 17 12 22 20 16 11 20 19 15 11

720 KW 1.43 1.46 1.51 1.56 1.54 1.58 1.63 1.69 1.64 1.68 1.74 1.80 1.73 1.77 1.83 1.90 1.81 1.85 1.91 1.98 1.87 1.92 1.98 2.05

AMPS 6.46.66.77.06.97.07.27.57.47.57.88.07.8 8.0 8.2 8.58.38.58.79.08.78.99.29.5

HI PR 216 232 245 256 242 261 275 287 276 297 313 327 314 338 357 372 353 380 401 418 390 420 443 462

LO PR 107 114 124 132 113 120 131 140 118 125 136 145 123 131 143 153 129 138 150 160 134 142 155 166

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1424H41AB

5MM COILS

MODEL: GPC1424H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 25.0 25.5 27.2 29.1 24.4 24.9 26.6 28.4 23.8 24.3 26.0 27.8 23.2 23.7 25.3 27.1 22.0 22.5 24.1 25.7 20.4 20.9 22.3 23.8

S/T 0.92 0.87 0.70 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.81 0.60

Delta T23221915232219162422191623 23 20 162223191520211814

920 KW 1.49 1.52 1.57 1.63 1.61 1.65 1.70 1.76 1.72 1.76 1.81 1.88 1.81 1.85 1.91 1.98 1.89 1.93 2.00 2.07 1.96 2.00 2.07 2.15

AMPS 6.76.87.07.27.27.37.57.87.77.98.18.48.2 8.3 8.6 8.98.68.89.19.49.19.39.69.9

HI PR 227 244 258 269 255 274 290 302 290 312 329 344 330 355 375 391 371 400 422 440 410 442 466 486

LO PR 113 120 131 139 119 127 138 147 124 131 144 153 130 138 151 161 136 145 158 168 141 150 163 174

MBh 24.2 24.8 26.4 28.3 23.7 24.2 25.8 27.6 23.1 23.6 25.2 27.0 22.5 23.0 24.6 26.3 21.4 21.9 23.4 25.0 19.8 20.3 21.6 23.1

S/T 0.88 0.83 0.67 0.50 0.91 0.86 0.70 0.52 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.94 0.76 0.57 1.00 0.95 0.77 0.58

Delta T24232016242320162423201624 23 20 16 24 23 20 16 22 22 19 15

80 820 KW 1.48 1.51 1.56 1.61 1.60 1.63 1.69 1.74 1.70 1.74 1.80 1.86 1.79 1.84 1.90 1.96 1.87 1.92 1.98 2.05 1.94 1.99 2.05 2.13

AMPS 6.66.87.07.27.17.27.57.77.67.88.08.38.1 8.3 8.5 8.8 8.6 8.7 9.0 9.3 9.0 9.2 9.5 9.8

HI PR 225 242 256 267 252 272 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 462 482

LO PR 111 119 129 138 118 125 137 146 122 130 142 151 129 137 149 159 135 143 156 167 139 148 162 172

MBh 22.4 22.8 24.4 26.1 21.8 22.3 23.8 25.5 21.3 21.8 23.3 24.9 20.8 21.3 22.7 24.3 19.8 20.2 21.6 23.1 18.3 18.7 20.0 21.4

S/T 0.85 0.80 0.65 0.48 0.88 0.82 0.67 0.50 0.90 0.85 0.69 0.51 0.93 0.87 0.71 0.53 0.97 0.91 0.74 0.55 0.97 0.91 0.74 0.56

Delta T24232016252420162524201625 24 21 162423201623221915

720 KW 1.44 1.47 1.52 1.57 1.56 1.59 1.64 1.70 1.66 1.70 1.75 1.81 1.75 1.79 1.85 1.91 1.82 1.87 1.93 2.00 1.89 1.93 2.00 2.07

AMPS 6.56.66.87.06.97.17.37.57.57.67.88.17.9 8.1 8.3 8.68.38.58.89.18.89.09.39.6

HI PR 218 235 248 259 245 263 278 290 278 300 316 330 317 341 360 376 357 384 405 423 394 424 448 467

LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167

NOTE: Shaded area reflects AHRI rating conditions

MBh 25.4 25.9 27.1 28.9 24.8 25.3 26.5 28.2 24.2 24.7 25.8 27.6 23.6 24.1 25.2 26.9 22.4 22.9 24.0 25.6 20.8 21.2 22.2 23.7

S/T 0.97 0.93 0.84 0.68 1.00 0.97 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.78

Delta T25242320252423202424232024 24 23 202223232021212119

920 KW 1.50 1.54 1.59 1.64 1.62 1.66 1.72 1.77 1.73 1.77 1.83 1.89 1.83 1.87 1.93 2.00 1.91 1.95 2.02 2.09 1.97 2.02 2.09 2.16

AMPS 6.76.97.17.37.27.47.67.87.87.98.28.48.2 8.4 8.7 9.08.78.99.29.59.29.49.710.0

HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 445 414 446 471 491

LO PR 114 121 132 141 120 128 140 149 125 133 145 154 131 140 152 162 137 146 160 170 142 151 165 176

MBh 24.6 25.1 26.3 28.1 24.1 24.5 25.7 27.4 23.5 24.0 25.1 26.8 22.9 23.4 24.5 26.1 21.8 22.2 23.3 24.8 20.2 20.6 21.5 23.0

S/T 0.92 0.89 0.80 0.65 0.96 0.92 0.83 0.68 0.98 0.95 0.85 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.92 0.75

Delta T25252421262524212625242126 26 24 212425242123232219

85 820 KW 1.49 1.52 1.57 1.63 1.61 1.65 1.70 1.76 1.72 1.76 1.81 1.88 1.81 1.85 1.91 1.98 1.89 1.93 2.00 2.07 1.96 2.00 2.07 2.15

AMPS 6.76.87.07.27.27.37.57.87.77.98.18.48.2 8.3 8.6 8.98.68.89.19.49.19.39.69.9

HI PR 227 244 258 269 255 274 290 302 290 312 329 344 330 355 375 391 371 400 422 440 410 442 466 486

LO PR 113 120 131 139 119 127 138 147 124 131 144 153 130 138 151 161 136 145 158 168 141 150 163 174

MBh 22.7 23.2 24.3 25.9 22.2 22.6 23.7 25.3 21.7 22.1 23.2 24.7 21.2 21.6 22.6 24.1 20.1 20.5 21.5 22.9 18.6 19.0 19.9 21.2

S/T 0.89 0.86 0.77 0.63 0.92 0.89 0.80 0.65 0.95 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.98 0.88 0.72 1.00 0.99 0.89 0.72

Delta T26252421262624212626242126 26 25 212626242124242320

720 KW 1.45 1.49 1.53 1.59 1.57 1.60 1.66 1.71 1.67 1.71 1.77 1.83 1.76 1.80 1.86 1.93 1.84 1.88 1.95 2.01 1.91 1.95 2.02 2.09

AMPS 6.56.76.97.17.07.17.37.67.57.77.98.28.0 8.1 8.4 8.78.48.68.99.28.99.19.39.7

HI PR 220 237 250 261 247 266 281 293 281 303 319 333 320 345 364 380 360 388 409 427 398 428 452 472

LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 140 153 163 137 145 159 169

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW = Total system power

High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1430H41AB

5MM COILS

MODEL: GPC1430H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 27.8 28.8 31.6 - 27.2 28.2 30.9 - 26.5 27.5 30.1 - 25.9 26.8 29.4 - 24.6 25.5 27.9 - 22.8 23.6 25.9 -

S/T 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -

Delta T171411 - 171511 - 171511 - 17 15 11 - 171411 - 161310 -

1145 KW 1.75 1.78 1.84 - 1.89 1.93 1.99 - 2.01 2.05 2.12 - 2.12 2.16 2.24 - 2.21 2.26 2.34 - 2.29 2.34 2.42 -

AMPS 7.9 8.1 8.3 - 8.5 8.6 8.9 - 9.1 9.3 9.5 - 9.6 9.8 10.1 - 10.2 10.4 10.7 - 10.7 10.9 11.3 -

HI PR 234 252 266 - 263 283 299 - 299 322 340 - 341 367 387 - 383 412 435 - 423 456 481 -

LO PR 108 115 125 - 114 121 132 - 118 126 138 - 124 132 145 - 130 139 151 - 135 143 157 -

MBh 27.0 28.0 30.7 - 26.4 27.4 30.0 - 25.8 26.7 29.3 - 25.1 26.1 28.5 - 23.9 24.7 27.1 - 22.1 22.9 25.1 -

S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.47 - 0.81 0.68 0.47 -

Delta T171511 - 171511 - 171511 - 18 15 12 - 171511 - 161411 -

70 1020 KW 1.73 1.77 1.83 - 1.87 1.91 1.97 - 1.99 2.04 2.10 - 2.10 2.15 2.22 - 2.19 2.24 2.32 - 2.27 2.32 2.40 -

AMPS 7.9 8.0 8.2 - 8.4 8.6 8.8 - 9.0 9.2 9.5 - 9.5 9.8 10.0 - 10.1 10.3 10.6 - 10.6 10.8 11.2 -

HI PR 232 250 264 - 260 280 296 - 296 319 336 - 337 363 383 - 379 408 431 - 419 451 476 -

LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 134 142 155 -

MBh 25.7 26.6 29.1 - 25.1 26.0 28.5 - 24.5 25.4 27.8 - 23.9 24.7 27.1 - 22.7 23.5 25.8 - 21.0 21.8 23.9 -

S/T 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.78 0.65 0.45 -

Delta T181512 - 181612 - 181612 - 18 16 12 - 181512 - 171411 -

900 KW 1.70 1.74 1.80 - 1.84 1.88 1.94 - 1.96 2.00 2.07 - 2.06 2.11 2.18 - 2.15 2.20 2.28 - 2.23 2.28 2.36 -

AMPS 7.7 7.9 8.1 - 8.3 8.4 8.7 - 8.9 9.1 9.3 - 9.4 9.6 9.9 - 9.9 10.1 10.4 - 10.4 10.7 11.0 -

HI PR 227 245 258 - 255 275 290 - 290 312 330 - 330 356 376 - 372 400 422 - 411 442 467 -

LO PR 105 111 122 - 111 118 128 - 115 122 133 - 121 128 140 - 127 135 147 - 131 139 152 -

MBh 28.3 29.1 31.5 33.9 27.6 28.5 30.8 33.1 27.0 27.8 30.1 32.3 26.3 27.1 29.3 31.5 25.0 25.8 27.9 29.9 23.2 23.9 25.8 27.7

S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.65 0.42

Delta T19181410191815101918151020 18 15 10 19 18 15 10 18 17 14 9

1145 KW 1.76 1.80 1.86 1.92 1.90 1.94 2.01 2.08 2.03 2.07 2.14 2.21 2.14 2.18 2.26 2.34 2.23 2.28 2.36 2.44 2.31 2.36 2.44 2.53

AMPS 8.08.18.48.68.58.79.09.29.29.49.69.99.7 9.9 10.2 10.5 10.2 10.5 10.8 11.1 10.8 11.0 11.3 11.7

HI PR 237 255 269 281 266 286 302 315 302 325 343 358 344 370 391 408 387 417 440 459 428 460 486 507

LO PR 109 116 127 135 115 122 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 169

MBh 27.5 28.3 30.6 32.9 26.8 27.6 29.9 32.1 26.2 27.0 29.2 31.3 25.6 26.3 28.5 30.6 24.3 25.0 27.1 29.0 22.5 23.2 25.1 26.9

S/T 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.82 0.62 0.40 0.92 0.83 0.62 0.40

Delta T20181510201915102019151120 19 15 11 20 18 15 10 19 17 14 10

75 1020 KW 1.75 1.79 1.84 1.90 1.89 1.93 1.99 2.06 2.01 2.05 2.12 2.20 2.12 2.17 2.24 2.32 2.21 2.26 2.34 2.42 2.29 2.34 2.42 2.51

AMPS 7.98.18.38.68.58.68.99.29.19.39.59.99.6 9.8 10.1 10.5 10.2 10.4 10.7 11.0 10.7 10.9 11.3 11.6

HI PR 234 252 266 278 263 283 299 312 299 322 340 354 341 367 387 404 383 412 435 454 423 456 481 502

LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 144 157 167

MBh 26.1 26.9 29.1 31.2 25.5 26.3 28.4 30.5 24.9 25.6 27.7 29.8 24.3 25.0 27.1 29.0 23.1 23.8 25.7 27.6 21.4 22.0 23.8 25.6

S/T 0.77 0.69 0.52 0.34 0.80 0.71 0.54 0.35 0.82 0.73 0.55 0.36 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.88 0.79 0.60 0.38

Delta T21191511211916112119161121 19 16 11 21 19 16 11 19 18 15 10

900 KW 1.72 1.76 1.81 1.87 1.85 1.90 1.96 2.02 1.97 2.02 2.09 2.16 2.08 2.13 2.20 2.28 2.17 2.22 2.30 2.38 2.25 2.30 2.38 2.46

AMPS 7.88.08.28.48.38.58.79.08.99.19.49.79.5 9.7 10.0 10.3 10.0 10.2 10.5 10.9 10.5 10.7 11.1 11.4

HI PR 230 247 261 272 258 277 293 305 293 315 333 347 334 359 379 396 376 404 427 445 415 447 472 492

LO PR 106 112 123 131 112 119 130 138 116 124 135 144 122 130 142 151 128 136 148 158 132 141 154 164

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1430H41AB

5MM COILS

MODEL: GPC1430H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 28.8 29.4 31.4 33.6 28.1 28.7 30.7 32.8 27.5 28.1 30.0 32.1 26.8 27.4 29.3 31.3 25.5 26.0 27.8 29.7 23.6 24.1 25.7 27.5

S/T 0.92 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.81 0.61

Delta T21201814222118142221181422 21 18 152021181419191713

1145 KW 1.78 1.81 1.87 1.94 1.92 1.96 2.03 2.09 2.04 2.09 2.16 2.23 2.15 2.20 2.28 2.36 2.25 2.30 2.38 2.46 2.33 2.38 2.46 2.55

AMPS 8.0 8.2 8.4 8.7 8.6 8.8 9.0 9.3 9.2 9.4 9.7 10.0 9.8 10.0 10.3 10.6 10.3 10.6 10.9 11.2 10.9 11.1 11.4 11.8

HI PR 239 257 272 283 268 289 305 318 305 328 347 362 348 374 395 412 391 421 444 463 432 465 491 512

LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170

MBh 28.0 28.6 30.5 32.6 27.3 27.9 29.8 31.9 26.7 27.2 29.1 31.1 26.0 26.6 28.4 30.4 24.7 25.3 27.0 28.8 22.9 23.4 25.0 26.7

S/T 0.88 0.83 0.67 0.50 0.91 0.86 0.70 0.52 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58

Delta T22211915222219152322191523 22 19 15 22 21 19 15 21 20 17 14

80 1020 KW 1.76 1.80 1.86 1.92 1.90 1.94 2.01 2.08 2.03 2.07 2.14 2.21 2.14 2.18 2.26 2.34 2.23 2.28 2.36 2.44 2.31 2.36 2.44 2.53

AMPS 8.08.18.48.68.58.79.09.29.29.49.69.99.7 9.9 10.2 10.5 10.2 10.5 10.8 11.1 10.8 11.0 11.3 11.7

HI PR 237 255 269 281 266 286 302 315 302 325 343 358 344 370 391 408 387 417 440 459 428 460 486 507

LO PR 109 116 127 135 115 123 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 169

MBh 26.6 27.1 29.0 31.0 25.9 26.5 28.3 30.3 25.3 25.9 27.7 29.6 24.7 25.3 27.0 28.8 23.5 24.0 25.6 27.4 21.7 22.2 23.7 25.4

S/T 0.84 0.79 0.64 0.48 0.87 0.82 0.67 0.50 0.90 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 0.97 0.91 0.74 0.55

Delta T23221915232219152322191523 22 19 162322191522211814

900 KW 1.73 1.77 1.83 1.89 1.87 1.91 1.97 2.04 1.99 2.04 2.10 2.18 2.10 2.15 2.22 2.30 2.19 2.24 2.32 2.40 2.27 2.32 2.40 2.48

AMPS 7.9 8.0 8.2 8.5 8.4 8.6 8.8 9.1 9.0 9.2 9.5 9.8 9.5 9.8 10.0 10.4 10.1 10.3 10.6 11.0 10.6 10.8 11.2 11.5

HI PR 232 250 264 275 260 280 296 309 296 319 336 351 337 363 383 400 379 408 431 450 419 451 476 497

LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 152 129 137 150 160 134 142 155 165

NOTE: Shaded area reflects AHRI rating conditions

MBh 29.3 29.9 31.3 33.4 28.6 29.2 30.6 32.6 27.9 28.5 29.8 31.8 27.3 27.8 29.1 31.1 25.9 26.4 27.7 29.5 24.0 24.5 25.6 27.3

S/T 0.97 0.93 0.84 0.68 1.00 0.97 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79

Delta T23222118232321192223211922 22 22 192121211819202017

1145 KW 1.79 1.83 1.89 1.95 1.93 1.98 2.04 2.11 2.06 2.11 2.18 2.25 2.17 2.22 2.30 2.38 2.27 2.32 2.40 2.48 2.35 2.40 2.49 2.57

AMPS 8.1 8.3 8.5 8.8 8.7 8.8 9.1 9.4 9.3 9.5 9.8 10.1 9.9 10.1 10.4 10.7 10.4 10.6 11.0 11.3 11.0 11.2 11.5 11.9

HI PR 241 260 274 286 271 292 308 321 308 332 350 365 351 378 399 416 395 425 449 468 436 470 496 517

LO PR 111 118 129 138 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172

MBh 28.5 29.0 30.4 32.4 27.8 28.3 29.7 31.7 27.1 27.7 29.0 30.9 26.5 27.0 28.3 30.1 25.1 25.6 26.8 28.6 23.3 23.7 24.9 26.5

S/T 0.92 0.89 0.80 0.65 0.96 0.92 0.83 0.68 0.98 0.95 0.86 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.92 0.74 1.00 1.00 0.92 0.75

Delta T24232219242422192424221924 24 22 192323221921212118

85 1020 KW 1.78 1.81 1.87 1.94 1.92 1.96 2.03 2.09 2.04 2.09 2.16 2.23 2.15 2.20 2.28 2.36 2.25 2.30 2.38 2.46 2.33 2.38 2.46 2.55

AMPS 8.0 8.2 8.4 8.7 8.6 8.8 9.0 9.3 9.2 9.4 9.7 10.0 9.8 10.0 10.3 10.6 10.3 10.6 10.9 11.2 10.9 11.1 11.4 11.8

HI PR 239 257 272 283 268 289 305 318 305 328 347 362 348 374 395 412 391 421 444 463 432 465 491 512

LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170

MBh 27.0 27.6 28.9 30.8 26.4 26.9 28.2 30.1 25.8 26.3 27.5 29.4 25.1 25.6 26.8 28.6 23.9 24.4 25.5 27.2 22.1 22.6 23.6 25.2

S/T 0.89 0.85 0.77 0.63 0.92 0.89 0.80 0.65 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 0.98 0.88 0.72

Delta T24242320252423202524232025 25 23 202424232023232118

900 KW 1.75 1.78 1.84 1.90 1.89 1.93 1.99 2.06 2.01 2.05 2.12 2.19 2.12 2.16 2.24 2.32 2.21 2.26 2.34 2.42 2.29 2.34 2.42 2.51

AMPS 7.9 8.1 8.3 8.6 8.5 8.6 8.9 9.2 9.1 9.3 9.5 9.9 9.6 9.8 10.1 10.5 10.2 10.4 10.7 11.0 10.7 10.9 11.3 11.6

HI PR 234 252 266 278 263 283 299 312 299 322 340 354 341 367 387 404 383 412 435 454 423 456 481 502

LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 143 157 167

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW = Total system power

High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1436H41AB

5MM COILS

MODEL: GPC1436H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 35.8 37.1 40.7 - 35.0 36.3 39.8 - 34.2 35.4 38.8 - 33.3 34.6 37.9 - 31.7 32.8 36.0 - 29.3 30.4 33.3 -

S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -

Delta T181612 - 181612 - 181612 - 19 16 12 - 181612 - 171511 -

1350 KW 2.37 2.42 2.50 - 2.56 2.61 2.70 - 2.72 2.78 2.87 - 2.86 2.93 3.02 - 2.98 3.05 3.15 - 3.09 3.16 3.26 -

AMPS 10.3 10.5 10.8 - 11.0 11.2 11.5 - 11.8 12.0 12.4 - 12.5 12.8 13.2 - 13.2 13.5 13.9 - 13.9 14.2 14.7 -

HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 415 439 - 426 459 485 -

LO PR 110 117 128 - 117 124 135 - 121 129 141 - 127 135 148 - 133 142 155 - 138 147 160 -

MBh 34.8 36.1 39.5 - 34.0 35.2 38.6 - 33.2 34.4 37.7 - 32.4 33.5 36.8 - 30.7 31.9 34.9 - 28.5 29.5 32.3 -

S/T 0.71 0.59 0.41 - 0.73 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -

Delta T191612 - 191713 - 191713 - 19 17 13 - 191612 - 181512 -

70 1201 KW 2.35 2.40 2.48 - 2.54 2.59 2.67 - 2.70 2.76 2.85 - 2.84 2.90 3.00 - 2.96 3.02 3.13 - 3.06 3.13 3.24 -

AMPS 10.2 10.4 10.7 - 10.9 11.1 11.4 - 11.7 11.9 12.3 - 12.4 12.7 13.1 - 13.1 13.4 13.8 - 13.8 14.1 14.5 -

HI PR 234 251 266 - 262 282 298 - 298 321 339 - 340 365 386 - 382 411 434 - 422 454 480 -

LO PR 109 116 127 - 115 123 134 - 120 128 139 - 126 134 146 - 132 141 153 - 137 145 159 -

MBh 32.1 33.3 36.5 - 31.4 32.5 35.6 - 30.6 31.7 34.8 - 29.9 31.0 33.9 - 28.4 29.4 32.2 - 26.3 27.2 29.9 -

S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -

Delta T191713 - 191713 - 191713 - 20 17 13 - 191713 - 181612 -

1052 KW 2.30 2.35 2.42 - 2.47 2.53 2.61 - 2.63 2.69 2.77 - 2.77 2.83 2.92 - 2.88 2.95 3.05 - 2.98 3.05 3.15 -

AMPS 9.9 10.1 10.4 - 10.6 10.8 11.2 - 11.4 11.7 12.0 - 12.1 12.4 12.7 - 12.8 13.1 13.5 - 13.5 13.8 14.2 -

HI PR 227 244 258 - 254 274 289 - 289 311 329 - 329 355 374 - 371 399 421 - 409 441 465 -

LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -

MBh 36.4 37.5 40.6 43.6 35.6 36.7 39.7 42.6 34.7 35.8 38.7 41.6 33.9 34.9 37.8 40.6 32.2 33.2 35.9 38.5 29.8 30.7 33.2 35.7

S/T 0.840.760.570.370.880.780.590.380.900.800.610.390.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42

Delta T21191611212016112120161121 20 16 11 21 19 16 11 20 18 15 10

1350 KW 2.392.442.522.602.582.632.722.812.742.802.892.992.89 2.95 3.05 3.15 3.01 3.08 3.18 3.29 3.12 3.19 3.29 3.41

AMPS 10.3 10.5 10.8 11.2 11.1 11.3 11.6 12.0 11.9 12.1 12.5 12.9 12.6 12.9 13.3 13.7 13.3 13.6 14.0 14.5 14.0 14.4 14.8 15.3

HI PR 238 257 271 283 268 288 304 317 304 327 346 361 347 373 394 411 390 420 443 462 431 464 489 510

LO PR 111 119 129 138 118 125 137 146 122 130 142 151 129 137 149 159 135 143 157 167 139 148 162 172

MBh 35.4 36.4 39.4 42.3 34.6 35.6 38.5 41.3 33.7 34.7 37.6 40.4 32.9 33.9 36.7 39.4 31.3 32.2 34.8 37.4 29.0 29.8 32.3 34.6

S/T 0.810.720.550.350.840.750.570.360.860.770.580.370.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40

Delta T22201611222017122220171222 21 17 12 22 20 17 11 21 19 15 11

75 1201 KW 2.372.422.502.582.562.612.702.792.722.782.872.972.86 2.93 3.02 3.12 2.98 3.05 3.15 3.26 3.09 3.16 3.27 3.38

AMPS 10.3 10.5 10.8 11.1 11.0 11.2 11.5 11.9 11.8 12.0 12.4 12.8 12.5 12.8 13.2 13.6 13.2 13.5 13.9 14.4 13.9 14.2 14.7 15.2

HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 457 426 459 485 505

LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 157 133 142 155 165 138 147 160 171

MBh 32.7 33.6 36.4 39.1 31.9 32.8 35.6 38.2 31.1 32.1 34.7 37.2 30.4 31.3 33.9 36.3 28.9 29.7 32.2 34.5 26.7 27.5 29.8 32.0

S/T 0.780.690.530.340.810.720.550.350.830.740.560.360.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39

Delta T22201712222117122221171223 21 17 12 22 21 17 12 21 19 16 11

1052 KW 2.322.362.442.522.492.552.632.722.652.712.802.892.79 2.85 2.95 3.05 2.91 2.97 3.07 3.18 3.01 3.08 3.18 3.29

AMPS 10.0 10.2 10.5 10.8 10.7 10.9 11.2 11.6 11.5 11.8 12.1 12.5 12.2 12.5 12.8 13.3 12.9 13.2 13.6 14.0 13.6 13.9 14.3 14.8

HI PR 229 246 260 271 257 276 292 304 292 314 332 346 333 358 378 394 374 403 425 444 414 445 470 490

LO PR 107 114 124 132 113 120 131 140 118 125 137 145 123 131 143 153 129 138 150 160 134 142 155 166

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures ar e measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1436H41AB

5MM COILS

MODEL: GPC1436H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 37.137.940.543.336.237.039.642.335.436.138.641.334.5 35.3 37.7 40.332.833.535.838.330.431.033.135.4

S/T 0.930.870.710.530.960.900.730.551.000.920.750.561.00 0.95 0.78 0.581.001.000.810.601.001.000.810.61

Delta T23222016242320162423201624 23 20 162223201621211815

1350 KW 2.41 2.46 2.54 2.62 2.60 2.65 2.74 2.83 2.76 2.83 2.92 3.02 2.91 2.98 3.07 3.18 3.03 3.10 3.21 3.32 3.14 3.21 3.32 3.44

AMPS 10.4 10.6 10.9 11.3 11.1 11.4 11.7 12.1 12.0 12.2 12.6 13.0 12.7 13.0 13.4 13.8 13.4 13.7 14.2 14.6 14.2 14.5 14.9 15.4

HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 447 467 435 468 494 516

LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174

MBh 36.036.839.342.035.235.938.441.134.335.137.540.133.5 34.2 36.6 39.1 31.8 32.5 34.7 37.1 29.5 30.1 32.2 34.4

S/T 0.880.830.670.500.920.860.700.520.940.880.720.540.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58

Delta T24232016252421162524211625 24 21 17 24 23 20 16 23 22 19 15

80 1201 KW 2.39 2.44 2.52 2.60 2.58 2.63 2.72 2.81 2.74 2.80 2.89 2.99 2.89 2.95 3.05 3.15 3.01 3.08 3.18 3.29 3.12 3.19 3.29 3.41

AMPS 10.3 10.6 10.8 11.2 11.1 11.3 11.6 12.0 11.9 12.1 12.5 12.9 12.6 12.9 13.3 13.7 13.3 13.6 14.0 14.5 14.0 14.4 14.8 15.3

HI PR 238 257 271 283 268 288 304 317 304 327 346 361 347 373 394 411 390 420 443 462 431 464 489 511

LO PR 111 119 129 138 118 125 137 146 122 130 142 151 129 137 149 159 135 143 157 167 139 148 162 172

MBh 33.234.036.338.832.533.235.437.931.732.434.637.030.9 31.6 33.8 36.129.430.032.134.327.227.829.731.8

S/T 0.850.800.650.490.880.830.670.500.910.850.690.520.93 0.88 0.71 0.530.970.910.740.550.980.920.750.56

Delta T25242116252421172524211725 24 21 172524211723221915

1052 KW 2.33 2.38 2.46 2.54 2.51 2.57 2.65 2.74 2.67 2.73 2.82 2.92 2.81 2.88 2.97 3.07 2.93 3.00 3.10 3.20 3.04 3.10 3.21 3.32

AMPS 10.1 10.3 10.6 10.9 10.8 11.0 11.3 11.7 11.6 11.9 12.2 12.6 12.3 12.6 12.9 13.4 13.0 13.3 13.7 14.2 13.7 14.0 14.4 14.9

HI PR 231 249 263 274 260 279 295 308 295 318 335 350 336 362 382 398 378 407 430 448 418 450 475 495

LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167

NOTE: Shaded area reflects AHRI rating conditions

MBh 37.738.540.343.036.937.639.442.036.036.738.441.035.1 35.8 37.5 40.033.434.035.638.030.931.533.035.2

S/T 0.970.940.850.691.000.970.880.711.001.000.900.731.00 1.00 0.93 0.751.001.000.960.781.001.000.970.79

Delta T25252320252524202525242024 24 24 212323232021212219

1350 KW 2.43 2.48 2.56 2.65 2.62 2.68 2.76 2.86 2.79 2.85 2.94 3.04 2.93 3.00 3.10 3.21 3.06 3.13 3.23 3.34 3.17 3.24 3.35 3.47

AMPS 10.5 10.7 11.0 11.4 11.2 11.5 11.8 12.2 12.1 12.3 12.7 13.1 12.8 13.1 13.5 13.9 13.6 13.9 14.3 14.8 14.3 14.6 15.0 15.6

HI PR 243 262 276 288 273 294 310 323 310 334 353 368 354 380 402 419 398 428 452 471 439 473 499 521

LO PR 114 121 132 141 120 128 140 149 125 133 145 154 131 140 152 162 137 146 160 170 142 151 165 176

MBh 36.637.439.141.735.836.538.240.834.935.637.339.834.1 34.7 36.4 38.832.433.034.636.930.030.632.034.2

S/T 0.930.890.810.650.960.930.840.680.980.950.860.701.00 0.98 0.89 0.721.001.000.920.751.001.000.930.75

Delta T26262421262624212626242126 26 25 212525242123232320

85 1201 KW 2.41 2.46 2.54 2.62 2.60 2.65 2.74 2.83 2.76 2.83 2.92 3.02 2.91 2.98 3.07 3.18 3.03 3.10 3.21 3.32 3.14 3.21 3.32 3.44

AMPS 10.4 10.6 10.9 11.3 11.1 11.4 11.7 12.1 12.0 12.2 12.6 13.0 12.7 13.0 13.4 13.8 13.4 13.7 14.2 14.6 14.2 14.5 14.9 15.4

HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 447 467 435 468 494 516

LO PR 113 120 131 139 119 127 138 147 124 132 144 153 130 138 151 161 136 145 158 168 141 150 164 174

MBh 33.834.536.138.533.033.735.337.632.232.934.436.731.5 32.1 33.6 35.829.930.531.934.027.728.229.631.5

S/T 0.890.860.780.630.930.890.810.650.950.920.830.670.98 0.95 0.85 0.691.000.980.890.721.000.990.890.72

Delta T26262521272625212726252227 26 25 222626252124242320

1052 KW 2.35 2.40 2.48 2.56 2.53 2.59 2.67 2.76 2.70 2.75 2.84 2.94 2.84 2.90 3.00 3.10 2.96 3.02 3.12 3.23 3.06 3.13 3.24 3.35

AMPS 10.2 10.4 10.7 11.0 10.9 11.1 11.4 11.8 11.7 11.9 12.3 12.7 12.4 12.7 13.0 13.5 13.1 13.4 13.8 14.3 13.8 14.1 14.5 15.0

HI PR 234 251 265 277 262 282 298 311 298 321 339 353 340 365 386 402 382 411 434 453 422 454 480 500

LO PR 109 116 127 135 115 123 134 143 120 128 139 148 126 134 146 156 132 140 153 163 137 145 159 169

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW = Total system power

High and low pressures are measured at the l iquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1442H41AB

5MM COILS

MODEL: GPC1442H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 39.8 41.3 45.2 - 38.9 40.3 44.1 - 38.0 39.3 43.1 - 37.0 38.4 42.0 - 35.2 36.5 39.9 - 32.6 33.8 37.0 -

S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -

Delta T181612 - 191612 - 191612 - 19 16 12 - 191612 - 171511 -

1432 KW 2.68 2.74 2.82 - 2.89 2.95 3.04 - 3.07 3.14 3.24 - 3.23 3.30 3.41 - 3.37 3.44 3.56 - 3.48 3.56 3.68 -

AMPS 11.4 11.7 12.0 - 12.3 12.6 13.0 - 13.3 13.6 14.0 - 14.2 14.5 15.0 - 15.1 15.4 15.9 - 15.9 16.3 16.8 -

HI PR 241 260 274 - 271 291 308 - 308 331 350 - 351 377 399 - 395 425 448 - 436 469 495 -

LO PR 109 116 127 - 115 122 134 - 120 127 139 - 126 134 146 - 132 140 153 - 136 145 158 -

MBh 38.6 40.1 43.9 - 37.7 39.1 42.9 - 36.8 38.2 41.8 - 35.9 37.3 40.8 - 34.1 35.4 38.8 - 31.6 32.8 35.9 -

S/T 0.69 0.58 0.40 - 0.71 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.78 0.65 0.45 - 0.79 0.66 0.46 -

Delta T191713 - 191713 - 191713 - 20 17 13 - 191713 - 181612 -

70 1274 KW 2.66 2.72 2.80 - 2.86 2.92 3.02 - 3.04 3.11 3.21 - 3.20 3.27 3.38 - 3.34 3.41 3.53 - 3.45 3.53 3.65 -

AMPS 11.3 11.6 11.9 - 12.2 12.5 12.9 - 13.2 13.5 13.9 - 14.1 14.4 14.8 - 14.9 15.3 15.8 - 15.8 16.1 16.7 -

HI PR 239 257 272 - 268 289 305 - 305 328 346 - 347 374 395 - 391 420 444 - 432 465 491 -

LO PR 108 115 125 - 114 121 132 - 118 126 138 - 124 132 145 - 130 139 151 - 135 144 157 -

MBh 35.7 37.0 40.5 - 34.8 36.1 39.6 - 34.0 35.2 38.6 - 33.2 34.4 37.7 - 31.5 32.7 35.8 - 29.2 30.3 33.2 -

S/T 0.66 0.55 0.38 - 0.69 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.76 0.64 0.44 -

Delta T201713 - 201713 - 201713 - 20 17 13 - 201713 - 181612 -

1116 KW 2.60 2.65 2.73 - 2.79 2.85 2.94 - 2.97 3.03 3.13 - 3.12 3.19 3.30 - 3.25 3.33 3.44 - 3.37 3.44 3.56 -

AMPS 11.0 11.3 11.6 - 11.9 12.2 12.5 - 12.8 13.1 13.6 - 13.7 14.0 14.4 - 14.5 14.9 15.3 - 15.3 15.7 16.2 -

HI PR 232 249 263 - 260 280 296 - 296 318 336 - 337 363 383 - 379 408 431 - 419 451 476 -

LO PR 105 111 122 - 111 118 128 - 115 122 133 - 121 128 140 - 127 135 147 - 131 139 152 -

MBh 40.5 41.7 45.1 48.4 39.5 40.7 44.1 47.3 38.6 39.7 43.0 46.2 37.7 38.8 42.0 45.0 35.8 36.8 39.9 42.8 33.1 34.1 36.9 39.6

S/T 0.82 0.73 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.93 0.84 0.63 0.41 0.94 0.84 0.64 0.41

Delta T21201611222016112220161122 20 16 11 21 20 16 11 20 18 15 10

1432 KW 2.70 2.76 2.85 2.94 2.91 2.97 3.07 3.17 3.09 3.16 3.27 3.37 3.26 3.33 3.44 3.55 3.39 3.47 3.59 3.71 3.51 3.59 3.71 3.84

AMPS 11.5 11.8 12.2 12.6 12.4 12.7 13.1 13.6 13.4 13.7 14.2 14.7 14.3 14.6 15.1 15.7 15.2 15.5 16.0 16.6 16.1 16.4 17.0 17.6

HI PR 244 262 277 289 274 294 311 324 311 335 354 369 354 381 403 420 399 429 453 472 440 474 501 522

LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170

MBh 39.3 40.5 43.8 47.0 38.4 39.5 42.8 45.9 37.5 38.6 41.8 44.8 36.6 37.6 40.7 43.7 34.7 35.8 38.7 41.5 32.2 33.1 35.9 38.5

S/T 0.78 0.70 0.53 0.34 0.81 0.73 0.55 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.89 0.80 0.60 0.39 0.90 0.80 0.61 0.39

Delta T22201712222117122221171223 21 17 12 22 21 17 12 21 19 16 11

75 1274 KW 2.68 2.74 2.82 2.91 2.89 2.95 3.04 3.14 3.07 3.14 3.24 3.35 3.23 3.30 3.41 3.52 3.37 3.44 3.56 3.68 3.48 3.56 3.68 3.81

AMPS 11.4 11.7 12.0 12.5 12.3 12.6 13.0 13.4 13.3 13.6 14.0 14.6 14.2 14.5 15.0 15.5 15.1 15.4 15.9 16.5 15.9 16.3 16.8 17.4

HI PR 241 260 274 286 271 291 308 321 308 331 350 365 351 378 399 416 395 425 449 468 436 469 496 517

LO PR 109 116 127 135 115 123 134 142 120 127 139 148 126 134 146 156 132 140 153 163 136 145 158 169

MBh 36.3 37.3 40.4 43.4 35.4 36.5 39.5 42.4 34.6 35.6 38.5 41.4 33.7 34.7 37.6 40.4 32.1 33.0 35.7 38.3 29.7 30.6 33.1 35.5

S/T 0.75 0.68 0.51 0.33 0.78 0.70 0.53 0.34 0.80 0.72 0.54 0.35 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.87 0.78 0.59 0.38

Delta T23211712232117122321171223 21 17 12 23 21 17 12 21 20 16 11

1116 KW 2.62 2.67 2.76 2.84 2.82 2.88 2.97 3.07 2.99 3.06 3.16 3.26 3.15 3.22 3.32 3.44 3.28 3.35 3.47 3.58 3.40 3.47 3.59 3.71

AMPS 11.1 11.4 11.7 12.1 12.0 12.3 12.6 13.1 13.0 13.3 13.7 14.2 13.8 14.1 14.6 15.1 14.7 15.0 15.5 16.0 15.5 15.9 16.4 17.0

HI PR 234 252 266 277 263 283 299 311 299 322 340 354 340 366 387 403 383 412 435 454 423 455 481 501

LO PR 106 112 123 131 112 119 130 138 116 124 135 144 122 130 142 151 128 136 148 158 132 141 154 164

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1442H41AB

5MM COILS

MODEL: GPC1442H41A* EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 41.2 42.1 45.0 48.1 40.2 41.1 43.9 47.0 39.3 40.1 42.9 45.8 38.3 39.2 41.8 44.7 36.4 37.2 39.7 42.5 33.7 34.5 36.8 39.4

S/T 0.90 0.84 0.69 0.51 0.93 0.88 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.93 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.97 0.79 0.59

Delta T24232016242320162423201625 23 20 162323201622211915

1432 KW 2.72 2.78 2.87 2.96 2.93 3.00 3.09 3.20 3.12 3.19 3.29 3.40 3.28 3.36 3.47 3.58 3.42 3.50 3.62 3.74 3.54 3.62 3.75 3.87

AMPS 11.6 11.9 12.3 12.7 12.5 12.8 13.2 13.7 13.5 13.9 14.3 14.8 14.4 14.8 15.2 15.8 15.3 15.7 16.2 16.8 16.2 16.6 17.1 17.8

HI PR 246 265 280 292 276 297 314 327 314 338 357 372 358 385 407 424 403 433 458 477 445 479 506 527

LO PR 111 118 129 138 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172

MBh 40.0 40.9 43.7 46.7 39.1 39.9 42.6 45.6 38.1 39.0 41.6 44.5 37.2 38.0 40.6 43.4 35.3 36.1 38.6 41.2 32.7 33.5 35.7 38.2

S/T 0.86 0.81 0.66 0.49 0.89 0.83 0.68 0.51 0.91 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.92 0.75 0.56

Delta T25242117252421172524211725 24 21 17 25 24 21 17 23 22 19 16

80 1274 KW 2.70 2.76 2.85 2.94 2.91 2.97 3.07 3.17 3.09 3.16 3.27 3.37 3.26 3.33 3.44 3.55 3.40 3.47 3.59 3.71 3.51 3.59 3.71 3.84

AMPS 11.5 11.8 12.2 12.6 12.4 12.7 13.1 13.6 13.4 13.7 14.2 14.7 14.3 14.6 15.1 15.7 15.2 15.5 16.0 16.6 16.1 16.4 17.0 17.6

HI PR 244 262 277 289 274 294 311 324 311 335 354 369 354 381 403 420 399 429 453 473 440 474 501 522

LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 148 157 133 142 155 165 138 146 160 170

MBh 36.9 37.7 40.3 43.1 36.1 36.8 39.4 42.1 35.2 36.0 38.4 41.1 34.3 35.1 37.5 40.1 32.6 33.3 35.6 38.1 30.2 30.9 33.0 35.3

S/T 0.83 0.78 0.63 0.47 0.86 0.80 0.66 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.95 0.89 0.73 0.54

Delta T25242117252421172624211726 25 21 172524211724232016

1116 KW 2.64 2.69 2.78 2.87 2.84 2.90 2.99 3.09 3.02 3.08 3.18 3.29 3.18 3.25 3.35 3.46 3.31 3.38 3.50 3.61 3.43 3.50 3.62 3.74

AMPS 11.2 11.5 11.8 12.3 12.1 12.4 12.7 13.2 13.1 13.4 13.8 14.3 13.9 14.3 14.7 15.2 14.8 15.1 15.6 16.2 15.6 16.0 16.5 17.1

HI PR 236 255 269 280 265 286 302 315 302 325 343 358 344 370 391 407 387 416 439 458 427 460 486 506

LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 152 129 137 150 160 134 142 155 165

NOTE: Shaded area reflects AHRI rating conditions

MBh 41.9 42.7 44.7 47.7 40.9 41.7 43.7 46.6 40.0 40.7 42.7 45.5 39.0 39.7 41.6 44.4 37.0 37.8 39.5 42.2 34.3 35.0 36.6 39.1

S/T 0.94 0.91 0.82 0.67 0.98 0.94 0.85 0.69 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.94 0.77

Delta T25252420262524212625242125 25 24 212424242122222219

1432 KW 2.75 2.80 2.89 2.99 2.96 3.02 3.12 3.22 3.15 3.21 3.32 3.43 3.31 3.39 3.50 3.62 3.45 3.53 3.65 3.77 3.57 3.65 3.78 3.91

AMPS 11.7 12.0 12.4 12.8 12.6 12.9 13.3 13.8 13.7 14.0 14.4 14.9 14.6 14.9 15.4 15.9 15.5 15.8 16.3 16.9 16.3 16.7 17.3 17.9

HI PR 249 268 283 295 279 300 317 331 317 342 361 376 361 389 411 428 407 438 462 482 449 484 511 533

LO PR 112 119 130 139 119 126 138 147 123 131 143 153 130 138 150 160 136 144 158 168 140 149 163 174

MBh 40.7 41.5 43.4 46.3 39.7 40.5 42.4 45.3 38.8 39.6 41.4 44.2 37.9 38.6 40.4 43.1 36.0 36.7 38.4 41.0 33.3 34.0 35.6 37.9

S/T 0.90 0.87 0.78 0.64 0.93 0.90 0.81 0.66 0.96 0.92 0.83 0.68 0.99 0.95 0.86 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.90 0.73

Delta T26262521272625222726252227 27 25 222626252124242320

85 1274 KW 2.72 2.78 2.87 2.96 2.93 3.00 3.09 3.20 3.12 3.19 3.29 3.40 3.28 3.36 3.47 3.58 3.42 3.50 3.62 3.74 3.54 3.62 3.75 3.87

AMPS 11.6 11.9 12.3 12.7 12.5 12.8 13.2 13.7 13.5 13.9 14.3 14.8 14.4 14.8 15.2 15.8 15.3 15.7 16.2 16.8 16.2 16.6 17.1 17.8

HI PR 246 265 280 292 276 297 314 327 314 338 357 372 358 385 407 424 403 433 458 477 445 479 506 527

LO PR 111 118 129 138 117 125 136 145 122 130 142 151 128 136 149 159 134 143 156 166 139 148 161 172

MBh 37.6 38.3 40.1 42.8 36.7 37.4 39.2 41.8 35.8 36.5 38.2 40.8 34.9 35.6 37.3 39.8 33.2 33.8 35.4 37.8 30.7 31.3 32.8 35.0

S/T 0.87 0.84 0.76 0.61 0.90 0.87 0.78 0.64 0.92 0.89 0.80 0.65 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.96 0.87 0.70

Delta T27262522272725222727252227 27 25 222727252225252320

1116 KW 2.66 2.71 2.80 2.89 2.86 2.92 3.02 3.12 3.04 3.11 3.21 3.32 3.20 3.27 3.38 3.49 3.34 3.41 3.52 3.64 3.45 3.53 3.65 3.77

AMPS 11.3 11.6 11.9 12.4 12.2 12.5 12.9 13.3 13.2 13.5 13.9 14.4 14.1 14.4 14.8 15.4 14.9 15.3 15.8 16.3 15.8 16.1 16.7 17.3

HI PR 239 257 271 283 268 288 305 318 305 328 346 361 347 374 395 411 391 420 444 463 432 464 490 511

LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 143 157 167

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW = Total system power

High and low pressures are measured at the liquid and suction access fittings. AMPS: Uni t amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA GPC1448H41AB

5MM COILS

MODEL: GPC1448H41AB EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 46.1 47.8 52.4 - 45.1 46.7 51.2 - 44.0 45.6 49.9 - 42.9 44.5 48.7 - 40.8 42.2 46.3 - 37.8 39.1 42.9 -

S/T 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.82 0.69 0.48 - 0.85 0.71 0.49 - 0.86 0.72 0.50 -

Delta T181512 - 181612 - 181612 - 18 16 12 - 181612 - 171511 -

1777 KW 2.39 2.46 2.55 - 2.63 2.70 2.80 - 2.83 2.91 3.02 - 3.01 3.09 3.22 - 3.17 3.25 3.38 - 3.30 3.39 3.52 -

AMPS 13.2 13.4 13.8 - 14.1 14.4 14.8 - 15.2 15.5 16.0 - 16.1 16.5 17.0 - 17.1 17.4 18.0 - 18.0 18.4 19.0 -

HI PR 232 250 264 - 261 281 296 - 297 319 337 - 338 364 384 - 380 409 432 - 420 452 477 -

LO PR 111 118 129 - 117 125 136 - 122 129 141 - 128 136 148 - 134 143 156 - 139 147 161 -

MBh 44.8 46.4 50.9 - 43.7 45.3 49.7 - 42.7 44.3 48.5 - 41.7 43.2 47.3 - 39.6 41.0 44.9 - 36.7 38.0 41.6 -

S/T 0.72 0.60 0.41 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.45 - 0.81 0.68 0.47 - 0.82 0.69 0.48 -

Delta T191612 - 191612 - 191612 - 19 16 12 - 191612 - 181512 -

70 1582 KW 2.37 2.43 2.53 - 2.60 2.67 2.78 - 2.80 2.88 2.99 - 2.98 3.06 3.19 - 3.14 3.22 3.35 - 3.27 3.36 3.49 -

AMPS 13.1 13.3 13.7 - 14.0 14.3 14.7 - 15.1 15.4 15.9 - 16.0 16.3 16.8 - 16.9 17.3 17.8 - 17.8 18.2 18.8 -

HI PR 230 248 262 - 258 278 293 - 294 316 334 - 335 360 380 - 376 405 428 - 416 447 473 -

LO PR 110 117 127 - 116 123 135 - 120 128 140 - 127 135 147 - 133 141 154 - 137 146 159 -

MBh 41.3 42.8 46.9 - 40.4 41.8 45.8 - 39.4 40.8 44.8 - 38.5 39.9 43.7 - 36.5 37.9 41.5 - 33.8 35.1 38.4 -

S/T 0.69 0.58 0.40 - 0.72 0.60 0.41 - 0.73 0.61 0.42 - 0.76 0.63 0.44 - 0.79 0.66 0.45 - 0.79 0.66 0.46 -

Delta T191612 - 191713 - 191713 - 19 17 13 - 191613 - 181512 -

1386 KW 2.30 2.36 2.45 - 2.52 2.59 2.69 - 2.72 2.79 2.90 - 2.89 2.97 3.09 - 3.04 3.12 3.25 - 3.17 3.26 3.38 -

AMPS 12.7 13.0 13.4 - 13.6 13.9 14.3 - 14.7 15.0 15.5 - 15.6 15.9 16.4 - 16.5 16.9 17.4 - 17.4 17.8 18.3 -

HI PR 223 240 254 - 251 270 285 - 285 307 324 - 324 349 369 - 365 393 415 - 403 434 458 -

LO PR 106 113 124 - 112 120 131 - 117 124 136 - 123 131 143 - 129 137 149 - 133 142 155 -

MBh 46.9 48.3 52.3 56.1 45.8 47.2 51.1 54.8 44.7 46.0 49.8 53.5 43.6 44.9 48.6 52.2 41.5 42.7 46.2 49.6 38.4 39.5 42.8 45.9

S/T 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.91 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.66 0.43

Delta T21191611211916112119161121 19 16 11 21 19 16 11 19 18 15 10

1777 KW 2.42 2.48 2.58 2.68 2.65 2.72 2.83 2.95 2.86 2.94 3.05 3.18 3.04 3.13 3.25 3.38 3.20 3.29 3.42 3.55 3.34 3.43 3.56 3.70

AMPS 13.3 13.5 13.9 14.4 14.2 14.5 14.9 15.5 15.3 15.6 16.1 16.7 16.3 16.6 17.1 17.7 17.2 17.6 18.1 18.8 18.1 18.6 19.1 19.8

HI PR 235 253 267 278 263 284 299 312 300 322 341 355 341 367 388 405 384 413 436 455 424 457 482 503

LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173

MBh 45.5 46.9 50.8 54.5 44.5 45.8 49.6 53.2 43.4 44.7 48.4 51.9 42.4 43.6 47.2 50.7 40.2 41.4 44.9 48.1 37.3 38.4 41.5 44.6

S/T 0.81 0.73 0.55 0.35 0.84 0.75 0.57 0.37 0.86 0.77 0.59 0.38 0.89 0.80 0.60 0.39 0.93 0.83 0.63 0.40 0.93 0.84 0.63 0.41

Delta T22201611222016112220161122 20 17 11 22 20 16 11 20 19 15 11

75 1582 KW 2.39 2.46 2.56 2.66 2.63 2.70 2.80 2.92 2.83 2.91 3.02 3.15 3.01 3.10 3.22 3.35 3.17 3.25 3.38 3.52 3.30 3.39 3.53 3.67

AMPS 13.2 13.4 13.8 14.3 14.1 14.4 14.8 15.3 15.2 15.5 16.0 16.5 16.1 16.5 17.0 17.6 17.1 17.5 18.0 18.6 18.0 18.4 19.0 19.6

HI PR 233 250 264 276 261 281 296 309 297 319 337 352 338 364 384 401 380 409 432 451 420 452 477 498

LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 149 158 134 143 156 166 139 147 161 171

MBh 42.0 43.3 46.8 50.3 41.1 42.3 45.8 49.1 40.1 41.3 44.7 47.9 39.1 40.3 43.6 46.8 37.1 38.2 41.4 44.4 34.4 35.4 38.3 41.2

S/T 0.78 0.70 0.53 0.34 0.81 0.73 0.55 0.35 0.83 0.75 0.56 0.36 0.86 0.77 0.58 0.37 0.89 0.80 0.60 0.39 0.90 0.81 0.61 0.39

Delta T22201711222017122220171222 21 17 12 22 20 17 11 21 19 16 11

1386 KW 2.32 2.38 2.48 2.58 2.55 2.62 2.72 2.83 2.75 2.82 2.93 3.05 2.92 3.00 3.12 3.25 3.07 3.16 3.28 3.41 3.20 3.29 3.42 3.56

AMPS 12.8 13.1 13.5 13.9 13.8 14.1 14.5 14.9 14.8 15.1 15.6 16.1 15.7 16.1 16.6 17.1 16.6 17.0 17.5 18.1 17.5 17.9 18.5 19.1

HI PR 226 243 256 267 253 272 288 300 288 310 327 341 328 353 373 389 369 397 419 437 407 438 463 483

LO PR 108 114 125 133 114 121 132 141 118 126 137 146 124 132 144 153 130 138 151 161 134 143 156 166

* IDB: Entering Indoor Dry Bulb Temperature NOTE: Shaded area is ACCA (TVA) conditions

High and low pressures are measured at the liquid and suction access fittings.

COOLING PERFORMANCE DATA GPC1448H41AB

5MM COILS

MODEL: GPC1448H41AB EXPANDED PERFORMANCE DATA COOLING OPERATION

Outdoor Ambient Temperature

65 75 85 95 105 115

Entering Indoor Wet Bulb Temperature

IDB*Airflow 59636771596367715963677159 63 67 715963677159636771

MBh 47.7 48.8 52.1 55.7 46.6 47.6 50.9 54.4 45.5 46.5 49.7 53.1 44.4 45.4 48.5 51.8 42.2 43.1 46.1 49.2 39.1 39.9 42.7 45.6

S/T 0.94 0.88 0.71 0.53 0.97 0.91 0.74 0.55 1.00 0.93 0.76 0.57 1.00 0.96 0.78 0.59 1.00 1.00 0.81 0.61 1.00 1.00 0.82 0.61

Delta T23221915232219162422201623 23 20 162222191520211814

1777 KW 2.44 2.51 2.61 2.71 2.68 2.75 2.86 2.98 2.89 2.97 3.09 3.21 3.08 3.16 3.28 3.42 3.23 3.32 3.45 3.59 3.37 3.46 3.60 3.74

AMPS 13.4 13.7 14.1 14.5 14.3 14.6 15.1 15.6 15.4 15.8 16.3 16.8 16.4 16.8 17.3 17.9 17.4 17.7 18.3 18.9 18.3 18.7 19.3 20.0

HI PR 237 255 270 281 266 286 302 315 303 326 344 359 345 371 392 409 388 417 441 460 429 461 487 508

LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175

MBh 46.4 47.4 50.6 54.1 45.3 46.3 49.4 52.8 44.2 45.2 48.2 51.6 43.1 44.1 47.1 50.3 41.0 41.9 44.7 47.8 37.9 38.8 41.4 44.3

S/T 0.89 0.84 0.68 0.51 0.92 0.87 0.71 0.53 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 0.96 0.78 0.58

Delta T24232016242320162423201625 24 20 16 24 23 20 16 22 22 19 15

80 1582 KW 2.42 2.48 2.58 2.68 2.65 2.72 2.83 2.95 2.86 2.94 3.05 3.18 3.05 3.13 3.25 3.38 3.20 3.29 3.42 3.56 3.34 3.43 3.56 3.70

AMPS 13.3 13.5 13.9 14.4 14.2 14.5 15.0 15.5 15.3 15.6 16.1 16.7 16.3 16.6 17.1 17.7 17.2 17.6 18.1 18.8 18.1 18.6 19.1 19.8

HI PR 235 253 267 278 264 284 299 312 300 323 341 355 341 367 388 405 384 413 436 455 424 457 482 503

LO PR 112 119 130 139 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173

MBh 42.8 43.7 46.7 49.9 41.8 42.7 45.6 48.8 40.8 41.7 44.5 47.6 39.8 40.7 43.4 46.4 37.8 38.6 41.3 44.1 35.0 35.8 38.2 40.9

S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.91 0.86 0.70 0.52 0.94 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.75 0.56

Delta T24232016252421162524211625 24 21 172524201623221915

1386 KW 2.34 2.41 2.50 2.60 2.57 2.64 2.75 2.86 2.78 2.85 2.96 3.08 2.95 3.03 3.15 3.28 3.10 3.19 3.31 3.45 3.24 3.32 3.45 3.59

AMPS 12.9 13.2 13.6 14.1 13.9 14.2 14.6 15.1 14.9 15.3 15.7 16.3 15.9 16.2 16.7 17.3 16.8 17.2 17.7 18.3 17.7 18.1 18.6 19.3

HI PR 228 245 259 270 256 275 290 303 291 313 330 345 331 356 376 392 373 401 423 441 412 443 468 488

LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 152 162 136 144 158 168

NOTE: Shaded area reflects AHRI rating conditions

MBh 48.6 49.5 51.9 55.3 47.4 48.4 50.7 54.0 46.3 47.2 49.4 52.8 45.2 46.1 48.2 51.5 42.9 43.8 45.8 48.9 39.8 40.5 42.5 45.3

S/T 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.97 0.79 1.00 1.00 0.98 0.80

Delta T25242320252523202424232023 24 23 202223232021212219

1777 KW 2.47 2.53 2.63 2.74 2.71 2.78 2.89 3.01 2.92 3.00 3.12 3.24 3.11 3.19 3.32 3.45 3.27 3.35 3.49 3.63 3.40 3.49 3.63 3.78

AMPS 13.5 13.8 14.2 14.6 14.4 14.8 15.2 15.7 15.6 15.9 16.4 17.0 16.5 16.9 17.4 18.0 17.5 17.9 18.5 19.1 18.5 18.9 19.5 20.2

HI PR 240 258 272 284 269 289 305 319 306 329 347 362 348 375 396 413 392 422 445 464 433 466 492 513

LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177

MBh 47.2 48.1 50.3 53.7 46.1 47.0 49.2 52.5 45.0 45.8 48.0 51.2 43.9 44.7 46.8 50.0 41.7 42.5 44.5 47.5 38.6 39.4 41.2 44.0

S/T 0.94 0.90 0.81 0.66 0.97 0.94 0.84 0.68 0.99 0.96 0.87 0.70 1.00 0.99 0.89 0.72 1.00 1.00 0.93 0.75 1.00 1.00 0.94 0.76

Delta T26252421262624212626242126 26 24 212425242122232219

85 1582 KW 2.44 2.51 2.61 2.71 2.68 2.75 2.86 2.98 2.89 2.97 3.09 3.21 3.08 3.16 3.28 3.42 3.23 3.32 3.45 3.59 3.37 3.46 3.60 3.74

AMPS 13.4 13.7 14.1 14.5 14.3 14.6 15.1 15.6 15.4 15.8 16.3 16.8 16.4 16.8 17.3 17.9 17.4 17.7 18.3 18.9 18.3 18.7 19.3 20.0

HI PR 237 255 270 281 266 286 302 315 303 326 344 359 345 371 392 409 388 417 441 460 429 461 487 508

LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175

MBh 43.5 44.4 46.5 49.6 42.5 43.3 45.4 48.4 41.5 42.3 44.3 47.3 40.5 41.3 43.2 46.1 38.5 39.2 41.1 43.8 35.6 36.3 38.0 40.6

S/T 0.90 0.87 0.79 0.64 0.93 0.90 0.81 0.66 0.96 0.92 0.83 0.68 0.99 0.95 0.86 0.70 1.00 0.99 0.89 0.73 1.00 1.00 0.90 0.73

Delta T26262421262625212626252127 26 25 212626242124242320

1386 KW 2.37 2.43 2.53 2.63 2.60 2.67 2.77 2.89 2.80 2.88 2.99 3.11 2.98 3.06 3.18 3.31 3.14 3.22 3.35 3.48 3.27 3.36 3.49 3.63

AMPS 13.1 13.3 13.7 14.2 14.0 14.3 14.7 15.2 15.1 15.4 15.8 16.4 16.0 16.3 16.8 17.4 16.9 17.3 17.8 18.4 17.8 18.2 18.8 19.5

HI PR 230 248 261 273 258 278 293 306 294 316 334 348 334 360 380 396 376 405 428 446 416 447 472 493

LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170

* NOTE: Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW = Total system power

High and low pressures are measured at the liquid and suction access fittings. AMPS: Unit amps (comp.+ evaporator + condenser fan motors)

COOLING PERFORMANCE DATA

PERFORMANCE TEST

All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor

air cubic feet per minute (CFM) as listed in the Performance Data Sheets:

If conditions vary from this, results will change as follows:

1. As indoor dry bulb temperatures increase, a slight increase will occur in indoor air temperature drop (Delta T). Low

and high side pressures and power will not change.

2. As indoor CFM decreases, a slight increase will occur in indoor temperature drop (Delta T). A slight decrease will

occur in low and high side pressures and power.

A properly operating unit should be within plus or minus 3 degrees of the typical (Delta T) value shown.

A properly operating unit should be within plus or minus 7 PSIG of the HI PR shown.

A properly operating unit should be within plus or minus 3 PSIG of the LO PR shown.

A properly operating unit should be within plus or minus 3 Amps of the typical value shown.

WIRING DIAGRAMS

WARNING

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

GPC14[24-48]H41AB

NOTE #2

NOTE #4

24V

208-240

CONTROL

208-240/1/60

SUPPLY VOLTAGE

COMP

S.A.

NOTE #4

RCC F

T2 C

BOX

RCCF

COMP

PLF

BK YL

LVJB

YL R

NOTE #3

PU BL

GND

CG N

SEE NOTE 2

3 1

RW2 W1 Y G C

SEE NOTE #2

IF USED

SEE UNIT RATING PLATE FOR TYPE AND SIZE

OF OVER CURRENT PROTECTION

COMPONENT LEGEND

COMP

GND

LVJB

PLF

RCCF

CONTACTOR

CONDENSER MOTOR

COMPRESSOR

EVAPORATOR MOTOR

EQUIPMENT GROUND

LOW VOLTAGE JUNCTION BOX

FEMALE PLUG / CONNECTOR

RUN CAPACITOR FOR^J

COMPRESSOR AND FAN

START ASSIST

TRANSFORMER WIRE CODE

BK BLACK

BL BLUE

BR BROWN

GR GREEN

OR ORANGE

PU PURPLE

RD RED

WH WHITE

YL YELLOW

FACTORY WIRING

LINE VOLTAGE

LOW VOLTAGE

OPTIONAL HIGH

VOLTAGE

FIELD WIRING

HIGH VOLTAGE

LOW VOLTAGE

NOTES:

1. REPLACEMENT WIRE MUST BE SAME SIZE AND TYPE INSULATION AS

ORIGINAL (AT LEAST 105°C) USE COPPER CONDUCTOR ONLY.

2. TO CHANGE EVAPORATOR MOTOR SPEED MOVE WHITE AND YELLOW

LEADS FROM EM "2" AND "3" TO "4" AND "5". IF BOTH LEADS ARE

ENERGIZED, THE HIGHER SPEED SETTING IS USED.

3. FOR 208 VOLT TRANSFORMER OPERATION MOVE PURPLE WIRES

FROM TERMINAL 3 TO TERMINAL 2 ON TRANSFORMER.

4. START ASSIST FACTORY EQUIPPED WHEN REQUIRED

5. USE COPPER CONDUCTORS ONLY.

++ USE N.E.C. CLASS 2 WIRE

EM C

SEE NOTE 5

(IF USED) SEE NOTE 4

5MM COILS

Goodman Mfg Co Lp Air Conditioner Gpc 14 Seer R 410 Package Conditioners With 410A Users Manual

GPC 14 SEER R-410 Package Air Conditioners with R-410A to the manual 97ddc21a-95dd-44f4-be49-e50997ad54e7

Navigation menu

Versions of this User Manual:

Views

Navigation
