GSZ/VSZ 13 SEER
Split System Heat Pumps
•Refer to Service Manual RS6200006 for installation, operation, and troubleshooting information.
•All safety information must be followed as provided in the Service Manual.
•Refer to the appropriate Parts Catalog for part number information.
•Models listed on page 3.
RT6212006 Rev. 5
August 2010
Copyright © 2007-2010 Goodman Manufacturing Company, L.P.
®TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUTECHNICAL MANU
TECHNICAL MANUALAL
ALAL
AL
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
PRODUCT IDENTIFICATION
2
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
WARNING
WARNING HIGH VOLTAGE!
Disconnect ALL power before servicing or installing this unit. Multiple power
sources may be present. Failure to do so may cause property damage, personal
injury or death.
Installation and repair of this unit
should be performed ONLY by
individuals meeting the require-
ments of an "entry level technician", at a minimum, as
specified by the Air-Conditioning, Heating, and Refrigera-
tion Institute (AHRI). Attempting to install or repair this
unit without such background may result in product
damage, personal injury or death.
Goodman will not be responsible
for any injury or property damage
arising from improper service or
service procedures. If you install or perform service on
this unit, you assume responsibility for any personal
injury or property damage which may result. Many juris-
dictions require a license to install or service heating and
air conditioning equipment.
WARNING
WARNING WARNING
WARNING
G S Z 13 024 1 A A
PRODUCT
FAMILY:
S: Split System
PRODUCT TYPE:
C: Condenser R-22
X: Condenser R-410A
H: Heat Pump R-22
Z: Heat Pump R-410A
SEER:
SEER Rating
BRAND:
G: Goodman® Brand
(Standard Feature Set Model)
S: Goodman® Deluxe
V: Value
NOMINAL
CAPACITY
018: 1.5 Tons
024: 2 Tons
030: 2.5 tons
036: 3 Tons
042: 3.5 Tons
048: 4 Tons
060: 5 tons
ELECTRICAL:
1: 208-230v
1ph/60Hz
3: 208-230v
3ph/60Hz
4: 460v
3ph/60Hz
MAJOR REVISION:
A: Initial Release
MINOR REVISION:
A: Initial Release
PRODUCT IDENTIFICATION
3
The United States Environmental Protection Agency (“EPA”) has issued various regulations re-
garding the introduction and disposal of refrigerants introduced into this unit. Failure to follow
these regulations may harm the environment and can lead to the imposition of substantial fines.
These regulations may vary by jurisdiction. Should questions arise, contact your local EPA office.
WARNING
WARNING
Do not connect or use any device
that is not design certified by Good-
man for use with this unit. Serious
property damage, personal injury, reduced unit perfor-
mance and/or hazardous conditions may result from the
use of such non-approved devices.
WARNING
WARNING To prevent the risk of property
damage, personal injury, or death,
do not store combustible materi-
als or use gasoline or other flammable liquids or vapors
in the vicinity of this appliance.
WARNING
WARNING
The model number is used for positive identification of component parts used in manufacturing. Please use this number
when requesting service or parts information.
* Indicates minor revision & is not used for order entry or inventory management
GSZ130181A*
GSZ130241A*
GSZ130301A*
GSZ130361A*
GSZ130421A*
GSZ130481A*
GSZ130601A*
GSZ130241B*
GSZ130361B*
GSZ130363A*
GSZ130483A*
GSZ130484A*
GSZ130603A*
GSZ130604A*
VSZ130181A*
VSZ130241A*
VSZ130301A*
VSZ130361A*
VSZ130421A*
VSZ130481A*
VSZ130601A*
VSZ130241B*
VSZ130361B*
PRODUCT DESIGN
4
GSZ/VSZ13 models are available in 1 1/2 through 5 ton sizes
and use R-410A refrigerant. They are designed for 208/230
volt single phase applications.
Select GSZ13 models are available in 208/230 and 460 volt
3-phase applications. These models use R-410A refrigerant.
The condenser air is pulled through the condenser coil by a
direct drive propeller fan. This condenser air is then dis-
charged out of the top of the cabinet.
These units are designed for free air discharge, so no addi-
tional resistance like duct work shall be attached.
The suction and liquid line connections on present models
are of the sweat type for field piping with refrigerant type cop-
per. Front seating valves are factory installed to accept the
field run copper. The total refrigerant charge for a normal in-
stallation is factory installed in the condensing unit. GSZ units
are charged for the matching evaporator coil and a 15 foot
refrigerant line set.
Systems should be properly sized by heat gain and loss
calculations made according to methods of the Air Condi-
tioning Contractors Association (ACCA) or equivalent. It is
the contractors responsibility to ensure the system has ad-
equate capacity to heat or cool the conditioned space.
GSZ/VSZ models use high-efficiency Copeland® scroll
"Ultratech" compressors which are specifically desgined for
R-410A refrigerant. There are a number of design character-
istics which are different from the scroll compared to the tra-
ditional reciprocating compressor.
"Ultratech" Series scroll compressors with Copeland®
ComfortAlert diagnositics will not have a discharge thermo-
stat. Some of the early model scroll compressors required
discharge thermostats.
Due to their design Scroll compressors are inherently more
tolerant of small quantities of liquid refrigerant.
NOTE: Even though the compressor section of a Scroll com-
pressor is more tolerant of liquid refrigerant, continued
floodback or flooded start conditions may wash oil from the
bearing surfaces causing premature bearing failure.
"Ultratech" Series scroll compressors use "POE" or
polyolester oil which is NOT compatible with mineral oil based
lubricants like 3GS. "POE" oil must be used if additional oil
is required.
WARNING
To avoid possible injury, explosion or death, practice
safe handling of refrigerants.
Operating pressures and amp draws may differ from stan-
dard reciprocating and/or scroll compressors. This informa-
tion may be found in the "Cooling Performance Data" sec-
tion.
This unit is for outdoor installation only. Refer to minimum
figure for clearances from the sides of the unit to full walls
and other objects.
NOTE: This unit cannot be completely enclosed. At least
one side must be unrestricted.
These clearances will help avoid air recirculation. If installing
two or more units at the same location, allow at least 24
inches between units. If only one side is restricted (for ex-
ample, against the outside wall of a house), the unit may be
placed as close as 8" to that one wall.
DO NOT locate the unit:
* Directly under a vent termination for a gas appliance.
* Within 3 feet of a clothes drier vent
* Where the refreezing of defrost water would create
a hazard
* Where water may rise into the unit.
Model Type A B C AA
Residential 10" 10" 18" 20"
Light Commercial 12" 12" 18" 24"

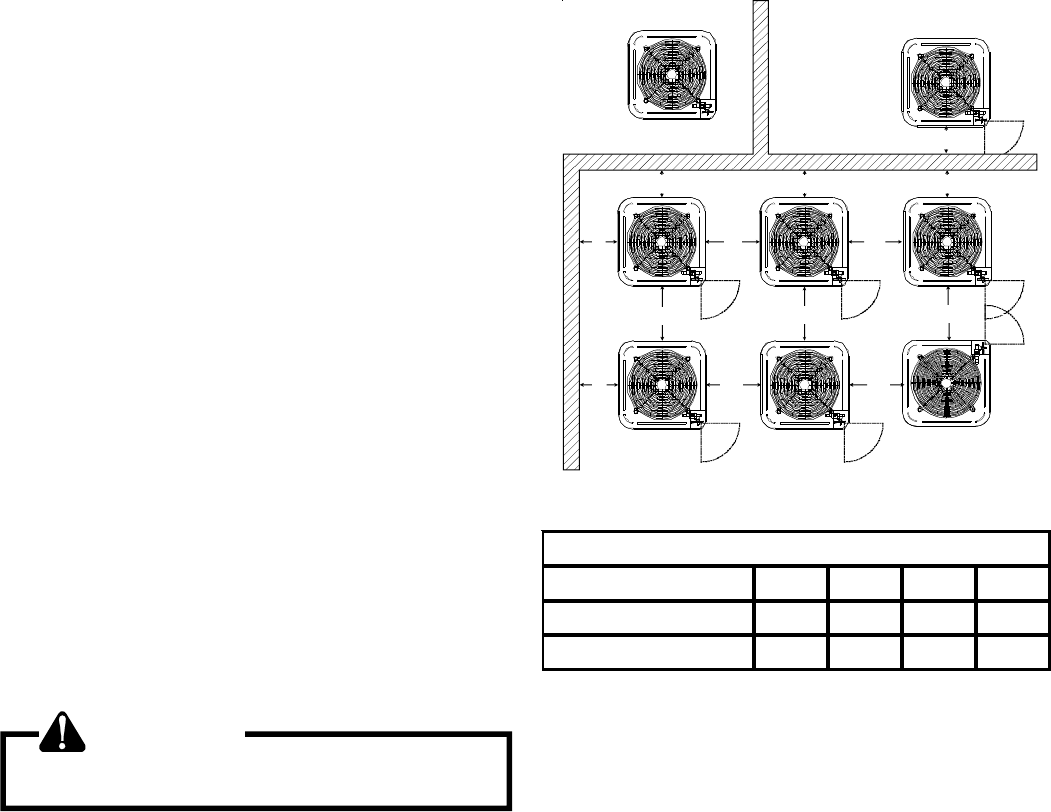

Minimum Airflow Clearance
OK!
OK!
AA AAA
A
CC
CCOK!
OK!
OK!
OK!
NOT
RECOMMENDED
AA
AA AA
AA
AA
B B B
B
PRODUCT DESIGN
5
Model Dimensions - W x D x H
G/VSZ130181A* 26 x 26 x 32¼
G/VSZ130241A* 26 x 26 x 32¼
G/VSZ130241B* 26 x 26 x 32½
G/VSZ130301A* 26 x 26 x 32¼
G/VSZ130361A*
GSZ130363A* 2 9 x 29 x 38¼
G/VSZ130361B* 29 x 29 x 32½
G/VSZ130421A* 29 x 29 x 38¼
G/VSZ130481A*
GSZ130483A*
GSZ130484A*
29 x 29 x 34 ¼
G/VSZ130601A*
GZX130603A*
GSZ130604A*
35½ x 35½ x 34¼
Product Dimensions
HEAT PUMP SPECIFICATIONS
6
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
G/VSZ130[18-60]1A*
* Up to 24' in equivalent line length
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOOR UNIT, NOT THE INDOOR COIL.
*SZ130181A
*SZ130241A
*SZ130301A
*SZ130361A
*SZ130421A
*SZ130481A
*SZ130601A
Nominal Capacities
Cooling Capacity, BTUH 18,000 24,000 30,000 36,000 42,000 48,000 60,000
Heating Capacity, BTUH 17,000 23,000 26,400 34,000 40,500 44,000 58,000
Compressor
R.L. Amps 9.0 12.8 14.1 16.6 17.9 19.8 26.4
L.R. Amps 48.0 58.3 73.0 79.0 112.0 109.0 134.0
Low Pressure Switch
Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/6 1/6 1/4 1/4 1/4 1/4
F.L. Amps 1.10 1.10 1.10 1.50 1.50 1.50 1.50
Liquid Line, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 3/4"3/4"3/4"3/4"7/8"7/8"7/8"
Refrigerant Charge 122.0 122.0 127.0 171.0 174.0 222.0 245.0
Power Supply 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 12.3 17.1 18.7 22.3 23.9 26.3 34.5
Maximum Overcurrent Device(2) 20 25 30 35 40 45 60
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 198 198 202 232 235 240 266
HEAT PUMP SPECIFICATIONS
7
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
*SZ130241B
*SZ130361B
Nominal Capacities
Cooling Capacity, BTUH 24,000 36,000
Heating Capacity, BTUH 23,000 34,000
Compressor
R.L. Amps 12.8 16.7
L.R. Amps 58.3 79.0
Low Pressure Switch
Open 22 PSIG 22 PSIG
Close 50 PSIG 50 PSIG
High Pressure Switch
Open 610 PSIG 610 PSIG
Close 420 PSIG 420 PSIG
Condenser Fan Motor
Horsepower 1/6 1/4
F.L. Amps 1.10 1.50
Liquid Line, Inches O.D.* 3/8" 3/8"
Suction Line, Inches O.D.* 3/4" 3/4"
Refrigerant Charge 113.0 131.0
Power Supply 208/230-60-1 208/230-60-1
Minimum Circuit Ampacity(1) 17.1 22.3
Maximum Overcurrent Device(2) 25 35
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4
Approximate Shipping W eight 162 182
G/VSZ130[24,36]B*
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
(3) Tested and rated in accordance with AHRI Standard 210/240
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOOR UNIT, NOT THE INDOOR COIL.
HEAT PUMP SPECIFICATIONS
8
NOTE: This data is provided as a guide, it is important to electrically connect the unit and properly size fuses/circuit breakers and
wires in accordance with all national and/or local electrical codes. Use copper wire only.
Unit specifications are subject to change without notice. ALWAYS refer to the unit's serial plate for the most up-to-date general
and electrical information.
(1) Wire size should be determined in accordance with National Electrical Codes; extensive wire runs will require larger wire sizes.
(2) Maximum Overcurrent Protection Device: MUST use Time Delay Fuse or HACR type Circuit Breaker of the same size as noted.
(3) Tested and rated in accordance with AHRI Standard 210/240
NOTES:
• Always check the S & R plate for electrical data on the unit being installed.
• Installer will need to supply 7/8" to 1-1/8" adapters for suction line connections (4 & 5 ton units).
• Installer will need to supply 3/4" to 7/8" adapters for suction line connections (3 ton unit).
• Unit is charged with refrigerant for 15' of 3/8" liquid line. System charge must be adjusted per Installation Instructions Final Charge
Procedure.
• Installation of these units requires the specified TXV Kit to be installed on the indoor coil. THE SPECIFIED TXV IS DETERMINED BY THE
OUTDOOR UNIT, NOT THE INDOOR COIL.
GSZ130363A*
GSZ130483A*
GSZ130484A*
GSZ130603A*
GSZ130604A*
Nominal Capacities
Cooling Capacity, BTUH 36,000 48,000 48,000 60,000 60,000
Heating Capacity, BTUH 34,000 44,000 44,000 58,000 58,000
Decibels 7476767575
Compressor
R.L. Amps 10.4 13.1 6.1 16.0 7.8
L.R. Amps 73.0 83.1 41.0 110.0 52.0
Type Scroll Scroll Scroll Scroll Scroll
Condenser Fan Motor
Horsepower 1/4 1/4 1/4 1/4 1/4
F.L. Amps 1.50 1.50 0.80 1.50 0.80
Refrigerant System
Liquid Line, Inches O.D.* 33/8" 3/8" 3/8" 3/8" 3/8"
Suction Line, Inches O.D.* 37/8" 1 1/8" 1 1/8" 1 1/8" 1 1/8"
Liquid Valve Connection, Inches O.D.* 3/8" 3/8" 3/8" 3/8" 3/8"
Suction Valve Connection, Inches O.D.* 3/4" 7/8" 7/8" 7/8" 7/8"
Refrigerant Charge 171.0 222.0 222.0 245.0 245.0
Piston Size 0.068 0.078 0.078 0.088 0.088
Power Supply 208/230-60-3 208/230-60-3 460-60-3 208/230-60-3 460-60-3
Minimum Circuit Ampacity(1) 14.5 17.9 8.4 21.5 10.6
Maximum Overcurrent Device(2) 20 30 15 35 15
Min / Max Volts 197 / 253 197 / 253 414 / 506 197 / 253 414 / 506
Electrical Conduit Size
Power Supply (Inches) 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4 1/2 or 3/4
Approximate Shipping Weight 232 235 234 262 261
GSZ130[36-60][3,4]A*
9
COOLING PERFORMANCE DATA G/VSZ130181A*
MODEL: G/VSZ130181A* / AR*F182416** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 17.1 17.7 19.4 - 16.7 17.3 18.9 - 16.3 16.9 18.5 - 15.9 16.4 18.0 - 15.1 15.6 17.1 - 14.0 14.5 15.9 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -
T 17 15 11 - 17 15 11 - 17 15 11 - 18 15 12 - 17 15 11 - 16 14 11 -
675 KW 1.25 1.27 1.31 - 1.34 1.37 1.41 - 1.42 1.45 1.50 - 1.49 1.52 1.57 - 1.55 1.59 1.64 - 1.61 1.64 1.69 -
AMPS 4.5 4.6 4.8 - 4.9 5.0 5.2 - 5.3 5.4 5.6 - 5.7 5.8 6.0 - 6.0 6.2 6.4 - 6.4 6.5 6.8 -
HI PR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 109 116 126 - 115 122 133 - 119 127 139 - 125 133 146 - 131 140 152 - 136 144 158 -
MBh 16.6 17.2 18.8 - 16.2 16.8 18.4 - 15.8 16.4 17.9 - 15.4 16.0 17.5 - 14.6 15.2 16.6 - 13.6 14.0 15.4 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
70 600 KW 1.24 1.26 1.30 - 1.33 1.36 1.40 - 1.41 1.44 1.48 - 1.48 1.51 1.56 - 1.54 1.57 1.62 - 1.59 1.63 1.68 -
AMPS 4.5 4.6 4.7 - 4.8 4.9 5.1 - 5.2 5.4 5.6 - 5.6 5.7 5.9 - 6.0 6.1 6.3 - 6.3 6.5 6.7 -
HI PR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 15.3 15.8 17.4 - 14.9 15.5 16.9 - 14.6 15.1 16.5 - 14.2 14.7 16.1 - 13.5 14.0 15.3 - 12.5 13.0 14.2 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -
T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
525 KW 1.21 1.23 1.27 - 1.30 1.32 1.36 - 1.38 1.40 1.45 - 1.44 1.47 1.52 - 1.50 1.53 1.58 - 1.55 1.59 1.64 -
AMPS 4.3 4.5 4.6 - 4.7 4.8 5.0 - 5.1 5.2 5.4 - 5.5 5.6 5.8 - 5.8 5.9 6.1 - 6.1 6.3 6.5 -
HI PR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 104 111 121 - 110 117 128 - 115 122 133 - 120 128 140 - 126 134 146 - 130 139 151 -
MBh 17.34 17.85 19.32 20.74 16.94 17.44 18.87 20.26 16.53 17.02 18.43 19.78 16.13 16.61 17.98 19.29 15.32 15.78 17.08 18.33 14.19 14.61 15.82 16.98
S/T 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42
T 20181510201915112019151120 19 15 112018151019171410
675 KW 1.26 1.28 1.32 1.36 1.35 1.38 1.42 1.46 1.43 1.46 1.51 1.56 1.50 1.54 1.58 1.64 1.57 1.60 1.65 1.70 1.62 1.65 1.71 1.76
AMPS4.64.74.85.04.95.05.25.45.35.55.75.95.7 5.9 6.0 6.36.16.26.46.76.46.66.87.1
HI PR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
MBh 16.8 17.3 18.8 20.1 16.4 16.9 18.3 19.7 16.1 16.5 17.9 19.2 15.7 16.1 17.5 18.7 14.9 15.3 16.6 17.8 13.8 14.2 15.4 16.5
S/T 0.810.720.550.350.840.750.570.360.860.770.580.370.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
T 21191611211916112119161121 20 16 11 21 19 16 11 20 18 15 10
75 600 KW 1.251.271.311.351.341.371.411.451.421.451.501.541.49 1.52 1.57 1.62 1.55 1.59 1.64 1.69 1.61 1.64 1.69 1.75
AMPS4.54.64.84.94.95.05.25.35.35.45.65.85.7 5.8 6.0 6.2 6.0 6.2 6.4 6.6 6.4 6.5 6.8 7.0
HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 145 158 168
MBh 15.5 16.0 17.3 18.6 15.2 15.6 16.9 18.2 14.8 15.3 16.5 17.7 14.5 14.88 16.1 17.3 13.7 14.1 15.3 16.4 12.7 13.1 14.2 15.2
S/T 0.78 0.69 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39
T 21191611212016112120161122 20 16 112120161120181510
525 KW 1.22 1.24 1.28 1.32 1.31 1.33 1.38 1.42 1.39 1.42 1.46 1.51 1.46 1.49 1.53 1.58 1.51 1.55 1.60 1.65 1.57 1.60 1.65 1.71
AMPS4.44.54.64.84.74.95.05.25.25.35.55.75.5 5.6 5.8 6.05.96.06.26.46.26.46.66.8
HI PR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 122 129 141 150 127 136 148 158 132 140 153 163
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
10
COOLING PERFORMANCE DATA G/VSZ130181A*
MODEL: G/VSZ130181A* / AR*F182416** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59636771596367715963677159 63 67 715963677159636771
MBh 17.6 18.0 19.3 20.6 17.2 17.6 18.8 20.1 16.8 17.2 18.4 19.6 16.4 16.8 17.9 19.2 15.6 15.9 17.0 18.2 14.4 14.8 15.8 16.9
S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 1.00 0.81 0.60 1.00 1.00 0.81 0.61
DT 22 21 19 15 23 22 19 15 23 22 19 15 22 22 19 15 21 22 19 15 20 20 17 14
675 KW 1.27 1.29 1.33 1.37 1.36 1.39 1.43 1.48 1.44 1.47 1.52 1.57 1.52 1.55 1.60 1.65 1.58 1.61 1.66 1.72 1.63 1.67 1.72 1.78
AMPS 4.6 4.7 4.9 5.0 5.0 5.1 5.3 5.4 5.4 5.5 5.7 5.9 5.8 5.9 6.1 6.3 6.1 6.3 6.5 6.8 6.5 6.7 6.9 7.2
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 148 158 134 143 156 166 139 147 161 171
MBh 17.1 17.5 18.7 20.0 16.7 17.1 18.3 19.5 16.3 16.7 17.8 19.1 15.9 16.3 17.4 18.6 15.1 15.5 16.5 17.7 14.0 14.3 15.3 16.4
S/T 0.88 0.83 0.67 0.50 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58
DT 23 22 19 15 23 23 20 16 24 23 20 16 24 23 20 16 23 22 19 16 21 21 18 15
80 600 KW 1.26 1.28 1.32 1.36 1.35 1.38 1.42 1.46 1.43 1.46 1.51 1.56 1.50 1.54 1.59 1.64 1.57 1.60 1.65 1.70 1.62 1.65 1.71 1.76
AMPS 4.6 4.7 4.8 5.0 4.9 5.0 5.2 5.4 5.3 5.5 5.7 5.9 5.7 5.9 6.1 6.3 6.1 6.2 6.4 6.7 6.4 6.6 6.8 7.1
HI PR 227 244 258 269 255 274 290 302 290 312 329 343 330 355 375 391 371 400 422 440 410 441 466 486
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
MBh 15.8 16.2 17.3 18.5 15.4 15.8 16.9 18.0 15.1 15.4 16.5 17.6 14.7 15.0 16.1 17.2 14.0 14.3 15.3 16.3 12.9 13.2 14.1 15.1
S/T 0.85 0.80 0.65 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.75 0.56
DT 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 22 21 18 15
525 KW 1.23 1.25 1.29 1.33 1.32 1.34 1.39 1.43 1.40 1.43 1.47 1.52 1.47 1.50 1.55 1.60 1.53 1.56 1.61 1.66 1.58 1.61 1.67 1.72
AMPS 4.4 4.5 4.7 4.9 4.8 4.9 5.1 5.3 5.2 5.3 5.5 5.7 5.6 5.7 5.9 6.1 5.9 6.1 6.3 6.5 6.3 6.4 6.6 6.9
HI PR 220 237 250 261 247 266 281 293 281 302 319 333 320 344 364 379 360 388 409 427 398 428 452 472
LO PR 106 113 124 132 112 120 131 139 117 124 136 145 123 131 143 152 129 137 149 159 133 142 155 165
MBh 18.0 18.3 19.2 20.5 17.5 17.9 18.7 20.0 17.1 17.5 18.3 19.5 16.7 17.0 17.8 19.0 15.9 16.2 16.9 18.1 14.7 15.0 15.7 16.7
S/T 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79
DT 24 23 22 19 24 24 22 19 23 24 22 19 23 23 23 20 22 22 22 19 20 20 21 18
675 KW 1.28 1.30 1.34 1.38 1.37 1.40 1.44 1.49 1.45 1.49 1.53 1.58 1.53 1.56 1.61 1.66 1.59 1.63 1.68 1.73 1.65 1.68 1.74 1.79
AMPS 4.6 4.7 4.9 5.1 5.0 5.1 5.3 5.5 5.4 5.6 5.8 6.0 5.8 6.0 6.2 6.4 6.2 6.3 6.6 6.8 6.6 6.7 7.0 7.2
HI PR 232 249 263 275 260 280 295 308 296 318 336 350 337 362 383 399 379 408 430 449 418 450 475 496
LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173
MBh 17.4 17.8 18.6 19.9 17.0 17.4 18.2 19.4 16.6 16.9 17.7 18.9 16.2 16.5 17.3 18.5 15.4 15.7 16.4 17.5 14.3 14.5 15.2 16.3
S/T 0.93 0.89 0.81 0.65 0.96 0.93 0.84 0.68 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
DT 25 24 23 20 25 25 23 20 25 25 23 20 25 25 23 20 24 24 23 20 22 22 22 19
85 600 KW 1.27 1.29 1.33 1.37 1.36 1.39 1.43 1.48 1.44 1.47 1.52 1.57 1.52 1.55 1.60 1.65 1.58 1.61 1.66 1.72 1.63 1.67 1.72 1.78
AMPS 4.6 4.7 4.9 5.0 5.0 5.1 5.3 5.4 5.4 5.5 5.7 5.9 5.8 5.9 6.1 6.3 6.1 6.3 6.5 6.8 6.5 6.7 6.9 7.2
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 148 158 134 143 156 166 139 147 161 171
MBh 16.1 16.4 17.2 18.3 15.7 16.0 16.8 17.9 15.3 15.6 16.4 17.5 15.0 15.3 16.0 17.0 14.2 14.5 15.2 16.2 13.2 13.4 14.1 15.0
S/T 0.89 0.86 0.78 0.63 0.93 0.89 0.81 0.65 0.95 0.92 0.83 0.67 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 0.99 0.89 0.72
DT 25 25 23 20 25 25 24 21 26 25 24 21 26 25 24 21 25 25 24 20 23 23 22 19
525 KW 1.24 1.26 1.30 1.34 1.33 1.36 1.40 1.44 1.41 1.44 1.48 1.53 1.48 1.51 1.56 1.61 1.54 1.57 1.62 1.68 1.59 1.63 1.68 1.73
AMPS 4.5 4.6 4.7 4.9 4.8 4.9 5.1 5.3 5.2 5.4 5.6 5.8 5.6 5.7 5.9 6.2 6.0 6.1 6.3 6.6 6.3 6.5 6.7 7.0
HI PR 222 239 253 264 250 269 284 296 284 305 323 336 323 348 367 383 364 391 413 431 402 432 457 476
LO PR 108 114 125 133 114 121 132 140 118 126 137 146 124 132 144 153 130 138 151 161 134 143 156 166
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
11
COOLING PERFORMANCE DATA G/VSZ130241A*
MODEL: G/VSZ130241A* / AR*F182416** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59 63 6771 59 6367715963 67 7159 63 67 715963677159636771
MBh 22.5 23.4 25.6 - 22.0 22.8 25.0 - 21.5 22.3 24.4 - 21.0 21.7 23.8 - 19.9 20.6 22.6 - 18.4 19.1 21.0 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -
DT 17 14 11 - 17 15 11 - 17 15 11 - 17 15 11 - 17 15 11 - 16 14 10 -
923 KW 1.63 1.66 1.71 - 1.75 1.79 1.84 - 1.86 1.90 1.96 - 1.95 2.00 2.06 - 2.04 2.08 2.15 - 2.11 2.15 2.22 -
AMPS 6.1 6.2 6.4 - 6.6 6.8 7.0 - 7.2 7.3 7.6 - 7.7 7.9 8.1 - 8.2 8.4 8.7 - 8.7 8.9 9.2 -
HI PR 227 244 257 - 254 274 289 - 289 311 328 - 329 354 374 - 370 399 421 - 409 440 465 -
LO PR 104 111 121 - 110 117 128 - 114 122 133 - 120 128 140 - 126 134 146 - 130 139 151 -
MBh 21.9 22.7 24.8 - 21.4 22.2 24.3 - 20.9 21.6 23.7 - 20.4 21.1 23.1 - 19.3 20.0 22.0 - 17.9 18.6 20.3 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
DT 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 17 15 11 - 16 14 11 -
70 820 KW 1.61 1.65 1.70 - 1.74 1.77 1.83 - 1.84 1.88 1.94 - 1.94 1.98 2.05 - 2.02 2.06 2.13 - 2.09 2.14 2.21 -
AMPS 6.0 6.2 6.4 - 6.5 6.7 6.9 - 7.1 7.3 7.5 - 7.6 7.8 8.0 - 8.1 8.3 8.6 - 8.6 8.8 9.1 -
HI PR 224 241 255 - 252 271 286 - 286 308 325 - 326 351 370 - 367 395 417 - 405 436 460 -
LO PR 103 110 120 - 109 116 127 - 113 120 132 - 119 127 138 - 125 133 145 - 129 137 150 -
MBh 20.2 20.9 22.9 - 19.7 20.4 22.4 - 19.3 20.0 21.9 - 18.8 19.5 21.3 - 17.8 18.5 20.3 - 16.5 17.1 18.8 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.65 0.45 -
DT 18 15 12 - 18 15 12 - 18 15 12 - 18 16 12 - 18 15 12 - 17 14 11 -
718 KW 1.58 1.61 1.66 - 1.70 1.73 1.79 - 1.80 1.84 1.90 - 1.89 1.93 1.99 - 1.97 2.01 2.08 - 2.04 2.08 2.15 -
AMPS 5.9 6.0 6.2 - 6.4 6.5 6.7 - 6.9 7.1 7.3 - 7.4 7.6 7.8 - 7.9 8.1 8.3 - 8.3 8.5 8.8 -
HI PR 218 234 247 - 244 263 277 - 278 299 315 - 316 340 359 - 356 383 404 - 393 423 447 -
LO PR 100 106 116 - 106 112 123 - 110 117 128 - 115 123 134 - 121 129 140 - 125 133 145 -
MBh 22.9 23.6 25.5 27.4 22.4 23.0 24.9 26.8 21.9 22.5 24.4 26.1 21.3 22.0 23.8 25.5 20.3 20.9 22.6 24.2 18.8 19.3 20.9 22.4
S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42
DT 19 18 15 10 20 18 15 10 20 18 15 10 20 18 15 10 19 18 15 10 18 17 14 9
923 KW 1.64 1.67 1.73 1.78 1.76 1.80 1.86 1.92 1.87 1.91 1.98 2.04 1.97 2.01 2.08 2.15 2.05 2.10 2.17 2.24 2.12 2.17 2.24 2.32
AMPS 6.2 6.3 6.5 6.8 6.7 6.8 7.0 7.3 7.2 7.4 7.7 8.0 7.7 7.9 8.2 8.5 8.2 8.4 8.7 9.1 8.7 9.0 9.3 9.6
HI PR 229 246 260 271 257 276 292 304 292 314 332 346 333 358 378 394 374 403 425 443 413 445 470 490
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 121 129 141 150 127 135 148 157 132 140 153 163
MBh 22.3 22.9 24.8 26.6 21.7 22.4 24.2 26.0 21.2 21.8 23.6 25.4 20.7 21.3 23.1 24.8 19.7 20.2 21.9 23.5 18.2 18.8 20.3 21.8
S/T 0.80 0.72 0.54 0.35 0.83 0.75 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.92 0.83 0.63 0.40
DT 20 18 15 10 20 19 15 11 20 19 15 11 20 19 15 11 20 19 15 11 19 17 14 10
75 820 KW 1.63 1.66 1.71 1.77 1.75 1.79 1.84 1.90 1.86 1.90 1.96 2.02 1.96 2.00 2.06 2.13 2.04 2.08 2.15 2.22 2.11 2.15 2.22 2.30
AMPS 6.1 6.2 6.4 6.7 6.6 6.8 7.0 7.2 7.2 7.3 7.6 7.9 7.7 7.9 8.1 8.4 8.2 8.4 8.7 9.0 8.7 8.9 9.2 9.5
HI PR 227 244 257 269 254 274 289 301 289 311 329 343 329 354 374 390 370 399 421 439 409 441 465 485
LO PR 104 111 121 129 110 117 128 136 114 122 133 142 120 128 140 149 126 134 146 156 130 139 151 161
MBh 20.5 21.1 22.9 24.6 20.1 20.7 22.4 24.0 19.6 20.2 21.8 23.4 19.1 19.7 21.3 22.9 18.2 18.7 20.2 21.7 16.8 17.3 18.7 20.1
S/T 0.78 0.69 0.53 0.34 0.80 0.72 0.54 0.35 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.38 0.89 0.80 0.60 0.39
DT 20 19 15 11 21 19 16 11 21 19 16 11 21 19 16 11 21 19 16 11 19 18 14 10
718 KW 1.59 1.62 1.67 1.72 1.71 1.74 1.80 1.86 1.81 1.85 1.91 1.97 1.91 1.95 2.01 2.08 1.99 2.03 2.10 2.17 2.05 2.10 2.17 2.24
AMPS 5.9 6.1 6.3 6.5 6.4 6.6 6.8 7.0 7.0 7.1 7.4 7.7 7.5 7.6 7.9 8.2 7.9 8.1 8.4 8.7 8.4 8.6 8.9 9.3
HI PR 220 237 250 260 247 265 280 292 280 302 319 332 319 344 363 379 359 387 408 426 397 427 451 471
LO PR 101 108 117 125 107 114 124 132 111 118 129 137 117 124 135 144 122 130 142 151 126 134 147 156
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
12
COOLING PERFORMANCE DATA G/VSZ130241A*
MODEL: G/VSZ130241A* / AR*F182416** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59 63 6771 59 6367715963 67 7159 63 67 715963677159636771
MBh 23.3 23.8 25.5 27.2 22.8 23.3 24.9 26.6 22.2 22.7 24.3 26.0 21.7 22.2 23.7 25.3 20.6 21.1 22.5 24.1 19.1 19.5 20.8 22.3
S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.81 0.61
DT 22 21 18 14 22 21 18 15 22 21 18 15 22 21 18 15 21 21 18 14 19 19 17 13
923 KW 1.65 1.69 1.74 1.80 1.78 1.82 1.87 1.94 1.89 1.93 1.99 2.06 1.99 2.03 2.10 2.17 2.07 2.12 2.19 2.26 2.14 2.19 2.26 2.34
AMPS 6.2 6.4 6.6 6.8 6.7 6.9 7.1 7.4 7.3 7.5 7.7 8.0 7.8 8.0 8.3 8.6 8.3 8.5 8.8 9.2 8.8 9.0 9.4 9.7
HI PR 231 249 263 274 259 279 295 307 295 317 335 350 336 362 382 398 378 407 430 448 418 449 475 495
LO PR 106 113 123 131 112 119 130 139 117 124 136 144 123 130 142 152 129 137 149 159 133 141 154 164
MBh 22.6 23.1 24.7 26.4 22.1 22.6 24.2 25.8 21.6 22.1 23.6 25.2 21.1 21.5 23.0 24.6 20.0 20.5 21.9 23.4 18.5 18.9 20.2 21.6
S/T 0.88 0.83 0.67 0.50 0.91 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58
DT 22 21 19 15 23 22 19 15 23 22 19 15 23 22 19 15 22 22 19 15 21 20 18 14
80 820 KW 1.64 1.67 1.73 1.78 1.76 1.80 1.86 1.92 1.87 1.91 1.98 2.04 1.97 2.01 2.08 2.15 2.05 2.10 2.17 2.24 2.12 2.17 2.24 2.32
AMPS 6.2 6.3 6.5 6.8 6.7 6.8 7.0 7.3 7.2 7.4 7.7 8.0 7.7 7.9 8.2 8.5 8.2 8.4 8.7 9.1 8.7 9.0 9.3 9.6
HI PR 229 246 260 271 257 276 292 304 292 314 332 346 333 358 378 394 374 403 425 444 413 445 470 490
LO PR 105 112 122 130 111 118 129 138 116 123 134 143 121 129 141 150 127 135 148 157 132 140 153 163
MBh 20.9 21.4 22.8 24.4 20.4 20.9 22.3 23.8 19.9 20.4 21.8 23.3 19.4 19.9 21.2 22.7 18.5 18.9 20.2 21.6 17.1 17.5 18.7 20.0
S/T 0.85 0.80 0.65 0.49 0.88 0.83 0.67 0.50 0.90 0.85 0.69 0.52 0.93 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.75 0.56
DT 23 22 19 15 23 22 19 15 23 22 19 15 23 22 19 15 23 22 19 15 21 21 18 14
718 KW 1.60 1.63 1.69 1.74 1.72 1.76 1.81 1.87 1.83 1.87 1.93 1.99 1.92 1.96 2.03 2.10 2.00 2.05 2.11 2.18 2.07 2.12 2.19 2.26
AMPS 6.0 6.1 6.3 6.6 6.5 6.6 6.9 7.1 7.0 7.2 7.5 7.7 7.5 7.7 8.0 8.3 8.0 8.2 8.5 8.8 8.5 8.7 9.0 9.3
HI PR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 102 109 119 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 153 128 136 148 158
MBh 23.7 24.2 25.3 27.0 23.2 23.6 24.8 26.4 22.6 23.1 24.2 25.8 22.1 22.5 23.6 25.1 21.0 21.4 22.4 23.9 19.4 19.8 20.7 22.1
S/T 0.97 0.94 0.84 0.69 1.00 0.97 0.88 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79
DT 23 23 21 18 23 23 22 19 23 23 22 19 22 22 22 19 21 21 21 19 19 20 20 17
923 KW 1.67 1.70 1.75 1.81 1.79 1.83 1.89 1.95 1.90 1.95 2.01 2.08 2.00 2.05 2.11 2.18 2.09 2.13 2.20 2.28 2.16 2.21 2.28 2.36
AMPS 6.3 6.4 6.6 6.9 6.8 6.9 7.2 7.4 7.4 7.6 7.8 8.1 7.9 8.1 8.4 8.7 8.4 8.6 8.9 9.2 8.9 9.1 9.4 9.8
HI PR 233 251 265 277 262 282 298 310 298 321 339 353 339 365 386 402 382 411 434 452 422 454 479 500
LO PR 107 114 125 133 113 121 132 140 118 125 137 146 124 132 144 153 130 138 151 161 134 143 156 166
MBh 23.0 23.5 24.6 26.2 22.5 22.9 24.0 25.6 22.0 22.4 23.5 25.0 21.4 21.9 22.9 24.4 20.4 20.8 21.7 23.2 18.9 19.2 20.1 21.5
S/T 0.93 0.89 0.81 0.65 0.96 0.93 0.84 0.68 0.98 0.95 0.86 0.69 1.00 0.98 0.88 0.72 1.00 1.00 0.92 0.74 1.00 1.00 0.93 0.75
DT 24 24 22 19 24 24 22 19 24 24 23 19 24 24 23 20 23 23 22 19 21 22 21 18
85 820 KW 1.65 1.69 1.74 1.80 1.78 1.82 1.87 1.94 1.89 1.93 1.99 2.06 1.99 2.03 2.10 2.17 2.07 2.12 2.19 2.26 2.14 2.19 2.26 2.34
AMPS 6.2 6.4 6.6 6.8 6.7 6.9 7.1 7.4 7.3 7.5 7.7 8.0 7.8 8.0 8.3 8.6 8.3 8.5 8.8 9.2 8.8 9.0 9.4 9.7
HI PR 231 249 263 274 259 279 295 307 295 317 335 350 336 362 382 398 378 407 430 448 418 449 475 495
LO PR 106 113 123 131 112 119 130 139 117 124 136 144 123 130 142 152 129 137 149 159 133 141 154 164
MBh 21.3 21.7 22.7 24.2 20.8 21.2 22.2 23.7 20.3 20.7 21.7 23.1 19.8 20.2 21.1 22.5 18.8 19.2 20.1 21.4 17.4 17.7 18.6 19.8
S/T 0.89 0.86 0.78 0.63 0.92 0.89 0.81 0.65 0.95 0.91 0.83 0.67 0.98 0.94 0.85 0.69 1.00 0.98 0.88 0.72 1.00 0.99 0.89 0.72
DT24.3224 2320 25 2423202524 23 2025 24 23 202424232022222118
718 KW 1.61 1.65 1.70 1.75 1.74 1.77 1.83 1.89 1.84 1.88 1.94 2.01 1.94 1.98 2.05 2.11 2.02 2.06 2.13 2.20 2.09 2.14 2.21 2.28
AMPS 6.0 6.2 6.4 6.6 6.5 6.7 6.9 7.2 7.1 7.3 7.5 7.8 7.6 7.8 8.0 8.4 8.1 8.3 8.6 8.9 8.6 8.8 9.1 9.4
HI PR 224 241 255 266 252 271 286 298 286 308 325 339 326 351 370 386 367 395 417 435 405 436 460 480
LO PR 103 110 120 128 109 116 127 135 113 120 132 140 119 127 138 147 125 133 145 154 129 137 150 159
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fa
High and low pressures are measured at the liquid and suction service valves.
13
COOLING PERFORMANCE DATA
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130241B*/ AR*F182416** COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 22.5 23.4 25.6 - 22.0 22.8 25.0 - 21.5 22.3 24.4 - 21.0 21.7 23.8 - 19.9 20.6 22.6 - 18.4 19.1 21.0 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
∠T 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 17 15 11 - 16 14 11 -
900 KW 1.63 1.66 1.71 - 1.75 1.78 1.84 - 1.85 1.89 1.95 - 1.95 1.99 2.05 - 2.03 2.07 2.14 - 2.10 2.14 2.21 -
AMPS 6.1 6.2 6.4 - 6.5 6.7 6.9 - 7.1 7.3 7.5 - 7.6 7.8 8.0 - 8.1 8.3 8.5 - 8.5 8.8 9.0 -
HI PR 228 246 259 - 256 276 291 - 291 314 331 - 332 357 377 - 373 402 424 - 413 444 469 -
LO PR 103 110 120 - 109 116 127 - 114 121 132 - 119 127 139 - 125 133 145 - 129 138 150 -
MBh 21.9 22.7 24.8 - 21.4 22.2 24.3 - 20.9 21.6 23.7 - 20.4 21.1 23.1 - 19.3 20.0 22.0 - 17.9 18.6 20.3 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
∠T 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
70 800 KW 1.62 1.65 1.70 - 1.74 1.77 1.83 - 1.84 1.88 1.94 - 1.93 1.97 2.04 - 2.01 2.05 2.12 - 2.08 2.12 2.19 -
AMPS 6.0 6.2 6.3 - 6.5 6.6 6.9 - 7.0 7.2 7.4 - 7.5 7.7 8.0 - 8.0 8.2 8.5 - 8.5 8.7 9.0 -
HI PR 226 243 257 - 254 273 288 - 288 310 328 - 329 354 373 - 370 398 420 - 408 440 464 -
LO PR 102 109 119 - 108 115 126 - 112 120 131 - 118 126 137 - 124 132 144 - 128 136 149 -
MBh 20.2 20.9 22.9 - 19.7 20.4 22.4 - 19.3 20.0 21.9 - 18.8 19.5 21.3 - 17.8 18.5 20.3 - 16.5 17.1 18.8 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
∠T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
700 KW 1.58 1.61 1.66 - 1.69 1.73 1.78 - 1.80 1.83 1.89 - 1.89 1.93 1.99 - 1.96 2.00 2.07 - 2.03 2.07 2.14 -
AMPS 5.9 6.0 6.2 - 6.3 6.5 6.7 - 6.8 7.0 7.2 - 7.3 7.5 7.7 - 7.8 8.0 8.2 - 8.2 8.4 8.7 -
HI PR 219 236 249 - 246 265 280 - 280 301 318 - 319 343 362 - 359 386 407 - 396 426 450 -
LO PR 99 106 115 - 105 112 122 - 109 116 127 - 115 122 133 - 120 128 139 - 124 132 144 -
MBh 22.92 23.60 25.54 27.41 22.39 23.05 24.95 26.78 21.85 22.50 24.36 26.14 21.32 21.95 23.76 25.50 20.25 20.85 22.57 24.23 18.76 19.32 20.91 22.44
S/T 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.91 0.81 0.62 0.40 0.94 0.84 0.64 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.67 0.43
∠T201815102019151120191511201915112019151119171410
900 KW 1.64 1.67 1.73 1.78 1.76 1.80 1.85 1.91 1.87 1.91 1.97 2.03 1.96 2.01 2.07 2.14 2.04 2.09 2.16 2.23 2.11 2.16 2.23 2.30
AMPS 6.1 6.3 6.5 6.7 6.6 6.8 7.0 7.2 7.2 7.3 7.6 7.9 7.7 7.8 8.1 8.4 8.1 8.3 8.6 8.9 8.6 8.8 9.1 9.5
HI PR 231 248 262 273 259 279 294 307 294 317 334 349 335 361 381 397 377 406 429 447 417 448 474 494
LO PR 104 111 121 129 110 117 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162
MBh 22.3 22.9 24.8 26.6 21.7 22.4 24.2 26.0 21.2 21.8 23.6 25.4 20.7 21.3 23.1 24.8 19.7 20.2 21.9 23.5 18.2 18.8 20.3 21.8
S/T 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
∠T2119161121191611211916112120 16 11 21 19 16 11 20 18 15 10
75 800 KW 1.63 1.66 1.71 1.77 1.75 1.79 1.84 1.90 1.85 1.89 1.95 2.02 1.95 1.99 2.05 2.12 2.03 2.07 2.14 2.21 2.10 2.14 2.21 2.28
AMPS 6.1 6.2 6.4 6.6 6.5 6.7 6.9 7.2 7.1 7.3 7.5 7.8 7.6 7.8 8.0 8.3 8.1 8.3 8.5 8.9 8.5 8.8 9.0 9.4
HI PR 228 246 260 271 256 276 291 304 291 314 331 345 332 357 377 393 373 402 424 443 413 444 469 489
LO PR 103 110 120 128 109 116 127 135 114 121 132 141 119 127 139 148 125 133 145 155 129 138 150 160
MBh 20.5 21.1 22.9 24.6 20.1 20.7 22.4 24.0 19.6 20.2 21.8 23.4 19.1 19.7 21.3 22.9 18.2 18.7 20.2 21.7 16.8 17.3 18.7 20.1
S/T 0.79 0.70 0.53 0.34 0.82 0.73 0.55 0.36 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.90 0.81 0.61 0.39
∠T212016112220161122201611222016112120161120181510
700 KW 1.59 1.62 1.67 1.72 1.71 1.74 1.80 1.85 1.81 1.85 1.91 1.97 1.90 1.94 2.00 2.07 1.98 2.02 2.09 2.15 2.05 2.09 2.16 2.23
AMPS 5.9 6.0 6.2 6.5 6.4 6.5 6.7 7.0 6.9 7.1 7.3 7.6 7.4 7.6 7.8 8.1 7.8 8.0 8.3 8.6 8.3 8.5 8.8 9.1
HI PR 222 238 252 263 249 267 282 295 283 304 321 335 322 346 366 382 362 390 412 429 400 431 455 474
LO PR 100 107 117 124 106 113 123 131 110 117 128 136 116 123 134 143 121 129 141 150 125 133 146 155
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system power AMPS=outdoor unit amps (comp.+fan)
Hi
g
h and low pressures are measured at the liquid and suction service valves.
G/VSZ130241B*
14
COOLING PERFORMANCE DATA G/VSZ130241B*
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130241B*/ AR*F182416** COOLING OPERATION
Outdoor Ambient Temperature
6
75 8
9
105 11
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 23.33 23.84 25.47 27.22 22.79 23.28 24.87 26.59 22.24 22.73 24.28 25.96 21.70 22.17 23.69 25.32 20.62 21.07 22.51 24.06 19.10 19.51 20.85 22.29
S/T 0.94 0.88 0.72 0.54 1.00 0.91 0.74 0.56 1.00 0.94 0.76 0.57 1.00 0.97 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.82 0.62
⎠T222119152322191523221915222219152122191520201814
900 KW 1.65 1.69 1.74 1.79 1.78 1.81 1.87 1.93 1.88 1.92 1.98 2.05 1.98 2.02 2.09 2.15 2.06 2.11 2.17 2.24 2.13 2.18 2.25 2.32
AMPS 6.2 6.3 6.5 6.8 6.7 6.8 7.0 7.3 7.2 7.4 7.7 7.9 7.7 7.9 8.2 8.5 8.2 8.4 8.7 9.0 8.7 8.9 9.2 9.6
HI PR 233 251 265 276 261 281 297 310 297 320 338 352 339 364 385 401 381 410 433 452 421 453 478 499
LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153 163
MBh 22.6 23.1 24.7 26.4 22.1 22.6 24.2 25.8 21.6 22.1 23.6 25.2 21.1 21.5 23.0 24.6 20.0 20.5 21.9 23.4 18.5 18.9 20.2 21.6
S/T 0.90 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.73 0.54 0.98 0.92 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.96 0.78 0.59
⎠T232219162423201624232016242320 16 23 22 20 16 21 21 18 15
80 800 KW 1.64 1.67 1.73 1.78 1.76 1.80 1.85 1.91 1.87 1.91 1.97 2.03 1.96 2.01 2.07 2.14 2.04 2.09 2.16 2.23 2.11 2.16 2.23 2.30
AMPS 6.1 6.3 6.5 6.7 6.6 6.8 7.0 7.2 7.2 7.3 7.6 7.9 7.7 7.8 8.1 8.4 8.1 8.3 8.6 8.9 8.6 8.8 9.1 9.5
HI PR 231 248 262 273 259 279 294 307 294 317 335 349 335 361 381 397 377 406 429 447 417 448 474 494
LO PR 105 111 121 129 110 117 128 137 115 122 133 142 121 128 140 149 126 134 147 156 131 139 152 162
MBh 20.9 21.4 22.8 24.4 20.4 20.9 22.3 23.8 19.9 20.4 21.8 23.3 19.4 19.9 21.2 22.7 18.5 18.9 20.2 21.6 17.1 17.5 18.7 20.0
S/T 0.86 0.81 0.66 0.49 0.90 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.76 0.57
⎠T242320162423201624232016242320162423201622211915
700 KW 1.60 1.64 1.69 1.74 1.72 1.76 1.81 1.87 1.83 1.86 1.92 1.98 1.92 1.96 2.02 2.08 1.99 2.04 2.10 2.17 2.06 2.11 2.17 2.25
AMPS 6.0 6.1 6.3 6.5 6.4 6.6 6.8 7.0 7.0 7.1 7.4 7.6 7.4 7.6 7.9 8.2 7.9 8.1 8.4 8.7 8.4 8.6 8.9 9.2
HI PR 224 241 254 265 251 270 285 298 286 307 324 338 325 350 370 385 366 394 416 434 404 435 459 479
LO PR 101 108 118 125 107 114 124 132 111 118 129 138 117 124 136 145 123 130 142 152 127 135 147 157
MBh 23.74 24.19 25.34 27.03 23.18 23.63 24.75 26.40 22.63 23.07 24.16 25.78 22.08 22.51 23.57 25.15 20.98 21.38 22.39 23.89 19.43 19.81 20.74 22.13
S/T 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.98 0.79 1.00 1.00 0.98 0.80
⎠T242322192424221923242219232323202122221920202118
900 KW 1.67 1.70 1.75 1.81 1.79 1.83 1.88 1.94 1.90 1.94 2.00 2.07 2.00 2.04 2.10 2.17 2.08 2.12 2.19 2.26 2.15 2.20 2.27 2.34
AMPS 6.2 6.4 6.6 6.8 6.7 6.9 7.1 7.4 7.3 7.5 7.7 8.0 7.8 8.0 8.2 8.6 8.3 8.5 8.8 9.1 8.8 9.0 9.3 9.7
HI PR 235 253 267 279 264 284 300 313 300 323 341 356 342 368 389 405 385 414 437 456 425 457 483 504
LO PR 107 113 124 132 113 120 131 139 117 125 136 145 123 131 143 152 129 137 150 159 133 142 155 165
MBh 23.0 23.5 24.6 26.2 22.5 22.9 24.0 25.6 22.0 22.4 23.5 25.0 21.4 21.9 22.9 24.4 20.4 20.8 21.7 23.2 18.9 19.2 20.1 21.5
S/T 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.94 0.76
⎠T252423202525232025252320252524202324232022222219
85 800 KW 1.65 1.69 1.74 1.79 1.78 1.81 1.87 1.93 1.88 1.92 1.98 2.05 1.98 2.02 2.09 2.15 2.06 2.11 2.17 2.24 2.13 2.18 2.25 2.32
AMPS 6.2 6.3 6.5 6.8 6.7 6.8 7.0 7.3 7.2 7.4 7.7 7.9 7.7 7.9 8.2 8.5 8.2 8.4 8.7 9.0 8.7 8.9 9.2 9.6
HI PR 233 251 265 276 261 281 297 310 297 320 338 352 339 364 385 401 381 410 433 452 421 453 478 499
LO PR 106 112 123 131 112 119 130 138 116 123 135 143 122 130 141 151 128 136 148 158 132 140 153 163
MBh 21.3 21.7 22.7 24.2 20.8 21.2 22.2 23.7 20.3 20.7 21.7 23.1 19.8 20.2 21.1 22.5 18.8 19.2 20.1 21.4 17.4 17.7 18.6 19.8
S/T 0.91 0.87 0.79 0.64 0.94 0.91 0.82 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.91 0.73
⎠T252524202625242126252421262524212525242023232219
700 KW 1.62 1.65 1.70 1.75 1.73 1.77 1.83 1.88 1.84 1.88 1.94 2.00 1.93 1.97 2.04 2.10 2.01 2.05 2.12 2.19 2.08 2.12 2.19 2.26
AMPS 6.0 6.1 6.3 6.6 6.5 6.6 6.9 7.1 7.0 7.2 7.4 7.7 7.5 7.7 7.9 8.2 8.0 8.2 8.5 8.8 8.5 8.7 9.0 9.3
HI PR 226 243 257 268 254 273 288 301 288 310 328 342 328 353 373 389 370 398 420 438 408 439 464 484
LO PR 102 109 119 127 108 115 126 134 112 120 131 139 118 126 137 146 124 132 144 153 128 136 149 158
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
Hi
g
h and low pressures are measured at the liquid and suction service valves.
15
COOLING PERFORMANCE DATA G/VSZ130301A*
MODEL: G/VSZ130301A* / AR*F30301** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 67715963 67 715963677159636771
MBh 27.4 28.4 31.1 - 26.8 27.8 30.4 - 26.1 27.1 29.7 - 25.5 26.4 29.0 - 24.2 25.1 27.5 - 22.4 23.3 25.5 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.87 0.72 0.50 - 0.87 0.73 0.51 -
DT 16 14 11 - 17 14 11 - 17 14 11 - 17 14 11 - 16 14 11 - 15 13 10 -
1173 KW 1.98 2.02 2.08 - 2.13 2.17 2.24 - 2.25 2.30 2.37 - 2.37 2.42 2.49 - 2.46 2.52 2.60 - 2.55 2.60 2.68 -
AMPS 7.8 7.9 8.2 - 8.3 8.5 8.8 - 9.0 9.2 9.5 - 9.6 9.8 10.2 - 10.2 10.5 10.8 - 10.8 11.1 11.4 -
HI PR 229 246 260 - 257 276 292 - 292 314 332 - 333 358 378 - 374 403 425 - 413 445 470 -
LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 134 142 155 -
MBh 27.0 28.0 30.7 - 26.4 27.4 30.0 - 25.8 26.7 29.3 - 25.1 26.1 28.5 - 23.9 24.7 27.1 - 22.1 22.9 25.1 -
S/T 0.73 0.61 0.42 - 0.75 0.63 0.44 - 0.77 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.84 0.70 0.48 -
DT 17 15 11 - 17 15 11 - 17 15 11 - 18 15 12 - 17 15 11 - 16 14 11 -
70 1050 KW 1.97 2.01 2.07 - 2.12 2.16 2.22 - 2.24 2.29 2.36 - 2.35 2.40 2.48 - 2.45 2.50 2.58 - 2.53 2.59 2.67 -
AMPS 7.7 7.9 8.1 - 8.3 8.5 8.8 - 9.0 9.2 9.5 - 9.6 9.8 10.1 - 10.2 10.4 10.7 - 10.7 11.0 11.3 -
HI PR 227 245 258 - 255 274 290 - 290 312 330 - 330 355 375 - 372 400 422 - 411 442 467 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 25.7 26.6 29.1 - 25.1 26.0 28.5 - 24.5 25.4 27.8 - 23.9 24.7 27.1 - 22.7 23.5 25.8 - 21.0 21.8 23.9 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
DT 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 15 12 - 17 14 11 -
927 KW 1.94 1.98 2.04 - 2.08 2.13 2.19 - 2.21 2.25 2.32 - 2.32 2.37 2.44 - 2.41 2.46 2.54 - 2.49 2.54 2.62 -
AMPS 7.6 7.8 8.0 - 8.2 8.3 8.6 - 8.8 9.0 9.3 - 9.4 9.6 9.9 - 10.0 10.2 10.5 - 10.5 10.8 11.1 -
HI PR 223 240 253 - 250 269 284 - 284 306 323 - 324 348 368 - 364 392 414 - 402 433 457 -
LO PR 104 111 121 - 110 117 128 - 114 121 133 - 120 128 139 - 126 134 146 - 130 138 151 -
MBh 27.9 28.7 31.1 33.4 27.2 28.0 30.4 32.6 26.6 27.4 29.6 31.8 25.9 26.7 28.9 31.0 24.6 25.4 27.5 29.5 22.8 23.5 25.4 27.3
S/T 0.86 0.77 0.59 0.38 0.90 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.98 0.88 0.67 0.43 0.99 0.89 0.67 0.43
DT 19 17 14 10 19 18 14 10 19 18 14 10 19 18 15 10 19 17 14 10 18 16 13 9
1173 KW 2.00 2.04 2.10 2.16 2.14 2.19 2.25 2.33 2.27 2.32 2.39 2.47 2.39 2.44 2.51 2.59 2.48 2.54 2.62 2.70 2.57 2.62 2.71 2.79
AMPS7.88.08.28.58.48.68.99.29.1 9.3 9.610.09.7 9.9 10.3 10.6 10.3 10.5 10.9 11.3 10.9 11.2 11.5 11.9
HI PR 231 249 263 274 259 279 295 307 295 317 335 350 336 362 382 398 378 407 430 448 418 449 475 495
LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 144 157 167
MBh 27.5 28.3 30.6 32.9 26.8 27.6 29.9 32.1 26.2 27.0 29.2 31.3 25.6 26.3 28.5 30.6 24.3 25.0 27.1 29.0 22.5 23.2 25.1 26.9
S/T 0.83 0.74 0.56 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.91 0.81 0.61 0.40 0.94 0.84 0.64 0.41 0.95 0.85 0.64 0.41
DT 20 18 15 10 20 19 15 10 20 19 15 11 20 19 15 11 20 18 15 10 19 17 14 10
75 1050 KW 1.99 2.03 2.09 2.15 2.13 2.18 2.24 2.31 2.26 2.31 2.38 2.45 2.37 2.42 2.50 2.58 2.47 2.52 2.60 2.69 2.55 2.61 2.69 2.78
AMPS7.88.08.28.58.48.68.89.19.1 9.3 9.69.99.6 9.9 10.2 10.6 10.2 10.5 10.8 11.2 10.8 11.1 11.4 11.9
HI PR 230 247 261 272 258 277 293 305 293 315 333 347 334 359 379 395 375 404 427 445 415 446 471 492
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
MBh 26.1 26.9 29.1 31.2 25.5 26.3 28.4 30.5 24.9 25.6 27.7 29.8 24.3 25.0 27.1 29.0 23.1 23.8 25.7 27.6 21.4 22.0 23.8 25.6
S/T 0.79 0.71 0.54 0.35 0.82 0.73 0.56 0.36 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.81 0.62 0.40
DT 21 19 15 11 21 19 16 11 21 19 16 11 21 19 16 11 21 19 16 11 19 18 15 10
927 KW 1.96 2.00 2.06 2.12 2.10 2.14 2.21 2.28 2.22 2.27 2.34 2.42 2.34 2.38 2.46 2.54 2.43 2.48 2.56 2.64 2.51 2.56 2.65 2.73
AMPS7.67.88.18.38.28.48.79.08.9 9.1 9.49.79.5 9.7 10.0 10.4 10.1 10.3 10.6 11.0 10.6 10.9 11.2 11.6
HI PR 225 242 256 267 252 272 287 299 287 309 326 340 327 352 372 388 368 396 418 436 406 437 462 482
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
16
COOLING PERFORMANCE DATA G/VSZ130301A*
MODEL: G/VSZ130301A* / AR*F30301** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 67715963 67 715963677159636771
MBh 28.429.031.033.127.728.330.332.427.1 27.7 29.531.626.4 27.0 28.830.825.125.627.429.323.223.725.427.1
S/T 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 0.98 0.79 0.59 1.00 1.00 0.82 0.62 1.00 1.00 0.83 0.62
DT 21 20 18 14 21 20 18 14 21 20 18 14 21 21 18 14 20 20 18 14 18 19 17 13
1173 KW 2.01 2.05 2.12 2.18 2.16 2.20 2.27 2.34 2.29 2.34 2.41 2.49 2.41 2.46 2.53 2.62 2.50 2.56 2.64 2.72 2.59 2.64 2.73 2.82
AMPS 7.9 8.1 8.3 8.6 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.1 9.8 10.0 10.3 10.7 10.4 10.6 11.0 11.4 11.0 11.3 11.6 12.0
HI PR 234 251 265 277 262 282 298 311 298 321 339 353 339 365 386 402 382 411 434 453 422 454 479 500
LO PR 109 116 127 135 115 123 134 142 120 127 139 148 126 134 146 156 132 140 153 163 136 145 158 169
MBh 28.0 28.6 30.5 32.6 27.3 27.9 29.8 31.9 26.7 27.2 29.1 31.1 26.0 26.6 28.4 30.4 24.7 25.3 27.0 28.8 22.9 23.4 25.0 26.7
S/T 0.91 0.85 0.69 0.52 0.94 0.88 0.72 0.54 0.96 0.90 0.74 0.55 1.00 0.93 0.76 0.57 1.00 0.97 0.79 0.59 1.00 0.98 0.80 0.59
DT 22 21 19 15 22 22 19 15 23 22 19 15 23 22 19 15 22 21 19 15 20 20 17 14
80 1050 KW 2.00 2.04 2.10 2.17 2.15 2.19 2.26 2.33 2.28 2.33 2.40 2.47 2.39 2.44 2.52 2.60 2.49 2.54 2.62 2.71 2.57 2.63 2.71 2.80
AMPS 7.8 8.0 8.3 8.6 8.4 8.6 8.9 9.2 9.1 9.3 9.6 10.0 9.7 10.0 10.3 10.7 10.3 10.6 10.9 11.3 10.9 11.2 11.5 12.0
HI PR 232 250 264 275 260 280 296 308 296 318 336 351 337 363 383 399 379 408 431 449 419 451 476 497
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 26.627.129.031.025.926.528.330.325.3 25.9 27.729.624.7 25.3 27.028.823.524.025.627.421.722.223.725.4
S/T 0.87 0.82 0.66 0.50 0.90 0.85 0.69 0.51 0.92 0.87 0.71 0.53 0.95 0.89 0.73 0.54 0.99 0.93 0.76 0.56 1.00 0.94 0.76 0.57
DT 23 22 19 15 23 22 19 15 23 22 19 15 23 22 19 16 23 22 19 15 22 21 18 14
927 KW 1.97 2.01 2.07 2.13 2.12 2.16 2.22 2.29 2.24 2.29 2.36 2.43 2.35 2.40 2.48 2.56 2.45 2.50 2.58 2.66 2.53 2.59 2.67 2.76
AMPS 7.7 7.9 8.1 8.4 8.3 8.5 8.8 9.1 9.0 9.2 9.5 9.8 9.6 9.8 10.1 10.5 10.2 10.4 10.7 11.1 10.7 11.0 11.3 11.8
HI PR 227 245 258 269 255 274 290 302 290 312 330 344 330 355 375 391 372 400 422 440 411 442 467 487
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
MBh 28.929.430.832.928.228.830.132.127.5 28.1 29.431.426.9 27.4 28.730.625.526.027.229.123.624.125.226.9
S/T 0.99 0.96 0.87 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.95 0.77 1.00 1.00 0.99 0.80 1.00 1.00 0.99 0.81
DT 22 22 21 18 22 22 21 18 22 22 21 18 21 21 21 18 20 20 21 18 19 19 20 17
1173 KW 2.03 2.07 2.13 2.20 2.18 2.22 2.29 2.36 2.31 2.36 2.43 2.51 2.42 2.48 2.55 2.64 2.52 2.58 2.66 2.75 2.61 2.66 2.75 2.84
AMPS 8.0 8.1 8.4 8.7 8.6 8.8 9.0 9.4 9.3 9.5 9.8 10.1 9.9 10.1 10.4 10.8 10.5 10.7 11.1 11.5 11.1 11.4 11.7 12.2
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 406 386 415 438 457 426 459 484 505
LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170
MBh 28.529.030.432.427.828.329.731.727.1 27.7 29.030.926.5 27.0 28.330.125.125.626.828.623.323.724.926.5
S/T 0.95 0.92 0.83 0.67 0.99 0.95 0.86 0.70 1.00 0.98 0.88 0.71 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.77 1.00 1.00 0.95 0.77
DT 24 23 22 19 24 24 22 19 24 24 22 19 23 24 22 19 22 22 22 19 20 21 21 18
85 1050 KW 2.02 2.06 2.12 2.19 2.17 2.21 2.28 2.35 2.30 2.34 2.42 2.49 2.41 2.46 2.54 2.62 2.51 2.56 2.64 2.73 2.59 2.65 2.74 2.82
AMPS 7.9 8.1 8.3 8.6 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.1 9.8 10.1 10.4 10.7 10.4 10.7 11.0 11.4 11.0 11.3 11.6 12.1
HI PR 234 252 266 278 263 283 299 311 299 322 340 354 340 366 387 403 383 412 435 454 423 455 481 502
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 27.027.628.930.826.426.928.230.125.8 26.3 27.529.425.1 25.6 26.828.623.924.425.527.222.122.623.625.2
S/T 0.91 0.88 0.79 0.64 0.94 0.91 0.82 0.67 0.97 0.93 0.84 0.68 1.00 0.96 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.91 0.74
DT 24 24 23 20 25 24 23 20 25 24 23 20 25 25 23 20 24 24 23 20 22 22 21 18
927 KW 1.99 2.03 2.09 2.15 2.13 2.18 2.24 2.31 2.26 2.31 2.38 2.45 2.37 2.42 2.50 2.58 2.47 2.52 2.60 2.69 2.55 2.61 2.69 2.78
AMPS 7.8 8.0 8.2 8.5 8.4 8.6 8.8 9.1 9.1 9.3 9.6 9.9 9.6 9.9 10.2 10.6 10.2 10.5 10.8 11.2 10.8 11.1 11.4 11.9
HI PR 230 247 261 272 258 277 293 305 293 315 333 347 334 359 379 395 375 404 426 445 415 446 471 491
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
17
COOLING PERFORMANCE DATA G/VSZ130361A*
MODEL: G/VSZ130361A* / AR*F364216** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 33.8 35.0 38.4 - 33.0 34.2 37.5 - 32.2 33.4 36.6 - 31.4 32.6 35.7 - 29.9 31.0 33.9 - 27.7 28.7 31.4 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.81 0.68 0.47 - 0.84 0.70 0.49 - 0.85 0.71 0.49 -
DT 16 14 11 - 16 14 11 - 16 14 11 - 16 14 11 - 16 14 11 - 15 13 10 -
1425 KW 2.60 2.65 2.73 - 2.79 2.84 2.92 - 2.95 3.01 3.10 - 3.09 3.15 3.25 - 3.21 3.28 3.38 - 3.32 3.38 3.49 -
AMPS 9.4 9.7 10.0 - 10.2 10.4 10.7 - 11.0 11.3 11.7 - 11.8 12.0 12.4 - 12.5 12.8 13.2 - 13.2 13.6 14.0 -
HI PR 239 257 272 - 268 289 305 - 305 328 347 - 347 374 395 - 391 421 444 - 432 465 491 -
LO PR 108 114 125 - 114 121 132 - 118 126 137 - 124 132 144 - 130 138 151 - 134 143 156 -
MBh 33.3 34.5 37.8 - 32.5 33.7 36.9 - 31.7 32.9 36.1 - 31.0 32.1 35.2 - 29.4 30.5 33.4 - 27.3 28.3 31.0 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
DT 17 15 11 - 17 15 11 - 17 15 11 - 17 15 11 - 17 15 11 - 16 14 11 -
70 1275 KW 2.59 2.64 2.72 - 2.77 2.83 2.91 - 2.93 2.99 3.08 - 3.07 3.14 3.23 - 3.19 3.26 3.36 - 3.30 3.37 3.47 -
AMPS 9.4 9.6 9.9 - 10.1 10.3 10.7 - 11.0 11.2 11.6 - 11.7 12.0 12.4 - 12.4 12.7 13.1 - 13.2 13.5 13.9 -
HI PR 237 255 270 - 266 287 303 - 303 326 344 - 345 371 392 - 388 418 441 - 429 461 487 -
LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 134 142 155 -
MBh 31.6 32.8 35.9 - 30.9 32.0 35.1 - 30.2 31.3 34.3 - 29.4 30.5 33.4 - 28.0 29.0 31.7 - 25.9 26.8 29.4 -
S/T 0.68 0.57 0.39 - 0.70 0.59 0.41 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.65 0.45 - 0.78 0.65 0.45 -
DT 18 15 12 - 18 15 12 - 18 15 12 - 18 16 12 - 18 15 12 - 16 14 11 -
1125 KW 2.55 2.60 2.68 - 2.73 2.78 2.87 - 2.89 2.95 3.03 - 3.03 3.09 3.18 - 3.14 3.21 3.31 - 3.25 3.31 3.42 -
AMPS 9.2 9.4 9.7 - 9.9 10.2 10.5 - 10.8 11.0 11.4 - 11.5 11.8 12.1 - 12.2 12.5 12.9 - 12.9 13.2 13.7 -
HI PR 233 250 264 - 261 281 297 - 297 319 337 - 338 364 384 - 380 409 432 - 420 452 478 -
LO PR 105 111 122 - 111 118 128 - 115 122 133 - 121 128 140 - 127 135 147 - 131 139 152 -
MBh 34.4 35.4 38.3 41.1 33.6 34.6 37.4 40.2 32.8 33.7 36.5 39.2 32.0 32.9 35.6 38.2 30.4 31.3 33.8 36.3 28.1 29.0 31.4 33.7
S/T 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.89 0.80 0.61 0.39 0.92 0.83 0.62 0.40 0.96 0.86 0.65 0.42 0.97 0.86 0.65 0.42
DT 19 17 14 10 19 17 14 10 19 17 14 10 19 18 14 10 19 17 14 10 18 16 13 9
1425 KW 2.62 2.67 2.75 2.83 2.81 2.86 2.95 3.04 2.97 3.03 3.12 3.22 3.11 3.18 3.28 3.38 3.24 3.30 3.41 3.51 3.34 3.41 3.52 3.63
AMPS 9.5 9.7 10.0 10.4 10.3 10.5 10.8 11.2 11.1 11.4 11.8 12.2 11.9 12.2 12.6 13.0 12.6 12.9 13.3 13.8 13.4 13.7 14.1 14.7
HI PR 241 260 274 286 271 292 308 321 308 332 350 365 351 378 399 416 395 425 449 468 436 469 496 517
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 153 162 136 145 158 168
MBh 33.9 34.9 37.7 40.5 33.1 34.1 36.9 39.6 32.3 33.2 36.0 38.6 31.5 32.4 35.1 37.7 29.9 30.8 33.3 35.8 27.7 28.5 30.9 33.2
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
DT 20 18 15 10 20 18 15 10 20 18 15 10 20 18 15 10 20 18 15 10 18 17 14 10
75 1275 KW 2.61 2.66 2.74 2.82 2.79 2.85 2.93 3.02 2.95 3.01 3.10 3.20 3.10 3.16 3.26 3.36 3.22 3.29 3.39 3.49 3.32 3.39 3.50 3.61
AMPS 9.5 9.7 10.0 10.3 10.2 10.4 10.8 11.2 11.1 11.3 11.7 12.1 11.8 12.1 12.5 12.9 12.5 12.8 13.3 13.8 13.3 13.6 14.0 14.6
HI PR 240 258 272 284 269 290 306 319 306 329 348 363 348 375 396 413 392 422 446 465 433 466 492 513
LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 144 157 167
MBh 32.2 33.1 35.9 38.5 31.4 32.4 35.0 37.6 30.7 31.6 34.2 36.7 29.9 30.8 33.3 35.8 28.4 29.3 31.7 34.0 26.3 27.1 29.3 31.5
S/T 0.77 0.69 0.52 0.34 0.80 0.72 0.54 0.35 0.82 0.73 0.56 0.36 0.85 0.76 0.57 0.37 0.88 0.79 0.59 0.38 0.89 0.79 0.60 0.39
DT 20 19 15 11 21 19 15 11 21 19 16 11 21 19 16 11 20 19 15 11 19 18 14 10
1125 KW 2.57 2.62 2.70 2.77 2.75 2.81 2.89 2.97 2.91 2.97 3.06 3.15 3.05 3.11 3.21 3.31 3.17 3.23 3.33 3.44 3.27 3.34 3.44 3.55
AMPS 9.3 9.5 9.8 10.2 10.0 10.3 10.6 11.0 10.9 11.1 11.5 11.9 11.6 11.9 12.3 12.7 12.3 12.6 13.0 13.5 13.0 13.3 13.8 14.3
HI PR 235 253 267 278 264 284 300 312 300 323 341 355 342 368 388 405 384 413 437 455 424 457 482 503
LO PR 106 112 123 131 112 119 130 138 116 124 135 144 122 130 142 151 128 136 148 158 132 141 154 164
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fa
n
High and low pressures are measured at the liquid and suction service valves.
18
COOLING PERFORMANCE DATA G/VSZ130361A*
MODEL: G/VSZ130361A* / AR*F364216** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 59 63 6771 59 6367 71 59 63 677159 63 67 715963677159636771
MBh 34.98 35.75 38.19 40.82 34.17 34.91 37.30 39.88 33.35 34.08 36.41 38.93 32.54 33.25 35.53 37.98 30.91 31.59 33.75 36.08 28.64 29.26 31.26 33.42
S/T 0.92 0.87 0.70 0.53 0.96 0.90 0.73 0.55 0.98 0.92 0.75 0.56 1.00 0.95 0.77 0.58 1.00 1.00 0.80 0.60 1.00 1.00 0.81 0.60
DT 21 20 17 14 21 20 18 14 21 20 18 14 21 20 18 14 20 20 17 14 18 19 16 13
1425 KW 2.64 2.69 2.77 2.85 2.83 2.88 2.97 3.06 2.99 3.05 3.15 3.24 3.14 3.20 3.30 3.40 3.26 3.33 3.43 3.54 3.37 3.44 3.55 3.66
AMPS 9.6 9.8 10.1 10.5 10.4 10.6 10.9 11.3 11.2 11.5 11.9 12.3 12.0 12.3 12.7 13.1 12.7 13.0 13.5 14.0 13.5 13.8 14.3 14.8
HI PR 244 262 277 289 274 294 311 324 311 335 354 369 354 381 403 420 399 429 453 473 441 474 501 522
LO PR 110 117 127 136 116 123 135 143 121 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
MBh 34.5 35.2 37.6 40.2 33.7 34.4 36.8 39.3 32.9 33.6 35.9 38.4 32.1 32.8 35.0 37.4 30.5 31.1 33.3 35.5 28.2 28.8 30.8 32.9
S/T 0.88 0.83 0.67 0.50 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58
DT 22 21 18 15 22 21 19 15 22 21 19 15 22 21 19 15 22 21 18 15 20 20 17 14
80 1275 KW 2.63 2.68 2.76 2.84 2.81 2.87 2.95 3.04 2.98 3.04 3.13 3.23 3.12 3.19 3.28 3.39 3.24 3.31 3.41 3.52 3.35 3.42 3.53 3.64
AMPS 9.5 9.8 10.1 10.4 10.3 10.5 10.9 11.3 11.2 11.4 11.8 12.2 11.9 12.2 12.6 13.1 12.7 13.0 13.4 13.9 13.4 13.7 14.2 14.7
HI PR 242 261 275 287 272 292 309 322 309 333 351 366 352 379 400 417 396 426 450 469 438 471 497 519
LO PR 109 116 127 135 115 123 134 142 120 127 139 148 126 134 146 155 132 140 153 163 136 145 158 169
MBh 32.7 33.5 35.7 38.2 32.0 32.7 34.9 37.3 31.2 31.9 34.1 36.4 30.5 31.1 33.3 35.5 28.9 29.6 31.6 33.8 26.8 27.4 29.3 31.3
S/T 0.85 0.79 0.65 0.48 0.88 0.82 0.67 0.50 0.90 0.84 0.69 0.51 0.93 0.87 0.71 0.53 0.96 0.90 0.74 0.55 0.97 0.91 0.74 0.55
DT 23 22 19 15 23 22 19 15 23 22 19 15 23 22 19 15 23 22 19 15 21 20 18 14
1125 KW 2.59 2.64 2.72 2.80 2.77 2.83 2.91 3.00 2.93 2.99 3.08 3.18 3.07 3.14 3.23 3.33 3.19 3.26 3.36 3.47 3.30 3.37 3.47 3.58
AMPS 9.4 9.6 9.9 10.3 10.1 10.3 10.7 11.1 11.0 11.2 11.6 12.0 11.7 12.0 12.4 12.8 12.4 12.7 13.1 13.6 13.2 13.5 13.9 14.4
HI PR 237 255 270 281 266 287 303 316 303 326 344 359 345 371 392 409 388 418 441 460 429 461 487 508
LO PR 107 114 124 132 113 120 131 140 117 125 136 145 123 131 143 152 129 137 150 160 134 142 155 165
MBh 35.59 36.28 38.00 40.54 34.76 35.44 37.11 39.60 33.94 34.59 36.23 38.65 33.11 33.75 35.35 37.71 31.45 32.06 33.58 35.82 29.14 29.70 31.11 33.19
S/T 0.97 0.93 0.84 0.68 1.00 0.97 0.87 0.71 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.78
DT 22 22 21 18 22 22 21 18 22 22 21 18 21 22 21 18 20 21 21 18 19 19 19 17
1425 KW 2.66 2.71 2.79 2.87 2.85 2.91 2.99 3.08 3.02 3.08 3.17 3.27 3.16 3.23 3.33 3.43 3.29 3.36 3.46 3.57 3.39 3.47 3.57 3.69
AMPS 9.7 9.9 10.2 10.6 10.4 10.7 11.0 11.4 11.3 11.6 12.0 12.4 12.1 12.4 12.8 13.3 12.9 13.2 13.6 14.1 13.6 13.9 14.4 14.9
HI PR 246 265 280 292 276 297 314 328 314 338 357 373 358 385 407 424 403 433 458 477 445 479 506 527
LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 148 158 134 143 156 166 139 147 161 171
MBh 35.1 35.7 37.4 39.9 34.3 34.9 36.6 39.0 33.4 34.1 35.7 38.1 32.6 33.3 34.8 37.2 31.0 31.6 33.1 35.3 28.7 29.3 30.6 32.7
S/T 0.93 0.89 0.81 0.65 0.96 0.93 0.84 0.68 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
DT 23 23 22 19 24 23 22 19 24 23 22 19 24 24 22 19 22 23 22 19 21 21 20 18
85 1275 KW 2.65 2.70 2.78 2.86 2.83 2.89 2.98 3.07 3.00 3.06 3.15 3.25 3.15 3.21 3.31 3.41 3.27 3.34 3.44 3.55 3.38 3.45 3.56 3.67
AMPS 9.6 9.9 10.2 10.5 10.4 10.6 11.0 11.4 11.3 11.5 11.9 12.3 12.0 12.3 12.7 13.2 12.8 13.1 13.5 14.0 13.5 13.8 14.3 14.8
HI PR 245 263 278 290 274 295 312 325 312 336 355 370 356 383 404 421 400 430 455 474 442 476 502 524
LO PR 110 117 128 136 116 124 135 144 121 129 140 150 127 135 147 157 133 142 155 165 138 146 160 170
MBh 33.3 34.0 35.6 37.9 32.5 33.2 34.7 37.1 31.8 32.4 33.9 36.2 31.0 31.6 33.1 35.3 29.4 30.0 31.4 33.5 27.3 27.8 29.1 31.1
S/T 0.89 0.86 0.77 0.63 0.92 0.89 0.80 0.65 0.94 0.91 0.82 0.67 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 0.98 0.89 0.72
DT 24 24 22 19 24 24 23 20 24 24 23 20 25 24 23 20 24 24 23 20 22 22 21 18
1125 KW 2.61 2.66 2.74 2.82 2.79 2.85 2.93 3.02 2.95 3.01 3.10 3.20 3.10 3.16 3.26 3.36 3.22 3.28 3.39 3.49 3.32 3.39 3.50 3.61
AMPS 9.5 9.7 10.0 10.3 10.2 10.4 10.8 11.2 11.1 11.3 11.7 12.1 11.8 12.1 12.5 12.9 12.5 12.8 13.3 13.8 13.3 13.6 14.0 14.6
HI PR 240 258 272 284 269 289 306 319 306 329 348 363 348 375 396 413 392 422 445 465 433 466 492 513
LO PR 108 115 125 133 114 121 132 141 118 126 138 147 124 132 145 154 130 139 151 161 135 143 157 167
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fa
High and low pressures are measured at the liquid and suction service valves.
19
COOLING PERFORMANCE DATA G/VSZ130361B*
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130361B* / AR*F364216** COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 34.3 35.5 38.9 - 33.5 34.7 38.0 - 32.7 33.9 37.1 - 31.9 33.1 36.2 - 30.3 31.4 34.4 - 28.1 29.1 31.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
°T 18 15 12 - 18 15 12 - 18 15 12 - 18 16 12 - 18 15 12 - 17 14 11 -
1350 KW 2.49 2.54 2.62 - 2.68 2.74 2.82 - 2.84 2.91 3.00 - 2.99 3.06 3.16 - 3.12 3.18 3.29 - 3.22 3.30 3.40 -
AMPS 8.6 8.8 9.1 - 9.3 9.5 9.8 - 10.1 10.3 10.7 - 10.8 11.0 11.4 - 11.5 11.7 12.1 - 12.1 12.4 12.8 -
HI PR 238 256 270 - 267 287 303 - 304 327 345 - 346 372 393 - 389 419 442 - 430 463 488 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 144 - 130 138 150 - 134 143 156 -
MBh 33.3 34.5 37.8 - 32.5 33.7 36.9 - 31.7 32.9 36.1 - 31.0 32.1 35.2 - 29.4 30.5 33.4 - 27.3 28.3 31.0 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
°T 18 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
70 1200 KW 2.47 2.52 2.60 - 2.66 2.71 2.80 - 2.82 2.88 2.97 - 2.97 3.03 3.13 - 3.09 3.16 3.26 - 3.20 3.27 3.38 -
AMPS 8.5 8.7 9.0 - 9.2 9.4 9.7 - 10.0 10.2 10.6 - 10.7 10.9 11.3 - 11.3 11.6 12.0 - 12.0 12.3 12.7 -
HI PR 236 253 268 - 264 284 300 - 301 323 342 - 342 368 389 - 385 414 438 - 426 458 484 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 30.7 31.9 34.9 - 30.0 31.1 34.1 - 29.3 30.4 33.3 - 28.6 29.6 32.5 - 27.2 28.2 30.8 - 25.2 26.1 28.6 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
°T 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 18 15 12 -
1050 KW 2.41 2.46 2.54 - 2.59 2.65 2.73 - 2.75 2.81 2.90 - 2.89 2.96 3.05 - 3.01 3.08 3.18 - 3.12 3.19 3.29 -
AMPS 8.3 8.5 8.8 - 9.0 9.2 9.5 - 9.7 10.0 10.3 - 10.4 10.6 11.0 - 11.0 11.3 11.7 - 11.7 12.0 12.4 -
HI PR 228 246 260 - 256 276 291 - 292 314 331 - 332 357 377 - 374 402 425 - 413 444 469 -
LO PR 103 109 120 - 109 116 126 - 113 120 131 - 119 126 138 - 124 132 144 - 129 137 149 -
MBh 34.88 35.91 38.87 41.72 34.07 35.08 37.97 40.75 33.26 34.24 37.06 39.78 32.45 33.41 36.16 38.81 30.82 31.74 34.35 36.87 28.55 29.40 31.82 34.15
S/T 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.91 0.81 0.62 0.40 0.94 0.84 0.64 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.67 0.43
°T201915112119161121191611211916112019151119181410
1350 KW 2.51 2.56 2.64 2.73 2.70 2.76 2.84 2.94 2.87 2.93 3.02 3.12 3.02 3.08 3.18 3.29 3.14 3.21 3.32 3.43 3.25 3.32 3.43 3.55
AMPS 8.7 8.9 9.2 9.5 9.4 9.6 9.9 10.3 10.2 10.4 10.8 11.2 10.9 11.1 11.5 11.9 11.6 11.8 12.2 12.7 12.2 12.5 13.0 13.4
HI PR 240 259 273 285 270 290 306 320 307 330 349 364 349 376 397 414 393 423 447 466 434 467 493 515
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 33.9 34.9 37.7 40.5 33.1 34.1 36.9 39.6 32.3 33.2 36.0 38.6 31.5 32.4 35.1 37.7 29.9 30.8 33.3 35.8 27.7 28.5 30.9 33.2
S/T 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
°T2120161121201611212016112220 16 11 21 20 16 11 20 18 15 10
75 1200 KW 2.49 2.54 2.62 2.70 2.68 2.74 2.82 2.91 2.85 2.91 3.00 3.10 2.99 3.06 3.16 3.26 3.12 3.19 3.29 3.40 3.22 3.30 3.40 3.52
AMPS 8.6 8.8 9.1 9.4 9.3 9.5 9.8 10.2 10.1 10.3 10.7 11.1 10.8 11.0 11.4 11.8 11.5 11.7 12.1 12.6 12.1 12.4 12.8 13.3
HI PR 238 256 270 282 267 287 303 316 304 327 345 360 346 372 393 410 389 419 442 461 430 463 489 510
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
MBh 31.3 32.2 34.8 37.4 30.5 31.4 34.0 36.5 29.8 30.7 33.2 35.6 29.1 29.9 32.4 34.8 27.6 28.4 30.8 33.0 25.6 26.3 28.5 30.6
S/T 0.79 0.70 0.53 0.34 0.82 0.73 0.55 0.36 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.90 0.81 0.61 0.39
°T222016112220161122201611222017112220161120191511
1050 KW 2.43 2.48 2.56 2.64 2.61 2.67 2.75 2.84 2.78 2.84 2.93 3.02 2.92 2.98 3.08 3.18 3.04 3.11 3.21 3.31 3.14 3.21 3.32 3.43
AMPS 8.4 8.6 8.9 9.2 9.0 9.3 9.6 9.9 9.8 10.0 10.4 10.8 10.5 10.7 11.1 11.5 11.1 11.4 11.8 12.2 11.8 12.1 12.5 13.0
HI PR 231 248 262 274 259 279 294 307 295 317 335 349 335 361 381 398 377 406 429 447 417 449 474 494
LO PR 104 111 121 129 110 117 128 136 114 121 133 141 120 128 139 148 126 134 146 155 130 138 151 161
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
20
COOLING PERFORMANCE DATA G/VSZ130361B*
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130361B* / AR*F364216** COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 35.50 36.27 38.75 41.43 34.67 35.43 37.85 40.46 33.85 34.59 36.95 39.50 33.02 33.74 36.05 38.54 31.37 32.06 34.25 36.61 29.06 29.69 31.72 33.91
S/T 0.94 0.88 0.72 0.54 1.00 0.91 0.74 0.56 1.00 0.94 0.76 0.57 1.00 0.97 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.82 0.62
°T232219152422191523221915222219152122191520201814
1350 KW 2.53 2.58 2.66 2.75 2.72 2.78 2.87 2.96 2.89 2.95 3.05 3.15 3.04 3.11 3.21 3.32 3.17 3.24 3.35 3.46 3.28 3.35 3.46 3.58
AMPS 8.8 9.0 9.3 9.6 9.5 9.7 10.0 10.4 10.3 10.5 10.9 11.3 11.0 11.2 11.6 12.0 11.7 12.0 12.3 12.8 12.4 12.7 13.1 13.6
HI PR 243 261 276 288 272 293 310 323 310 333 352 367 353 380 401 418 397 427 451 470 439 472 498 520
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 34.5 35.2 37.6 40.2 33.7 34.4 36.8 39.3 32.9 33.6 35.9 38.4 32.1 32.8 35.0 37.4 30.5 31.1 33.3 35.5 28.2 28.8 30.8 32.9
S/T 0.90 0.84 0.68 0.51 0.93 0.87 0.71 0.53 0.95 0.89 0.73 0.54 0.98 0.92 0.75 0.56 1.00 0.96 0.78 0.58 1.00 0.96 0.78 0.59
°T242320162423201624232016242320 16 23 23 20 16 22 21 19 15
80 1200 KW 2.51 2.56 2.64 2.73 2.70 2.76 2.85 2.94 2.87 2.93 3.02 3.12 3.02 3.08 3.18 3.29 3.14 3.21 3.32 3.43 3.25 3.32 3.43 3.55
AMPS 8.7 8.9 9.2 9.5 9.4 9.6 9.9 10.3 10.2 10.4 10.8 11.2 10.9 11.1 11.5 11.9 11.6 11.8 12.2 12.7 12.2 12.5 13.0 13.4
HI PR 240 259 273 285 270 290 306 320 307 330 349 364 349 376 397 414 393 423 447 466 434 467 493 515
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 31.8 32.5 34.7 37.1 31.1 31.7 33.9 36.3 30.3 31.0 33.1 35.4 29.6 30.2 32.3 34.5 28.1 28.7 30.7 32.8 26.0 26.6 28.4 30.4
S/T 0.86 0.81 0.66 0.49 0.89 0.84 0.68 0.51 0.92 0.86 0.70 0.52 0.95 0.89 0.72 0.54 0.98 0.92 0.75 0.56 0.99 0.93 0.76 0.57
°T242320162423201624232016252420162423201623221915
1050 KW 2.45 2.50 2.58 2.66 2.64 2.69 2.78 2.87 2.80 2.86 2.95 3.05 2.94 3.01 3.10 3.21 3.06 3.13 3.23 3.34 3.17 3.24 3.35 3.46
AMPS 8.5 8.7 8.9 9.3 9.1 9.3 9.6 10.0 9.9 10.1 10.5 10.9 10.6 10.8 11.2 11.6 11.2 11.5 11.9 12.3 11.9 12.2 12.6 13.1
HI PR 233 251 265 276 262 282 297 310 298 320 338 353 339 365 385 402 381 410 433 452 421 453 479 499
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
MBh 36.12 36.82 38.56 41.14 35.28 35.96 37.66 40.18 34.44 35.11 36.77 39.22 33.60 34.25 35.87 38.27 31.92 32.54 34.08 36.35 29.57 30.14 31.57 33.68
S/T 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.91 0.74 1.00 1.00 0.94 0.76 1.00 1.00 0.98 0.79 1.00 1.00 0.98 0.80
°T242423192424232023242320232323202222232020212118
1350 KW 2.55 2.60 2.68 2.77 2.74 2.80 2.89 2.99 2.91 2.98 3.07 3.18 3.07 3.13 3.24 3.34 3.20 3.27 3.37 3.49 3.31 3.38 3.49 3.61
AMPS 8.8 9.1 9.3 9.7 9.5 9.8 10.1 10.5 10.4 10.6 11.0 11.4 11.1 11.3 11.7 12.2 11.8 12.1 12.5 12.9 12.5 12.8 13.2 13.7
HI PR 245 264 279 291 275 296 313 326 313 337 356 371 356 384 405 422 401 431 456 475 443 477 503 525
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 158 133 142 155 165 138 147 160 171
MBh 35.1 35.7 37.4 39.9 34.3 34.9 36.6 39.0 33.4 34.1 35.7 38.1 32.6 33.3 34.8 37.2 31.0 31.6 33.1 35.3 28.7 29.3 30.6 32.7
S/T 0.94 0.91 0.82 0.66 0.97 0.94 0.85 0.69 1.00 0.96 0.87 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.93 0.76 1.00 1.00 0.94 0.76
°T252523202625242126252421252524212424242022222219
85 1200 KW 2.53 2.58 2.66 2.75 2.72 2.78 2.87 2.96 2.89 2.95 3.05 3.15 3.04 3.11 3.21 3.32 3.17 3.24 3.35 3.46 3.28 3.35 3.46 3.58
AMPS 8.8 9.0 9.3 9.6 9.5 9.7 10.0 10.4 10.3 10.5 10.9 11.3 11.0 11.2 11.6 12.0 11.7 12.0 12.3 12.8 12.4 12.7 13.1 13.6
HI PR 243 261 276 288 272 293 310 323 310 333 352 367 353 380 401 418 397 427 451 470 439 472 498 520
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 32.4 33.0 34.6 36.9 31.6 32.2 33.8 36.0 30.9 31.5 32.9 35.1 30.1 30.7 32.1 34.3 28.6 29.2 30.5 32.6 26.5 27.0 28.3 30.2
S/T 0.91 0.87 0.79 0.64 0.94 0.91 0.82 0.66 0.96 0.93 0.84 0.68 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.91 0.73
°T262524212626242126262421262624212525242123242219
1050 KW 2.47 2.52 2.60 2.68 2.66 2.71 2.80 2.89 2.82 2.88 2.97 3.07 2.97 3.03 3.13 3.23 3.09 3.16 3.26 3.37 3.20 3.27 3.38 3.49
AMPS 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.1 10.0 10.2 10.6 11.0 10.7 10.9 11.3 11.7 11.3 11.6 12.0 12.5 12.0 12.3 12.7 13.2
HI PR 235 253 268 279 264 284 300 313 301 323 341 356 342 368 389 406 385 414 438 456 425 458 483 504
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
Shaded area is ARI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
21
COOLING PERFORMANCE DATA GZ130363A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130363A* / AR*F364216** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 33.8 35.0 38.4 - 33.0 34.2 37.5 - 32.2 33.4 36.6 - 31.4 32.6 35.7 - 29.9 31.0 33.9 - 27.7 28.7 31.4 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.45 - 0.80 0.67 0.47 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
1425 DT 17 14 11 - 17 14 11 - 17 14 11 - 17 15 11 - 17 14 11 - 16 13 10 -
KW 2.52 2.57 2.65 - 2.70 2.76 2.84 - 2.86 2.92 3.01 - 3.01 3.07 3.17 - 3.13 3.19 3.30 - 3.23 3.30 3.41 -
AMPS 6.6 6.8 7.0 - 7.1 7.3 7.5 - 7.7 7.9 8.1 - 8.2 8.4 8.6 - 8.7 8.9 9.2 - 9.2 9.4 9.7 -
HI PR 238 256 270 - 267 287 303 - 303 327 345 - 346 372 393 - 389 418 442 - 430 462 488 -
LO PR 107 114 124 - 113 120 131 - 117 125 136 - 123 131 143 - 129 137 150 - 134 142 155 -
MBh 33.3 34.5 37.8 - 32.5 33.7 36.9 - 31.7 32.9 36.1 - 31.0 32.1 35.2 - 29.4 30.5 33.4 - 27.3 28.3 31.0 -
S/T 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.80 0.66 0.46 - 0.83 0.69 0.48 - 0.83 0.70 0.48 -
70 1275 DT 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 16 14 11 -
KW 2.51 2.56 2.63 - 2.69 2.74 2.83 - 2.85 2.91 3.00 - 2.99 3.05 3.15 - 3.11 3.18 3.28 - 3.21 3.28 3.39 -
AMPS 6.6 6.8 7.0 - 7.1 7.3 7.5 - 7.7 7.8 8.1 - 8.1 8.3 8.6 - 8.6 8.8 9.1 - 9.1 9.3 9.6 -
HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 416 439 - 427 459 485 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 31.6 32.8 35.9 - 30.9 32.0 35.1 - 30.2 31.3 34.3 - 29.4 30.5 33.4 - 28.0 29.0 31.7 - 25.9 26.8 29.4 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
1125 DT 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
KW 2.47 2.52 2.59 - 2.65 2.70 2.78 - 2.81 2.86 2.95 - 2.94 3.01 3.10 - 3.06 3.13 3.22 - 3.16 3.23 3.33 -
AMPS 6.5 6.6 6.8 - 7.0 7.1 7.3 - 7.5 7.7 7.9 - 8.0 8.2 8.4 - 8.5 8.7 8.9 - 9.0 9.2 9.4 -
HI PR 231 249 263 - 260 279 295 - 295 318 336 - 336 362 382 - 378 407 430 - 418 450 475 -
LO PR 104 111 121 - 110 117 128 - 114 121 133 - 120 128 139 - 126 134 146 - 130 138 151 -
MBh 34.37 35.39 38.30 41.11 33.57 34.56 37.41 40.15 32.77 33.74 36.52 39.20 31.97 32.92 35.63 38.24 30.37 31.27 33.85 36.33 28.14 28.97 31.36 33.65
S/T 0.860.770.580.370.890.800.600.390.910.820.620.400.940.84 0.64 0.41 0.98 0.88 0.66 0.43 0.99 0.88 0.67 0.43
1425 DT 19 18 14 10 19 18 15 10 19 18 15 10 19 18 15 10 19 18 14 10 18 17 14 9.3
KW 2.54 2.59 2.67 2.7 2.72 2.78 2.87 3.0 2.89 2.95 3.04 3.1 3.03 3.10 3.19 3.3 3.15 3.22 3.32 3.4 3.26 3.33 3.43 3.5
AMPS 6.7 6.9 7.1 7.3 7.2 7.4 7.6 7.8 7.8 7.9 8.2 8.5 8.3 8.5 8.7 9.0 8.8 9.0 9.2 9.6 9.2 9.5 9.8 10.1
HI PR 240 259 273 284.7 270 290 306 319.5 307 330 348 363.4 349 376 397 413.8 393 423 446 465.6 434 467 493 514.4
LO PR 108 115 125 133.5 114 121 132 141.0 118 126 138 146.6 124 132 145 154.0 130 139 151 161.3 135 144 157 166.9
MBh 33.934.937.740.533.134.136.939.632.333.236.038.631.532.435.137.729.930.833.335.827.728.530.933.2
S/T 0.82 0.74 0.56 0.4 0.85 0.76 0.58 0.4 0.88 0.78 0.59 0.4 0.90 0.81 0.61 0.4 0.94 0.84 0.64 0.4 0.95 0.85 0.64 0.4
75 1275 DT 20 19 15 10 20 19 15 11 20 19 15 11 21 19 15 11 20 19 15 11 19 17 14 9.9
KW 2.53 2.58 2.65 2.7 2.71 2.77 2.85 2.9 2.87 2.93 3.02 3.1 3.01 3.08 3.17 3.3 3.14 3.20 3.30 3.4 3.24 3.31 3.42 3.5
AMPS 6.7 6.8 7.0 7.3 7.2 7.3 7.5 7.8 7.7 7.9 8.1 8.4 8.2 8.4 8.7 9.0 8.7 8.9 9.2 9.5 9.2 9.4 9.7 10.1
HI PR 239 257 271 282.7 268 288 304 317.3 304 328 346 360.8 347 373 394 411.0 390 420 443 462.3 431 464 490 510.8
LO PR 107 114 124 132.5 113 120 131 140.0 118 125 137 145.5 124 131 144 152.9 130 138 150 160.2 134 143 156 165.7
MBh 32.233.135.938.531.432.435.037.630.731.634.236.729.930.833.335.828.429.331.734.026.327.129.331.5
S/T 0.79 0.71 0.53 0.3 0.82 0.73 0.55 0.4 0.84 0.75 0.57 0.4 0.87 0.77 0.59 0.4 0.90 0.80 0.61 0.4 0.91 0.81 0.61 0.4
1125 DT 21 19 16 11 21 19 16 11 21 19 16 11 21 20 16 11 21 19 16 11 20 18 15 10.2
KW 2.49 2.54 2.61 2.7 2.67 2.72 2.81 2.9 2.83 2.89 2.97 3.1 2.97 3.03 3.12 3.2 3.09 3.15 3.25 3.4 3.19 3.26 3.36 3.5
AMPS 6.6 6.7 6.9 7.1 7.0 7.2 7.4 7.7 7.6 7.8 8.0 8.3 8.1 8.3 8.5 8.8 8.6 8.8 9.0 9.3 9.0 9.2 9.5 9.9
HI PR 234 252 266 277.1 262 282 298 310.9 298 321 339 353.6 340 366 386 402.7 382 411 434 453.1 422 455 480 500.6
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
22
COOLING PERFORMANCE DATA GZ130363A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130363A* / AR*F364216** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 34.98 35.75 38.19 40.82 34.17 34.91 37.30 39.88 33.35 34.08 36.41 38.93 32.54 33.25 35.53 37.98 30.91 31.59 33.75 36.08 28.64 29.26 31.26 33.42
S/T 0.940.890.720.540.980.920.750.561.000.940.770.571.000.970.790.591.001.000.820.611.001.000.830.62
1425 DT 21 20 18 14 22 21 18 14 22 21 18 14 21 21 18 14 20 20 18 14 18 19 17 13.3
KW 2.56 2.61 2.69 2.8 2.75 2.80 2.89 3.0 2.91 2.97 3.06 3.2 3.06 3.12 3.22 3.3 3.18 3.25 3.35 3.5 3.29 3.36 3.46 3.6
AMPS 6.8 6.9 7.1 7.4 7.3 7.4 7.6 7.9 7.8 8.0 8.3 8.6 8.3 8.5 8.8 9.1 8.8 9.0 9.3 9.7 9.3 9.5 9.8 10.2
HI PR 243 261 276 287.6 272 293 309 322.7 310 333 352 367.0 353 380 401 418.0 397 427 451 470.3 438 472 498 519.6
LO PR 109 116 127 134.8 115 123 134 142.4 120 127 139 148.0 126 134 146 155.5 132 140 153 163.0 136 145 158 168.6
MBh 34.535.237.640.233.734.436.839.332.933.635.938.432.132.835.037.430.531.133.335.528.228.830.832.9
S/T 0.90 0.85 0.69 0.5 0.94 0.88 0.72 0.5 0.96 0.90 0.73 0.5 0.99 0.93 0.76 0.6 1.00 0.97 0.79 0.6 1.00 0.97 0.79 0.6
80 1275 DT 22 22 19 15 23 22 19 15 23 22 19 15 23 22 19 15 22 22 19 15 20 20 18 14.1
KW 2.55 2.60 2.67 2.8 2.73 2.79 2.87 3.0 2.89 2.95 3.05 3.1 3.04 3.10 3.20 3.3 3.16 3.23 3.33 3.4 3.27 3.34 3.44 3.6
AMPS 6.7 6.9 7.1 7.3 7.2 7.4 7.6 7.9 7.8 8.0 8.2 8.5 8.3 8.5 8.7 9.0 8.8 9.0 9.3 9.6 9.3 9.5 9.8 10.1
HI PR 241 259 274 285.6 270 291 307 320.5 308 331 349 364.5 350 377 398 415.1 394 424 448 467.0 435 468 495 516.0
LO PR 108 115 126 133.9 114 122 133 141.5 119 126 138 147.0 125 133 145 154.4 131 139 152 161.8 135 144 157 167.4
MBh 32.733.535.738.232.032.734.937.331.231.934.136.430.531.133.335.528.929.631.633.826.827.429.331.3
S/T 0.87 0.81 0.66 0.5 0.90 0.84 0.69 0.5 0.92 0.86 0.70 0.5 0.95 0.89 0.73 0.5 0.99 0.92 0.75 0.6 0.99 0.93 0.76 0.6
1125 DT 23 22 19 15 23 22 20 16 23 23 20 16 24 23 20 16 23 22 19 16 22 21 18 14.5
KW 2.51 2.56 2.63 2.7 2.69 2.74 2.83 2.9 2.85 2.91 3.00 3.1 2.99 3.05 3.15 3.2 3.11 3.18 3.28 3.4 3.21 3.28 3.39 3.5
AMPS 6.6 6.8 7.0 7.2 7.1 7.3 7.5 7.7 7.7 7.8 8.1 8.4 8.1 8.3 8.6 8.9 8.6 8.8 9.1 9.4 9.1 9.3 9.6 10.0
HI PR 236 254 268 279.9 265 285 301 314.1 301 324 342 357.2 343 369 390 406.8 386 416 439 457.7 427 459 485 505.7
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
MBh 35.59 36.28 38.00 40.54 34.76 35.44 37.11 39.60 33.94 34.59 36.23 38.65 33.11 33.75 35.35 37.71 31.45 32.06 33.58 35.82 29.14 29.70 31.11 33.19
S/T 0.990.960.860.701.000.990.890.721.001.000.920.741.001.000.950.771.001.000.980.801.001.000.990.80
1425 DT 23 22 21 18 22 23 21 19 22 22 21 19 21 22 22 19 20 21 21 18 19 19 20 17.2
KW 2.58 2.63 2.71 2.8 2.77 2.82 2.91 3.0 2.93 2.99 3.09 3.2 3.08 3.14 3.24 3.3 3.20 3.27 3.38 3.5 3.31 3.38 3.49 3.6
AMPS 6.8 7.0 7.2 7.4 7.3 7.5 7.7 8.0 7.9 8.1 8.3 8.6 8.4 8.6 8.9 9.2 8.9 9.1 9.4 9.7 9.4 9.6 9.9 10.3
HI PR 245 264 278 290.5 275 296 313 325.9 313 337 355 370.7 356 383 405 422.2 401 431 455 475.0 443 476 503 524.8
LO PR 110 117 128 136.2 116 124 135 143.9 121 129 140 149.5 127 135 147 157.1 133 142 155 164.6 138 146 160 170.3
MBh 35.135.737.439.934.334.936.639.033.434.135.738.132.633.334.837.231.031.633.135.328.729.330.632.7
S/T 0.95 0.91 0.83 0.7 0.98 0.95 0.86 0.7 1.00 0.97 0.88 0.7 1.00 1.00 0.91 0.7 1.00 1.00 0.94 0.8 1.00 1.00 0.95 0.8
85 1275 DT 24 24 22 19 24 24 23 20 24 24 23 20 24 24 23 20 22 23 22 19 21 21 21 18.1
KW 2.57 2.62 2.70 2.8 2.75 2.81 2.89 3.0 2.92 2.98 3.07 3.2 3.06 3.13 3.23 3.3 3.19 3.25 3.36 3.5 3.29 3.36 3.47 3.6
AMPS 6.8 6.9 7.1 7.4 7.3 7.4 7.7 7.9 7.9 8.0 8.3 8.6 8.4 8.5 8.8 9.1 8.9 9.1 9.3 9.7 9.4 9.6 9.9 10.2
HI PR 243 262 277 288.5 273 294 310 323.7 311 334 353 368.1 354 381 402 419.3 398 428 452 471.7 440 473 500 521.1
LO PR 109 116 127 135.2 116 123 134 142.9 120 128 139 148.5 126 134 146 156.0 132 141 153 163.5 137 145 159 169.1
MBh 33.334.035.637.932.533.234.737.131.832.433.936.231.031.633.135.329.430.031.433.527.327.829.131.1
S/T 0.91 0.88 0.79 0.6 0.94 0.91 0.82 0.7 0.96 0.93 0.84 0.7 1.00 0.96 0.87 0.7 1.00 1.00 0.90 0.7 1.00 1.00 0.91 0.7
1125 DT 25 24 23 20 25 25 23 20 25 25 23 20 25 25 23 20 24 24 23 20 22 23 22 18.7
KW 2.53 2.58 2.65 2.7 2.71 2.77 2.85 2.9 2.87 2.93 3.02 3.1 3.01 3.08 3.17 3.3 3.14 3.20 3.30 3.4 3.24 3.31 3.41 3.5
AMPS 6.7 6.8 7.0 7.3 7.2 7.3 7.5 7.8 7.7 7.9 8.1 8.4 8.2 8.4 8.7 9.0 8.7 8.9 9.2 9.5 9.2 9.4 9.7 10.0
HI PR 239 257 271 282.7 268 288 304 317.2 304 328 346 360.8 347 373 394 410.9 390 420 443 462.2 431 464 490 510.7
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
23
COOLING PERFORMANCE DATA G/VSZ130421A*
MODEL: G/VSZ130421A* / AR*F36421** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Tem perature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 39.7 41.1 45.1 - 38.8 40.2 44.0 - 37.8 39.2 43.0 - 36.9 38.3 41.9 - 35.1 36.4 39.8 - 32.5 33.7 36.9 -
S/T 0.74 0.62 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.85 0.71 0.49 - 0.85 0.71 0.49 -
DT 18 15 12 - 18 16 12 - 18 16 12 - 18 16 12 - 18 16 12 - 17 15 11 -
1519 KW 2.89 2.95 3.04 - 3.10 3.17 3.27 - 3.29 3.36 3.47 - 3.46 3.54 3.65 - 3.60 3.68 3.80 - 3.73 3.81 3.93 -
AMPS 10.3 10.5 10.9 - 11.1 11.4 11.8 - 12.1 12.4 12.8 - 13.0 13.3 13.8 - 13.8 14.2 14.7 - 14.7 15.1 15.6 -
HI PR 218 234 247 - 244 263 277 - 278 299 315 - 316 340 359 - 356 383 404 - 393 423 447 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 144 - 130 138 150 - 134 143 156 -
MBh 38.5 39.9 43.8 - 37.6 39.0 42.7 - 36.7 38.1 41.7 - 35.8 37.1 40.7 - 34.1 35.3 38.7 - 31.5 32.7 35.8 -
S/T 0.71 0.59 0.41 - 0.73 0.61 0.43 - 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.81 0.67 0.47 - 0.81 0.68 0.47 -
DT 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
70 1350 KW 2.87 2.93 3.02 - 3.08 3.14 3.24 - 3.27 3.34 3.44 - 3.43 3.51 3.62 - 3.57 3.65 3.77 - 3.70 3.78 3.90 -
AMPS 10.2 10.4 10.8 - 11.0 11.3 11.7 - 12.0 12.3 12.7 - 12.9 13.2 13.6 - 13.7 14.1 14.5 - 14.6 14.9 15.4 -
HI PR 215 232 245 - 242 260 275 - 275 296 312 - 313 337 356 - 352 379 400 - 389 419 442 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 35.6 36.9 40.4 - 34.7 36.0 39.4 - 33.9 35.1 38.5 - 33.1 34.3 37.6 - 31.4 32.6 35.7 - 29.1 30.2 33.1 -
S/T 0.68 0.57 0.40 - 0.71 0.59 0.41 - 0.73 0.61 0.42 - 0.75 0.63 0.43 - 0.78 0.65 0.45 - 0.78 0.66 0.45 -
DT 19 16 12 - 19 17 13 - 19 17 13 - 19 17 13 - 19 16 13 - 18 15 12 -
1181 KW 2.80 2.86 2.94 - 3.01 3.07 3.17 - 3.19 3.26 3.36 - 3.35 3.42 3.53 - 3.49 3.56 3.68 - 3.61 3.68 3.80 -
AMPS 9.9 10.1 10.5 - 10.7 11.0 11.3 - 11.7 12.0 12.4 - 12.5 12.8 13.2 - 13.3 13.7 14.1 - 14.1 14.5 15.0 -
HI PR 209 225 237 - 234 252 266 - 267 287 303 - 304 327 345 - 342 368 388 - 377 406 429 -
LO PR 103 109 120 - 109 116 126 - 113 120 131 - 119 126 138 - 124 132 144 - 129 137 149 -
MBh 40.4 41.6 45.0 48.3 39.4 40.6 43.9 47.2 38.5 39.6 42.9 46.0 37.5 38.7 41.8 44.9 35.7 36.7 39.7 42.7 33.0 34.0 36.8 39.5
S/T 0.84 0.76 0.57 0.37 0.88 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.96 0.86 0.65 0.42 0.97 0.87 0.66 0.42
DT 21 19 16 11 21 19 16 11 21 19 16 11 21 19 16 11 21 19 16 11 19 18 15 10
1519 KW 2.91 2.97 3.06 3.16 3.13 3.19 3.29 3.40 3.32 3.39 3.50 3.61 3.49 3.57 3.68 3.80 3.63 3.71 3.83 3.96 3.76 3.84 3.97 4.10
AMPS 10.4 10.6 11.0 11.4 11.2 11.5 11.9 12.4 12.2 12.5 13.0 13.5 13.1 13.4 13.9 14.4 14.0 14.3 14.8 15.4 14.8 15.2 15.7 16.4
HI PR 220 236 250 260 247 265 280 292 280 302 319 332 319 344 363 379 359 387 408 426 397 427 451 471
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 39.2 40.3 43.7 46.9 38.3 39.4 42.7 45.8 37.4 38.5 41.6 44.7 36.5 37.5 40.6 43.6 34.6 35.7 38.6 41.4 32.1 33.0 35.7 38.4
S/T 0.81 0.72 0.55 0.35 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.37 0.88 0.79 0.60 0.38 0.92 0.82 0.62 0.40 0.93 0.83 0.63 0.40
DT 22 20 16 11 22 20 16 11 22 20 16 11 22 20 17 11 22 20 16 11 20 19 15 11
75 1350 KW 2.89 2.95 3.04 3.13 3.10 3.17 3.27 3.37 3.29 3.36 3.47 3.58 3.46 3.54 3.65 3.77 3.60 3.68 3.80 3.93 3.73 3.81 3.93 4.06
AMPS 10.3 10.5 10.9 11.3 11.1 11.4 11.8 12.2 12.1 12.4 12.8 13.3 13.0 13.3 13.8 14.3 13.8 14.2 14.7 15.3 14.7 15.1 15.6 16.2
HI PR 218 234 247 258 244 263 277 289 278 299 316 329 316 340 359 375 356 383 404 422 393 423 447 466
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
MBh 36.2 37.2 40.3 43.3 35.3 36.4 39.4 42.3 34.5 35.5 38.4 41.2 33.6 34.6 37.5 40.2 32.0 32.9 35.6 38.2 29.6 30.5 33.0 35.4
S/T 0.78 0.69 0.53 0.34 0.81 0.72 0.55 0.35 0.83 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.88 0.79 0.60 0.39 0.89 0.80 0.60 0.39
DT 22 20 16 11 22 20 17 12 22 20 17 12 22 21 17 12 22 20 17 11 21 19 16 11
1181 KW 2.82 2.88 2.97 3.06 3.03 3.09 3.19 3.29 3.22 3.28 3.39 3.50 3.38 3.45 3.56 3.68 3.52 3.59 3.71 3.83 3.64 3.71 3.84 3.96
AMPS 10.0 10.2 10.6 11.0 10.8 11.1 11.5 11.9 11.8 12.1 12.5 13.0 12.6 12.9 13.4 13.9 13.4 13.8 14.3 14.8 14.3 14.6 15.1 15.7
HI PR 211 227 240 250 237 255 269 281 269 290 306 319 307 330 349 364 345 371 392 409 381 410 433 452
LO PR 104 111 121 129 110 117 128 136 114 121 133 141 120 128 139 148 126 134 146 155 130 138 151 161
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
24
COOLING PERFORMANCE DATA G/VSZ130421A*
MODEL: G/VSZ130421A* / AR*F36421** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Tem perature
IDB*Airflow 59 63 67 7159 63677159 63 677159 63 67 71 59 63 67 7159 63 6771
MBh 41.1 42.0 44.8 47.9 40.1 41.0 43.8 46.8 39.2 40.0 42.8 45.7 38.2 39.0 41.7 44.6 36.3 37.1 39.6 42.4 33.6 34.4 36.7 39.2
S/T 0.93 0.87 0.71 0.53 0.96 0.90 0.73 0.55 1.00 0.92 0.75 0.56 1.00 0.95 0.78 0.58 1.00 1.00 0.81 0.60 1.00 1.00 0.81 0.61
DT 23 22 19 15 23 22 19 16 24 22 19 16 23 23 20 16 22 22 19 15 20 21 18 14
1519 KW 2.93 3.00 3.09 3.18 3.15 3.22 3.32 3.43 3.35 3.42 3.53 3.64 3.52 3.59 3.71 3.83 3.66 3.74 3.87 3.99 3.79 3.87 4.00 4.13
AMPS 10.4 10.7 11.1 11.5 11.3 11.6 12.0 12.5 12.3 12.7 13.1 13.6 13.2 13.6 14.0 14.6 14.1 14.5 15.0 15.6 15.0 15.4 15.9 16.5
HI PR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 39.9 40.8 43.5 46.5 39.0 39.8 42.5 45.5 38.0 38.9 41.5 44.4 37.1 37.9 40.5 43.3 35.2 36.0 38.5 41.1 32.6 33.4 35.6 38.1
S/T 0.88 0.83 0.67 0.50 0.92 0.86 0.70 0.52 0.94 0.88 0.72 0.54 0.97 0.91 0.74 0.55 1.00 0.94 0.77 0.57 1.00 0.95 0.77 0.58
DT 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 22 22 19 15
80 1350 KW 2.91 2.97 3.06 3.16 3.13 3.19 3.29 3.40 3.32 3.39 3.50 3.61 3.49 3.57 3.68 3.80 3.63 3.71 3.83 3.96 3.76 3.84 3.97 4.10
AMPS 10.4 10.6 11.0 11.4 11.2 11.5 11.9 12.4 12.2 12.5 13.0 13.5 13.1 13.4 13.9 14.4 14.0 14.3 14.8 15.4 14.8 15.2 15.7 16.4
HI PR 220 237 250 260 247 265 280 292 280 302 319 332 319 344 363 379 359 387 408 426 397 427 451 471
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 36.8 37.6 40.2 43.0 36.0 36.7 39.3 42.0 35.1 35.9 38.3 41.0 34.2 35.0 37.4 40.0 32.5 33.2 35.5 38.0 30.1 30.8 32.9 35.2
S/T 0.85 0.80 0.65 0.49 0.88 0.83 0.67 0.50 0.91 0.85 0.69 0.52 0.93 0.88 0.71 0.53 0.97 0.91 0.74 0.55 0.98 0.92 0.75 0.56
DT 24 23 20 16 25 24 21 16 25 24 21 16 25 24 21 17 25 24 20 16 23 22 19 15
1181 KW 2.84 2.90 2.99 3.08 3.06 3.12 3.22 3.32 3.24 3.31 3.41 3.52 3.41 3.48 3.59 3.71 3.55 3.62 3.74 3.86 3.67 3.75 3.87 3.99
AMPS 10.1 10.3 10.7 11.1 10.9 11.2 11.6 12.0 11.9 12.2 12.6 13.1 12.7 13.1 13.5 14.0 13.6 13.9 14.4 15.0 14.4 14.8 15.3 15.9
HI PR 213 229 242 253 239 257 272 284 272 293 309 322 310 333 352 367 349 375 396 413 385 414 438 456
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
MBh 41.8 42.6 44.6 47.6 40.8 41.6 43.6 46.5 39.9 40.6 42.5 45.4 38.9 39.6 41.5 44.3 36.9 37.6 39.4 42.1 34.2 34.9 36.5 39.0
S/T 0.97 0.94 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.93 0.75 1.00 1.00 0.96 0.78 1.00 1.00 0.97 0.79
DT 25 24 23 20 25 24 23 20 24 24 23 20 24 24 23 20 22 23 23 20 21 21 21 19
1519 KW 2.96 3.02 3.11 3.21 3.18 3.25 3.35 3.45 3.37 3.45 3.56 3.67 3.55 3.62 3.74 3.86 3.69 3.77 3.90 4.03 3.82 3.90 4.03 4.17
AMPS 10.5 10.8 11.2 11.6 11.4 11.7 12.1 12.6 12.5 12.8 13.2 13.7 13.4 13.7 14.2 14.7 14.2 14.6 15.1 15.7 15.1 15.5 16.0 16.7
HI PR 224 241 255 266 252 271 286 298 286 308 325 339 326 351 370 386 367 395 417 434 405 436 460 480
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 158 133 142 155 165 138 147 160 171
MBh 40.6 41.4 43.3 46.2 39.6 40.4 42.3 45.1 38.7 39.4 41.3 44.1 37.7 38.5 40.3 43.0 35.9 36.6 38.3 40.8 33.2 33.9 35.5 37.8
S/T 0.93 0.89 0.81 0.65 0.96 0.93 0.84 0.68 0.98 0.95 0.86 0.70 1.00 0.98 0.89 0.72 1.00 1.00 0.92 0.75 1.00 1.00 0.93 0.75
DT 26 25 24 21 26 25 24 21 26 26 24 21 26 26 24 21 24 25 24 21 23 23 22 19
85 1350 KW 2.93 3.00 3.09 3.18 3.15 3.22 3.32 3.43 3.35 3.42 3.53 3.64 3.52 3.59 3.71 3.83 3.66 3.74 3.87 3.99 3.79 3.87 4.00 4.13
AMPS 10.4 10.7 11.1 11.5 11.3 11.6 12.0 12.5 12.3 12.7 13.1 13.6 13.2 13.6 14.0 14.6 14.1 14.5 15.0 15.6 15.0 15.4 15.9 16.5
HI PR 222 239 252 263 249 268 283 295 283 305 322 336 323 347 367 382 363 391 412 430 401 432 456 475
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 37.5 38.2 40.0 42.7 36.6 37.3 39.1 41.7 35.7 36.4 38.1 40.7 34.8 35.5 37.2 39.7 33.1 33.7 35.3 37.7 30.7 31.3 32.7 34.9
S/T 0.89 0.86 0.78 0.63 0.93 0.89 0.81 0.65 0.95 0.92 0.83 0.67 0.98 0.95 0.85 0.69 1.00 0.98 0.89 0.72 1.00 0.99 0.89 0.72
DT 26 26 24 21 26 26 25 21 26 26 25 21 27 26 25 21 26 26 24 21 24 24 23 20
1181 KW 2.87 2.93 3.01 3.11 3.08 3.14 3.24 3.34 3.27 3.34 3.44 3.55 3.43 3.51 3.62 3.74 3.57 3.65 3.77 3.89 3.70 3.78 3.90 4.03
AMPS 10.2 10.4 10.8 11.2 11.0 11.3 11.7 12.1 12.0 12.3 12.7 13.2 12.9 13.2 13.6 14.2 13.7 14.1 14.5 15.1 14.5 14.9 15.4 16.0
HI PR 215 232 245 255 242 260 275 286 275 296 312 326 313 337 356 371 352 379 400 417 389 419 442 461
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
25
COOLING PERFORMANCE DATA G/VSZ130481A*
MODEL: G/VSZ130481A* /AR*F48601** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 45.1 46.7 51.2 - 44.0 45.6 50.0 - 43.0 44.5 48.8 - 41.9 43.5 47.6 - 39.8 41.3 45.2 - 36.9 38.2 41.9 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
DT 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 16 14 11 -
1800 KW 3.33 3.39 3.48 - 3.55 3.62 3.72 - 3.75 3.82 3.93 - 3.92 4.00 4.12 - 4.07 4.15 4.28 - 4.20 4.28 4.41 -
AMPS 11.8 12.1 12.5 - 12.7 13.0 13.5 - 13.8 14.2 14.6 - 14.8 15.2 15.7 - 15.7 16.1 16.7 - 16.7 17.1 17.7 -
HI PR 234 252 266 - 262 282 298 - 298 321 339 - 340 366 386 - 382 411 434 - 422 454 480 -
LO PR 111 118 129 - 117 125 136 - 122 129 141 - 128 136 148 - 134 143 156 - 139 147 161 -
MBh 43.8 45.4 49.7 - 42.7 44.3 48.5 - 41.7 43.2 47.4 - 40.7 42.2 46.2 - 38.7 40.1 43.9 - 35.8 37.1 40.7 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
DT 18 16 12 - 18 16 12 - 18 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
70 1600 KW 3.31 3.37 3.46 - 3.53 3.59 3.70 - 3.72 3.79 3.90 - 3.89 3.97 4.09 - 4.04 4.12 4.24 - 4.17 4.25 4.38 -
AMPS 11.7 12.0 12.3 - 12.6 12.9 13.4 - 13.7 14.0 14.5 - 14.7 15.0 15.5 - 15.6 16.0 16.5 - 16.5 16.9 17.5 -
HI PR 231 249 263 - 260 279 295 - 295 318 336 - 336 362 382 - 378 407 430 - 418 450 475 -
LO PR 110 117 127 - 116 123 135 - 120 128 140 - 127 135 147 - 133 141 154 - 137 146 159 -
MBh 40.4 41.9 45.9 - 39.5 40.9 44.8 - 38.5 39.9 43.7 - 37.6 38.9 42.7 - 35.7 37.0 40.5 - 33.1 34.3 37.5 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
DT 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
1400 KW 3.24 3.30 3.39 - 3.45 3.52 3.62 - 3.64 3.71 3.82 - 3.81 3.88 4.00 - 3.95 4.03 4.15 - 4.07 4.15 4.28 -
AMPS 11.4 11.6 12.0 - 12.3 12.6 13.0 - 13.3 13.7 14.1 - 14.3 14.6 15.1 - 15.2 15.5 16.1 - 16.1 16.5 17.0 -
HI PR 224 242 255 - 252 271 286 - 286 308 326 - 326 351 371 - 367 395 417 - 406 436 461 -
LO PR 106 113 124 - 112 120 131 - 117 124 136 - 123 131 143 - 129 137 149 - 133 142 155 -
MBh 45.8 47.2 51.1 54.8 44.8 46.1 49.9 53.6 43.7 45.0 48.7 52.3 42.6 43.9 47.5 51.0 40.5 41.7 45.1 48.5 37.5 38.6 41.8 44.9
S/T 0.86 0.77 0.58 0.38 0.89 0.80 0.61 0.39 0.92 0.82 0.62 0.40 0.95 0.85 0.64 0.41 0.98 0.88 0.66 0.43 0.99 0.89 0.67 0.43
DT 20 19 15 11 20 19 15 11 20 19 15 11 21 19 16 11 20 19 15 11 19 17 14 10
1800 KW 3.35 3.41 3.51 3.61 3.58 3.65 3.75 3.86 3.78 3.85 3.96 4.08 3.95 4.03 4.15 4.27 4.10 4.18 4.31 4.44 4.23 4.32 4.45 4.58
AMPS 11.9 12.2 12.6 13.0 12.9 13.2 13.6 14.1 14.0 14.3 14.8 15.3 14.9 15.3 15.8 16.4 15.9 16.3 16.8 17.5 16.8 17.3 17.8 18.5
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506
LO PR 112 119 130 138 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173
MBh 44.5 45.8 49.6 53.2 43.5 44.8 48.4 52.0 42.4 43.7 47.3 50.8 41.4 42.6 46.1 49.5 39.3 40.5 43.8 47.0 36.4 37.5 40.6 43.6
S/T 0.82 0.74 0.56 0.36 0.85 0.76 0.58 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.84 0.64 0.41
DT 21 19 16 11 21 20 16 11 21 20 16 11 21 20 16 11 21 19 16 11 20 18 15 10
75 1600 KW 3.33 3.39 3.48 3.58 3.55 3.62 3.72 3.83 3.75 3.82 3.93 4.05 3.92 4.00 4.12 4.24 4.07 4.15 4.28 4.41 4.20 4.28 4.41 4.55
AMPS 11.8 12.1 12.5 12.9 12.7 13.0 13.5 14.0 13.8 14.2 14.6 15.2 14.8 15.2 15.7 16.3 15.7 16.1 16.7 17.3 16.7 17.1 17.7 18.4
HI PR 234 252 266 277 262 282 298 311 298 321 339 354 340 366 386 403 382 411 434 453 422 454 480 501
LO PR 111 118 129 137 117 125 136 145 122 129 141 151 128 136 149 158 134 143 156 166 139 147 161 171
MBh 41.1 42.3 45.8 49.1 40.1 41.3 44.7 48.0 39.2 40.3 43.7 46.8 38.2 39.3 42.6 45.7 36.3 37.4 40.5 43.4 33.6 34.6 37.5 40.2
S/T 0.79 0.71 0.54 0.35 0.82 0.74 0.56 0.36 0.84 0.75 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.81 0.61 0.39 0.91 0.81 0.62 0.40
DT 21 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 20 19 15 10
1400 KW 3.26 3.32 3.41 3.51 3.48 3.54 3.64 3.75 3.67 3.74 3.85 3.96 3.84 3.91 4.03 4.15 3.98 4.06 4.18 4.31 4.10 4.19 4.31 4.44
AMPS 11.5 11.7 12.1 12.6 12.4 12.7 13.1 13.6 13.5 13.8 14.2 14.8 14.4 14.7 15.2 15.8 15.3 15.7 16.2 16.8 16.2 16.6 17.2 17.8
HI PR 227 244 258 269 254 274 289 302 289 311 329 343 330 355 375 391 371 399 421 439 410 441 466 486
LO PR 108 114 125 133 114 121 132 141 118 126 137 146 124 132 144 153 130 138 151 161 134 143 156 166
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
26
COOLING PERFORMANCE DATA G/VSZ130481A*
MODEL: G/VSZ130481A* /AR*F48601** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB*Airflow 596367715963677159 63 677159 63 67 715963677159636771
MBh 46.7 47.7 50.9 54.4 45.6 46.6 49.7 53.2 44.5 45.5 48.6 51.9 43.4 44.3 47.4 50.6 41.2 42.1 45.0 48.1 38.2 39.0 41.7 44.6
S/T 0.95 0.89 0.72 0.54 1.00 0.92 0.75 0.56 1.00 0.94 0.77 0.57 1.00 1.00 0.79 0.59 1.00 1.00 0.82 0.61 1.00 1.00 0.83 0.62
DT 23 22 19 15 23 22 19 15 23 22 19 15 22 23 19 15 21 22 19 15 20 20 18 14
1800 KW 3.38 3.44 3.53 3.63 3.60 3.67 3.78 3.89 3.80 3.88 3.99 4.11 3.98 4.06 4.18 4.31 4.13 4.22 4.34 4.48 4.26 4.35 4.48 4.62
AMPS 12.0 12.3 12.7 13.2 13.0 13.3 13.7 14.2 14.1 14.4 14.9 15.5 15.1 15.4 16.0 16.6 16.0 16.4 17.0 17.6 17.0 17.4 18.0 18.7
HI PR 238 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511
LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175
MBh 45.3 46.3 49.5 52.9 44.2 45.2 48.3 51.6 43.2 44.1 47.2 50.4 42.1 43.1 46.0 49.2 40.0 40.9 43.7 46.7 37.1 37.9 40.5 43.3
S/T 0.90 0.85 0.69 0.51 0.94 0.88 0.71 0.53 0.96 0.90 0.73 0.55 0.99 0.93 0.76 0.56 1.00 0.96 0.78 0.59 1.00 0.97 0.79 0.59
DT 23 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 23 23 20 16 21 21 18 15
80 1600 KW 3.35 3.41 3.51 3.61 3.58 3.65 3.75 3.86 3.78 3.85 3.96 4.08 3.95 4.03 4.15 4.28 4.10 4.18 4.31 4.44 4.23 4.32 4.45 4.58
AMPS 11.9 12.2 12.6 13.0 12.9 13.2 13.6 14.1 14.0 14.3 14.8 15.3 14.9 15.3 15.8 16.4 15.9 16.3 16.8 17.5 16.8 17.3 17.8 18.5
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506
LO PR 112 119 130 139 118 126 137 146 123 131 143 152 129 137 150 160 135 144 157 167 140 149 163 173
MBh 41.8 42.7 45.6 48.8 40.8 41.7 44.6 47.7 39.9 40.7 43.5 46.5 38.9 39.7 42.5 45.4 36.9 37.8 40.3 43.1 34.2 35.0 37.4 39.9
S/T 0.87 0.82 0.66 0.50 0.90 0.85 0.69 0.51 0.92 0.87 0.71 0.53 0.95 0.90 0.73 0.54 0.99 0.93 0.76 0.57 1.00 0.94 0.76 0.57
DT 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 22 22 19 15
1400 KW 3.28 3.34 3.43 3.53 3.50 3.57 3.67 3.77 3.69 3.77 3.87 3.99 3.87 3.94 4.06 4.18 4.01 4.09 4.21 4.34 4.14 4.22 4.34 4.48
AMPS 11.6 11.8 12.2 12.7 12.5 12.8 13.2 13.7 13.6 13.9 14.4 14.9 14.5 14.9 15.4 16.0 15.5 15.8 16.4 17.0 16.4 16.8 17.3 18.0
HI PR 229 246 260 271 257 277 292 305 292 315 332 346 333 358 378 395 375 403 426 444 414 445 470 490
LO PR 109 116 126 134 115 122 133 142 119 127 139 148 125 133 146 155 131 140 152 162 136 144 158 168
MBh 47.5 48.4 50.7 54.1 46.4 47.3 49.5 52.8 45.3 46.1 48.3 51.6 44.2 45.0 47.1 50.3 42.0 42.8 44.8 47.8 38.9 39.6 41.5 44.3
S/T 0.99 0.96 0.86 0.70 1.00 0.99 0.90 0.73 1.00 1.00 0.92 0.74 1.00 1.00 0.95 0.77 1.00 1.00 0.98 0.80 1.00 1.00 0.99 0.80
DT 24 24 22 19 24 24 23 20 23 24 23 20 23 23 23 20 21 22 22 19 20 20 21 18
1800 KW 3.40 3.46 3.56 3.66 3.63 3.70 3.80 3.92 3.83 3.91 4.02 4.14 4.01 4.09 4.21 4.34 4.16 4.25 4.38 4.51 4.30 4.38 4.52 4.66
AMPS 12.1 12.4 12.8 13.3 13.1 13.4 13.9 14.4 14.2 14.6 15.1 15.6 15.2 15.6 16.1 16.7 16.2 16.6 17.1 17.8 17.2 17.6 18.2 18.9
HI PR 241 259 274 285 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516
LO PR 114 122 133 141 121 128 140 149 125 133 146 155 132 140 153 163 138 147 160 171 143 152 166 177
MBh 46.1 47.0 49.2 52.5 45.0 45.9 48.1 51.3 43.9 44.8 46.9 50.1 42.9 43.7 45.8 48.8 40.7 41.5 43.5 46.4 37.7 38.5 40.3 43.0
S/T 0.95 0.91 0.82 0.67 0.98 0.95 0.85 0.69 1.00 0.97 0.88 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.94 0.76 1.00 1.00 0.95 0.77
DT 25 25 23 20 25 25 24 20 25 25 24 20 25 25 24 21 23 24 23 20 22 22 22 19
85 1600 KW 3.38 3.44 3.53 3.63 3.60 3.67 3.78 3.89 3.80 3.88 3.99 4.11 3.98 4.06 4.18 4.31 4.13 4.22 4.34 4.48 4.26 4.35 4.48 4.62
AMPS 12.0 12.3 12.7 13.2 13.0 13.3 13.7 14.2 14.1 14.4 14.9 15.5 15.1 15.4 16.0 16.6 16.0 16.4 17.0 17.6 17.0 17.4 18.0 18.7
HI PR 238 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511
LO PR 113 120 131 140 119 127 139 148 124 132 144 154 130 139 152 161 137 145 159 169 141 150 164 175
MBh 42.5 43.4 45.4 48.5 41.5 42.4 44.4 47.3 40.6 41.3 43.3 46.2 39.6 40.3 42.2 45.1 37.6 38.3 40.1 42.8 34.8 35.5 37.2 39.7
S/T 0.91 0.88 0.79 0.64 0.95 0.91 0.82 0.67 0.97 0.94 0.84 0.68 1.00 0.97 0.87 0.71 1.00 1.00 0.90 0.73 1.00 1.00 0.91 0.74
DT 25 25 24 21 26 25 24 21 26 25 24 21 26 26 24 21 25 25 24 21 23 23 22 19
1400 KW 3.31 3.37 3.46 3.56 3.53 3.59 3.69 3.80 3.72 3.79 3.90 4.02 3.89 3.97 4.09 4.21 4.04 4.12 4.24 4.37 4.17 4.25 4.38 4.51
AMPS 11.7 12.0 12.3 12.8 12.6 12.9 13.3 13.8 13.7 14.0 14.5 15.1 14.7 15.0 15.5 16.1 15.6 16.0 16.5 17.1 16.5 16.9 17.5 18.2
HI PR 231 249 263 274 260 279 295 308 295 318 335 350 336 362 382 399 378 407 430 448 418 450 475 495
LO PR 110 117 127 136 116 123 135 143 120 128 140 149 127 135 147 157 133 141 154 164 137 146 159 170
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
27
COOLING PERFORMANCE DATA GSZ130483A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130483A* / AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 45.1 46.7 51.2 - 44.0 45.6 50.0 - 43.0 44.5 48.8 - 41.9 43.5 47.6 - 39.8 41.3 45.2 - 36.9 38.2 41.9 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
DT 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 16 14 11 -
1800 KW 3.26 3.32 3.42 - 3.49 3.55 3.66 - 3.69 3.76 3.88 - 3.87 3.95 4.07 - 4.02 4.10 4.23 - 4.15 4.24 4.37 -
AMPS 7.5 7.7 7.9 - 8.1 8.3 8.5 - 8.7 8.9 9.2 - 9.3 9.5 9.8 - 9.9 10.1 10.4 - 10.4 10.7 11.0 -
HI PR 239 257 271 - 268 288 304 - 304 328 346 - 347 373 394 - 390 420 443 - 431 464 490 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 144 - 130 138 150 - 134 143 156 -
MBh 43.8 45.4 49.7 - 42.7 44.3 48.5 - 41.7 43.2 47.4 - 40.7 42.2 46.2 - 38.7 40.1 43.9 - 35.8 37.1 40.7 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
DT 18 16 12 - 18 16 12 - 18 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
70 1600 KW 3.23 3.29 3.39 - 3.46 3.53 3.63 - 3.66 3.73 3.85 - 3.84 3.92 4.04 - 3.99 4.07 4.20 - 4.12 4.20 4.33 -
AMPS 7.4 7.6 7.8 - 8.0 8.2 8.4 - 8.7 8.9 9.1 - 9.2 9.4 9.7 - 9.8 10.0 10.3 - 10.3 10.6 10.9 -
HI PR 236 254 268 - 265 285 301 - 301 324 342 - 343 369 390 - 386 416 439 - 427 459 485 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 40.4 41.9 45.9 - 39.5 40.9 44.8 - 38.5 39.9 43.7 - 37.6 38.9 42.7 - 35.7 37.0 40.5 - 33.1 34.3 37.5 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
DT 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
1400 KW 3.16 3.22 3.31 - 3.38 3.45 3.55 - 3.58 3.65 3.76 - 3.75 3.83 3.94 - 3.89 3.98 4.10 - 4.02 4.10 4.23 -
AMPS 7.3 7.4 7.6 - 7.8 8.0 8.2 - 8.4 8.6 8.9 - 9.0 9.2 9.5 - 9.5 9.7 10.0 - 10.1 10.3 10.6 -
HI PR 229 247 260 - 257 277 292 - 292 315 332 - 333 358 378 - 375 403 426 - 414 445 470 -
LO PR 103 109 120 - 109 116 126 - 113 120 131 - 119 126 138 - 124 132 144 - 129 137 149 -
MBh 45.84 47.20 51.09 54.83 44.77 46.10 49.90 53.55 43.71 45.00 48.71 52.28 42.64 43.90 47.52 51.00 40.51 41.71 45.15 48.45 37.52 38.64 41.82 44.88
S/T 0.860.770.580.380.890.800.610.390.920.820.620.400.950.850.640.410.980.880.660.430.990.890.670.43
DT 20 19 15 11 20 19 15 11 20 19 15 11 21 19 16 11 20 19 15 11 19 17 14 10
1800 KW 3.28 3.34 3.44 3.54 3.51 3.58 3.69 3.80 3.72 3.79 3.91 4.03 3.90 3.98 4.10 4.23 4.05 4.14 4.26 4.40 4.18 4.27 4.40 4.55
AMPS 7.6 7.7 8.0 8.3 8.1 8.3 8.6 8.9 8.8 9.0 9.3 9.6 9.4 9.6 9.9 10.3 9.9 10.2 10.5 10.9 10.5 10.8 11.1 11.5
HI PR 241 259 274 286 270 291 307 320 307 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 44.545.849.653.243.544.848.452.042.443.747.350.841.442.6 46.1 49.5 39.3 40.5 43.8 47.0 36.4 37.5 40.6 43.6
S/T 0.820.740.560.360.850.760.580.370.870.780.590.380.900.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.84 0.64 0.41
DT 21 19 16 11 21 20 16 11 21 20 16 11 21 20 16 11 21 19 16 11 20 18 15 10
75 1600 KW 3.26 3.32 3.42 3.52 3.49 3.56 3.66 3.77 3.69 3.76 3.88 4.00 3.87 3.95 4.07 4.20 4.02 4.10 4.23 4.36 4.15 4.24 4.37 4.51
AMPS 7.5 7.7 7.9 8.2 8.1 8.3 8.5 8.8 8.7 8.9 9.2 9.5 9.3 9.5 9.8 10.2 9.9 10.1 10.4 10.8 10.4 10.7 11.0 11.4
HI PR 239 257 271 283 268 288 304 317 304 328 346 361 347 373 394 411 390 420 443 462 431 464 490 511
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
MBh 41.1 42.3 45.8 49.1 40.1 41.3 44.7 48.0 39.2 40.3 43.7 46.8 38.2 39.34 42.6 45.7 36.3 37.4 40.5 43.4 33.6 34.6 37.5 40.2
S/T 0.790.710.540.350.820.740.560.360.840.750.570.370.870.780.590.380.900.810.610.390.910.810.620.40
DT 21 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 20 19 15 10
1400 KW 3.19 3.25 3.34 3.44 3.41 3.48 3.58 3.68 3.60 3.68 3.79 3.90 3.78 3.86 3.97 4.10 3.93 4.01 4.13 4.26 4.05 4.14 4.27 4.40
AMPS 7.3 7.5 7.7 8.0 7.9 8.0 8.3 8.6 8.5 8.7 9.0 9.3 9.1 9.3 9.6 9.9 9.6 9.8 10.1 10.5 10.1 10.4 10.7 11.1
HI PR 231 249 263 274 260 279 295 308 295 318 336 350 336 362 382 399 378 407 430 448 418 450 475 496
LO PR 104 111 121 129 110 117 128 136 114 121 133 141 120 128 139 148 126 134 146 155 130 138 151 161
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
28
COOLING PERFORMANCE DATA GSZ130483A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130483A* / AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 46.66 47.67 50.93 54.45 45.57 46.57 49.75 53.18 44.49 45.46 48.56 51.92 43.40 44.35 47.38 50.65 41.23 42.13 45.01 48.12 38.19 39.03 41.69 44.57
S/T 0.950.890.720.541.000.920.750.561.000.940.770.571.001.000.790.591.001.000.820.611.001.000.830.62
DT 23 22 19 15 23 22 19 15 23 22 19 15 22 23 19 15 21 22 19 15 20 20 18 14
1800 KW 3.30 3.37 3.47 3.57 3.54 3.61 3.72 3.83 3.75 3.82 3.94 4.06 3.93 4.01 4.13 4.26 4.08 4.17 4.30 4.43 4.22 4.31 4.44 4.58
AMPS 7.6 7.8 8.0 8.3 8.2 8.4 8.7 9.0 8.9 9.1 9.4 9.7 9.5 9.7 10.0 10.3 10.0 10.3 10.6 11.0 10.6 10.9 11.2 11.6
HI PR 243 262 277 288 273 294 310 324 311 334 353 368 354 381 402 419 398 428 452 472 440 473 500 521
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 45.346.349.552.944.245.248.351.643.244.147.250.442.143.146.0 49.2 40.0 40.9 43.7 46.7 37.1 37.9 40.5 43.3
S/T 0.900.850.690.510.940.880.710.530.960.900.730.550.990.930.76 0.56 1.00 0.96 0.78 0.59 1.00 0.97 0.79 0.59
DT 23 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 23 23 20 16 21 21 18 15
80 1600 KW 3.28 3.34 3.44 3.54 3.51 3.58 3.69 3.80 3.72 3.79 3.91 4.03 3.90 3.98 4.10 4.23 4.05 4.14 4.26 4.40 4.18 4.27 4.41 4.55
AMPS 7.6 7.7 8.0 8.3 8.1 8.3 8.6 8.9 8.8 9.0 9.3 9.6 9.4 9.6 9.9 10.3 10.0 10.2 10.5 10.9 10.5 10.8 11.1 11.5
HI PR 241 259 274 286 270 291 307 320 308 331 349 364 350 377 398 415 394 424 448 467 435 468 495 516
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 41.842.745.648.840.841.744.647.739.940.743.546.538.939.742.545.436.937.840.343.134.235.037.439.9
S/T 0.870.820.660.500.900.850.690.510.920.870.710.530.950.900.730.540.990.930.760.571.000.940.760.57
DT 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 22 22 19 15
1400 KW 3.21 3.27 3.36 3.46 3.43 3.50 3.60 3.71 3.63 3.71 3.82 3.93 3.81 3.89 4.00 4.13 3.96 4.04 4.16 4.29 4.08 4.17 4.30 4.44
AMPS 7.4 7.5 7.8 8.0 7.9 8.1 8.4 8.7 8.6 8.8 9.0 9.4 9.1 9.3 9.6 10.0 9.7 9.9 10.2 10.6 10.2 10.5 10.8 11.2
HI PR 234 252 266 277 262 282 298 311 298 321 339 354 340 366 386 403 382 411 434 453 422 454 480 501
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
MBh 47.47 48.39 50.68 54.07 46.37 47.26 49.50 52.81 45.26 46.14 48.32 51.55 44.16 45.01 47.14 50.29 41.95 42.76 44.79 47.78 38.86 39.61 41.49 44.26
S/T 0.990.960.860.701.000.990.900.731.001.000.920.741.001.000.950.771.001.000.980.801.001.000.990.80
DT 24 24 22 19 24 24 23 20 23 24 23 20 23 23 23 20 21 22 22 19 20 20 21 18
1800 KW 3.33 3.39 3.49 3.60 3.56 3.64 3.74 3.86 3.77 3.85 3.97 4.09 3.96 4.04 4.16 4.30 4.11 4.20 4.33 4.47 4.25 4.34 4.48 4.62
AMPS 7.7 7.9 8.1 8.4 8.3 8.5 8.7 9.0 9.0 9.2 9.5 9.8 9.5 9.8 10.1 10.4 10.1 10.4 10.7 11.1 10.7 11.0 11.3 11.7
HI PR 246 265 279 291 276 297 313 327 314 338 356 372 357 384 406 423 402 433 457 476 444 478 505 526
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 158 133 142 155 165 138 147 160 171
MBh 46.147.049.252.545.045.948.151.343.944.846.950.142.943.745.848.840.741.543.546.437.738.540.343.0
S/T 0.950.910.820.670.980.950.850.691.000.970.880.711.001.000.900.731.001.000.940.761.001.000.950.77
DT 25 25 23 20 25 25 24 20 25 25 24 20 25 25 24 21 23 24 23 20 22 22 22 19
85 1600 KW 3.30 3.37 3.47 3.57 3.54 3.61 3.72 3.83 3.75 3.82 3.94 4.06 3.93 4.01 4.13 4.26 4.08 4.17 4.30 4.43 4.22 4.31 4.44 4.58
AMPS 7.6 7.8 8.0 8.3 8.2 8.4 8.7 9.0 8.9 9.1 9.4 9.7 9.5 9.7 10.0 10.3 10.0 10.3 10.6 11.0 10.6 10.9 11.2 11.6
HI PR 243 262 277 288 273 294 310 324 311 334 353 368 354 381 402 419 398 428 452 472 440 473 500 521
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 42.543.445.448.541.542.444.447.340.641.343.346.239.640.342.245.137.638.340.142.834.835.537.239.7
S/T 0.910.880.790.640.950.910.820.670.970.940.840.681.000.970.870.711.001.000.900.731.001.000.910.74
DT 25 25 24 21 26 25 24 21 26 25 24 21 26 26 24 21 25 25 24 21 23 23 22 19
1400 KW 3.23 3.29 3.39 3.49 3.46 3.53 3.63 3.74 3.66 3.73 3.85 3.96 3.84 3.92 4.03 4.16 3.99 4.07 4.20 4.33 4.12 4.20 4.33 4.47
AMPS 7.4 7.6 7.8 8.1 8.0 8.2 8.4 8.7 8.7 8.8 9.1 9.5 9.2 9.4 9.7 10.1 9.8 10.0 10.3 10.7 10.3 10.6 10.9 11.3
HI PR 236 254 268 280 265 285 301 314 301 324 342 357 343 369 390 407 386 415 439 458 427 459 485 506
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
29
COOLING PERFORMANCE DATA GSZ130484A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130484A* / AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 45.1 46.7 51.2 - 44.0 45.6 50.0 - 43.0 44.5 48.8 - 41.9 43.5 47.6 - 39.8 41.3 45.2 - 36.9 38.2 41.9 -
S/T 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.81 0.67 0.47 - 0.83 0.70 0.48 - 0.86 0.72 0.50 - 0.87 0.73 0.50 -
DT 17 15 11 - 18 15 12 - 18 15 12 - 18 15 12 - 18 15 12 - 16 14 11 -
1800 KW 3.25 3.31 3.41 - 3.48 3.54 3.65 - 3.68 3.75 3.87 - 3.86 3.94 4.06 - 4.01 4.09 4.22 - 4.14 4.23 4.36 -
AMPS 4.4 4.5 4.7 - 4.7 4.9 5.0 - 5.1 5.2 5.4 - 5.5 5.6 5.7 - 5.8 5.9 6.1 - 6.1 6.2 6.4 -
HI PR 243 261 276 - 272 293 309 - 310 333 352 - 353 380 401 - 397 427 451 - 438 472 498 -
LO PR 107 114 124 - 113 120 131 - 118 125 137 - 124 131 144 - 130 138 150 - 134 143 156 -
MBh 43.8 45.4 49.7 - 42.7 44.3 48.5 - 41.7 43.2 47.4 - 40.7 42.2 46.2 - 38.7 40.1 43.9 - 35.8 37.1 40.7 -
S/T 0.72 0.60 0.42 - 0.75 0.63 0.43 - 0.77 0.64 0.45 - 0.79 0.66 0.46 - 0.82 0.69 0.48 - 0.83 0.69 0.48 -
DT 18 16 12 - 18 16 12 - 18 16 12 - 19 16 12 - 18 16 12 - 17 15 11 -
70 1600 KW 3.22 3.28 3.38 - 3.45 3.52 3.62 - 3.65 3.72 3.84 - 3.83 3.91 4.03 - 3.98 4.06 4.19 - 4.11 4.19 4.32 -
AMPS 4.4 4.5 4.6 - 4.7 4.8 5.0 - 5.1 5.2 5.4 - 5.4 5.5 5.7 - 5.7 5.9 6.0 - 6.0 6.2 6.4 -
HI PR 240 259 273 - 270 290 306 - 307 330 348 - 349 376 397 - 393 423 447 - 434 467 493 -
LO PR 106 113 123 - 112 119 130 - 116 124 135 - 122 130 142 - 128 136 149 - 133 141 154 -
MBh 40.4 41.9 45.9 - 39.5 40.9 44.8 - 38.5 39.9 43.7 - 37.6 38.9 42.7 - 35.7 37.0 40.5 - 33.1 34.3 37.5 -
S/T 0.70 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.77 0.64 0.44 - 0.79 0.66 0.46 - 0.80 0.67 0.46 -
DT 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 19 16 12 - 17 15 11 -
1400 KW 3.15 3.21 3.30 - 3.37 3.44 3.54 - 3.57 3.64 3.75 - 3.74 3.82 3.93 - 3.88 3.97 4.09 - 4.01 4.09 4.22 -
AMPS 4.3 4.4 4.5 - 4.6 4.7 4.8 - 5.0 5.1 5.2 - 5.3 5.4 5.6 - 5.6 5.7 5.9 - 5.9 6.0 6.2 -
HI PR 233 251 265 - 262 281 297 - 297 320 338 - 339 365 385 - 381 410 433 - 421 453 479 -
LO PR 103 109 120 - 109 116 126 - 113 120 131 - 119 126 138 - 124 132 144 - 129 137 149 -
MBh 45.84 47.20 51.09 54.83 44.77 46.10 49.90 53.55 43.71 45.00 48.71 52.28 42.64 43.90 47.52 51.00 40.51 41.71 45.15 48.45 37.52 38.64 41.82 44.88
S/T 0.860.770.580.380.890.800.610.390.920.820.620.400.950.850.640.410.980.880.660.430.990.890.670.43
DT 20 19 15 11 20 19 15 11 20 19 15 11 21 19 16 11 20 19 15 11 19 17 14 10
1800 KW 3.27 3.33 3.43 3.53 3.50 3.57 3.68 3.79 3.71 3.78 3.90 4.02 3.89 3.97 4.09 4.22 4.04 4.13 4.25 4.39 4.17 4.26 4.39 4.54
AMPS 4.5 4.6 4.7 4.9 4.8 4.9 5.0 5.2 5.2 5.3 5.4 5.6 5.5 5.6 5.8 6.0 5.8 6.0 6.1 6.4 6.2 6.3 6.5 6.7
HI PR 245 264 279 291 275 296 313 326 313 337 356 371 356 383 405 422 401 431 456 475 443 477 503 525
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 44.545.849.653.243.544.848.452.042.443.747.350.841.442.6 46.1 49.5 39.3 40.5 43.8 47.0 36.4 37.5 40.6 43.6
S/T 0.820.740.560.360.850.760.580.370.870.780.590.380.900.81 0.61 0.39 0.94 0.84 0.63 0.41 0.94 0.84 0.64 0.41
DT 21 19 16 11 21 20 16 11 21 20 16 11 21 20 16 11 21 19 16 11 20 18 15 10
75 1600 KW 3.25 3.31 3.41 3.51 3.48 3.55 3.65 3.76 3.68 3.75 3.87 3.99 3.86 3.94 4.06 4.19 4.01 4.09 4.22 4.35 4.14 4.23 4.36 4.50
AMPS 4.4 4.5 4.7 4.8 4.8 4.9 5.0 5.2 5.1 5.2 5.4 5.6 5.5 5.6 5.8 6.0 5.8 5.9 6.1 6.3 6.1 6.2 6.4 6.7
HI PR 243 261 276 288 272 293 310 323 310 333 352 367 353 380 401 418 397 427 451 470 439 472 498 520
LO PR 107 114 124 133 113 120 131 140 118 125 137 146 124 131 144 153 130 138 150 160 134 143 156 166
MBh 41.1 42.3 45.8 49.1 40.1 41.3 44.7 48.0 39.2 40.3 43.7 46.8 38.2 39.34 42.6 45.7 36.3 37.4 40.5 43.4 33.6 34.6 37.5 40.2
S/T 0.790.710.540.350.820.740.560.360.840.750.570.370.870.780.590.380.900.810.610.390.910.810.620.40
DT 21 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 22 20 16 11 20 19 15 10
1400 KW 3.18 3.24 3.33 3.43 3.40 3.47 3.57 3.67 3.59 3.67 3.78 3.89 3.77 3.85 3.96 4.09 3.92 4.00 4.12 4.25 4.04 4.13 4.26 4.39
AMPS 4.3 4.4 4.5 4.7 4.6 4.7 4.9 5.0 5.0 5.1 5.3 5.4 5.3 5.4 5.6 5.8 5.6 5.8 5.9 6.1 5.9 6.1 6.3 6.5
HI PR 235 253 268 279 264 284 300 313 300 323 341 356 342 368 389 406 385 414 438 456 425 458 483 504
LO PR 104 111 121 129 110 117 128 136 114 121 133 141 120 128 139 148 126 134 146 155 130 138 151 161
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
30
COOLING PERFORMANCE DATA GSZ130484A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130484A* / AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 46.66 47.67 50.93 54.45 45.57 46.57 49.75 53.18 44.49 45.46 48.56 51.92 43.40 44.35 47.38 50.65 41.23 42.13 45.01 48.12 38.19 39.03 41.69 44.57
S/T 0.950.890.720.541.000.920.750.561.000.940.770.571.001.000.790.591.001.000.820.611.001.000.830.62
DT 23 22 19 15 23 22 19 15 23 22 19 15 22 23 19 15 21 22 19 15 20 20 18 14
1800 KW 3.29 3.36 3.46 3.56 3.53 3.60 3.71 3.82 3.74 3.81 3.93 4.05 3.92 4.00 4.12 4.25 4.07 4.16 4.29 4.42 4.21 4.30 4.43 4.57
AMPS 4.5 4.6 4.7 4.9 4.8 4.9 5.1 5.3 5.2 5.3 5.5 5.7 5.5 5.7 5.9 6.1 5.9 6.0 6.2 6.4 6.2 6.4 6.6 6.8
HI PR 248 267 281 294 278 299 316 329 316 340 359 375 360 387 409 427 405 436 460 480 447 482 508 530
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 45.346.349.552.944.245.248.351.643.244.147.250.442.143.146.0 49.2 40.0 40.9 43.7 46.7 37.1 37.9 40.5 43.3
S/T 0.900.850.690.510.940.880.710.530.960.900.730.550.990.930.76 0.56 1.00 0.96 0.78 0.59 1.00 0.97 0.79 0.59
DT 23 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 23 23 20 16 21 21 18 15
80 1600 KW 3.27 3.33 3.43 3.53 3.50 3.57 3.68 3.79 3.71 3.78 3.90 4.02 3.89 3.97 4.09 4.22 4.04 4.13 4.25 4.39 4.17 4.26 4.40 4.54
AMPS 4.5 4.6 4.7 4.9 4.8 4.9 5.0 5.2 5.2 5.3 5.5 5.6 5.5 5.6 5.8 6.0 5.8 6.0 6.2 6.4 6.2 6.3 6.5 6.7
HI PR 245 264 279 291 275 296 313 326 313 337 356 371 356 384 405 422 401 431 456 475 443 477 503 525
LO PR 108 115 126 134 114 122 133 141 119 126 138 147 125 133 145 154 131 139 152 162 135 144 157 167
MBh 41.842.745.648.840.841.744.647.739.940.743.546.538.939.742.545.436.937.840.343.134.235.037.439.9
S/T 0.870.820.660.500.900.850.690.510.920.870.710.530.950.900.730.540.990.930.760.571.000.940.760.57
DT 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 24 23 20 16 22 22 19 15
1400 KW 3.20 3.26 3.35 3.45 3.42 3.49 3.59 3.70 3.62 3.70 3.81 3.92 3.80 3.88 3.99 4.12 3.95 4.03 4.15 4.28 4.07 4.16 4.29 4.43
AMPS 4.4 4.4 4.6 4.7 4.7 4.8 4.9 5.1 5.0 5.2 5.3 5.5 5.4 5.5 5.7 5.8 5.7 5.8 6.0 6.2 6.0 6.1 6.3 6.6
HI PR 238 256 270 282 267 287 303 316 304 327 345 360 346 372 393 410 389 419 442 461 430 462 488 509
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 147 157 131 140 152 162
MBh 47.47 48.39 50.68 54.07 46.37 47.26 49.50 52.81 45.26 46.14 48.32 51.55 44.16 45.01 47.14 50.29 41.95 42.76 44.79 47.78 38.86 39.61 41.49 44.26
S/T 0.990.960.860.701.000.990.900.731.001.000.920.741.001.000.950.771.001.000.980.801.001.000.990.80
DT 24 24 22 19 24 24 23 20 23 24 23 20 23 23 23 20 21 22 22 19 20 20 21 18
1800 KW 3.32 3.38 3.48 3.59 3.55 3.63 3.73 3.85 3.76 3.84 3.96 4.08 3.95 4.03 4.15 4.29 4.10 4.19 4.32 4.46 4.24 4.33 4.47 4.61
AMPS 4.5 4.6 4.8 4.9 4.9 5.0 5.1 5.3 5.3 5.4 5.5 5.7 5.6 5.7 5.9 6.1 5.9 6.1 6.3 6.5 6.3 6.4 6.6 6.8
HI PR 250 269 284 296 281 302 319 333 319 344 363 378 364 391 413 431 409 440 465 485 452 486 514 536
LO PR 110 117 128 137 117 124 135 144 121 129 141 150 127 135 148 158 133 142 155 165 138 147 160 171
MBh 46.147.049.252.545.045.948.151.343.944.846.950.142.943.745.848.840.741.543.546.437.738.540.343.0
S/T 0.950.910.820.670.980.950.850.691.000.970.880.711.001.000.900.731.001.000.940.761.001.000.950.77
DT 25 25 23 20 25 25 24 20 25 25 24 20 25 25 24 21 23 24 23 20 22 22 22 19
85 1600 KW 3.29 3.36 3.46 3.56 3.53 3.60 3.71 3.82 3.74 3.81 3.93 4.05 3.92 4.00 4.12 4.25 4.07 4.16 4.29 4.42 4.21 4.30 4.43 4.57
AMPS 4.5 4.6 4.7 4.9 4.8 4.9 5.1 5.3 5.2 5.3 5.5 5.7 5.5 5.7 5.9 6.1 5.9 6.0 6.2 6.4 6.2 6.4 6.6 6.8
HI PR 248 267 281 294 278 299 316 329 316 340 359 375 360 387 409 427 405 436 460 480 447 482 508 530
LO PR 109 116 127 135 116 123 134 143 120 128 139 148 126 134 146 156 132 141 153 163 137 145 159 169
MBh 42.543.445.448.541.542.444.447.340.641.343.346.239.640.342.245.137.638.340.142.834.835.537.239.7
S/T 0.910.880.790.640.950.910.820.670.970.940.840.681.000.970.870.711.001.000.900.731.001.000.910.74
DT 25 25 24 21 26 25 24 21 26 25 24 21 26 26 24 21 25 25 24 21 23 23 22 19
1400 KW 3.22 3.28 3.38 3.48 3.45 3.52 3.62 3.73 3.65 3.72 3.84 3.95 3.83 3.91 4.02 4.15 3.98 4.06 4.19 4.32 4.11 4.19 4.32 4.46
AMPS 4.4 4.5 4.6 4.8 4.7 4.8 5.0 5.1 5.1 5.2 5.4 5.5 5.4 5.5 5.7 5.9 5.7 5.9 6.0 6.3 6.0 6.2 6.4 6.6
HI PR 240 259 273 285 270 290 306 319 307 330 348 363 349 376 397 414 393 423 446 466 434 467 493 514
LO PR 106 113 123 131 112 119 130 139 116 124 135 144 122 130 142 151 128 136 149 159 133 141 154 164
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
31
COOLING PERFORMANCE DATA G/VSZ130601A*
MODEL: G/VSZ130601A* / AR*F48601** EXPANDED PERFORMANCE DATA COOLING OPERATION
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 55.9 57.9 63.4 - 54.6 56.5 62.0 - 53.3 55.2 60.5 - 52.0 53.9 59.0 - 49.4 51.2 56.1 - 45.7 47.4 51.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
DT 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 18 16 12 -
2025 KW 4.11 4.19 4.31 - 4.40 4.49 4.62 - 4.66 4.75 4.90 - 4.88 4.99 5.14 - 5.08 5.18 5.34 - 5.24 5.35 5.52 -
AMPS 14.5 14.8 15.3 - 15.7 16.1 16.6 - 17.1 17.5 18.1 - 18.3 18.7 19.3 - 19.4 19.9 20.6 - 20.6 21.1 21.9 -
HI PR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 102 108 118 - 108 115 125 - 112 119 130 - 118 125 137 - 123 131 143 - 127 136 148 -
MBh 54.2 56.2 61.6 - 53.0 54.9 60.1 - 51.7 53.6 58.7 - 50.4 52.3 57.3 - 47.9 49.7 54.4 - 44.4 46.0 50.4 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DT 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -
70 1800 KW 4.08 4.16 4.28 - 4.37 4.46 4.59 - 4.62 4.72 4.86 - 4.85 4.95 5.10 - 5.04 5.14 5.30 - 5.20 5.31 5.48 -
AMPS 14.4 14.7 15.2 - 15.5 15.9 16.5 - 16.9 17.3 17.9 - 18.1 18.5 19.2 - 19.3 19.7 20.4 - 20.4 20.9 21.7 -
HI PR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 147 -
MBh 50.1 51.9 56.8 - 48.9 50.7 55.5 - 47.7 49.5 54.2 - 46.6 48.3 52.9 - 44.2 45.8 50.2 - 41.0 42.5 46.5 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
DT 20 18 13 - 20 18 13 - 21 18 13 - 21 18 14 - 20 18 13 - 19 16 12 -
1575 KW 3.99 4.07 4.18 - 4.27 4.35 4.48 - 4.52 4.61 4.75 - 4.73 4.83 4.98 - 4.92 5.02 5.18 - 5.08 5.19 5.35 -
AMPS 14.0 14.3 14.8 - 15.1 15.5 16.0 - 16.4 16.8 17.4 - 17.6 18.0 18.6 - 18.7 19.2 19.8 - 19.9 20.4 21.0 -
HI PR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 98 104 114 - 103 110 120 - 108 114 125 - 113 120 131 - 118 126 137 - 122 130 142 -
MBh 56.8 58.5 63.3 67.9 55.5 57.1 61.8 66.4 54.2 55.8 60.4 64.8 52.8 54.4 58.9 63.2 50.2 51.7 55.9 60.0 46.5 47.9 51.8 55.6
S/T 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.91 0.81 0.62 0.40 0.94 0.84 0.64 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.67 0.43
DT 22 20 17 12 22 21 17 12 22 21 17 12 23 21 17 12 22 20 17 12 21 19 16 11
2025 KW 4.14 4.22 4.34 4.47 4.43 4.52 4.66 4.80 4.69 4.79 4.94 5.09 4.92 5.02 5.18 5.34 5.12 5.22 5.39 5.56 5.29 5.40 5.57 5.75
AMPS 14.6 15.0 15.5 16.1 15.8 16.2 16.8 17.4 17.2 17.7 18.2 18.9 18.4 18.9 19.5 20.3 19.6 20.1 20.8 21.6 20.8 21.3 22.1 22.9
HI PR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 55.1 56.8 61.5 66.0 53.9 55.5 60.0 64.4 52.6 54.1 58.6 62.9 51.3 52.8 57.2 61.4 48.7 50.2 54.3 58.3 45.1 46.5 50.3 54.0
S/T 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
DT 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11
75 1800 KW 4.11 4.19 4.31 4.44 4.40 4.49 4.62 4.76 4.66 4.75 4.90 5.05 4.89 4.99 5.14 5.30 5.08 5.18 5.34 5.51 5.24 5.35 5.52 5.70
AMPS 14.5 14.8 15.3 15.9 15.7 16.1 16.6 17.2 17.1 17.5 18.1 18.8 18.3 18.7 19.3 20.1 19.5 19.9 20.6 21.4 20.6 21.1 21.9 22.7
HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 102 108 118 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 152 128 136 148 158
MBh 50.9 52.4 56.7 60.9 49.7 51.2 55.4 59.5 48.5 50.0 54.1 58.1 47.3 48.8 52.8 56.6 45.0 46.3 50.1 53.8 41.7 42.9 46.4 49.8
S/T 0.79 0.70 0.53 0.34 0.82 0.73 0.55 0.36 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.90 0.81 0.61 0.39
DT 23 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 22 20 17 11
1575 KW 4.02 4.10 4.22 4.34 4.30 4.39 4.52 4.65 4.55 4.64 4.78 4.93 4.77 4.87 5.02 5.17 4.96 5.06 5.22 5.38 5.12 5.23 5.39 5.56
AMPS 14.1 14.4 14.9 15.5 15.3 15.6 16.1 16.8 16.6 17.0 17.6 18.2 17.7 18.2 18.8 19.5 18.9 19.4 20.0 20.8 20.0 20.5 21.2 22.1
HI PR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 99 105 115 122 105 111 121 129 109 116 126 134 114 121 133 141 120 127 139 148 124 132 144 153
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
32
COOLING PERFORMANCE DATA G/VSZ130601A*
EXPANDED PERFORMANCE DATA COOLING OPERATION
MODEL: GSZ130601A* / AR*F48601**
Outdoor Ambient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Tem perature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 55.9 57.9 63.4 - 54.6 56.5 62.0 - 53.3 55.2 60.5 - 52.0 53.9 59.0 - 49.4 51.2 56.1 - 45.7 47.4 51.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
DT 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 18 16 12 -
2025 KW 4.11 4.19 4.31 - 4.40 4.49 4.62 - 4.66 4.75 4.90 - 4.88 4.99 5.14 - 5.08 5.18 5.34 - 5.24 5.35 5.52 -
AMPS 14.5 14.8 15.3 - 15.7 16.1 16.6 - 17.1 17.5 18.1 - 18.3 18.7 19.3 - 19.4 19.9 20.6 - 20.6 21.1 21.9 -
HI PR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 102 108 118 - 108 115 125 - 112 119 130 - 118 125 137 - 123 131 143 - 127 136 148 -
MBh 54.2 56.2 61.6 - 53.0 54.9 60.1 - 51.7 53.6 58.7 - 50.4 52.3 57.3 - 47.9 49.7 54.4 - 44.4 46.0 50.4 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DT 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -
70 1800 KW 4.08 4.16 4.28 - 4.37 4.46 4.59 - 4.62 4.72 4.86 - 4.85 4.95 5.10 - 5.04 5.14 5.30 - 5.20 5.31 5.48 -
AMPS 14.4 14.7 15.2 - 15.5 15.9 16.5 - 16.9 17.3 17.9 - 18.1 18.5 19.2 - 19.3 19.7 20.4 - 20.4 20.9 21.7 -
HI PR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 147 -
MBh 50.1 51.9 56.8 - 48.9 50.7 55.5 - 47.7 49.5 54.2 - 46.6 48.3 52.9 - 44.2 45.8 50.2 - 41.0 42.5 46.5 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
DT 20 18 13 - 20 18 13 - 21 18 13 - 21 18 14 - 20 18 13 - 19 16 12 -
1575 KW 3.99 4.07 4.18 - 4.27 4.35 4.48 - 4.52 4.61 4.75 - 4.73 4.83 4.98 - 4.92 5.02 5.18 - 5.08 5.19 5.35 -
AMPS 14.0 14.3 14.8 - 15.1 15.5 16.0 - 16.4 16.8 17.4 - 17.6 18.0 18.6 - 18.7 19.2 19.8 - 19.9 20.4 21.0 -
HI PR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 98 104 114 - 103 110 120 - 108 114 125 - 113 120 131 - 118 126 137 - 122 130 142 -
MBh 56.8 58.5 63.3 67.9 55.5 57.1 61.8 66.4 54.2 55.8 60.4 64.8 52.8 54.4 58.9 63.2 50.2 51.7 55.9 60.0 46.5 47.9 51.8 55.6
S/T 0.86 0.77 0.58 0.37 0.89 0.79 0.60 0.39 0.91 0.81 0.62 0.40 0.94 0.84 0.64 0.41 0.97 0.87 0.66 0.42 0.98 0.88 0.67 0.43
DT 22 20 17 12 22 21 17 12 22 21 17 12 23 21 17 12 22 20 17 12 21 19 16 11
2025 KW 4.14 4.22 4.34 4.47 4.43 4.52 4.66 4.80 4.69 4.79 4.94 5.09 4.92 5.02 5.18 5.34 5.12 5.22 5.39 5.56 5.29 5.40 5.57 5.75
AMPS 14.6 15.0 15.5 16.1 15.8 16.2 16.8 17.4 17.2 17.7 18.2 18.9 18.4 18.9 19.5 20.3 19.6 20.1 20.8 21.6 20.8 21.3 22.1 22.9
HI PR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 55.1 56.8 61.5 66.0 53.9 55.5 60.0 64.4 52.6 54.1 58.6 62.9 51.3 52.8 57.2 61.4 48.7 50.2 54.3 58.3 45.1 46.5 50.3 54.0
S/T 0.82 0.73 0.55 0.36 0.85 0.76 0.57 0.37 0.87 0.78 0.59 0.38 0.90 0.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
DT 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11
75 1800 KW 4.11 4.19 4.31 4.44 4.40 4.49 4.62 4.76 4.66 4.75 4.90 5.05 4.89 4.99 5.14 5.30 5.08 5.18 5.34 5.51 5.24 5.35 5.52 5.70
AMPS 14.5 14.8 15.3 15.9 15.7 16.1 16.6 17.2 17.1 17.5 18.1 18.8 18.3 18.7 19.3 20.1 19.5 19.9 20.6 21.4 20.6 21.1 21.9 22.7
HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 102 108 118 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 152 128 136 148 158
MBh 50.9 52.4 56.7 60.9 49.7 51.2 55.4 59.5 48.5 50.0 54.1 58.1 47.3 48.8 52.8 56.6 45.0 46.3 50.1 53.8 41.7 42.9 46.4 49.8
S/T 0.79 0.70 0.53 0.34 0.82 0.73 0.55 0.36 0.84 0.75 0.57 0.36 0.86 0.77 0.58 0.38 0.90 0.80 0.61 0.39 0.90 0.81 0.61 0.39
DT 23 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 22 20 17 11
1575 KW 4.02 4.10 4.22 4.34 4.30 4.39 4.52 4.65 4.55 4.64 4.78 4.93 4.77 4.87 5.02 5.17 4.96 5.06 5.22 5.38 5.12 5.23 5.39 5.56
AMPS 14.1 14.4 14.9 15.5 15.3 15.6 16.1 16.8 16.6 17.0 17.6 18.2 17.7 18.2 18.8 19.5 18.9 19.4 20.0 20.8 20.0 20.5 21.2 22.1
HI PR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 99 105 115 122 105 111 121 129 109 116 126 134 114 121 133 141 120 127 139 148 124 132 144 153
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan
High and low pressures are measured at the liquid and suction service valves.
33
COOLING PERFORMANCE DATA GSZ130603A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130603A* /AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 55.9 57.9 63.4 - 54.6 56.5 62.0 - 53.3 55.2 60.5 - 52.0 53.9 59.0 - 49.4 51.2 56.1 - 45.7 47.4 51.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
DT 191713 - 191713 - 191713 - 191713 - 191713 - 181612 -
2025 KW 4.06 4.14 4.26 - 4.35 4.44 4.57 - 4.61 4.70 4.85 - 4.84 4.94 5.09 - 5.03 5.14 5.30 - 5.20 5.31 5.48 -
AMPS 8.4 8.6 8.8 - 9.0 9.2 9.6 - 9.8 10.1 10.4 - 10.5 10.8 11.1 - 11.2 11.4 11.8 - 11.8 12.1 12.5 -
HI PR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 102 108 118 - 108 115 125 - 112 119 130 - 118 125 137 - 123 131 143 - 127 136 148 -
MBh 54.2 56.2 61.6 - 53.0 54.9 60.1 - 51.7 53.6 58.7 - 50.4 52.3 57.3 - 47.9 49.7 54.4 - 44.4 46.0 50.4 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DT 201713 - 201713 - 201713 - 201813 - 201713 - 191612 -
70 1800 KW 4.03 4.11 4.23 - 4.32 4.41 4.54 - 4.57 4.67 4.81 - 4.80 4.90 5.05 - 4.99 5.10 5.26 - 5.16 5.27 5.43 -
AMPS 8.3 8.5 8.8 - 8.9 9.2 9.5 - 9.7 10.0 10.3 - 10.4 10.7 11.0 - 11.1 11.3 11.7 - 11.7 12.0 12.4 -
HI PR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 147 -
MBh 50.1 51.9 56.8 - 48.9 50.7 55.5 - 47.7 49.5 54.2 - 46.6 48.3 52.9 - 44.2 45.8 50.2 - 41.0 42.5 46.5 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
DT 201813 - 201813 - 211813 - 211814 - 201813 - 191612 -
1575 KW 3.94 4.02 4.13 - 4.22 4.30 4.43 - 4.47 4.56 4.70 - 4.69 4.78 4.93 - 4.87 4.98 5.13 - 5.03 5.14 5.30 -
AMPS 8.1 8.2 8.5 - 8.7 8.9 9.2 - 9.5 9.7 10.0 - 10.1 10.4 10.7 - 10.8 11.0 11.4 - 11.4 11.7 12.1 -
HI PR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 98 104 114 - 103 110 120 - 108 114 125 - 113 120 131 - 118 126 137 - 122 130 142 -
MBh 56.80 58.48 63.30 67.94 55.48 57.12 61.83 66.36 54.16 55.76 60.36 64.78 52.84 54.40 58.89 63.20 50.20 51.68 55.94 60.04 46.50 47.87 51.82 55.62
S/T 0.860.770.580.370.890.790.600.390.910.810.620.400.940.840.640.410.970.870.660.420.980.880.670.43
DT 22 20 17 12 22 21 17 12 22 21 17 12 23 21 17 12 22 20 17 12 21 19 16 11
2025 KW 4.09 4.17 4.29 4.42 4.38 4.47 4.61 4.75 4.65 4.74 4.89 5.04 4.88 4.98 5.13 5.30 5.07 5.18 5.34 5.52 5.24 5.35 5.52 5.70
AMPS 8.4 8.6 8.9 9.2 9.1 9.3 9.6 10.0 9.9 10.2 10.5 10.9 10.6 10.9 11.2 11.6 11.3 11.6 11.9 12.4 12.0 12.3 12.7 13.2
HI PR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 55.156.861.566.053.955.560.064.452.654.158.662.951.352.8 57.2 61.4 48.7 50.2 54.3 58.3 45.1 46.5 50.3 54.0
S/T 0.820.730.550.360.850.760.570.370.870.780.590.380.900.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
DT 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11
75 1800 KW 4.06 4.14 4.26 4.39 4.35 4.44 4.57 4.72 4.61 4.71 4.85 5.00 4.84 4.94 5.09 5.26 5.03 5.14 5.30 5.47 5.20 5.31 5.48 5.66
AMPS 8.4 8.6 8.8 9.2 9.0 9.3 9.6 9.9 9.8 10.1 10.4 10.8 10.5 10.8 11.1 11.5 11.2 11.5 11.8 12.3 11.8 12.1 12.5 13.0
HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 102 108 118 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 152 128 136 148 158
MBh 50.9 52.4 56.7 60.9 49.7 51.2 55.4 59.5 48.5 50.0 54.1 58.1 47.3 48.75 52.8 56.6 45.0 46.3 50.1 53.8 41.7 42.9 46.4 49.8
S/T 0.790.700.530.340.820.730.550.360.840.750.570.360.860.770.580.380.900.800.610.390.900.810.610.39
DT 23 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 22 20 17 11
1575 KW 3.97 4.05 4.17 4.29 4.25 4.34 4.47 4.61 4.50 4.60 4.74 4.88 4.72 4.82 4.97 5.13 4.91 5.02 5.17 5.34 5.07 5.18 5.35 5.52
AMPS 8.1 8.3 8.6 8.9 8.8 9.0 9.3 9.6 9.5 9.8 10.1 10.5 10.2 10.5 10.8 11.2 10.9 11.1 11.5 11.9 11.5 11.8 12.2 12.7
HI PR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 99 105 115 122 105 111 121 129 109 116 126 134 114 121 133 141 120 127 139 148 124 132 144 153
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
34
COOLING PERFORMANCE DATA GSZ130603A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130603A* /AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 57.81 59.07 63.11 67.47 56.47 57.70 61.65 65.90 55.12 56.33 60.18 64.33 53.78 54.95 58.71 62.76 51.09 52.20 55.77 59.62 47.32 48.36 51.66 55.23
S/T 0.940.880.720.541.000.910.740.561.000.940.760.571.000.970.790.591.001.000.820.611.001.000.820.62
DT 25 24 21 16 26 24 21 17 25 24 21 17 24 24 21 17 23 24 21 17 21 22 19 15
2025 KW 4.12 4.20 4.33 4.46 4.42 4.51 4.65 4.79 4.68 4.78 4.93 5.08 4.92 5.02 5.18 5.34 5.11 5.22 5.39 5.56 5.28 5.40 5.57 5.75
AMPS 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.110.010.210.611.010.711.011.311.811.411.712.112.512.112.412.813.3
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 104 111 121 129 110 117 128 136 114 122 133 141 120 128 139 148 126 134 146 156 130 138 151 161
MBh 56.157.461.365.554.856.059.964.053.554.758.462.552.253.457.0 60.9 49.6 50.7 54.2 57.9 45.9 46.9 50.2 53.6
S/T 0.900.840.680.510.930.870.710.530.950.890.730.540.980.920.75 0.56 1.00 0.96 0.78 0.58 1.00 0.96 0.78 0.59
DT 26 25 21 17 26 25 22 17 26 25 22 17 26 25 22 17 25 25 22 17 23 23 20 16
80 1800 KW 4.09 4.17 4.29 4.42 4.38 4.47 4.61 4.75 4.65 4.74 4.89 5.04 4.88 4.98 5.14 5.30 5.07 5.18 5.34 5.52 5.24 5.35 5.52 5.70
AMPS 8.4 8.6 8.9 9.2 9.1 9.3 9.6 10.0 9.9 10.2 10.5 10.9 10.6 10.9 11.2 11.6 11.3 11.6 11.9 12.4 12.0 12.3 12.7 13.2
HI PR 227 244 258 269 255 274 290 302 290 312 329 343 330 355 375 391 371 400 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 51.852.956.660.550.651.755.259.149.450.553.957.648.249.252.656.245.846.850.053.442.443.346.349.5
S/T 0.860.810.660.490.900.840.680.510.920.860.700.520.950.890.720.540.980.920.750.560.990.930.760.57
DT 26 25 22 17 26 25 22 18 26 25 22 18 27 26 22 18 26 25 22 17 25 24 20 16
1575 KW 4.00 4.08 4.20 4.32 4.28 4.37 4.50 4.64 4.54 4.63 4.77 4.92 4.76 4.86 5.01 5.17 4.95 5.06 5.21 5.38 5.12 5.22 5.39 5.56
AMPS 8.2 8.4 8.7 9.0 8.9 9.1 9.4 9.7 9.6 9.9 10.2 10.6 10.3 10.6 10.9 11.3 11.0 11.2 11.6 12.1 11.6 11.9 12.3 12.8
HI PR 220 237 250 261 247 266 281 293 281 302 319 333 320 344 364 379 360 388 409 427 398 428 452 472
LO PR 100 106 116 124 106 112 123 131 110 117 127 136 115 123 134 143 121 129 140 149 125 133 145 155
MBh 58.82 59.96 62.80 67.00 57.45 58.57 61.34 65.44 56.09 57.17 59.88 63.88 54.72 55.78 58.42 62.32 51.98 52.99 55.50 59.21 48.15 49.08 51.41 54.84
S/T 0.980.950.860.701.000.980.890.721.001.000.910.741.001.000.940.761.001.000.980.791.001.000.980.80
DT 26 26 24 21 26 26 25 21 25 26 25 21 25 25 25 22 24 24 25 21 22 22 23 20
2025 KW 4.15 4.23 4.36 4.49 4.45 4.54 4.68 4.83 4.72 4.82 4.97 5.12 4.95 5.06 5.22 5.38 5.15 5.26 5.43 5.61 5.33 5.44 5.61 5.80
AMPS 8.6 8.8 9.1 9.4 9.3 9.5 9.8 10.210.110.310.711.110.811.111.411.911.511.812.212.612.212.512.913.4
HI PR 232 249 263 275 260 280 295 308 296 318 336 350 337 362 383 399 379 408 430 449 418 450 475 496
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 148 157 131 140 153 163
MBh 57.158.261.065.055.856.959.663.554.555.558.162.053.154.256.760.550.551.453.957.546.747.749.953.2
S/T 0.940.910.820.660.970.940.850.691.000.960.870.711.000.990.900.731.001.000.930.761.001.000.940.76
DT 27 27 25 22 28 27 26 22 28 27 26 22 27 27 26 22 26 26 26 22 24 24 24 21
85 1800 KW 4.12 4.20 4.33 4.46 4.42 4.51 4.65 4.79 4.68 4.78 4.93 5.08 4.92 5.02 5.18 5.34 5.11 5.22 5.39 5.56 5.28 5.40 5.57 5.75
AMPS 8.5 8.7 9.0 9.3 9.2 9.4 9.7 10.110.010.210.611.010.711.011.311.811.411.712.112.512.112.412.813.3
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 104 111 121 129 110 117 128 136 114 122 133 141 120 128 139 148 126 134 146 156 130 138 151 161
MBh 52.753.756.360.051.552.555.058.650.351.253.757.249.050.052.355.846.647.549.753.143.144.046.149.1
S/T 0.910.870.790.640.940.910.820.660.960.930.840.680.990.960.860.701.000.990.900.731.001.000.910.73
DT 28 27 26 22 28 28 26 23 28 28 26 23 28 28 26 23 27 28 26 23 25 26 24 21
1575 KW 4.03 4.11 4.23 4.36 4.32 4.40 4.54 4.68 4.57 4.67 4.81 4.96 4.80 4.90 5.05 5.21 4.99 5.10 5.26 5.43 5.16 5.27 5.43 5.61
AMPS 8.3 8.5 8.8 9.1 8.9 9.2 9.5 9.8 9.7 10.010.310.710.410.711.011.411.111.311.712.211.712.012.412.9
HI PR 222 239 253 264 250 269 284 296 284 305 323 336 323 348 367 383 364 391 413 431 402 432 457 476
LO PR 101 107 117 125 107 113 124 132 111 118 129 137 116 124 135 144 122 130 142 151 126 134 147 156
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
35
COOLING PERFORMANCE DATA GSZ130604A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130604A* /AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 55.9 57.9 63.4 - 54.6 56.5 62.0 - 53.3 55.2 60.5 - 52.0 53.9 59.0 - 49.4 51.2 56.1 - 45.7 47.4 51.9 -
S/T 0.75 0.63 0.44 - 0.78 0.65 0.45 - 0.80 0.67 0.46 - 0.83 0.69 0.48 - 0.86 0.72 0.50 - 0.86 0.72 0.50 -
DT 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 19 17 13 - 18 16 12 -
2025 KW 4.06 4.14 4.26 - 4.35 4.44 4.57 - 4.61 4.70 4.85 - 4.84 4.94 5.09 - 5.03 5.14 5.30 - 5.20 5.31 5.48 -
AMPS 4.6 4.7 4.9 - 5.0 5.1 5.2 - 5.4 5.5 5.7 - 5.7 5.8 6.0 - 6.1 6.2 6.4 - 6.4 6.5 6.8 -
HI PR 225 242 255 - 252 271 287 - 287 309 326 - 327 352 371 - 367 395 418 - 406 437 461 -
LO PR 102 108 118 - 108 115 125 - 112 119 130 - 118 125 137 - 123 131 143 - 127 136 148 -
MBh 54.2 56.2 61.6 - 53.0 54.9 60.1 - 51.7 53.6 58.7 - 50.4 52.3 57.3 - 47.9 49.7 54.4 - 44.4 46.0 50.4 -
S/T 0.72 0.60 0.42 - 0.74 0.62 0.43 - 0.76 0.64 0.44 - 0.79 0.66 0.46 - 0.82 0.68 0.47 - 0.82 0.69 0.48 -
DT 20 17 13 - 20 17 13 - 20 17 13 - 20 18 13 - 20 17 13 - 19 16 12 -
70 1800 KW 4.03 4.11 4.23 - 4.32 4.41 4.54 - 4.57 4.67 4.81 - 4.80 4.90 5.05 - 4.99 5.10 5.26 - 5.16 5.27 5.43 -
AMPS 4.6 4.7 4.8 - 4.9 5.0 5.2 - 5.3 5.4 5.6 - 5.7 5.8 6.0 - 6.0 6.1 6.3 - 6.3 6.5 6.7 -
HI PR 222 239 253 - 250 269 284 - 284 306 323 - 323 348 368 - 364 392 413 - 402 433 457 -
LO PR 101 107 117 - 107 113 124 - 111 118 129 - 116 124 135 - 122 130 142 - 126 134 147 -
MBh 50.1 51.9 56.8 - 48.9 50.7 55.5 - 47.7 49.5 54.2 - 46.6 48.3 52.9 - 44.2 45.8 50.2 - 41.0 42.5 46.5 -
S/T 0.69 0.58 0.40 - 0.72 0.60 0.42 - 0.74 0.61 0.43 - 0.76 0.63 0.44 - 0.79 0.66 0.46 - 0.80 0.66 0.46 -
DT 20 18 13 - 20 18 13 - 21 18 13 - 21 18 14 - 20 18 13 - 19 16 12 -
1575 KW 3.94 4.02 4.13 - 4.22 4.30 4.43 - 4.47 4.56 4.70 - 4.69 4.78 4.93 - 4.87 4.98 5.13 - 5.03 5.14 5.30 -
AMPS 4.5 4.6 4.7 - 4.8 4.9 5.1 - 5.2 5.3 5.5 - 5.5 5.6 5.8 - 5.8 6.0 6.2 - 6.2 6.3 6.5 -
HI PR 216 232 245 - 242 261 275 - 275 296 313 - 314 338 356 - 353 380 401 - 390 420 443 -
LO PR 98 104 114 - 103 110 120 - 108 114 125 - 113 120 131 - 118 126 137 - 122 130 142 -
MBh 56.80 58.48 63.30 67.94 55.48 57.12 61.83 66.36 54.16 55.76 60.36 64.78 52.84 54.40 58.89 63.20 50.20 51.68 55.94 60.04 46.50 47.87 51.82 55.62
S/T 0.860.770.580.370.890.790.600.390.910.810.620.400.940.840.640.410.970.870.660.420.980.880.670.43
DT 22 20 17 12 22 21 17 12 22 21 17 12 23 21 17 12 22 20 17 12 21 19 16 11
2025 KW 4.09 4.17 4.29 4.42 4.38 4.47 4.61 4.75 4.65 4.74 4.89 5.04 4.88 4.98 5.13 5.30 5.07 5.18 5.34 5.52 5.24 5.35 5.52 5.70
AMPS 4.7 4.8 4.9 5.1 5.0 5.1 5.3 5.5 5.4 5.5 5.7 5.9 5.8 5.9 6.1 6.3 6.1 6.3 6.4 6.7 6.5 6.6 6.8 7.1
HI PR 227 244 258 269 255 274 289 302 290 312 329 343 330 355 375 391 371 399 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 55.156.861.566.053.955.560.064.452.654.158.662.951.352.8 57.2 61.4 48.7 50.2 54.3 58.3 45.1 46.5 50.3 54.0
S/T 0.820.730.550.360.850.760.570.370.870.780.590.380.900.80 0.61 0.39 0.93 0.83 0.63 0.40 0.94 0.84 0.63 0.41
DT 23 21 17 12 23 21 18 12 23 21 18 12 23 22 18 12 23 21 17 12 22 20 16 11
75 1800 KW 4.06 4.14 4.26 4.39 4.35 4.44 4.57 4.72 4.61 4.71 4.85 5.00 4.84 4.94 5.09 5.26 5.03 5.14 5.30 5.47 5.20 5.31 5.48 5.66
AMPS 4.6 4.7 4.9 5.0 5.0 5.1 5.2 5.4 5.4 5.5 5.7 5.9 5.7 5.8 6.0 6.2 6.1 6.2 6.4 6.6 6.4 6.5 6.8 7.0
HI PR 225 242 255 266 252 271 287 299 287 309 326 340 327 352 371 387 368 396 418 436 406 437 461 481
LO PR 102 108 118 126 108 115 125 133 112 119 130 139 118 125 137 146 123 131 143 152 128 136 148 158
MBh 50.9 52.4 56.7 60.9 49.7 51.2 55.4 59.5 48.5 50.0 54.1 58.1 47.3 48.75 52.8 56.6 45.0 46.3 50.1 53.8 41.7 42.9 46.4 49.8
S/T 0.790.700.530.340.820.730.550.360.840.750.570.360.860.770.580.380.900.800.610.390.900.810.610.39
DT 23 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 24 22 18 12 22 20 17 11
1575 KW 3.97 4.05 4.17 4.29 4.25 4.34 4.47 4.61 4.50 4.60 4.74 4.88 4.72 4.82 4.97 5.13 4.91 5.02 5.17 5.34 5.07 5.18 5.35 5.52
AMPS 4.5 4.6 4.7 4.9 4.8 5.0 5.1 5.3 5.2 5.4 5.5 5.7 5.6 5.7 5.9 6.1 5.9 6.0 6.2 6.4 6.2 6.4 6.6 6.8
HI PR 218 235 248 258 245 263 278 290 278 299 316 330 317 341 360 376 357 384 405 423 394 424 448 467
LO PR 99 105 115 122 105 111 121 129 109 116 126 134 114 121 133 141 120 127 139 148 124 132 144 153
Shaded area is ACCA (TVA) conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
36
COOLING PERFORMANCE DATA GSZ130604A*
EXPANDED PERFORMANCE DATA
MODEL: GSZ130604A* /AR*F486016** COOLING OPERATION
Outdoor Am bient Temperature
65 75 85 95 105 115
Entering Indoor Wet Bulb Temperature
IDB Airflow 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71 59 63 67 71
MBh 57.81 59.07 63.11 67.47 56.47 57.70 61.65 65.90 55.12 56.33 60.18 64.33 53.78 54.95 58.71 62.76 51.09 52.20 55.77 59.62 47.32 48.36 51.66 55.23
S/T 0.940.880.720.541.000.910.740.561.000.940.760.571.000.970.790.591.001.000.820.611.001.000.820.62
DT 25 24 21 16 26 24 21 17 25 24 21 17 24 24 21 17 23 24 21 17 21 22 19 15
2025 KW 4.12 4.20 4.33 4.46 4.42 4.51 4.65 4.79 4.68 4.78 4.93 5.08 4.92 5.02 5.18 5.34 5.11 5.22 5.39 5.56 5.28 5.40 5.57 5.75
AMPS 4.7 4.8 5.0 5.1 5.1 5.2 5.3 5.5 5.5 5.6 5.8 6.0 5.8 5.9 6.1 6.4 6.2 6.3 6.5 6.7 6.5 6.7 6.9 7.1
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 104 111 121 129 110 117 128 136 114 122 133 141 120 128 139 148 126 134 146 156 130 138 151 161
MBh 56.157.461.365.554.856.059.964.053.554.758.462.552.253.457.0 60.9 49.6 50.7 54.2 57.9 45.9 46.9 50.2 53.6
S/T 0.900.840.680.510.930.870.710.530.950.890.730.540.980.920.75 0.56 1.00 0.96 0.78 0.58 1.00 0.96 0.78 0.59
DT 26 25 21 17 26 25 22 17 26 25 22 17 26 25 22 17 25 25 22 17 23 23 20 16
80 1800 KW 4.09 4.17 4.29 4.42 4.38 4.47 4.61 4.75 4.65 4.74 4.89 5.04 4.88 4.98 5.14 5.30 5.07 5.18 5.34 5.52 5.24 5.35 5.52 5.70
AMPS 4.7 4.8 4.9 5.1 5.0 5.1 5.3 5.5 5.4 5.5 5.7 5.9 5.8 5.9 6.1 6.3 6.1 6.3 6.4 6.7 6.5 6.6 6.8 7.1
HI PR 227 244 258 269 255 274 290 302 290 312 329 343 330 355 375 391 371 400 422 440 410 441 466 486
LO PR 103 110 120 127 109 116 126 135 113 120 131 140 119 126 138 147 125 132 145 154 129 137 150 159
MBh 51.852.956.660.550.651.755.259.149.450.553.957.648.249.252.656.245.846.850.053.442.443.346.349.5
S/T 0.860.810.660.490.900.840.680.510.920.860.700.520.950.890.720.540.980.920.750.560.990.930.760.57
DT 26 25 22 17 26 25 22 18 26 25 22 18 27 26 22 18 26 25 22 17 25 24 20 16
1575 KW 4.00 4.08 4.20 4.32 4.28 4.37 4.50 4.64 4.54 4.63 4.77 4.92 4.76 4.86 5.01 5.17 4.95 5.06 5.21 5.38 5.12 5.22 5.39 5.56
AMPS 4.6 4.7 4.8 5.0 4.9 5.0 5.1 5.3 5.3 5.4 5.6 5.8 5.6 5.7 5.9 6.1 6.0 6.1 6.3 6.5 6.3 6.4 6.6 6.9
HI PR 220 237 250 261 247 266 281 293 281 302 319 333 320 344 364 379 360 388 409 427 398 428 452 472
LO PR 100 106 116 124 106 112 123 131 110 117 127 136 115 123 134 143 121 129 140 149 125 133 145 155
MBh 58.82 59.96 62.80 67.00 57.45 58.57 61.34 65.44 56.09 57.17 59.88 63.88 54.72 55.78 58.42 62.32 51.98 52.99 55.50 59.21 48.15 49.08 51.41 54.84
S/T 0.980.950.860.701.000.980.890.721.001.000.910.741.001.000.940.761.001.000.980.791.001.000.980.80
DT 26 26 24 21 26 26 25 21 25 26 25 21 25 25 25 22 24 24 25 21 22 22 23 20
2025 KW 4.15 4.23 4.36 4.49 4.45 4.54 4.68 4.83 4.72 4.82 4.97 5.12 4.95 5.06 5.22 5.38 5.15 5.26 5.43 5.61 5.33 5.44 5.61 5.80
AMPS 4.7 4.8 5.0 5.2 5.1 5.2 5.4 5.6 5.5 5.6 5.8 6.0 5.9 6.0 6.2 6.4 6.2 6.4 6.6 6.8 6.6 6.7 6.9 7.2
HI PR 232 249 263 275 260 280 295 308 296 318 336 350 337 362 383 399 379 408 430 449 418 450 475 496
LO PR 105 112 122 130 111 118 129 137 115 123 134 143 121 129 141 150 127 135 148 157 131 140 153 163
MBh 57.158.261.065.055.856.959.663.554.555.558.162.053.154.256.760.550.551.453.957.546.747.749.953.2
S/T 0.940.910.820.660.970.940.850.691.000.960.870.711.000.990.900.731.001.000.930.761.001.000.940.76
DT 27 27 25 22 28 27 26 22 28 27 26 22 27 27 26 22 26 26 26 22 24 24 24 21
85 1800 KW 4.12 4.20 4.33 4.46 4.42 4.51 4.65 4.79 4.68 4.78 4.93 5.08 4.92 5.02 5.18 5.34 5.11 5.22 5.39 5.56 5.28 5.40 5.57 5.75
AMPS 4.7 4.8 5.0 5.1 5.1 5.2 5.3 5.5 5.5 5.6 5.8 6.0 5.8 5.9 6.1 6.4 6.2 6.3 6.5 6.7 6.5 6.7 6.9 7.1
HI PR 229 247 261 272 257 277 292 305 293 315 333 347 333 359 379 395 375 404 426 444 414 446 471 491
LO PR 104 111 121 129 110 117 128 136 114 122 133 141 120 128 139 148 126 134 146 156 130 138 151 161
MBh 52.753.756.360.051.552.555.058.650.351.253.757.249.050.052.355.846.647.549.753.143.144.046.149.1
S/T 0.910.870.790.640.940.910.820.660.960.930.840.680.990.960.860.701.000.990.900.731.001.000.910.73
DT 28 27 26 22 28 28 26 23 28 28 26 23 28 28 26 23 27 28 26 23 25 26 24 21
1575 KW 4.03 4.11 4.23 4.36 4.32 4.40 4.54 4.68 4.57 4.67 4.81 4.96 4.80 4.90 5.05 5.21 4.99 5.10 5.26 5.43 5.16 5.27 5.43 5.61
AMPS 4.6 4.7 4.8 5.0 4.9 5.0 5.2 5.4 5.3 5.4 5.6 5.8 5.7 5.8 6.0 6.2 6.0 6.1 6.3 6.6 6.3 6.5 6.7 6.9
HI PR 222 239 253 264 250 269 284 296 284 305 323 336 323 348 367 383 364 391 413 431 402 432 457 476
LO PR 101 107 117 125 107 113 124 132 111 118 129 137 116 124 135 144 122 130 142 151 126 134 147 156
Shaded area is AHRI Rating Conditions IDB: Entering Indoor Dry Bulb Temperature KW=Total system pow er AMPS=outdoor unit amps (comp.+fan)
High and low pressures are measured at the liquid and suction service valves.
37
SPLIT SYSTEM HEATING PERFORMANCE
*Note: Shaded area is AHRI Rating Conditions at 47° outdoor ambient temberature
Hi
g
h
pressure
i
s measure
d
a
t
th
e
li
qu
id
serv
i
ce va
l
ve
(th
e sma
ll
er va
l
ve
)
.
AMPS
=
O
u
td
oor un
it
amps
(
comp.+
f
an
)
L
ow pressure
i
s measure
d
a
t
th
e gauge por
t
connec
ti
on.
KW
=
T
o
t
a
l
sys
t
em power
C
a
l
cu
l
a
ti
ons are
b
ase
d
on nom
i
na
l
CFM
an
d
70
°F
i
n
d
oor
d
ry
b
u
lb
.
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130181A* / AR*F182416** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 21.4 20.2 19.0 17.8 17.0 16.5 15.3 14.1 13.3 12.3 11.3 10.7 10.3 9.2 8.2 7.2 6.1 5.0
DELTA T33.031.229.427.5 26.2 25.423.621.820.619.017.516.515.914.312.711.0 9.4 7.7
KW 1.68 1.64 1.61 1.58 1.56 1.54 1.51 1.48 1.46 1.42 1.39 1.37 1.36 1.32 1.29 1.26 1.23 1.19
AMPS 7.3 6.7 6.3 5.9 5.7 5.6 5.3 5.0 4.8 4.6 4.3 4.2 4.2 4.0 3.7 3.5 3.2 2.9
COP 3.733.603.463.30 3.19 3.122.962.792.682.532.392.292.222.041.861.661.461.22
EER 12.8 12.3 11.8 11.3 10.9 10.7 10.1 9.5 9.2 8.7 8.2 7.8 7.6 7.0 6.3 5.7 5.0 4.2
HI PR 392 375 361 345 337 331 318 305 292 279 268 262 257 247 238 228 220 212
LO PR 145 134 126 115 109 105 96 86 77 69 61 57 55 46 40 34 29 23
MODEL: G/VSZ130241A* / AR*F182416** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 28.9 27.4 25.8 24.1 23.0 22.3 20.7 19.1 16.7 15.4 14.2 13.4 12.9 11.6 10.3 9.0 7.6 6.3
DT 32.630.929.127.2 26.0 25.223.421.618.917.416.015.114.613.111.610.1 8.6 7.1
KW 2.20 2.15 2.11 2.07 2.04 2.02 1.98 1.94 1.75 1.71 1.67 1.65 1.63 1.59 1.56 1.52 1.48 1.44
AMPS 9.7 9.0 8.4 7.9 7.6 7.5 7.0 6.7 6.4 6.1 5.8 5.6 5.6 5.3 4.9 4.6 4.3 3.8
COP 3.853.723.573.41 3.30 3.233.062.892.792.632.482.382.312.131.931.731.511.27
EER 13.2 12.7 12.2 11.7 11.3 11.0 10.5 9.9 9.5 9.0 8.5 8.1 7.9 7.3 6.6 5.9 5.2 4.4
HI PR 407 390 375 358 350 343 330 317 303 290 278 272 267 257 247 237 228 220
LO PR13512611810810298908073655753514337312722
MODEL: G/VSZ130301A* / AR*F30301** HEATING OPERATION
Outdoor Ambient Tem perature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 33.2 31.4 29.6 27.6 26.4 25.6 23.8 21.9 19.9 18.4 16.9 16.0 15.4 13.8 12.3 10.7 9.1 7.5
DELTA T29.327.726.124.4 23.3 22.621.019.317.616.214.914.113.612.210.8 9.4 8.0 6.6
KW 2.52 2.47 2.42 2.37 2.35 2.32 2.28 2.23 2.37 2.32 2.26 2.23 2.21 2.16 2.11 2.05 2.00 1.95
AMPS 9.7 9.0 8.5 8.0 7.7 7.6 7.2 6.9 6.6 6.3 6.0 5.9 5.8 5.6 5.2 5.0 4.6 4.2
COP 3.863.723.573.41 3.29 3.223.052.882.462.322.192.102.041.881.701.521.341.12
EER 13.2 12.7 12.2 11.6 11.3 11.0 10.4 9.8 8.4 7.9 7.5 7.2 7.0 6.4 5.8 5.2 4.6 3.8
HI PR 366 351 337 323 315 309 297 285 273 261 250 244 240 231 222 213 205 198
LO PR 129 119 112 103 97 93 86 76 69 62 54 50 49 41 35 30 26 20
MODEL: G/VSZ130241B*/ AR*F182416** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 28.9 27.4 25.8 24.1 23.0 22.3 20.7 19.1 16.9 15.6 14.3 13.6 13.0 11.7 10.4 9.1 7.7 6.3
Delta T 33.5 31.7 29.8 27.9 26.6 25.8 24.0 22.1 19.5 18.0 16.6 15.7 15.1 13.6 12.0 10.5 8.9 7.3
KW 2.17 2.12 2.08 2.04 2.02 2.00 1.96 1.91 1.80 1.76 1.72 1.70 1.68 1.64 1.60 1.57 1.52 1.49
AMPS 10.1 9.3 8.7 8.2 7.9 7.7 7.3 6.9 6.6 6.3 6.0 5.9 5.8 5.5 5.2 4.9 4.5 4.0
COP 3.913.773.623.463.343.273.102.922.742.592.442.332.272.081.891.691.481.25
EER 13.3 12.9 12.4 11.8 11.4 11.2 10.6 10.0 9.4 8.8 8.3 8.0 7.7 7.1 6.5 5.8 5.1 4.3
HI PR 413 395 380 364 355 348 335 321 308 294 282 275 271 260 250 240 231 223
LO PR 131 122 114 105 99 95 88 78 70 63 55 51 50 42 36 30 27 21
38
SPLIT SYSTEM HEATING PERFORMANCE
*Note: Shaded area is AHRI Rating Conditions at 47° outdoor ambient temberature
Hi
g
h
pressure
i
s measure
d
a
t
th
e
li
qu
id
serv
i
ce va
l
ve
(th
e sma
ll
er va
l
ve
)
.
AMPS
=
O
u
td
oor un
it
amps
(
comp.+
f
an
)
L
ow pressure
i
s measure
d
a
t
th
e gauge por
t
connec
ti
on.
KW
=
T
o
t
a
l
sys
t
em power
C
a
l
cu
l
a
ti
ons are
b
ase
d
on nom
i
na
l
CFM
an
d
70
°F
i
n
d
oor
d
ry
b
u
lb
.
MODEL: G/VSZ130361A* / AR*F364216** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 42.7 40.5 38.1 35.6 34.0 32.9 30.6 28.2 19.9 18.4 16.9 16.0 15.4 13.8 12.3 10.7 9.1 7.5
DELTA T 31.0 29.4 27.7 25.9 24.7 23.9 22.2 20.5 14.5 13.4 12.3 11.6 11.2 10.0 8.9 7.8 6.6 5.4
KW 3.07 3.01 2.96 2.90 2.87 2.85 2.79 2.74 2.82 2.76 2.70 2.67 2.64 2.58 2.52 2.46 2.40 2.35
AMPS 14.2 13.2 12.3 11.6 11.2 11.0 10.4 9.9 9.4 9.0 8.6 8.4 8.3 7.9 7.4 7.0 6.5 5.8
COP 4.07 3.93 3.77 3.59 3.47 3.39 3.21 3.02 2.07 1.95 1.84 1.76 1.71 1.57 1.42 1.27 1.11 0.93
EER 13.9 13.4 12.9 12.3 11.8 11.6 11.0 10.3 7.1 6.7 6.3 6.0 5.8 5.4 4.9 4.3 3.8 3.2
HI PR 372 356 343 328 320 314 302 290 277 265 254 248 244 235 226 216 209 201
LO PR13312311510610096897971645652504237312721
EXPANDED PERFORMANCE DATA
MODEL: GSZ130363A* / AR*F364216** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 42.7 40.5 38.1 35.6 34.0 32.9 30.6 28.2 19.9 18.4 16.9 16.0 15.4 13.8 12.3 10.7 9.1 7.5
DT 31.0 29.4 27.7 25.9 24.7 23.9 22.2 20.5 14.5 13.4 12.3 11.6 11.2 10.0 8.9 7.8 6.6 5.4
KW 2.90 2.84 2.79 2.73 2.70 2.68 2.63 2.58 2.42 2.37 2.32 2.29 2.27 2.22 2.17 2.12 2.07 2.02
AMPS 9.9 9.2 8.7 8.2 7.9 7.8 7.4 7.0 6.7 6.5 6.2 6.0 6.0 5.7 5.3 5.1 4.7 4.3
COP 4.324.174.003.813.683.603.413.212.412.272.142.051.991.821.651.481.291.08
EER 14.8 14.2 13.7 13.0 12.6 12.3 11.6 11.0 8.2 7.8 7.3 7.0 6.8 6.2 5.7 5.0 4.4 3.7
HI PR 383 368 353 338 330 324 311 299 286 273 262 256 251 242 233 223 215 208
LO PR 138 128 120 110 104 100 92 82 74 66 58 54 52 44 38 32 28 22
MODEL: G/VSZ130361B* / AR*F364216** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 42.7 40.5 38.1 35.6 34.0 32.9 30.6 28.2 2.6 2.4 2.2 2.1 2.0 1.8 1.6 1.4 1.2 1.0
Delta T 33.0 31.2 29.4 27.5 26.2 25.4 23.6 21.8 2.0 1.9 1.7 1.6 1.6 1.4 1.2 1.1 0.9 0.8
KW 3.09 3.03 2.97 2.90 2.87 2.84 2.79 2.73 2.70 2.64 2.58 2.54 2.52 2.45 2.39 2.33 2.27 2.21
AMPS 14.0 13.0 12.1 11.4 11.0 10.8 10.2 9.7 9.3 8.8 8.4 8.2 8.1 7.7 7.2 6.8 6.3 5.6
COP 4.053.913.763.593.473.393.213.030.280.270.250.240.230.220.200.180.150.13
EER 13.8 13.4 12.8 12.3 11.8 11.6 11.0 10.4 1.0 0.9 0.9 0.8 0.8 0.7 0.7 0.6 0.5 0.4
HI PR 383 368 353 338 330 324 311 299 286 273 262 256 251 242 233 223 215 208
LO PR 133 123 115 106 100 96 89 79 71 64 56 52 50 42 37 31 27 21
39
SPLIT SYSTEM HEATING PERFORMANCE
*Note: Shaded area is AHRI Rating Conditions at 47° outdoor ambient temberature
Hi
g
h
pressure
i
s measure
d
a
t
th
e
li
qu
id
serv
i
ce va
l
ve
(th
e sma
ll
er va
l
ve
)
.
AMPS
=
O
u
td
oor un
it
amps
(
comp.+
f
an
)
L
ow pressure
i
s measure
d
a
t
th
e gauge por
t
connec
ti
on.
KW
=
T
o
t
a
l
sys
t
em power
C
a
l
cu
l
a
ti
ons are
b
ase
d
on nom
i
na
l
CFM
an
d
70
°F
i
n
d
oor
d
ry
b
u
lb
.
EXPANDED PERFORMANCE DATA
MODEL: G/VSZ130421A* / AR*F36421** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 50.3 47.6 44.8 41.9 40.0 38.8 36.0 33.2 29.9 27.6 25.4 24.0 23.1 20.7 18.4 16.0 13.7 11.2
DT 34.5 32.6 30.7 28.7 27.4 26.6 24.7 22.8 20.5 18.9 17.4 16.5 15.9 14.2 12.6 11.0 9.4 7.7
KW 3.60 3.53 3.46 3.39 3.35 3.32 3.25 3.18 3.24 3.16 3.09 3.05 3.02 2.95 2.88 2.80 2.73 2.66
AMPS 16.9 15.6 14.5 13.6 13.1 12.9 12.1 11.5 10.9 10.4 9.9 9.7 9.5 9.0 8.4 7.9 7.2 6.4
COP 4.09 3.95 3.79 3.62 3.49 3.42 3.24 3.05 2.70 2.55 2.40 2.30 2.24 2.06 1.87 1.67 1.47 1.23
EER 14.0 13.5 12.9 12.4 11.9 11.7 11.1 10.4 9.2 8.7 8.2 7.9 7.6 7.0 6.4 5.7 5.0 4.2
HI PR 368 353 340 325 317 311 299 287 275 262 252 246 242 232 223 214 207 199
LO PR 129 119 112 103 97 93 86 76 69 62 54 50 49 41 35 30 26 20
MODEL: G/VSZ130481A* /AR*F48601** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 55.3 52.4 49.3 46.1 44.0 42.6 39.6 36.5 33.6 31.1 28.6 27.0 26.0 23.3 20.7 18.0 15.4 12.6
DELTA T 32.0 30.3 28.5 26.7 25.5 24.7 22.9 21.1 19.5 18.0 16.5 15.6 15.0 13.5 12.0 10.4 8.9 7.3
KW 3.93 3.87 3.80 3.73 3.69 3.66 3.59 3.52 3.37 3.30 3.23 3.19 3.17 3.10 3.04 2.97 2.90 2.84
AMPS 18.2 16.8 15.7 14.8 14.3 14.0 13.2 12.5 12.0 11.4 10.9 10.6 10.5 9.9 9.3 8.7 8.1 7.3
COP 4.11 3.96 3.80 3.62 3.49 3.41 3.23 3.03 2.93 2.76 2.59 2.47 2.40 2.20 1.99 1.78 1.55 1.30
EER 14.1 13.5 13.0 12.4 11.9 11.7 11.0 10.4 10.0 9.4 8.8 8.5 8.2 7.5 6.8 6.1 5.3 4.4
HI PR 380 364 350 335 327 321 308 296 284 271 260 254 249 240 231 221 213 206
LO PR 129 119 112 103 97 93 86 76 69 62 54 50 49 41 35 30 26 20
MODEL: G/VSZ130601A* / AR*F48601** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 72.9 69.0 65.0 60.7 58.0 56.2 52.2 48.1 44.9 41.4 38.1 36.0 34.7 31.1 27.6 24.0 20.5 16.8
DELTA T 37.5 35.5 33.4 31.2 29.8 28.9 26.9 24.8 23.1 21.3 19.6 18.5 17.8 16.0 14.2 12.4 10.6 8.6
KW 5.21 5.11 5.01 4.92 4.86 4.82 4.72 4.63 4.66 4.56 4.46 4.40 4.36 4.26 4.16 4.06 3.96 3.86
AMPS 24.0 22.2 20.7 19.5 18.8 18.4 1 7.3 16.4 15.7 15.0 14.2 13.9 13.7 13.0 12 .1 11.3 10.5 9.4
COP 4.10 3.95 3.79 3.62 3.49 3.41 3.23 3.05 2.82 2.66 2.50 2.40 2.33 2.14 1.94 1.73 1.52 1.28
EER 14.0 13.5 13.0 12.4 11.9 11.7 11.1 10.4 9.6 9.1 8.6 8.2 8.0 7.3 6.6 5.9 5.2 4.4
HI PR 416 399 383 367 358 351 338 324 310 296 285 278 273 262 252 242 233 225
LO PR13312311510610096897971645652504237312721
40
SPLIT SYSTEM HEATING PERFORMANCE
EXPANDED PERFORMANCE DATA
MODEL: GSZ130483A* / AR*F486016** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 55.3 52.4 49.3 46.1 44.0 42.6 39.6 36.5 33.6 31.1 28.6 27.0 26.0 23.3 20.7 18.0 15.4 12.6
DT 32.0 30.3 28.5 26.7 25.5 24.7 22.9 21.1 19.5 18.0 16.5 15.6 15.0 13.5 12.0 10.4 8.9 7.3
KW 3.94 3.87 3.80 3.72 3.68 3.65 3.58 3.51 3.49 3.42 3.34 3.30 3.27 3.20 3.12 3.05 2.98 2.90
AMPS 11.1 10.3 9.7 9.1 8.8 8.6 8.2 7.8 7.5 7.2 6.8 6.7 6.6 6.3 5.9 5.6 5.2 4.7
COP 4.103.963.803.623.503.423.243.052.822.662.502.392.332.141.941.731.511.27
EER 14.0 13.5 13.0 12.4 11.9 11.7 11.1 10.4 9.6 9.1 8.6 8.2 7.9 7.3 6.6 5.9 5.2 4.3
HI PR 386 370 356 340 332 326 313 300 288 275 264 258 253 243 234 224 216 209
LO PR1261171101019591847568605349484035292620
MODEL: GSZ130484A* / AR*F486016** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 55.3 52.4 49.3 46.1 44.0 42.6 39.6 36.5 33.6 31.1 28.6 27.0 26.0 23.3 20.7 18.0 15.4 12.6
DT 32.0 30.3 28.5 26.7 25.5 24.7 22.9 21.1 19.5 18.0 16.5 15.6 15.0 13.5 12.0 10.4 8.9 7.3
KW 3.94 3.87 3.80 3.73 3.68 3.65 3.58 3.51 3.49 3.42 3.34 3.30 3.27 3.20 3.12 3.05 2.98 2.90
AMPS 6.1 5.7 5.4 5.1 4.9 4.8 4.6 4.4 4.2 4.0 3.8 3.8 3.7 3.5 3.3 3.2 3.0 2.7
COP 4.103.963.803.623.503.423.243.052.822.662.502.392.332.141.941.731.511.27
EER 14.0 13.5 13.0 12.4 11.9 11.7 11.1 10.4 9.6 9.1 8.6 8.2 7.9 7.3 6.6 5.9 5.2 4.3
HI PR 386 370 356 340 332 326 313 300 288 275 264 258 253 243 234 224 216 209
LO PR1261171101019591847568605349484035292620
MODEL: GSZ130603A* /AR*F486016** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 72.9 69.0 65.0 60.7 58.0 56.2 52.2 48.1 44.9 41.4 38.1 36.0 34.7 31.1 27.6 24.0 20.5 16.8
DT 37.5 35.5 33.4 31.2 29.8 28.9 26.9 24.8 23.1 21.3 19.6 18.5 17.8 16.0 14.2 12.4 10.6 8.6
KW 5.21 5.11 5.01 4.91 4.86 4.81 4.72 4.62 4.65 4.55 4.45 4.39 4.34 4.24 4.14 4.04 3.94 3.84
AMPS 13.1 12.2 11.4 10.7 10.3 10.1 9.5 9.0 8.6 8.2 7.8 7.7 7.6 7.2 6.7 6.3 5.8 5.2
COP 4.103.953.793.623.503.423.243.052.822.672.512.402.342.151.951.741.531.28
EER 14.0 13.5 13.0 12.4 11.9 11.7 11.1 10.4 9.6 9.1 8.6 8.2 8.0 7.3 6.7 6.0 5.2 4.4
HI PR 416 399 383 367 358 351 338 324 310 296 285 278 273 262 252 242 233 225
LO PR 133 123 115 106 100 96 89 79 71 64 56 52 50 42 37 31 27 21
MODEL: GSZ130604A* /AR*F486016** HEATING OPERATION
Outdoor Ambient Temperature
65 60 55 50 47 45 40 35 30 25 20 17 15 10 5 0 -5 -10
MBh 72.9 69.0 65.0 60.7 58.0 56.2 52.2 48.1 44.9 41.4 38.1 36.0 34.7 31.1 27.6 24.0 20.5 16.8
DT 37.5 35.5 33.4 31.2 29.8 28.9 26.9 24.8 23.1 21.3 19.6 18.5 17.8 16.0 14.2 12.4 10.6 8.6
KW 5.21 5.11 5.01 4.91 4.86 4.81 4.72 4.62 4.65 4.55 4.45 4.39 4.34 4.24 4.14 4.04 3.94 3.84
AMPS6.56.15.75.45.25.14.84.64.44.24.14.03.93.73.53.33.12.8
COP 4.103.953.793.623.503.423.243.052.822.672.512.402.342.151.951.741.531.28
EER 14.0 13.5 13.0 12.4 11.9 11.7 11.1 10.4 9.6 9.1 8.6 8.2 8.0 7.3 6.7 6.0 5.2 4.4
HI PR 416 399 383 367 358 351 338 324 310 296 285 278 273 262 252 242 233 225
LO PR 133 123 115 106 100 96 89 79 71 64 56 52 50 42 37 31 27 21
*Note: Shaded area is AHRI Rating Conditions at 47° outdoor ambient temberature
Hi
g
h
pressure
i
s measure
d
a
t
th
e
li
qu
id
serv
i
ce va
l
ve
(th
e sma
ll
er va
l
ve
)
.
AMPS
=
O
u
td
oor un
it
amps
(
comp.+
f
an
)
L
ow pressure
i
s measure
d
a
t
th
e gauge por
t
connec
ti
on.
KW
=
T
o
t
a
l
sys
t
em power
C
a
l
cu
l
a
ti
ons are
b
ase
d
on nom
i
na
l
CFM
an
d
70
°F
i
n
d
oor
d
ry
b
u
lb
.
41
PERFORMANCE DATA PERFORMANCE TEST
All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor
air cubic feet per minute (CFM) as listed in the Performance Data Sheets:
If conditions vary from this, results will change as follows:
1. As indoor dry bulb temperatures increase, a slight increase will occur in indoor air temperature drop (Delta T). Low
and high side pressures and power will not change.
2. As indoor CFM decreases, a slight increase will occur in indoor temperature drop (Delta T). A slight decrease will
occur in low and high side pressures and power.
A properly operating unit should be within plus or minus 2 degrees of the subcooling value shown in the Heat Pump
Specifications.
A properly operating unit should be within plus or minus 3 degrees of the typical (Delta T) value shown.
A properly operating unit should be within plus or minus 7 PSIG of the HI PR shown.
A properly operating unit should be within plus or minus 3 PSIG of the LO PR shown.
A properly operating unit should be within plus or minus 3 Amps of the typical value shown.
NOTE: Pressures are measured at the liquid and suction service valve ports.
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

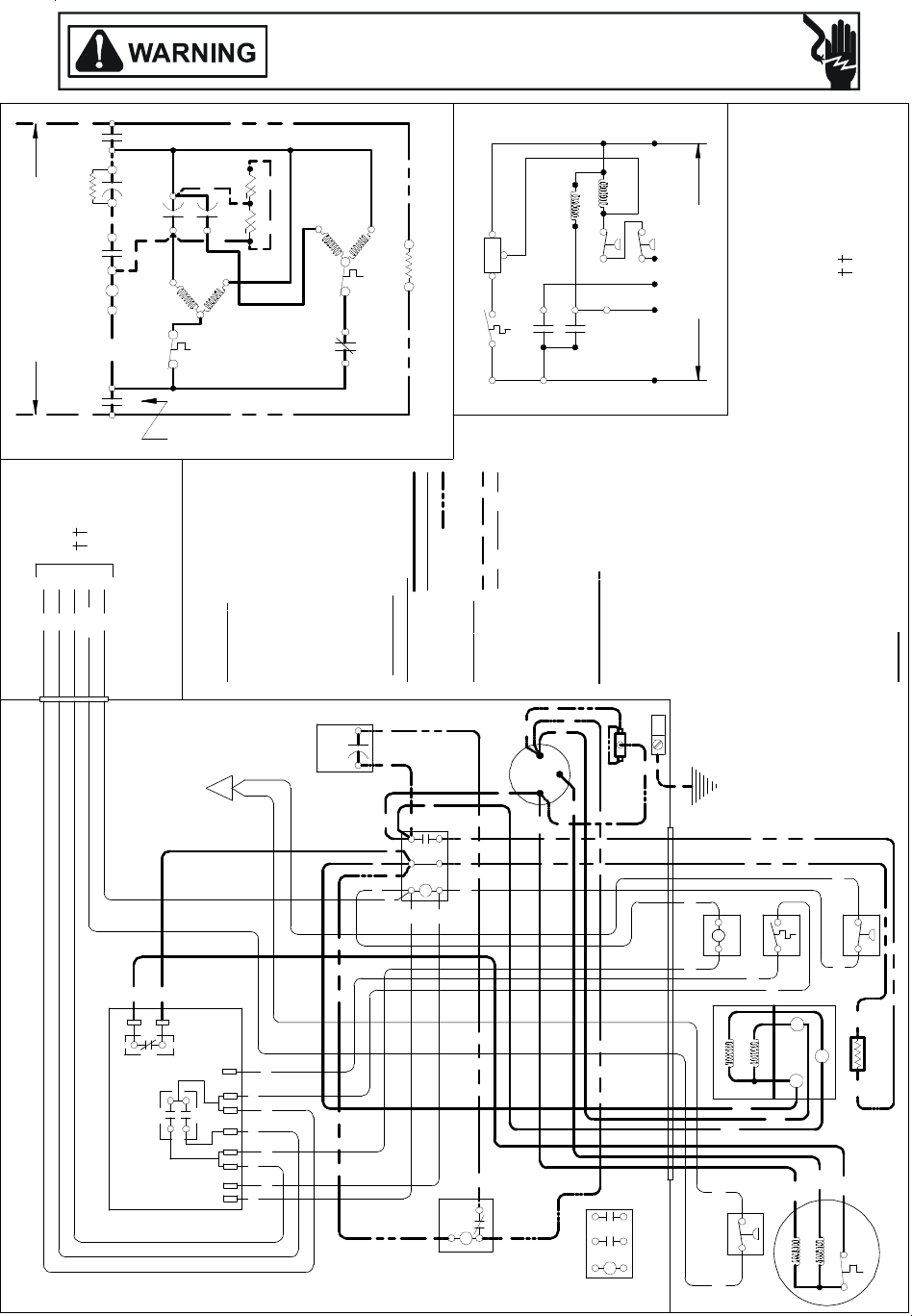

WIRING DIAGRAMS
42
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
G/VSZ130[18-60]1[A/B]*
USE N.E.C. CLASS 2 WIRE
NOTES:
1) TO INDOOR UNIT LOW VOLT
A
GE
TERMIN
A
L BLOCK & INDOOR
THERMOST
A
T.
2) ST
A
RT
A
SSIST F
A
CTORY
EQUIPPED WHEN REQUIRED.
3) CR
A
NKC
A
SE HE
A
TER M
A
Y BE
F
A
CTORY OR FIELD INST
A
LLED.
COMP
A
LTERNATE DO UBLE
POLE CONTACTOR ONLY
IO
T1
C
MA
IN
R
AU
X
5
S
SR
S
A
21
RCCF
SC
T2
C
L1 L2
(IF USED)
CH
C
F
MA
IN
AUX
IO
CM
LPS
VENDOR: GOODMAN PRINT SHOP 01/06 0140R00029P
OR
BL/PK
BL
RD
O
Y
C
R
NOTE 1
COLOR CODE
BK --------------- BL
A
CK
BL
/
PK ---------- BLUE/PINK STRIPE
BR --------------- BROWN
OR --------------- OR
A
NGE
PU --------------- PURPLE
RD --------------- RED
WH -------------- WHITE
YL --------------- YELLOW
YL
/
PK--------- YELLOW/PINK STRIPE
COMPONENT CODE
C --------------- CONTACTOR
CH ------------- CRANKCASE HEATER
CM ------------ OUTDOOR FAN MOTOR
COMP -------- COMPRESSOR
DC ------------- DEFROST CONTROL
DFT ----------- DEFROST THERMOSTAT
HPS-------------HIGH PRESSURE SWITCH
HVDR -------- HIGH VOLTAGE DEFROST RELAY
IO -------------- INTERNAL OVERLOAD
LPS ------------ LOW PRESSURE SWITCH
LVDR --------- LOW VOLTAGE DEFROST RELAY
LVJB ---------- LOW VOLTAGE JUNCTION BOX
RCCF --------- RUN CAPACITOR FOR COMPRESSOR & F
A
N
RVC ----------- REVERSING VALVE COIL
SA ------------- START ASSIST
SC ------------- START CAPACITOR FOR COMPRESSOR (OPTION
A
L)
SR ------------- START RELAY FOR COMPRESSOR (OPTION
A
L)
CONTROLS SHOWN WITH THERMOSTAT IN 'OFF' POSITION.
T1
L1
T2
L2
ALTERNATE DOUBLE
POLE CONTACTOR
OUTDOOR POWER SUPPLY
SEE R
A
TING PL
A
TE
WIRING CODE
FAC TO RY WIRING
HIGH VOLTAGE
LOW VOLTAGE
OPTIONAL HIGH VOLT
A
GE
FIELD WIRING
HIGH VOLTAGE
LOW VOLTAGE
RD
SA
(IF USED)
NOTE 2
LVJB
CONTROL BOX
SC
RD BL
L2
T2
L1
T1
C
BK
BK BK RD
RD
BK
BL
YL/PK
YL
BL
RD
RCCF
F
CHERM
YLYL
YL
BR
RD
PU
YL
RD
SR
5
21
BK
YL
BL
IO
CM
AUX
MAIN
BK
BR
PU
YL
C
R
S
RD BK AUX
MAIN
COMP
BK
DFT
YL/PKYL/PK LPS
EQUIPMENT GROUND
USE COPPER
CONDUCTORS ONLY
DF1 DF2
HVDR
CH
(IF USED)
NOTE 3
W2
LVDR
O
R
O
O Y
C
RVC
W2
INDOOR POWER
SUPPLY
RC
DFT
C
Y
DC
R
DFT
RVC
BK
RD
RD
BK
CH
(IF USED) NOTE 3
BK
BK BK
WH W2
DC
OR
C Y O O
BL
YL BK
RD
R R
RD
LVD R
W2
WH
DFT
RD
H
V
D
R
DF2
DF1
BK
BK
HPS
BL/PK HPS BL/PK
BL/PK
YL/PK
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

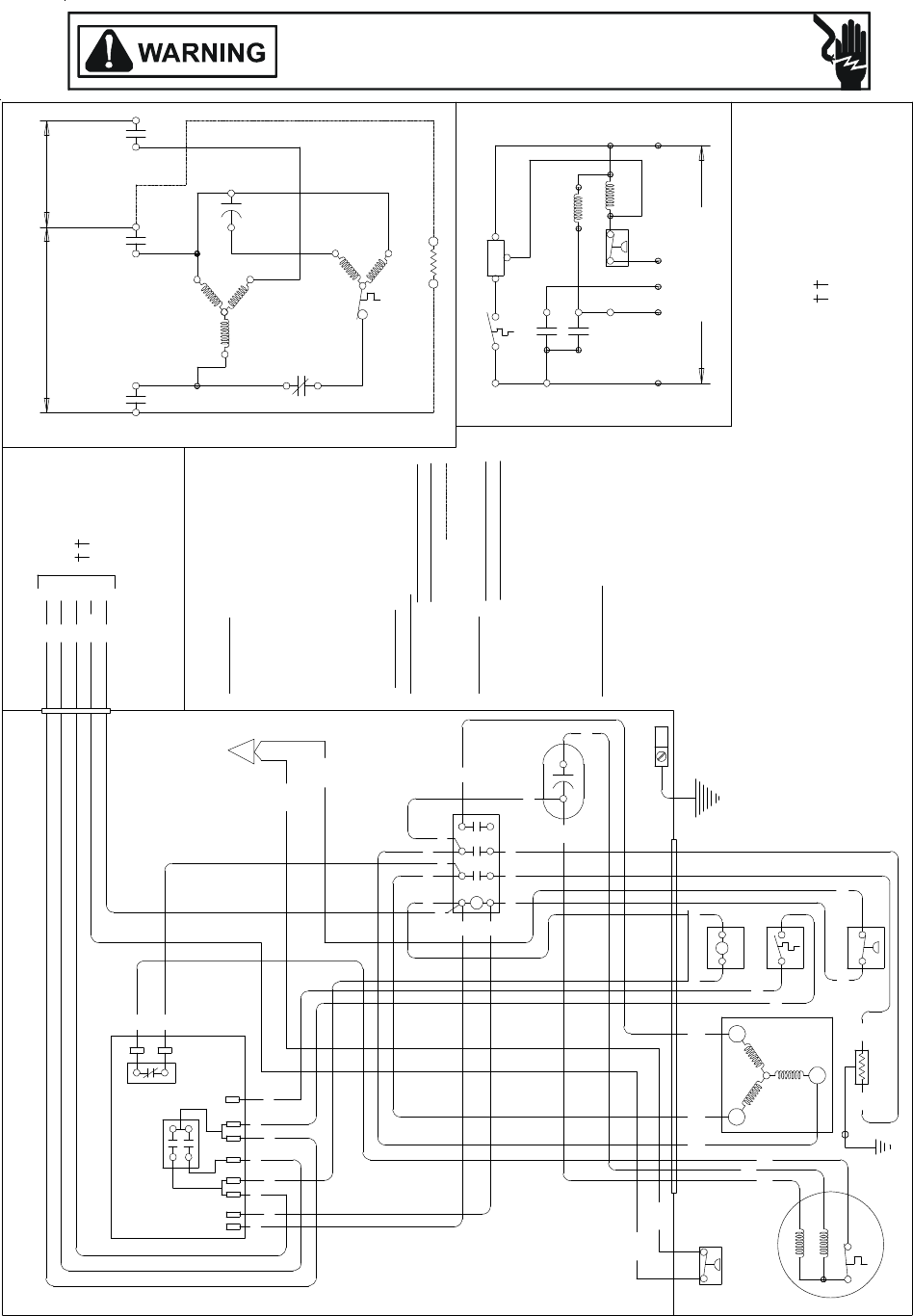

WIRING DIAGRAMS
43
Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
GSZ130[36-60][3,4]A*
USE N.E.C. CLASS 2 WIRE
NOTES:
1) TO INDOOR UNIT LOW VOLTAGE
TERMINAL BLOCK & INDOOR
THERMOSTAT.
LPS
0140R00162 REV. B
OR
BL
RD
O
BL/PK
C
R
NOTE 1
COLOR CODE
BK --------------- BLACK
BL/PK ---------- BLUE/ PINK STRIPE
BR --------------- BROWN
OR --------------- ORANGE
PU --------------- PURPLE
RD --------------- RED
WH -------------- WHITE
YL --------------- YELLOW
YL/PK------------YELLOW/PINK STRIPE
COMPONENT CODE
C --------------- CONTACTOR
CH ------------- CRANKCASE HEATER
CM ------------ OUTDOOR FAN MOTOR
COMP -------- COMPRESSOR
DC ------------- DEFROST CONTROL
DFT ----------- DEFROST THERMOSTAT
HPS-------------HIGH PRESSURE SWITCH
FC ------------- FAN CAPACITOR
HVDR -------- HIGH VOLTAGE DEFROST RELAY
IO -------------- INTERNAL OVERLOAD
LPS ------------ LOW PRESSURE SWITCH
LVDR --------- LOW VOLTAGE DEFROST RELAY
LVJB ---------- LOW VOLTAGE JUNCTION BOX
RVC ----------- REVERSING VALVE COIL
CONTROLS SHOWN WITH THERMOSTAT IN 'OFF' POSITION.
WIRING CODE
FACTORY WIRING
HIGH VOLTAGE
LOW VOLTAGE
OPTIONAL HIGH VOLTAGE
FIELD WIRING
HIGH VOLTAGE
LOW VOLTAGE
LVJB
CONTROL BOX
IO
CM
AUX
MAIN
BK
BR
PU
BK
DFT
YL/PK
YL/PK LPS
EQUIPMENT GROUND
USE COPPER
CONDUCTORS ONLY
CH
(IF USED)
W2
LVDR
O
R
O
O
C
RVC
W2
INDOOR POWER
SUPPLY
RC
DFT
C
Y
DC
R
DFT
RVC
BK
RD
RD
BK
CH
(IF USED)
BK
WH W2
DC
OR
C Y O O
BL
YL BK
RD
RR
RD
LVDR
W2
WH
DFT
RD
H
V
D
R
DF2
DF1
BK
BK
COMP
T1
C
T3
T2
FC
T3
C
L1 L3
MAIN
AUX
IO
CM
BK
T3
COMP
T1
L2
C
T2
OUTDOOR POWER SUPPLY
SEE RATING PLATE
T1
T2
RDYL
RD
BK
BK
C
T1
L1
T2
L2
T3
L3YL
RD
YL
FC
PU
BR
RD
DF1
DF2
HVDR
BK
BL
YL/PK
BL
BK BK
HPS
HPS
BL/PK
BL/PK
YL/PK
BL/PK
Y

Navigation menu
