This manual is to be used by qualified, professionally trained HVAC

technicians only. Goodman does not assume any responsibility for

property damage or personal injury due to improper service

procedures or services performed by an unqualified person.

Split System Air Conditioners,

Split System Heat Pumps

with R-22 Refrigerant

Blowers, Coils, & Accessories

Service Instructions

RT6100004r13

May 2009

IMPORTANT INFORMATION

Pride and workmanship go into every product to provide our customers with quality products. It is possible, however,

that during its lifetime a product may require service. Products should be serviced only by a qualified service technician

who is familiar with the safety procedures required in the repair and who is equipped with the proper tools, parts, testing

instruments and the appropriate service manual. REVIEW ALL SERVICE INFORMATION IN THE APPROPRIATE

SERVICE MANUAL BEFORE BEGINNING REPAIRS.

IMPORTANT NOTICES FOR CONSUMERS AND SERVICERS

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS

TABLE OF CONTENTS

To locate an authorized servicer, please consult your telephone book or the dealer from whom you purchased this

product. For further assistance, please contact:

WARNING

To prevent the risk of property damage, personal

injury, or death, do not store combustible materials or

use gasoline or other flammable liquids or vapors

in the vicinity of this appliance.

WARNING

Goodman will not be responsible for any injury or property damage arising from improper service or service

procedures. If you perform service on your own product, you assume responsibility for any personal injury or property

damage which may result.

WARNING

This unit should not be connected to, or used in conjunction with, any devices that are not design certified for use with

this unit or have not been tested and approved by Goodman. Serious property damage or personal injury, reduced unit

performance and/or hazardous conditions may result from the use of devices that have not been approved or certified by

Goodman.

CONSUMER INFORMATION LINE

GOODMAN® BRAND PRODUCTS

TOLL FREE 1-877-254-4729 (U.S. only)

email us at: customerservice@goodmanmfg.com

fax us at: (713) 856-1821

(Not a technical assistance line for dealers.)

CONSUMER INFORMATION LINE

AMANA® BRAND PRODUCTS

TOLL FREE 1-877-254-4729 (U.S. only)

email us at: hac.consumer.affairs@amanahvac.com

fax us at: (931) 438- 4362

(Not a technical assistance line for dealers.)

Outside the U.S., call 1-931-433-6101. (Not a technical assistance

line for dealers.) Your telephone company will bill you for the call.

Outside the U.S., call 1-713-861-2500. (Not a technical assistance

line for dealers.) Your telephone company will bill you for the call.

IMPORTANT INFORMATION .........................2 - 3

MODEL IDENTIFICATION ............................4 - 15

AIR HANDLER/COIL IDENTIFICATION ............ 15

ACCESSORIES ......................................... 16 - 20

PRODUCT DESIGN ................................. 21 - 22

SYSTEM OPERATION .............................. 23 - 27

TROUBLESHOOTING CHART ......................... 28

SERVICING TABLE OF CONTENTS ................29

SERVICING .................................................30 - 60

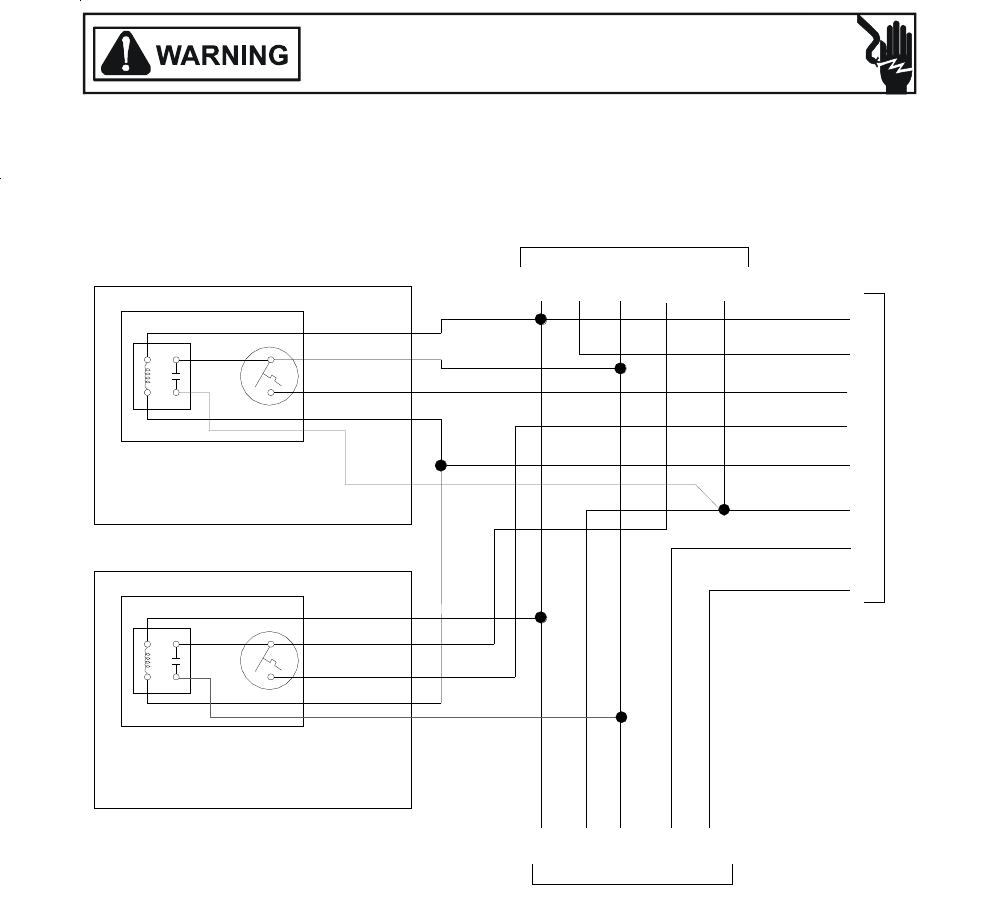

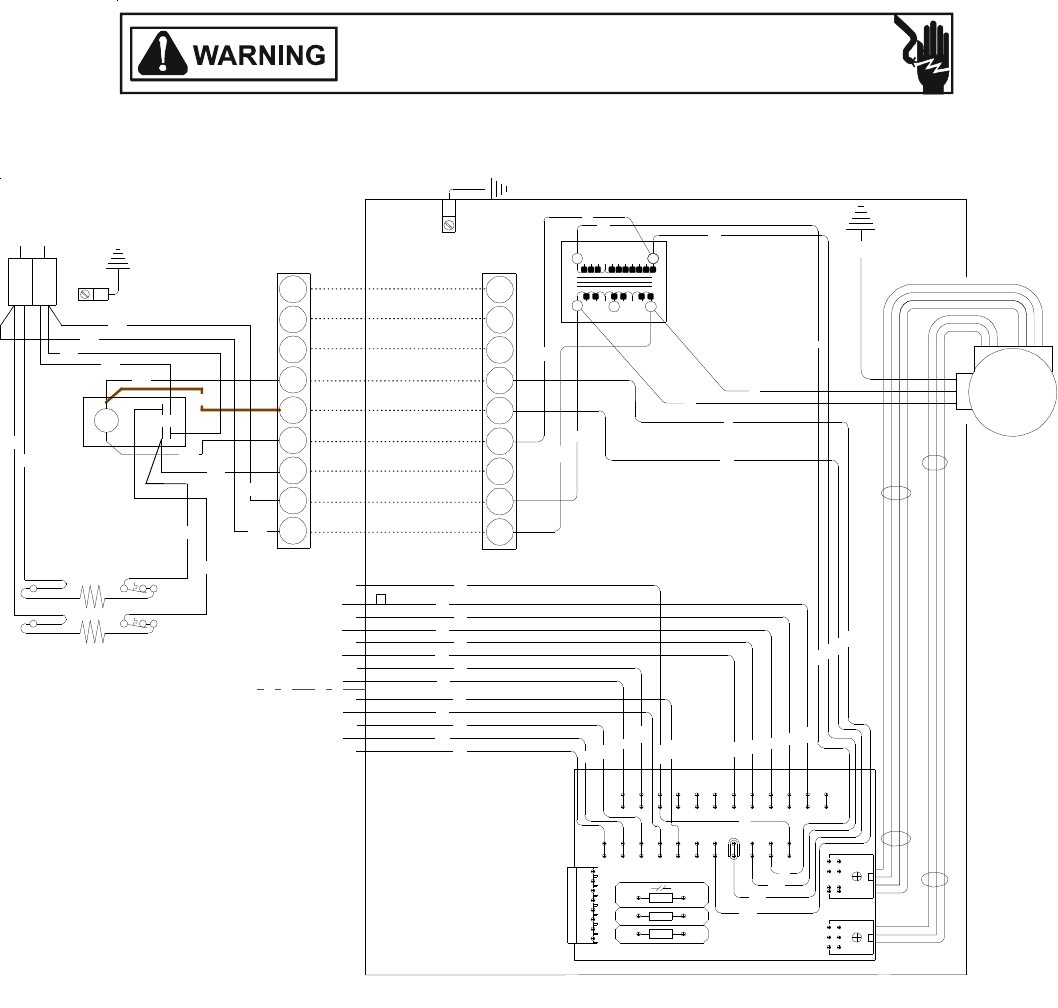

ACCESSORIES WIRING DIAGRAMS ........61 - 69

The successful development of hermetically sealed refrigera-

tion compressors has completely sealed the compressor's

moving parts and electric motor inside a common housing,

minimizing refrigerant leaks and the hazards sometimes

associated with moving belts, pulleys or couplings.

Fundamental to the design of hermetic compressors is a

method whereby electrical current is transmitted to the

compressor motor through terminal conductors which pass

through the compressor housing wall. These terminals are

sealed in a dielectric material which insulates them from the

housing and maintains the pressure tight integrity of the

hermetic compressor. The terminals and their dielectric

embedment are strongly constructed, but are vulnerable to

careless compressor installation or maintenance proce-

dures and equally vulnerable to internal electrical short

circuits caused by excessive system contaminants.

WARNING

System contaminants, improper service procedure

and/or physical abuse affecting hermetic compressor

electrical terminals may cause dangerous system

venting.

WARNING

To avoid possible injury, explosion or death, practice

safe handling of refrigerants.

SAFE REFRIGERANT HANDLING

While these items will not cover every conceivable situation, they should serve as a useful guide.

In either of these instances, an electrical short between the

terminal and the compressor housing may result in the loss

of integrity between the terminal and its dielectric embed-

ment. This loss may cause the terminals to be expelled,

thereby venting the vaporous and liquid contents of the

compressor housing and system.

A venting compressor terminal normally presents no danger

to anyone, providing the terminal protective cover is properly

in place.

If, however, the terminal protective cover is not properly in

place, a venting terminal may discharge a combination of

(a) hot lubricating oil and refrigerant

(b) flammable mixture (if system is contaminated

with air)

in a stream of spray which may be dangerous to anyone in the

vicinity. Death or serious bodily injury could occur.

Under no circumstances is a hermetic compressor to be

electrically energized and/or operated without having the

terminal protective cover properly in place.

See Service Section S-17 for proper servicing.

IMPORTANT INFORMATION

Refrigerants are heavier than air. They can "push out"

the oxygen in your lungs or in any enclosed space.To

avoid possible difficulty in breathing or death:

• Never purge refrigerant into an enclosed room or

space. By law, all refrigerants must be reclaimed.

• If an indoor leak is suspected, thoroughly ventilate

the area before beginning work.

• Liquid refrigerant can be very cold. To avoid possible

frostbite or blindness, avoid contact with refrigerant

and wear gloves and goggles. If liquid refrigerant

does contact your skin or eyes, seek medical help

immediately.

• Always follow EPA regulations. Never burn refrig-

erant, as poisonous gas will be produced.

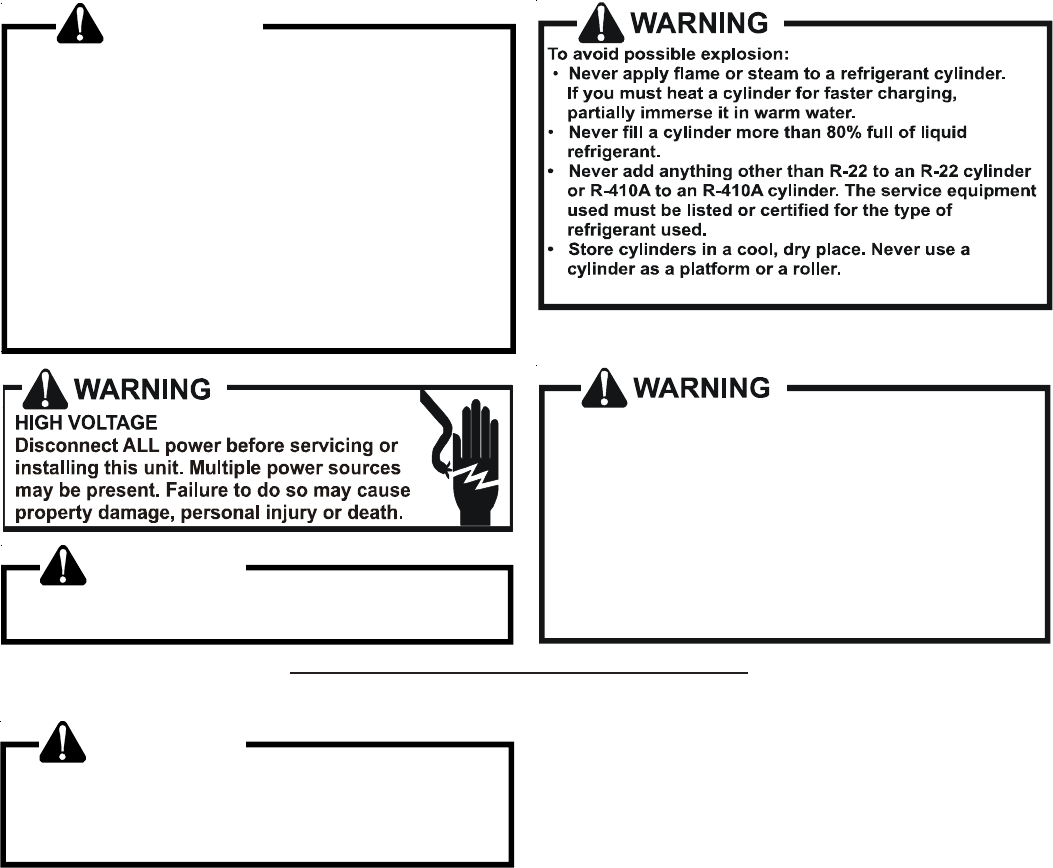

WARNING

To avoid possible explosion, use only returnable (not

disposable) service cylinders when removing refrig-

erant from a system.

• Ensure the cylinder is free of damage which could

lead to a leak or explosion.

• Ensure the hydrostatic test date does not exceed

5 years.

• Ensure the pressure rating meets or exceeds 400

lbs.

When in doubt, do not use cylinder.

PRODUCT IDENTIFICATION

Model # Description

GSC13018-241AA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 26" chassis

GSC13036-481AA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 29" chassis

GSC13036,48*AA Goodman® Brand Split Condenser 13 Seer condensing units.

Introduces new 13 SEER AC 3 PH R-22 Goodman Models

GSC130**1AB Goodman® Brand Split Condenser 13 Seer condensing units. Move location of screw

hole.

GSC13036,48*AB Goodman® Brand Split Condenser 13 Seer condensing units. Introduces new models

due to the replac ement of 8-pole fan motors with 6-pole.

GSC13048*AC Goodman® Brand Split Condenser 13 Seer condensing units. Move location of screw

hole.

GSC13018-30AC Goodman® Brand Split Condenser 13 Seer condensing units. Release Models

containing the broad ocean motor 0131M00060

GSC13018,24, 301AD

GSC1300421AC, 484AC

GSC13018, 24, 301AE

GSC130481, 483AE/AF

GSC130363AE/AF

GSC130361DE/DD

Goodman® Brand Split Condenser 13 Seer condensing units. Remove 1 hairpin from

coil.

GSC13048*AD Goodman® Brand Split Condenser 13 Seer condensing units. Release Models contain

the broad ocean motor 0131M00061

GSC130481AG Goodman® Brand Split Condenser 13 Seer condensing units. Introduces new models

with Bristol compressors.

GSC130181BA Goodman® Brand Split Condenser 13 Seer condensing units. Conversion of existing

models using 3/8" diameter tube coils to 5 mm coils.

GSC130361BA Goodman® Brand Split Condenser 13 Seer condensing units. Initial release. 35"

chassis.

GSC130361BA Goodman® Brand Split Condenser 13 Seer condensing units. Release Model with

Copeland Scroll Compressor.

GSC130361BB Goodman® Brand Split Condenser 13 Seer condensing units. Introduces new models

due to the replac ement of 8-pole fan motors with 6-pole.

GSC130361DF Goodman® Brand Split Condenser 13 Seer condensing units. Introduces new models

with Bristol compressors.

GSC13024-301CA Goodman® Brand Split Condenser 13 Seer condensing units. Introduces models with

reduced chassis size from the current 29x32.5 to 26x32

GSC130241DA Goodman® Brand Split Condenser 13 Seer condensing units. Release of Goodman 13

SEER Condensers, with 5 mm coils; compressor change:CR18K7-PFV-230; reduced

refrigerant charge.

GSC130361FA

GSC130363BA

GSC130301DA

Goodman® Brand Split Condenser 13 Seer condensing units. Converts from 3/8" to

5mm. 2.5 & 3 ton units have new coil slab height and new louver panels. 2.5 - small

chassis; 3 ton medium chassis.

Split System Air Conditioners R-22

PRODUCT IDENTIFICATION

Model # Description

GSC140**1AA Goodman® Brand Split Condenser 14 Seer condensing units. Introduces Goodman®

Brand 14 Seer AC R-22 models.

GSC140**1AB Goodman® Brand Split Condenser 14 Seer condensing units. New revisions have screw

locations moved in the top panel, base pans, louvers, and control box covers.

GSC140**1AC Goodman® Brand Split Condenser 14 Seer condensing units. Release models

containing the Broad Ocean motor 0131M00060 and 0131M00061

GSC140**1AD Goodman® Brand Split Condenser 14 Seer condensing units. Revise condenser coils by

removing (1) hairpin. Reducing refrigerant quantities by 6 ounces.

GSC14018-421BA Goodman® Brand Split Condenser 14 Seer condensing units. Conversion of existing

models using 3/8" diameter tube coils to 5 mm coils.

Model # Description

ASC130**1AA Amana® Brand Split Condenser 13 Seer condensing units. Initial release new models of

Amana® Brand Deluxe 13 Seer AC R-22 conditioners.

ASC130**1AB Amana® Brand Split Condenser 13 Seer condensing units. Move location of screw hole.

ASC130**1AC Amana® Brand Split Condenser 13 Seer condensing units. Introduces horizontal style

louvers.

ASC1301**1AD Amana® Brand Split Condenser 13 Seer condensing units. Remove 1 hairpin from coil.

ASC130601BD Special High Feature Split XCondenser 14 Seer condensing units.. Remove 1

hairpin from coil. Reduce refrigerant quantities by 6 ounces.

Model # Description

VSC13018-601AA Value Split Condenser 13 Seer condensing units. Introduces Value 13 Seer AC R-22

models. 2 year part & 5 year compressor warranty in Bahama Beige.

Split System Air Conditioners R-22

PRODUCT IDENTIFICATION

Model # Description

GSH10***AA Goodman® Brand Split Heat Pump 10 Seer heat pump units. Initial release.

GSH10***AB Goodman® Brand Split Heat Pump 10 Seer heat pump units. Screw locations

moved in the top panel, base pans, louvers, and control box covers. .

GSH13***AA Goodman® Brand Split Heat Pump 13 Seer heat pump units. Initial release.

GSH13**1AB

Goodman® Brand Split Heat Pump 13 Seer heat pump units. Revision

introduces the following new models due to the replacement of 8-pole fan motors

with 6-pole and screw locations moved in the top panel, base pans, louvers, and

control box covers.

GSH13**1AC Goodman® Brand Split Heat Pump 13 Seer heat pump units. Contain Broad

Ocean motors Screw locations moved in the top panel, base pans, louvers, and

control box covers. .

GSH13036-48*AD Goodman® Brand Split Heat Pump 13 Seer heat pump units. Introduces models

that contain the broad ocean motor

GSH13018-301BA Goodman® Brand Split Heat Pump 13 Seer heat pump units. Reduction in

chassis size from medium to small.

GSH130421AE Goodman® Brand Split Heat Pump 13 Seer heat pump units. Replaces V10

reversing valve with V6 reversing valve.

GSH13048*AG Goodman® Brand Split Heat Pump 13 Seer heat pump units. Introduces

model with Bristol Compressors.

GSH13036*BA/BB Goodman® Brand Split Heat Pump 13 Seer heat pump units. Improvements to

increase MOP values on 3 ton units.

GSH140**1AA Goodman® Brand Split Heat Pump 14 Seer heat pump units. Initial release.

GSH140**1AB Goodman® Brand Split Heat Pump 14 Seer heat pump units. Screw locations

moved in the top panel, base pans, louvers, and control box covers.

GSH140**1AC Goodman® Brand Split Heat Pump 14 Seer heat pump units. Releases

models with the Broad Ocean motor.

GSH140361AF,

GSH140421-48AD

GSH140601AE

Goodman® Brand Split Heat Pump 14 Seer heat pump units. Releases

models that replace TXV & compensator with flowrator & accumulator.

Split System Heat Pumps R-22

PRODUCT IDENTIFICATION

Model # Description

ASH130**1AA Amana® Brand Split Heat Pump 13 Seer heat pump units. Initial release new

models of Amana® Brand Deluxe 13 Seer R-22 heat pumps.

ASH130**1AB Amana® Brand Split Heat Pump 13 Seer heat pump units. New revisions have

screw locations moved in the top panel, base pans, louvers, and control box

covers.

ASH130**1AC Amana® Brand Split Heat Pump 13 Seer heat pump units. New revisions have

horizontal style louvers.

Model # Description

VSH1318-601AA Value Split Heat Pump 13 Seer heat pump units. Introduces Value 13 Seer HP R-

22 models. 2 year parts & 5 year compressor warranty in Bahama Beige.

Split System Heat Pumps R-22

PRODUCT IDENTIFICATION

Model # Description

ARUF****16AA A Single Piece R Multi-Position PSC Motor Unpainted Flowrater Introduction of new 13

SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A

ARUF364216AB

A Single Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the

current spot welded blower housing with the same cinched or crimped design used on

the 80% furnace line.

ARUF486016AB

A Single Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the

current spot welded blower housing with the same cinched or crimped design used on

the 80% furnace line.

ARUF364216AC

A Single Piece R Multi-Position PSC Motor Unpainted Flowrater.Revision replaces the

current spot welded blower housing with the same cinched or crimped design used on

the 80% furnace line.

ARUF****16BA A Single Piece R Multi-Position PSC Motor Unpainted Flowrater. Revision replaces all

ARUFcoils using wavy fin with louver enhanced fin.

ARUF****1BA A Single Piece R Multi-Position PSC Motor Unpainted Flowrater Introducation of R-22

Only Air Handlers.

ARPF****16AA A Single Piece R Multi-Position PSC Motor Painted Flowrater Introducation of new 13

SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A

ARPF364216AB

A Single Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces the

current spot welded blower housing with the same cinched or crimped design used on

the 80% furnace line.

ARPF486016AB

A Single Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces the

current spot welded blower housing with the same cinched or crimped design used on

the 80% furnace line.

ARPF****16BA A Single Piece R Multi-Position PSC Motor Painted Flowrater. Revision replaces all

ARPFcoils using wavy fin with louver enhanced fin.

ARPF****1BA A Single Piece R Multi-Position PSC Motor Painted Flowrater. Introducation of R-22

Only Air Handlers.

ADPF****16AA A Single Piece Downflow PSC Motor Unpainted Flowrater. Introducation of new 13

SEER Air Handler Models. All Models will be suitable for use with R-22 and R-410A

ADPF364216AB

A Single Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current

spot welded blower housing with the same cinched or crimped design used on the 80%

furnace line.

ADPF486016AB

A Single Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current

spot welded blower housing with the same cinched or crimped design used on the 80%

furnace line.

ADPF304216AC

A Single Piece Downflow PSC Motor Unpainted Flowrater. Revision replaces the current

spot welded blower housing with the same cinched or crimped design used on the 80%

furnace line.

ADPF****1BA A Single Piece Downflow PSC Motor Unpainted Flowrater Revision replaces all

ARPFcoils using wavy fin with louver enhanced fin.

Single Piece Air Handlers

PRODUCT IDENTIFICATION

Model # Description

AEPF****16AA A Single Piece E Multi-Position Variable-Speed Painted Flowrator. Introducation of

new 13 SEER Air Handler Models. All Models will be suitable for use with R-22 and

R-410A

AEPF****16BA A Single Piece E Multi-Position Variable-Speed Painted Flowrator. Revision

introduces new models adding lower kw hit kits on the S&R plate

AEPF****16BB A Single Piece E Multi-Position Variable-Speed Painted Flowrator. Revision

replaces the current spot welded blower housing with the same cinched or crimped

design used on the 80% furnace line.

AEPF****16CA A Single Piece E Multi-Position Variable-Speed Painted Flowrator. Revision

replaces all ARPFcoils using wavy fin with louver enhanced fin.

AEPF****1BA A Single Piece E Multi-Position Variable-Speed Painted Flowrator Introduction of R

22 Only Air Handlers.

AEPF313716AA

ASPF313716AA

A Single Piece E Multi-Position Variable-Speed Painted Flowrator (AEPF) and A

Single Piece S Multi-Position EEM motor Painted Flowrator (ASPF). Introduction of

3-Ton Air Handler units with 3-row coil.

ASPF****16AA A Single Piece S Multi-Position EEM motor Painted Flowrator. Introduces new

ASPF Air Handlers

ASPF****16BA A Single Piece S Multi-Position EEM motor Painted Flowrator. Revision introuces

modified ASPF control scheme, to ensure blower operation during and after call for

heat on units with heat kits and replacing wavy fin with louver enhanced fin on coil

AWUF****1AA A Single Piece Air Handler Wall Mount Unpainted Flowrator. Introduces 13 SEER

Dayton wall mount air handlers

AWUF****16AA A Single Piece Air Handler Wall Mount Unpainted Flowrator. Introduces 13 SEER

Dayton wall mount air handlers. All Models will be suitable for use with R-22 and R-

410A

AWUF3005-101AA A Single Piece Air Handler Wall Mount Unpainted Flowrator. Introduces 13 SEER

Dayton wall mount air handlers using a Burr Oak Louvered Fin coil.

AWUF****1BA A Single Piece Air Handler Wall Mount Unpainted Flowrator. Revision replaces

current wavey fin design with new louvered fin design

AWUF370**16AA A Single Piece Air Handler Wall Mount Unpainted Flowrator. Introduction of

AWUF37 Air Handlers for use with R-22 and R410A.

AWUF****16BA A Single Piece Air Handler Ceiling Mount N Uncased Flowrater. Revision has

louver fins & replaces copper tube hairpins with aluminum hairpins.

ACNF****1AA A Single Piece Air Handler Ceiling Mount N Uncased Flowrater. Revision release

all models of 13 SEER Dayton uncased air handlers.

ACNF****16AA A Single Piece Air Handler Ceiling Mount N Uncased Flowrater. Revision release

all models of 13 SEER Dayton uncased air handlers.All Models will be suitable for

use with R-22 and R-410A

ACNF****1BA A Single Piece Air Handler Ceiling Mount N Uncased Flowrater. Revision replaces

current wavey fin design with new louvered fin design

AH**-1* A Single Piece Air Handler Hydronic Air Handler. Revision replaces the time delay

relay in the AH air handlers with the UTEC tim e delay control board.

Single Piece Air Handlers

PRODUCT IDENTIFICATION

Model # Description

MBR****AA-1AA Modular Blower R Multi-Position PSC Motor. Introduces module blower with PSC

blower motor.

MBE****AA-1AA Modular Blower E Multi-Position Variable-Speed. Introduces module blower with

variable speed blower motor.

MBE****AA-1BA Modular Blower E Multi-Position Variable-Speed.Revision introduces new models

adding lower kw hit kits on the S&R plate

Model # Description

CAUF*****6AA C Indoor Coil A Upflow/Downflow Uncased Flowrator. Introduces 13 SEER CAUF

Dayton Upflow/Downflow coils.

CAUF*****6BA C Indoor Coil A Upflow/Downflow Uncased Flowrator. Revision releases Burr Oak

Louvered Fin in place of the Wavy Fin currently in production.

CAPF*****6AA C Indoor Coil A Upflow/Downflow Painted Flowrator. Introduces 13 SEER CAPF

Dayton Upflow/Downflow coils.

CAPF*****6BA C Indoor Coil A Upflow/Downflow Painted Flowrator. Revision releases Burr Oak

Louvered Fin in place of the Wavy Fin currently in production.

CAPF/CAUF36***CA C Indoor Coil A Upflow/Downflow [Painted or Uncased] Flowrator. Revision

redesigns for performance improvement from 2 row to 3 row.

CHPF*****6AA C Indoor Coil Horizontal A Coil Painted Flowrator. Release 13 SEER CHPF

horizontal A coil.

CHPF*****6BA

C Indoor Coil Horizontal A Coil Painted Flowrator. Release 13 SEER CHPF

horizontal A coil. Revision releases Burr Oak Louvered Fin in place of the Wavy

Fin currently in production. The rows change by one, (i.e. 4 row to 3 row; 3 row to

2 row) where applicable.

CHPF1824A6CA

CHPF2430B6CA

CHPF3636B6CA

CHPF3642C6CA

CHPF3642D6CA

CHPF3743C6BA

CHPF3743D6BA

CHPF4860D6D

C Indoor Coil Horizontal A Coil Painted Flowrator. 13 SEER CHPF horizontal A

coil, revision has louver fins & replaces copper tube hairpins with aluminum

hairpins.

CSCF*****6AA C Indoor Coil S Horizontal Slab Coil C Upainted Flowrator. Release 13 SEER

CSCF slab horizontal coil.

CSCF*****6BA C Indoor Coil S Horizontal Slab Coil C Upainted Flowrator. Revision releases Burr

Oak Louvered Fin in place of the Wavy Fin currently in production. The rows

change by one, (i.e. 4 row to 3 row; 3 row to 2 row) where applicable.

MBR/MBE Air Handlers

Evaporator Coils

PRODUCT IDENTIFICATION

CPKF036 2 A

PRODUCT CATEGORY:

C: Split System

UNIT TYPE:

E: Commercial Air Conditioner

K: Air Cojditioner

P: Heat Pum

REVISION:

A: Revision

ELECTRICAL:

1: 208-230V/1ph/60Hz

2: 220-240V/1ph/50 Hz

3: 208-230v/3ph/60Hz

4: 308/415V/3ph/50Hz

NOMINAL CAPACITY:

018: 1.5 Tons 048: 4 Tons

024: 2 Tons 060: 5 Tons

030: 2.5 Tons 070: 5 Tons

036: 3 Tons 090: 7.5 Tons

042: 3.5 Tons 120: 10 Tons

GSC140361AA

UNIT TYPE:

C: Condenser R-22

H: Heat Pump R-22

PRODUCT

CATEGORY:

S: Split System

SEER:

10: 10 SEER

13: 13 SEER

14: 14 SEER

BRAND:

G: Goodman® Brand /

Amana® Brand Distinctions

A: Amana® Brand

V: Value

NOMINAL

CAPACITY:

018: 1.5 Tons

024: 2 Tons

030: 2.5 Tons

036: 3 Tons

042: 3.5 Tons

048: 4 Tons

060: 5 Tons

MAJOR

REVISION:

A: Initial Release

MINOR

REVISION:

A: Initial Release

ELECTRICAL:

1: 208-230V/1ph/60Hz

3: 208-230v/3ph/60Hz

4: 460v/3ph/60Hz

PRODUCT IDENTIFICATION

C KF 036 2 A

PRODUCT CATEGORY:

C: Split System

UNIT TYPE:

E: Commercial Air Conditioner

K: Air Cojditioner

P: Heat Pum

REVISION:

A: Revision

ELECTRICAL:

1: 208-230V/1ph/60Hz

2: 220-240V/1ph/50 Hz

3: 208-230v/3ph/60Hz

4: 308/415V/3ph/50Hz

NOMINAL CAPACITY:

018: 1.5 Tons 048: 4 Tons

024: 2 Tons 060: 5 Tons

030: 2.5 Tons 070: 5 Tons

036: 3 Tons 090: 7.5 Tons

042: 3.5 Tons 120: 10 Tons

CKL0362A

PRODUCT CATEGORY:

C: Split System

UNIT TYPE:

E: Commercial Air Conditioner

K: Air Cojditioner

P: Heat Pum

REVISION:

A: Revision

ELECTRICAL:

1: 208-230V/1ph/60Hz

2: 220-240V/1ph/50 Hz

3: 208-230v/3ph/60Hz

4: 308/415V/3ph/50Hz

NOMINAL CAPACITY:

018: 1.5 Tons 048: 4 Tons

024: 2 Tons 060: 5 Tons

030: 2.5 Tons 070: 5 Tons

036: 3 Tons 090: 7.5 Tons

042: 3.5 Tons 120: 10 Tons

PRODUCT IDENTIFICATION

R U F 3642 1

Product Type

: Single Piece Air Handler

Application

C: Ceiling Mount PSC Motor

D: Downflow PSC Motor

E: Multi-Position Variable Speed Motor

R: Multi-Position PSC Motor

W: Wall Mount PSC Motor

Cabinet Finish

U: Unpainted

P: Painted

N: Uncased

Nominal Capacity Range @ 13 SEER

Multi-Position & Downflow Applications

3642: 3 - 3 1/2 tons

1830: 1 1/2 - 3 1/2 tons

1729: 1 1/2 - 2 1/2 Tons 10 SEER (for export systems)

Ceiling Mount & Wall Mount Applications

1805: Nominal Cooling Capacity

Electric Heat kw - 1 1/2 tons Cooling/5 kw Electric Heat

2405: Nominal Cooling Capacity

Electric Heat kw - 2 Tons Cooling/5 kw Electric Heat

3608: Nominal Cooling Capacity

Electric Heat kw - 3 Tons Cooling/8 kw Electric Heat

Major Revision

: Initial Release

Electrical

1: 208/230V, 1 Phase, 60 Hz

Expansion Device

F: Flowrater

Minor Revision

: Initial Release

THIS NOMENCLATURE IS TO BE USED TRHOUGH JULY 2006

C E 120 5 A

PRODUCT CATEGORY:

C: Split System

UNIT TYPE:

E: Commercial Air Conditioner

K: Air Cojditioner

P: Heat Pum

REVISION:

A: Revision

ELECTRICAL:

1: 208-230V/1ph/60Hz

2: 220-240V/1ph/50 Hz

3: 208-230v/3ph/60Hz

4: 308/415V/3ph/50Hz

NOMINAL CAPACITY:

018: 1.5 Tons 048: 4 Tons

024: 2 Tons 060: 5 Tons

030: 2.5 Tons 070: 5 Tons

036: 3 Tons 090: 7.5 Tons

042: 3.5 Tons 120: 10 Tons

PRODUCT IDENTIFICATION

THIS NOMENCLATURE IS TO BE USED AFTER JULY 2006

All Airhandlers use DIRECT DRIVE MOTORS. Power supply is AC 208-230v, 60 hz, 1 phase.

A W U F 3642 1 6 A A

PRODUCT

TYPE:

A: Air Handler

CABINET FINISH:

U: Unpainted

P: Paited

N: Uncased

EXPANSION

DEVICE:

F: Flowrater

T: TXV

(Expansion

Device)

NOMINAL CAPACITY RANGE:

@ 13 SEER

Dedicated Application

3636: 3 Tons

Multi-Position & Downflow Applications

3137: 3 Tons

3642: 3 - 3 1/2 Tons

1830: 1 1/2 - 3 1/2 Tons

@10 SEER

1729: 1 1/2 - 2 1/2 Tons (for export systems)

Ceiling Mount & Wall Mount Applications

(Nominal Cooling Capacity/Electric Heat kW)

1805: 1 1/2 Tons Cooling / 5 kW Electric Heat

2405: 2 Tons Cooling / 5 kW Electric Heat

3608: 3 Tons Cooling / 8 kW Electric Heat

3705: 3 Tons Cooling / 5 kW Electric Heat

3708: 3 Tons Cooling / 8 kW Electric Heat

MAJOR

REVISION*

MINOR

REVISION*

ELECTRICAL:

1: 208-230V/1ph/60Hz

APPLICATION

C: Ceiling Mount PSC Motor

D: Downflow PSC Motor

E: Multi-Position Varible-Speed Motor

S: Energy-Efficient Motor

R: Multi-Position PSC Motor

T: Coated Coils

W: Wall Mount PSC Motor

REFRIGERANT CHARGE:

No Digit: R-22 Only

6: R-410A or R-22

PRODUCT IDENTIFICATION

MODEL MFG. #

MBR0800 MBR0800

MBR1200 MBR1200

MBR1600 MBR1600

MBR2000 MBR2000

MBE1200 MBE1200

MBE1600 MBE1600

MBE2000 MBE2000

MB R 8 00 A A 1

DESIGN SERIES:

MB: Modular Blower

MOTOR TYPE:

R: Constant Speed

E: Variable Speed

AIRFLOW DELIVERED

08: 800 CFM

12: 1200 CFM

16: 1600 CFM

20: 2000 CFM

FACTORY HEAT

00: No Heat

ELECTRICAL SUPPLY:

1: 208-230V/60hZ/1 ph

CIRCUIT BREAKER

A: No Circuit Breaker

B: Circuit Breaker

DESIGN SERIES

A: First Series

C A P F 1824 A 6 A

PRODUCT

TYPE:

C: Indoor Coil

CABINET FINISH:

U: Unpainted

P: Painted

N: Unpainted Case

EXPANSION

DEVICE:

F: Flowrate

NOMINAL CAPACITY RANGE

@ 13 SEER

1824: 1 1/2 to 2 Tons

3030: 2 1/2 Tons

3636: 3 Tons

3642: 3 to 3 1/2 Tons

4860: 4 & 5 Tons

REVISION

A: Revision

NOMINAL WIDTH FOR GAS FURNACE

A: Fits 14" Furnace Cabinet

B: Fits 17 1/2" Furnace Cabinet

C: Fits 21" Furnace Cabinet

D: Fits 24 1/2" Furnace Cabinet

N: Does Not Apply (Horizontal Slab Coils)

APPLICATION

A: Upflow/Downflow Coil

H: Horizontal A Coil

S: Horizontal Slab Coil

REFRIGERANT

CHARGE:

6: R-410A or R-22

2: R-22

4: R-410a

ACCESSORIES

*Installed on indoor coil.

Model Description G/VSH13018 G/VSH13024 G/VSH13030 G/VSH13036 G/VSH13042 G/VSH13048 G/VSH13060

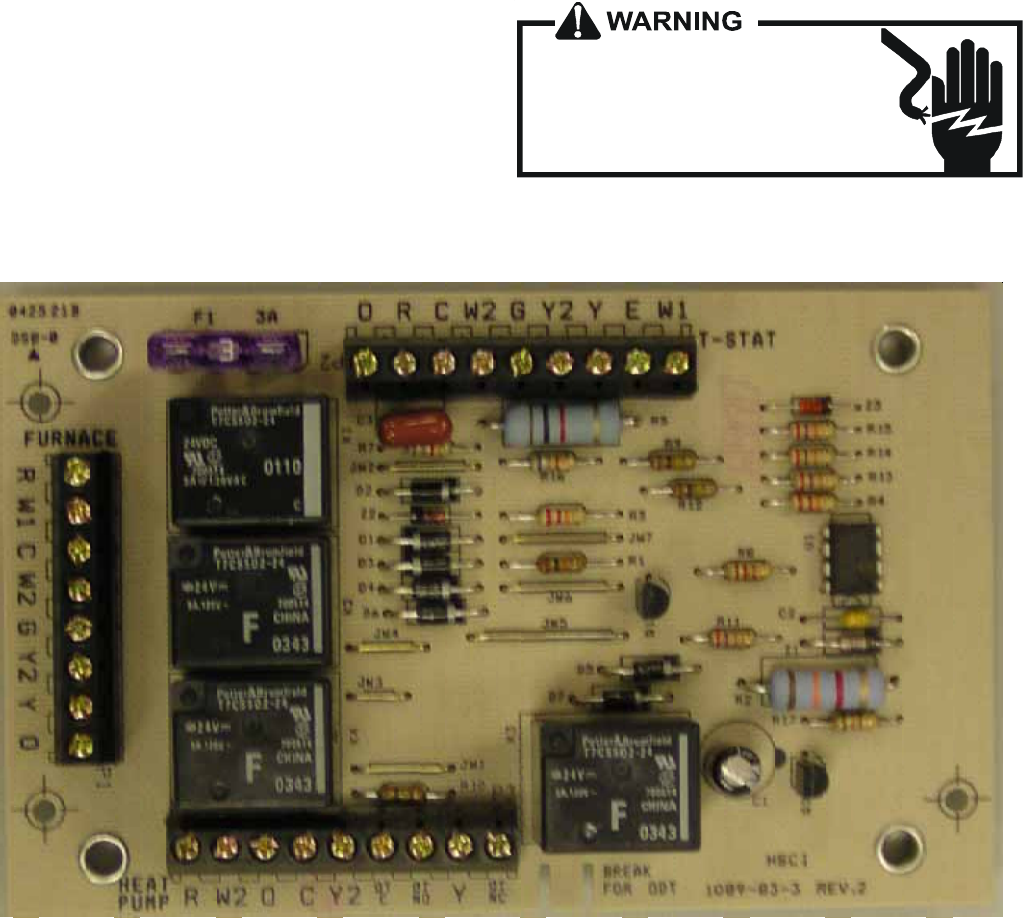

AFE18-60A All Fuel Kit X X X X X X X

OT18-60A Outdoor Thermostat X X X X X X X

FSK01A* Freeze Protection Kit

AS C01 Anti Short Cycle Kit X X X X X X X

TX2N2* TXV Kit x --- --- --- --- --- ---

TX3N2* TXV Kit x

X X X--- --- ---

TX5N2* TXV Kit --- --- --- --- X X X

OT18-60A Outdoor Lockout Stat X X X X X X X

OT/EHR18-60 Emergency Heat relay kit X X X X X X X

CSR-U-1 Hard Start Kit X X X X--- --- ---

CSR-U-2 Hard Start Kit --- --- --- X

CSR-U-3 Hard Start Kit --- --- --- --- --- X X

Model Description ASH13018 ASH13024 ASH13030 ASH13036 ASH13042 ASH13048 ASH13060

AFE18-60A All Fuel Kit X X X X X X X

OT18-60A Outdoor Thermosta

FSK01A* Freeze Protection Kit X X X X X X X

AS C01 Anti Short Cycle Kit X X X X X X X

TX2N2* TXV Kit x --- --- --- --- --- ---

TX3N2* TXV Kit x

X X X--- --- ---

TX5N2* TXV Kit --- --- --- --- X X X

OT18-60A Outdoor Lockout Stat X X X X X X X

OT/EHR18-60 Emergency Heat relay kit X X X X X X X

CSR-U-1 Hard Start Kit

X--- --- ---

CSR-U-2 Hard Start Kit --- --- --- X X X X

CSR-U-3 Hard Start Kit --- --- --- --- --- X X

Model Description ASC13018 ASC13024 ASC13030 ASC13036 ASC13042 ASC13048 ASC13060

OT18-60A Outdoor Thermosta

--- --- --- --- --- --- ---

FSK01A* Freeze Protection Kit X X X X X X X

AS C01 Anti Short Cycle Kit X X X X X X X

TX2N2* TXV Kit X--- --- --- --- --- ---

TX3N2* TXV Kit x x x x --- --- ---

TX5N2* TXV Kit --- --- --- --- X X X

CSR-U-1 Hard Start Kit X X X X--- --- ---

CSR-U-2 Hard Start Kit --- --- --- X

CSR-U-3 Hard Start Kit --- --- --- --- --- X X

Model Description G/VSC13018 G/VSC13024 G/VSC13030 G/VSC13036 G/VSC13042 G/VSC13048 G/VSC13060

OT18-60A Outdoor Thermostat --- --- --- --- --- --- ---

FSK01A* Freeze Protection Kit X X X X X X X

AS C01

nti Short C

cle Ki

TX2N2* TXV Kit X--- --- --- --- --- ---

TX3N2* TXV Kit x x x x --- --- ---

TX5N2* TXV Kit --- --- --- --- X X X

CSR-U-1 Hard Start Kit X X X X--- --- ---

CSR-U-2 Hard Start Kit --- --- --- X X X X

CSR-U-3 Hard Start Kit --- --- --- --- --- X X

Model Description GSC100903 GSC100904 GSC101203 GSC101204

FSK01A* Freeze Protection Kit xxxx

AS C01 Anti Shor t Cycle Kit xxxx

OT/EHR18-60 Emergency Heat relay kit --- --- --- ---

Model Description GSH100903 GSH100904 GSH101203 GSH101204

FSK01A* Freeze Protection Kit xxxx

AS C01 Anti Shor t Cycle Kit xxxx

OT/EHR18-60 Emergency Heat relay kit --- --- --- ---

ACCESSORIES

Model Description CPKF24 CPKF36 CPKF42 CPKF48 CPKF60 CPKF61

AFE18-60A All Fuel Kit xxxxxx

OT18-60A Outdoor Thermostat xxxxxx

FSK01A* Freeze Protection Kit xxxxxx

ASC01 Anti Short Cycle Kit xxxxxx

TX2N2* TXV Kit --- --- --- --- --- ---

TX3N2* TXV Kit x x --- --- --- ---

TX5N2* TXV Kit --- --- xxxx

OT18-60A Outdoor Lockout Stat xxxxxx

OT/EHR18-60 Emergency Heat relay kit xxxxxx

CSR-U-1 Hard Start Kit x x --- --- --- ---

CSR-U-2 Hard Start Kit ---xxxxx

CSR-U-3 Hard Start Kit --- --- --- x x x

Model Description CKF24 CKF36 CKF48 CKF60 CKF70

AFE18-60A All Fuel Kit --- --- --- --- ---

OT18-60A Outdoor Thermostat --- --- --- --- ---

FSK01A* Freeze Protection Kit xxxxx

ASC01 Anti Short Cycle Kit xxxxx

TX2N2* TXV Kit --- --- --- --- ---

TX3N2* TXV Kit x x --- --- ---

TX5N2* TXV Kit --- --- xx

---

OT18-60A Outdoor Lockout Stat --- --- --- --- ---

OT/EHR18-60 Emergency Heat relay kit --- --- --- --- ---

CSR-U-1 Hard Start Kit x x --- --- ---

CSR-U-2 Hard Start Kit --- x x x ---

CSR-U-3 Hard Start Kit --- --- x x ---

Model Description CKL18 CKL24 CKL30 CKL36 CKL42 CKL49 CKL60

AFE18-60A All Fuel Kit --- --- --- --- --- --- ---

OT18-60A Outdoor Thermostat --- --- --- --- --- --- ---

FSK01A* Freeze Protection Kit xxxxxxx

ASC01 Anti Short Cycle Kit xxxxxxx

TX2N2* TXV Kit x --- --- --- --- --- ---

TX3N2* TXV Kit xxxx---------

TX5N2* TXV Kit --- --- --- --- x x x

OT18-60A Outdoor Lockout Stat --- --- --- --- --- --- ---

OT/EHR18-60 Emergency Heat relay kit --- --- --- --- --- --- ---

CSR-U-1 Hard Start Kit xxxx---------

CSR-U-2 Hard Start Kit --- --- --- x x x x

CSR-U-3 Hard Start Kit --- --- --- --- --- x x

Model Description CE120

AFE18-60A All Fuel Kit ---

OT18-60A Outdoor Thermostat ---

FSK01A* Freeze Protection Kit x

ASC01 Anti Short Cycle Kit x

TX2N2* TXV Kit ---

TX3N2* TXV Kit ---

TX5N2* TXV Kit ---

OT18-60A Outdoor Lockout Stat ---

OT/EHR18-60 Emergency Heat relay kit ---

CSR-U-1 Hard Start Kit ---

CSR-U-2 Hard Start Kit ---

CSR-U-3 Hard Start Kit ---

ACCESSORIES

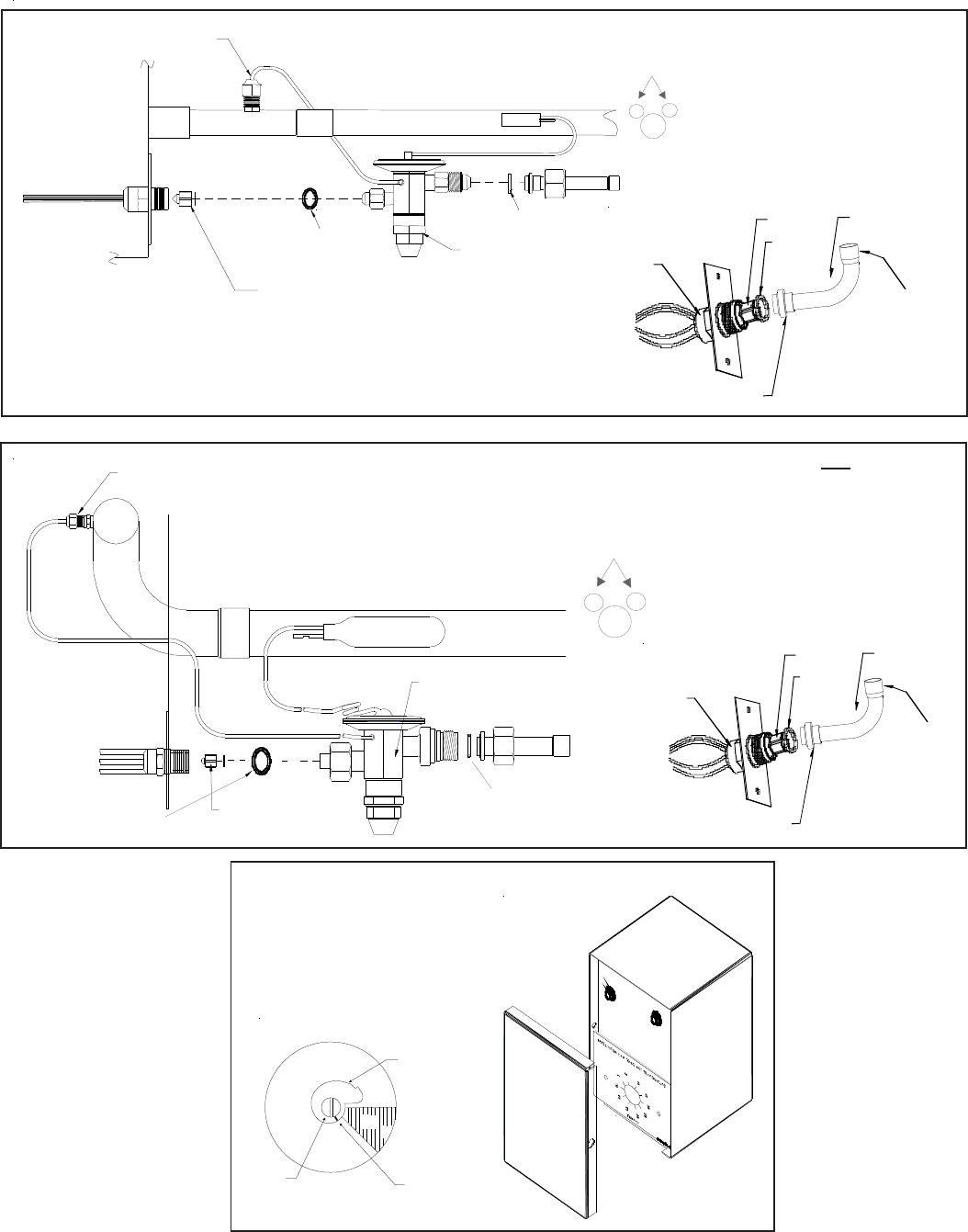

SUCTION LINE BULB

1/4 FLARE CONNECTION

EXPANSION VALVE

EVAPORATOR COIL

REMOVE BEFORE INSTALLING EXPANSION VALVE

SEAL SUPPLIED W/ KIT

BULB TO BE LOCATED

AT 10 OR 2 O'CLOCK

For Applications requiring

a field installed access fitting

TAILPIECE

3/8"-

SWEAT

7/8" NUT

DISTRIBUTOR

BODY

PISTON

SEAL

EVAPORATOR COIL

1/4' FLARE

CONNECTION

BULB SUCTION LINE

EXPANSION VALVE

REMOVE BEFORE

INSTALLING

EXPANSION VALVE

SEAL SUPPLIED W/ KIT

BULB TO BE LOCATED

AT 10 OR 2 O'CLOCK

TAILPIECE

3/8"-

SWEAT

7/8" NUT

DISTRIBUTOR

BODY

PISTON

SEAL

For Applications not requiring

a field installed access fitting

EXPANSION VALVE KITS

OT/EHR18-60

OUTDOOR THERMOSTAT &

EMERGENCY HEAT RELAY

Set Point

djustment

Screw Set Point

Indicator

Mark

(Shown @ Oº F)

Thermostat

Dial

DEAD

DIAL

315º

45º

COLD (Turn Clockwise)

WARM (Turn Counterclockwise)

OT18-60

ACCESSORIES

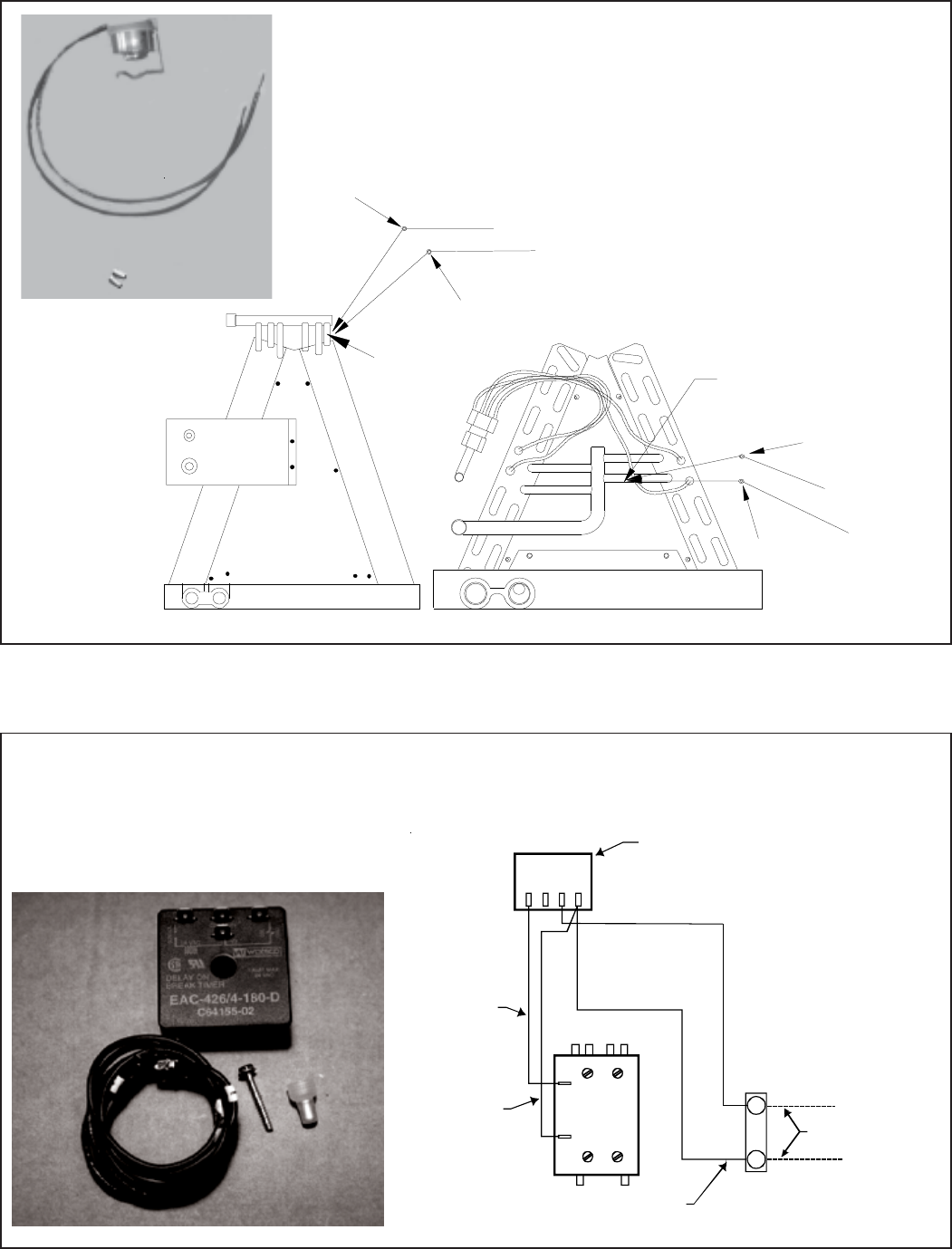

FSK01A

FREEZE THERMOSTAT

KIT

T2 T1

L2 L1

BLACK 1

THERMOSTAT

WIRE

SHORT CYCLE

PROTECTOR

ELLOW 1

BLACK 1

UNIT

TERMINAL

BOARD

CONTACTOR

ASC01A

ANTI-SHORT -CYCLE CONTROL KIT

Install Line

Thermostat

Here

Install Line

Thermostat

Here

Wire Nut

Black

Wire Nut

Wire Nut Y

Black

ACCESSORIES

COIL ACCESSORIES

COIL MODEL TX2N2 TXV KIT TX3N2 TXV KIT TX5N2 TXV KIT FSK01A FREEZE PROTECTION KIT

CA*F030B4* --- X --- X

CA*F036B4* --- X --- X

CA*F042C4* --- --- X X

CA*F048C4* --- --- X X

CA*F057D4* --- --- X X

CA*F060D4* --- --- X X

CHPF030A4* --- X --- X

CHPF036B4* --- X --- X

CHPF042A4* --- --- X X

CHPF048D4* --- --- X X

CHPF060D4* --- --- X X

CH36FCB --- X --- X

CH48FCB --- --- X X

CH60FCB --- --- X X

CA*F18246* X X --- X

CA*F30306* --- X --- X

CA*F36426* --- X X X

CHPF18246* X --- X X

CHPF30306* --- --- X X

CHPF36426* --- --- X X

CSCF1824N6* X --- --- X

CSCF303N6* --- X --- X

CSCF3642N6* --- X X X

HKR SERIES ELECTRIC HEAT KITS

ELECTRIC HEAT KIT APPLICATIONS

MBR & MBE

NO HEAT HKR-03* HKR05-(C)' HKR-06* HKR-08(C)* HKR-10(C)* HKR-15(C)* HKR-20(C)* HKR-21(C)* ^HKR3-15* ^HKR3-20A

MBR0800AA-1AA - X X X X X

MBR1200AA-1AA- XXXXXXXXXX

MBR1600AA-1AA- XXXXXXXXXX

MBR2000AA-1AA- XXXXXXXXXX

MBE1200AA-1AA - - - - X X X - - - -

MBE1600AA-1AA - - - - - X X - - - -

MBE2000AA-1AA - - - - - X X X - - -

MBE1200AA-1BA - X X X X X X - - - -

MBE1600AA-1BA - X X X X X X - - - -

MBE2000AA-1BA - X X X X X X X - - -

X = Allowable combinations ^ = Circuit 1: Single Phase for Air Handler Motor * = Revision level that my or may not be designated

- = Restricted combinations Circuit 2: 3-Phase for HKR3 Heater Kits C = Circuit Breaker option

ELECTRIC HEAT KIT

BLOWER

PRODUCT DESIGN

This section gives a basic description of cooling unit opera-

tion, its various components and their basic operation.

Ensure your system is properly sized for heat gain and loss

according to methods of the Air Conditioning Contractors

Association (ACCA) or equivalent.

CONDENSING UNIT

These units are designed for free air discharge. Condensed

air is pulled through the condenser coil by a direct drive

propeller fan and then discharged from the cabinet top. The

unit requires no additional resistance (i.e. duct work) and

should not be added.

The GSH13, GSH14, ASH13 and VSH13 Heat Pump con-

densing units are designed for 208-230 dual voltage single

phase applications. The GSH13 3 ton model is available in

230V, 3 phase applications. The GSH13 4 and 5 ton models

are available for 230V, 3-phase and 460V, 3-phase applica-

tions.

The units range in size from 1.5 to 5-ton and have a rating of

13 and 14 SEER. SEER efficiency is dependent upon the unit

and its components. Refer to the "Technical Information"

manual of the unit you are servicing for further details.

The GSC13, GSC14 and ASC13 and VSC13 Condensing

Units are made in 1.5 through 5 ton sizes. They are designed

for 208-240 volt single phase applications. The GSC13 3 ton

model is available in 230V, 3 phase applications. The GSC13

4 and 5 ton models are available for 230V, 3-phase and 460V,

3-phase applications.

Suction and Liquid Line Connections

All units come equipped with suction and liquid valves

designed for connection to refrigerant-type copper. Front

seating valves are factory-installed to accept the field-run

copper. The total refrigerant charge needed for a normal

operation is also factory-installed. For additional refrigerant

line set information, refer to the "Technical Information"

manual of the unit you are servicing.

Compressors

GSC13, VSC13, GSH13 and VSH13 use a mix of reciprocat-

ing and scroll compressors, except for the VSC130181AA

which uses a rotary compressor. The ASC13 and ASH13 use

the Copeland Scroll® Compressor. There are a number of

design characteristics which differentiate the scroll compres-

sor from the reciprocating compressor. One is the scroll. A

scroll is an involute spiral which, when matched with a mating

scroll form, generates a series of crescent-shaped gas

pockets between the members (see following illustration).

During compression, one scroll remains stationary while the

other form orbits. This motion causes the resulting gas

pocket to compress and push toward the center of the scrolls.

When the center is reached, the gas is discharged out a port

located at the compressor center.

GSC130361D* and GSC130481AG use Bristol® BENCH-

MARK™ compressors, the most advanced compressors in

the industry today. The BENCHMARK™ reciprocating com-

pressor can be recognized by a “J” in the fourth character of

the compressor model number. Innovative mechanical de-

sign and gas management make the BENCHMARK™ com-

pressor very efficient and remarkably quiet. The sound

content (frequency) delivers exceptional acoustical charac-

teristics and the virtually round housing design is compact

and also helps to reduce the overall sound and vibration.

GSC130181BA use Panasonic® rotary compressors.

COILS AND BLOWER COILS

MBR/MBE blower cabinets are designed to be used as a two-

piece blower and coil combination. MBR/MBE blower sec-

tions can be attached to cased evaporator coil. This two-

piece arrangement allows for a variety of mix-matching

possibilities providing greater flexibility. The MBE blower

cabinet uses a variable speed motor that maintains a con-

stant airflow with a higher duct static.

It is approved for applications with cooling coils of up to 0.8

inches W.C. external static pressure and includes a feature

that allows airflow to be changed by +15%. The MBR blower

cabinet uses a PSC motor. It is approved for applications with

cooling coils of up to 0.5 inches W.C. external static

pressure.

The MBR/MBE blower cabinets with proper coil matches can

be positioned for upflow, counterflow, horizontal right or

horizontal left operation. All units are constructed with R-4.2

insulation. In areas of extreme humidity (greater than 80%

consistently), insulate the exterior of the blower with insula-

tion having a vapor barrier equivalent to ductwork insulation,

providing local codes permit.

The CAPX/CHPX coils are equipped with a thermostatic

expansion valve that has a built-in internal check valve for

refrigerant metering. The CACF/CAPF/CHPF coils are

equipped with a fixed restrictor orifice.

PRODUCT DESIGN

The coils are designed for upflow, counterflow or horizontal

application, using two-speed direct drive motors on the

CACF/CAPF/CHPX models and BPM (Brushless Permanent

Magnet) or ECM motors on the MBE models.

The ARUF is a multi-position air handler (upflow/horizontal or

downflow) and is equipped with a flowrator for cooling and heat

pump applications. Because of its seamless copper tubing

and aluminum fins, there are fewer leaks. The steel cabinet

of the ARUF is fully insulated and rust resistant. Thermal

expansion kits for air conditioning and heat pump applica-

tions are available.

ARPF*B 2 to 5 ton air handlers are dedicated for downflow

operation and are approved for modular homes. Flowrater.

transformer and blower time delay are on all standard ARPF

units. Both the ARUF and ARPF have direct-drive multi-

speed motors.

AEPF is a multi-position, variable-speed air handler and can

be used with R-410A or R-22 (models ending in 1/16). The

unit's blower design includes a variable-speed DC motor and

is compatible with heat pumps and variable-capacity cooling

applications.

ASPF is a multi-position air handler that can be used with R-

410A or R-22 and it features a X-13 motor. This motor is a

constant torque motor with very low power consumption and

it is energized by a 24V signal. The X-13 features an

integrated control module and is compatible with heat pumps

and cooling applications.

SYSTEM OPERATION

COOLING

The refrigerant used in the system is R-22. It is a clear,

colorless, non-toxic, non-irritating, and non-explosive liquid.

The chemical formula is CHCLF2. The boiling point, at

atmospheric pressure is -41.4°F.

A few of the important principles that make the refrigeration

cycle possible are: heat always flows from a warmer to a

cooler body, under lower pressure a refrigerant will absorb

heat and vaporize at a low temperature, the vapors may be

drawn off and condensed at a higher pressure and tempera-

ture to be used again.

The indoor evaporator coil functions to cool and dehumidify

the air conditioned spaces through the evaporative process

taking place within the coil tubes.

NOTE: The pressures and temperatures shown in the

refrigerant cycle illustrations on the following pages are for

demonstration purposes only. Actual temperatures and pres-

sures are to be obtained from the "Expanded Performance

Chart."

Liquid refrigerant at condensing pressure and temperatures,

(270 psig and 122°F), leaves the outdoor condensing coil

through the drier and is metered into the indoor coil through

the metering device. As the cool, low pressure, saturated

refrigerant enters the tubes of the indoor coil, a portion of the

liquid immediately vaporizes. It continues to soak up heat and

vaporizes as it proceeds through the coil, cooling the indoor

coil down to about 48°F.

Heat is continually being transferred to the cool fins and tubes

of the indoor evaporator coil by the warm system air. This

warming process causes the refrigerant to boil. The heat

removed from the air is carried off by the vapor.

As the vapor passes through the last tubes of the coil, it

becomes superheated, that is, it absorbs more heat than is

necessary to vaporize it. This is assurance that only dry gas

will reach the compressor. Liquid reaching the compressor

can weaken or break compressor valves.

The compressor increases the pressure of the gas, thus

adding more heat, and discharges hot, high pressure super-

heated gas into the outdoor condenser coil.

In the condenser coil, the hot refrigerant gas, being warmer

than the outdoor air, first loses its superheat by heat trans-

ferred from the gas through the tubes and fins of the coil. The

refrigerant now becomes saturated, part liquid, part vapor and

then continues to give up heat until it condenses to a liquid

alone. Once the vapor is fully liquefied, it continues to give up

heat which subcools the liquid, and it is ready to repeat the

cycle.

HEATING

The heating portion of the refrigeration cycle is similar to the

cooling cycle. By energizing the reversing valve solenoid coil,

the flow of the refrigerant is reversed. The indoor coil now

becomes the condenser coil, and the outdoor coil becomes

the evaporator coil.

The check valve at the indoor coil will open by the flow of

refrigerant letting the now condensed liquid refrigerant by-

pass the indoor expansion device. The check valve at the

outdoor coil will be forced closed by the refrigerant flow,

thereby utilizing the outdoor expansion device.

The restrictor orifice used with the CA*F, CHPF coils and the

AR*F air handler will be forced onto a seat when running in

the cooling cycle, only allowing liquid refrigerant to pass

through the orifice opening. In the heating cycle it will be

forced off the seat allowing liquid to flow around the restrictor.

A check valve is not required in this circuit.

COOLING CYCLE

When the contacts of the room thermostat close making

terminals R to Y & G, the low voltage circuit of the transformer

is completed. Current now flows through the magnetic hold-

ing coils of the compressor contactor (CC) and fan relay

(RFC).

This draws in the normally open contact CC, starting the

compressor and condenser fan motors. At the same time

contacts RFC close starting the indoor fan motor.

When the thermostat is satisfied, it opens its contacts,

breaking the low voltage circuit, causing the compressor

contactor and indoor fan relay to open, shutting down the

system.

If the room thermostat fan selector switch should be set on

the "on" position, then the indoor blower would run continuous

rather than cycling with the compressor.

Heat pumps energize the reversing valve thorough the "O"

circuit in the room thermostat. Therefore the reversing valve

remains energized as long as the thermostat subbase is in

the cooling position. The only exception to this is during

defrost.

DEFROST CYCLE

The defrosting of the outdoor coil is jointly controlled by the

defrost timing board, defrost (30/60) control, and compressor

run time.

HEATING CYCLE

The reversing valve on the heat pump models is energized in

the cooling cycle through the "O" terminal on the room

thermostat.

These models have a 24 volt reversing valve coil. When the

thermostat selector switch is set in the cooling position, the

"O" terminal on the thermostat is energized all the time.

Care must be taken when selecting a room thermostat. Refer

to the installation instructions shipped with the product for

approved thermostats.

SYSTEM OPERATION

COOLING CYCLE

HEATING CYCLE

Indoor

Coil

Accumulator

Bi-Flow

Filter Dryer

Outdoor

Coil

Thermostatic

Expansion

Valve

Check Valve

Reversing Valve

(De-Energized)

Indoor

Coil

Accumulator

Bi-Flow

Filter Dryer

Outdoor

Coil

Thermostatic

Expansion

Valve

Check Valve

Reversing Valve

(Energized)

SYSTEM OPERATION

RESTRICTOR ORIFICE ASSEMBLY

IN COOLING OPERATION RESTRICTOR ORIFICE ASSEMBLY

IN HEATING OPERATION

In the cooling mode, the orifice is pushed into its

seat, forcing refrigerant to flow through the metered

hole in the center of the orifice.

In the heating mode, the orifice moves back off its

seat, allowing refrigerant to flow unmetered around

the outside of the orifice.

EXPANSION VALVE/CHECK VALVE ASSEMBLY

IN COOLING OPERATION EXPANSION VALVE/CHECK VALVE ASSEMBLY

IN HEATING OPERATION

Most expansion valves used in current Amana® Brand Heat Pump products

use an internally checked expansion valve.

This type of expansion valve does not require an external check valve as shown above.

However, the principle of operation is the same.

SYSTEM OPERATION

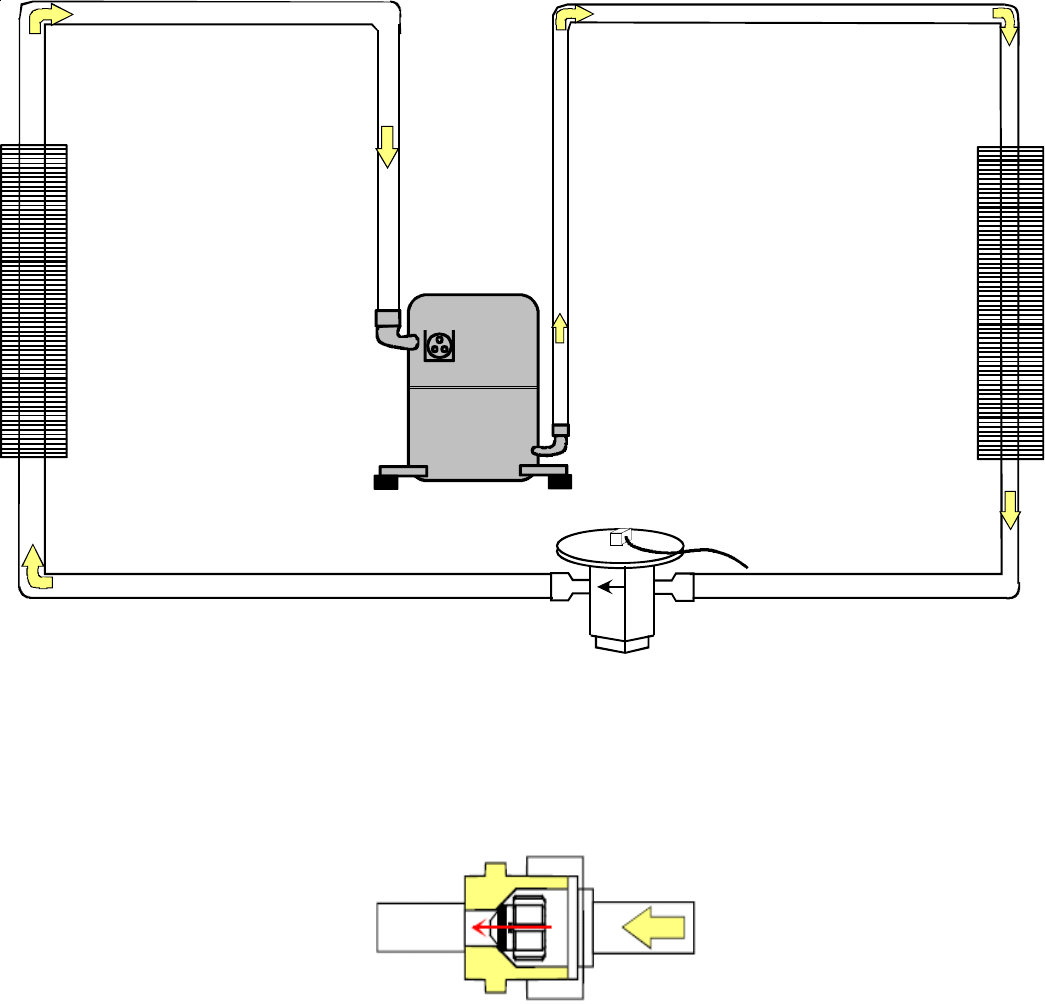

Indoor

Coil Outdoor

Coil

Thermostatic

Expansion

Valve

COOLING CYCLE - CONDENSING UNIT

In the cooling mode, the orifice is pushed into its

seat, forcing refrigerant to flow through the metered

hole in the center of the orifice.

SYSTEM OPERATION

AFE18-60A CONTROL BOARD

DESCRIPTION

The AFE18 control is designed for use in heat pump applica-

tions where the indoor coil is located above/downstream of a

gas or fossil fuel furnace. It will operate with single and two

stage heat pumps and single and two stage furnaces. The

AFE18 control will turn the heat pump unit off when the

furnace is turned on. An anti-short cycle feature is also

incorporated which initiates a 3 minute timed off delay when

the compressor goes off. On initial power up or loss and

restoration of power, this 3 minute timed off delay will be

initiated. The compressor won’t be allowed to restart until the

3 minute off delay has expired. Also included is a 5 second

de-bounce feature on the “Y, E, W1 and O” thermostat inputs.

These thermostat inputs must be present for 5 seconds

before the AFE18 control will respond to it.

An optional outdoor thermostat, OT18-60A, can be used with

the AFE18 to switch from heat pump operation to furnace

operation below a specific ambient temperature setting, i.e.

break even temperature during heating. When used in this

manner, the “Y” heat demand is switched to the “W1” input

to the furnace by the outdoor thermostat and the furnace is

used to satisfy the first stage “Y” heat demand. On some

controls, if the outdoor thermostat fails closed in this position

during the heating season, it will turn on the furnace during

the cooling season on a “Y” cooling demand. In this

situation, the furnace produces heat and increases the

indoor temperature thereby never satisfying the cooling

demand. The furnace will continue to operate and can only

be stopped by switching the thermostat to the off position or

removing power to the unit and then replacing the outdoor

thermostat. When the AFE18 receives a “Y” and “O”

input from the indoor thermostat, it recognizes this as a

cooling demand in the cooling mode. If the outdoor thermo-

stat is stuck in the closed position switching the “Y” demand

to the “W1” furnace input during the cooling mode as

described above, the AFE18 won’t allow the furnace to

operate. The outdoor thermostat will have to be replaced to

restore the unit to normal operation.

HIGH VOLTAGE!

Disconnect ALL power before servicing

or installing. Multiple power sources

may be present. Failure to do so may

cause property damage, personal injury

or death.

TROUBLESHOOTING CHART

Complaint

System

Operating

Pressures

POSSIBLE CAUSE

DOTS IN ANALYSIS

GUIDE INDICATE

"POSSIBLE CAUSE"

SYMPTOM

System will not start

Compressor will not start - fan runs

Comp. and Cond. Fan will not start

Evaporator fan will not start

Condenser fan will not start

Compressor runs - goes off on overload

Compressor cycles on overload

System runs continuously - little cooling/htg

Too cool and then too warm

Not cool enough on warm days

Certain areas too cool, others too warm

Compressor is noisy

System runs - blows cold air in heating

Unit will not terminate defrost

Unit will not defrost

Low suction pressure

Low head pressure

High suction pressure

High head pressure

Test Method

Remedy

See Service Procedure Ref.

Power Failure •Test Voltage S-1

Blown Fuse ••• Inspect Fuse Size & Type S-1

Unbalanced Power, 3PH ••• Test Voltage S-1

Loose Connection ••• Inspect Connection - Tighten S-2, S-3

Shorted or Broken Wires •••••• Test Circuits With Ohmmeter S-2, S-3

Open Fan Overload •• Test Continuity of Overload S-17A

Faulty Thermostat ••• • Test Continuity of Thermostat & Wiring S-3

Faulty Transformer •• Check Control Circuit with Voltmeter S-4

Shorted or Open Capacitor • •••• Test Capacitor S-15

Internal Compressor Overload Open •♦Test Continuity of Overload S-17A

Shorted or Grounded Compressor •• Test Motor Windings S-17B

Compressor Stuck ••• ♦Use Test Cord S-17D

Faulty Compressor Contactor ••• Test Continuity of Coil & Contacts S-7, S-8

Faulty Fan Relay •Test Continuity of Coil And Contacts S-7

Open Control Circuit •Test Control Circuit with Voltmeter S-4

Low Voltage ••• Test Voltage S-1

Faulty Evap. Fan Motor ••

♦Repair or Replace S-16

Shorted or Grounded Fan Motor ••

Test Motor Windings S-16

Improper Cooling Anticipator •• Check Resistance of Anticipator S-3B

Shortage of Refrigerant •• ♦•• Test For Leaks, Add Refrigerant S-101,103

Restricted Liquid Line •• •• •

Remove Restriction, Replace Restricted Part S-112

Open Element or Limit on Elec. Heater ♦♦ Test Heater Element and Controls S-26,S-27

Dirty Air Filter ••• • ♦Inspect Filter-Clean or Replace

Dirty Indoor Coil ••• • ♦Inspect Coil - Clean

Not enough air across Indoor Coil ••• • ♦Check Blower Speed, Duct Static Press, Filter S-200

Too much air across Indoor Coil ♦•Reduce Blower Speed S-200

Overcharge of Refrigerant •• •♦••

Recover Part of Charge S-113

Dirty Outdoor Coil •• • ♦•Inspect Coil - Clean

Noncondensibles ••♦•Recover Charge, Evacuate, Recharge S-114

Recirculation of Condensing Air •• •

Remove Obstruction to Air Flow

Infiltration of Outdoor Air ••• Check Windows, Doors, Vent Fans, Etc.

Improperly Located Thermostat •• Relocate Thermostat

Air Flow Unbalanced •• Readjust Air Volume Dampers

System Undersized •• Refigure Cooling Load

Broken Internal Parts •♦Replace Compressor S-115

Broken Valves •• ••

Test Compressor Efficiency S-104

Inefficient Compressor •♦•• Test Compressor Efficiency S-104

Wrong Type Expansion Valve ••• • •• ♦Replace Valve S-110

Expansion Device Restricted ••• • •• •

Remove Restriction or Replace Expansion Device S-110

Oversized Expansion Valve ••

Replace Valve

Undersized Expansion Valve ••• • • Replace Valve

Expansion Valve Bulb Loose ••

Tighten Bulb Bracket S-105

Inoperative Expansion Valve •• • Check Valve Operation S-110

Loose Hold-down Bolts •Tighten Bolts

Faulty Reversing Valve •♦♦♦ ♦♦♦

Replace Valve or Solenoid S-21, 122

Faulty Defrost Control •♦♦♦♦♦ ♦

Test Control S-24

Faulty Defrost Thermostat ♦♦♦♦♦♦♦

Test Defrost Thermostat S-25

Flowrator Not Seating Properly •••

Check Flowrator & Seat or Replace Flowrator S-111

• Cooling or Heating Cycle (Heat Pump) ♦

COOLING/HP ANALYSIS CHART

No Cooling Unsatisfactory Cooling/Heating

Heating Cycle Only (Heat Pump)

SERVICING

TABLE OF CONTENTS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

S-1 Checking Voltage .......................................... 30

S-2 Checking Wiring............................................ 30

S-3 Checking Thermostat, Wiring & Anticipator .. 30

S-3A Thermostat & Wiring ..................................... 30

S-3B Cooling Anticipator ........................................ 31

S-3C Heating Anticipator........................................ 31

S-3D Checking Encoded Thermostats ................... 31

S-4 Checking Transformer & Control Circuit ....... 32

S-5 Checking Cycle Protector ............................. 32

S-6 Checking Time Delay Relay .......................... 32

S-7 Checking Contactor and/or Relays................ 33

S-8 Checking Contactor Contacts ....................... 33

S-9 Checking Fan Relay Contact ........................ 33

S-10 Copeland Comfort™ Alert Diagnostics .......... 34

S-11 Checking Loss of Charge Protector............... 36

S-15 Checking Capacitor ....................................... 36

S-15A Resistance Check......................................... 37

S-15B Capacitance Check ....................................... 37

S-16A Checking Fan & Blower Motor

Windings (PSC Motors) ............................... 37

S-16B Checking Fan & Blower Motor (ECM Motors) 38

S-16C Checking ECM Motor Windings .................... 41

S-16D ECM CFM Adjustments ................................ 41

S-16E Checking GE X13™ Motors .......................... 42

S-17 Checking Compressor Windings ................... 43

S-17A Resistance Test ............................................ 43

S-17B Ground Test .................................................. 43

S-17D Operation Test .............................................. 44

S-18 Testing Crankcase Heater (optional item) ..... 44

S-21 Checking Reversing Valve Solenoid .............. 44

S-24 Testing Defrost Control .................................. 44

S-25 Testing Defrost Thermostat ........................... 45

S-40 MBR & AR*F Electronic Blower Time Delay.. 45

S-41 MBE & AEPF with Single Speed

Air Conditioning ............................................ 47

S-41A MBE & AEPF with Single Speed

Heat Pumps ................................................. 47

S-60 Electric Heater (optional item)....................... 49

S-61A Checking Heater Limit Control(S) .................. 50

S-61B Checking Heater Fuse Line........................... 50

S-62 Checking Heater Elements ........................... 50

S-100 Refrigeration Repair Practice......................... 50

S-101 Leak Testing ................................................. 51

S-102 Evacuation .................................................... 51

S-103 Charging ........................................................ 52

S-104 Checking Compressor Efficiency .................. 53

S-105A Piston Kit Chart ............................................ 53

S-105B Thermostatic Expansion Valve ...................... 53

S-106 Overfeeding ................................................... 54

S-107 Underfeeding ................................................. 54

S-108 Superheat ..................................................... 54

S-109 Checking Subcooling .................................... 55

S-110 Checking Expansion Valve Operation ........... 55

S-111 Fixed Orifice Restriction Devices .................. 56

S-112 Checking Restricted Liquid Line .................... 56

S-113 Refrigerant Overcharge .................................. 56

S-114 Non-condensables ........................................ 56

S-115 Compressor Burnout ..................................... 56

S-120 Refrigerant Piping .......................................... 57

S-122 Replacing Reversing Valve ............................ 59

S-202 Duct Static Pressure

& Static Pressure Drop Across Coils ............ 59

S-203 Air Handler External Static ........................... 59

S-204 Coil Static Pressure Drop ............................. 60

SERVICING

S-1 CHECKING VOLTAGE

1. Remove outer case, control panel cover, etc., from unit

being tested.

With power ON:

WARNING

Line Voltage now present.

2. Using a voltmeter, measure the voltage across terminals

L1 and L2 of the contactor for the condensing unit or at the

field connections for the air handler or heaters.

3. No reading - indicates open wiring, open fuse(s) no power

or etc., from unit to fused disconnect service. Repair as

needed.

4. With ample voltage at line voltage connectors, energize

the unit.

5. Measure the voltage with the unit starting and operating,

and determine the unit Locked Rotor Voltage. NOTE: If

checking heaters, be sure all heating elements are

energized.

Locked Rotor Voltage is the actual voltage available at

the compressor during starting, locked rotor, or a stalled

condition. Measured voltage should be above minimum

listed in chart below.

To measure Locked Rotor Voltage attach a voltmeter to

the run "R" and common "C" terminals of the compressor,

or to the T1 and T2 terminals of the contactor. Start the unit

and allow the compressor to run for several seconds, then

shut down the unit. Immediately attempt to restart the

unit while measuring the Locked Rotor Voltage.

6. Lock rotor voltage should read within the voltage tabula-

tion as shown. If the voltage falls below the minimum

voltage, check the line wire size. Long runs of undersized

wire can cause low voltage. If wire size is adequate, notify

the local power company in regard to either low or high

voltage.

REMOTE CONDENSING UNITS

BLOWER COILS

VOLTAGE MIN. MAX.

208/230 198 253

115 104 127

NOTE: When operating electric heaters on voltages other

than 240 volts, refer to the System Operation section on

electric heaters to calculate temperature rise and air flow.

Low voltage may cause insufficient heating.

S-2 CHECKING WIRING

1. Check wiring visually for signs of overheating, damaged

insulation and loose connections.

2. Use an ohmmeter to check continuity of any suspected

open wires.

3. If any wires must be replaced, replace with comparable

gauge and insulation thickness.

S-3 CHECKING THERMOSTAT, WIRING, AND

ANTICIPATOR

THERMOSTAT WIRE SIZING CHART

LENGTH OF RUN MIN. COPPER WIRE

GAUGE (AWG)

25 feet 18

50 feet 16

75 feet 14

100 feet 14

125 feet 12

150 feet 12

S-3A THERMOSTAT AND WIRING

WARNING

Line Voltage now present.

With power ON, thermostat calling for cooling

1. Use a voltmeter to check for 24 volts at thermostat wires

C and Y in the condensing unit control panel.

2. No voltage indicates trouble in the thermostat, wiring or

external transformer source.

3. Check the continuity of the thermostat and wiring. Repair

or replace as necessary.

Indoor Blower Motor

With power ON:

WARNING

Line Voltage now present.

1. Set fan selector switch at thermostat to "ON" position.

2. With voltmeter, check for 24 volts at wires C and G.

3. No voltage indicates the trouble is in the thermostat or

wiring.

SERVICING

4. Check the continuity of the thermostat and wiring. Repair

or replace as necessary.

Resistance Heaters

1. Set room thermostat to a higher setting than room

temperature so both stages call for heat.

2. With voltmeter, check for 24 volts at each heater relay.

Note: BBA/BBC heater relays are DC voltage.

3. No voltage indicates the trouble is in the thermostat or

wiring.

4. Check the continuity of the thermostat and wiring. Repair

or replace as necessary.

NOTE: Consideration must be given to how the heaters are

wired (O.D.T. and etc.). Also safety devices must be checked

for continuity.

S-3B COOLING ANTICIPATOR

The cooling anticipator is a small heater (resistor) in the

thermostat. During the "off" cycle, it heats the bimetal

element helping the thermostat call for the next cooling cycle.

This prevents the room temperature from rising too high

before the system is restarted. A properly sized anticipator

should maintain room temperature within 1 1/2 to 2 degree

range.

The anticipator is supplied in the thermostat and is not to be

replaced. If the anticipator should fail for any reason, the

thermostat must be changed.

S-3C HEATING ANTICIPATOR

The heating anticipator is a wire wound adjustable heater

which is energized during the "ON" cycle to help prevent

overheating of the conditioned space.

The anticipator is a part of the thermostat and if it should fail

for any reason, the thermostat must be replaced. See the

following tables for recommended heater anticipator setting

in accordance to the number of electric heaters installed.

S-3D TROUBLESHOOTING ENCODED TWO STAGE COOLING THERMOSTATS OPTIONS

Troubleshooting Encoded Two Stage Cooling Thermostats Options

TEST FUNCTION SIGNAL OUT SIGNAL FAN

S1 +

* S1 - *

S1 + -

S2 +

S2 -

S2 + -

S3 +

* S3 - *

* S3 + - *

R + -

COM

LOW SPEED COOL

* LO SPEED COOL *

HI SPEED COOL

LO SPEED HEAT

HI SPEED HEAT

N/A

24 VAC

GND

YCON +

* YCON - *

YCON + -

W1 HEATER

ED -

( FUTURE USE )

W1 HEATER

W2 HEATER

NONE

N/A

R TO T'STAT

COM TO T'STAT

* Y / Y2 HI *

Y / Y2

W / W1

EM / W2

N/A

C1 , C2

* ERROR CONDITION ( DIODE ON THERMOSTAT BACKWARDS )

* ERROR CONDITION ( S3 CAN ONLY READ + )

INDICATION

* ERROR CONDITION ( S3 CAN ONLY READ + )

INPUT

FROM

THERMOSTAT

POWER

THERMOSTAT

NOTES:

1.) THE TEST SPADE CAN BE CONNECTED TO ANY OTHER TEST SPADE ON EITHER BOARD.

2.) THE + LED WILL BE RED AND WILL LIGHT TO INDICATE + HALF CYCLES.

THE - LED WILL BE GREEN AND WILL LIGHT TO INDICATE - HALF CYCLES.

BOTH RED AND GREEN ILLUMINATED WILL INDICATE FULL CYCLES DENOTED BY + - .

3.) SIGNAL OUT CONDITION FOR W1 , W2 HEATER WILL BE AFFECTED BY OT1 PJ4 AND OT2 PJ2

JUMPERS AND OUTDOOR THERMOSTATS ATTACHED. THE TABLE ABOVE ASSUMES OT1 PJ4 IS

REMOVED AND OT2 PJ2 IS MADE WITH NO OUTDOOR THERMOSTATS ATTACHED.

SEE NOTE 3

The chart above provides troubleshooting for either version of the encoded thermostat option. This provides diagnostic

information for the GMC CHET18-60 or a conventional two cool / two stage heat thermostat with IN4005 diodes added as called

out in the above section.

A test lead or jumper wire can be added from the test terminal to any terminal on the B13682-74 or B13682-71 variable speed

terminal board and provide information through the use of the LED lights on the B13682-71 VSTB control. Using this chart,

a technician can determine if the proper input signal is being received by the encoded VSTB control and diagnose any

problems that may be relayed to the output response of the B13682-74 VSTM control.

SERVICING

S-4 CHECKING TRANSFORMER

AND CONTROL CIRCUIT

A step-down transformer (208/240 volt primary to 24 volt sec-

ondary) is provided with each indoor unit. This allows ample

capacity for use with resistance heaters. The outdoor sec-

tions do not contain a transformer.

WARNING

Disconnect ALL power before servicing.

1. Remove control panel cover, or etc., to gain access to

transformer.

With power ON:

WARNING

Line Voltage now present.

2. Using a voltmeter, check voltage across secondary volt-

age side of transformer (R to C).

3. No voltage indicates faulty transformer, bad wiring, or bad

splices.

4. Check transformer primary voltage at incoming line volt-

age connections and/or splices.

5 If line voltage available at primary voltage side of trans-

former and wiring and splices good, transformer is inop-

erative. Replace.

S-5 CHECKING CYCLE PROTECTOR

Some models feature a solid state, delay-on make after break

time delay relay installed in the low voltage circuit. This

control is used to prevent short cycling of the compressor

under certain operating conditions.

The component is normally closed (R1 to Y1). A power

interruption will break circuit (R1

to Y1) for approximately three

minutes before resetting.

1. Remove wire from Y1 terminal.

2. Wait for approximately four (4) minutes if machine was

running.

With power ON:

WARNING

Line Voltage now present.

1. Apply 24 VAC to terminals R1 and R2.

2. Should read 24 VAC at terminals Y1 and Y2.

3. Remove 24 VAC at terminals R1 and R2.

4. Should read 0 VAC at Y1 and Y2.

5. Reapply 24 VAC to R1 and R2 - within approximately

three (3) to four (4) minutes should read 24 VAC at Y1 and

Y2.

If not as above - replace relay.

S-6 CHECKING TIME DELAY RELAY

Time delay relays are used in some of the blower cabinets to

improve efficiency by delaying the blower off time. Time

delays are also used in electric heaters to sequence in

multiple electric heaters.

WARNING

Disconnect ALL power before servicing.

1. Tag and disconnect all wires from male spade connec-

tions of relay.

2. Using an ohmmeter, measure the resistance across

terminals H1 and H2. Should read approximately 150

ohms.

3. Using an ohmmeter, check for continuity across termi-

nals 3 and 1, and 4 and 5.

4. Apply 24 volts to terminals H1 and H2. Check for

continuity across other terminals - should test continu-

ous. If not as above - replace.

NOTE: The time delay for the contacts to make will be

approximately 20 to 50 seconds and to open after the coil is

de-energized is approximately 40 to 90 seconds.

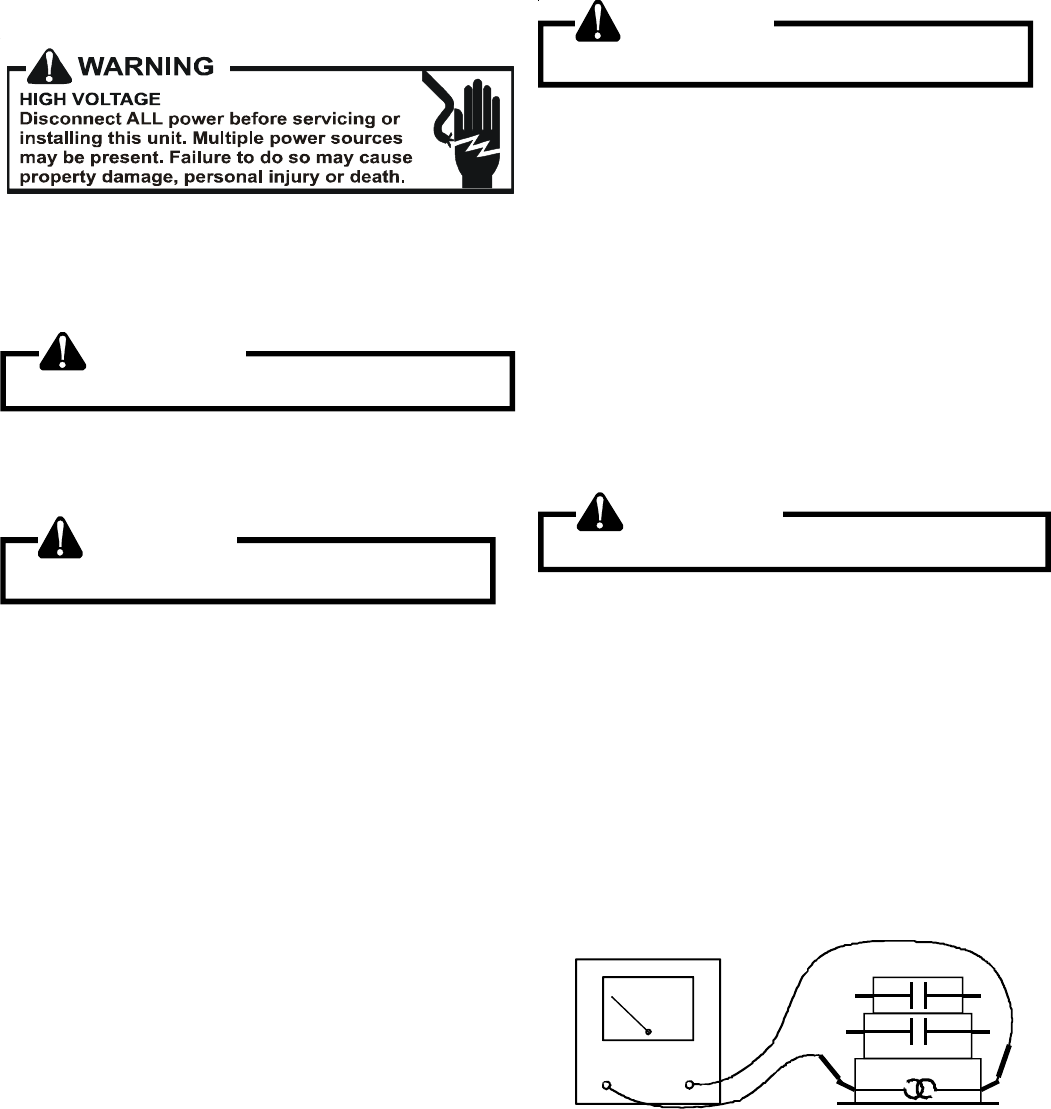

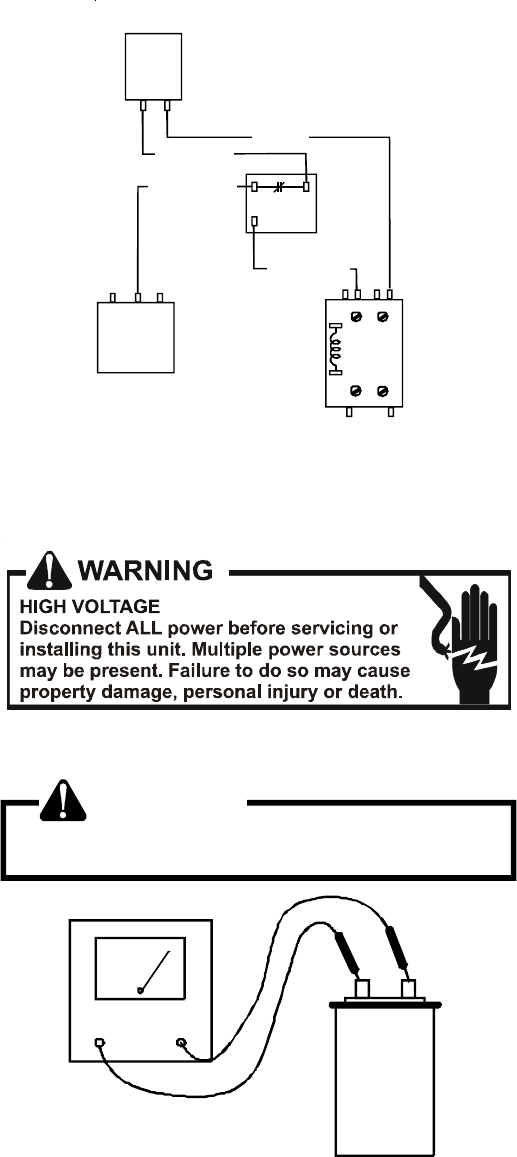

OHMMETER

TESTING COIL CIRCUIT

SERVICING

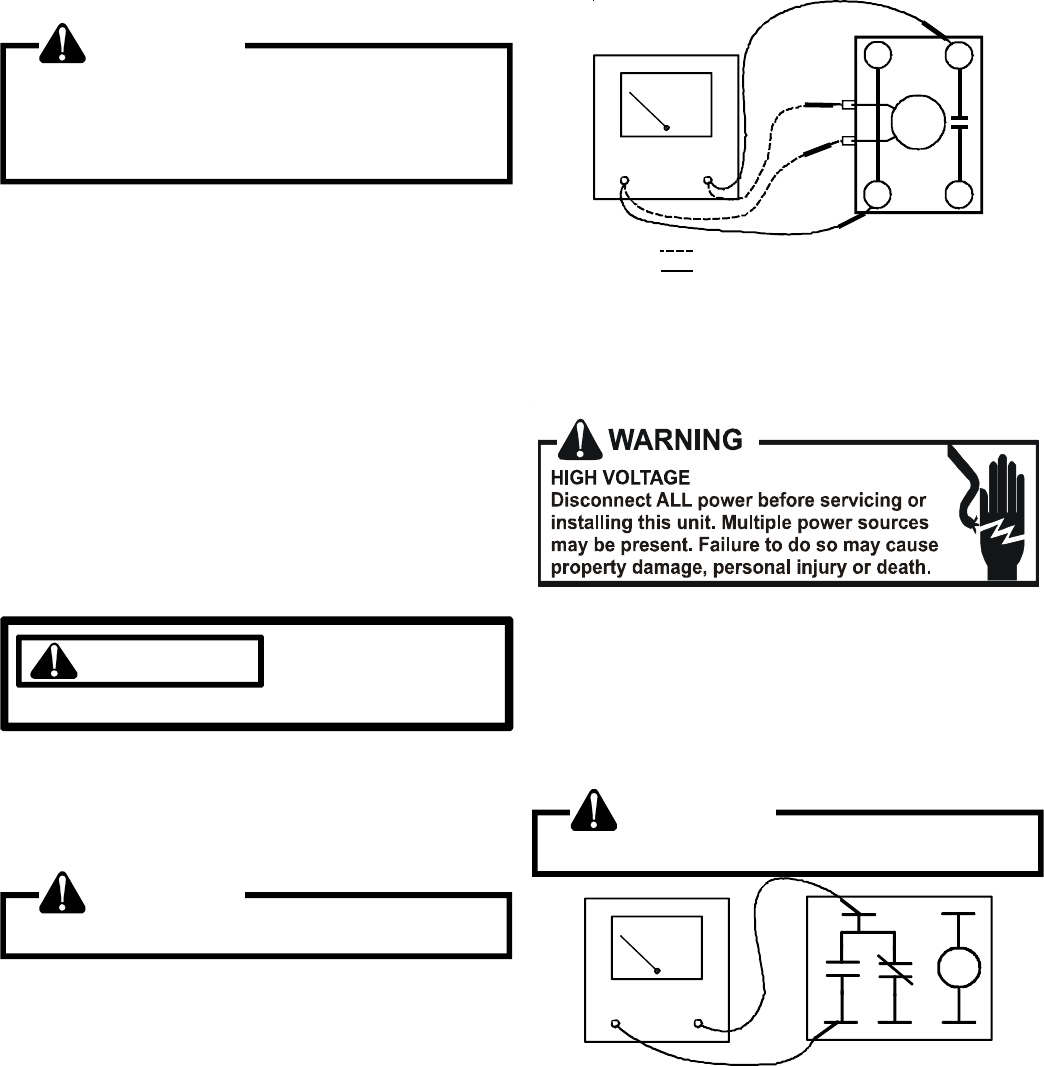

S-7 CHECKING CONTACTOR AND/OR RELAYS

WARNING

HIGH VOLTAGE!

Disconnect ALL power before servicing or installing.

Multiple power sources may be present. Failure to do

so may cause property damage, personal injury

or death.

The compressor contactor and other relay holding coils are

wired into the low or line voltage circuits. When the control

circuit is energized, the coil pulls in the normally open

contacts or opens the normally closed contacts. When the

coil is de-energized, springs return the contacts to their

normal position.

NOTE: Most single phase contactors break only one side of

the line (L1), leaving 115 volts to ground present at most

internal components.

1. Remove the leads from the holding coil.

2. Using an ohmmeter, test across the coil terminals.

If the coil does not test continuous, replace the relay or

contactor.

S-8 CHECKING CONTACTOR CONTACTS

DISCONNECT ELECTRICAL POWER SUPPLY.

WARNING

Disconnect Electrical Power Supply:

1. Disconnect the wire leads from the terminal (T) side of the

contactor.

2. With power ON, energize the contactor.

WARNING

Line Voltage now present.

3. Using a voltmeter, test across terminals.

A. L2 - T1 - No voltage indicates CC1 contacts open.

If a no voltage reading is obtained - replace the contactor.

VOLT/OHM

METER

L1L2

Ohmmeter for testing holding coil

Voltmeter for testing contacts

TESTING COMPRESSOR CONTACTOR

S-9 CHECKING FAN RELAY CONTACTS

1. Disconnect wires leads from terminals 2 and 4 of Fan

Relay Cooling and 2 and 4, 5 and 6 of Fan Relay Heating.

2. Using an ohmmeter, test between 2 and 4 - should read

open. Test between 5 and 6 - should read continuous.

3. With power ON, energize the relays.

WARNING

Line Voltage now present.

OHMMETER

TESTING FAN RELAY

4. Using an ohmmeter, test between 2 and 4 - should read

continuous . Test between 5 and 6 - should read open.

5. If not as above, replace the relay.

SERVICING

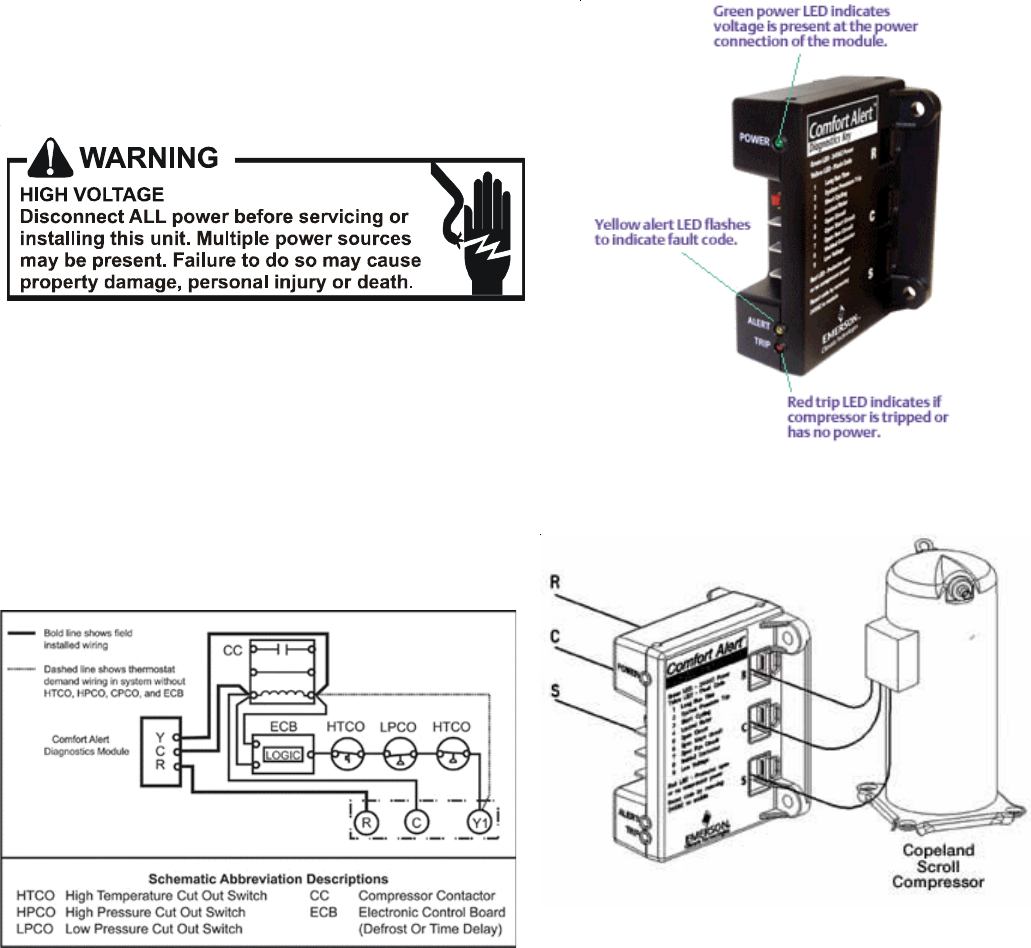

S-10 COPELAND COMFORT ALERT™

DIAGNOSTICS

Applies to ASC13 & ASH13

Comfort Alert™ is self-contained with no required external

sensors and is designed to install directly into the electrical

box of any residential condensing unit that has a Copeland

Scroll™ compressor inside.

Once attached, Comfort Alert™ provides around-the-clock

monitoring for common electrical problems, compressor

defects and broad system faults. If a glitch is detected, an

LED indicator flashes the proper alert codes to help you

quickly pinpoint the problem. See Diagnostic Table on

following page.)

SERVICING

Status LED Status LED Description Status LED Troubleshooting Information

Green “POWER” Module has power Supply voltage is present at module terminals

Red “TRIP” Thermostat demand signal 1. Compressor protector is open

Y1 is present, but the 2. Outdoor unit power disconnect is open

compressor is not 3. Compressor circuit breaker or fuse(s) is open

running 4. Broken wire or connector is not making contact

5. Low pressure switch open if present in system

6. Compressor contactor has failed open

Yellow “ALERT” Long Run Time 1. Low refrigerant charge

Flash Code 1 Compressor is 2. Evaporator blower is not running

running extremely 3. Evaporator coil is frozen

long run cycles 4. Faulty metering device

5. Condenser coil is dirty

6. Liquid line restriction (filter drier blocked if present in system)

7. Thermostat is malfunctioning

Yellow “ALERT” System Pressure Trip 1. High head pressure

Flash Code 2 Discharge or suction 2. Condenser coil poor air circulation (dirty, blocked, damaged)

pressure out of limits or 3. Condenser fan is not running

compressor overloaded 4. Return air duct has substantial leakage

5. If low pressure switch present in system,

check Flash Code 1 information

Yellow “ALERT” Short Cycling 1. Thermostat demand signal is intermittent

Flash Code 3 Compressor is running 2. Time delay relay or control board defective

only briefly 3. If high pressure switch present go to Flash Code 2 information

4. If low pressure switch present go to Flash Code 1 information

Yellow “ALERT” Locked Rotor 1. Run capacitor has failed

Flash Code 4 2. Low line voltage (contact utility if voltage at disconnect is low)

3. Excessive liquid refrigerant in compressor

4. Compressor bearings are seized

Yellow “ALERT” Open Circuit 1. Outdoor unit power disconnect is open

Flash Code 5 2. Compressor circuit breaker or fuse(s) is open

3. Compressor contactor has failed open

4. High pressure switch is open and requires manual reset

5. Open circuit in compressor supply wiring or connections

6. Unusually long compressor protector reset time

due to extreme ambient temperature

7. Compressor windings are damaged

Yellow “ALERT” Open Start Circuit 1. Run capacitor has failed

Flash Code 6 Current only in run circuit 2. Open circuit in compressor start wiring or connections

3. Compressor start winding is damaged

Yellow “ALERT” Open Run Circuit 1. Open circuit in compressor run wiring or connections

Flash Code 7 Current only in start circuit 2. Compressor run winding is damaged

Yellow “ALERT” Welded Contactor 1. Compressor contactor has failed closed

Flash Code 8 Compressor always runs 2. Thermostat demand signal not connected to module

Yellow “ALERT” Low Voltage 1. Control circuit transformer is overloaded

Flash Code 9 Control circuit < 17VAC 2. Low line voltage (contact utility if voltage at disconnect is low)

• Flash Code number corresponds to a number of LED flashes, followed by a pause and then repeated

• TRIP and ALERT LEDs flashing at same time means control circuit voltage is too low for operation.

• Reset ALERT Flash code by removing 24VAC power from module

• Last ALERT Flash code is displayed for 1 minute after module is powered on.

DIAGNOSTICS TABLE

SERVICING

START

RELAY

COM

HERM

FAN

RUN

CAPACITOR

CONTACTOR

T2 T1

L1L2

START

CAPACITOR

RED 10

VIOLET 20

YELLOW 12

ORANGE 5

HARD START KIT WIRING

S-15A RESISTANCE CHECK

1. Discharge capacitor and remove wire leads.

WARNING

Discharge capacitor through a 20 to 30 OHM

resistor before handling.

OHMMETER

CAPACITOR

TESTING CAPACITOR RESISTANCE

2. Set an ohmmeter on its highest ohm scale and connect

the leads to the capacitor -

A. Good Condition - indicator swings to zero and slowly

returns to infinity. (Start capacitor with bleed resistor will

not return to infinity. It will still read the resistance of the

resistor).

S-11 CHECKING LOSS OF CHARGE PROTECTOR

(Heat Pump Models)

The loss of charge protector senses the pressure in the liquid

line and will open its contacts on a drop in pressure. The low

pressure control will automatically reset itself with a rise in

pressure.

The low pressure control is designed to cut-out (open) at

approximately 7 PSIG. It will automatically cut-in (close) at

approximately 25 PSIG.

Test for continuity using a VOM and if not as above, replace

the control.

S-15 CHECKING CAPACITOR

CAPACITOR, RUN

A run capacitor is wired across the auxiliary and main

windings of a single phase permanent split capacitor motor.

The capacitors primary function is to reduce the line current

while greatly improving the torque characteristics of a motor.

This is accomplished by using the 90° phase relationship

between the capacitor current and voltage in conjunction with

the motor windings, so that the motor will give two phase

operation when connected to a single phase circuit. The

capacitor also reduces the line current to the motor by

improving the power factor.

The line side of this capacitor is marked with "COM" and is

wired to the line side of the circuit.

CAPACITOR, START

SCROLL COMPRESSOR MODELS

In most cases hard start components are not required on

Scroll compressor equipped units due to a non-replaceable

check valve located in the discharge line of the compressor.

However, in installations that encounter low lock rotor volt-

age, a hard start kit can improve starting characteristics and

reduce light dimming within the home. Only hard start kits

approved by Amana® brand or Copeland should be used.

"Kick Start" and/or "Super Boost" kits are not approved start

assist devices.

The discharge check valve closes off high side pressure to the

compressor after shut down allowing equalization through the

scroll flanks. Equalization requires only about ½ second.

To prevent the compressor from short cycling, a Time Delay

Relay (Cycle Protector) has been added to the low voltage

circuit.

RELAY, START

A potential or voltage type relay is used to take the start

capacitor out of the circuit once the motor comes up to speed.

This type of relay is position sensitive. The normally closed

contacts are wired in series with the start capacitor and the

relay holding coil is wired parallel with the start winding. As

the motor starts and comes up to speed, the increase in

voltage across the start winding will energize the start relay

holding coil and open the contacts to the start capacitor.

Two quick ways to test a capacitor are a resistance and a

capacitance check.

SERVICING

B. Shorted - indicator swings to zero and stops there -

replace.

C. Open - no reading - replace. (Start capacitor would

read resistor resistance.)

S-15B CAPACITANCE CHECK

Using a hookup as shown below, take the amperage and

voltage readings and use them in the formula:

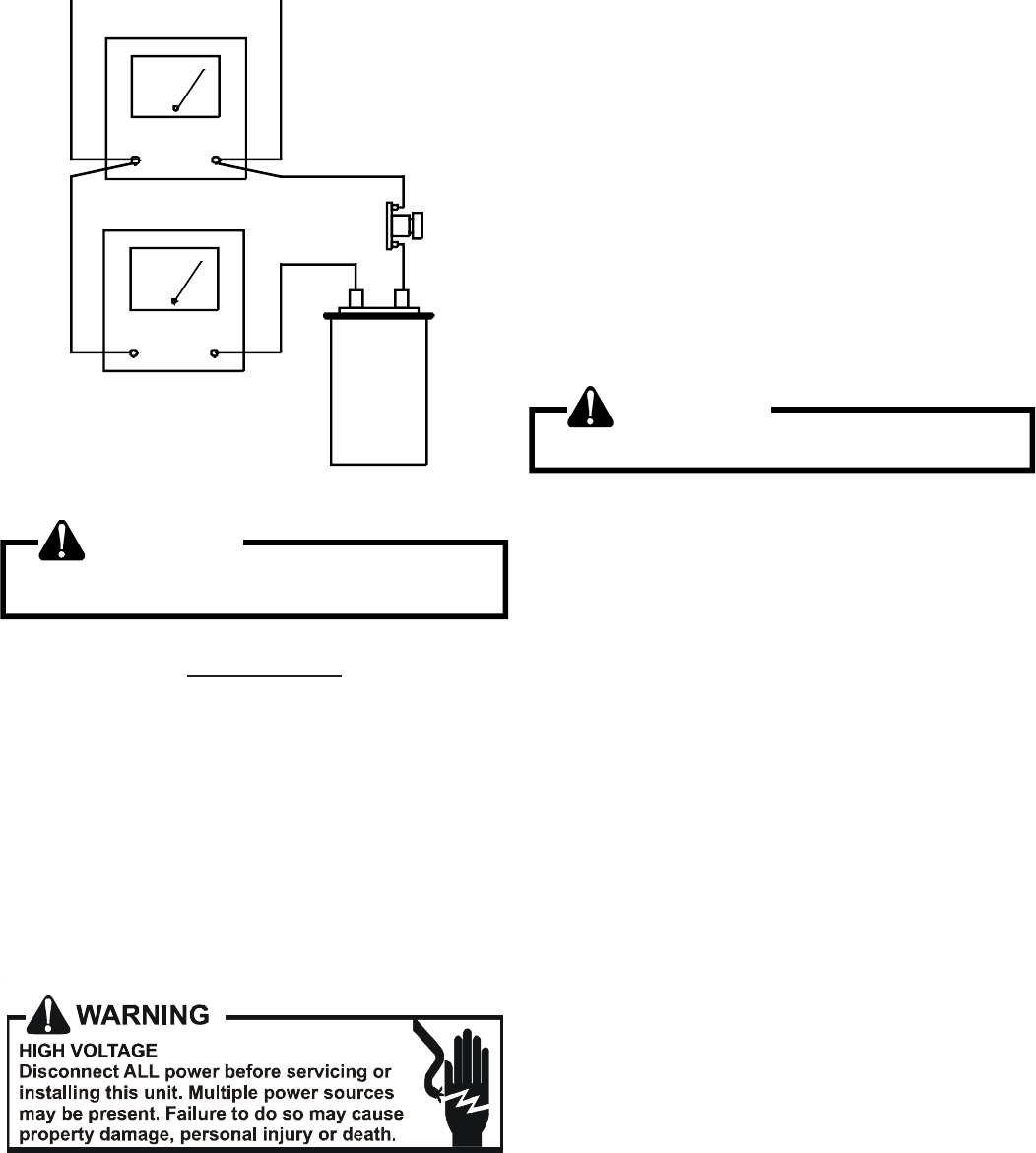

VOLTMETER

CAPACITOR

AMMETER

15 AMP

FUSE

TESTING CAPACITANCE

WARNING

Discharge capacitor through a 20 to 30 OHM

resistor before handling.

Capacitance (MFD) = 2650 X Amperage

Voltage

S-16A CHECKING FAN AND BLOWER MOTOR

WINDINGS (PSC MOTORS)

The auto reset fan motor overload is designed to protect the

motor against high temperature and high amperage condi-

tions by breaking the common circuit within the motor, similar

to the compressor internal overload. However, heat gener-

ated within the motor is faster to dissipate than the compres-

sor, allow at least 45 minutes for the overload to reset, then

retest.

1. Remove the motor leads from its respective connection

points and capacitor (if applicable).

2. Check the continuity between each of the motor leads.

3. Touch one probe of the ohmmeter to the motor frame

(ground) and the other probe in turn to each lead.

If the windings do not test continuous or a reading is obtained

from lead to ground, replace the motor.

S-16B CHECKING FAN AND BLOWER MOTOR

(ECM MOTORS)

An ECM is an Electronically Commutated Motor which offers

many significant advantages over PSC motors. The ECM

has near zero rotor loss, synchronous machine operation,

variable speed, low noise, and programmable air flow. Be-

cause of the sophisticated electronics within the ECM

motor, some technicians are intimated by the ECM motor;

however, these fears are unfounded. GE offers two ECM

motor testers, and with a VOM meter, one can easily perform

basic troubleshooting on ECM motors. An ECM motor

requires power (line voltage) and a signal (24 volts) to

operate. The ECM motor stator contains permanent magnet.

As a result, the shaft feels "rough" when turned by hand. This

is a characteristic of the motor, not an indication of defective

bearings.

WARNING

Line Voltage now present.

1. Disconnect the 5-pin connector from the motor.

2. Using a volt meter, check for line voltage at terminals #4

& #5 at the power connector. If no voltage is present:

3. Check the unit for incoming power See section S-1.

4. Check the control board, See section S-40.

5. If line voltage is present, reinsert the 5-pin connector and

remove the 16-pin connector.

6. Check for signal (24 volts) at the transformer.

7. Check for signal (24 volts) from the thermostat to the "G"

terminal at the 16-pin connector.

8. Using an ohmmeter, check for continuity from the #1 &

#3 (common pins) to the transformer neutral or "C"

thermostat terminal. If you do not have continuity, the

motor may function erratically. Trace the common cir-

cuits, locate and repair the open neutral.

9. Set the thermostat to "Fan-On". Using a voltmeter,

check for 24 volts between pin # 15 (G) and common.

10. Disconnect power to compressor. Set thermostat to call

for cooling. Using a voltmeter, check for 24 volts at pin #

6 and/or #14.

11. Set the thermostat to a call for heating. Using a voltme-

ter, check for 24 volts at pin #2 and/or #11.

SERVICING

Lines 1 and 2 will be connected

for 12OVAC Power Connector

applications only

Gnd

AC Line Connection

}

816

OUT - OUT +

DJUST +/- G (FAN)

Y1 Y/Y2

COOL EM Ht/W2

DELAY 24 Vac (R)

COMMON2 HEAT

W/W1 BK/PWM (SPEED)

COMMON1 O (REV VALVE)

16-PIN ECM HARNESS CONNECTOR

If you do not read voltage and continuity as described, the

problem is in the control or interface board, but not the motor.

If you register voltage as described , the ECM power head is

defective and must be replaced.

S-16C CHECKING ECM MOTOR WINDINGS

1. Disconnect the 5-pin and the 16-pin connectors from the

ECM power head.

2. Remove the 2 screws securing the ECM power head and

separate it from the motor.

3. Disconnect the 3-pin motor connector from the power

head and lay it aside.

4. Using an ohmmeter, check the motor windings for

continuity to ground (pins to motor shell). If the ohmme-

ter indicates continuity to ground, the motor is defective

and must be replaced.

5. Using an ohmmeter, check the windings for continuity

(pin to pin). If no continuity is indicated, the thermal limit

(over load) device may be open. Allow motor to cool and

retest.

16-pin

connector

5-pin

connector

3-pin motor

connector

S-16D ECM CFM ADJUSTMENTS

MBE MOTOR

This section references the operation characteristics of the

MBE model motor only. The ECM control board is factory

set with the dipswitch #4 in the “ON” position and all other

dipswitches are factory set in the “OFF” position. When

MBE is used with 2-stage cooling units, dipswitch #4

should be in the "OFF" position.

For most applications, the settings are to be changed

according to the electric heat size and the outdoor unit

selection.

The MBE product uses a General Electric ECMTM motor.

This motor provides many features not available on the

traditional PSC motor. These features include:

• Improved Efficiency

• Constant CFM

• Soft Start and Stop

• Improved Humidity Control

MOTOR SPEED ADJUSTMENT

Each ECM™ blower motor has been preprogrammed for

operation at 4 distinct airflow levels when operating in

Cooling/Heat Pump mode or Electric Heat mode. These 4

distinct levels may also be adjusted slightly lower or higher

if desired. The adjustment between levels and the trim

adjustments are made by changing the dipswitch(s) either

to an "OFF" or "ON" position.

SERVICING

- Connectors are oriented "down"

(

or as recommended b

equipment manufacturer

)

.- Arran

e harnesses with "drip loop" under motor.

s con

ensa

n p

ow a

oo muc

capac

ity)

Check

for

undercharged

condition

Check

and

plug

leaks

return

ducts

cabinet

*Moisture Check

mpor

e wron

con

e vo

s a

pro

warran

es an

pro

uce unexpec

resu

Note: You must use the correct replacement control/motor module since the

are factor

pro

rammed for specific operatin

modes. Even thou

h the

look alike, different modules ma

have completel

different

functionality. The ECM variable speed motors are c

CHART CONTINUED ON NEXT PAGE

Symptom Fault Description(s) Possible Causes Corrective Action Cautions and Notes

- Motor rocks

slightly

when starting.

- This is normal start-up for

variable speed motor. ---- ---- ----

- No movement.

- Manual disconnect switch off or

door switch open.

- Blown fuse or circuit breaker.

- 24 Vac wires miswired.

- Unseated pins in wiring

harness connectors.

- Bad motor/control module.

- Moisture present in motor or control module.

- Check 230 Vac power at motor.

- Check low voltage (24 Vac R to C) at motor.

- Check low voltage connections

(G, Y, W, R, C) at motor.

- Check for unseated pins in connectors

on motor harness.

- Test with a temporary jumper between R - G.

- Turn power OFF prior to repair.

Wait 5 minutes after

disconnecting power before

opening motor.

- Handle electronic motor/control with care.

- Motor rocks,

but won't start.

- Loose motor mount.

- Blower wheel not tight on motor shaft.

- Bad motor/control module.

- Check for loose motor mount.

- Make sure blower wheel is tight on shaft.

- Perform motor/control replacement check,

ECM motors only.

- Turn power OFF prior to repair.

Wait 5 minutes after

disconnecting power before

opening motor.

- Handle electronic motor/control with care.

- Motor

oscillates up &

down while

being tested

off of blower.

- It is normal for motor to

oscillate with

no load on shaft.

---- ---- ----

- Varies up and down

or intermittent.

- Variation in 230 Vac to motor.

- Unseated pins in wiring harness

connectors.

- Erratic CFM command from

"BK" terminal.

- Improper thermostat connection or setting.

- Moisture present in motor/control module.

- Check line voltage for variation or "sag".

- Check low voltage connections

(G, Y, W, R, C) at

motor, unseated pins in motor

harness connectors.

- Check-out system controls - Thermostat.

- Perform Moisture Check.*

- Turn power OFF prior to repair.

- "Hunts" or "puffs" at

high CFM (speed).

- Incorrect or dirty filter(s).

- Incorrect supply or return ductwork.

- Incorrect blower speed setting.

- Does removing panel or filter

reduce "puffing"?

- Check/replace filter.

- Check/correct duct restrictions.

- Adjust to correct blower speed setting.

- Turn power OFF prior to repair.

Troubleshooting Chart for ECM Variable Speed Air Circulator Blower Motors

- Motor won't

start.

- Motor starts,

but runs

erratically.

SERVICING

CHART CONTINUED FROM PREVIOUS PAGE

- Connectors are oriented "down"

(

or as recommended b

equipment manufacturer

)

.- Arran

e harnesses with "drip loop" under motor.

s con

ensa

n p

ow a

oo muc

capac

ity)

Check

for

undercharged

condition

Check

and

plug

leaks

return

ducts

cabinet

*Moisture Check

mpor

e wron

con

e vo

s a

pro

warran

es an

pro

uce unexpec

resu

Note: You must use the correct replacement control/motor module since the

are factor

pro

rammed for specific operatin

modes. Even thou

h the

look alike, different modules ma

have completel

different

functionality. The ECM variable speed motors are c

Symptom Fault Description(s) Possible Causes Corrective Action Cautions and Notes

- Stays at low CFM despite

system call for cool

or heat CFM.

- 24 Vac wires miswired or loose.

- "R" missing/not connected at motor.

- Fan in delay mode.

- Check low voltage (Thermostat)

wires and connections.

- Verify fan is not in delay mode -

wait until delay complete.

- Perform motor/control replacement

check, ECM motors only.

- Turn power OFF prior to repair.

Wait 5 minutes after

disconnecting power before

opening motor.

- Handle electronic motor/control

with care.

- Stays at high CFM. - "R" missing/not connected at motor.

- Fan in delay mode.

- Is fan in delay mode? - wait until delay time complete.

- Perform motor/control replacement check, ECM

motors only.

- Turn power OFF prior to repair.

Wait 5 minutes after

disconnecting power before

opening motor.

- Handle electronic motor/control

with care.

- Blower won't shut off. - Current leakage from controls

into G, Y, or W.

- Check for Triac switched t'stat

or solid state relay. - Turn power OFF prior to repair.

- Air noise.

- High static creating high blower speed.

- Incorrect supply or return ductwork.

- Incorrect or dirty filter(s).

- Incorrect blower speed setting.

- Check/replace filter.

- Check/correct duct restrictions.

- Adjust to correct blower speed setting.

- Turn power OFF prior to repair.

- Noisy blower or cabinet.

- Loose blower housing, panels, etc.

- High static creating high blower

speed.

- Air leaks in ductwork, cabinets,

or panels.

- Check for loose blower housing,

panels, etc.

- Check for air whistling thru seams in

ducts, cabinets or panels.

- Check for cabinet/duct deformation.

- Turn power OFF prior to repair.

- "Hunts" or "puffs" at

high CFM (speed).

- High static creating high blower speed.

- Incorrect or dirty filter(s).

- Incorrect supply or return ductwork.

- Incorrect blower speed setting.

- Does removing panel or filter

reduce "puffing"?

- Check/replace filter.

- Check/correct duct restrictions.

- Adjust to correct blower speed setting.

- Turn power OFF prior to repair.

- Evidence of

Moisture.

- Motor failure or

malfunction has

occurred and moisture

is present.

- Moisture in motor/control module. - Replace motor and perform

Moisture Check.*

- Turn power OFF prior to repair.

Wait 5 minutes after

disconnecting power before

opening motor.

- Handle electronic motor/control

with care.

- Excessive

noise.

Troubleshooting Chart for ECM Variable Speed Air Circulator Blower Motors

- Motor starts,

but runs

erratically.

SERVICING

DIPSWITCH FUNCTIONS

The MBE air handler motor has an electronic control that

contains an eight (8) position dip switch. The function of

these dipswitches are shown in Table 1.

Dipswitch Number Function

3N/A

4Indoor Thermostat

Cooling & Heat Pump CFM

CFM Trim Adjust

Electric Heat

Table 1

CFM DELIVERY

Tables 2, 2A and 3, 3A show the CFM output for dipswitch

combinations 1-2, 5-6 and 7-8.

Model Switch 1 Switch 2 CFM

OFF OFF 1,200

ON OFF 1,000

OFF ON 800

ON ON 600

OFF OFF 1,600

ON OFF 1,400

OFF ON 1,200

ON ON 1,000

OFF OFF 2,000

ON OFF 1,800

OFF ON 1,600

ON ON 1,200

MBE1200

MBE1600

MBE2000

Electric Heat Operation

Table 2

Model Switch 5 Switch 6 CFM

OFF OFF 1,200

ON OFF 1,000

OFF ON 800

ON ON 600

OFF OFF 1,600

ON OFF 1,400

OFF ON 1,200

ON ON 1,000

OFF OFF 1,600

ON OFF 1,400

OFF ON 1,200

ON ON 1,000

Cooling/Heat Pump Operation

MBE2000

MBE1200

MBE1600

Table 2A

Dipswitch 1/2 & 7/8

AEPF 1830

Heat

Element

(kw) 1278

UP TO 10 OFF OFF OFF OFF 1100 1210

UP TO 10 ON OFF OFF OFF 890 935

5 OFF ON OFF OFF 700 770

AEPF3036 / 3137 / 4260

Heating

Element

(kw) 1278

UP TO 20 OFF OFF OFF OFF 2050 2150

UP TO 20 ON OFF OFF OFF 1750 1835

UP TO 15 OFF ON OFF OFF 1600 1680

UP TO 10 ON ON OFF OFF 1200 1260

UP TO 10 ON ON OFF ON 1020 1070

Heat Pump

With Backup

Switch

Position

Switch

Position

Switch

Position Switch

Position

Emergency

Backup Heat Pump

With Backup

Emergency

Backup

Table 3

Dipswitch 5/6 & 7/8

AEPF 1830

5 6 7 8 Cooling Heat Pump

OFF OFF OFF OFF 1100 1100

ON OFF OFF OFF 800 800

OFF ON OFF OFF 600 600

5 6 7 8 Cooling Heat Pump

OFF OFF OFF OFF 1800 1800

ON OFF OFF OFF 1580 1580

OFF ON OFF OFF 1480 1480

ON ON OFF OFF 1200 1200

ON ON OFF ON 1020 1020

Switch

Position Switch

Position Indoor Airflow

Switch

Position Switch

Position Indoor Airflow

AEPF3036 / 3137 / 4260

Table 3A

THERMOSTAT “FAN ONLY” MODE

During Fan Only Operations, the CFM output is 30% of the

cooling setting.

CFM TRIM ADJUST

Minor adjustments can be made through the dip switch

combination of 7-8. Table 4 shows the switch position for

this feature.

NOTE: The airflow will not make the decreasing adjustment

in Electric Heat mode.

CFM Switch 7 Switch 8

+10% ON OFF

-15% OFF ON

Table 4

SERVICING

HUMIDITY CONTROL

When using a Humidstat (normally closed), cut jumper PJ6

on the control board. The Humidstat will only affect cooling

airflow by adjusting the Airflow to 85%.

TWO STAGE HEATING

When using staged electric heat, cut jumper PJ4 on the

control board.

S-16E CHECKING GE X13TM MOTORS

The GE X13TM Motor is a one piece, fully encapsulated, 3

phase brushless DC (single phase AC input) motor with ball

bearing construction. Unlike the ECM 2.3/2.5 motors, the GE

X13TM features an integral control module.

Note: The GE TECMate will not currently operate the GE

X13TM motor.

1. Using a voltmeter, check for 230 volts to the motor

connections L and N. If 230 volts is present, proceed to

step 2. If 230 volts is not present, check the line voltage

circuit to the motor.

2. Using a voltmeter, check for 24 volts from terminal C to

either terminal 1, 2, 3, 4, or 5, depending on which tap is

being used, at the motor. If voltage present, proceed to

step 3. If no voltage, check 24 volt circuit to motor.

3. If voltage was present in steps 1 and 2, the motor has

failed and will need to be replaced.

Note: When replacing motor, ensure the belly band is

between the vents on the motor and the wiring has the

proper drip loop to prevent condensate from entering the

motor.

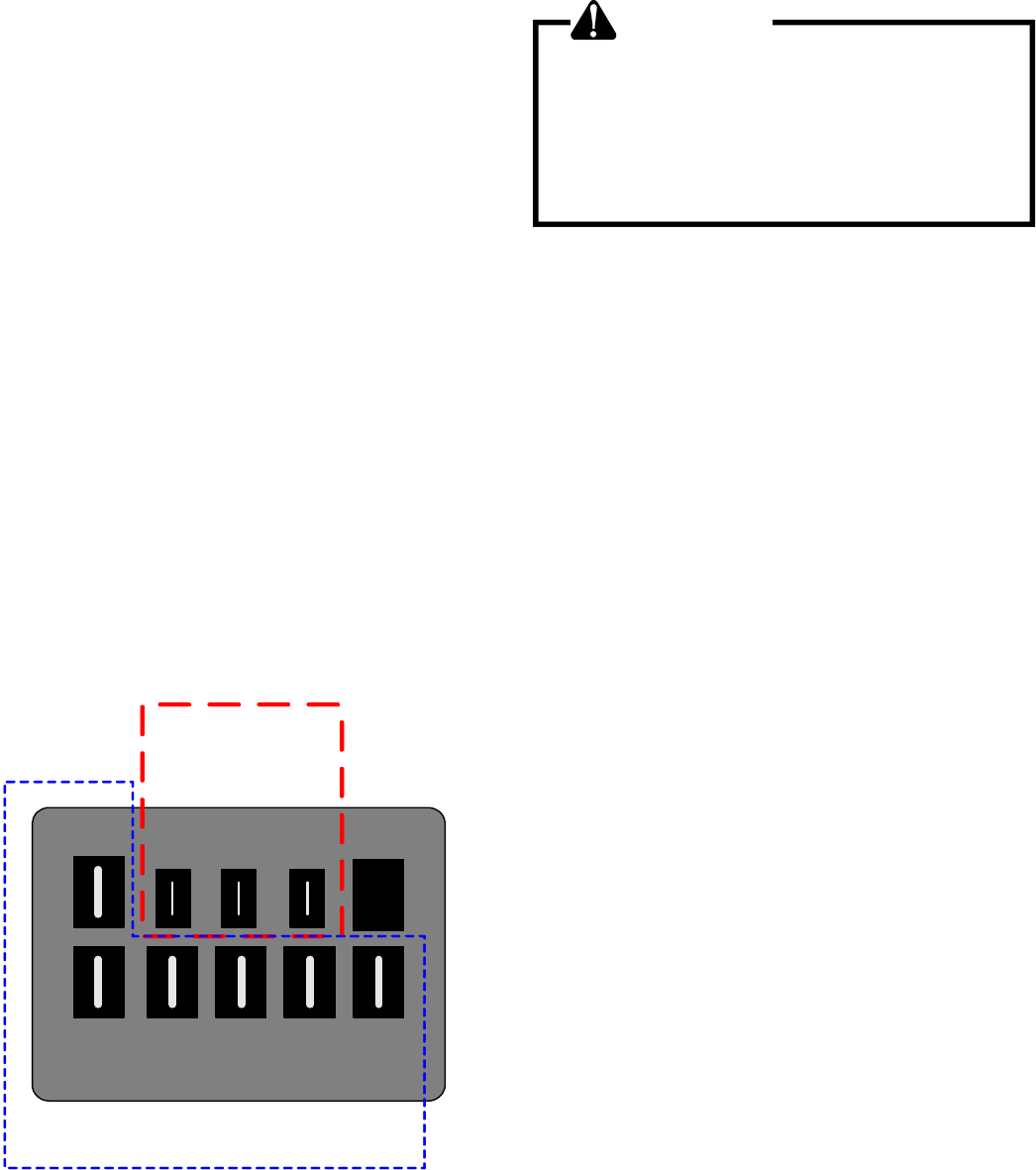

CLGN

123

High Voltage

Connections

3/16"

Low Voltage Connections

1/4”

GE X13TM MOTOR CONNECTIONS

S-17 CHECKING COMPRESSOR

WARNING

Hermetic compressor electrical terminal venting can

be dangerous. When insulating material which

supports a hermetic compressor or electrical terminal

suddenly disintegrates due to physical abuse or as a

result of an electrical short between the terminal and

the compressor housing, the terminal may be

expelled, venting the vapor and liquid contents of the

compressor housing and system.

If the compressor terminal PROTECTIVE COVER and gasket

(if required) are not properly in place and secured, there is a

remote possibility if a terminal vents, that the vaporous and

liquid discharge can be ignited, spouting flames several feet,

causing potentially severe or fatal injury to anyone in its path.

This discharge can be ignited external to the compressor if

the terminal cover is not properly in place and if the discharge

impinges on a sufficient heat source.

Ignition of the discharge can also occur at the venting terminal

or inside the compressor, if there is sufficient contaminant air

present in the system and an electrical arc occurs as the

terminal vents.

Ignition cannot occur at the venting terminal without the

presence of contaminant air, and cannot occur externally

from the venting terminal without the presence of an external

ignition source.

Therefore, proper evacuation of a hermetic system is essen-

tial at the time of manufacture and during servicing.

To reduce the possibility of external ignition, all open flame,

electrical power, and other heat sources should be extin-

guished or turned off prior to servicing a system.

If the following test indicates shorted, grounded or open

windings, see procedures S-19 for the next steps to be taken.

S-17A RESISTANCE TEST

Each compressor is equipped with an internal overload.

The line break internal overload senses both motor amperage

and winding temperature. High motor temperature or amper-

age heats the disc causing it to open, breaking the common

circuit within the compressor on single phase units.

Heat generated within the compressor shell, usually due to

recycling of the motor, high amperage or insufficient gas to

cool the motor, is slow to dissipate. Allow at least three to

four hours for it to cool and reset, then retest.

Fuse, circuit breaker, ground fault protective device, etc. has

not tripped -

SERVICING

1. Remove the leads from the compressor terminals.

See warnings S-17 before removing compressor

terminal cover.

2. Using an ohmmeter, test continuity between terminals S-

R, C-R, and C-S, on single phase units or terminals T2,

T2 and T3, on 3 phase units.

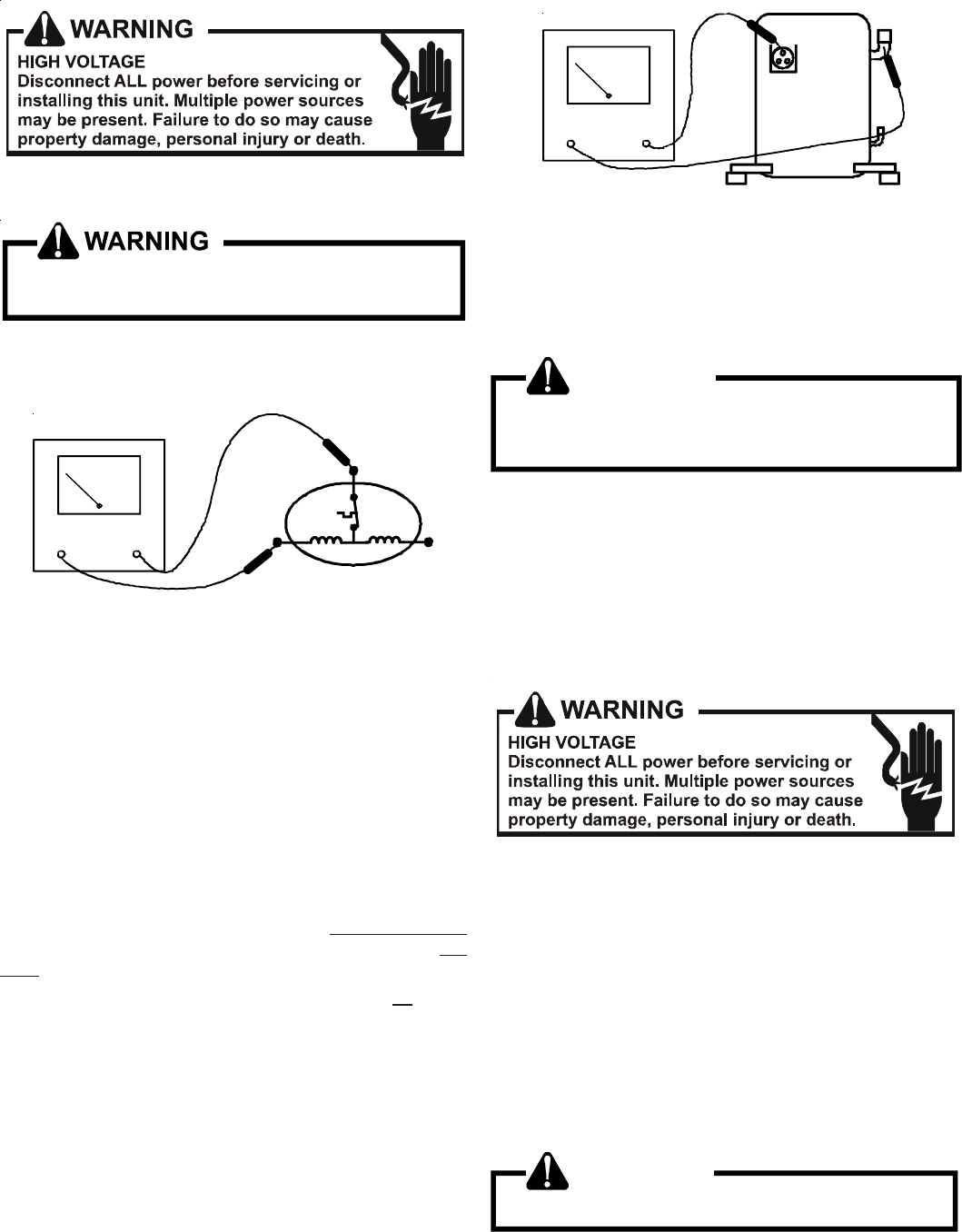

COMP

OHMMETER

TESTING COMPRESSOR WINDINGS

If either winding does not test continuous, replace the

compressor.

NOTE: If an open compressor is indicated, allow ample time

for the internal overload to reset before replacing compressor.

S-17B GROUND TEST

If fuse, circuit breaker, ground fault protective device, etc.,

has tripped, this is a strong indication that an electrical

problem exists and must be found and corrected. The circuit

protective device rating must be checked, and its maximum

rating should coincide with that marked on the equipment

nameplate.

With the terminal protective cover in place, it is acceptable to

replace the fuse or reset the circuit breaker ONE TIME ONLY

to see if it was just a nuisance opening. If it opens again, DO

NOT continue to reset.

Disconnect all power to unit, making sure that all power

legs are open.

1. DO NOT remove protective terminal cover. Disconnect

the three leads going to the compressor terminals at the

nearest point to the compressor.

2. Identify the leads and using a Megger, Hi-Potential

Ground Tester, or other suitable instrument which puts

out a voltage between 300 and 1500 volts, check for a

ground separately between each of the three leads and

ground (such as an unpainted tube on the compressor).

Do not use a low voltage output instrument such as a volt-

ohmmeter.

HI-POT

COMPRESSOR GROUND TEST

3. If a ground is indicated, then carefully remove the com-

pressor terminal protective cover and inspect for loose

leads or insulation breaks in the lead wires.

4. If no visual problems indicated, carefully remove the leads

at the compressor terminals.

WARNING

Damage can occur to the glass embedded terminals if

the leads are not properly removed. This can result in

terminal and hot oil discharging.

Carefully retest for ground, directly between compressor

terminals and ground.

5. If ground is indicated, replace the compressor.

S-17D OPERATION TEST

If the voltage, capacitor, overload and motor winding test fail

to show the cause for failure:

1. Remove unit wiring from disconnect switch and wire a test

cord to the disconnect switch.

NOTE: The wire size of the test cord must equal the line wire

size and the fuse must be of the proper size and type.

2. With the protective terminal cover in place, use the three

leads to the compressor terminals that were discon-

nected at the nearest point to the compressor and

connect the common, start and run clips to the respective

leads.

3. Connect good capacitors of the right MFD and voltage

rating into the circuit as shown.

4. With power ON, close the switch.

WARNING

Line Voltage now present.

SERVICING

A. If the compressor starts and continues to run, the cause

for failure is somewhere else in the system.

B. If the compressor fails to start - replace.

COPELAND COMPRESSOR

03 A 12345 L

EAR MONTH SERIAL

NUMBER PLANT

S-18 TESTING CRANKCASE HEATER

(OPTIONAL ITEM)

The crankcase heater must be energized a minimum of four

(4) hours before the condensing unit is operated.

Crankcase heaters are used to prevent migration or accumu-

lation of refrigerant in the compressor crankcase during the

off cycles and prevents liquid slugging or oil pumping on start

up.

A crankcase heater will not prevent compressor damage due

to a floodback or over charge condition.

WARNING

Disconnect ALL power before servicing.

1. Disconnect the heater lead in wires.

2. Using an ohmmeter, check heater continuity - should test

continuous. If not, replace.

NOTE: The positive temperature coefficient crankcase heater

is a 40 watt 265 voltage heater. The cool resistance of the

heater will be approximately 1800 ohms. The resistance will

become greater as the temperature of the compressor shell

increases.

S-21 CHECKING REVERSING VALVE

AND SOLENOID

Occasionally the reversing valve may stick in the heating or

cooling position or in the mid-position.

When stuck in the mid-position, part of the discharge gas

from the compressor is directed back to the suction side,

resulting in excessively high suction pressure. An increase

in the suction line temperature through the reversing valve can

also be measured. Check operation of the valve by starting

the system and switching the operation from COOLING to

HEATING cycle.

If the valve fails to change its position, test the voltage (24V)

at the valve coil terminals, while the system is on the

COOLING cycle.

If no voltage is registered at the coil terminals, check the

operation of the thermostat an the continuity of the connect-

ing wiring from the "O" terminal of the thermostat to the unit.

If voltage is registered at the coil, tap the valve body lightly

while switching the system from HEATING to COOLING, etc.

If this fails to cause the valve to switch positions, remove the

coil connector cap and test the continuity of the reversing

valve solenoid coil. If the coil does not test continuous -

replace it.

If the coil test continuous and 24 volts is present at the coil

terminals, the valve is inoperative - replace it.

S-24 TESTING DEFROST CONTROL

To check the defrost control for proper sequencing, proceed

as follows: With power ON; unit not running.

1. Jumper defrost thermostat by placing a jumper wire

across the terminals "DFT" and "R" at defrost control

board.

2. Connect jumper across test pins on defrost control board.

3. Set thermostat to call for heating. System should go into

defrost within 21 seconds.

4. Immediately remove jumper from test pins.

5. Using VOM check for voltage across terminals "C & O".

Meter should read 24 volts.

6. Using VOM check for voltage across fan terminals DF1

and DF2 on the board. You should read line voltage (208-

230 VAC) indicating the relay is open in the defrost mode.

7. Using VOM check for voltage across "W2 & C" terminals

on the board. You should read 24 volts.

8. If not as above, replace control board.

9. Set thermostat to off position and disconnect power

before removing any jumpers or wires.

NOTE: Remove jumper across defrost thermostat before

returning system to service.

S-25 TESTING DEFROST THERMOSTAT

1. Install a thermocouple type temperature test lead on the

tube adjacent to the defrost control. Insulate the lead

point of contact.

2. Check the temperature at which the control closes its

contacts by lowering the temperature of the control. Part

# 0130M00009P which is used on 2 and 2.5 ton units

should close at 34°F ± 5°F. Part # 0130M00001P which

is used on 3 thru 5 ton units should close at 31°F ± 3°F.

3. Check the temperature at which the control opens its

contacts by raising the temperature of the control. Part #

0130M00009P which is used on 2 and 2.5 ton units

should open at 60°F ± 5°F. Part # 0130M00001P which

is used on 3 thru 5 ton units should open at 75°F ± 6°F.

4. If not as above, replace control.

SERVICING

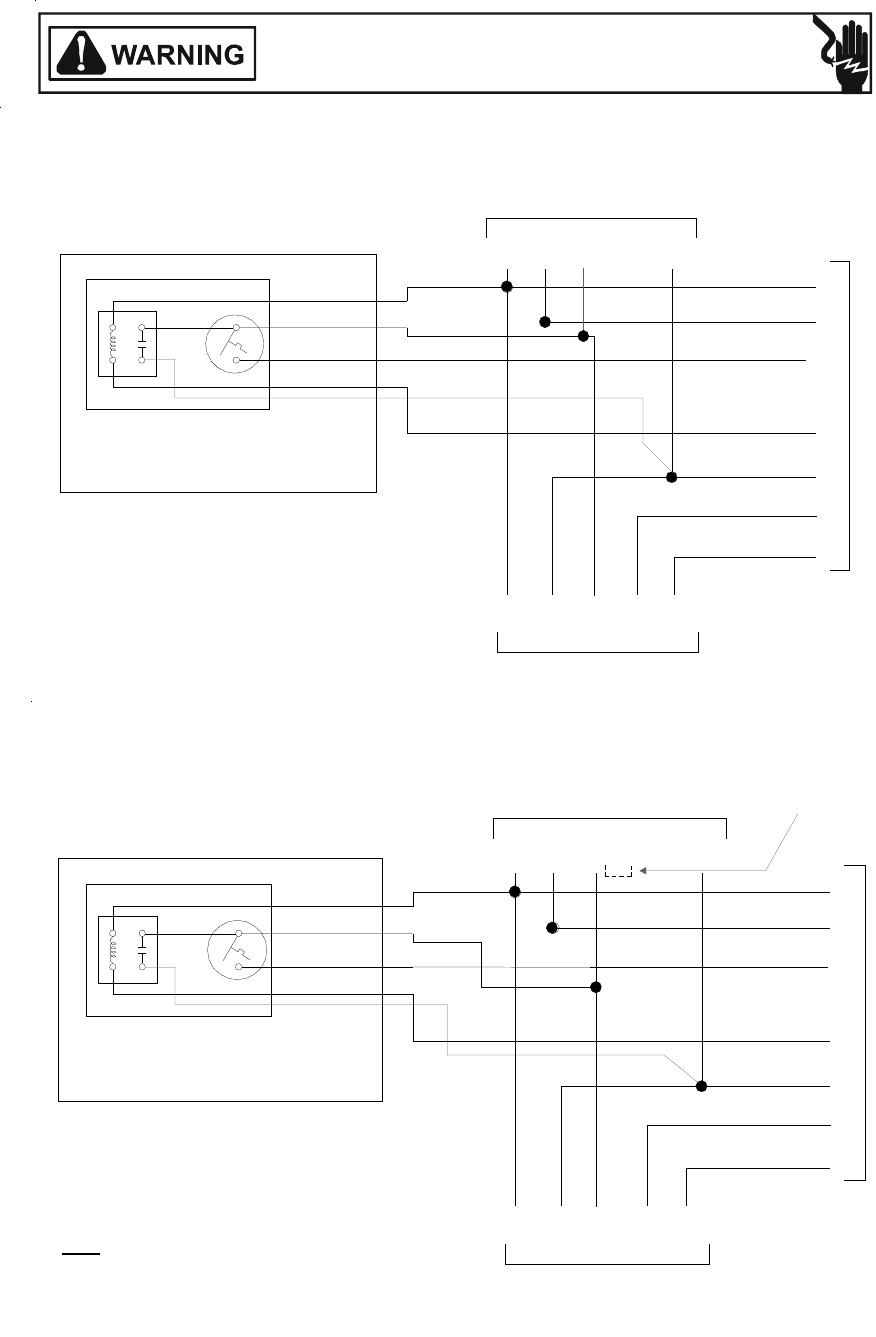

S-40 AR*F & MBR ELECTRONIC BLOWERS

TIME DELAY RELAY

The MBR contains an Electronic Blower Time Delay Relay

board, B1370735. This board provides on/off time delays for

the blower motor in cooling and heat pump heating demands

when “G” is energized.

During a cooling or heat pump heating demand, 24Vac is

supplied to terminal “G” of the EBTDR to turn on the blower

motor. The EBTDR initiates a 7 second delay on and then

energizes it’s onboard relay. The relay on the EBTDR board

closes it’s normally open contacts and supplies power to the

blower motor. When the “G” input is removed, the EBTDR

initiates a 65 second delay off. When the 65 seconds delay

expires the onboard relay is de-energized and it’s contacts

open and remove power from the blower motor.

During an electric heat only demand, “W1” is energized but

“G” is not. The blower motor is connected to the normally

closed contacts of the relay on the EBTDR board. The other

side of this set of contacts is connected to the heat se-

quencer on the heater assembly that provides power to the

first heater element. When “W1” is energized, the sequencer

will close it’s contacts within 10 to 20 seconds to supply

power to the first heater element and to the blower motor

through the normally closed contacts on the relay on the

EBTDR. When the “W1” demand is removed, the sequencer

opens it contacts within 30 to 70 seconds and removes power

from the heater element and the blower motor.

The EBTDR also contains a speedup terminal to reduce the

delays during troubleshooting of the unit. When this terminal

is shorted to the common terminal, “C”, on the EBTDR board,

the delay ON time is reduced to 3 seconds and the delay OFF

time is reduced to 5 second.

Two additional terminals, M1 and M2, are on the EBTDR

board. These terminals are used to connect the unused leads

from the blower motor and have no affect on the board’s

operation.

SEQUENCE OF OPERATION

This document covers the basic sequence of operation for a

typical application with a mercury bulb thermostat. When a

digital/electronic thermostat is used, the on/off staging of the

auxiliary heat will vary. Refer to the installation instruc-

tions and wiring diagrams provided with the MBR and

AR*F for specific wiring connections and system con-

figuration.

AR*F & MBR

WITH SINGLE STAGE CONDENSERS

1.0 Cooling Operation

1.1 On a demand for cooling, the room thermostat energizes

“G” and “Y” and 24Vac is supplied to “Y” at the condensing

unit and the “G” terminal on the EBTDR board.

1.2 The compressor and condenser fan are turned on and

after a 7 second on delay, the relay on the EBTDR board

is energized and the blower motor starts.

1.3 When the cooling demand “Y” is satisfied, the room

thermostat removes the 24Vac from “G” and “Y”.

1.4 The compressor and condenser fan are turned off and after

a 65 second delay off, the relay on the EBTDR board is de-

energized and the blower is turned off.

2.0 Heating Operation

2.1 On a demand for heat, the room thermostat energizes

“W1” and 24Vac is supplied to heat sequencer, HR1, on

the heater assembly.

2.2 The contacts M1 and M2 will close within 10 to 20

seconds and turn on heater element #1. The normally

closed contacts on the EBTDR are also connected to

terminal M1. When M1 and M2 close, the blower motor

will be energized thru the normally closed contacts on the

EBTDR board. At the same time, if the heater assembly

contains a second heater element, HR1 will contain a

second set of contacts, M3 and M4, which will close to

turn on heater element #2.

Note: If more than two heater elements are on the heater

assembly, it will contain a second heat sequencer, HR2,

which will control the 3rd and 4th heater elements if available.

If the first stage heat demand, “W1” cannot be satisfied by the

heat pump, the temperature indoors will continue to drop. The

room thermostat will then energize “W2” and 24Vac will be

supplied to HR2 on the heater assembly. When the “W2”

demand is satisfied, the room thermostat will remove the

24Vac from HR2. The contacts on HR2 will open between 30

to 70 seconds and heater elements #3 and #4 will be turned

off. On most digital/electronic thermostats, “W2” will

remain energized until the first stage demand “W1” is

satisfied and then the “W1” and “W2” demands will be

removed.

2.3 When the “W1” heat demand is satisfied, the room

thermostat will remove the 24Vac from HR1. Both set of

contacts on the relay opens within 30 to 70 seconds and

turn off the heater element(s) and the blower motor.

AR*F & MBR

WITH SINGLE STAGE HEAT PUMPS

3.0 Cooling Operation

On heat pump units, when the room thermostat set to the

cooling mode, 24Vac is supplied to “O” which energizes the

reversing valve. As long as the thermostat is set for cooling,

the reversing valve will be in the energized position for cooling.

3.1 On a demand for cooling, the room thermostat energizes

“G” and “Y” and 24Vac is supplied to “Y” at the heat pump

and the “G” terminal on the EBTDR board.

3.2 The heat pump turned on in the cooling mode and after a

7 second on delay, the relay on the EBTDR board is

energized and the blower motor starts.

3.3 When the cooling demand is satisfied, the room thermo-

stat removes the 24Vac from “G” and “Y”.

3.4 The heat pump is turned off and after a 65 second delay

off, the relay on the EBTDR board is de-energized and the

blower motor is turned off.

SERVICING

4.0 Heating Operation

On heat pump units, when the room thermostat set to the

heating mode, the reversing valve is not energized. As long

as the thermostat is set for heating, the reversing valve will be

in the de-energized position for heating except during a

defrost cycle. Some installations may use one or more

outdoor thermostats to restrict the amount of electric heat

that is available above a preset ambient temperature. Use of

optional controls such as these can change the operation of

the electric heaters during the heating mode. This sequence

of operation does not cover those applications.

4.1 On a demand for first stage heat with heat pump units, the

room thermostat energizes “G” and “Y” and 24Vac is

supplied to “Y” at the heat pump unit and the “G” terminal

on the EBTDR board. The heat pump is turned on in the

heating mode and the blower motor starts after a 7 second

on delay.

4.2 If the first stage heat demand cannot be satisfied by the

heat pump, the temperature indoors will continue to drop.

The room thermostat will then energize terminal “W2’ for

second stage heat and 24Vac will be supplied to heat

sequencer HR1 on the heater assembly.

4.3 HR1 contacts M1 and M2 will close will close within 10

to 20 seconds and turn on heater element #1. At the

same time, if the heater assembly contains a second

heater element, HR1 will contain a second set of con-

tacts, M3 and M4, which will close and turn on heater

element #2. The blower motor is already on as a result

of terminal “G” on the EBTDR board being energized for

the first stage heat demand.

Note: If more than two heater elements are on the heater

assembly, it will contain a second heat sequencer, HR2,

which will control the 3rd and 4th heater elements if available.

If the second stage heat demand, “W2” cannot be satisfied by

the heat pump, the temperature indoors will continue to drop.

The room thermostat will then energize “W3” and 24Vac will

be supplied to HR2 on the heater assembly. When the “W3”

demand is satisfied, the room thermostat will remove the

24Vac from HR2. The contacts on HR2 will open between 30

to 70 seconds and heater elements #3 and #4 will be turned

off. On most digital/electronic thermostats, “W3” will

remain energized until the first stage heat demand “Y”

is satisfied and then the “G”, “Y”, “W2” and “W3”

demands will be removed.

4.4 As the temperature indoors increase, it will reach a point

where the second stage heat demand, “W2”, is satisfied.

When this happens, the room thermostat will remove the

24Vac from the coil of HR1. The contacts on HR1 will

open between 30 to 70 seconds and turn off both heater

element(s). The heat pump remains on along with the

blower motor because the “Y” demand for first stage heat

will still be present.

4.5 When the first stage heat demand “Y” is satisfied, the

room thermostat will remove the 24Vac from “G” and “Y”.

The heat pump is turned off and the blower motor turns off

after a 65 second off delay.

5.0 Defrost Operation

On heat pump units, when the room thermostat is set to the

heating mode, the reversing valve is not energized. As long

as the thermostat is set for heating, the reversing valve will be

in the de-energized position for heating except during a

defrost cycle.

5.1 The heat pump will be on and operating in the heating

mode as described the Heating Operation in section 4.

5.2 The defrost control in the heat pump unit checks to see

if a defrost is needed every 30, 60 or 90 minutes of heat

pump operation depending on the selectable setting by

monitoring the state of the defrost thermostat attached to

the outdoor coil.

5.3 If the temperature of the outdoor coil is low enough to

cause the defrost thermostat to be closed when the

defrost board checks it, the board will initiate a defrost

cycle.

5.4 When a defrost cycle is initiated, the contacts of the

HVDR relay on the defrost board open and turns off the

outdoor fan. The contacts of the LVDR relay on the

defrost board closes and supplies 24Vac to “O” and “W2”.

The reversing valve is energized and the contacts on HR1

close and turns on the electric heater(s). The unit will

continue to run in this mode until the defrost cycle is

completed.

5.5 When the temperature of the outdoor coil rises high

enough to causes the defrost thermostat to open, the

defrost cycle will be terminated. If at the end of the

programmed 10 minute override time the defrost thermo-

stat is still closed, the defrost board will automatically

terminate the defrost cycle.

5.6 When the defrost cycle is terminated, the contacts of the

HVDR relay will close to start the outdoor fan and the

contacts of the LVDR relay will open and turn off the

reversing valve and electric heater(s). The unit will now be

back in a normal heating mode with a heat pump demand

for heating as described in the Heating Operation in

section 4.

S-41 AEP* & MBE WITH SINGLE STAGE CON-

DENSERS

AEP* & MBE ELECTRONIC BLOWER TIME DELAY RELAY

SEQUENCE OF OPERATION

This document covers the basic sequence of operation for a

typical application with a mercury bulb thermostat. When a

digital/electronic thermostat is used, the on/off staging of the

auxiliary heat will vary. Refer to the installation instructions

and wiring diagrams provided with the MBE for specific wiring

connections, dip switch settings and system configuration.

SERVICING

AEP* & MBE WITH SINGLE STAGE CONDENSERS

When used with a single stage condenser, dip switch #4

must be set to the on position on the VSTB inside the MBE.

The “Y” output from the indoor thermostat must be connected

to the yellow wire labeled “Y/Y2” inside the wire bundle

marked “Thermostat” and the yellow wire labeled “Y/Y2”

inside the wire bundle marked “Outdoor Unit” must be

connected to “Y” at the condenser. The orange jumper wire

from terminal “Y1” to terminal “O” on the VSTB inside the

MBE must remain connected.

1.0 Cooling Operation

1.1 On a demand for cooling, the room thermostat energizes

“G” and “Y” and 24Vac is supplied to “G” and “Y/Y2” of the

MBE unit. The VSTB inside the MBE will turn on the

blower motor and the motor will ramp up to the speed

programmed in the motor based on the settings for dip

switch 5 and 6. The VSTB will supply 24Vac to “Y” at the

condenser and the compressor and condenser are turned

on.

1.2 When the cooling demand is satisfied, the room thermo-

stat removes the 24Vac from “G” and “Y”. The MBEand

AEP* remove the 24Vac from “Y’ at the condenser and the

compressor and condenser fan are turned off. The blower

motor will ramp down to a complete stop based on the

time and rate programmed in the motor.

2.0 Heating Operation

2.1 On a demand for heat, the room thermostat energizes

“W1” and 24Vac is supplied to terminal “E/W1” of the

VSTB inside the MBEand AEP* units. The VSTB will turn

on the blower motor and the motor will ramp up to the

speed programmed in the motor based on the settings for

dip switch 1 and 2. The VSTB will supply 24Vac to heat

sequencer HR1 on the electric heater assembly.

2.2 HR1 contacts M1 and M2 will close within 10 to 20

seconds and turn on heater element #1. At the same

time, if the heater assembly contains a second heater

element, HR1 will contain a second set of contacts, M3

and M4, which will close and turn on heater element #2.

Note: If more than two heater elements are on the heater

assembly, it will contain a second heat sequencer, HR2,

which will control the 3rd and 4th heater elements if

available. For the 3rd and 4th heater elements to

operate on a second stage heat demand, the PJ4

jumper on the VSTB inside the MBE and AEP* must

be cut. With the PJ4 jumper cut, the VSTB will run the

blower motor on low speed on a “W1” only demand. If the

first stage heat demand, “W1” cannot be satisfied by the

heat pump, the temperature indoors will continue to drop.

The room thermostat will then energize “W2” and 24Vac

will be supplied to HR2 on the heater assembly and the

blower motor will change to high speed. When the “W2”

demand is satisfied, the room thermostat will remove the

24Vac from “W2” and the VSTB will remove the 24Vac

from HR2. The contacts on HR2 will open between 30 to

70 seconds and heater elements #3 and #4 will be turned

off and the blower motor will change to low speed. On

most digital/electronic thermostats, “W2” will re-

main energized until the first stage demand “W1” is

satisfied and then the “W1” and “W2” demands will

be removed.

2.3 When the “W1” heat demand is satisfied, the room

thermostat will remove the 24Vac from “E/W1” and the

VSTB removes the 24Vac from HR1. The contacts on

HR1 will open between 30 to 70 seconds and turn off the

heater element(s) and the blower motor ramps down to a

complete stop.

S-41A AEP* & MBE WITH SINGLE STAGE HEAT

PUMPS

When used with a single stage heat pump, dip switch #4 must

be set to the ON position on the VSTB inside the MBE. The

“Y” output from the indoor thermostat must be connected to

the yellow wire labeled “Y/Y2” inside the wire bundle marked

“Thermostat” and the yellow wire labeled “Y/Y2” inside the

wire bundle marked “Outdoor Unit” must be connected to “Y”

at the heat pump. The orange jumper wire from terminal

“Y1” to terminal “O” on the VSTB inside the MBE must

be removed.

3.0 Cooling Operation

On heat pump units, when the room thermostat is set to the

cooling mode, 24Vac is supplied to terminal “O” of the VSTB

inside the MBE unit. The VSTB will supply 24Vac to “O” at

the heat pump to energize the reversing valve. As long as the

thermostat is set for cooling, the reversing valve will be in the

energized position for cooling.

3.1 On a demand for cooling, the room thermostat energizes

“G” and “Y” and 24Vac is supplied to terminals “G” and “Y/

Y2” of the MBE unit. The VSTB will turn on the blower

motor and the motor will ramp up to the speed pro-

grammed in the motor based on the settings of dip switch

5 and 6. The VSTB will supply 24Vac to “Y” at the heat

pump.

3.2 The heat pump is turned on in the cooling mode.

3.3 When the cooling demand is satisfied, the room thermo-

stat removes the 24Vac from “G” and “Y/Y2” of the MBE

and the VSTB removes the 24Vac from “Y” at the heat

pump. The heat pump is turned off and the blower motor

will ramp down to a complete stop based on the time and

SERVICING

rate programmed in the motor.

4.0 Heating Operation

On heat pump units, when the room thermostat is set to the

heating mode, the reversing valve is not energized. As long

as the thermostat is set for heating, the reversing valve will be

in the de-energized position for heating except during a

defrost cycle. Some installations may use one or more

outdoor thermostats to restrict the amount of electric heat

that is available above a preset ambient temperature. Use of

optional controls such as these can change the operation of

the electric heaters during the heating mode. This sequence

of operation does not cover those applications.

4.1 On a demand for first stage heat with heat pump units, the

room thermostat energizes “Y” and “G” and 24Vac is

supplied to “G” and “Y/Y2” of the MBE. The VSTB will turn

on the blower motor and the motor will ramp up to the

speed programmed in the motor based on the settings of

dip switch 1 and 2. The VSTB will supply 24Vac to “Y” at

the heat pump and the heat pump is turned on in the

heating mode.

4.2 If the first stage heat demand cannot be satisfied by the

heat pump, the temperature indoors will continue to drop.

The room thermostat will then energize terminal “W2” for

second stage heat and 24Vac will be supplied to “E/W1”

of the MBE. The VSTB will supply 24Vac to heat

sequencer, HR1, on the electric heater assembly.

4.3 HR1 contacts M1 and M2 will close within 10 to 20

seconds and turn on heater element #1. At the same

time, if the heater assembly contains a second heater

element, HR1 will contain a second set of contacts, M3

and M4, which will close to turn on heater element #2.

Note: If more than two heater elements are on the heater

assembly, it will contain a second heat sequencer, HR2,

which will control the 3rd and 4th heater elements if available.

For the 3rd and 4th heater elements to operate on a third

stage heat demand, the PJ4 jumper on the VSTB inside

the MBE and AEP* must be cut. If the second stage heat

demand, “W2”, cannot be satisfied by the heat pump, the

temperature indoors will continue to drop. The room thermo-

stat will then energize “W3” and 24Vac will be supplied to “W/

W2” of the MBE. The VSTB will supply 24Vac to HR2 on the

electric heater assembly. When the “W3” demand is satis-

fied, the room thermostat will remove the 24Vac from “W/W2”

of the MBE and AEP*. The contacts on HR2 will open

between 30 to 70 seconds and heater elements #3 and #4 will

be turned off. On most digital/electronic thermostats,

“W3” will remain energized until the first stage de-

mand “Y” is satisfied and then the “G”, “Y”, “W2” and

“W3” demands will be removed.

4.4 As the temperature indoors increase, it will reach a point

where the second stage heat demand, “W2”, is satisfied.

When this happens, the room thermostat will remove the

24Vac from “E/W1” of the MBE. The contacts on HR1 will

open between 30 to 70 seconds and turn off both heater

element(s). The heat pump remains on along with the

blower motor because the “Y” demand for first stage heat

will still be present.

4.5 When the first stage heat demand “Y” is satisfied, the

room thermostat will remove the 24Vac from “G” and “Y/

Y2” of the MBE and AEP*. The VSTB removes the 24Vac

from “Y” at the heat pump and the heat pump is turned off.

The blower motor will ramp down to a complete stop

based on the time and rate programmed in the motor

control.

5.0 Defrost Operation

On heat pump units, when the room thermostat is set to the

heating mode, the reversing valve is not energized. As long

as the thermostat is set for heating, the reversing valve will be

in the de-energized position for heating except during a

defrost cycle.

5.1 The heat pump will be on and operating in the heating

mode as described the Heating Operation in section 4.

5.2 The defrost control in the heat pump unit checks to see

if a defrost is needed every 30, 60 or 90 minutes of heat

pump operation depending on the selectable setting by

monitoring the state of the defrost thermostat attached to

the outdoor coil.

5.3 If the temperature of the outdoor coil is low enough to

cause the defrost thermostat to be closed when the

defrost board checks it, the board will initiate a defrost

cycle.

5.4 When a defrost cycle is initiated, the contacts of the

HVDR relay on the defrost board open and turns off the

outdoor fan. The contacts of the LVDR relay on the

defrost board closes and supplies 24Vac to “O” and “W2”.

The reversing valve is energized and the contacts on HR1

close and turns on the electric heater(s). The unit will

continue to run in this mode until the defrost cycle is

completed.

5.5 When the temperature of the outdoor coil rises high

enough to causes the defrost thermostat to open, the

defrost cycle will be terminated. If at the end of the

programmed 10 minute override time the defrost thermo-

stat is still closed, the defrost board will automatically

terminate the defrost cycle.

5.6 When the defrost cycle is terminated, the contacts of the

HVDR relay on the defrost board will close to start the

outdoor fan and the contacts of the LVDR relay will open

and turn off the reversing valve and electric heater(s). The

unit will now be back in a normal heating mode with a heat

pump demand for heating as described in the Heating

Operation in section 4.

S-60 ELECTRIC HEATER (OPTIONAL ITEM)

Optional electric heaters may be added, in the quantities

shown in the specifications section, to provide electric

resistance heating. Under no condition shall more heaters

than the quantity shown be installed.

The low voltage circuit in the air handler is factory wired and

terminates at the location provided for the electric heater(s).

A minimum of field wiring is required to complete the instal-

SERVICING

lation.

Other components such as a Heating/Cooling Thermostat

and Outdoor Thermostats are available to complete the

installation.

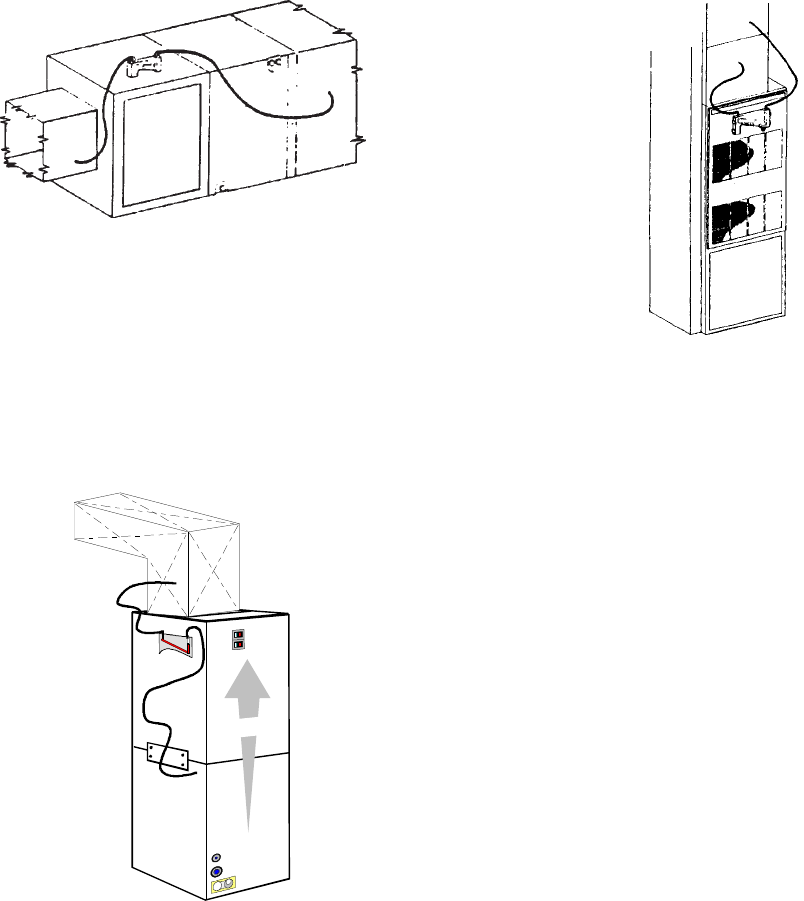

The system CFM can be determined by measuring the static

pressure external to the unit. The installation manual

supplied with the blower coil, or the blower performance table

in the service manual, shows the CFM for the static mea-

sured.

Alternately, the system CFM can be determined by operating

the electric heaters and indoor blower WITHOUT having the

compressor in operation. Measure the temperature rise as

close to the blower inlet and outlet as possible.

If other than a 240V power supply is used, refer to the BTUH

CAPACITY CORRECTION FACTOR chart below.

BTUH CAPACITY CORRECTION FACTOR

SUPPLY VOLTAGE 250 230 220 208

MULTIPLICATION FACTOR 1.08 .92 .84 .75

EXAMPLE: Five (5) heaters provide 24.0 KW at the rated

240V. Our actual measured voltage is 220V, and our

measured temperature rise is 42°F. Find the actual CFM:

Answer: 24.0KW, 42°F Rise, 240 V = 1800 CFM from the

TEMPERATURE RISE CHART, Table 5.

Heating output at 220 V = 24.0KW x 3.413 x .84 = 68.8

MBH.

Actual CFM = 1800 x .84 Corr. Factor = 1400 CFM.

NOTE: The temperature rise table is for sea level installa-

tions. The temperature rise at a particular KW and CFM will

be greater at high altitudes, while the external static pressure

at a particular CFM will be less.

TEMPERATURE RISE (F°) @ 240V

CFM 4.8

KW 7.2

KW 9.6

KW 14.4

KW 19.2

KW 24.0

KW 28.8

600 25 38 51 - - - -

700 22 33 43 - - - -

800 19 29 38 57 - - -

900 17 26 34 51 - - -

1000 15 23 30 46 - - -

1100 14 21 27 41 55 - -

1200 13 19 25 38 50 - -

1300 12 18 23 35 46 - -

1400 11 16 22 32 43 54 65

1500 10 15 20 30 40 50 60

1600 9 14 19 28 38 47 57

1700 9 14 18 27 36 44 53

1800 8 13 17 25 34 42 50

1900 8 12 16 24 32 40 48

2000 8 12 15 23 30 38 45

2100 7 11 14 22 29 36 43

2200 7 11 14 21 27 34 41

2300 7 10 13 20 26 33 39

Table 5

HTR

3.0

4.7

6.0

7.0

9.5

14.2

19.5

21.0

BTUH 10200 16200 20400 23800 32400 48600 66500 71600

ELECTRIC HEATER CAPACITY BTUH

Table 6

FORMULAS:

Heating Output = KW x 3413 x Corr. Factor

Actual CFM = CFM (from table) x Corr. Factor

BTUH = KW x 3413

BTUH = CFM x 1.08 x Temperature Rise (T)

CFM = KW x 3413

1.08 x T

T = BTUH

CFM x 1.08

S-61A CHECKING HEATER LIMIT CONTROL(S)

Each individual heater element is protected with a limit

control device connected in series with each element to

prevent overheating of components in case of low airflow. This

limit control will open its circuit at approximately 150°F.

SERVICING

1. Remove the wiring from the control terminals.

2. Using an ohmmeter, test for continuity across the nor-

mally closed contacts. No reading indicates the control

is open - replace if necessary.

IF FOUND OPEN - REPLACE - DO NOT WIRE AROUND.

S-61B CHECKING HEATER FUSE LINK

(OPTIONAL ELECTRIC HEATERS)

Each individual heater element is protected with a one time

fuse link which is connected in series with the element. The

fuse link will open at approximately 333°.

WARNING

Disconnect ALL power before servicing.

1. Remove heater element assembly so as to expose fuse

link.

2. Using an ohmmeter, test across the fuse link for continu-

ity - no reading indicates the link is open. Replace as

necessary.

NOTE: The link is designed to open at approximately 333°F.

DO NOT WIRE AROUND - determine reason for failure.

S-62 CHECKING HEATER ELEMENTS

WARNING

Disconnect ALL power before servicing.

1. Disassemble and remove the heating element.

2. Visually inspect the heater assembly for any breaks in

the wire or broken insulators.

3. Using an ohmmeter, test the element for continuity - no

reading indicates the element is open. Replace as

necessary.

S-100 REFRIGERATION REPAIR PRACTICE

DANGER

Always remove the refrigerant charge in a proper

manner before applying heat to the system.

When repairing the refrigeration system:

WARNING

Disconnect ALL power before servicing.

1. Never open a system that is under vacuum. Air and

moisture will be drawn in.

2. Plug or cap all openings.

3. Remove all burrs and clean the brazing surfaces of the

tubing with sand cloth or paper. Brazing materials do not

flow well on oxidized or oily surfaces.

4. Clean the inside of all new tubing to remove oils and pipe

chips.

5. When brazing, sweep the tubing with dry nitrogen to

prevent the formation of oxides on the inside surfaces.

6. Complete any repair by replacing the liquid line drier in the

system, evacuate and charge.

BRAZING MATERIALS

IMPORTANT NOTE: Torch heat required to braze tubes of

various sizes is proportional to the size of the tube. Tubes of

smaller size require less heat to bring the tube to brazing

temperature before adding brazing alloy. Applying too much

heat to any tube can melt the tube. Service personnel must

use the appropriate heat level for the size of the tube being

brazed.

NOTE: The use of a heat shield when brazing is recommended

to avoid burning the serial plate or the finish on the unit. Heat

trap or wet rags should be used to protect heat sensitive

components such as service valves and TXV valves.

Copper to Copper Joints - Sil-Fos used without flux (alloy

of 15% silver, 80% copper, and 5% phosphorous). Recom-

mended heat 1400°F.

Copper to Steel Joints - Silver Solder used without a flux

(alloy of 30% silver, 38% copper, 32% zinc). Recommended

heat - 1200°F.

S-101 LEAK TESTING

(NITROGEN OR NITROGEN-TRACED)

To avoid the risk of fire or explosion, never use

oxygen, high pressure air or flammable gases for leak

testing of a refrigeration system.

WARNING

SERVICING

To avoid possible explosion, the line from the

nitrogen cylinder must include a pressure regulator

and a pressure relief valve. The pressure relief valve

must be set to open at no more than 150 psig.

WARNING

Pressure test the system using dry nitrogen and soapy water

to locate leaks. If you wish to use a leak detector, charge the

system to 10 psi using the appropriate refrigerant then use

nitrogen to finish charging the system to working pressure,

then apply the detector to suspect areas. If leaks are found,

repair them. After repair, repeat the pressure test. If no leaks

exist, proceed to system evacuation.

S-102 EVACUATION

WARNING

REFRIGERANT UNDER PRESSURE!

Failure to follow proper procedures may cause

property damage, personal injury or death.

This is the most important part of the entire service procedure.

The life and efficiency of the equipment is dependent upon the

thoroughness exercised by the serviceman when evacuating

air (non-condensables) and moisture from the system.

Air in a system causes high condensing temperature and

pressure, resulting in increased power input and reduced

performance.

Moisture chemically reacts with the refrigerant oil to form

corrosive acids. These acids attack motor windings and

parts, causing breakdown.

The equipment required to thoroughly evacuate the system is

a high vacuum pump, capable of producing a vacuum equiva-

lent to 25 microns absolute and a thermocouple vacuum

gauge to give a true reading of the vacuum in the system

NOTE: Never use the system compressor as a vacuum pump

or run when under a high vacuum. Motor damage could occur.

Do not front seat the service valve(s) with the

compressor open, with the suction line of the

comprssor closed or severely restricted.

WARNING

1. Connect the vacuum pump, vacuum tight manifold set

with high vacuum hoses, thermocouple vacuum gauge

and charging cylinder as shown.

2. Start the vacuum pump and open the shut off valve to the

high vacuum gauge manifold only. After the compound

gauge (low side) has dropped to approximately 29 inches

of vacuum, open the valve to the vacuum thermocouple

gauge. See that the vacuum pump will blank-off to a

maximum of 25 microns. A high vacuum pump can only

produce a good vacuum if its oil is non-contaminated.

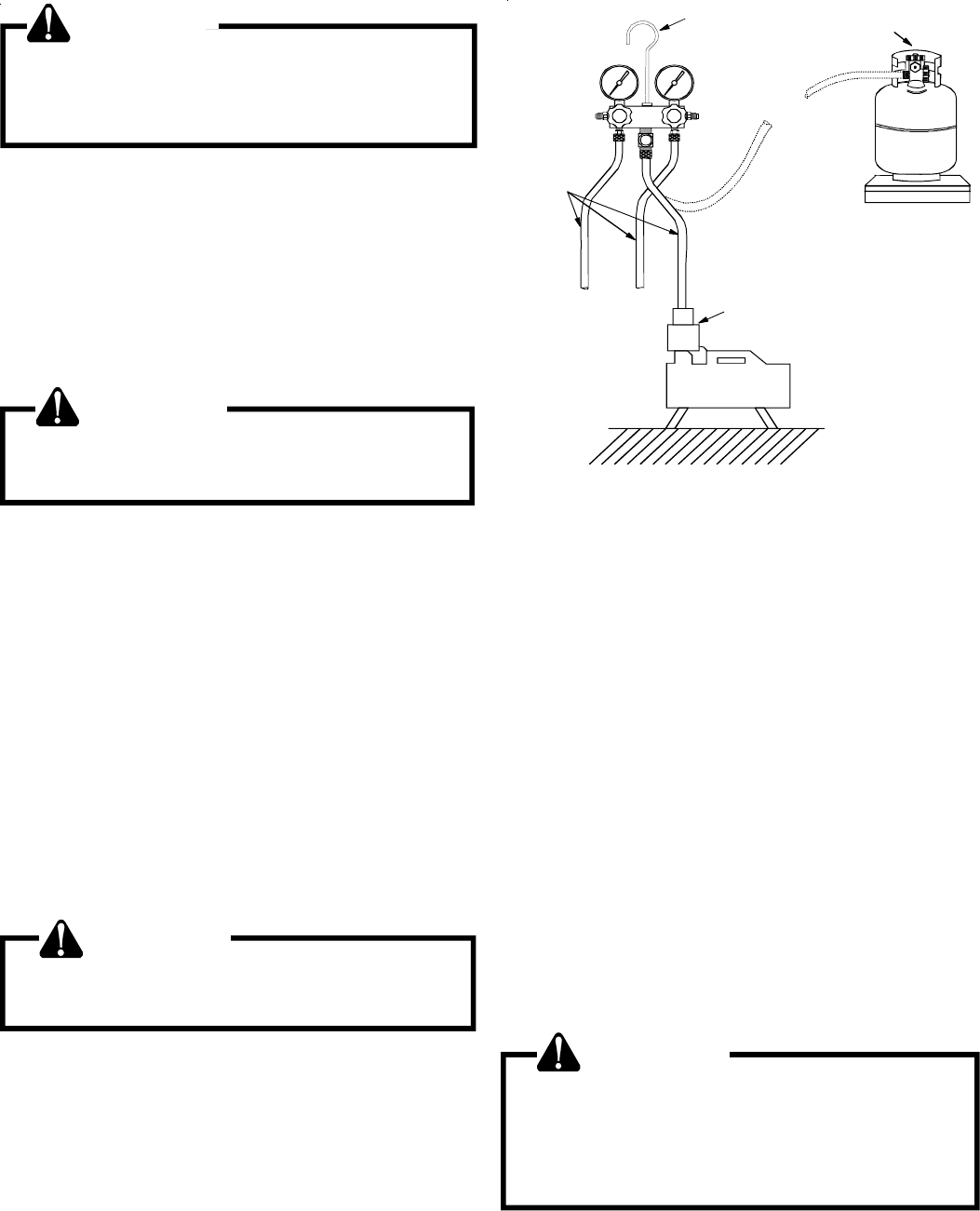

LOW SIDE

GAUGE

ND VALVE

HIGH SIDE

GAUGE

AND VALVE

UNIT SERVICE

VALVE PORTS

VACUUM PUMP

ADAPTER

800 PSI

RATED

HOSES

CHARGING

CYLINDER

AND SCALE

{

R-22

MANIFOLD

EVACUATION

3. If the vacuum pump is working properly, close the valve to

the vacuum thermocouple gauge and open the high and

low side valves to the high vacuum manifold set. With the

valve on the charging cylinder closed, open the manifold

valve to the cylinder.

4. Evacuate the system to at least 29 inches gauge before

opening valve to thermocouple vacuum gauge.

5. Continue to evacuate to a maximum of 250 microns.

Close valve to vacuum pump and watch rate of rise. If

vacuum does not rise above 1500 microns in three to five

minutes, system can be considered properly evacuated.

6. If thermocouple vacuum gauge continues to rise and

levels off at about 5000 microns, moisture and non-

condensables are still present. If gauge continues to rise

a leak is present. Repair and re-evacuate.

7. Close valve to thermocouple vacuum gauge and vacuum

pump. Shut off pump and prepare to charge.

S-103 CHARGING

WARNING

REFRIGERANT UNDER PRESSURE!

* Do not overcharge system with refrigerant.

* Do not operate unit in a vacuum or at negative

pressure.

Failure to follow proper procedures may cause

property damage, personal injury or death.

SERVICING

CAUTION

Use refrigerant certified to AHRI standards. Used

refrigerant may cause compressor damage and will

void the warranty. Most portable machines cannot

clean used refrigerant to meet AHRI standards.

CAUTION

Operating the compressor with the suction valve

closed will void the warranty and cause serious

compressor damage.

Charge the system with the exact amount of refrigerant.

Refer to the specification section or check the unit name-

plates for the correct refrigerant charge.

An inaccurately charged system will cause future prob-

lems.

1. When using an ambient compensated calibrated charg-

ing cylinder, allow liquid refrigerant only to enter the high

side.

2. After the system will take all it will take, close the valve

on the high side of the charging manifold.

3. Start the system and charge the balance of the refriger-

ant through the low side. DO NOT charge in a liquid

form.

4. With the system still running, close the valve on the charg-

ing cylinder. At this time, you may still have some liquid

refrigerant in the charging cylinder hose and will definitely

have liquid in the liquid hose. Reseat the liquid line core.

Slowly open the high side manifold valve and transfer the

liquid refrigerant from the liquid line hose and charging

cylinder hose into the suction service valve port. CARE-

FUL: Watch so that liquid refrigerant does not enter the

compressor.

5. With the system still running, reseat the suction valve

core, remove hose and reinstall both valve core caps.

6. Check system for leaks.

NOTE: This charging procedure can only be done in the

cooling mode of operation. (Early production "a" models

only.) All models with compressor process tube access

valve can be processed in heating cycle if this valve is

used.

When charging a remote condensing unit with a non-match-

ing evaporator coil, or a system where the charge quantity is

unknown, alternate charging methods must be used. These

systems must be charged according to subcooling or super-

heat.

65 70 75 80 85

115 3

100 55

95 555

90 71218

85 5 101720

80 5 122126

75 5 10172529

70 5 14202832

65 13 19 26 32 35

60 17 25 30 33 37

Return Air Temperature

(°F Drybulb)

SYSTEM SUPERHEAT

Ambient Condenser

Inlet Temp.

(°F Drybulb)

Table 7

Coils having flow control restrictors should be charged to

match the System Superheat chart above. Coils with ther-

mostatic expansion valves (TXV's) should be charged by sub-

cooling. See "Checking Subcooling and Superheat" sec-

tions in this manual.

Due to their design, Scroll compressors are inherently more

tolerant of liquid refrigerant.

NOTE: Even though the compressor section of a Scroll com-

pressor is more tolerant of liquid refrigerant, continued flood-

back or flooded start conditions may wash oil from the bear-

ing surfaces causing premature bearing failure.

If a restriction is located, replace the restricted part, replace

drier, evacuate and recharge.

S-104 CHECKING COMPRESSOR EFFICIENCY

The reason for compressor inefficiency is broken or dam-

aged suction and/or discharge valves, or scroll flanks on Scroll

compressors, reducing the ability of the compressor to pump

refrigerant vapor.

The condition of the valves or scroll flanks is checked in the

following manner.

1. Attach gauges to the high and low side of the system.

2. Start the system and run a "Cooling Performance Test.

If the test shows:

a. Below normal high side pressure.

b. Above normal low side pressure.

c. Low temperature difference across coil.

d. Low amp draw at compressor.

and the charge is correct. The compressor is faulty - replace

the compressor. NOTE: THIS TEST CANNOT BE DONE IN

THE HEATING MODE

Verification of proper rotation of Scroll Compressors is made

as follows.

SERVICING

NOTE: The compressor may run backwards (noisy opera-

tion) for 1 or 2 seconds at shutdown. This is normal and

does not harm the compressor.

1. Install gauges and verify that the suction pressure drops

while the discharge pressure increases.

2. Listen for normal compressor sound levels. Reverse rota-

tion results in elevated or unusual sound levels.

3. Reverse rotation will result in substantially reduced amp

draw from tabulated values.

To correct improper rotation, switch any two power supply

leads at the outdoor unit contactor.

The 3 phase Scroll Compressors are direction of rotation sen-

sitive. They will rotate in either direction depending on the

phasing of the power. There is no negative impact on durabil-

ity caused by operating 3 phase compressors in reversed

rotation. The compressors internal protector will trip, de-en-

ergizing the compressor. Continued operation of 3 phase scroll

compressors with the rotation reversed will contribute to com-

pressor failure. All 3 phase scroll compressors should be

checked for correct phase rotation.

S-105A PISTON KIT CHART FOR ASC13,

GSC13, VSC13, GSC14, ASH13, GSH13,

VSH14, GSH14 UNITS

Air Conditioners Orifice

Size Heat Pumps Orifice

Size

G/VSC130181A* .055 G/VSH130181A* .052

GSC130181B* .055 GSH130181B* .055

G/VSC130241A* .059 G/VSH130191A* .052

GSC130241C* G/VSH130241A* .061

AC30, ACNF24 .059 GSH130241B* .061

AWB24/AWUF24 .059 G/VSH130251A* .061

# All other ARI Matches .061 G/VSH130301A* .068

G/VSC130301A* / D* GSH130301B* .070

GSC130303A* G/VSH130311A* .065

AC36, ACNF30 .065 G/VSH130361A* .073

AWB36, AWUF36 .068 GSH1303613A*/1B* .082

# All other ARI Matches .065 G/VSH130421A* .082

G/VSC130361A* G/VSH130481A* .084

GSC130363A* / B* .071 GSH1304813A*/ 4A* .084

AWB36, AWUF36 .071 G/VSH130601A* .093

# All other ARI Matches .074 GSH1306013A*/ 4A* .093

GSC130361B* / F* .071 ASH130181A* .052

G/VSC130421A* .078 ASH130241A* .062

G/VSC130481A .082 ASH130301A* .065

GSC130483A*/ 4A* .082 ASH130361A* .073

G/VSC130601A* .093 ASH130421A* .082

GSC130603A*/ 4A* .093 ASH130481A* .084

ASC130181A* .055 ASH130601A* .093

ASC130241A* .061 GSH140361A* .076

ASC130301A* .065 GSH140421A* .078

ASC130361A* .071 GSH140481A* .088

ASC130421A* .078

ASC130481A* .082

ASC130601A* .093

GSC140181A* .053

GSC140241A* .061

GSC140301A* .067

GSC140361A* .074

GSC140421A* .078

GSC140481A* .084

GSC140601A* .096

GSC140181B* .055

GSC140241B* .062

GSC140301B* .067

GSC140361B* .073

GSC140421B* .080

S-105B THERMOSTATIC EXPANSION VALVE

The expansion valve is designed to control the rate of liquid

refrigerant flow into an evaporator coil in exact proportion to

the rate of evaporation of the refrigerant in the coil. The

amount of refrigerant entering the coil is regulated since the

valve responds to temperature of the refrigerant gas leaving

the coil (feeler bulb contact) and the pressure of the refrigerant

in the coil. This regulation of the flow prevents the return of

liquid refrigerant to the compressor.

The illustration below shows typical heat pump TXV/check

valve operation in the heating and cooling modes.

SERVICING

COOLING HEATING

THERMOSTATIC EXPANSION VALVES

Some TXV valves contain an internal check valve thus

eliminating the need for an external check valve and bypass

loop. The three forces which govern the operation of the valve

are: (1) the pressure created in the power assembly by the

feeler bulb, (2) evaporator pressure, and (3) the equivalent

pressure of the superheat spring in the valve.

0% bleed type expansion valves are used on indoor and

outdoor coils. The 0% bleed valve will not allow the system

pressures (High and Low side) to equalize during the shut

down period. The valve will shut off completely at approxi-

mately 100 PSIG.

30% bleed valves used on some other models will continue

to allow some equalization even though the valve has shut-off

completely because of the bleed holes within the valve. This

type of valve should not be used as a replacement for a 0%

bleed valve, due to the resulting drop in performance.

The bulb must be securely fastened with two straps to a clean

straight section of the suction line. Application of the bulb to

a horizontal run of line is preferred. If a vertical installation

cannot be avoided, the bulb must be mounted so that the

capillary tubing comes out at the top.

THE VALVES PROVIDED BY GOODMAN ARE DESIGNED

TO MEET THE SPECIFICATION REQUIREMENTS FOR

OPTIMUM PRODUCT OPERATION. DO NOT USE SUB-

STITUTES.

S-106 OVERFEEDING

Overfeeding by the expansion valve results in high suction

pressure, cold suction line, and possible liquid slugging of the

compressor.

If these symptoms are observed:

1. Check for an overcharged unit by referring to the cooling

performance charts in the servicing section.

2. Check the operation of the power element in the valve as

explained in S-110 Checking Expansion Valve Operation.

3. Check for restricted or plugged equalizer tube.

S-107 UNDERFEEDING

Underfeeding by the expansion valve results in low system

capacity and low suction pressures.

If these symptoms are observed:

1. Check for a restricted liquid line or drier. A restriction will

be indicated by a temperature drop across the drier.

2. Check the operation of the power element of the valve as

described in S-110 Checking Expansion Valve Operation.

S-108 SUPERHEAT

The expansion valves are factory adjusted to maintain 12 to

18 degrees superheat of the suction gas. Before checking

the superheat or replacing the valve, perform all the proce-

dures outlined under Air Flow, Refrigerant Charge, Expan-

sion Valve - Overfeeding, Underfeeding. These are the most

common causes for evaporator malfunction.

CHECKING SUPERHEAT

Refrigerant gas is considered superheated when its tempera-

ture is higher than the saturation temperature corresponding

to its pressure. The degree of superheat equals the degrees

of temperature increase above the saturation temperature at

existing pressure. See Temperature - Pressure Chart Table

1. Attach an accurate thermometer or preferably a thermo-

couple type temperature tester to the suction line at a

point at least 6" from the compressor.

2. Install a low side pressure gauge on the suction line ser-

vice valve at the outdoor unit.

3. Record the gauge pressure and the temperature of the

line.

4. Convert the suction pressure gauge reading to tempera-

ture by finding the gauge reading in Temperature - Pres-

sure Chart and reading to the left, find the temperature in

the °F. Column.

5. The difference between the thermometer reading and pres-

sure to temperature conversion is the amount of super-

heat.

EXAMPLE:

a. Suction Pressure = 84

b. Corresponding Temp. °F. = 50

c. Thermometer on Suction Line = 63°F.

To obtain the degrees temperature of superheat subtract 50.0

from 63.0°F.

The difference is 13° Superheat. The 13° Superheat would

fall in the ± range of allowable superheat.

SUPERHEAT ADJUSTMENT

The expansion valves used on Amana® brand coils are

factory set and are not field adjustable. If the superheat

setting becomes disturbed, replace the valve.

On systems using capillary tubes or flow control restrictors,

superheat is adjusted in accordance with the "DESIRED

SUPERHEAT vs. OUTDOOR TEMP" chart as explained in

section S-103 CHARGING.

SERVICING

Temp.

°F. Gauge Pressure

(PSIG) Freon-22 Temp.

°F. Gauge Pressure

(PSIG) Freon-22

-40

-38

-36

-34

0.61

1.42

2.27

3.15

102.5

106.3

110.2

114.2

-32

-30

-28

-26

4.07

5.02

6.01

7.03

118.3

122.5

126.8

131.2

-24

-22

-20

-18

8.09

9.18

10.31

11.48

135.7

140.5

145.0

149.5

-16

-14

-12

-10

12.61

13.94

15.24

16.59

154.7

159.8

164.9

170.1

-8

-6

-4

-2

17.99

19.44

20.94

22.49

175.4

180.9

186.5

192.1

24.09

25.73

27.44

29.21

100

102

104

106

197.9

203.8

209.9

216.0

31.04

32.93

34.88

36.89

108

110

112

114

222.3

228.7

235.2

241.9

38.96

41.09

43.28

45.53

116

118

120

122

248.7

255.6

262.6

269.7

47.85

50.24

52.70

55.23

124

126

128

130

276.9

284.1

291.4

298.8

57.83

60.51

63.27

66.11

132

134

136

306.3

314.0

321.9

329.9

69.02

71.99

75.04

78.18

140

142

144

146

338.0

346.3

355.0

364.3

81.40

84.70

88.10

91.5

158

150

152

154

374.1

384.3

392.3

401.3

58 95.1

98.8

156

158

160

411.3

421.8

433.3

S-109 CHECKING SUBCOOLING

Refrigerant liquid is considered subcooled when its tempera-

ture is lower than the saturation temperature corresponding

to its pressure. The degree of subcooling equals the degrees

of temperature decrease below the saturation temperature at

the existing pressure.

1. Attach an accurate thermometer or preferably a thermo-

couple type temperature tester to the liquid line as it

leaves the condensing unit.

2. Install a high side pressure gauge on the high side (liquid)

service valve at the front of the unit.

3. Record the gauge pressure and the temperature of the

line.

4. Convert the liquid line pressure gauge reading to tempera-

ture by finding the gauge reading in Temperature - Pres-

sure Chart and reading to the left, find the temperature in

the °F. Column.

5. The difference between the thermometer reading and

pressure to temperature conversion is the amount of

subcooling.

EXAMPLE:

a. Liquid Line Pressure = 260

b. Corresponding Temp. °F. = 120°

c. Thermometer on Liquid line = 109°F.

To obtain the amount of subcooling subtract 109°F from 120°F.

The difference is 11° subcooling. The normal subcooling

range is 9° - 13° subcooling for heat pumps units, 14 to 18 for

straight cool units.

S-110 CHECKING EXPANSION VALVE

OPERATION

1. Remove the remote bulb of the expansion valve from the

suction line.

2. Start the system and cool the bulb in a container of ice

water, closing the valve. As you cool the bulb, the suction

pressure should fall and the suction temperature will rise.

3. Next warm the bulb in your hand. As you warm the bulb,

the suction pressure should rise and the suction tempera-

ture will fall.

4. If a temperature or pressure change is noticed, the

expansion valve is operating. If no change is noticed, the

valve is restricted, the power element is faulty, or the

equalizer tube is plugged.

5. Capture the charge, replace the valve and drier, evacuate

and recharge.

SERVICING

S-111 CAPILLARY TUBES/RESTRICTOR ORIFICES

The capillary tubes/restrictor orifices used in conjunction with

the indoor and outdoor coil, are a predetermined length and

bore (I.D.).

They are designed to control the rate of liquid refrigerant flow

into an evaporator coil.

The amount of refrigerant that flows through the capillary tube/

restrictor orifice is regulated by the pressure difference

between the high and low sides of the system.

In the cooling cycle when the outdoor air temperature rises,

the high side condensing pressure rises. At the same time,

the cooling load on the indoor coil increases, causing the low

side pressure to rise, but at a slower rate.

Since the high side pressure rises faster when the tempera-

ture increases, more refrigerant flows to the evaporator,

increasing the cooling capacity of the system.

When the outdoor temperature falls, the reverse takes place.

The condensing pressure falls, and the cooling loads on the

indoor coil decrease, causing less refrigerant flow.

A strainer is placed on the entering side of the tubes to prevent

any foreign material from becoming lodged inside the capil-

lary tubes.

If a restriction should become evident, proceed as follows:

1. Capture the refrigerant charge.

2. Remove the capillary tubes/restrictor orifice or tube strainer

assembly. and replace.

3. Replace liquid line drier, evacuate and recharge.

Capillary Tubes/Orifice Assembly

CHECKING EQUALIZATION TIME

During the "OFF" cycle, the high side pressure bleeds to the

low side through the capillary tubes/restrictor orifices. Check

equalization time as follows:

1. Attach a gauge manifold to the suction and liquid line dill

valves.

2. Start the system and allow the pressures to stabilize.

3. Stop the system and check the time it takes for the high

and low pressure gauge readings to equalize.

If it takes more than seven (7) minutes the capillary tubes/

restrictor orifices are inoperative. Replace, install a liquid line

drier, evacuate and recharge.

S-112 CHECKING RESTRICTED LIQUID LINE

When the system is operating, the liquid line is warm to the

touch. If the liquid line is restricted, a definite temperature

drop will be noticed at the point of restriction. In severe cases,

frost will form at the restriction and extend down the line in the

direction of the flow.

Discharge and suction pressures will be low, giving the

appearance of an undercharged unit. However, the unit will

have normal to high subcooling.

Locate the restriction, replace the restricted part, replace

drier, evacuate and recharge.

S-113 OVERCHARGE OF REFRIGERANT

An overcharge of refrigerant is normally indicated by an

excessively high head pressure.

An evaporator coil, using an expansion valve metering device,

will basically modulate and control a flooded evaporator and

prevent liquid return to the compressor.

An evaporator coil, using a capillary tube metering device,

could allow refrigerant to return to the compressor under

extreme overcharge conditions. Also with a capillary tube

metering device, extreme cases of insufficient indoor air can

cause icing of the indoor coil and liquid return to the compres-

sor, but the head pressure would be lower.

There are other causes for high head pressure which may be

found in the "Service Problem Analysis Guide."

If other causes check out normal, an overcharge or a system

containing non-condensables would be indicated.

If this system is observed:

1. Start the system.

2. Remove and capture small quantities of gas from the

suction line dill valve until the head pressure is reduced to

normal.

3. Observe the system while running a cooling performance

test. If a shortage of refrigerant is indicated, then the

system contains non-condensables.

S-114 NON-CONDENSABLES

If non-condensables are suspected, shut down the system

and allow the pressures to equalize. Wait at least 15

minutes. Compare the pressure to the temperature of the

coldest coil since this is where most of the refrigerant will be.

If the pressure indicates a higher temperature than that of the

coil temperature, non-condensables are present.

Non-condensables are removed from the system by first

removing the refrigerant charge, replacing and/or installing

liquid line drier, evacuating and recharging.

S-115 COMPRESSOR BURNOUT

When a compressor burns out, high temperature develops

causing the refrigerant, oil and motor insulation to decom-

pose forming acids and sludge.

If a compressor is suspected of being burned-out, attach a

refrigerant hose to the liquid line dill valve and properly remove

and dispose of the refrigerant.

SERVICING

NOTICE

Violation of EPA regulations may result in fines

or other penalties.

Now determine if a burn out has actually occurred. Confirm

by analyzing an oil sample using a Sporlan Acid Test Kit, AK-

3 or its equivalent.

Remove the compressor and obtain an oil sample from the

suction stub. If the oil is not acidic, either a burnout has not

occurred or the burnout is so mild that a complete clean-up

is not necessary.

If acid level is unacceptable, the system must be cleaned by

using the clean-up drier method.

CAUTION

Do not allow the sludge or oil to contact the skin.

Severe burns may result.

NOTE: The Flushing Method using R-11 refrigerant is no

longer approved by Goodman Company, L.P.

Suction Line Drier Clean-Up Method

Use AMANA® brand part number RF000127 suction line filter

drier kit. This drier should be installed as close to the

compressor suction fitting as possible. The filter must be

accessible and be rechecked for a pressure drop after the

system has operated for a time. It may be necessary to use

new tubing and form as required.

NOTE: At least twelve (12) inches of the suction line

immediately out of the compressor stub must be discarded

due to burned residue and contaminates.

1. Remove compressor discharge line strainer.

2. Remove the liquid line drier and expansion valve.

3 Purge all remaining components with dry nitrogen or

carbon dioxide until clean.

4. Install new components including liquid line drier.

5. Braze all joints, leak test, evacuate, and recharge sys-

tem.

6. Start up the unit and record the pressure drop across the

drier.

7. Continue to run the system for a minimum of twelve (12)

hours and recheck the pressure drop across the drier.

Pressure drop should not exceed 6 PSIG.

8. Continue to run the system for several days, repeatedly

checking pressure drop across the suction line drier. If

the pressure drop never exceeds the 6 PSIG, the drier has

trapped the contaminants. Remove the suction line drier

from the system.

9. If the pressure drop becomes greater, then it must be

replaced and steps 5 through 9 repeated until it does not

exceed 6 PSIG.

NOTICE: Regardless, the cause for burnout must be deter-

mined and corrected before the new compressor is started.

S-120 REFRIGERANT PIPING

The piping of a refrigeration system is very important in

relation to system capacity, proper oil return to compressor,

pumping rate of compressor and cooling performance of the

evaporator.

This long line set application guideline applies to all AHRI

listed R22 air conditioner and heat pump split system

matches of nominal capacity 18,000 to 60,000 Btuh. This

guideline will cover installation requirements and additional

accessories needed for split system installations where the

line set exceeds 50 feet in actual length.

Additional Accessories:

1. Crankcase Heater- a long line set application can

critically increase the charge level needed for a system.

As a result, the system is very prone to refrigerant

migration during its off-cycle and a crankcase heater will

help minimize this risk. A crankcase heater is recom-

mended for any long line application (50 watt minimum).

2. TXV Requirement: All line set applications over 50 ft will

require a TXV.

3. Hard Start Assist- increased charge level in long line

applications can require extra work from the compressor

at start-up. A hard start assist device may be required to

overcome this.

4. Liquid Line Solenoid - A long line set application can

critically increase the charge level needed for a system.

As a result, the system is very prone to refrigerant

migration during its off-cycle and a liquid line solenoid will

help minimize this. A liquid line solenoid is recommended

for any long line application on straight cooling units.

Tube Sizing:

1. In long line applications, the “equivalent line length” is the

sum of the straight length portions of the suction line plus

losses (in equivalent length) from 45 and 90 degree

bends. Select the proper suction tube size based on

equivalent length of the suction line (see Tables 9 &

10) and recalculated system capacity.

Equivalent length = Length horizontal + Length vertical +

Losses from bends (see Table 11)

2. For any residential split system installed with a long

line set, the liquid line size must never exceed 3/8".

Limiting the liquid line size to 3/8" is critical since an

increased refrigerant charge level from having a larger

liquid line could possibly shorten a compressor’s lifespan.

3. Single Stage Condensing Unit: The maximum length

of tubing must not exceed 150 feet.

•50 feet is the maximum recommended vertical differ-

ence between the condenser and evaporator when the

evaporator is above the condenser. Equivalent length is

not to exceed 150 feet.

• The vertical difference between the condenser and

evaporator when the evaporator is below the condenser

can approach 150 feet, as long as the equivalent length

does not exceed 150 feet.

SERVICING

• The distance between the condenser and evaporator in

a completely horizontal installation in which the indoor

and outdoor unit do not differ more than 10 feet in

vertical distance from each other can approach 150

feet, as long as the equivalent length does not exceed

150 feet.

4. Two-Stage Condensing Unit: The maximum length of

tubing must not exceed 75 feet here indoor coil is located

above the outdoor unit.

NOTE: When the outdoor unit is located above the

indoor coil, the maximum vertical rise must not exceed

25 feet. If the maximum vertical rise exceeds 25 feet,

premature compressor failure will occur due to inad-

equate oil return.

5. Vibration and Noise: In long line applications, refrigerant

tubing is highly prone to transmit noise and vibration to the

structure it is fastened to. Use adequate vibration-isolat-

ing hardware when mounting line set to adjacent struc-

ture.

Most refrigerant tubing kits are supplied with 3/8"-thick

insulation on the vapor line. For long line installations over 50

feet, especially if the line set passes through a high ambient

temperature, ½”-thick suction line insulation is recommended

to reduce loss of capacity. The liquid line should be insulated

if passing through an area of 120°F or greater. Do not attach

the liquid line to any non-insulated portion of the suction line.

Table 9 lists multiplier values to recalculate system-cooling

capacity as a function of a system’s equivalent line length (as

calculated from the suction line) and the selected suction

tube size. Table 10 lists the equivalent length gained from

adding bends to the suction line. Properly size the suction

line to minimize capacity loss.

Cond

Unit

Tons Suct Liq Suct Liq Suct Liq

1 1/2 5/8 1/4 3/4 3/8 3/4 3/8

2 5/81/43/43/83/43/8

2 1/2 3/4 3/8 3/4* 3/8 7/8 3/8

3 3/4 3/8 3/4** 3/8 7/8** 3/8

3 1/2 3/4 3/8 7/8** 3/8 1 1/8 3/8

4 7/8 3/8 1 1/8 3/8 1 1/8 3/8

5 7/8 3/8 1 1/8 3/8 1 1/8 3/8

Line Diameter (In. OD)

REFRIGERANT LINE LENGTH (Ft)

0-24 25-49 50-74***

Table 9

*7/8" required for full ratings

**1 1/8" required for full ratings

***Lines greater than 74 feet in length or vertical elevation changes more than 50 feet, refer to the long

line set.

TABLE 10. CAPACITY MULTIPLIERS AS A FUNCTION OF

SUCTION LINE SIZE & EQUIVALENT LENGTH

50 75 100 125 150

18,000 3/4 .99 .97 .96 .95 .95

24,000 3/4 1 .99 .99 .98 .97

30,000 3/4 .98 .97 .96 .95 .94

3/4 .93 .90 .86 .83 .79

7/8 .98 .96 .94 .92 .90

3/4 .93 .90 .87 .83 .80

7/8 .97 .96 .94 .93 .92

1-1/8 1 1 .99 .99 .98

3/4 .90 .86 .82 .78 N/R

7/8 .96 .94 .93 .91 .89

1-1/8 1 1 .99 .99 .98

7/8 .93 .91 .89 .86 .84

1-1/8 .99 .98 .98 .97 .97

36,000

42,000

48,000

60,000

Nominal

capacity

Btuh

Vapor line

diameter

(in.)

EQUIVALENT LINE LENGTH (FT)

Table 10

NOTE: For a condenser with a liquid valve tube connection

less than 3/8" diameter, use 3/8" liquid line tubing for a line

set greater than 25 feet.

TABLE 11. LOSSES FROM SUCTION LINE ELBOWS

(EQUIVALENT LENGTH, FT.)

3/4 7/8 1-1/8

90° short radius 1.7 2 2.3

90° long radius 1.5 1.7 1.6

45° 0.7 0.8 1

I.D. (in.)

Type of elbow fitting

Table 11

Installation Requirements

1. In a completely horizontal installation with a long line set

where the evaporator is at the same altitude as (or slightly

below) the condenser, the line set should be sloped

towards the evaporator. This helps reduce refrigerant

migration to the condenser during a system’s off-cycle.

2. For a system installation where the evaporator is above

the condenser, an inverted vapor line trap should be

installed on the suction line just before the inlet to the

evaporator (see Fig 6). The top of the inverted loop must

be slightly above the top of the evaporator coil and can be

created simply by brazing two 90° long radius elbows

together, if a bending tool is unavailable. Properly support

and secure the inverted loop to the nearest point on the

indoor unit or adjacent structure.

Fig 6. Evaporator unit with inverted vapor loop

SERVICING

3. An oil trap is required at the evaporator only if the

condenser is above the evaporator. Preformed oil

traps are available at most HVAC supply houses, or oil

traps may be created by brazing tubing elbows together

(see diagram below). Remember to add the equivalent

length from oil traps to the equivalent length calculation

of the suction line. For example, if you construct an oil

trap using two 45° elbows, one short and one long 90°

elbow in a ¾” diameter suction line, the additional

equivalent length would be 0.7+ 0.7+1.7+1.5, which

equals 4.6 feet (refer to table 9).

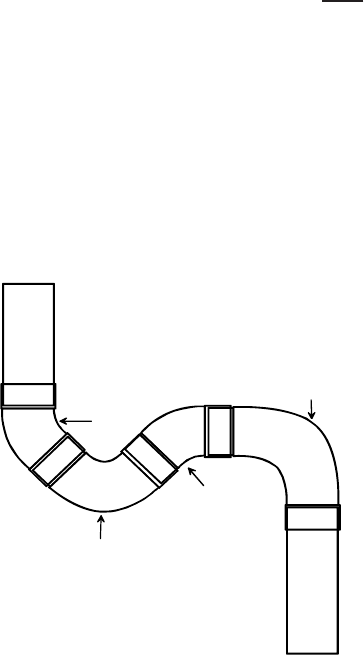

Long Radius Street Ell

45°

Street

Ell

45 °

Ell

Short Radius

Street Ell

Oil Trap Construction

Fig 7. Oil Trap

4. Low voltage wiring. Verify low voltage wiring size is

adequate for the length used since it will be increased in

a long line application.

System Charging

R22 condensers are factory charged for 15 feet of line set. To

calculate the amount of extra refrigerant (in ounces) needed

for a line set over 15 feet, multiply the additional length of line

set by 0.6 ounces. Note for the formula below, the linear feet

of line set is the actual length of liquid line (or suction line,

since both should be equal) used, not the equivalent length

calculated for the suction line.

Extra refrigerant needed =

(Linear feet of line set – 15 ft) x X oz/ft.

Where X = 0.6 for 3/8" liquid tubing

Remember, for condensers with a liquid valve connection

less than 3/8" diameter, 3/8" liquid tubing is required for a

line set longer than 25 feet.

Follow the charging procedures in the outdoor unit I/O manual

to ensure proper superheat and sub-cooling levels, especially

on a system with a TXV installed in the indoor unit. Heat

pumps should be checked in both heating and cooling mode

for proper charge level. This guideline is meant to provide

installation instructions based on most common long line set

applications. Installation variables may affect system opera-

tion.

NO ADDITIONAL COMPRESSOR OIL IS NEEDED FOR

LONG LINE SET APPLICATIONS

ON RESIDENTIAL SPLIT SYSTEMS.

S-122 REVERSING VALVE REPLACEMENT

Remove the refrigerant charge from the system.

When brazing a reversing valve into the system, it is of

extreme importance that the temperature of the valve does

not exceed 250° F. at any time.

Wrap the reversing valve with a large rag saturated with water.

"Re-wet" the rag and thoroughly cool the valve after each

brazing operation of the four joints involved. The wet rag

around the reversing valve will eliminate conducting of heat to

the valve body when brazing the line connection.

The use of a wet rag sometimes can be a nuisance. There are

commercial grades of heat absorbing paste that may be

substituted.

After the valve has been installed leak test, evacuate and

recharge.

S-202 DUCT STATIC PRESSURES AND/OR

STATIC PRESSURE DROP

ACROSS COILS

This minimum and maximum allowable duct static pressure

for the indoor sections are found in the specifications section.

Tables are also provided for each coil, listing quantity of air

(CFM) versus static pressure drop across the coil.

Too great an external static pressure will result in insufficient

air that can cause icing of the coil. Too much air can cause

poor humidity control and condensate to be pulled off the

evaporator coil causing condensate leakage. Too much air

can also cause motor overloading and in many cases this

constitutes a poorly designed system.

SERVICING

S-203 AIR HANDLER EXTERNAL STATIC

To determine proper air movement, proceed as follows:

1. Using a draft gauge (inclined manometer), measure the

static pressure of the return duct at the inlet of the unit,

(Negative Pressure).

2. Measure the static pressure of the supply duct, (Positive

Pressure).

3. Add the two readings together.

TOTAL EXTERNAL STATIC

NOTE: Both readings may be taken simultaneously and read

directly on the manometer if so desired.

4. Consult proper table for quantity of air.

If external static pressure is being measured on a furnace to

determine airflow, supply static must be taken between the

"A" coil and the furnace.

Air Flow

TOTAL EXTERNAL STATIC

S-204 COIL STATIC PRESSURE DROP

1. Using a draft gauge (inclined manometer), connect the

positive probe underneath the coil and the negative probe

above the coil.

2. A direct reading can be taken of the static pressure drop

across the coil.

3. Consult proper table for quantity of air.

STATIC PRESSURE DROP

If the total external static pressure and/or static pressure drop

exceeds the maximum or minimum allowable statics, check

for closed dampers, dirty filters, undersized or poorly laid out

duct work.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

+5VDC

24VAC

POWER SUPPLY

INPUT

POWER SUPPLY COMMON

OUT TO HP CONTROL

P3-1

6.8K

P3-7

Y-HP

P1-6

P1-4

COMPRESSOR OUTPUT

P1-7

POWER SUPPLY OUT

TO THERMOSTAT

24VAC

POWER SUPPLY INPUT

(COMMON)

+VDC

E/W1

P2-8

CALL FOR

REVERSING VALVE

P3-5

BLOWER FAN DEMAND

OUTPUT

P3-3

P1-8

Y-STAT

Y-FURN

P3-2

P1-1

P3-8

REVERSING VALVE

OUTPUT

BREAK FOR ODT

FURNACE DEMAND

OUTPUT

P1-3

24VAC

HP CALL FOR FURNACE

(DURING DEFROST)

Y2-STAT

Y2-FURN

CALL FOR

COMPRESSOR

P2-7

P3-6

+VDC

REVERSING

VALVE OUTPUT

P2-4

OT-NO

P2-9

CALL FOR 2ND STAGE

COMPRESSOR

1.0K

G-FURN

P2-1

OT-C

SECOND STAGE

COMPRESSOR OUTPUT

CALL FOR

EMERGENCY HEAT

W1-FURN

W2-HP

F1 3A

OT-NC

24VAC

2ND STAGE COMPRESSOR

DEMAND OUTPUT

CALL FOR

FURNACE HEAT

6.8K

G-STAT

+VDC

P3-4

P2-6

ODT (OUTDOOR

THERMOSTAT)

SECOND STAGE FURNACE

DEMAND OUTPUT

MICROPROCESSOR

Y2-HP

P1-5

CALL FOR 2ND STAGE

FURNACE HEAT

CALL FOR

BLOWER FAN

P2-5

1 2

POWER

SUPPLY

COMPRESSOR

CONTACTOR OUTPUT

P2-3

+5VDC

P3-9

P2-2

POWER SUPPLY COMMON

OUT TO THERMOSTAT

POWER SUPPLY OUT

TO HP CONTROL

P1-2

ALL FUEL SYSTEM CONTROL BOARD - AFE18-60A

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

(For use with Heat Pumps in conjunction with 80% or 90% Single-Stage or Two-Stage Furnaces)

ALL FUEL SYSTEM AFE18-60A CONTROL BOARD

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

EMERGENCY

HEAT

RELAY

BLUE

WHITE

BLACK

BROWN

THERMOSTAT

OT/EHR18-60

From Air Handler

CGW2 R

CRW2OY

From Outdoor Unit

Indoor Thermostat

BLUE

GREEN

WHITE

RED

BLUE

RED

WHITE

ORANGE

YELLOW

10kw and Below, One Stage Electric Heat

RED

EMERGENCY

HEAT

RELAY

BLUE

WHITE

BLACK

BROWN

THERMOSTAT

OT/EHR18-60

From Air Handler

CGW2 R

CRW2OY

From Outdoor Unit

Indoor Thermostat

BLUE

GREEN

WHITE

RED

BROWN

BLUE

RED

WHITE

ORANGE

YELLOW

15kw and Above, Two Stage Electric Heat

RED

SEE NOTE

Note:

When using a Thermostat with only one

stage for electric heat (W2), tie white and

brown wires from air handler together.

Typical Wiring Schematics for OT/EHR18-60 (Outdoor Thermostat & Emergency Heat Relay).

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

EMERGENCY

HEAT

RELAY

BLUE

WHITE

BLACK

BROWN

THERMOSTAT

OT/EHR18-60 #2

From Air Handler

CGW2 R

CRW2OY

From Outdoor Unit

Indoor Thermostat

BLUE

GREEN

WHITE

RED

BROWN

BLUE

RED

WHITE

ORANGE

YELLOW

15kw and Above with Two OT/EHR18-60's, Two Stage Electric Heat and Two Stage Thermostat

HEAT

RELAY

EMERGENCY THERMOSTAT

BROWN

BLACK

WHITE

BLUE

OT/EHR18-60 #1

RED

Typical Wiring Schematics for OT/EHR18-60 (Outdoor Thermostat & Emergency Heat Relay).

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

L1 L2

HTR1 TLHTR2

L2L1

HTR1 TL

L2 L1 L2

HTR3

HTR2

HTR1

HTR4

HTR3

HTR2

BK RD

L2L1 L1 L2

RD PU

ONE (1) ELEMENT ROWS TWO (2) ELEMENT ROWS THREE (3) ELEMENT ROWS FOUR (4) ELEMENT ROWS

USE COPPER OR ALUMINUM WIRE

SPEEDUP

COPPER OR ALUMINUM

POWER SUPPLY

(SEE RATING PLATE)

USE MIN. 75°C FIELD WIRE

EQUIPMENT GROUND

BL BL

NOTE

SEE

EBTDR

RD XFMR-R

XFMR-C

NOTE

SEE

BL RD GR WH BR

COM

RD C

PLF

RD PU

240

24V

123

SEE

NOTE

BL BR

4 5

PLM

GRD

45678 9

0140M00037

4) Brown and white wires are used with Heat Kits only.

PLM

PLF

FACTORY WIRING

FIELD WIRING

1) Red wires to be on transformer terminal "3" for 240 volts and on terminal "2" for 208 volts.

2) See composite wiring diagrams in installation instructions

for prop er low voltage wiring connections.

Notes: DELAY RELAY

STRAI N RELIEF

EVAPORATOR MOTOR

ELECTRONIC BLOWER TIME

RUN CAPACITOR

EBTDR

YL BLUE

BLACK

RED

YELLOW

COMPONENT CODE

BROWN

PURPLE

GREEN

FEMALE PLUG CONNECTOR

MALE PLUG CONNECTOR

NOTE 2

TRANSFORMER

HIGH VOLTAGE

LOW VOLTAGE

HIGH VOLTAGE

LOW VOLTAGE

PLF

COLOR CODE

5PLF

424V 5

SEE NOTE 1

123

WIRING CODE

EBTDR

HI COM

EBTDR

208/240 VOLTS

PLF

PLM

(M2)

(COM) BK

BL MEDIUM

3 SPEED

HIGH

(M1) RD LOW

IF REPLACEMENT OF THE ORIGINAL WIRES

SUPPLIED WITH THIS ASSEMBLY IS NECESSARY,

USE WIRE THAT CONFORMS TO THE

NATIONAL ELECTRIC CODE.

(TR 1)

R G

EBTDR

SEE NOTE 1

FL FUSE LINK

TL THERMAL LIMIT

HTR HEAT ELEMENTS

SEE NOTE 5

RRELAY

TERMINAL BLOCK SHOWN

FOR 50HZ MODELS ONLY

THREE SPEED MOTOR WIRING

(SELECT MODELS ONLY)

SEE NOTE 3

EBTDR has a 7 second on delay when "G" is energized and a 65 second off

delay when "G" is de-energized.

3) Confirm speed tap selected is appropriate for application. If speed tap needs

to be changed, connect appropriate motor wire (Red for low, Blue for medium,

and Black for high speed) on "COM" connection of the EBTDR.

Inactive motor wires should be connected to "M1 or M2" on EBTDR.

MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED.

KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.

NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEAT ER

WHITEWH

Typical Wiring Schematic ADPF, ARPF, ARUF with Electric Heat.

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

COM

XFMR-C

XFMR-R

SPEEDUP

CNC

USE COPPER OR ALUMINUM WIRE

EQUIPMENT GROUND

L1 L2

WBR

208/240 24V

RS2

L1 L2

EBTDR

HTR2

FL HTR3 TL

FL HTR4 TL

Typical Wiring Schematic MBR Blower with Electric Heat.

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

MARK

INDICATES

HEAT KIT INSTALLED

AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.

MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED

IF REPLACEMENT OF THE ORIGINAL W IRES SUPPLIED WITH THIS ASSEMBLY IS NECESSARY, USE 105°C. W IRE. SIZE TO CONFORM TO THE NATIONA L ELECTRIC CODE.

FIELD CON NECTION

* SEE NOTE 7

LOW VOLTAGE

DS 1

COPPER

(SEE RATING PLATE)

POW ER SUPPLY

CONTROLS SHOWN WITH UTILITIES IN "ON" POSITION AND THERMOSTAT IN "O FF" POSITION.

PN. B1368270 REV. A

BOX

THERMOST

HEATER

J3J2

Y/Y2

24 VAC Y1

HUMIDISTAT

HUM

RY1 G

USE COPPER WIRE

EQUIPMENT GROUND

THERMOSTAT

YCON

CON DE NS ER

COM W 2OED

OUTDO OR

HEATPUMP

W/W2

OTC OT1 COT2OE\W1

YCON

CONDENSER

PL2 312

PL1

PUWBL

BR R

Y1C

W2 R

Y/Y2

L1 L2

HTR1

HTR2

L2L1

HTR1 TL

0140A0 00 00P

24 VOLT

SEE NOTE 2

COLOR CODE

PROGRAM JUMPER

7. SEE COMPOSITE WIRING DIAGRAMS IN INSTALLATION INSTRUCTIONS FOR PROPER LOW VOLTAGE

CONNECTIONS AND DETAILS ON COMPATIBLE THERMOSTATS AND THEIR CONNECTIONS.

3. FOR OUTDOOR THERMOSTAT OPERATION OF SECOND STAGE HEAT, CUT PJ2 & ADD OT18-60 TO OTC & OT2.

2. FOR TWO STAGE ELECTRIC HEAT APPLICATIONS CUT PJ4. (USE ONLY ON 15 & 20 KW MODELS).

4. FOR SINGLE STAGE COOLING APPLICATIONS CONNECT THERMOSTAT TO Y/Y2 ONLY,

TAPE OR REMOVE Y1 CONNECTION. CONNECT CONDENSING UNIT TO YCON & C.

6. RED WIRES TO BE ON TRANSFORMER TERMINAL 3 FOR 240 VOLTS AND ON TERMINAL 2 FOR 208 VOLTS.

1. FOR HEAT PUMP APPLICATIONS REMOVE ORANGE JUMPER WIRE BETWEEN O & Y1.

EVAPORATOR MOTOR

5. WHEN H UMIDSTAT IS PROVIDED CUT PJ6. THERMOSTAT OPENS ON HUMIDITY RISE.

NOTES:

PJ2,PJ4,PJ6

SEE NOTE 3

BLACKBK

PLUG

RED

YELLOW

BLUE

WWHITE

4567 89

COM

240

208

24V

4567 89

SEE NOTE 5

HUM

PJ6

OT 1

PJ2

5PL2

PL2 2

PL1 2

FACTORY WIRING

WIRING CODE

FIELD WIRING

HIG H VO LTAG E

LOW VOLTAGE

HIG H VO LTAG E

LOW VOLTAGE

TERMINAL BOARD

VARIABLE SPEED TRANSFORMERVSTB TR

COMPONENT CODE

PU PURPLE

PINK

ORANGE

BROWNBR

GREENG

SEE NOTE 1

NOTE DIODE

ON VSTB

*SEE NOTE 7

W2W E

PJ4

DIODE

IN4005

Y1 YY2

YCON

PL2

208/240 VOLTS

TO LOW VOLTAGE

TERMINAL BOARD

NOTE 4

SEE

4PL2

1PL2

1PL1

L2 L1 L2

HTR3 TL

HTR2

HTR1 TL

TLHTR1

HTR4

HTR3

HTR2

BK R

L2L1 L1 L2

OT2

HUM

OT1 W2

PJ2

PJ6

PJ4

SEE NOTE 8

8. DISCARD ORIGINAL "PL1" PLUG CONNECTOR WHEN INSTALLING OPTIONAL HEAT KIT.

RELAY

THERMAL LIMIT

HEAT ELEMENT

HTR

ONE (1) ELEMENT ROWS TWO (2) ELEMENT ROWS THREE (3) ELEMENT ROWS FOUR (4) ELEMENT ROWS

OW2

FL FU SE LINK

Typical Wiring Schematic AEPF with Electric Heat.

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Blower Section

VSTB

DS1

PN. B1368270 REV. A

THERMOSTATS

HEATER

J3J2

Y/Y2

24 VAC Y1

HUMIDISTAT

HUM

RY1

THERMOSTAT

YCON

CONDENSER

COM W2

OED W1

OUTDOOR

HEATPUMP

W/W2

OTC OT1 COT2OE\W1

YCON

CONDENSER

PL2 312

WBL

BR R

Y1C

W2 R

Y/Y2

456789

COM

240

208

24V

OT2

HUM

OT1

PJ2

PJ6

PJ4

HKR Heat Kit

TLHTR2

L2L1

HTR1 TL

PL 1

68 9

24 5

Typical Wiring Schematic MBE Blower with Electric Heat.

This wiring diagram is for reference only.

Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Typical Wiring Schematic ASPF****16A* with Electric Heat.

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

L1 L2

HTR1

TLHTR2

L2L1

HTR1 TL

L2 L1 L2

HTR3

HTR2

HTR1

HTR4

HTR3

HTR2

BK RD

L2L1 L1 L2

RD PU

ONE (1) E LEMENT ROWS TWO (2) ELEMENT ROWS THREE (3) ELEMENT ROWS FOUR (4) ELEMENT ROWS

USE COPPER OR ALUMINUM WIRE

COPPER OR ALUMINUM

POWER SUPPLY

(SEE RATING PLATE)

USE MIN. 75°C FIELD WIRE

EQUIPMENT GROUND

PLF

240

24V

1 2 3

SEE

NOTE 4

BL BR

4 5

6789

PLM

GRD

4 5 678 9

0140A00034

4) Brown and white wires are used with Heat Kits only.

PLM

PLF

FACTORY WIRING

FIELD WIRING

1) Red wir es to be on transformer terminal "3" for 240 volts and on terminal "2" for 208 volts.

2) See composite wiring diagrams in installation instructions

for proper low voltage wiring connections.

Notes: DELAY RELAY

RELAY

EVAPORATOR MOTOR

ELECTRONIC BLOWER TIME

TERMINAL BOARD

EBTDR

YL BLUE

BLACK

RED

YELLOW

COMPONENT CODE

BROWN

PURPLE

GREEN

FEMALE PLUG CONNECTOR

MALE PLUG CONNECTOR

TRANSFORMER

HIGH VOLTAGE

LOW VOLTAGE

HIGH VOLTAGE

LOW VOLTAGE

PLF

COLOR CODE

65PLF

424V 5

SEE NOTE 1

123

WIRING CODE

208/240 VOLTS

PLF

PLM

IF REPLACEMENT OF THE ORIGINAL WIRES

SUPPLIED WITH THIS ASSEMBLY IS NEC ESSARY,

USE WIRE THAT CONFORMS TO THE

NATIONAL ELECTRIC CODE.

SEE NOTE 1

FL FUSE LINK

TL THERMAL LIMIT

HTR HEAT ELEMENTS

CR CONTROL RELAY

TERMINAL BLOCK SHOWN

FOR 50HZ MODELS ONLY

3) Confirm speed tap selected is appropriate for application. If speed tap needs

to be changed, connect red wire from terminal 4 of CR relay to appropriate tap

at TB

MARK ACCORDING TO NUMBER OF HEATER ELEMENT ROWS INSTALLED. NO MARK INDICATES NO HEAT KIT INSTALLED.

KIT COMBINATION ON THIS UNIT'S S&R PLATE. AFTER INSTALLING OPTIONAL HEAT KIT, MARK AN "X" IN THE PROVIDED ABOVE.

NOTE: WHEN INSTALLING HEATER KIT, ENSURE SPEED TAP DOES NOT EXCEED MINIMUM BLOWER SPEED (MBS) SPECIFIED FOR THE AIRHANDLER/HEAT ER

WHITEWH

A B

RCGW1W2 Y2Y1 O

SEE NOTE 2

21 43 5

NC GL

41 32 5DH

XFMR-C

EBTDR

XFMR-R

COM

NO NC

GGR

SEE

NOTE 3

CLGN

W2RW1C G 4Y1 OY2 1DH 32 5

NO NC

XFMR-C

COM

EBTDR

XFMR-R

7 4

ACCESSORIES WIRING DIAGRAMS

HIGH VOLTAGE!

DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS

UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO

DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

Typical Wiring Schematic ASPF****16B* with Electric Heat.

This wiring diagram is for reference only. Not all wiring is as shown above.

Refer to the appropriate wiring diagram for the unit being serviced.

Goodman Mfg Rt6100004R13 Users Manual

RT6100004R13 to the manual 2f4545c7-a08c-4685-944f-63bedeb7957e

Navigation menu

Versions of this User Manual:

Views

Navigation
