FitbitUser'sManual

TheFitbitTrackerisawearablefitnessmonitorthattracksyoursteps,distanceandcalories.

1.PackageContents

YourFitbitcomeswiththe

 Fitbitdevice.Modelnumber:F003

 Wirelessbasestationandcharger.Modelnumber:F004

 Holster

 Sleepwristband.PuttheFitbitintothesleepwristbandwhenyouaresleeping.



2.ChargingyourFitbit

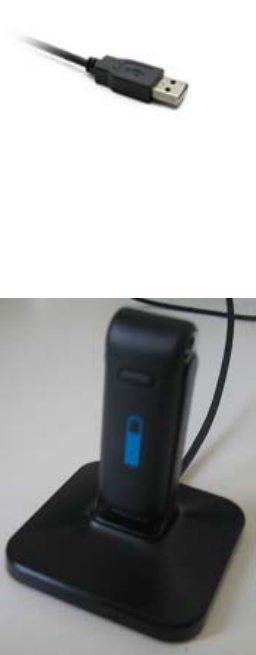

a.PlugtheFitbitBaseStationintoyourcomputer'sUSBport.



b.PlacetheFitbitontotheBaseStation.AbatterysymbolwillappearontheFitbit.Pleasechargethe

Fitbitfor1‐2hours.Thechargingprocessiscompleteonceyouseeafullbattery.Youcanviewthe

batterysymbolbypressingthebuttonontheFitbitwhileitisonthecharger.TheFitbitshouldlastfor5

daysbetweencharges.



3.UsingyourFitbit

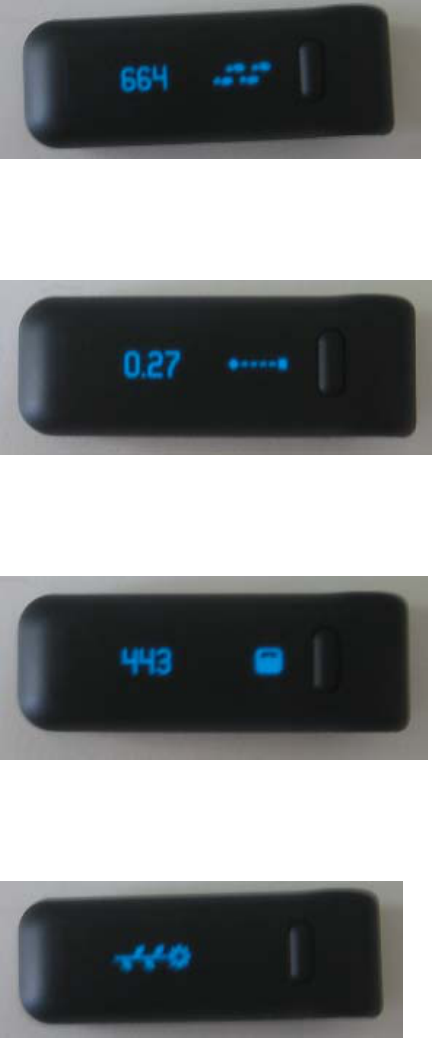

ThereisonemainbuttononyourFitbit.Ifyoupressthebutton,itwillrotatethrough4screens.



Steps



Distance



Calories



GeneralWellness



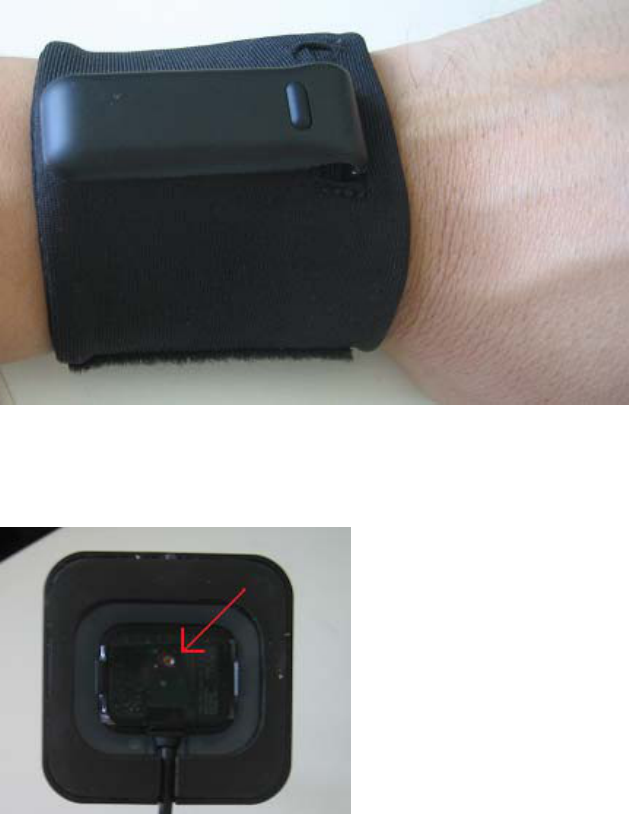

ThisistheproperwaytoweartheFitbitwhilesleeping.



IfyouexperienceproblemswiththeFitbit,youcanresettheFitbit,byplacingtheFitbitontheBase

StationandthenpressingtheresetbuttonthatislocatedunderneaththeBaseStation.Useasharp

implementtopresstheresetbutton.

TheFitbitdeviceandtheBaseStationarealsowirelesstranceivers,whichtransmitdatabackandforth.

Futuresoftwarewillallowuserstorecordandsavethisdataontheircomputer.



4.Software

Samplesoftwareisprovidedwhichcantransferyourdata.

TousethesoftwareforWindows

 UnzipthecontentsofFitbitUSBXpressDriverInstall.zipandruntheprogram

FitbitUSBInstaller.exe

 PluginyourFitbitBaseStation.IfyouhavealreadypluggedintheBaseStation,pleaseunplug

andre‐plugtheBaseStation

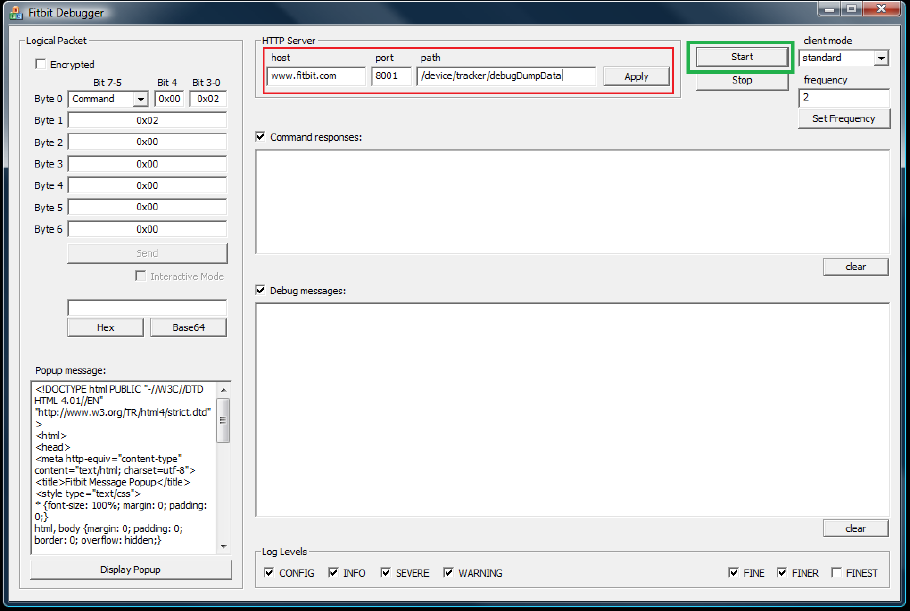

 UnzipthecontentsofFitbitDebugger.zipandruntheprogramfitbit‐debugger‐1.5.17.exe.You

shouldseethefollowingscreenshowup.



 Forhost,enterwww.fitbit.com

 Forport,enter8001

 Forpath,enter/device/tracker/debugDumpData

 ClicktheApplybutton

 ClicktheStartbutton

TheprogramwillconnecttotheTrackerwheneveritiswithinrangeandstarttransferringdatatothe

logsdirectory.Forbestresults,pleaseplacetheTrackerinlineofsightwithin3metersoftheBase

Station.



5.GeneralCareandPrecautions

 PleasetakecarenottoexposetheFitbittomoisture

 TheFitbitismeanttobeusedinenvironmentsbetween0degCelsiusand60degCelsius



6.FederalCommunicationsCommission(FCC)Statement

FitbitTrackerFCCID:XRAF003

FitbitBaseStationFCCID:XRAF004

15.21

Youarecautionedthatchangesormodificationsnotexpresslyapprovedbythepartresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

15.105(b)

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCrules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:

 Reorientorrelocatethereceivingantenna.

 Increasetheseparationbetweentheequipmentandreceiver.

 Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

 Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:

1)thisdevicemaynotcauseharmfulinterferenceand

2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired

operationofthedevice.



7.IndustryCanada(IC)Statement

FitbitTrackerIC:8542A‐F003

FitbitBaseStationIC:8542A‐F004

ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).

Operationissubjecttothefollowingtwoconditions:



(1)thisdevicemaynotcauseinterference

(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesired

operationofthedevice.

UnderIndustryCanadaregulations,thisradiofrequencypoweramplifier(insertIndustryCanada

certificationnumberofradiofrequencypoweramplifier)mayonlybeusedwiththetransmitterwith

whichtheamplifierhasbeencertifiedbyIndustryCanada.Thecertificationnumberforthetransmitter

withwhichthisamplifierispermittedtooperateisasbelow.

FitbitTrackerIC:8542A‐F003

FitbitBaseStationIC:8542A‐F004


