“LEPTON”
Product(Manual!
Version(1.0!
Model!FB406! !
Table of Contents
Getting Started ......................................................................................................................................... 1!
What’s included ........................................................................................................ 1!
Putting on your Lepton ............................................................................................. 1!
Moving the clasp from the large to small wristband .............................................. 1!
Inserting the tracker into the wristband ................................................................ 2!
Securing your wristband ........................................................................................ 3!
Care and wearing tips .............................................................................................. 5!
Setting up your Lepton ......................................................................................................................... 6!
Setting up your Lepton with a computer ................................................................... 6!
Mac and PC requirements ...................................................................................... 6!
Downloading Fitbit Connect .................................................................................. 6!
Installing Fitbit Connect and pairing your Lepton .................................................. 6!
Syncing your Lepton .............................................................................................. 7!
Setting up your Lepton with a mobile device ............................................................ 7!
Using your Lepton .................................................................................................................................. 8!
Wearing on your dominant vs. non-dominant wrist .................................................. 8!
Using your Lepton in wet conditions ......................................................................... 8!
Understanding the LED indicator lights ..................................................................... 8!
Goal tracking ........................................................................................................ 9!
Sleep mode ........................................................................................................... 9!
Charging ............................................................................................................... 9!
Updating ............................................................................................................... 9!
Alarms .................................................................................................................. 9!
Charging your Lepton .............................................................................................. 9!
Tracking your Fitness with Lepton .............................................................................................. 11!
Setting goals with Lepton ....................................................................................... 11!
Checking your goal progress .................................................................................. 12!
Tracking sleep with Lepton .................................................................................... 13!
Using silent alarms ................................................................................................. 13!
Setting silent alarms from a computer ................................................................. 14!
Setting silent alarms from an iOS device .............................................................. 14!
Setting silent alarms from an Android device ...................................................... 14!
Dismissing silent alarms ..................................................................................... 15!
Using your Fitbit.com Dashboard ................................................................................................. 16!
Browser requirements ............................................................................................ 16!
Adding and removing tiles ..................................................................................... 16!
Managing your Lepton from fitbit.com ................................................................... 17!
Updating your Lepton ........................................................................................................................ 18!
Updating Lepton using a computer ......................................................................... 18!
Updating Lepton using an iOS device ..................................................................... 18!
Updating Lepton using an Android device .............................................................. 19!
Restarting your Lepton ...................................................................................................................... 20!
Fitbit Lepton General Info & Specifications .............................................................................. 21!
Sensors and motors ............................................................................................... 21!
Size and weight ...................................................................................................... 21!
Environmental conditions ....................................................................................... 21!
Help ....................................................................................................................... 22!
Return policy and warranty ..................................................................................... 22!
Regulatory & Safety Notices ............................................................................................................ 23!
USA: Federal Communications Commission (FCC) statement .................................. 23!
Canada: Industry Canada (IC) statement ................................................................. 24!
European Union (EU) ............................................................................................... 24!
Australia and New Zealand ..................................................................................... 25!
Mexico ................................................................................................................... 25!
Israel ...................................................................................................................... 25!
Serbia .................................................................................................................... 25!
South Africa ........................................................................................................... 25!
South Korea ........................................................................................................... 26!
Singapore ............................................................................................................... 26!
Taiwan ................................................................................................................... 27!
Wireless sync dongle ........................................................................................... 27!
Surge ....................................................................... Error! Bookmark not defined.!
Russia .................................................................................................................... 27!
United Arab Emirates ............................................................................................. 28!
Safety statement .................................................................................................... 29!
Important safety instructions ................................................................................. 29!
Cautions ............................................................................................................. 29!
Care and wearing tips ......................................................................................... 29!
Built-in battery precautions ................................................................................ 30!
Disposal and recycling information ........................................................................ 30!
1
Getting Started
What’s included
Your Fitbit Lepton Wireless Activity + Sleep Wristband box includes:
• Lepton tracker
• Charging cable
• Wireless sync dongle
• 1 small and 1 large wristband
Lepton tracker
Charging cable
Wireless sync
dongle
Wristbands
Putting on your Lepton
Your Lepton comes with a large and a small wristband. If you want to use the small
wristband, complete the next task before continuing. If you want to use the large
wristband, skip the next task and go directly to “Inserting the tracker into the
wristband” on page 2.

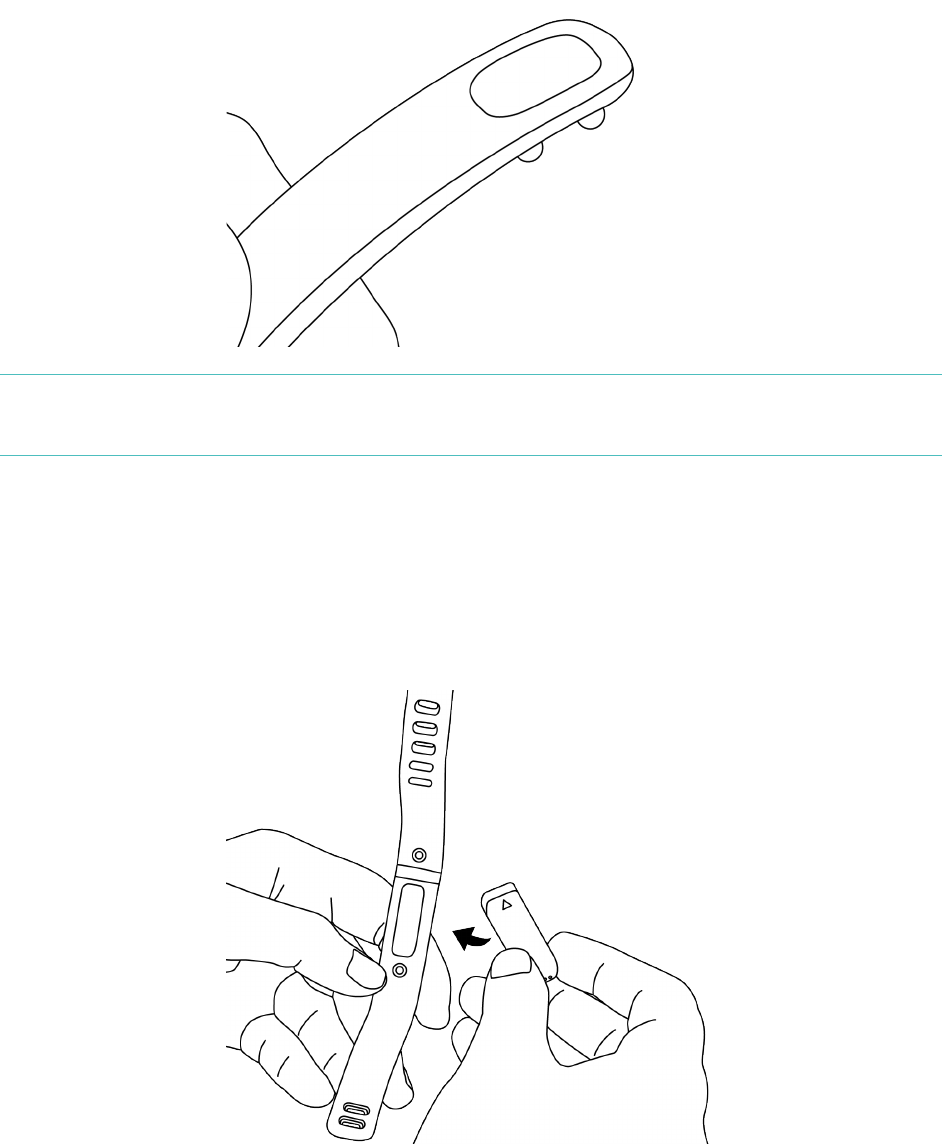

Moving the clasp from the large to small wristband
If you choose the small wristband, you’ll need to remove the clasp from the large
wristband and put it into the small wristband. To do so:
1. Push the clasp out with one thumb from the inside of the wristband.
2. Pull out the clasp.
2
3. Insert the clasp into the small wristband by pressing a few times with both
thumbs to ensure that the clasp is flat and in line with the wristband.
NOTE: If there is a bulge on the inside of the band between the two inside prongs of
the clasp, find a small object like a credit card to push it flat.

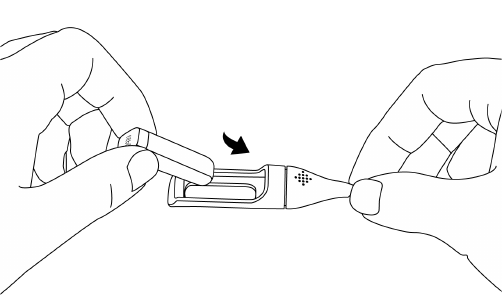

Inserting the tracker into the wristband
Hold the tracker in your hand with the grey arrow facing up. Insert this end into the
wristband, with the arrow pointing toward the holes in the wristband.
3
Securing your wristband
1. Put on the wristband so the window of lights are closest to the outside of your
wrist and facing you.
2. Align both ends of the wristband so they are directly overlapping each other
with the clasp over the two holes that best fit your wrist.
3. Squeeze both the clasp and the wristband between your thumb and forefinger
until you hear a click.
4
You’ll know your Lepton wristband is securely fastened if both ends of the wristband
are fully inserted.
NOTE: If you’re having trouble, try securing the wristband off your wrist to get a feel
for how it securely clasps and then try again on your wrist.
5
Care and wearing tips
Keep the following tips in mind when caring for your Lepton:
• Clean and dry the Lepton regularly, particularly under the band.
• Wear your Lepton band loosely enough to allow air circulation.
• Use skin care products sparingly on the areas of the wrist covered by the
Lepton.
• If you notice any signs of skin irritation or experience any discomfort, please
discontinue use.
6
Setting up your Lepton
You can set up your Lepton using a computer or one of our mobile apps for iOS,
Android, and Windows Phone.
Setting up your Lepton with a computer
To set up your Lepton using your computer, you’ll first install Fitbit Connect. Fitbit
Connect is the software application that connects (“pairs”) your Lepton to your
Fitbit.com dashboard, where you can view your data, log food, and more.
Mac and PC requirements
Software
Mac OS 10.5 or later
Internet Connection
Hardware
USB port
Software
Windows XP, Vista, 7, 8
Internet Connection
Hardware
USB port
Downloading Fitbit Connect
1. Go to http://www.fitbit.com/setup.
2. Scroll down and click the pink Download button. If the button does not correctly
show your type of computer (for example, if it says “Download for Mac” when
you’re on a PC), choose the correct type before clicking the button.
3. You’ll be prompted to open or save the installation file. Choose to save the file.
Installing Fitbit Connect and pairing your Lepton
1. Plug your wireless sync dongle into your computer’s USB port and have your
charged tracker nearby.
2. Find the file you just downloaded. If you don’t see it in your Downloads list,
search for it using the file name:
- For Mac: Install Fitbit Connect.pkg
- For Windows: FitbitConnect_Win.exe
3. Once you find the file, double-click it to begin installing Fitbit Connect.
4. Follow the brief onscreen instructions to finish setting up. You’re ready to get
moving.
7
Syncing your Lepton
Now that Fitbit Connect is installed, your Lepton will automatically and wirelessly sync
with your computer every 20 minutes or so if the following requirements are met:
• Your Lepton is within 15-20 feet of your computer and has new data to upload
(meaning if you haven’t moved, an automatic sync won’t occur).
• Your computer is powered on, awake, and connected to the Internet.
• The wireless sync dongle is inserted into a USB port and is recognized by the
computer.
When Lepton syncs, your data is uploaded to your Fitbit.com dashboard. Lepton holds
detailed minute-by-minute information for the most recent 7 days and daily activity
summaries for 30 days. For the most accurate dashboard possible, sync your Lepton
regularly.
To manually synchronize your Lepton with your dashboard, click the Fitbit Connect
icon located near the date and time on your computer and click Sync Now.
Setting up your Lepton with a mobile device
You can set up and wirelessly sync your Lepton using over 120 mobile devices that
support Bluetooth 4.0 technology. To see if your mobile device is compatible for
syncing with your Lepton, visit www.fitbit.com/devices. If your device is listed, you can
then download our free iOS, Android, or Windows Phone apps. Once downloaded, open
the app and follow the setup instructions provided.
NOTE: If your mobile device is not compatible to sync via Bluetooth 4.0, you can still
use the Fitbit app to view your data and track your progress, you’ll just need to
set up and sync using a Mac or PC.
8
Using your Lepton
Your Lepton is designed to be most accurate when worn on your wrist.
Wearing on your dominant vs. non-dominant wrist
To get the most accurate reading from your Lepton, make sure your account knows if
you’re wearing the wristband on your dominant or non-dominant wrist. Your dominant
wrist refers to handedness, that is, the hand that you use for activities such as writing
and throwing a ball.
To configure this setting:
1. Log in to Fitbit.com and click the gear icon in the top-right corner.
2. Click Settings > Devices.
3. Under Dominant Hand choose the correct setting.
4. Sync your tracker to save the change:
a. Click the Fitbit Connect icon near the date and time on your computer.
b. Click Sync Now.
Using your Lepton in wet conditions
Your Lepton is water-resistant, which means it is rain-proof and splash-proof and can
stand up to even the sweatiest workout.
Do not swim with your Lepton. We also don't recommend showering with your Lepton;
though the water won't hurt the device, wearing it 24/7 does not give your skin a
chance to breathe. Whenever you get your Lepton wet, dry it thoroughly before putting
it back on.
Understanding the LED indicator lights
Your Lepton features a display that consists of 5 LED indicator lights. The lights behave
differently depending on what the tracker is doing.
9
Goal tracking
The indicator lights illuminate as you hit 20% increments towards your goal. Tap your
Lepton to see your progress. When you reach your goal, Lepton will celebrate by
buzzing and flashing its lights.
Sleep mode
When you tap your Lepton rapidly for one or two seconds to enter sleep mode, it will
vibrate and display two slowly dimming lights. During sleep mode, two blinking lights
alternate. After you tap your Lepton rapidly to exit sleep mode, it will vibrate and flash
all five lights three times and then display a spinning light pattern.
Charging
While your Lepton is charging, an indicator light will pulse to show the battery level
every few seconds. Each indicator light represents progress towards the total charge.
When the Lepton has charged completely, all 5 indicator lights will blink.
Updating
If an update fails to complete, your Lepton's LED indicator lights may cycle back and
forth repeatedly, from left to right, and your Lepton no may longer respond to taps,
charging, or resets.
Alarms
When a silent alarm goes off, the Lepton vibrates and the center light flashes.
Charging your Lepton
Your Lepton comes equipped with a rechargeable lithium-polymer battery.
With normal use, your Lepton should last about five days before needing a charge. You
can check the level of your battery by logging in to Fitbit.com and clicking on the gear
icon on the top-right corner of the page.
To charge your Lepton, plug the charging cable into the USB port on your computer.
Remove the tracker from the wristband, and insert it into the charging cable, with the
LED indicator lights facing up.
10
The LED indicator lights will progressively illuminate on your Lepton as it charges. Each
light represents 20% of the maximum charge. Once all five lights pulse in unison, your
Lepton will be fully charged. Charging completely can take up to three hours.
11
Tracking your Fitness with Lepton
Your Lepton tracks:
• Steps taken
• Calories burned
• Distance traveled
• Active minutes
• Time asleep
• Number of times awoken
Setting goals with Lepton
Your Lepton is designed to track your progress towards the fitness goal you choose.
Goals can be set for steps taken, calories burned, or distance traveled.
To choose the specific goal you want to track:
1. Log in to your Fitbit.com dashboard and click the gear icon in the top right
corner.
2. Click Settings > Devices.
3. Under Daily Goal Progress, choose the goal you would like to track.
4. Sync your Lepton to send the new goal to your tracker.
Note: Your Lepton starts tracking your goal for the next day at midnight, according to
the time zone you’ve selected for your account. The reset that occurs at
midnight does not delete the previous day’s data; all your data will appear on
your dashboard when you sync your tracker.
Once you’ve chosen which goal you want to track, you can set a specific value for that
goal on the Fitbit.com dashboard page or using the Fitbit app for mobile. For example,
instead of the default 10,000 steps per day, you may want your goal to be 15,000 per
day. To change your goal value using your Fitbit.com dashboard:
1. Find the tile that corresponds to your goal.
2. Click the gear icon in the lower left corner of the tile.
3. Change your Daily Goal value.
12
Checking your goal progress
Tap your Lepton twice to see the LED indicator lights indicate your progress towards
your goal.
Each fully lit indicator represents 20% of your total goal. A blinking light shows the
current segment of the goal you’re working on.
In the example below, two lights are solid and the third is blinking. This means you’ve
achieved between 40% and 60% of your overall goal.
13
When you reach your goal, your Lepton will vibrate and flash the LED indicator lights to
celebrate.
Tracking sleep with Lepton
Your Lepton can track the length and quality of your sleep to help you improve your
sleeping habits.
To enter sleep mode, tap your Lepton rapidly for one to two seconds. It will vibrate and
display two slowly dimming lights to indicate that sleep mode has begun.
NOTE: During sleep mode, your Lepton will not display goal progress if you double
tap. Instead, it will alternate two blinking lights, back-and-forth, to indicate
that you are in sleep mode.
When you wake up, tap your Lepton rapidly for one to two seconds to exit sleep mode.
Upon exiting sleep mode, your Lepton will vibrate and flash all five LED indicator
lights.
If you forget to put your Lepton into sleep mode, you can always enter your sleep time
at http://www.fitbit.com/sleep. After creating a record, you will be able to view your
sleep efficiency. You can view your sleep data on the Fitbit.com dashboard or in the
Fitbit mobile app. If you choose, you can also set a goal for number of hours slept.
Using silent alarms
You can set up to eight gently vibrating silent alarms on your Lepton. Silent alarms can
be configured to recur every day, or on particular days of the week.
14
Setting silent alarms from a computer
You can set silent alarms from your computer by using the Fitbit.com dashboard.
1. Log in to your Fitbit.com dashboard and click the gear icon in the top-right
corner of the page.
2. Click Settings.
3. Click Silent Alarms.
4. Click the Add Alarm button.
5. Enter the time you want the alarm to alert you.
6. Choose how often you want the alarm to occur:
a. Once – Your alarm will alert you at the specified time, and not repeat.
b. Repeats – Choose which days you want this alarm to repeat every week.
7. Click Save.
8. Sync your changes to your tracker:
a. Click the Fitbit Connect icon located near the date and time on your
computer.
b. Click Sync Now.
Setting silent alarms from an iOS device
To set silent alarms using the Fitbit app for iOS, first make sure Bluetooth is enabled in
your iOS settings.
1. Open the Fitbit app and tap Account.
2. Tap Silent Alarms.
3. Tap Set a New alarm.
4. Set the time by adjusting the click-wheel.
5. If applicable, tap the days of the week you want this alarm to repeat.
(for example, at 7:00 AM, every weekday)
6. Tap Save and then sync your tracker:
a. Make sure your Lepton is close to your mobile device.
b. In the app, tap Account > Lepton > Sync Now.
Setting silent alarms from an Android device
To set silent alarms using the Fitbit app for Android, first make sure Bluetooth is
enabled in your Android device settings and in the Fitbit app.
1. Open the Fitbit app and tap the menu button.
2. Tap Device Settings.
3. Choose Lepton.
4. Tap Silent Alarm.
15
5. Tap Add a new alarm.
6. Tap Next.
7. Tap Add a new alarm.
8. Tap the time to enter a time.
9. If you prefer, tap the Repeats checkbox and tap the days of the week you want
this alarm to repeat.
10. Tap Done.
11. Tap the Sync tracker to save alarms button.
Dismissing silent alarms
Your Lepton will vibrate and the LEDs will illuminate when your silent alarm goes off.
This notification will repeat three times or until dismissed. You can dismiss the alarm
by tapping a few times after the vibration has stopped.
You’ll know your alarm has been dismissed when one light appears in the middle of
your Lepton’s display, then slowly fades. If you do not dismiss the alarm, your Lepton
alarm will repeat in nine minutes.
16
Using your Fitbit.com Dashboard
Fitbit provides a free online tool — the Fitbit.com dashboard — to help you track,
manage, and evaluate your fitness progress. Use the dashboard to see your progress
towards goals, analyze details about specific activities or exercises, view historical
graphs, and log food.
Browser requirements
Browser
Mac Version
Windows
Version
Apple Safari
5.0.5 and higher
Not Supported
Google Chrome
12 and higher
12 and higher
Microsoft Internet Explorer
Not Supported
8 and higher
Mozilla Firefox
3.6.18 and higher
3.6.18 and higher
Adding and removing tiles
Information on the dashboard is organized by tile. Add or remove tiles to customize
the dashboard. If you remove a tile, you can add it back at any time.
To add a tile:
1. Click the grid icon on the upper left side of the dashboard.
2. Check the tile(s) you want to add, then click Done.
17
To delete a tile:
1. Hover over a tile until you see the gear icon at the lower left.
2. Click the gear icon, then click Remove Tile.
3. When prompted, confirm that you want to remove the tile.
Managing your Lepton from fitbit.com
To manage various settings for your account, click the gear icon in the top right corner
of your Fitbit.com dashboard and select Settings. From here you can edit your personal
information, your notification preferences, your privacy settings, and much more.
Click Devices to change the following settings for your Lepton:
• Daily Goal Progress: Choose which goal you want your Lepton to display when
checking your progress. You can edit the value of this goal from the Fitbit.com
dashboard.
• Dominant Hand: Choose which wrist you wear your Lepton on to get the most
accurate data readings.
• Sleep Tracking: Set the sensitivity of your sleep. The Normal setting is sufficient
for most people. If you are a sound sleeper, you can choose Sensitive to capture
the smallest movements of your body.
Your changes will take effect after you sync your tracker.
18
Updating your Lepton
Free feature enhancements, product improvements, and bug fixes are occasionally
made available through firmware updates. You can update your Lepton on your
computer using Fitbit Connect, or by using a Fitbit mobile app. We recommend
keeping your Lepton up to date.
Updating Lepton using a computer
To update your Lepton on a Mac or PC.
1. Make sure your wireless sync dongle is plugged in and that your Lepton is
charged.
2. Click the Fitbit Connect icon near the time and date on your computer.
3. Click Open Main Menu.. and then click Check for device update.
4. Log in to your account using your Fitbit.com credentials. Fitbit Connect will now
look for your Lepton. You can make Lepton easier to find by tapping it twice to
wake it up.
5. If an update is found for your Lepton, Fitbit Connect displays a progress bar
representing the update’s progress. Keep your Lepton close to your computer
during the update.
You’ll receive a notification when the update is complete. If you have trouble updating
your Lepton, see http://help.fitbit.com.
Updating Lepton using an iOS device
To update your Lepton from an iOS device:
1. Make sure your Lepton is charged and then open the Fitbit app on your iOS
device.
2. Tap your tracker name at the top of the app dashboard. You'll be taken to your
tracker's device settings page.
3. Tap Sync Now.
4. Tap the Update Available button at the top of the page. The option only appears
if a update is available.
Make sure your Lepton remains near your mobile device during the update. You
can make your Lepton easier to find for your mobile device by tapping it twice
to wake it up.
19
You’ll receive a notification when the update is complete. If you have trouble updating
your Lepton, see http://help.fitbit.com for more information.
Updating Lepton using an Android device
To update your Lepton from an Android device:
1. Make sure your Lepton is charged and then open the Fitbit app on your Android
device.
2. Tap the Menu button.
3. Tap Device.
4. Choose Lepton from the menu, then keep your Lepton close to your mobile
device while the app searches for it. You can make Lepton easier to find by
tapping it twice to wake it up.
5. Tap the Update Available button at the top of this screen. If this option doesn’t
appear, no update is available.
You’ll receive a notification when the update is complete. If you have trouble updating
your Lepton with the Fitbit app for Android, see http://help.fitbit.com for more
information.
20
Restarting your Lepton
Restarting your Lepton turns it off and then back on, which may fix any of the
following problems if they happen to occur:
• Your Lepton is not syncing
• Your Lepton is not responding to movement
• Your Lepton isn’t tracking your steps
• Your Lepton isn't responding to taps
To restart your Lepton:
1. Remove the tracker from the wristband.
2. Plug your charging cable into the USB port and insert your tracker into the
charging cable.
3. Insert a paperclip into the small pinhole on the back of the charger.
4. Press on the pinhole for 3-4 seconds. Your Lepton will restart and you can put it
back in the wristband.
If restarting your Lepton doesn’t resolve your issue, go to https://help.fitbit.com/ and
click the Lepton image. From here you can browse or search for troubleshooting
information or contact Customer Support if you don’t find what you’re looking for.
21
Fitbit Lepton General Info &
Specifications
Sensors and motors
Your Lepton uses a MEMS 3-axis accelerometer that measures your motion patterns to
determine your calories burned, distance traveled, steps taken, and sleep quality.
Lepton also contains a vibration motor, which allows it to vibrate when alarms go off.
Size and weight
Length
Width
Weight
Small wristband (incl. tracker)
5.5 – 6.9 in
140 – 176 mm
0.6 in
13.99 mm
13.4 grams
Large wristband (incl. tracker)
6.3 – 8.2 in
161 – 209 mm
0.6 in
13.99 mm
14.6 grams
Environmental conditions
Operating Temperature
-4° to 113° F
(-20° to 45° C)
Non-operating Temperature
-22° to 140° F
(-30° to 60° C)
Water Resistant
Device is water resistant and can be submerged
up to 10 meters.
Maximum Operating Altitude
30,000 feet
(9,144 m)
22
Help
Troubleshooting and assistance for your Lepton can be found at http://help.fitbit.com.
Return policy and warranty
Warranty information and the Fitbit.com Store Return Policy can be found online at
http://www.fitbit.com/returns.
!
23
Regulatory & Safety Notices
Model Name: FB406
USA: Federal Communications Commission (FCC)
statement
This device complies with FCC part 15 FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that
may cause undesired operation
FCC Warning
Changes or modifications not approved by Fitbit, Inc. could void the user’s authority to
operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device meets the FCC requirements for RF exposure in public or uncontrolled
environments.
FCC ID: XRAFB406
24
Canada: Industry Canada (IC) statement
This device meets the IC requirements for RF exposure in public or uncontrolled
environments.
Cet appareil est conforme aux conditions de la IC en matière de RF dans des
environnements publics ou incontrôlée
IC Notice to Users in accordance with RSS GEN Issue 3:
This device complies with Industry Canada license exempt RSS standard(s). Operation
is subject to the following two conditions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause
undesired operation of the device
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s).
Son utilisation est soumise à Les deux conditions suivantes:
1. cet appareil ne peut pas provoquer d’interférences et
2. cet appareil doit accepter Toute interférence, y compris les interférences qui
peuvent causer un mauvais fonctionnement du dispositive
IC ID: 8542A-FB406
European Union (EU)
Declaration of Conformity with Regard to the EU Directive 1999/5/EC
Fitbit Inc. is authorized to apply the CE Mark on SURGE, Model FB501, thereby
declaring conformity to the essential requirements and other relevant provisions of
Directive 1999/5/EC and other applicable Directives.
Compliant with the standard R&TTE 99/CE/05
Conforme à la norme R&TTE 99/CE/05
25
Australia and New Zealand
!
R-NZ
Mexico
IFETEL: TBD
Israel
TBD!המאתה!רושיא!
.צומהר!לש!יראלודומה!קלחב!ינכט!יוניש!לכ!עצבל!ןיא
Serbia
South Africa
TBD
26
South Korea
클래스B장치(가정사용을위한방송통신기기):EMC등록주로가정용(B급)으로하고,모든지역에서사용할수있습니다
얻을이장치.
-.사용주파수(Usedfrequency):2402MHz-2480MHz
-.채널수(Thenumberofchannels):40
-.공중선전계강도(Antennapower): -2.22dBi
-.변조방식(Typeofthemodulation):Digital
-.안테나타입(Antennatype):Vertical
-.출력(Outputpower): -2.22dBm
-.안테나종류(TypeofAntenna):StampedMetal
KCCapprovalinformation
1)Equipmentname(modelname):무선데이터통신시스템용특정소출력무선기기FB406
2)Certificatenumber: MSIP-CMM-XRA-FB406
3)Applicant:Fitbit,Inc.
4)Manufacture:Fitbit,Inc.
5)Manufacture/Countryoforigin:P.R.C.
5)Manufacture/Countryoforigin:P.R.C.
Singapore
TBD
27
Taiwan
Wireless sync dongle
LEPTON
注意！!
依據 低功率電波輻射性電機管理辦法
第十二條!經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能!
第十四條!
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，
並改善至無干擾時方得繼續使用。!
前項合法通信，指依電信法規定作業之無線電通信。!
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Russia
CUSTOMS UNION CERTIFICATION
TBD
28
United Arab Emirates
TBD
29
Safety statement
This equipment has been tested to comply with safety certification in accordance with
the specifications of EN Standard: EN60950-1:2006 + A11:2009 + A1:2010 + A12: 2011.
Important safety instructions
Cautions
• Prolonged contact may contribute to skin irritation or allergies in some users. If
you notice any signs of skin redness, swelling, itchiness, or other skin irritation,
please discontinue use or wear the product clipped over a piece of clothing.
Continued use, even after symptoms subside, may result in renewed or
increased irritation. If symptoms persist, consult your doctor.
• The device contains electrical equipment that could cause injury if not handled
properly.
• This product is not a medical device, and is not intended to diagnose, treat,
cure, or prevent any disease.
• Maps, directions, and other GPS or navigation data, including data relating to
your current location, may be unavailable, inaccurate, or incomplete.
• Consult your doctor before beginning or modifying any exercise program.
• Consult your doctor before use if you have any preexisting conditions that
might be affected by your use of this Fitbit product.
• Do not check call notifications or other data on the product’s display while
driving or in other situations where distractions could be hazardous.
• This product is not a toy. Do not allow children or pets to play with your Fitbit
product. The product contains small components that can be a choking hazard.
• Your Surge is sweat-proof, rain-proof, and water-resistant. You can wear it
while working out and doing activities such as washing your hands or doing the
dishes. Remove your Surge before showering or swimming.
• PurePulse™ products have a heart rate tracking feature that may pose risks to
users with certain health conditions. Consult your doctor prior to use if you:
o Have a medical or heart condition.
o Are taking any photosensitive medicine.
o Have epilepsy or are sensitive to flashing lights.
o Have reduced circulation or bruise easily.
Care and wearing tips
30
• Clean and dry your Fitbit product regularly, particularly in areas in contact with
the skin. Use a clean, damp cloth. Do not wash the product under a faucet.
• Wear your Fitbit product loosely enough to allow air circulation.
• Use skin care products sparingly on the areas of the skin covered by your Fitbit
product.
• Take the product off from time to time to clean it and allow for your skin to be
uncovered.
• Do not open the enclosure or disassemble your Fitbit product.
• Do not use your Fitbit product if the display is cracked.
• Substances in this product and its battery may harm the environment or cause
injury if handled and disposed of improperly.
• Do not place your Fitbit product in a dishwasher, washing machine, or dryer.
• Do not expose your Fitbit product to extremely high or low temperatures.
• Do not use your Fitbit product in a sauna or steam room.
• Do not leave your Fitbit product in direct sunlight for an extended period of
time.
• Do not dispose of your Fitbit product in a fire. The battery could explode.
• Do not use abrasive cleaners to clean your Fitbit product.
• Do not wear your Fitbit product while charging it.
• Do not charge your Fitbit product while it is wet.
• Remove your Fitbit product if it feels warm or hot.
Built-in battery precautions
• Your Fitbit product features a built-in battery, which is not user replaceable.
Tampering with your product or attempting to open it will void the warranty and
can result in a safety hazard.
• Use only the charger cable that shipped with your product to charge the battery.
• Charge the battery using a computer, powered hub, or power supply that is
certified by a recognized testing laboratory.
• Charge the battery in accordance with the instructions supplied with this guide.
• Your product uses a California Energy Commission battery charger.
Disposal and recycling information
The symbol on the product or its packaging signifies that this product must be
disposed of separately from ordinary household wastes at its end of life. Please kindly
be aware that it is your responsibility to dispose of electronic equipment at recycling
centers to help conserve natural resources.
31
Each country in the European Union should have its collection centers for electrical and
electronic equipment recycling. For information about your recycling drop off point,
please contact your local related electrical and electronic equipment waste
management authority or the retailer where you bought the product.
• Do not dispose of your Fitbit product with household waste.
• Disposal of the packaging and your Fitbit product should be done in accordance
with local regulations.
• Batteries are not to be disposed of in the municipal waste stream and require
separate collection.
!
!
!
