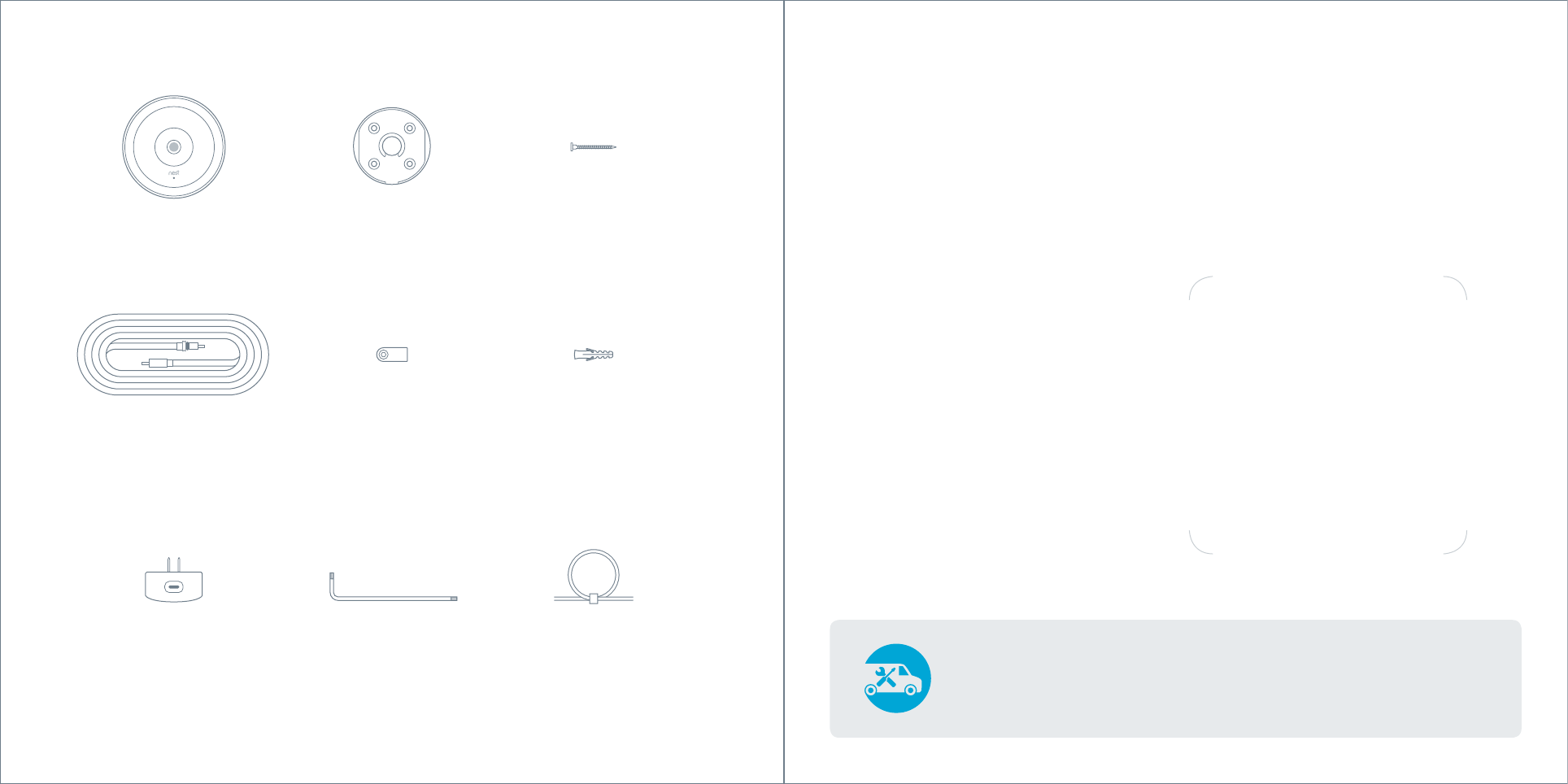

In the box.
• Wi-Fi and a working broadband internet
connection with at least 2 Mbps upload
speed. DSL connections may not have
enough bandwidth.
• A compatible phone or tablet
with Bluetooth 4.0
• A Nest Account
• An indoor power outlet
• A power drill with Phillips driver bit
What you’ll need.
Other items you may need
• Drill bits (3/32" for pilot holes, 7/32" for wall
anchors, 1/2" for cable hole)
• Caulk to seal the wall plate
Drilling template
Want a Pro to do it for you?
We can connect you with an independent installer who’s been trained
to install Nest products. Find a local Nest Pro at nest.com/install
8 cable clips
Power cable strap
Camera Wall plate
Hex keyIndoor power adapter
Outdoor power cable (25 feet) 12 wall anchors
12 Nest screws
IMPORTANT: Nest Cam IQ’s power adapter is not
weatherproof and should only be plugged into an
indoor outlet.
FOR REFERENCE ONLY
FOR REFERENCE ONLY
6 7
2. Connect it to the app
If you’re new to Nest:
• Get the Nest app from the App Store® or
Google Play®
.
• Open the app and tap “Sign up” to create
an account.
• Then tap Add.
If you already have a Nest Account:
• Tap the Settings icon in the top-right corner
of the app home screen.
• Then tap “Add product”.
The app will guide you through a few steps.
You’ll scan the camera’s QR code, name your
camera, and connect it your Wi-Fi network.
If you need help, go to nest.com/pair
3. Test your camera’s video
streaming outside
Keep your camera plugged into an outlet and take
it outside. Hold it where you’d like to mount it
and check to make sure it’s streaming video to
the Nest app.
If you don’t see video, the Wi-Fi may not be strong
enough there – you’ll need to find a different spot
or move your Wi-Fi router.
→ See location tips on the next page.
Do this first.

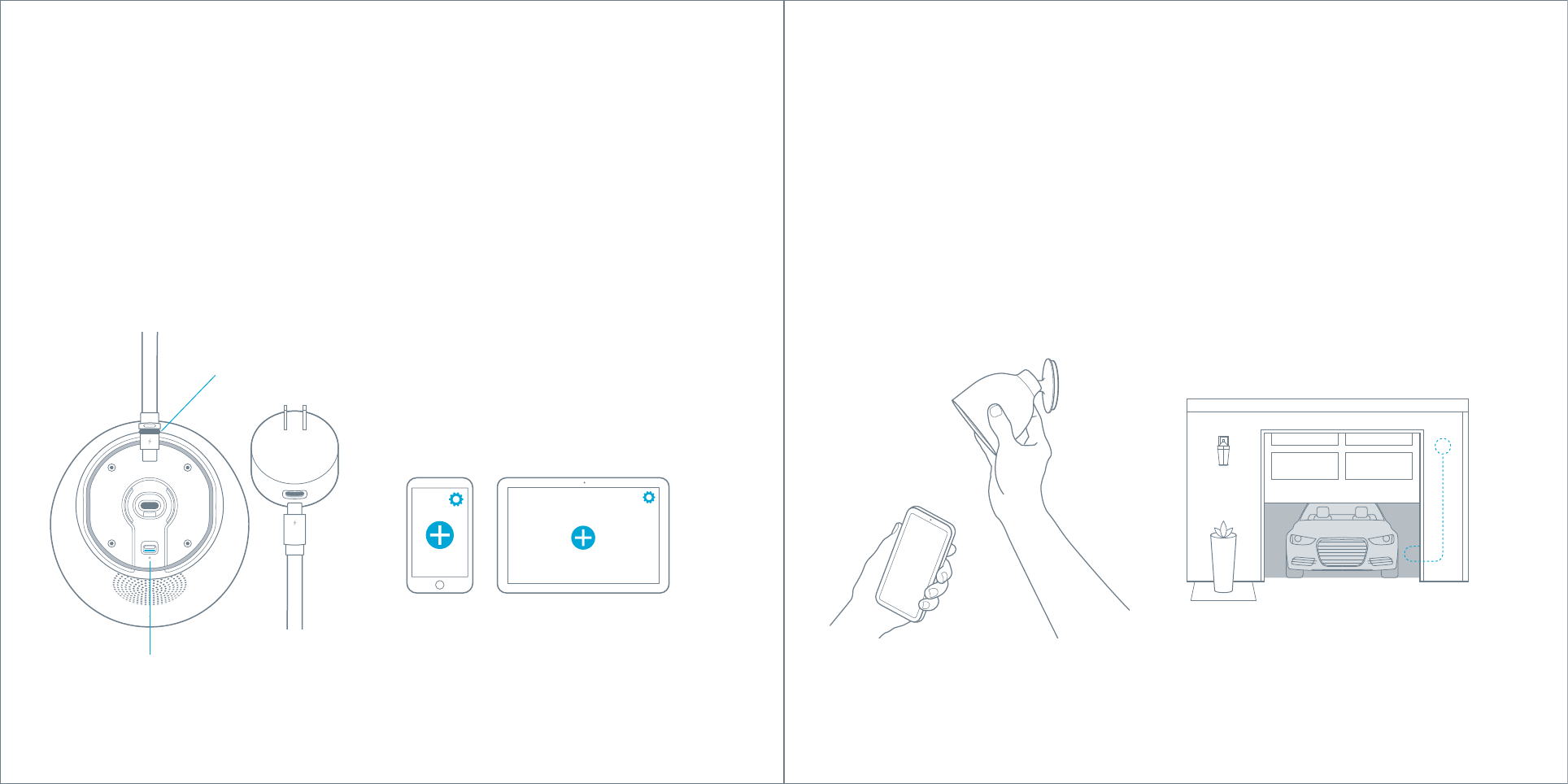

1. Turn on Nest Cam IQ indoors
Start by turning on your camera inside your home
to get it set up before you take it outside.
Plug the end of the power cable with the gray
ring into the base of your camera. It will click
into place.
Plug the other end into the power adapter.
Then plug the adapter into an indoor power outlet
close to your Wi-Fi router. Your Nest Cam IQ will
turn on and its light ring will turn blue.
4. Plan the cable path
Before you mount your camera, measure the
cable along the route where you’ll be installing
it. You can disconnect your camera from the
cable to make it easier to measure.
If there’s an existing opening, you may be able
to run the cable through it to the outside. If not,
you can use a ½" bit to drill a hole for the cable.
Make sure you know where all in-wall pipes
and electrical wires are before drilling.
IMPORTANT: Push the latch
to unlock the cable
before trying to remove it.
Connect the end
with gray ring.
FOR REFERENCE ONLY
FOR REFERENCE ONLY
360°
360°
360°
65°

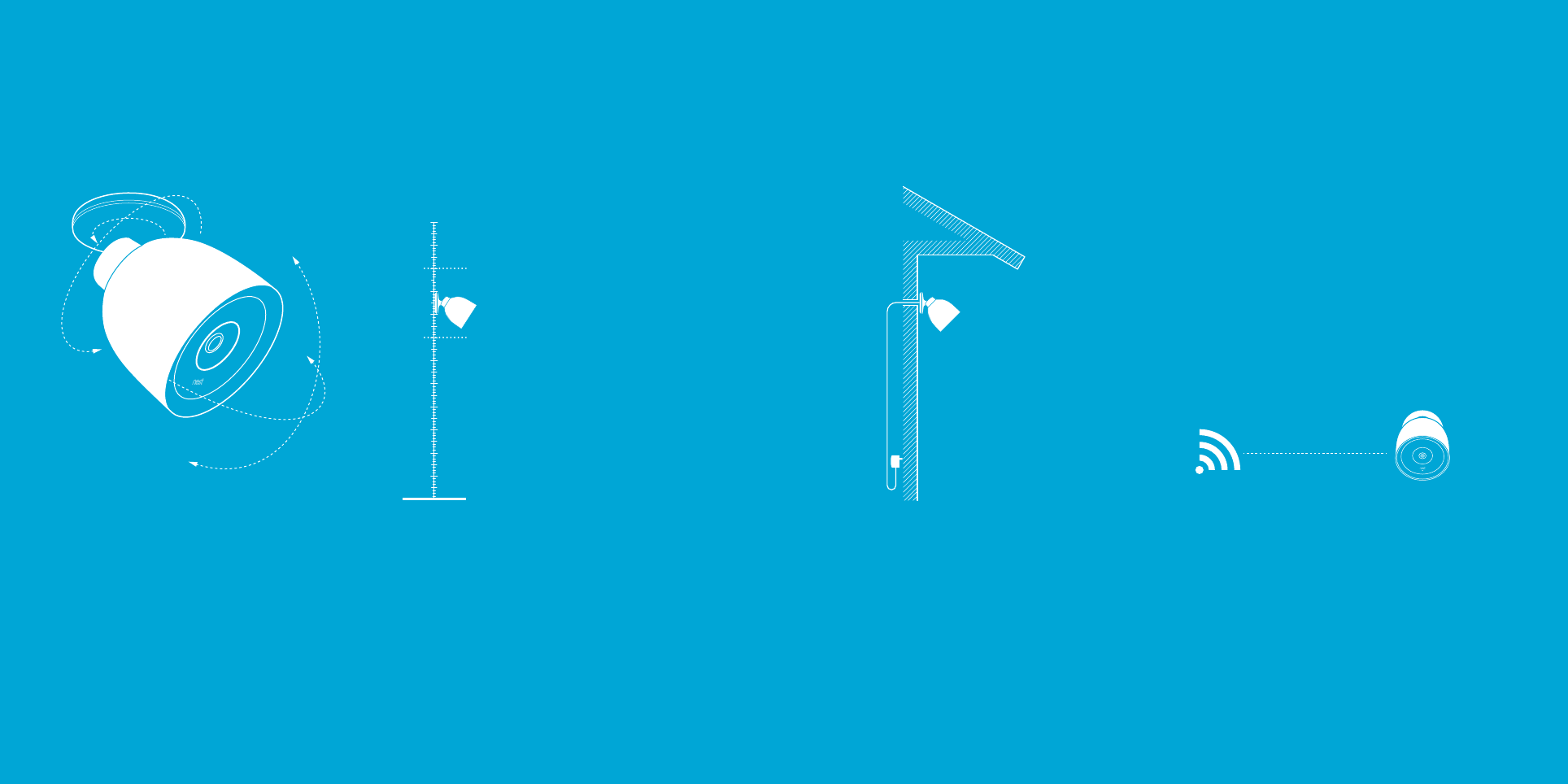

Choose a good spot.
Keep it in range of your router
Make sure to pick a place within range of your
network. Thick or insulated walls can greatly
reduce Wi-Fi signal strength even if your router
is close by. So you should test streaming video
with the app before you mount your camera.
Learn more at nest.com/wifihelp
Consider the view
Nest Cam IQ has a wide 130-degree field of
view and a fully articulating hinge, so you
can mount it almost anywhere you want and
point it in any direction. Typically, you should
install it where it can look over a large area of
your property: over the garage or patio, or
your back, side or front doors. You can also
use the Nest app to zoom and enhance the
view to get it exactly how you want.
Look for a nearby indoor outlet
Nest Cam IQ has a 25 foot (7.5 m) outdoor-
rated power cable that is designed to be
easily routed through or along a wall to
an indoor power outlet. Look for an outlet
that’s close to where you want to install
your camera.
Install it just above head height
7 to 10 feet above the ground, tilted downward,
is best — this is high enough to let you see people’s
faces and talk to them with the camera’s speaker
and microphone.
1'
2'
3'
4'
5'
6'
7'
8'
9'
10'
11'
12'
10 11

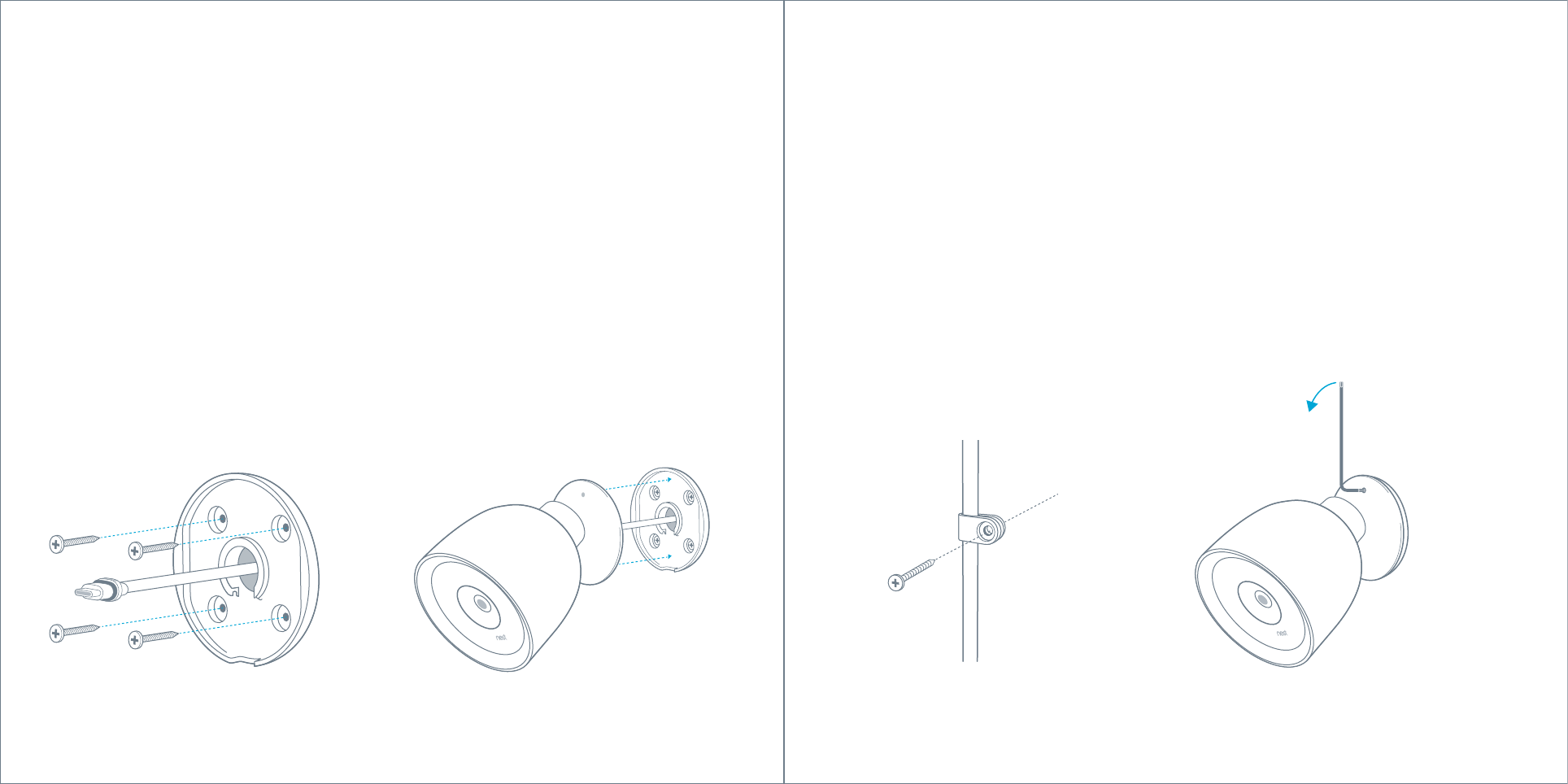

5. Install the wall plate
Use a 3/32" drill bit and the template on page 5
as a guide for drilling pilot holes for the screws.
If the wall is made of a hard material like brick
or stucco, you may need to use the included
wall anchors to hold the screws. Use a 7/32"
bit for the anchors.
Spread caulk around the edge of the wall plate
before installing to seal it. Leave a small open
space at the bottom for water to drain out.
• If you’re installing the camera directly over
the cable hole (see illustration), mount the
wall plate over the hole and route the cable
through the center hole.
• If you’re running the cable along the wall
before it goes inside, mount the wall plate
where you want and route the cable through
the notch in the wall plate.
7. Install the cable
Secure the cable using as many of the
included cable clips as you need.
For a clean looking installation, try to route
the cable along a ledge or corner. You can
also paint the cable and the clips to match
your home. Do not paint the camera.
6. Attach the camera
• Plug the end of the power cable that has the
gray rubber ring into the base of your camera.
It will click into place.
• Then push the camera base into the wall
plate until it clicks into place.
• Your Nest Cam will turn on and reconnect
to Wi-Fi.
• Check your camera’s video feed with the
Nest app and adjust the camera angle
if needed.
Mount your camera.
Using your Nest Cam
For help getting started, learning about
Nest Cam IQ features, tips and more, go
to nest.com/camerabasics
IMPORTANT: If you ever need to unmount
your camera, you can use the included
hex key to disconnect it from the wall plate.
