User manual 1
Nest Protect™(Battery)
Detects smoke and carbon monoxide (CO)
User’s Guide
ATTENTION: Please read carefully and keep this user’s guide in a safe place.
32
Want to see how it’s done? Go to nest.com/installprotect for installation videos and tips.
First, a word about privacy.
We’re committed to being open and honest about how
we use data. We will always ask for permission before
sharing personally identifiable information like your
email address, and we keep your data safe with the
same security tools banks use. Go to nest.com/privacy
to learn more about our Privacy Policy.
TABLE OF CONTENTS
Meet your Nest Protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setup and installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Location in your home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Placement on the ceiling or wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Heads-Up and Emergency Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Daily Use and Emergency Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
General Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

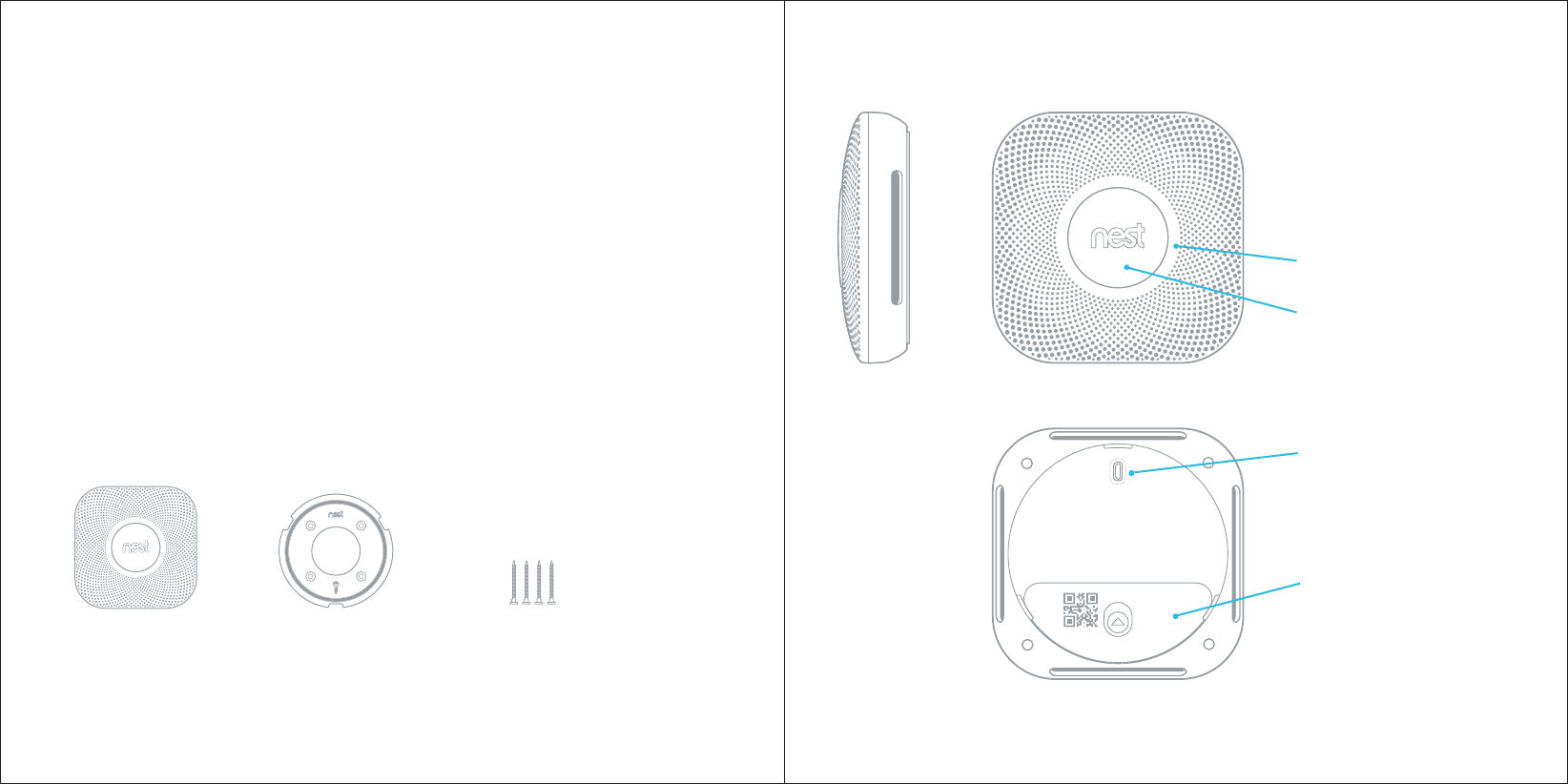

Inside the box you’ll find:
5.3 in
(13.5 cm)
1.5 in
(3.9 cm)
The horn enables
Nest Protect to alert
you with a loud
emergency sound.
The speaker allows
Nest Protect to speak
with a human voice.
The light ring changes
color to alert you.
Push the Nest button to
hush alarms or run a test.
Micro-USB connector
(not for normal use).
Battery compartment:
Six AA Energizer®
Ultimate Lithium
batteries (L91).
Nest Protect Backplate 4 mounting screws
54
MEET YOUR NEST PROTECT
Nest Protect is designed to detect smoke and
carbon monoxide in a residential environment.
It has multiple sensors to help it understand
what’s happening in your home, including
a Split-Spectrum Sensor to detect a wide range
of slow-smoldering and fast-flaming fires.
This guide covers the installation of Nest Protect
(Battery) - Model number 06A.
REQUIREMENTS
You need Wi-Fi, an iOS or Android phone or
tablet, and a free Nest Account in order to
use some Nest Protect features: spoken room
names, wireless mobile notifications, and
software updates. During setup, Wi-Fi and
a free Nest Account are required for wireless
interconnect and room naming. After all the
Nest Protects in your home are connected,
they can communicate with each other
without Wi-Fi.
Already added New
76
SETUP AND INSTALLATION

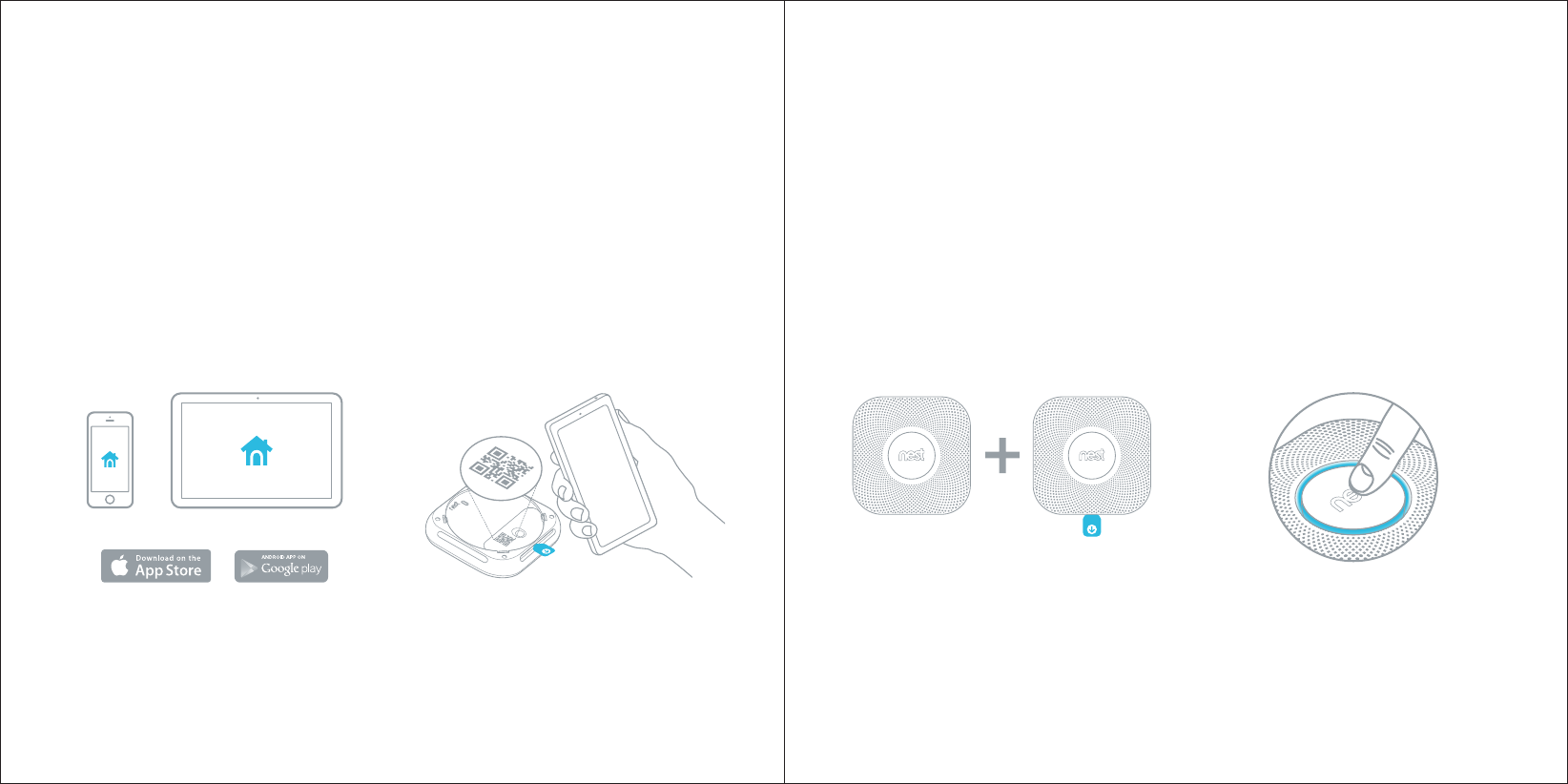

1. Get the Nest app
Before you install your Nest Protect on the
ceiling or wall, you’ll need to set it up with
the Nest app. Download the app from the
Apple App Store™ or Google Play™ and create
a free Nest Account. You can use a phone or
tablet for setup.
Tip: Lay everything out on a table for easy setup.
4. Test before you install
Once you’re done setting up all of your Nest
Protects, make sure they’ve been added to
your Nest Account. Push the Nest button on
one Nest Protect and follow the instructions.
All of your Nest Protects should speak up.
Now you can install them on the ceiling or wall.
Tip: To double check Nest Protect’s room name,
press the Nest button once. You’ll hear the location
you assigned it during setup. It’ll say something like,
“Ready in the bedroom.”
2. Set up Nest Protect
The Nest app will guide you through each
step: scanning the Nest Protect QR code,
connecting it to the Internet, and connecting
it to other Nest Protects in your home. Go to
nest.com/installprotect to watch the video.
Tip: Your Nest Protect came packed in a plastic cover.
Keep the cover on so your Nest Protect stays clean
until you install it.
3. Have more Nest Protects?
The Nest app will ask if you have more
Nest Protects to set up. If you do, it’ll take
you through a faster setup. Be sure to
keep all your Nest Protects together until
they’re all set up and ready to be installed.
BEDROOM MASTER
BEDROOM
LIVING/
FAMILY
ROOM
KITCHEN
GARAGEBASEMENT
HALL
ATTIC
1
22
98
5. Remove your old smoke alarm
You may have to twist the alarm to release it.
Carefully remove it to keep from damaging
your ceiling or wall. Unscrew and remove the
backplate if there is one.
6. Install the Nest backplate
Screw the Nest backplate to the ceiling
or wall using the included screws.
Tip: Your old smoke alarm might make a loud noise
when you disconnect it. Tip: All smoke alarms prefer to live in a dust free area,
so remove any dust before you install Nest Protect.
Location in your home
The National Fire Protection Association
(NFPA) recommends installing a smoke
alarm in the following areas:
• On every floor, including finished attics
and basements.
• Inside and outside every sleeping area.
• At the top of the first-to-second floor
stairway and on the basement ceiling near
the entry of the stairs.
• In homes with more than 1,000 square feet
(93 m2) on one level, additional alarms may
be required.
Nest Protect should be installed at
least 10 feet (3 m) away from cooktops
or cooking appliances.
Nest Protect should NOT be installed
in unfinished attics or garages.
NOT IN
THIS AREA
ANYWHERE IN
THIS AREA
NOT IN
THIS AREA
ANYWHERE IN
THIS AREA
NEST LOGO
IS UPRIGHT
4 in
(10cm)
4 in
(10cm)
3 ft
(0.9 m) 3 ft
(0.9 m)
3 ft
(0.9 m)
Figure 2
Figure 3
Figure 4
12 in
(30.5 cm)
Maximum
BEST
HERE
4 in
(10 cm)
Minimum
4 in
(10 cm)
Minimum
NOT IN
THIS AREA
CEILING
SIDE
WALL
OKAY
HERE
NEST LOGO
IS UPRIGHT
Figure 1
1
1
2
2
1110

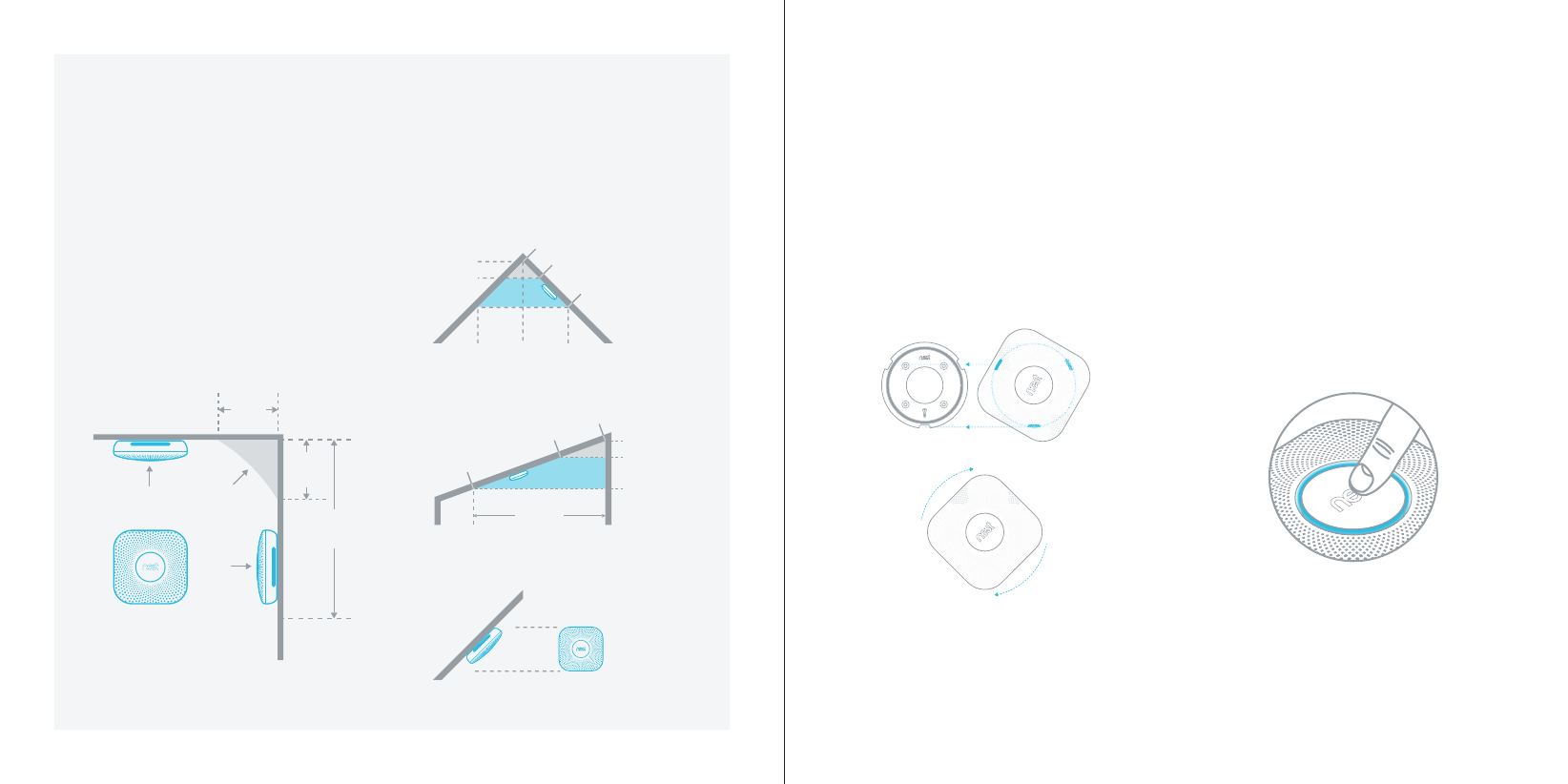

Placement on the ceiling or wall
Installing on the ceiling is recommended.
Mark where the screws will go using the
base as a guide. Make sure it’s at least
4 inches (10 cm) away from the wall.
Placement on a sloped ceiling
If you have a sloped, peaked or cathedral
ceiling, Nest Protect should be 4 inches to
3 feet (10 cm – 1 m) from the highest point.
7. Install your Nest Protect
Line up the three tabs on the back of your
Nest Protect with the notches on the backplate.
Hold Nest Protect against the backplate and
turn it clockwise. Continue turning until it’s
square with the wall or ceiling. Install the rest
of your Nest Protects if you have more.
Tip: If you ever need to remove your Nest Protect
(for cleaning or battery replacement), turn it
counterclockwise until it disconnects from
the backplate.
8. Press to test
Press the Nest button on one Nest Protect.
It will tell you what to do next. Every
Nest Protect in the house should speak
up, confirming that they’re connected to
each other.
WHAT YOU HEAR
ALERTSSILENCING
WHAT IT MEANS WHAT TO DO
“HEADS-UP. THERE’S
SMOKE IN THE [ROOM
NAME]. THE ALARM
MAY SOUND.”
Smoke levels are rising. Put out the source of the
smoke. Then use the Nest
app or press the Nest
button to hush the alert.
Open a window or door
to get fresh air. Then use
the Nest app or press
the Nest button to hush
the alert.
Get out of the house
immediately.
Make sure you’re safe and
have put out the source of
smoke or carbon monoxide.
Make sure you’re safe and
have put out the source or
smoke or carbon monoxide.
1) Operate reset/silence
button (Nest button).
2) Call your fire dept. or 911.
3) Move to fresh air.
4) Do not reenter the
premises until the
emergency services tell
you to. Refer to page 25
for complete instructions.
Carbon monoxide
levels have been high
for a while.
You’ve hushed an alert.
Nest Protect will now
keep quiet, unless smoke
or carbon monoxide
remains at critical levels.
Smoke or carbon
monoxide levels
are decreasing.
The carbon monoxide in
the room has reached
critical levels.
“HEADS-UP. THERE’S
CARBON MONOXIDE IN
THE [ROOM NAME]. THE
ALARM MAY SOUND.”
(Alarm sound)
“EMERGENCY. THERE’S
CARBON MONOXIDE IN
[ROOM NAME]. MOVE TO
FRESH AIR.”
(Alarm sound)
“EMERGENCY. THERE’S
SMOKE IN [ROOM NAME]”
“SMOKE ALARM HUSHED.”
“CARBON MONOXIDE
ALARM HUSHED.”
“THE ALARM IS OVER.”
YELLOW pulses.
YELLOW pulses.
RED pulses.
RED pulses.
YELLOW or
RED pulses.
GREEN pulses.
WHAT YOU SEE
HEADSUP AND EMERGENCY ALARMS
The smoke in the
room has reached
critical levels.
1312
HEADSUP AND EMERGENCY ALARMS
SILENCING
Heads-Up alerts and some Emergency Alarms
can be hushed by using the Nest app or
pressing the Nest button. In some cases, the
smoke level may be too high for the Emergency
Alarm to be hushed. Only silence an alarm
once you have checked conditions at the Nest
Protect that first sounded the alarm. Do not
silence Nest Protect by removing the batteries.
This will disable the alarm so it cannot sense
smoke or carbon monoxide, leaving you at risk.
Because there are many different types of
fires, you may experience an Emergency Alarm
without having first experienced a Heads-Up
alert. This means that critical levels of smoke or
CO occurred extremely quickly and Nest Protect
has to sound the Emergency Alarm.
HAVE MORE THAN ONE NEST PROTECT?
After all the Nest Protects in your home are
connected to each other, if there’s a Heads-Up
or an Emergency Alarm in one room, they’ll all
tell you what the danger is and which room it’s in.
If multiple Nest Protects are interconnected,
a Heads-Up alert or Emergency Alarm can be
silenced only at the Nest Protect that originally
sounded the alert. You’ll need to go to that room
to silence all the Nest Protects in your home.
Always check the conditions near the Nest
Protect that first detected the smoke or carbon
monoxide before silencing it.
ALERTS
When Nest Protect has something to say, it
will speak to you in words and light up instead
of just beeping. Nest Protect has two kinds of
voice alerts: Heads-Up and Emergency Alarms.
When smoke or carbon monoxide levels are
heightened but haven’t yet reached Emergency
Alarm levels, Nest Protect can sound a Heads-Up
as an early warning. Nest Protect will pulse
yellow and tell you where there’s smoke or
carbon monoxide.
You’ll get an Emergency Alarm when smoke or
carbon monoxide reach critical levels. Nest
Protect will pulse red, sound a loud alarm, and
tell you what room the emergency is in. If there’s
both smoke and CO present, the smoke alarm
will take priority.

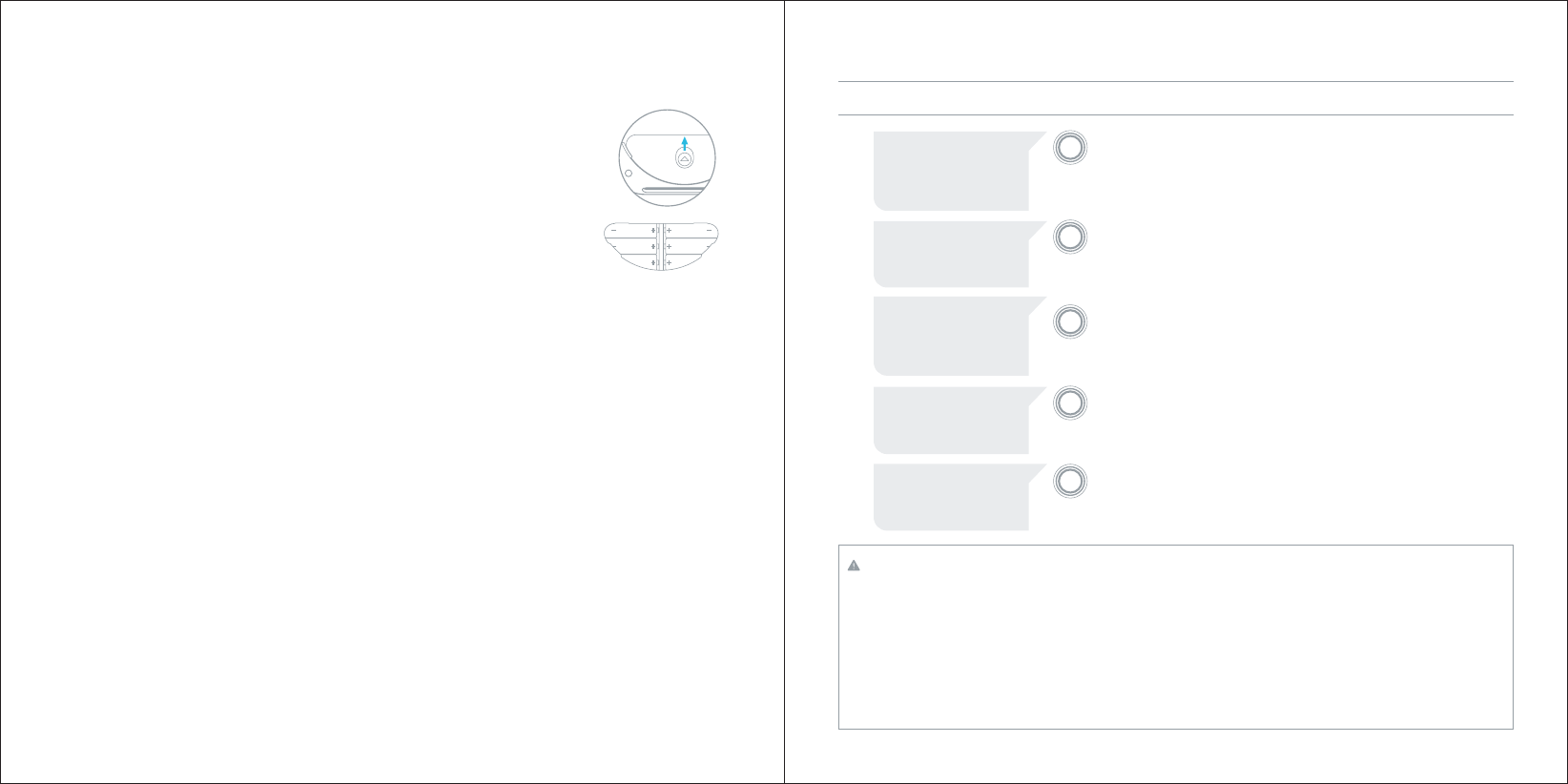

DAILY USEEMERGENCY
PREPARATION
You turn off the
room lights for
the night, and
the GREEN light
pulses once.
WHITE light.
BLUE rotates.
Sleep well thanks to
Nightly Promise.
Press the Nest button.
Nest Protect will walk
you through next steps.
Nest Protect has tested
its sensors and batteries
to confirm they are
working correctly.
Pathlight lights your way at
night as you pass under it.
To set up or run
a manual test.
“READY. PRESS TO TEST.”
WHAT YOU HEAR WHAT IT MEANS WHAT TO DOWHAT YOU SEE
DAILY USE AND EMERGENCY PREPARATION
WARNING
• DO NOT stand close to the alarm when
the horn is sounding. Exposure at close
range may be harmful to your hearing.
When testing, step away before the
horn starts sounding.
• If the alarm ever fails to test correctly,
have it replaced immediately! If the alarm
is not working properly, it cannot alert you
to a problem.
• DO NOT use a match, cigarette or any other
makeshift fire to test the smoke alarm.
• To test the CO alarm, NEVER use vehicle
exhaust! Exhaust may cause permanent
damage and will void your warranty.
• NEVER use an open flame of any kind
to test this alarm. You might accidentally
damage or set fire to the unit or to
your home.
1514
DAILY USE
NIGHTLY PROMISE
Nest Protect continuously tests itself, so
you don’t have to wonder if it’s working.
Nightly Promise reports on every Nest Protect
in your home.
When you turn out the lights for the night,
Nest Protect will glow green for a moment -
that means everything is working. If it glows
yellow, one of the Nest Protects in your
home needs your attention. For instance, the
batteries are low, Wi-Fi is down, or there’s an
issue with the sensors. Just push the Nest
button or use the Nest app to see what’s wrong.
PATHLIGHT
Usually Nest Protect has its light turned
off, but it can light your way as you walk
underneath it in the dark. You can enable or
disable Pathlight and set its brightness with
the Nest app.
DAILY USE AND EMERGENCY PREPARATION
EMERGENCY PREPARATION
TESTING
Perform a manual test of your battery powered
Nest Protect at least weekly. During a test, all
interconnected Nest Protects in your home
check their sensors, power, Wi-Fi connection,
emergency horn, speaker and microphone.
When you run a test, Nest Protect will give you
a countdown before sounding the alarm so you
have time to move away from the loud noise.
Test procedure:
1. Start a test by pressing the Nest button twice.
2. Nest Protect will say: “This is only a test.
The alarm will sound.”
3. Ensure that the alarm sounds and the light
illuminates on each Nest Protect.
4. Once the Nest Protect has made sure it’s
working, it’ll tell you everything’s okay. If you
have interconnected Nest Protects, all of
them should speak.
GENERAL MAINTENANCE
YELLOW pulses. Low battery. Change the batteries
of Nest Protect now.
“THE BATTERY IS LOW IN
THE [ROOM NAME].
REPLACE THE BATTERY
NOW.” Single chirp
every 60 seconds.
Nest Protect has tested
its sensors and there is
a problem.
“THE SENSORS HAVE
FAILED IN THE [ROOM
NAME]. REPLACE NEST
PROTECT NOW.” Single
chirp every 60 seconds.
Nest Protect has expired
and reached the end of
its life.
Replace Nest Protect now.
“NEST PROTECT HAS
EXPIRED. REPLACE IT
NOW.” Two chirps every
60 seconds.
There’s a problem with
the horn of Nest Protect. Replace Nest Protect now.
“NEST PROTECT CAN’T
SOUND THE ALARM IN
THE [ROOM NAME].”Two
chirps every 60 seconds.
YELLOW pulses. Change the batteries
of Nest Protect soon.
Low battery.
“THE BATTERY IS LOW IN
THE [ROOM NAME].
REPLACE THE BATTERY
SOON.”
YELLOW pulses.
YELLOW pulses.
WHAT YOU HEAR WHAT IT MEANS WHAT TO DOWHAT YOU SEE
GENERAL MAINTENANCE
YELLOW pulses. Clean according to
instructions on page 16.
If the problem persists,
replace Nest Protect.
3
2
1
6
5
4
3
2
1
6
5
4
2. Open the battery door on
the back of Nest Protect.
3. Replace the batteries.
Align the + positive and
- negative ends with the
markings in the battery
compartment.
4. Close the battery compartment.
Do not force the door closed.
5. Push Nest Protect onto the backplate and
turn it clockwise until you feel it grip.
6. Press the Nest button twice.
SERVICING
1. Before sending Nest Protect for service,
visit nest.com/support
2. If your Nest Protect needs servicing,
first contact our support team to get
a return number
3. Send your Nest Protect to:
Nest Labs
(YOUR RETURN NUMBER)
4 East Stow Road
Marlton, NJ 08053 USA
GENERAL MAINTENANCE
CLEANING YOUR NEST PROTECT
Nest Protect has been designed to be as
maintenance free as possible, but you
should keep it clean. As with any smoke
alarm, dust buildup on the outside or
inside of Nest Protect can stop it from
working properly.
To clean Nest Protect:
1. Remove it from the wall or the ceiling
(turn counterclockwise until it comes
off the backplate).
2. Wipe the outside with a clean,
slightly damp cloth. Don’t use any
soaps or solvents.
3. Place Nest Protect on a soft, dry cloth
with the Nest button facing down.
Open the battery compartment door and
remove the batteries. Remove the screws
and lift off the back. Be careful to not
lose the screws.
4. Gently vacuum the inside. Make sure
to clean all the way around the mesh
sides of the smoke chamber (the large
metal circle).
Note: Never use detergents or solvents (like
glass cleaner) on your Nest Protect and do
not spray air fresheners, hair spray or other
aerosols near it. Do not get water inside the
alarm or paint over it.
REPLACING THE BATTERIES
Nest Protect uses six AA Energizer® Ultimate
Lithium batteries (L91). These batteries can
be purchased at your local retailer.
1. Twist Nest Protect counterclockwise until
it disconnects from the backplate.
1716
WARNING
• Use only batteries specified by Nest.
Use of a different battery model will
have a detrimental effect on the smoke
alarm operation.
• Never remove the batteries to stop an
unwanted alarm (caused by cooking smoke,
etc.) Removing the batteries disables the
alarm so it cannot sense smoke or carbon
monoxide (CO). Instead open a window or
fan the smoke away from the unit.
• The batteries cannot work until you install
the batteries in the correct position
(Match + to + and - to -).
• Once Nest Protect has expired you’ll no
longer be protected from smoke or CO if
you don’t replace it.
1918
GENERAL MAINTENANCE
EXPIRATION
Like any smoke and CO alarm, Nest Protect
has a limited life. You will need to replace
Nest Protect after 10 years with a brand new
Nest Protect. You can check the date
of replacement written on the back of
Nest Protect to see when it will expire.
About two weeks before it expires, Nest Protect
will light up with a yellow light. Press the
Nest button and it will say, “Nest Protect has
expired. Replace it now.” Buy a new alarm and
recycle the expired one. Make sure you test
your new Nest Protect once it’s installed.
RECYCLING AND DISPOSAL
Once Nest Protect has expired you will
need to recycle it according to local
regulations. Please visit nest.com/recycle
for more information.
RESETTING NEST PROTECT
You can reset Nest Protect to erase all your
settings and reset the wireless interconnection
with other Nest Protects. You may want to do
this when you move to a new home. Follow
the steps below on each Nest Protect you
want to reset.
1. Press and hold the Nest button. Nest will
chime and glow blue.
2. Keep holding the button until Nest Protect
begins to say its version number. Then release
the button.
3. Nest Protect will start a verbal countdown
and tell you it’s erasing all settings. You can
cancel the reset by pressing the Nest button
during the countdown.
4. After a few seconds it will restart.
Your Nest Protect will still detect smoke and
carbon monoxide after being reset.
Go to nest.com/protect/reset for complete
reset instructions.
interference can be overcome by adding more
Nest Protects that can route wireless signals
around obstructions.
WIRELESS INTERCONNECT
Nest Protects connect wirelessly to each other
so that when one speaks, they all speak. That
means when one Nest Protect raises any kind
of alert, every Nest Protect in the house will
tell you which room the smoke or CO is in. For
example, if you’re in the bedroom and the alarm
goes off in the basement, the Nest Protect in
the bedroom will tell you where the smoke or
CO is. To silence the alert, go to the room where
the alarm was triggered. All of the Nest Protects
in the house can be hushed from there. Either
press the button on the Nest Protect or use use
the Nest app to hush the alarm.
Nest Protect - Battery (model numbers 05A
and 06A) and Nest Protect - Wired 120V (model
numbers 05C and 06C) are compatible and can
be interconnected wirelessly. Nest Protect
wireless interconnect will not work with other
smoke or CO alarms from other brands.
Nest Protect’s 120V connector does not have
a red/orange/yellow wire for interconnect
because it connects wirelessly. There’s no need
to connect any Nest Protect wire to the red/
orange/yellow interconnect wire coming from
the ceiling or wall.
Nest Protects can typically communicate with
each other if they’re 50 feet (15 m) or less apart
inside a home. Some features of a home may
reduce Nest Protect’s wireless interconnect
range, including the number of floors, number
and size of rooms, furniture, type of building
materials, suspended ceilings, ductwork, large
metal appliances and metal studs. This kind of
WARNING
• The range and proper operation of any
wireless device will vary depending on
its surroundings.
• Nest Protect alarms are not to be used
outdoors or to transmit between buildings.
The alarms will not communicate properly
in those conditions.
• Metal objects and metallic wallpaper
may interfere with signals from wireless
alarms. Test your Nest Protects with metal
doors opened and closed.
Note: Nest Protect can be used as a single
station or multiple station alarm.
2120
ALARM LIMITATIONS
LIMITATIONS OF SMOKE ALARMS
Alarms reduce deaths resulting from home fires
worldwide. However smoke alarms can only
work if they are properly located, installed and
maintained, and if smoke reaches the alarms.
• Smoke alarms may not waken all individuals.
Make sure you create an escape plan and
you practice fire drills with all members of
the family.
• Smoke alarms cannot work without power.
If they are powered by batteries, the smoke
alarms cannot work if the batteries are
missing, dead or disconnected. If they are
wired, the smoke alarms cannot work during
a long power outage and once the backup
battery is dead. Nest Protect will warn you
in advance when batteries are running low
so that you can replace them.
• Smoke will not be able to reach smoke sensor
while the dust cover is in place. The dust cover
must be removed.
• Smoke alarms cannot detect fires if the smoke
does not reach the alarms. For example, if a
door is closed, smoke may not reach the smoke
alarm. This is why you should have a smoke
alarm in each bedroom and in the hallways as
bedroom doors may be closed at night.
• Smoke alarms may not be heard. Although
the smoke alarm comes with a loud horn of
85 decibels, it may not be heard if : 1) people
have consumed alcohol or drugs, 2) the
alarm is drowned by noise from stereo, TV,
traffic, air conditioner or other appliances,
3) residents are hearing impaired or have high
frequency hearing loss associated with aging.
Special smoke alarms should be installed for
those who are hearing impaired.
SAFETY
• This smoke alarm is not intended to
alert hearing impaired residents. Alarms
specifically designed for the hearing impaired,
which feature devices like flashing strobe
lights or low frequency devices are available to
alert the hearing impaired in case of fire.
• This smoke alarm alone is not a suitable
substitute for complete fire detection
systems in places housing many people—
like apartment buildings, condominiums,
hotels, motels, dormitories, hospitals,
long-term health care facilities, nursing
homes, day care facilities, or group homes
of any kind—even if they were once single-
family homes. It is not a suitable substitute
for complete fire detection systems in
warehouses, industrial facilities, commercial
buildings, and special-purpose non-
residential buildings which require special
fire detection and alarm systems. Depending
on the building codes in your area, this smoke
alarm may be used to provide additional
protection in these facilities.
LIMITATIONS OF CARBON MONOXIDE CO ALARMS
• NEVER ignore your carbon monoxide alarm if it
alarms. Refer to “What to do in case of a carbon
monoxide alarm” for more information. Failure
to do so can result in injury or death.
• This CO alarm is designed for use inside a
single-family home or apartment. It is not
meant to be used in common lobbies, hallways,
or basements of multi-family buildings unless
working CO alarms are also installed in each
family living unit. CO alarms in common areas
may not be heard from inside individual family
living units.
• This CO alarm alone is not a suitable substitute
for complete detection systems in places
which house many people, like hotels or
dormitories, unless a CO alarm is also placed
in each unit.
• DO NOT use this CO alarm in warehouses,
industrial or commercial buildings, special
purpose non-residential buildings, or airplanes.
This CO alarm is specifically designed for
residential use, and may not provide adequate
protection in non-residential applications.
• Some individuals are more sensitive to CO
than others, including people with cardiac or
respiratory problems, infants, unborn babies,
pregnant mothers, or elderly people can be
more quickly and severely affected by CO.
Members of sensitive populations should
consult their doctors for advice on taking
additional precautions.
• The silence feature is for your convenience
only and will not correct a CO problem. Always
check your home for a potential problem after
any alarm. Failure to do so can result in injury
or death.
2322
occupancy (small facility), including basements
and excluding crawl spaces and unfinished attics
(5) *In the living area(s) of a guest suite
(6) In the living area(s) of a residential board and
care occupancy”
(Reprinted with permission from NFPA 72®, National Fire Alarm
& Signaling Code Copyright © 2013 National Fire Protection
Association, Quincy, MA 02269. This reprinted material is
not the complete and official position of the National Fire
Protection Association, on the referenced subject which is
represented only by the standard in its entirety.) (National
Fire Alarm & Signaling Code® and NFPA 72® are registered
trademarks of the National Fire Protection Association, Inc.,
Quincy, MA 02269.)
SMOKE DETECTION
Are more smoke alarms desirable?
The required number of smoke alarms might
not provide reliable early warning protection
for those areas separated by a door from
the areas protected by the required smoke
alarms. For this reason, the use of additional
smoke alarms for those areas for increased
protection is recommended. The additional
areas include the dining room, and hallways
not protected by the required smoke alarms.
The installation of smoke alarms in kitchens,
attics (finished or unfinished), or garages is
not normally recommended, because these
locations occasionally experience conditions
that can result in improper operation. As Nest
Protect is also a Carbon Monoxide alarm, it is
not recommended to install it in a furnace room
or a utility room if it contains a water heater or
a furnace. It should be 15-20 feet from these
appliances to avoid transient conditions and/or
perceived nuisance alarms.
INSTALLATION CODE
THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE
PROTECTION ASSOCIATION’S STANDARD 72
(National Fire Protection Association,
Batterymarch Park, Quincy, MA 02269).
Note: Specific requirements for Smoke Alarm
installation vary between countries, states, and
regions. Check with your local safety agency or Fire
Department for current requirements in your area.
WARNING
This product is intended for use in ordinary
indoor locations of family living units. It
is not designed to measure compliance
with Occupational Safety and Health
Administration (OSHA) commercial or
industrial standards.
WHERE TO INSTALL YOUR SMOKE ALARMS
For your information, the National Fire Alarm
and Signaling Code, NFPA 72, reads as follows:
“29.5.1 *Required Detection.”
“ *Where required by applicable laws, codes,
or standards for a specific type of occupancy,
approved single- and multiple-station smoke
alarms shall be installed as follows:
(1) *In all sleeping rooms and guest rooms
(2) *Outside of each separate dwelling unit
sleeping area, within 21 ft (6.4 m) of any door
to a sleeping room, the distance measured
along a path of travel
(3) On every level of a dwelling unit, including
basements
(4) On every level of a residential board and care
WHERE NOT TO INSTALL YOUR SMOKE ALARMS
For best performance, AVOID installing a smoke
alarm in these areas:
• Where combustion particles are produced.
Burning material creates combustion particles
which could cause your smoke alarm to go
off unnecessarily. Areas to avoid include
poorly ventilated kitchens, garages, boats,
recreational vehicles, and furnace rooms.
Keep a smoke alarm at least 20 feet (6 m)
from from the source of combustion particles
(stove, furnace, water heater, space heater)
if possible. In areas where a 20-foot (6 m)
distance is not possible – in mobile, or smaller
homes, for example – it is recommended
a smoke alarm to be placed as far from
these fuel-burning sources as possible. The
placement recommendations are intended
to keep a smoke detector at a reasonable
distance from a fuel-burning source, reducing
“unwanted” alarms. Unwanted alarms can
occur if a smoke alarm is placed directly next
to a fuel-burning source. Ventilate these areas
as much as possible.
• In air streams near kitchens. Air currents can
draw cooking smoke into the sensor of a smoke
alarm near the kitchen.
• In very damp, humid or steamy areas, or
directly near bathrooms with showers. Keep
a smoke alarm at least 10 feet (3 m) away from
showers, saunas, dishwashers, etc.
• Where temperatures are regularly below
40˚F (4˚C) or above 100˚ F (38˚C) including
unheated buildings, outdoor rooms, porches,
or unfinished attics or basements.
• In very dusty, dirty, or greasy areas. Do not
install a smoke alarm directly over the stove
or range. Clean a laundry room unit frequently
to keep it free of dust or lint.
• Near fresh air vents, ceiling fans, or in very
drafty areas. Drafts can blow smoke away from
a smoke alarm, preventing it from reaching
the sensor.
• In insect infested areas. Insects can clog openings
to the sensor and cause unwanted alarms.
• Less than 12 inches (30.5 cm) away from
fluorescent lights. Electrical “noise” can
interfere with the sensor.
• In “dead air” spaces. “Dead air” spaces may
prevent smoke from reaching a smoke alarm.
WHERE NOT TO INSTALL YOUR CO ALARMS
• Keep carbon monoxide alarm at least 10 ft (3 m)
away from any cooking appliance including
stovetop, oven, microwave, etc.
• This alarm should not be installed in locations
where the normal ambient temperature is
below 40°F (4.4°C) or exceeds 100°F (37.8°C).
EXAMPLES OF WHEN YOUR SMOKE ALARM
MAY NOT BE EFFECTIVE
Your alarm may not be effective in protecting
against fire in certain cases:
• Smoking in bed
• Leaving children unsupervised
• Cleaning with flammable liquids, like gasoline.
• When someone’s clothes have caught on fire
• Fires where the smoke is prevented from
reaching the alarm due to a closed door or
other obstruction
• Incendiary fires where the fire grows so
rapidly that an occupant can’t get out, even
with alarms in proper locations
2524
CAUTION
The alarm only indicates the presence
of carbon monoxide gas at the sensor.
Carbon monoxide gas may be present
inother areas.
Individuals with certain medical problems
should consider using detection devices with
lower COHb alarming capabilities and consider
warning devices which provide audible and visual
signals for carbon monoxide concentrations
under 30ppm.
SYMPTOMS OF CO POISONING
The following symptoms are related to CARBON
MONOXIDE POISONING and are to be discussed
with ALL members of the household:
• Mild Exposure: Slight headache, nausea,
vomiting, fatigue (often described as
‘Flu-like’ symptoms).
• Medium Exposure: Severe throbbing
headache, drowsiness, confusion, fast
heart rate.
• Extreme Exposure: Unconsciousness,
convulsions, cardiorespiratory failure, death.
• Many cases of reported CARBON MONOXIDE
POISONING indicate that while victims
are aware they are not well, they become
so disoriented they are unable to save
themselves by either exiting the building or
calling for assistance. Young children and
household pets are typically the first affected.
CARBON MONOXIDE CO PRECAUTIONS
WHAT IS CARBON MONOXIDE?
Carbon Monoxide (CO) is an invisible, odorless,
tasteless gas produced when fuels do not burn
completely, or are exposed to heat (usually fire).
These fuels include: wood, coal, charcoal, oil
natural gas, gasoline, kerosene, and propane.
Common appliances are often sources of
CO such as oil or gas burning furnaces, gas
ovens, wood-burning fireplaces, and charcoal
grills. If they are not properly maintained, are
improperly ventilated or malfunction, CO levels
can rise quickly. CO is a real danger now that
homes are more energy efficient. “Air-tight”
homes with added insulation, sealed windows,
and other weatherproofing can “trap” CO
inside. Electrical appliances typically do not
produce CO. The Nest Protect CO sensor meets
the alarm response time requirements of the
American National Standard ANSI/UL 2034.
Standard alarm times are as follows:
• At 70ppm, the unit must alarm within
60-240 minutes.
• At 150ppm, the unit must alarm within
10-50 minutes.
• At 400ppm, the unit must alarm within
4 to 15 minutes.
WARNING
This carbon monoxide alarm is designed
to detect carbon monoxide from any
source of combustion. It is NOT designed
to detect any other gas.
more information about CO safety and this
equipment. Make sure that motor vehicles
are not, and have not been, operating in an
attached garage or adjacent to the residence.
This information is available as a label provided
in the box. Stick it in a spot where everyone can
see it, like the refrigerator.
THE FOLLOWING CONDITIONS CAN RESULT IN
TRANSIENT CO SITUATIONS
1. Excessive spillage or reverse venting of fuel
burning appliances caused by:
I) Outdoor ambient conditions such as wind
direction and/or velocity, including high
gusts of wind; heavy air in the vent pipes
(cold/humid air with extended periods
between cycles).
II) Negative pressure differential resulting
from the use of exhaust fans.
III) Simultaneous operation of several fuel
burning appliances competing for limited
internal air.
IV) Vent pipe connection vibrating loose from
clothes dryers, furnaces, or water heaters.
V) Obstructions in or unconventional vent pipe
designs which amplify the above situations.
2. Extended operation of unvented fuel burning
devices (range, oven, fireplace, etc.).
3. Temperature inversions which can trap
exhaust gases near the ground.
4. Car idling in an open or closed attached
garage, or near a home.
5. NEVER bring a charcoal grill inside and
ALWAYS operate a portable generator
outside, a safe distance from the house,
and well away from windows.
WHAT TO DO IN CASE OF A CARBON
MONOXIDEALARM
WARNING
Actuation of your CO alarm indicates the
presence of carbon monoxide (CO) which
can KILL YOU.
If alarm signal sounds:
1) Operate reset/silence button (Press
Nest button);
2) Call your emergency services [fire dept. or 911];
PHONE NUMBER:
3) Immediately move to fresh air – outdoors or
by an open door/window. Do a head count to
check that all persons are accounted for. Do
not reenter the premises nor move away from
the open door/window until the emergency
services responders have arrived, the
premises have been aired out, and your alarm
remains in its normal condition.
4) After following steps 1 – 3, if your alarm
reactivates within a 24-hour period, repeat steps
1 – 3 and call a qualified appliance technician
PHONE NUMBER:
to investigate for sources of CO from
fuel burning equipment and appliances,
and inspect for proper operation of this
equipment. If problems are identified
during this inspection have the equipment
serviced immediately. Note any combustion
equipment not inspected by the technician
and consult the manufacturers’ instructions,
or contact the manufacturers directly, for
2726
FIRE SAFETY PRECAUTIONS
CREATE AN ESCAPE PLAN TO PRACTICE
Be prepared when your smoke/CO alarm
sounds its alarm. Develop a family escape
plan, discuss it with all household members,
and practice it regularly.
• Make sure everyone is familiar with the sound
of your smoke/CO alarm and explain what the
sound means.
• Determine TWO exits from each room and
have an escape route to the outside from
each exit.
• Teach all the members in your household to
check doors for heat with the back of your
hand before opening them, and to use the
alternate exit if the door is hot. Make sure
they do not open the door if it is hot.
• Teach household members to crawl along
the floor to avoid dangerous smoke, fumes
and gases.
• Determine a safe meeting place for all
household members to regroup at outside
the building.
PRACTICE FIRE SAFETY
Practice your escape plan at least twice a year,
making sure that everyone is involved – from
kids to grandparents. Practice the escape
plan with children, including holding one at
night when they are sleeping. If children or
others do not wake up to the sound of the
smoke alarm, or if there are infants or family
members with mobility limitations, make sure
that someone is assigned to help them for
the fire drill and in the event of an emergency.
Current studies have shown smoke alarms
may not awaken all sleeping individuals, and
that it is the responsibility of individuals in the
household that are capable of assisting others
to provide assistance to those who may not
be awakened by the alarm sound, or to those
who may be incapable of safely evacuating the
area unassisted.
WHAT TO DO IN CASE OF FIRE
• Get out now.
• Don’t panic; stay calm.
• Operate your safety plan as previously planned.
• Alert small children in the home and those
who may need extra assistance.
• Leave the building as quickly as possible.
Touch doors with the back of your hand and
make sure they are not hot before opening
them. Use an alternate exit, if necessary.
In case of smoke, crawl along the floor, and
DO NOT stop to collect anything. Close the
doors behind you.
• Meet at a pre-arranged meeting place outside
the building.
• Once outside, do a head count, and call the
fire department.
• DO NOT reenter the house, unless a fire
official says it’s safe to reenter.
CALIFORNIA STATE FIRE MARSHAL
As stated by the California State Fire Marshal
“Early warning fire detection is best achieved
by the installation of fire detection equipment
in all rooms and areas of the household as
follows: A smoke alarm installed in each
separate sleeping area (in the vicinity of, but
outside of the bedrooms), and heat or smoke
detectors in the living rooms, dining rooms,
bedrooms, kitchens, hallways, attics, furnace
rooms, closets, utility and storage rooms,
basements and attached garages”.
FEDERAL COMMUNICATIONS
COMMISSION FCC COMPLIANCE
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/
TV technician for help.
This device complies with part 15 of FCC
rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
2928
MOBILE NOTIFICATIONS
WARNING
Nest Protect phone and tablet notifications
require a functional Wi-Fi connection.
They’re only as reliable as your home’s
Wi-Fi network and aren’t a substitute for a
third party emergency monitoring service.
This user’s guide and the products described herein are
copyrighted, with all rights reserved. Under these copyright
laws, no part of this installation guide may be copied for use
without the written consent of Nest.
Nest Labs. 3400 Hillview Ave. Palo Alto, CA 94304
Changes or modifications that are not expressly
approved by the manufacturer could void the
user’s authority to operate the equipment.
RF EXPOSURE INFORMATION:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility
of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not
be less than 20 cm during normal operation.
Nest Labs, Inc.
Limited Warranty
Nest Protect ™
smoke and carbon
monoxide alarm
THIS LIMITED WARRANTY CONTAINS IMPORTANT INFORMATION
ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS
LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU.
1. WHAT THIS LIMITED WARRANTY COVERS; PERIOD OF COVERAGE
Nest Labs, Inc. (“Nest Labs”), 3400 Hillview Avenue, Palo
Alto, California USA, warrants to the owner of the enclosed
product that the product contained in this box (“Product”)
will be free from defects in materials and workmanship for a
period of two (2) years from the date of delivery following the
original retail purchase (the “Warranty Period”). If the Product
fails to conform to this Limited Warranty during the Warranty
Period, Nest Labs will, at its sole discretion, either (a) repair
or replace any defective Product or component; or (b) accept
the return of the Product and refund the money actually
paid by the original purchaser for the Product. Repair or
replacement may be made with a new or refurbished product
or components, at Nest Labs’ sole discretion. If the Product or
a component incorporated within it is no longer available, Nest
Labs may, at Nest Labs’ sole discretion, replace the Product
with a similar product of similar function. This is your sole and
exclusive remedy for breach of this Limited Warranty. Any
Product that has either been repaired or replaced under this
Limited Warranty will be covered by the terms of this Limited
Warranty for the longer of (a) ninety (90) days from the date
of delivery of the repaired Product or replacement Product,
or (b) the remaining Warranty Period. This Limited Warranty
is transferable from the original purchaser to subsequent
owners, but the Warranty Period will not be extended in
duration or expanded in coverage for any such transfer.
2. TOTAL SATISFACTION RETURN POLICY
If you are the original purchaser of the Product and you are
not satisfied with this Product for any reason, you may return
it in its original condition within thirty (30) days of the original
purchase and receive a full refund.
3. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU
WANT TO CLAIM UNDER THIS LIMITED WARRANTY
Before making a claim under this Limited Warranty, the owner
of the Product must (a) notify Nest Labs of the intention to claim
by visiting nest.com/support during the Warranty Period and
providing a description of the alleged failure, and (b) comply
with Nest Labs’ return shipping instructions. Nest Labs will
have no warranty obligations with respect to a returned Product
if it determines, in its reasonable discretion after examination
of the returned Product, that the Product is an Ineligible
Product (defined below). Nest Labs will bear all costs of return
shipping to owner and will reimburse any shipping costs
incurred by the owner, except with respect to any Ineligible
Product, for which owner will bear all shipping costs.
Apple and the Apple logo are trademarks of Apple Inc., registered
in the U.S. and other countries. App Store is a service mark of
Apple Inc. Google Play is a trademark of Google Inc.
30
4. WHAT THIS LIMITED WARRANTY DOES NOT COVER
This Limited Warranty does not cover the following (collectively
“Ineligible Products”): Products marked as “sample” or “Not
for Sale”, or sold “AS IS”; or Products that have been subject
to: (a) modifications, alterations, tampering, or improper
maintenance or repairs; (b) handling, storage, installation,
testing, or use not in accordance with the User’s Guide or other
instructions provided by Nest Labs; (c) abuse or misuse of
the Product; (d) breakdowns, fluctuations, or interruptions in
electric power or the telecommunications network; or (e) Acts
of God, including but not limited to lightning, flood, tornado,
earthquake, or hurricane. This Limited Warranty does not
cover consumable parts, including batteries, unless damage
is due to defects in materials or workmanship of the Product,
or software (even if such consumable parts or software are
packaged or sold with the product). Nest Labs recommends
that you use only authorized service providers for maintenance
or repair. Unauthorized use of the Product or software can
impair the Product’s performance and may invalidate this
Limited Warranty.
5. DISCLAIMER OF WARRANTIES
EXCEPT AS STATED ABOVE IN THIS LIMITED WARRANTY,
AND TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, NEST LABS DISCLAIMS ALL EXPRESS, IMPLIED, AND
STATUTORY WARRANTIES AND CONDITIONS WITH RESPECT
TO THE PRODUCT, INCLUDING THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, NEST LABS ALSO LIMITS THE DURATION OF
ANY APPLICABLE IMPLIED WARRANTIES OR CONDITIONS TO
THE DURATION OF THIS LIMITED WARRANTY.
6. LIMITATION OF DAMAGES
IN ADDITION TO THE ABOVE WARRANTY DISCLAIMERS, IN NO
EVENT WILL NEST LABS BE LIABLE FOR ANY CONSEQUENTIAL,
INCIDENTAL, EXEMPLARY, OR SPECIAL DAMAGES, INCLUDING
ANY DAMAGES FOR LOST DATA OR LOST PROFITS, ARISING
FROM OR RELATING TO THIS LIMITED WARRANTY OR THE
PRODUCT, AND NEST LABS’ TOTAL CUMULATIVE LIABILITY
ARISING FROM OR RELATED TO THIS LIMITED WARRANTY OR
THE PRODUCT WILL NOT EXCEED THE AMOUNT ACTUALLY PAID
FOR THE PRODUCT BY THE ORIGINAL PURCHASER.
7. LIMITATION OF LIABILITY
THE NEST LABS ONLINE SERVICES (“SERVICES”) PROVIDE
YOU INFORMATION (“PRODUCT INFORMATION”) REGARDING
YOUR NEST PRODUCTS OR OTHER PERIPHERALS CONNECTED
TO YOUR PRODUCTS (“PRODUCT PERIPHERALS”). THE TYPE
OF PRODUCT PERIPHERALS THAT MAY BE CONNECTED
TO YOUR PRODUCT MAY CHANGE FROM TIME TO TIME.
WITHOUT LIMITING THE GENERALITY OF THE DISCLAIMERS
ABOVE, ALL PRODUCT INFORMATION IS PROVIDED FOR YOUR
CONVENIENCE,“AS IS”, AND “AS AVAILABLE”. NEST LABS DOES
NOT REPRESENT, WARRANT, OR GUARANTEE THAT PRODUCT
INFORMATION WILL BE AVAILABLE, ACCURATE, OR RELIABLE
OR THAT PRODUCT INFORMATION OR USE OF THE SERVICES
OR PRODUCT WILL PROVIDE SAFETY IN YOUR HOME. YOU
USE ALL PRODUCT INFORMATION, THE SERVICES, AND THE
PRODUCT AT YOUR OWN DISCRETION AND RISK. YOU WILL BE
SOLELY RESPONSIBLE FOR (AND NEST LABS DISCLAIMS) ANY
AND ALL LOSS, LIABILITY, OR DAMAGES, INCLUDING TO YOUR
WIRING, FIXTURES, ELECTRICTY, HOME, PRODUCT, PRODUCT
PERIPHERALS, COMPUTER, MOBILE DEVICE, AND ALL OTHER
ITEMS AND PETS IN YOUR HOME, RESULTING FROM YOUR USE
OF THE PRODUCT INFORMATION, SERVICES, OR PRODUCT.
PRODUCT INFORMATION PROVIDED BY THE SERVICES IS
NOT INTENDED AS A SUBSTITUTE FOR DIRECT MEANS OF
OBTAINING THE INFORMATION. FOR EXAMPLE, A NOTIFICATION
PROVIDED THROUGH THE SERVICE IS NOT INTENDED AS
A SUBSTITUTE FOR AUDIBLE AND VISIBLE INDICATIONS IN
THE HOME AND ON THE PRODUCT, NOR FOR A THIRD PARTY
MONITORING SERVICE THAT MONITORS ALARM STATE.
8. YOUR RIGHTS AND THIS LIMITED WARRANTY
This Limited Warranty gives you specific legal rights. You may
also have other legal rights that vary by state, province, or
jurisdiction. Likewise, some of the limitations in this Limited
Warranty may not apply in certain states. The terms of
this Limited Warranty will apply to the extent permitted by
applicable law. For a full description of your legal rights you
should refer to the laws applicable in your jurisdiction and you
may wish to contact a relevant consumer advisory service.
64-30-0032-ES
FOR REFERENCE ONLY
NOT FOR PRESS OUTPUT
