Compatibility
Based on Nest’s online compatibility checker data, the Nest Thermostat works with
most 24V systems, including gas, electric, oil, forced air, variable speed, heat pump,
and radiant. It can control:
• Heating: one, two, and three stages (W1, W2, W3)
• Cooling: one and two stages (Y1, Y2)
• Heat pump: with auxiliary and emergency heat (O/B, AUX, E)
• Fan (G)
• Power (C, RH, RC)
• Humidifier or dehumidifier (HUM, DEHUM)
The Nest Thermostat’s * connector can accept only one of these wires:
W3, E, HUM or DEHUM.
The Nest Thermostat is designed to work even if your home doesn’t have a common (C) wire.
Rarely, installing a new C wire may be required.
Professional installation recommended for:
• Dual fuel systems (heat pump with furnace)
• Whole-home humidifiers and dehumidifiers
Watch the video
To see how it’s done, watch our installation video at support.nest.com/thermostat
WE TAKE YOUR PRIVACY SERIOUSLY
We’re committed to being open and honest about
how we use data. We’ll always ask for permission
before sharing personally identifiable information
like your email address, and we keep your data safe
with industry standard security tools. To learn more
about our Privacy Policy, go to nest.com/privacy
064-00011-ES_16_InstallGuideENGLISH.indd 2-3 4/10/15 6:36 PM
Contents
Display
Optional steel
plate screws
Screwdriver
Optional trim plate
Base
Optional steel plate
Wall screws

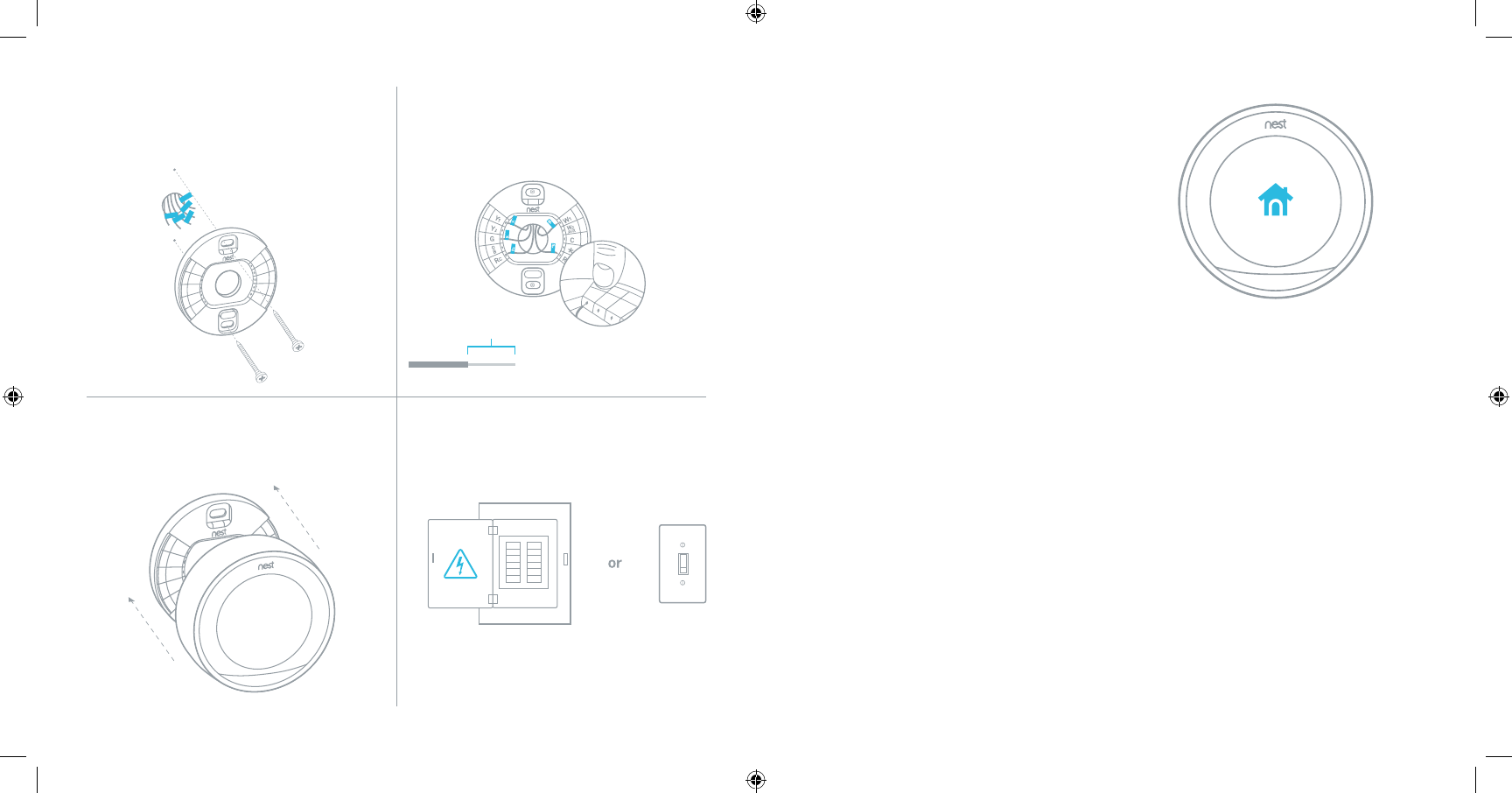

1. Switch off power
This protects you and avoids blowing a fuse
in your equipment. Adjust the temperature
on your old thermostat to make sure your
system is off.
2. Remove cover
Some covers pop off, while others need
to be unscrewed.
CAUTION: Do not connect Nest
to high voltage wires.
4. Remove any jumper wires
Jumper wires are short wires between two
connectors. You won’t need them. An R wire
can go into either RC or RH.
3. Check your system
If your old thermostat is labeled 120V or 240V
or has thick wires with wire nuts, your system
is high voltage. Not sure? Contact support.
Breaker box Switch
064-00011-ES_16_InstallGuideENGLISH.indd 4-5 4/10/15 6:36 PM
Remember, the power to your
HVAC system must be off to avoid
blowing a fuse in your equipment.
6. Disconnect wires and
remove base
After removing the
base, we recommend
gently wrapping the
wires around a pen or
pencil to ensure they
don’t fall back into
the hole in the wall.
7. Mark where screws will go
Use the bubble level to make sure the
Nest Thermostat is level.

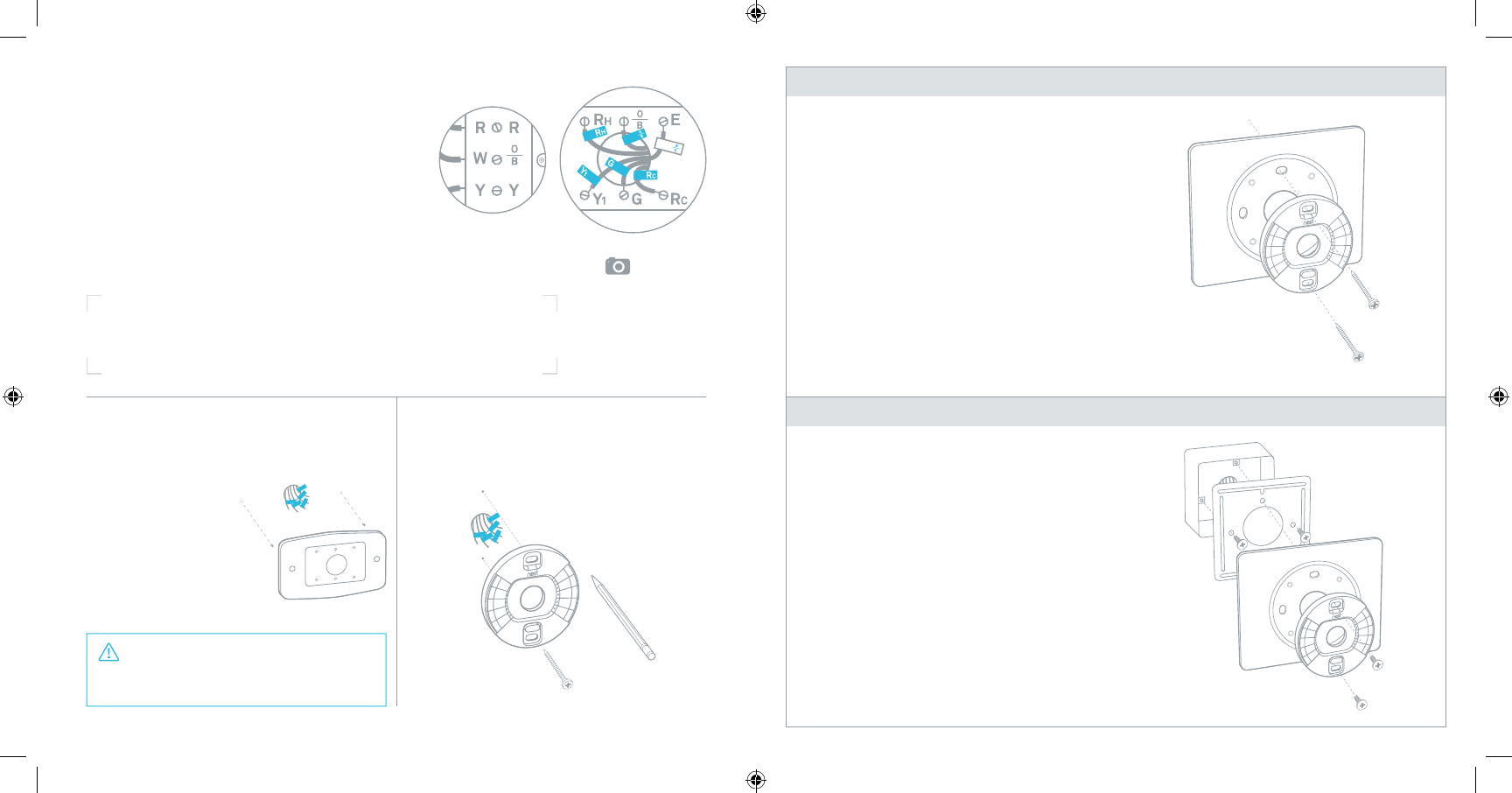

5. Label wires
Peel off the labels below and attach them to the
thermostat’s matching wires.
Use the white labels for any W3, E, HUM or DEHUM
wires. The * connector can only connect to one
of these wires.
See two names for each connector on your old
thermostat’s backplate? Visit nest.com/2labels
for help.
Two labels
Tip: Take a
picture of the
wires on your
old thermostat
to help you
remember.
Use trim plate if needed
You can cover up holes or marks left
by your old thermostat with the optional
trim plate.
Snap the base and trim plate together,
then screw them to the wall.
You’ll find the trim plate in the bottom
of the box.
Mounting on an electrical box
Electrical boxes aren’t common, but if you
have one, secure the steel plate to the
electrical box with two of the short steel plate
screws. Insert the screws into the long slots
on the steel plate.
Use the other two short screws to attach the
Nest base and trim plate to the steel plate.
Optional in most homes
Optional in most homes
064-00011-ES_16_InstallGuideENGLISH.indd 6-7 4/10/15 6:36 PM
Breaker box Switch
3/8 in
The exposed wire should be straight.
8. Attach the Nest base
Pull the wires through the center of the base,
then attach it to the wall with the screws.
10. Attach the display
Press the display onto the base until it clicks.
11. Switch the power back on
9. Connect wires
After all the wires are securely connected,
push them down to make sure they’re flush
with the base.
12. Setup and Nest Account
The Nest Thermostat will turn on and walk
you through setup. Just turn the ring and
press to select. During setup, you can connect
the thermostat to Wi-Fi.
Go to nest.com/account or download the
Nest app to create a Nest Account.
The app will show you how to connect your
Nest Account and thermostat.
Remember, you can download the free Nest app from the iTunes App Store™ or Google Play™
.
Questions about adding a thermostat to your Nest Account? Visit nest.com/pair
064-00011-ES_16_InstallGuideENGLISH.indd 8-9 4/10/15 6:36 PM
Nest Labs, Inc.
Limited Warranty
Learning Thermostat™
THIS LIMITED WARRANTY CONTAINS IMPORTANT INFORMATION
ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS
LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU.
1. WHAT THIS LIMITED WARRANTY COVERS;
PERIOD OF COVERAGE
Nest Labs, Inc. (“Nest Labs”), 3400 Hillview Avenue, Palo Alto,
California USA, warrants to the owner of the enclosed product
that the product contained in this box (“Product”) will be free
from defects in materials and workmanship for a period of
two (2) years from the date of delivery following the original retail
purchase (the “Warranty Period”). If the Product fails to conform
to this Limited Warranty during the Warranty Period, Nest Labs
will, at its sole discretion, either (a) repair or replace any
defective Product or component; or (b) accept the return of the
Product and refund the money actually paid by the original
purchaser for the Product. Repair or replacement may be made
with a new or refurbished product or components, at Nest Labs’
sole discretion. If the Product or a component incorporated within
it is no longer available, Nest Labs may, at Nest Labs’ sole
discretion, replace the Product with a similar product of similar
function. This is your sole and exclusive remedy for breach of
this Limited Warranty. Any Product that has either been repaired
or replaced under this Limited Warranty will be covered by
the terms of this Limited Warranty for the longer of (a) ninety (90)
days from the date of delivery of the repaired Product or
replacement Product, or (b) the remaining Warranty Period.
This Limited Warranty is transferable from the original
purchaser to subsequent owners, but the Warranty Period will
not be extended in duration or expanded in coverage for any
such transfer.
2. TOTAL SATISFACTION RETURN POLICY
If you are the original purchaser of the Product and you are not
satisfied with this Product for any reason, you may return
it in its original condition within thirty (30) days of the original
purchase and receive a full refund.
3. WARRANTY CONDITIONS; HOW TO GET SERVICE IF YOU
WANT TO CLAIM UNDER THIS LIMITED WARRANTY
Before making a claim under this Limited Warranty, the owner
of the Product must (a) notify Nest Labs of the intention to
claim by visiting nest.com/support during the Warranty Period
and providing a description of the alleged failure, and (b) comply
with Nest Labs’ return shipping instructions. Nest Labs will have
no warranty obligations with respect to a returned Product if it
determines, in its reasonable discretion after examination of the
returned Product, that the Product is an Ineligible Product
