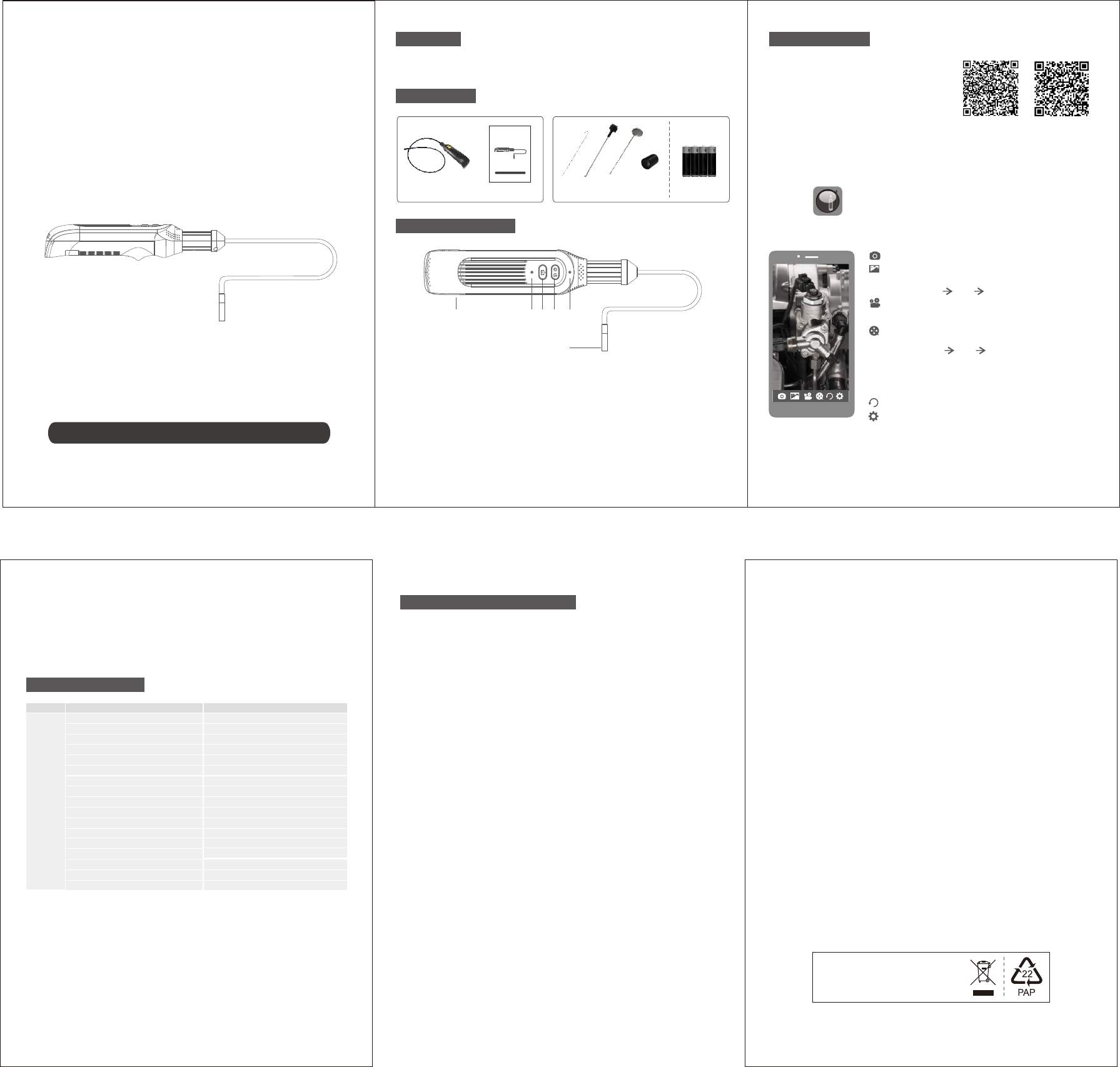

Gospell Smarthome Electronic GD9002 720P WiFi Borescope Camera User Manual 2

Shenzhen Gospell Smarthome Electronic Co., Ltd. 720P WiFi Borescope Camera 2

user manual

-1-
Prior to using this product, you are requested to carefully read this manual to avoid any damage to
the product resulting from wrong operation or inappropriate use.
1. Power switch: long press to switch on, long press again for over 3 seconds to switch off; short
press to adjust brightness, with 8 gears, cyclically adjustable.
2. Photo & record key: short press for photo, long press for recording.
3. Indicator lights: When powering on, green light remains steady on; when powering off, green light
goes out. When the device fails to connect with handset, green light quickly flashes (3 times per
sec.); when connected, green light remains steady on. Recording: green light steadily blinks (once
per sec.); Photo: press once, green light blinks once. Orange light indicates low battery level, blinks
once per second, and power off after 60s blinking.
4. RESET Key: Restore to factory default.
5. Battery case: 4 #5 batteries inserted.
6. Camera: Ø8mm, Endoscope waterproof grade IP67.
Important prompt:
-2-
3. APP functional introduction
III. APP Introduction
1. APP installation
Version requirement: support Android 4.0 or latest only;
support iOS 8.0 or latest.
IOS: “APP Store”, download “WiFi Borescope ”;
Android: “Google Play" to download “WiFi Borescope”.
Or scan the QR code to install it directly.
2. APP operation
Step 1: Long press handle power key for 3 sec., open camera and green light blinks.
Step 2: Open phone setting, select WiFi hotspot, initial SSID is “WIFICAMERA****”, (XXXXXX as
WiFi module coding), input its password (88888888 as default), successful WiFi connection and
green light remains steady on.
Step 3: Click for real-time video watch.
Photo:Click this icon to take a picture.
Record:Click this icon to record. While recording, the
recording time is displayed on top left corner of the screen,
re-click it to stop recording.
Settings: Click this icon to enter menu settings
Turn: Click this icon to turn pictures.
WiFi Borescope
Gallery:Click this icon to view pictures taken
The image storage path of the Android phone, creat folder in
the App: Memory DCIM imageStorage APP image
Video: Click this icon to view video files recorded.
The video storage path of the Android phone, creat folder in
the App: Memory DCIM recordStorage APP video
IOS QR code Android QR code
Note:
The zoom function can be activated via double clicking mobile device screen.
There are two zoom levels available.
Double click on the mobile screen,the image will zoom in with 1st level.
Double click again,the image will zoom in with 2nd level.
Double click for the 3rd time,the image will be back to default size.
For IOS, the recording video create folder, it can be viewed
on the APP, it can not be storaged in the mobile phone photo
folder, the path to storage on the mobile phone for IOS,
connect the Ituns store to download the recording video.
AA batteries x4
Manual
12
43
6
5
-3-
Foreword
ModelNo.:GD9002
720PWiFi Borescope
Camera Manual
Optional
Thanks for selection of WiFi camera supplied by our company. Before using this product, you are
requested to carefully read the instruction manual. Wish you a wonderful and delightful experience!
I. Packing List
WiFi Camera
Prior to using this product, you are requested to carefully read this manual to avoid any damage to
the product resulting from wrong operation or inappropriate use.
Model No.GD9001
WI FI B or es co pe
Ca me ra M an ua l
Hook magnet Mirror rubber ring
II. Structural Description
After SSID or password having been changed, users are requested to delete the network from
Main Interface Setting, and reconnect it; otherwise “No Connection” will be always displayed.
In case of too low battery level when powering on, orange light blinks for 60 sec. before powering off.
When forgetting device SSID and password, using a tiny rod to press the Reset key for 5 seconds
will restore to factory default.
IV. Technical Parameters
Picture format
Video format
Operating temperature
Storage temperature
Operating humidity
Product Size
Weight
.JPG
.AVI
15%~85% RH
220 46 44mmx x
-10~+45
IP67(Flexible Tube)
20M(max)
Parameter
1/4"inch CMOS
300m10(max)
3.5±10% H
AA1.5Vx4
Name
Sensor size
Display resolution
Endoscope waterproof grade
Working time
Power supply
Operating current
Wireless transmision
20 ~+60 ℃ ℃
*Actual transmission range varies with climate, location, environmental disturbance and
architectural structure.
Camera
System
240g±5g
Visual angle
1280X720
Horizontal viewing angle 60±5°
Probe length 1m
Diameter of camera head 9mm
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This device is acting as slave and operating in the 2.4GHz(2412~2462MHz) band.Ad Hoc function
is supported but not able to operate on non-US frequencies.
RF Exposure Information:
FCC RF Exposure requirements: The Highest Extremity SAR 0.197W/Kg. This transmitter
must not be collocated or operating in conjunction with any other
antenna or transmitter.
This product is compliance to FCC RF Exposure requirements and refers to FCC website
https://apps.fcc.gov/oetcf/eas/reports/GenericSearch.cfm search for FCC ID: TW5GD9002
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables auxappareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre lefonctionnement.
RF Exposure Information:
The EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102
and had been tested in accordance with the measurement methods and procedures specified in
IEEE 1528. This equipment should be installed and operated with minimum distance 0 mm between
the radiator and your body. This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.
EU Environmental Provisions
E-waste cannot be mixed with household
garbage; corresponding local government
sector or recycling stations shall be
responsible for circular process.
CEandFCC Certification Information
-4-
