308883S

EN

Instructions

50:1 Fire-Ball® 300

Pump

For pumping non-corrosive and non-abrasive greases and lubricants only.For

professional use only.

Model No. 239877, Series D

pail length

Model No. 239887, Series D

120 lb drum length

Model No. 239888, Series D

400 lb drum length

8400 psi (58 MPa, 580 bar) Maximum Working Pressure

140 psi (0.97 MPa, 9.7 bar) Maximum Air Input Pressure

Important Safety Instructions

Read all warnings and instructions in this

manual. Save these instructions.

This product is designed to be used only in pumping

non-corrosive and non-abrasive lubricants and

greases. Any other use can cause unsafe operating

conditions and result in component rupture, fire, or

explosion, which can cause serious injury including

fluid injection.

Warnings

2308883S

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-

tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When

these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific

hazard symbols and warnings not covered in this section may appear throughout the body of this manual where

applicable.

WARNING

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information

about your material, request MSDS from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure.

• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-

facturer’s replacement parts only.

• Do not alter or modify equipment. Alterations or modifications may void agency approvals and create

safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or

swallowed.

• Read MSDSs to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

• Always wear chemically impermeable gloves when spraying, dispensing, or cleaning equipment.

MOVING PARTS HAZARD

Moving parts can pinch, cut or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,

follow the Pressure Relief Procedure and disconnect all power sources.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, including

eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes but is

not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer

Installation

308883S 3

Installation

Grounding

Pump: Use a ground wire and clamp as shown in FIG.

1.

Fluid hoses: Use only electrically conductive hoses.

Air compressor: Follow manufacturer’s recommenda-

tions.

Fluid supply container: Follow the local code.

To maintain grounding continuity when flushing or

relieving pressure: hold metal part of the spray

gun/dispense valve firmly to the side of a grounded

metal pail, then trigger the gun/valve.

To ground the pump: remove the ground screw (Z)

and insert through the eye of the ring terminal at end of

the ground wire (Y). Fasten the ground screw back onto

the pump and tighten securely. Connect the other end of

the ground wire to a true earth ground. See Fig. To

order a ground wire clamp, order Part. No. 222011.

Key:

A Fluid dispense line

B Pump ground wire (required)

C Air regulator with gauge

D Main air supply line

E Air line filter

F Air line lubricator

G Pump runaway valve

H Follower plate

J Bleed-type master air valve (required)

K Fluid drain valve

The equipment must be grounded to reduce the risk

of static sparking and electric shock. Electric or static

sparking can cause fumes to ignite or explode.

Improper grounding can cause electric shock.

Grounding provides an escape wire for the electric

current.

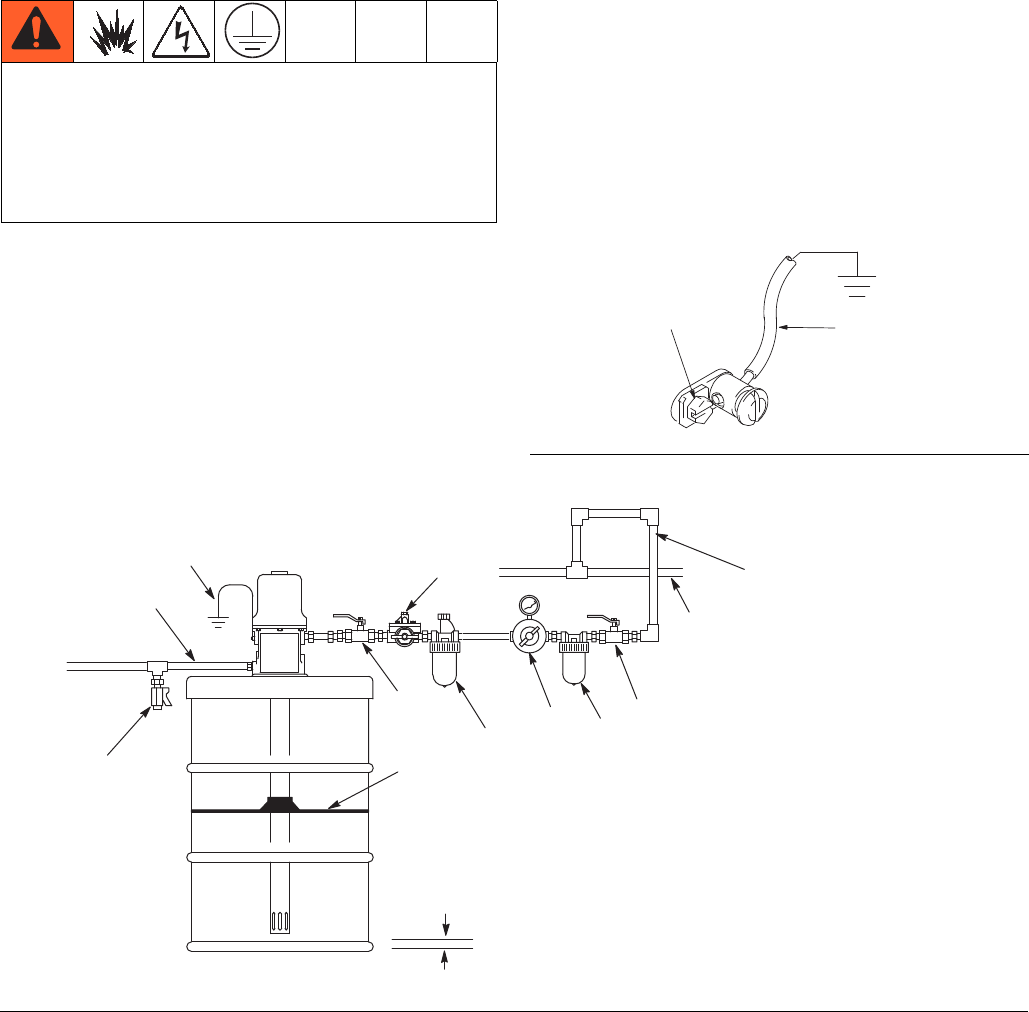

FIG. 1

Y

Z

FIG. 2: Typical Installation

Recommended air line

configuration to reduce

moisture in pump

1/2 in.

B

C

D

E

F

G

H

J

A

J

K

Installation

4308883S

Mounting

1. Plan the mounting layout for easy operator access

to the pump air controls, sufficient room to change

drums and a secure mounting platform.

2. If using a follow plate (H), remove the drum cover.

Scoop the material to the center of the drum. Place

the plate on the material. Guide the pump foot valve

through the plate.

3. Mount the pump to the drum cover or other suitable

mounting device.

4. For ease in changing drums, install a pump eleva-

tor.

Air and Fluid Line Accessories

Refer to FIG. 2 for the following instructions.

Three accessories are required in your system: an air

shut-off valve/air bleed device, fluid drain valve, and

ground wire. These accessories help reduce the risk of

serious bodily injury, including fluid injection, splashing

in the yes or on the skin, injury from moving parts if

you are adjusting or repair the pump, and explosion

from static sparking.

• The air bleed device relieves air trapped between it

and air motor after the air supply is shut off.

Trapped air can cause the motor to cycle

unexpectedly, causing serious injury if you are

adjusting or repairing the pump. Use a bleed-type

master air valve (J). Install them near the pump air

inlet within easy reach from the pump.

• The fluid drain (K) assists in relieve fluid pressure

in the displacement pump, hoses, and dispensing

valve. Triggering the valve to relieve pressure may

not be sufficient.

• The ground wire (B) reduces the risk of static

sparking.

NOTE: Install the air line accessories in the order shown

in Fig.

1. Install a pump runaway valve (G) to shut off the air

to the pump if the pump accelerates beyond the

pre-adjusted setting. A pump that runs too fast can

be seriously damaged.

2. Install an air line lubricator (F) for automatic air

motor lubrication.

3. Install a bleed-type master air valve (J) to relieve air

trapped between the valve and the motor.

4. Install the air regulator (C) to control pump speed

and pressure.

5. Install an air line filter (E) to remove harmful dirt and

contaminants from the compressed air supply.

6. Install a second bleed-type master air valve (J)

upstream from all other accessories, to isolate the

accessories for servicing.

Mount the pump securely so that it cannot move

around during operation. Failure to do so could result

in personal injury or equipment damage.

NOTICE

Do not hand the air accessories directly on the air

inlet. The fittings are not strong enough to support the

accessories and may cause one or more to break.

Provides a bracket on which to mount the accesso-

ries.

Operation

308883S 5

Operation

Pressure Relief Procedure

Follow the Pressure Relief Procedure whenever

you see this symbol.

1. Close the pump air regulator and bleed-type master

air valve (required in the system).

2. Hold a metal part of the dispensing valve firmly to a

grounded metal waste container and trigger the

valve to relieve the fluid pressure.

Start Up

1. If there are multiple pumps on the air line, close the

air regulators and bleed-type master air valves to all

but one pump. If there is only one pump, close its air

regulator and bleed-type master air valve.

2. Open the master air valve from the compressor.

3. Open the dispensing valve into the grounded metal

waste container, making firm metal-to-metal contact

between the container and valve. Open the

bleed-type master air valve and open the pump air

regulator slowly, just until the pump is running.

When the pump is primed and all air has been

pushed out of the lines, close the dispense valve.

4. If there is more than one pump, repeat this proce-

dure for each pump.

NOTE: When the pump is, and with sufficient air sup-

plied, the pump starts when the dispensing valve is

opened and shuts off when closed.

5. Set the air pressure to each pump at the lowest

pressure needed to get the desired results.

6. Never allow the pump to run dry of the material

being pumped.

NOTE: A pump runaway valve (G) can be installed on

the air line to automatically shut off the pump if it starts

to run too fast.

7. Read and follow the instructions supplied with each

components in the system.

8. To shut off the system always follow the Pressure

Relief Procedure.

This equipment stays pressurized until pressure is

manually relieved. To help prevent serious injury

from pressurized fluid, such as skin injection,

splashing fluid and moving parts, follow the Pressure

Relief Procedure when you stop spraying and before

cleaning, checking, or servicing the equipment.

NOTICE

The pump has a rated ratio of 50:1. However, it is

capable of reaching stall pressures equal to 60

times the air input pressure. Calculate the fluid

output pressure using the air regulator reading.

Multiply the air pressure shown on the regulator

gauge by 60. For example:

140 psi air x 60 = 8400 psi fluid output

0.97 MPa air x 60 = 58.2 MPa fluid output

9.7 bar air x 60 = 582 bar fluid output

Regulate air to the pump so that no air line or fluid

line component or accessory is over pressurized.

NOTICE

A dry pump will quickly accelerate to a high speed,

possibly damaging itself. If your pump accelerates

quickly, or is running too fast, stop it immediately and

check the material supply. If the supply container is

empty and air has been pumped into the lines, prime

the pump and lines with material, or flush it and leave

it filled with a compatible solvent. Be sure to eliminate

all air from the material lines.

Repair

6308883S

Repair

Displacement Pump Service

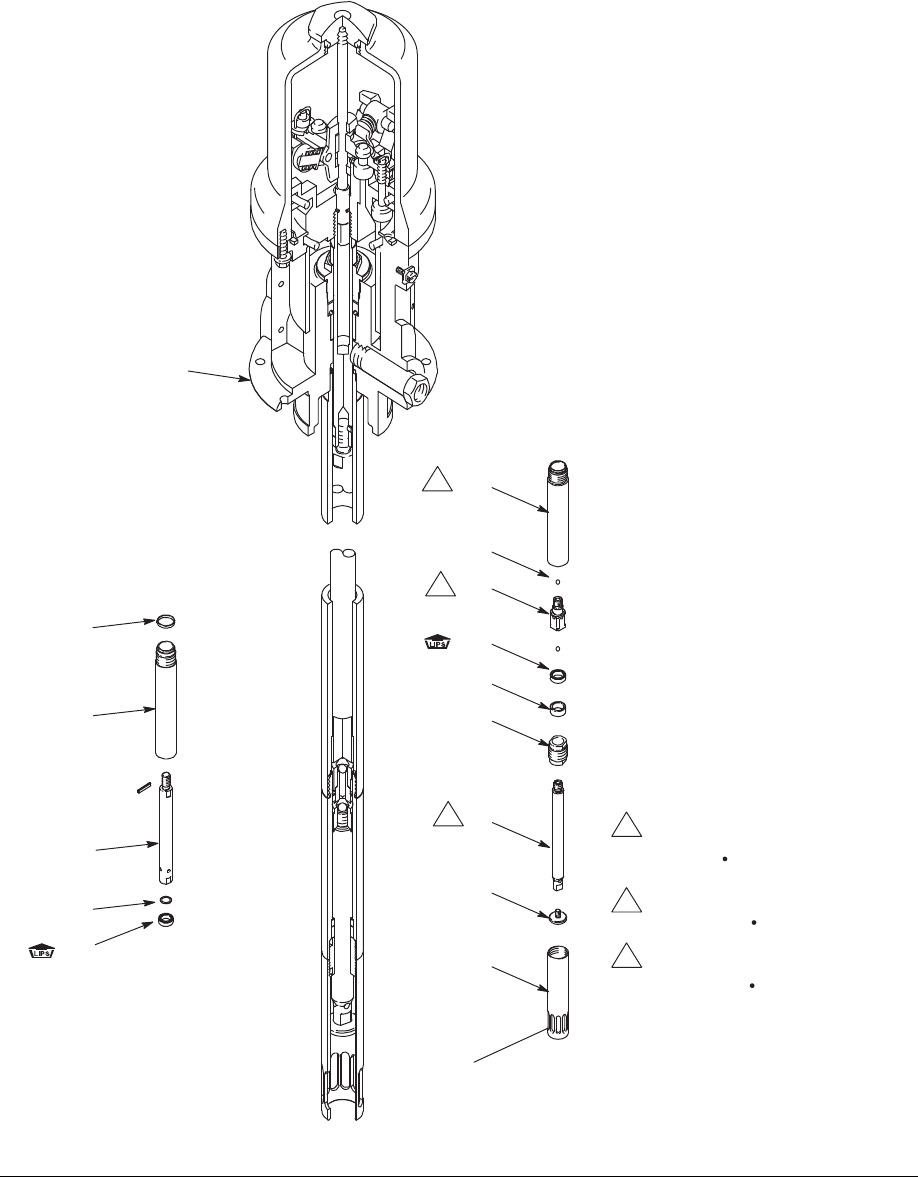

Refer to FIG. 3 for the following instructions.

Be sure you have all necessary parts on hand before

starting. Use all parts in the repair kit for best results.

Displacement Pump Repair Kit 241623 is available.

1. Flush the pump.

2. Relieve the pressure before proceeding, page 5.

3. Disconnect the hoses, remove the pump from its

mounting, and clamp the air motor base (5) in a

vise.

4. Use strap wrench to screw shovel tube (67) off of

pump cylinder (59).

5. Use strap wrench to screw shovel (66) off of shovel

rod (58).

6. se strap wrench on pump cylinder (59) to screw it

out of extension tube (64). Screw tube connector

(63) out of pump cylinder. Remove bearing (61) and

seal (62).

7. Screw the shovel rod (58) out of the piston (52).

Remove the lower ball (56). Screw the piston out of

the extension rod (57). Remove the upper ball (56),

retaining washer (53), and seal (54).

8. Clean all the parts in a compatible solvent and

inspect them for wear or damage. Use all the parts

in the repair kit, and replace other parts as neces-

sary.

9. Generously lubricate all the parts with light

water-resistant grease and reassemble the pump.

NOTE: Torque the shovel tube (67) to the pump cylinder

(59) at 45 to 55 ft-lbs (61 to 75 N.m).

Torque the pump cylinder (59) to the extension tube (64)

at 45 to 55 ft-lbs (61 to 75 N.m).

Torque the shovel rod (58) to the piston (52) at 25 to 30

ft-lbs (34 to 41 N.m).

Torque the piston (52) to the extension rod (57) at 25 to

30 ft-lbs (34 to 41 N.m).

10. If the ground wire was disconnected before servic-

ing, be sure to reconnect it before you operate the

pump.

NOTICE

To avoid damaging the shovel tube, do not use slots

in the tube to tighten or loosen tube.

Repair

308883S 7

FIG. 3

1

3

4

Using nut (63), torque the

pump cylinder (59) to the ex-

tension tube (64) at 45–55 ft-lb

(61–75 N m).

Torque the shovel rod (58)

to the piston (52) at 25–30

ft-lb (34–41 N m).

Torque the piston (52) to the

extension rod (57) at 25–30

ft-lb (34–41 N m).

5

60

64

59

56

52

62

61

63

58

57

53

54 67

66

4

3

1

Caution: Do not use

slots in shovel tube to

tighten or loosen tube.

Repair

8308883S

Air Motor and Throat Service

Refer to FIG. 4 for the following instructions.

Before starting, be sure to have all necessary parts on

hand. Repair kit 206728 is available for the motor.

Two accessory tools should be ordered. Use Padded

Pliers, 207579, to grip the trip rod without damaging its

surface. Use Gauge, 171818, to ensure the proper

clearance between the poppets and seat of the transfer

valve.

1. Flush the pump.

2. Relieve the pressure, see page 5.

3. Disconnect the hoses, remove the pump from its

mounting, and clamp the air motor base (5) in a

vise.

4. Use a strap wrench or pipe wrench on the extension

tube (64) to screw it out of the base (5). See FIG. 4.

5. Pull the extension rod (57) down as far as it will go,

exposing the displacement rod (8).

6. Use a hammer and punch to remove the roll pin (74)

from the displacement rod (8), and unscrew the

extension rod (57) out of the displacement rod.

7. Manually push on the displacement rod (8) to move

the air motor piston (2) up as far as it will go.

Unscrew the cylinder cap nut (29a or 29b). Pull the

nut up. Grip the trip rod (11) with padded pliers, and

screw the nut off the rod. (FIG. 4)

8. Remove the six screws (21) that hold the cylinder

(17) to the base. Carefully pull the cylinder straight

up off the piston (2).

9. Use a screw driver to push down on the trip rod

yoke (22), and snap the toggles down. Remove the

lockwires (31) from the adjusting nut (30) of the

transfer valves. Screw the top nuts off. Screw the

stems (1a) out of the grommets (12) and bottom

nuts. Take the valve poppets (1b) off the stems and

squeeze them firmly to check for cracks. (FIG. 5)

10. Grip the toggle rockers (26) with a pliers. Compress

the springs (27), and swing the toggle assembly (L)

up and away from the piston lugs (M), and remove

the parts. Check to see that the valve actuator (13)

is supported by the spring clips (14), but slides eas-

ily into them. (FIG. 5)

11. Remove the trip rod yoke (22), actuator (13), and

trip rod (11). Check the exhaust valve poppets (16)

for cracks.

NOTE: To remove cracked exhaust valve poppets (16),

stretch them out, and cut them with a sharp knife.

12. Remove one of the air motor plates (18 or 20). Pull

the piston (2) up out of the base (5). Remove the

throat packing nut (38) and throat seal (6).

NOTICE

In step 7, do not damage the plated surface of the trip

rod (11). A damaged trip rod could cause erratic air

motor operation. Use the special padded pliers,

207579, to grasp the rod.

NOTICE

To avoid damaging the cylinder wall, lift the cylinder

straight off of the piston. Never tilt the cylinder while

you are removing it.

Repair

308883S 9

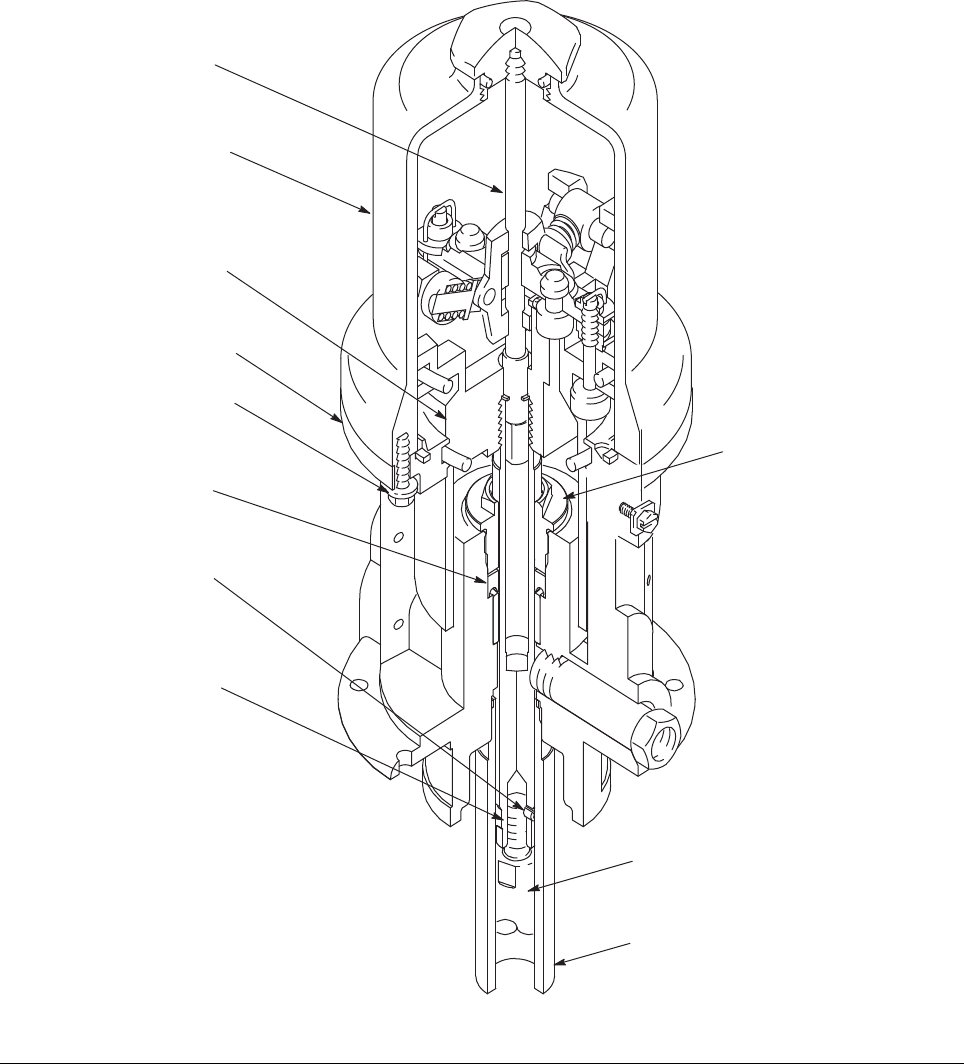

FIG. 4

5

8

57

64

74

2

11

21

17

38

6

Repair

10 308883S

Air Motor and Throat Seals

Reassembly

1. Clean all the parts carefully in a compatible solvent,

and inspect for wear or damage. Use all the repair

kit parts during reassembly, and replace other parts

as needed.

2. Check the polished surfaces of the piston (2), dis-

placement rod (8), and cylinder (17) wall for

scratches or wear. A scored rod causes premature

throat seal wear and leaking.

3. Lubricate all parts with a light, water-resistant

grease.

4. Install the new throat seal (6), lips facing down.

Screw the packing nut (38) into the base (5).

5. Slide the displacement rod (8) down through the

throat, and lower the piston (2) into the base (5). Be

sure the o-rings (9, 10, and 24) are in place. (FIG. 4)

6. Pull the exhaust valve poppets (16) into the value

actuator (13), and clip off the top part shown with

dotted lines in FIG. 5.

7. Install the transfer valve grommets (12), and reas-

semble the valve mechanism. Before you install the

lockwires (31) in the adjusting nuts (30), use the

special gauges, 171818, to adjust the transfer valve

so there is 0.145 inches (3.7 mm) clearance

between the poppets (1b) and the seat when it is

open. Snap the toggles (25) to the up position. (FIG.

5)

8. Reassemble the air motor, and assemble to the dis-

placement pump. Torque the extensions tube (64)

to the base (5) at 45 to 55 ft-lbs (61 to 75 N.m).

Before you install the air motor plate, tighten the

throat packing nut (38) snugly; do not overtighten it.

9. Before you remount the pump, connect an air hose,

and run the pump slowly, at about 40 psi (.028 MPa,

2.8 bar), to see that it operates smoothly.

10. Reconnect the ground wire before regular operation

of the pump.

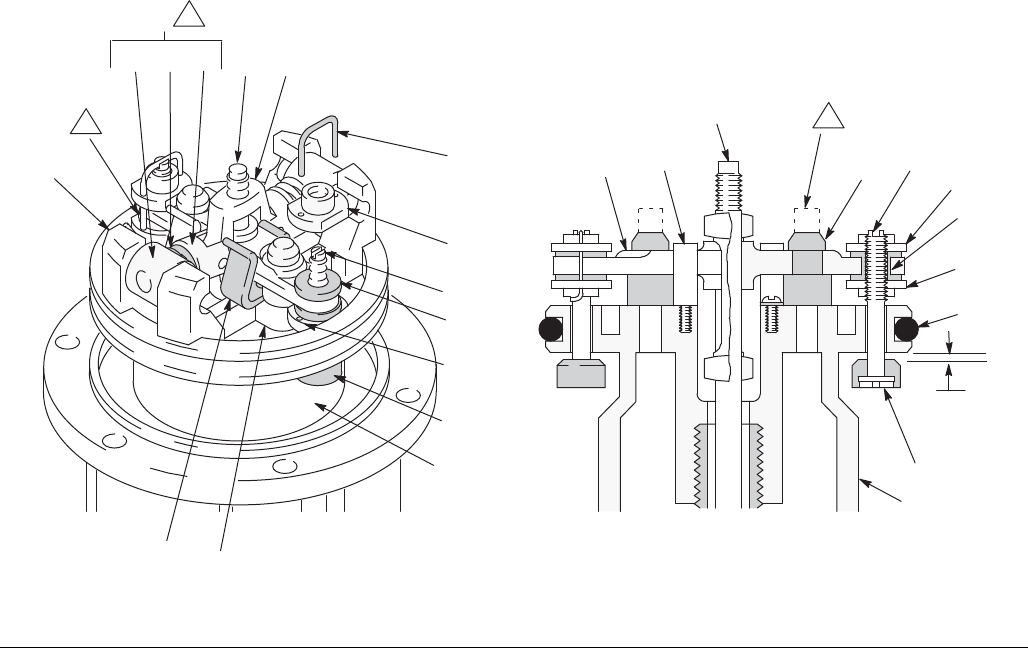

FIG. 5

1

14

16

31

30

1b

12

1b

2

11 22

M

26 27 25

L2

13 14

11

0.145 in.

(3.7 mm)

2

1b

16 1a

30

12

30

24

Cutaway View

30

3

Troubleshooting

308883S 11

Troubleshooting

1. Follow Pressure Relief Procedure, page 5, before

checking or repairing gun.

2. Check all possible problems and causes before dis-

assembling gun.

Problem Cause Solution

Pump fails to operate

Inadequate air supply pressure or

restricted air lines

Increase air supply and/or clear

restriction

Closed or clogged valves Open and/or clear

Clogged fluid lines, hoses, valves,

etc. Relieve pressure. Clear obstruction

Damaged air motor Assess damage and service air

motor

Exhausted fluid supply Refill and reprime or flush

Continuous air exhaust Worn or damaged air motor gasket

or seal

Asses wear or damage and service

air motor

Erratic pump operation

Exhausted fluid supply Refill and reprime or flush

Worn pump seals Replace

Damaged shovel tube Replace

Damaged check seat replace pump piston or shovel rod

(or other damaged part)

Pump operates, but output low on

upstroke

Worn piston seal Replace

Damaged upper check seat Replace pump piston

Pump operates, but output low on

downstroke

Worn fluid intake seal Replace

Damaged lower check seat Replace shovel rod

Pump operates, but output low on

both strokes

Inadequate air supply or restricted

air line

Increase air supply and /or clear

restriction

Closed or clogged valves Open and/or clear

Exhausted fluid supply Refill fluid supply and reprime pump

Clogged fluid lines, hoses, valves,

etc. Relieve pressure. Clear obstruction

Worn seals Replace

Grease leaking from muffler plates Worn throat seal Replace

Parts

12 308883S

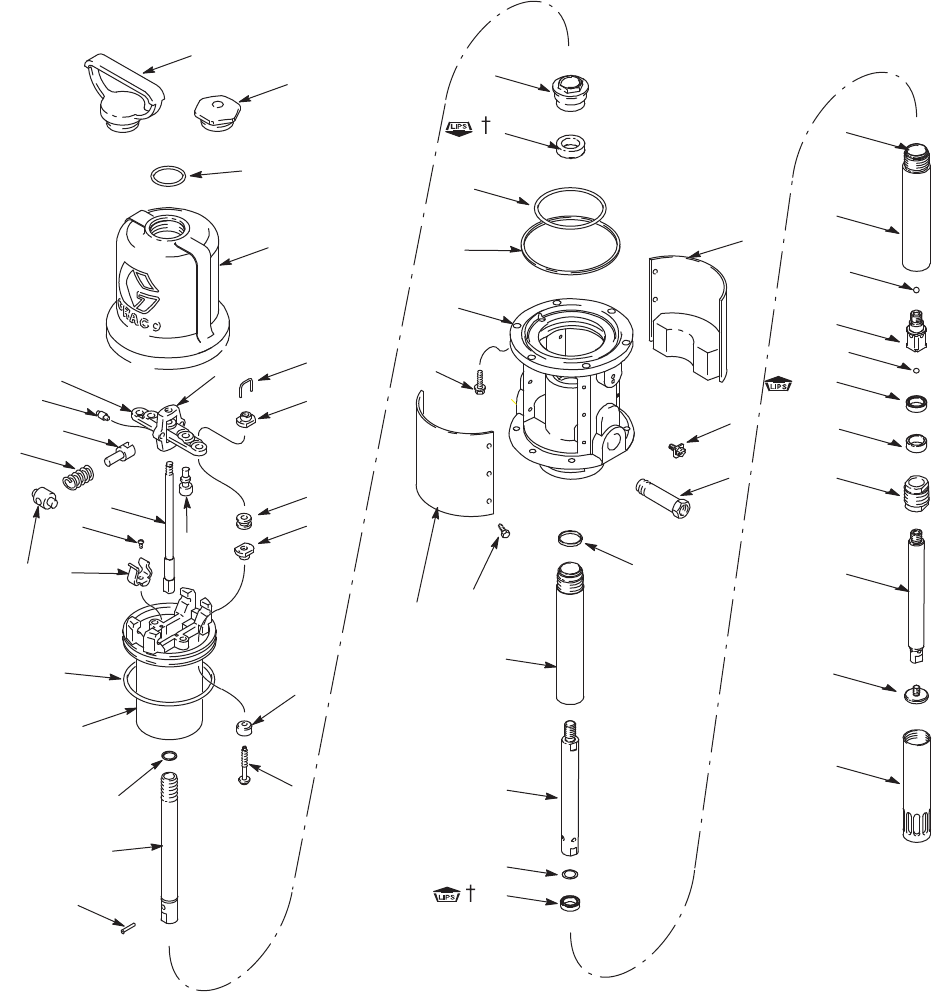

Parts

29a

29b

28

17

31*

30*

22

13

23

25

27

26

11

15

14

24*

2

33

8

74

1a*

1b*

30*

12*

38

6

9*

10

5

21

**20 **19

64

57

53

18**

4

7

†60

†60

59

†56

52

†56

†62

†61

63

58

66

67

54

16*

Parts

308883S 13

Part No./Description

Parts included in Kit 206728 (purchase separately).

‡ Parts included in Kit 222559 (purchase separately).

† Parts included in Kit 241623 (purchase separately).

NOTE: Two accessory tools are required for air motor

and throat services: Padded Pliers, 207579, and Gauge,

171818.

Ref. Part Description Qty.

1VALVE, poppet, includes 1a and

1b

2

1a STEM, valve 1

1b POPPET, valve, urethane 1

2 15K534 PISTON, air motor 1

4 116343 SCREW, grounding1 1

5 241826 BASE 1

6 † SEAL, throat, polyurethane 1

7 162718 ADAPTER, 3/8 npt(m) x 1/4 npt(f) 1

8 192541 ROD, displacement 1

9O-RING, buna-N 1

10 160624 O-RING, buna-N 1

11 203965 ROD, trip 1

12 GROMMET, rubber, air intake 2

13 172867 ACTUATOR, valve 1

14 172866 CLIP, spring 2

15 102975 SCREW, rd hd mach, no. 6-32 x

1/4” (6.3mm)

2

16 POPPET, valve, urethane 2

17 160613 CYLINDER, air motor 1

18 ‡ PLATE, identification, with muffler 1

19 ‡ SCREW, hex head, no. 8-32 x 0.38

inches (10 mm) long

12

20 ‡ PLATE, warning, with muffler 1

21 101578 SCREW, hex head, no. 8-32 x 0.38

inches (10 mm) long

6

22 158360 YOKE, rod, trip 1

23 158362 PIN, toggle 2

24 O-RING, nitrile rubber 1

25 160623 ARM, toggle 2

26 158364 ROCKER, toggle 2

27 167585 SPRING, helical compression 2

28 156698 O-RING, buna-N 1

29a 164704 HANDLE NUT, cylinder, cap,

model 239877

1

29b 161435 NUT, cylinder, cap, models

239887, 239888

1

30 NUT, adjusting 4

31 LOCKWIRE, transfer valve 2

33 160932 GASKET, copper 1

38 192537 NUT, packing 1

52 196184 PISTON 1

53 196185 RETAINER, piston seal 1

54 † SEAL, piston, blue fluorotrel 1

56 † BALL 2

57 192685 ROD, extension, model 239877 1

192684 ROD, extension, model 239887 1

192535 ROD, extension, model 239888 1

58 192540 ROD, shovel 1

59 192538 CYLINDER, pump 1

60 † SEAL, gasket 2

61 † BEARING, shovel rod 1

62 † SEAL, shovel rod, polyurethane 1

63 192531 CONNECTOR, tube 1

64 192682 TUBE, extension, model 239877 1

193760 TUBE, extension, model 239887 1

193758 TUBE, extension, model 239888 1

66 192660 SHOVEL 1

67 17A265 TUBE, shovel 1

74 112154 PIN, spring, straight 1

Ref. Part Description Qty.

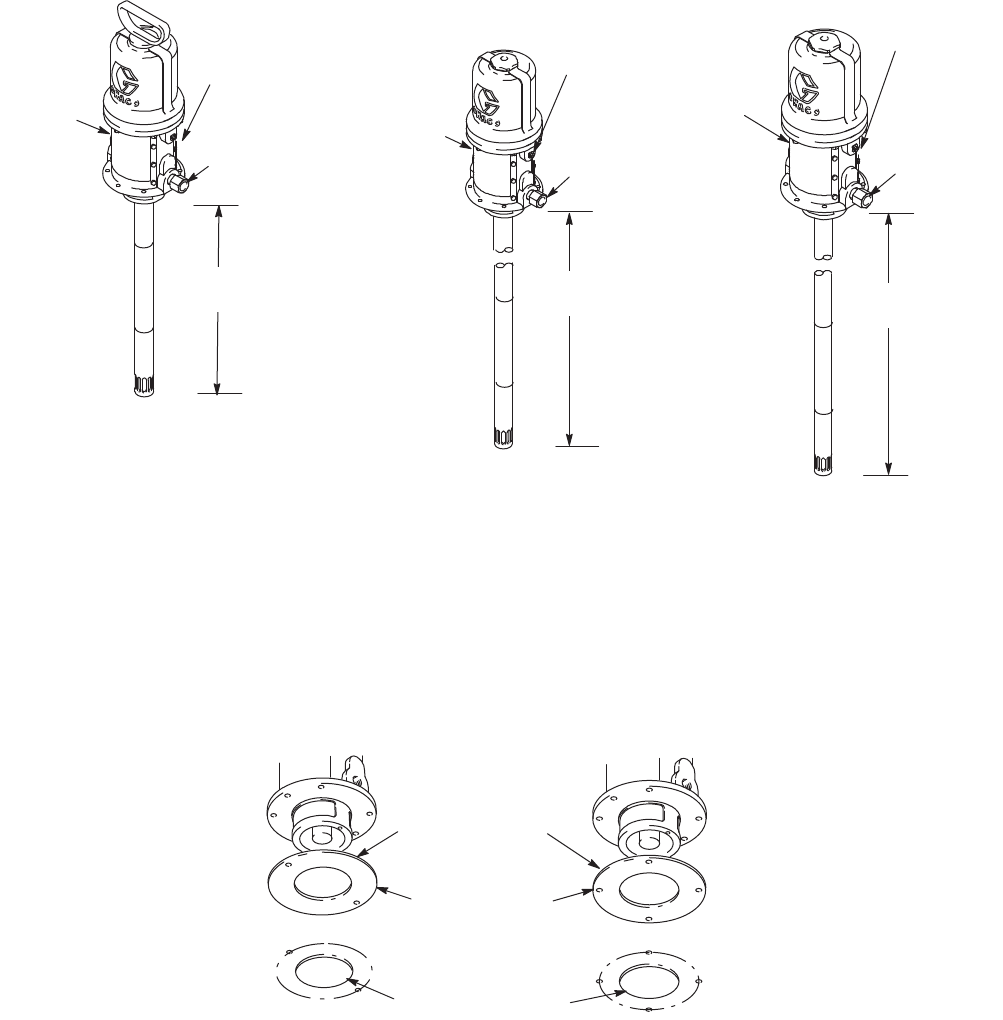

Dimension Drawings

14 308883S

Dimension Drawings

Mounting Hole Layout

Overall length:

45.4 in. (1153 mm)

Overall length:

38.4 in. (975 mm)

Overall length:

31 in. (788 mm)

33.6 in.

(853 mm)

26.7 in.

(678 mm)

17.5 in.

(445 mm)

grounding screw

1/4 npt(f)

fluid outlet

grounding screw

grounding screw

1/4 npt(f)

fluid outlet

1/4 npt(f)

fluid outlet

3/8 npt(f)

air inlet

3/8 npt(f)

air inlet 3/8 npt(f)

air inlet

161023 gasket

two or four

0.265 in. (7 mm)

dia. holes on 5 in.

(127 mm) bolt circle

3 in. (76.2 mm) dia.

2-Hole Mounting

Pattern

4-Hole Mounting

Pattern

Technical Data

308883S 15

Technical Data

.

50:1 Fire-Ball® 300 Pumps

US Metric

Maximum fluid working pressure 8400 psi 58 MPa, 580 bar

Air pressure operating range* 30 to 140 psi 0.3 to 0.97 MPa,3 to 9.7 bar

Maximum air consumption 22.8 scfm at 0.25 gpm at 100

psi 0.638 m3/minute at 0.95 liter/min

at 0.7 MPa, 7 bar

Maximum fluid output

Maximum recommended pump speed 76 cycles/min at 0.22 gpm 76 cycles/min at 0.82 liter/min

Cycles per gallon (liter) 110 28

Sound pressure level (measured at 1 meter

from unit)

77.8 dB(A)

Sound power level (tested in accordance with

ISO 9614-2)

85.6 dB(A)

Air inlet size

Fluid outlet size

Wetted Parts Steel, brass, aluminum, acetal, nitrile rubber, polyurethane

Approximate weight 22 lb 10 kg

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

Original instructions. This manual contains English. MM 308883

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 1999, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revised November 2014

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in

material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty

published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written

recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty

installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of

non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with

structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or

maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of

the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned

to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs

will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or

consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these

warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or

the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the

negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,

given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la

rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite

de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.

Phone: 612-623-6928 or Toll Free: 1-800-533-9655, Fax: 612-378-3590.
