GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441

Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001

Tool Box Kit 287253 310659 Rev. B

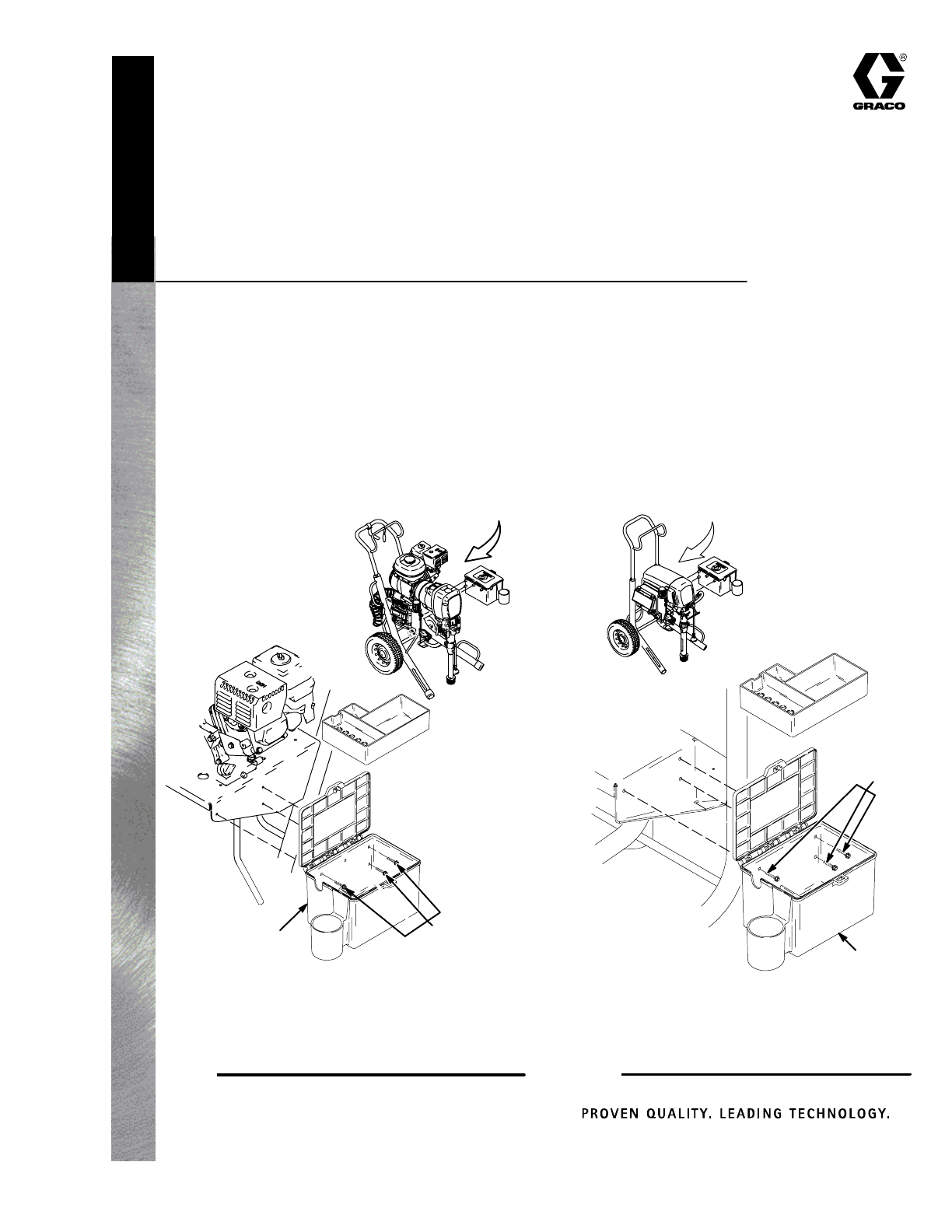

Fig. 1 Fig. 2

Electric

ti4347a

2

1

Installation

All GMax Sprayers with pre-drilled holes

Fig. 1. Install as shown with screws (2), supplied.

All electric sprayers with pre-drilled holes

Fig. 1. Install as shown with screws (2), supplied.

All other sprayers without pre-drilled holes

1. Use tool box as template and mark three

hole positions for tool box mounting.

2. Drill three 11/64 in. (4.37 mm) diameter

holes.

3. Fig. 2. Install as shown with screws (2),

supplied.

Installation

Gas

ti6353a

2

1

2 310659

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

MM 310659

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea,

GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441

www.graco.com

PRINTED IN U.S.A. 310659

1/2004 Rev. 4/2005
