311362S

EN

Parts

Ultra

®

Max II

Ultimate Mx II

- For application of architectural paints and coatings. This manual covers every series -

Korean patent 10-0579681

3300 psi (228 bar, 22.8 MPa) Maximum Working Pressure

Ultra

®

Max II

Vac Model Type Lo-Boy Hi-Boy

120V

North America

695 Standard 255130 249642

Premium 255131 249644

795 Standard 255132 249646

Premium 255133 249648

1095 Standard 249651

Premium 249653

1595 Standard 253060

Premium 253059

Mark V 249904†

120V

North America

1595 Standard 249658**†

Premium 249659**†

Mark V 249903**†

Ultimate Mx II

Vac Model Type Lo-Boy Hi-Boy

120V

Sherwin Williams

695 Standard 826093 826067

Premium 826094 826069

795 Standard 826071

Premium 826072

1095 Standard 826073

Premium 826074

1595 Standard 826082

Premium 826081

120V

Sherwin Williams

1595 Standard 826075

Premium 826076

**Not ETL Approved.

All models not available in all countries.

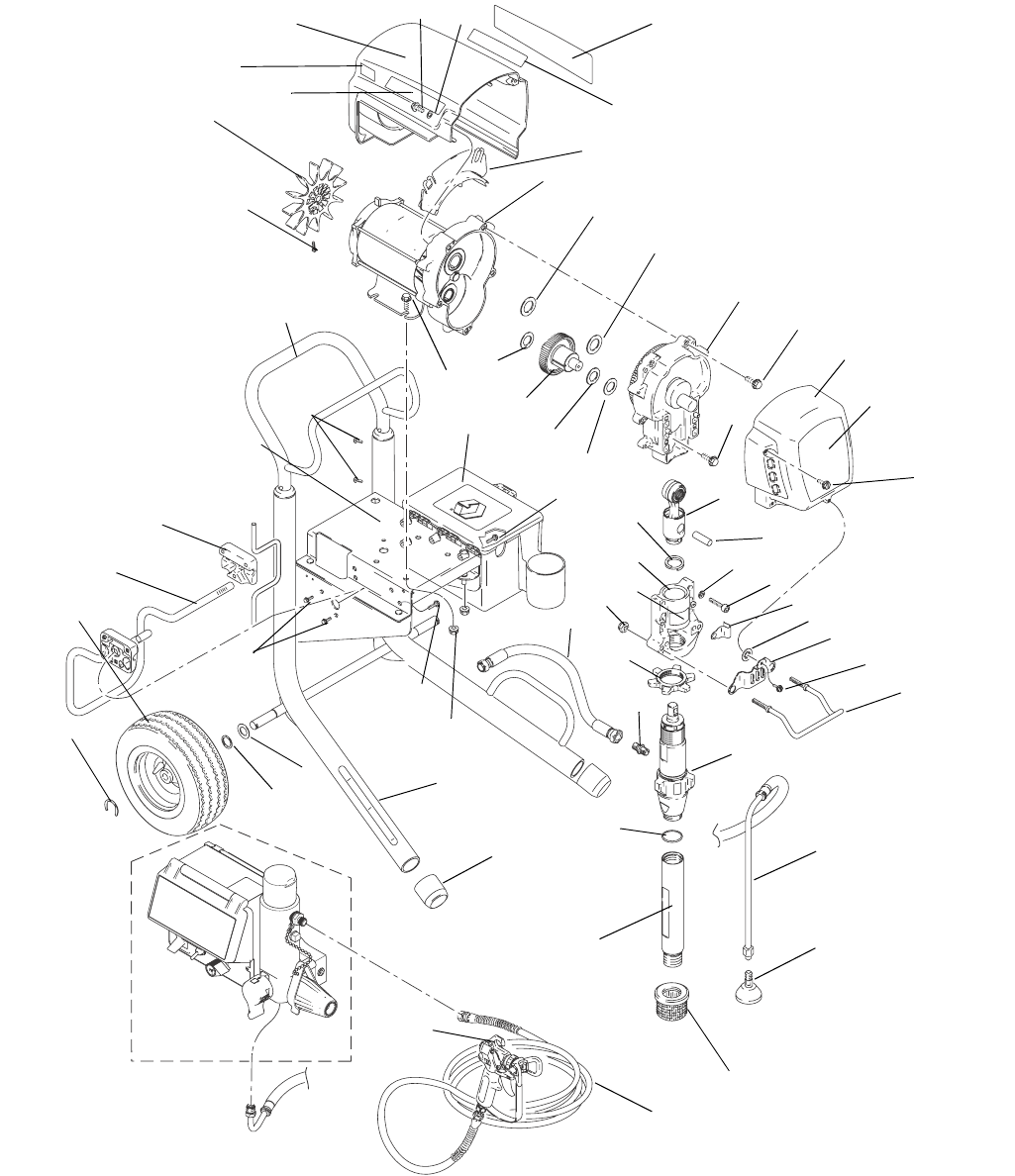

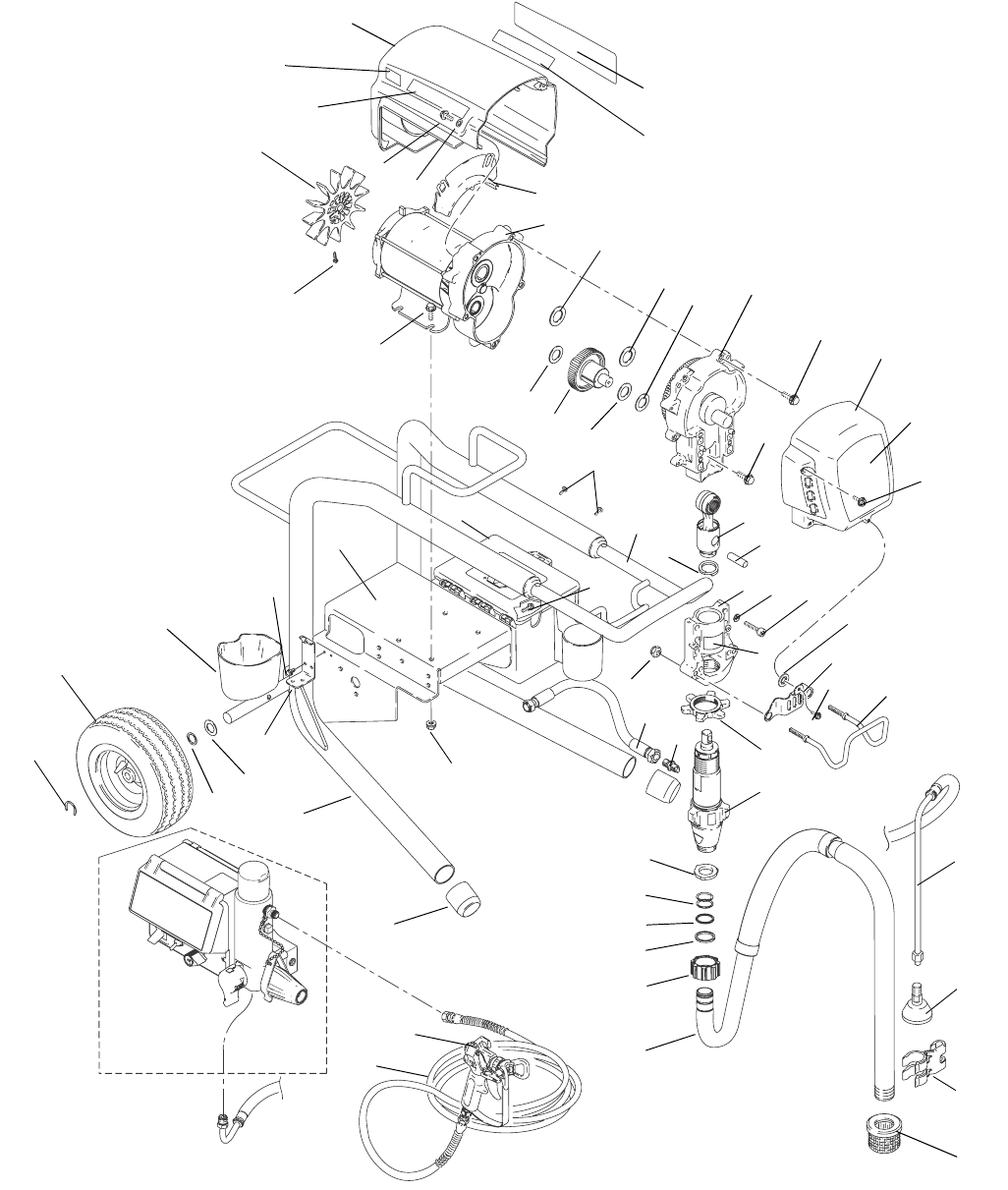

Parts Drawing - Lo-Boy Sprayer

2311362S

Parts Drawing - Lo-Boy Sprayer

UltraMax II 695 & 795: 255130, 255131, 255132, 255133

Ultimate Mx II 695: 826093, 826094

90

6

51

71

31

55

95

108

14

12

83

44

85

6

28

90a

36

28

30

18

89

37

127

161

22

10

106

62

17

129

130

8

11

76

140

141

139

138

109

19

163

107

105

162

94

56

41

91

93

87

77

48

103

104

99

43

110

72

58

110

126

124

164

84

123

695 Series A

795 Series A

695 Series B

795 Series B

See page 12

ti12976b

See Page 10

160

Parts List - Lo-Boy Sprayer

311362S 3

Parts List - Lo-Boy Sprayer

UltraMax II 695 & 795: 255130, 255131, 255132, 255133

Ultimate Mx II 695: 826093, 826094

1

Ref Part Description Qty

6 15C753 SCREW, mach, torx, hex 5

8 15E891 CLIP, retaining 2

10 156306 WASHER, flat 2

11* 119420 WHEEL, pneumatic 2

12 106115 WASH, lock, spring 4

14 107210 SCREW, cap, socket hd 4

17 15C871 CAP, leg 2

18 109032 SCREW, mach, pnh 4

19 112746 NUT, hex, flanged 8

22 116038 WASHER, wave spring 2

28 114672 WASHER, thrust 2

30 114699 WASHER, thrust 1

31 118444 SCREW, machine, hex washer hd 4

36 116191 WASHER, thrust 1

37 100057 SCREW, cap, hex hd 4

41 162453 FITTING, (1/4 NPSM x 1/4 NPT) 1

43 176817 SPRING, retaining 1

44 176818 PIN, str, hdls 1

48 189920 STRAINER, (1-11 1/2 NPSM) 1

51 287291 COVER, drive, plastic, painted;

includes 31, 95

1

55 16C457 HANGER, pail 1

56 192723 NUT, retaining 1

58 287281 695 SHIELD, motor, painted;

includes 31

1

287282 795 SHIELD, motor, painted;

includes 31

1

62 288898 FRAME, cart 1

71 LABEL 1

15K374 Ultra 695

15D068 Ultra 795

824995 Ultimate 695

72 LABEL 1

15K381 Ultra 695

15D069 Ultra 795

824996 Ultimate 695

76 248216 HOSE, suction;

includes 109, 138, 134, 140, 141

1

77 15D000 CLIP, drain line 1

83 240523

HOUSING, bearing;

includes

162, 55

1

84

MOTOR, electric; includes

126, 127

1

287197 695 Series A

257185 695 Series B

287198 795 Series A

257186 795 Series B

85 241008 ROD, connecting;

includes 43

1

87 241920 DEFLECTOR, threaded 1

89 287289 GEAR, combination;

includes 28, 30

1

90 HOUSING, drive, M1;

includes 6, 36, 90a

1

287283 695

287284 795

90a 107089 WASHER, race, thrust 1

91 248204 PUMP, displacement 695/795;

includes 109

1

93 248217 HOSE, drain;

includes 87

1

94 15D049 HOSE, coupled, 1/4 x 15.75 1

95 114000 SCREW, control housing 1

99 288448 HANDLE, cart 1

103 287253 TOOL BOX;

includes 104

1

104 118852 SCREW, machine, hex washer 3

105 276975 CUP, drain 1

106 15F952 BRACKET, drain cup 1

107 114423 SCREW, mach, hex hd 2

108 15C859 SHIELD, pump rod 1

109 115099 WASHER, garden hose 1

110 16D585 LABEL, Ultra Premium, sides 2

117 187436 LABEL, torque 1

123 276980 GROMMET, cover 2

124 119250 SCREW, shoulder, hex washer 2

126 15D088 FAN, motor 1

127 115477 SCREW, mach, torx, pan hd 1

128▲222385 TAG, WARNING (not shown) 1

129 HOSE, cpld, 1/4 in. x 50 ft 1

240794 Ultra

826079 Ultimate

130 288422 GUN, contractor 1

Manual 311861

138 117559 O-RING 2

139 118505 RING, retaining, external 1

140 15C980 NUT, jam 1

141 15C981 WASHER, suction swivel 1

160 15Y118 LABEL, Made in USA 1

161 124172 WASHER, retaining, nylon, 10-32 1

162 112746 NUT, hex 2

163 288899 SHELF, PEM assembly 1

164 278075 BAFFLE 1

*

253132 KIT, repair, tube, 11 in.

▲

Extra Danger & Warning tags & labels available free.

Ref Part Description Qty

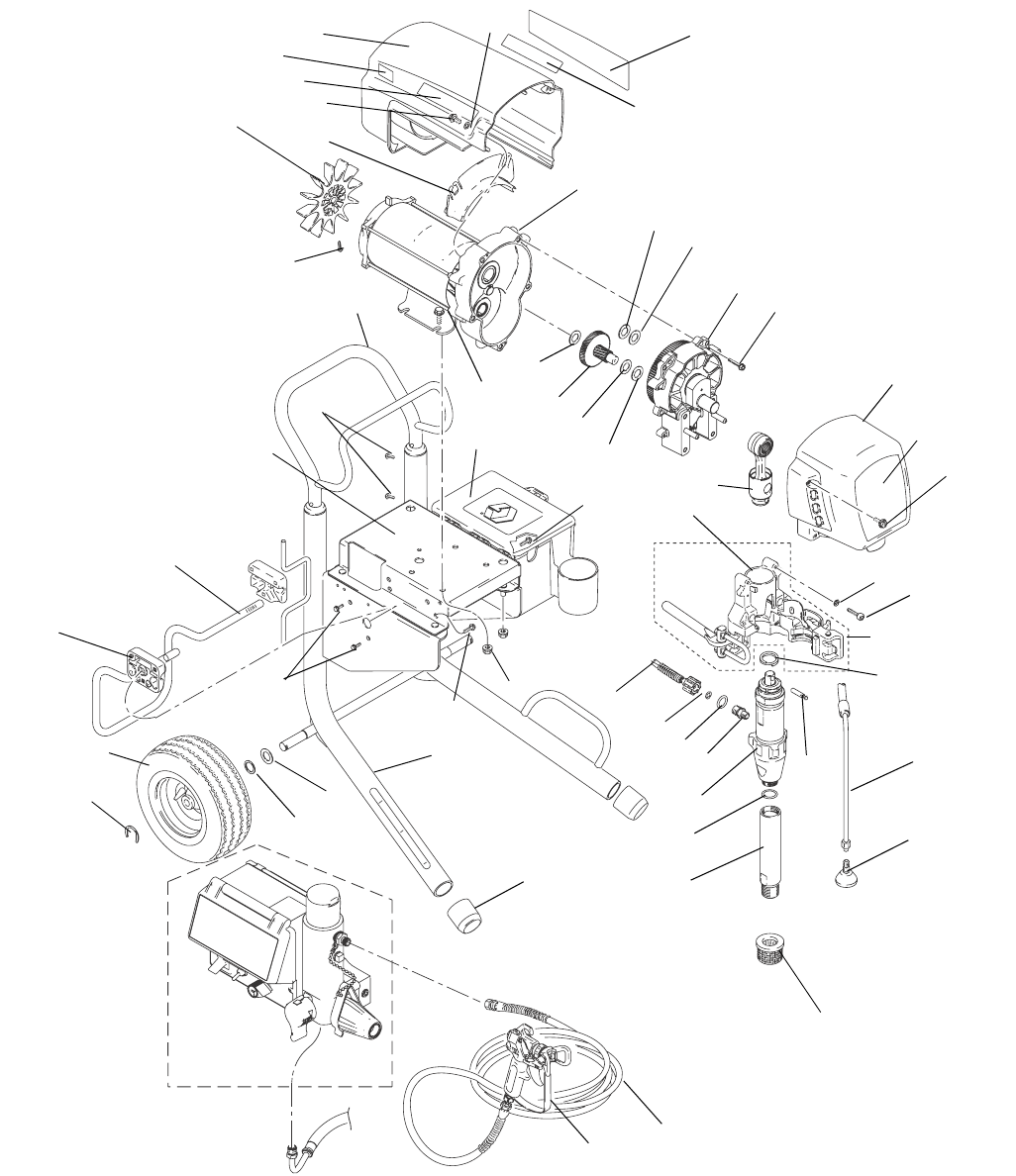

Parts Drawing - Hi-Boy Sprayer

4311362S

Parts Drawing - Hi-Boy Sprayer

UltraMax II 695 & 795: 249642, 249644, 249646, 249648

Ultimate Mx II 695 & 795: 826067, 826069, 826071, 826072

48

87

93

55

95

108

14

12

44

85

31

76

109

17

62

10

22

8

11

105

107

106

23

19

41

94

56

162 117

83

104

43

103

18

28

30

89

28

37

6

51

6

90

90a

36

84

110

72

123

124

58

110

126

127

99

91

77

71

...

.

See page 12

130

129

163

164

695 Series A - C

795 Series A, B

695 Series D

795 Series C

See page 12

ti12977b

See page 12

161

160

Parts List - Hi-Boy Sprayer

311362S 5

Parts List - Hi-Boy Sprayer

UltraMax II 695 & 795: 249642, 249644, 249646, 249648

Ultimate Mx II 695 & 795: 826067, 826069, 826071, 826072

Ref

No. Part No. Description Qty

6 15C753 SCREW, mach, torx, hex 5

8 15E891 CLIP, retaining 2

10 156306 WASHER, flat 2

11* 119420 WHEEL, pneumatic 2

12 106115 WASH, lock, spring 4

14 107210 SCREW, cap, socket hd 4

17 15C871 CAP, leg 2

18 109032 SCREW, mach, pnh 4

19 112746 NUT, hex, flanged 8

22 116038 WASHER, wave spring 2

23 110963 SCREW, cap, flng hd 2

28 114672 WASHER, thrust 2

30 114699 WASHER, thrust 1

31 118444 SCREW, machine, hex washer hd 4

36 116191 WASHER, thrust 1

37 100057 SCREW, cap, hex hd 4

41 162453 FITTING, (1/4 NPSM x 1/4 NPT) 1

43 176817 SPRING, retaining 1

44 176818 PIN, str, hdls 1

48 189920 STRAINER, (1-11 1/2 NPSM) 1

51 287291 COVER, drive, plastic, painted;

includes 31, 95

1

55 16C457 HANGER, pail 1

56 192723 NUT, retaining 1

58

SHIELD, motor, painted;

includes 31

1

287281 695

287282 795

62 288605 FRAME, cart 1

71 LABEL 1

15K374 Ultra 695

15D068 Ultra 795

824995 Ultimate 695

824998 Ultimate 795

72 LABEL 1

15K381 Ultra 695

15D069 Ultra 795

824996 Ultimate 695

824999 Ultimate 795

76 248214 TUBE, intake;

includes 109

1

77 278204 CLIP, spring 1

83 240523

HOUSING, bearing; includes 55, 162

1

84 MOTOR, electric 1

287197 695 Series A - C

257185 695 Series D

287198 795 Series A, B

257186 795 Series C

85 241008 ROD, connecting;

includes 43

1

87 241920 DEFLECTOR, threaded 1

89 287289 GEAR, combination;

includes 28, 30

1

90 HOUSING, drive, M1;

includes 6, 36, 90a

1

287283 695

287284 795

90a 107089 WASHER, race, thrust 1

91 248204 PUMP, displacement;

includes 109

1

93 244240 HOSE, coupled;

includes 87

1

94 15D049 HOSE, coupled, 1/4 x 15.75 1

95 114000 SCREW, control housing 1

99 245245 HANDLE, cart 1

103 287253 TOOLBOX,

includes 104

1

104 118852 SCREW, hex washer hd 3

105 15D281 HANGER, stand, cart 1

106 15C982 CAM, cart 2

107 114531 SCREW, mach, hex washer 4

108 15C859 SHIELD, pump rod 1

109 118494 PACKING, o-ring 1

110 16D585 LABEL, Ultra Premium, sides 2

117 187436 LABEL, torque 1

123 276980 GROMMET, cover 2

124 119250 SCREW, shoulder, hex, washer 2

126 15D088 FAN, motor 1

127 115477 SCREW, mach, torx, pan, hd 1

128▲222385 TAG, WARNING (not shown) 1

129 HOSE, cpld, 1/4 in. x 50 ft 1

240794 Ultra

826079 Ultimate

130 288420 GUN, contractor 1

Manual 311861

160 15Y118 LABEL, Made in USA 1

161 124172 WASHER, retaining, nylon, 10-32 1

162 112746 NUT, hex 2

163 288899 SHELF, PEM assembly 1

164 278075 BAFFLE 1

▲

Extra Danger and Warning tags and labels available free.

*

253132 KIT, repair, tube

Ref

No. Part No. Description Qty

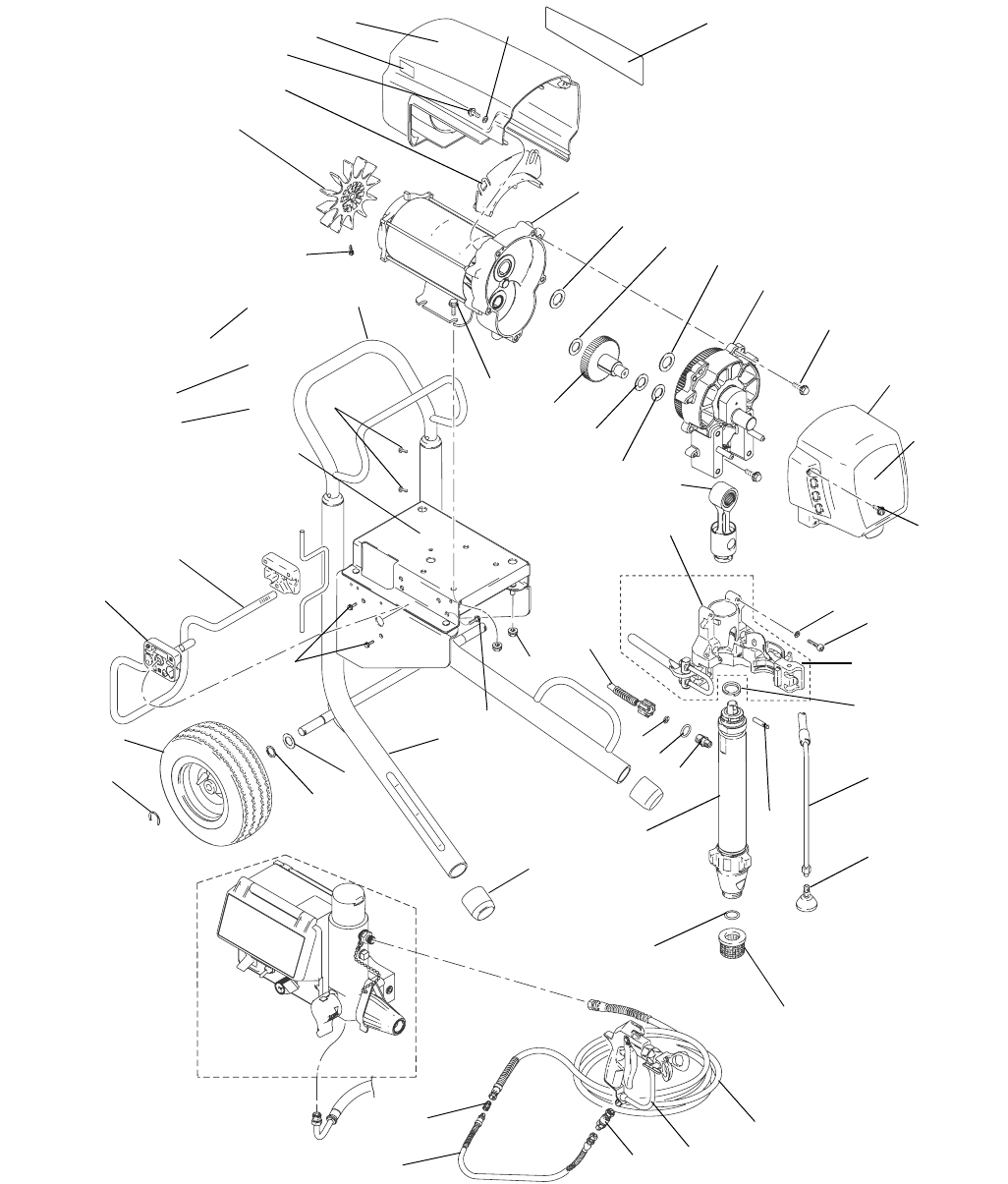

Parts Drawing - Hi-Boy Sprayer

6311362S

Parts Drawing - Hi-Boy Sprayer

UltraMax II 1095 & 1595: 249651, 249653, 253060, 253059, 249658, 249659

Ultimate Mx II 1095 & 1595: 826073, 826074, 826082, 826081, 826075, 826076

48

87

93

55

14

12

44

85 31

76

109

17

62

10

22

8

11

105

107

106

23

19

41

94

20

83

104

103

18

28

30

89

28

37 51

6

90

90a

36

84

110

72

123

124

58

110

126

127

160

99

91

71

..

.

.

See page 12

43

130

129

163

Series A

Series B

ti12978b

164

See page 12

See page 10

Parts List - Hi-Boy Sprayer

311362S 7

Parts List - Hi-Boy Sprayer

UltraMax II 1095 & 1595: 249651, 249653, 253060, 253059, 249658, 249659

Ultimate Mx II 1095 & 1595: 826073, 826074, 826082, 826081, 826075, 826076

Ref

No. Part No. Description Qty

6 15C753 SCREW, mach, torx, hex 5

8 15E891 CLIP, retaining 2

10 156306 WASHER, flat 2

11* 119509 WHEEL, pneumatic 2

12 106115 WASH, lock, spring 4

14 114666 SCREW, cap, socket hd 4

17 276974 CAP, leg 2

18 108795 SCREW, mach, pnh 4

19 110838 NUT, hex, flanged 8

20 111457 O-RING 1

22 116038 WASHER, wave spring 2

23 110963 SCREW, cap, flng hd 2

28 114672 WASHER, thrust 2

30 114699 WASHER, thrust 1

31 118444 SCREW, machine, hex washer hd 4

36 116192 WASHER, thrust 1

37 100057 SCREW, cap, hex hd 4

41 15E802 FITTING, pump, quick disc 1

43 119778 SPRING, retaining 1

44 15F110 PIN, pump 1

48 189920 STRAINER, (1-11 1/2 NPSM) 1

51 287292 COVER, drive, plastic, painted;

includes 31

1

55 119790 PACKING, o-ring 1

58 287282 SHIELD, motor, painted;

includes 31

1

62 288663 FRAME, cart 1095/1595 1

71 LABEL, UltraMax 1

15D071 Ultra 1095

15D074 Ultra 1595

825011 Ultimate 1095

825014 Ultimate 1595

72 LABEL, UltraMax II 1095/1595 1

15D072 Ultra 1095

15D075 Ultra 1595

825012 Ultimate 1095

825015 Ultimate 1595

76 248215 TUBE, intake;

includes 109

1

83 287523 HOUSING, bearing 1

84 MOTOR, electric;

includes 126, 127

1

287199 1095 Series A

257187 1095 Series B

287200 1595 Series A

257188 1595 Series B

85 287472 ROD, connecting;

includes 43, 44

1

87 241920 DEFLECTOR, threaded 1

89 287290 GEAR, combination;

includes 28, 30

1

90 HOUSING, drive, M1;

includes 6, 36, 90a

1

287294 1095

287295 1595

90a 107089 WASHER, race, thrust 1

91 287513 PUMP, displacement;

includes 41, 76, 109

1

93 287952 HOSE, drain;

includes 87

1

94 288658 HOSE, coupled 1

99 245245 HANDLE, cart 1

103† 287253 TOOLBOX;

includes 104

1

104† 118852 SCREW, hex washer hd 3

105 15C858 HANGER, stand, cart 1

106 15C982 CAM, cart 2

107 114531 SCREW, mach, hex washer 4

109 118494 PACKING, o-ring 1

110 16D585 LABEL, Ultra Premium, sides 2

123 276980 GROMMET, cover 2

124 119250 SCREW, shoulder, hex, washer 3

126 15D088 FAN, motor 1

127 115477 SCREW, mach, torx, pan, hd 1

128▲222385 TAG, WARNING (not shown) 1

129 HOSE, cpld, 1/4 in. x 50 ft 1

240794 Ultra

826079 Ultimate

130 288420 GUN, contractor 1

Manual 311861

160 15Y118 LABEL, Made in USA 1

163 288899 SHELF, PEM assembly 1

164 278075 BAFFLE 1

▲

Extra Danger and Warning tags and labels available free.

*

253131 KIT, repair, tube

†

Premium Sprayers

Ref

No. Part No. Description Qty

Parts Drawing - Hi-Boy Sprayer

8311362S

Parts Drawing - Hi-Boy Sprayer

UltraMax II Mark V: 249903, 249904

48

87

93

55

14

12

44

85

31

17

62

10

22

8

11

105

107

106

19

41

94

21

83

18

28

30

89

28

37 51

6

90

90a

36

84

72

123

58

126

127

160

16

25

46

99

91

71

124

109

43

.

.

See page 14

23

130

129

174

173

172

163

Series A

Series B

164

ti12982b

See page 12

See page 10

Parts List - Hi-Boy Sprayer

311362S 9

Parts List - Hi-Boy Sprayer

UltraMax II Mark V: 249903, 249904

Ref

No. Part No. Description Qty.

6 15C753 SCREW, mach, torx, hex 5

8 15E891 CLIP, retaining 2

10 156306 WASHER, flat 2

11* 119509 WHEEL, pneumatic 2

12 106115 WASH, lock, spring 4

14 114666 SCREW, cap, socket hd 4

17 276974 CAP, leg 2

18 108795 SCREW, mach, pnh 4

19 110838 NUT, hex, flanged 8

21 109450 O-RING 1

22 116038 WASHER, wave spring 2

23 110963 SCREW, cap, flng hd 2

28 114672 WASHER, thrust 2

30 114699 WASHER, thrust 1

31 118444 SCREW, machine, hex washer hd 4

36 116192 WASHER, thrust 1

37 100057 SCREW, cap, hex hd 4

41 15G880 FITTING, pump, quick disc 1

43 119778 SPRING, retaining 1

44 15F110 PIN, pump 1

48 189920 STRAINER, (1-11 1/2 NPSM) 1

51 287292 COVER, drive, plastic, painted 1

55 C20195 PACKING, o-ring 1

58 287282 SHIELD, motor, painted 1

62 288663 FRAME, cart 1

71 15G804 LABEL, Mark V 1

72 15G805 LABEL, Mark V 1

83 287523 HOUSING, bearing 1

84 MOTOR, electric;

includes 126, 127

1

287200 Series A

257188 Series B

85 287472 ROD, connecting;

includes 43, 44

1

87 241920 DEFLECTOR, threaded 1

89 287290 GEAR, combination;

includes 28, 30

1

90 287295 HOUSING, drive;

includes 6, 36, 90a

1

90a 107089 WASHER, race, thrust 1

91 287929 PUMP, displacement;

includes 41, 109

1

93 287952 HOSE, drain;

includes 87

1

94 287792 HOSE, coupled 1

99 245245 HANDLE, cart 1

105 15C858 HANGER, stand, cart 1

106 15C982 CAM, cart 2

107 114531 SCREW, mach, hex washer 4

123 276980 GROMMET, cover 2

124 119250 SCREW, shoulder, hex, washer 3

126 15D088 FAN, motor 1

127 115477 SCREW, mach, torx, pan, hd 1

128▲222385 TAG, WARNING (not shown) 1

129 240797 HOSE, cpld, 3/8 in. x 50 ft 1

130 241705 GUN, spray, texture 1

160 15Y118 LABEL, Made in USA 1

163 288899 SHELF, PEM assembly 1

164 278075 BAFFLE 1

172 241735 HOSE, cpld, 1/4 in. x 3 ft 1

173 159841 ADAPTER, 1/4 npt (f) x 3/8 npt (m) 1

174 189018 SWIVEL, 1/4 npsm (f) x 1/4

npsm (m)

1

▲

Extra Danger and Warning tags and labels available free.

*

253131 KIT, repair, tube

Ref

No. Part No. Description Qty.

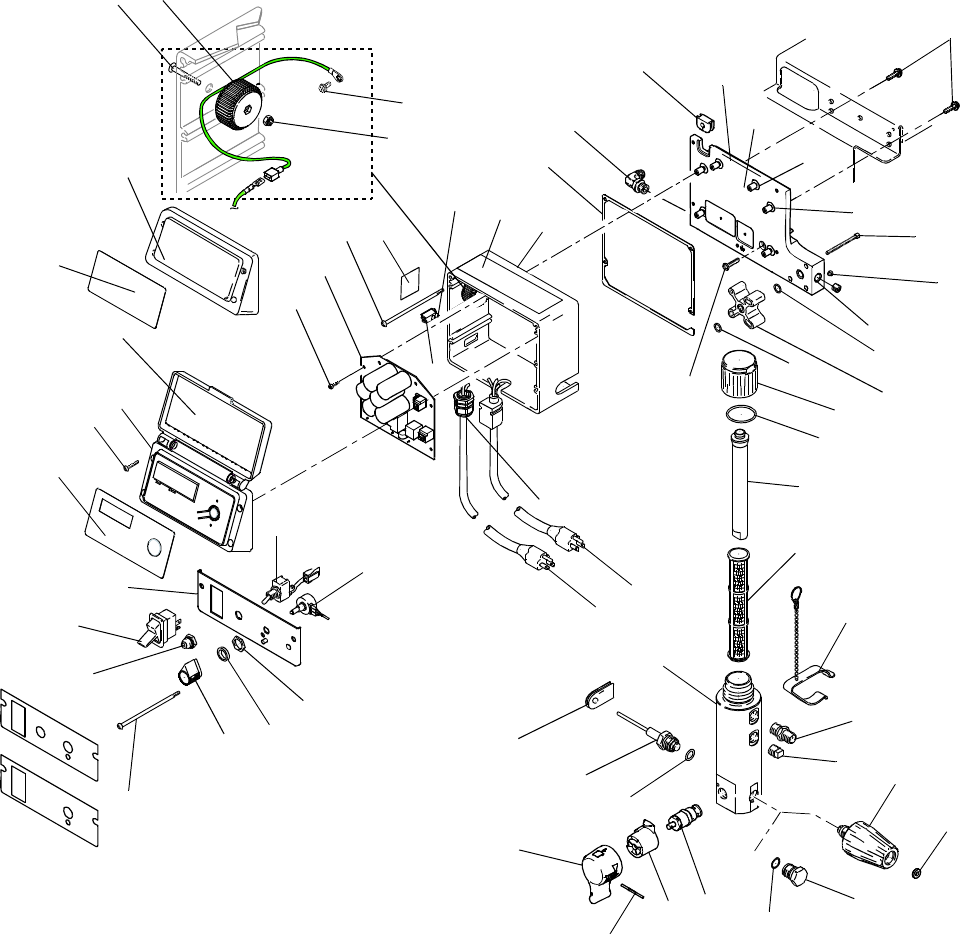

Parts Drawing

10 311362S

Parts Drawing

695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;

795 Hi-Boy Series A, B; 1095/1595/Mark V Series A

(Models with only TWO large capacitors on control board)

ti7354a

Screw 148

26

Nut 118

70

29 69

26

47

101

23

13

35

7

15

113

15

66

9

74

92

98

42

114

97

97A

73

125

80

81

21

50

20

86

40

67

75

75

60 61

59

143

142

39

144

52

27

96

102

45

82

82

115

34

39

147

49

33

68

63

38

96

64

65 .

.

..

.

122

68

Parts List

311362S 11

Parts List

695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;

795 Hi-Boy Seris A, B; 1095/1595/Mark V Series A

Ref. Part Description Qty.

7 100721 PLUG, pipe 1

9 117285 PACKING, o-ring 1

13 C19817 SCREW, cap, socket 3

15 107505 PACKING, o-ring 2

20 111457 PACKING, o-ring 2

21 15C972 PIN, grooved 1

23 110963 SCREW, cap, flng 2

26 114391 SCREW, grounding 1

27 113045 SCREW, sems, mach, phillips 5

29 15D087 GROMMET 1

33 15C979 SWITCH, rocker 1

34 116167 KNOB, potentiometer 1

35 105510 WASHER, lock, spring 3

38 116252 SCREW, #10 taptite phillips 4

39 112381 SCREW, mach, pan hd 4

40 15D033 GROMMET, transducer 1

42 NIPPLE, adapter 1

164672 695, 795, 1095, 1595

162485 Mark V

45 119541 SWITCH, toggle 1

47 186620 LABEL, symbol, ground 1

49 195428 BOOT, toggle 1

50 15C780 HANDLE 1

52 287941 CONTROL, board; (2 capacitor)

includes 27, 102

1

59▲15D523 LABEL, warning 1

60▲195833 LABEL, warning 1

61 BOX, control 1

15G953 695, 795, 1095

15G700 1595, Mark V

63 198648 LABEL, LCD 1

64 15D063 LABEL, instruction 1

65 LABEL, ctrl, box cover 1

15K394 Ultra Premium Digital Display

15D609 Ultra Standard

196843 Ultimate Premium Digital Display

15B705 Ultimate Standard

66 287285 CAP, filter;

includes 9, 74

1

67 15C838 BASE, filter 1

68 PANEL, control 1

15C947 Mark V

15G627 695, 795, 1095, 1595

69 15C840 PLATE, power bar 1

70 15D036 GASKET, control box 1

73 248314 PLUG, Autoclean;

includes 125

1

74 15C766 TUBE, diffusion 1

75 CORD, power 1

15H064 695, 795, 1095

15H066 1595, Mark V ETLC

15H065 1595, Mark V

80 257352 VALVE, prime 1

81 224807 BASE, valve 1

82 256219 POTENTIOMETER, assembly 1

86 243222 TRANSDUCER, pressure control;

includes 20

1

92 FILTER, fluid 1

244071 30 mesh 1

244067 60 mesh, original equipment 1

244068 100 mesh 1

244069 200 mesh

96 COVER, control

15D456 Ultra Standard 1

287286 Ultra Premium;

includes 38, 63,

64, & 65

1

825026 Ultimate Premium;

includes 38, 63

64, & 65

97 287293 VALVE, Autoclean 1

Premium Models;

includes 97a

97a 15F950 GASKET 1

98 KIT, repair, clamp, trigger 1

244346 Premium Models

101 15D160 STUD, board 5

102 114420 SCREW, mach, pmh, sems 1

113 15F844 SPACER, manifold 1

114 104813 PLUG, pipe 1

115 15C973 GASKET 1

118 FITTING, hydraulic 1

120185 FITTING, hydraulic Mark V

116793 FITTING, elbow, hydraulic

695, 795,

118896 FITTING, elbow, hydraulic 1095,

1595

122 115478 SCREW, mach torx/slt 1

125 15D541 SEAL, washer 1

142 120059 SWITCH, rocker 1595, Mark V 1

143 15G935 CONNECTOR, electrical 1595,

Mark V

1

144 116171 BUSHING, strain relief 1595,

Mark V

1

147 15G769 LABEL 1

148 287943 KIT, repair, coil;

includes Nut &

Screw

1

172 241735 HOSE, cpld, 1/4 in. x 3 ft 1

173 159841 ADAPTER, 1/4 npt(f) x 3/8 npt(m) 1

174 189018

SWIVEL, 1/4 npsm(f) x 1/4 npsm(m)

1

▲

Extra Danger and Warning tags and labels available free.

Ref. Part Description Qty.

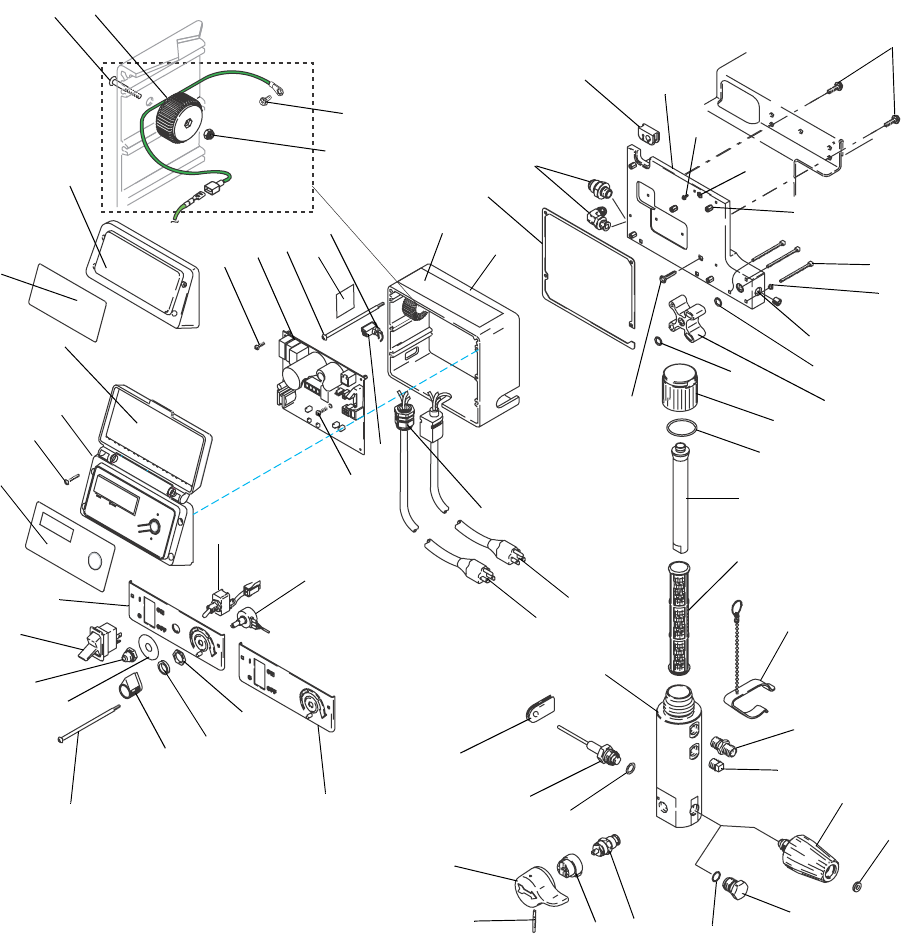

Parts Drawing

12 311362S

Parts Drawing

695/795 Lo-Boy Series B; 695 Hi-Boy Series D;

795 Hi-Boy Series C; 1095/1595/Mark V Series B

(Models with SIX large capacitors on control board)

Screw 148

26

Nut

118

70

29 69

26

47

101

23

13

35

7

15

113

15

66

9

74

92

98

42

114 97

97a

73

125

80

81

21

50

20

86

40

67

75

75

60 61

59

143

142

39

144

52

27

96

45

82

82

115

34

39

49

33

68

63

38

96

64

65 .

.

..

.

122

ti12979a

Parts List

311362S 13

Parts List

695/795 Lo-Boy Series B; 695 Hi-Boy Series D;

795 Hi-Boy Series C; 1095/1595/Mark V Series B

Ref. Part Description Qty.

7 100721 PLUG, pipe 1

9 117285 PACKING, o-ring 1

13 C19817 SCREW, cap, socket 3

15 107505 PACKING, o-ring 2

20 111457 PACKING, o-ring 2

21 15C972 PIN, grooved 1

23 110963 SCREW, cap, flng 2

26 114391 SCREW, grounding 1

27 113045 SCREW, sems, mach, phillips 6

29 15V996 GROMMET 1

33 15C979 SWITCH, rocker 1

34 116167 KNOB, potentiometer 1

35 105510 WASHER, lock, spring 3

38 116252 SCREW, #10 taptite phillips 4

39 112381 SCREW, mach, pan hd 4

40 15D033 GROMMET, transducer 1

42 NIPPLE, adapter 1

164672 695, 795, 1095, 1595

162485 Mark V

45 119541 SWITCH, toggle 1

47 186620 LABEL, symbol, ground 1

49 195428 BOOT, toggle 1

50 15C780 HANDLE 1

52 257448 CONTROL, board;

includes 27, 102

1

59▲15D523 LABEL, warning 1

60▲195833 LABEL, warning 1

61 BOX, control 1

15G953 695, 795, 1095

15G700 1595, Mark V

63 198648 LABEL, LCD 1

64 15D063 LABEL, instruction 1

65 LABEL, ctrl, box cover 1

15K394 Ultra Premium Digital Display

15K384 Ultra Standard

196843 Ultimate Premium Digital Display

15B705 Ultimate Standard

66 287285 CAP, filter;

includes 9, 74

1

67 15C838 BASE, filter 1

68 PANEL, control 1

15C947 Mark V Panel Control 1

15G627 695, 795, 1095, 1595 Panel Control 1

69 15V937 PLATE, power bar 1

70 15D036 GASKET, control box 1

73 248314 PLUG, Autoclean;

includes 125

1

74 15C766 TUBE, diffusion 1

75 CORD, power 1

15H064 695, 795, 1095

15H066 1595, Mark V ETLC

15H065 1595, Mark V

80 24A381 VALVE, prime 1

80a 277364 GASKET, seat, valve

80b 15E022 SEAT, valve

81 224807 BASE, valve 1

82 256219 POTENTIOMETER, assembly 1

86 243222 TRANSDUCER, pressure control;

includes 20

1

92 FILTER, fluid 1

244071 30 mesh 1

244067 60 mesh, original equipment 1

244068 100 mesh 1

244069 200 mesh

96 COVER, control

15D456 Ultra Standard 1

287286 Ultra Premium;

includes 38, 63,

64, & 65

1

825026 Ultimate Premium;

includes 38, 63

64, & 65

97 287293 VALVE, Autoclean 1

Premium Models;

includes 97a

97a 15F950 GASKET 1

98 KIT, repair, clamp, trigger 1

244346 Premium Models

101 15V938 STUD, board 6

102 114420 SCREW, mach, pmh, sems 2

113 15F844 SPACER, manifold 1

114 104813 PLUG, pipe 1

115 15C973 GASKET 1

118 FITTING, hydraulic 1

120185 FITTING, hydraulic Mark V

116793 FITTING, elbow, hydraulic

695, 795,

118896 FITTING, elbow, hydraulic 1095,

1595

122 115478 SCREW, mach torx/slt 1

125 15D541 SEAL, washer 1

142 120059 SWITCH, rocker 1595, Mark V 1

143 15G935 CONNECTOR, electrical 1595,

Mark V

1

144 116171 BUSHING, strain relief 1595,

Mark V

1

148 287943 KIT, repair, coil;

includes Nut &

Screw

1

172 241735 HOSE, cpld, 1/4 in. x 3 ft 1

173 159841 ADAPTER, 1/4 npt(f) x 3/8 npt(m) 1

174 189018

SWIVEL, 1/4 npsm(f) x 1/4 npsm(m)

1

▲

Extra Danger and Warning tags and labels available free.

Ref. Part Description Qty.

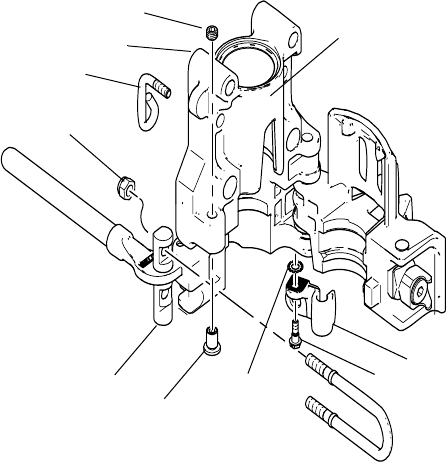

Parts Drawing - Bearing Housing 287523

14 311362S

Parts Drawing - Bearing Housing 287523

Parts List - Bearing Housing 287523

Ref

No. Part No. Description Qty

24 15F116 LATCH, handle 1

31 119250 SCREW, machine, hex washer 5

56 15F498 SCREW, adjustment 1

77 278204 CLIP, spring 1

83 HOUSING, bearing 1

117 187437 LABEL, torque 1

139 15E625 PIN, housing, bearing 1

141 111040 NUT, lock, insert, nylock 2

161 15F503 SCREW, set, socket head 1

162 100985 WASHER, lock ext 1

24

141

139

56

31

77

161

83

117

ti6338e

162

Wiring Diagram

311362S 15

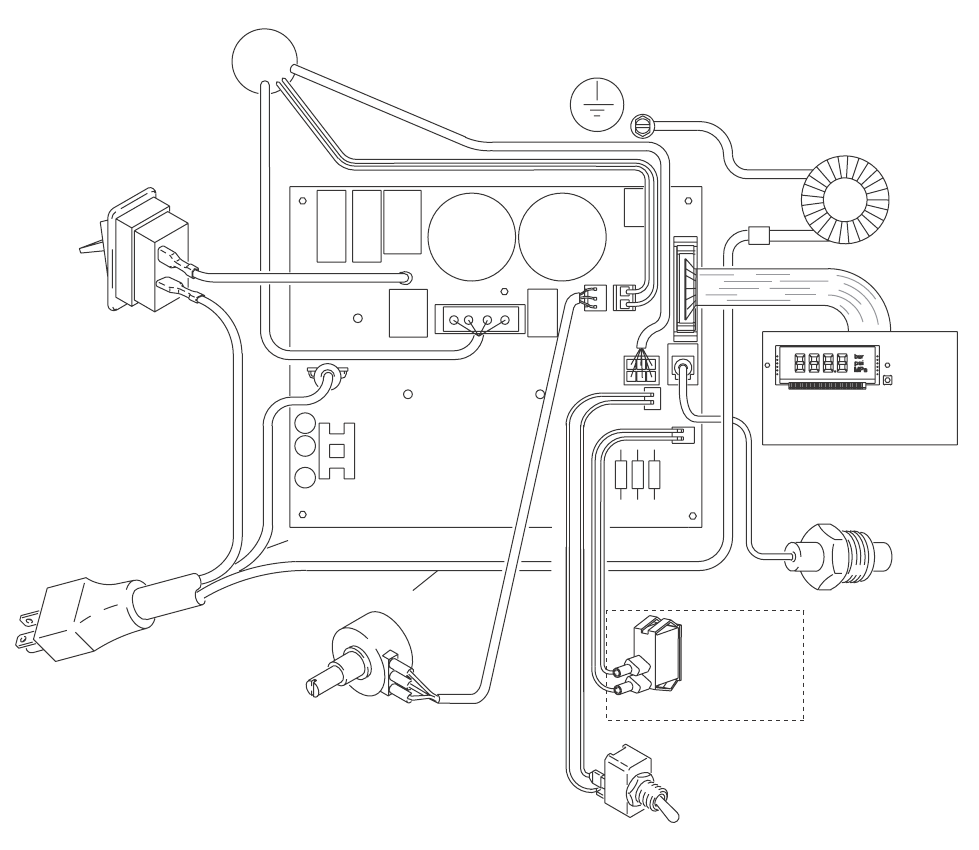

Wiring Diagram

695/795 Lo-Boy Series A; 695 Hi-Boy Series A - C;

795 Hi-Boy Series A, B; 1095/1595/Mark V Series A

(Models with only TWO large capacitors on control board)

Potentiometer

Black

ON/OFF

Switch

Power Plug

Pressure

Transducer

Motor

Black +

white

green/ground

green/ground

Digital Display

Watchdog

Switch

20A 15A

1595/MARK V

ti7346a

Wiring Diagram

16 311362S

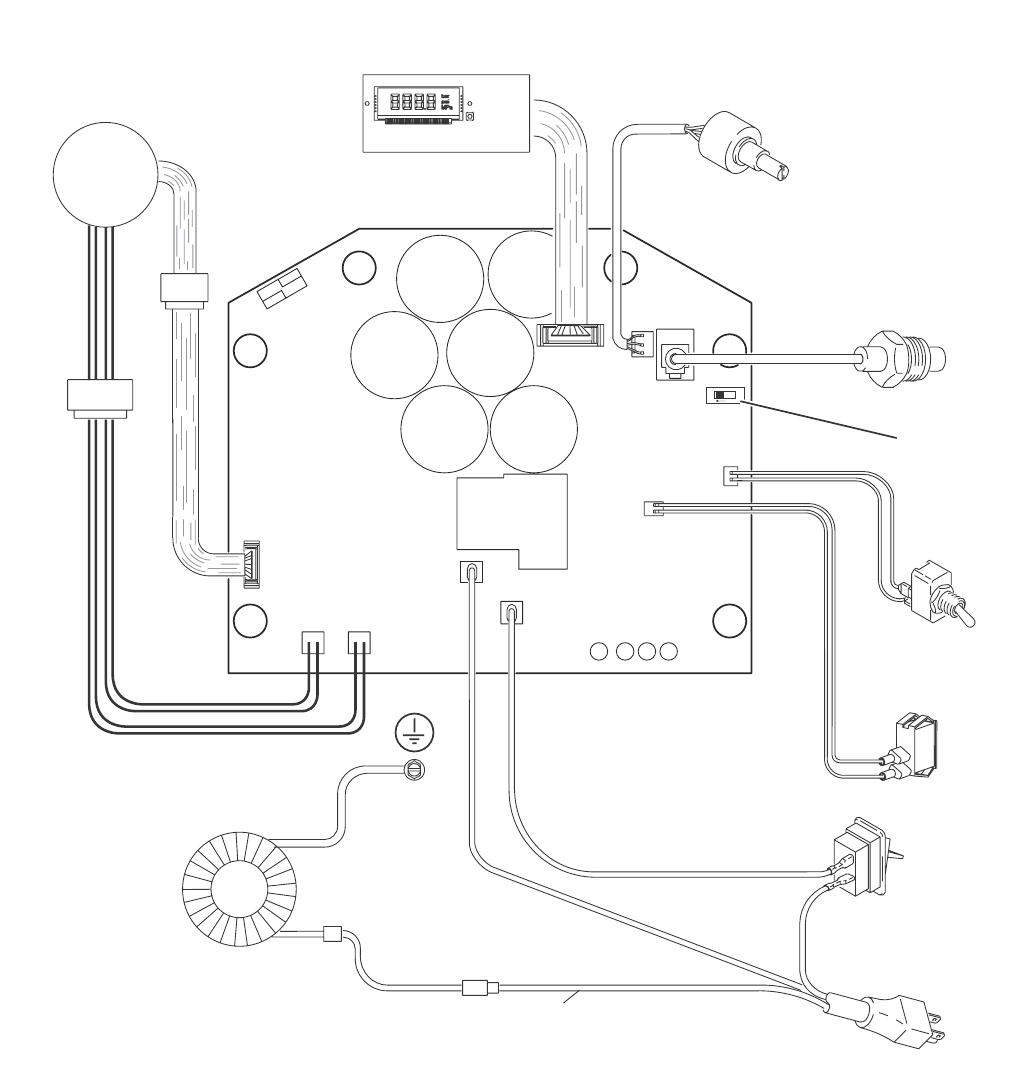

Wiring Diagram

695/795 Lo-Boy Series B; 695 Hi-Boy Series D;

795 Hi-Boy Series C; 1095/1595/Mark V Series B

(Control board is not rectangular and has SIX large capacitors)

Black

Pressure

Transducer

Digital Display

ON/OFF

Switch

Power Plug

Black +

white

green/ground

Motor

green/ground

Potentiometer

1595 Switch

20A 15A

Watchdog

Black

ON

Dip Switch

ti12980b

Notes

311362S 17

Notes

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

This manual contains English. MM 311362

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2011, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revised May 2013

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in

material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty

published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written

recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty

installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of

non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with

structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or

maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of

the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned

to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs

will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or

consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these

warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or

the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the

negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,

given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la

rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite

de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

TO PLACE AN ORDER, contact your Graco distributor or call 1-800-690-2894 to identify the nearest distributor.
