Instructions - Parts

Dura-Flo™ Pumps

Stainless Steel Pumps with Severe-Duty Rod and Cylinder. For professional use only.

See pages 3-6 for model information, including maximum working pressure.

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

TI8357a

TI8358a

7847

II 2 G

311828H

EN

2311828H

Contents

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Dura-Flo Pumps with NXT

™

Air Motors Part No.

Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Dura-Flo Pumps with NXT

™

Air Motors

Part Nos. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Dura-Flo Pumps with Viscount

®

Hydraulic Motors 6

Dura-Flo Pumps with Premier

®

Motors . . . . . . . . 6

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Flush Before Using Equipment . . . . . . . . . . . . . . 9

Mounting Accessories . . . . . . . . . . . . . . . . . . . . . 9

Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Air Line Accessories . . . . . . . . . . . . . . . . . . . . . 10

Hydraulic Line Accessories . . . . . . . . . . . . . . . . 10

Fluid Line Accessories . . . . . . . . . . . . . . . . . . . 10

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Pressure Relief Procedure . . . . . . . . . . . . . . . . 13

Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Preventive Maintenance Schedule . . . . . . . . . . 15

Wet-Cups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Flushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Corrosion Protection . . . . . . . . . . . . . . . . . . . . . 15

Hydraulic Systems . . . . . . . . . . . . . . . . . . . . . . . 15

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Required Tools . . . . . . . . . . . . . . . . . . . . . . . . . 17

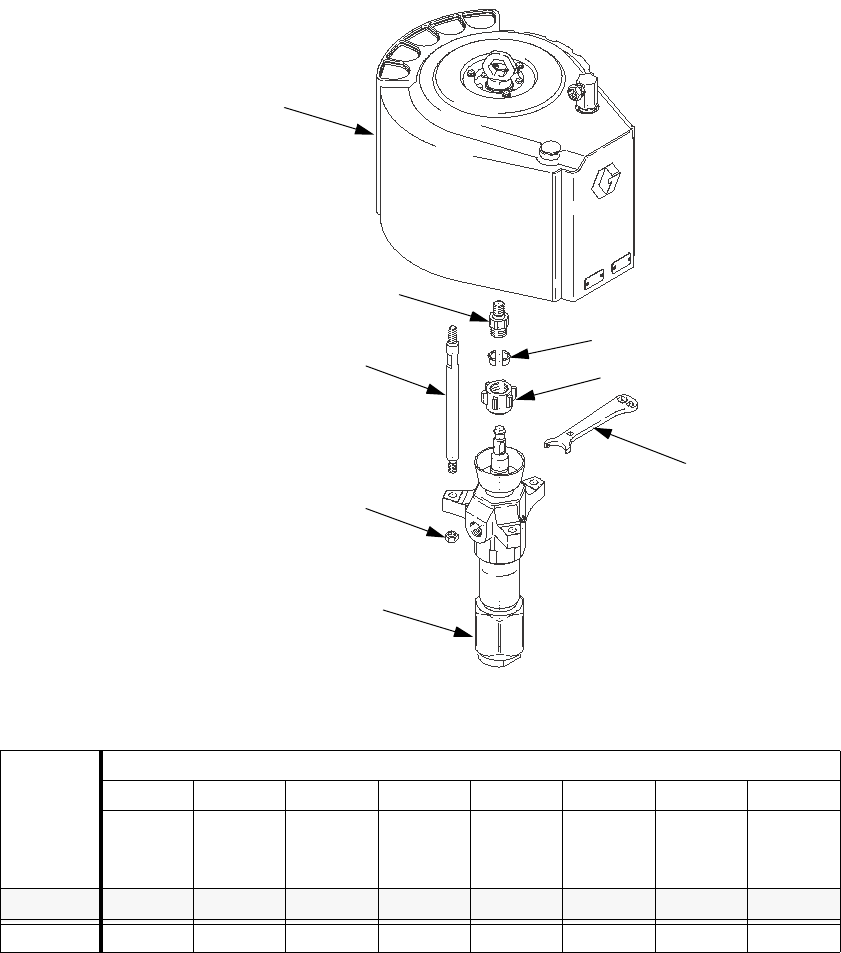

Disconnect the Lower . . . . . . . . . . . . . . . . . . . . 17

Reconnect the Lower . . . . . . . . . . . . . . . . . . . . . 17

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Dura-Flo Pumps with NXT Air Motors . . . . . . . . 20

Dura-Flo Pumps with Premier Motors . . . . . . . . 22

Dura-Flo Pumps with Viscount Hydraulic

Motors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

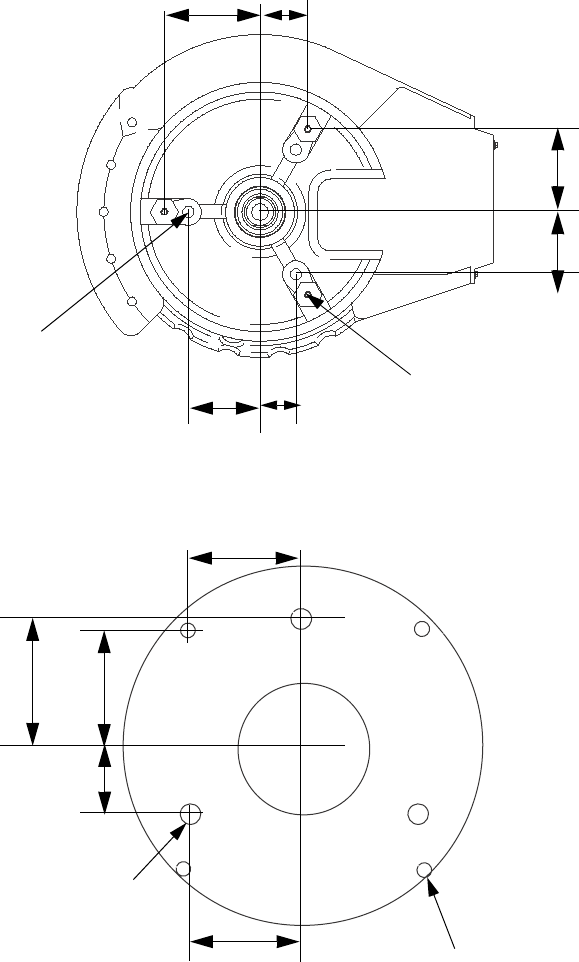

Mounting Hole Layouts . . . . . . . . . . . . . . . . . . . . . 25

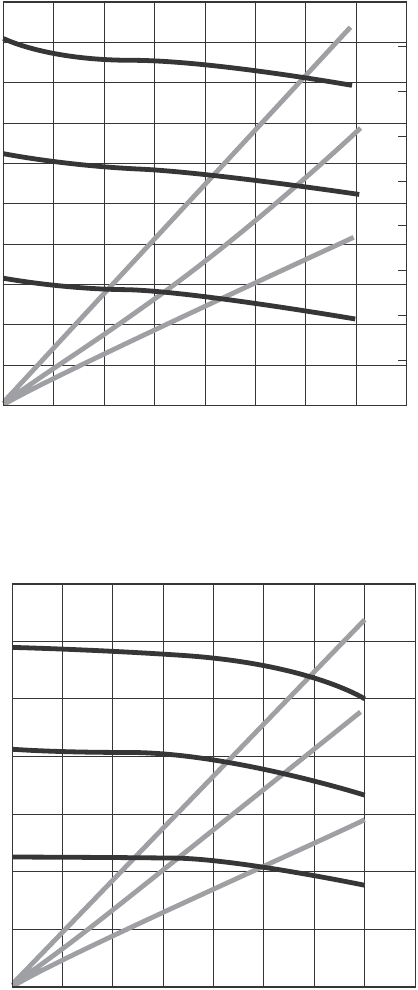

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 34

Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 34

Models

311828H 3

Models

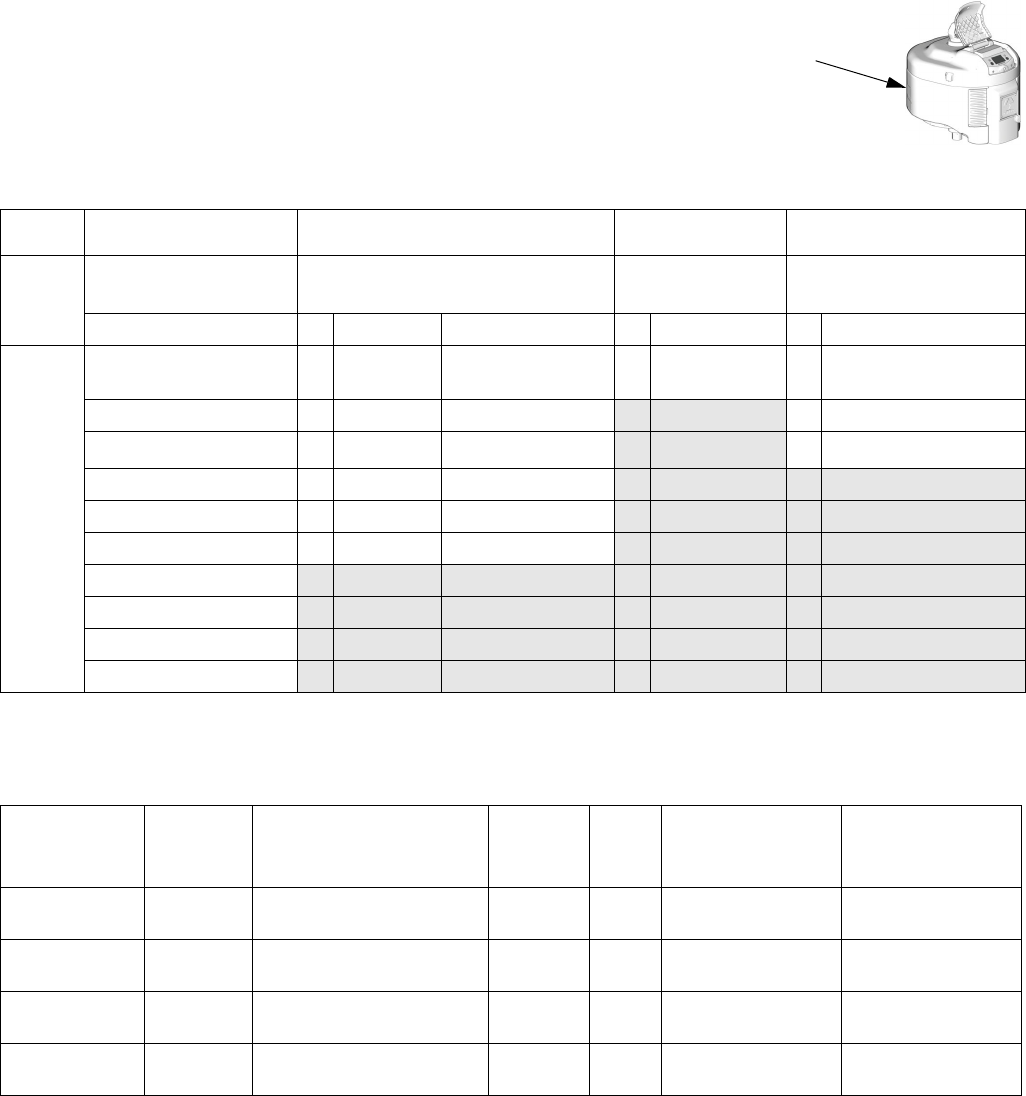

Dura-Flo Pumps with NXT

™

Air Motors Part No. Matrix

Check your pump’s identification plate (ID) for the 6-digit part number of your

pump. Use the following matrix to define the construction of your pump, based

on the six digits. For example, Pump Part No. P16MSE represents the

pump (P), pressure ratio (16:1), low noise exhaust motor with DataTrak

™

(M),

stainless steel construction (S), and 4 leather/1 ptfe packing configuration (E).

To order replacement parts, see Parts section starting on page 20. The digits

in the matrix do not correspond to the Ref. Nos. in the Parts drawings and lists.

Dura-Flo Pumps with NXT

™

Air Motors Part Nos.

ID

P16 M S E

First

Digit

Second and Third

Digit Fourth Digit Fifth Digit Sixth Digit

Pressure Ratio (xx:1) Exhaust Communication Material Packings

P

(pumps)

16

CLow Noise Remote DataTrak SStainless

Steel

E4 leather/1 ptfe

21

DDe-icing none Hptfe/leather

24

EDe-icing DataTrak SSevere Duty

®

25

LLow Noise none

30

MLow Noise DataTrak

31

HLow Noise High Level Sensor

40

45

46

57

Pump Part

No., Series

Lower

Part No. Lower Model, Packings

Air

Motor

Part No. Ratio

Maximum

Working Pressure

MPa, bar (psi)

Maximum Air

Input Pressure

MPa, bar (psi)

P16DSE, A 247192 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N22DN0 16:1 10.5, 105 (1520) 0.7, 7.0 (100)

P16ESE, A 247192 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N22DT0 16:1 10.5, 105 (1520) 0.7, 7.0 (100)

P16LSE, A 247192 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N22LN0 16:1 10.5, 105 (1520) 0.7, 7.0 (100)

P16MSE, A 247192 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N22LT0 16:1 10.5, 105 (1520) 0.7, 7.0 (100)

Models

4311828H

Dura-Flo Pumps with NXT

™

Air Motors Part Nos. (continued)

Pump Part

No., Series

Lower

Part No. Lower Model, Packings

Air

Motor

Part No. Ratio

Maximum

Working Pressure

MPa, bar (psi)

Maximum Air

Input Pressure

MPa, bar (psi)

P21DSE, A 247190 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N22DN0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P21ESE, A 247190 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N22DT0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P21LSE, A 247190 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N22LN0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P21LSS, A L22BSS Dura-Flo 900 (220 cc),

2 PTFE/3 UHMWP

N22LN0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P21MSE, A 247190 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N22LT0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P21CSS, A L22BSS Dura-Flo 900 (220 cc),

2 PTFE/3 UHMWP

N22LR0 21:1 14.0, 140 (2030) 0.7, 7.0 (100)

P24DSE, A 261657 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N22DNO 24:1 16.8, 168 (2430) 0.7, 7.0 (100)

P24ESE, A 261657 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N22DTO 24:1 16.8, 168 (2430) 0.7, 7.0 (100)

P24LSE, A 261657 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N22LNO 24:1 16.8, 168 (2430) 0.7, 7.0 (100)

P24MSE, A 261657 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N22LTO 24:1 16.8, 168 (2430) 0.7, 7.0 (100)

P25DSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N34DN0 25:1 16.4, 164 (2380) 0.7, 7.0 (100)

P25ESE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N34DT0 25:1 16.4, 164 (2380) 0.7, 7.0 (100)

P25LSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N34LN0 25:1 16.4, 164 (2380) 0.7, 7.0 (100)

P25MSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N34LT0 25:1 16.4, 164 (2380) 0.7, 7.0 (100)

P30DSE, A 236470 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N34DN0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P30CSS, A L220SS Dura-Flo 900 (220 cc),

2 PTFE/3 UHMWP

N34LR0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P30ESE, A 236470 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N34DT0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P30LSS, A L220SS Dura-Flo 900 (220 cc),

2 PTFE/3 UHMWP

N34LN0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P30LSE, A 236470 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N34LN0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P30MSE, A 236470 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

N34LT0 30:1 21.9, 219 (3170) 0.7, 7.0 (100)

P31DSH, A 247168 Dura-Flo 600 (145 cc),

PTFE/leather

N22DN0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

P31CSS, A L14BSS Dura-Flo 600 (145 cc),

2 PTFE/3 UHMWP

N22LR0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

P31ESH, A 247168 Dura-Flo 600 (145 cc),

PTFE/leather

N22DT0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

Models

311828H 5

Dura-Flo Pumps with NXT

™

Air Motors Part Nos. (continued)

Pump Part

No., Series

Lower

Part No. Lower Model, Packings

Air

Motor

Part No. Ratio

Maximum

Working Pressure

MPa, bar (psi)

Maximum Air

Input Pressure

MPa, bar (psi)

P31LSS, A L14BSS Dura-Flo 600 (145 cc),

2 PTFE/3 UHMWP

N22LN0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

P31LSH, A 247168 Dura-Flo 600 (145 cc),

PTFE/leather

N22LN0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

P31MSH, A 247168 Dura-Flo 600 (145 cc),

PTFE/leather

N22LT0 31:1 21.0, 210 (3040) 0.7, 7.0 (100)

P40DSE, A 236456 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N34DN0 40:1 26.2, 262 (3800) 0.7, 7.0 (100)

P40ESE, A 236456 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N34DT0 40:1 26.2, 262 (3800) 0.7, 7.0 (100)

P40LSE, A 236456 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N34LN0 40:1 26.2, 262 (3800) 0.7, 7.0 (100)

P40MSE, A 236456 Dura-Flo 750 (180 cc),

4 leather/1 PTFE

N34LT0 40:1 26.2, 262 (3800) 0.7, 7.0 (100)

P45DSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N65DN0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P45ESE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N65DT0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P45LSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N65LN0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P45MSE, A 237514 Dura-Flo 1200 (290 cc),

4 leather/1 PTFE

N65LT0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P45LSS, A L290SS Dura-Flo 1200 (290 cc),

2 PTFE/3 UHMWP

N65LN0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P45CSS, A L290SS Dura-Flo 1200 (290 cc),

2 PTFE/3 UHMWP

N65LR0 45:1 31.4, 314 (4550) 0.7, 7.0 (100)

P46DSH, A 236458 Dura-Flo 600 (145 cc),

PTFE/leather

N34DN0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P46HSS, A L145SS Dura-Flo 600 (145 cc),

2 PTFE/3 UHMWP

N34LH0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P46ESH, A 236458 Dura-Flo 600 (145 cc),

PTFE/leather

N34DT0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P46LSS L145SS Dura-Flo 600 (145 cc),

2 PTFE/3 UHMWP

N34LN0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P46LSH, A 236458 Dura-Flo 600 (145 cc),

PTFE/leather

N34LN0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P46MSH, A 236458 Dura-Flo 600 (145 cc),

PTFE/leather

N34LT0 46:1 32.8, 328 (4750) 0.7, 7.0 (100)

P57LSS L220SS Dura-Flo 900 (220 cc),

2 PTFE/3 UHMWP

N65LN0 57:1 38.7, 388 (5700) 0.7, 7.0 (100)

Models

6311828H

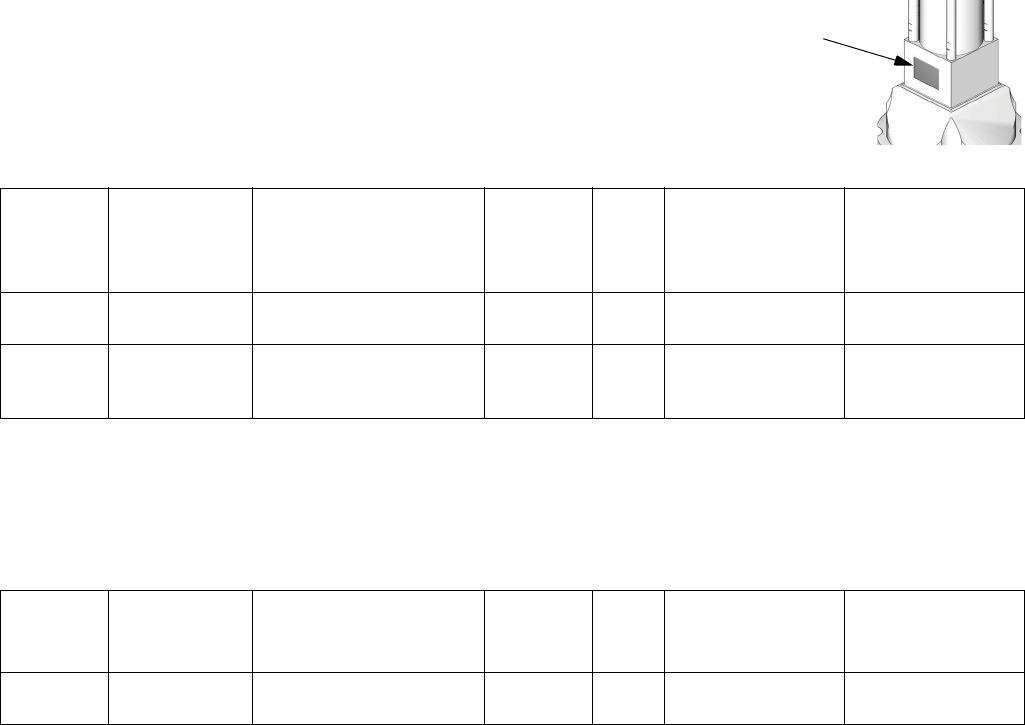

Dura-Flo Pumps with Viscount

®

Hydraulic Motors

Check your pump’s identification plate (ID) for the 6-digit part number of your

pump. To order replacement parts, see Parts section starting on page 20.

Dura-Flo Pumps with Premier

®

Motors

To order replacement parts, see Parts section starting on page 20.

ID

Pump

Part No.,

Series

Lower Part

No. Lower Model, Packings

Hydraulic

Motor

Part No. Ratio

Maximum

Working Pressure

MPa, bar (psi)

Maximum

Hydraulic Input

Pressure

MPa, bar (psi)

237290, A 236470 Dura-Flo 900 (220 cc),

4 leather/1 PTFE

235345 3.5:1 34, 345 (5000) 9.9, 99 (1428)

248817, A 248816 Dura-Flo 900 (220 cc),

UHMWPE (throat)/

PTFE (piston)

235345 3.5:1 34, 345 (5000) 9.9, 99 (1428)

Pump

Part No.,

Series

Lower Part

No. Lower Model, Packings

Premier

Motor

Part No. Ratio

Maximum

Working Pressure

MPa, bar (psi)

Maximum Air

Input Pressure

MPa, bar (psi)

P67LSS L290SS Dura-Flo 1200 (290 cc),

2 PTFE/3 UHMWP

222800 67:1 34, 345 (5000) 0.5, 5.0 (75)

Warnings

311828H 7

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-

tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back

to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where

applicable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent

fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop

cloths (potential static arc).

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when flammable fumes

are present.

• Ground all equipment in the work area. See Grounding instructions.

• Use only grounded hoses.

• Hold gun firmly to side of grounded pail when triggering into pail.

• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment

until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

SKIN INJECTION HAZARD

High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just

a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Do not spray without tip guard and trigger guard installed.

• Engage trigger lock when not spraying.

•Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,

checking, or servicing equipment.

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all

equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information

about your material, request MSDS forms from distributor or retailer.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine manu-

facturer’s replacement parts only.

• Do not alter or modify equipment.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

Warnings

8311828H

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment,

follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or

swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

• Always wear impervious gloves when spraying or cleaning equipment.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating

area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic

fumes, burns, and hearing loss. This equipment includes but is not limited to:

• Protective eyewear

• Clothing and respirator as recommended by the fluid and solvent manufacturer

•Gloves

• Hearing protection

WARNING

Installation

311828H 9

Installation

Grounding

The equipment must be grounded. Grounding reduces

the risk of static and electric shock by providing an

escape wire for the electrical current due to static build

up or in the event of a short circuit.

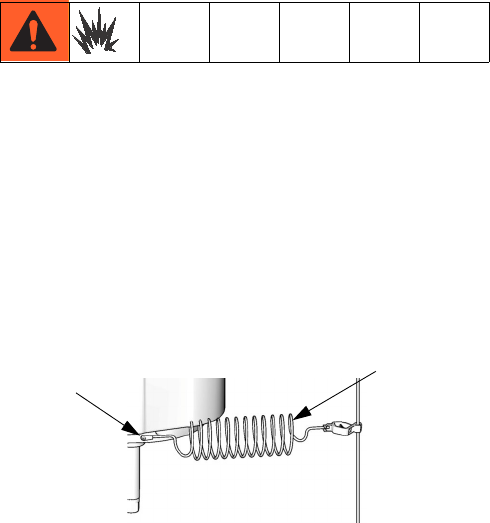

Pump: Use the ground screw (GS) and lockwasher on

the motor to attach a 244524 ground wire (Y). Tighten

the screw securely. Connect the other end of the ground

wire to a true earth ground.

Air and fluid hoses: use only electrically conductive

hoses.

Air compressor or hydraulic power supply: follow

manufacturer’s recommendations.

Spray gun: ground through connection to a properly

grounded fluid hose and pump.

Fluid supply container: follow local code.

Object being sprayed: follow local code.

Solvent pails used when flushing: follow local code.

Use only conductive metal pails, placed on a grounded

surface. Do not place the pail on a nonconductive sur-

face, such as paper or cardboard, which interrupts

grounding continuity.

To maintain grounding continuity when flushing or

relieving pressure: hold metal part of the spray gun

firmly to the side of a grounded metal pail, then trigger

the gun.

Flush Before Using Equipment

The equipment was tested with lightweight oil, which is

left in the fluid passages to protect parts. To avoid con-

taminating your fluid with oil, flush the equipment with a

compatible solvent before using the equipment. See

Flushing, page 15.

Mounting Accessories

See Dimensions, page 24 and Mounting Hole Lay-

outs, page 25.

F

IG

. 1 shows an air-powered system and F

IG

. 2 shows a

hydraulic-powered system.

Hoses

See F

IG

. 1 and F

IG

. 2. Be sure all hoses are properly

sized and pressure-rated for your system. Use only

electrically conductive hoses. Fluid hoses must have

spring guards on both ends. Use a whip hose (P) and a

swivel (R) between the main fluid hose (N) and the

gun/valve (S) to allow freer gun/valve movement.

GS

TI8250a

Y

Installation

10 311828H

Air Line Accessories

For air-powered pumps, install the following accessories

in the order shown in F

IG

. 1, using adapters as neces-

sary.

NOTE: Accessory Air Control Kits are available for the

NXT Air Motor. The kits include a master air valve (E),

air regulator (F), and filter (J). Order the kit separately.

See manual 311239 for information.

•Bleed-type master air valve (E): required in your

system to relieve air trapped between it and the air

motor when the valve is closed. Be sure the valve is

easily accessible from the pump and located down-

stream from the air regulator.

•Pump air regulator (F): to control pump speed and

outlet pressure. Locate it close to the pump.

•Air line filter (J): removes harmful dirt and moisture

from compressed air supply.

•Second bleed-type air valve (K): isolates air line

accessories for servicing. Locate upstream from all

other air line accessories.

Hydraulic Line Accessories

For hydraulic-powered pumps, install the following

accessories in the order shown in F

IG

. 2, using adapters

as necessary.

• Use a minimum 13 mm (1/2 in.) ID supply line (C),

and a minimum 22 mm (7/8 in.) ID return line (D).

The motor has a 3/4 npt(f) hydraulic oil supply fit-

ting, and a 1 in. npt(f) hydraulic oil return fitting.

•Supply line shutoff valve (U) isolates the pump for

service.

•Fluid pressure gauge (F) monitors hydraulic oil

pressure to the motor to avoid overpressurizing the

motor or displacement pump.

•Pressure- and temperature-compensated flow

control valve (G) prevents the motor from running

too fast and possibly damaging itself.

•Pressure reducing valve (H) with a drain line (E)

runs directly to the hydraulic return line (D).

•Accumulator (J) reduces the hammering effect

caused by the motor reversing direction.

•Return line shutoff valve (V) isolates the pump for

service.

• Be sure your hydraulic power supply is equipped

with a suction filter to the hydraulic pump and a sys-

tem return line filter (W) of 10 micron size.

• Connect a 6 mm (1/4 in.) ID drain line (K) to the

barbed fitting on the drip pan, and place the free end

in a container to collect the drainage.

Fluid Line Accessories

Install the following accessories in the order shown in

F

IG

. 1 and F

IG

. 2, using adapters as necessary.

•Fluid drain valve (M): required in your system, to

relieve fluid pressure in the hose and gun.

•Fluid filter (L): with a 60 mesh (250 micron) stain-

less steel element to filter particles from the fluid as

it leaves the pump.

•Gun or valve (S): to dispense fluid.

•Fluid line swivel (R): for easier gun movement.

•Suction kit (T): enables the pump to draw fluid from

a container.

Installation

311828H 11

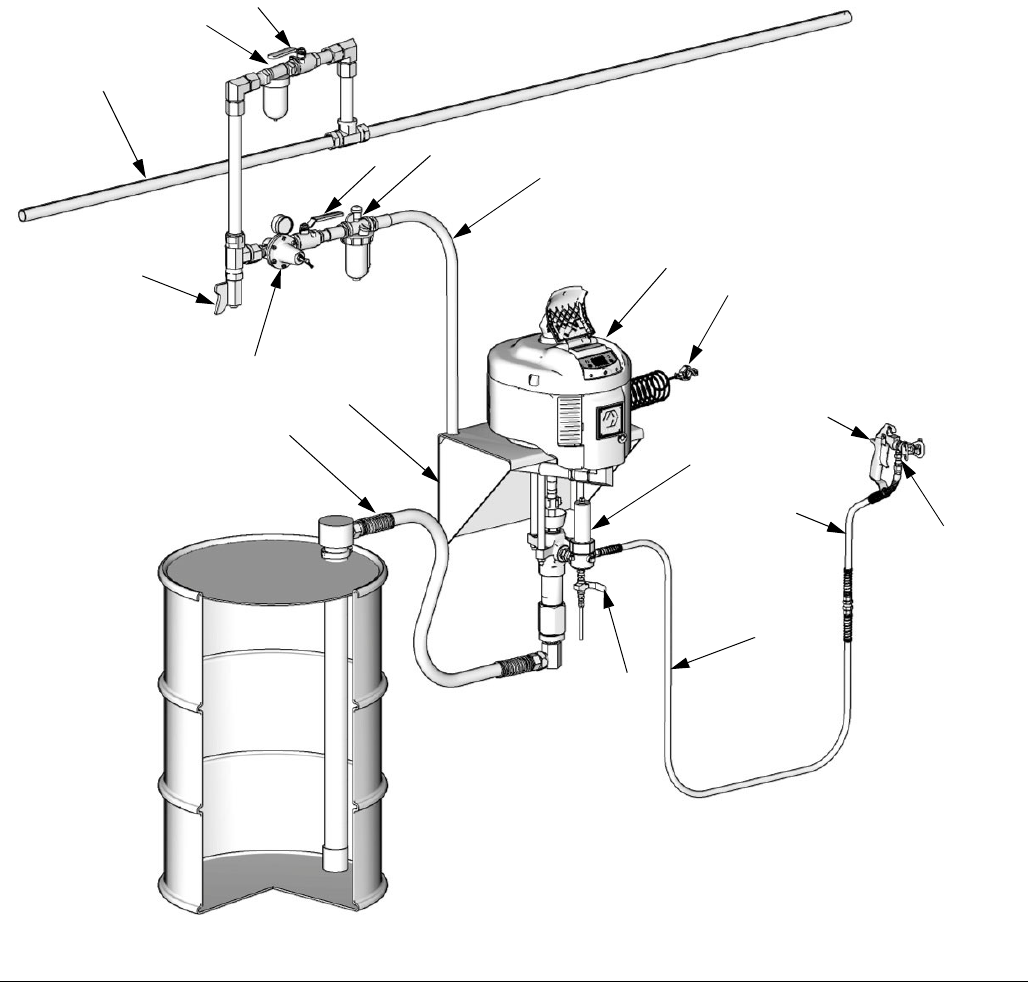

Key:

APump

B Wall Bracket

D Air Line Lubricator

E Bleed-type Master Air Valve (required)

F Pump Air Regulator

H Electrically Conductive Air Supply Hose

J Air Line Filter

K Air Shutoff Valve

L Fluid Filter

M Fluid Drain Valve (required)

N Electrically Conductive Fluid Supply Hose

P Fluid Whip Hose

R Gun Swivel

S Airless Spray Gun

T Fluid Suction Kit

U Main Air Supply Line

V Air Line Drain Valve

Y Pump Ground Wire (required, see page 9 for installation

instructions)

F

IG

. 1: Typical Installation, Air-Powered Pumps

A

B

E

F

H

J

K

L

M

N

P

R

S

T

U

VY

TI8429a

D

Installation

12 311828H

Key:

APump

B Wall Bracket

C Hydraulic Supply Line

D Hydraulic Return Line

E Drain Line (from pressure reducing valve)

F Pressure Gauge

G Flow Control Valve

H Pressure Reducing Valve

J Accumulator

K Drain Line (from motor drip pan)

L Fluid Filter

M Fluid Drain Valve (required)

N Electrically Conductive Fluid Supply Hose

P Fluid Whip Hose

R Gun Swivel

S Airless Spray Gun

T Fluid Suction Kit

U Hydraulic Supply Line Shutoff Valve

V Hydraulic Return Line Shutoff Valve

W Hydraulic Return Line Filter

X Hydraulic Power Supply

Y Pump Ground Wire (required, see page 9 for installation

instructions)

Z Drainage Container

F

IG

. 2: Typical Installation, Hydraulic-Powered Pumps

04582b

A

B

C

D

E

F

G

H

J

K

L

MN

P

R

S

T

U

V

W

X

Y

Z

Operation

311828H 13

Operation

Pressure Relief Procedure

1. Engage trigger lock.

2. Shutoff the pump:

a.

For air-powered pumps,

close the bleed-type

master air valve.

b.

For hydraulic-powered pumps,

close the supply

line shutoff valve (U) first, then close the return

line shutoff valve (V).

3. Disengage the trigger lock.

4. Hold a metal part of the gun firmly to a grounded

metal pail. Trigger the gun to relieve pressure.

5. Engage the trigger lock.

6. Open all fluid drain valves in the system, having a

waste container ready to catch drainage. Leave

drain valve(s) open until you are ready to spray

again.

7. If you suspect the spray tip or hose is clogged or

that pressure has not been fully relieved after follow-

ing the steps above, VERY SLOWLY loosen tip

guard retaining nut or hose end coupling to relieve

pressure gradually, then loosen completely. Clear

hose or tip obstruction.

Trigger Lock

Always engage the trigger lock when you stop spraying

to prevent the gun from being triggered accidentally by

hand or if dropped or bumped.

Trapped air can cause the pump to cycle unexpectedly,

which could result in serious injury from splashing or

moving parts.

Operation

14 311828H

Startup

1. Connect the suction kit (T) to the pump's fluid inlet,

and place the tube into the fluid supply.

2. Prepare the pump’s power source:

a.

For air-powered pumps,

close the air regulator

(F). Open the pump's bleed-type master air

valve (E).

b.

For hydraulic-powered pumps,

check the

hydraulic fluid level before each use, and add

fluid as necessary. Close the supply line shutoff

valve (U) and the return line shutoff valve (V).

Start the hydraulic power supply.

3. Hold a metal part of the gun (S) firmly to the side of

a grounded metal pail and hold the trigger open.

4. Start the pump:

a.

For air-powered pumps,

slowly open the air reg-

ulator until the pump starts.

b.

For hydraulic-powered pumps,

open the return

line shutoff valve (V) first, then slowly open the

supply line shutoff valve (U).

5. Cycle the pump slowly until all air is pushed out and

the pump and hoses are fully primed. Release the

gun trigger and lock the trigger safety latch. The

pump should stall against pressure when the trigger

is released.

6. With the pump and lines primed, and with adequate

air or hydraulic pressure and volume supplied, the

pump will start and stop as the gun is opened and

closed. In a circulating system, the pump will speed

up or slow down on demand, until the air or hydrau-

lic supply is shut off.

7. Always use the lowest air or hydraulic pressure nec-

essary to get the desired results. Higher pressures

cause premature tip/nozzle and pump wear.

a.

For air-powered pumps,

use the air regulator (F)

to control the pump speed and fluid pressure.

b.

For hydraulic-powered pumps,

use the fluid

pressure gauge (F) and flow control valve (G) to

control the pump speed and the fluid pressure.

8. Never allow the pump to run dry of the fluid being

pumped. A dry pump will quickly accelerate to a

high speed, possibly damaging itself.

NOTE: If your pump accelerates quickly, or is running

too fast, stop it immediately and check the fluid supply. If

the supply container is empty and air has been pumped

into the lines, refill the container and prime the pump

and the lines with fluid, or flush and leave it filled with a

compatible solvent. Be sure to eliminate all air from the

fluid system.

Shutdown

Relieve the pressure, page 13. Stop the pump at the

bottom of its stroke to prevent fluid from drying on the

exposed displacement rod and damaging the throat

packings.

Maintenance

311828H 15

Maintenance

Preventive Maintenance

Schedule

The operating conditions of your particular system

determine how often maintenance is required. Establish

a preventive maintenance schedule by recording when

and what kind of maintenance is needed, and then

determine a regular schedule for checking your system.

Wet-Cups

Check the wet-cup daily. Keep the wet-cup 1/3 filled with

Graco Throat Seal Liquid (TSL

™

) or compatible solvent.

Flushing

1. Follow Pressure Relief Procedure, page 13.

2. Remove spray tip and soak in solvent.

3. Place siphon tube in grounded metal pail containing

cleaning fluid.

4. Set pump to lowest possible fluid pressure, and start

pump.

5. Hold a metal part of the gun firmly to a grounded

metal pail. Trigger the gun until clean solvent dis-

penses.

6. Remove gun from hose. See gun manual to further

clean gun.

7. Follow Pressure Relief Procedure, page 13, and

remove fluid filter and soak in solvent. Replace filter

cap.

Corrosion Protection

Always flush the pump before the fluid dries on the dis-

placement rod. Never leave water or water-based fluid

in the pump overnight. First, flush with water or a com-

patible solvent, then with mineral spirits. Relieve the

pressure, but leave the mineral spirits in the pump to

protect the parts from corrosion.

Hydraulic Systems

Carefully follow the manufacturer's recommendations

on reservoir and filter cleaning, and periodic changes of

hydraulic fluid. Use only Graco-approved hydraulic oil.

Order Part No. 169236, 5 gal. (19 liter) or 207428, 1 gal.

(3.8 liter). Do not substitute a lower grade oil or one with

a lower flash point.

• Flush before changing colors, before fluid can

dry in the equipment, at the end of the day,

before storing, and before repairing equipment.

• Flush at the lowest pressure possible. Check

connectors for leaks and tighten as necessary.

• Flush with a fluid that is compatible with the

fluid being dispensed and the equipment wetted

parts.

NOTICE

Keep the hydraulic supply system absolutely clean at

all times. Blow out hydraulic lines with air and flush

thoroughly with solvent before connecting to the

hydraulic motor, to avoid introducing harmful contami-

nants into the motor. Plug the hydraulic lines immedi-

ately when they are disconnected.

Do not exceed 37.8 liter/min (10 gpm) hydraulic oil

volume to the motor, to avoid stalling the pump.

Do not exceed 54°C (130°F) hydraulic oil tempera-

ture.

Troubleshooting

16 311828H

Troubleshooting

1. Relieve the pressure, page 13.

2. Check all possible causes and problems before dis-

assembling the pump.

* To determine if the fluid hose or gun is obstructed, relieve the pressure, page 13. Disconnect the fluid hose and

place a container at the pump fluid outlet to catch any fluid. Turn on the air/hydraulic power just enough to start

the pump. If the pump starts, the obstruction is in the fluid hose or gun.

Problem Cause Solution

Pump fails to operate. Restricted line or inadequate air/hydrau-

lic supply; closed or clogged valves.

Clear; increase air/hydraulic supply.

Check that valves are open.

Obstructed fluid hose or gun/valve; fluid

hose ID is too small.

Open, clear*; use hose with larger ID

Fluid dried on displacement rod. Clean; always stop pump at bottom of

stroke; keep wet-cup 1/3 filled with com-

patible solvent.

Dirty, worn, or damaged motor parts. Clean or repair; see separate motor

manual.

Pump operates, but output low on both

strokes.

Restricted line or inadequate air/hydrau-

lic supply; closed or clogged valves.

Clear; increase air/hydraulic supply.

Check that valves are open.

Obstructed fluid hose or gun/valve; fluid

hose ID is too small.

Open, clear*; use hose with larger ID

Bleeder valve open. Close.

Fluid too heavy for pump priming. Use ram.

Worn packings in lower. Replace packings.

Pump operates, but output low on down-

stroke.

Held open or worn intake valve. Clear valve; service.

Fluid too heavy for pump priming. Use ram.

Pump operates, but output low on

upstroke.

Held open or worn piston valve or pack-

ings.

Clear valve; replace packings.

Erratic or accelerated pump speed. Exhausted fluid supply. Refill and prime.

Fluid too heavy for pump priming. Use ram.

Held open or worn piston valve or pack-

ings.

Clear valve; replace packings.

Held open or worn intake valve. Clear valve; service.

Repair

311828H 17

Repair

Required Tools

• Set of adjustable wrenches

• Large pipe wrench

• 2-5/8 in. wrench

• Torque wrench

• Rubber mallet

• O-ring pick

• Large vise

• Thread lubricant

• Thread sealant

Disconnect the Lower

1. Flush the pump, if possible. Stop the pump at the

bottom of its stroke. Relieve the pressure, page 13.

2. Disconnect the air or hydraulic hose. Plug all

hydraulic hoses immediately, to prevent contamina-

tion of the hydraulic system.

3. Disconnect the fluid hose.

NOTE: Before disconnecting the lower (102) from the

motor (101), be sure to note the relative position of the

pump's fluid outlet to the air or hydraulic inlet of the

motor. If the motor does not require servicing, leave it

attached to its mounting.

4. Unscrew the coupling nut (103) from the connecting

rod adapter (105). Remove the coupling collars

(104); do not lose or drop them. See F

IG

. 3.

5. Hold the tie rod flats with a wrench to keep the rods

(106) from turning. Unscrew the nuts (107). Remove

the lower (102).

6. To service the lower, refer to manual 308354, sup-

plied. To service the air or hydraulic motor, refer to

the separate motor manual, supplied.

Reconnect the Lower

1. If the connecting rod adapter (105) was discon-

nected, screw it into the air motor shaft. Torque as

noted in F

IG

. 3.

2. Screw the tie rods (106) into the air motor (101).

Using a wrench on the tie rod flats, torque as noted.

3. Make sure the coupling nut (103) and coupling col-

lars (104) are in place on the displacement rod

(DR).

4. Use at least two people to hold the lower while

another reconnects it to the motor. Orient the

pump's fluid outlet to the air or hydraulic inlet as

noted under Disconnect the Lower. Place the

lower (102) on the tie rods (106).

NOTICE

Use at least two people when lifting, moving, or dis-

connecting the pump. If disconnecting the lower, be

sure to securely brace the pump, or have two people

hold it while another disconnects it.

For cart-mounted pumps, tip the cart backward until

the handle rests on the ground, then disconnect the

lower.

Always use connecting rod adapter 190287 and tie rods

184596 on hydraulic-powered pumps. Other connect-

ing rod adapters and tie rods do not allow sufficient

clearance between the drip pan and coupling nut.

Repair

18 311828H

5. Screw the nuts (107) onto the tie rods (106). Torque

as noted in F

IG

. 3.

6. Screw the coupling nut (103) onto the motor shaft

(MS) loosely. Hold the motor shaft flats with a

wrench to keep it from turning. Use an adjustable

wrench to tighten the coupling nut. Torque as noted

in F

IG

. 3.

7. Tighten the packing nut/wet-cup (PN) as specified in

the lower pump manual 308354.

8. Reconnect all hoses. Reconnect the ground wire if it

was disconnected. Fill the packing nut/wet-cup (PN)

1/3 full of Graco Throat Seal Liquid or compatible

solvent.

9. Turn on the air or hydraulic power supply. On

hydraulic pumps, open the hydraulic return line

valve first, then the supply line valve. Run the pump

slowly to ensure that it operates properly, or prime

pump (see Startup on page 14).

F

IG

. 3. Reconnect the Lower

1

Torque to 68-81 N•m (50-60 ft-lb).

Torque to 196-210 N•m (145-155 ft-lb).

1

2

1

TI8356b TI8355a

101

102

103

104

105 106

107

108

101

102

103

104

105

108

106

107

MS

DR

PN

MS

DR

PN

2

2

Notes

311828H 19

Notes

Parts

20 311828H

Parts

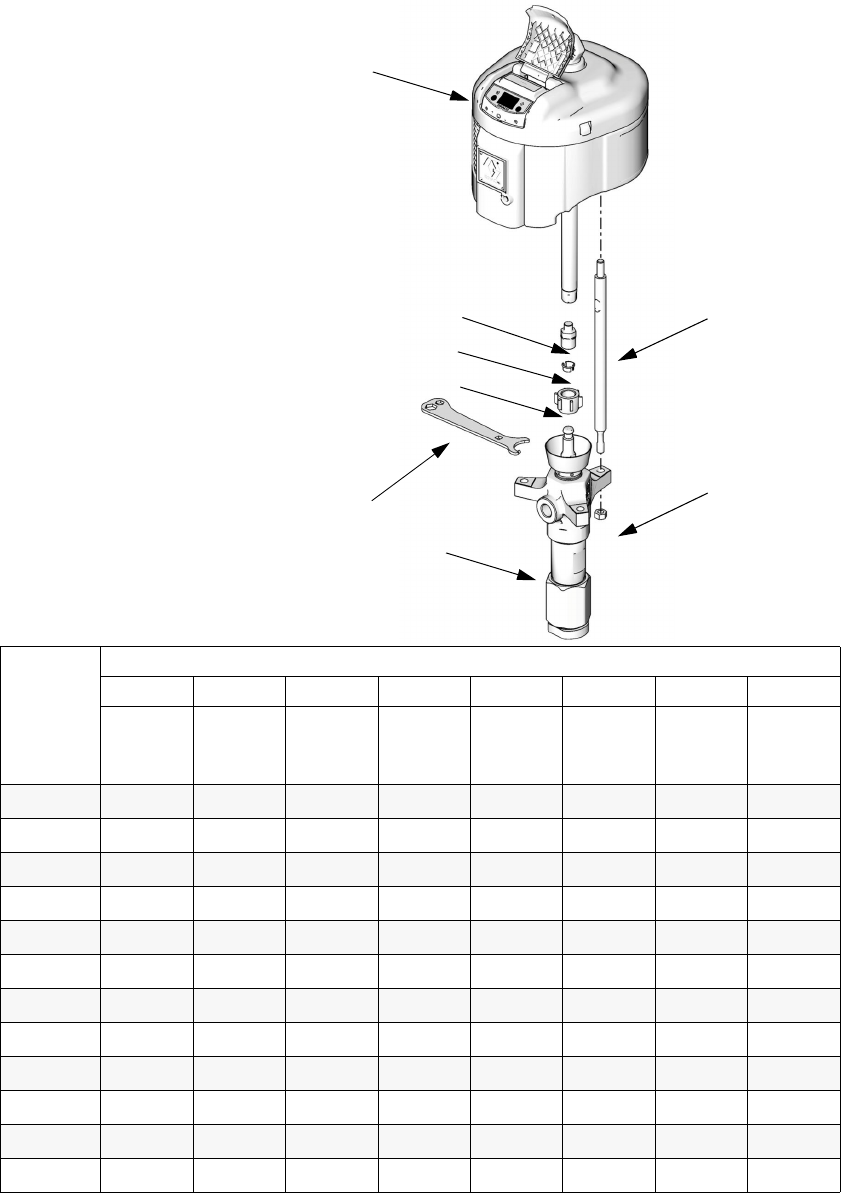

Dura-Flo Pumps with NXT Air Motors

Pump Part

No.

Ref. Nos. and Descriptions

101 102 103 104 105 106 107 108

MOTOR;

see

311238

LOWER;

see

311827

NUT, cou-

pling

COLLAR,

coupling

ADAPTER ROD, tie NUT, hex;

5/8-11

WRENCH

P16DSE N22DN0 247192 186925 184129 15H370 15H562 101712 112887

P16ESE N22DT0 247192 186925 184129 15H370 15H562 101712 112887

P16LSE N22LN0 247192 186925 184129 15H370 15H562 101712 112887

P16MSE N22LT0 247192 186925 184129 15H370 15H562 101712 112887

P21DSE N22DN0 247190 186925 184129 15H370 15H562 101712 112887

P21ESE N22DT0 247190 186925 184129 15H370 15H562 101712 112887

P21LSE N22LN0 247190 186925 184129 15H370 15H562 101712 112887

P21MSE N22LT0 247190 186925 184129 15H370 15H562 101712 112887

P21CSS N22LR0 L220SS 186925 184129 15H370 15H562 101712 112887

P21LSS N22LN0 L220SS 186925 184129 15H370 15H562 101712 112887

P24DSE N22DNO 261657 186925 184129 15H370 15H562 101712 112887

P24ESE N22DTO 261657 186925 184129 15H370 15H562 101712 112887

TI8356b

101

102

103

104

105 106

107

108

Parts

311828H 21

P24LSE N22LNO 261657 186925 184129 15H370 15H562 101712 112887

P24MSE N22LTO 261657 186925 184129 15H370 15H562 101712 112887

P25DSE N34DN0 237514 186925 184129 15H370 15H562 101712 112887

P25ESE N34DT0 237514 186925 184129 15H370 15H562 101712 112887

P25LSE N34LN0 237514 186925 184129 15H370 15H562 101712 112887

P25MSE N34LT0 237514 186925 184129 15H370 15H562 101712 112887

P30DSE N34DN0 236470 186925 184129 15H370 15H562 101712 112887

P30CSS N34LR0 L220SS 186925 184129 15H370 15H562 101712 112887

P30ESE N34DT0 236470 186925 184129 15H370 15H562 101712 112887

P30LSS N34LN0 L220SS 186925 184129 15H370 15H562 101712 112887

P30LSE N34LN0 236470 186925 184129 15H370 15H562 101712 112887

P30MSE N34LT0 236470 186925 184129 15H370 15H562 101712 112887

P31DSH N22DN0 247168 186925 184129 15H370 15H562 101712 112887

P31CSS N22LR0 L145SS 186925 184129 15H370 15H562 101712 112887

P31ESH N22DT0 247168 186925 184129 15H370 15H562 101712 112887

P31LSS N22LN0 L145SS 186925 184129 15H370 15H562 101712 112887

P31LSH N22LN0 247168 186925 184129 15H370 15H562 101712 112887

P31MSH N22LT0 247168 186925 184129 15H370 15H562 101712 112887

P40DSE N34DN0 236456 186925 184129 15H370 15H562 101712 112887

P40ESE N34DT0 236456 186925 184129 15H370 15H562 101712 112887

P40LSE N34LN0 236456 186925 184129 15H370 15H562 101712 112887

P40MSE N34LT0 236456 186925 184129 15H370 15H562 101712 112887

P45DSE N65DN0 237514 186925 184129 15H370 15H562 101712 112887

P45ESE N65DT0 237514 186925 184129 15H370 15H562 101712 112887

P45LSE N65LN0 237514 186925 184129 15H370 15H562 101712 112887

P45LSS N65LN0 L290SS 186925 184129 15H370 15H562 101712 112887

P45MSE N65LT0 237514 186925 184129 15H370 15H562 101712 112887

P46DSH N34DN0 236458 186925 184129 15H370 15H562 101712 112887

P46CSS N34LR0 L145SS 186925 184129 15H370 15H562 101712 112887

P46ESH N34DT0 236458 186925 184129 15H370 15H562 101712 112887

P46LSS N34LN0 L145SS 186925 184129 15H370 15H562 101712 112887

P46LSH N34LN0 236458 186925 184129 15H370 15H562 101712 112887

P46MSH N34LT0 236458 186925 184129 15H370 15H562 101712 112887

P57LSS N65LN0 L220SS 186925 184129 15H370 15H562 101712 112887

Qty11121331

Pump Part

No.

Ref. Nos. and Descriptions

101 102 103 104 105 106 107 108

MOTOR;

see

311238

LOWER;

see

311827

NUT, cou-

pling

COLLAR,

coupling

ADAPTER ROD, tie NUT, hex;

5/8-11

WRENCH

Parts

22 311828H

Dura-Flo Pumps with Premier Motors

7848

101

102

103

104

105

108

106

107

Pump Part

No.

Ref. Nos. and Descriptions

101 102 103 104 105 106 107 108

MOTOR;

see

308213

LOWER;

see

311827

NUT, cou-

pling

COLLAR,

coupling

ADAPTER ROD, tie NUT, hex;

5/8-11

WRENCH

P67LSS 222800 L290SS 184098 184129 C59707 C59708 106166 112887

Qty11121331

Parts

311828H 23

Dura-Flo Pumps with Viscount Hydraulic Motors

TI8355a

101

102

103

104

105

108

106

107

Pump Part

No.

Ref. Nos. and Descriptions

101 102 103 104 105 106 107 108

MOTOR;

see

307158

LOWER;

see

308354

NUT, cou-

pling

COLLAR,

coupling

ADAPTER ROD, tie NUT, hex;

5/8-11

WRENCH

237290 235345 236470 186925 184129 190287 184596 106166 112887

248817 235345 248816 186925 184129 190287 184596 106166 112887

Qty11121331

Dimensions

24 311828H

Dimensions

TI8357a

Dura-Flo Pumps with NXT Air Motors

TI8358a

Dura-Flo Pumps with Viscount

Hydraulic Motors

A

B

C

D

A

B

C

D

Dura-Flo Pumps

with Premier

Motors

B

C

A

D

7847

Motor Model

Pump

Model

A

mm (in.)

B

mm (in.)

C

mm (in.)

D

mm (in.)

Weight

kg (lb)

w/600, 750

lower

Weight

kg (lb)

w/900, 1200

lower

NXT Model 2200 All 1100 (43.3) 756 (29.78) 340 (13.52) 430 (16.79) 42 (86) 56 (122)

NXT Model 3400 All 1100 (43.3) 756 (29.78) 340 (13.52) 430 (16.79) 51 (92) 57 (126)

NXT Model 6500 All 1100 (43.3) 756 (29.78) 340 (13.52) 430 (16.79) n/a 67 (146)

Viscount All 1344 (52.9) 681 (26.8) 663 (26.1) 350 (13.81) n/a 68 (150)

Premier P67LSS 344 (52.91) 920 (36.22) 424 (16.7) 587 (23.11) n/a 88.5 (195)

Mounting Hole Layouts

311828H 25

Mounting Hole Layouts

NXT Model 2200 NXT Model 3400

NXT Model 6500

TI8069A

TI8071A

TI8070A

6.186 in.

(157 mm)

Three 5/8-11

Tie Rod Holes

Six 5/8-11 Tie

Rod Holes

Three 5/8-11

Tie Rod Holes

Four 3/8-16

Mounting Holes

6.186 in.

(157 mm)

6.186 in.

(157 mm)

6.186 in.

(157 mm)

3.938 in.

(100 mm)

Four 3/8-16

Mounting Holes

Four 3/8-16

Mounting Holes

6.750 in.

(172 mm)

Mounting Hole Layouts

26 311828H

Viscount

0653

Four 11 mm

(0.437 in.)

Mounting Holes

88 mm

(3.464 in.)

Three M16 x

2.0 Tie Rod

Holes

50.8 mm

(2.0 in.)

94.3 mm

(3.712 in.)

101.6 mm

(4.0 in.)

94.3 mm

(3.712 in.)

Premier

06555

Three M16 x 2.0 Holes

135.0 mm

(5.3 in.)

67.5 mm

(2.7 in.)

116.9 mm

(4.6 in.)

87.9 mm

(3.5 in.)

50.7 mm

(2.0 in.)

101.5 mm

(4.0 in.)

Three 3/8-16 Mounting Studs

Technical Data

311828H 27

Technical Data

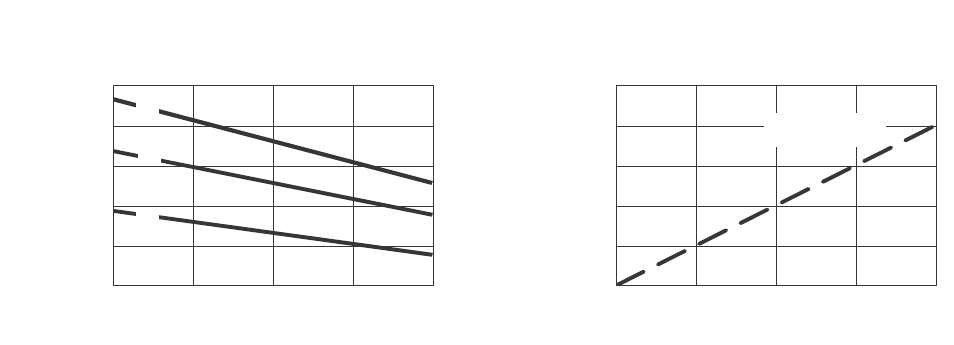

Pump Performance Charts (see pages 28-33)

Fluid Outlet Pressure

To find fluid outlet pressure (MPa/bar/psi) at a specific flow

(lpm/gpm) and operating pressure (A/B/C):

1. Locate desired flow at bottom of chart.

2. Follow vertical line up to intersection with selected operat-

ing pressure curve (solid line). Follow left to scale to read

fluid outlet pressure.

Pump Air or Hydraulic Oil Consumption

To find air or hydraulic oil consumption at a specific flow

(lpm/gpm) and operating pressure (A/B/C):

1. Locate desired flow at bottom of chart.

2. Follow vertical line up to intersection with selected operat-

ing pressure curve (dashed line). Follow left to scale to

read air or oil consumption.

Ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Models, page 3.

Maximum fluid working pressure . . . . . . . . . . . . . . . . . . . See Models, page 3.

Maximum air/hydraulic working pressure . . . . . . . . . . . . . See Models, page 3.

Pump cycles per 3.8 liters (1 gal.) . . . . . . . . . . . . . . . . . . Dura-Flo 600 (145 cc): 26.0

Dura-Flo 750 (180 cc): 21.0

Dura-Flo 900 (220 cc): 18.0

Dura-Flo 1200 (290 cc): 12.5

Fluid flow at 60 cpm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Dura-Flo 600 (145 cc): 8.7 liters/min (2.3 gpm)

Dura-Flo 750 (180 cc): 11.0 liters/min (2.9 gpm)

Dura-Flo 900 (220 cc): 12.9 liters/min (3.4 gpm)

Dura-Flo 1200 (290 cc): 17.4 liters/min (4.6 gpm)

Motor piston effective area . . . . . . . . . . . . . . . . . . . . . . . . See motor manual, supplied.

Stroke length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See motor manual, supplied.

Lower effective area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See lower manual 308354, supplied.

Maximum pump operating temperature . . . . . . . . . . . . . . 65.5°C (150°F)

Motor fitting sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See motor manual, supplied.

Fluid inlet size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See lower manual 308354, supplied.

Fluid outlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See lower manual 308354, supplied.

Sound pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NXT air motors: See manual 311238, supplied.

Viscount hydraulic motors: 88 dB(A) at 1450 psi hydraulic

pressure, 25 cycles/min (tested in accordance with ISO

3744)

Premier air motor: 87.0 dB(A) at 70 psi (0.49 MPa, 4.9

bar), 25 cycles/min (tested in accordance with ISO

9614-2)

Sound power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . NXT air motors: See manual 311238, supplied.

Viscount hydraulic motors: 103 dB(A) at 1450 psi hydrau-

lic pressure, 25 cycles/min (tested in accordance with ISO

3744)

Premier air motor: 94.1 dB(A) at 70 psi (0.49 MPa, 4.9

bar), 25 cycles/min (tested in accordance with ISO

9614-2)

Wetted parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See lower manual 308354, supplied.

Technical Data

28 311828H

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil

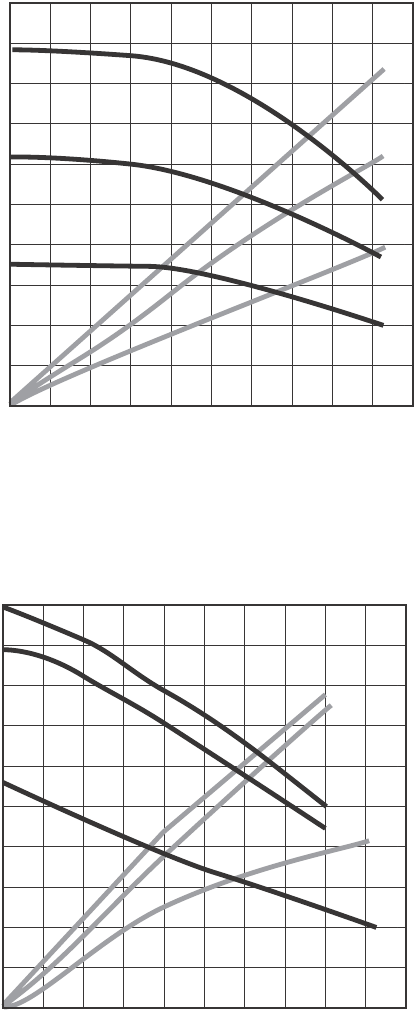

Dura-Flo 600 Pumps with NXT Model 2200 Air Motors, Pump Ratio 31:1

Dura-Flo 600 Pumps with NXT Model 3400 Air Motors, Pump Ratio 46:1

Fluid Pressure

A

B

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

3.5

(13.3)

C

A

B

C

Air Flow (scfm)

20

40

60

80

100

120

Fluid Pressure

A

B

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

3.5

(13.3)

C

A

B

C

Air Flow (scfm)

20

40

60

80

100

120

4500 (31.0, 310)

4000 (28.0, 280)

5000 (35.0, 350)

140

160

180

13 26 39 52 65 78 91

Cycles per Minute

13 26 39 52 65 78 91

Cycles per Minute

Technical Data

311828H 29

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil

A

B

C

A

B

C

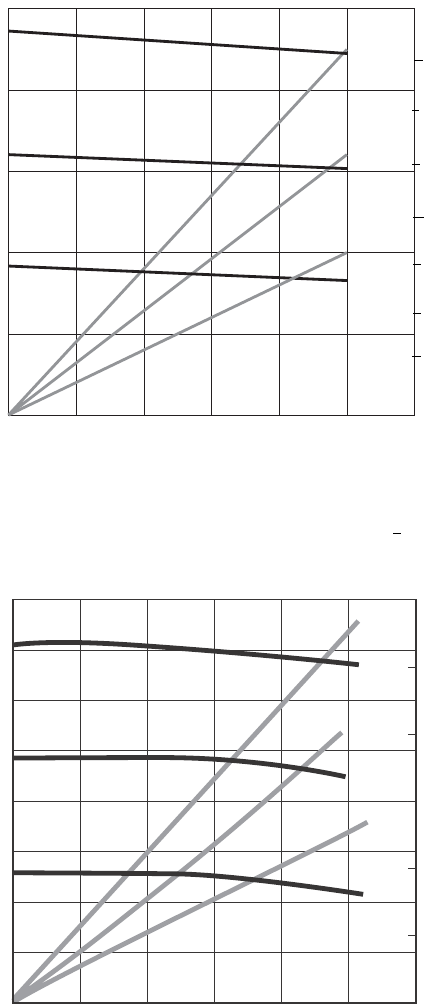

Dura-Flo 750 Pumps with NXT Model 3400 Air Motors, Pump Ratio 40:1

Fluid Pressure

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

Air Flow (scfm)

20

40

60

80

100

120

4000 (28.0, 280)

10.5 21 31.5 42 52.5 63

Cycles per Minute

10.5 21 31.5 42 52.5 63

Cycles per Minute

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

Fluid Pressure

Air Flow (scfm)

10

20

30

40

50

60

70

80

A

B

C

A

B

C

Dura-Flo 750 Pumps with NXT Model 2200 Air Motors, Pump Ratio 24:1

psi (MPa, bar)

Technical Data

30 311828H

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil

Dura-Flo 900 Pumps with NXT Model 3400 Air Motors, Pump Ratio 30:1

Fluid Pressure

A

B

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

C

A

B

C

Air Flow (scfm)

20

40

60

80

100

120

3.5

(13.3)

4.0

(15.2)

140

Dura-Flo 900 Pumps with NXT Model 2200 Air Motors, Pump Ratio 21:1

Fluid Pressure

A

B

psi (MPa, bar)

1400 (9.8, 98)

1200 (8.4, 84)

1000 (7.0, 70)

800 (5.6, 56)

600 (4.2, 42)

400 (2.8, 28)

200 (1.4, 14)

0

Fluid Flow in gpm (lpm)

0.5

(1.9)

1.0

(3.8)

1.5

(5.7)

2.0

(7.6)

2.5

(9.5)

3.0

(11.4)

3.5

(13.3)

C

A

B

C

Air Flow (scfm)

10

20

30

40

50

60

1800 (12.6, 126)

1600 (11.2, 112)

2000 (14.0, 140)

70

80

90

4.0

(15.2)

918273645546372

Cycles per Minute

918273645546372

Cycles per Minute

Technical Data

311828H 31

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil

Dura-Flo 1200 Pumps with NXT Model 3400 Air Motors, Pump Ratio 25:1

Fluid Pressure

A

B

psi (MPa, bar)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

C

A

B

C

Air Flow (scfm)

20

40

60

80

100

120

140

Fluid Flow in gpm (lpm)

1.0

(3.8)

2.0

(7.6)

3.0

(11.4)

4.0

(15.2)

5.0

(19.0)

12.5 25 37.5 50 62.5

Cycles per Minute

A

B

C

A

B

C

Dura-Flo 1200 Pumps with NXT Model 2200 Air Motors, Pump Ratio 16:1

12.5 25 37.5 50 62.5

Cycles per Minute

Fluid Flow in gpm (lpm)

1.0

(3.8)

2.0

(7.6)

3.0

(11.4)

4.0

(15.2)

5.0

(19.0)

Air Flow (scfm)

10

20

30

40

50

60

70

80

90

Fluid Pressure

psi (MPa, bar)

1400 (9.8, 98)

1200 (8.4, 84)

1000 (7.0, 70)

800 (5.6, 56)

600 (4.2, 42)

400 (2.8, 28)

200 (1.4, 14)

0

1600 (11.2, 112)

Technical Data

32 311828H

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil

Dura-Flo 1200 Pumps with Premier Air Motors, Pump Ratio 67:1

Fluid Flow in gpm (lpm)

1.0

(3.8)

2.0

(7.6)

3.0

(11.4)

4.0

(15.2)

5.0

(19.0)

Fluid Pressure

A

B

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

C

A

B

C

Air Flow (scfm)

50

100

150

200

250

4000 (28.0, 280)

4500 (31.5, 315)

5000 (35.0, 350) 12.5 25 37.5 50 62.5

Cycles per Minute

Dura-Flo 1200 Pumps with NXT Model 6500 Air Motors, Pump Ratio 45:1

Fluid Flow in gpm (lpm)

1.0

(3.8)

2.0

(7.6)

3.0

(11.4)

4.0

(15.2)

5.0

(19.0)

Fluid Pressure

A

B

psi (MPa, bar)

3500 (24.1, 241)

3000 (21.0, 210)

2500 (17.2, 172)

2000 (14.0, 140)

1500 (10.3, 103)

1000 (7.0, 70)

500 (3.5, 35)

0

C

A

B

C

Air Flow (scfm)

50

100

150

200

250

4000 (28.0, 280)

4500 (31.5, 315)

5000 (35.0, 350)

12.5 25 37.5 50 62.5

Cycles per Minute

Technical Data

311828H 33

Key

A0.7 MPa, 7 bar (100 psi) air pressure or 10.5 MPa, 105 bar (1500 psi) hydraulic oil pressure

B0.5 MPa, 4.9 bar (70 psi) air pressure or 7.5 MPa, 75 bar (1050 psi) hydraulic oil pressure

C0.3 MPa, 2.8 bar (40 psi) air pressure or 4.2 MPa, 42 bar (600 psi) hydraulic oil pressure

Test Fluid: No. 10 Weight Oil















&LUID/UTLET0RESSURE

  

PSI

-0ABAR CYCLESPERMINUTE

GPM

LITERSMINUTE   

%2533%20$)5,&







!

"

#















(YDRAULIC/IL#ONSUMPTION

  

GPM

LPM

HYDOIL

CYCLESPERMINUTE

GPM

LITERSMINUTE   

./)40-53./#,)/











 







HYDRAULICOIL

CONSUMPTION



Dura-Flo 900 Pumps with Viscount Hydraulic Motors

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

For patent information, see www.graco.com/patents.

This manual contains English. MM 311828

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2006, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revised April 2014

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in

material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty

published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written

recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty

installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of

non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with

structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or

maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of

the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned

to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs

will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or

consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to

the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these

warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or

the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the

negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into,

given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la

rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite

de ou en rapport, directement ou indirectement, avec les procédures concernées.

Graco Information

For the latest information about Graco products, visit www.graco.com.

TO PLACE AN ORDER, contact your Graco distributor or call to identify the nearest distributor.

Phone: 612-623-6921 or Toll Free: 1-800-328-0211 Fax: 612-378-3505
