Grand Mate TX-01 TX-01 Remote controller User Manual
Grand Mate Co., Ltd TX-01 Remote controller Users Manual
Users Manual
GM650 / TX-01
1

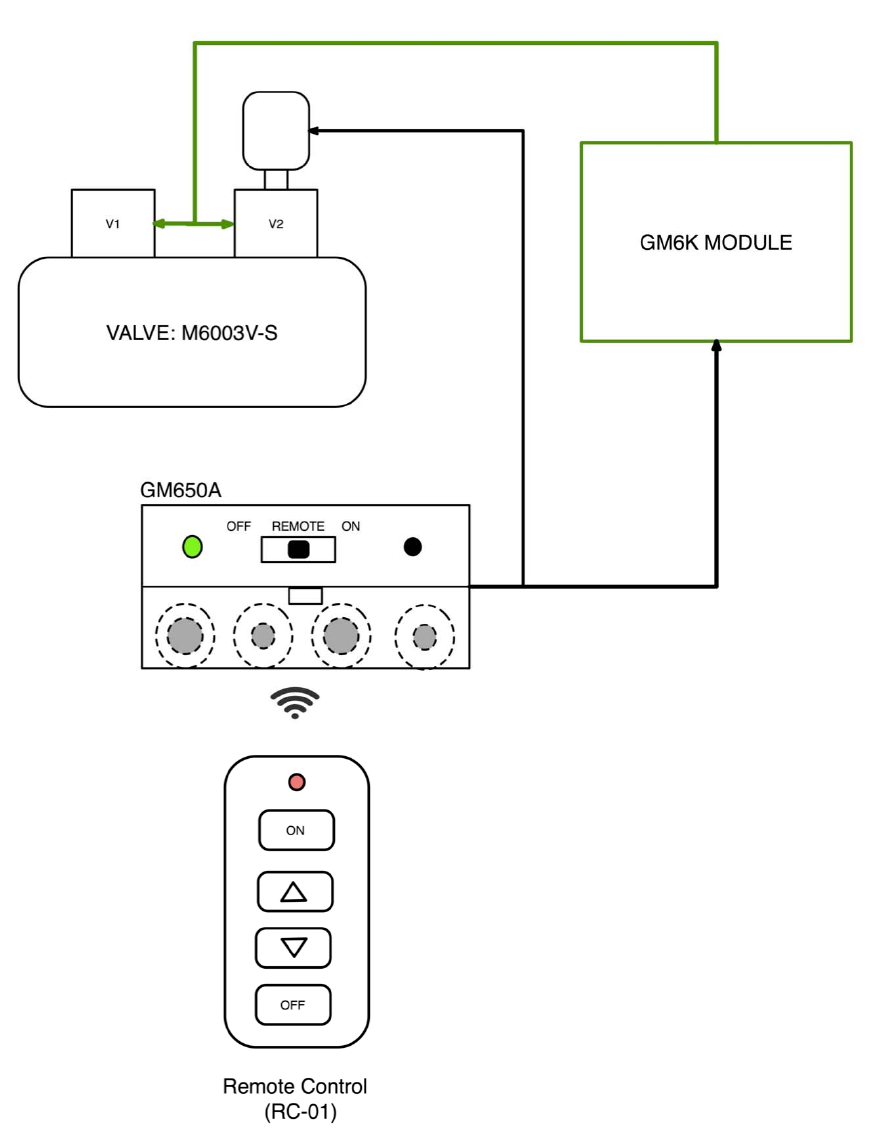

1.1 SYSTEM
2

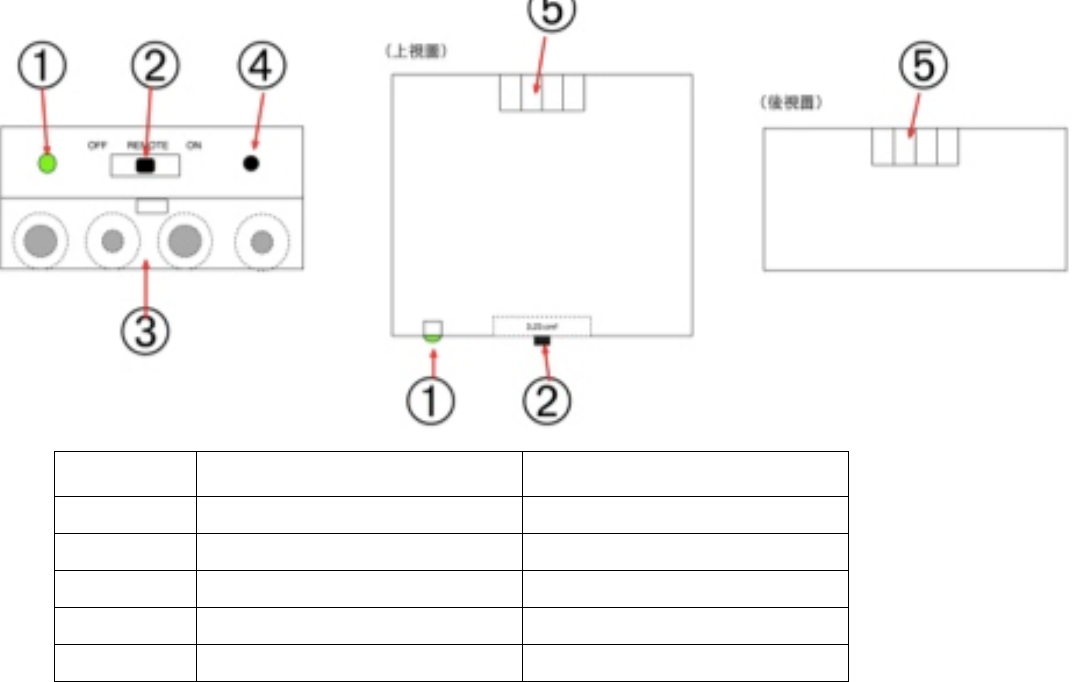

1.2.1.1 CONTROL BOX：
NO. FUNCTION REMARK
1 LED Red / Green
2 ON / REMOTE / OFF Main switch
3 Batteries 6VDC = AA*4
4 Learn button
5 4 PIN TERMINAL
GM650 / TX-01
3

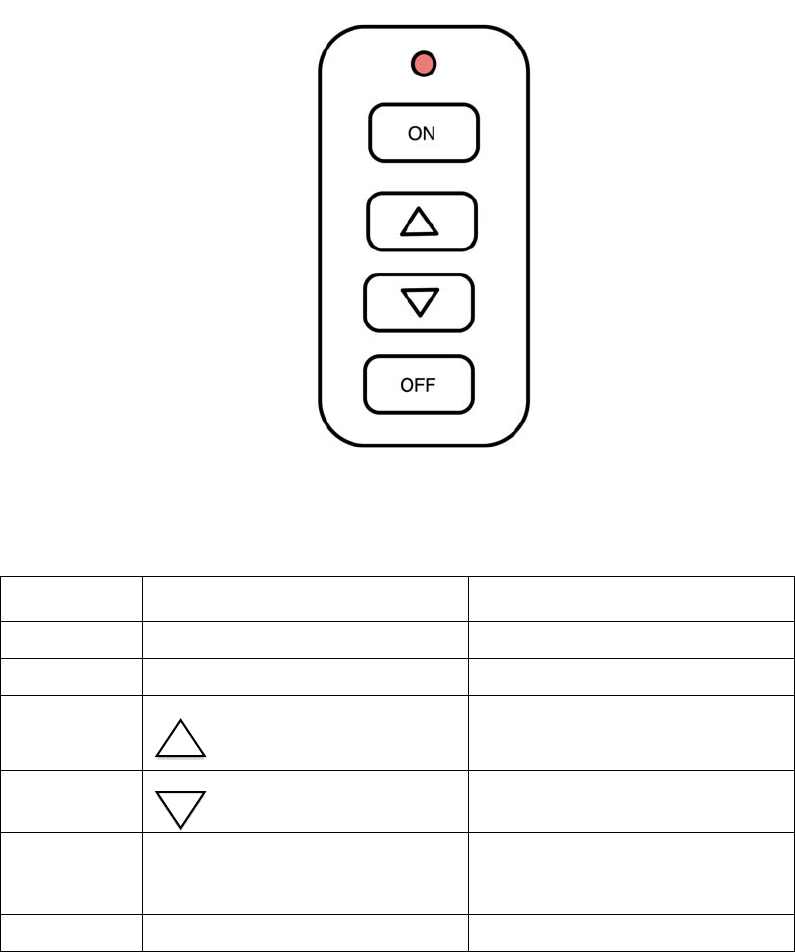

1.2.1.2 REMOTE CONTROLLER (TX-01)：
NO. FUNCTION REMARK
1 LED RED
2 ON BUTTON Relay CLOSE
3 （HI） OUTPUT 5V(+)
4 (LOW) OUTPUT 5V(-)
5 OFF BUTTON RELAY OPEN
6 BATTERY 12VDC
GM650 / TX-01
4
1.3 Operational Description
1.3.1MAIN SWITCH
1.3.1.1 OFF/REMOTE/ON
1.3.1.1.1 ON: RELAY CLOSE
1.3.1.1.2 Remote: SYSTEM INTO REMOTE MODE
1.3.1.1.3 OFF: SYSTEM OFF
Ps: SWITCH FROM OFF TO ON POSTION: OUTPUT 5V(+) THEN RELAY CLOSE
SWITCH FROM OFF TO REMOTE POSTION: OUTPUT 5V(-) THEN INTO
REMOTE MODE
1.3.2 REMOTE CONTROLLER
1.3.2.1 ON: RELAY CLOSE
1.3.2.2 : OUTPUT 5V(+)
1.3.2.3 : OUTPUT 5V(-)\
1.3.2.4 OFF: RELAY OPEN ÆOUTPUT 5V(+)
GM650 / TX-01
5
FCC Warning
Notice:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
GM650 / TX-01
