User Manual
Installation Guide
Home Automation Open/Close Sensor
PS430
The PS430 is a smart, open/close sensor, which sends a status change to the
controller the moment it detects the subject e.g. door, opens or close. The
controller then controls PS switch/power plug devices via a rule set.
Together with controller, PS App (mobile Smartphone /Tablet), and all PS
devices (switches, power plugs, dimmers, and sensors), the PS system
provides you with the capability to control your home’s electrical devices
remotely from anywhere in the world for home automation.
Overview & Operation

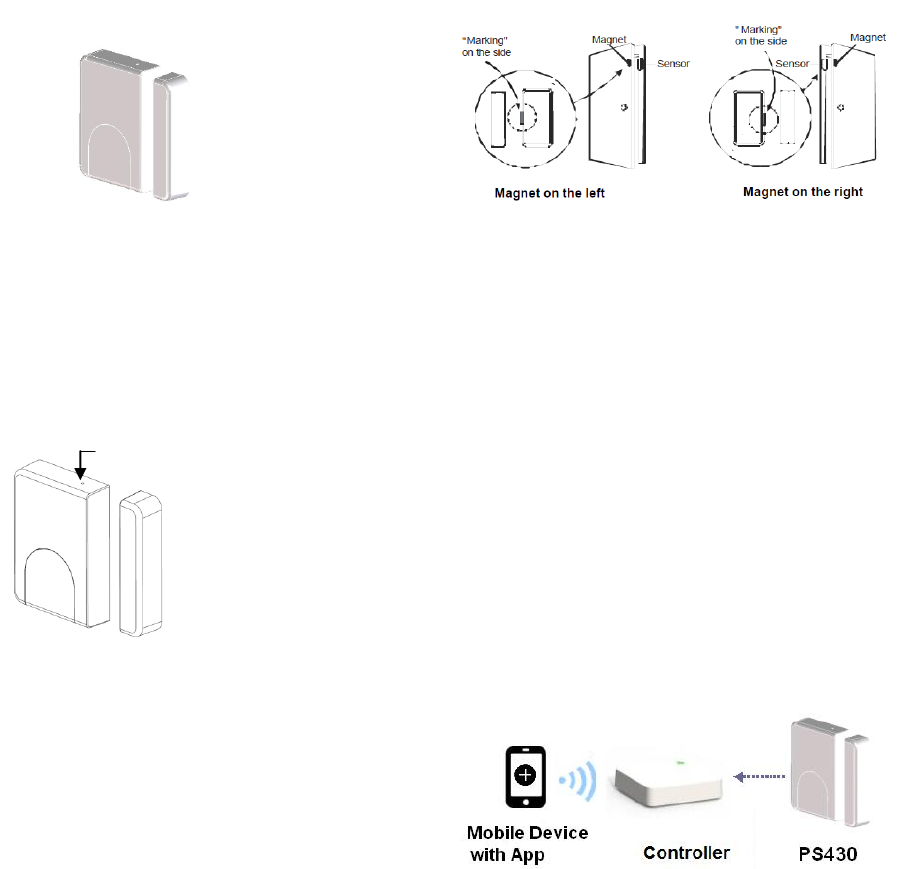

1. Sensor main unit
Sensor is located inside the marked location X
2. Magnet
Hold contact with the Sensor main unit
3. Battery Compartment
Install the battery (CR2450)
4. Reset Pin/LED
Reset Pin
Insert a small pin (e.g. paper clip) to set the PS430 to scan mode
Insert a small pin (e.g. paper clip) and hold for 5 seconds to reset
PS430 to factory default setting
LED
Orange – Flashing => PS430 is in scan mode
Orange – Steady for 2 seconds => Indicate PS430 reset is finished
Installation
1. Inspect the intended window/door and choose the location to install
the Sensor main unit and the Magnet
2. Open the battery compartment, remove the battery’s insulator, and
then close the battery compartment
3. Peel off the tape backing from the Sensor main unit and Magnet, and
mount them onto the chosen location from step 1. Position the Sensor
main unit and Magnet so that they are aligned and no more than 2 cm
apart.
Link PS430 to the Controller
Download and install the latest PS App to your mobile device, and refer to
the walk through instructions from PS App’s to add your PS430 sensor to
Controller. The main steps are:
Use the PS App, set the Controller into the scan mode.
Use PS430 sensor’s reset pin to set it to scan mode.
The pairing process between the Controller and PS430 sensor will now
take place.
The PS App will show the new device, PS430 is added.
Test by opening and closing the window/door, the Status of PS430
sensor will be displayed on the PS App via the Controller.
