GXP1160/GXP1165 USER MANUAL
Grandstream Networks, Inc.
GXP1160/GXP1165
Small-Medium Business IP Phone
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 2 of 59
GXP1160/GXP1165 User Manual
Index
GNU GPL INFORMATION...........................................................................2
CHANGE LOG.............................................................................................2
FIRMWARE VERSION 1.0.5.2 ..............................................................................................................2
WELCOME ..................................................................................................2
PRODUCT OVERVIEW...............................................................................2
FEATURE HIGHTLIGHTS .....................................................................................................................2
GXP1160/GXP1165 TECHNICAL SPECIFICATIONS...........................................................................2
INSTALLATION ...........................................................................................2
EQUIPMENT PACKAGING ...................................................................................................................2
CONNECTING YOUR PHONE..............................................................................................................2
SAFETY COMPLIANCES......................................................................................................................2
WARRANTY...........................................................................................................................................2
USING THE GXP1160/GXP1165.................................................................2
GETTING FAMILAR WITH THE LCD....................................................................................................2
GETTING FAMILAR WITH THE KEYPAD.............................................................................................2
MAKING PHONE CALLS.......................................................................................................................2
HANDSET, SPEAKER AND HEADSET MODE .............................................................................2
2 CALLS WITH 1 SIP ACCOUNT...................................................................................................2
COMPLETING CALLS ...................................................................................................................2
MAKING CALLS USING IP ADDRESSES .....................................................................................2
ANSWERING PHONE CALLS ..............................................................................................................2
RECEIVING CALLS........................................................................................................................2
DO NOT DISTURB.........................................................................................................................2
DURING A PHONE CALL......................................................................................................................2
CALL WAITING/CALL HOLD .........................................................................................................2
MUTE..............................................................................................................................................2
CALL TRANSFER ..........................................................................................................................2
3-WAY CONFERENCING ..............................................................................................................2
VOICE MESSAGES (MESSAGE WAITING INDICATOR).............................................................2
CALL FEATURES ..................................................................................................................................2
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 3 of 59
CUSTOMIZED LCD SCREEN & XML ...................................................................................................2
CONFIGURATION GUIDE...........................................................................2
CONFIGURATION VIA KEYPAD...........................................................................................................2
CONFIGURATION VIA WEB BROWSER .............................................................................................2
DEFINITIONS ........................................................................................................................................2
STATUS PAGE DEFINITIONS .......................................................................................................2
ACCOUNT PAGE DEFINITIONS ...................................................................................................2
SETTINGS/BASIC SETTINGS PAGE............................................................................................2
SETTINGS/ADVANCED SETTINGS PAGE...................................................................................2
NAT SETTINGS .....................................................................................................................................2
PUBLIC MODE ......................................................................................................................................2
EDITING CONTACTS AND CLICK-TO-DIAL ........................................................................................2
UPGRADING AND PROVISIONING ...........................................................2
UPGRADE VIA KEYPAD MENU ...........................................................................................................2
UPGRAGE VIA WEB GUI......................................................................................................................2
NO LOCAL TFTP/HTTP SERVERS ......................................................................................................2
CONFIGURATION FILE DOWNLOAD ..................................................................................................2
RESTORE FACTORY DEFAULT SETTINGS..............................................2
EXPERIENCING THE GXP1160/GXP1165.................................................2
Table of Tables
GXP1160/GXP1165 User Manual
Table 1: GXP1160/GXP1165 TECHNICAL SPECIFICATIONS.....................................................................2
Table 2: GXP1160/GXP1165 EQUIPMENT PACKAGING ............................................................................2
Table 3: GXP1160/GXP1165 CONNECTORS ..............................................................................................2
Table 4: GXP1160/GXP1165 DISPLAY DEFINITIONS.................................................................................2

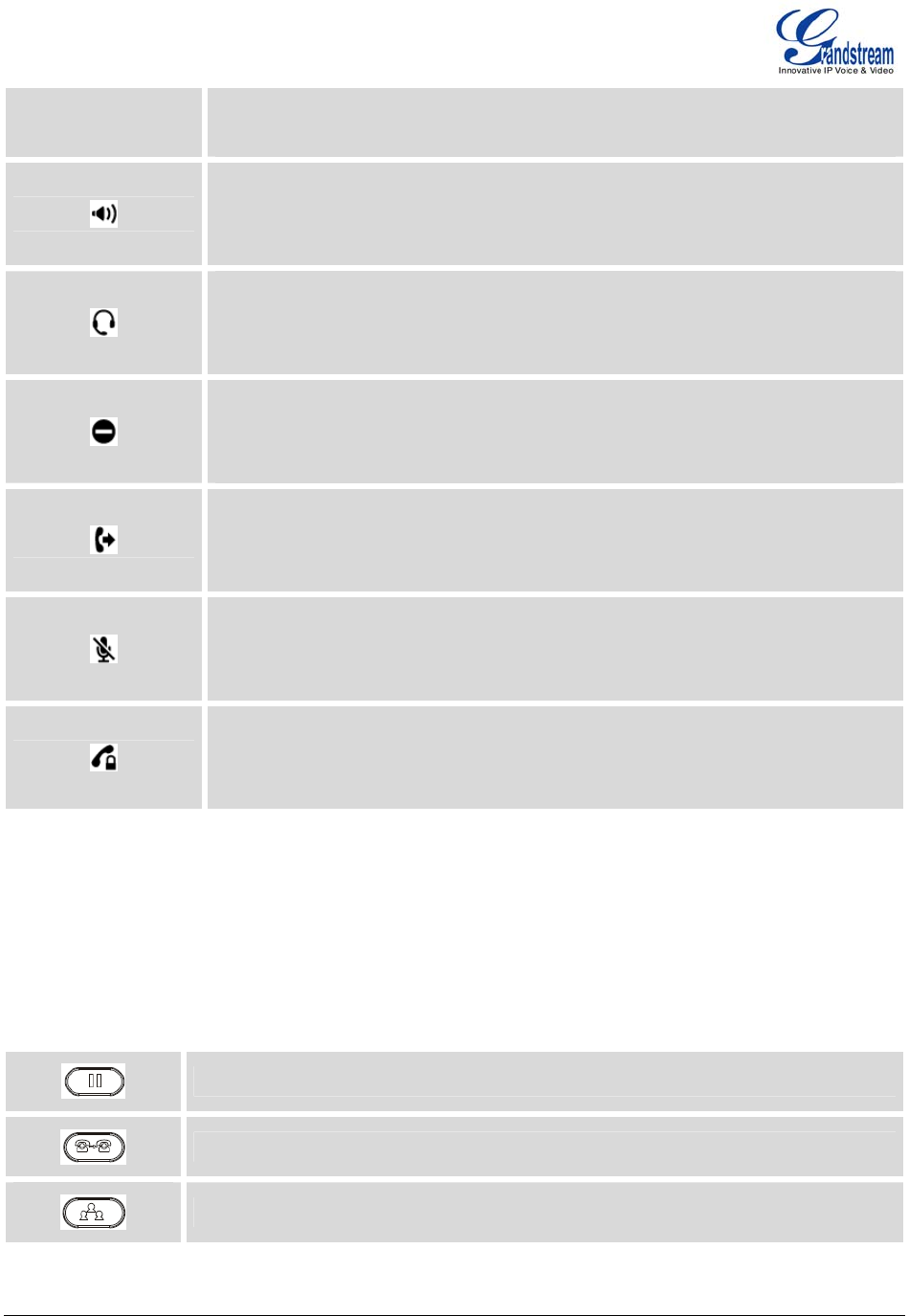

Table 5: GXP1160/GXP1165 LCD ICONS ....................................................................................................2
Table 6: GXP1160/GXP1165 KEYPAD DEFINITIONS .................................................................................2
Table 7: CALL FEATURES............................................................................................................................2
Table 8: GXP1160/GXP1165 CONFIGURATION MENU ..............................................................................2
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 4 of 59
Table of Figures
GXP1160/GXP1165 User Manual
Figure 1: GXP1160/GXP1165 Ports..............................................................................................................2

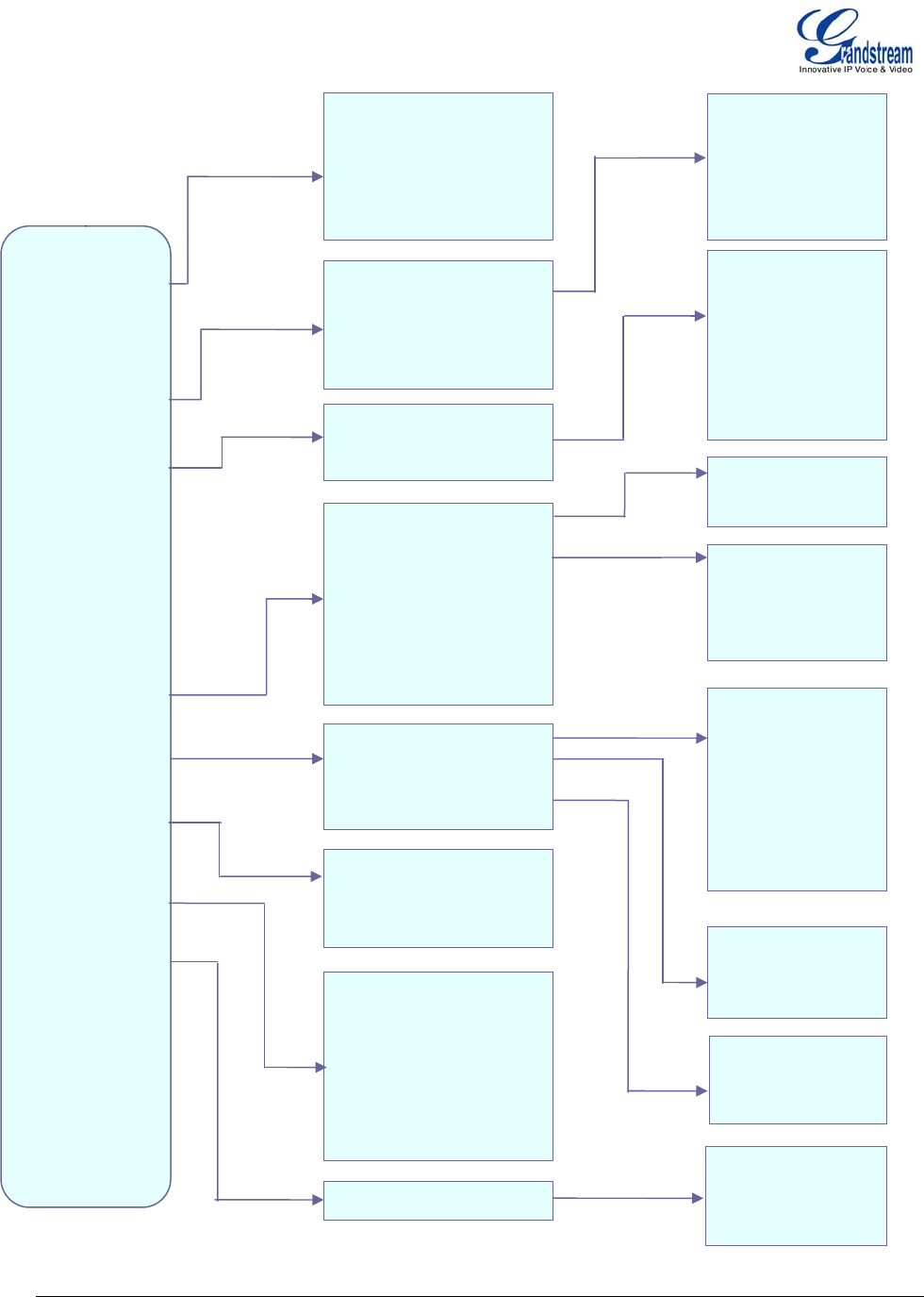

Figure 2: GXP1160/GXP1165 Keypad MENU Flow......................................................................................2
Figure 3: GXP1160/GXP1165 Web GUI - Contacts......................................................................................2

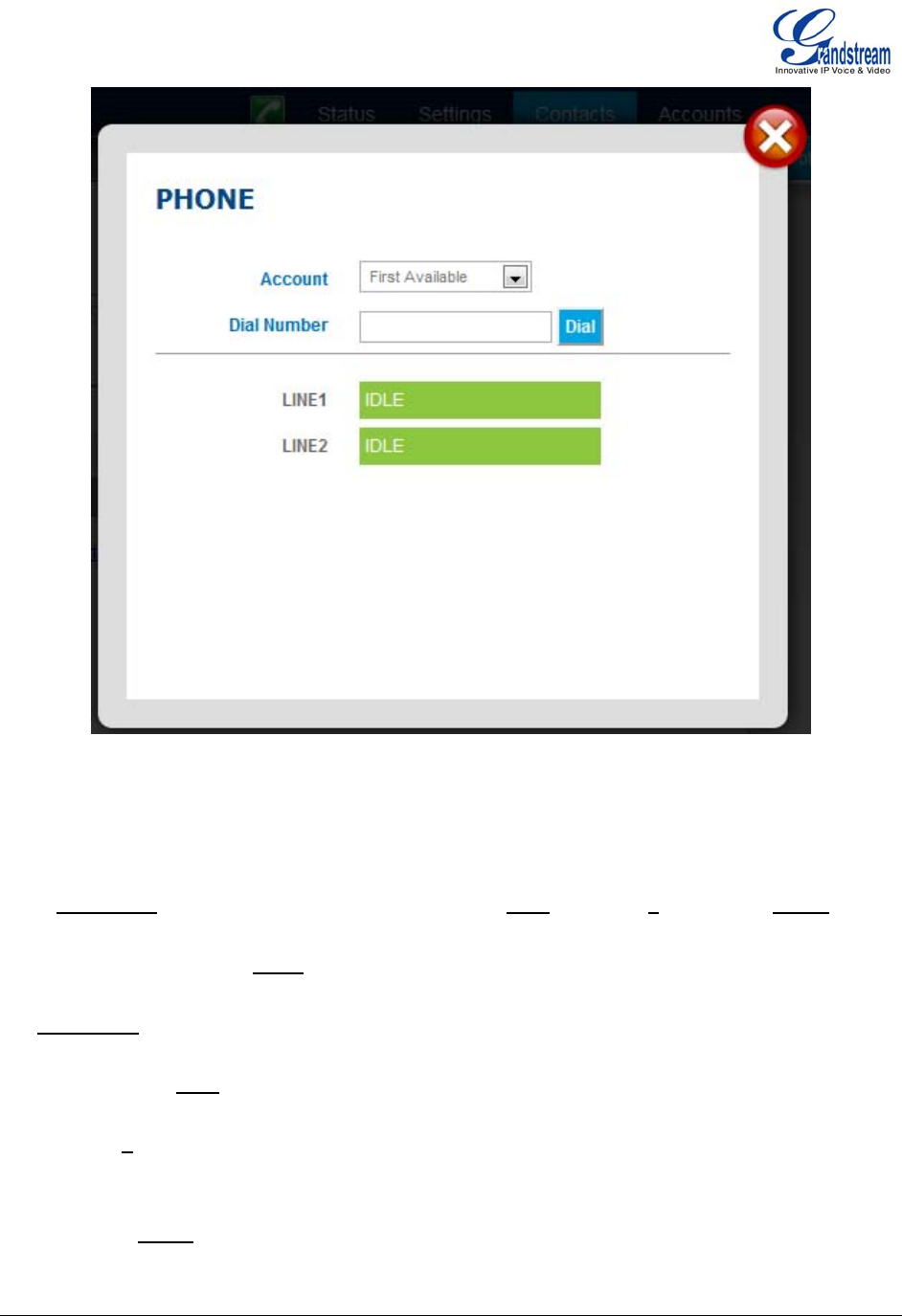

Figure 4: GXP1160/GXP1165 Click-to-Dial...................................................................................................2
GUI Interface Examples
GXP1160/GXP1165 User Manual
http://www.grandstream.com/products/gxp_series/general/documents/gxp21xx_gui.zip
1. Screenshot of Configuration Login Page
2. Screenshot of Status Page
3. Screenshot of Basic Setting Configuration Page
4. Screenshot of Advanced User Configuration Page
5. Screenshot of SIP Account Configuration Page
6. Screenshot of Saved Configuration Changes Page
7. Screenshot of Reboot Page
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 5 of 59
GNUGPLINFORMATION
GXP1160/GXP1165 firmware contains third-party software licensed under the GNU General Public
License (GPL). Grandstream uses software under the specific terms of the GPL. Please see the GNU
General Public License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 6 of 59
CHANGELOG
This section documents significant changes from previous versions of GXP1160/GXP1165 user manuals.
Only major new features or major document updates are listed here. Minor updates for corrections or
editing are not documented here.
FIRMWAREVERSION1.0.5.2
This is the initial version.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 7 of 59
WELCOME
Thank you for purchasing Grandstream GXP1160/GXP1165 Small-Medium Business IP Phone.
GXP1160/GXP1165 is a next generation small-to-medium business IP phone that features single SIP
account, up to 2 call appearances, a 128 x 40 graphical LCD, 3 XML programmable context-sensitive soft
keys, dual network ports with integrated PoE (GXP1165 only), 3-way conference, and Electronic Hook
Switch (EHS) with Plantronics headset. The GXP1160/1165 delivers superior audio quality, rich and
leading edge telephony features, personalized information and customizable application service,
automated provisioning for easy deployment, advanced security protection for privacy, and broad
interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms. It is a perfect choice
for small-to-medium businesses looking for a high quality, feature rich IP phone with highly affordable cost.
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP1160/GXP1165 as it may cause damage to the
products and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 8 of 59
PRODUCTOVERVIEW
FEATUREHIGHTLIGHTS
128 x 40 pixel graphical LCD display;
Single SIP account, up to 2 call appearances, 3 XML programmable context-sensitive soft keys, 3-way
conference;
Phonebook with up to 500 contacts and call history with up to 200 records;
Automated personal information service (e.g., local weather), personalized music sing tone/ring back
tone;
Dual switched auto-sensing 10/100Mbps network ports, integrated PoE (GXP1165 only);
Automated provisioning using TR-069 or AES encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802,1x for media access control.
GXP1160/GXP1165TECHNICALSPECIFICATIONS
Table 1: GXP1160/GXP1165 TECHNICAL SPECIFICATIONS
Protocols and
Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS
(A record, SRV, NAPTR), DHCP, PPPoE, TFTP, NTP, STUN, SIMPLE, TR-069,
802.1x, IPv6
Network Interfaces Dual switched 10/100Mbps ports, integrated PoE (GXP1165 only)
Graphic Display 128 x 40 graphical LCD display
Feature Keys
1 SIP account, 3 XML programmable context sensitive soft keys, 5
Navigation/Menu/Volume keys, 9 dedicated function keys for PHONEBOOK,
MESSAGE (with LED indicator), HOLD, TRANSFER, CONFERENCE, FLASH,
SPEAKERPHONE, VOLUME, SEND/REDIAL
Voice Codec Support for G.723.1, G.729A/B, G.711u/a, G.726-32, G.722 (wide-band), iLBC,
in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward, 3-way conference, downloadable phone book (XML, LDAP,
up to 500 items), call waiting, call log (up to 200 records), off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones,
server redundancy and fail-over
Headset Jack RJ9, supporting Electronic Hook Switch (EHS) with Plantronics headsets
Base Stand Yes, 1 angle position available
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 9 of 59
Wall Mountable Yes
QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based
authentication, AES encrypted configuration file, SRTP, TLS, 802.1x media access
control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
Simplified and Traditional Chinese, Korean, Japanese and etc
Upgrade and
Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or
AES encrypted XML configuration file
Power and Green
Energy Efficiency
Universal power adapter included
Input: 100-240VAC 50-60Hz
Output: +5VDC, 800mA
Integrated Power-over-Ethernet (802.3af, GXP1165 only)
Max power consumption 2.5W (universal power adapter) or 3W (PoE)
Physical
Unit dimension: 154mm (W) x 200mm (L) x 79mm (D) (handset onhook)
Unit weight: 0.6kg
Package weight: 1.03kg
Temperature and
Humidity
Operating: 32-104
o
F / 0-40
o
C, 10-90% (non-condensing)
Storage: 14-140
o
F / -10-60
o
C
Package Content GXP1160/GXP1165 phone, handset with cord, base stand, universal power supply,
network cable, quick start guide
Compliance
FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2,
EN61000-3-3, EN60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS;
UL 60950 (power adapter)
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 10 of 59
INSTALLATION
EQUIPMENTPACKAGING
Table 2: GXP1160/GXP1165 EQUIPMENT PACKAGING
Main Case Yes (1)
Handset Yes (1)
Phone Cord Yes (1)
Power Adaptor Yes (1)
Ethernet Cable Yes (1)
Phone Stand Yes (1)
Quick Start Guide Yes (1)
CONNECTINGYOURPHONE

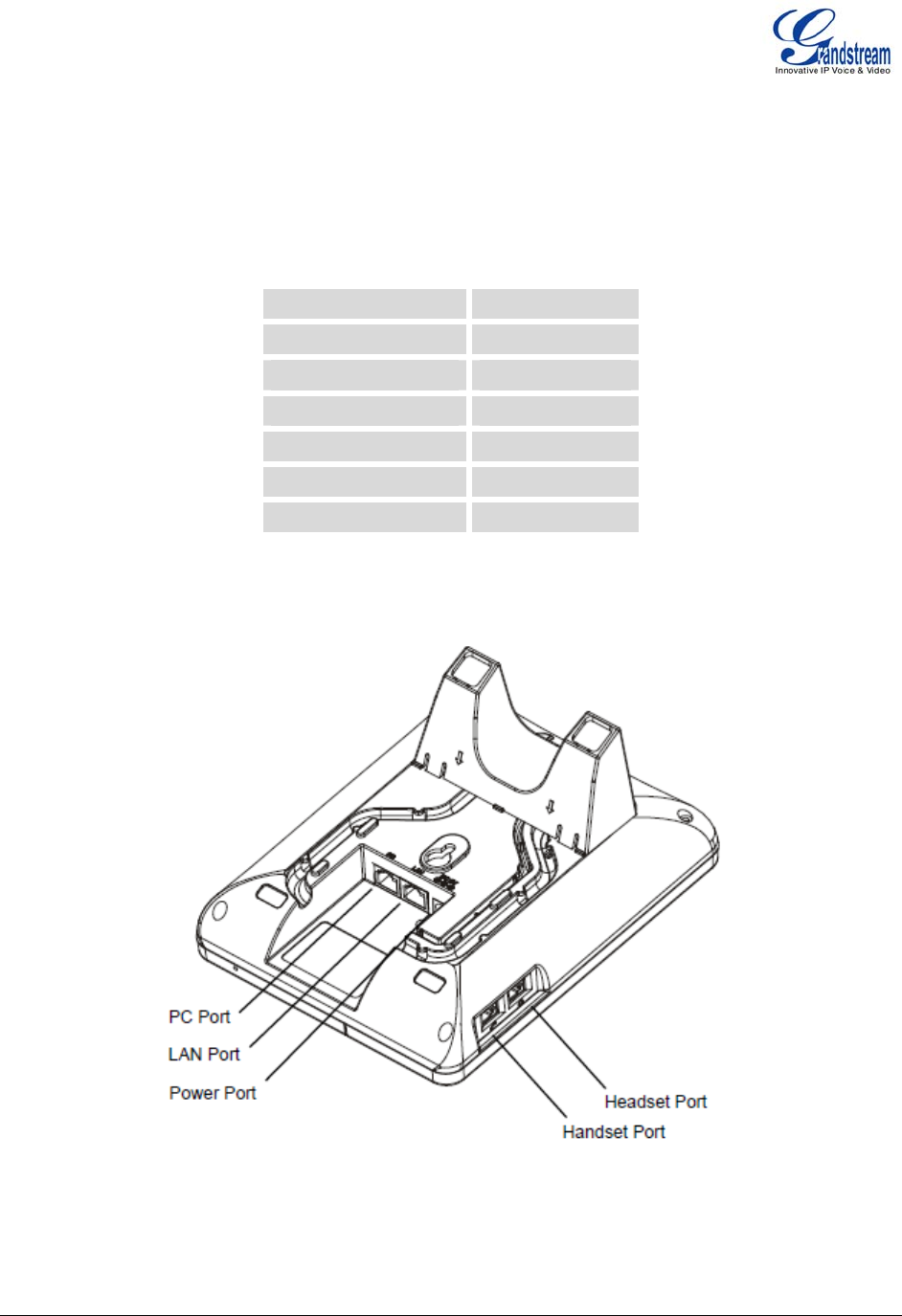

Figure 1: GXP1160/GXP1165 Ports
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 11 of 59
Table 3: GXP1160/GXP1165 CONNECTORS
Handset Port RJ9 handset connector port
Headset Port RJ9 headset connector port, supporting EHS (Electronic Hook-Switch) with
Plantronics headsets
LAN Port 10/100Mbps RJ-45 port connecting to Ethernet, integrated PoE (GXP1165 only)
PC Port 10/100Mbps RJ-45 port for PC connection
Power Jack 5V DC Power connector port
To set up the GXP1160/GXP1165, follow the steps below:
1. Attach the phone stand to the back of the phone where there are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an
electrical outlet. If PoE switch is used on GXP1165 in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded web server (Web GUI) by entering the IP
address in web browser, you can further configure the phone.
SAFETYCOMPLIA
NCES
The GXP1160/GXP1165 phone complies with FCC/CE and various safety standards. The
GXP1160/GXP1165 power adapter is compliant with the UL standard. Use the universal power adapter
provided with the GXP1160/GXP1165 package only. The manufacturer’s warranty does not cover
damages to the phone caused by unsupported power adapters.
WARRANTY
If the GXP1160/GXP1165 phone was purchased from a reseller, please contact the company where the
phone was purchased for replacement, repair or refund. If the phone was purchased directly from
Grandstream, contact the Grandstream Sales and Service Representative for a RMA (Return Materials
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 12 of 59
Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty
policy without prior notification.
Warning: Use the power adapter provided with the phone. Do not use a different power adapter as this
may damage the phone. This type of damage is not covered under warranty.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 13 of 59
USINGTHEGXP1160/GXP1165
GETTINGFAMILARWITHTHELCD
GXP1160/GXP1165 has a dynamic and customizable screen. The screen displays differently depending
on whether the phone is idle or in use (active). The following table describes the items displayed on the
GXP1160/GXP1165 idle screen.
Table 4: GXP1160/GXP1165 DISPLAY DEFINITIONS
DATE AND TIME Displays the current date and time. It can be synchronized with Internet time
servers.
LOGO NAME Displays company logo name. This logo name can be customized via xml screen
customization. The maximum size for logo name is 26 characters in English
(approximately).
NETWORK STATUS Shows the status of network in the middle of the screen. It will indicate whether
the network is down or starting.
STATUS BAR Shows the status of the phone for registration status, call features and etc, using
icons as shown in the next table.
SOFTKEYS The softkeys are context sensitive and will change depending on the status of
the phone. Typical functions assigned to softkeys are:
NextScr: Toggles among idle screen, weather information, IP Address
and extension number;
Headset: Onhook/offhook using headset; or toggle to headset mode;
FwdAll: Unconditionally forwards the calls to another number;
Missed: Shows unanswered calls to this phone;
Redial: Redials the last dialed out number.
Table 5: GXP1160/GXP1165 LCD ICONS
Registration Status: Registered.
Registration Status: Not Registered.
Handset Status.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 14 of 59
OFF - handset on hook
ON - handset off hook
Speaker Status.
OFF - speaker off
ON - speaker on
Headset Status.
OFF - headset off
ON - headset on
DND Status.
OFF - Do Not Disturb disabled
ON - Do Not Disturb enabled
Call Forward Status.
OFF - Call Forward feature disabled
ON - Call Forward feature enabled
MUTE Status.
OFF - The active call is not muted
ON - The active call is muted
SRTP Status.
OFF - SRTP is not used
ON - SRTP is used
GETTINGFAMILARWITHTHEKEYPAD
The following table describes the buttons used on the GXP1160/GXP1165 keypad.

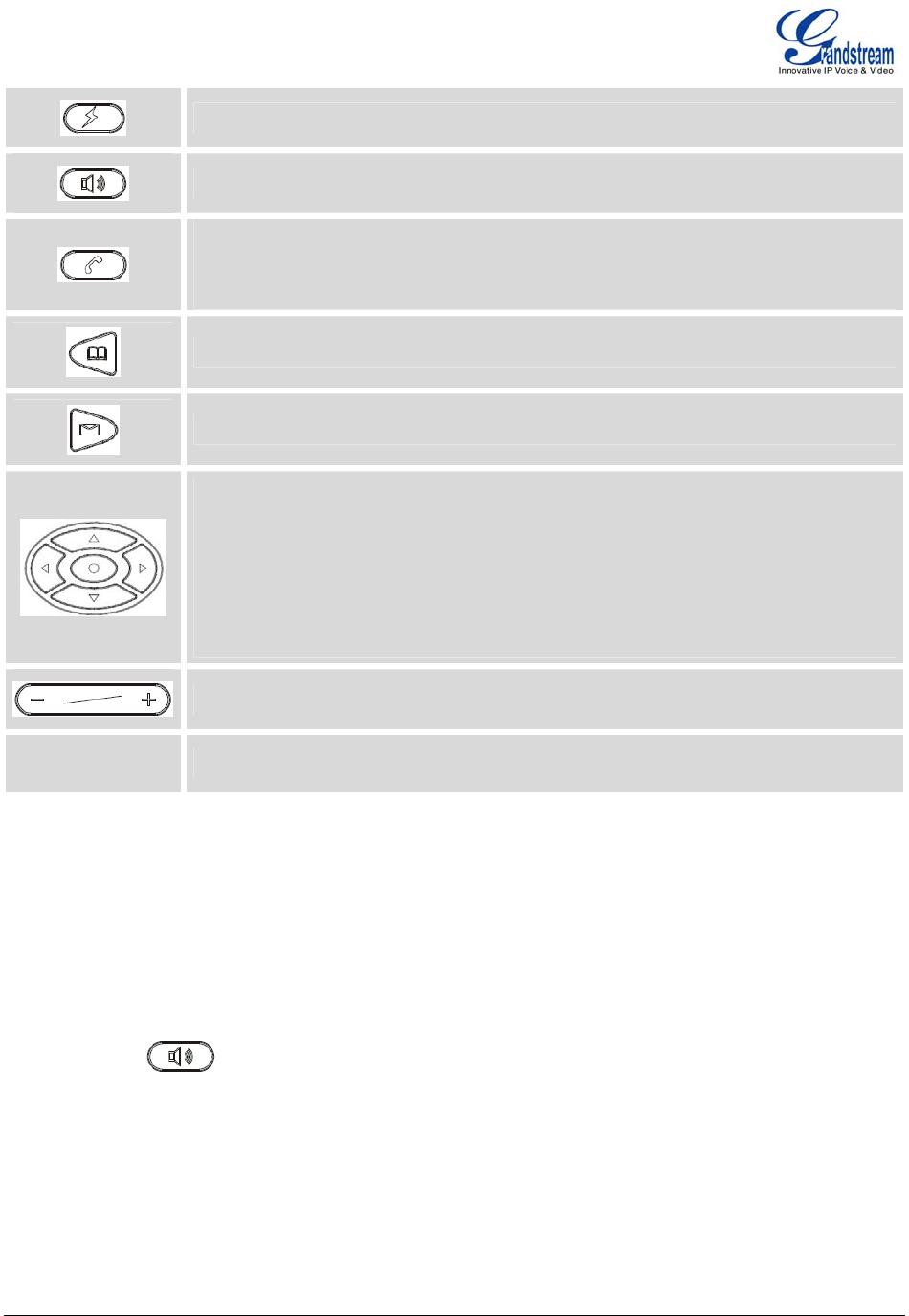

Table 6: GXP1160/GXP1165 KEYPAD DEFINITIONS
Place active call on hold, or resume the call on hold.
Transfer an active call to another number.
Establish 3-way conference with other 2 parties.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 15 of 59
Bring up a new line; or answer the second incoming call.
Speaker.
Send/Redial.
Send. Enter the digits and then press Send to dial out the number;
Redial. Redial when there is a previously dialed call.
Voicemail. Press to retrieve voice mails.
Phonebook. Brings phonebook on screen.
Navigation Keys/Menu.
Press the 4 navigation keys to move up/down/left/right;
Press the round button in the center to enter Keypad Configuration
MENU when phone is in idle;
The round button "MENU" can also be used as ENTER key when in
Keypad Configuration.
Volume. Press "-" or "+" to adjust the volume.
0 - 9, *, # Standard phone keypad.
MAKINGPHONECALLS
HANDSET,SPEAKERANDHEADSETMODE
The GXP1160/GXP1165 allows users to switch among handset, speaker or headset when making calls.
Press the Hook Switch to switch to handset; press the Headset softkey to switch to headset; or press the
Speaker button to switch to speaker.
2CALLSWITH1SIPACCOUNT
GXP1160/GXP1165 can support up to two lines "virtually" mapped to one SIP account. By picking up the
handset, the GXP1160/GXP1165 will be in off hook state and the dial tone will be heard. To make a call,
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 16 of 59
dial out the number with the current line.
During the call, users can press the FLASH key to hold the current call and make/answer another call. If
they are 2 calls established, users can switch the two lines by pressing the FLASH key.
COMPLETINGCALLS
There are several ways to complete a call on GXP1160/GXP1165.
On hook dialing. Enter the number when the phone is on hook and then send out.
When the phone is in idle, enter the number to be dialed out;
Take handset off hook; or
Press Speaker button; or
Press Headset softkey with headset plugged in;
The call will be dialed out.
Off hook and dial. Off hook the phone, enter the number and send out.
Take handset off hook; or
Press Speaker button; or
Press Headset softkey with headset plugged in;
You shall hear dial tone after off hook;
Enter the number;
Press SEND key or # to dial out.
Redial. Redial the last dialed number.
Take handset off hook; or
Press Speaker button; or
Press Headset softkey with headset plugged in; or
When the phone is in idle;
Press SEND key , or the REDIAL softkey.
Via Call History. Dial the number logged in phone's call history.
Press MENU button to bring up the main menu;
Enter Call History and select "Answered Calls", "Missed Calls", "Transferred Calls" or "Forwarded
Calls";
Select the entry you would like to call using the navigation "UP" and "DOWN" arrow keys;
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 17 of 59
Press SEND key to dial out.
Via Phonebook. Dial the number from the phonebook.
Press MENU button to bring up the main menu;
Select and enter Phonebook;
Select the phonebook entry you would like to call using the navigation "UP" and "DOWN" arrow
keys;
Press SEND key to dial out.
Via Page/Intercom.
Take handset off hook; or
Press Speaker button; or
Press Headset softkey with headset plugged in;
You shall hear dial tone after off hook;
Press MENU button to switch the call screen from "Line x: Caller DIAL" to "Line x: Caller Paging";
Enter the number;
Press SEND key or # to dial out.
Note:
After entering the number, the phone waits for the No Key Entry Timeout (Default timeout is 4 seconds,
configurable via Web GUI) before dialing out. Press SEND key or # key to override the No
Key Entry Timeout;
If digits have been entered after handset is off hook, the SEND key will works as SEND instead of
REDIAL;
By default, # can be used as SEND to dial the number out. Users could disable it by setting "Use # as
Dial Key" to "No" from Web GUI->Account page;
For Paging/Intercom, if the SIP Server/PBX supports the feature and has Paging/Intercom feature
code set up already, users might not necessarily need toggle to paging mode in the call screen on
GXP1160/GXP1165. Simply dial the feature code with extension as a normal call.
MAKINGCALLSUSINGIPADDRESSES
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 18 of 59
can be made between two phones if:
Both phones have public IP addresses; or
Both phones are on the same LAN/VPN using private or public IP addresses; or
Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
To make a direct IP call, please follow the steps below:
Press MENU button to bring up main menu;
Select "Direct IP Call" using the navigation arrow keys;
Press MENU to enter the Direct IP Call mode;
Input the 12-digit target IP address (Please see example below);
Press the "More" softkey to make sure the softkey selection "IPv4" or "IPv6" is correctly selected
depending on your network environment;
Press "OK" softkey to dial.
For example:
If the target IP address is 192.168.1.60 and the port is 5062 (i.e., 192.168.1.60:5062), input the following:
192*168*1*60#5062. The * key represents the dot (.), the # key represents colon (:). Wait for about 4
seconds and the phone will initiate the call.
Quick IP Call Mode:
The GXP1160/GXP1165 also supports Quick IP Call mode. This enables the phone to make direct IP calls
using only the last few digits (last octet) of the target phone's IP address. This is possible only if both
phones are under the same LAN/VPN. This simulates a PBX function using the CMSA/CD without a SIP
server. Controlled static IP usage is recommended.
To enable Quick IP Call Mode, go to GXP1160/GXP1165 Web GUI->Advanced Setting page, set "Use
Quick IP Call Mode" to "Yes". Click on "Update" on the bottom of the Web GUI page to take the change. To
make Quick IP Call, take the phone off hook first. Then dial #xxx where x is 0-9 and xxx<255. Press # or
SEND and a direct IP call to aaa.bbb.ccc.XXX will be completed. "aaa.bbb.ccc" is from the local IP address
regardless of subnet mask. The number #xx or #x are also valid. The leading 0 is not required (but it's OK).
For example:
192.168.0.2 calling 192.168.0.3 -- dial #3 followed by # or “SEND”;
192.168.0.2 calling 192.168.0.23 -- dial #23 followed by # “SEND”;
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 19 of 59
192.168.0.2 calling 192.168.0.123 -- dial #123 followed by # “SEND”;
192.168.0.2: dial #3 and #03 and #003 results in the same call -- call 192.168.0.3.
Note:
The # will represent colon ":" in direct IP call rather than SEND key as in normal phone call;
If you have a SIP server configured, direct IP call still works. If you are using STUN, direct IP call will
also use STUN;
Configure the "Use Random Port" to "No" when completing direct IP calls.
ANSWERINGPHONECALLS
RECEIVINGCALLS
Single incoming call. Phone rings with selected ring tone. Answer call by taking handset off hook, or
using Speaker/Headset;
Multiple incoming calls. When another call comes in while having an active call, the phone will
produce a Call Waiting tone (stutter tone). Answer the incoming call by pressing the FLASHING key.
The current active call will be put on hold automatically.
DONOTDISTURB
Do Not Disturb can be enabled/disabled in Menu->Preference.
Press the Menu button and select "Preference" using navigation keys;
Press Menu button again to get into Preference options;
Select "Do Not Disturb" and press Menu button;
Use "UP" and "DOWN" arrow keys to select and press Menu button to enable or disable "Do Not
Disturb" feature.
When Do Not Disturb feature is turned on, the DND icon will appear on the right side of the LCD. The
incoming call will not be accepted or directly go into voicemail.
DURINGAPHONECALL
CALLWAITING/CALLHOLD
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 20 of 59
Hold. Place a call on hold by pressing the HOLD key ;
Resume. Resume call by pressing the HOLD key again;
Multiple calls. Automatically place active call on hold or switch between two calls by pressing the
FLASH key . Call waiting tone (stutter tone) will be audible on incoming call during the active
call.
MUTE
During an active call, press the MUTE softkey to mute/unmute the microphone. The LCD will show "LINEx:
TALKING" or "LINEx: MUTE" to indicate the mute status, with Mute icon displayed on the right side of the
screen.
CALLTRANSFER
GXP1160/GXP1165 supports Blind Transfer, Attended Transfer and Auto-Attended Transfer.
Blind Transfer.
During the first active call, press TRANSFER key and dial the number to transfer to;
Press SEND key or # to complete transfer of active call.
Attended Transfer.
During the first active call, press FLASH key . The first call will be put on hold;
Enter the number for the second call and establish the call;
Press TRANSFER key ;
Press FLASH key to transfer the call.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 21 of 59
Auto-Attended Transfer.
Set "Auto-Attended Transfer" to "Yes" under Web GUI->Advanced Settings page. And then click
"Update" on the bottom of the page;
Establish one call first;
During the call, press TRANSFER key . A new line will be brought up and the first call will
be automatically placed on hold;
Enter the number and press SEND key to establish the second call;
After the second call is established, press TRANSFER key again. The call will be
transferred;
If users press the SPLIT softkey before the call is transferred in the step above, the second call will
be resumed.
Note:
To transfer calls across SIP domains, SIP service providers must support transfer across SIP domains.
3WAYCONFERENCING

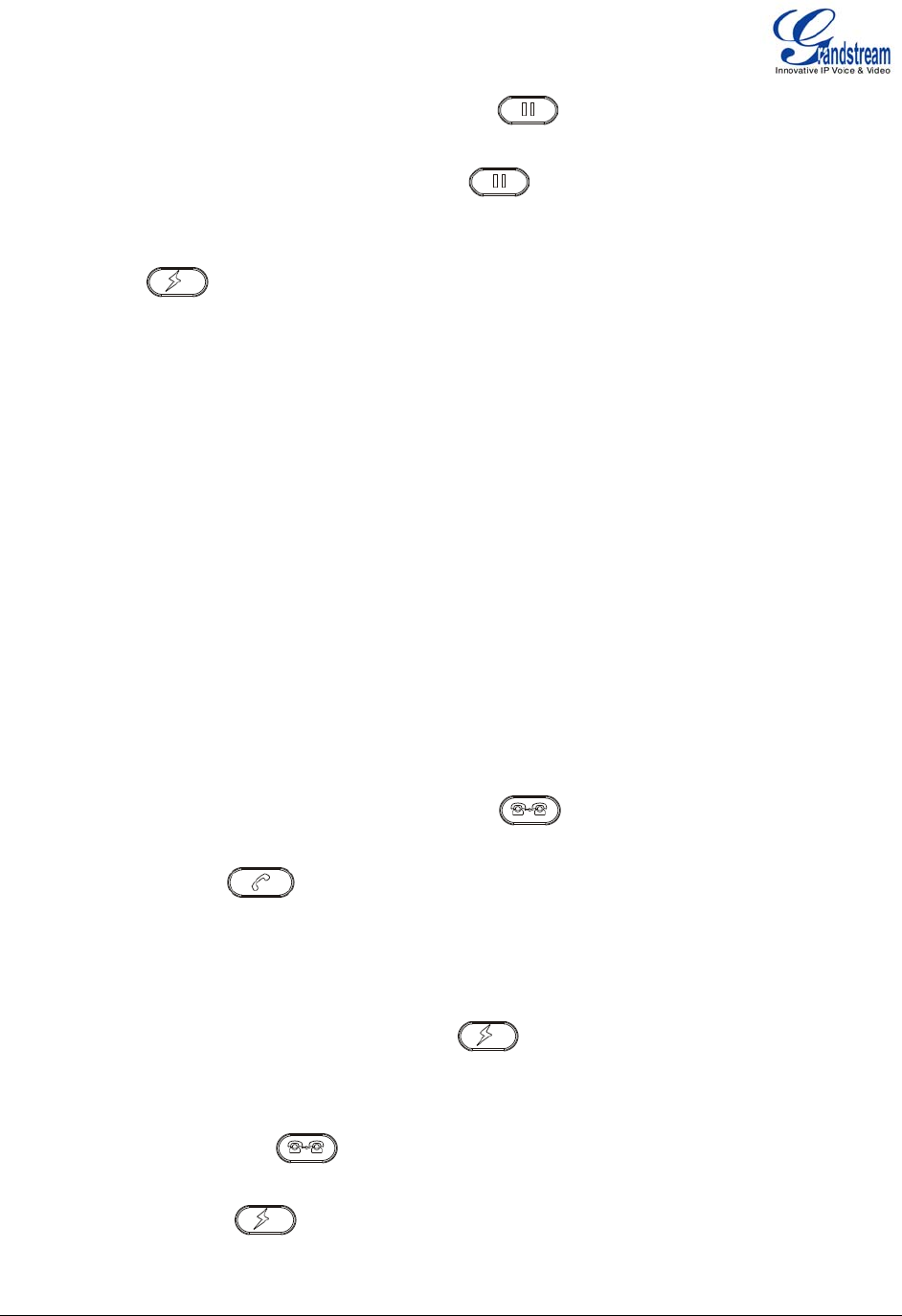

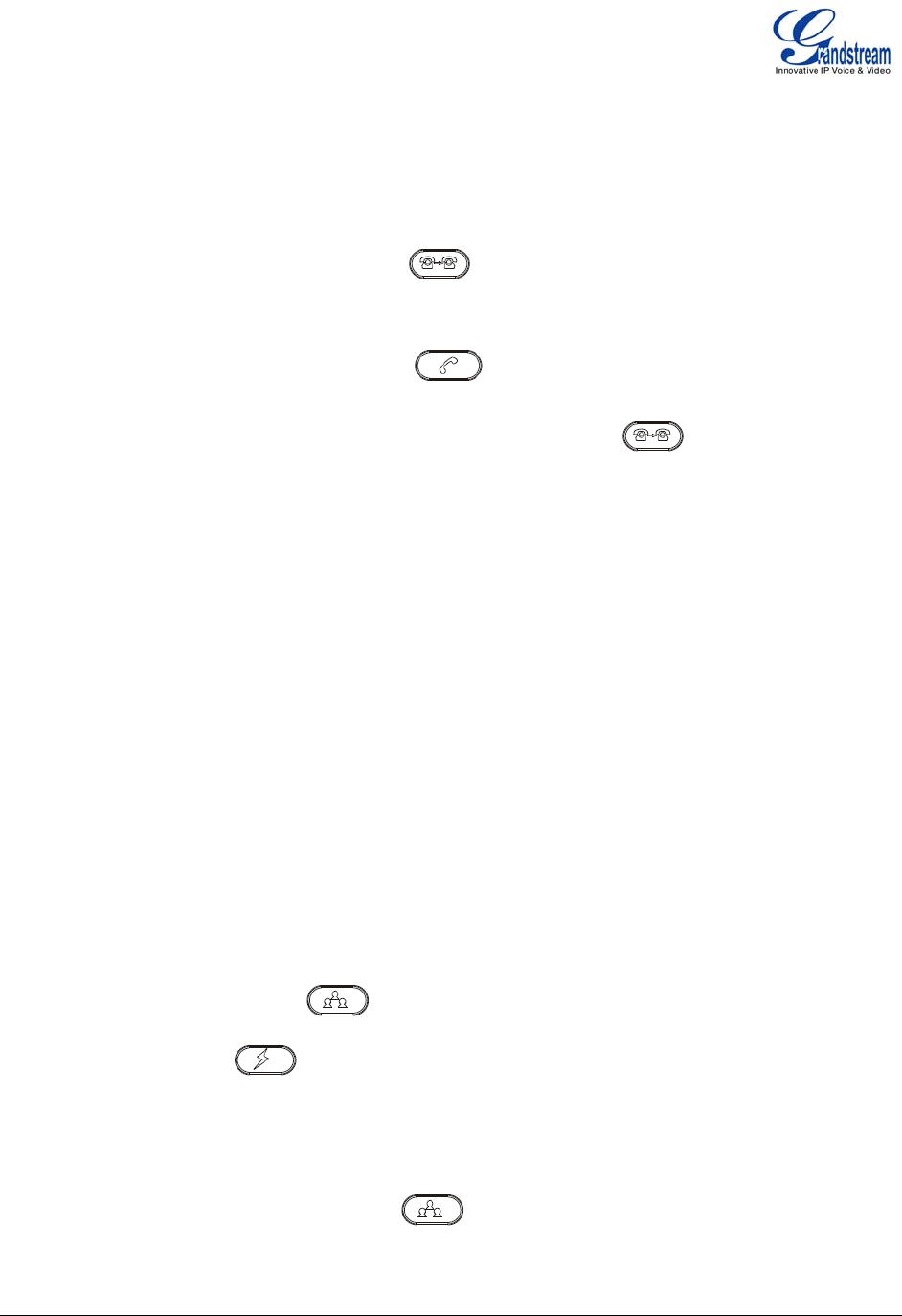

GXP1160/GXP1165 can host 3-way conference call with another 2 parties.
Initiate a conference call.
Establish 2 calls with 2 parties respectively;
Press CONFERENCE key ;
Press FLASH key . 3-way conference will be established.
Cancel Conference.
If after press the CONFERENCE key , the user decides not to conference, press Cancel
softkey;
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 22 of 59
This will resume the 2-way conversation with the current line.
Split and Re-conference.
During the 3-way conference, press HOLD key . The conference call will be split and both
calls will be put on hold separately;
Press FLASH key to resume the 2-way conversation with the second established call;
If users would like to re-establish conference call, press the ReConf softkey.
End Conference.
Press HOLD key to split the conference call. The conference call will be ended with both
calls on hold; Or
Users could press the EndCall softkey or simply hang up the call to terminate the conference call.

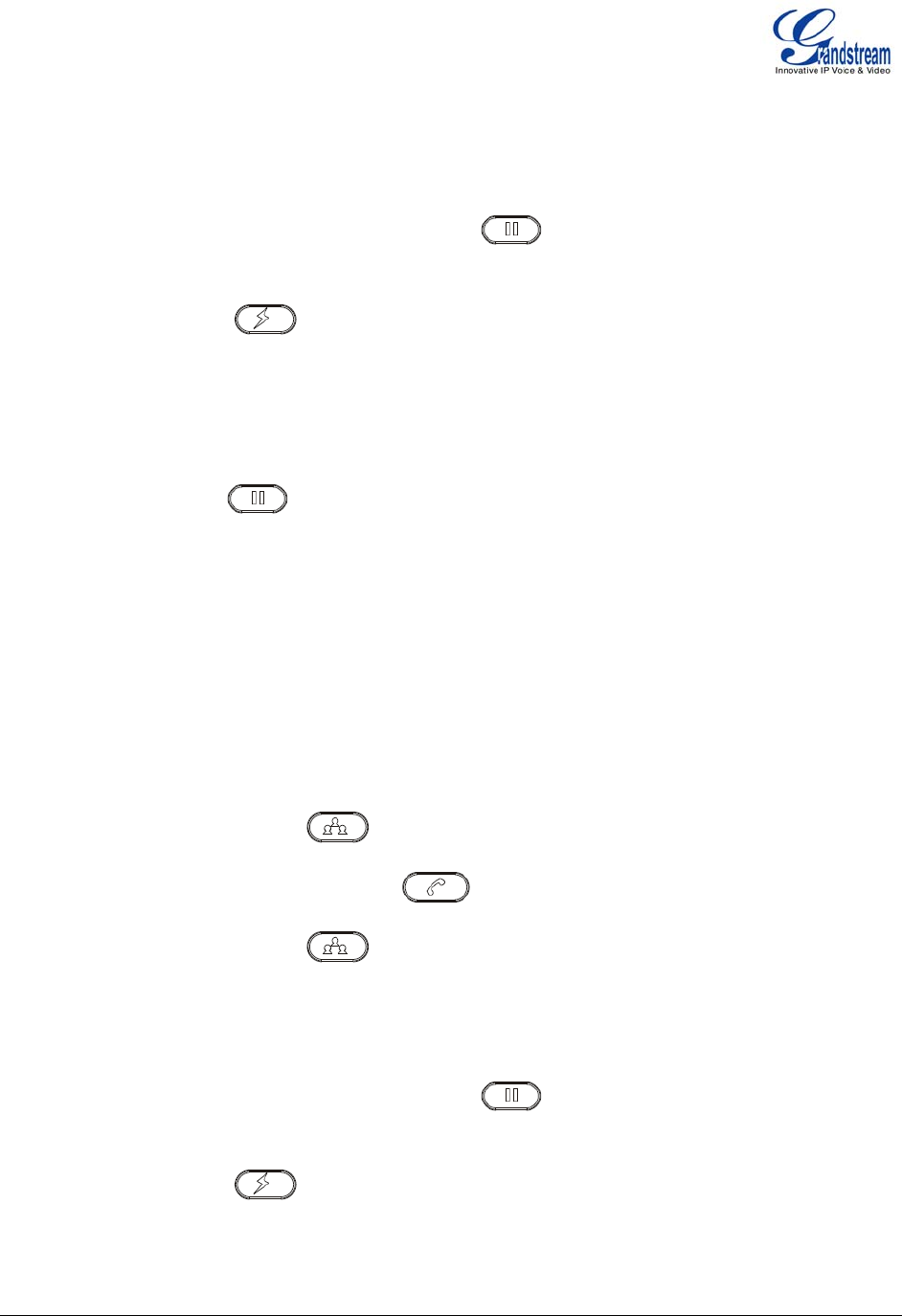

GXP1160/GXP1165 supports Easy Conference Mode, which can be used combined with the traditional
way to establish the conference.
Initiate a conference call.
Establish 1 call;
Press CONFERENCE key and a new line will be brought up using the same account;
Dial the number and press SEND key to establish the second call;
Press CONFERENCE key or press the ConfCall softkey to establish the conference.
Split and Re-conference.
During the 3-way conference, press HOLD key . The conference call will be split and both
calls will be put on hold separately;
Press FLASH key to resume the 2-way conversation with the second established call;
If users would like to re-establish conference call, press the ReConf softkey.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 23 of 59
Cancel Conference.
If users decides not to conference after establishing the second call, press EndCall softkey;
This will end the second call and the screen will show the first call on hold.
End Conference.
Press HOLD key to split the conference call. The conference call will be ended with both
calls on hold; Or
Users could press the EndCall softkey or simply hang up the call to terminate the conference call.
Note:
The party that starts the conference call has to remain in the conference for its entire duration, you can
put the party on mute but it must remain in the conversation. Also, this is not applicable when the
feature "Transfer on call hangup" is turned on;
The option "Disable Conference" under GXP1160/GXP1165 Web GUI->Settings->Advanced Settings
has to be set to "No" to establish conference.
VOICEMESSAGES(MESSAGEWAITINGINDICATOR)
A blinking red MWI (Message Waiting Indicator) indicates a message is waiting. Dial into the voicemail box
to retrieve the message by entering the voice mail number of the server or pressing the MESSAGE key
(Voice Mail User ID has to be properly configured as the voice mail number under Web
GUI->Account page). An IVR will prompt the user through the process of message retrieval.
CALLFEATURES
The GXP1160/GXP1165 supports traditional and advanced telephony features including caller ID, caller ID
with caller Name, call forward and etc.
Table 7: CALL FEATURES
*30 Block Caller ID (for all subsequent calls)
Off hook the phone;
Dial *30.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 24 of 59
*31 Send Caller ID (for all subsequent calls)
Off hook the phone;
Dial *31.
*67 Block Caller ID (per call)
Off hook the phone;
Dial *67 and then enter the number to dial out.
*82 Send Caller ID (per call)
Off hook the phone;
Dial *82 and then enter the number to dial out.
*70 Disable Call Waiting (per Call)
Off hook the phone;
Dial *70 and then enter the number to dial out.
*71 Enable Call Waiting (per Call)
Off hook the phone;
Dial *71 and then enter the number to dial out.
*72 Unconditional Call Forward. To set up unconditional call forward:
Off hook the phone;
Dial *72 and then enter the number to forward the call;
Press OK softkey or SEND key.
*73 Cancel Unconditional Call Forward. To cancel the unconditional call forward:
Off hook the phone;
Dial *73;
Hang up the call.
*90 Busy Call Forward. To set up busy call forward:
Off hook the phone;
Dial *90 and then enter the number to forward the call;
Press OK softkey or SEND key.
*91 Cancel Busy Call Forward. To cancel the busy call forward:
Off hook the phone;
Dial *91;
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 25 of 59
Hang up the call.
*92 Delayed Call Forward. To set up delayed call forward:
Off hook the phone;
Dial *92 and then enter the number to forward the call;
Press OK softkey or SEND key.
*93 Cancel Delayed Call Forward. To cancel the delayed call forward:
Off hook the phone;
Dial *93;
Hang up the call.
CUSTOMIZEDLCDSCREEN&XML
The GXP1160/GXP1165 IP phone supports the following XML applications. Please refer to the
corresponding link for documentation and templates.
XML custom idle screen (customize idle screen logo, softkey layout, and etc.)
http://www.grandstream.com/products/gxp_series/general/documents/GXP140x_XML_Screen_Custo
mization.zip
XML downloadable phonebook
http://www.grandstream.com/products/gxp_series/general/documents/gxp_wp_xml_phonebook.pdf
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 26 of 59
CONFIGURATIONGUIDE
The GXP1160/GXP1165 can be configured via two ways:
LCD Configuration Menu using the phone's keypad;
Web GUI embedded on the phone using PC's web browser.
CONFIGURATIONVIAKEYPAD
To configure via the LCD configuration menu using phone's keypad, follow the instructions below:
Enter MENU options. When the phone is in idle, press the round MENU button to enter the
configuration menu;
Navigate in the menu options. Press the arrow keys up/down/left/right to navigate in the menu
options;
Enter/Confirm selection. Press the round MENU button to enter the selected option;
Exit. Press LEFT arrow key to exit to the previous menu;
The phone automatically exits MENU mode with an incoming call, when the phone is off hook or the
MENU mode if left idle for more than 20 seconds.
The MENU options are listed in the following table.
Table 8: GXP1160/GXP1165 CONFIGURATION MENU
Call History Displays call logs for answered calls, dialed calls, missed calls,
transferred calls and forwarded calls.
Status Displays network status, account registration status, software version
number, MAC address, hardware version number, P/N number.
Network status.
Press to enter the sub menu for IP setting information
(DHCP/Static IP/PPPoE), IPv4 address, IPv6 address, Subnet
Mask, Gateway and DNS server.
Phone Book Displays phonebook. Users could add, edit, search and delete contacts
here, or download phonebook XML to the phone.
LDAP Directory Configures LDAP directory options, displays LDAP directory by
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 27 of 59
searching.
Instant Messages Displays received instant messages.
Direct IP Call Makes direct IP call.
Preference Preference sub menu includes the following options:
Do Not Disturb
Enables/disables Do Not Disturb on the phone.
Forward Call
Configures call forward feature on selected account, forward
type and number.
Ring Tone
Configures different ring tones for incoming call.
Ring Volume
Adjusts ring volume by pressing left/right arrow key.
LCD Contrast
Adjusts LCD contrast by pressing left/right arrow key.
Download SCR XML
Triggers the phone to download the XML idle screen file
immediately. The XML idle screen server path and downloading
method need to be set up correctly in Web GUI->Advanced
Settings.
Erase Custom SCR
Erases custom XML idle screen previously loaded on the phone.
After erasing it, the phone will show default idle screen.
Display Language
Selects the language to be displayed on the phone. Users could
select Automatic for local language based on IP location if
available.
Time Settings
Configures date and time on the phone.
Config Config sub menu includes the following options:
SIP
Configures SIP Proxy, Outbound Proxy, SIP User ID, SIP Auth
ID, SIP Password, SIP Transport and Audio information to
register SIP account on the phone.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 28 of 59
Upgrade
Configures firmware server and config server for upgrading and
provisioning the phone.
Factory Reset
Resets the phone to factory default settings.
Layer 2 QoS
Configures 802.1Q/VLAN Tag and priority value.
Factory Functions Factory Functions sub menu includes the following options:
Audio Loopback
Speak to the phone using speaker/handset/headset. If you can
hear your voice, your audio is working fine. Press Menu button
to exit audio loopback mode.
Diagnostic Mode
All LEDs will light up. Press any key (except MENU key) on the
keypad to display the button name in the LCD. Lift and put back
the handset or press Menu button to exit diagnostic mode.
Keyboard Diagnostic
Press all the available keys on the phone. The LCD will display
the name for the keys to be pressed to finish the keyboard
diagnostic mode.
Network Selects IP mode (DHCP/Static IP/PPPoE); Configures PPPoE account
ID and password; Configures IP address, Netmask, Gateway, DNS
Server 1 and DNS Server 2; Configures 802.1x mode.
Call Features Configures call forward features for Forward All, Forward Busy, Forward
No Answer and No Answer Timeout.
Voice Mails Displays voicemail message information in the format below:
new messages/all messages (urgent messages/all urgent messages)
Reboot Reboot the phone.
Exit Exit from this menu.
The following picture shows the keypad MENU configuration flow on GXP1160/GXP1165.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 29 of 59
Figure 2: GXP1160/GXP1165 Keypad MENU Flow
Call History
Status
Phone Book
LDAP
Directory
Instant
Messages
Direct IP Call
Preference
Config
Factory
Functions
Network
Call Features
Voice Mails
Reboot
Exit
MENU
Answered Calls
Dialed Calls
Missed Calls
Transferred Calls
Forwarded Calls
Clear All
Back
Groups
New Entry
Search
Download Phonebook XML
Delete All Entries
Back
First Name
Last Name
Number
Acct
Groups
Confirm Add
Cancel & Return
Search
LDAP Configuration
Back
Server Address
Port
Base
User Name
Password
LDAP Number Filter
LDAP Name Filter
LDAP Version
...
Do Not Disturb
Forward Call
Ring Tone
Ring Volume
LCD Contrast
Download SCR XML
Erase Custom SCR
Display Language
Time Settings
Back
SIP
Upgrade
Factory Reset
Layer 2 QoS
Back
Audio Loopback
Diagnostic Mode
Keyboard Diagnostic
Back
Enable DND
Disable DND
Back
Default Ring
Ring1
Ring2
Ring 3
Back
Account
SIP Proxy
Outbound Proxy
SIP User ID
SIP Auth ID
SIP Password
SIP Transport
Audio
Save
Cancel
Firmware Server
Config Server
Upgrade Via
Back
802.1Q/VLAN Tag
Priority value
Reset Vlan Config
Back
IP Setting
PPPoE Settings
IP
Netmask
Gateway
DNS Server 1
DNS Server 2
802.1X
Back
Account 1
Forward All
Forward Busy
Forward No Answer
No Answer Timeout
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 30 of 59
CONFIGURATIONVIAWEBBROWSER
The GXP1160/GXP1165 embedded Web server responds to HTTP/HTTPS GET/POST requests.
Embedded HTML pages allow a user to configure the IP phone through a Web browser such as Microsoft’s
IE, Mozilla Firefox and Google Chrome.
To access the GXP1160/GXP1165 Web GUI:
1. Connect the computer to the same network as the phone;
2. Make sure the phone is turned on and shows its IP address. You may check the IP address by
pressing NextScr softkey or go to MENU->Status;
3. Open a Web browser on your computer;
4. Enter the phone’s IP address in the address bar of the browser;
5. Enter the administrator’s login and password to access the Web Configuration Menu.
Note:
The computer has to be connected to the same sub-network as the phone. This can be easily done by
connecting the computer to the same hub or switch as the phone connected to. In absence of a
hub/switch (or free ports on the hub/switch), please connect the computer directly to the PC port on the
back of the phone;
If the phone is properly connected to a working Internet connection, the IP address of the phone will
display in MENU->Status. This address has the format: xxx.xxx.xxx.xxx, where xxx stands for a
number from 0-255. Users will need this number to access the Web GUI. For example, if the phone
has IP address 192.168.40.154, please enter “http://192.168.40.154” in the address bar of the
browser;
The default administrator password is set to "admin". The default user password is set to "123".
When changing any settings, always SUBMIT them by pressing the UPDATE button on the bottom of
the page. After submitting the changes in all the Web GUI pages, reboot the phone to have the
changes take effect if necessary. All the options under Basic Setting and Account Setting, and most of
the options under Advanced Settings do not require reboot after submitting the changes. Under
Advanced Setting, the parameters on network configuration require reboot after update.
DEFINITIONS
This section describes the options in the GXP1160/GXP1165 Web GUI. As mentioned, you can log in as
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 31 of 59
an administrator or an end user.
Status: Displays the Account status, Network status, and System Info of the phone;
Account: To configure the SIP account;
Basic Settings: To configure basic network settings, time settings, Line keys, and etc;
Advanced Settings: To configure advanced network settings, upgrading and provisioning, language
settings, call features, and etc.
STATUSPAGEDEFINITIONS
MAC Address
Global unique ID of device, in HEX format. The MAC address will be
used for provisioning and can be found on the label coming with original
box and on the label located on the back of the device.
IPv4 Address The IPv4 address obtained on the phone.
IPv6 Address The IPv6 address obtained on the phone.
Product Model Product model of the phone.
Part Number Product part number.
Software Version
boot: boot version number;
core: core version number;
base: base version number;
prog: program version number. This is the main firmware release
number, which is always used for identifying the software system of
the phone;
dsp: DSP version number.
System Up Time System up time since the last reboot.
System Time Current system time on the phone system.
Registered SIP account registration status.
PPPoE Link Up PPPoE connection status.
Service Status GUI and Phone service status: running or stopped.
Core Dump Core dump file that could be downloaded for troubleshooting purpose.
ACCOUNTPAGEDEFINITIONS
Account Name The name associated with the SIP account.
SIP Server The URL or IP address, and port of the SIP server. This is provided by
your VoIP service provider (ITSP).
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 32 of 59
Secondary SIP Server The URL or IP address, and port of the SIP server. This will be used
when the primary SIP server fails.
Outbound Proxy
IP address or Domain name of the Primary Outbound Proxy, Media
Gateway, or Session Border Controller. It's used by the phone for
Firewall or NAT penetration in different network environments. If a
symmetric NAT is detected, STUN will not work and ONLY an Outbound
Proxy can provide a solution.
SIP User ID
User account information, provided by your VoIP service provider
(ITSP). It's usually in the form of digits similar to phone number or
actually a phone number.
Authenticate ID SIP service subscriber's Authenticate ID used for authentication. It can
be identical to or different from the SIP User ID.
Authenticate Password
The account password required for the phone to authenticate with the
ITSP (SIP) server before the account can be registered. After it is saved,
this will appear as hidden for security purpose.
Name The SIP server subscriber's name (optional) that will be used for Caller
ID display.
DNS Mode
This parameter controls how the Search Appliance looks up IP
addresses for hostnames. There are four modes: A Record, SRV,
NATPTR/SRV, Use Configured IP. The default setting is "A Record". If
the user wishes to locate the server by DNS SRV, the user may select
"SRV" or "NATPTR/SRV". If "Use Configured IP" is selected, please fill
in the three fields below:
Primary IP: The primary IP address where the phone sends DNS
query to;
Backup IP 1;
Backup IP 2.
TEL URI
If the phone has an assigned PSTN telephone number, this field should
be set to "User=Phone". Then a "User=Phone" parameter will be
attached to the Request-Line and "TO" header in the SIP request to
indicate the E.164 number. If set to "Enable", "Tel:" will be used instead
of "SIP:" in the SIP request. The default setting is "Disable".
SIP Registration Selects whether or not the phone will send SIP Register messages to
the proxy/server. The default setting is "Yes".
Unregister On Reboot
If set to "Yes", the SIP user's registration information will be cleared
when the phone reboots. The SIP Contact header will contain "*" to
notify the server to unbind the connection. The default setting is "No".
Register Expiration Specifies the frequency (in minutes) in which the phone refreshes its
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 33 of 59
registration with the specified registrar. The default value is 60 minutes.
The maximum value is 64800 minutes (about 45 days).
Reregister Before Expiration
Specifies the time frequency (in seconds) that the phone sends
re-registration request before the Register Expiration. The default value
is 0.
Local SIP Port Defines the local SIP port used to listen and transmit. The default value
is 5060 for Account 1 and 5062 for Account 2.
SIP Registration Failure Retry
Wait Time
Specifies the interval to retry registration if the process is failed. The
default value is 20 seconds.
SIP T1 Timeout SIP T1 Timeout. The default setting is 0.5 seconds.
SIP T2 interval SIP T2 Interval. The default setting is 4 seconds.
SIP Transport Determines the network protocol used for the SIP transport. Users can
choose from TCP, UDP and TLS.
SIP URI Scheme when using
TLS
Specifies if "sip:" or "sips:" will be used when TLS/TCP is selected for
SIP Transport. The default setting is "sips:".
Use Actual Ephemeral Port in
Contact with TCP/TLS
Defines whether the actual ephemeral port in contact with TCP/TLS will
be used or not. This is used when TLS/TCP is selected for SIP Transfer.
The default setting is "No".
Check Domain Certificates Defines whether the domain certificates will be checked or not when
TLS/TCP is used for SIP Transport. The default setting is "No".
Remove OBP from route
Configures to remove outbound proxy from route. This is used for the
SIP Extension to notify the SIP server that the device is behind a
NAT/Firewall.
Validate Incoming Messages Defines whether the incoming messages will be validated or not. The
default setting is "No".
Support SIP Instance ID Defines whether SIP Instance ID is supported or not. The default setting
is "Yes".
NAT Traversal
This parameter configures whether the NAT traversal mechanism is
activated. Users could select the mechanism from No, STUN,
Keep-Alive, UPnP, Auto or VPN. If set to "STUN" and STUN server is
configured, the phone will route according to the STUN server. If NAT
type is Full Cone, Restricted Cone or Port-Restricted Cone, the phone
will try to use public IP addresses and port number in all the SIP&SDP
messages. The phone will send empty SDP packet to the SIP server
periodically to keep the NAT port open if it is configured to be
"Keep-Alive". Configure this to be "No" if an outbound proxy is used.
"STUN" cannot be used if the detected NAT is symmetric NAT.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 34 of 59
SUBSCRIBE for MWI
When set to "Yes", a SUBSCRIBE for Message Waiting Indication will
be sent periodically. The phone supports synchronized and
non-synchronized MWI. The default setting is "No".
SUBSCRIBE for Registration When set to "Yes", a SUBSCRIBE for Registration will be sent out
periodically. The default setting is "No".
Feature Key Synchronization
This feature is used for Broadsoft call feature synchronization. When it's
enabled, DND and Call Forward features can be synchronized with
Broadsoft server. The default setting is "Disabled".
Proxy-Require
A SIP Extension to notify the SIP server that the phone is behind a
NAT/Firewall. Do not configure this parameter unless this feature is
supported on the SIP server.
Voice Mail UserID
Allows you to access voice messages by pressing the MESSAGE button
on the phone. This ID is usually the VM portal access number. For
example, in Asterisk server, 8500 could be used.
Send DTMF
Specifies the mechanism to transmit DTMF digits. There are 3
supported modes: in audio which means DTMF is combined in the audio
signal (not very reliable with low-bit-rate codecs), via RTP (RFC2833), or
via SIP INFO.
DTMF Payload Type Configures the payload type for DTMF using RFC2833. The default
value is 101.
Early Dial Selects whether or not to enable early dial. If it's set to "Yes", the SIP
proxy must support 484 response. The default setting is "No".
Dial Plan Prefix Sets the prefix added to each dialed number.
Dial Plan
A dial plan establishes the expected number and pattern of digits for a
telephone number. This parameter configures the allowed dial plan for
the phone.
Dial Plan Rules:
1. Accepted Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d;
2. Grammar: x - any digit from 0-9;
a) xx+ - at least 2 digit numbers
b) xx. - only 2 digit numbers
c) ^ - exclude
d) [3-5] - any digit of 3, 4, or 5
e) [147] - any digit of 1, 4, or 7
f) <2=011> - replace digit 2 with 011 when dialing
g) | - the OR operand
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 35 of 59
Example 1: {[369]11 | 1617xxxxxxx}
Allow 311, 611, and 911 or any 10 digit numbers with leading digits 1617;
Example 2: {^1900x+ | <=1617>xxxxxxx}
Block any number of leading digits 1900 or add prefix 1617 for any
dialed 7 digit numbers;
Example 3: {1xxx[2-9]xxxxxx | <2=011>x+}
Allows any number with leading digit 1 followed by a 3 digit number,
followed by any number between 2 and 9, followed by any 7 digit
number OR Allows any length of numbers with leading digit 2, replacing
the 2 with 011 when dialed.
Example of a simple dial plan used in a Home/Office in the US:
{ ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. |
[3469]11 }
Explanation of example rule (reading from left to right):
^1900x. - prevents dialing any number started with 1900;
<=1617>[2-9]xxxxxx - allows dialing to local area code (617)
numbers by dialing 7 numbers and 1617 area code will be added
automatically;
1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with
11 digits length;
011[2-9]x - allows international calls starting with 011;
[3469]11 - allows dialing special and emergency numbers 311, 411,
611 and 911.
Note:
In some cases where the user wishes to dial strings such as *123 to
activate voice mail or other applications provided by their service
provider, the * should be predefined inside the dial plan feature. An
example dial plan will be: { *x+ } which allows the user to dial * followed
by any length of numbers.
Delayed Call Forward Wait
Time
Defines the timeout (in seconds) before the call is forwarded on no
answer. The default value is 20 seconds.
Enable Call Features
When enabled, Do No Disturb, Call Forward and other call features will
be supported locally provided ITSP support those features. The default
setting is "Yes". If set to "No", ForwardAll softkey will be hidden for
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 36 of 59
Account 1.
Call Log
Configures Call Log setting on the phone. You can log all calls, only log
incoming/outgoing calls or disable call log. The default setting is "Log All
Calls".
Session Expiration
The SIP Session Timer extension that enables SIP sessions to be
periodically "refreshed" via a SIP request (UPDATE, or re-INVITE). If
there is no refresh via an UPDATE or re-INVITE message, the session
will be terminated once the session interval expires. Session Expiration
is the time (in seconds) where the session is considered timed out,
provided no successful session refresh transaction occurs beforehand.
The default value is 180 seconds.
Min-SE The minimum session expiration (in seconds). The default value is 90
seconds.
Caller Request Timer If set to "Yes" and the remote party supports session timers, the phone
will use a session timer when it makes outbound calls.
Callee Request Timer If set to "Yes" and the remote party supports session timers, the phone
will use a session timer when it receives inbound calls.
Force Timer
If Force Timer is set to "Yes", the phone will use the session timer even if
the remote party does not support this feature. If Force Timer is set to
"No", the phone will enable the session timer only when the remote party
supports this feature. To turn off the session timer, select "No".
UAC Specify Refresher As a Caller, select UAC to use the phone as the refresher; or select UAS
to use the Callee or proxy server as the refresher.
UAS Specify Refresher As a Callee, select UAC to use caller or proxy server as the refresher; or
select UAS to use the phone as the refresher.
Force INVITE
The Session Timer can be refreshed using the INVITE method or the
UPDATE method. Select "Yes" to use the INVITE method to refresh the
session timer.
Enable 100rel
The use of the PRACK (Provisional Acknowledgment) method enables
reliability to SIP provisional responses (1xx series). This is very
important in order to support PSTN internetworking. To invoke a reliable
provisional response, the 100rel tag is appended to the value of the
required header of the initial signaling messages.
Account Ring Tone Allows users to configure the ringtone for the account. Users can choose
from different ringtones from the dropdown menu.
Matching Incoming Caller ID Specifies matching rules with number, pattern or Alert Info text. When
the incoming caller ID or Alert Info matches the rule, the phone will ring
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 37 of 59
with selected distinctive ringtone. Matching rules:
Specific caller ID number. For example, 8321123;
A defined pattern with certain length using x and + to specify, where
x could be any digit from 0 to 9. Samples:
xx+ : at least 2-digit number;
xx : only 2-digit number;
[345]xx: 3-digit number with the leading digit of 3, 4 or 5;
[6-9]xx: 3-digit number with the leading digit from 6 to 9.
Alert Info text
Users could configure the matching rule as certain text (e.g., priority)
and select the custom ring tone mapped to it. The custom ring tone
will be used if the phone receives SIP INVITE with Alert-Info header
in the following format:
Alert-Info: <http://127.0.0.1>; info=priority
Distinctive Ringtones
Selects the distinctive ring tone for the matching rule. When the
incoming caller ID or Alert Info matches the rule, the phone will ring with
the selected ring.
Ring Timeout Defines the timeout (in seconds) for the rings on no answer. The default
setting is 60 seconds.
Send Anonymous If set to "Yes", the "From" header in outgoing INVITE messages will be
set to anonymous, essentially blocking the Caller ID to be displayed.
Anonymous Call Rejection If set to "Yes", anonymous calls will be rejected. The default setting is
"No".
Auto Answer If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep.
Allow Auto Answer by Call-Info
If set to "Yes", the phone will automatically turn on the speaker phone to
answer incoming calls after a short reminding beep, based on the SIP
info header sent from the server/proxy. The default setting is "No".
Refer-To Use Target Contact
If set to "Yes", the "Refer-To" header uses the transferred target's
Contact header information for attended transfer. The default setting is
"No".
Transfer on Conference
Hangup
Defines whether or not the call is transferred to the other party if the
initiator of the conference hangs up. The default setting is "No".
Check SIP User ID for
incoming INVITE
If set to "Yes", SIP User ID will be checked in the Request URI of the
incoming INVITE. If it doesn't match the phone's SIP User ID, the call will
be rejected. The default setting is "No".
Authenticate Incoming INVITE Defines whether the phone will challenge INVITE requests or not. When
set to "Yes", the phone will challenge the INVITE for authentication with
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 38 of 59
SIP 401 Unauthorized response. The PBX will need resend the SIP
INVITE request with authentication credentials. The default setting is
"No".
Preferred Vocoder
7 different vocoder types are supported on the phone, including G.711
U-law (PCMU), G.711 A-law (PCMA), G.723.1, G.729A/B, G.722 (wide
band), iLBC and G72-32. Users can configure vocoders in a preference
list that is included with the same preference order in SDP message.
SRTP Mode Enables the SRTP mode based on your selection. The default setting is
"Disabled".
Symmetric RTP Defines whether symmetric RTP is supported or not. The default setting
is "No".
Silence Suppression
Controls the silence suppression/VAD feature of the audio codec G.723
and G.729. If set to "Yes", when silence is detected, a small quantity of
VAD packets (instead of audio packets) will be sent during the period of
no talking. If set to "No", this feature is disabled. The default setting is
"No".
Voice Frames Per TX
Configures the number of voice frames transmitted per packet. When
configuring this, it should be noted that the "ptime" value for the SDP will
change with different configurations here. This value is related to the
codec used and the actual frames transmitted during the in payload call.
For end users, it is recommended to use the default setting, as incorrect
settings may influence the audio quality.
No Key Entry Timeout (s)
Defines the timeout (in seconds) for no key entry. If no key is pressed
after the timeout, the digits will be sent out. The default value is 4
seconds.
Use # as Dial Key
Allows users to configure the "#" key as the "Send" key. If set to "Yes",
the "#" key will immediately dial out the input digits. In this case, this key
is essentially equivalent to the "Send" key. If set to "No", the "#" key is
included as part of the dialing string.
G723 Rate Selects encoding rate for G723 codec. The default value is 5.3kbps.
G.726-32 Packing Mode Selects "ITU" or "IETF" for G726-32 packing mode.
iLBC Frame Size Selects iLBC packet frame size. The default value is 30ms.
iLBC Payload Type Specifies iLBC Payload type. The default value is 97. The valid range is
between 96 and 127.
Jitter Buffer Type Selects either Fixed or Adaptive based on network conditions. The
default setting is "Adaptive".
Jitter Buffer Length Selects Low, Medium, or High based on network conditions. The default
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 39 of 59
setting is "Medium".
Conference URI Configures the conference URI when using Broadsoft N-way calling
feature.
DND Call Feature On Configures DND feature code to turn on DND.
DND Call Feature Off Configures DND feature code to turn off DND.
Use Privacy Header
Controls whether the Privacy Header will present in the SIP INVITE
message or not. The default setting is "default", which is when "Huawei
IMS" special feature is on, the Privacy Header will not show in INVITE. If
set to "Yes", the Privacy Header will always show in INVITE. If set to
"No", the Privacy Header will not show in INVITE.
Use P-Preferred-Identity
Header
Controls whether the P-Preferred-Identity Header will present in the SIP
INVITE message or not. The default setting is "default", which is when
"Huawei IMS" special feature is on, the P-Preferred-Identity Header will
not show in INVITE. If set to "Yes", the P-Preferred-Identity Header will
always show in INVITE. If set to "No", the P-Preferred-Identity Header
will not show in INVITE.
Special Feature
Different soft switch vendors have special requirements. Therefore users
may need select special features to meet these requirements. Users can
choose from Standard, Nortel MCS, Broadsoft, CBCOM, RNK, Sylantro
or Huawei IMS depending on the server type. The default setting is
"Standard".
SETTINGS/BASICSETTINGSPAG E
End User Password
Allows the administrator to set the password for user-level web GUI
access. This field is case sensitive with a maximum length of 30
characters.
Confirm Password Confirms the end user password field to be the same as above.
Internet Protocol Selects Prefer IPv4 or Prefer IPv6.
IPv4 Address Type
Allows users to configure the appropriate network settings on the phone
to obtain IPv4 address. Users could select "DHCP", "Static IP" or
"PPPoE". By default, it is set to "DHCP".
DHCP Host name (Option 12) Specifies the name of the client. This field is optional but may be
required by some Internet Service Providers.
DHCP Vendor Class ID
(Option 60) Used by clients and servers to exchange vendor class ID.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 40 of 59
Allow DHCP Option 120 to
override SIP Server
Enables DHCP Option 120 from local server to override the SIP Server
on the phone. The default setting is "No".
PPPoE Account ID Enter the PPPoE account ID.
PPPoE Password Enter the PPPoE Password.
PPPoE Service Name Enter the PPPoE Service Name.
IPv4 Address Enter the IP address when static IP is used.
Subnet Mask Enter the Subnet Mask when static IP is used for IPv4.
Gateway Enter the Default Gateway when static IP is used for IPv4.
DNS Server 1 Enter the DNS Server 1 when static IP is used for IPv4.
DNS Server 2 Enter the DNS Server 2 when static IP is used for IPv4.
Preferred DNS Server Enter the Preferred DNS Server for IPv4.
IPv6 Address Type
Allows users to configure the appropriate network settings on the phone
to obtain IPv6 address. Users could select "Auto-configured" or
"Statically configured" for the IPv6 address type.
Static IPv6 Address Enter the static IPv6 address when Full Static is used in "Statically
configured" IPv6 address type.
IPv6 Prefix Length Enter the IPv6 prefix length when Full Static is used in "Statically
configured" IPv6 address type.
IPv6 Prefix Enter the IPv6 Prefix (64 bits) when Prefix Static is used in "Statically
configured" IPv6 address type.
DNS Server 1 Enter the DNS Server 1 for IPv6.
DNS Server 2 Enter the DNS Server 2 for IPv6.
Preferred DNS server Enter the Preferred DNS Server for IPv6.
802.1x mode Allows the user to set 802.1x mode on the phone. The default value is
disabled.
Identity Enter the Identity for the 802.1x mode (EAP-MD5,
EAP-PEAPv0/MSCHAPv2).
802.1x Secret/Private Key
Password
Enter the Secret/Private Key Password for 802.1x mode. It won't be
displayed for security protection purpose.
802.1x CA Certificate Upload the CA Certificate file for 802.1x mode.
802.1x Client Certificate Upload the Client Certificate for 802.1x mode.
HTTP Proxy
Specifies the HTTP proxy URL for the phone to send packets to. The
proxy server will act as an intermediary to route the packets to the
destination.
HTTPS Proxy Specifies the HTTPS proxy URL for the phone to send packets to. The
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 41 of 59
proxy server will act as an intermediary to route the packets to the
destination.
Time Zone Configures the date/time used on the phone according to the specified
time zone.
Self-Defined Time Zone
This parameter allows the users to define their own time zone.
The syntax is: std offset dst [offset], start [/time], end [/time]
Default is set to: MTZ+6MDT+5,M4.1.0,M11.1.0
MTZ+6MDT+5
This indicates a time zone with 6 hours offset with 1 hour ahead which is
U.S central time. If it is positive (+) if the local time zone is west of the
Prime Meridian (A.K.A: International or Greenwich Meridian) and
negative (-) if it is east.
M4.1.0,M11.1.0
The 1st number indicates Month: 1,2,3.., 12 (for Jan, Feb, .., Dec)
The 2nd number indicates the nth iteration of the weekday: (1st Sunday,
3
rd
Tuesday…)
The 3rd number indicates weekday: 0,1,2,..,6( for Sun, Mon,
Tues, ... ,Sat)
Therefore, this example is the DST which starts from the First Sunday of
April to the 1st Sunday of November.
Enable Weather Update
Configures to enable or disable weather update on the phone. The
default setting is "Yes". If set to "No", the weather information screen will
not show.
City Code
Configures weather city code for the phone to look up the weather
information. The default setting is "Automatic" and the weather
information will be obtained based on the IP location of the phone if
available. Otherwise, specify the self-defined city code. For example,
USCA0638 is the city code for Los Angeles, CA, United States.
Update Interval Specifies the weather update interval (in minutes). The default value is
15 minutes.
Degree Unit Specifies the degree unit for the weather information to display on the
phone.
LCD Contrast Configures the LCD contrast level (from 0 to 20). The default value is 10.
Date Display Format
Configures the date display format on the LCD. The following formats
are supported:
yyyy-mm-dd: 2012-07-02
mm-dd-yyyy: 07-02-2012
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 42 of 59
dd-mm-yyyy: 02-07-2012
Time Display Format Configures the time display in 12-hour or 24-hour format on the LCD.
The default setting is in 12-hour format.
Disable in-call DTMF Display When it's set to "Yes", the DTMF digits entered during the call will not
display. The default setting is "No".
Always Ring Speaker
Configures to enable or disable the speaker to ring when headset is
used on "Toggle Headset/Speaker" mode. If set to "Yes", when the
phone is in Headset "Toggle Headset/Speaker" mode, both headset and
speaker will ring on incoming call. The default setting is "No".
Headset Key Mode
When headset is connected to the phone, users could use the
HEADSET button in "Default Mode" or "Toggle Headset/Speaker".
Default Mode:
When the phone is in idle, press HEADSET button to off hook
the phone and making calls by using headset. Headset icon will
display on the left side of the screen in dialing/talking status.
When there is an incoming call, press HEADSET button to pick
up the call using headset.
When there is an active call using headset, press HEADSET
button to hang up the call.
When Speaker/Handset is being used in dialing/talking status,
press HEADSET button to switch to headset. Press it again to
hang up the call. Or press speaker/Handset to switch back to
the previous mode.
Toggle Headst/Speaker:
When the phone is in idle, press HEADSET button to switch to
Headset mode. The headset icon will display on the left side of
the screen. In this mode, if pressing Speaker button or Line key
to off hook the phone, headset will be used.
When there is an active call, press HEADSET button to toggle
between Headset and Speaker.
Write Timeout Defines the interval (in seconds) to save the call history to phone's flash.
The default value is 300 seconds.
Max Unsaved Log Defines the number of unsaved logs before written to phone's flash. The
default value is 200 entries.
Headset TX gain Configures the transmission gain of the headset. The default value is
0dB.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 43 of 59
Headset RX gain Configures the receiving gain of the headset. The default value is 0dB.
Handset TX gain Configures the transmission gain of the handset. The default value is 0
dB.
SETTINGS/ADVANCEDSETTINGSPAG E
Admin Password
Allows users to change the admin password. The password field is
purposely hidden after clicking the Update button for security purpose.
This field is case sensitive with a maximum length of 30 characters.
Confirm Password Confirms the admin password field to be the same as above.
Layer 3 QoS Defines the Layer 3 QoS parameter. This value is used for IP
Precedence, Diff-Serv or MPLS. The default value is 12.
Layer 2 QoS 802.1Q/VLAN
Tag
Assigns the VLAN Tag of the Layer 2 QoS packets. The default value is
0.
Layer 2 QoS 802.1p Priority
Value
Assigns the priority value of the Layer2 QoS packets. The default value
is 0.
Local RTP Port
This parameter defines the local RTP port used to listen and transmit. It
is the base RTP port for channel 0. When configured, channel 0 will use
this port _value for RTP; channel 1 will use port_value+2 for RTP. Local
RTP port ranges from 1024 to 65400 and must be even. The default
value is 5004.
Use Random Port
When set to "Yes", this parameter will force random generation of both
the local SIP and RTP ports. This is usually necessary when multiple
phones are behind the same full cone NAT. The default setting is "Yes"
(This parameter must be set to "No" for Direct IP Calling to work).
Keep-alive Interval
Specifies how often the phone sends a blank UDP packet to the SIP
server in order to keep the "ping hole" on the NAT router to open. The
default setting is 20 seconds.
Use NAT IP The NAT IP address used in SIP/SDP messages. This field is blank at
the default settings. It should ONLY be used if it's required by your ITSP.
STUN Server
The IP address or Domain name of the STUN server. STUN resolution
results are displayed in the STATUS page of the Web GUI. Only
non-symmetric NAT routers work with STUN.
Firmware Upgrade and
Provisioning
Specifies how firmware upgrading and provisioning request to be sent:
Always Check for New Firmware, Check New Firmware only when F/W
pre/suffix changes, Always Skip the Firmware Check.
XML Config File Password The password for encrypting the XML configuration file using OpenSSL.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 44 of 59
This is required for the phone to decrypt the encrypted XML
configuration file.
HTTP/HTTPS User Name The user name for the HTTP/HTTPS server.
HTTP/HTTPS Password The password for the HTTP/HTTPS server.
Upgrade Via Allows users to choose the firmware upgrade method: TFTP, HTTP or
HTTPS.
Firmware Server Path Defines the server path for the firmware server. It could be different from
the configuration server for provisioning.
Config Server Path Defines the server path for provisioning. It could be different from the
firmware server for upgrading.
Firmware File Prefix
Enables your ITSP to lock firmware updates. If configured, only the
firmware with the matching encrypted prefix will be downloaded and
flashed into the phone.
Firmware File Postfix
Enables your ITSP to lock firmware updates. If configured, only the
firmware with the matching encrypted postfix will be downloaded and
flashed into the phone.
Config File Prefix
Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted prefix will be downloaded
and flashed into the phone.
Config File Postfix
Enables your ITSP to lock configuration updates. If configured, only the
configuration file with the matching encrypted postfix will be downloaded
and flashed into the phone.
Allow DHCP Option 43 and
Option 66 Override Server
If DHCP option 66 is enabled on the LAN side, the TFTP server can be
redirected. The default setting is "Yes".
Automatic Upgrade Enables automatic upgrade and provisioning. The default setting is "No".
Hour of the Day (0-23) When "Automatic Upgrade" is set to "Yes, check for upgrade every day",
configure the hour of the day when the upgrading/provisioning starts.
Day of the Week (0-6)
When "Automatic Upgrade" is set to "Yes, check for upgrade every
week", configure the day of the week when the upgrading/provisioning
starts.
Authenticate Conf File Authenticates configuration file before acceptance. The default setting is
"No".
Enable TR-069 Enables TR-069. The default setting is "No".
ACS URL URL for TR-069 Auto Configuration Servers (ACS).
TR-069 Username ACS username for TR-069.
TR-069 Password ACS password for TR-069.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 45 of 59
Periodic Inform Enable Enables periodic inform. If set to "Yes", device will send inform packets
to the ACS. The default setting is "No".
Periodic Inform Interval Sets up the periodic inform interval to send the inform packets to the
ACS.
Connection Request
Username The user name for the ACS to connect to the phone.
Connection Request Password The password for the ACS to connect to the phone.
Connection Request Port The port for the ACS to connect to the phone.
CPE SSL Certificate The Cert File for the phone to connect to the ACS via SSL.
CPE SSL Private Key The Cert Key for the phone to connect to the ACS via SSL.
Phonebook XML Download
Configures to enable phonebook XML download. Users could select
HTTP/HTTPS/TFTP to download the phonebook file. The default setting
is "No".
Phonebook XML Server Path Configures the server path to download the phonebook XML. This field
could be IP address or URL, with up to 256 characters.
Phonebook Download Interval
Configures the phonebook download interval (in minutes). If it's set to 0,
the automatic download will be disabled. The default value is 0. The
valid range is 5 to 720 minutes.
Remove Manually-edited
Entries on Download
If set to "Yes", when XML phonebook is downloaded, the entries added
manually will be automatically removed. The default setting is "Yes".
LDAP Directory: Server
Address Configures the IP address or DNS name of the LDAP server.
LDAP Directory: Port Configures the LDAP server port.
LDAP Directory: Base
Configures the LDAP search base. This is the location in the directory
where the search is requested to begin.
Example:
dc=grandstream, dc=com
ou=Boston, dc=grandstream, dc=com
LDAP Directory: User Name
Configures the bind "Username" for querying LDAP servers. Some
LDAP servers allow anonymous binds in which case the setting can be
left blank.
LDAP Directory: Password Configures the bind "Password" for querying LDAP servers. The field
can be left blank if the LDAP server allows anonymous binds.
LDAP Number Filter
Configures the filter used for number lookups.
Examples:
(|(telephoneNumber=%)(Mobile=%) returns all records which has the
"telephoneNumber" or "Mobile" field starting with the entered prefix;
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 46 of 59
(&(telephoneNumber=%) (cn=*)) returns all the records with the
"telephoneNumber" field starting with the entered prefix and "cn" field
set.
LDAP Name Filter
Configures the filter used for name lookups.
Examples:
(|(cn=%)(sn=%)) returns all records which has the "cn" or "sn" field
starting with the entered prefix;
(!(sn=%)) returns all the records which do not have the "sn" field starting
with the entered prefix;
(&(cn=%) (telephoneNumber=*)) returns all the records with the "cn"
field starting with the entered prefix and "telephoneNumber" field set.
LDAP Version Selects the protocol version for the phone to send the bind requests.
The default setting is "Version 3".
LDAP Name Attributes
Specify the "name" attributes of each record which are returned in the
LDAP search result. This field allows the users to configure multiple
space separated name attributes.
Example:
gn
cn sn description
LDAP Number Attributes
Specifies the "number" attributes of each record which are returned in
the LDAP search result. This field allows the users to configure multiple
space separated number attributes.
Example:
telephoneNumber
telephoneNumber Mobile
LDAP Display Name
Configures the entry information to be shown on phone's LCD. Up to 3
fields can be displayed.
Example:
%cn %sn %telephoneNumber
Max. Hits
Specifies the maximum number of results to be returned by the LDAP
server. If set to 0, server will return all search results. The default setting
is 50.
Search Timeout Specifies the interval (in seconds) for the server to process the request
and client waits for server to return. The default setting is 30 seconds.
Sort Results Specifies whether the searching result is sorted or not. The default
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 47 of 59
setting is "No".
LDAP Lookup Configures to enable LDAP number searching when dialing and
receiving calls.
Lookup Display Name
Configures the display name when LDAP looks up the name for
incoming call or outgoing call. This field must be a subset of the LDAP
Name Attributes.
Example:
gn
cn sn description
Use Phonebook Key for LDAP
Search If set to "Yes", the Phonebook Key
pressing will bring up LDAP
search screen.
Idle Screen XML Download
Configures to enable idle screen XML download. Users could select
HTTP/HTTPS/TFTP to download the XML idle screen file. The default
setting is "No".
Download Screen XML At
Bootup
If set to "Yes", the idle screen XML file will be downloaded when the
phone boots up. The default setting is "No".
User Custom Filename Specifies the custom file for the idle screen XML file to be downloaded.
Idle Screen XML Server Path Configures the server path to download the idle screen XML file. This
field could be IP address or URL, with up to 256 characters.
Offhook Auto Dial
Configures a User ID/extension to dial automatically when the phone is
off hook. The phone will use the first account to dial out. The default
setting is "No".
Auto Recover From Abnormal Configures whether auto recover or not when the phone is running
abnormal. The default setting is "Yes".
Syslog Server The URL or IP address of the syslog server for the phone to send syslog
to.
Syslog Level
Selects the level of logging for syslog. The default setting is None. There
are 4 levels: DEBUG, INFO, WARNING AND ERROR.
Syslog messages are sent based on the following events:
product model/version on boot up (INFO level);
NAT related info (INFO level);
sent or received SIP message (DEBUG level);
SIP message summary (INFO level);
inbound and outbound calls (INFO level);
registration status change (INFO level);
negotiated codec (INFO level);
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 48 of 59
ethernet link up (INFO level);
SLIC chip exception (WARNING and ERROR levels);
memory exception (ERROR level).
Send SIP Log Configures whether the SIP log will be included in the syslog messages
or not. The default setting is "No".
NTP Server Defines the URL or IP address of the NTP server. The phone may obtain
the date and time from the server.
Allow DHCP Option 42
Override NTP Server
Defines whether DHCP Option 42 should override NTP server or not.
When enabled, DHCP Option 42 will override the NTP server if it's set
up on the LAN. The default setting is "Yes".
Public Mode
Configures to turn on/off public mode for hot desking feature on the
phone. If set to "Yes", users would need fill in the SIP Server address for
account 1 as well. Then reboot the phone. When the phone boots up,
users will need enter SIP User ID and Password on the LCD to login and
use the phone.
Note:
When the phone is in public mode login screen, press HOLD button will
have the IP address of the phone displayed.
SSL Certificate SSL Certificate used for SIP Transport in TLS/TCP.
SSL Private Key SSL Private key used for SIP Transport in TLS/TCP.
SSL Private Key Password SSL Private key password used for SIP Transport in TLS/TCP.
System Ring Tone
Configures system ring tone. The default value is North American
standard. Users could adjust system ring tone frequencies and
cadences based on local telecom standard.
Call Progresses Tones:
Dial Tone
Message Waiting
Ring Back Tone
Call-Waiting Tone
Busy Tone
Reorder Tone
Configures ring or tone frequencies based on parameters from local
telecom. The default value is North American standard. Frequencies
should be configured with known values to avoid uncomfortable high
pitch sounds.
Syntax: f1=val,f2=val[,c=on1/off1[-on2/off2[-on3/off3]]];
(Frequencies are in Hz and cadence on and off are in 10ms)
ON is the period of ringing (“On time” in ‘ms’) while OFF is the period of
silence. In order to set a continuous ring, OFF should be zero. Otherwise
it will ring ON ms and a pause of OFF ms and then repeat the pattern.
Up to three cadences are supported.
Disable Call-Waiting Disables the call waiting feature. The default setting is "No".
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 49 of 59
Disable Call-Waiting Tone Disables the call waiting tone when call waiting is on. The default setting
is "No".
Disable Direct IP Calls Disables Direct IP Call. The default setting is "No".
Use Quick IP-Call mode
When set to "Yes", users can dial an IP address under the same
LAN/VPN segment by entering the last octet in the IP address. To dial
quick IP call, off hook the phone and dial #XXX (X is 0-9 and XXX
<=255), phone will make direct IP call to aaa.bbb.ccc.XXX where
aaa.bbb.ccc comes from the local IP address REGARDLESS of subnet
mask. #XX or #X are also valid so leading 0 is not required (but OK). No
SIP server is required to make quick IP call. The default setting is "No".
Disable Conference Disables the Conference function. The default setting is "No".
Disable Transfer Disables the Transfer function. The default setting is "No".
Auto-Attended Transfer If set to "Yes", the phone will use attended transfer by default. The
default setting is "No".
In-call dial number on pressing
transfer key
Configures the number for the phone to dial as DTMF during the call
using TRANSFER button.
Configuration via Keypad Menu
Configures the access control for the users to configure from keypad
Menu. There are three different options:
Unrestricted. All the options can be accessed in keypad Menu.
Basic settings only. The CONFIG option will not display for users
to access in keypad Menu.
Constraint Mode. CONFIG, FACTORY FUNCTIONS and
NETWORK options will not display for users to access in keypad
menu.
Enable STAR key Keypad
locking
If set to "Yes", the keypad can be locked by pressing and holding the
STAR * key for about 4 seconds. A lock icon will show indicating the
keypad is locked. The default setting is "Yes".
Note:
When the keypad is locked, users would need press and hold the STAR
* key for about 4 seconds again and then enter the password to unlock
it.
Password to lock/unlock Configures the password to lock/unlock the keypad. The password field
allows number with up to 32 characters.
Offhook timeout If configured, when the phone is on hook, it will go off hook after the
timeout (in seconds). The default value is 30 seconds.
China Telecom Mode Enables/Disables China Telecom Mode to use China Telecom special
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 50 of 59
features on the phone.
Do Not Escape # as %23 in
SIP URI
Specifies whether to replace # by %23 or not for some special situations.
The default setting is "No".
Disable Telnet Disables Telnet access. The default setting is "No".
PC Port Mode
Configures the PC port mode. The default setting is "Enabled". When set
to "Disabled", the PC port is turned off. When set to "Mirrored", the traffic
in the LAN port will go through PC port as well so users could capture
phone's trace by connecting a PC to the phone's PC port.
Display Language Selects display language on the phone.
Download Device
Configuration Click to download the device configuration file in .txt format.
NATSETTINGS
If the devices are kept within a private network behind a firewall, we recommend using STUN Server. The
following settings are useful in the STUN Server scenario:
STUN Server (under Advanced Settings page)
Enter a STUN Server IP (or FQDN) that you may have, or look up a free public STUN Server on the
internet and enter it on this field. If using Public IP, keep this field blank.
Use Random Ports (under Advanced Settings page)
This setting depends on your network settings. When set to "Yes", it will force random generation of
both the local SIP and RTP ports. This is usually necessary when multiple GXPs are behind the
same NAT. If using a Public IP address, set this parameter to "No".
NAT Traversal (under Account Setting page)
Default setting is "No". Enable the device to use NAT traversal when it is behind firewall on a private
network. Select Keep-Alive, Auto, STUN (with STUN server path configured too) or other option
according to the network setting.
PUBLICMODE
The GXP1160/GXP1165 supports hot desking using public mode. Under public mode, users could login
the phone with the SIP account User ID and password. Please follow the steps below to configure the
phone for public mode:
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 51 of 59
Under Web GUI->Account 1 setting page, fill up the SIP server address for account 1. Click "Update"
on the bottom of the page;
Under Web GUI->Advanced setting page, set Public Mode option to "Yes". Click "Update" and reboot
the phone;
When phone boots up, SIP User ID and Password to register to the configured SIP server in account 1
will be required. Enter the correct account information to log in to the phone. When entering the
account information, press softkey "123"/"abc" to toggle input method;
In login page, pressing HOLD button on the phone will show phone's IP address;
After using the phone, go to LCD MENU->LogOut to log off the public mode.
EDITINGCONTACTSANDCLICKTODIAL
From GXP1160/GXP1165 Web GUI, users could view contacts, edit contacts, or dial out with Click-to-Dial
feature
on the top of the Web GUI. In the following figure, the Contact page shows all the added
contacts (manually or downloaded via XML phonebook). Here users could add new contact, export
phonebook XML, import phonebook XML, search contact, filter contacts by group, edit selected contact, or
dial the contact/number.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 52 of 59
Figure 3: GXP1160/GXP1165 Web GUI - Contacts
When clicking on the
icon on the top menu of the Web GUI, a new dialing window will show for you
to enter the number. Once Dial is clicked, the phone will go off hook and dial out the number from selected
account.
Click to
add new
contacts.
Click to export
phonebook in
XML format.
Click to import
phonebook
XML file.
Click to call
this contact
from the
phone.
Click to download
the contact
information in .vcf
format
Click to edit this
contact.
Click to select
group in the
dropdown menu.
Click to
search in
phonebook.
Click to input number
and dial from available
lines.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 53 of 59
Figure 4: GXP1160/GXP1165 Click-to-Dial
Additionally, users could directly send the command for the phone to dial out by specifying the following
URL in PC's web browser, or in the field as required in other call modules.
http://ip_address/cgi-bin/api-make_call?phonenumber=1234&account=0&password=admin
In the above link, replace the fields with
ip_address:
Phone's IP Address.
phonenumber=1234:
The number for the phone to dial out
account=0:
The account index for the phone to make call. The index is 0 for account 1, 1 for account 2, 2 for
account 3, and etc.
password=admin:
The admin login password of phone's Web GUI.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 54 of 59
SAVINGTHECONFIGURATIONCHANGES
After users makes changes to the configuration, press the Update button on the bottom of the Web GUI
page. We recommend rebooting or powering cycle the IP phone after saving changes.
REBOOTINGFROMREMOTELOCATIONS
Press the Reboot button on the bottom of the web GUI page to reboot the phone remotely. The web
browser will then display a reboot page with message "The device is rebooting now...". Wait for about 1
minute to log in again.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 55 of 59
UPGRADINGANDPROVISIONING
The GXP1160/GXP1165 can be upgraded via TFTP/HTTP/HTTPS by configuring the URL/IP Address for
the TFTP/HTTP/HTTPS server and selecting a download method. Configure a valid URL for TFTP or
HTTP; the server name can be FQDN or IP address.
Examples of valid URLs:
firmware.grandstream.com
fw.ipvideotalk.com/gs
There are two ways to setup a software upgrade server: The IVR Menu or the Web Configuration Interface.
UPGRADEVIAKEYPADMENU
Follow the steps below to configure the upgrade server path via phone's keypad menu:
Press MENU button and navigate using Up/Down arrow to select Config;
In the Config options, select Upgrade;
Enter the firmware server path and select upgrade method. The server path could be in IP address
format or FQDN format;
Press the "OK" softkey. A reboot message window will be prompt.
Reboot the phone to have the change take effect.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restarts again. Please do not interrupt or power cycle the phone when the upgrading process is on.
UPGRAGEVIAWEBGUI
Open a web browser on PC and enter the IP address of the phone. Then, login with the administrator
username and password. Go to Settings->Advanced Settings page, enter the IP address or the FQDN for
the upgrade server in "Firmware Server Path" field and choose to upgrade via TFTP or HTTP/HTTPS.
Update the change by clicking the "Update" button. Then "Reboot" or power cycle the phone to update the
new firmware.
When upgrading starts, the screen will show upgrading progress. When done you will see the phone
restarts again. Please do not interrupt or power cycle the phone when the upgrading process is on.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 56 of 59
Firmware upgrades take around 60 seconds in a controlled LAN or 5-10 minutes over the Internet. We
recommend completing firmware upgrades in a controlled LAN environment whenever possible.
NOLOCALTFTP/HTTPSERVERS
For users that would like to use remote upgrading without a local TFTP/HTTP server, Grandstream offers a
NAT-friendly HTTP server. This enables users to download the latest software upgrades for their phone via
this server. Please refer to the webpage:
http://www.grandstream.com/support/firmware.
Alternatively, users can download a free TFTP or HTTP server and conduct a local firmware upgrade. A
free windows version TFTP server is available for download from :
http://support.solarwinds.net/updates/New-customerFree.cfm
http://tftpd32.jounin.net/.
Instructions for local firmware upgrade via TFTP:
1. Unzip the firmware files and put all of them in the root directory of the TFTP server;
2. Connect the PC running the TFTP server and the phone to the same LAN segment;
3. Launch the TFTP server and go to the File menu->Configure->Security to change the TFTP server's
default setting from "Receive Only" to "Transmit Only" for the firmware upgrade;
4. Start the TFTP server and configure the TFTP server in the phone’s web configuration interface;
5. Configure the Firmware Server Path to the IP address of the PC;
6. Update the changes and reboot the phone.
End users can also choose to download a free HTTP server from http://httpd.apache.org/ or use
Microsoft IIS web server.
Note:
When the phone boots up, it will send a TFTP or HTTP request to download the configuration file
"cfgxxxxxxxxxxxx" where "xxxxxxxxxxxx" is the MAC address of the phone. If it is a normal TFTP or HTTP
upgrade, the following messages “TFTP Error from [IP ADRESS] requesting cfg000b82023dd4 : File does
not exist. Configuration File Download” can be ignored in the TFTP/HTTP server log.
CONFIGURATIONFILEDOWNLOAD
Grandstream SIP Devices can be configured via the Web Interface as well as via a Configuration File
(binary or XML) through TFTP or HTTP/HTTPS. The "Config Server Path" is the TFTP or HTTP/HTTPS
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 57 of 59
server path for the configuration file. It needs to be set to a valid URL, either in FQDN or IP address format.
The "Config Server Path" can be the same or different from the "Firmware Server Path".
A configuration parameter is associated with each particular field in the web configuration page. A
parameter consists of a Capital letter P and 2 to 3 (Could be extended to 4 in the future) digit numeric
numbers. i.e., P2 is associated with the “Admin Password” in the Web GUI->Settings->Advanced Settings.
For a detailed parameter list, please refer to the corresponding firmware release configuration template.
When a Grandstream Devices boots up or reboots, it will issue a request for a configuration XML file
named "cfgxxxxxxxxxxxx.xml" followed by a file named "cfgxxxxxxxxxxxx", where "xxxxxxxxxxxx" is the
MAC address of the device, i.e., "cfg000b820102ab". The configuration file name should be in lower case
letters.
For more details on XML provisioning, please refer to:
http://www.grandstream.com/general/gs_provisioning_guide_public.pdf
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 58 of 59
RESTOREFACTORYDEFAULTSETTINGS
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please
backup or print all the settings before you restore to the factory default settings. Grandstream is not
responsible for restoring lost parameters and cannot connect your device to your VoIP service provider.
Please follow the instructions below to reset the phone:
Press MENU button to bring up the keypad configuration menu;
Select "Config" and enter;
Select "Factory Reset";
A warning window will pop out to make sure a reset is requested and confirmed;
Press the "OK" softkey to confirm and the phone will reboot. To cancel the Reset, press Cancel
softkey instead.
FIRMWARE VERSION 1.0.5.2 GXP1160/GXP1165 USER MANUAL Page 59 of 59
EXPERIENCINGTHEGXP1160/GXP1165
Please visit our website: http://www.grandstream.com to receive the most up- to-date updates on firmware
releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum
for answers to your general questions. If you have purchased our products through a Grandstream
Certified Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical support
member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream IP phone, it will be sure to bring convenience and color to
both your business and personal life.
