Grandstream Networks GXP1630 IP Phone User Manual x0001

Grandstream Networks, Inc IP Phone x0001

User Manual

GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide
Grandstream Networks, Inc.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630
IP Small Business IP Phone
User Guide
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 1 of 42
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide
Index
DOCUMENT PURPOSE .............................................................................. 5
GNU GPL INFORMATION ........................................................................... 6
WELCOME .................................................................................................. 7
PRODUCT OVERVIEW ............................................................................. 11
FEATURE HIGHTLIGHTS (GXP1610/GXP1620/GXP1625/GXP1628) .............................................. 11
FEATURE HIGHTLIGHTS (GXP1630) ................................................................................................ 11
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 TECHNICAL SPECIFICATIONS ...................... 12
INSTALLATION .......................................................................................... 17
EQUIPMENT PACKAGING ................................................................................................................. 17
CONNECTING YOUR PHONE ............................................................................................................ 17
STAND INSTALLATION ....................................................................................................................... 18
WALL MOUNT INSTALLATION ........................................................................................................... 19
SAFETY COMPLIANCES .................................................................................................................... 20
WARRANTY ......................................................................................................................................... 20
GETTING TO KNOW GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 ............... 21
IDLE SCREEN ..................................................................................................................................... 21
USING THE KEYPAD .......................................................................................................................... 23
MAKING PHONE CALLS..................................................................................................................... 25
HANDSET, SPEAKER AND HEADSET MODE ........................................................................... 25
SIP ACCOUNTS AND LINES ....................................................................................................... 25
COMPLETING CALLS ................................................................................................................. 26
MAKING CALLS USING IP ADDRESSES ................................................................................... 28
ANSWERING PHONE CALLS ............................................................................................................ 29
RECEIVING CALLS...................................................................................................................... 29
DO NOT DISTURB ....................................................................................................................... 29
DURING A PHONE CALL .................................................................................................................... 30
CALL RECORDING ...................................................................................................................... 30
CALL WAITING/CALL HOLD ....................................................................................................... 30
MUTE ............................................................................................................................................ 30
CALL TRANSFER ........................................................................................................................ 30
CONFERENCING ......................................................................................................................... 32
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 2 of 42
VOICE MESSAGES (MESSAGE WAITING INDICATOR) ........................................................... 33
VOICEMAIL .................................................................................................................................. 34
SHARED CALL APPEARANCE (SCA) ........................................................................................ 34
CALL FEATURES ................................................................................................................................ 35
CONNECTING TO DEVICES .................................................................... 37
RESTORE FACTORY DEFAULT SETTINGS ............................................ 39
EXPERIENCING THE GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 .............. 41
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 3 of 42
Table of Tables
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide
Table 1: GXP1610 Technical Specifications ................................................................................................ 12
Table 2: GXP1620/GXP1625 Technical Specifications ............................................................................... 13
Table 3: GXP1628 Technical Specifications ................................................................................................ 14
Table 4: GXP1630 Technical Specification……………………………………………………………………….15
Table 5: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Equipment Packaging……………………….17
Table 6: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Connectors…………………………………...17
Table 7: LCD DISPLAY DEFINITIONS ........................................................................................................ 23
Table 8: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 LCD Icons…………………………....………23

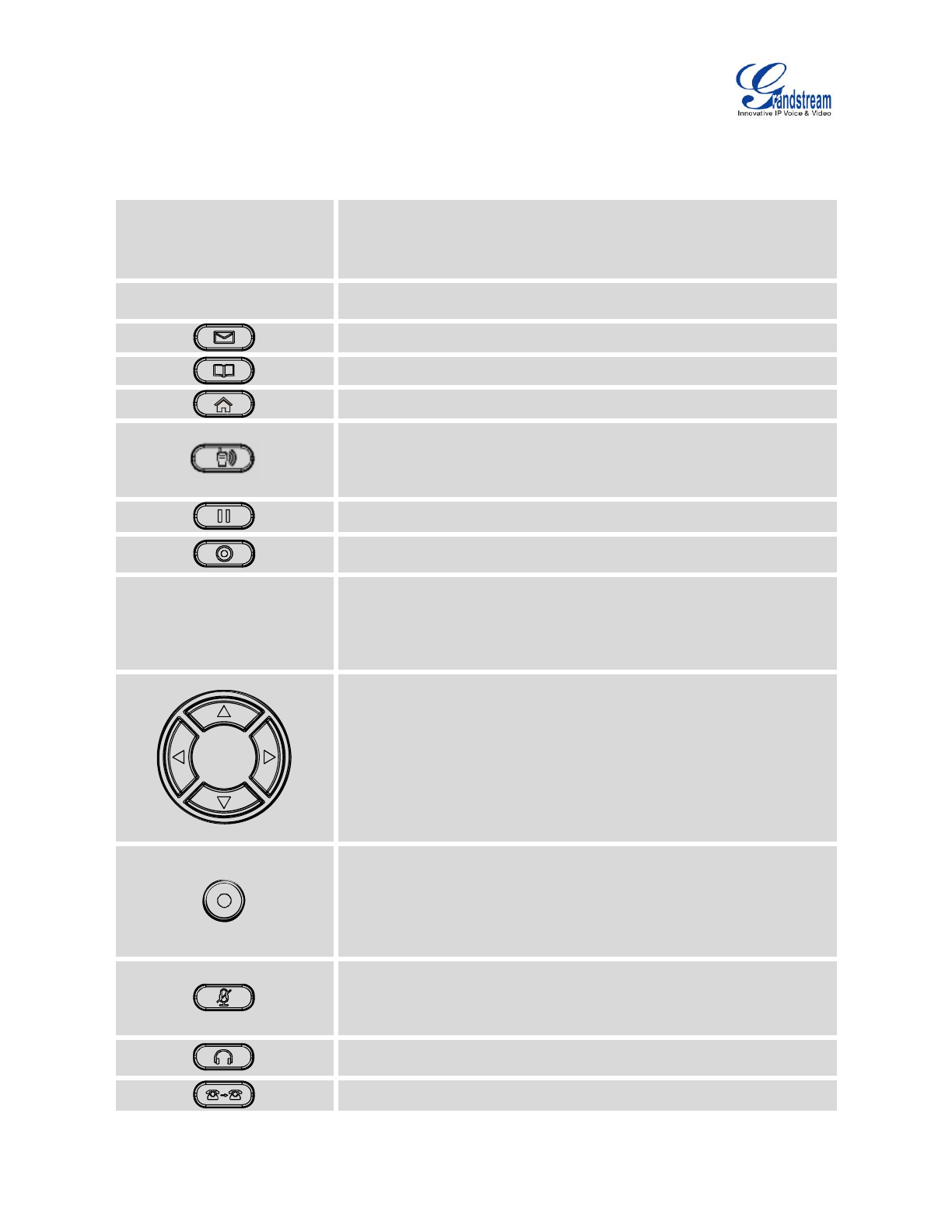

Table 9: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Front View Definitions ................................ 24
Table 10: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Call Features……………………………….35
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 4 of 42
Table of Figures
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide
Figure 1: GXP16xx Back View (Use GXP162x as example) ...................................................................... 17

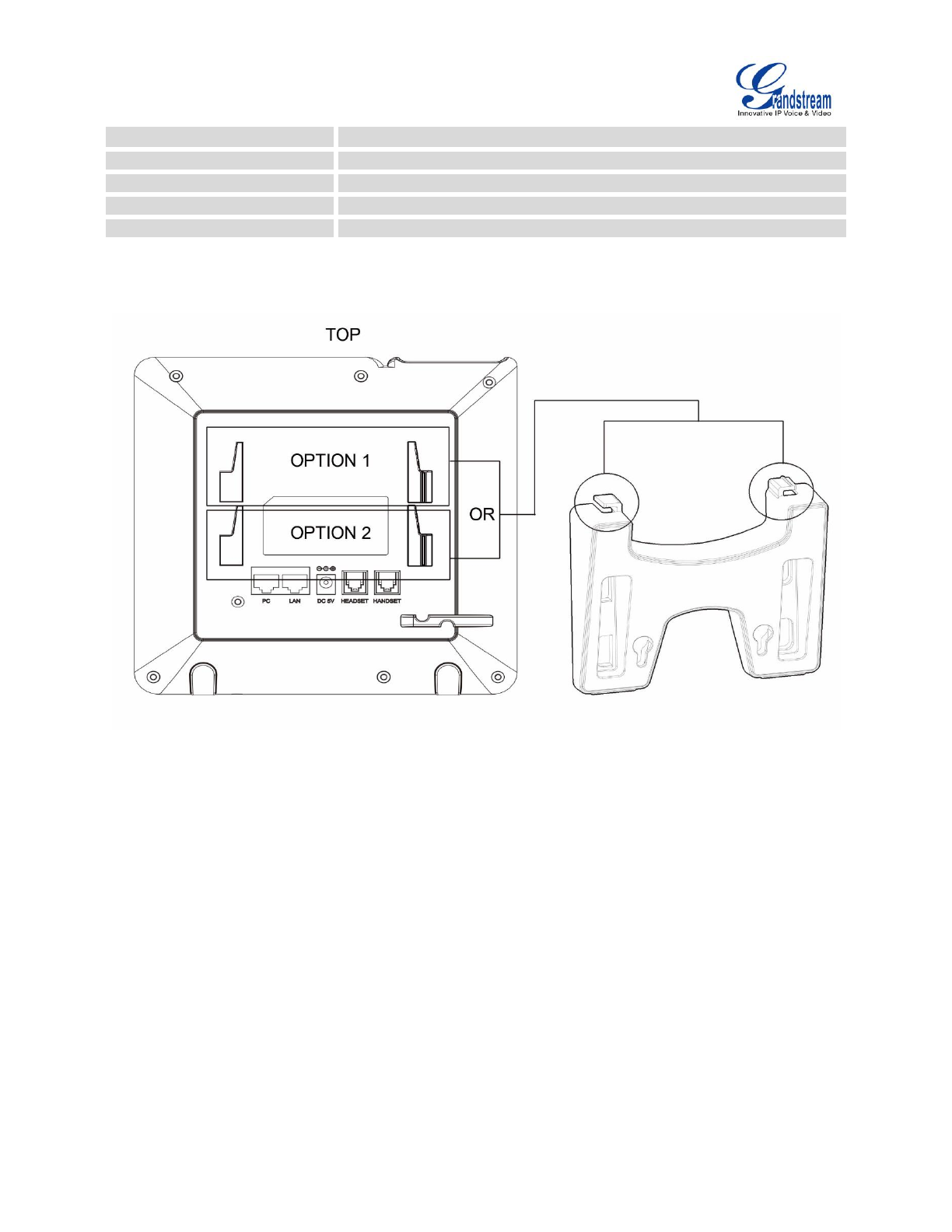

Figure 2: GXP16xx Stand Installation ......................................................................................................... 18
Figure 3: GXP16xx Wall Mount Installation................................................................................................. 19

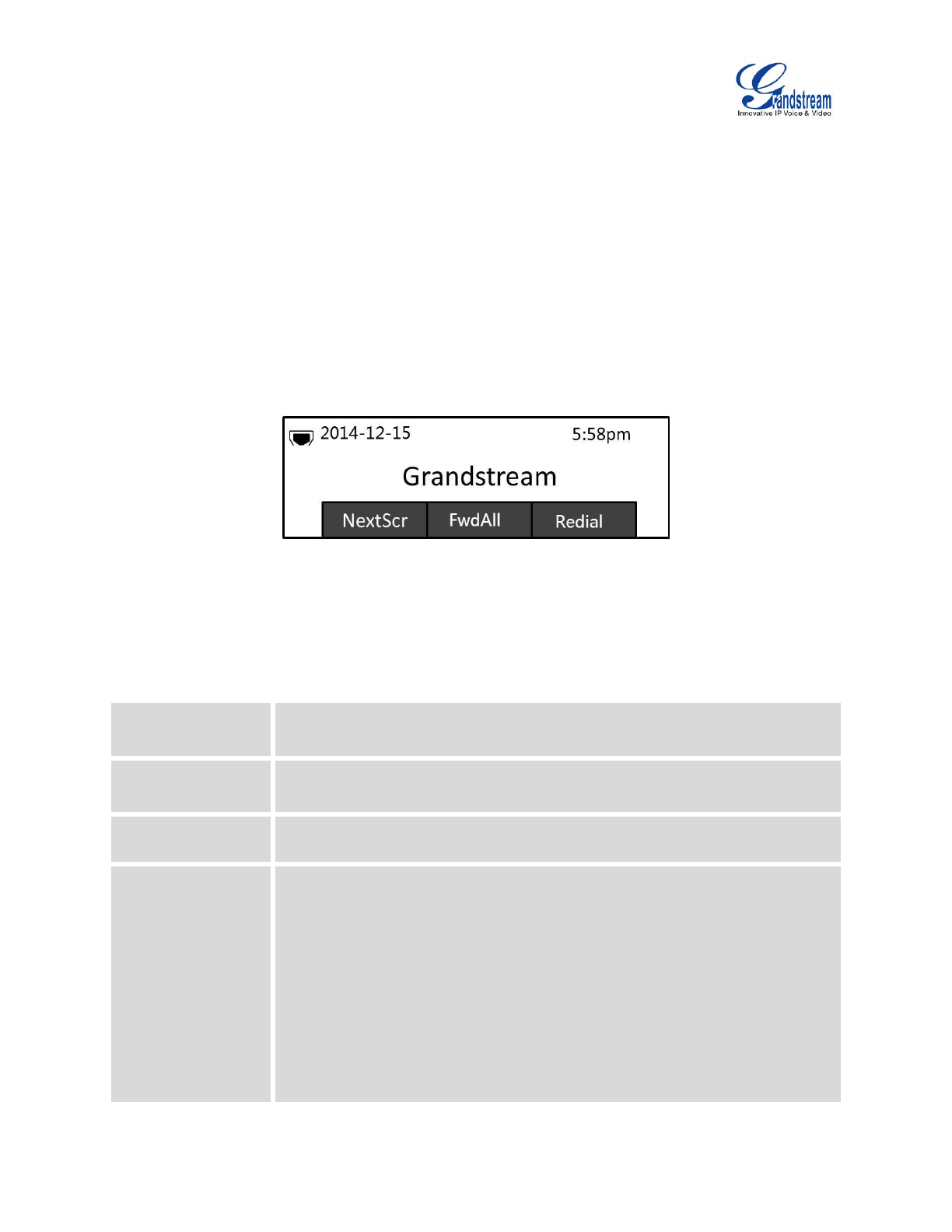

Figure 4: GXP16XX Idle Screen ................................................................................................................. 21

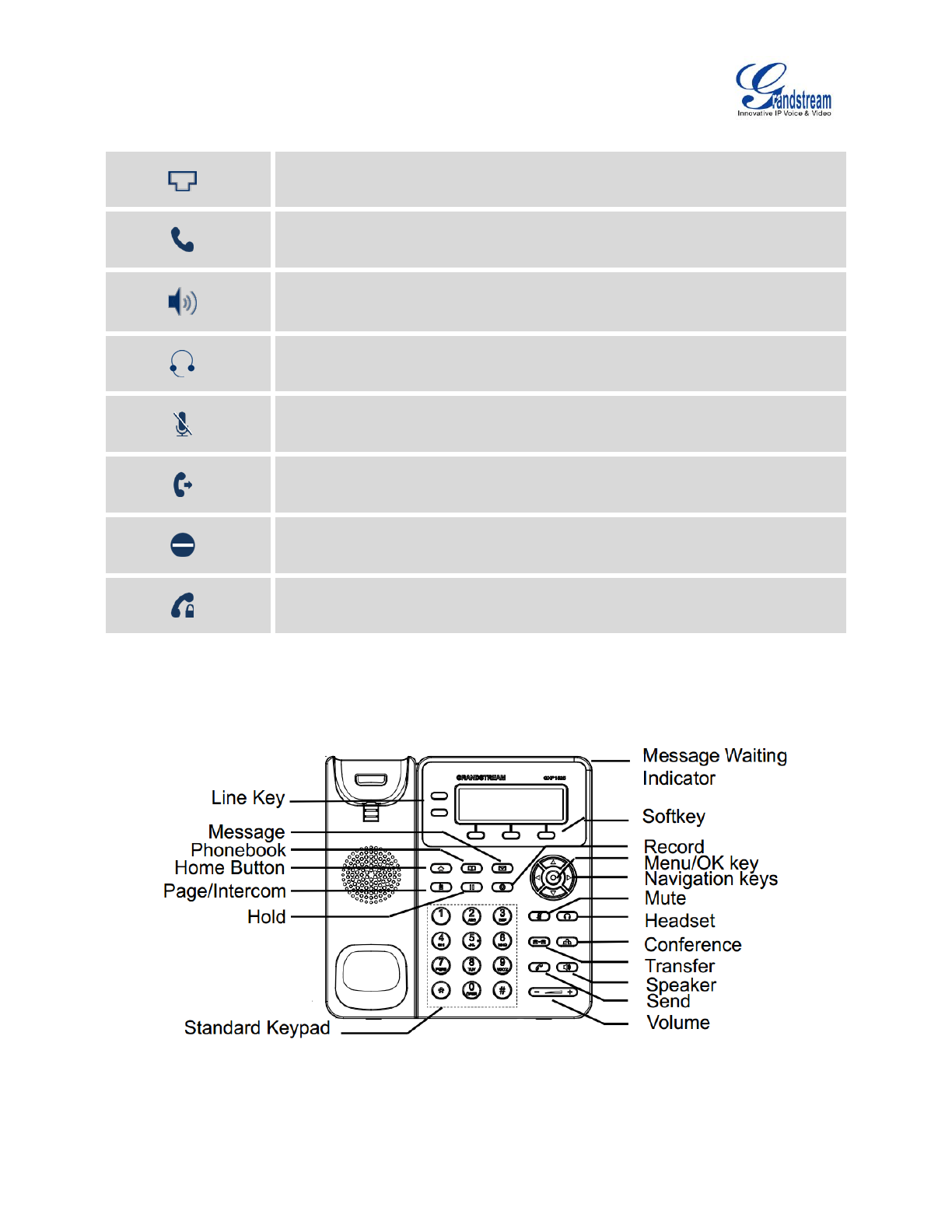

Figure 5: GXP16xx Front View (Use GXP162x as example) ...................................................................... 23
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 5 of 42
DOCUMENT PURPOSE
This User Guide describes the basic concept and tasks necessary to use and configure your
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630. This document covers the topics of phone installation,
making basic calls and using basic call features.
To learn the advanced features and configurations, please visit http://www.grandstream.com/support to
download the latest "GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Administration Guide".
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 6 of 42
GNU GPL INFORMATION
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 firmware contains third-party software licensed under
the GNU General Public License (GPL). Grandstream uses software under the specific terms of the GPL.
Please see the GNU General Public License (GPL) for the exact terms and conditions of the license.
Grandstream GNU GPL related source code can be downloaded from Grandstream Web site from:
http://www.grandstream.com/support/faq/gnu_gpl.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 7 of 42
WELCOME
Thank you for purchasing Grandstream Small Business IP phone GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630. GXP16xx series is a next generation small-to-medium business IP phone: the
GXP1620/GXP1625 features 2 lines with 2 SIP accounts, superior HD wideband audio, 132 x 48 backlit
graphical LCD; the GXP1610 supports 2 lines with 1 SIP account, 132 x 48 graphical LCD; GXP1630
supports 3 lines with 3 SIP accounts, 132x64 backlit graphical LCD. The GXP1610/GXP1620/
GXP1625/GXP1628/GXP1630 delivers rich features of 3 XML programmable context-sensitive softkeys,
dual network ports with PoE (GXP1625/GXP1628/GXP1630 only), EHS (Electronic Hook-Switch) with
Plantronics headsets, 3-ways conference on GXP1610/GXP1620/ GXP1625/GXP1628 and up to 4-ways
conference on GXP1630, superb full-duplex hands-free speakerphone with advanced acoustic echo
cancellation, advanced security protection for privacy, and compatible with Grandstream UCM Features. It
is a perfect choice for small-to-medium businesses looking for a high quality, feature rich IP phone with
affordable cost.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 8 of 42
Caution:
Changes or modifications to this product not expressly approved by Grandstream, or operation of this
product in any way other than as detailed by this User Manual, could void your manufacturer warranty.
Warning:
Please do not use a different power adaptor with the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630
as it may cause damage to the products and void the manufacturer warranty.
This document is subject to change without notice. The latest electronic version of this user manual is
available for download here:
http://www.grandstream.com/support
Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for
any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 9 of 42
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 11 of 42
PRODUCT OVERVIEW
FEATURE HIGHTLIGHTS (GXP1610/GXP1620/GXP1625/GXP1628)
132*48 pixel backlit graphical LCD display(GXP1610 doesn’t support backlit)
2 dual-color line keys, 3 XML programmable context-sensitive soft keys, 8 BLF keys (GXP1628
only), 3-way conference, multi-language support
HD wideband audio (GXP1620/GXP1625/GXP1628 only), superb full-duplex hands-free
speakerphone with advanced acoustic echo cancellation and excellent double-talk performance
Large phonebook (up to 500 contacts) and call history (up to 200 records)
Automated personal information service (e.g., local weather, etc.), personalized music ring
tone/ring back tone, flexible customizable screen content & format using XML, and advanced Web
and enterprise applications, local weather service
Dual switched 10/100 Mbps ports on GXP1610/GXP1620/GXP1625, dual switched auto-sensing
10/100/1000 Mbps Ethernet ports on GXP1628, integrated PoE on GXP1625/GXP1628
Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802.1x for media access control
Perfectly compatible with Grandstream UCM Features
Innovative UI design (easy and useable multi-language support )
Use with Grandstream’s UCM61xx series IP PBX appliance for Zero-Config provisioning, 1-touch
call recording and more
FEATURE HIGHTLIGHTS (GXP1630)
132*64 pixel backlit graphical LCD display
3 dual-color line keys, 3 XML programmable context-sensitive soft keys, 8 BLF keys, 4-way
conference, multi-language support
HD wideband audio, superb full-duplex hands-free speakerphone with advanced acoustic echo
cancellation and excellent double-talk performance
Large phonebook (up to 500 contacts) and call history (up to 200 records)
Automated personal information service (e.g., local weather, etc.), personalized music ring
tone/ring back tone, flexible customizable screen content & format using XML, and advanced Web
and enterprise applications, local weather service
Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports with integrated PoE
Automated provisioning using TR-069 or encrypted XML configuration file, SRTP and TLS for
advanced security protection, 802.1x for media access control
Perfectly compatible with Grandstream UCM Features
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 12 of 42
Innovative UI design (easy and useable multi-language support )
Use with Grandstream’s UCM61xx series IP PBX appliance for Zero-Config provisioning, 1-touch call
recording and more
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 TECHNICAL SPECIFICATIONS
Table 1: GXP1610 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP,
DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN,
SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched auto-sensing 10/ 100 Mbps Ethernet ports
Graphic Display
132*48 LCD display
Feature Keys
2 line keys with dual-color LED and 1 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME,
HOLD, RECORD, MUTE, HEADSET, TRANSFER, CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), 3-way conference,
call park/pickup, downloadable phone book (XML, LDAP, up to 500 items),
call waiting, call history (up to 200 records), off-hook auto dial, auto answer,
click-to-dial, flexible dial plan, hot desking, personalized music ringtones,
server redundancy & fail-over
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
Base Stand
Yes, allow 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-
069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 209mm（L）x 184.5mm（W）x 76.2mm（H） (with handset)
Unit Weight: 0.74kg Package Weight: 1.1kg
Package Content
GXP1610 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-
1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 13 of 42
Table 2: GXP1620/GXP1625 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP,
DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN,
SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched 10/ 100 Mbps ports, integrated PoE (GXP1625 only)
Graphical Display
132*48 pixel backlit graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 13 dedicated
function keys for MUTE, HEADSET, TRANSFER, CONFERENCE, SEND
and REDIAL, SPEAKERPHONE, VOLUME, PHONEBOOK, MESSAGE,
HOLD, PAGE/INTERCOM, RECORD, HOME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-
way conference, shared-call-appearance (SCA) / bridged-line-appearance
(BLA), downloadable phone book (XML, LDAP, up to 500 items), call
waiting, call history (up to 200 records), off-hook auto dial, auto answer,
click-to-dial, flexible dial plan, hot desking, personalized music ringtones,
server redundancy & fail-over.
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Base Stand
Yes, 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-
069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W(GXP1625 only)
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 209mm（L）x 184.5mm（W）x 76.2mm（H） (with handset)
Unit Weight: 0.73kg Package Weight: 1.1kg
Package Content
GXP1620/GXP1625 phone, handset with cord, base stand, universal
power supply, network cable, Quick Installation Guide, brochure, GPL
license
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-
1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 14 of 42
Table 3: GXP1628 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP,
DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN,
SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated
PoE
Graphical Display
132 x 48 backlit graphical LCD display
Feature Keys
2 line keys with dual-color LED and 2 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 8 BLF keys. 13
dedicated function keys for PAGE/INTERCOM, PHONEBOOK,
MESSAGE, HOME, HOLD, RECORD, MUTE, HEADSET, TRANSFER,
CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 3-
way conference, shared-call-appearance (SCA) / bridged-line-appearance
(BLA), downloadable phone book (XML, LDAP, up to 500 items), call
waiting, call history (up to 200 records), off-hook auto dial, auto answer,
click-to-dial, flexible dial plan, hot desking, personalized music ringtones,
server redundancy & fail-over.
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Base Stand
Yes, 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-
069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset)
Unit weight: 0.8kg; Package weight: 1.2kg
Package Content
GXP1628 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license, BLF label
cards
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-
1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 15 of 42
Table 4: GXP1630 Technical Specifications
Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP,
DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN,
SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
Network Interfaces
Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports, integrated
PoE
Graphical Display
132 x 64 backlit graphical LCD display
Feature Keys
3 line keys with dual-color LED and 3 SIP account. 3 XML programmable
context sensitive soft keys. 5 (navigation, menu) keys. 8 BLF keys. 13
dedicated function keys for PAGE/INTERCOM, PHONEBOOK,
MESSAGE, HOME, HOLD, RECORD, MUTE, HEADSET, TRANSFER,
CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME
Voice Codecs
Support for G.711µ/a, G.722 (wide-band), G.723 (pending), G.726-32,
G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup,
4-ways conference, shared-call-appearance (SCA) / bridged-line-
appearance (BLA), downloadable phone book (XML, LDAP, up to 500
items), call waiting, call history (up to 200 records), off-hook auto dial, auto
answer, click-to-dial, flexible dial plan, hot desking, personalized music
ringtones, server redundancy & fail-over.
Headset Jack
RJ9 headset jack (allowing EHS with Plantronics headsets)
HD Audio
Yes, HD handset and speakerphone with support for wideband audio
Base Stand
Yes, 2 angle positions available, Wall Mountable
QoS
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level access control, MD5 and MD5-sess based
authentication, 256-bit AES encrypted configuration file, TLS, SRTP,
HTTPS, 802.1x media access control
Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,
simplified and traditional Chinese, Korean, Japanese, and more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-
069 or AES encrypted XML configuration file
Power & Green Energy
Efficiency
Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PoE IEEE802.3 af Class 2, 3.84W-6.49W
Temperature and
Humidity
Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10％ to 90% Non-condensing
Physical
Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset)
Unit weight: 0.8kg; Package weight: 1.2kg
Package Content
GXP1630 phone, handset with cord, base stand, universal power supply,
network cable, Quick Installation Guide, brochure, GPL license, BLF label
cards
Compliance
FCC: Part 15 (CFR 47) Class B
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-
1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS
60950.1
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 17 of 42
INSTALLATION
EQUIPMENT PACKAGING
Table 5: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Equipment Packaging
Main Case
1
Handset
1
Phone Cord
1
5V DC Power Adaptor
1
Ethernet Cable
1
Phone Stand
1
Quick Installation Guide
1
BLF Name Cards
(GXP1628/GXP1630 only)
1
CONNECTING YOUR PHONE
Figure 1: GXP16xx Back View (Use GXP162x as an example)
Table 6: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Connectors
Slots for Phone Stand
Slots for the phone stand if placing the phone on a flat surface
PC Port
10/100M Ethernet to connect PC on GXP1610/GXP1620/GXP1625,
auto-sensing 10/100/1000M Ethernet to connect PC on GXP1628 and
GXP1630
LAN Port
10/100M Ethernet to connect LAN on GXP1610/GXP1620/GXP1625,
auto-sensing 10/100/1000M Ethernet to connect LAN on GXP1628 and
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 18 of 42
GXP1630, integrated PoE（GXP1625/GXP1628/GXP1630 only）
DC 5V Power Port
5V/600mA power port to connect to power adaptor
HEADSET Port
To connect to RJ9 or EHS headphones
HANDSET Port
To connect handset RJ9
Cord Slot
To place and fix the phone cords
STAND INSTALLATION
Figure 2: GXP16xx Stand Installation
1. Insert the hooks on the top of the stand into the slots, you have option to use either upper slots OR lower
slots.
2. After both hooks are in the slots, firmly slide the entire stand upward to lock them in place.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 19 of 42
WALL MOUNT INSTALLATION
Figure 3: GXP16xx Wall Mount installation
1. Insert all 4 hooks into the slots.
2. Firmly slide the wall mount upward to lock it in place.
To set up the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630, follow the steps below:
1. Attach the phone stand or wall mount to the back of the phone where there are slots;
2. Connect the handset and main phone case with the phone cord;
3. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the
router) using the Ethernet cable;
4. Connect the 5V DC output plug to the power jack on the phone; plug the power adapter into an electrical
outlet. If PoE switch is used in step 3, this step could be skipped;
5. The LCD will display provisioning or firmware upgrade information. Before continuing, please wait for
the date/time display to show up;
6. Using the keypad configuration menu or phone's embedded Web server (Web GUI) by entering the IP
address in Web browser, you can further configure the phone.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 20 of 42
SAFETY COMPLIANCES
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 phone complies with FCC/CE and various safety
standards. The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 power adapter is compliant with the UL
standard. Use the universal power adapter provided with the GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630 package only. The manufacturer’s warranty does not cover damages to the phone
caused by unsupported power adapters.
WARRANTY
If the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 phone was purchased from a reseller, please
contact the company where the phone was purchased for replacement, repair or refund. If the phone was
purchased directly from Grandstream, contact the Grandstream Support for a RMA (Return Materials
Authorization) number before the product is returned. Grandstream reserves the right to remedy warranty
policy without prior notification.
Warning:
Use the power adapter provided with the phone. Do not use a different power adapter as this may damage
the phone. This type of damage is not covered under warranty.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 21 of 42
GETTING TO KNOW
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630
IDLE SCREEN
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 screen displays differently depending on whether the
phone is idle or in use (active). The following table describes the items displayed on the GXP1610/
GXP1620/GXP1625/GXP1628/GXP1630 idle screen.
Figure 4: GXP16XX Idle Screen
The following table describes the items displayed on the GXP1610/GXP1620/GXP1625/GXP1628/
GXP1630 idle screen.
Table 7: LCD DISPLAY DEFINITIONS
Displays the current date and time. It can be synchronized with Internet time
servers.
Shows the status of network. It will indicate whether the network is down or
starting.
Shows the status of the phone for registration status, call features and etc., using
icons as shown in the next table.
The softkeys are context sensitive and will change depending on the status of
the phone. Typical functions assigned to softkeys are:
NextScr
Toggles between different idle screens. For example, for GXP1610/
GXP1620/GXP1625/GXP1628/GXP1630, pressing most left soft key
(switch screen) will toggle among default idle screen, weather information,
IP address and Account information.
Redial
Redial the last dialed number when there is existed dialed call log.
FwdAll
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 22 of 42
Unconditionally forwards the phone line (account 1) to another phone.
Missed
Shows up unanswered calls to this phone.
The softkeys are context sensitive and will change depending on the call status
of the phone. Here are the main softkeys in call screen.
Redial
Redials the last dialed number after off hook when there is existing call log.
Dial
Dials the call out after off hook and entering the number.
Answer
Answers the incoming call when the phone is ringing.
Reject
Rejects the incoming call when the phone is ringing.
EndCall
Ends the active call.
Transfer
Transfer softkey will show up after pressing TRAN button and entering
transfer target number. Press Transfer softkey to do blind transfer.
Split
In auto-attended transfer mode, after establishing the second call, press Split
to quit transfer and go back to normal talking status.
ConfCall
Conferences the active calls.
ReConf
Re-establish the conference among the calls on hold.
CallPark
When the phone dials out, the CallPark softkey will display on screen. To park
the call, press it to park the call on available parking lot.
RecOn
During an active call, the RecOn softkey will display on screen. Press it to
trigger UCM call recording.
RecOff
During an active call, after RecOn softkey is pressed and call recording starts,
RecOff softkey will appear on screen. Press it to stop call recording on UCM.
Note: Please refer to UCM61xx User Manuals for the UCM configurations.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 23 of 42
Table 8: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 LCD Icons
Registration Status.
Solid: Registered
Hollow: Unregistered
Handset Status.
OFF - handset on hook
ON - handset off hook
Speaker Status.
OFF - speaker off
ON - speaker on
Headset Status.
OFF - headset off
ON - headset on
Mute Status.
OFF - The active call is not muted
ON - The active call is muted
Call Forward Status.
OFF - Call Forward feature disabled
ON - Call Forward feature enabled
DND Status.
OFF - Do Not Disturb disabled
ON - Do Not Disturb enabled
SRTP Status.
OFF - SRTP is not used
ON - SRTP is being used
USING THE KEYPAD
Figure 5: GXP16xx Front View (Use GXP162x as example)
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 24 of 42
Table 9: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Front View Definitions
LINE Key
Switch between line 1 and line 2.
Solid Green：Calling, Talking
Flash Green：Call on hold
Flash Red：Incoming call
Soft Key
The soft keys are context sensitive and will change depending on the
status of the phone
Messages. Press to view messages.
Phonebook. Press to view phonebook.
Home. Press to go to idle screen, when stay in submenu.
Page/Intercom
If the intercom number has set, call this number directly.
If the intercom number has not set, press this key will have no
effect.
Hold. Place active call on hold, or resume the call on hold.
Record. Press to enable/disable record feature in an active call or on
conference.
Standard Keypad
To dial phone numbers.
Press numeric keys "0-9" to enter phone numbers.
Press "*" to enter voice menu or input special characters, or
long press it to lock the keypad.
Press "#" to dial out numbers or input special characters.
Navigation Keys.
When entered the menu:
Press the UP/DOWN keys to scroll through menu options.
Press the LEFT key to go back to the previous menu.
The RIGHT key has no function.
In Idle:
Press the UP key to view missed calls.
Press the DOWN key to view dialed calls.
Press the RIGHT key to view answered calls.
Menu/OK Key.
In Idle:
Press to enter the main menu.
Confirm the current selection or the inputted info
Off hook:
Switch between outgoing call and paging call.
Mute. To mute/unmute an active call
When DND is on:
Enable/disable DND when the phone is in idle
Enable/disable Mute when in an active call
Headset. Press to switch between headset and handset mode in an
active call.
Transfer. Transfer an active call to another number.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 25 of 42
Conference. Establish 3-way conference with other 2 parties.
Send.
Send. Enter the digits and then press Send to dial out.
Redial. Redial when there is a previously dialed call.
Speaker.
Press to switch between speaker and handset mode in an active call.
Message Waiting Indicator
Message Waiting Indicator. The LED Indicator will flash in red when
there is new voice mail.
MAKING PHONE CALLS
HANDSET, SPEAKER AND HEADSET MODE
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 allows users to switch among handset, speaker or
headset when making calls. Press the Hook Switch to switch to handset; press the Headset button to switch
to headset; or press the Speaker button to switch to speaker.
SIP ACCOUNTS AND LINES
GXP1630 supports up to 3 independent SIP accounts, GXP1620/GXP1625/GXP1628 can support up to 2
independent SIP accounts; and GXP1610 can support 1 SIP account. Each account is capable of
independent SIP servers, user and NAT settings. Each of the LINE button is "virtually" mapped to an
individual SIP account. In off hook state, select an idle line and the dial tone will be heard.
To make a call, select the line you wish to use. The corresponding LINE LED will light up in green. The user
can switch lines before dialing any number by pressing the LINE buttons.
For example: If 2 independent accounts are registered on GXP1620/GXP1625/GXP1628, when LINE 1 is
pressed, the LINE 1 LED will light up in green. If LINE 2 is pressed, the LINE 2 LED will light up in green
and the subsequent call will be made through SIP account 2.
Incoming calls to a specific account will attempt to use its corresponding LINE if it is not in use. When the
"virtually" mapped line is in use, the GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 will flash the other
available LINE in red. A line is ACTIVE when it is in use and the corresponding LED is red.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 26 of 42
COMPLETING CALLS
There are several ways to complete a call.
On hook dialing. Enter the number when the phone is on hook and then send out.
When the phone is in idle, enter the number to be dialed out;
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Select an available LINE key;
The call will be dialed out.
Off hook and dial. Off hook the phone, enter the number and send out.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
You shall hear dial tone after off hook;
Enter the number;
Press SEND key or # to dial out.
Redial. Redial the last dialed number.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker; or
When the phone is in idle;
Press SEND key, or the REDIAL soft key.
Via Call History. Dial the number logged in phone's call history.
Press MENU button to bring up the main menu;
Enter Call History;
Select the entry you would like to call using the navigation arrow keys;
Press SEND button to dial out.
Via Phonebook. Dial the number from the phonebook.
Press Contacts button;
Under Contacts, enter Local Phonebook/ Broadsoft Phonebook using the navigation arrow key;
Select the contact you would like to call using the navigation arrow key;
Press SEND button to dial the selected contact.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 27 of 42
Speed Dial from Line Key. Dial the number configured as Speed Dial on Line Key.
Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Speed Dial. Select the account to dial from, enter the Name and User ID (the number to be dialed
out) for the Line Key. Click on "Update" at the bottom of the Web GUI page;
Off hook the phone, or directly press the Speed Dial key to dial out.
Call Return. Dial the last answered call.
Go to phone's Web GUI->Settings->Programmable Keys, configure the Line Key's Key Mode as
Call Return. Select the account to dial from, no Name or User ID has to be set on for Call Return;
Off hook the phone, or directly press the Call Return key to dial out.
Via Paging/Intercom.
Take handset off hook; or
Press Speaker button; or
Press Headset button with headset plugged in; or
Press an available LINE key to activate speaker;
You shall hear dial tone after off hook;
Press MENU button to switch the call screen from "Dialing" to "Paging";
Enter the number;
Press SEND key or # to dial out.
Via Intercom Hard Button. Dial pre-configured intercom number.
Go to phone’s Web GUI->Settings->Call Features, configure the Intercom User ID as the
destination number of intercom call.
When phone is in idle, press in Intercom Hard Button to dial pre-configured number.
Note:
After entering the number, the phone waits for the No Key Entry Timeout (Default timeout is 4 seconds,
configurable via Web GUI) before dialing out. Press SEND or # key to override the No Key Entry
Timeout;
If digits have been entered after handset is off hook, the SEND key will works as SEND instead of
REDIAL;
By default, # can be used as SEND to dial the number out. Users could disable it by setting "User # as
Dial Key" to "No" from Web GUI->Account X->Call Settings;
For Paging/Intercom, if the SIP Server/PBX supports the feature and has Paging/Intercom feature code
set up already, users do not necessarily need toggle to paging mode in the call screen. Simply dial the
feature code with extension as a normal call.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 28 of 42
When dial out via paging, user can see the “call-info” header contains “answer-after=0” and “the “alert-
info” header contains “info=alert-autoanswer;delay=0” in the outgoing INVITE.
MAKING CALLS USING IP ADDRESSES
Direct IP Call allows two phones to talk to each other in an ad-hoc fashion without a SIP proxy. VoIP calls
can be made between two phones if:
Both phones have public IP addresses; or
Both phones are on the same LAN/VPN using private or public IP addresses; or
Both phones can be connected through a router using public or private IP addresses (with necessary
port forwarding or DMZ).
To make a direct IP call, please follow the steps below:
Press MENU button to bring up main menu;
Select "Direct IP Call" using the navigation arrow keys;
Press MENU to enter the Direct IP Call mode;
Input the 12-digit target IP address (Please see example below);
Press the "More" softkey to make sure the softkey selection "IPv4" or "IPv6" is correctly selected
depending on your network environment;
Press "OK" softkey to dial.
For example:
If the target IP address is 192.168.1.60 and the port is 5062 (i.e., 192.168.1.60:5062), input the following:
192*168*1*60#5062. The * key represents the dot (.), the # key represents colon (:). Wait for about 4
seconds and the phone will initiate the call.
Quick IP Call Mode:
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 also supports Quick IP Call mode. This enables
the phone to make direct IP calls using only the last few digits (last octet) of the target phone's IP address.
This is possible only if both phones are under the same LAN/VPN. This simulates a PBX function using the
CSMA/CD without a SIP server. Controlled static IP usage is recommended.
To enable Quick IP Call Mode, go to phone's Web GUI->Settings->Call Features, set "Use Quick IP - call
mode" to "Yes". Clicking on "Save and Apply" on the bottom of Web GUI page to take the change. To make
Quick IP Call, take the phone off hook first. Then dial #xxx where x is 0-9 and xxx<255. Press # or SEND
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 29 of 42
and a direct IP call to aaa.bbb.ccc.XXX will be completed. "aaa.bbb.ccc" is from the local IP address
regardless of subnet mask. The number #xx or #x are also valid. The leading 0 is not required (but it's OK).
For example:
192.168.0.2 calling 192.168.0.3 -- dial #3 followed by # or "SEND";
192.168.0.2 calling 192.168.0.23 -- dial #23 followed by # "SEND";
192.168.0.2 calling 192.168.0.123 -- dial #123 followed by # "SEND";
192.168.0.2: dial #3 and #03 and #003 results in the same call -- call 192.168.0.3.
Note:
The # will represent colon ":" in direct IP call rather than SEND key as in normal phone call;
If you have a SIP server configured, direct IP call still works. If you are using STUN, direct IP call will
also use STUN;
Configure the "Use Random Port" to "No" when completing direct IP calls. The option “Use Random
Port” is under phone’s Web GUI Settings -> General Settings page.
ANSWERING PHONE CALLS
RECEIVING CALLS
Single incoming call. Phone rings with selected ring tone. The corresponding LINE key will flash in
red. Answer call by taking handset off hook, or using Speaker/Headset, or pressing the flashing LINE
key;
Multiple incoming calls. When another call comes in while having an active call, the phone will
produce a Call Waiting tone (stutter tone). The other LINE key will flash in red. Answer the incoming
call by pressing the flashing LINE key. The current active call will be put on hold automatically.
DO NOT DISTURB
Do Not Disturb can be enabled/disabled from phone's LCD by following the steps below:
Press the Menu button and select "Preference" using navigation keys;
Press Menu button again to get into Preference options;
Select "Do Not Disturb" and press Menu button;
Use arrow keys to select and press Menu button to enable or disable "Do Not Disturb" feature.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 30 of 42
When Do Not Disturb feature is turned on, the DND icon will appear on the right side of the LCD. The
incoming call will not be accepted or the call will directly go into voicemail.
DURING A PHONE CALL
CALL RECORDING
During an active call, users could record the conversation to the UCM61xx Series server and download the
record to PC and listen to it with the help of the server administrator. Please contact server administrator to
ensure the PBX feature codes for Audio Mix Record is enabled on UCM before using call recording feature.
In the process of establishing the call, when get through, press the RECORD key to start recording.
Press one more time to stop recording.
Note:
Recording feature is available when using the Grandstream UCM series IP PBX appliance, or the PBX
which supports this feature. The record file will be saved automatically to UCM or the supported PBX.
Please contact the UCM server administrator, or the supported PBX administrator to download the file from
the server.
CALL WAITING/CALL HOLD
Hold. Place a call on hold by pressing the HOLD button. The active LINE key will blink in green;
Resume. Resume call by pressing the blinking LINE key;
Multiple calls. Automatically place active call on hold or switch between calls by pressing the LINE key.
Call waiting tone (stutter tone) will be audible on new incoming call during the active call.
MUTE
During an active call, press the MUTE button to mute/unmute the microphone. The LCD will show the Mute
icon on the top of screen, when the call is muted.
CALL TRANSFER
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 supports Blind Transfer, Attended Transfer and Auto-
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 31 of 42
Attended Transfer.
Blind Transfer.
During the first active call, press TRANSFER and dial the number to transfer to;
Press SEND key or # to complete transfer of active call.
Attended Transfer.
During the first active call, press LINE key. The first call will be put on hold;
Enter the number for the second call in the new line and establish the call;
Press TRANSFER;
Press the other LINE key which is on hold to transfer the call.
Auto-Attended Transfer.
Set "Auto-Attended Transfer" to "Yes" under Web GUI->Settings->Call Features. And then click
"Save and Apply" on the bottom of the page;
Establish one call first;
During the call, press TRANSFER. A new line will be brought up and the first call will be
automatically placed on hold;
Dial the number and press SEND or # to make a second call. (Once the number is entered, a
"Transfer" soft key will show. If "Transfer" soft key is pressed instead of SEND or #, a blind transfer
will be performed);
Press TRANSFER again. The call will be transferred.
For Auto-Attended Transfer, after dialing out the number for the second call, a "Split" soft key will
show. If the second call is not established yet (ringing), pressing "Split" will hang up the second call.
If the second call is established (answered), pressing "Split" will resume the second call and keep
the first call on hold.
Note:
To transfer calls across SIP domains, SIP service providers must support transfer across SIP domains.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 32 of 42
CONFERENCING
GXP1610/GXP1620/GXP1625/GXP1628 can host up to 3-ways conference call and up to 4-ways
conference call on GXP1630 (PCMU/PCMA).
Initiate a conference call.
Establish calls with 2 parties respectively;
While 1 call is active, the other call will be put on hold with its LINE key blinking in green;
Press CONF key;
Press the desired LINE key on hold, the conference will be established;
Cancel Conference.
If after pressing the CONF key, the user decides not to conference, press Cancel soft key or the
current active LINE key (LED in solid green);
This will resume the 2-way conversation with the current line.
Split and Re-conference.
During the conference, press HOLD key. The conference call will be split and the calls will be put
on hold separately with the LINE keys blinking in green;
Select one LINE key and press to resume the 2-way conversation;
If users would like to re-establish conference call, before 1 separate LINE is selected, press the
ReConf soft key right after the conference call is held/split;
End Conference.
Users could press the EndCall soft key or simply hang up the call to terminate the conference call.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 supports Easy Conference Mode, which can be used
combined with the traditional way to establish the conference.
Initiate a conference call.
Establish 1 call;
Press CONF key and a new line will be brought up using the same account;
Dial the number and press SEND key to establish the second call;
Press CONF key or press the ConfCall softkey to establish the conference.
Split and Re-conference.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 33 of 42
During the conference, press HOLD key. The conference call will be split and both calls will be put
on hold separately with 2 LINE keys blinking in green;
Select one LINE key and press to resume the 2-way conversation;
If users would like to re-establish conference call, before 1 separate LINE is selected, press the
ReConf softkey right after the conference call is split.
Cancel Conference.
If users decides not to conference after establishing the second call, press EndCall softkey instead
of the ConfCall softkey/CONF key;
This will end the second call and the screen will show the first call on hold.
End Conference.
Users could press the EndCall softkey or simply hang up the call to terminate the conference call. If the
remote party hangs up the call itself, it will be disconnected from the conference but other parties on
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 will stay in the existed conference.
Note:
The party that starts the conference call has to remain in the conference for its entire duration, you can
put the party on mute but it must remain in the conversation.
The option "Disable Conference" has to be set to "No" to establish conference.
When using Easy Conference Mode, use SEND key to dial out the second call instead of using #,
even when # could be used as SEND in normal phone calls.
For 3-ways and 4-ways conference, the host hangs up the phone will end the conference. If users
wants to keep the rest 2 parties stay in conference after the host hangs up ,go to Web GUI- >Account- >
Call Settings > Transfer on conference Hangup, check "Yes" and save the change.
VOICE MESSAGES (MESSAGE WAITING INDICATOR)
A blinking red MWI (Message Waiting Indicator) on the top right corner of the phone indicates a message
is waiting. Dial into the Voicemail box to retrieve the message by entering the voice mail number of the
server or pressing the Voicemail button (Voice Mail User ID has to be properly configured as the voice mail
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 34 of 42
number under Web GUI->Account x->General Settings). An IVR will prompt the user through the process
of message retrieval.
VOICEMAIL
A blinking red LED indicator on the top right corner of the GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630 indicates a message is waiting. Go to Web GUI- >Account - >General Settings to
configure Voice Mail UserID.
To retrieve the voicemail:
Press the hard key to dial into the voicemail box;
Select the account and confirm to access the dial-up interface, make operations according to the voice
prompt.
Enter the account and password which is configured on SIP PBX.
The steps above are for the situation that both accounts are configured, if configured only one account,
there is no need for users to select account but go to the dial-up interface directly.
For each account, the Voicemail User ID can be set up under Web GUI->Account X->General Settings:
"Voice Mail UserID". This is the number that will be dialed out to access voicemail message when tapping
on the account in Voice Mail screen.
SHARED CALL APPEARANCE (SCA)
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 phone supports shared call appearance by
Broadsoft standard. This feature allows members of the SCA group to shared SIP lines and provides status
monitoring (idle, active, progressing, hold) of the shared line. When there is an incoming call designated for
the SCA group, all of the members of the group will be notified of an incoming call and will be able to answer
the call from the phone with the SCA extension registered.
All the users that belong to the same SCA group will be notified by visual indicator when a user seizes the
line and places an outgoing call, and all the users of this group will not be able to seize the line until the line
goes back to an idle state or when the call is placed on hold (with the exception of when multiple call
appearances are enabled on the server side).
In the middle of the conversation, there are two types of hold: Public Hold and Private Hold. When a member
of the group places the call on public hold, the other users of the SCA group will be notified of this by the
red-flashing button and they will be able to resume the call from their phone by pressing the line button.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 35 of 42
However, if this call is placed on private-hold, no other member of the SCA group will be able to resume
that call.
To enable shared call appearance, the user would need to register the shared line account on the phone.
In addition, they would need to navigate to "Settings"->"Programmable Keys" on the Web UI and set the
line key mode as "Shared Line". If the user requires more shared call appearances, the user can configure
multiple line buttons to be "shared line" buttons associated with the account.
CALL FEATURES
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 supports traditional and advanced telephony
features including caller ID, caller ID with caller Name, call forward and etc.
Table 10: GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Call Features
*30
Anonymous Calls (for all subsequent calls)
Dial *30.
*31
Cancel Anonymous (for all subsequent calls)
Dial *31.
*50
Enable Call Waiting (for all subsequent calls)
Dial *50.
Note: The subsequent incoming call will hear a busy tone other
than enter call waiting when the current call is in active.
*51
Disable Call Waiting (for all subsequent calls)
Dial *51.
*67
Selective Anonymous Call(per Call).To enable selective
anonymous call:
Dial *67 and then enter the number to dial out;
Dial out.
Note: Once set, the firstly dialed call is anonymous.
*82
Call with Caller ID Enabled (per call)
Off hook the phone;
Dial *82 and then enter the number to dial out.
*70
Call with Call Waiting Disable (per Call)
Dial *70 and then enter the number to dial out;
Dial out.
Note: Once set, the first call need not to enter call waiting as
being supposed to.
*71
Call with Call Waiting Enabled (per Call)
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 36 of 42
Dial *71 and then enter the number to dial out;
Dial out.
*72
Unconditional Call Forward. To set up unconditional call forward:
Dial *72 and then enter the number to forward the call;
Dial out.
Note: Once set, all calls will be forwarded to another preset
number and your phone will not ring.
*73
Cancel Unconditional Call Forward. To cancel the unconditional call
forward:
Dial *73.
*90
Busy Call Forward. To set up busy call forward:
Dial *90 and then enter the number to forward the call;
Dial out.
*91
Cancel Busy Call Forward. To cancel the busy call forward:
Dial *91;
*92
Delayed Call Forward. To set up delayed call forward:
Dial *92 and then enter the number to forward the call;
Dial out.
*93
Cancel Delayed Call Forward. To cancel the delayed call forward:
Dial *93.
Note: Once set, the incoming call will be forwarded to another
preset number if no one answers the phone.
Note:
If the following feature codes don’t work on your phone, please contact Administrator to turn on the Enable
Call Features on phone’s Web GUI. Enable Call Features is under phone’s Web GUI->Account->Call
Settings tab.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 37 of 42
CONNECTING TO DEVICES
EHS HEADSET
The GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 supports normal RJ11 headset and Plantronics
EHS headset. To use Plantronics EHS headset, go to the GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630 web GUI->Settings->Audio Control Headset Type. Select "Plantronics EHS" and
reboot the phone to take effect.
1. Connect EHS Headset (Plantronics) to GXP1610/GXP1620/GXP1625/GXP1628/GXP1630. Insert
headset connector into the RJ11 headset port on the back of GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630.
2. To use headset mode, press headset button on the GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630. A headset icon will show on the GXP1610/GXP1620/GXP1625/
GXP1628/GXP1630 status bar. The EHS headset will ring when there is an incoming call.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 39 of 42
RESTORE FACTORY DEFAULT SETTINGS
Warning:
Restoring the Factory Default Settings will delete all configuration information on the phone. Please backup
or print all the settings before you restore to the factory default settings. Grandstream is not responsible for
restoring lost parameters and cannot connect your device to your VoIP service provider.
Please follow the instructions below to reset the phone:
RESTORE TO FACTORY DEFAULT VIA THE LCD MENU
Press MENU button to bring up the keypad configuration menu;
Select "Config" and enter;
Select "Factory Reset";
A warning window will pop out to make sure a reset is requested and confirmed;
Press the "OK" softkey to confirm and the phone will reboot. To cancel the Reset, press "Cancel"
softkey instead.
RESTORE TO FACTORY DEFAULT VIA THE WEB GUI
Login GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 Web GUI;
At the top right corner of the web page, click “Factory Reset” button to reset the device.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 41 of 42
EXPERIENCING THE
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630
Please visit our Website: http://www.grandstream.com to receive the most up- to-date updates on firmware
releases, additional features, FAQs, documentation and news on new products.
We encourage you to browse our product related documentation, FAQs and User and Developer Forum for
answers to your general questions. If you have purchased our products through a Grandstream Certified
Partner or Reseller, please contact them directly for immediate support.
Our technical support staff is trained and ready to answer all of your questions. Contact a technical support
member or submit a trouble ticket online to receive in-depth support.
Thank you again for purchasing Grandstream Enterprise Application phone, it will be sure to bring
convenience and color to both your business and personal life.
GXP1610/GXP1620/GXP1625/GXP1628/GXP1630 User Guide Page 42 of 42
FCC Notices
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Ce dispositif est conforme à la partie 15 des directives FCC. L'utilisation du dispositif doit
répondre aux deux conditions suivantes : (1) Ce dispositif ne doit pas générer d'interférences
dangereuses et (2) ce dispositif doit supporter toutes les interférences reçues, y compris les
interférences susceptibles de provoquer des dysfonctionnements.
Este dispositivo cumple con el apartado 15 de las reglas de la FCC. El funcionamiento queda
sujeto a las siguientes dos condiciones: (1) Este dispositivo no puede causar interferencias
perjudiciales y (2) este dispositivo debe admitir cualquier interferencia que reciba, incluidas
aquellas que pudieran causar un funcionamiento no deseado.
Caution: Any changes or modifications to this device not explicitly approved by Legrand could
void your authority to operate this equipment.
Mise en garde: Toute altération ou modification de ce dispositif non approuvée de manière
explicite par Legrand peut invalider votre droit à utiliser cet appareil.
Precaución: Cualquier cambio o modificación que se realice en este dispositivo y que no esté
aprobado/a explícitamente por Legrand podría anular su autoridad para operar este equipo.

Navigation menu
