Grandstream Networks GXV3500 IP Video Codec User Manual GXV3500quickfinal

Grandstream Networks, Inc. IP Video Codec GXV3500quickfinal

Contents

Users Manual

GXV 3500
IP video Codec
Quick Start Guide
1
PRECAUTIONS
• Do not attempt to open, disassemble, or modify the device
• Do not use a third party power adapter
• Do not expose this device to temperatures outside the
range of -10 C to +55 C
• Do not expose the GXV3500 to environments outside of the
following humidity range: 10-90% RH (non-condensing)
PACKAGE CONTENTS
GXV 3500 12V Power Supply
3.5mm to RCA audio/video cable QuickStart Guide
2
CONNECTING THE GXV3500
Refer to the illustration below when following the instructions on the
next page.
NOTE: Choose Option A if using the power supply. Or
choose Option B if using a Power over Ethernet (PoE) switch.
3
Option A
Step 1: Insert the power adapter into the 12V DC port on the
GXV3500. Plug the other end of the adapter into an AC
power outlet.
Step 2: Plug an RJ45 Ethernet cable into the network port.
Plug the other into a hub, switch or router.
Option B
Step 1: Plug an RJ45 Ethernet cable into the network port.
Plug the other end into a Power over Ethernet (PoE) switch.
4
GXV3500 CONFIGURATION
Configuring the GXV3500 using Microsoft Internet Explorer
Step 1: Connect your PC and the GXV3500 to the same
network.
Step 2: Set the IP address of your PC to 192.168.1.X. set the
Default Gateway of your PC to 255.255.255.0.
5
Step 3: Open Microsoft Internet Explorer on your PC. Type
192.168.1.168 in the address bar.
Step 4: A pop-up window will appear with prompts for a user
name and password. The default administrator user name
and password are both set to “admin” at the default
factory configuration.
6
Step 5: Once you log into the GXV3500’s web interface
Internet Explorer will indicate that “This website wants to
install to following add-on: ‘GSViewer.cab’ from
Grandstream Networks, Inc.” Install this add-on by following
the instructions.
Step 6: Once the installation of GSViewX.cab completes you
will see the web page shown in the screenshot on the next
page. Click the play button to view the video feed.
7
Step 7: Click through the menu on the left hand side of the
web UI for more advanced configuration parameters.
Please download the user manual and FAQ for more
detailed configuration instructions:
http://www.grandstream.com/support/gxv_series_sur-
veillance/gxv3500/documents/gxv3500_usermanual_english
.pdf
8

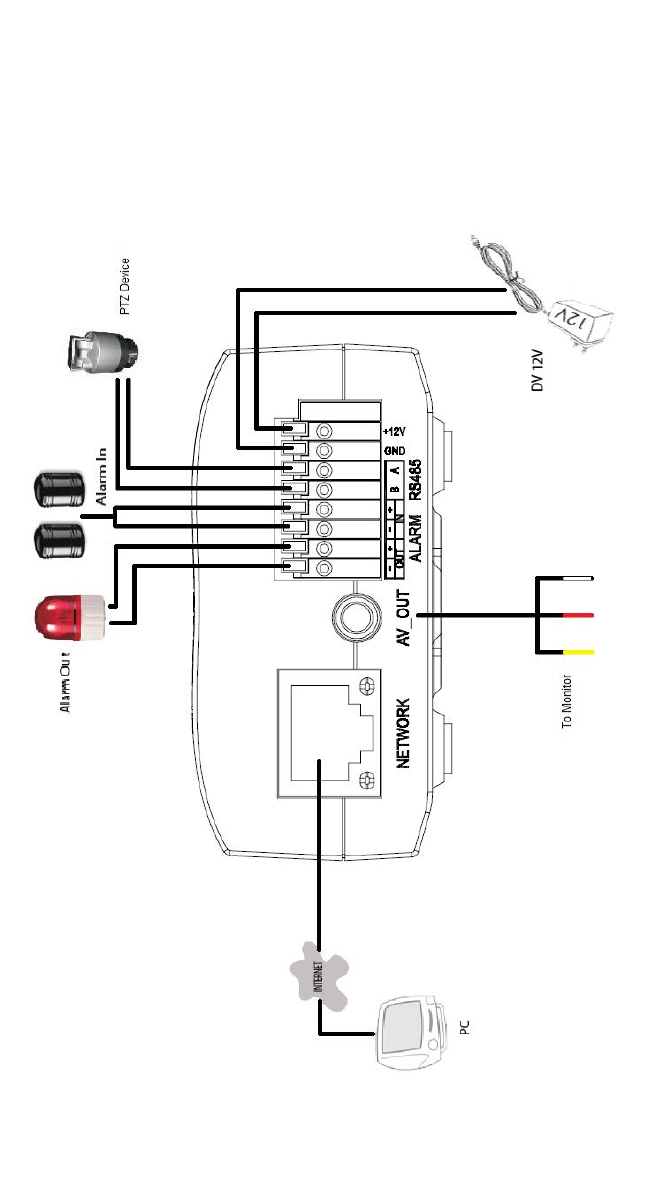

GXV3500 SAMPLE CONNECTION DIAGRAM
9
FCC Warnings:
Any Changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
10
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician
for help.
