Grandstream Networks WP820 Enterprise Portable Wi-Fi Phone User Manual

Grandstream Networks, Inc. Enterprise Portable Wi-Fi Phone

Contents

User manual

Grandstream Networks, Inc.
126 Brookline Ave, 3rd Floor
Boston, MA 02215. USA
Tel : +1 (617) 566 - 9300
Fax: +1 (617) 249 - 1987
www.grandstream.com
For Warranty and RMA information, please visit
www.grandstream.com

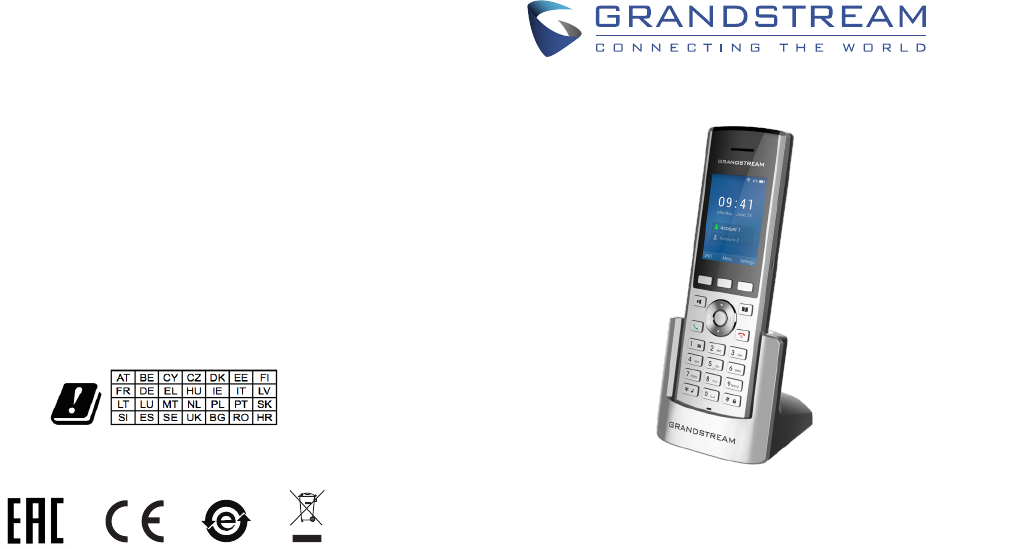

Enterprise Portable Wi-Fi Phone
Quick Installation Guide
In all EU member states, operation of 5150
- 5250 MHz is restricted to indoor use only.
WP820
~1~ ~2~
PRECAUTIONS
1x Charging
Station
The WP820 is not pre-confgured to support or
make emergency calls to any type of hospital,
law enforcement agency, medical care unit
(“Emergency Service(s)”) or any other kind of
Emergency Service. You must make additional
arrangements to access Emergency Services.
It is your responsibility to purchase SIP-compli-
ant Internet telephone service, properly con-
fgure the WP820 to use that service, and peri -
odically test your conguration to conrm that
it works as you expect. It is also your responsi-
bility to purchase traditional wireless or land-
line telephone services to access Emergency
Services.
GRANDSTREAM DOES NOT PROVIDE CON-
NECTIONS TO EMERGENCY SERVICES VIA THE
WP820. NEITHER GRANDSTREAM NOR ITS OF-
FICES, EMPLOYEES OR AFFILIATES MAY BE HELD
LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS,
AND YOU HEREBY WAIVE ANY AND ALL SUCH
CLAIMS OR CAUSES OF ACTION ARISING FROM
OR RELATING TO YOUR INABILITY TO USE THE
WP820 TO CONTACT EMERGENCY SERVICES,
AND YOUR FAILURE TO MAKE ADDITIONAL AR-
RANGEMENTS TO ACCESS EMERGENCY SER-
VICES IN ACCORDANCE WITH THE IMMEDIATE-
LY PRECEDING PARAGRAPH. 1x 5V Power
Adapter
1x WP820
Handset 1x Quick Installation Guide
1x GPL Statement
EN
1x Handset
Belt Clip
•Do not attempt to open, disassemble, or modify the device.
•Do not use a third party power adapter.
•Do not expose the device to temperatures outside the range
of 0 °C to 45 °C (32F to 113F) in operation and -20 °C to 60 °C
(-4F to 140F) in storage.
•Do not expose the WP820 at environments outside of the hu-
midity range of 10-90% RH (non-condensing).
OVERVIEW
This powerful portable Wi-Fi phone features dual-band
802.11a/b/g/n Wi-Fi, Wi-Fi roaming and integrated Bluetooth.
It also bears a durable sleek design that allows it to drop
safely from 1.2 meters and great endurance with 150 hours
standby time and 7.5 hours talk time. The combination of ad-
vanced telephony features and durability make it ideal for
mobilizing your VoIP network in residences, warehouses, retail
stores, hotels and more.
5V
1x Rechargeable
Battery

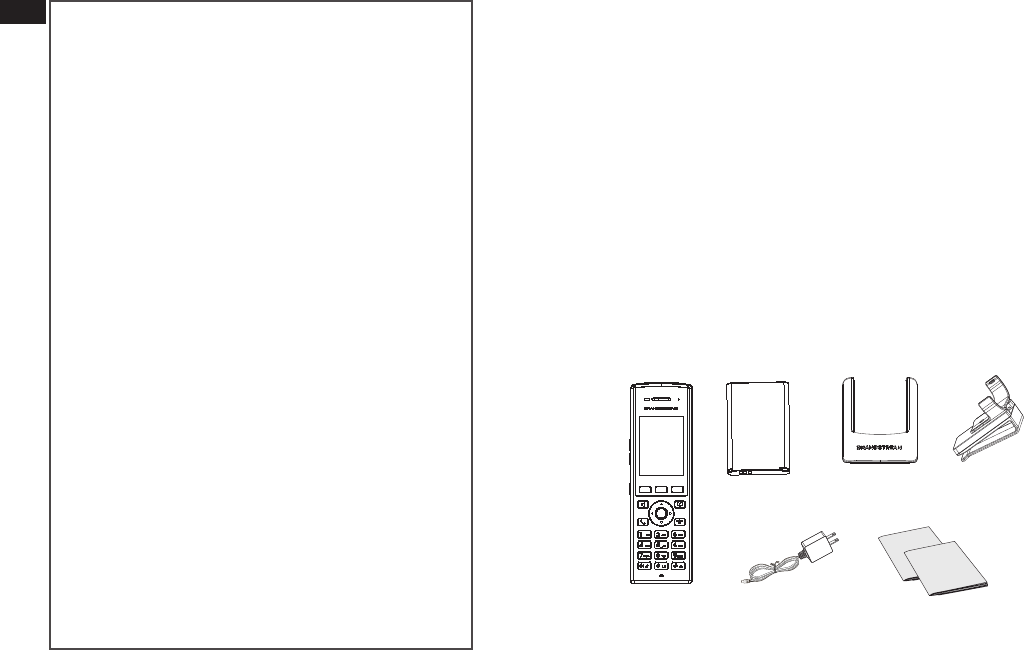

WP820 PACKAGE CONTENTS
~3~ ~4~
Charging Station:
Plug the power adapter into a power source socket to start
using the charging station.
1: Charging station
2: Power adapter
Open the battery cover.
Insert the battery with the electrodes in the bottom left
corner.
Close the battery cover.
Note: Please charge the battery fully before using the hand-
set for the rst time.
12
3
1: Battery cover
2: Battery
3: Rear of handset

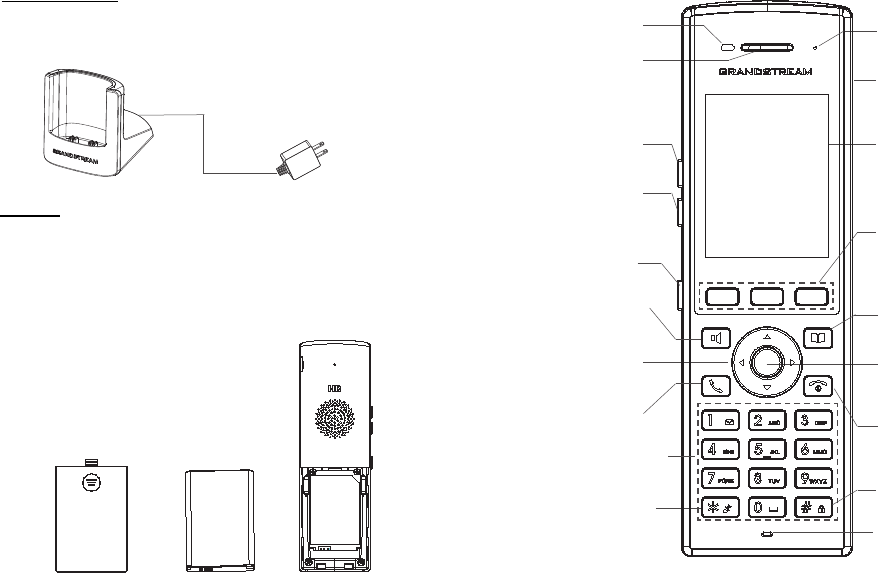

Handset:
2
12. Earphone
13. Color LCD
Screen
7. 4 Arrow key
combination
(Up, Down,
Left, Right)
16. Menu/Ok key
8. Off-hook /
Dial key 17. On-hook or
Power key
9. Alphanumeric
keypad
6. Handsfree /
Speaker key
19. Microphone
10. */ Mute key
14. Softkeys
3. Volume
Up key
15. Contacts
18. #/ Lock key
12. 3.5 mm
headset jack
11. LED
indicator
4. Volume
down key
5. PTT key
5V
1. Proximity
Sensor
SETTING UP THE WP820 WP820 DESCRIPTION
~5~ ~6~
1. On LCD menu, press Menu key and navigate to Settings
Network Settings → Wi-Fi.
2. Set Wi-Fi to “On” and navigate to “Wi-Fi Settings”. A list of
Wi-Fi networks will be displayed.
3. Select the desired network to connect to. (Enter the correct
password to connect if requested)
WP820 will display Wi-Fi icon on top of the main LCD menu if
the connection to the Wi-Fi network is successful.
1. On LCD menu, press Menu key and navigate to Settings →
About → Network Status to obtain the IP address.
2. Type the phone’s IP address in your PC browser.
Note: The computer needs to be on same network as WP820.
3. The default administrator username and password are
“admin”; the default end-user username is “user” and the
password is “123”.
Refer to online documents and FAQ for more detailed
information: http://www.grandstream.com/our-products
