HoTT 1.0 / March 2011 - EN V1.2
GRAUPNER GmbH & Co. KG – Postfach 1242 – 73230 Kirchheim/Teck – www.graupner.de
Manual
33505 Receiver GR-12S HoTT
33506 Receiver GR-12 HoTT
CONTENTS:
1. General Note .............................................................................................................. 01
2. Functions ....................................................................................................................01
2.1. Binding .........................................................................................................................01
2.2. Binding Multiple Receivers ..........................................................................................01
2.3. Fail-Safe Function ........................................................................................................ 02
3. Receiver ...................................................................................................................... 02
3.1. Connections .................................................................................................................02
3.2. Low Voltage Warning ................................................................................................... 02
3.3. Temperature Warning .................................................................................................. 03
4. Firmware Update ........................................................................................................03
4.1. Receiver ......................................................................................................................03
4.2. Update Procedure ........................................................................................................ 03
5. Declaration of Conformity .........................................................................................05
6. Warranty ..................................................................................................................... 07
Manual V1.2
Revision: March 2011
User Manual
Thank you for purchasing the Graupner HoTT 2.4 System Please read through this entire manual before
you attempt the installation and usage of your Graupner HoTT 2.4 System!
These operating instructions are part of this product. They contains important notes to the operation and
handling. Please take this into consideration when you pass on the product to third parties. Neglect of
the operating instructions and the safety instructions lead to expiring the warranty.
Graupner constantly work on the advancement of all remote control systems; changes of the scope of deli-
very in form, technology and equipment we must reserve ourselves therefore. Please have understanding
for the fact that from data and illustrations of this operating instructions no requirements can be derived.
Please keep these instructions for further reference!
1. GENERAL NOTE
When switching on or adjusting the radio control system it is essential to keep the transmitter aerial at
least 15 cm away from the receiver aerials at all times. If the transmitter aerial is too close to the receiver
aerials, the receiver will be overloaded, causing the green LED starts fl ashing. The transmitter responds
by emitting a beep once every second; the red LED also goes out. The radio control system is now in
Fail-Safe mode.
If this should occur, simply increase the distance between the aerials until the audible warning signal
ceases, and the red LED on the transmitter lights up again; at the same time the green LED on the
receiver should glow constantly.
2. FUNCTIONS
2.1. Binding
When you wish to use the Graupner HoTT 2.4 GHz receiver with a particular transmitter, the fi rst step
must always be to “bind” the unit to “its” Graupner HoTT 2.4 GHz RF module (transmitter). This “binding”
procedure only needs to be carried out once for each combination of receiver and RF module. The units
supplied in the set are already bound to each other at the factory, i.e. the binding procedure described in
the following section only needs to be carried out when you wish to use an additional receiver. However,
it can also be repeated at any time if required, e.g. after changing transmitters. When binding is required,
this is the procedure:
• Switch the transmitter and receiver on.
• Locate the BIND / RANGE button on the back of the transmitter, and hold it pressed in while you
press and hold the SET button on the receiver. Both LEDs on the back of the transmitter now glow
constantly, and the green LED on the receiver fl ashes.
• If the green fl ashing LED on the receiver begins to glow permanently within about ten seconds,
this indicates that the binding process is complete. You can now release both buttons, and your
transmitter / receiver combination is ready for use.
• However, if the green LED on the receiver continues to fl ash for longer than ten seconds, then the
binding process has failed. If this should occur, repeat the whole procedure.
2.2. Binding“ multiple receivers in one model
If required, it is also possible to bind multiple receivers to the transmitter for a particular model. The fi rst
step is to bind each receiver individually using the procedure already described.
When the system is in use, the receiver which is switched on fi rst is the Master receiver. Any telemetry
sensors installed in the model must be connected to this unit, as only the Master receiver transmits
sensor data using the downlink channel. The second and all further receivers operate in parallel with the
Master receiver but in Slave mode, with the downlink channel switched off.
The control functions can also be distributed amongst multiple receivers; this is carried out using the
Channel Mapping function of the SMART-BOX (Order No. 33700). In the same way it is possible to as-
sign one control function to multiple receiver outputs; a typical example would be the use of two servos
for each aileron instead of only one, etc.
01 Manual Receiver GR-12 Graupner HoTT 2.4
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
Manual Receiver GR-12 Graupner HoTT 2.4 10
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
09 Manual Receiver GR-12 Graupner HoTT 2.4
2.3. Fail-Safe function
In its default state (as delivered) the receiver is set to “Hold” mode, i.e. if a fail-safe situation occurs, all
the servos connected to it maintain the last position detected as valid. In this mode the green LED on
the receiver starts fl ashing when interference occurs, and the red LED on the transmitter goes out. The
transmitter also starts beeping about once per second as an audible warning.
You can exploit the safety potential of the fail-safe option by at least programming the throttle channel to
respond to a fail-safe situation: the throttle channel of an engine-powered model should be set to idle,
the throttle channel of an electric-powered model to “stop”, and the throttle channel of a model helicopter
to “Hold”. If interference should occur, these settings will help prevent the model fl ying out of control,
possibly causing personal injury or property damage.
Please refer to the appropriate section in your RC system instructions for the procedure.
Manual Receiver GR-12 Graupner HoTT 2.4 02
3. RECEIVER

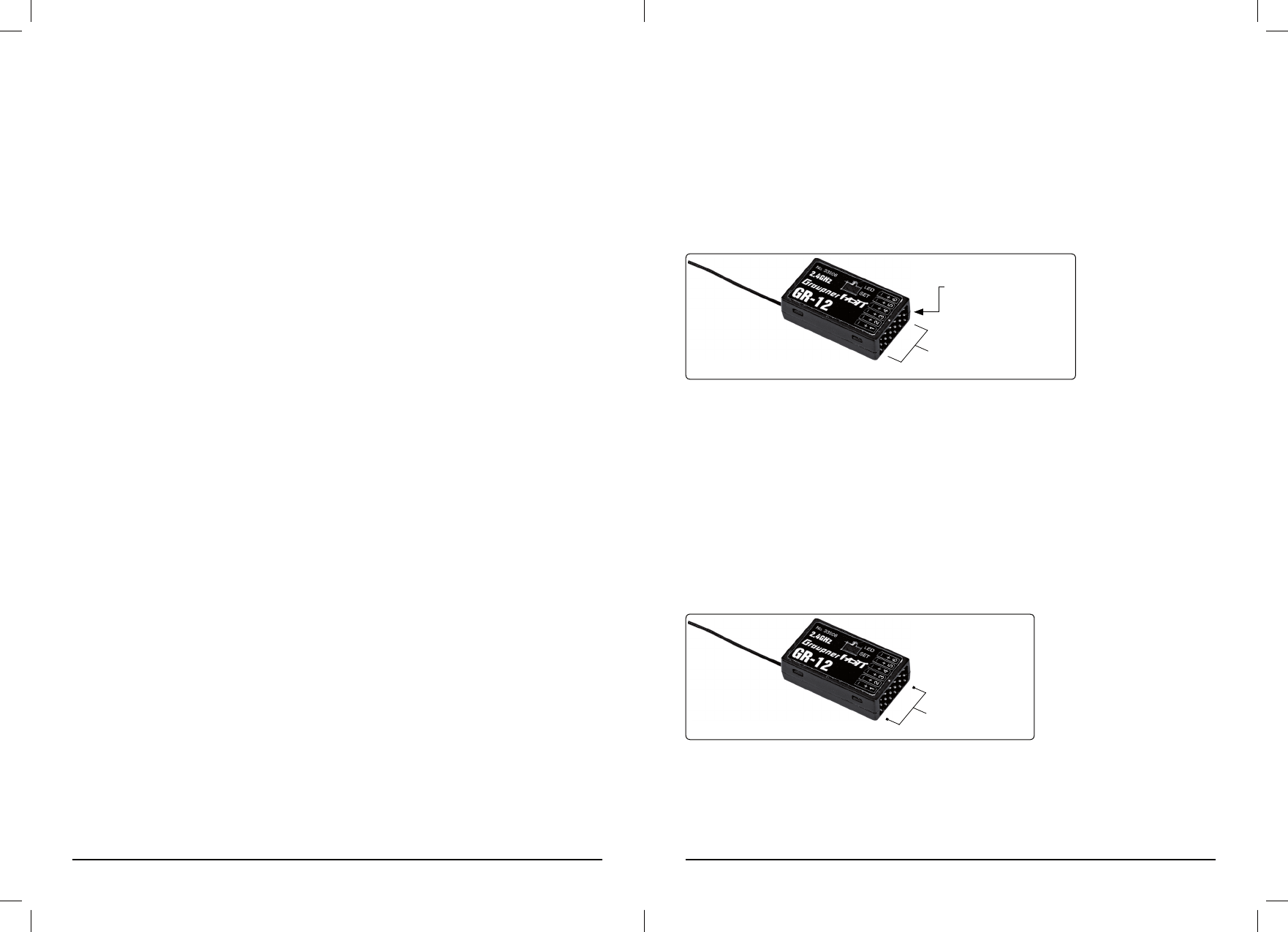

3.1 Connections
Plug the servos into the row of sockets on the right-hand end of the receiver. The connector system is
polarised; note the small chamfer on one edge. Never use force - the plugs should engage easily and
fully. The socket polarity is also marked on the case: brown wire (-), red (+) and orange (signal).
The servo sockets of the Graupner-HoTT 2.4 receiver are numbered. The socket marked “- +/B” is
intended for the battery. If necessary, a servo can be connected to this socket in parallel with the power
supply; a Y-lead (Order No. 3936.11) is required for this.
t is also possible to program channel 6 for the sum signal using the SMART-BOX (Order No. 33700).
This is important for certain optional devices which require this signal.
Servo sockets
Telemetry socket
(channel 5)
Power supply for receiver 33506
When using High Power servos, connect the receiver power supply/s preferably to the vertical ports of
the receiver. If necessary, the servos can be connected to this sockets in parallel with the power supply;
a Y-lead (Order No. 3936.11) is required for this.
When using a dual power supply, use the sockets on the outside:
Receiver 33506 (GR-12): Channel 1 and 6 (or 2 and 5)
The socket marked “5” - channel 5 - is intended for the optional telemetry sensors and is used for loading
fi rmware updates in conjunction with the USB interface. When using the receiver GR-12S (Order No.
33505) the adapter cable Order No. 23048 is also needed.
Note: with telemetry sensors connected to socket 5, servos will not longer work at this output!
3.2. Low voltage warning
If the receiver voltage falls below 3.8 V, the transmitter’s RF module generates a low voltage warning in
the form of a “general alarm sound”: a steady beeping at intervals of about one second.
Channel 1 and 6
3.3. Temperature warning
If the receiver temperature falls below -10° C or exceeds +70° C, the transmitter’s RF module generates
a temperature warning in the form of a “general alarm sound”: a steady beeping at intervals of about
one second.
4. FIRMWARE UPDATE GRAUPNER-HOTT 2.4 RECEIVER 33505 / 33506
Firmware updates for the transmitter RF module or receiver can be transferred via the DATA or telemetry
interface in conjunction with a PC running Windows XP, Vista or 7. For this you also require the USB
interface, Order No. 7168.6, and the adapter lead, Order No. 7168.6A, which are available separately.
When using the receiver GR-12S (Order No. 33505) the adapter cable Order No. 23048 is also nee-
ded.
The programs and fi les required for this are available from www.graupner.de in the Download area for
the corresponding products.
Install the Firmware Update Utility Graupner and the USB drivers on your computer. Check the system
requirements!

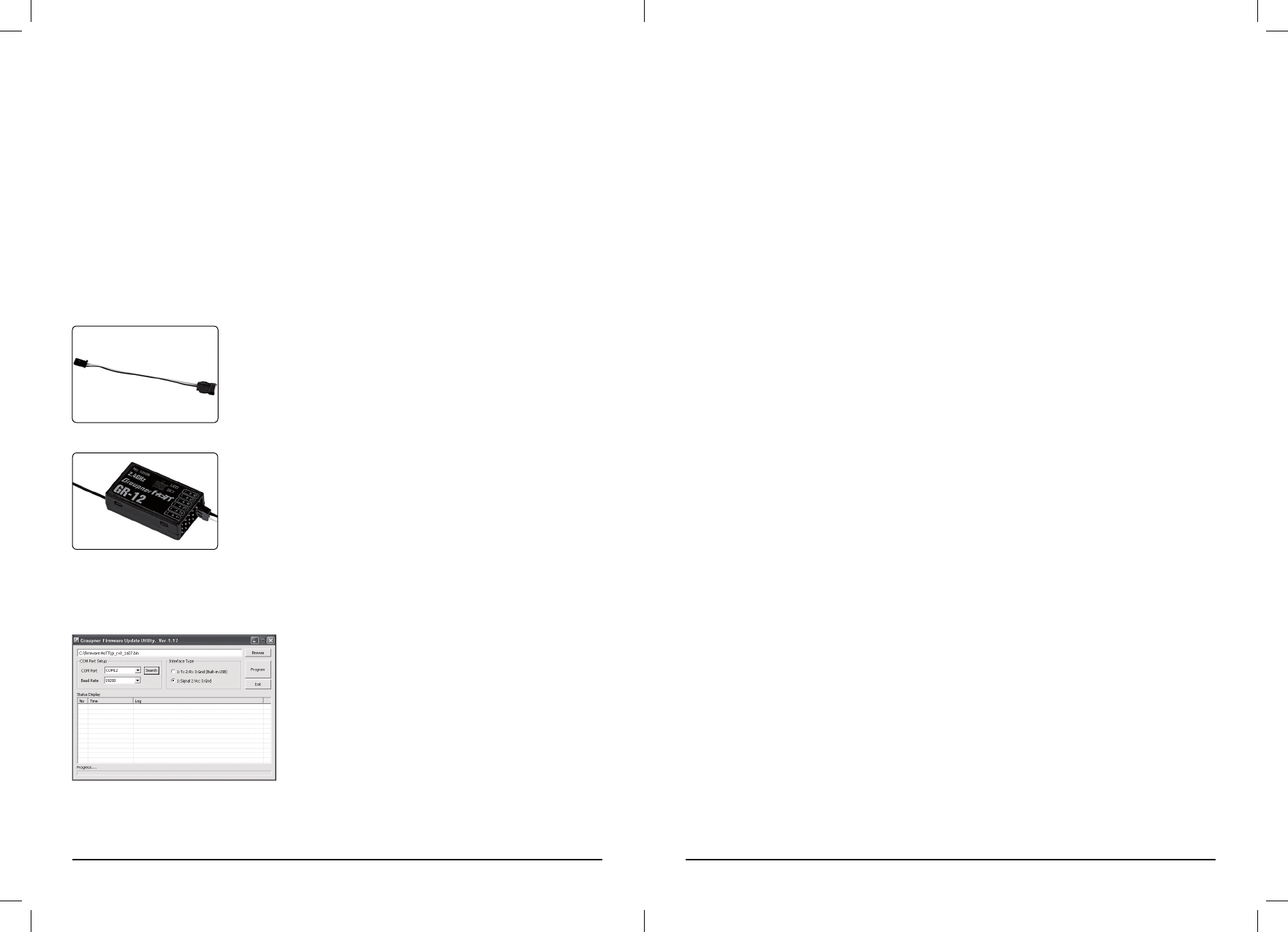

The fi rst step is to cut through the central red wire in the adapter lead,
Order No. 7168.6A, then connect the lead to the USB interface, Order
No. 7168.6. This socket is also polarised; note the small chamfer on one
edge. Never use force - the plug should engage easily and fully.
4.1. Receiver
Receiver GR-12 (Order No. 33506):
Connect the adapter lead to the socket Channel 5 of the receiver, as
shown in the illustration. This socket is also polarised; note the small
chamfer on one edge. Never use force - the plug should engage easily
and fully.
The black wire (-) must be on top, the white wire (T) down.
Receiver GR-12S (Order-No. 33505): the adapter cable Order No. 23048
is also needed.

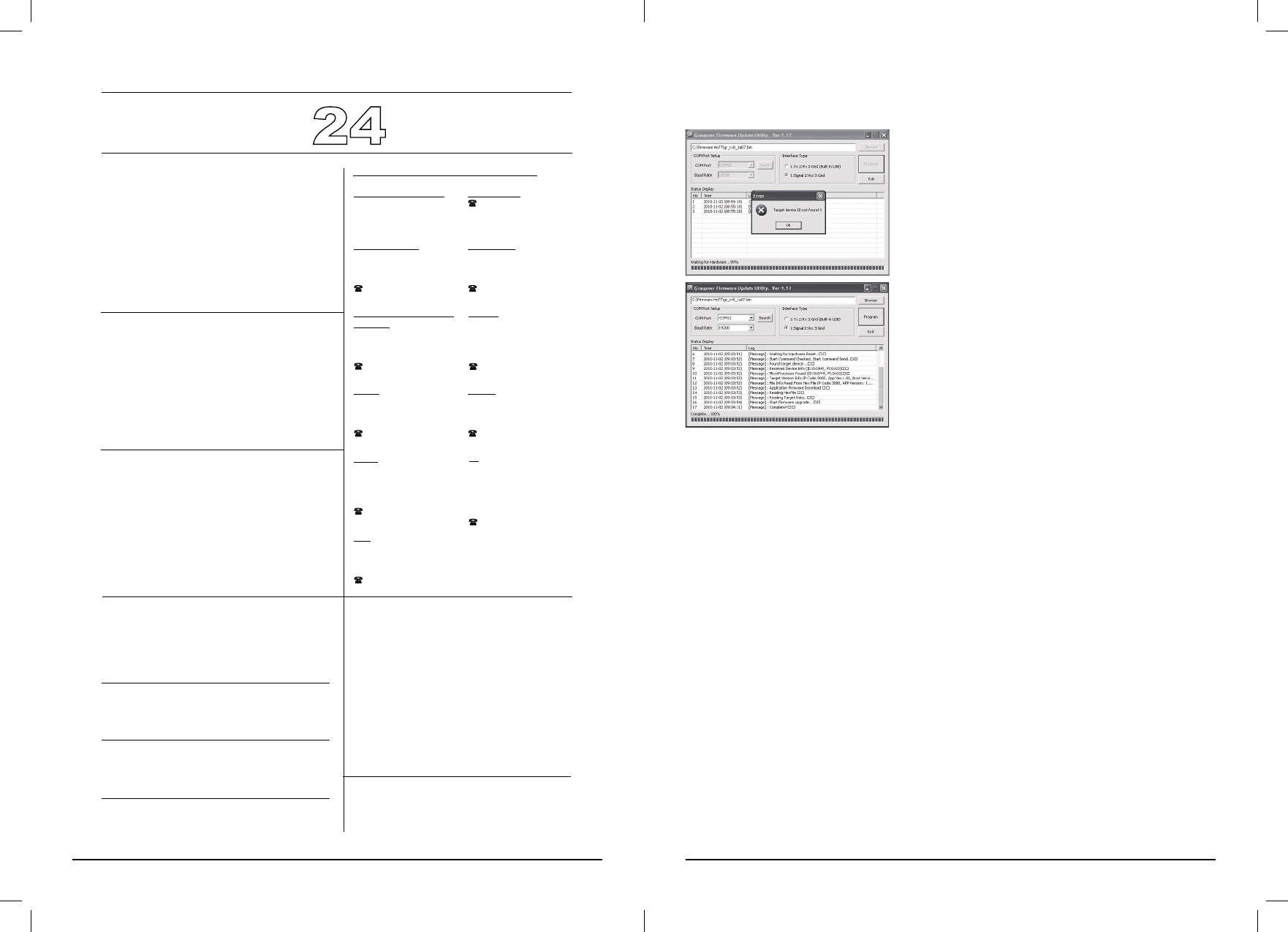

4.2. Update procedure
Ensure that the adapter lead is confi gured as shown in the illustrations, and is connected correctly to
the transmitter or receiver.
Start the Graupner Firmware Update Utility.
Under [COM Port Setup] select the correct COM port, i.e. the
one to which the USB lead is connected. If you are not sure of
this, press the button „Search“ and select in the pop-up window
„Silicon Labs CP210x USB to UART Bridge“ and press „OK“.
Baud Rate: 19200.
Under [Interface Type] click on Signal 2:Vcc3:Gnd.
Now click on the “Browse” button and select the folder con-
taining the previously loaded fi rmware fi le ending in *.bin. If
everything is correct, the fi le will appear in the corresponding
window.
The fi rmware fi les are encoded in product-specifi c form, i.e. if
you accidentally select a fi le which does not match the product (e.g. transmitter update fi le instead of
receiver fi le), then the pop-up window “Product code error” will appear, and you will not be able to start
the update procedure.
03 Manual Receiver GR-12 Graupner HoTT 2.4
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
________________________________________________________________________
Manual Receiver GR-12 Graupner HoTT 2.4 08
Graupner-Zentralservice
Servicestellen / Service / Service après-vente
Italia
France UK
SverigeEspana
SchweizCeská Republika/Slovenská
Republika
Wir gewähren auf dieses Erzeugnis eine / This product is / Sur ce produit nous accordons une
24
Monaten
months
mois
Die Fa. Graupner GmbH & Co. KG, Henriettenstraße 94-96,
73230 Kirchheim/Teck gewährt ab dem Kaufdatum auf
dieses Produkt eine Garantie von 24 Monaten. Die Garan-
tie gilt nur für die bereits beim Kauf des Produktes vorhan-
denen Material- oder Funktionsmängel. Schäden, die auf
Abnützung, Überlastung, falsches Zubehör oder unsach-
gemäße Behandlung zurückzuführen sind, sind von der
Garantie ausgeschlossen. Die gesetzlichen Rechte und
Gewährleistunsansprüche des Verbrauchers werden durch
diese Garantie nicht berührt. Bitte überprüfen Sie vor ei-
ner Reklamation oder Rücksendung das Produkt genau
auf Mängel, da wir Ihnen bei Mängelfreiheit die entstan-
denen Unkosten in Rechnung stellen müssen.
Graupner GmbH & Co. KG, Henriettenstraße 94-96, 73230
Kirchheim/Teck, Germany guarantees this product for a pe-
riod of 24 months from date of purchase. The guarantee
applies only to such material or operational defects witch
are present at the time of purchase of the product. Dama-
ge due to wear, overloading, incompetent handling or the
use of incorrect accessories is not covered by the guaran-
tee. The user´s legal rights and claims under garantee are
not affected by this guarantee. Please check the product
carefully for defects before you are make a claim or send
the item to us, since we are obliged to make a charge for
our cost if the product is found to be free of faults.
La société Graupner GmbH & Co. KG, Henriettenstraße
94-96, 73230 Kirchheim/Teck, Allemagne, accorde sur ce
produit une garantie de 24 mois à partir de la date d´achat.
La garantie prend effet uniquement sur les vices de fonc-
tion-nement et de matériel du produit acheté. Les dom-
mages dûs à de l´usure, à de la surcharge, à de mauvais
accessoires ou à d´une application inadaptée, sont ex-
clus de la garantie. Cette garantie ne remet pas en cau-
se les droits et prétentions légaux du consommateur.
Avant toute réclamation et tout retour du prouit, veuillez
s.v.p. cotrôler et noter exactement les défauts ou vices.
Garantie-Urkunde
Warranty certifi cate / Certifi cate de garantie
Übergabedatum
Date of purchase/delivery
Date de remise
Name des Käufers
Owner´s name
Nom de I`achateur
Straße, Wohnort
Complete adress
Domicie et rue
Firmenstempel und Unterschrift
des Einzelhändlers
Stamp and signature of dealer
Cachet de la fi rme et signature
du detailant
Graupner GmbH & Co. KG
Henriettenstrasse 94-96
D-73230 Kirchheim / Teck
Servicehotline
(+49) 01805 47 28 76
Montag - Freitag 7:30 -11:45
und 12:30 -16:00 Uhr
Anguera Hobbies
C/Terrassa 14
E 43206 Reus (Tarragona)
(+34) 97 77 55 32 0
Graupner Service France
Gérard Altmayer
86, rue St. Antoine
F 57601 Forbach-Oeting
(+33) 3 87 85 62 12
GiMax
Via Manzoni, no. 8
I 25064 Gussago
(+39) 30 25 22 73 2
Baltechno Electronics
P.O. Box 5307
S 40227 Göteborg
(+46) 31 70 73 00 0
Graupner Service Schweiz
Kirchweg 18
CH-5614 Sarmenstorf
(+41) 56 66 71 49 1
Graupner Service UK
Brunel Drive
GB, NEWARK, Nottingham-
shire
NG242EG
(+44) 16 36 61 05 39
RC Service Z. Hnizdil
Letecka 666/22
CZ-16100 Praha 6 - Ruzyne
(+42) 2 33 31 30 95
Kit Flammang
129, route d’Arlon
L 8009 Strassen
(+35) 23 12 23 2
Jan van Mouwerik
Slot de Houvelaan 30
NL 3155 Maasland VT
(+31)10 59 13 59 4
Garantie von
warrantied for
garantie de
CD-Electronics GmbH
Belgie/Nederland Luxembourg
33505 Receiver GR-12S
33506 Receiverer GR-12
07 Manual Receiver GR-12 Graupner HoTT 2.4
Press the “Program” button in the software. Wait briefl y until you see movement in the progress bar. This
make take up to fi ve seconds, depending on the computer.
Receiver: press the SET button, and switch the receiver on while you hold it pressed in.
After a few seconds the Status screen displays the message
“Found target device…”; you can now release the button, and
the fi rmware update process commences.
If the device is not recognised, if the pop-up window “Target de-
vice ID not found” appears, or if the process fails before 100%
is reached, you must restart the update procedure. Repeat all
the steps as described above.
The Status display and the Progress bar show the progress of
the fi rmware update. The update is completed when the mes-
sage “Complete…100%” or “Complete!!” appears.
During the update process both LEDs on the transmitter glow
constantly. When it is complete, the red LED goes out and you
will hear a brief confi rmation melody. The green LED on the
receiver also light up; when the process is complete, the green
LED starts fl ashing.
Switch your transmitter / receiver off, and disconnect the ad-
apter lead.
Caution: after completing an update process, you must initialise the device before using it, i.e.
reset it to the factory default values.
Initialisation:
Transmitter: To initialise the system, i.e. to reset it to the factory default settings, locate the BIND /
RANGE button on the back of the transmitter, hold it pressed in while you switch the transmitter on, then
release the BIND / RANGE button again.
Receiver: Press and hold the SET button on the receiver, switch it on, and release the SET button
again. After about two or three seconds the green LED on the receiver lights up to confi rm that your radio
control system has been re-initialised.
Please note:
The initialisation procedure erases ALL the settings you have entered. Where necessary, you will need
to program your preferred settings again.
When initialisation is complete, the transmitter will be in Fail-Safe set-up mode. You can therefore imme-
diately continue by programming your fail-safe settings.
If you previously set your transmitter’s Country setting to “France” mode, you must also re-enter the
Country setting.
Please refer to the appropriate section in your RC system instructions for the procedure.
Any settings you have entered using the SMART-BOX are also lost when you initialise the recei-
ver. If you carry out a receiver fi rmware update, you will need to re-enter these settings.
The latest version of these instructions can be found at www.graupner.de
Manual Receiver GR-12 Graupner HoTT 2.4 04
Konformitätserklärung gemäß dem Gesetz über Funkanlagen und
Telekomunikationsendeinrichtungen (FTEG) und der Richtlinie 1999/5/EG (R&TTE)
Declaration of Conformity in accordiance with the Radio and Telecomunikations Terminal Equipment
Act (FTEG) and Directive 1999/5/EG (R&TTE)
Graupner GmbH & Co. KG
Henriettenstraße 94-96
D-73230 Kirchheim/Teck
erklärt, dass das Produkt:
declares that the product
Geräteklasse: 2
Equipment class
den grundlegenden Anforderungen des § 3 und den übrigen einschlägigen Bestimmungen des
FTEG (Artikel 3 der R&TTE) entspricht.
complies with the essential requirements of § 3 and the other relevant provisions of the FTEG (Article 3 of the
R&TTE Directive).
Angewendete harmonisierte Normen:
Harmonised standards applied
EN 60950:2006
EN 301 489-1 V1.7.1
EN 301 489-3 V1.4.1
EN 300 328 V1.7.1
Health and safety requirements pursuant to § 3 (1) 1. (Article 3 (1) a))
Protection requirement concernig electromagnetic compatibility
§ 3 (1) 2, Artikel 3 (1) b))
Measures for the efficient use of the radio frequency spectrum
§ 3 (2) (Article 3 (2))
Kirchheim, 08. Dezember 2010 Stefan Graupner, Geschäftsführer
Stefan Graupner, Managing Director
Graupner GmbH & Co. KG Henriettenstraße 94-96 D-73230 Kirchheim/Teck Germany
Tel: 07021/722-0 EMail: info@graupner.deFax: 07021/722-188
Gesundheit und Sicherheit gemäß § 3 (1) 1. (Artikel 3 (1)a))
Schutzanforderungen in Bezug auf elektromagnetische
Verträglichkeit § 3 (1) 2, Artikel 3 (1) b))
Maßnahmen zur effizienten Nutzung des Frequenzspektrums
§ 3 (2) (Artikel 3 (2))
mx-12 HoTT - No. 4754, mx-16 HoTT - No. 4755,
GR-12S HoTT - No. 33505, GR-12 HoTT - No. 33506,
GR-16 HoTT - No. 33508, GR-24 HoTT - No. 33512,
GR-32 HoTT - No. 33516
DECLARATION OF CONFORMITY
05 Manual Receiver GR-12 Graupner HoTT 2.4
ENVIRONNEMENTAL PROTECTION NOTES
When this product comes to the end of its useful life, you must not dispose of it in the or-
dinary domestic waste. The correct method of disposal is to take it to your local collection
point for recycling electrical and electronic equipment. The symbol shown here, which may
be found on the product itself, in the operating instructions or on the packaging, indicates
that this is the case.
Individual markings indicate which materials can be recycled and re-used. You can make
an important contribution to the protection of our common environment by re-using the product, recyc-
ling the basic materials or recycling redundant equipment in other ways.
Remove batteries from your device and dispose of them at your local collection point for batteries.
In case of R/C models, you have to remove electronic parts like servos, receiver, or speed controller
from the product in question, and these parts must be disposed of with a corresponding collection point
for electrical scrap.
If you don’t know the location of your nearest disposal centre, please enquire at your local council of-
fi ce.
Manual Receiver GR-12 Graupner HoTT 2.4 06
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator &
your body
