Manual

Graupner GmbH & Co. KG

Henriettenstraße 94 – 96

D-73230 Kirchheim/Teck

Germany

www.graupner.de

Änderungen sowie Liefermöglichkeiten vorbehalten. Lieferung durch den Fachhandel. Bezugsquellen

werden nachgewiesen. Für Druckfehler kann keine Haftung übernommen werden.

Speciﬁ cations and availability subject to change. Supplied through specialist model shops only. We will

gladly inform you of your nearest supplier. We accept no liability for printing errors.

Sous réserve de modiﬁ cations et de possibilité de livraison. Livraison uniquement au travers de maga-

sins spécialisés en modélisme. Nous pourrons vous communiquer l’adresse de votre revendeur le plus

proche. Nous ne sommes pas responsables d’éventuelles erreurs d’impression.

Con riserva di variazione delle speciﬁ che e disponibilità del prodotto. Fornitura attraverso rivenditori

specializzati.Saremmo lieti di potervi indicare il punto vendita più vicino a voi. Si declina qualsiasi res-

ponsabilità per errori di stampa.

EN V1.0 PN.QH-01

Manual

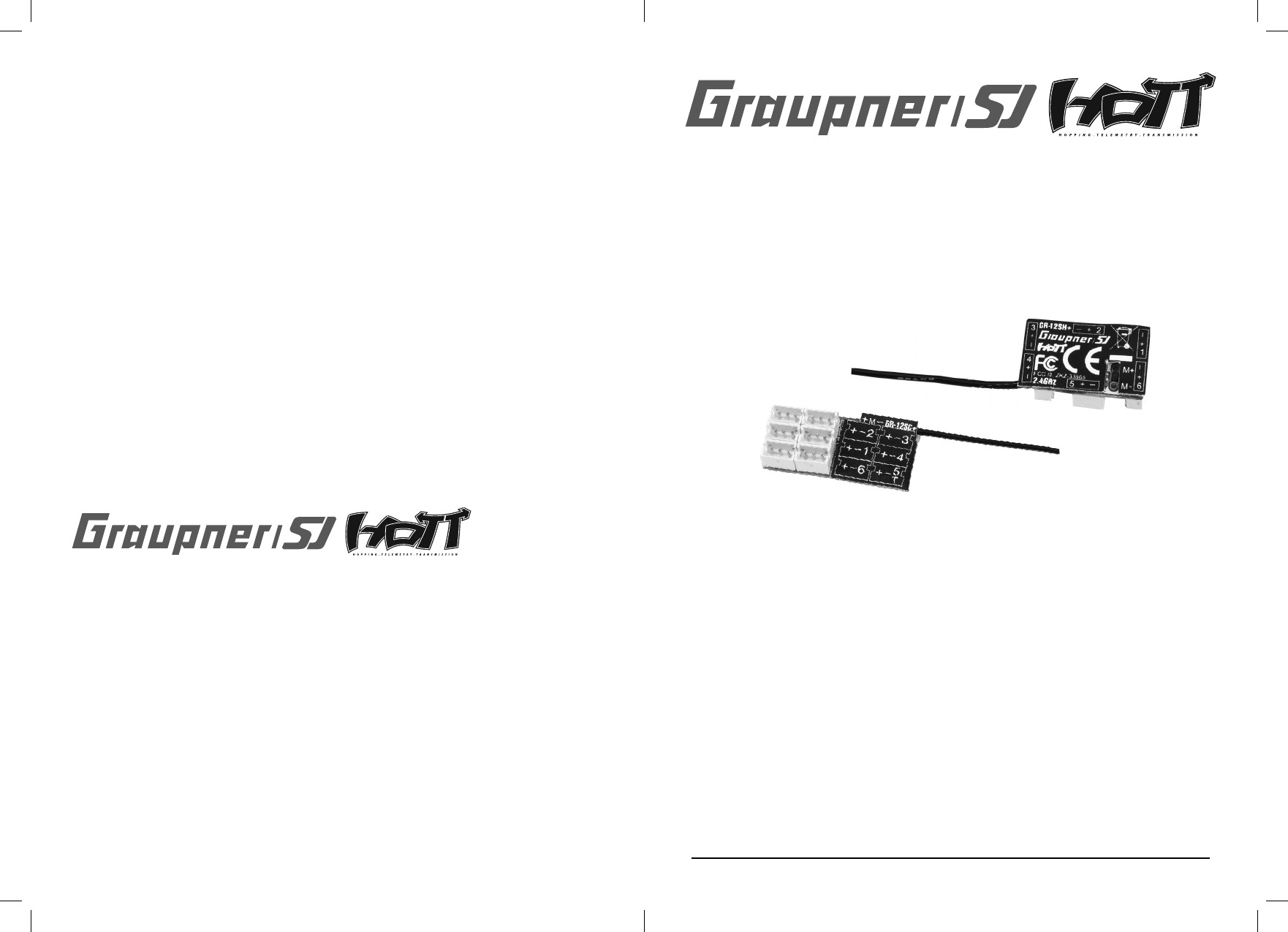

33565 Receiver GR-12SH+ HoTT

33566 Receiver GR-12SC+ HoTT

CONTENTS:

1. General Note .............................................................................................................. 01

2. Functions ....................................................................................................................01

2.1. Binding .........................................................................................................................01

2.2. Fail-Safe Function ........................................................................................................ 02

3. Receiver ...................................................................................................................... 02

3.1. Connections .................................................................................................................02

3.2. Programming ............................................................................................................... 02

3.3. Operation .....................................................................................................................02

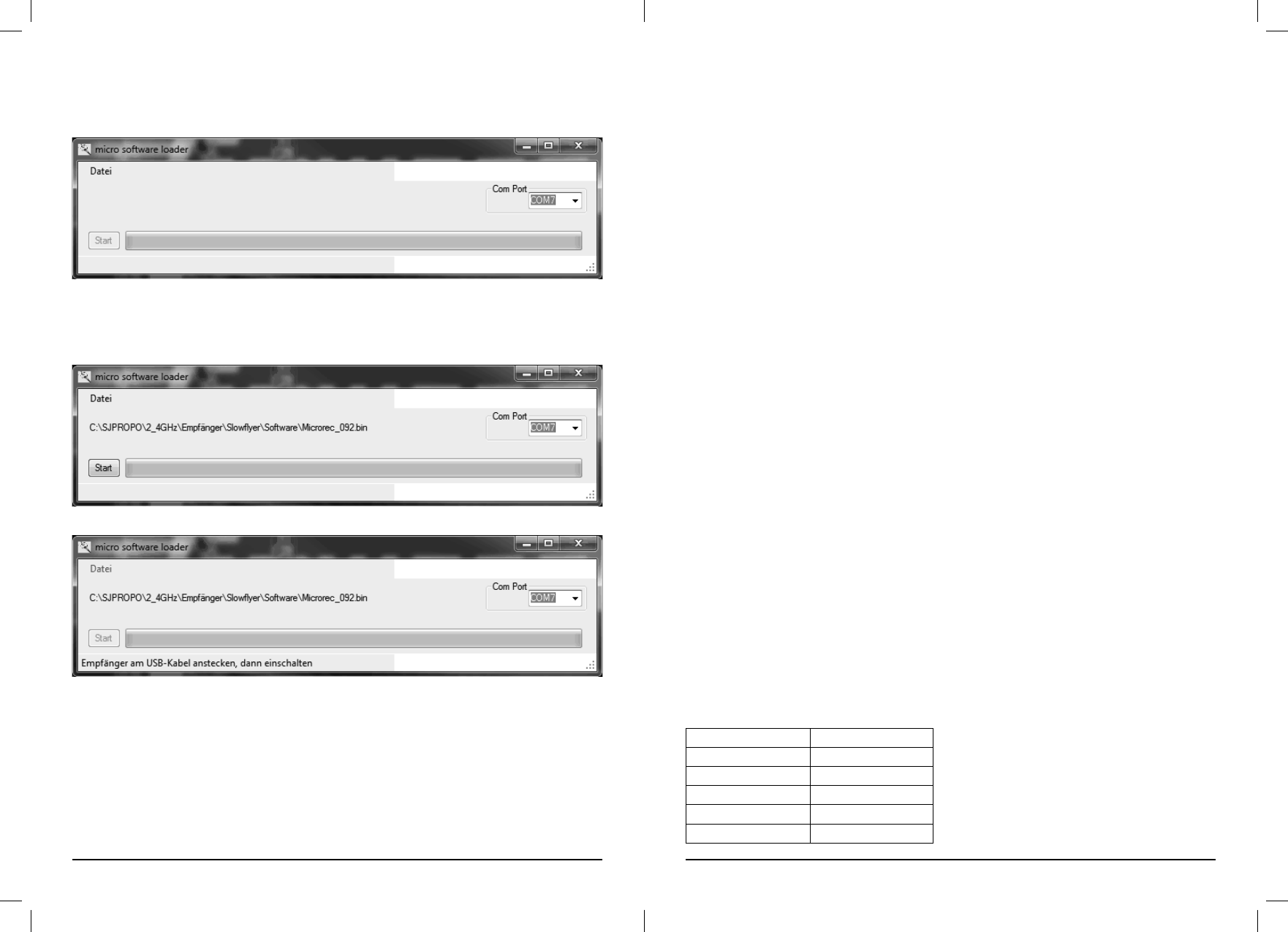

4. Firmware Update ........................................................................................................04

4.1. Update Procedure ........................................................................................................ 05

5. Declaration of Conformity .........................................................................................07

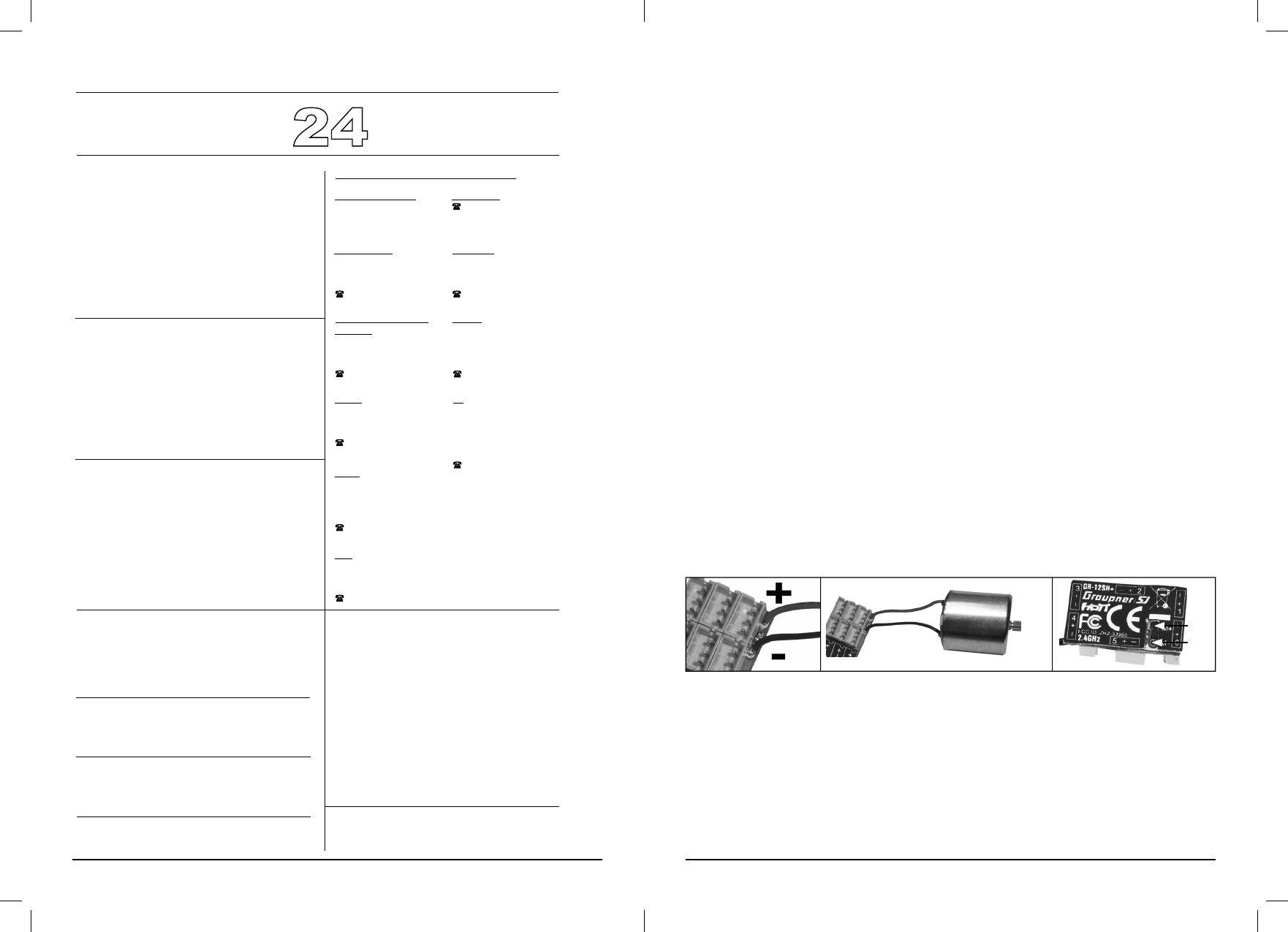

6. Warranty ..................................................................................................................... 09

GRAUPNER GmbH & Co. KG – Postfach 1242 – 73230 Kirchheim/Teck – www.graupner.de

Manual V1.0

Revision: August 2012

Thank you for purchasing the receiver GR-12SH+ or SC+ for the Graupner HoTT 2.4 System. Please read

through this entire manual before you attempt the installation and usage of your Graupner HoTT 2.4 System!

These operating instructions are part of this product. They contains important notes to the operation and hand-

ling. Please take this into consideration when you pass on the product to third parties. Neglect of the operating

instructions and the safety instructions lead to expiring the warranty.

Graupner constantly work on the advancement of all remote control systems; changes of the scope of de-

livery in form, technology and equipment we must reserve ourselves therefore. Please have understanding

for the fact that from data and illustrations of this operating instructions no requirements can be derived.

Please keep these instructions for further reference!

Intended use

The receiver is speciﬁ cally designed for slow-ﬂ y models whose components are ﬁ tted with SH or ZH connec-

tors. The maximum range is around 300 m, which is appropriate to this type of model. The receiver must not be

used in any model which requires greater range, or whose servos draw a current which exceeds the maximum

permissible for SH connectors (#33565 max. 0.5 A) or ZH connectors (#33566 max. 1 A).

This product works with any Graupner HoTT 2.4 GHz transmitter, but with no others. If you do not own a

Graupner HoTT 2.4 system, the receiver will not function. This product is not compatible with any other 2.4 GHz

radio control system. It is not suitable for young people under fourteen years. If a young person below that age

wishes to use it, he or she must be supervised by an adult.

Before using the receiver for the ﬁ rst time, please read and observe all the warnings and safety notes in these

instructions and on the packaging.

WARNINGS

Do not connect servos to this receiver whose current drain exceeds the maximum permissible for•

SH connectors (#33565 max. 0.5 A) or ZH connectors (#33566 max. 1 A).

If channel 1 is used as an electronic speed controller, the continuous current of the motor connec-•

ted to it must never exceed 2 A, otherwise the receiver could be ruined!

If several independent models / receivers are operated close together - e.g. for glider towing - the receivers •

must be kept a minimum of 50 cm apart, otherwise there is a danger of interaction between them. For the

same reason the pilots on the ground should stand at least 5 m apart.

1. GENERAL NOTE

When switching on or adjusting the radio control system it is essential to keep the transmitter aerial at least 15

cm away from the receiver aerials at all times. If the transmitter aerial is too close to the receiver aerials, the

receiver will be overloaded, causing the red LED starts ﬂ ashing. The transmitter responds by emitting a beep

once every second; the red LED also goes out. The radio control system is now in Fail-Safe mode.

If this should occur, simply increase the distance between the aerials until the audible warning signal ceases,

and the red LED on the transmitter lights up again; at the same time the red LED on the receiver should go

out.

2. FUNCTIONS

2.1. Binding

When you wish to use the Graupner HoTT 2.4 GHz receiver with a particular transmitter, the ﬁ rst step must

always be to “bind” the unit to “its” Graupner HoTT 2.4 GHz RF module (transmitter). This “binding” procedure

only needs to be carried out once for each combination of receiver and RF module. The units supplied in the

set are already bound to each other at the factory, i.e. the binding procedure described in the following section

only needs to be carried out when you wish to use an additional receiver. However, it can also be repeated at

any time if required, e.g. after changing transmitters. Please refer to the „BINDING“ section in your RC system

or module instructions for the procedure.

When binding is required, this is the procedure:

• Switch the transmitter and receiver on.

Unless the receiver has already been bound to the transmitter, it automatically enters BIND mode when •

initially switched on. If you have already completed the binding procedure for this combination of transmitter

and receiver, the red LED on the receiver goes out, and the model can be operated immediately. If the LED

does not go out, please follow this procedure:

• Transmitter with HoTT module: locate the BIND / RANGE button on the back of the transmitter, and hold

it pressed in while you press and hold the SET button on the receiver. Both LEDs on the back of the trans-

01 Manual Graupner HoTT 2.4 Manual Graupner HoTT 2.4 10

________________________________________________________________________

Federal Communication Commission Interference Statement：

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

4) Consult the dealer or an experienced radio/TV technician for help..

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate this equipment.

Important Note:

This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance

requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be

maintained between the antenna and the users for the host this module is integrated into. Under such configuration,

the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied.

This device is going to be operated in 2404~2479GHz frequency range, it is restricted in outdoor environment only.

User Manual of The End Product:

In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the

antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-

frequency exposure guidelines for an uncontrolled environment can be satisfied.

The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer

could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then

additional FCC part 15.19 statement is required to be available in the users manual.

Label and manual requirements for the End Product:

For an end product using this module,there must be a label containing, at least, the following information.

FCC ID certification number for model : 33566

This device contains FCC ID : ZKZ-33566

The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in

compliance with the modular approval guidelines developed by the FCC.Where the 33566 will be installed in final

products larger than 8cm × 10cm following statements has to be placed onto the device .

"Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause undesired operation."

Assure Compliance:

The use of the modular transmitter is only approved to be used inside the specified equipment which compliance with

all the instruction was subjected. We assure the compliance of the end product when it is assembled inside the

specified equipment.

FCC Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your

body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Antenna:

This device shall only be used with the tested antenna and separate approval is required for all other operating

configurations.

OEM Integrator Manual

09 Manual Graupner HoTT 2.4

Graupner-Zentralservice

Servicestellen / Service / Service après-vente

Italia

France

Espana

SchweizCeská Republika/Slovenská

Republika

Wir gewähren auf dieses Erzeugnis eine / This product is / Sur ce produit nous accordons une

Monaten

months

mois

Garantie-Urkunde

Warranty certiﬁ cate / Certiﬁ cat de garantie

Übergabedatum

Date of purchase/delivery

Date de remise

Name des Käufers

Owner´s name

Nom de I`acheteur

Straße, Wohnort

Complete adress

Adresse complète

Firmenstempel und Unterschrift des Einzelhändlers

Stamp and signature of dealer

Cachet et signature du vendeur

Graupner GmbH & Co. KG

Henriettenstrasse 94-96

D-73230 Kirchheim / Teck

Servicehotline

(+49) 01805 47 28 76

Montag - Freitag 7:30 -11:45

und 12:30 -16:00 Uhr

Anguera Hobbies

C/Terrassa 14

E 43206 Reus (Tarragona)

(+34) 97 77 55 32 0

Graupner Service France

Gérard Altmayer

86, rue St. Antoine

F 57601 Forbach-Oeting

(+33) 3 87 85 62 12

GiMax

Via Manzoni, no. 8

I 25064 Gussago

(+39) 30 25 22 73 2

Graupner Service Schweiz

Kirchweg 18

CH-5614 Sarmenstorf

(+41) 56 66 71 49 1

Graupner Service UK

Brunel Drive

GB, NEWARK, Nottingham-

shire

NG242EG

(+44) 16 36 61 05 39

RC Service Z. Hnizdil

Letecka 666/22

CZ-16100 Praha 6 - Ruzyne

(+42) 2 33 31 30 95

Kit Flammang

129, route d’Arlon

L 8009 Strassen

(+35) 23 12 23 2

Jan van Mouwerik

Slot de Houvelaan 30

NL 3155 Maasland VT

(+31)10 59 13 59 4

Garantie von

warrantied for

garantie de

CD-Electronics GmbH

Belgie/Nederland Luxembourg

Die Fa.Graupner GmbH & Co. KG, Henriettenstrasse

94-96,

73230 Kirchheim/Teck gewährt ab dem Kaufdatum

auf dieses Produkt eine Garantie von 24 Monaten. Die

Garantie gilt nur für die bereits beim Kauf des Produktes

vorhandenen Material- oder Funktionsmängel. Schäden,

die auf Abnützung, Überlastung, falsches Zubehör oder

unsachgemäße Behandlung zurückzuführen sind, sind von

der Garantie ausgeschlossen. Die gesetzlichen Rechte

und Gewährleistunsansprüche des Verbrauchers werden

durch diese Garantie nicht berührt. Bitte überprüfen Sie vor

einer Reklamation oder Rücksendung das Produkt genau

auf Mängel, da wir Ihnen bei Mängelfreiheit die entstan-

denen Unkosten in Rechnung stellen müssen.

Graupner GmbH & Co. KG, Henriettenstrasse 94-96,

73230 Kirchheim/Teck, Germany guarantees this product for

a period of 24 months from date of purchase. The guaran-

tee applies only to such material or operational defects

witch are present at the time of purchase of the product.

Damage due to wear, overloading, incompetent handling or

the use of incorrect accessories is not covered by the

guarantee. The user´s legal rights and claims under garan-

tee are not affected by this guarantee. Please check the

product carefully for defects before you are make a claim or

send the item to us, since we are obliged to make a charge

for our cost if the product is found to be free of faults.

La société Graupner

GmbH & Co. KG, Henriettenstrasse

94-96,

73230 Kirchheim/Teck, Allemagne, accorde sur ce

produit une garantie de 24 mois à partir de la date d´achat. La

garantie prend effet uniquement sur les vices de fonction-

nement et de matériel du produit acheté. Les dommages

dûs à de l´usure, à de la surcharge, à de mauvais acces-

soires ou à d´une application inadaptée, sont exclus de la

garantie. Cette garantie ne remet pas en cause les droits

et prétentions légaux du consommateur. Avant toute

réclamation et tout retour du produit, veuillez s.v.p.

contrôler et noter exactement les défauts ou vices.

33565 GR-12SH+

33566 GR-12SC+

mitter now glow constantly, and the red LED on the receiver is on.

or: select the transmitter menu „Basic Settings, Model“ and use Use the  arrow keys of the left or right

touch pad to move to the screen‘s „RF bind“ line“. Now start the so-called „receiver binding“ process for the

receiver to the currently active model memory by brieﬂ y pressing the center SET button of the right touch

pad. At this time the screen‘s display will begin to indicate the duration of the „bond“.

• If the red LED of the receiver expires within about ten seconds, this indicates that the binding process is

complete. You can now release both buttons, and your transmitter / receiver combination is ready for use.

• However, if the red LED on the receiver continues to ﬂ ash for longer than ten seconds, then the binding

process has failed. If this should occur, repeat the whole procedure.

2.2. Fail-Safe function

The receiver supports all transmitter-side fail-safe settings. You can exploit the safety potential of the fail-safe

option by at least programming the throttle channel to respond to a fail-safe situation: the throttle channel of an

engine-powered model should be set to idle, the throttle channel of an electric-powered model to “stop”, and

the throttle channel of a model helicopter to “Hold”. If interference should occur, these settings will help prevent

the model ﬂ ying out of control, possibly causing personal injury or property damage.

Please refer to the appropriate section in your RC system or module instructions for the procedure.

2.3. Range warning

The transmitter always emits an audible range warning in the form of a beep at a rate of about once per second

when the receiver signal in the downlink channel becomes too weak. However, since the transmitter operates

at much higher power than the receiver, the model can still be controlled safely. In the interests of safety you

should nevertheless reduce the distance to the model until the audible signal ceases again. If the audible

warning signal continues even when the receiver is (very) close, the transmitter’s low-voltage or temperature

warning has been triggered! If this should occur, cease operations immediately and recharge the appropriate

battery.

3. RECEIVER

3.1 Connections

Connect the servos to the sockets on the top of the receiver. The SH and ZH connector systems are polarised;

check for the small lateral lugs. On no account use force to push the connector in; it should engage easily. The

sockets are correctly marked: brown wire (-), red wire (+) and orange (signal).

The servo sockets of Graupner HoTT 2.4 GHz receivers are numbered. Note that a brushed electric motor

with a maximum continuous current of 2 A can be connected to channel 1 instead of a servo; in this case the

wires should be soldered to the solder pads, as shown in the photo. Channel 1 now operates as an electronic

speed controller.

Channel 6 can also be programmed for the HoTT sum signal, if you are using a suitable HoTT transmitter or

the SMART-BOX (Order No. 33700). This is important for optional devices which require this signal. In the

same way channel 5 can also be programmed for voltage measurement (max. 25.2 V DC), e.g. to monitor the

receiver battery - see the point entitled ‘Voltage measurement’.

3.2 Programming:

The receiver can also be programmed using any suitable HoTT transmitter or the SMART-BOX (Order No.

33700). Five free mixers are available in addition to a number of receiver-speciﬁ c settings.

3.3 Operation

The receiver set-up menu appears in the “Telemetry” menu under SETUP / DISPLAYS or under SETTING &

DATAVIEW if you are using the SMART-BOX. Please read the operating instructions supplied with your trans-

mitter or the Smart-Box to ﬁ nd out how to access this menu.

Manual Graupner HoTT 2.4 02

33565

33566

RECEIVER:

Parameter Description Setup

RECEIVER 0.92 0.92 shows the ﬁ rmware version of the receiver -

ALARM VOLT. Alarm threshold of the receiver undervoltage

warning

3.0 - 24.0 V

factory setting: 3.8 V

ALARM TEMP. Alarm threshold for excessively high temperature

of the receiver

50 - 80° C

factory setting: +70° C

PERIOD Cycle time in ms 10 / 20 ms

SUMH at CH6 Sum signal HoTT at channel 6 Yes / No

VOLTAGE at CH5 Voltage metering at channel 5 -

LANGUAGE Select menu language german, english, french,

italian and spain

Low voltage warning (ALARM VOLT): if the receiver voltage falls below the selected voltage, the

transmitter’s RF module generates a low voltage warning in the form of a “general alarm sound”: a stea-

dy beeping at intervals of about one second or the voice announcement „receiver voltage“.

Temperature warning (ALARM TEMP): if the receiver temperature falls below the selected temperature,

the transmitter’s RF module generates a temperature warning in the form of a “general alarm sound”: a

steady beeping at intervals of about one second or the voice announcement „receiver temperature“.

Cycle time (PERIOD): with the use of only digital servos, a cycle time of 10 ms can be set. In mixed operation

or with use of only analog servos, 20 ms should absolutely be set, because the latter can otherwise be „over-

strained“ and react with „shaking“ or „quivering“ as a result.

HoTT Sum signal (SUMH):

if the digital HoTT sum signal at channel 6 is activated, the sum signal with up to

eight channels is generated at this socket instead of a servo signal. This is important for optional devices which

require this signal.

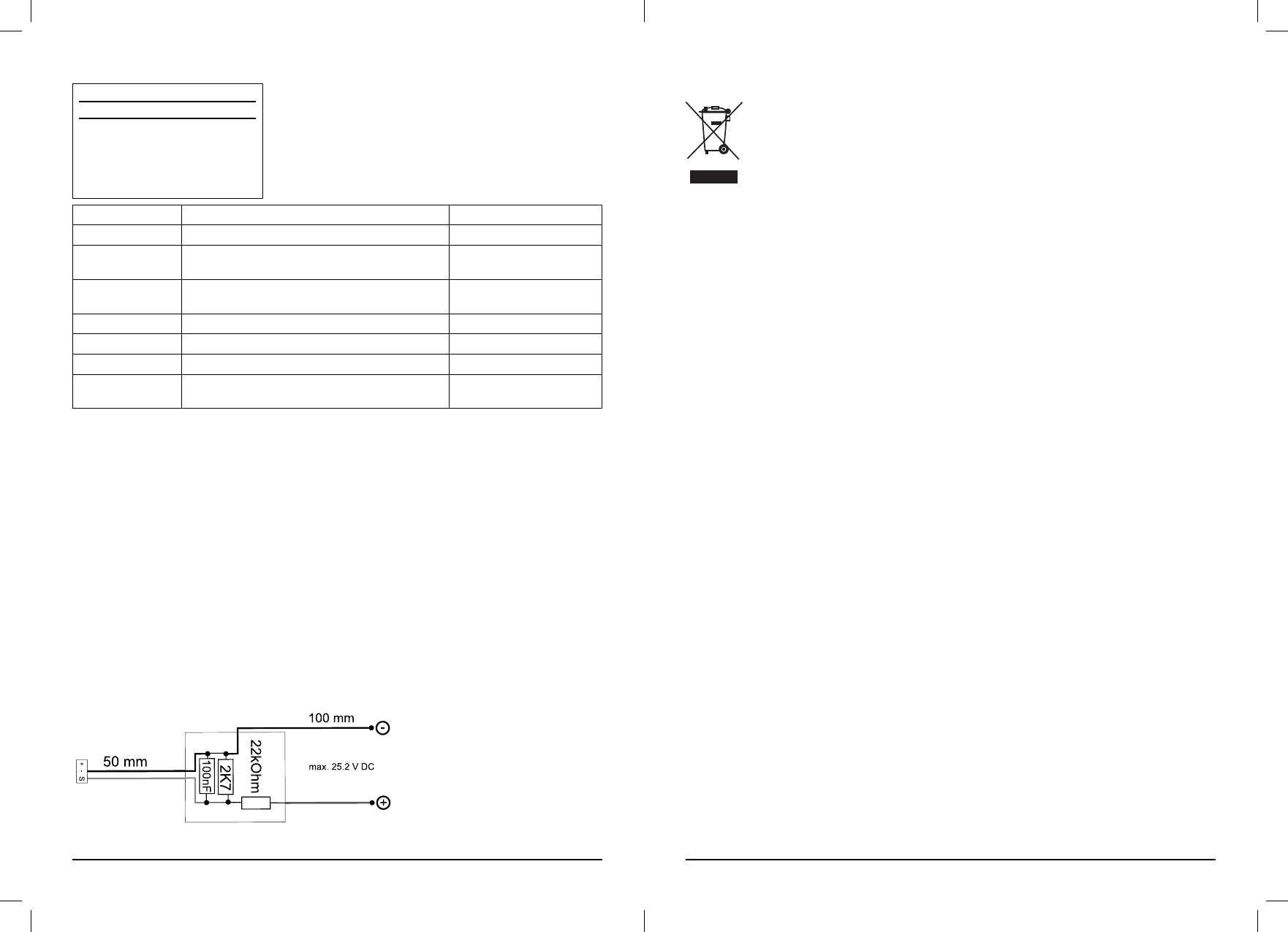

Voltage measurement (VOLTAGE at CH5): if voltage measurement at channel 5 is activated, a voltage up to

max. 25.5 V DC can be monitored via this input using the circuit described below, instead of a servo. The volta-

ge is then displayed on the screen instead of the receiver voltage. This provides a direct means of monitoring

the ﬂ ight battery without the need for an additional sensor.

Note: Additional sensors can not be connected to the receiver at the moment!

← Channel 5

03 Manual Graupner HoTT 2.4

ALARM VOLT:

ALARM TEMP:

PERIOD:

SUMH at CH6:

VOLTAGE at CH5:

LANGUAGE:



RECEIVER 0.92 < >

3.8V

70°C

20ms

english

Manual Graupner HoTT 2.4 08

ENVIRONNEMENTAL PROTECTION NOTES

When this product comes to the end of its useful life, you must not dispose of it in the or-

dinary domestic waste. The correct method of disposal is to take it to your local collection

point for recycling electrical and electronic equipment. The symbol shown here, which may

be found on the product itself, in the operating instructions or on the packaging, indicates

that this is the case.

Individual markings indicate which materials can be recycled and re-used. You can make an

important contribution to the protection of our common environment by re-using the product, recycling

the basic materials or recycling redundant equipment in other ways.

Remove batteries from your device and dispose of them at your local collection point for batteries.

In case of R/C models, you have to remove electronic parts like servos, receiver, or speed controller

from the product in question, and these parts must be disposed of with a corresponding collection point

for electrical scrap.

If you don’t know the location of your nearest disposal centre, please enquire at your local council of-

ﬁ ce.

07 Manual Graupner HoTT 2.4

FREE MIXER:

Important notice:

If you have already programmed mixer functions in the „Wing mixer“

or „Free mixer“ menu, make absolutely sure that these mixers do not

overlap with those in this menu!

puteSnoitpircseDretemaraP

5....2 ,1noitceles rexiMREXIM

MASTER CH Signal source or source channel 0,1,2,...6

6...,2,1,0lennahc tegraTHC EVALS

%51 + - 51-% ni noitisop mirTMIRT

%051 - 0evitagen ximdA-LEVART

%051 - 0evitisop ximdA+LEVART

MIXER: Up to ? ve mixers can be programmed simultaneously. Switch between Mixer 1, Mixer 2,... and Mixer

5 through „MIXER“.

The following settings in this display always for just the mixer selected in the „MIXER“ line.

MASTER CH („from“): the signal applied at the MASTER CH (signal source or source channel) is mixed to

a variable extent to the SLAVE CH (target channel). According to the same principles described in the section

„Free mixer“ of the HoTT transmitters.

SLAVE CH („to“): The signal of the MASTER CH (source channel) is mixed proportionally to the SLAVE CH

(target channel). The degree of mixture is determined by the percentages entered in the lines „TRAVEL–“ and

„TRAVEL +“. Select „00“ if no mixer should be set.

TRAVEL–/+ (proportion of the admix in %): With the settings of these two lines the percentage of the admix

is speci? ed in relation to the MASTER signal separately for each direction.

4. FIRMWARE UPDATE GR-12SH+/SC+ RECEIVER

Firmware updates for the receiver can be transferred via the socket „T“ in conjunction with a PC running Win-

dows XP, Vista or 7. For this you also require the USB interface, Order No. 7168.6, and the adapter leads Order

No. 7168.S and Order No. 23048 (for 33566), which are available separately.

The program „micro software loader“ and ? les required for this are available from www.graupner.de in the

Download area for the corresponding products.

Caution: disconnect all servos from the receiver before carrying out an update, as they could run un-

controllably to one end-point during the procedure, and possibly cause damage to the model.

Manual Graupner HoTT 2.4 04

MIXER:

MASTER CH:

SLAVE CH:

TRIM:

TRAVEL -:

TRAVEL+:



RX FREE MIXER <

+0%

+100%

4.1. Update process

Start the program „micro software loader“ with a double-click on the exe-ﬁ le. Under „Com Port“ select the

correct COM port „Silicon Labs CP210x USB to UART Bridge“, i.e. the one to which the USB lead is

connected.

Now click on the “Datei” button and select the the previously loaded ﬁ rmware ﬁ le ending in *.bin. If eve-

rything is correct, the ﬁ le will appear in the corresponding window.

The ﬁ rmware ﬁ les are encoded in product-speciﬁ c form, i.e. if you accidentally select a ﬁ le which does

not match the product (e.g. transmitter update ﬁ le instead of receiver ﬁ le) you will not be able to start

the update procedure.

Press the Button „Start“.

Connect channel 5 of the receiver to the USB update cable and then turn it on. The LED expires and the

progress-bar shows you the progress of the ﬁ rmware update. The update is complete when the bar reaches

the right end and the red LED on the receiver starts ﬂ ashing. Because the receiver settings remain after the

update, the receiver can be used immediately.

The latest version of these instructions can be found at www.graupner.de

05 Manual Graupner HoTT 2.4 Manual Graupner HoTT 2.4 06

Speciﬁ cations GR-12SH/SC+

Connector type SH / XH

Operating voltage (2.5) 3.6 ... 8.4 V

Modulation 2.4 GHz FHSS

Frequency 2400...2483.5

Weight ca. 1.5 g

Range approx. 800 m

Graupner and KG 33566 Slow Flyer Receiver Graupner/SJ HoTT User Manual 33566 GR 12SC EN indd

Graupner GmbH & Co. KG Slow Flyer Receiver Graupner/SJ HoTT 33566 GR 12SC EN indd

Manual

Navigation menu

Namespaces

Views

Navigation
