Grayhill M1YY10233 Rugged Industrial PDA User Manual

Grayhill Inc Rugged Industrial PDA

User Manual

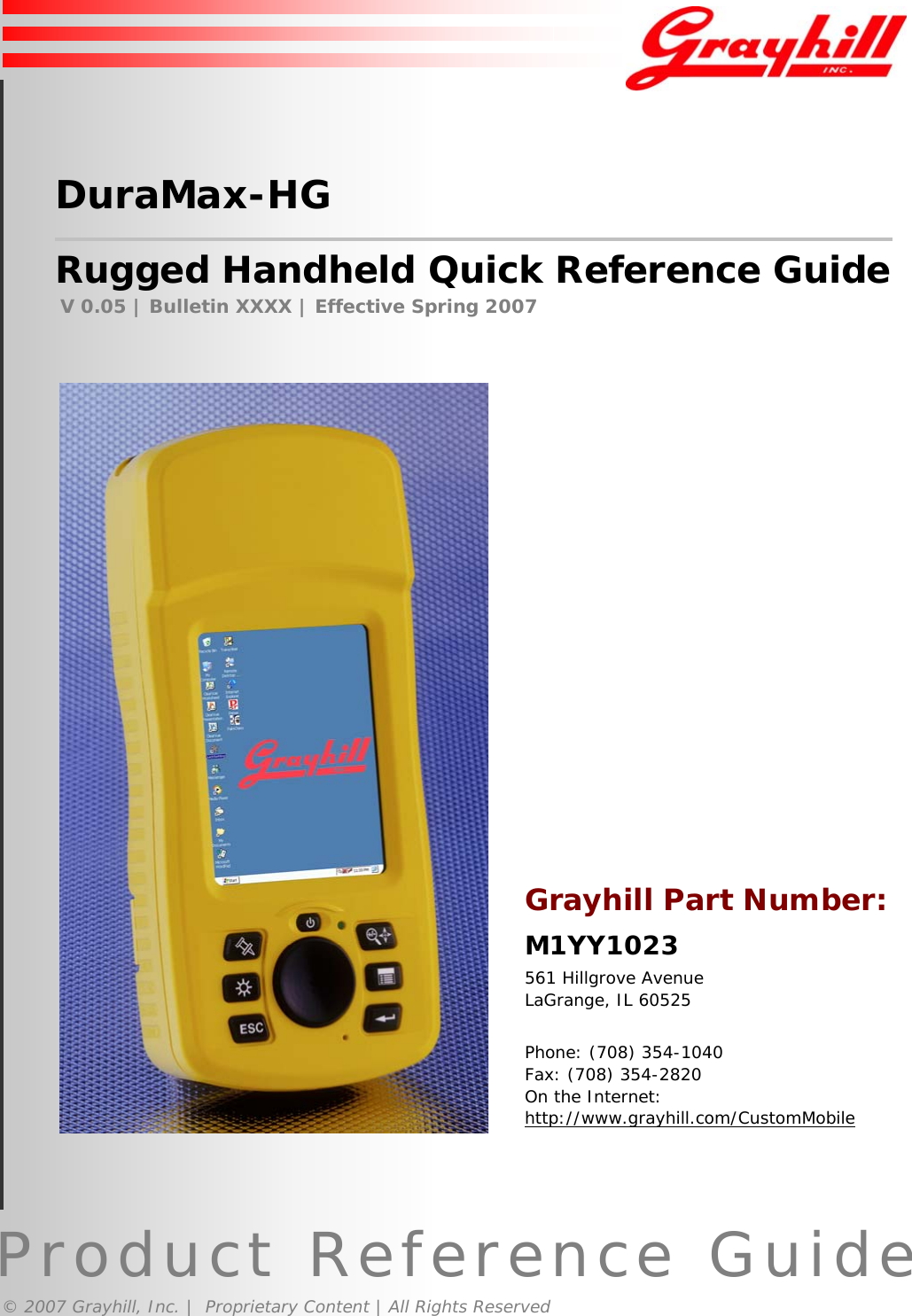

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedDuraMax-HGRugged Handheld Quick Reference GuideV 0.05 | Bulletin XXXX | Effective Spring 2007Grayhill Part Number:M1YY1023561 Hillgrove AvenueLaGrange, IL 60525Phone: (708) 354-1040Fax: (708) 354-2820On the Internet:http://www.grayhill.com/CustomMobile

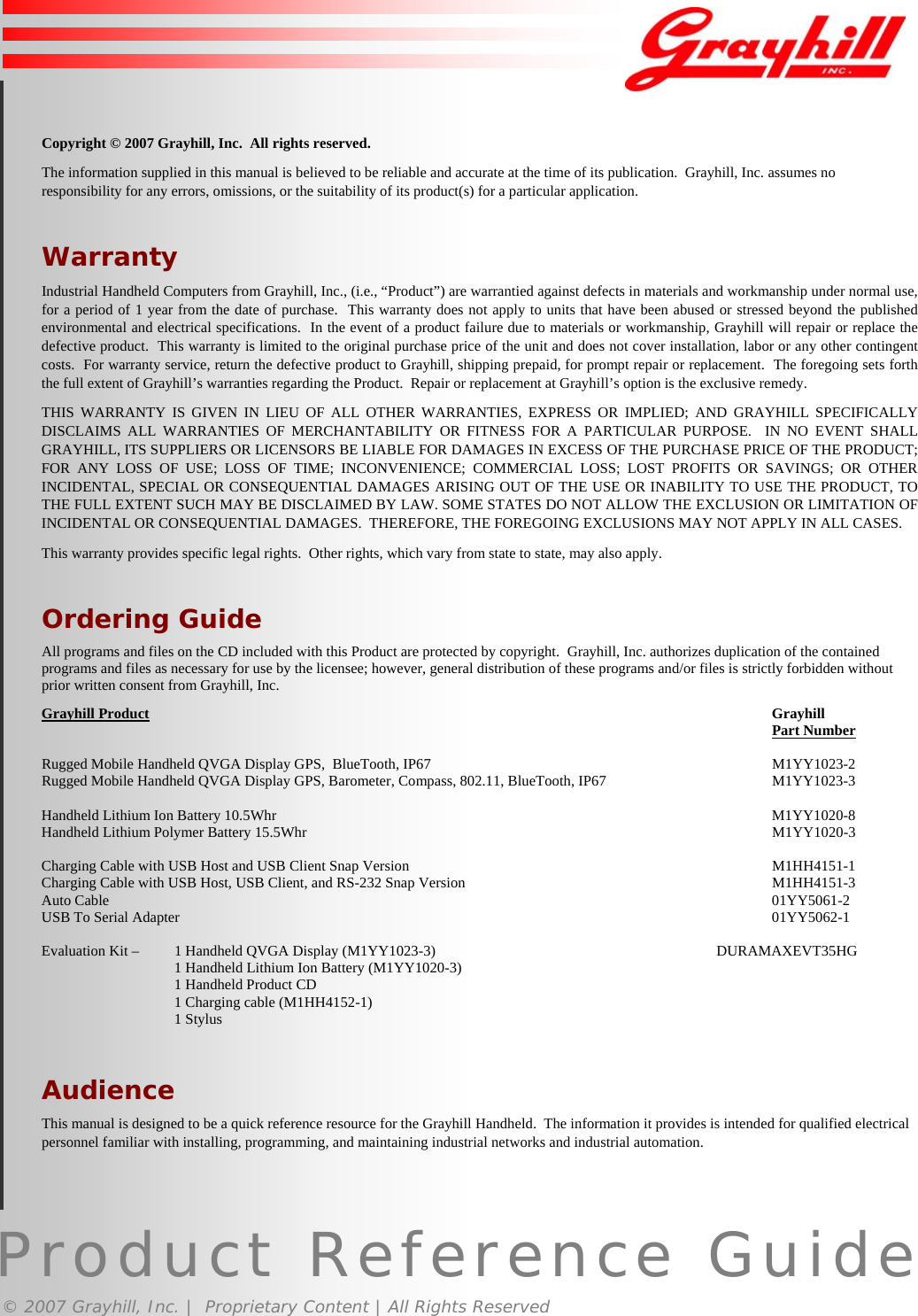

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedCopyright © 2007 Grayhill, Inc. All rights reserved.The information supplied in this manual is believed to be reliable and accurate at the time of its publication. Grayhill, Inc. assumes noresponsibility for any errors, omissions, or the suitability of its product(s) for a particular application.WarrantyIndustrial Handheld Computers from Grayhill, Inc., (i.e., “Product”) are warrantied against defects in materials and workmanship under normal use,for a period of 1 year from the date of purchase. This warranty does not apply to units that have been abused or stressed beyond the publishedenvironmental and electrical specifications. In the event of a product failure due to materials or workmanship, Grayhill will repair or replace thedefective product. This warranty is limited to the original purchase price of the unit and does not cover installation, labor or any other contingentcosts. For warranty service, return the defective product to Grayhill, shipping prepaid, for prompt repair or replacement. The foregoing sets forththe full extent of Grayhill’s warranties regarding the Product. Repair or replacement at Grayhill’s option is the exclusive remedy.THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED; AND GRAYHILL SPECIFICALLYDISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALLGRAYHILL, ITS SUPPLIERS OR LICENSORS BE LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT;FOR ANY LOSS OF USE; LOSS OF TIME; INCONVENIENCE; COMMERCIAL LOSS; LOST PROFITS OR SAVINGS; OR OTHERINCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, TOTHE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OFINCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS MAY NOT APPLY IN ALL CASES.This warranty provides specific legal rights. Other rights, which vary from state to state, may also apply.Ordering GuideAll programs and files on the CD included with this Product are protected by copyright. Grayhill, Inc. authorizes duplication of the containedprograms and files as necessary for use by the licensee; however, general distribution of these programs and/or files is strictly forbidden withoutprior written consent from Grayhill, Inc.Grayhill Product GrayhillPart NumberRugged Mobile Handheld QVGA Display GPS, BlueTooth, IP67 M1YY1023-2Rugged Mobile Handheld QVGA Display GPS, Barometer, Compass, 802.11, BlueTooth, IP67 M1YY1023-3Handheld Lithium Ion Battery 10.5Whr M1YY1020-8Handheld Lithium Polymer Battery 15.5Whr M1YY1020-3Charging Cable with USB Host and USB Client Snap Version M1HH4151-1Charging Cable with USB Host, USB Client, and RS-232 Snap Version M1HH4151-3Auto Cable 01YY5061-2USB To Serial Adapter 01YY5062-1Evaluation Kit – 1 Handheld QVGA Display (M1YY1023-3) DURAMAXEVT35HG1 Handheld Lithium Ion Battery (M1YY1020-3)1 Handheld Product CD 1 Charging cable (M1HH4152-1)1 StylusAudienceThis manual is designed to be a quick reference resource for the Grayhill Handheld. The information it provides is intended for qualified electricalpersonnel familiar with installing, programming, and maintaining industrial networks and industrial automation.1

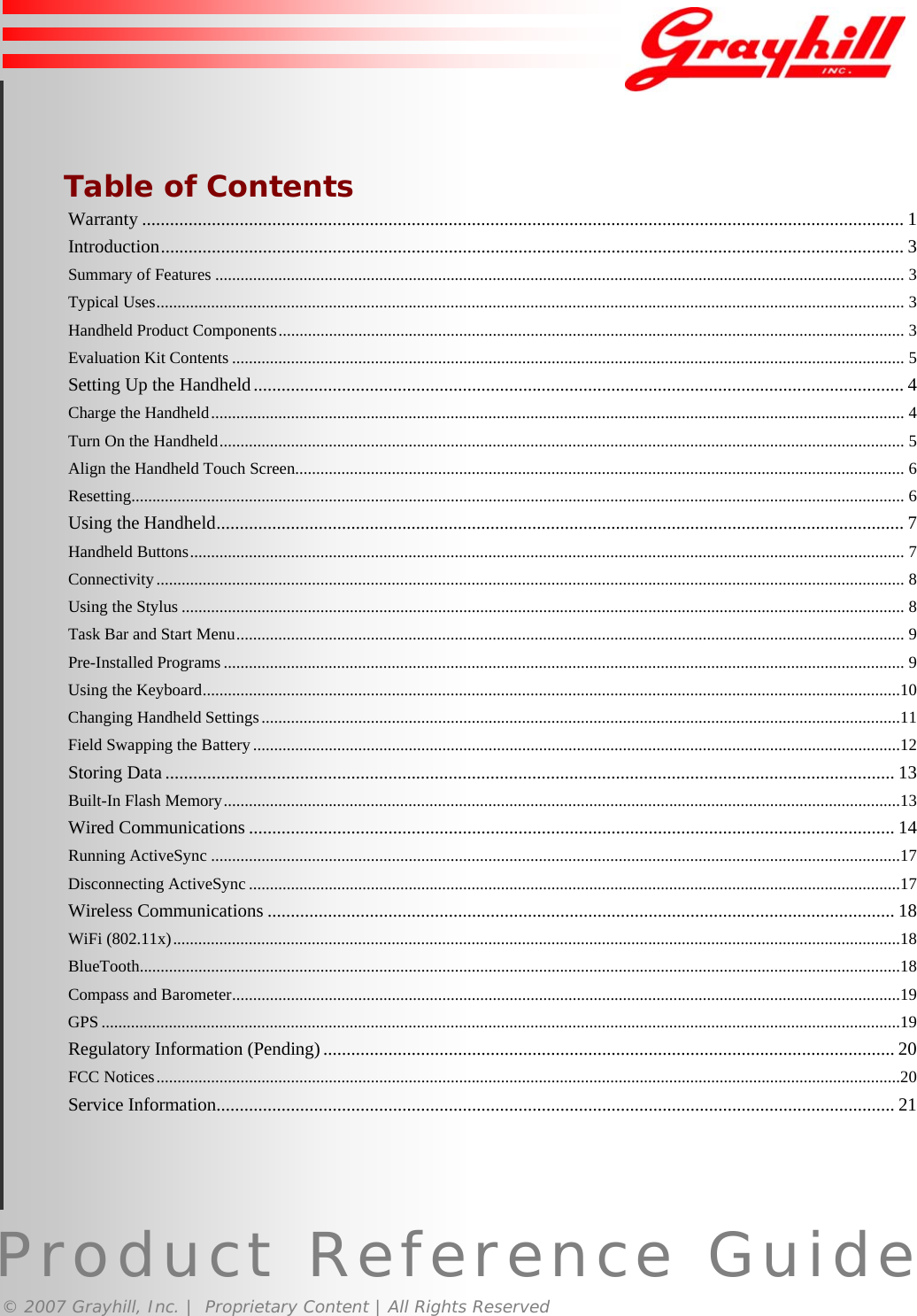

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved Table of ContentsWarranty .................................................................................................................................................................... 1Introduction................................................................................................................................................................ 3Summary of Features .................................................................................................................................................................... 3Typical Uses.................................................................................................................................................................................. 3Handheld Product Components..................................................................................................................................................... 3Evaluation Kit Contents ................................................................................................................................................................ 5Setting Up the Handheld............................................................................................................................................ 4Charge the Handheld..................................................................................................................................................................... 4Turn On the Handheld................................................................................................................................................................... 5Align the Handheld Touch Screen................................................................................................................................................. 6Resetting........................................................................................................................................................................................ 6Using the Handheld.................................................................................................................................................... 7Handheld Buttons.......................................................................................................................................................................... 7Connectivity.................................................................................................................................................................................. 8Using the Stylus ............................................................................................................................................................................ 8Task Bar and Start Menu............................................................................................................................................................... 9Pre-Installed Programs .................................................................................................................................................................. 9Using the Keyboard......................................................................................................................................................................10Changing Handheld Settings........................................................................................................................................................11Field Swapping the Battery..........................................................................................................................................................12Storing Data ............................................................................................................................................................. 13Built-In Flash Memory.................................................................................................................................................................13Wired Communications ........................................................................................................................................... 14Running ActiveSync ....................................................................................................................................................................17Disconnecting ActiveSync ...........................................................................................................................................................17Wireless Communications ....................................................................................................................................... 18WiFi (802.11x).............................................................................................................................................................................18BlueTooth.....................................................................................................................................................................................18Compass and Barometer...............................................................................................................................................................19GPS ..............................................................................................................................................................................................19Regulatory Information (Pending)........................................................................................................................... 20FCC Notices.................................................................................................................................................................................20Service Information.................................................................................................................................................. 212

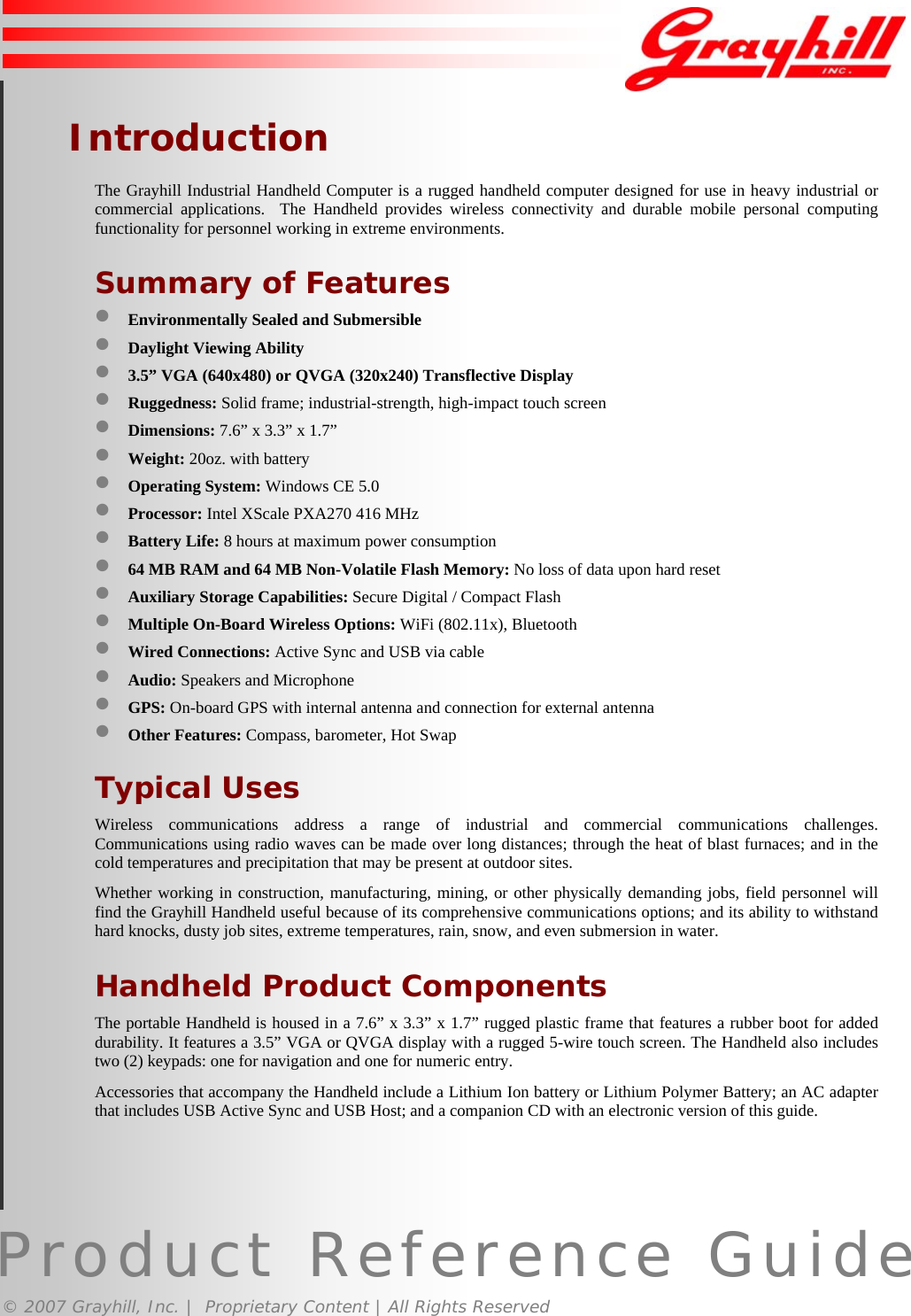

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedIntroductionThe Grayhill Industrial Handheld Computer is a rugged handheld computer designed for use in heavy industrial orcommercial applications. The Handheld provides wireless connectivity and durable mobile personal computingfunctionality for personnel working in extreme environments.Summary of Features• Environmentally Sealed and Submersible• Daylight Viewing Ability• 3.5” VGA (640x480) or QVGA (320x240) Transflective Display• Ruggedness: Solid frame; industrial-strength, high-impact touch screen• Dimensions: 7.6” x 3.3” x 1.7”• Weight: 20oz. with battery• Operating System: Windows CE 5.0• Processor: Intel XScale PXA270 416 MHz• Battery Life: 8 hours at maximum power consumption• 64 MB RAM and 64 MB Non-Volatile Flash Memory: No loss of data upon hard reset• Auxiliary Storage Capabilities: Secure Digital / Compact Flash• Multiple On-Board Wireless Options: WiFi (802.11x), Bluetooth• Wired Connections: Active Sync and USB via cable• Audio: Speakers and Microphone• GPS: On-board GPS with internal antenna and connection for external antenna• Other Features: Compass, barometer, Hot SwapTypical UsesWireless communications address a range of industrial and commercial communications challenges.Communications using radio waves can be made over long distances; through the heat of blast furnaces; and in thecold temperatures and precipitation that may be present at outdoor sites.Whether working in construction, manufacturing, mining, or other physically demanding jobs, field personnel willfind the Grayhill Handheld useful because of its comprehensive communications options; and its ability to withstandhard knocks, dusty job sites, extreme temperatures, rain, snow, and even submersion in water.Handheld Product ComponentsThe portable Handheld is housed in a 7.6” x 3.3” x 1.7” rugged plastic frame that features a rubber boot for addeddurability. It features a 3.5” VGA or QVGA display with a rugged 5-wire touch screen. The Handheld also includestwo (2) keypads: one for navigation and one for numeric entry.Accessories that accompany the Handheld include a Lithium Ion battery or Lithium Polymer Battery; an AC adapterthat includes USB Active Sync and USB Host; and a companion CD with an electronic version of this guide.3

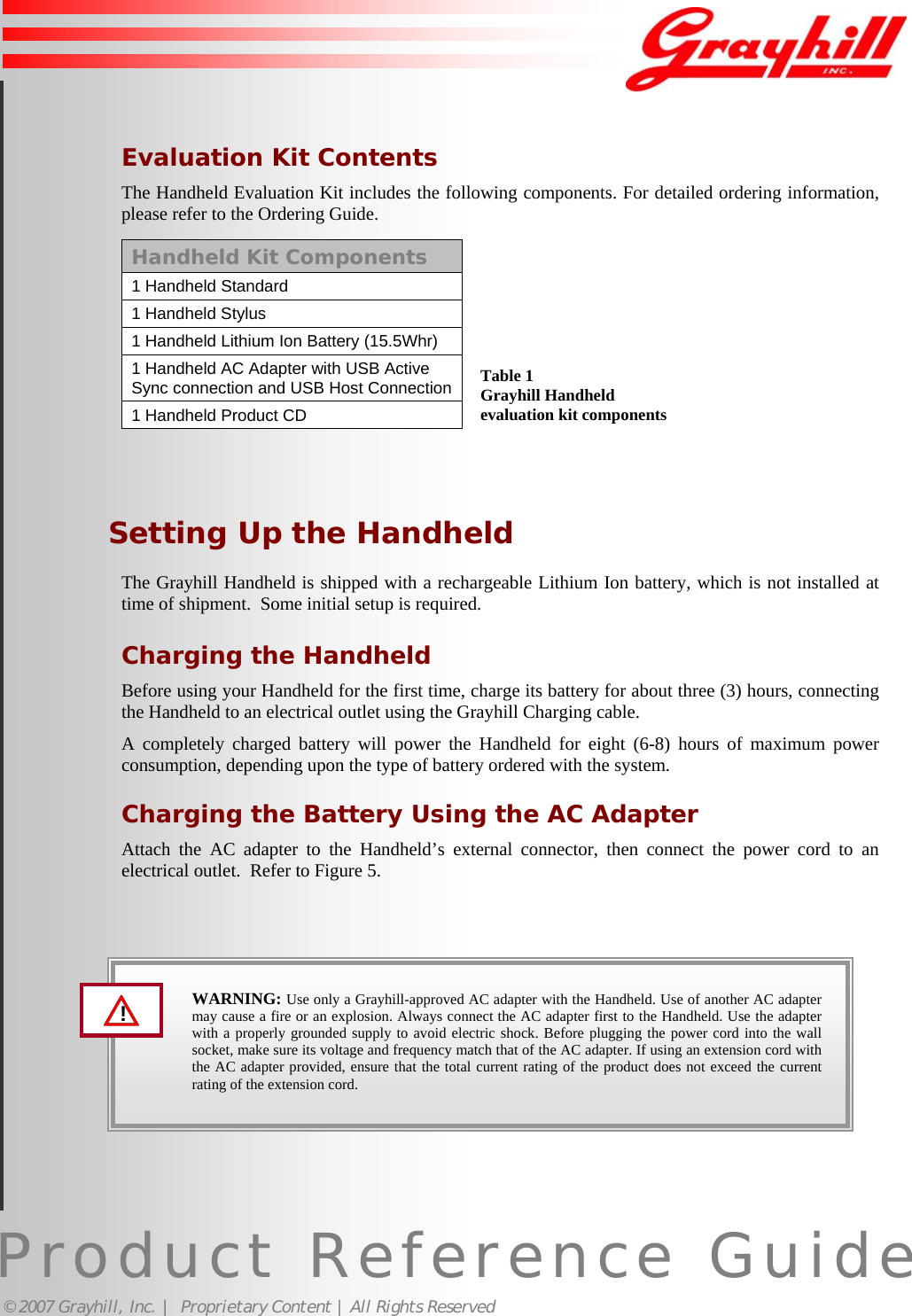

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedEvaluation Kit ContentsThe Handheld Evaluation Kit includes the following components. For detailed ordering information,please refer to the Ordering Guide.Handheld Kit Components1 Handheld Standard1 Handheld Stylus1 Handheld Lithium Ion Battery (15.5Whr)1 Handheld AC Adapter with USB ActiveSync connection and USB Host Connection1 Handheld Product CDSetting Up the HandheldThe Grayhill Handheld is shipped with a rechargeable Lithium Ion battery, which is not installed attime of shipment. Some initial setup is required.Charging the HandheldBefore using your Handheld for the first time, charge its battery for about three (3) hours, connectingthe Handheld to an electrical outlet using the Grayhill Charging cable.A completely charged battery will power the Handheld for eight (6-8) hours of maximum powerconsumption, depending upon the type of battery ordered with the system.Charging the Battery Using the AC AdapterAttach the AC adapter to the Handheld’s external connector, then connect the power cord to anelectrical outlet. Refer to Figure 5.WARNING: Use only a Grayhill-approved AC adapter with the Handheld. Use of another AC adaptermay cause a fire or an explosion. Always connect the AC adapter first to the Handheld. Use the adapterwith a properly grounded supply to avoid electric shock. Before plugging the power cord into the wallsocket, make sure its voltage and frequency match that of the AC adapter. If using an extension cord withthe AC adapter provided, ensure that the total current rating of the product does not exceed the currentrating of the extension cord.!Table 1Grayhill Handheldevaluation kit components4

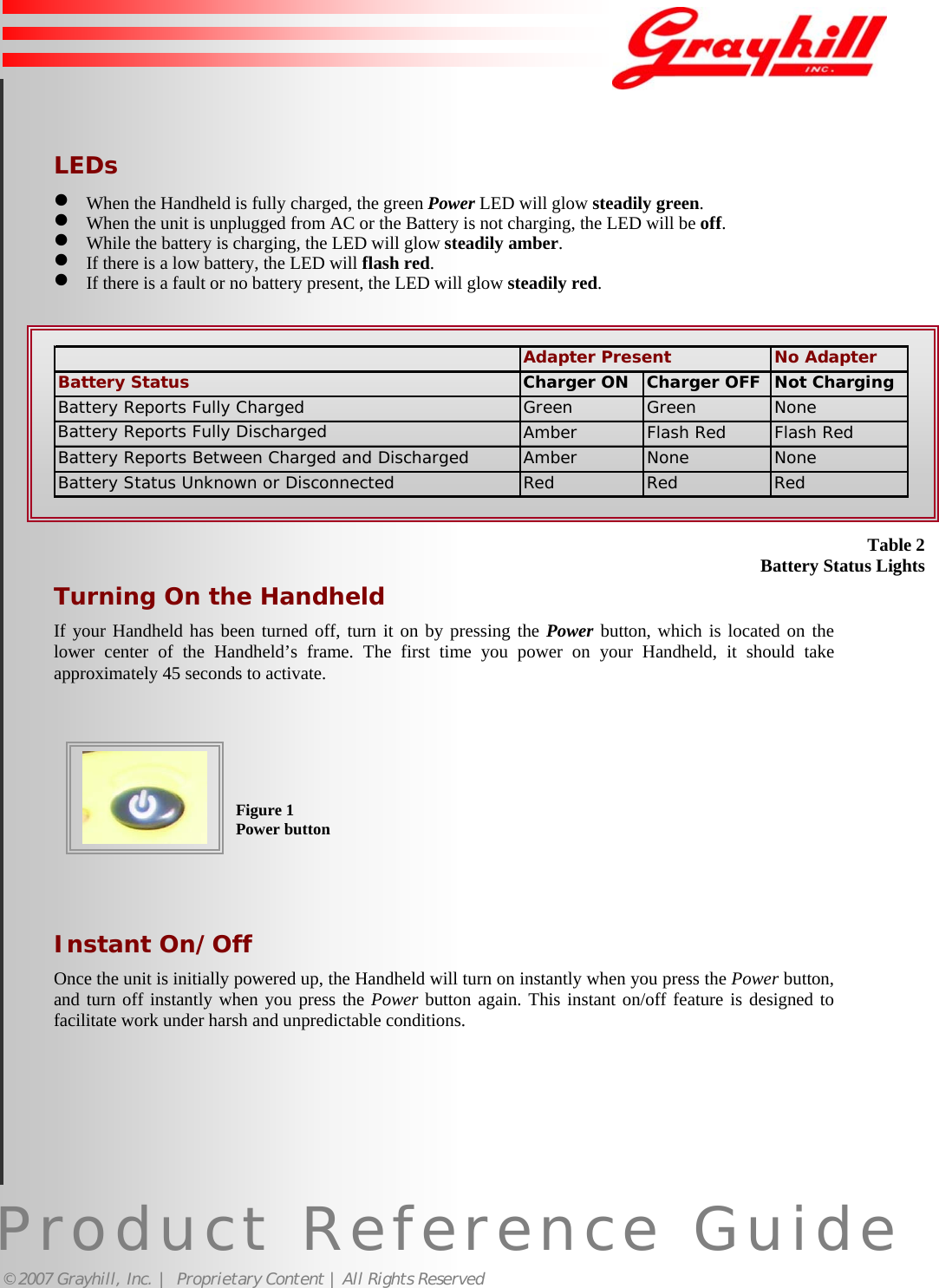

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedLEDs• When the Handheld is fully charged, the green Power LED will glow steadily green.• When the unit is unplugged from AC or the Battery is not charging, the LED will be off.• While the battery is charging, the LED will glow steadily amber.• If there is a low battery, the LED will flash red.• If there is a fault or no battery present, the LED will glow steadily red.No AdapterBattery Status Charger ON Charger OFF Not ChargingBattery Reports Fully Charged Green Green NoneBattery Reports Fully Discharged Amber Flash Red Flash RedBattery Reports Between Charged and Discharged Amber None NoneBattery Status Unknown or Disconnected Red Red RedAdapter PresentTurning On the HandheldIf your Handheld has been turned off, turn it on by pressing the Power button, which is located on thelower center of the Handheld’s frame. The first time you power on your Handheld, it should takeapproximately 45 seconds to activate.Instant On/OffOnce the unit is initially powered up, the Handheld will turn on instantly when you press the Power button,and turn off instantly when you press the Power button again. This instant on/off feature is designed tofacilitate work under harsh and unpredictable conditions.Figure 1Power buttonTable 2Battery Status Lights5

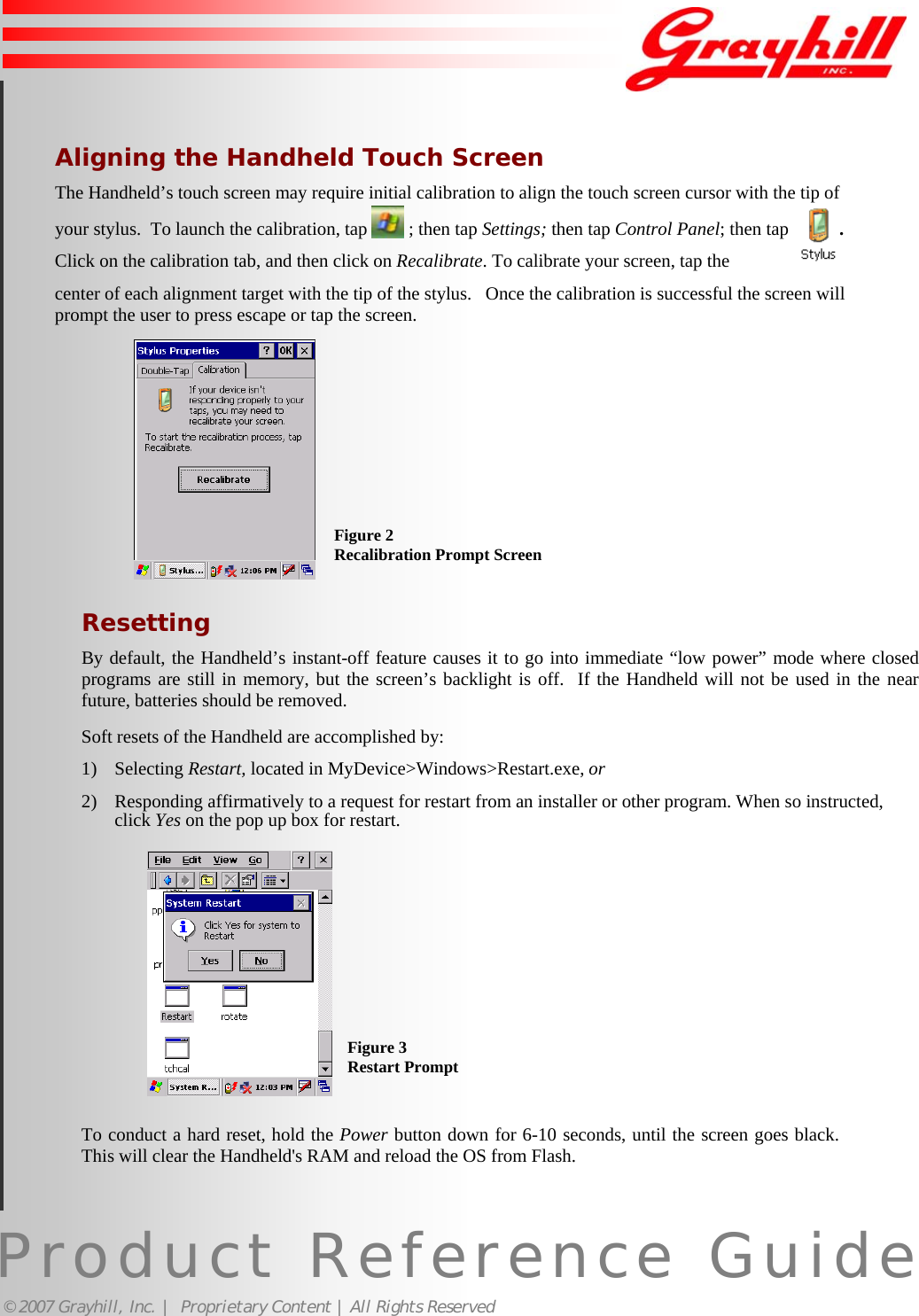

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedAligning the Handheld Touch ScreenThe Handheld’s touch screen may require initial calibration to align the touch screen cursor with the tip ofyour stylus. To launch the calibration, tap ; then tap Settings; then tap Control Panel; then tap . Click on the calibration tab, and then click on Recalibrate. To calibrate your screen, tap thecenter of each alignment target with the tip of the stylus. Once the calibration is successful the screen willprompt the user to press escape or tap the screen.ResettingBy default, the Handheld’s instant-off feature causes it to go into immediate “low power” mode where closedprograms are still in memory, but the screen’s backlight is off. If the Handheld will not be used in the nearfuture, batteries should be removed.Soft resets of the Handheld are accomplished by:1) Selecting Restart, located in MyDevice>Windows>Restart.exe, or2) Responding affirmatively to a request for restart from an installer or other program. When so instructed,click Yes on the pop up box for restart.To conduct a hard reset, hold the Power button down for 6-10 seconds, until the screen goes black.This will clear the Handheld's RAM and reload the OS from Flash.Figure 2Recalibration Prompt ScreenFigure 3Restart Prompt6

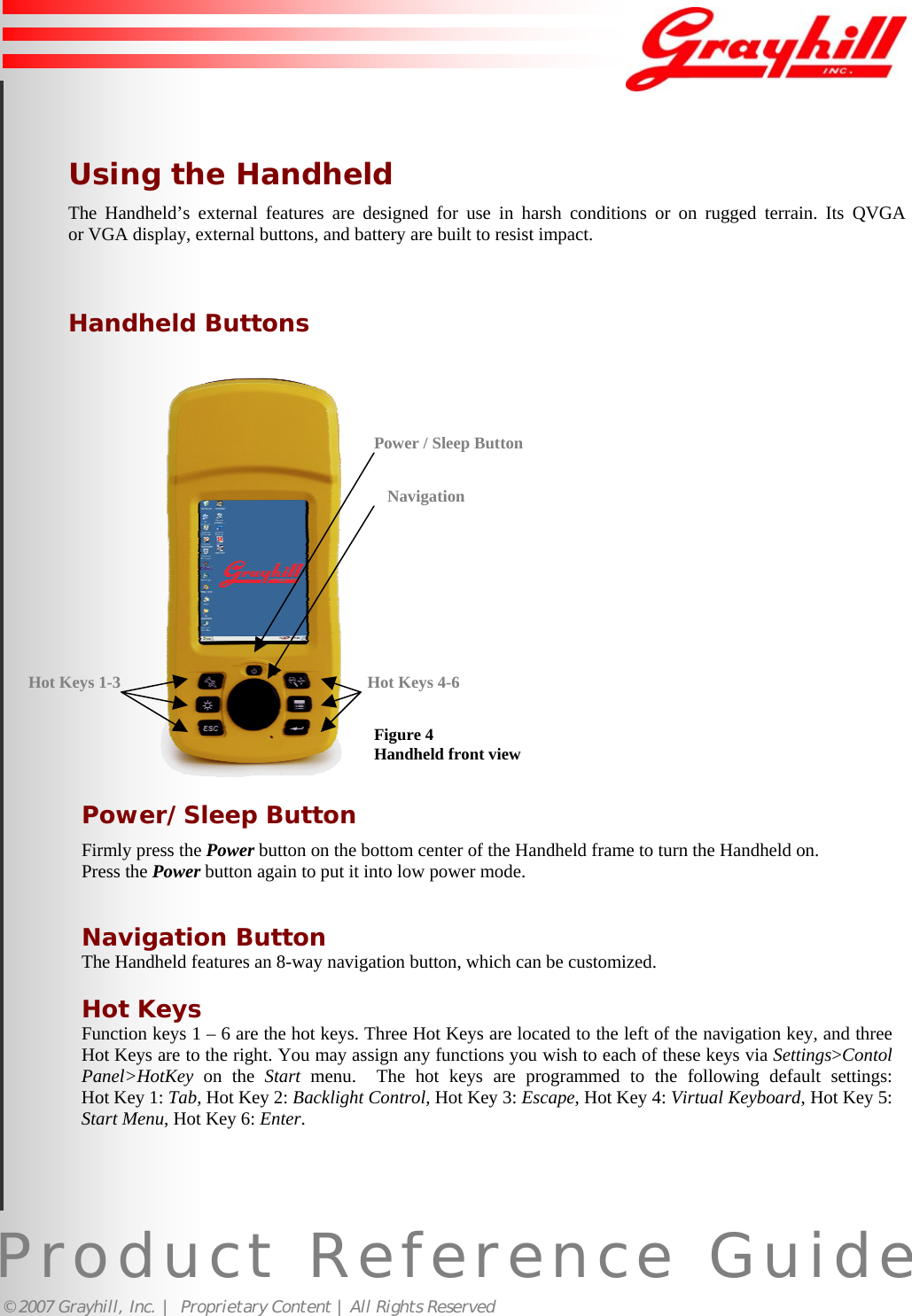

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedUsing the HandheldThe Handheld’s external features are designed for use in harsh conditions or on rugged terrain. Its QVGAor VGA display, external buttons, and battery are built to resist impact.Handheld ButtonsPower/Sleep ButtonFirmly press the Power button on the bottom center of the Handheld frame to turn the Handheld on.Press the Power button again to put it into low power mode.Navigation ButtonThe Handheld features an 8-way navigation button, which can be customized.Hot KeysFunction keys 1 – 6 are the hot keys. Three Hot Keys are located to the left of the navigation key, and threeHot Keys are to the right. You may assign any functions you wish to each of these keys via Settings>ContolPanel>HotKey on the Start menu. The hot keys are programmed to the following default settings:Hot Key 1: Tab, Hot Key 2: Backlight Control, Hot Key 3: Escape, Hot Key 4: Virtual Keyboard, Hot Key 5:Start Menu, Hot Key 6: Enter.Figure 4Handheld front view7Power / Sleep ButtonNavigationHot Keys 4-6Hot Keys 1-3

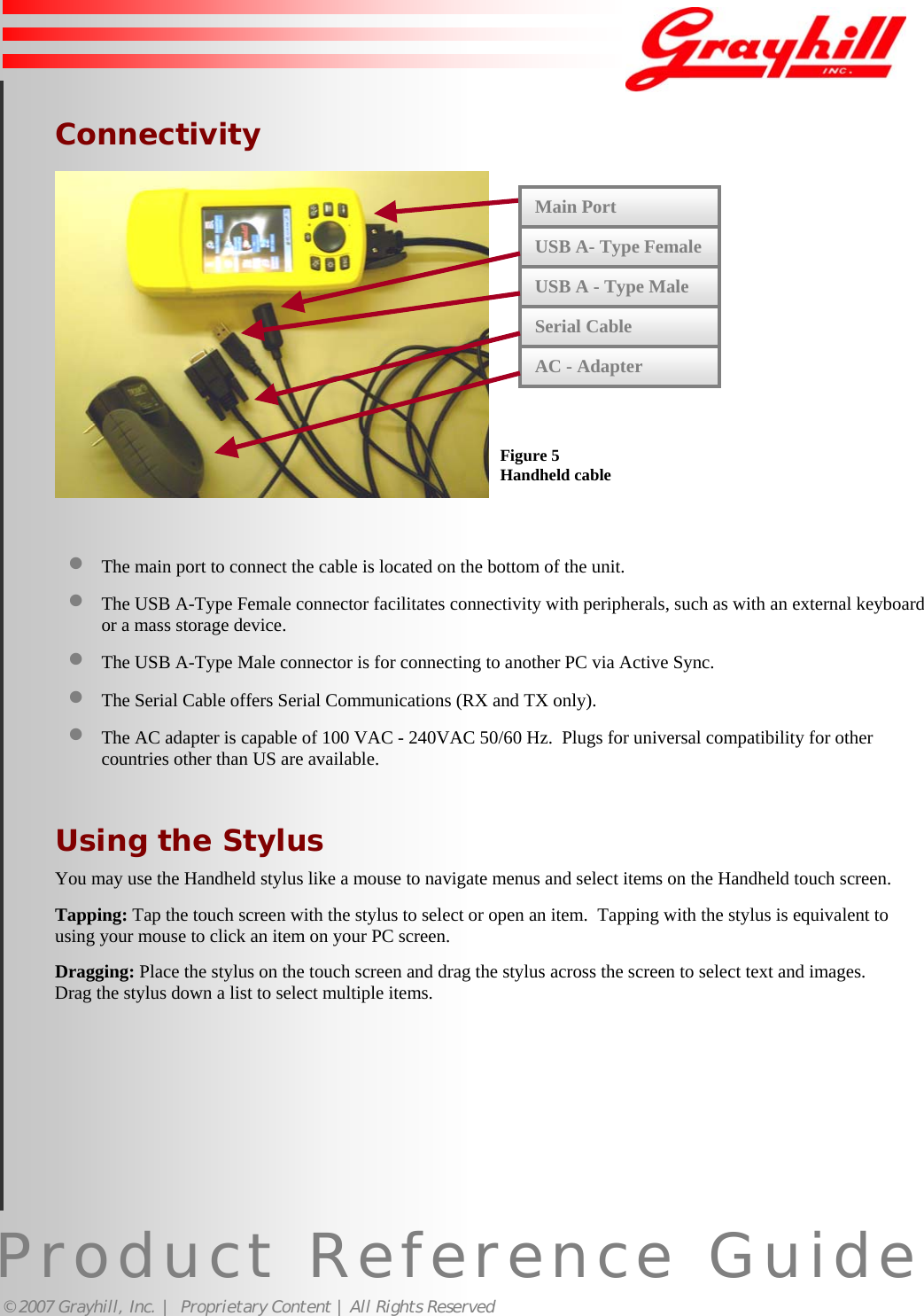

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedConnectivity• The main port to connect the cable is located on the bottom of the unit.• The USB A-Type Female connector facilitates connectivity with peripherals, such as with an external keyboardor a mass storage device.• The USB A-Type Male connector is for connecting to another PC via Active Sync.• The Serial Cable offers Serial Communications (RX and TX only).• The AC adapter is capable of 100 VAC - 240VAC 50/60 Hz. Plugs for universal compatibility for othercountries other than US are available.Using the StylusYou may use the Handheld stylus like a mouse to navigate menus and select items on the Handheld touch screen.Tapping: Tap the touch screen with the stylus to select or open an item. Tapping with the stylus is equivalent tousing your mouse to click an item on your PC screen.Dragging: Place the stylus on the touch screen and drag the stylus across the screen to select text and images.Drag the stylus down a list to select multiple items.Figure 5Handheld cable8Main PortUSB A - Type MaleSerial CableAC - AdapterUSB A- Type Female

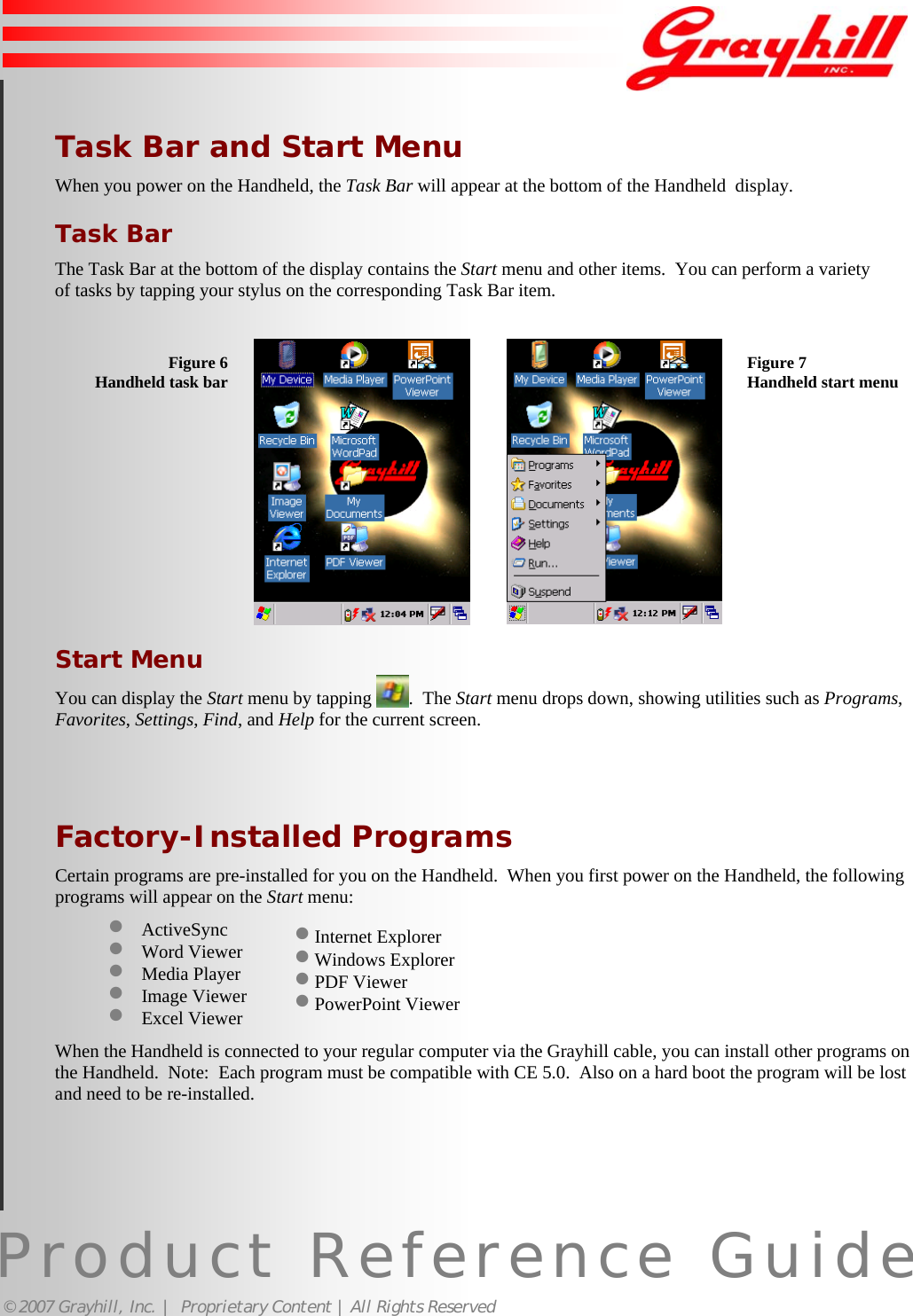

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved9• Internet Explorer• Windows Explorer• PDF Viewer• PowerPoint ViewerTask Bar and Start MenuWhen you power on the Handheld, the Task Bar will appear at the bottom of the Handheld display.Task BarThe Task Bar at the bottom of the display contains the Start menu and other items. You can perform a varietyof tasks by tapping your stylus on the corresponding Task Bar item.Figure 6Handheld task bar Figure 7Handheld start menuStart MenuYou can display the Start menu by tapping . The Start menu drops down, showing utilities such as Programs,Favorites, Settings, Find, and Help for the current screen.Factory-Installed ProgramsCertain programs are pre-installed for you on the Handheld. When you first power on the Handheld, the followingprograms will appear on the Start menu:• ActiveSync• Word Viewer• Media Player• Image Viewer• Excel ViewerWhen the Handheld is connected to your regular computer via the Grayhill cable, you can install other programs onthe Handheld. Note: Each program must be compatible with CE 5.0. Also on a hard boot the program will be lostand need to be re-installed.

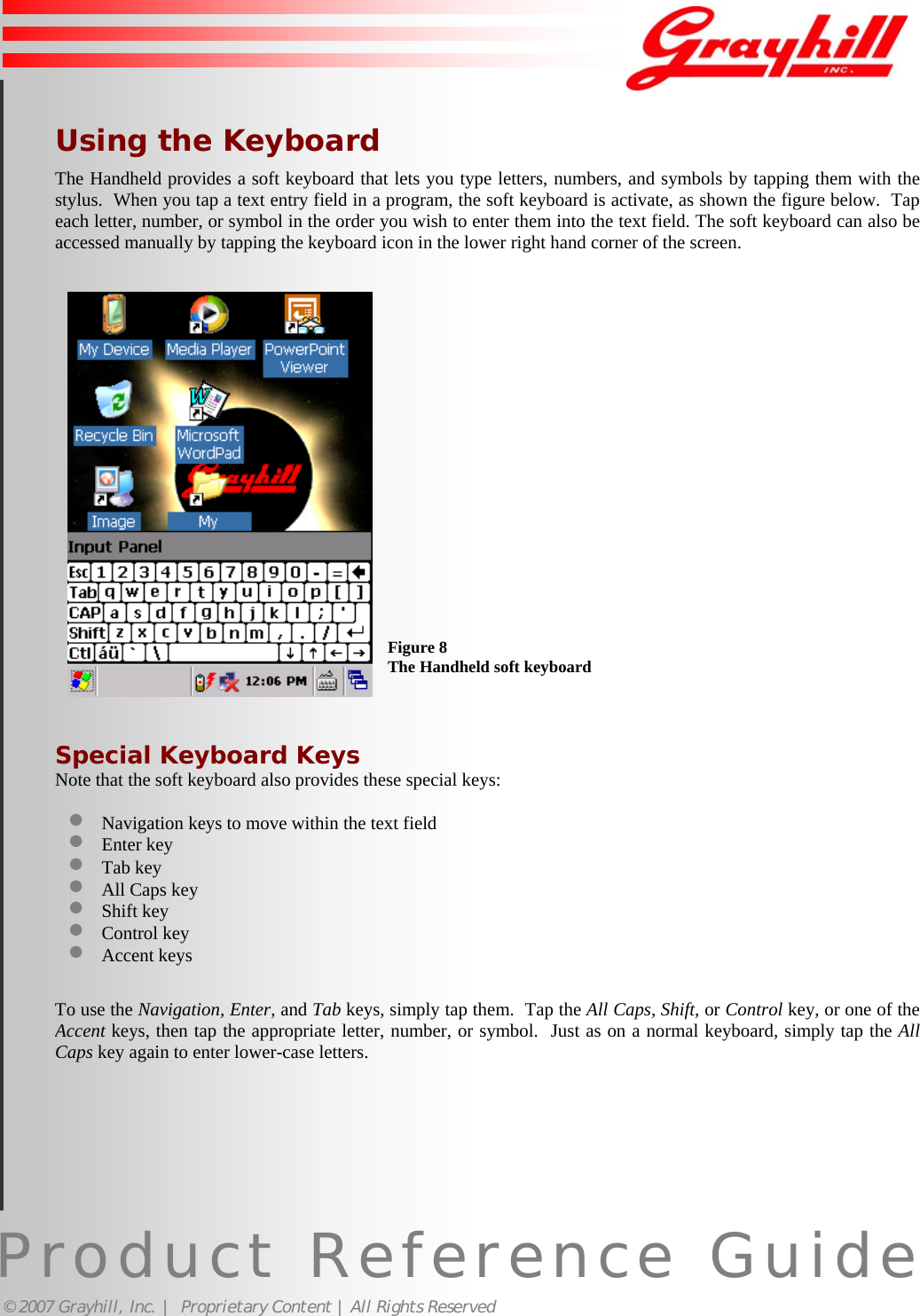

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedUsing the KeyboardThe Handheld provides a soft keyboard that lets you type letters, numbers, and symbols by tapping them with thestylus. When you tap a text entry field in a program, the soft keyboard is activate, as shown the figure below. Tapeach letter, number, or symbol in the order you wish to enter them into the text field. The soft keyboard can also beaccessed manually by tapping the keyboard icon in the lower right hand corner of the screen.Special Keyboard KeysNote that the soft keyboard also provides these special keys:• Navigation keys to move within the text field• Enter key• Tab key• All Caps key• Shift key• Control key• Accent keysTo use the Navigation, Enter, and Tab keys, simply tap them. Tap the All Caps, Shift, or Control key, or one of theAccent keys, then tap the appropriate letter, number, or symbol. Just as on a normal keyboard, simply tap the AllCaps key again to enter lower-case letters.10Figure 8The Handheld soft keyboard

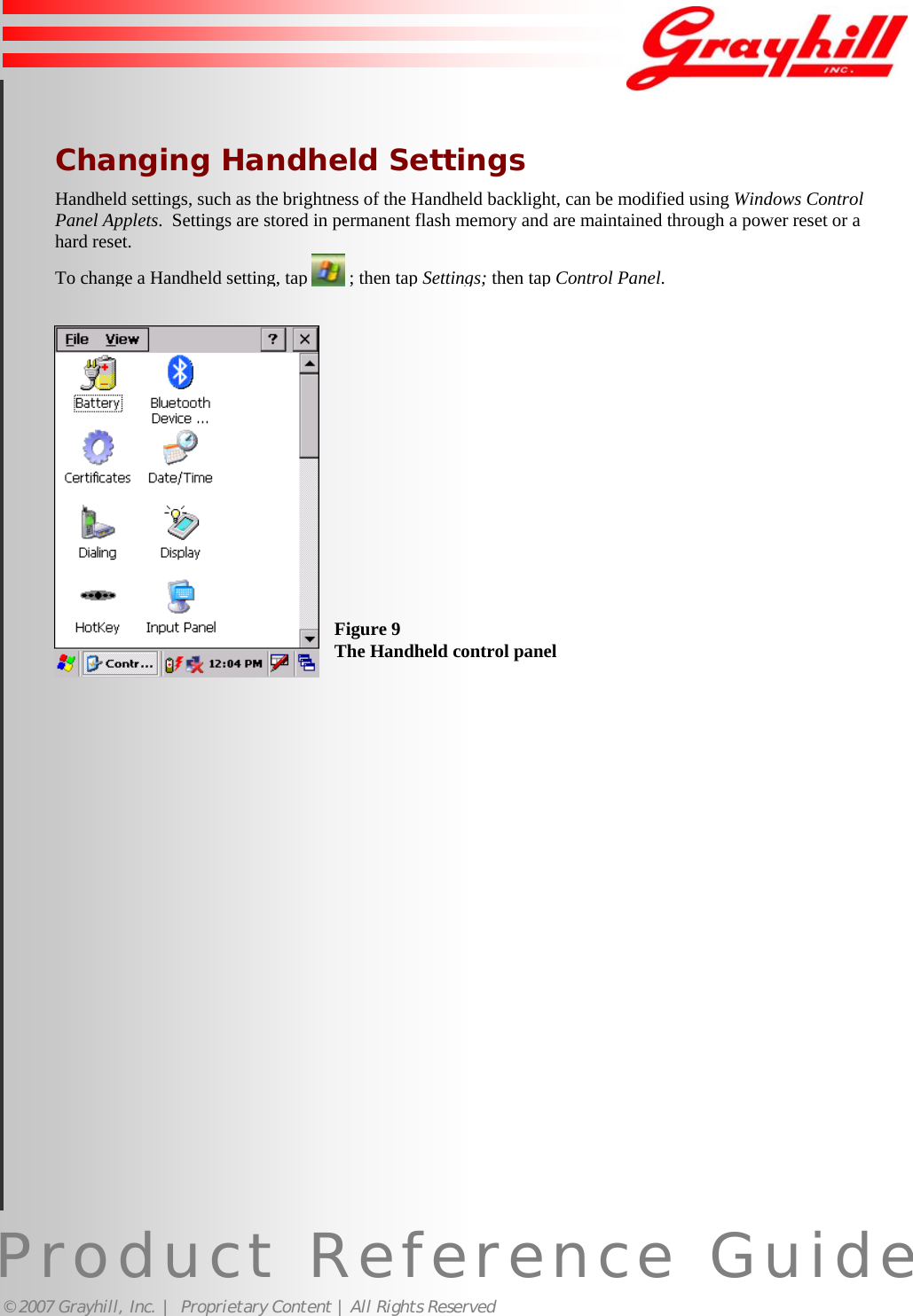

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved 11Changing Handheld SettingsHandheld settings, such as the brightness of the Handheld backlight, can be modified using Windows ControlPanel Applets. Settings are stored in permanent flash memory and are maintained through a power reset or ahard reset.To change a Handheld setting, tap ; then tap Settings;then tap Control Panel.Figure 9The Handheld control panel

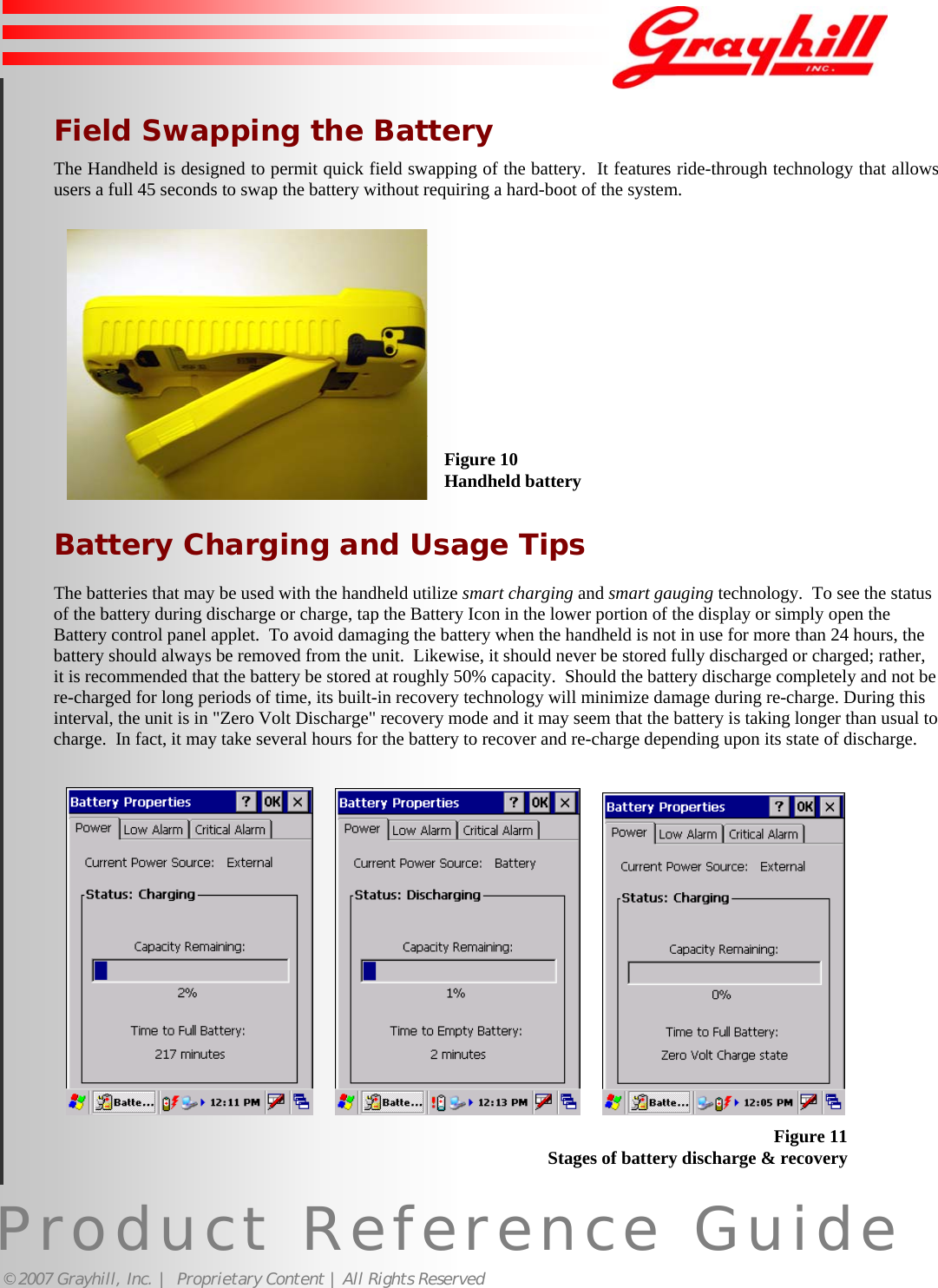

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved12Figure 10Handheld batteryField Swapping the BatteryThe Handheld is designed to permit quick field swapping of the battery. It features ride-through technology that allowsusers a full 45 seconds to swap the battery without requiring a hard-boot of the system.Battery Charging and Usage TipsThe batteries that may be used with the handheld utilize smart charging and smart gauging technology. To see the statusof the battery during discharge or charge, tap the Battery Icon in the lower portion of the display or simply open theBattery control panel applet. To avoid damaging the battery when the handheld is not in use for more than 24 hours, thebattery should always be removed from the unit. Likewise, it should never be stored fully discharged or charged; rather,it is recommended that the battery be stored at roughly 50% capacity. Should the battery discharge completely and not bere-charged for long periods of time, its built-in recovery technology will minimize damage during re-charge. During thisinterval, the unit is in "Zero Volt Discharge" recovery mode and it may seem that the battery is taking longer than usual tocharge. In fact, it may take several hours for the battery to recover and re-charge depending upon its state of discharge. Figure 11Stages of battery discharge & recovery

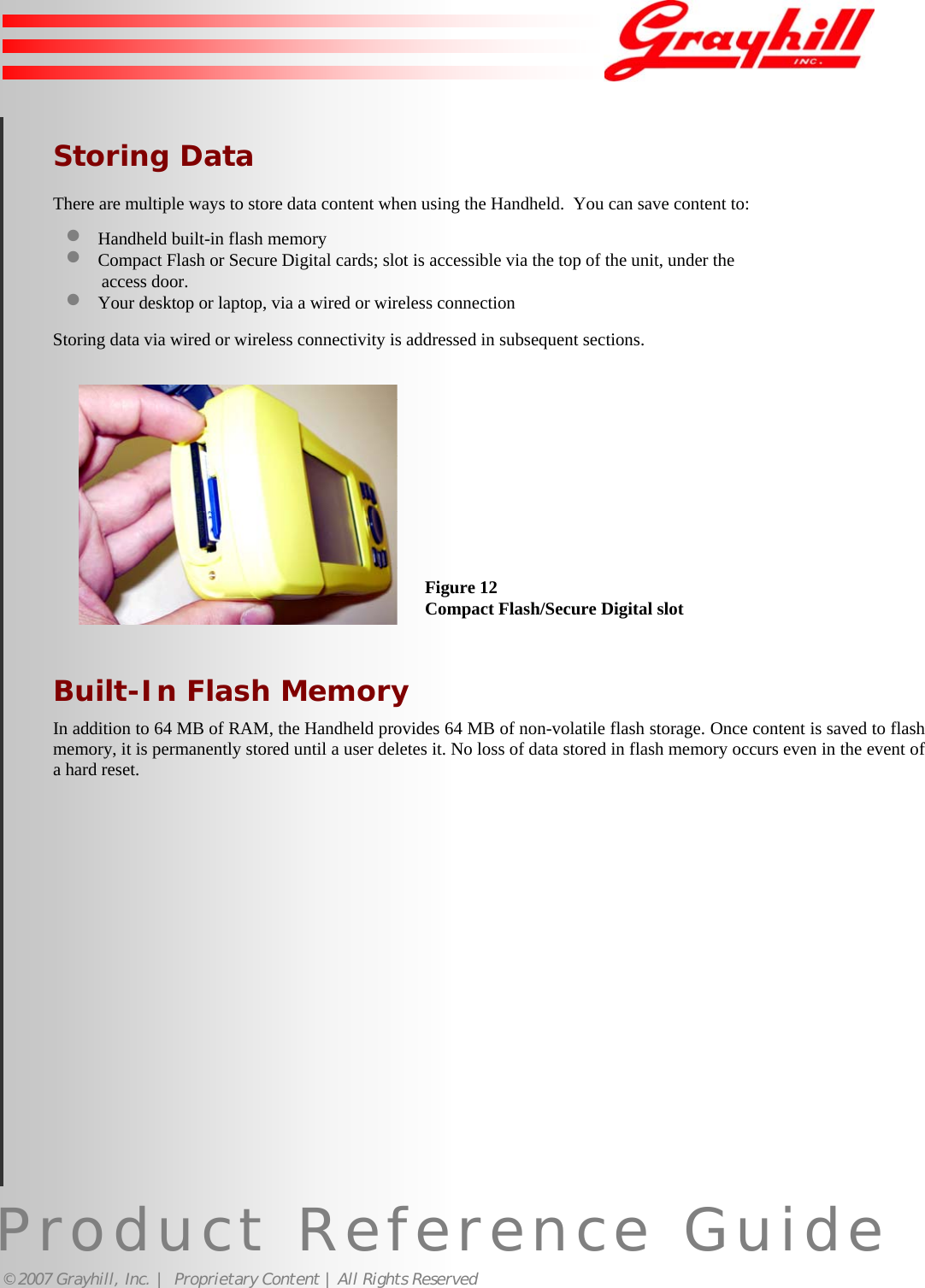

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedStoring DataThere are multiple ways to store data content when using the Handheld. You can save content to:• Handheld built-in flash memory• Compact Flash or Secure Digital cards; slot is accessible via the top of the unit, under the access door.• Your desktop or laptop, via a wired or wireless connectionStoring data via wired or wireless connectivity is addressed in subsequent sections.Built-In Flash MemoryIn addition to 64 MB of RAM, the Handheld provides 64 MB of non-volatile flash storage. Once content is saved to flashmemory, it is permanently stored until a user deletes it. No loss of data stored in flash memory occurs even in the event ofa hard reset.Figure 12Compact Flash/Secure Digital slot13

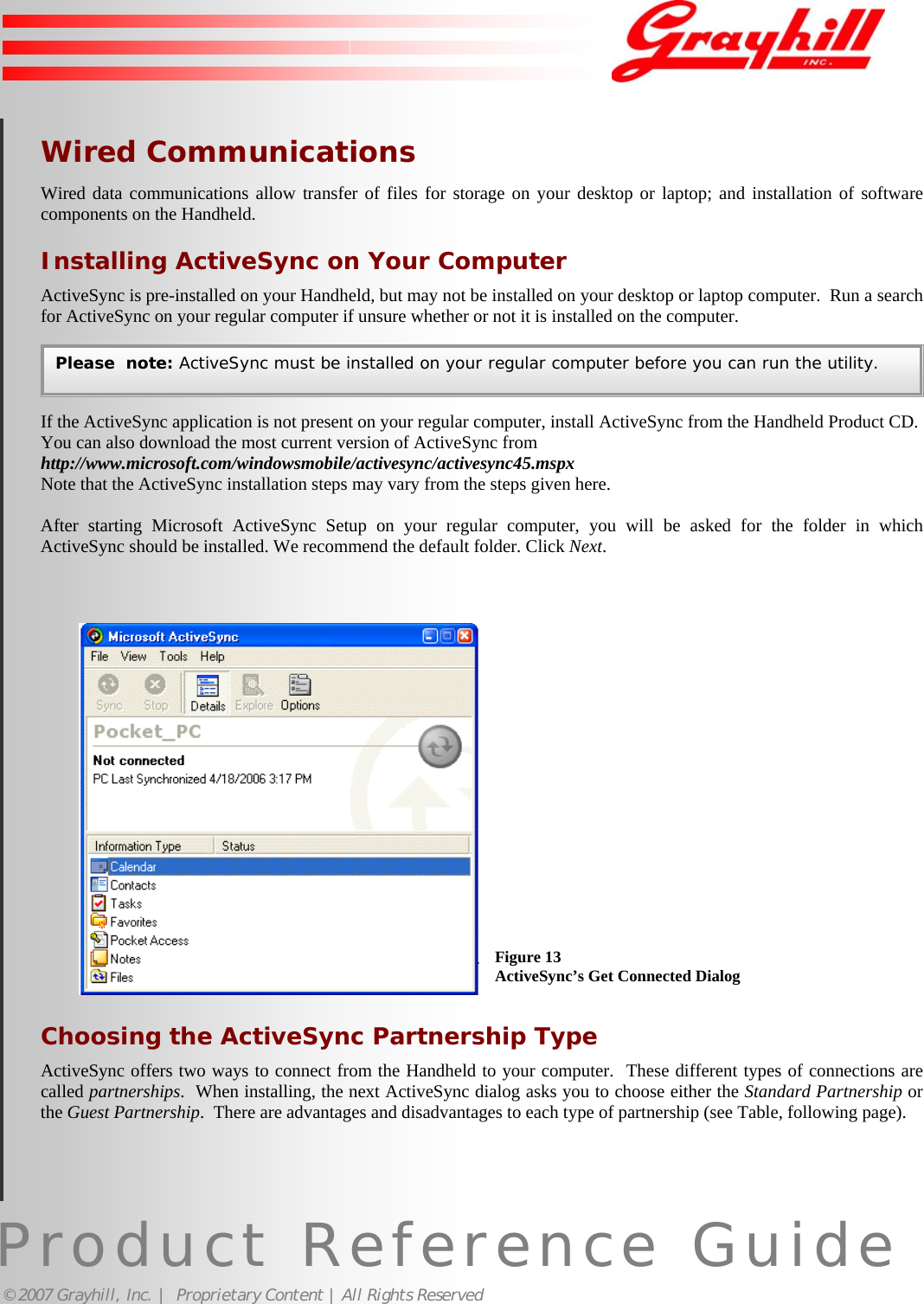

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedWired CommunicationsWired data communications allow transfer of files for storage on your desktop or laptop; and installation of softwarecomponents on the Handheld.Installing ActiveSync on Your ComputerActiveSync is pre-installed on your Handheld, but may not be installed on your desktop or laptop computer. Run a searchfor ActiveSync on your regular computer if unsure whether or not it is installed on the computer.If the ActiveSync application is not present on your regular computer, install ActiveSync from the Handheld Product CD.You can also download the most current version of ActiveSync fromhttp://www.microsoft.com/windowsmobile/activesync/activesync45.mspxNote that the ActiveSync installation steps may vary from the steps given here.After starting Microsoft ActiveSync Setup on your regular computer, you will be asked for the folder in whichActiveSync should be installed. We recommend the default folder. Click Next.Choosing the ActiveSync Partnership TypeActiveSync offers two ways to connect from the Handheld to your computer. These different types of connections arecalled partnerships. When installing, the next ActiveSync dialog asks you to choose either the Standard Partnership orthe Guest Partnership. There are advantages and disadvantages to each type of partnership (see Table, following page).Please note: ActiveSync must be installed on your regular computer before you can run the utility.Figure 13ActiveSync’s Get Connected Dialog14

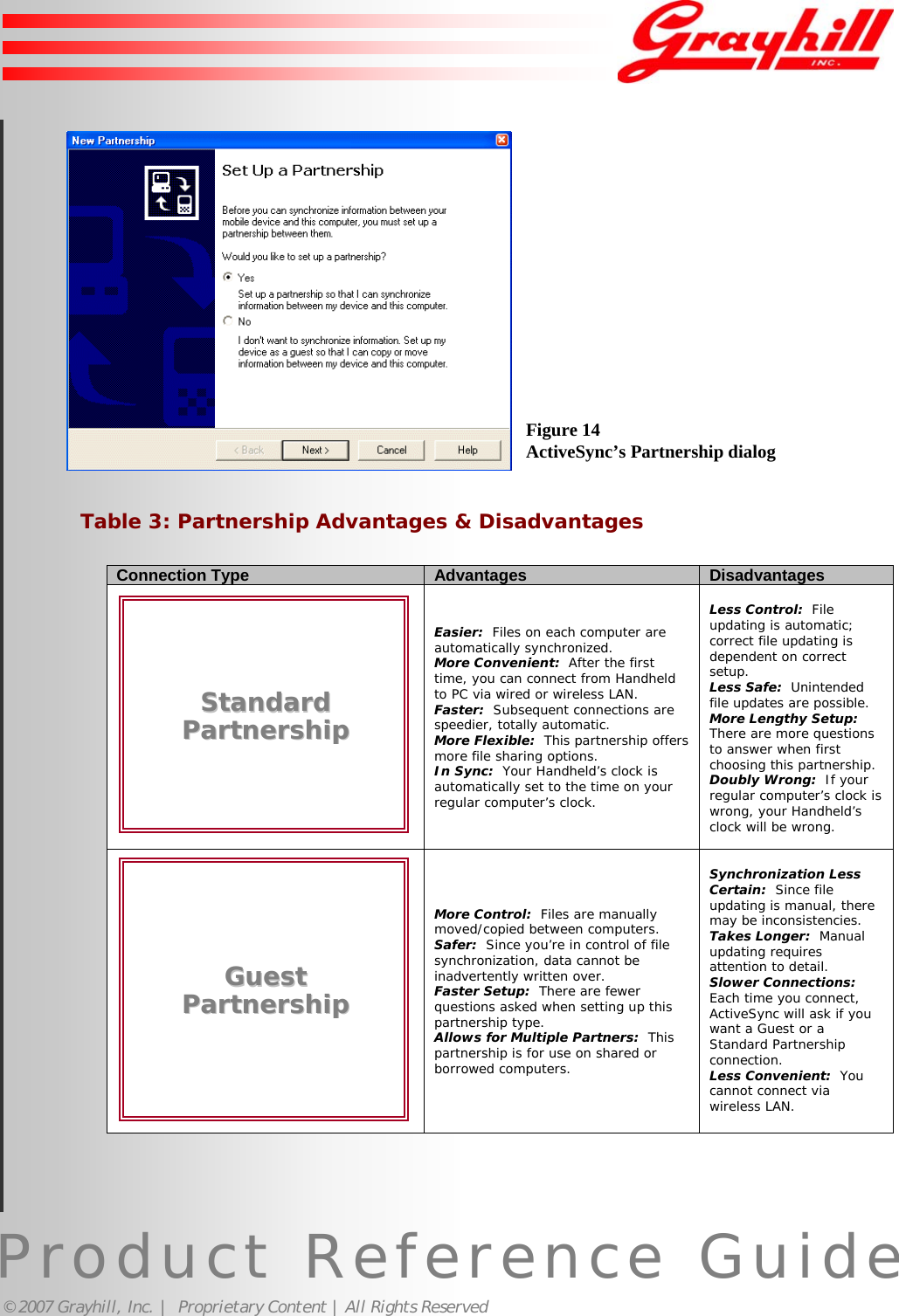

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedTable 3: Partnership Advantages & DisadvantagesConnection Type Advantages DisadvantagesSSttaannddaarrddPPaarrttnneerrsshhiippEasier: Files on each computer areautomatically synchronized.More Convenient: After the firsttime, you can connect from Handheldto PC via wired or wireless LAN.Faster: Subsequent connections arespeedier, totally automatic.More Flexible: This partnership offersmore file sharing options.In Sync: Your Handheld’s clock isautomatically set to the time on yourregular computer’s clock.Less Control: Fileupdating is automatic;correct file updating isdependent on correctsetup.Less Safe: Unintendedfile updates are possible.More Lengthy Setup:There are more questionsto answer when firstchoosing this partnership.Doubly Wrong: If yourregular computer’s clock iswrong, your Handheld’sclock will be wrong.GGuueessttPPaarrttnneerrsshhiippMore Control: Files are manuallymoved/copied between computers.Safer: Since you’re in control of filesynchronization, data cannot beinadvertently written over.Faster Setup: There are fewerquestions asked when setting up thispartnership type.Allows for Multiple Partners: Thispartnership is for use on shared orborrowed computers.Synchronization LessCertain: Since fileupdating is manual, theremay be inconsistencies.Takes Longer: Manualupdating requiresattention to detail.Slower Connections:Each time you connect,ActiveSync will ask if youwant a Guest or aStandard Partnershipconnection.Less Convenient: Youcannot connect viawireless LAN.Figure 14ActiveSync’s Partnership dialog15

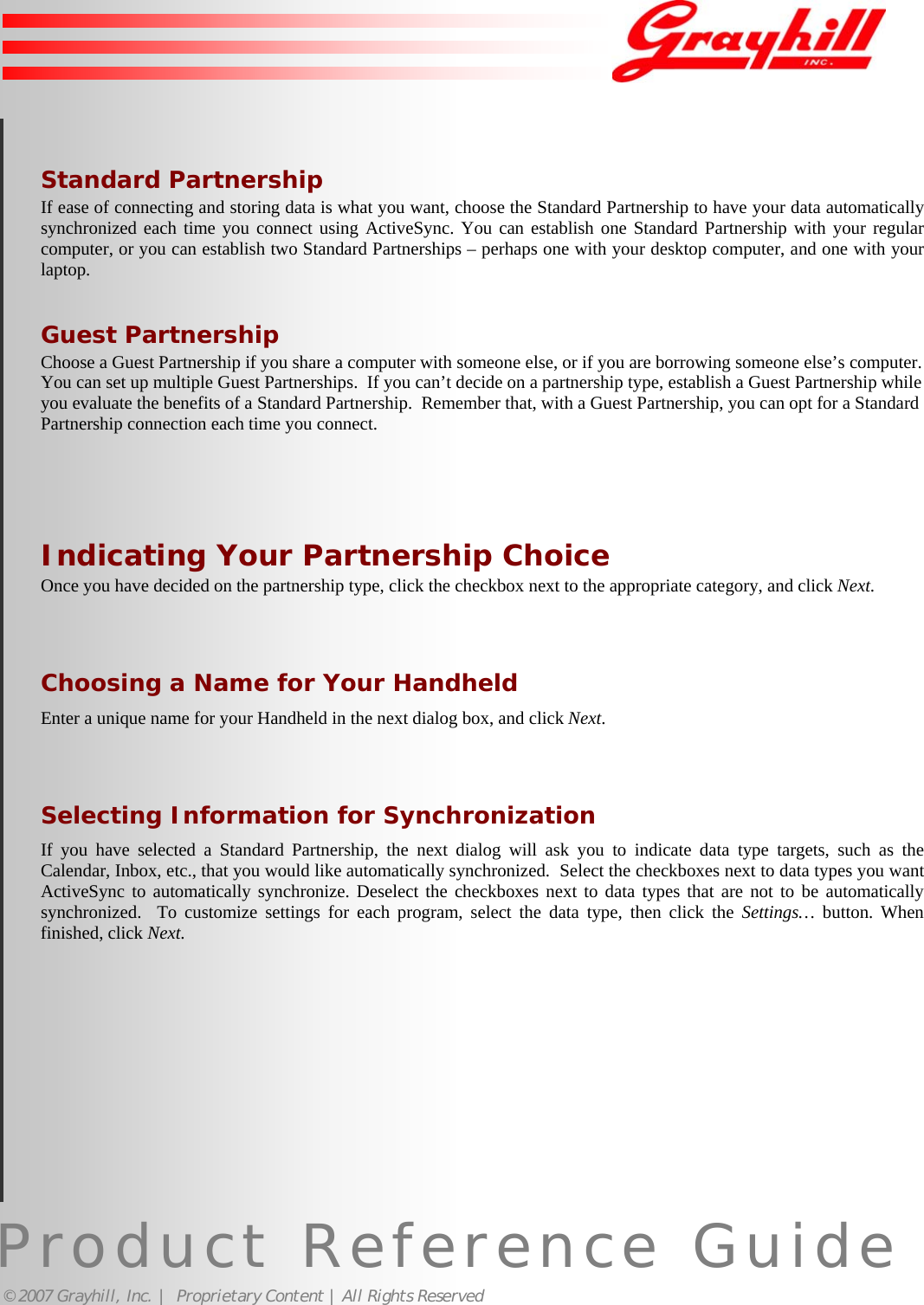

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedStandard PartnershipIf ease of connecting and storing data is what you want, choose the Standard Partnership to have your data automaticallysynchronized each time you connect using ActiveSync. You can establish one Standard Partnership with your regularcomputer, or you can establish two Standard Partnerships – perhaps one with your desktop computer, and one with yourlaptop.Guest PartnershipChoose a Guest Partnership if you share a computer with someone else, or if you are borrowing someone else’s computer.You can set up multiple Guest Partnerships. If you can’t decide on a partnership type, establish a Guest Partnership whileyou evaluate the benefits of a Standard Partnership. Remember that, with a Guest Partnership, you can opt for a StandardPartnership connection each time you connect.Indicating Your Partnership ChoiceOnce you have decided on the partnership type, click the checkbox next to the appropriate category, and click Next.Choosing a Name for Your HandheldEnter a unique name for your Handheld in the next dialog box, and click Next.Selecting Information for SynchronizationIf you have selected a Standard Partnership, the next dialog will ask you to indicate data type targets, such as theCalendar, Inbox, etc., that you would like automatically synchronized. Select the checkboxes next to data types you wantActiveSync to automatically synchronize. Deselect the checkboxes next to data types that are not to be automaticallysynchronized. To customize settings for each program, select the data type, then click the Settings… button. Whenfinished, click Next. 16

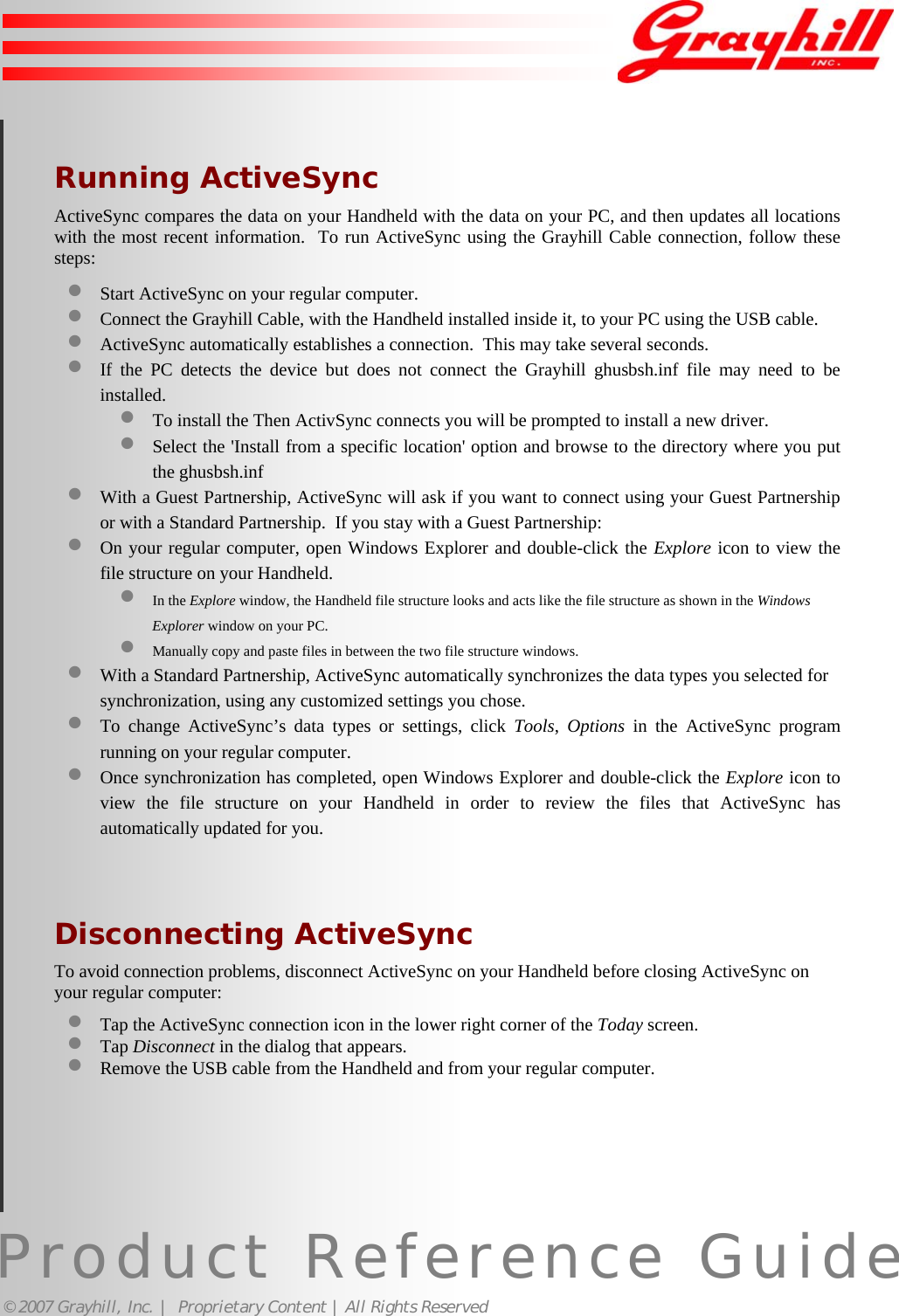

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedRunning ActiveSyncActiveSync compares the data on your Handheld with the data on your PC, and then updates all locationswith the most recent information. To run ActiveSync using the Grayhill Cable connection, follow thesesteps:• Start ActiveSync on your regular computer.• Connect the Grayhill Cable, with the Handheld installed inside it, to your PC using the USB cable.• ActiveSync automatically establishes a connection. This may take several seconds.• If the PC detects the device but does not connect the Grayhill ghusbsh.inf file may need to beinstalled.• To install the Then ActivSync connects you will be prompted to install a new driver.• Select the 'Install from a specific location' option and browse to the directory where you putthe ghusbsh.inf• With a Guest Partnership, ActiveSync will ask if you want to connect using your Guest Partnershipor with a Standard Partnership. If you stay with a Guest Partnership:• On your regular computer, open Windows Explorer and double-click the Explore icon to view thefile structure on your Handheld.• In the Explore window, the Handheld file structure looks and acts like the file structure as shown in the WindowsExplorer window on your PC.• Manually copy and paste files in between the two file structure windows.• With a Standard Partnership, ActiveSync automatically synchronizes the data types you selected forsynchronization, using any customized settings you chose.• To change ActiveSync’s data types or settings, click Tools, Options in the ActiveSync programrunning on your regular computer.• Once synchronization has completed, open Windows Explorer and double-click the Explore icon toview the file structure on your Handheld in order to review the files that ActiveSync hasautomatically updated for you.Disconnecting ActiveSyncTo avoid connection problems, disconnect ActiveSync on your Handheld before closing ActiveSync onyour regular computer:• Tap the ActiveSync connection icon in the lower right corner of the Today screen.• Tap Disconnect in the dialog that appears.• Remove the USB cable from the Handheld and from your regular computer.17

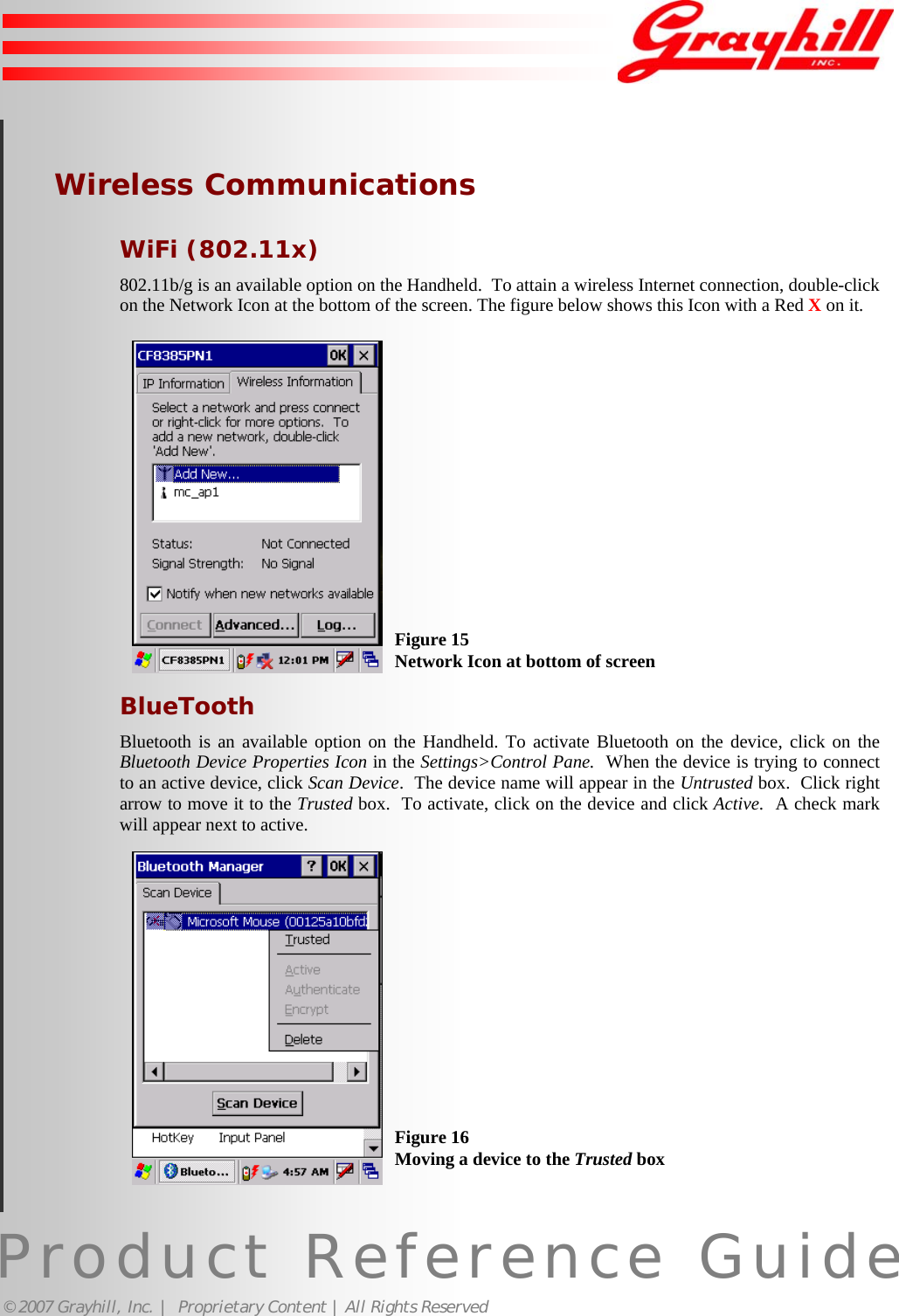

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedWireless CommunicationsWiFi (802.11x)802.11b/g is an available option on the Handheld. To attain a wireless Internet connection, double-clickon the Network Icon at the bottom of the screen. The figure below shows this Icon with a Red X on it.BlueToothBluetooth is an available option on the Handheld. To activate Bluetooth on the device, click on theBluetooth Device Properties Icon in the Settings>Control Pane. When the device is trying to connectto an active device, click Scan Device. The device name will appear in the Untrusted box. Click rightarrow to move it to the Trusted box. To activate, click on the device and click Active. A check markwill appear next to active.Figure 15Network Icon at bottom of screenFigure 16Moving a device to the Trusted box18

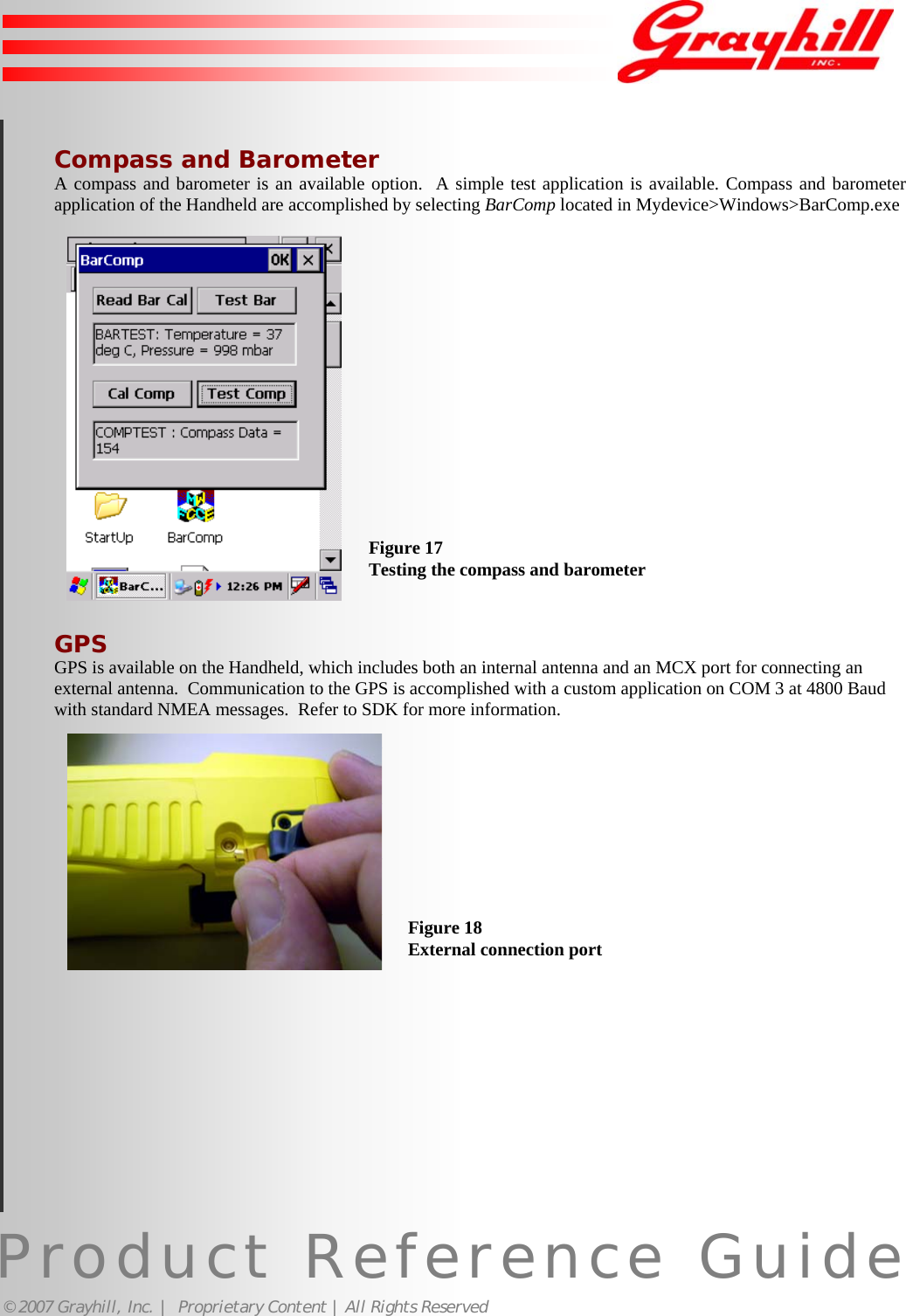

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights Reserved19Compass and BarometerA compass and barometer is an available option. A simple test application is available. Compass and barometerapplication of the Handheld are accomplished by selecting BarComp located in Mydevice>Windows>BarComp.exeGPSGPS is available on the Handheld, which includes both an internal antenna and an MCX port for connecting anexternal antenna. Communication to the GPS is accomplished with a custom application on COM 3 at 4800 Baudwith standard NMEA messages. Refer to SDK for more information.Figure 17Testing the compass and barometerFigure 18External connection port

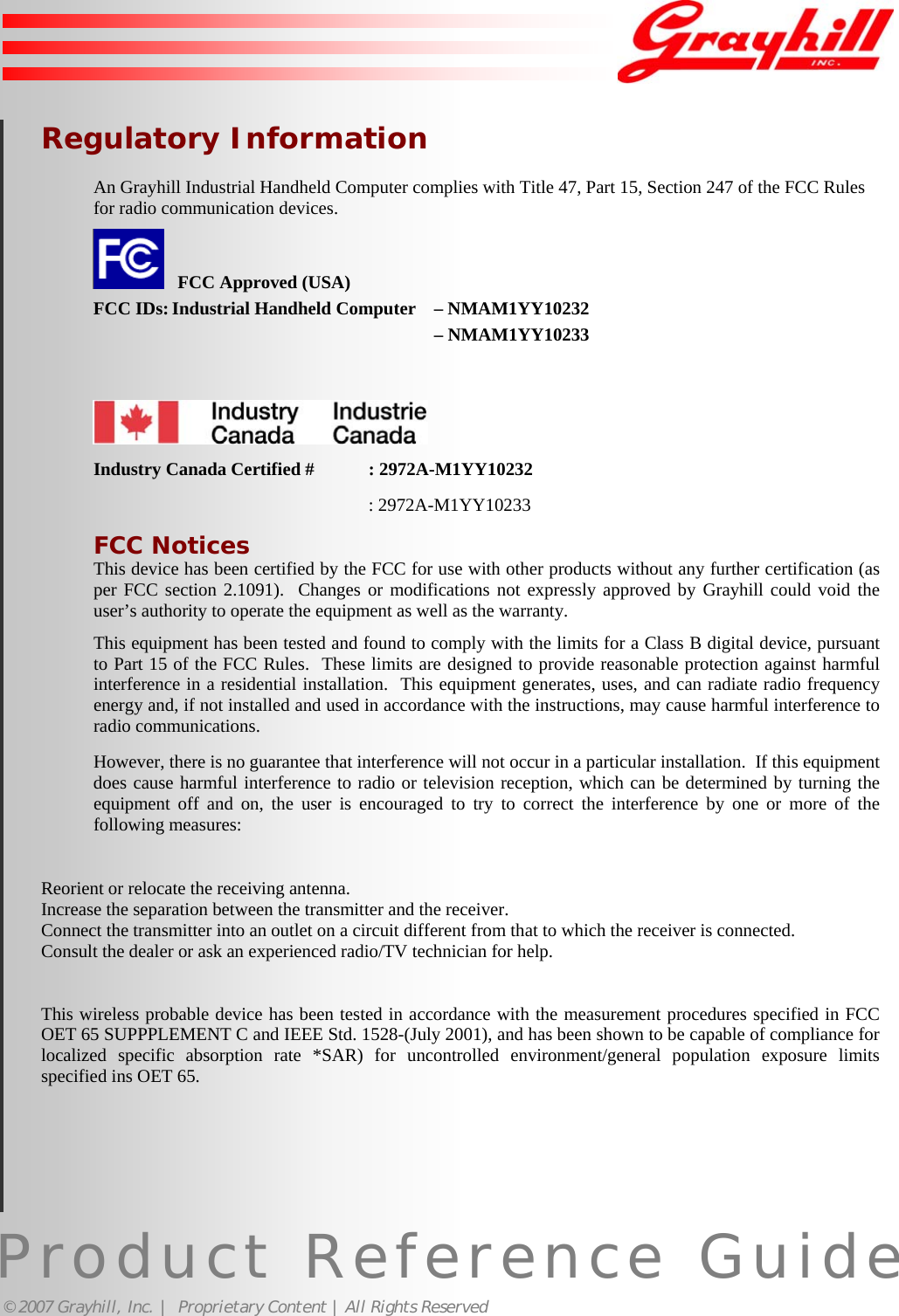

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedRegulatory InformationAn Grayhill Industrial Handheld Computer complies with Title 47, Part 15, Section 247 of the FCC Rulesfor radio communication devices. FCC Approved (USA)FCC IDs: Industrial Handheld Computer – NMAM1YY10232– NMAM1YY10233Industry Canada Certified # : 2972A-M1YY10232: 2972A-M1YY10233FCC NoticesThis device has been certified by the FCC for use with other products without any further certification (asper FCC section 2.1091). Changes or modifications not expressly approved by Grayhill could void theuser’s authority to operate the equipment as well as the warranty.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses, and can radiate radio frequencyenergy and, if not installed and used in accordance with the instructions, may cause harmful interference toradio communications.However, there is no guarantee that interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:Reorient or relocate the receiving antenna.Increase the separation between the transmitter and the receiver.Connect the transmitter into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or ask an experienced radio/TV technician for help.This wireless probable device has been tested in accordance with the measurement procedures specified in FCCOET 65 SUPPPLEMENT C and IEEE Std. 1528-(July 2001), and has been shown to be capable of compliance forlocalized specific absorption rate *SAR) for uncontrolled environment/general population exposure limitsspecified ins OET 65.20

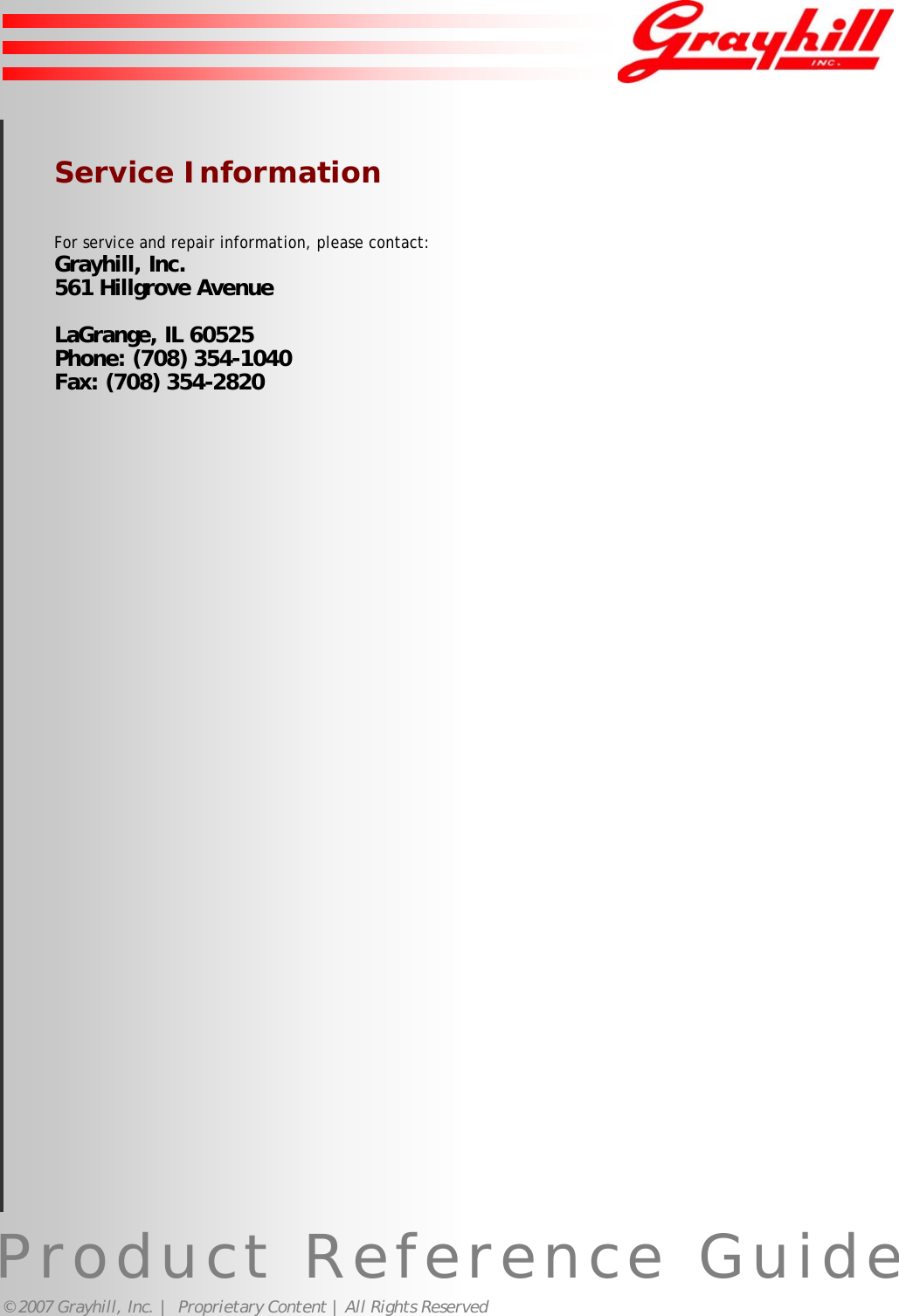

Product Reference Guide© 2007 Grayhill, Inc. | Proprietary Content | All Rights ReservedService InformationFor service and repair information, please contact:Grayhill, Inc.561 Hillgrove AvenueLaGrange, IL 60525Phone: (708) 354-1040Fax: (708) 354-282021
