Centrifugal Inline Fans

Models SQ and BSQ

Direct and Belt Drive

April

2012

®

2

Models SQ and BSQ

Centrifugal Square Inline Duct Fans

Greenheck Fan Corporation certifies the model SQ

and BSQ fans shown herein are licensed to bear

the AMCA Seal. The ratings shown are based on

tests and procedures performed in accordance

with AMCA Publication 211 and Publication 311

and comply with the requirements of the AMCA

Certified Ratings Program. The certified ratings for

models SQ and BSQ are shown on pages 15 to 45.

UL is optional and must be

specified. SQ and BSQ models are

Listed for Electrical (UL/cUL 705)

File no. E40001

Standard Construction Features ........4-5

Vari-Green Motor & Control Options .....6-7

Options and Accessories ................8

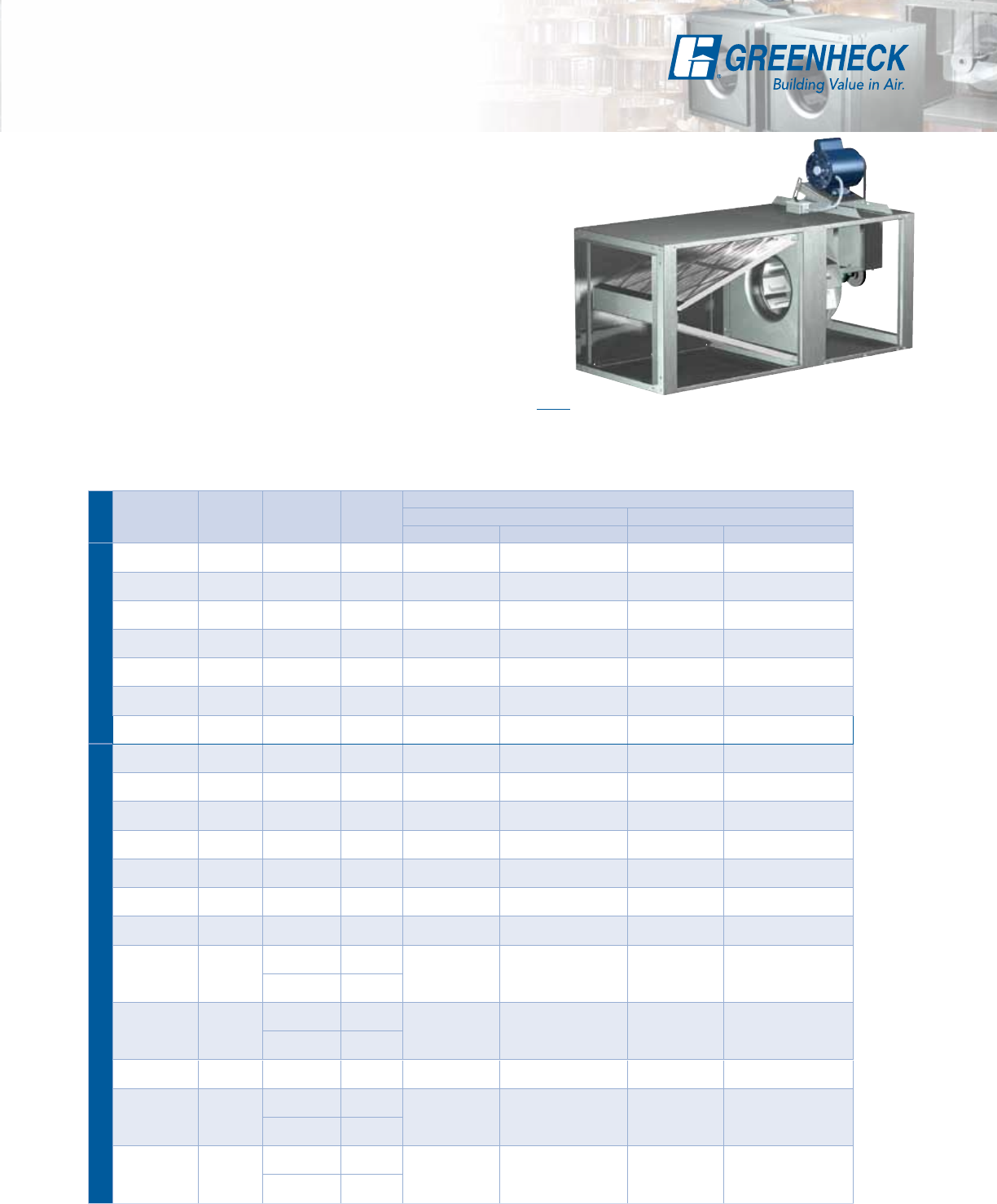

Filter Options .........................9

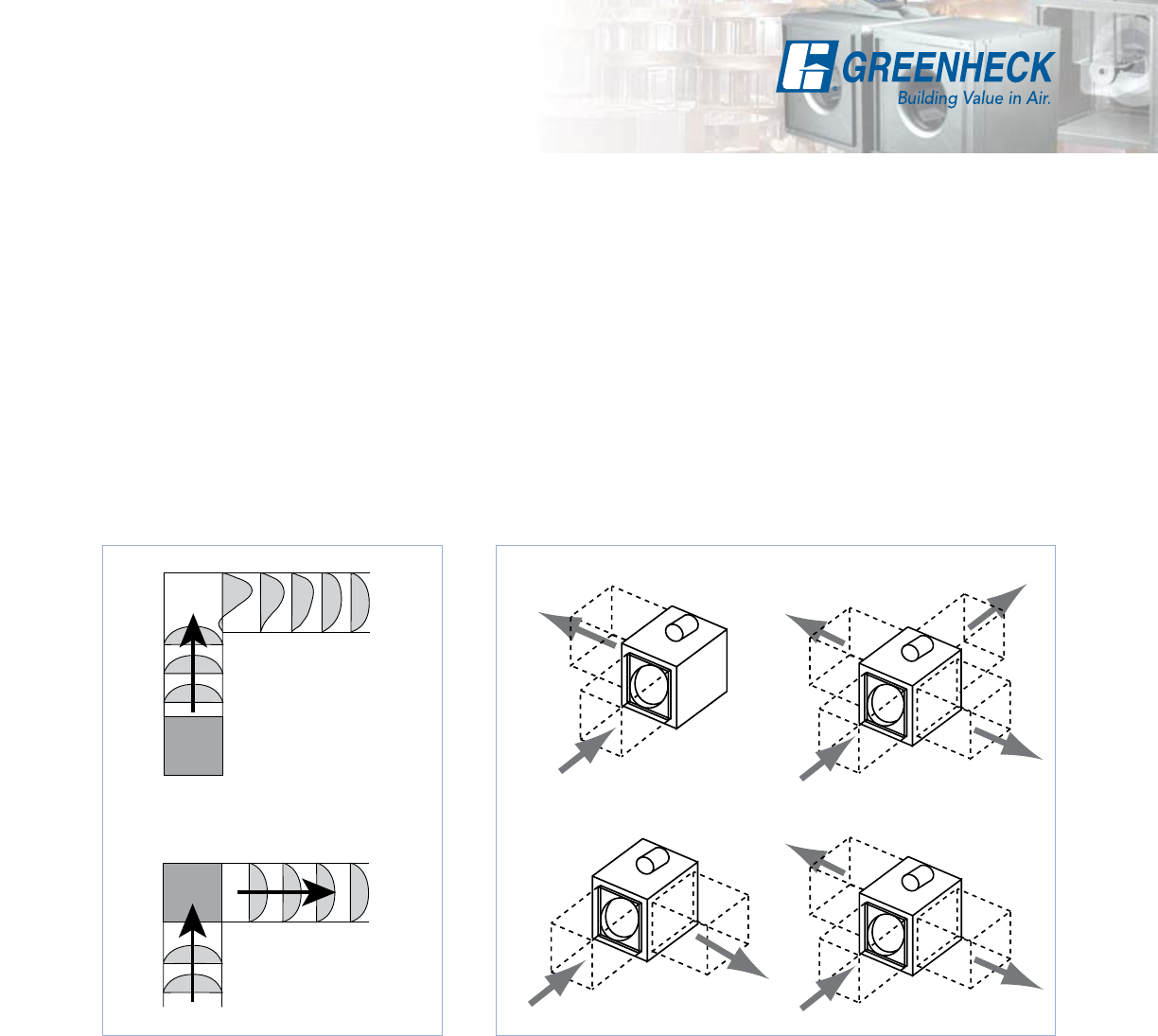

Discharge Configurations............10-11

Mounting Options.....................12

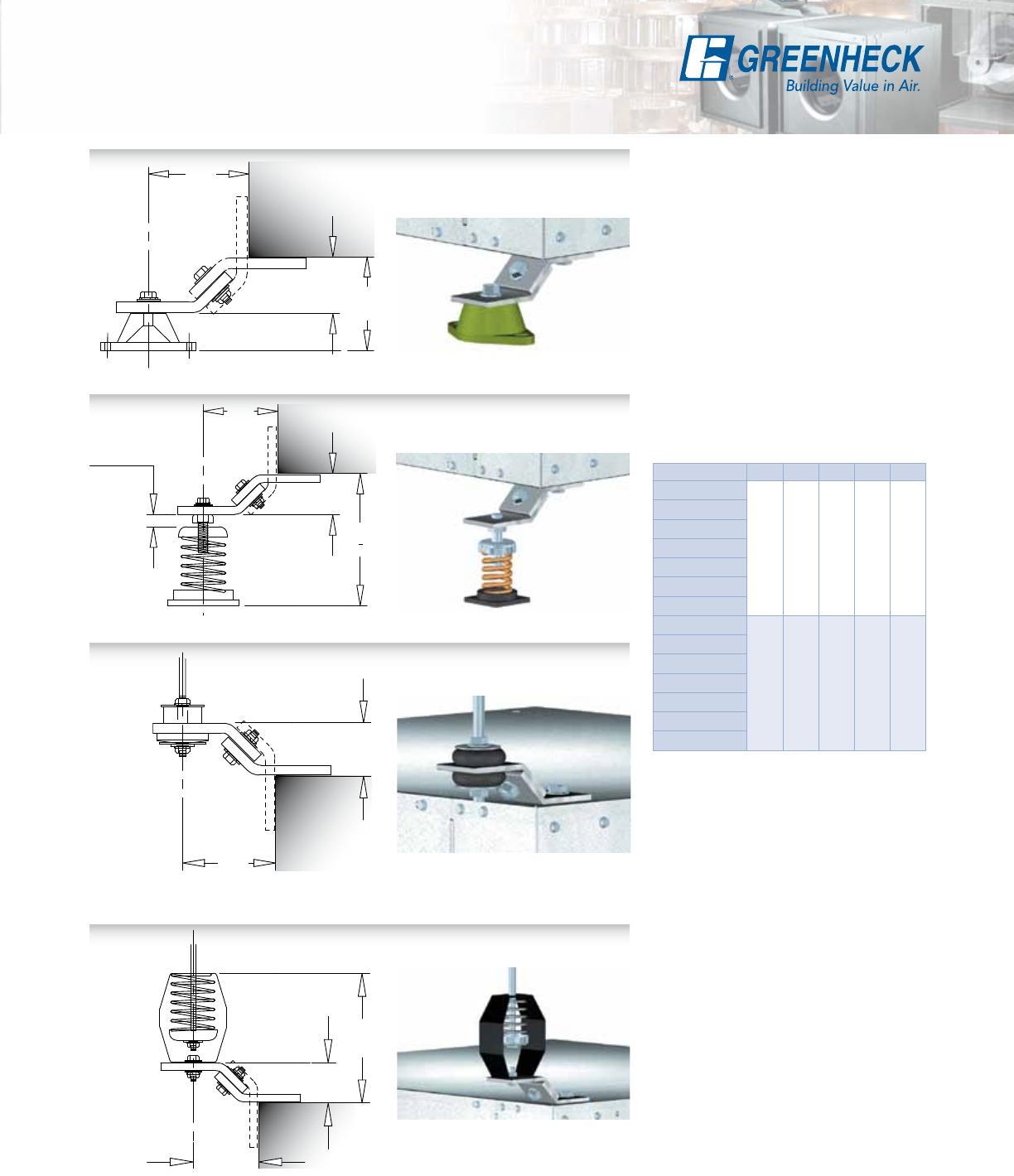

Isolators ............................13

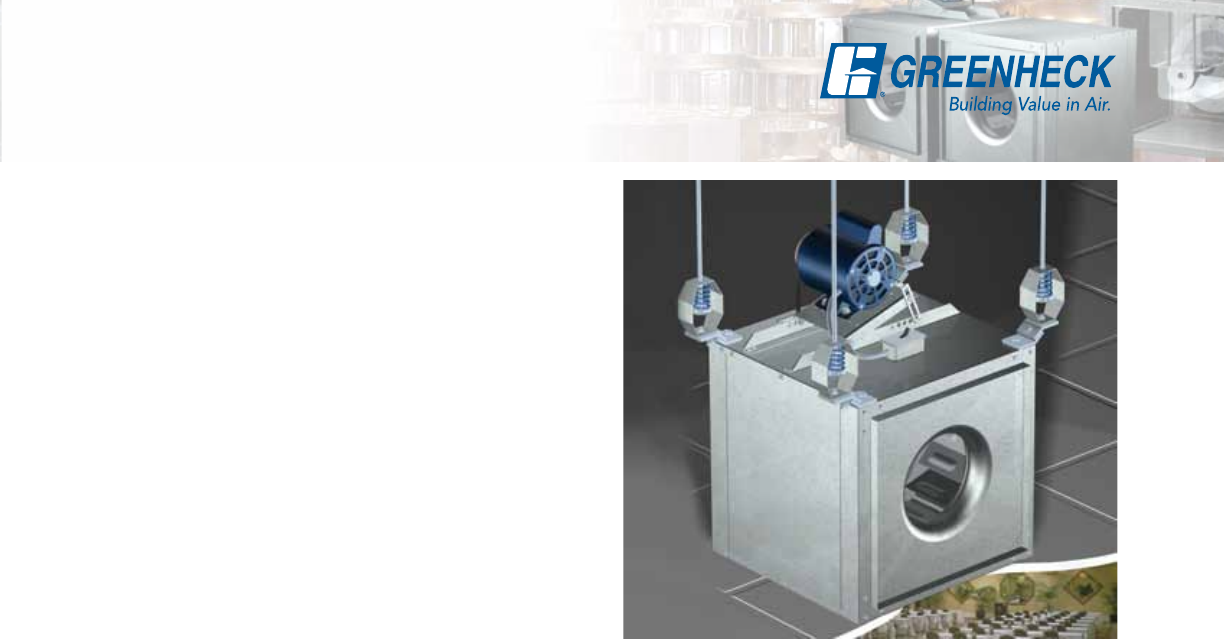

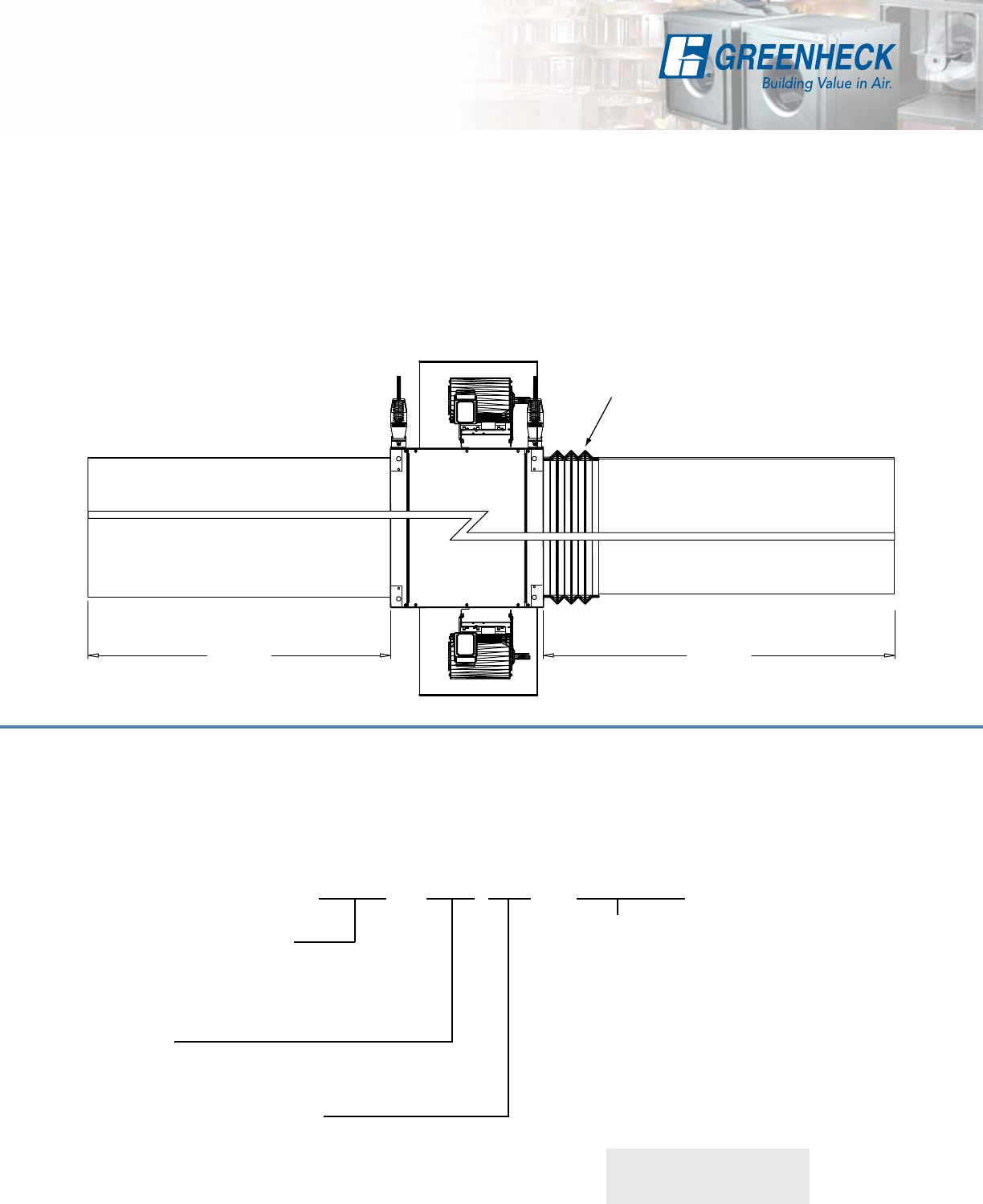

Typical Installation ....................14

Model Number Code ..................14

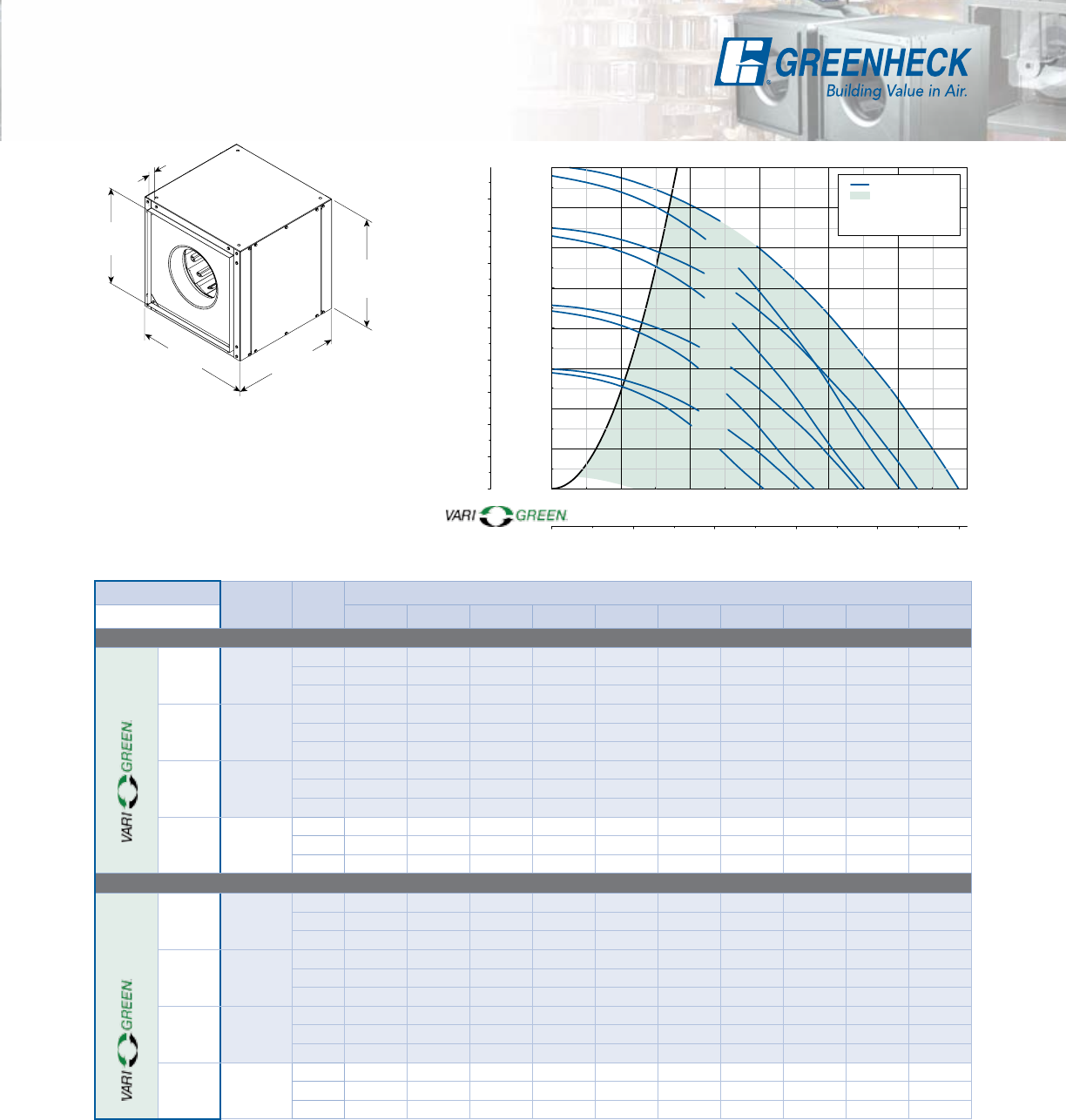

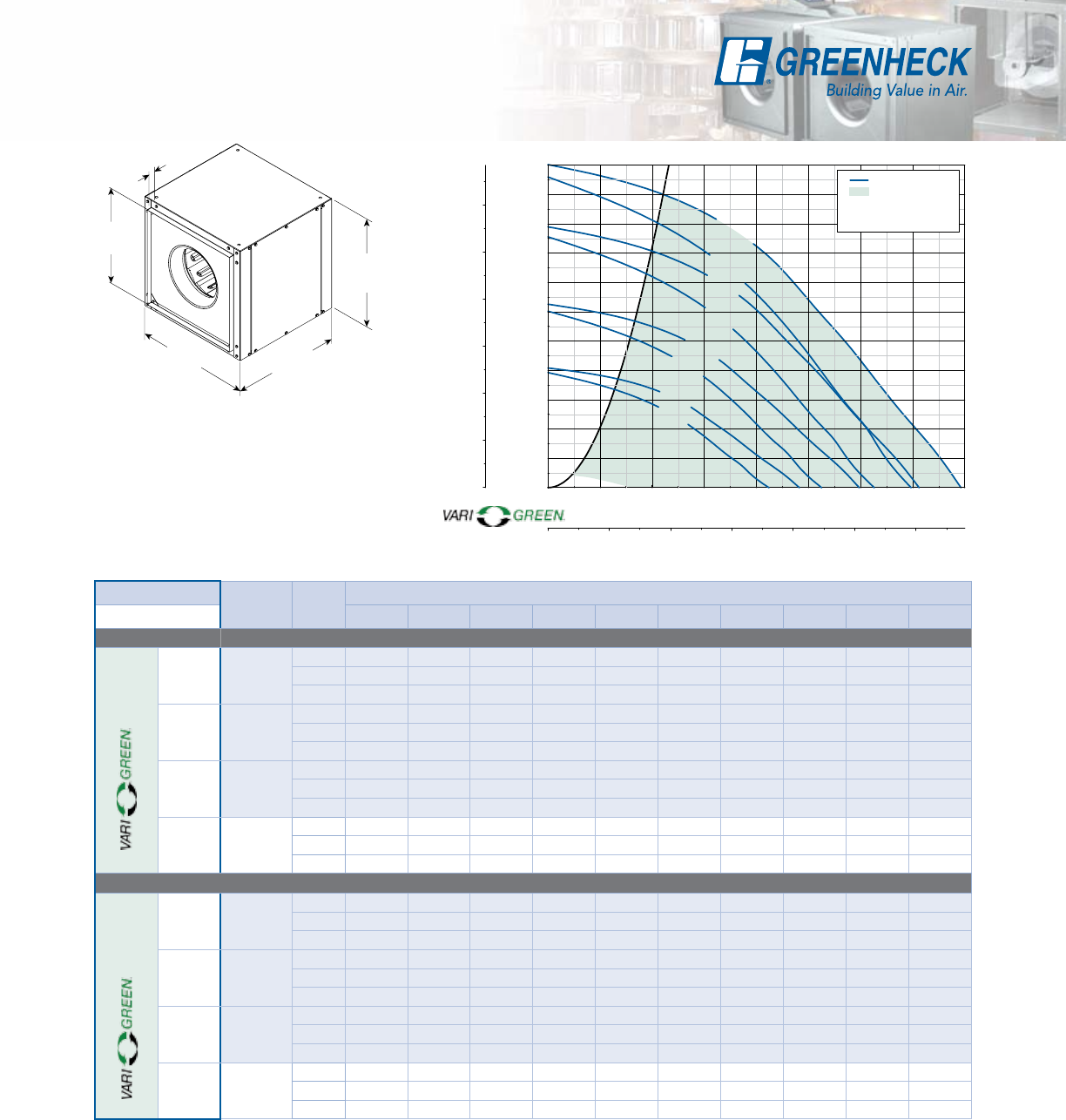

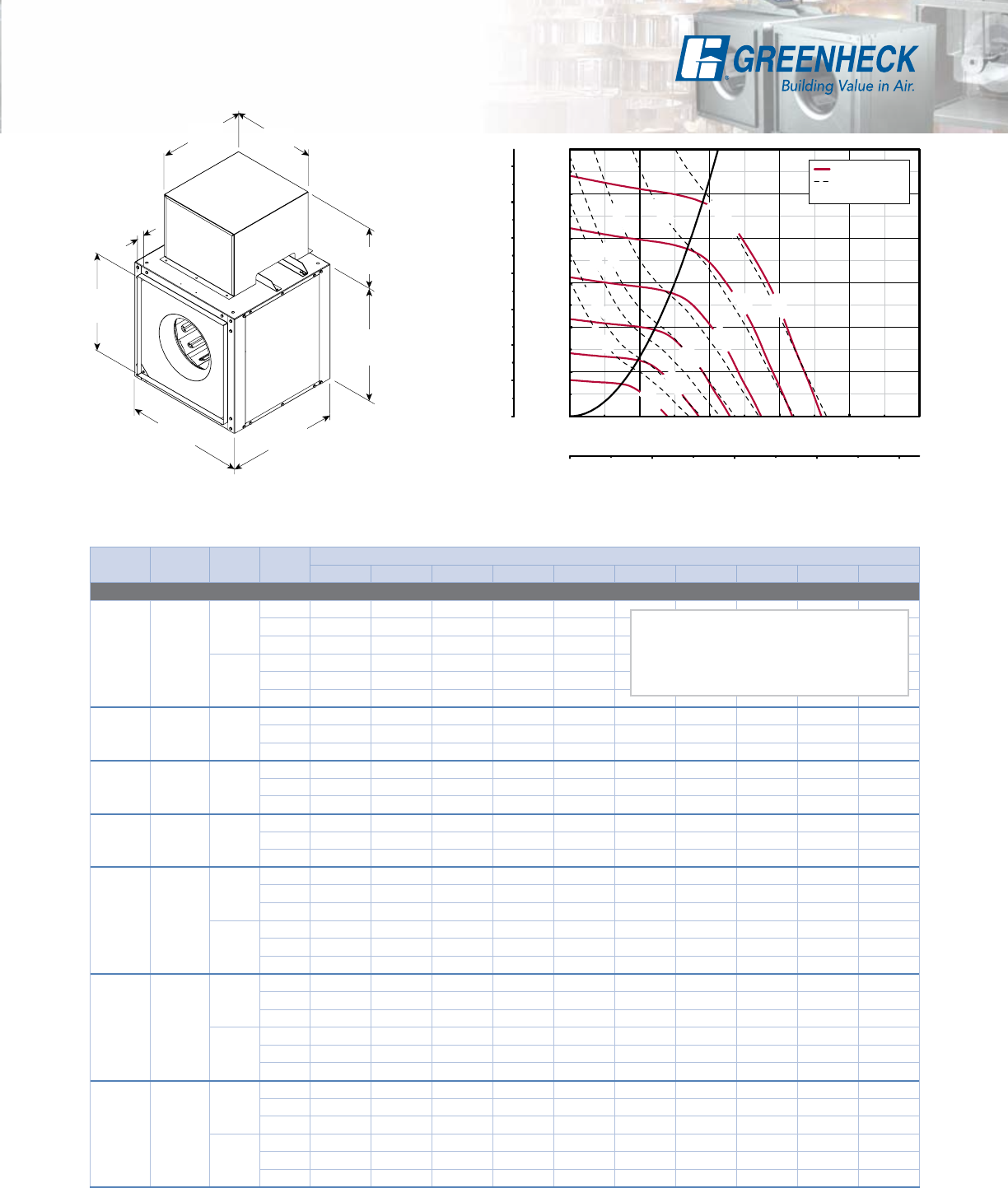

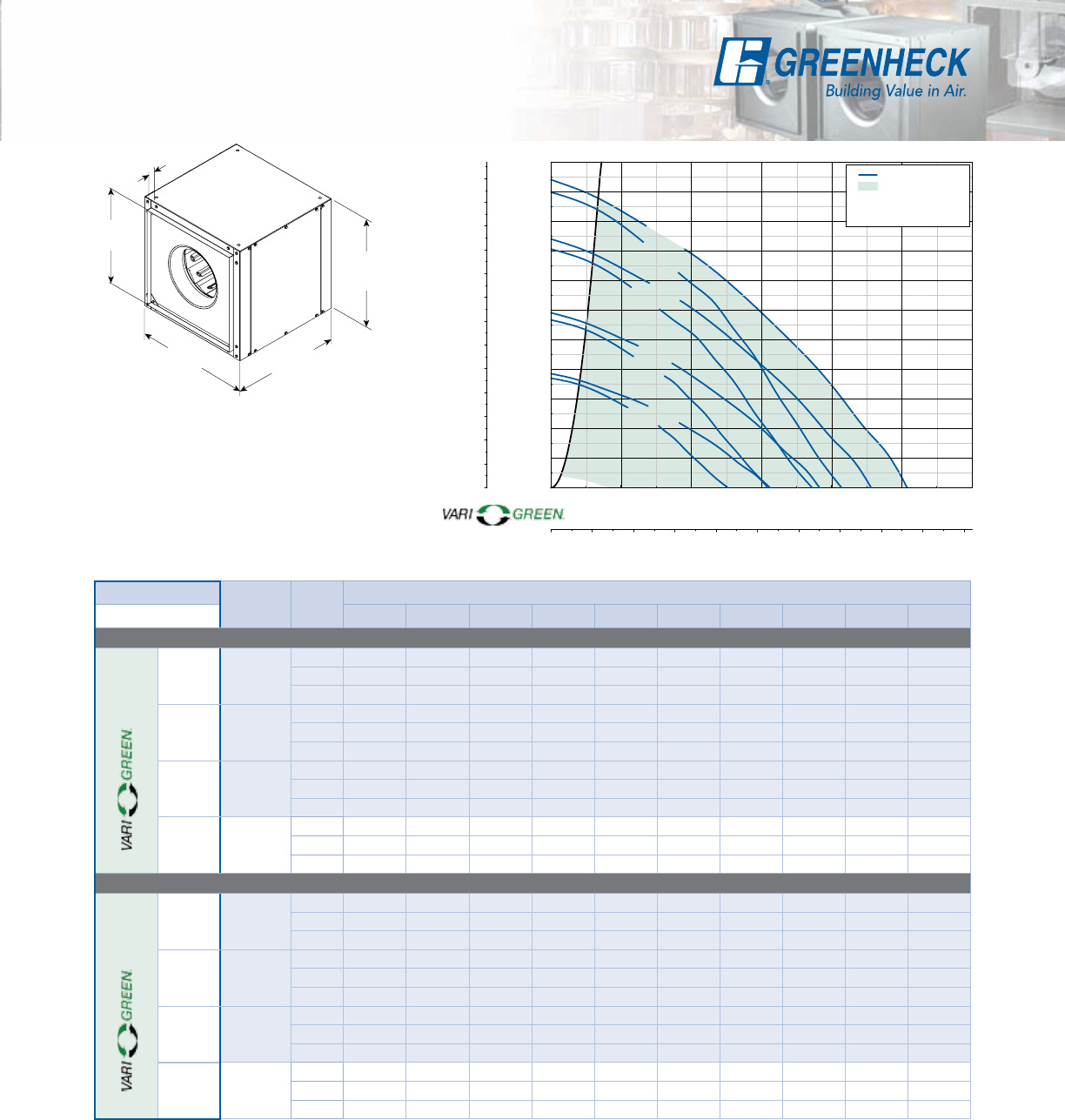

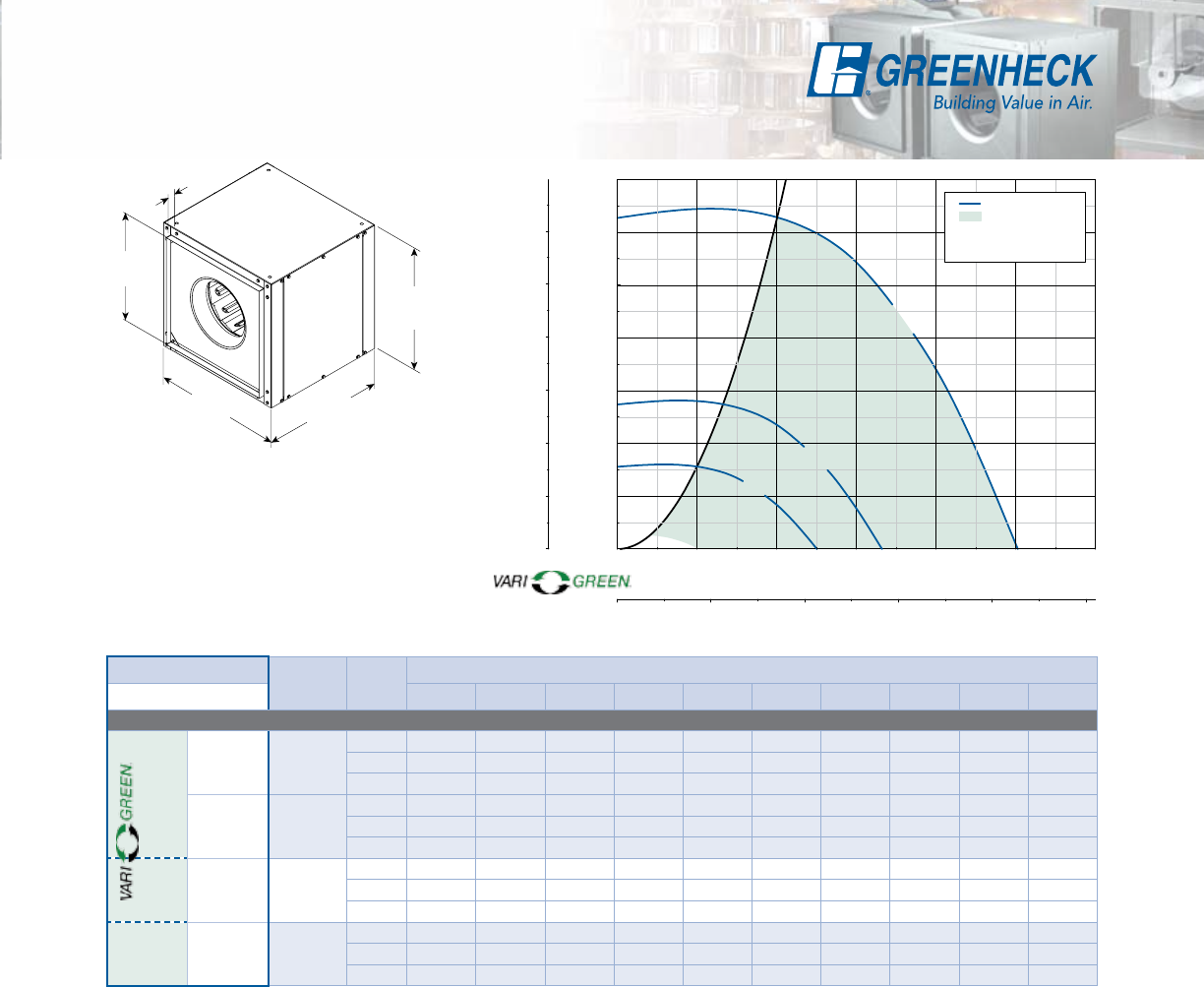

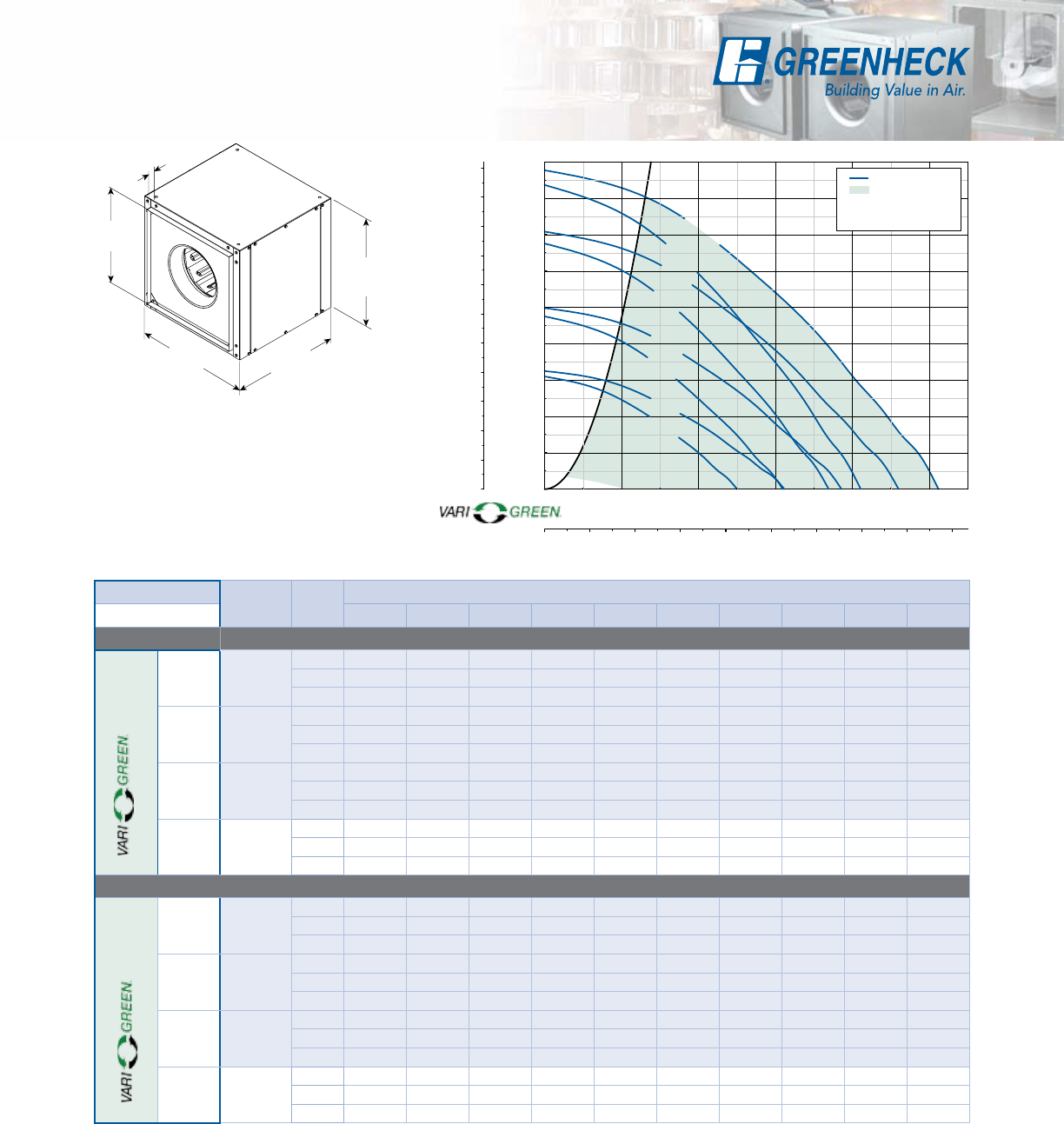

Direct Drive.......................15-23

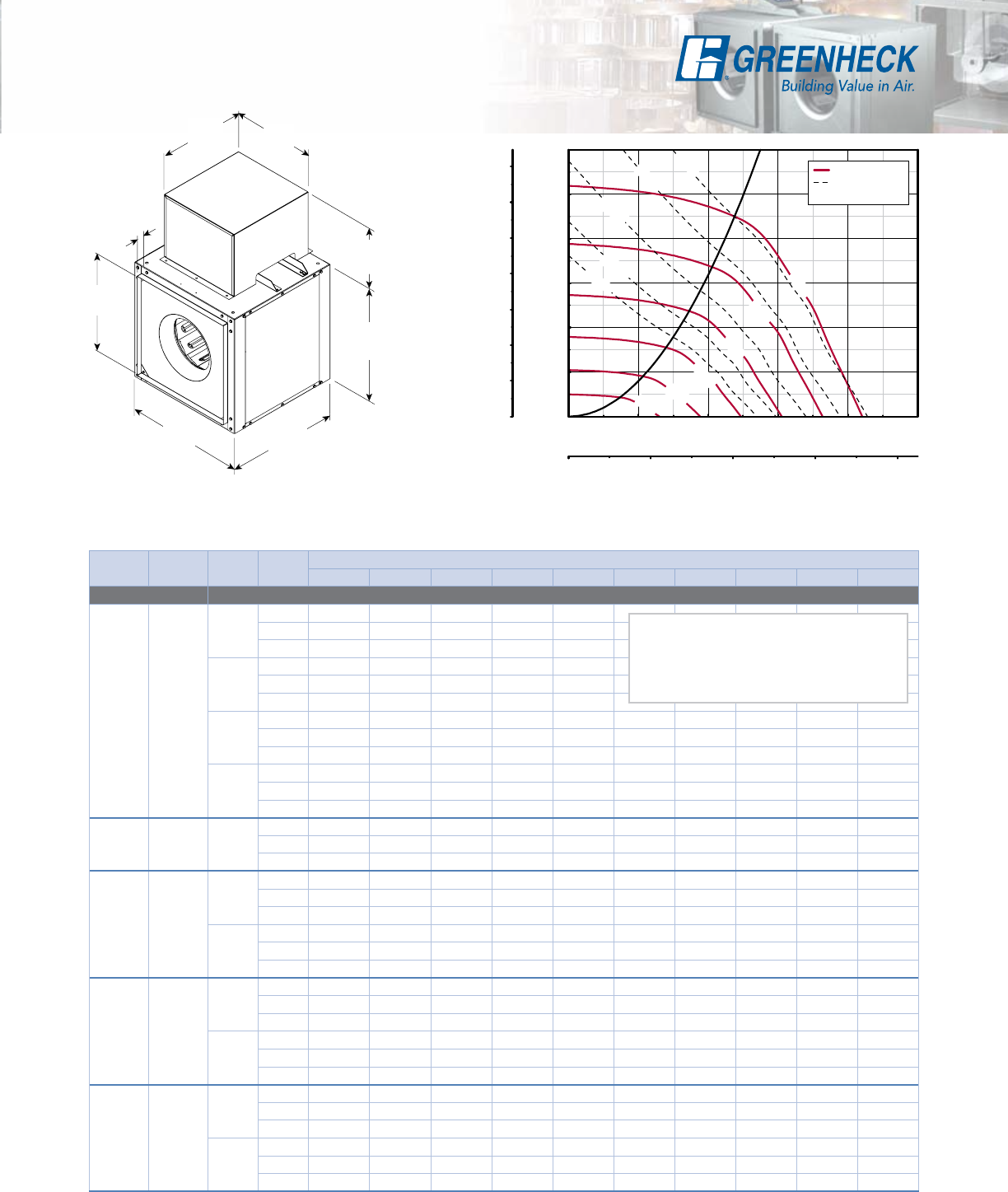

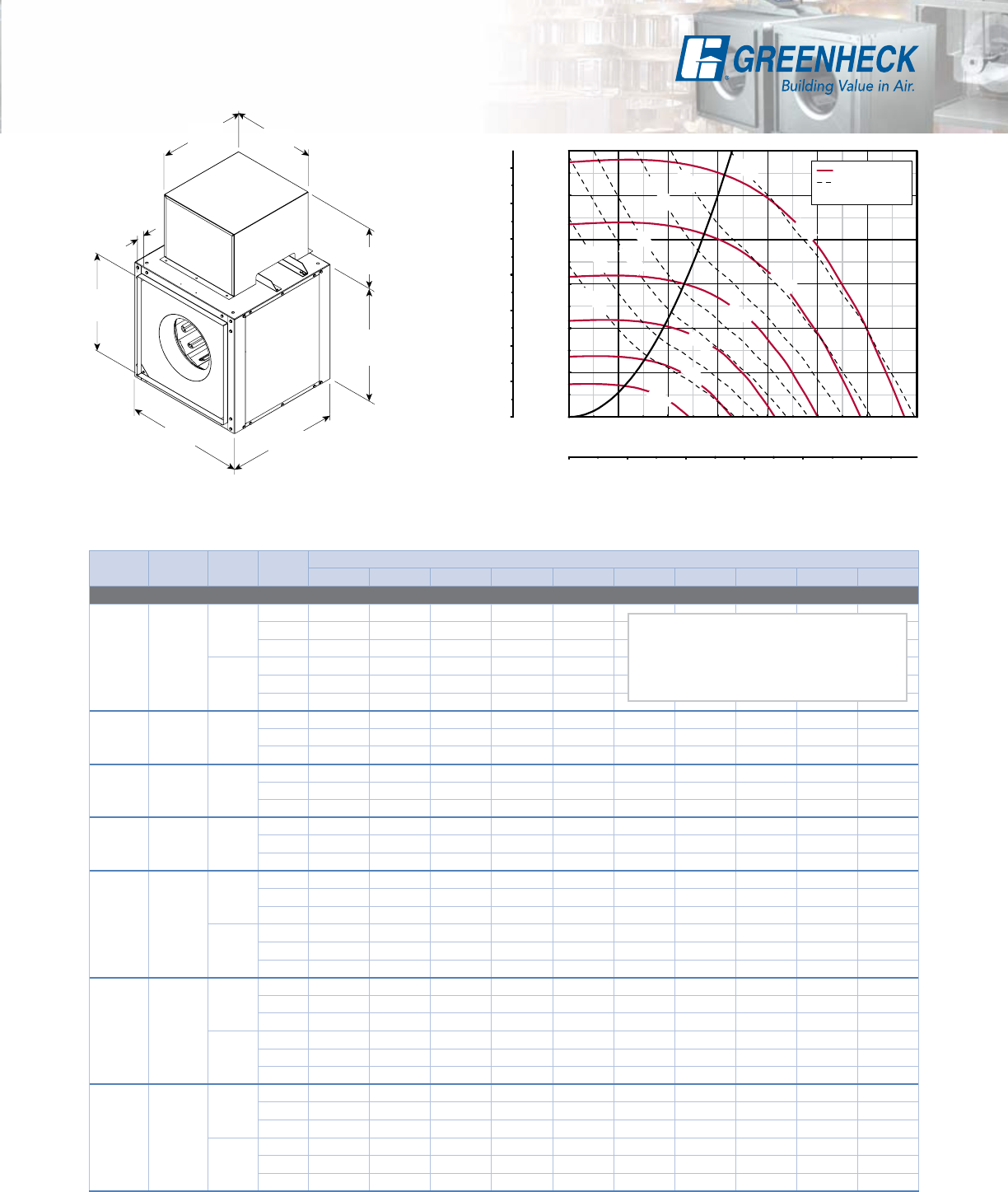

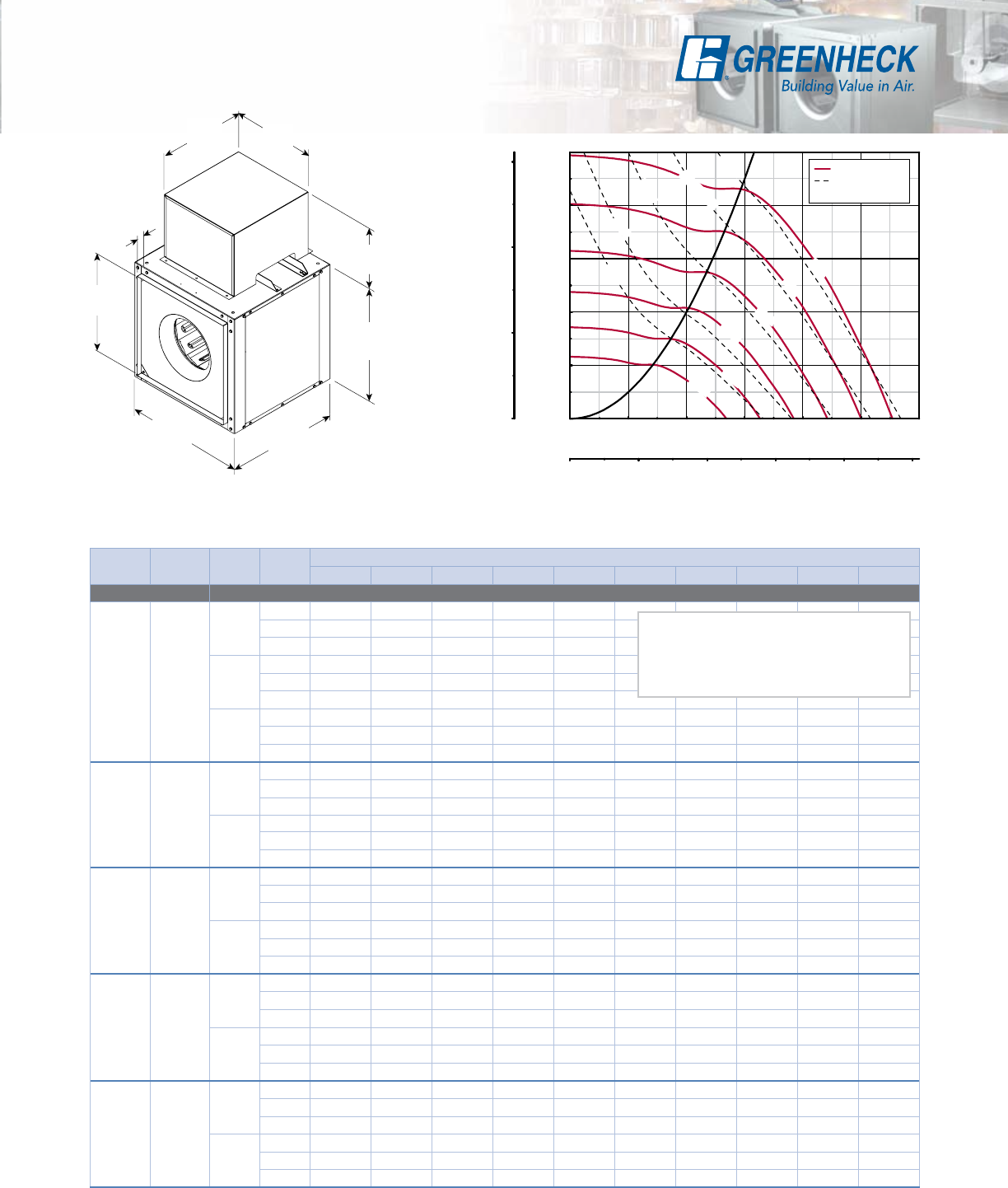

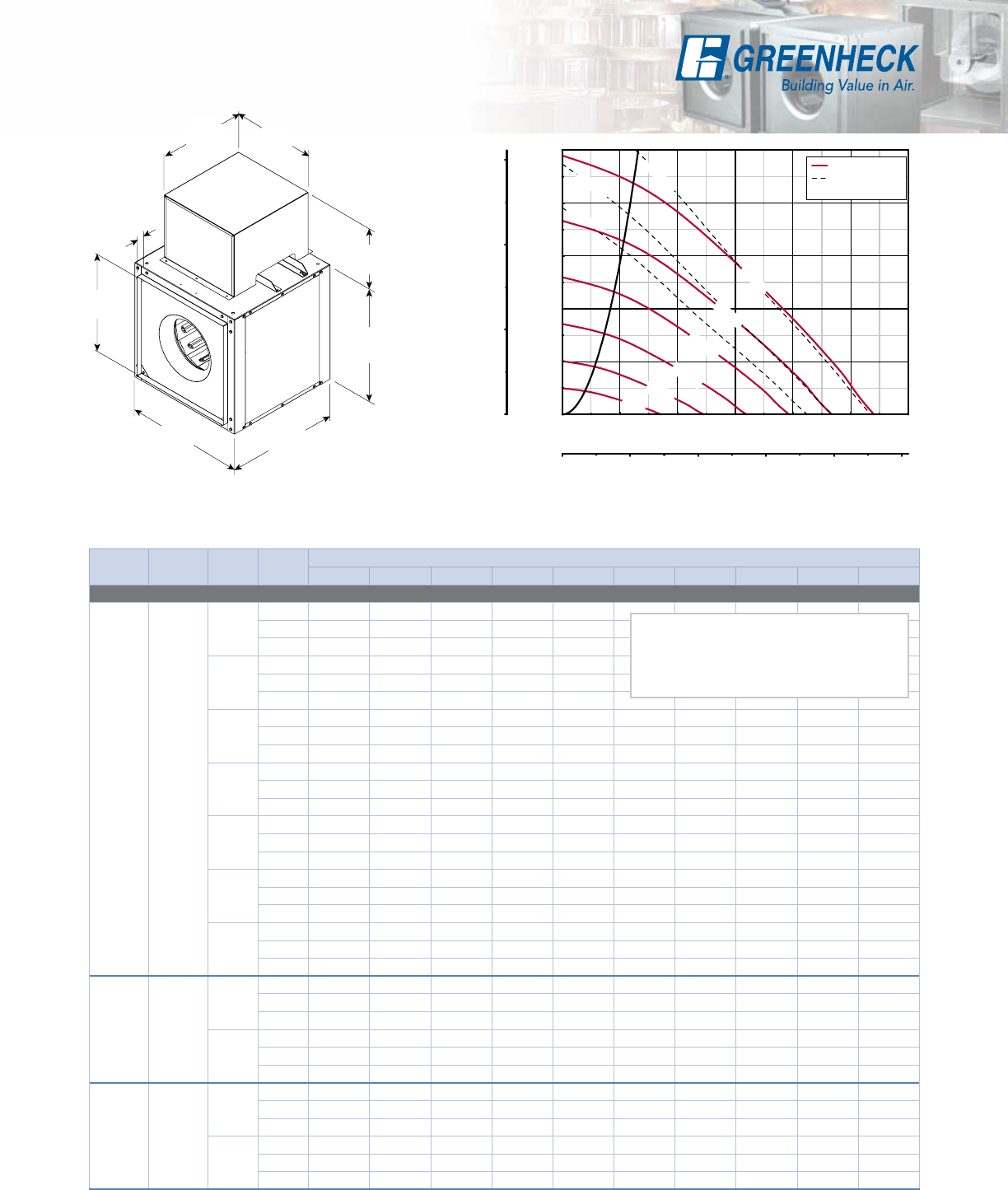

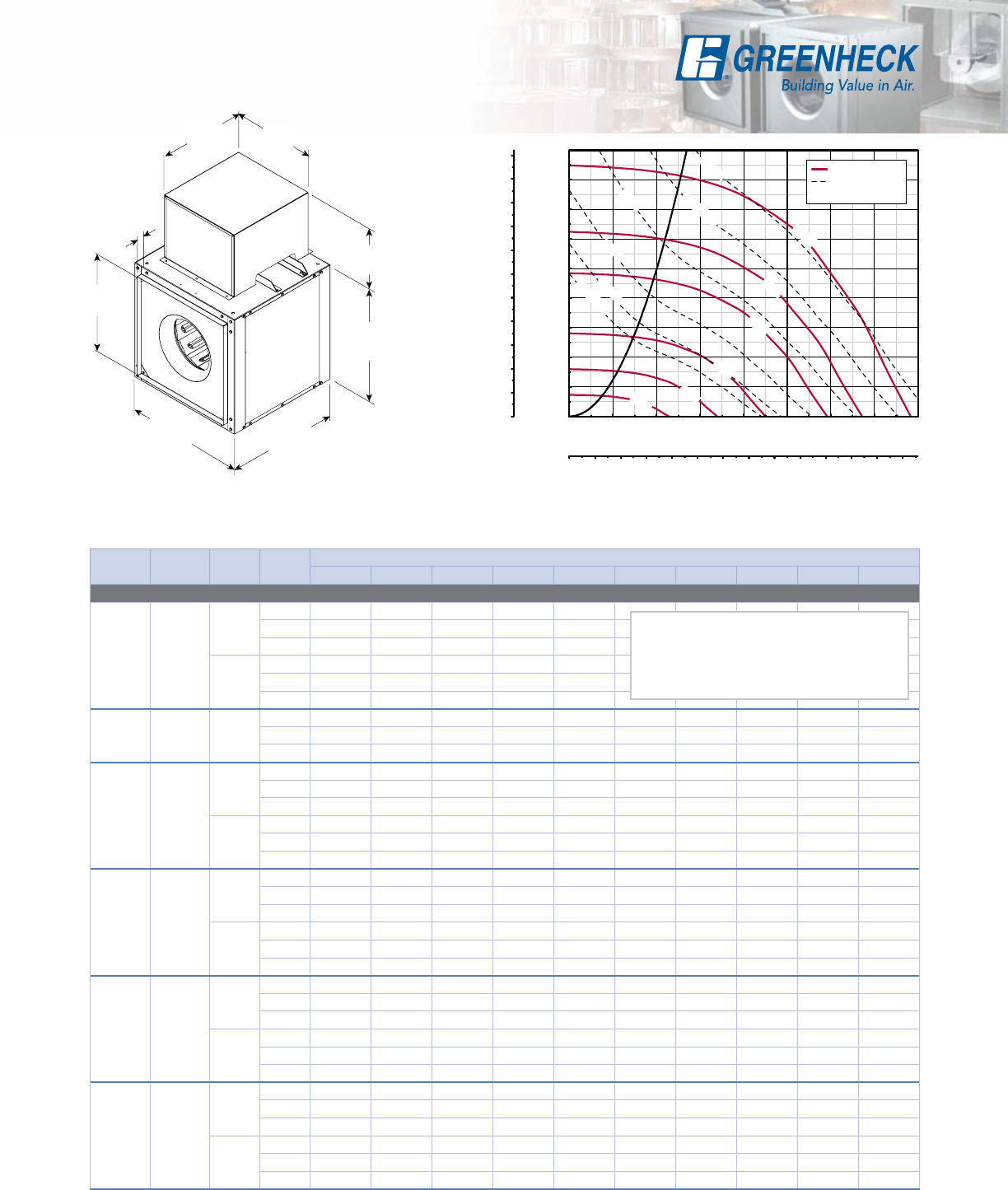

Belt Drive ........................24-45

Specifications.....................46-47

Quick Delivery .......................48

Warranty ............................48

Table of Contents

3

Models SQ and BSQ

Centrifugal Square Inline Duct Fans

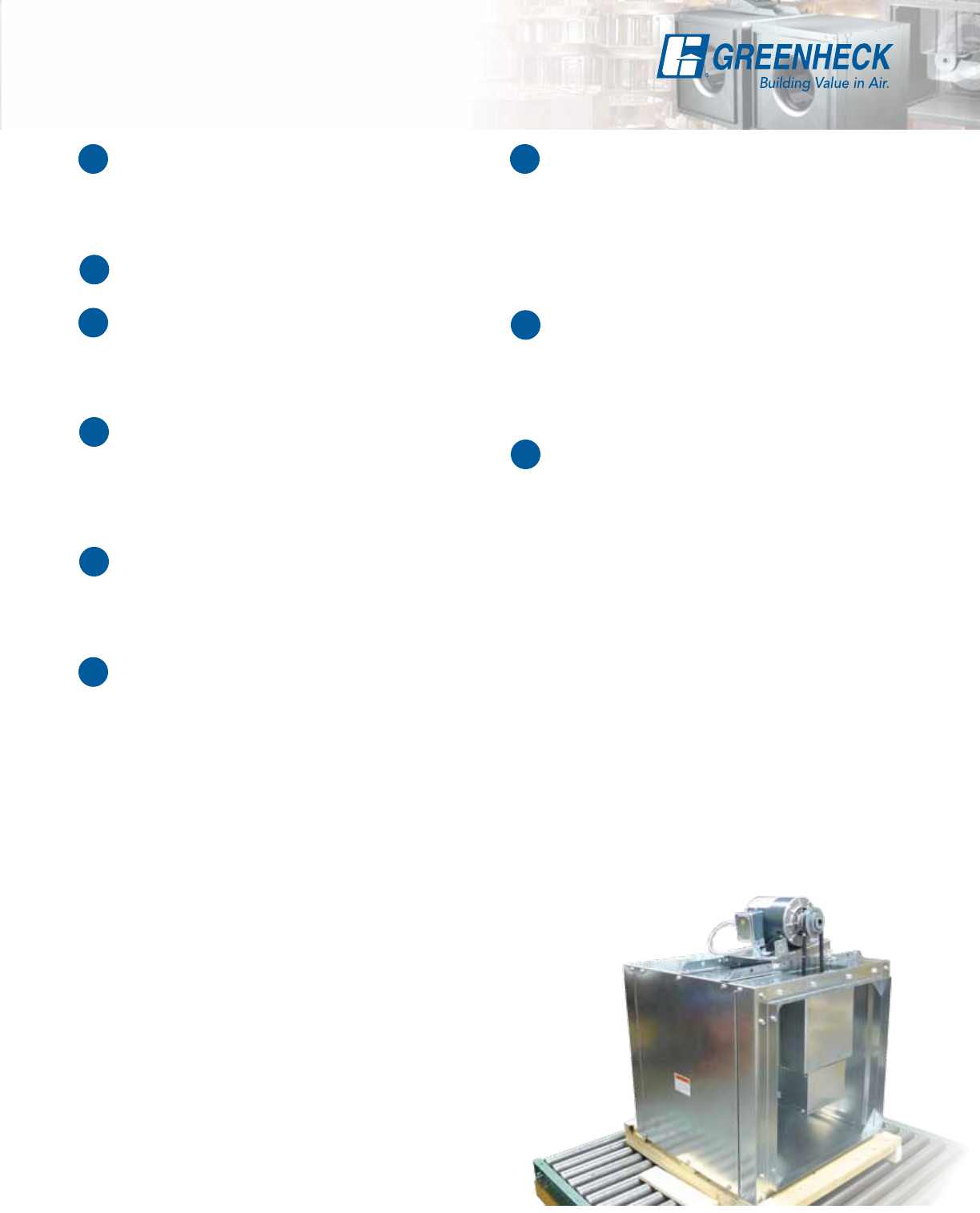

Greenheck’s model SQ and BSQ centrifugal inline fans

feature a unique combination of installation flexibility,

rugged construction, ease of service, high efficiency

and low sound levels. These compact inline fans are

the ideal selection for indoor clean air applications

including intake, exhaust, return or make-up air

systems where space is a prime consideration. The

need for costly square-to-round transition pieces is

eliminated reducing installation costs. The square

housing design, compact size and straight-thru airflow

also give the system designer the flexibility to mount

SQ and BSQ fans in any configuration - horizontal,

vertical or at any angle.

• Broadest performance in the industry, up to

4 in. wg (1,000 Pa) and 28,000 cfm (47,000 m3/hr).

• Performance as cataloged is assured. All fan sizes

are tested in our AMCA Accredited Laboratory, and

all models are licensed to bear the AMCA Sound

and Air Performance seals.

• UL Listed for Electrical.

• These Greenheck products are subjected to

extensive life testing to assure the fans will provide

many years of reliable performance.

Over the years Greenheck has listened to your needs

and input to remain the industry leader.

• Each fan is tested at the factory prior to shipping.

The test includes vibration check, adjusting RPM

and maximum amp draw.

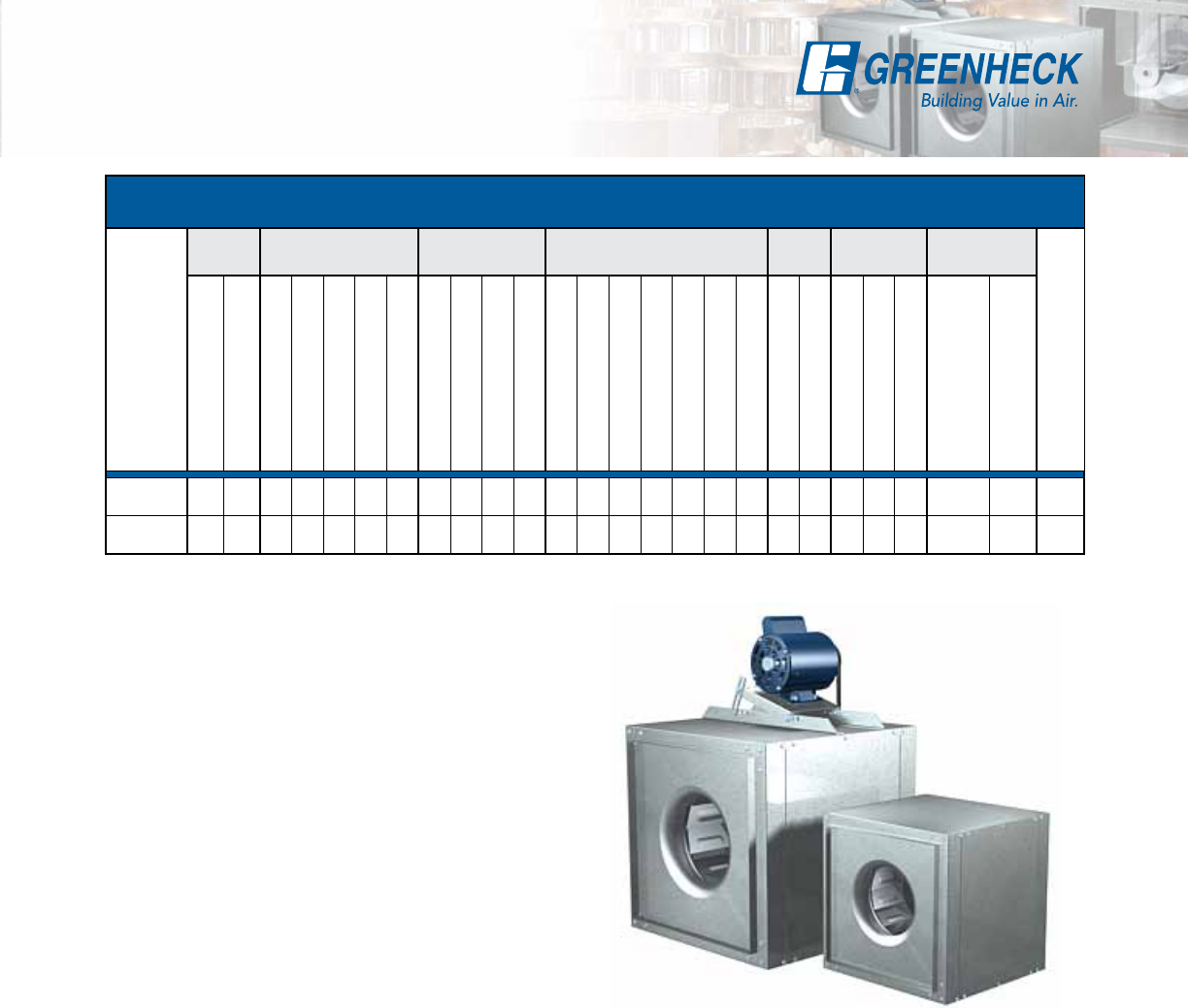

Model Comparison

Model

Location Mounting Airflow Application Drive

Type

Impeller

Type Performance

Relative Cost

Outdoor

Indoor

Roof Curb

Base/Floor

Hanging

Wall

Ceiling Mounted

Exhaust

Supply

Reversible

Recirculate

General/Clean Air

Contaminated Air

Spark Resistant

Grease (UL 762)

Smoke Control (UL)

High Wind (150 mph)

High Temp (above 200°F )

Belt

Direct

Centrifugal

Propeller/Axial

Mixed Flow

Maximum Volume

(cfm)

Maximum Static Pressure

(in. wg)

SQ      5,000 2 $

BSQ            27,200 4 $

• Each fan displays a permanently stamped metal

nameplate with complete model number, mark and

unique serial number for future identification.

• Packaged-product is tested in accordance with

ISTA (International Safe Transit Association)

standards and procedures.

Turn to our inline fans to meet your requirements for

applications in office buildings, schools and hospitals

to name a few.

4

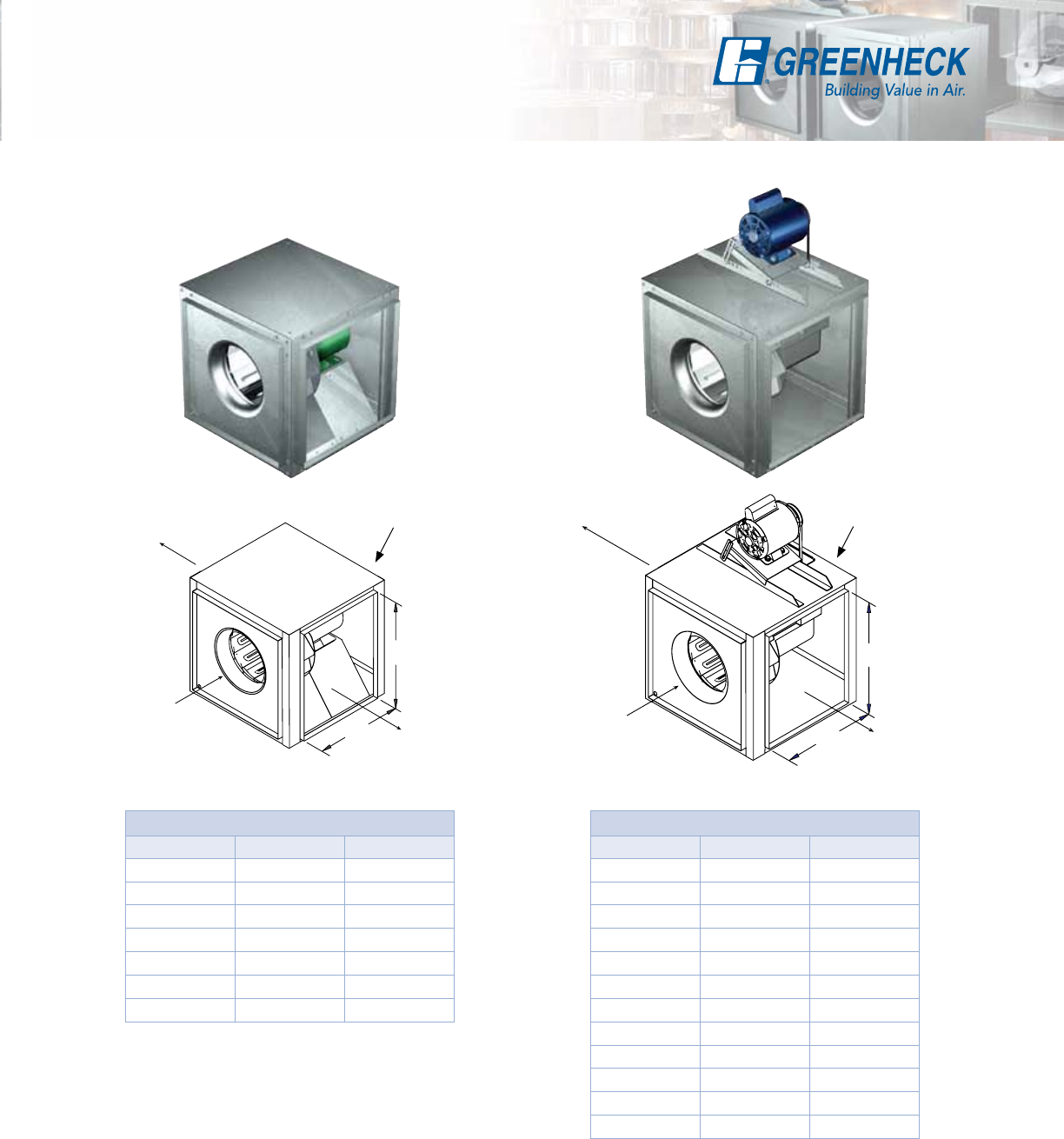

Model SQ Direct Drive

Model BSQ Belt Drive

3

4

1

2

5

2

9

5

7

4

6

8

1

3

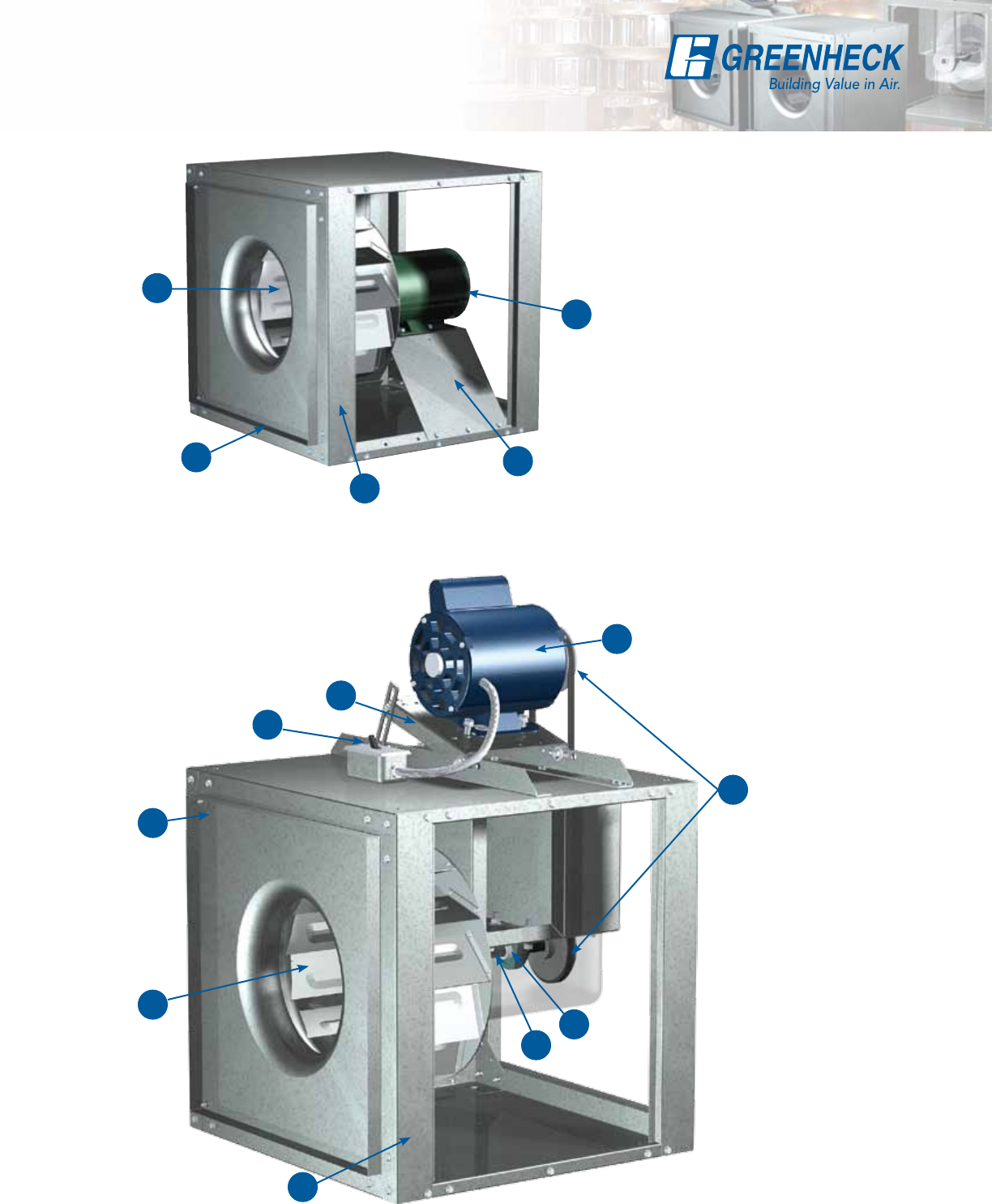

Standard Construction Features

5

Standard Construction Features

1 Cabinet Construction

The fan housing is constructed of rigid structural

members and formed galvanized steel panels.

(Aluminum construction is optional in all SQ

sizes 60-160 and in BSQ sizes 70-300).

2 Drive Frame

Constructed from heavy-gauge steel.

3 Wheel

An aluminum, backward inclined, non-

overloading centrifugal wheel is utilized to

deliver maximum efficiency. Each wheel is

statically and dynamically balanced.

4 Duct Collars

Inlet and discharge duct collars are provided

for easy duct connection. The square design

provides a larger discharge area than tubular

centrifugal and vane axial fans; outlet velocities

are reduced for quieter operation.

5 Motor

Permanently lubricated, sealed ball

bearing motors are selected to provide

years of trouble-free operation with

minimal maintenance.

6 Bearings

100 percent factory tested bearings are

designed specifically for air handling

applications with a minimum L10 life in excess

of 100,000 hours (L50 average life in excess

of 500,000 hours).

Drive Assembly

Drives are sized for a minimum of 150 percent

of driven horsepower. Machined cast iron

pulleys are factory set to the required RPM and

adjustable for final system balancing. Belts are

static free and oil resistant. Belt adjustment is

accomplished by loosening fasteners, sliding

the motor plate and retightening fasteners.

Fan Shaft

Fan shafts are precisely sized, ground and

polished so the first critical speed is at least

25percent over the maximum operating speed.

Close tolerances where the shaft makes contact

with bearings result in longer bearing life.

Disconnect Switch

NEMA-1 disconnect switch is factory-mounted

and wiring is provided from the motor as

standard. All wiring and electrical components

comply with the National Electric Codes and

materials are UL Listed. Other NEMA enclosure

disconnect switches are optional.

Access Panels (not shown on images)

The cabinet construction features two

removable access panels permitting easy

access to all interior components.

7

8

9

6

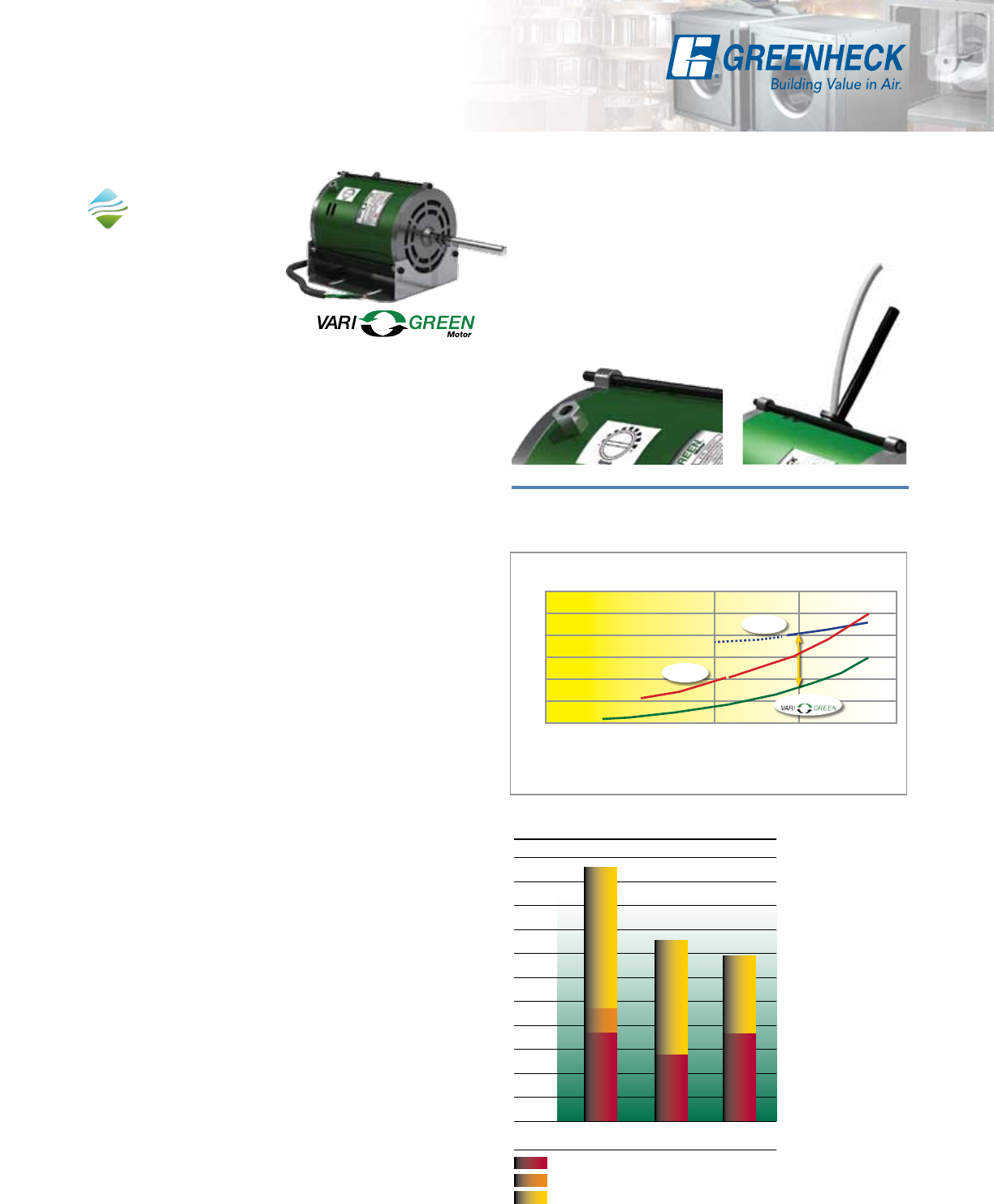

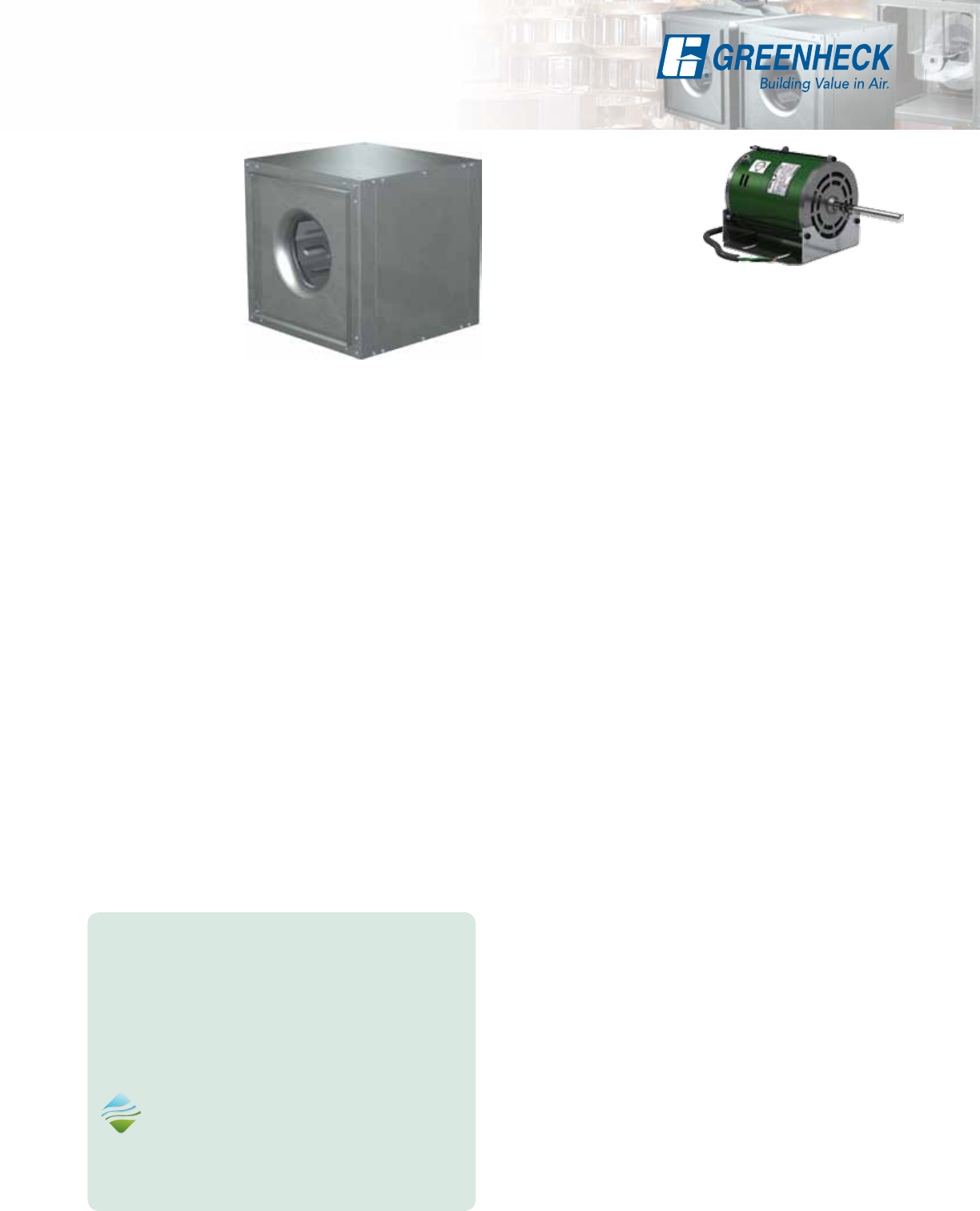

Vari-Green® Motor - Model SQ

Greenheck’s

electronically

commutated (EC)

Vari-Green (VG) motor

combines motor

technology, controllability

and energy-efficiency into

one single low maintenance

unit and is the industry’s first

fully controllable motor. When combined with

Greenheck’s SQ fans, all the CFM and static pressure

ranges of a belt drive can be attained with the

benefits of a direct drive.

The Vari-Green motor is available in:

• 1/6 - 3/4 horsepower 115 volt only.

• 1 horsepower 115/208-230 volt.

• 2 horsepower 208-230 volt.

All motors are available in a 50/60 Hz power.

Benefits

Operates on AC power that’s converted to DC—

providing a more efficient motor operation as

compared to an AC operation.

• The motor can attain up to 85% efficiency and

reduce energy consumption.

• Watt savings of 30-70% depending on RPM.

Note: As motor speed is turned down, efficiency stays

high as compared to an AC motor that decreases

dramatically.

• Operates cooler than a standard AC motor at lower

RPMs. A cooler motor has longer motor life and

reduces energy consumption.

• 80% usable RPM turndown vs. 30%. (chart at right)

• SQ fans with Vari-Green motors can provide all

the CFM and static pressure ranges of a

comparable belt drive.

• Maintenance costs are reduced as there are

no belts or bearings to replace and no pulleys

to adjust.

• Direct drive fans are often preferred where

maintenance access is difficult.

• The Vari-Green provides a solution for demand

controlled ventilation applications.

Vari-Green Advantages

• Initial cost is similar to a belt drive

• Lower operating cost

• No maintenance, no belts, pulleys or bearings

• Easy RPM adjustment

Vari-Green® Options













600

500

400

300

200

100

0

0 350

50% 75% 100%

1750

FAN SPEED (RPM)

INPUT POWER (WATTS)



SQ-120

with PSC

BSQ-120

Single Phase*

Not recommended

Energy Savings















SQ-120 with

* BSQ is a belt driven fan

The length of each curve indicates the practical turndown range.

Data is for 1/2 hp motors with load of 0.35 Bhp at full speed

Motor Turndown Comparison

Features

1. Dial on Motor Control - A potentiometer (dial on

motor control) is mounted on the motor for easy

speed adjustment for system balance. Simply turn

the dial there are no belts and pulleys to adjust.

2. Control Wire Inputs - the motor accepts a

0-10V DC signal from Building Automated

Systems, Vari-Green Controls or other

controls to adjust motor speed.

12

®

Comparisons: Belt, Direct Drive with PSC

and Direct Drive with Vari-Green

Analysis is based

on operating costs

for a period of three

years where the fans

operate continuously

at 1725 rpm, 24/7,

with an energy

rate of $0.10/kWh.

Maintenance on the

SQ-120 is estimated

at $65/yr.

Note: Example is

based on a relative

cost. Use and

installation variables

may produce

different results.

$2,500

2,250

2,000

1,750

1,500

1,250

1000

750

500

250

$0

BSQ-

120

Three Year Cost Comparison

Initial Cost

Maintenance cost over three years

Operating cost over three years

SQ-

120-A5

SQ-

120-VG

Constant Volume Life Cycle Analysis

7

Vari-Green® Options

$$$$$$$$$$$$$$$$$$$$$$$$

$$$$$$$$$$$$$$$$$$$$$$$$

$$$$$$$$$$$$$$$$$$$$$$$$

$$$$$$$$$$$$$$$$$$$$$$$$

$$$$$$$$$$$$$$$$$$$$$$$$

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

100

80

60

40

20

0%

Time of Day

Hypothetical (Hotel Bathroom)

Variable Volume - Load Shape

% of Operation

Series 1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

100

80

60

40

20

0%

Time of Day

Constant Volume - Load Shape

% of Operation

Series 2

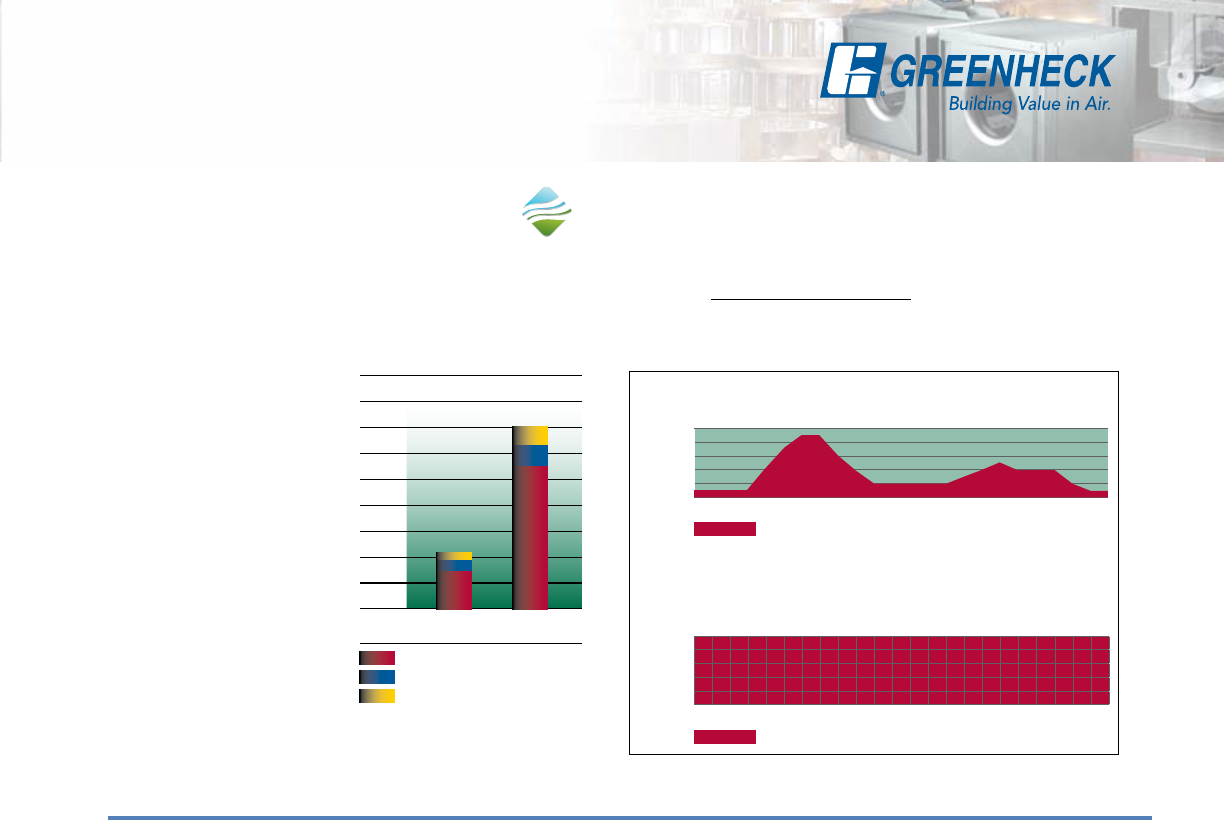

Demand controlled ventilation offers significant energy savings by

exhausting only the necessary amount of air throughout the day.

Demand Control Ventilation for

Multistory Buildings

Applications requiring constant pressure or variable

volume can utilize SQ fans with Vari-Green motors

and Vari-Green controls.

Demand control

ventilation systems

reduce the amount

of energy used by

decreasing the speed of

the fan when demand

is low. This in turn

lessens the amount

of conditioned air

exhausted and further

reduces total operating

costs associated with

air conditioning and

heating in multistoried

buildings such as: hotels,

multifamily complexes,

institutional facilities,

and high rise commercial

buildings.

$2,000

1,750

1,500

1,250

1000

750

500

250

$0

Variable

Volume

Variable Volume vs. Constant Volume

Heating Cost

Cooling Cost

Fan Operating Cost

Constant

Volume

Example of potential savings

based on a northeast city in

the USA using Vari-Green

components for variable volume.

Variable Volume

Operating Cost Analysis

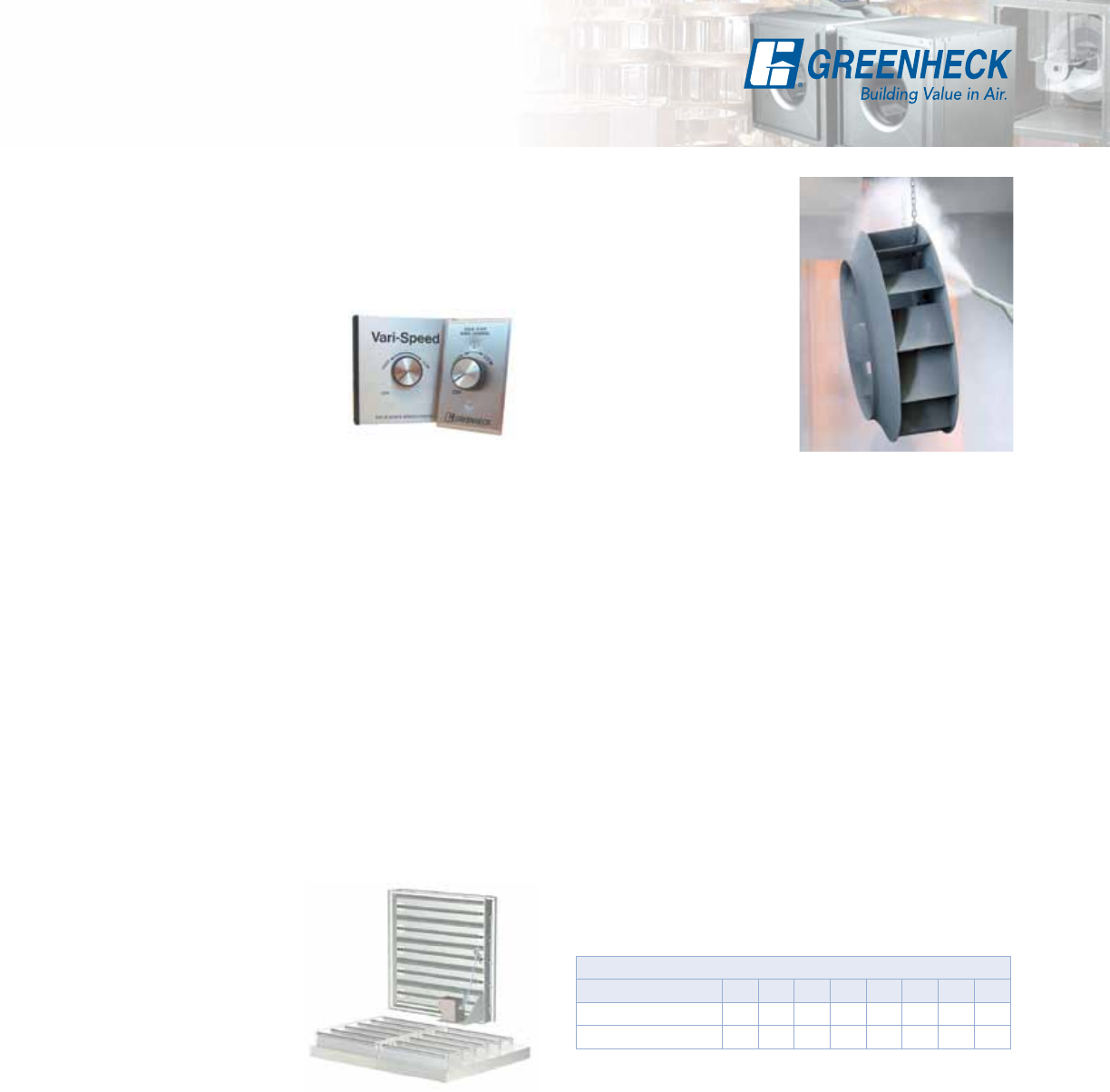

Vari-Green® Controls

Transformer - Provides 24V power from the existing

line voltage at the fan to the Vari-Green motor and

controls. Dual voltage primary (120/240V) transformer

provided with the fan.

Remote Dial - Allows for remote, manual airflow

adjustments. Wall plate with dial may be mounted in a

standard 2x4 inch electrical junction box.

Two Speed Control with Integral Transformer

Control allows motor rpm to be set at two

independent speeds (high or low). Meets minimum

airflow requirements with the ability to bump up to

high speed in emergency or meet maximum airflow

requirements, or reset down to low for energy

conservation.

Constant Pressure Control-Indoor - Control Vari-

Green motor via static (variable volume) or velocity

(constant CFM) pressure on the inlet or outlet side of

the fan. Optional, one or two, duct or room probes for

use in:

• Multifamily structures - Apartments, condos, hotels;

dryers, residential kitchens and bathrooms.

• Institutional facilities - Schools, prisons,

multistory office buildings; bathrooms.

Constant Pressure Control-Outdoor

(previously referred to as GreenVent)

Control Vari-Green motor via static pressure on the

inlet side of the fan. Includes one duct probe and

transducer for use in:

• Multifamily structures - Apartments, condos, hotels;

residential kitchen, dryer facilities and bathrooms.

• Institutional facilities - Schools, prisons, multistory.

Air Quality – VOC - Control a Vari-Green motor via

changes in volatile organic compounds (VOC’s).

VOC’s are gasses that are emitted from humans,

building materials, perfumes, foods, and furniture

off-gassing. Range is 0-2000 CO2 ppm equivalent.

• Institutional facilities – Schools, court house,

hospitals; bathrooms, waiting rooms, cafeteria.

• Commercial buildings – Office space, conference

rooms, bathrooms, break room.

Air Quality – Temperature and Humidity - Control

Vari-Green motor via changes in temperature,

humidity, or both. Range is 32 to 120°F and 0 to 100%

relative humidity.

• Multifamily structures – Apartments, condos, hotels;

bathrooms, utility rooms.

• Commercial buildings – Office buildings; office

space, conference rooms, utility rooms, bathrooms.

The Vari-Green constant pressure control is pre-

programed and easy to install for applications that

include: venting dryers, bathrooms, residential type

kitchen space or industrial process exhaust.

Contact fans@greenheck.com for more information.

Daily Operating Comparison:

Variable Volume and Constant Volume

Note: A standard VFD compatible motor can also function within a

variable volume system.

8

Options and Accessories

Aluminum Construction

Aluminum construction is available for all direct drive

sizes 60-160 and belt drive sizes 70-300. Some

drive frame components may still be of galvanized

construction to maintain structural integrity.

Speed Controllers

Available for use with

shaded pole and permanent

split capacitor (PSC) motors

on model SQ fans. They

provide an economical

means of system balancing

with direct drive fans.

Inlet and Outlet Guards

Inlet and outlet guards provide protection for non-

ducted applications. Guards are fabricated of welded

wire on a galvanized steel frame. They are easily

removed for maintenance and inspection.

Belt Drive Motor Cover and Belt Guard

For belt driven fans, combination motor cover

and belt guards constructed of galvanized steel

are available for protection of motors, drives and

personnel. Standard on units specified with UL.

Direct Drive Motor Cover

Formed, galvanized steel motor covers are available

to isolate direct drive motors from the airstream.

When motor covers are furnished, vents to the

exterior of the fan are provided to ensure sufficient

motor cooling.

Backdraft Dampers

Gravity or motorized

parallel blade dampers

(model WD-330) are

available for duct

mounting. These

dampers feature sturdy

galvanized frames,

aluminum blades with

vinyl blade seals, and

a balanced design for

minimal resistance to

airflow.

Control Dampers

Square, opposed blade volume control dampers

(model VCD) are available for duct mounting. These

dampers feature sturdy galvanized frames, and

steel blades with optional blade and jamb seals.

A balanced design results in minimal resistance to

airflow.

Coatings

Wide variety of coatings

and colors are available.

Decorative coatings

are available in sixteen

standard colors.

Protective coatings are

available in a choice of

five electrostatic applied

powders providing an

available selection for

most environments.

All Greenheck coatings

and resistance charts can be found in our

Performance Coatings for Commercial & Industrial

Fans brochure.

Inlet Vane Dampers

Variable inlet vane dampers (model IVDE) are

available for models SQ and BSQ sizes 140-420

and are factory-assembled to the fan. They can be

specified for either manual or automatic operation

(controls furnished by others). These dampers are

constructed of heavy-gauge steel and feature uniform

blade movement for positive control. Companion inlet

rings for round duct connections are also available.

Insulated Housing

For noise reduction and condensation control, the

interior of the fan housing can be lined with a 1-inch

fiberglass duct liner. The optional motor cover can

also be insulated.

The table depicts the radiated sound reduction that

can be obtained in each octave band for the insulated

housing and motor cover together.

Wiring Pigtail

Allows direct hook-up to the power supply eliminating

field wiring at the fan.

Approximate Radiated Sound Attenuation (dB)

Octave Band 12345678

Sizes 60 - 130 -2 -7 -4 -4 -6 -13 -13 -9

Sizes 140 - 420 -3 -2 -5 -4 -5 -5 -7 -8

9

The filter box is designed to provide a compact and convenient clean

air solution. Factory-assembled as a single unit, this fan eliminates

the costly process of designing, fabricating and installing special

remote filter box assemblies. Both the fan and filter section feature

removable access panels on both sides to remove and replace

filters, making fan maintenance simple and fast.

Model

Fan

Size Filter Box

Weight Filter Size Filter

Quantity

Filter Factor (F)

1 inch (25) 2 inch (51)

Aluminum Paper Filters (MERV 7) Aluminum Paper Filters (MERV 8)

Model SQ

60 - 75 40

(18) 10 x 12

(254 x 305) 1 186 318.06 251.1 303.18

80 - 95 74

(34) 14 x 25

(356 x 635) 1 21.8 37.28 29.43 35.53

100 88

(40) 16 x 20

(406 x 508) 2 8.72 14.91 11.77 14.21

120 114

(52) 16 x 25

(406 x 635) 2 5.58 9.54 7.53 9.10

130 120

(54) 20 x 20

(508 x 508) 2 5.58 9.54 7.53 9.10

140 174

(79) 20 x 25

(508 x 635) 2 3.57 6.11 4.82 5.82

160 246

(112) 20 x 20

(508 x 508) 4 2.09 3.57 2.82 3.41

Model BSQ

70 - 80 - 90 117

(53) 14 x 25

(356 x 635) 1 21.8 37.28 29.43 35.53

100 120

(54) 16 x 20

(406 x 508) 2 8.72 14.91 11.77 14.21

120 144

(79) 16 x 25

(406 x 635) 2 5.58 9.54 7.53 9.10

130 - 130HP 140

(64) 20 x 20

(508 x 508) 2 5.58 9.54 7.53 9.10

140 - 140HP 181

(82) 20 x 25

(508 x 635) 2 3.57 6.11 4.82 5.82

160 - 160HP 294

(133) 20 x 20

(508 x 508) 4 2.09 3.57 2.82 3.41

180 - 180HP 344

(156) 20 x 25

(508 x 635) 4 1.34 2.29 1.81 2.18

200 - 200HP 441

(200)

12 x 25

(305 x 635) 3

0.77 1.32 1.04 1.26

16 x 25

(406 x 635) 3

240 - 240HP 573

(260)

20 x 25

(508 x 635) 4

0.41 0.70 0.55 0.67

16 x 25

(406 x 635) 4

300 - 300HP 759

(344) 20 x 25

(508 x 635) 8 0.33 0.56 0.45 0.54

360 - 360HP 957

(434)

16 x 25

(406 x 635) 10

0.15 0.26 0.20 0.25

20 x 25

(508 x 635) 5

420 1185

(538)

16 x 25

(406 x 635) 5

0.13 0.22 0.18 0.21

20 x 25

(508 x 635) 10

Note: 24-inch side clearance is recommended for accessing and removing filters.

All dimensions in inches (millimeters) and weight in pounds (kilograms).

Filter Options

Model Selection Procedure

1. Calculate system pressure drop and cfm requirements

(not including filters).

2. Make a preliminary model size selection.

3. Calculate a filter pressure drop (P) for the preliminary

model size selected in step 2 using the equation: P = F x ( 10,000 )2

•To determine the filter factor (F) refer to chart below.

4. Add the filter pressure drop (P) to the system pressure drop and make a revised model size selection.

cfm

10

The side discharge option helps to reduce system

effect. It will increase performance and reduce

installation labor. The most notable is reducing system

effects. Note: The figure 1 example shows the air

being discharged into the corner. It will take several

duct lengths before the airflow becomes laminar or

smooth again after making the turn.

In figure 2, the fan is placed in the corner using a side

discharge. In this configuration the air flow pattern at

discharge is smooth and supports a more predictable

system. Remember the duct length on the discharge

side, should be approximately two to three wheel

diameters to achieve catalog performance.

Discharge Configuration

Fan performance will change with different discharge

positions. Catalog data is based on an inline

discharge. Right side discharge will give you 108%

of cataloged performance and left side will give you

109% of cataloged performance. Use figure 3 to

locate the orientation to fit your application. Figures 4

and 5 on page 11 illustrate the proper side discharge

definitions. Refer to Greenheck’s CAPS (Computer

Aided Product Selection) program or consult factory

for performance modifications.

Figure 1

Fan

Figure 2

Fan

Discharge Configurations

Left Discharge

Right Discharge

Left, Right & Inline Discharge

Left & Right Discharge

Figure 3

11

SQ Side Discharge Duct Openings

Unit Size Width Height

60-75 97⁄8 (251) 87⁄8 (225)

80-95 127⁄8 (327) 117⁄8 (302)

100 137⁄8 (352) 137⁄8 (352)

120 157⁄8 (403) 157⁄8 (403)

130 177⁄8 (454) 177⁄8 (454)

140 197⁄8 (505) 197⁄8 (505)

160 227⁄8 (581) 227⁄8 (581)

All dimensions in inches (millimeters).

Left Side

Discharge

Right Side

Discharge

Inline

Discharge

Inlet

Height

Width

Height

Left Side

Discharge

Right Side

Discharge

Inline

Discharge

Inlet

Width

Figure 5

Figure 4

BSQ Side Discharge Duct Openings

Unit Size Width Height

70-80-90 117⁄8 (302) 117⁄8 (302)

100 137⁄8 (352) 137⁄8 (352)

120 157⁄8 (403) 157⁄8 (403)

130-130HP 177⁄8 (454) 177⁄8 (454)

140-140HP 197⁄8 (505) 197⁄8 (505)

160-160HP 227⁄8 (581) 227⁄8 (581)

180-180HP 237⁄8 (606) 237⁄8 (606)

200-200HP 277⁄8 (708) 277⁄8 (708)

240-240HP 287⁄8 (733) 347⁄8 (886)

300-300HP 317⁄8 (810) 417⁄8 (1064)

360-360HP 327⁄8 (835) 377⁄8 (962)

420 347⁄8 (886) 437⁄8 (1114)

All dimensions in inches (millimeters).

SQ Side Discharge BSQ Side Discharge

Side Discharge

Access Door Access Door

12

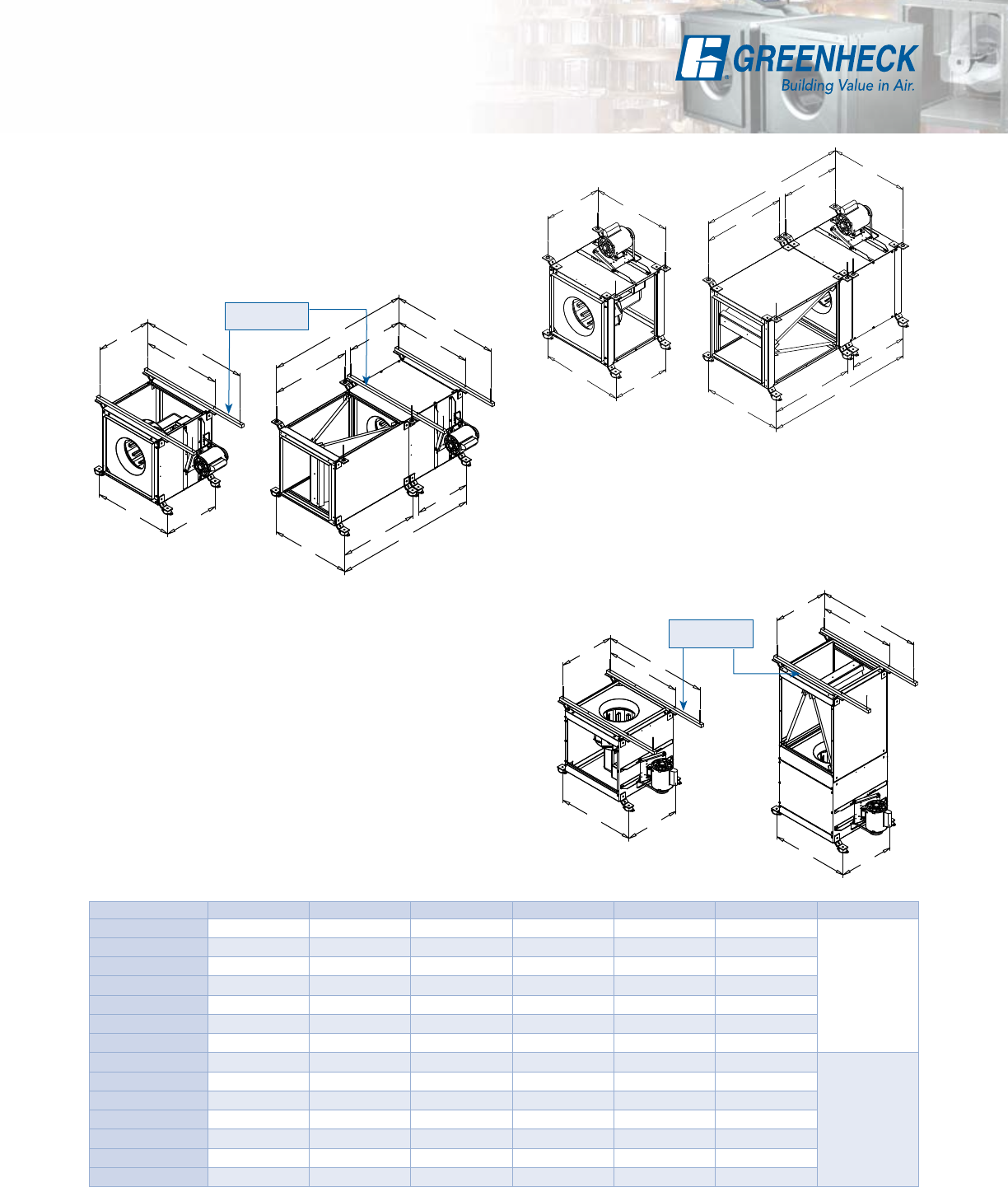

Figure 8

Vertical Hanging or Base Mount

Mounting brackets are turned

90 degrees for vertical mounting.

Access panels are located on the

two sides adjacent to the motor.

Figure 7

Horizontal Hanging or Base Mount

With a hanging mount, the motor may be located

on either top or bottom. The base mount allows

top motor location only. Both options provide access

panels on two sides.

A

A

A

A

C

C

C

C

F

F

E

E

A

E

E

F

F

A

A

A

C

C

C

C

Horizontal and Vertical

Mounting Options

Model A B C D E F G

SQ 60-75 105⁄8 (270) 17 (432) 153⁄4 (400) 87⁄8 (225) 193⁄4 (502) 7 (178)

Hanging

rails not

included.

Supplied by

others.

SQ 80-95 131⁄4 (337) 20 (508) 183⁄4 (476) 117⁄8 (302) 43 (1092) 273⁄8 (695)

BSQ 70-90 185⁄8 (473) 201⁄8 (511) 183⁄4 (476) 117⁄8 (302) 485⁄16 (1227) 273⁄8 (695)

SQ-BSQ 100 185⁄8 (473) 221⁄8 (562) 203⁄4 (527) 137⁄8 (352) 447⁄8 (1140) 24 (610)

SQ-BSQ 120 185⁄8 (473) 24 (610) 223⁄4 (578) 16 (406) 493⁄8 (1254) 281⁄8 (714)

SQ-BSQ 130 185⁄8 (473) 261⁄8 (664) 243⁄4 (629) 177⁄8 (454) 44 (1118) 23 (584)

SQ-BSQ 140 195⁄8 (498) 281⁄8 (714) 263⁄4 (679) 197⁄8 (505) 501⁄16 (1272) 28 (711)

SQ-BSQ 160 231⁄2 (597) 31 (787) 293⁄4 (756) 227⁄8 (581) 495⁄8 (1260) 235⁄8 (600)

Hanging

rails not

included.

Supplied by

others.

BSQ 180 251⁄2 (648) 331⁄2 (851) 299⁄16 (751) 223⁄4 (578) 529⁄16 (1335) 241⁄2 (622)

BSQ 200 291⁄8 (740) 37 (940) 333⁄4 (857) 263⁄4 (679) 643⁄16 (1630) 321⁄4 (819)

BSQ 240 315⁄8 (803) 441⁄4 (1124) 403⁄4 (1035) 337⁄8 (860) 661⁄2 (1689) 321⁄8 (816)

BSQ 300 35 (889) 51 (1295) 473⁄4 (1213) 407⁄8 (1038) 691⁄8 (1756) 313⁄8 (797)

BSQ 360 383⁄4 (974) 571⁄4 (1454) 531⁄2 (1359) 463⁄4 (1187) 76 (1930) 3411⁄16 (881)

BSQ 420 471⁄8 (1197) 63 (1600) 597⁄8 (1521) 597⁄8 (1521) 901⁄2 (2299) 401⁄2 (1029)

All dimensions in inches (millimeters).

All SQ and BSQ fan models can be mounted

horizontally, vertically or at an angle. For ease of

installation, knockouts are provided at each location

where mounting brackets are shown in figures 6, 7

and 8. Optional brackets are universally adjustable

to mount in any of these locations.

Figure 6

Horizontal Hanging or Base Mount

With either a hanging or base mount the

motor may be located on either side. The

base mount allows top access panels only.

E

E

F

F

A

A

A

A

B

B

B

B

NOTE: Hanging

rails by others G

G

B

D

B

B

B

D

D

D

NOTE: Hanging

rails by others

G

G

13

Model H I J K L

SQ 60-75

13⁄8

(35)

51⁄2

(140)

2

(51)

63⁄4

(171)

25⁄16

(59)

SQ 80-95

BSQ 70-90

SQ-BSQ 100

SQ-BSQ 120

SQ-BSQ 130

SQ-BSQ 140

SQ-BSQ 160

13⁄8

(35)

51⁄2

(140)

2

(51)

63⁄4

(171)

25⁄8

(67)

BSQ 180

BSQ 200

BSQ 240

BSQ 300

BSQ 360

BSQ 420

All dimensions in inches (millimeters).

Base Mount or Hanging Isolators

J

5⁄8 inch (16 mm)

nominal

H

I

L

H

J

Complete isolation kits are available

with either neoprene or spring

isolators and are sized to match

the weight of the specified fan

size. The base isolator support

brackets are designed to permit

mounting of the fan with the

motor located on top or either

side. The hanging isolator support

brackets are designed to permit

mounting of the fan with the motor

located on top, bottom or side.

Note: Hanging rods to be supplied

by others.

Standing Neoprene Isolator

Standing Spring Isolator

H

J

Hanging Neoprene Isolator

K

H

J

Hanging Spring Isolator

14

Typical Installation

Flexible duct (by others)

3 Wheel

Diameters

3 Wheel

Diameters

PRESSURE LEVEL (Belt Drive Only)

HP - High Pressure Wheel

BSQ - 120 HP - VG/75/A

MODEL CONFIGURATION

BSQ - Belt Drive Inline Exhaust

SQ - Direct Drive Inline Exhaust

FAN SIZE

60 through 420

VG = Vari-Green®

(Direct Drive only)

MOTOR HP (Belt Drive only)

6 = 1/6 7 = 3/4 30 = 3

4 = 1/4 10 = 1 50 = 5

3 = 1/3 15 = 11⁄2 75 = 71⁄2

5 = 1/2 20 = 2 100 = 10

MOTOR RPM (Direct Drive only)

A = 1725 D = 1550

B = 1140 E = 1050

C = 860 G = 1300

International

(See CAPS for performance)

K = 950 RPM J = 1475 RPM

Models SQ and BSQ ducted inline fans are designed

for the exhaust, supply or recirculation of air in a

building. Typical installation requires ductwork on the

inlet and outlet side of the fan. A minimum of three

duct diameters is required on the inlet and outlet of the

fan to minimize system effect losses. See the diagram

below for a typical installation.

Installations can include flexible duct connections (by

others) on either the inlet or outlet side of the fan or

both. The motor is rigidly mounted and can be oriented

in any direction (top, bottom, side).

The model BSQ ducted inline fan must be installed

with the motor accessible for maintenance and

inspection.

External isolators are recommended, hanging (shown

below) or base mounted.

Installation must meet all local governing codes

and the NEC.

Model Number Code

The model number system is designed to completely identify the fan. The correct code letters must be specified

to designate belt or direct drive. The remainder of the model number is determined by the size and performance

selected from the following pages.

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

15

1

(25)

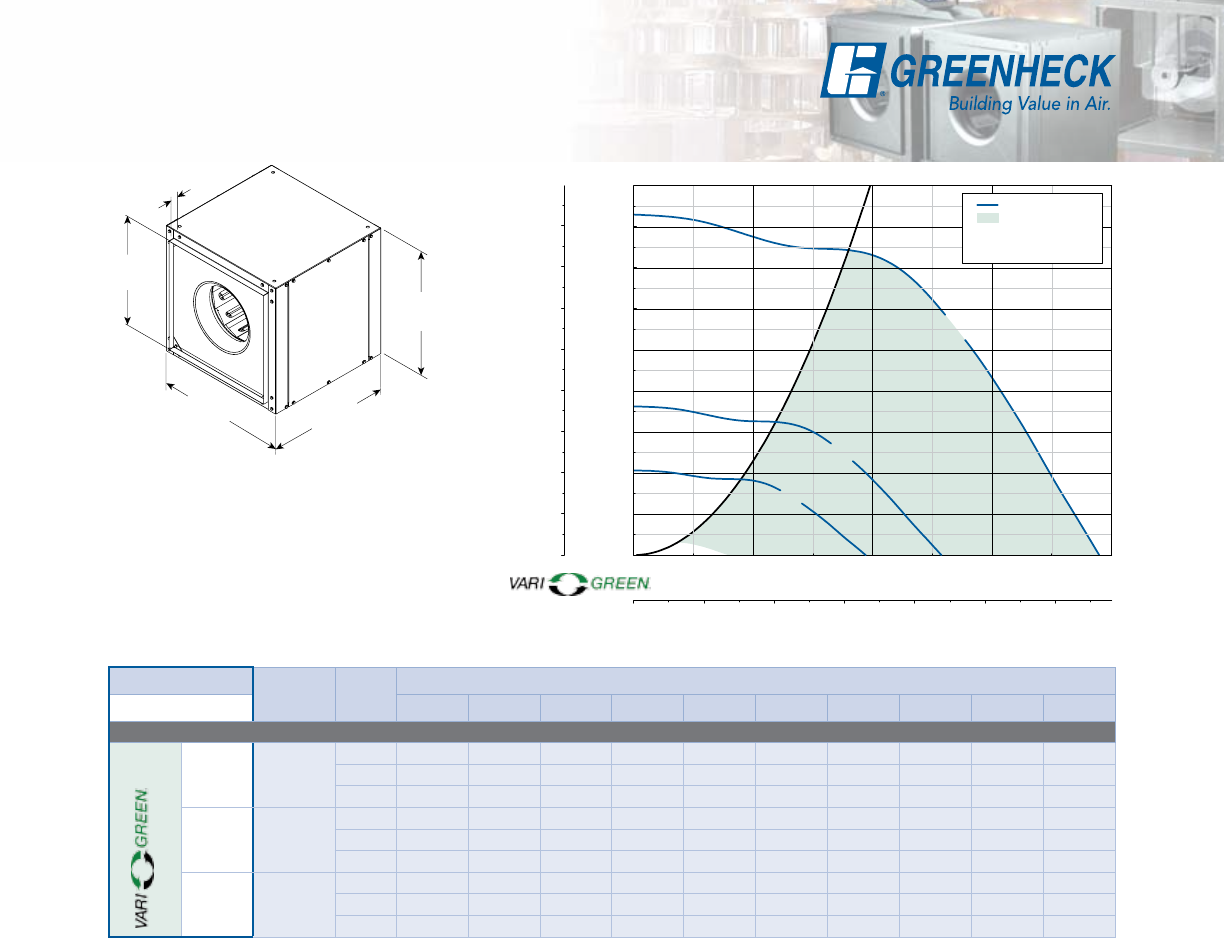

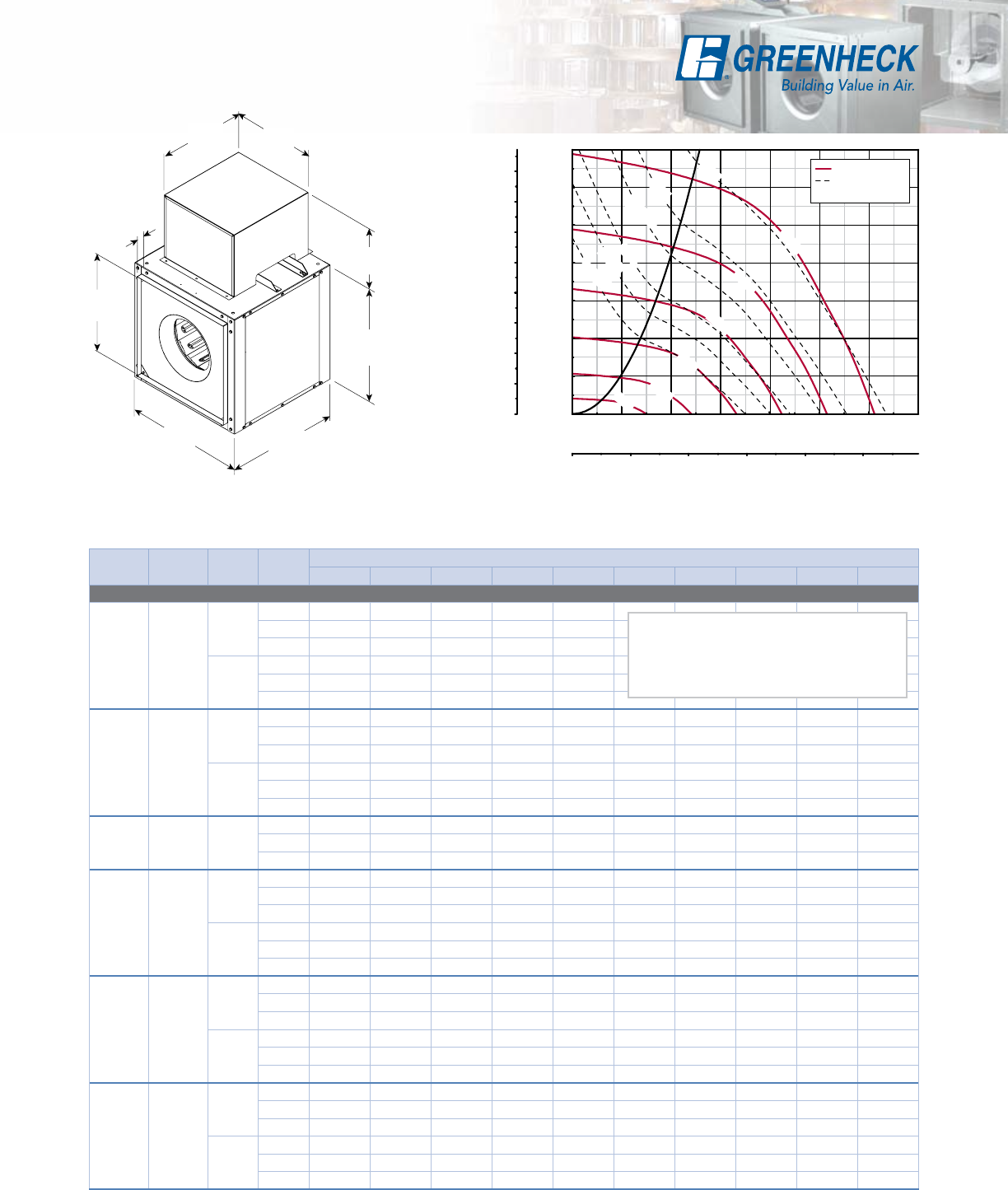

SQ 60-65 - Direct Drive

Damper size = 9 x 9 (229 x 229)

Unit weight** = 26 (12)

Housing thickness = 18 ga

Outlet velocity = 1.828 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

13

(330)

12

(305)

87⁄8

(225)

12

(305)

0 50 100 150 200 250 300 350 400 450 500

0

10

20

30

40

50

60

70

80

90

100

110

120

130

0 50 100 150 200 250 300

0.00

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

0.55

065-VG

065-D

065-G

060-E

060-VG

060-D

060-G

065-E

3

3

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

RV

E

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.050 0.100 0.125 0.150 0.200 0.250 0.300 0.350 0.375

60

VG-1/6 E-1/140 1050

CFM 126 102 79 63 42

BHP 0.01 0.01 0.01 0.01 0.01

Sones 1.7 1.7 1.7 1.7 1.8

G-1/80 1300

CFM 156 136 118 110 99 73 37

BHP 0.01 0.01 0.01 0.01 0.01 0.01 0.01

Sones 2.9 2.7 2.7 2.6 2.6 2.5 2.5

D-1/40 1550

CFM 186 168 153 146 138 123 105 78 48 32

BHP 0.02 0.02 0.02 0.02 0.02 0.02 0.02 0.02 0.02 0.02

Sones 4.3 4.1 3.9 3.9 3.9 3.9 4.0 4.0 4.1 4.1

1725

CFM 207 191 177 170 163 150 136 120 98 85

BHP 0.02 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.03

Sones 5.4 5.2 5.1 5.0 5.0 5.1 5.1 5.3 5.5 5.6

65

VG-1/6 E-1/100 1050

CFM 154 129 98 79 57

BHP 0.01 0.01 0.01 0.01 0.01

Sones 2.2 2.1 2.0 2.0 1.9

G-1/50 1300

CFM 191 172 150 137 123 92 52

BHP 0.01 0.01 0.02 0.02 0.02 0.02 0.02

Sones 3.2 3.1 3.0 2.9 2.9 2.9 2.8

D-1/30 1550

CFM 228 213 194 185 175 153 129 101 66 46

BHP 0.02 0.02 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.02

Sones 4.9 4.8 4.5 4.4 4.3 4.1 4.0 3.9 3.7 3.6

1725

CFM 254 242 224 216 207 190 170 148 124 111

BHP 0.03 0.03 0.03 0.04 0.04 0.04 0.04 0.04 0.04 0.04

Sones 6.4 6.1 5.8 5.7 5.5 5.3 5.2 5.0 4.8 4.7

16

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

1

(25)

0 100 200 300 400 500 600

0

20

40

60

80

100

120

0 50 100 150 200 250 300 350

400

0.00

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

0.55

075-E

070-E

Static Pressure (in. wg)

075-G

070-G

075-D

070-D

075-VG

070-VG

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

Damper size = 9 x 9 (229 x 229)

Unit weight** = 26 (12)

Housing thickness = 18 ga

Outlet velocity = 1.828 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

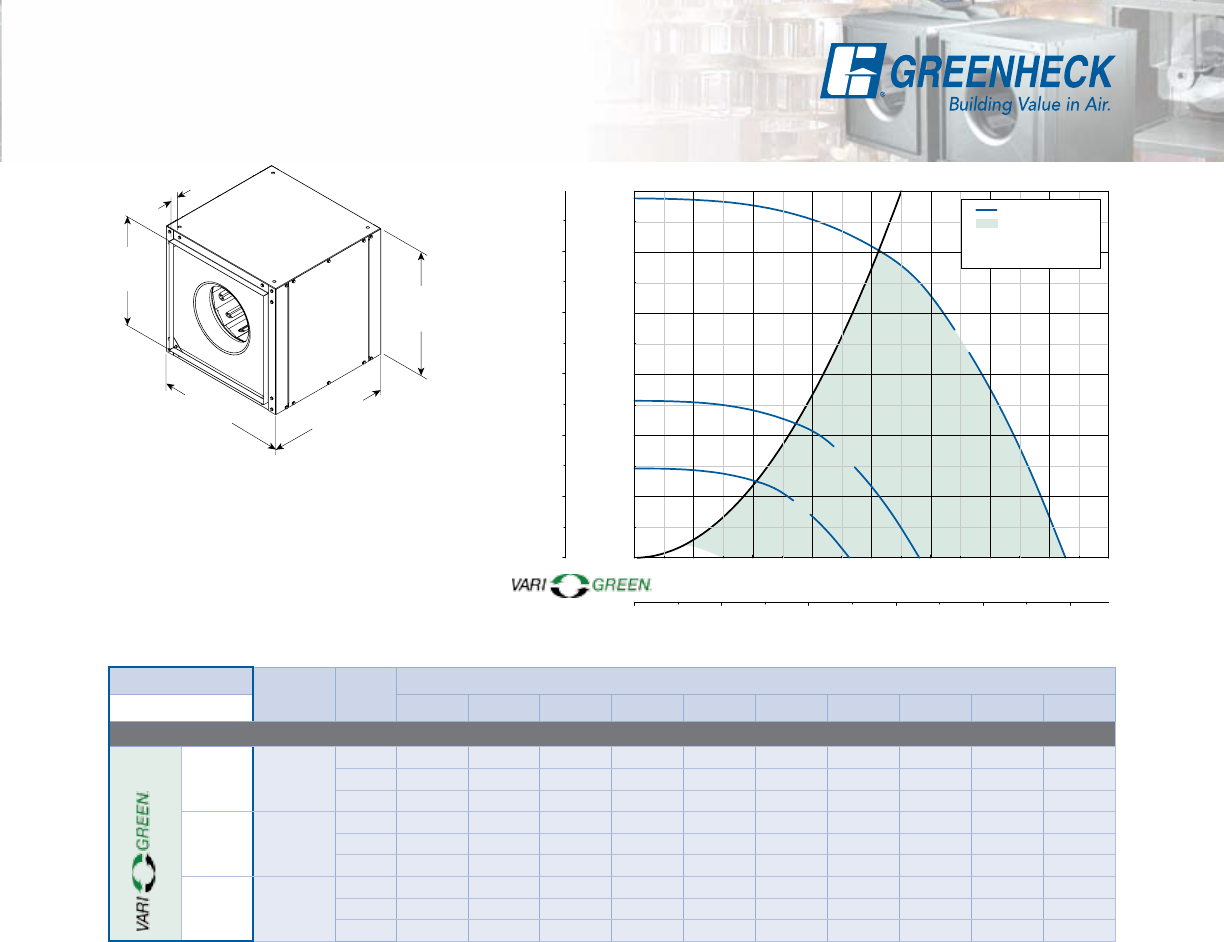

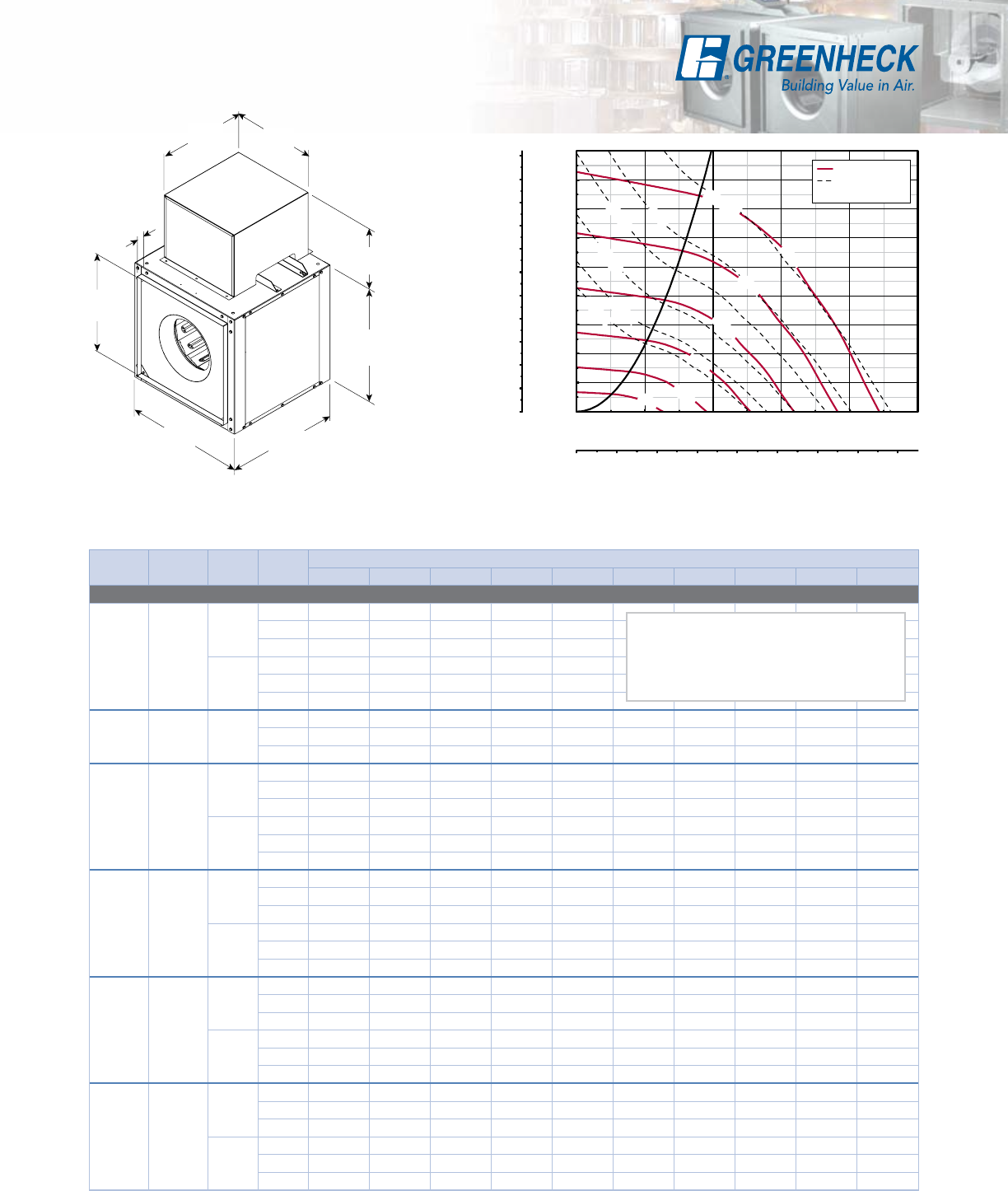

SQ 70-75 - Direct Drive

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.100 0.125 0.150 0.200 0.250 0.300 0.350 0.375 0.400

70

VG-1/6 E-1/100 1050

CFM 212 141 119 87

BHP 0.01 0.01 0.01 0.01

Sones 2.7 1.7 1.5 1.5

G-1/50 1300

CFM 263 205 191 176 140 77

BHP 0.02 0.02 0.0 0.02 0.02 0.02

Sones 4.1 3.4 3.3 3.1 2.9 2.5

D-1/30 1550

CFM 313 265 252 240 216 190 155 99 67

BHP 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.03

Sones 5.6 5.2 5.1 5.1 4.9 4.7 4.5 4.2 4.0

1725

CFM 348 306 295 283 262 240 216 187 171 148

BHP 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.04

Sones 6.8 6.7 6.6 6.6 6.5 6.4 6.2 6.0 5.9 5.8

75

VG-1/6 E-1/100 1050

CFM 241 167 147 124

BHP 0.01 0.01 0.01 0.01

Sones 3.6 2.9 2.8 2.6

G-1/50 1300

CFM 299 239 225 209 176 133

BHP 0.02 0.02 0.020 0.02 0.02 0.02

Sones 4.1 3.7 3.7 3.7 3.6 3.5

D-1/30 1550

CFM 356 307 294 282 257 229 202 165 137 99

BHP 0.03 0.03 0.04 0.04 0.04 0.04 0.03 0.03 0.03 0.03

Sones 6.1 5.5 5.4 5.3 5.1 4.9 4.9 4.8 4.8 4.8

1725

CFM 396 353 341 330 307 285 260 235.0 223 206

BHP 0.04 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05 0.05

Sones 8.0 7.2 7.0 6.8 6.5 6.2 6.1 6.0 6.0 6.0

13

(330)

12

(305)

87⁄8

(225)

12

(305)

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

17

1

(25)

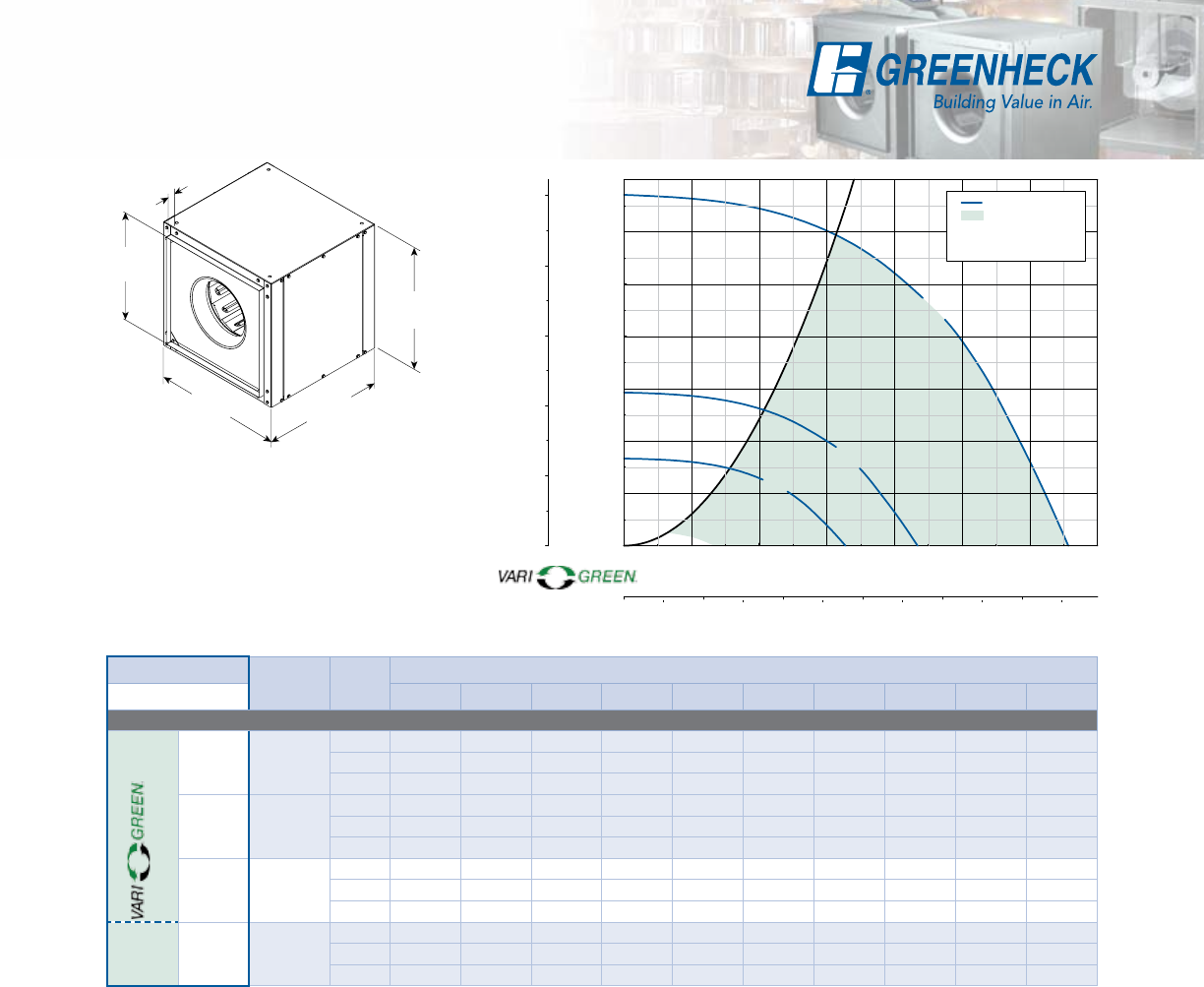

SQ 80-85 - Direct Drive

0 200 400 600 800 1000

0

20

40

60

80

100

120

140

160

180

0 100 200 300 400 500

600

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

Static Pressure (in. wg)

Volume (cfm)

Volume (m 3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

085-VG

085-E

080-E

080-G

085-G

080-D

085-D

080-VG

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

Damper size = 12 x 12 (305 x 305)

Unit weight** = 41 (19)

Housing thickness = 18 ga

Outlet velocity = 1.021 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

16

(406)

15

(381)

117⁄8

(302)

15

(381)

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.100 0.125 0.200 0.250 0.300 0.375 0.400 0.450 0.500

80

VG-1/6

or 1/4 E-1/40 1050

CFM 306 241 225 167 105

BHP 0.01 0.01 0.02 0.02 0.02

Sones 3.8 3.7 3.6 3.8 4.1

G-1/20 1300

CFM 379 325 313 274 244 211 140

BHP 0.02 0.03 0.03 0.03 0.03 0.03 0.03

Sones 5.4 5.4 5.4 5.4 5.4 5.4 5.5

D-1/12 1550

CFM 452 405 395 364 343 319 280 266 238 201

BHP 0.04 0.04 0.04 0.05 0.05 0.05 0.06 0.06 0.06 0.06

Sones 7.3 7.3 7.3 7.3 7.2 7.3 7.3 7.4 7.5 7.6

1725

CFM 503 461 451 423 404 385 354 342 319 294

BHP 0.05 0.05 0.05 0.06 0.06 0.07 0.07 0.07 0.08 0.08

Sones 8.4 8.5 8.6 8.5 8.6 8.6 8.6 8.6 8.7 8.7

85

VG-1/6

or 1/4 E-1/40 1050

CFM 358 292 272 206 142

BHP 0.01 0.02 0.02 0.02 0.02

Sones 3.8 3.7 3.6 3.8 4.0

G-1/20 1300

CFM 443 391 378 332 299 261 186

BHP 0.02 0.03 0.03 0.03 0.03 0.03 0.03

Sones 5.4 5.4 5.4 5.4 5.4 5.4 5.5

D-1/12 1550

CFM 528 485 474 440 414 387 344 328 294 254

BHP 0.04 0.05 0.05 0.05 0.05 0.05 0.06 0.06 0.06 0.06

Sones 7.3 7.3 7.3 7.3 7.3 7.2 7.3 7.3 7.4 7.5

1725

CFM 588 550 540 510 488 465 429 416 391 362

BHP 0.06 0.06 0.06 0.07 0.07 0.07 0.08 0.08 0.08 0.08

Sones 8.7 8.7 8.6 8.6 8.6 8.6 8.7 8.7 8.7 8.8

18

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

1

(25)

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.125 0.200 0.250 0.300 0.375 0.400 0.500 0.600 0.625

90

VG-1/6

or 1/4 E-1/50 1050

CFM 500 370 271 188

BHP 0.02 0.02 0.02 0.02

Sones 4.0 3.9 4.0 4.1

G-1/25 1300

CFM 619 519 449 398 343 245 208

BHP 0.03 0.04 0.04 0.04 0.04 0.04 0.04

Sones 5.4 5.4 5.4 5.5 5.5 5.6 5.6

D-1/10 1550

CFM 738 655 603 565 522 457 435 334

BHP 0.05 0.06 0.06 0.06 0.07 0.07 0.07 0.07

Sones 7.6 7.5 7.5 7.4 7.4 7.4 7.4 7.4

1725

CFM 821 748 701 669 635 579 559 481 392 366

BHP 0.07 0.08 0.08 0.09 0.09 0.09 0.09 0.09 0.09 0.09

Sones 8.8 8.8 8.8 8.7 8.7 8.8 8.8 8.8 8.8 8.9

95

VG-1/6

or 1/4 E-1/30 1050

CFM 623 475 365 275

BHP 0.03 0.03 0.03 0.03

Sones 4.9 4.5 4.4 4.5

G-1/15 1300

CFM 771 660 580 523 461 352 311

BHP 0.05 0.06 0.06 0.06 0.06 0.06 0.06

Sones 7.6 6.7 6.5 6.4 6.4 6.4 6.4

D-1/8 1550

CFM 920 830 766 720 678 604 579 462 325 276

BHP 0.09 0.09 0.1 0.1 0.1 0.1 0.1 0.1 0.09 0.09

Sones 9.6 9.3 8.9 8.7 8.4 8.1 8.0 7.6 7.2 7.1

1725

CFM 1024 948 890 850 809 751 729 641 535 507

BHP 0.12 0.13 0.13 0.13 0.13 0.14 0.14 0.14 0.14 0.14

Sones 11.3 11.0 10.8 10.6 10.4 10.1 9.9 9.8 9.3 9.2

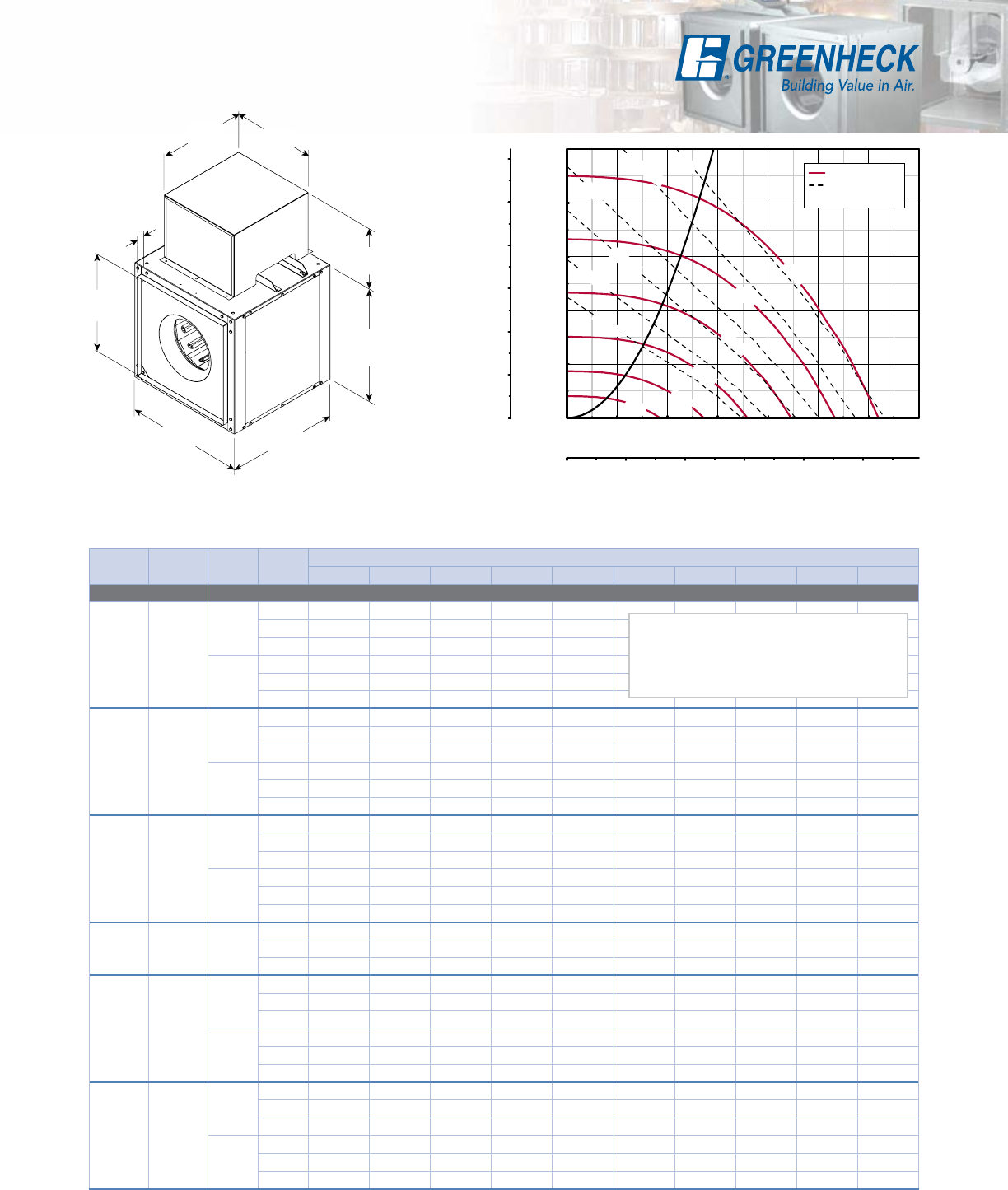

SQ 90-95 - Direct Drive

Damper size = 12 x 12 (305 x 305)

Unit weight** = 41 (19)

Housing thickness = 18 ga

Outlet velocity = 1.021 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

16

(406)

15

(381)

117⁄8

(302)

15

(381)

0 200 400 600 800 1000 1200 1400 1600 1800

0

20

40

60

80

100

120

140

160

180

200

220

0 200 400 600 800 1000

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

095-E

Static Pressure (in. wg)

Volume (cfm)

090-E

090-G

095-G

090-D

095-D

090-VG

095-VG

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

19

1

(25)

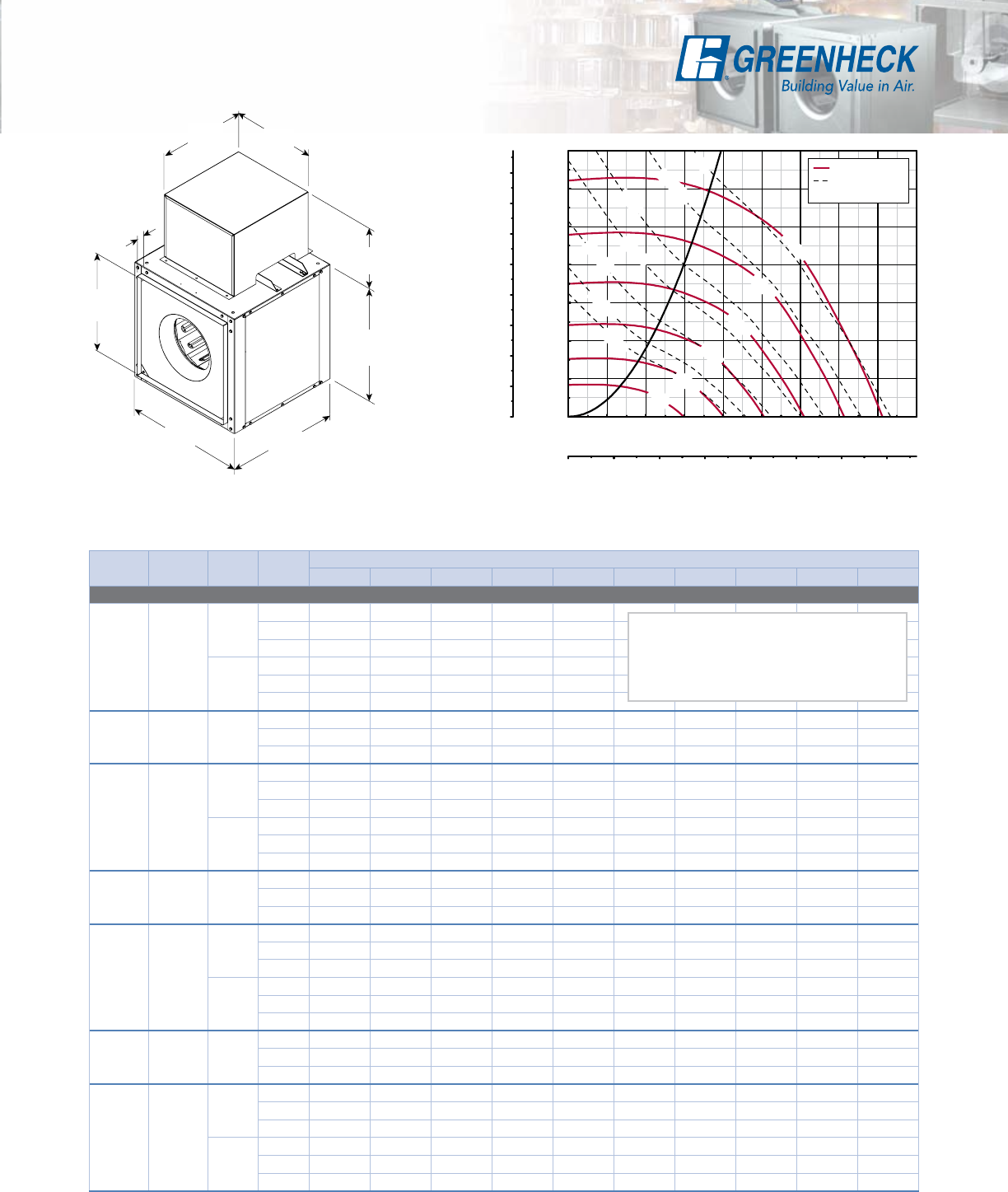

SQ 100 - Direct Drive

0 500 1000 1500 2000 2500

0

50

100

150

200

250

0 200 400 600 800 1000 1200 1400 1600

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1725

1140

860

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

17

(432)

137⁄8

(352)

17

(432) 21

(533)

Damper size = 14 x 14 (356 x 356)

Unit weight** = 56 (25)

Housing thickness = 18 ga

Outlet velocity = 0.748 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.100 0.125 0.250 0.300 0.375 0.500 0.625 0.750 1.000

100

VG-1/4 C-1/8 860

CFM 725 638 611

BHP 0.03 0.03 0.03

Sones 4.7 3.8 3.7

B-1/6 1140

CFM 961 898 881 786 739 657

BHP 0.06 0.07 0.07 0.07 0.07 0.07

Sones 7.4 6.6 6.5 6.1 5.9 5.6

A-1/4 1725

CFM 1455 1413 1403 1350 1327 1292 1227 1156 1078 831

BHP 0.22 0.23 0.23 0.23 0.24 0.24 0.24 0.25 0.25 0.22

Sones 13.2 12.6 12.5 11.9 11.7 11.5 11.1 10.7 10.4 9.6

20

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

1

(25)

0 500 1000 1500 2000 2500 3000

0

50

100

150

200

250

300

350

400

0 500 1000 1500 2000

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

1725

1140

860

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

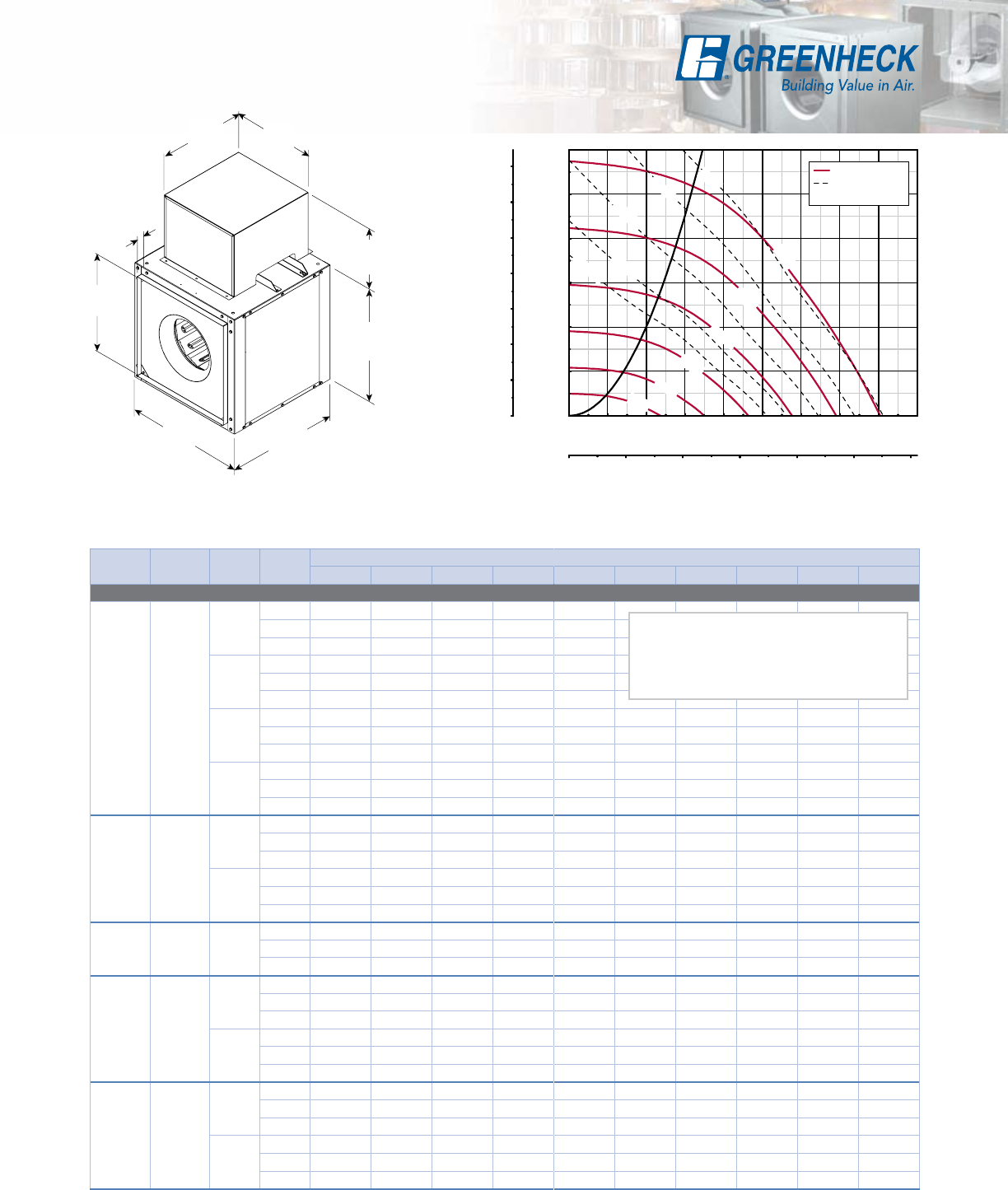

SQ 120 - Direct Drive

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000 1.250 1.375

120

VG-1/2 C-1/8 860

CFM 971 843 704

BHP 0.05 0.06 0.06

Sones 4.4 4.1 3.3

B-1/6 1140

CFM 1287 1190 1095 992 873 693

BHP 0.12 0.12 0.13 0.14 0.14 0.13

Sones 7.4 7.2 7.0 6.3 5.9 5.8

A-1/2 1725

CFM 1948 1884 1819 1754 1692 1629 1563 1417 1240 1128

BHP 0.41 0.42 0.42 0.44 0.45 0.46 0.46 0.48 0.48 0.47

Sones 14.7 14.1 13.8 13.6 13.5 13.4 13.2 12.6 11.9 11.7

Damper size = 16 x 16 (406 x 406)

Unit weight** = 67 (30)

Housing thickness = 18 ga

Outlet velocity = 0.571 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

21

(533)

19

(483)

157⁄8

(403)

19

(483)

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

21

1

(25)

SQ 130 - Direct Drive

0 500 1000 1500 2000 2500 3000 3500 4000

0

50

100

150

200

250

300

350

400

0 500 1000 1500 2000 2500

0.0

0.2

0.4

0.6

0.8

1.0

1.2

1.4

1.6

1.8

1725

1140

860

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

21

(533)

21

(533)

177⁄8

(454)

21

(533)

Damper size = 18 x 18 (457 x 457)

Unit weight** = 77 (35)

Housing thickness = 18 ga

Outlet velocity = 0.451 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.125 0.250 0.375 0.500 0.625 0.750 1.000 1.250 1.375

130

VG-3/4 C-1/8 860

CFM 1181 1049 891

BHP 0.07 0.08 0.08

Sones 6.2 5.2 4.5

B-1/6 1140

CFM 1565 1472 1367 1249 1105 865

BHP 0.16 0.17 0.18 0.18 0.18 0.17

Sones 9.4 8.3 7.4 6.8 6.5 6.4

A-3/4 1725

CFM 2368 2308 2247 2175 2105 2039 1961 1791 1559 1409

BHP 0.54 0.56 0.57 0.59 0.60 0.62 0.62 0.63 0.61 0.59

Sones 17.4 17.6 17.1 17.1 16.6 16.4 15.9 15.7 15.6 15.6

22

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

1

(25)

SQ 140 - Direct Drive

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.250 0.375 0.500 0.625 0.750 1.000 1.375 1.500 1.75

140

VG-3/4

C-1/8 860

CFM 1637 1317 1033

BHP 0.12 0.13 0.13

Sones 7.0 6.2 5.9

B-1/3 1140

CFM 2170 1942 1818 1667 1447 1122

BHP 0.270 0.290 0.300 0.300 0.300 0.270

Sones 10.8 10.1 10.0 9.8 9.6 9.4

1550

CFM 2950 2790 2703 2614 2524 2429 2188 1553

BHP 0.67 0.71 0.72 0.74 0.75 0.75 0.75 0.69

Sones 16.7 16.2 15.8 15.6 15.5 15.3 14.8 13.7

VG-1 A-1 1725

CFM 3284 3140 3065 2985 2906 2826 2646 2268 2085 1625

BHP 0.930 0.970 0.980 1.000 1.010 1.030 1.030 1.030 1.010 0.930

Sones 20 19.3 19.0 18.7 18.6 18.4 18.2 17.2 16.7 15.9

0 1000 2000 3000 4000 5000

0

100

200

300

400

500

0 500 1000 1500 2000 2500 3000 3500

0.0

0.3

0.6

0.9

1.2

1.5

1.8

2.1

1725

1140

860

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

Damper size = 20 x 20 (508 x 508)

Unit weight** = 104 (47)

Housing thickness = 18 ga

Outlet velocity = 0.364 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

22

(559)

23

(584)

197⁄8

(505)

23

(584)

Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

23

1

(25)

SQ 160 - Direct Drive

Motor HP Fan RPM CFM / Static Pressure in Inches wg

Direct 0.000 0.250 0.500 0.750 1.000 1.250 1.500 1.750 1.875 2.000

160

VG-3/4

C-1/4 860

CFM 2506 2148 1605

BHP 0.20 0.23 0.24

Sones 8.8 7.2 6.5

B-1/2 1140

CFM 3322 3062 2773 2388 1808

BHP 0.470 0.510 0.540 0.560 0.510

Sones 14.0 12.8 11.9 11.4 10.8

VG-1 1300

CFM 3788 3562 3320 3033 2685 2223

BHP 0.70 0.74 0.78 0.81 0.84 0.79

Sones 16.8 15.8 14.8 14.5 14.1 13.7

VG-2 A-2 1725

CFM 5027 4857 4684 4504 4312 4094 3845 3575 3414 3236

BHP 1.64 1.69 1.74 1.80 1.85 1.89 1.93 1.95 1.94 1.91

Sones 26 25 24 24 24 24 24 24 24 24

Damper size = 23 x 23 (584 x 584)

Unit weight** = 160 (73)

Housing thickness = 18 ga

Outlet velocity = 0.275 x cfm

Dimensions shown in inches (millimeters) and weight is

shown in pounds (kilograms).

**Weight shown is largest cataloged Open Drip Proof motor.

26

(660)

26

(660)

227⁄8

(581)

26

(660)

0 2 4 6 8 10

0

100

200

300

400

500

600

0 1000 2000 3000 4000 5000 6000

0.0

0.4

0.8

1.2

1.6

2.0

2.4

2.8

1725

1140

860

Static Pressure (in. wg)

Volume (cfm)

Volume (m3/hr X 1000)

Static Pressure (Pa)

RPM (Direct)

RPM (Vari Green)

Density 0.075 lb/ft

Density 1.2 kg/m

3

3

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

24

BSQ 70 - Belt Drive

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.625 0.750 1.000 1.250 1.500 1.750 2.000

70

70-4 1/4

1050

CFM 184 129

BHP 0.039 0.037

Sones 8.0 7.5

1313

CFM 251 211 117

BHP 0.077 0.076 0.068

Sones 11.0 10.4 9.2

1445

CFM 284 249 169 122

BHP 0.103 0.102 0.097 0.09

Sones 12.8 12.3 10.7 10.3

1577

CFM 314 284 213 175 131

BHP 0.13 0.13 0.13 0.12 0.12

Sones 14.9 14.6 12.7 11.9 11.4

1709

CFM 345 318 254 220 184 97

BHP 0.17 0.17 0.17 0.16 0.16 0.14

Sones 16.1 15.9 14.5 13.9 13.3 12.4

1840

CFM 375 351 293 262 231 159

BHP 0.21 0.21 0.21 0.21 0.20 0.19

Sones 17.3 17.0 16.4 16.0 15.4 14.5

1972

CFM 405 384 331 302 273 212 142

BHP 0.26 0.26 0.26 0.25 0.25 0.24 0.22

Sones 19.2 19.1 18.6 18.2 17.9 17.7 16.5

70-3 1/3

2072

CFM 428 408 360 332 305 249 184 103

BHP 0.30 0.30 0.30 0.30 0.29 0.29 0.27 0.24

Sones 20 20 19.9 19.5 19.1 18.5 18.2 16.8

2172

CFM 450 431 387 361 335 282 224 161

BHP 0.34 0.35 0.35 0.34 0.34 0.33 0.32 0.30

Sones 21 21 21 21 20 19.7 19.2 18.8

70-5 1/2

2329

CFM 486 467 428 406 381 332 283 225 166

BHP 0.43 0.43 0.43 0.43 0.42 0.42 0.41 0.39 0.36

Sones 23 23 23 23 23 22 21 20 21

2486

CFM 521 504 468 447 426 380 334 287 232 176

BHP 0.52 0.52 0.52 0.52 0.52 0.51 0.50 0.49 0.47 0.44

Sones 25 25 25 25 25 24 23 22 22 23

21

(533)

15

(381)

117⁄8

(302)

15

(381)

1 (25)

*121⁄2

(318)

*14

(356)

*151⁄2

(394)

Damper size = 12 x 12 (305 x 305)

Unit weight** = 76 (34)

Housing thickness = 18 ga

MAX Bhp AT A GIVEN RPM = (rpm/3084)3

MAXIMUM RPM = 2486

TIP SPEED (ft/min) = rpm x 2.928

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 1.0212 x cfm

0 200 400 600 800 1000

0

200

400

600

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 100 200 300 400 500 600

0.0

0.5

1.0

1.5

2.0

2.5

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

RPM

HP

Density 0.075 lb/ft3

1/2 hp

1/3 hp

1/4 hp

2486

2150

1810

1470

1130

790

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

25

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 80 - Belt Drive

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500

80

80-4 1/4

1050

CFM 372 298

BHP 0.049 0.049

Sones 8.0 7.6

1207

CFM 445 386 206

BHP 0.073 0.075 0.065

Sones 9.7 9.1 8.2

1520

CFM 585 542 442 301

BHP 0.15 0.15 0.15 0.14

Sones 13.9 13.5 11.8 10.8

1676

CFM 652 615 530 426 254

BHP 0.19 0.20 0.20 0.20 0.17

Sones 15.9 15.6 14.1 12.9 11.5

1833

CFM 720 687 613 524 424

BHP 0.25 0.26 0.26 0.26 0.25

Sones 17.2 16.9 16.3 15.3 14.3

80-3 1/3

1926

CFM 760 728 660 579 486 346

BHP 0.29 0.30 0.30 0.30 0.30 0.27

Sones 18.4 18.3 17.8 17.1 16.9 13.9

2018

CFM 799 769 704 630 545 452 269

BHP 0.34 0.34 0.35 0.35 0.34 0.34 0.28

Sones 19.6 19.5 19.2 18.4 18.1 16.7 13.5

80-5 1/2

2164

CFM 861 833 774 708 633 550 442

BHP 0.41 0.42 0.43 0.43 0.43 0.42 0.40

Sones 21 21 21 20 19.6 19.2 17.6

2310

CFM 924 897 842 784 716 643 563 445

BHP 0.50 0.51 0.52 0.52 0.52 0.52 0.51 0.48

Sones 23 23 22 23 21 21 20 19.9

80-7 3/4

2478

CFM 995 969 919 865 807 743 671 597 486

BHP 0.62 0.63 0.63 0.64 0.65 0.65 0.64 0.63 0.59

Sones 25 25 24 25 24 23 22 22 23

2645

CFM 1065 1041 995 945 894 835 773 705 635 395

BHP 0.75 0.76 0.77 0.78 0.79 0.79 0.78 0.77 0.77 0.65

Sones 28 28 27 27 27 26 25 24 24 35

21

(533)

15

(381)

117⁄8

(302)

15

(381)

1 (25)

*121⁄2

(318)

*14

(356)

*151⁄2

(394)

Damper size = 12 x 12 (305 x 305)

Unit weight** = 79 (36)

Housing thickness = 18 ga

MAX Bhp AT A GIVEN RPM = (rpm/2866)3

MAXIMUM RPM = 2645

TIP SPEED (ft/min) = rpm x 2.928

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 1.0212 x cfm

0 500 1000 1500 2000

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 200 400 600 800 1000 1200

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

790

1160

1530

1900

2270

2645

3/4 hp

1/2 hp

1/3 hp

1/4 hp

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

26

BSQ 90 - Belt Drive

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.500 1.750 2.000 2.250 2.500

90

90-4 1/4

1050

CFM 547 443

BHP 0.061 0.061

Sones 8.0 7.6

1211

CFM 655 574 333

BHP 0.092 0.095 0.084

Sones 9.8 9.1 8.3

1533

CFM 864 806 667 477

BHP 0.18 0.19 0.19 0.18

Sones 14.2 13.8 12.1 11.0

1694

CFM 965 914 798 654 437

BHP 0.25 0.25 0.26 0.25 0.22

Sones 16.0 15.8 14.4 13.1 12.3

90-3 1/3

1780

CFM 1019 971 863 734 562

BHP 0.29 0.29 0.30 0.30 0.28

Sones 16.7 16.5 15.6 14.4 13.7

1866

CFM 1072 1028 926 808 657

BHP 0.33 0.33 0.35 0.35 0.33

Sones 17.5 17.3 16.9 15.9 15.4

90-5 1/2 2136

CFM 1239 1202 1118 1024 917 638

BHP 0.49 0.50 0.51 0.52 0.52 0.47

Sones 21 21 21 19.9 19.2 18.4

90-7 3/4

2291

CFM 1334 1300 1223 1138 1045 811 668

BHP 0.61 0.61 0.62 0.64 0.65 0.61 0.58

Sones 23 23 22 22 21 20 20

2445

CFM 1429 1396 1326 1249 1167 976 844 707

BHP 0.73 0.74 0.75 0.77 0.79 0.77 0.73 0.70

Sones 25 25 24 25 23 22 22 23

90-10 1

2568

CFM 1504 1473 1407 1336 1258 1082 977 851 704

BHP 0.85 0.86 0.87 0.89 0.90 0.90 0.88 0.84 0.80

Sones 26 26 26 26 26 24 22 24 25

2691

CFM 1579 1549 1488 1420 1347 1186 1097 987 866 713

BHP 0.98 0.98 1.00 1.02 1.03 1.05 1.03 1.00 0.96 0.91

Sones 28 28 27 28 28 26 25 24 26 29

21

(533)

15

(381)

117⁄8

(302)

15

(381)

1 (25)

*121⁄2

(318)

*14

(356)

*151⁄2

(394)

Damper size = 12 x 12 (305 x 305)

Unit weight** = 84 (38)

Housing thickness = 18 ga

MAX Bhp AT A GIVEN RPM = (rpm/2649)3

MAXIMUM RPM = 2691

TIP SPEED (ft/min) = rpm x 2.928

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 1.0212 x cfm

0 500 1000 1500 2000 2500 3000

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 200 400 600 800 1000 1200 1400 1600 1800

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2691

2310

1930

1550

1170

790

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

27

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 100 - Belt Drive

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.625 0.750 1.000 1.250 1.500 1.750 2.000

100

100-4 1/4

1050

CFM 774 671

BHP 0.072 0.073

Sones 7.9 7.6

1330

CFM 1024 953 770

BHP 0.14 0.15 0.15

Sones 11.3 10.6 9.4

1469

CFM 1145 1080 931 837

BHP 0.19 0.20 0.20 0.20

Sones 13.2 12.6 11.0 10.5

1609

CFM 1265 1207 1088 1003 917

BHP 0.25 0.25 0.26 0.26 0.26

Sones 15.4 15.0 13.4 12.4 11.8

100-3 1/3 1772

CFM 1405 1352 1247 1187 1110 939

BHP 0.33 0.34 0.35 0.35 0.35 0.35

Sones 16.6 16.4 15.5 14.8 14.3 13.1

100-5 1/2

1901

CFM 1515 1465 1366 1320 1255 1115

BHP 0.40 0.41 0.43 0.43 0.43 0.43

Sones 18.0 17.8 17.4 17.1 16.6 16.2

2029

CFM 1623 1577 1484 1439 1396 1262 1119

BHP 0.49 0.50 0.52 0.52 0.52 0.52 0.52

Sones 19.8 19.6 19.4 19.0 18.6 18.2 17.2

100-7 3/4

2176

CFM 1747 1704 1617 1574 1533 1428 1305 1163

BHP 0.60 0.61 0.63 0.64 0.65 0.65 0.65 0.65

Sones 21 21 21 21 20 19.8 19.3 18.5

2323

CFM 1871 1830 1749 1708 1668 1591 1472 1358 1197

BHP 0.73 0.74 0.76 0.78 0.79 0.79 0.79 0.79 0.78

Sones 23 23 23 23 23 22 21 20 21

100-10 1

2440

CFM 1969 1930 1853 1815 1776 1703 1605 1494 1377 1184

BHP 0.84 0.86 0.88 0.89 0.90 0.91 0.91 0.91 0.91 0.88

Sones 25 25 24 24 25 23 23 22 22 23

2556

CFM 2066 2029 1956 1919 1882 1810 1734 1626 1522 1402

BHP 0.97 0.98 1.01 1.02 1.03 1.05 1.05 1.05 1.05 1.05

Sones 26 26 25 26 26 25 25 24 22 24

21

(533)

17

(432)

137⁄8

(352)

17

(432)

1 (25)

*121⁄2

(318)

*14

(356)

*151⁄2

(394)

Damper size = 14 x 14 (357 x 357)

Unit weight** = 91 (41)

Housing thickness = 18 ga

MAX Bhp AT A GIVEN RPM = (rpm/2517)3

MAXIMUM RPM = 2556

TIP SPEED (ft/min) = rpm x 2.928

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.7617 x cfm

0 1000 2000 3000 4000

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2556

2210

1855

1500

1145

790

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

28

BSQ 120 - Belt Drive

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.375 0.750 1.000 1.250 1.500 2.000 2.250 2.500 2.750

120

120-4 1/4

1000

CFM 1026 783

BHP 0.096 0.102

Sones 7.7 7.5

1367

CFM 1471 1311 1020

BHP 0.24 0.25 0.26

Sones 10.9 10.5 10.0

120-3 1/3

1437

CFM 1555 1403 1145

BHP 0.28 0.29 0.30

Sones 11.7 11.3 10.4

1506

CFM 1636 1492 1252 1027

BHP 0.32 0.33 0.35 0.34

Sones 12.5 12.1 11.1 10.2

120-5 1/2

1615

CFM 1764 1631 1418 1245

BHP 0.39 0.41 0.43 0.43

Sones 13.8 13.6 12.4 11.8

1724

CFM 1892 1767 1571 1423 1241

BHP 0.47 0.49 0.52 0.52 0.52

Sones 15.2 15.3 13.8 13.6 12.4

120-7 3/4 1974

CFM 2183 2075 1908 1791 1663 1518

BHP 0.71 0.73 0.76 0.78 0.78 0.78

Sones 19.0 18.9 17.6 16.9 16.4 15.7

120-10 1

2073

CFM 2298 2195 2037 1928 1813 1683 1293

BHP 0.82 0.84 0.88 0.89 0.91 0.91 0.86

Sones 21 21 19.0 18.6 17.9 17.5 15.2

2172

CFM 2413 2314 2164 2062 1953 1836 1553

BHP 0.94 0.97 1.00 1.02 1.04 1.05 1.03

Sones 23 23 21 21 19.7 19.0 17.5

120-15 11⁄2

2329

CFM 2594 2503 2363 2268 2171 2069 1841 1695 1477

BHP 1.16 1.19 1.22 1.25 1.27 1.28 1.29 1.28 1.23

Sones 26 26 24 23 23 22 21 19.9 18.8

2490

CFM 2779 2694 2563 2475 2387 2294 2093 1984 1852 1682

BHP 1.41 1.44 1.49 1.51 1.54 1.55 1.58 1.58 1.57 1.53

Sones 31 30 27 26 27 26 24 23 23 22

21

(533)

19

(483)

157⁄8

(403)

19

(483)

1 (25)

*121⁄2

(318)

*16

(406)

*177⁄8

(454)

Damper size = 16 x 16 (406 x 406)

Unit weight** = 97 (44)

Housing thickness = 18 ga

MAX Bhp AT A GIVEN RPM = (rpm/2144)3

MAXIMUM RPM = 2490

TIP SPEED (ft/min) = rpm x 3.436

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.5805 x cfm

0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000

0

100

200

300

400

500

600

700

800

900

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

YS

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500 3000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2490

2150

1810

1470

1130

790

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

29

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 130 - Belt Drive

21

(533)

21

(533)

177⁄8

(454)

21

(533)

1 (25)

*121⁄2

(318)

*16

(406)

*177⁄8

(454)

Damper size = 18 x 18 (457 x 457)

Unit weight** = 97 (44)

Housing thickness = 18 ga

0 1000 2000 3000 4000 5000

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500 3000 3500

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2355

2050

1735

1420

1105

790

RPM

HP

Density 0.075 lb/ft3

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500

130

130-4 1/4

900

CFM 1084 911

BHP 0.086 0.087

Sones 7.7 7.7

1031

CFM 1275 1151 709

BHP 0.13 0.13 0.12

Sones 8.8 8.7 8.5

1293

CFM 1652 1563 1328 958

BHP 0.24 0.25 0.26 0.24

Sones 11.8 11.6 11.2 10.6

130-3 1/3 1424

CFM 1838 1754 1568 1299

BHP 0.32 0.33 0.35 0.34

Sones 13.6 13.3 12.8 12.4

130-5 1/2

1527

CFM 1984 1902 1743 1515 1204

BHP 0.40 0.41 0.43 0.42 0.40

Sones 14.8 14.5 13.9 13.3 12.6

1630

CFM 2126 2050 1908 1714 1468 1121

BHP 0.48 0.49 0.52 0.52 0.51 0.47

Sones 15.9 15.6 15.0 14.3 13.6 12.7

130-7 3/4 1866

CFM 2448 2389 2266 2128 1949 1740 1462

BHP 0.72 0.73 0.76 0.78 0.78 0.76 0.73

Sones 19.9 19.5 18.8 18.2 17.2 15.9 14.7

130-10 1

1960

CFM 2576 2523 2403 2279 2120 1934 1714 1419

BHP 0.83 0.84 0.87 0.90 0.91 0.89 0.87 0.83

Sones 21 21 19.9 19.3 18.4 17.3 16.7 16.2

2053

CFM 2702 2655 2537 2426 2286 2117 1926 1686 1319

BHP 0.95 0.96 1.00 1.03 1.05 1.03 1.02 0.99 0.89

Sones 23 22 21 20 19.8 18.7 18.0 17.9 18.5

130-15 11⁄2

2202

CFM 2905 2864 2751 2653 2533 2390 2227 2045 1823

HP 1.17 1.18 1.22 1.25 1.28 1.28 1.27 1.26 1.22

Sones 26 25 24 22 22 21 20 19.9 21

2355

CFM 3112 3074 2971 2877 2777 2659 2514 2359 2189 1732

BHP 1.43 1.44 1.48 1.52 1.55 1.58 1.57 1.55 1.54 1.44

Sones 30 28 28 25 24 23 22 22 22 27

MAX Bhp AT A GIVEN RPM = (rpm/2022)3

MAXIMUM RPM = 2355

TIP SPEED (ft/min) = rpm x 3.435

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.4571 x cfm

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

30

BSQ 130HP - Belt Drive

21

(533)

21

(533)

177⁄8

(454)

21

(533)

1 (25)

*121⁄2

(318)

*16

(406)

*177⁄8

(454)

Damper size = 18 x 18 (457 x 457)

Unit weight** = 97 (44)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500 3.000 3.500

130HP

130HP-4 1/4

1300

CFM 784 549

BHP 0.16 0.15

Sones 11.2 10.5

1520

CFM 1014 884 670

BHP 0.25 0.26 0.25

Sones 11.4 11.2 10.8

130HP-3 1/3 1674

CFM 1161 1048 930 700

BHP 0.33 0.34 0.35 0.33

Sones 12.4 12.5 12.0 11.5

130HP-5 1/2

1795

CFM 1273 1176 1063 930 691

BHP 0.40 0.41 0.42 0.42 0.4

Sones 13.3 13.4 13.1 12.6 11.7

1916

CFM 1380 1294 1192 1091 925 680

BHP 0.48 0.50 0.50 0.52 0.51 0.48

Sones 14.6 14.3 14.2 13.9 13.0 11.9

130HP-7 3/4

2055

CFM 1501 1426 1339 1239 1146 971 756

BHP 0.59 0.60 0.62 0.62 0.65 0.62 0.59

Sones 16.9 15.9 15.4 15.3 14.9 13.8 12.6

2194

CFM 1621 1555 1477 1388 1297 1203 1033

BHP 0.71 0.73 0.75 0.76 0.77 0.78 0.76

Sones 19.2 18.4 17.1 17.0 17.2 16.5 15.1

130HP-

10 1

2304

CFM 1715 1653 1582 1504 1414 1331 1229 865

BHP 0.81 0.84 0.86 0.87 0.87 0.90 0.90 0.84

Sones 21 20 19.0 18.2 18.6 18.4 17.6 14.5

2414

CFM 1808 1749 1685 1614 1532 1448 1369 1080

BHP 0.93 0.95 0.98 1.00 1.01 1.01 1.04 1.00

Sones 22 22 21 19.0 19.5 19.7 19.2 16.8

130HP-

15 11⁄2

2589

CFM 1956 1901 1846 1781 1714 1635 1557 1392 1076

BHP 1.14 1.17 1.19 1.22 1.24 1.24 1.25 1.28 1.21

Sones 24 25 24 22 21 22 22 20 17.7

2770

CFM 2108 2056 2005 1950 1888 1825 1750 1608 1421 1110

BHP 1.39 1.42 1.44 1.47 1.5 1.52 1.52 1.56 1.54 1.48

Sones 27 28 27 26 25 24 24 23 22 19.2

MAX Bhp AT A GIVEN RPM = (rpm/2377)3

MAXIMUM RPM = 2770

TIP SPEED (ft/min) = rpm x 3.435

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.4571 x cfm

0 500 1000 1500 2000 2500 3000 3500 4000

0

100

200

300

400

500

600

700

800

900

1000

1100

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2770

2390

1990

1590

1190

790

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

31

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 140 - Belt Drive

22

(559)

23

(584)

197⁄8

(505)

23

(584)

1 (25)

*121⁄2

(318)

*16

(406)

*177⁄8

(454)

Damper size = 20 x 20 (508 x 508)

Unit weight** = 111 (50)

Housing thickness = 18 ga

0 1000 2000 3000 4000 5000 6000 7000

0

100

200

300

400

500

600

700

800

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500 3000 3500 4000 4500

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

2153

1890

1615

1340

1065

790

RPM

HP

Density 0.075 lb/ft3

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.500 1.750 2.000 2.500 2.750

140

140-4 1/4

800

CFM 1362 1185

BHP 0.10 0.11

Sones 6.3 6.7

1076

CFM 1927 1810 1538

BHP 0.24 0.25 0.26

Sones 10.7 10.7 10.2

140-3 1/3 1185

CFM 2142 2039 1807 1463

BHP 0.32 0.33 0.35 0.34

Sones 12.1 11.9 12.0 10.6

140-5 1/2

1271

CFM 2311 2217 2006 1741 1199

BHP 0.39 0.41 0.43 0.43 0.39

Sones 13.3 13.0 13.1 13.0 12.7

1356

CFM 2476 2392 2197 1979 1636

BHP 0.48 0.49 0.51 0.52 0.51

Sones 14.2 13.9 13.8 13.8 13.8

140-7 3/4 1553

CFM 2858 2787 2626 2449 2253 1447

BHP 0.71 0.73 0.75 0.78 0.79 0.70

Sones 16.2 16.0 16.0 15.6 15.3 13.9

140-10 1

1631

CFM 3008 2941 2790 2625 2446 1865

BHP 0.82 0.84 0.86 0.89 0.91 0.87

Sones 17.1 16.9 16.9 16.6 16.1 14.8

1709

CFM 3159 3094 2953 2798 2635 2177 1752

BHP 0.95 0.96 0.99 1.02 1.05 1.03 0.97

Sones 18.2 18.0 17.9 17.7 17.2 16.1 15.1

140-15 11⁄21956

CFM 3633 3576 3461 3330 3193 2894 2705 2457

BHP 1.41 1.43 1.47 1.49 1.53 1.57 1.57 1.55

Sones 24 23 24 24 23 22 21 20

140-20 2

2055

CFM 3822 3769 3662 3537 3410 3136 2982 2777 2168

BHP 1.63 1.66 1.70 1.73 1.75 1.82 1.82 1.81 1.70

Sones 27 26 28 27 26 25 24 23 21

2153

CFM 4009 3958 3856 3741 3622 3365 3225 3078 2627 2260

BHP 1.88 1.90 1.95 1.98 2.00 2.08 2.10 2.10 2.05 1.95

Sones 30 30 31 31 30 28 28 27 25 23

MAX Bhp AT A GIVEN RPM = (rpm/1682)3

MAXIMUM RPM = 2153

TIP SPEED (ft/min) = rpm x 3.812

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.3692 x cfm

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

32

BSQ 140HP - Belt Drive

22

(559)

23

(584)

197⁄8

(505)

23

(584)

1 (25)

*121⁄2

(318)

*16

(406)

*177⁄8

(454)

Damper size = 20 x 20 (508 x 508)

Unit weight** = 111 (50)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500 3.000 3.500

140HP

140HP-3 1/3

1340

CFM 1285 1082

BHP 0.27 0.27

Sones 11.4 11.2

1453

CFM 1449 1281 1058

BHP 0.35 0.35 0.34

Sones 13.3 12.8 12.4

140HP-5 1/2

1559

CFM 1601 1452 1270 948

BHP 0.42 0.43 0.43 0.39

Sones 15.1 14.6 14.2 13.4

1664

CFM 1742 1607 1456 1264 800

BHP 0.51 0.52 0.52 0.52 0.43

Sones 16.5 15.9 15.5 15.0 13.8

140HP-7 3/4

1785

CFM 1902 1782 1652 1495 1307

BHP 0.63 0.64 0.65 0.65 0.64

Sones 17.9 17.3 16.7 16.1 15.5

1905

CFM 2057 1954 1832 1701 1548 1363

BHP 0.76 0.77 0.79 0.79 0.79 0.77

Sones 19.7 19.1 18.4 17.7 17.1 16.7

140HP-

10 1 2096

CFM 2298 2211 2108 1998 1878 1741 1581

BHP 1.01 1.02 1.03 1.05 1.05 1.05 1.04

Sones 24 23 22 21 20 20 19.7

140HP-

15 11⁄2

2197

CFM 2425 2344 2253 2145 2041 1918 1783 1299

BHP 1.16 1.18 1.18 1.21 1.21 1.21 1.21 1.08

Sones 26 25 24 23 22 22 22 22

2399

CFM 2676 2603 2525 2437 2339 2244 2134 1882 1381

BHP 1.50 1.52 1.53 1.54 1.57 1.57 1.57 1.56 1.39

Sones 30 29 28 27 26 25 24 23 23

140HP-

20 2

2520

CFM 2825 2755 2684 2606 2515 2423 2330 2107 1839

BHP 1.73 1.76 1.78 1.78 1.81 1.82 1.82 1.82 1.79

Sones 32 31 30 30 28 27 26 25 24

2641

CFM 2973 2907 2841 2768 2688 2599 2512 2319 2088 1759

BHP 1.98 2.01 2.04 2.05 2.06 2.09 2.10 2.10 2.09 2.00

Sones 33 33 33 32 31 30 29 27 26 24

MAX Bhp AT A GIVEN RPM = (rpm/2064)3

MAXIMUM RPM = 2641

TIP SPEED (ft/min) = rpm x 3.812

MAX NEMA MOTOR FRAME SIZE = 145T

OUTLET VELOCITY (ft/min) = 0.3692 x cfm

0 1000 2000 3000 4000 5000

0

200

400

600

800

1000

1200

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 500 1000 1500 2000 2500 3000 3500

0

1

2

3

4

5

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

2641

2270

1900

1530

1160

790

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

33

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 160 - Belt Drive

26

(660)

26

(660)

227⁄8

(581)

26

(660)

1 (25)

*133⁄8

(340)

*17

(432)

*201⁄2

(521)

Damper size = 23 x 23 (584 x 584)

Unit weight** = 208 (94)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.500 0.750 1.000 1.500 1.750 2.000 2.250 2.500 3.00

160

160-4 1/4

650

CFM 1671

BHP 0.10

Sones 6.6

873

CFM 2373 1759

BHP 0.23 0.26

Sones 8.8 8.2

160-3 1/3 962

CFM 2643 2150

BHP 0.31 0.35

Sones 9.9 9.3

160-5 1/2 1101

CFM 3061 2665 2301

BHP 0.46 0.51 0.52

Sones 12.4 11.4 11.2

160-7 3/4 1261

CFM 3538 3212 2946 2611

BHP 0.68 0.74 0.78 0.78

Sones 15.5 14.6 14.4 13.2

160-10 1 1387

CFM 3911 3628 3402 3146 2311

BHP 0.90 0.97 1.01 1.04 0.96

Sones 18.0 17.2 16.9 16.1 13.1

160-15 11⁄2

1488

CFM 4209 3949 3745 3519 2921 2420

BHP 1.10 1.18 1.23 1.27 1.27 1.17

Sones 19.9 19.0 18.9 18.4 15.9 14.5

1588

CFM 4503 4259 4079 3880 3389 3055 2566

BHP 1.33 1.42 1.47 1.52 1.56 1.53 1.42

Sones 22 21 22 21 18.9 17.5 16.1

160-20 2 1748

CFM 4973 4751 4603 4425 4037 3802 3528 3185

BHP 1.77 1.88 1.92 1.98 2.08 2.09 2.07 2.01

Sones 28 26 27 27 24 23 22 19.9

160-30 3

1875

CFM 5345 5138 5000 4847 4501 4312 4091 3844 3530

BHP 2.18 2.30 2.35 2.41 2.53 2.57 2.58 2.56 2.50

Sones 33 31 31 32 30 29 27 25 23

2001

CFM 5713 5519 5390 5260 4946 4774 4596 4392 4160 3566

BHP 2.64 2.77 2.84 2.89 3.03 3.08 3.12 3.14 3.12 2.99

Sones 40 36 36 38 38 36 34 31 29 26

MAX Bhp AT A GIVEN RPM = (rpm/1366)3

MAXIMUM RPM = 2001

TIP SPEED (ft/min) = rpm x 4.384

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.2782 x cfm

0 1 2 3 4 5 6 7 8 9 10

0

100

200

300

400

500

600

700

800

900

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000 6000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Static Pressure in. wg

cfm

m3/hr X 1000

Static Pressure Pa

2001

1710

1430

1150

870

590

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

1/4 hp

RPM

HP

Density 0.075 lb/ft3

3 hp

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

34

BSQ 160HP - Belt Drive

26

(660)

26

(660)

227⁄8

(581)

26

(660)

1 (25)

*133⁄8

(340)

*17

(432)

*201⁄2

(521)

Damper size = 23 x 23 (584 x 584)

Unit weight** = 208 (94)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 2.000 2.500 3.000 3.500 4.000

160HP

160HP-3 1/3

1050

CFM 1669 1290

BHP 0.29 0.28

Sones 7.8 7.2

1116

CFM 1844 1533

BHP 0.35 0.35

Sones 8.6 8.0

160HP-5 1/2 1277

CFM 2237 2020 1731 1305

BHP 0.50 0.52 0.52 0.49

Sones 10.8 10.1 9.6 8.9

160HP-7 3/4 1462

CFM 2664 2497 2299 2050 1720

BHP 0.74 0.77 0.79 0.78 0.76

Sones 14.1 13.4 12.9 12.7 12.6

160HP-

10 1 1609

CFM 2986 2845 2688 2497 2269 1601

BHP 0.97 1.00 1.03 1.05 1.04 0.97

Sones 17.8 17.3 16.7 16.3 16.4 16.9

160HP-

15 11⁄2

1726

CFM 3239 3116 2974 2814 2630 2157

BHP 1.18 1.22 1.25 1.28 1.29 1.26

Sones 22 21 21 19.8 19.8 21

1842

CFM 3488 3377 3248 3115 2954 2570 2013

BHP 1.42 1.47 1.51 1.54 1.56 1.56 1.49

Sones 25 24 24 23 22 23 25

160HP-

20 2

1935

CFM 3686 3580 3464 3338 3200 2859 2435

BHP 1.63 1.68 1.73 1.77 1.80 1.82 1.79

Sones 27 25 25 25 24 24 25

2027

CFM 3881 3780 3676 3555 3434 3135 2763 2248

BHP 1.87 1.92 1.97 2.01 2.05 2.09 2.07 1.99

Sones 28 28 25 27 26 26 27 28

160HP-

30 3

2174

CFM 4191 4097 4002 3897 3785 3536 3230 2866 2357

BHP 2.29 2.34 2.40 2.45 2.49 2.56 2.58 2.55 2.44

Sones 32 31 28 28 29 29 29 30 31

2321

CFM 4499 4411 4322 4234 4129 3918 3660 3351 3001 2505

BHP 2.77 2.83 2.89 2.95 3.00 3.09 3.14 3.13 3.09 2.97

Sones 36 34 34 28 31 32 33 33 33 34

MAX Bhp AT A GIVEN RPM = (rpm/1584)3

MAXIMUM RPM = 2321

TIP SPEED (ft/min) = rpm x 4.384

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.2782 x cfm

0 2000 4000 6000 8000

0

200

400

600

800

1000

1200

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000

0

1

2

3

4

5

Static Pressure in. wg

cfm

m3/hr

Static Pressure Pa

2321

1990

1665

1340

1015

690

3 hp

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

35

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 180 - Belt Drive

28

(711)

28

(711)

237⁄8

(606)

28

(711)

11⁄2 (38)

*133⁄4

(349)

*18

(457)

*243⁄8

(619)

Damper size = 24 x 24 (610 x 610)

Unit weight** = 245 (111)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500

180

180-3 1/3

700

CFM 2649 2387

BHP 0.23 0.24

Sones 10.0 9.6

791

CFM 3051 2845 2217

BHP 0.32 0.34 0.35

Sones 10.6 10.9 9.6

180-5 1/2 905

CFM 3546 3366 2928 2175

BHP 0.48 0.49 0.52 0.49

Sones 12.2 12.1 11.6 10.8

180-7 3/4 1037

CFM 4109 3955 3616 3179 2432

BHP 0.71 0.73 0.77 0.79 0.73

Sones 14.5 14.2 13.5 13.4 12.8

180-10 1 1141

CFM 4549 4412 4127 3760 3290 2523

BHP 0.94 0.96 1.01 1.04 1.04 0.96

Sones 16.5 16.1 15.4 15.0 14.9 13.8

180-15 11⁄2

1224

CFM 4898 4774 4507 4194 3836 3300 2331

BHP 1.15 1.18 1.23 1.28 1.29 1.27 1.08

Sones 18.4 17.7 17.1 16.5 16.5 15.8 14.4

1306

CFM 5242 5128 4878 4610 4281 3884 3332

BHP 1.40 1.43 1.48 1.53 1.56 1.57 1.50

Sones 20 19.5 18.8 18.3 17.8 17.5 16.8

180-20 2

1372

CFM 5519 5410 5174 4937 4630 4308 3854 3218

BHP 1.62 1.65 1.71 1.75 1.81 1.82 1.81 1.7

Sones 22 21 20 19.8 19.0 18.7 18.3 17.5

1437

CFM 5790 5686 5463 5236 4964 4662 4298 3814 3106

BHP 1.86 1.89 1.95 2.00 2.06 2.09 2.09 2.04 1.89

Sones 23 22 22 21 21 19.7 19.6 19.1 18.2

180-30 3

1541

CFM 6224 6127 5922 5710 5488 5213 4927 4567 4116

BHP 2.29 2.32 2.38 2.45 2.50 2.56 2.58 2.57 2.52

Sones 26 25 25 24 24 22 22 21 21

1645

CFM 6656 6566 6377 6179 5981 5744 5485 5216 4866 3898

BHP 2.78 2.81 2.88 2.95 3.01 3.07 3.12 3.14 3.13 2.94

Sones 29 28 28 27 27 26 24 24 24 23

MAX Bhp AT A GIVEN RPM = (rpm/1125)3

MAXIMUM RPM = 1645

TIP SPEED (ft/min) = rpm x 4.843

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.2553 x cfm

0 2 4 6 8 10

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000 6000 7000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr X 1000

Static Pressure Pa

3 hp

1645

1430

1220

1010

800

590

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

36

BSQ 180HP - Belt Drive

28

(711)

28

(711)

237⁄8

(606)

28

(711)

11⁄2 (38)

*133⁄4

(349)

*18

(457)

*243⁄8

(619)

Damper size = 24 x 24 (610 x 610)

Unit weight** = 245 (111)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500 3.000 3.500

180HP

180HP-5 1/2

1000

CFM 2352 2018

BHP 0.44 0.45

Sones 10.9 10.0

1083

CFM 2636 2364 1984

BHP 0.55 0.57 0.56

Sones 12.1 11.2 10.5

180HP-7 3/4

1166

CFM 2907 2672 2379 1951

BHP 0.67 0.70 0.71 0.69

Sones 13.4 12.6 11.7 10.9

1249

CFM 3169 2964 2724 2406 1945

BHP 0.81 0.85 0.87 0.87 0.82

Sones 14.7 14.1 13.2 12.4 11.4

180HP-

10 1 1332

CFM 3428 3247 3032 2782 2458 1513

BHP 0.98 1.02 1.05 1.06 1.05 0.83

Sones 16.3 15.7 14.8 14.0 13.1 11.0

180HP-

15 11⁄2

1415

CFM 3681 3518 3328 3116 2857 2537

BHP 1.15 1.20 1.24 1.26 1.27 1.26

Sones 18.0 17.4 16.6 15.6 14.8 14.0

1498

CFM 3931 3782 3614 3423 3212 2944 2622

BHP 1.35 1.41 1.45 1.49 1.51 1.50 1.48

Sones 19.9 19.1 18.6 17.6 16.8 15.9 15.0

180HP-

20 2

1581

CFM 4180 4043 3893 3718 3528 3312 3049

BHP 1.57 1.64 1.69 1.73 1.76 1.77 1.77

Sones 22 21 20 19.7 18.9 18.2 17.3

1664

CFM 4425 4298 4158 4003 3833 3648 3429 2859

BHP 1.81 1.89 1.95 1.99 2.03 2.06 2.07 2.01

Sones 24 23 23 22 21 21 19.7 17.9

180HP-

30 3

1747

CFM 4669 4550 4421 4285 4125 3956 3780 3308 2100

BHP 2.08 2.16 2.23 2.29 2.33 2.36 2.39 2.38 1.94

Sones 27 26 25 24 24 23 23 21 16.9

1913

CFM 5155 5050 4938 4816 4691 4545 4396 4058 3620 3006

BHP 2.70 2.78 2.88 2.95 3.00 3.05 3.09 3.14 3.12 2.96

Sones 33 32 31 30 30 29 29 28 26 23

MAX Bhp AT A GIVEN RPM = (rpm/1306)3

MAXIMUM RPM = 1913

TIP SPEED (ft/min) = rpm x 4.843

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.2553 x cfm

0 1 2 3 4 5 6 7 8 9 10

0

100

200

300

400

500

600

700

800

900

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000 6000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

Static Pressure in. wg

cfm

m3/hr X 1000

Static Pressure Pa

3 hp

1913

1650

1385

1120

855

590

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

37

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 200 - Belt Drive

32

(813)

32

(813)

277⁄8

(708)

32

(813)

11⁄2 (38)

*16

(406)

*20

(508)

*28

(711)

Damper size = 28 x 28 (711 x 711)

Unit weight** = 314 (142)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 0.875 1.000 1.250 1.500 1.750 2.000

200

200-3 1/3

600

CFM 2960 2616

BHP 0.25 0.26

Sones 11.1 10.6

660

CFM 3315 3018 2042

BHP 0.33 0.34 0.33

Sones 11.7 11.2 10.5

200-5 1/2 756

CFM 3867 3624 3036

BHP 0.49 0.50 0.52

Sones 12.7 12.0 11.7

200-7 3/4

811

CFM 4179 3959 3442 2563

BHP 0.60 0.62 0.64 0.62

Sones 13.4 12.8 12.3 13.0

865

CFM 4484 4285 3812 3239 2516

BHP 0.73 0.75 0.77 0.79 0.72

Sones 14.1 13.7 13.1 13.0 13.9

200-10 1 952

CFM 4972 4796 4391 3916 3646 3203

BHP 0.96 0.99 1.01 1.04 1.05 1.03

Sones 15.7 15.5 15.1 14.9 14.5 14.4

200-15 11⁄21090

CFM 5741 5587 5253 4874 4672 4452 3878

BHP 1.43 1.47 1.51 1.53 1.55 1.56 1.56

Sones 19.1 18.9 18.7 18.5 18.6 18.7 17.3

200-20 2

1145

CFM 6046 5899 5588 5240 5047 4855 4413 3580

BHP 1.66 1.69 1.74 1.77 1.79 1.81 1.82 1.73

Sones 21 20 20 20 20 20 19.2 18.6

1200

CFM 6350 6210 5920 5597 5416 5233 4836 4316

BHP 1.90 1.94 2.00 2.02 2.04 2.06 2.09 2.08

Sones 22 22 21 21 21 21 21 19.8

200-30 3

1287

CFM 6830 6699 6439 6138 5988 5818 5475 5088 4557

BHP 2.34 2.38 2.46 2.49 2.50 2.52 2.56 2.58 2.56

Sones 25 24 24 24 23 23 23 23 22

1375

CFM 7314 7192 6948 6677 6537 6396 6076 5753 5379 4862

BHP 2.85 2.89 2.98 3.02 3.03 3.05 3.09 3.14 3.15 3.13

Sones 27 27 26 26 26 26 25 25 25 24

MAX Bhp AT A GIVEN RPM = (rpm/937)3

MAXIMUM RPM = 1375

TIP SPEED (ft/min) = rpm x 5.595

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.1870 x cfm

0 2 4 6 8 10 12

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000 6000 7000 8000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm

m3/hr X 1000

Static Pressure Pa

1375

1190

990

790

590

390

3 hp

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1/3 hp

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

38

BSQ 200HP - Belt Drive

32

(813)

32

(813)

277⁄8

(708)

32

(813)

11⁄2 (38)

*16

(406)

*20

(508)

*28

(711)

Damper size = 28 x 28 (711 x 711)

Unit weight** = 314 (142)

Housing thickness = 18 ga

Model

Number Motor HP Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.250 2.500 3.000

200HP

200HP-5 1/2

850

CFM 2580 2037

BHP 0.47 0.47

Sones 12.3 11.6

880

CFM 2724 2258

BHP 0.51 0.52

Sones 12.8 12.3

200HP-7 3/4

945

CFM 3032 2656 1943

BHP 0.63 0.65 0.61

Sones 14.2 14.1 12.4

1009

CFM 3327 3003 2556

BHP 0.76 0.78 0.78

Sones 15.6 15.9 14.7

200HP-

10 1 1111

CFM 3787 3495 3179 2732

BHP 1.00 1.03 1.05 1.04

Sones 16.9 17.4 16.9 15.3

200HP-

15 11⁄2

1191

CFM 4129 3870 3594 3263 2760

BHP 1.22 1.26 1.28 1.29 1.27

Sones 17.9 18.0 18.9 17.2 15.7

1271

CFM 4466 4235 3979 3716 3379 2808

BHP 1.47 1.51 1.55 1.57 1.57 1.52

Sones 18.8 18.9 21 19.8 17.5 16.2

200HP-

20 2

1335

CFM 4733 4523 4282 4035 3748 3382 2732

BHP 1.69 1.74 1.78 1.81 1.82 1.81 1.72

Sones 19.7 19.9 21 22 19.6 17.7 16.5

1399

CFM 4998 4803 4578 4344 4108 3802 3409 2702

BHP 1.93 1.99 2.03 2.07 2.09 2.09 2.08 1.95

Sones 21 21 21 24 22 19.5 18.1 17.0

200HP-

30 3

1467

CFM 5277 5092 4888 4667 4442 4190 3898 3473 2724

BHP 2.22 2.28 2.33 2.37 2.40 2.42 2.42 2.39 2.22

Sones 23 22 22 24 25 22 19.6 18.7 17.6

1602

CFM 5823 5659 5489 5291 5089 4883 4669 4401 4089 2894

BHP 2.86 2.93 3.00 3.04 3.08 3.12 3.15 3.15 3.14 2.86

Sones 26 26 25 25 27 27 25 23 22 20

MAX Bhp AT A GIVEN RPM = (rpm/1093)3

MAXIMUM RPM = 1602

TIP SPEED (ft/min) = rpm x 5.595

MAX NEMA MOTOR FRAME SIZE = 184T

OUTLET VELOCITY (ft/min) = 0.1870 x cfm

0 2 4 6 8 10

0

100

200

300

400

500

600

700

800

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 1000 2000 3000 4000 5000 6000 7000

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

Static Pressure in. wg

cfm

m3/hr X 1000

Static Pressure Pa

3 hp

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1602

1350

1110

870

630

390

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

39

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 240 - Belt Drive

34

(864)

39

(991)

347⁄8

(886)

39

(991)

11⁄2 (38)

*19

(483)

*22

(559)

*327⁄8

(835)

Damper size = 35 x 35 (889 x 889)

Unit weight** = 415 (188)

Housing thickness = 18 ga

Model

Number Motor HP Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500

240

240-5 1/2

500

CFM 4518 4001

BHP 0.33 0.35

Sones 10.7 10.2

569

CFM 5269 4833 3685

BHP 0.48 0.51 0.51

Sones 12.3 11.8 10.8

240-7 3/4 651

CFM 6132 5768 4946

BHP 0.70 0.74 0.78

Sones 14.3 13.9 12.9

240-10 1

684

CFM 6475 6135 5368 4273

BHP 0.81 0.85 0.90 0.89

Sones 15.2 14.9 13.8 12.6

717

CFM 6816 6498 5782 4884

BHP 0.93 0.97 1.03 1.03

Sones 16.2 15.9 14.9 13.6

240-15 11⁄2826

CFM 7935 7680 7086 6425 5604

BHP 1.41 1.45 1.54 1.59 1.58

Sones 19.5 19.5 18.7 17.4 16.2

240-20 2 903

CFM 8720 8488 7960 7384 6756 5889

BHP 1.83 1.88 1.97 2.05 2.09 2.05

Sones 22 22 22 20 18.9 17.9

240-30 3

969

CFM 9390 9174 8695 8176 7612 6962 6075

BHP 2.25 2.31 2.41 2.50 2.56 2.57 2.52

Sones 25 24 24 23 21 20 19.4

1034

CFM 10048 9845 9409 8936 8421 7881 7219 6268

BHP 2.73 2.79 2.90 3.01 3.08 3.14 3.11 3.03

Sones 28 27 27 26 23 22 22 21

240-50 5

1098

CFM 10694 10503 10105 9660 9192 8695 8160 7510 6451

BHP 3.26 3.32 3.44 3.56 3.65 3.72 3.76 3.72 3.58

Sones 31 31 30 29 26 24 24 23 22

1225

CFM 11973 11802 11460 11070 10671 10245 9804 9345 8797 7124

BHP 4.50 4.58 4.72 4.84 4.97 5.07 5.16 5.22 5.20 4.95

Sones 41 40 38 37 34 31 28 28 28 26

MAX Bhp AT A GIVEN RPM = (rpm/706)3

MAXIMUM RPM = 1225

TIP SPEED (ft/min) = rpm x 6.414

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.1192 x cfm

0 5 10 15 20

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 2 4 6 8 10 12 14

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

5 hp

3 hp

2 hp

1 1/2 hp

1 hp

3/4 hp

1/2 hp

1225

1070

900

730

560

390

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

40

Damper size = 35 x 35 (889 x 889)

Unit weight** = 415 (188)

Housing thickness = 18 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.5 0.75 1 1.25 1.5 2 2.5 3 3.5 4

240HP

240HP-

10 1

780

CFM 4321 3791 2789

BHP 0.88 0.90 0.83

Sones 14.4 14.0 13.5

820

CFM 4643 4149 3492

BHP 1.01 1.04 1.03

Sones 15.2 14.8 14.3

240HP-

15 11⁄2939

CFM 5552 5159 4721 4161

BHP 1.48 1.54 1.57 1.55

Sones 18.1 17.3 16.8 16.3

240HP-

20 2

986

CFM 5903 5541 5135 4693 4013

BHP 1.69 1.76 1.81 1.82 1.76

Sones 19.2 18.2 17.9 17.5 17.0

1033

CFM 6251 5909 5533 5128 4609

BHP 1.93 2.01 2.07 2.09 2.07

Sones 20 19.3 18.9 18.6 18.2

240HP-

30 3 1183

CFM 7336 7046 6747 6419 6073 5209

BHP 2.85 2.94 3.02 3.09 3.13 3.10

Sones 25 24 22 22 22 21

240HP-

50 5

1256

CFM 7843 7589 7307 7016 6700 6030 4920

BHP 3.37 3.48 3.57 3.65 3.72 3.77 3.59

Sones 27 26 25 24 23 22 22

1329

CFM 8346 8125 7859 7593 7304 6686 5897

BHP 3.96 4.09 4.18 4.28 4.35 4.44 4.40

Sones 30 28 27 26 25 24 23

1402

CFM 8848 8657 8405 8152 7897 7327 6721 5790

BHP 4.61 4.76 4.86 4.96 5.06 5.20 5.24 5.09

Sones 33 31 30 29 27 25 25 24

240HP-

75 71⁄2

1470

CFM 9313 9132 8908 8667 8427 7901 7334 6622 5565

BHP 5.28 5.44 5.57 5.67 5.77 5.94 6.02 5.97 5.70

Sones 36 34 32 32 31 27 26 25 24

1605

CFM 10232 10066 9896 9675 9455 9007 8512 7987 7348 6474

BHP 6.80 6.98 7.16 7.27 7.38 7.60 7.78 7.84 7.80 7.57

Sones 43 42 39 38 38 34 30 29 28 27

MAX Bhp AT A GIVEN RPM = (rpm/807)3

MAXIMUM RPM = 1605

TIP SPEED (ft/min) = rpm x 6.414

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.1192 x cfm

0 5 10 15 20

0

200

400

600

800

1000

1200

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 2 4 6 8 10 12

0

1

2

3

4

5

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

7 1/2 hp

5 hp

3 hp

2 hp

1 1/2 hp

1 hp

1605

1360

RPM

HP

Density 0.075 lb/ft3

400

640

880

1120

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

BSQ 240HP - Belt Drive

34

(864)

39

(991)

347⁄8

(886)

39

(991)

11⁄2 (38)

*19

(483)

*22

(559)

*327⁄8

(835)

41

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 300 - Belt Drive

38

(965)

46

(1168)

Damper size = 42 x 42 (1067 x 1067)

Unit weight** = 537 (244)

Housing thickness = 16 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.75 1.000 1.250 1.500 1.750 2.000 2.250

300HP

300-7 3/4

410

CFM 6897 6141

BHP 0.57 0.60

Sones 10.4 10.3

449

CFM 7693 7033 4827

BHP 0.75 0.78 0.73

Sones 12.2 11.6 10.5

300-10 1 494

CFM 8598 7982 6450

BHP 0.99 1.02 1.04

Sones 14.7 13.8 12.0

300-15 11⁄2566

CFM 10022 9469 8363 6662

BHP 1.48 1.51 1.57 1.52

Sones 17.2 16.6 15.1 13.5

300-20 2 623

CFM 11129 10636 9676 8418

BHP 1.96 2.00 2.08 2.09

Sones 19.3 19.0 17.7 16.3

300-30 3

668

CFM 11997 11546 10647 9617 8157

BHP 2.40 2.46 2.54 2.59 2.52

Sones 21 21 19.8 18.5 17.2

713

CFM 12862 12446 11588 10703 9547 7803

BHP 2.91 2.97 3.06 3.13 3.13 2.95

Sones 23 23 22 21 19.8 18.5

300-50 5

757

CFM 13704 13321 12496 11714 10727 9442

BHP 3.47 3.55 3.64 3.73 3.76 3.68

Sones 25 25 24 23 22 21

845

CFM 15380 15041 14307 13604 12860 11957 10839 9309

BHP 4.80 4.90 5.01 5.12 5.20 5.23 5.16 4.93

Sones 27 27 28 27 26 25 24 23

300-75 71⁄2

906

CFM 16538 16221 15548 14870 14237 13481 12576 11497 10099

BHP 5.91 6.00 6.14 6.25 6.37 6.44 6.44 6.34 6.10

Sones 30 30 31 30 29 29 27 26 26

967

CFM 17693 17396 16776 16124 15526 14888 14171 13273 12242 11047

BHP 7.17 7.27 7.44 7.55 7.67 7.78 7.85 7.82 7.71 7.50

Sones 33 33 34 34 33 33 32 30 29 28

MAX Bhp AT A GIVEN RPM = (rpm/486)3

MAXIMUM RPM = 967

TIP SPEED (ft/min) = rpm x 7.984

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.0826 x cfm

0 10 20 30 40

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 5 10 15 20 25

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

7 1/2 hp

5 hp

3 hp

2 hp

1 1/2 hp

1 hp

3/4 hp

967

RPM

HP

Density 0.075 lb/ft3

855

735

615

495

375

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

417⁄8

(1064)

46

(1168)

11⁄2 (38)

*18

(457)

*22

(559)

*34

(864)

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

42

BSQ 300HP - Belt Drive

38

(965)

46

(1168)

417⁄8

(1064)

46

(1168)

11⁄2 (38)

*18

(457)

*22

(559)

*34

(864)

Damper size = 42 x 42 (1067 x 1067)

Unit weight** = 537 (244)

Housing thickness = 16 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.500 3.000 3.500

300HP

300HP-

15 11⁄2

620

CFM 5642 4823

BHP 1.06 1.10

Sones 14.4 14.0

694

CFM 6610 6001 5168 3452

BHP 1.44 1.51 1.53 1.36

Sones 16.5 16.1 15.8 16.3

300HP-

20 2

725

CFM 6998 6436 5729 4747

BHP 1.63 1.71 1.75 1.71

Sones 17.5 17.2 16.8 16.6

777

CFM 7641 7151 6556 5799 4740

BHP 1.98 2.07 2.13 2.15 2.07

Sones 19.3 19.1 18.5 18.4 18.2

300HP-

30 3

829

CFM 8265 7830 7317 6701 5940 4535

BHP 2.36 2.47 2.56 2.61 2.61 2.40

Sones 21 21 21 20 20 20

934

CFM 9492 9142 8746 8281 7752 7130 6393

BHP 3.29 3.44 3.56 3.65 3.72 3.74 3.71

Sones 26 26 26 25 25 25 24

300HP-

50 5

987

CFM 10105 9788 9417 9012 8564 8027 7411 5200

BHP 3.85 4.02 4.14 4.25 4.34 4.40 4.41 3.99

Sones 27 27 27 26 26 25 25 25

1039

CFM 10702 10401 10067 9711 9292 8847 8323 7028

BHP 4.45 4.63 4.78 4.90 5.00 5.09 5.14 5.09

Sones 28 27 27 27 26 26 26 25

1091

CFM 11297 11010 10710 10371 10006 9601 9149 8055 6257

BHP 5.11 5.30 5.48 5.61 5.73 5.83 5.91 5.95 5.57

Sones 29 28 28 28 27 27 26 26 26

300HP-

75 71⁄2

1144

CFM 11900 11626 11353 11036 10713 10336 9950 9020 7832

BHP 5.86 6.05 6.25 6.40 6.54 6.65 6.76 6.88 6.82

Sones 29 29 29 29 29 28 27 27 26

1196

CFM 12489 12228 11966 11681 11372 11047 10677 9853 8840 7545

BHP 6.65 6.86 7.06 7.24 7.39 7.53 7.64 7.81 7.85 7.63

Sones 30 30 30 30 30 29 28 28 28 27

MAX Bhp AT A GIVEN RPM = (rpm/602)3

MAXIMUM RPM = 1196

TIP SPEED (ft/min) = rpm x 7.984

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.0826 x cfm

0 2 4 6 8 10 12 14 16 18 20 22

0

100

200

300

400

500

600

700

800

900

1000

1100

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

VE

0 2 4 6 8 10 12 14

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

1 1/2 hp

2 hp

3 hp

5 hp

7 1/2 hp

1196

RPM

HP

Density 0.075 lb/ft3

1040

880

770

560

400

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

43

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 360 - Belt Drive

42

(1067)

52

(1321)

477⁄8

(1216)

52

(1321)

11⁄2 (38)

*18

(457)

*22

(559)

*34

(864)

Damper size = 48 x 48 (1219 x 1219)

Unit weight** = 686 (311)

Housing thickness = 16 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.250 0.500 0.750 1.000 1.250 1.500 1.750 2.000 2.250

360

360-10 1

320

CFM 8205 6979

BHP 0.63 0.64

Sones 10.8 10.5

376

CFM 10039 9008

BHP 1.01 1.04

Sones 12.6 12.5

360-15 11⁄2

404

CFM 10898 9941 7828

BHP 1.25 1.28 1.25

Sones 13.6 13.6 12.2

431

CFM 11720 10872 8980

BHP 1.51 1.55 1.55

Sones 14.7 14.7 13.7

360-20 2 474

CFM 13018 12323 10736 8489

BHP 1.99 2.05 2.09 1.96

Sones 16.1 16.6 15.7 14.1

360-30 3 543

CFM 15081 14544 13112 11627 9553

BHP 2.96 3.05 3.12 3.12 2.93

Sones 19.1 19.6 19.4 18.1 16.6

360-50 5 643

CFM 18041 17587 16511 15327 14081 12560

BHP 4.87 4.98 5.13 5.19 5.19 5.05

Sones 28 27 27 26 25 23

360-75 71⁄2

690

CFM 19423 19001 18083 16881 15926 14555 13120

BHP 6.00 6.12 6.31 6.38 6.45 6.38 6.20

Sones 29 29 29 28 28 27 25

737

CFM 20802 20407 19615 18505 17515 16475 15153 13704

BHP 7.30 7.42 7.66 7.75 7.82 7.84 7.72 7.49

Sones 31 31 32 32 31 30 29 28

360-100 10

774

CFM 21885 21509 20755 19765 18744 17893 16693 15429 13860

BHP 8.44 8.57 8.82 8.95 9.03 9.11 9.03 8.86 8.55

Sones 32 32 33 34 33 33 32 30 30

811

CFM 22967 22607 21888 21011 19986 19146 18195 16996 15786 14128

BHP 9.69 9.83 10.1 10.27 10.35 10.44 10.45 10.34 10.13 9.73

Sones 33 34 35 37 36 35 34 33 32 32

MAX Bhp AT A GIVEN RPM = (rpm/370)3

MAXIMUM RPM = 811

TIP SPEED (ft/min) = rpm x 9.424

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.0632 x cfm

0 10 20 30 40

0

100

200

300

400

500

600

700

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

EM

C

U

R

V

E

0 5 10 15 20 25

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

10 hp

7 1/2 hp

5 hp

3 hp

2 hp

1 1/2 hp

1 hp

811

700

600

500

400

300

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

44

BSQ 360HP - Belt Drive

42

(1067)

52

(1321)

477⁄8

(1216)

52

(1321)

11⁄2 (38)

*18

(457)

*22

(559)

*34

(864)

Damper size = 48 x 48 (1219 x 1219)

Unit weight** = 686 (311)

Housing thickness = 16 ga

Model

Number

Motor

HP

Fan

RPM

CFM / Static Pressure in Inches wg

0.500 0.750 1.000 1.250 1.500 2.000 2.500 3.000 3.500 4.000

360HP

360HP-

15 11⁄2

490

CFM 5939 4709

BHP 1.12 1.12

Sones 16.1 15.8

545

CFM 7012 6115 4672

BHP 1.51 1.55 1.51

Sones 17.6 16.9 16.9

360HP-

20 2 600

CFM 8000 7272 6410 4868

BHP 1.97 2.06 2.09 1.99

Sones 18.4 17.6 17.3 17.4

360HP-

30 3

644

CFM 8745 8143 7381 6424 4630

BHP 2.40 2.52 2.55 2.57 2.37

Sones 19.0 18.3 17.7 17.7 18.1

687

CFM 9463 8955 8277 7528 6453

BHP 2.87 3.01 3.09 3.12 3.08

Sones 19.5 19.0 18.4 18.2 18.2

360HP-

50 5

730

CFM 10177 9716 9142 8465 7741 4517

BHP 3.41 3.56 3.68 3.71 3.77 3.28

Sones 20 19.7 19.2 18.6 18.6 20

815

CFM 11576 11150 10740 10198 9593 8138 4978

BHP 4.63 4.83 4.99 5.13 5.16 5.20 4.55

Sones 21 21 21 20 20 19.9 22

360HP-

75 71⁄2

874

CFM 12535 12131 11747 11319 10801 9633 7849

BHP 5.64 5.88 6.05 6.22 6.35 6.42 6.29

Sones 24 23 23 22 22 22 22

933

CFM 13487 13108 12740 12382 11939 10909 9748 7674

BHP 6.80 7.04 7.26 7.45 7.61 7.75 7.86 7.52

Sones 27 27 25 25 25 24 24 25

360HP-

100 10

980

CFM 14241 13880 13523 13182 12822 11879 10833 9417 6847

BHP 7.83 8.08 8.33 8.53 8.72 8.96 9.05 8.99 8.27

Sones 30 30 28 27 27 27 26 27 28

1026

CFM 14975 14631 14286 13957 13631 12806 11838 10796 8982 5679

BHP 8.93 9.20 9.47 9.69 9.89 10.25 10.31 10.46 10.12 8.60

Sones 33 34 32 30 29 30 29 29 30 32

MAX Bhp AT A GIVEN RPM = (rpm/469)3

MAXIMUM RPM = 1026

TIP SPEED (ft/min) = rpm x 9.424

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.0632 x cfm

0 2 4 6 8 10 12 14 16 18 20 22 24 26

0

100

200

300

400

500

600

700

800

900

1000

1100

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

O

F

T

H

I

S

S

Y

S

T

E

M

C

U

R

V

E

0 2 4 6 8 10 12 14 16

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

10 hp

7 1/2 hp

5 hp

3 hp

2 hp

1 1/2 hp

1026

880

775

590

445

300

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

45

Performance certified is for installation type B: Free inlet, Ducted outlet. Power rating (Bhp) does not include transmission losses. Performance ratings do not include the

effects of appurtenances (accessories).

The sound ratings shown are loudness values in fan sones at 1.5 m (5 feet) in a hemispherical free field calculated per AMCA International Standard 301. Values shown are

for installation type B: free inlet hemispherical sone levels.

BSQ 420 - Belt Drive

50

(1270)

58

(1473)

537⁄8

(1368)

58

(1473)

11⁄2 (38)

*18

(457)

*22

(559)

*34

(864)

Damper size = 54 x 54 (1372 x 1372)

Unit weight** = 789 (358)

Housing thickness = 14 ga

Model

Number Motor HP Fan

RPM

CFM / Static Pressure in Inches wg

0.125 0.25 0.375 0.5 0.75 1 1.25 1.5 1.75 2

420

420-20 2

270

CFM 9901 8281

BHP 0.68 0.70

Sones 6.0 3.3

349

CFM 13501 12428 11210 9592

BHP 1.41 1.48 1.51 1.49

Sones 9.4 8.7 8.1 7.8

389

CFM 15275 14340 13334 12132

BHP 1.93 2.02 2.08 2.09

Sones 13.2 12.3 11.5 10.8

420-30 3

417

CFM 16500 15633 14714 13745 11026

BHP 2.37 2.46 2.53 2.58 2.52

Sones 16.6 15.7 14.8 13.9 12.5

445

CFM 17704 16910 16068 15188 12941

BHP 2.86 2.96 3.05 3.11 3.12

Sones 20 19.5 18.6 17.7 15.9

420-50 5

487

CFM 19500 18801 18054 17257 15475 13113

BHP 3.71 3.84 3.95 4.02 4.11 4.03

Sones 22 21 21 19.8 18.2 16.9

528

CFM 21244 20625 19937 19231 17747 15850 13154

BHP 4.70 4.85 4.97 5.08 5.22 5.24 4.99

Sones 25 24 23 23 21 20 18.7

420-75 71⁄2

566

CFM 22854 22301 21659 21017 19644 18080 16134 13026

BHP 5.76 5.94 6.07 6.19 6.36 6.46 6.39 5.95

Sones 28 27 26 25 24 24 22 21

604

CFM 24459 23950 23363 22762 21502 20206 18533 16581

BHP 6.98 7.17 7.32 7.45 7.66 7.83 7.84 7.71

Sones 31 30 30 29 28 27 26 25

420-100 10

635

CFM 25765 25281 24743 24171 22996 21762 20341 18681 16692

BHP 8.09 8.29 8.46 8.60 8.85 9.03 9.12 9.09 8.88

Sones 35 33 33 32 31 30 30 29 28

670

CFM 27237 26778 26291 25749 24660 23491 22322 20793 19111 16873

BHP 9.47 9.69 9.88 10.03 10.33 10.52 10.71 10.70 10.61 10.24

Sones 39 37 36 36 34 34 34 33 32 31

MAX Bhp AT A GIVEN RPM = (rpm/304)3

MAXIMUM RPM = 670

TIP SPEED (ft/min) = rpm x 11.060

MAX NEMA MOTOR FRAME SIZE = 215T

OUTLET VELOCITY (ft/min) = 0.0496 x cfm

0 10 20 30 40 50

0

200

400

600

D

O

N

O

T

S

E

L

E

C

T

T

O

T

H

E

L

E

F

T

OF

T

H

I

S

S

Y

ST

E

M

C

U

R

V

E

0 5 10 15 20 25 30

0.0

0.5

1.0

1.5

2.0

2.5

Static Pressure in. wg

cfm X 1000

m3/hr X 1000

Static Pressure Pa

10 hp

7 1/2 hp

5 hp

3 hp

2 hp

670

605

535

465

395

325

RPM

HP

Density 0.075 lb/ft3

Dimensions shown in inches (millimeters) and weight is shown in pounds (kilograms).

*Motor cover is optional. Size may be greater depending on motor.

**Weight shown is largest cataloged Open Drip Proof motor.

46

Direct Drive Specifications

Model SQ

Duct mounted

supply, exhaust

or return fans

shall be of the

centrifugal, direct

driven, inline type.

The fan housing

shall be of a square

design constructed

of heavy-gauge

galvanized steel or

aluminum and shall include

square duct mounting collars.

Fan construction shall include two removable access

panels located perpendicular to the motor mounting

panel. The access panels must be of sufficient size to

permit easy access to all interior components.

The fan wheel shall be centrifugal, backward inclined,

constructed of aluminum, and shall include a wheel

cone carefully matched to the inlet cone for precise

running tolerances. Wheels shall be statically and

dynamically balanced.

Motors shall be permanently lubricated and carefully

matched to the fan loads. Motors shall be readily

accessible for maintenance.

A NEMA-1 disconnect switch shall be provided as

standard, except with explosion resistant motors,

where disconnects are optional. Factory wiring shall

be provided from motor to the handy box.

All fans shall bear the AMCA Certified Ratings Seal for

Sound and Air Performance.

Fan shall bear a permanently affixed manufacturer’s

nameplate containing the model number and

individual serial number for future identification.

Fan shall be model SQ as manufactured by

Greenheck Fan Corporation of Schofield,

Wisconsin, USA.

Vari-Green® Motor

Motor to be an electronic

commutation (EC) motor

specifically designed for

fan applications. AC

induction type motors

are not acceptable. Examples of

unacceptable motors are: Shaded Pole, Permanent

Split Capacitor (PSC), Split Phase, Capacitor Start

and 3phase induction type motors. Motors shall be

permanently lubricated with heavy-duty ball bearings

to match the fan load and prewired to the specific

voltage and phase. Internal motor circuitry shall

convert AC power supplied to the fan to DC power to

operate the motor. Motor shall be speed controllable

down to 20% of full speed (80% turndown). Speed

shall be controlled by either a potentiometer dial

mounted on the motor or by a 0-10 VDC signal. Motor

shall be a minimum of 85% efficient at all speeds.

Vari-Green® Controls

Constant Pressure

Greenheck’s Constant Pressure system shall be a

complete package designed to regulate fan speed

based on demand while maintaining a constant

static pressure. System shall include fan with Vari-

Green Motor, Vari-Green Constant Pressure control,

transformer, and pressure tap. Vari-Green Constant

Pressure control shall have the transducer integrated

with a touch button control panel. Control shall have a

run mode and a program mode preventing unwanted

changes when in run mode. Transformer shall be

factory-supplied to provide power to the Vari-Green

Constant Pressure controller. System shall include

a self-sealing aluminum pressure tube with ¼-inch

connection. Fan shall be centrifugal direct drive type

in upblast, downblast, or inline configuration with

controllable EC Vari-Green motor.

Remote Dial

Remote dial shall be a Vari-Green control specifically

designed to provide 0-10 volt DC signal to

Greenheck’s Vari-Green Motor.

2-Speed

2-Speed control shall be a Vari-Green Control

specifically designed to allow the Vari-Green Motor

to operate at two distinct speeds. 2-Speed control

shall include two dials that may be set at any

point between 0 and 10 volts DC and an integral

transformer capable of reducing 115/230 volt AC

power to 24 volt AC power.

LEED information

Greenheck became one of the first manufacturers

in the Air Movement and Control industry to join

the LEED/green movement when they joined the

United States Green Building Council (USGBC) in

2005. Greenheck has been actively researching

qualification requirements for our products to

meet LEED credits and prerequisites.

The Vari-Green® motor significantly

helps qualification efforts for the

Energy and Atmosphere credits

and prerequisites; specifically credit one,

Optimize Energy Performance and prerequisite

two, Minimum Energy Performance.

47

Duct mounted supply, exhaust or return fans shall

be of the centrifugal, belt driven, inline type. The fan

housing shall be of a square design constructed of

heavy-gauge galvanized steel or aluminum and shall

include square duct mounting collars.

Fan construction shall include two removable access

panels located perpendicular to the motor mounting

panel. The access panels must be of sufficient size to

permit easy access to all interior components.

The fan wheel shall be centrifugal backward inclined,

constructed of aluminum and shall include a wheel

cone carefully matched to the inlet cone for precise

running tolerances. Wheels shall be statically and

dynamically balanced.

Motors shall be heavy-duty ball bearing type carefully

matched to the fan load and furnished at the specified

voltage, phase, and enclosure. Motors and drives

shall be mounted out of the airstream. Motors shall be

readily accessible for maintenance.

Precision ground and polished fan shafts shall be

mounted in permanently sealed, lubricated pillow

block ball bearings. Bearings shall be selected for

a minimum L10 life in excess of 100,000 hours

(L50 average life in excess of 500,000 hours) at

maximum cataloged operating speed.

Drives shall be sized for a minimum of 150 percent

of driven horsepower.

Pulleys shall be of the fully machined cast iron type,

keyed and securely attached to the wheel and motor

shafts. Motor pulleys shall be adjustable for final

system balancing.

A NEMA-1 disconnect switch shall be provided as

standard, except with explosion resistant motors,

where disconnects are optional. Factory wiring shall

be provided from motor to the handy box.

Fan shall bear the AMCA Certified Ratings Seal for

Sound and Air Performance.

Fan shall bear a permanently affixed manufacturer’s

nameplate containing the model number and

individual serial number for future identification.

Fan shall be model BSQ as manufactured by

Greenheck Fan Corporation of Schofield,

Wisconsin, USA.

Belt Drive Specifications

Model BSQ

P.O. Box 410 • Schofield, WI 54476-0410 • Phone (715) 359-6171 • greenheck.com

00.F&V.1016 R8 4-2012 IP

Copyright © 2012 Greenheck Fan Corp.

Greenheck Fan Corporation offers

an extensive selection of Quick

Delivery (QD) and Quick Build

(QB) offerings. The QD program is

Greenheck’s stock program and

the QB program offers configurable

fans in one, three, five, or ten days.

Hundreds of in stock ventilation products and accessories are

available for shipment to your jobsite in less than 24 hours from

our strategically located warehouses throughout the world.

The Greenheck Stock and Quick Build catalog is a great resource for

specific options and accessories available with QD and QB fans.

Greenheck warrants this equipment to be free from defects in material and workmanship for a period

of one year from the shipment date. Any units or parts which prove defective during the warranty

period will be replaced at our option when returned to our factory, transportation prepaid. Motors are

warranted by the motor manufacturer for a period of one year. Should motors furnished by Greenheck

prove defective during this period, they should be returned to the nearest authorized motor service

station. Greenheck will not be responsible for any removal or installation costs.

As a result of our commitment to continuous improvement, Greenheck reserves the right to change

specifications without notice.

Our Warranty

Prepared to Support

Green Building Efforts

Quick Delivery and Quick Build Programs

Model

Best

Available

Program

SQ-75 through 120 and 140

In Stock

BSQ-70 through 120,

140 through 180 and 240

SQ-60 through 70,

130 and 160

1 DayBSQ-130 and 200

High Pressure

BSQ-130HP through 240HP

BSQ-300 through 420

3 Days

High Pressure

BSQ-300HP and 360HP
