Greenwave Reality d b a Greenwave Systems JENMOD1 Zigbee Wireless Module User Manual JENNIC HAN Module User Guide

Greenwave Systems Pte. Ltd. Zigbee Wireless Module JENNIC HAN Module User Guide

User Manual.pdf

JENNICWIRELESS
MODULE
UserGuide
ModelFiOSJenMod1
Contents
Chapter 1Introduction ...................................................................... 3
Purpose ........................................................................................................................... 3
Chapter 2Frequently Asked Questions .......................................... 3
Chapter 3Installing the JENNIC HAN module ................................ 4
Pre-requisites .................................................................................................................. 4
Step by Step Guide ......................................................................................................... 7
Step 1. Remove the HAN module port cover ................................................. 7
Step 2. Insert the HAN module. ..................................................................... 8
Step 3. Wait for notification to appear or enter HAN settings menu. .............. 9
Step 4. Finish installation ............................................................................... 9
Chapter 4Connecting Devices to your SmartCloud .................... 10
TBD ............................................................................................................................... 10
Chapter 5Notices and declarations .............................................. 11
Federal Communication Commission Interference Statement .................................... 11
Chapter1Introduction
Purpose
The (FiOS-JenMod1) HAN module is a plug-in JENNIC controller for your FiOS-
BHR4 Gateway. It has an integrated antenna and is all you need for enabling
your Gateway to connect your SmartCloud system to supported JENNIC home
automation devices such as Motion Sensors, Thermostats, Alarm systems,
Smart lights and more.
More than 100 JENNIC Devices can be connected simultaneously through this
module.
Different types of HAN modules exist for connecting your SmartCloud solution to
other types of networks such as JenNet-IP or Wireless M-bus.
Chapter2FrequentlyAskedQuestions
Q: What Devices are supported?
A: Many but not all JENNIC Devices are supported. Please visit our website
(URL here) to see the up-to-date list of supported Devices that can be connected
to your SmartCloud solution.
Q: What can supported Devices be used for?
A: That depends! Different kinds of Devices have different functions and
purposes.
A Motion Sensor for example is an "input" Device : It doesn't physically "do"
anything except "detect" motion and provide that detection as an information
signal to the rest of your SmartCloud system( and any Applications that you may
have installed.) There are many other kinds of sensors that detect or measure
different physical qualities such as humidity or temperature, or whether for
example a door or window has been left open.
Other kinds of Devices are not sensors at all - they don't measure anything.
Instead they "do" things to affect their environment in different ways. Examples
includes lamps and light bulbs (can turn light on and off), motorized blinds and
windows (opens and closes), air conditioners or furnaces (cools and heats).
The SmartCloud system lets you connect and control all these kinds of devices
and configure automatic linkages that for example reacts intelligently in response
to a signal - e.g. turn the lights in a room on when a motion sensor detects that
someone is present.
Chapter3InstallingtheJENNICHANmodule
Prerequisites
Verify that you have everything you need:
The HAN module
The FiOS-BHR4 Gateway
It must be powered on, connected to the network and operating normally.

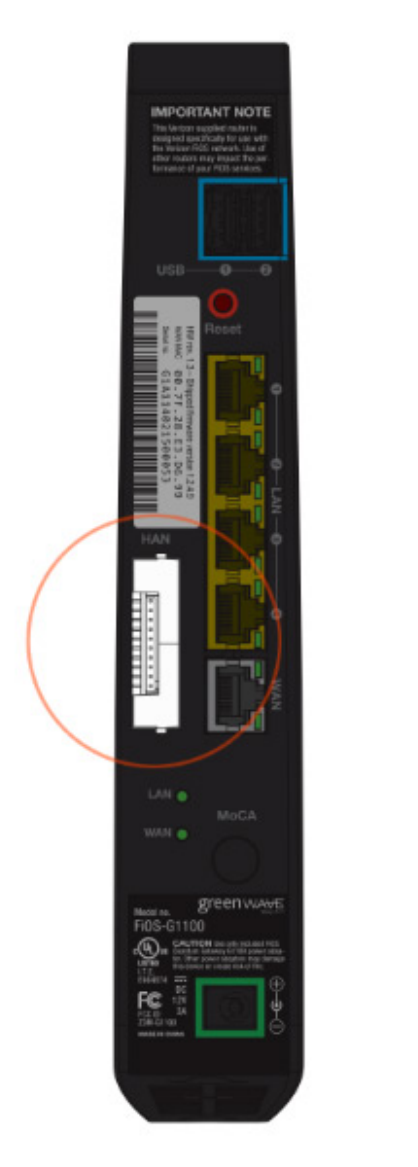

An open slot for the HAN module on the backside of the FiOS-BHR4
If another module has been already installed, then it must be removed before you
can install the JENNIC HAN module. Please refer to (chapter) for module un-
installation instructions.
You must be logged in to your home FiOS-BHR4 Gateway as Administrator
You can use either the web app or the MyFiOS App (please consult the manual
for your Gateway). You must have administrator login privileges. To verify that it
is connected, open the app, select Settings Menu (the gear icon), "Gateway
Status" and wait for the Status Screen to load. It should take only a few seconds.
If it loads that means the Gateway is connected. Confirm that no red tags are
showing. All green means you can continue with the installation.
StepbyStepGuide
Step1.RemovetheHANmoduleportcover

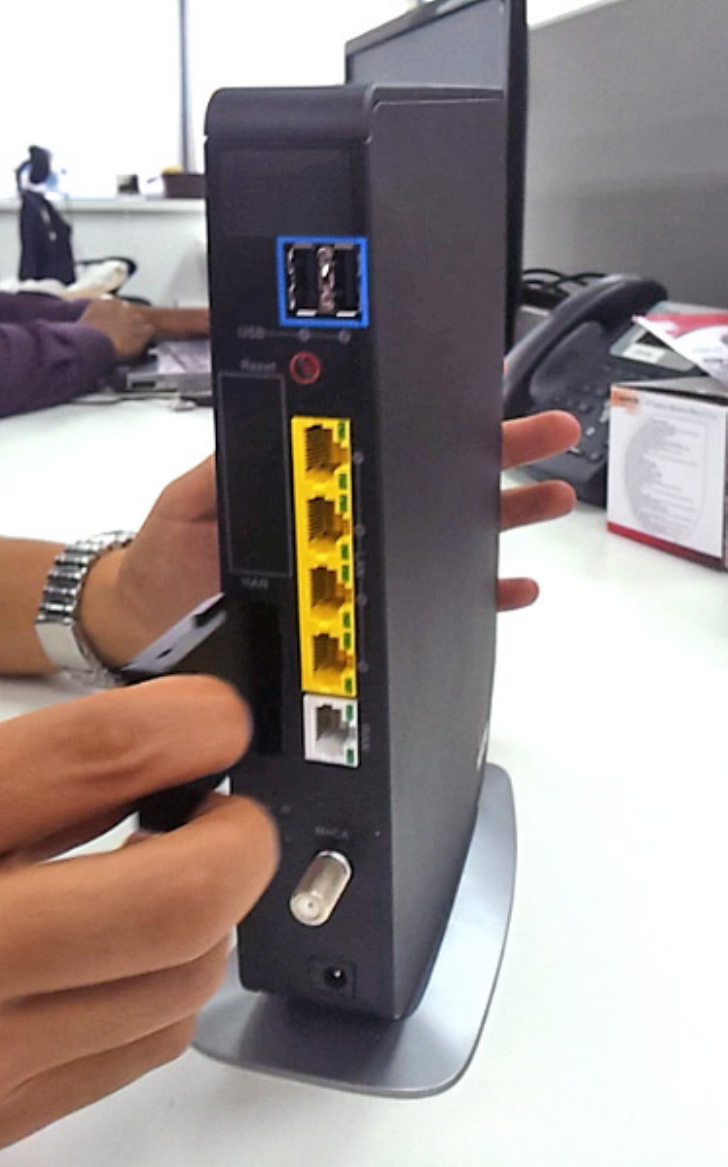

Use a fingernail or a flat-headed screwdriver.
Step2.InserttheHANmodule.

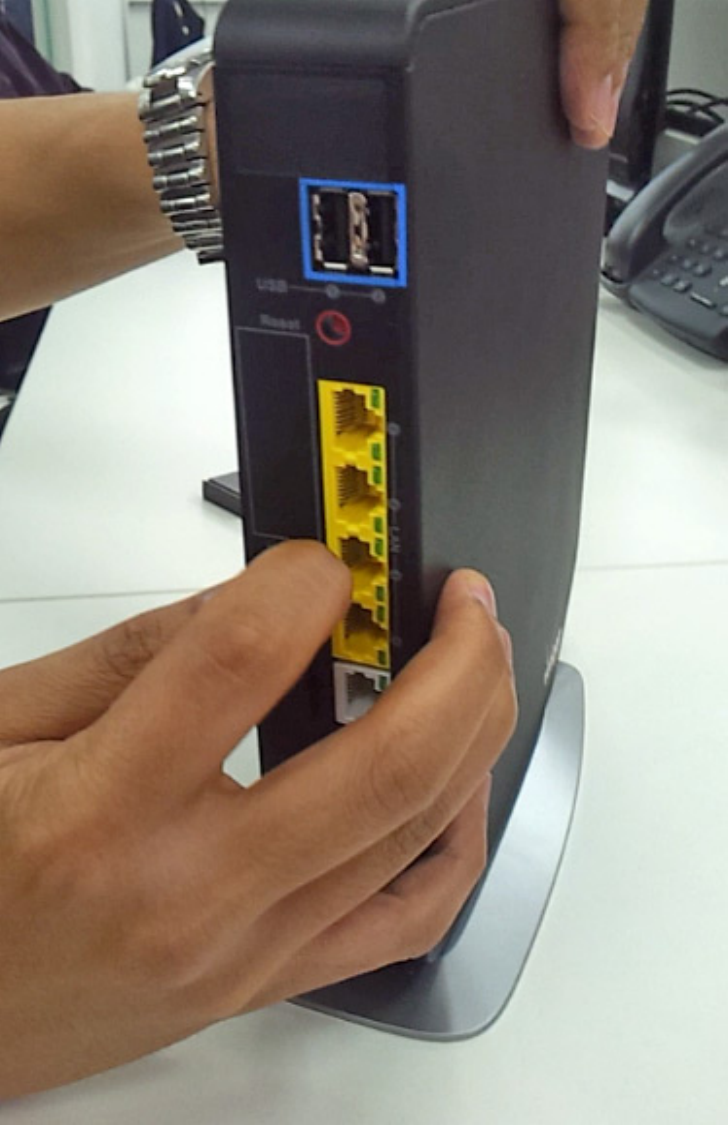

It can only go in with one orientation. It should slide in and come to a smooth
stop with only the extraction finger handle protruding. If the module doesn't slide
in very easy then verify that you have it the right way up. The HAN module label
faces to the RIGHT when you watch the FiOS-BHR4 gateway from behind.
Step3.WaitfornotificationtoappearorenterHANsettingsmenu.
If you are using the MyFiOS app, a few seconds after you insert the Module you
should receive a Notification that the HAN module has been inserted. Hit "OK" to
continue.
Otherwise, from the App home screen, hit the "gear" icon to bring up the Settings
Menu. Choose "Home Automation Networks". From here you should now see the
list of networks connected to the system. One of the entries should be named
"JENNIC HAN" - tagged with the label "new". Hit it to continue. If the network has
not showed up then please remove the HAN module from the port and go back to
step 2 and try again.
Step4.Finishinstallation
From the JENNIC HAN network screen, optionally change the name of the
network in case you have more than one JENNIC network in your system and
want to be able to distinguish them.
In most circumstances you are now done with the HAN module setup and can
now begin adding Devices to your JENNIC network: see (chapter name).
Chapter4ConnectingDevicestoyour
SmartCloud
TBD
Chapter5Noticesanddeclarations
FederalCommunicationCommissionInterferenceStatement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCCRadiationExposureStatement:
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between
the antenna and users, and
2) The transmitter module may not be co-located with any other transmitter
or antenna.
As long as 2 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the
antenna may be installed such that 20 cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area

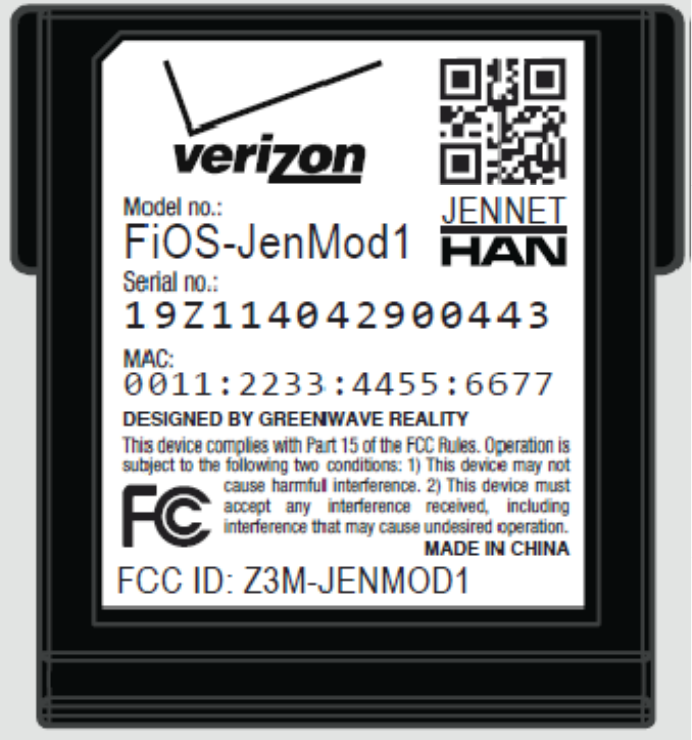

with the following: “Contains FCC ID: Z3M-JENMOD1”. The grantee's FCC
ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the users manual of the end
product which integrates this module.
The end user manual shall include all required regulatory
information/warning as show in this manual.
For questions regarding your product or the FCC declaration, contact:
GreenWave Reality, Inc
133 Technology, Suite 200, Irvine, CA – 92618
USA
tel: +1 714 805 WAVE (9283)
email: na@greenwavereality.com
