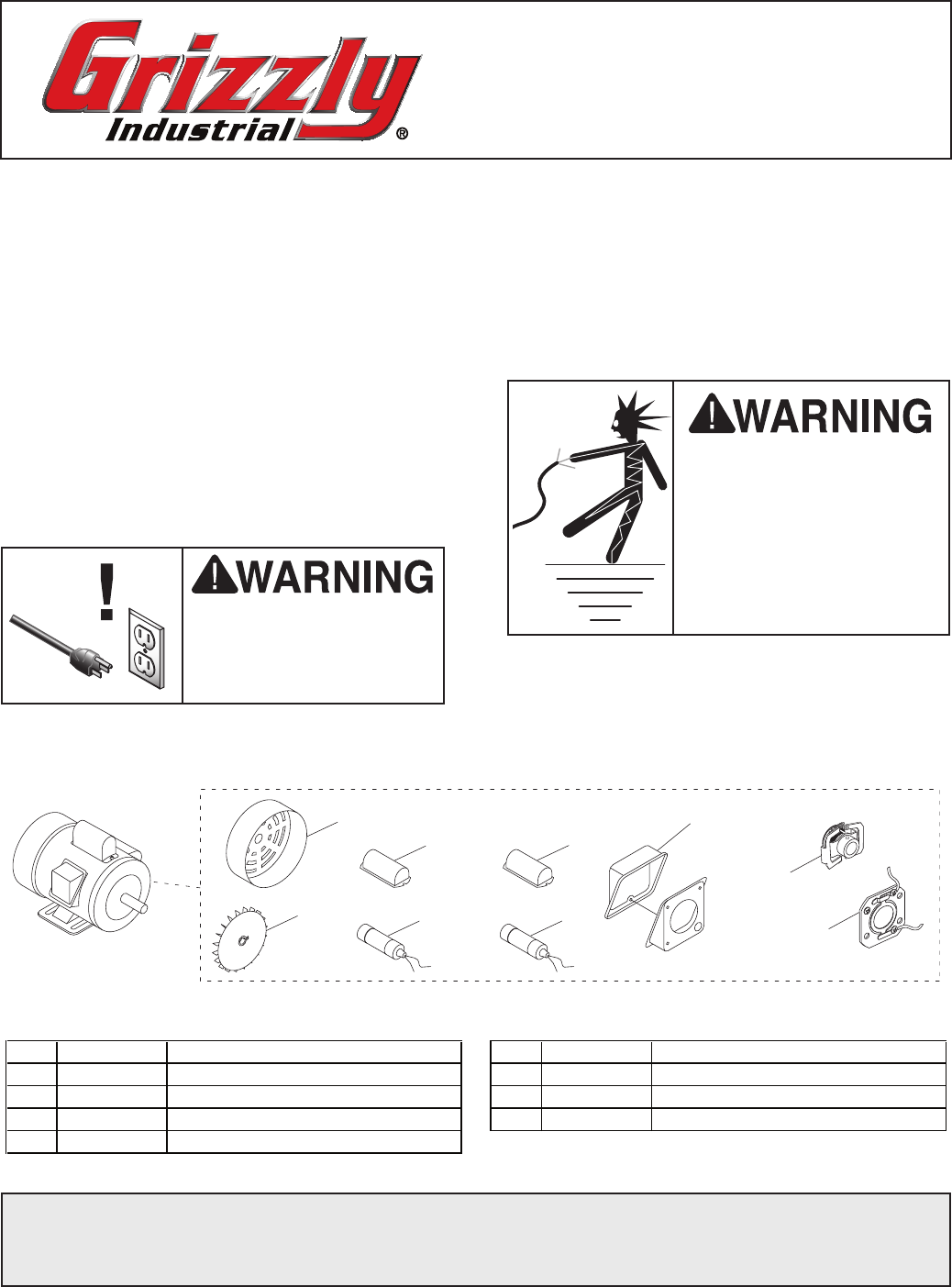

MODEL G2536
2 HP ELECTRIC MOTOR
INSTRUCTION SHEET
Electrocution or fire could
result if this motor is not
grounded correctly or if
your wire connections do
not comply with local and
state codes. Ensure com-
pliance by checking with a
qualified electrician!
Electrical Safety
If you are unsure how to attach wires to terminals,
DO NOT continue. Contact a qualified electrician
for assistance. Connecting wires improperly may
cause them to come loose or contact other wires,
which can cause electrocution, fire, or a short.
Model G2536 Specifications
Power .......................................................... 2 HP
Cycle ............................................................60Hz
Voltage .................................................110/220V
Prewired ......................................................110V
Amps ....................................................18.6/9.3A
RPM ............................................................. 3450
Phase ........................................................ Single
Class ..................................................................E
Start Capacitor ........................400MFD 125VAC
Dimensions .............................. 13⁄8"D x 23⁄8"L
Run Capacitor ...........................40MFD 250VAC
Dimensions .............................. 17⁄8"D x 3½"L
COPYRIGHT © DECEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS INSTRUCTION SHEET MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JB10222 PRINTED IN TAIWAN
Replaceable Parts
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 P2536001 MOTOR FAN COVER 6 PC040D R CAPACITOR 40M 250V 1-7/8 X 3-1/2
2 P2536002 MOTOR FAN 7 P2536007 JUNCTION BOX
3 P2536003 S CAPACITOR COVER 8 P2536008 CENTRIFUGAL SWITCH
4 PC400F S CAPACITOR 400M 125V 1-3/8 X 2-3/8 9 P2536009 CONTACT PLATE
5 P2536005 R CAPACITOR COVER
Disconnect power when
replacing motor. Failure
to do this may result in
serious personal injury.
-2- G2536 2HP Electric Motor Instruction Sheet

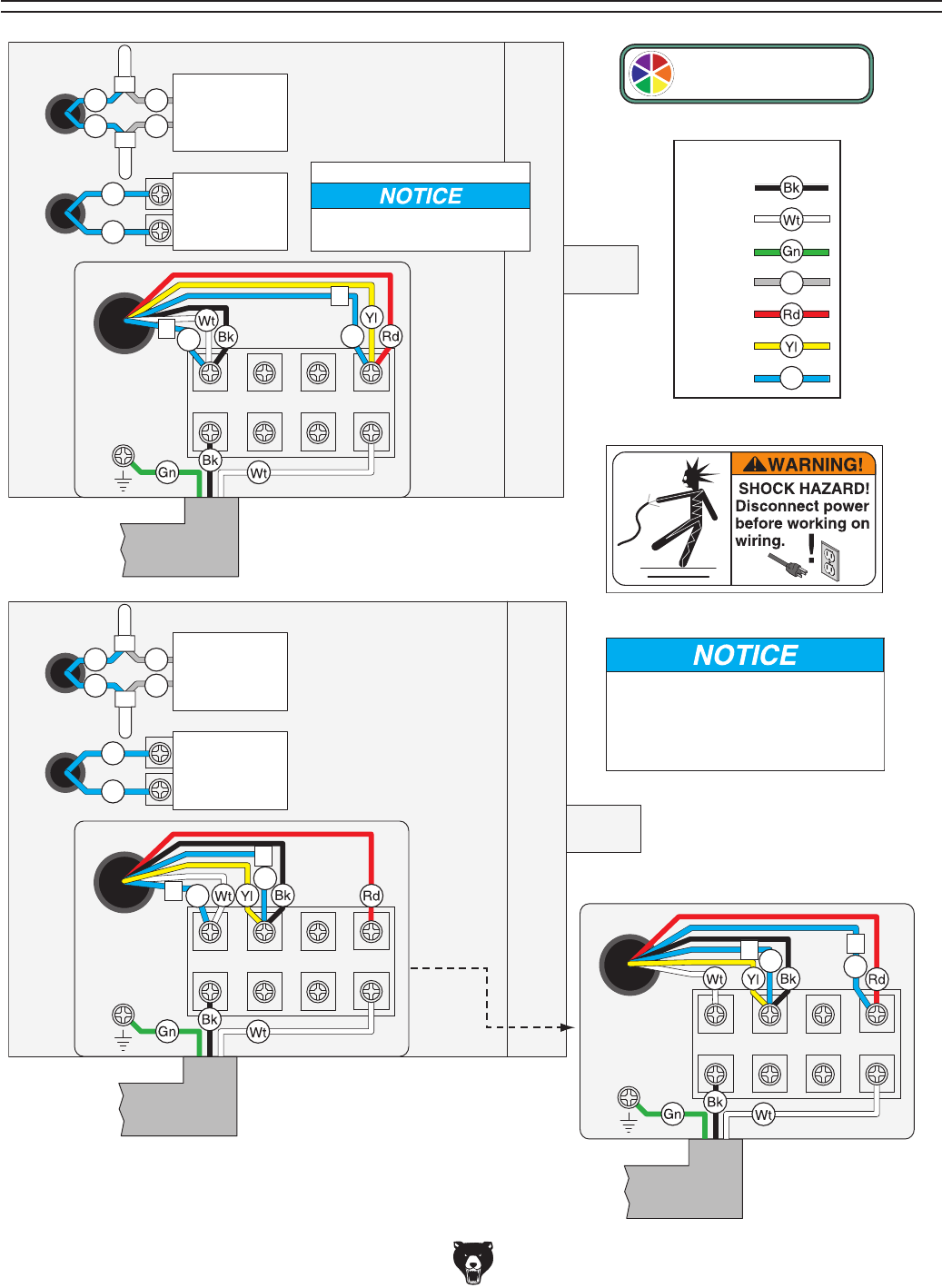

G2536 Wiring Diagram


























































     

    
    

