LCD TV

26 VLE 8100 BG

ENGLISH

CONTENTS -------------------------------------------------------------------------------------------------------------------------------------

4 SETUP AND SAFETY

6 GENERAL INFORMATION

6 Special features of your television set

7 Receiving digital channels

7 Important notes on environmental

protection

8 CONNECTION AND PREPARATION

8 Connecting the antenna and power cord

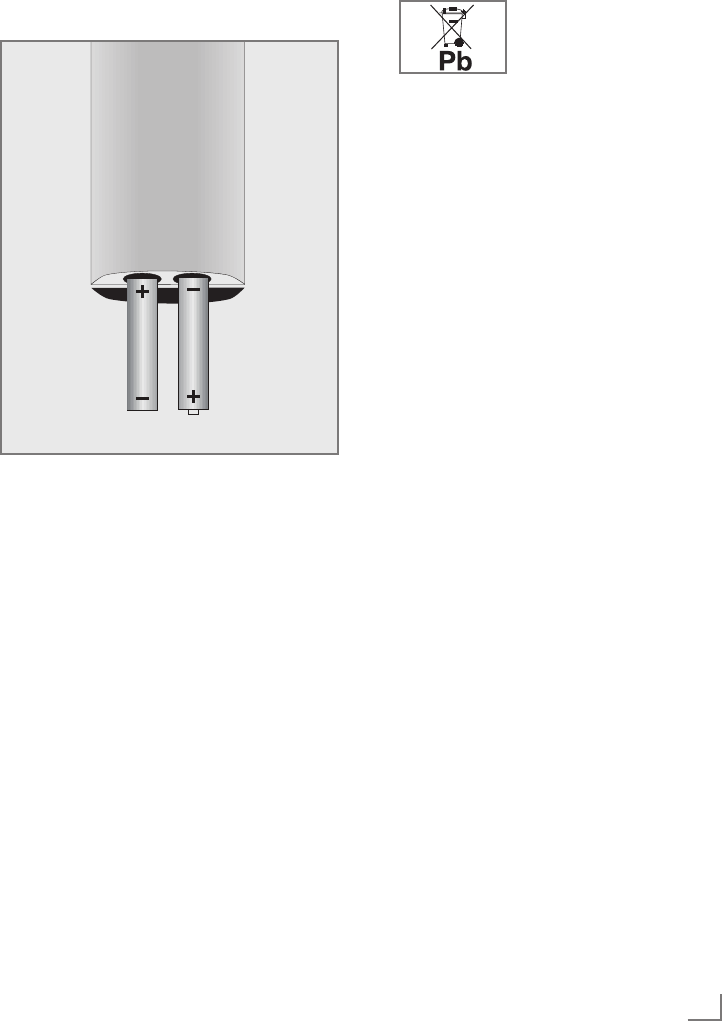

9 Inserting batteries into the remote control

10 OVERVIEW

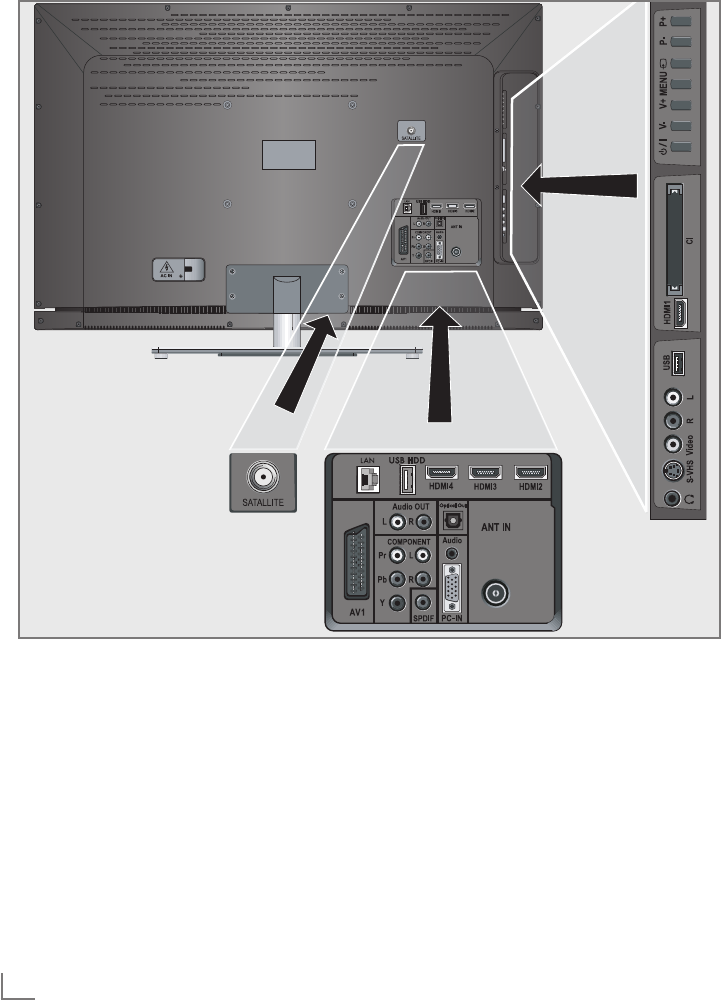

10 Connections on the television set

11 Controls on the television set

12 The remote control – Main functions

13 The remote control – All functions

14 SETTINGS

14 Initial set-up and tuning television

channels

14 Selecting language, country and

operating mode

15 Tuning the television channels from

satellite (DVB-S)

17 Tuning terrestrial television channels

(DVB-T)

17 Tuning television channels from the cable

provider (DVB-C)

18 Changing the program table for the

digital channels

20 Picture settings

21 Sound settings

23 TELEVISION - OPERATION

23 Basic functions

24 Zoom function

24 Eco mode

24 Zapping function

24 Electronic TV guide

25 Changing the picture format

26 HOME NETWORK

26 Network connection

31 Playback the video, music and image files

with home network connection

32 vTuner internet radio

33 USB RECORDING

33 Information on recording and playing

television programmes

33 Possible limitations when using an

external data medium

34 Connecting external data media

34 Settings for USB recording

36 ″Pausing” time shift programmes

36 Recording programmes

37 Presetting programmes to be recorded

39 Playback

39 Deleting programmes in the recording list

40 USB OPERATION

40 File formats

41 Connecting external data media

42 The file browser

42 Settings in the USB setup menu

43 Basic playback functions

44 Additional playback functions

45 TELETEXT OPERATION

45 TOP text or FLOF text mode

45 Additional functions

46 CONVENIENCE FUNCTIONS

46 Opening the SETTINGS menu

46 Language settings

47 Setting the date and time

47 Timer settings

48 Parental control settings

49 Updating software

49 Restoring the television to the default

settings

50 OPERATION USING EXTERNAL

DEVICES

50 DIGI LINK

50 The DIGI LINK functions on your television

51 Device operation

52 High definition HD ready

52 Connection options

53 Connecting external devices

54 Using a DVD player, DVD recorder,

video recorder or set-top box

54 Headphones

55 Hi-fi system/AV receiver

ENGLISH

CONTENTS -------------------------------------------------------------------------------------------------------------------------------------

56 OPERATION AS A PC MONITOR

56 Connecting a PC

56 Selecting presets for the PC

56 Settings for PC mode

57 OPERATION WITH A COMMON

INTERFACE

57 What is a Common Interface?

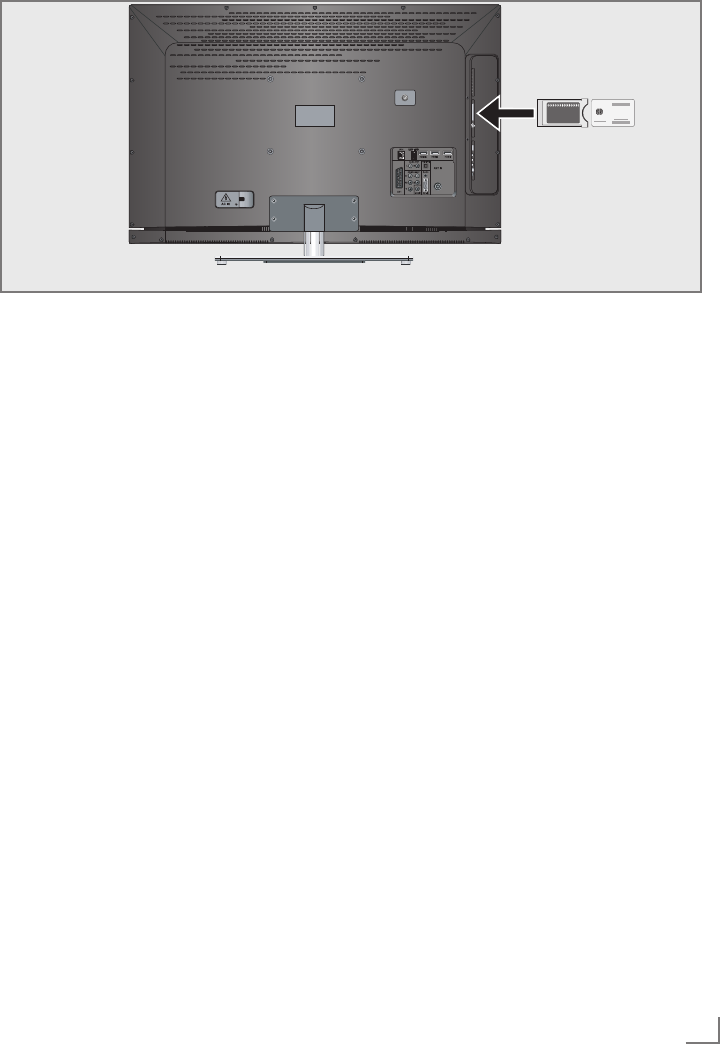

57 Inserting the CA module

57 Access control for CI module and

smart card

58 SPECIAL SETTINGS

58 Searching for digital television channels

from a satellite automatically

59 Searching for digital television channels

from a satellite automatically

59 LNB settings

60 Settings for motorised antennas

(DiSEqC 1.2)

62 Searching for digital terrestrial

TV channels automatically

63 Searching for digital terrestrial

TV channels manually

63 Tuning analogue television channels

65 Changing stored analogue channels

67 INFORMATION

67 Displaying signal information

68 Technical data

69 Service information for retailers

69 Environmental note

70 Troubleshooting

ENGLISH

SETUP AND SAFETY ------------------------------------------------------------------------------------------------------

Please note the following instructions when

setting up the television set:

This television is designed to receive and dis-

play video and audio signals.

All other uses are expressly prohibited.

The ideal viewing distance is five times the

diagonal screen size.

Light falling on the screen impairs picture

quality.

To ensure the device is always adequately

ventilated, make sure there is sufficient space

between the television set and nearby furni-

ture.

The television is designed for use in dry rooms.

If you do use it outdoors, make sure it is pro-

tected from moisture such as rain or splashing

water.

Never expose the television set to moisture.

Do not place any vessels such as vases on the

television, as they may spill liquid, thus present-

ing a safety risk.

Place the television on a hard, level surface.

Do not place any objects such as newspapers

on the television or put cloth or similar items

under it.

Do not place the television close to heating

units or in direct sunlight, as this will impair

cooling.

Heat build-up can be dangerous and shortens

the service life of the television. For reasons of

safety, have a repairman remove any dirt in

the television from time to time.

Never open the television under any circum-

stances. Warranty claims are excluded for

damage resulting from improper handling.

Make sure the power cord or the power sup-

ply unit (if provided) are not damaged.

Only operate the television with the power

supply/power cord provided.

Thunderstorms are a danger to all electrical

devices. Even when the television is switched

off, it can be damaged by a lightning strike to

the mains or the antenna. Always disconnect

the mains and antenna plugs during a storm.

Use a damp, soft cloth to clean the screen.

Do not use water with soap or detergent.

Only clean the housing of your television set

with the cloth provided. Do not use water with

soap or detergent.

When deciding where to put the device, re-

member that furniture is often coated with

various types of varnish and plastic. Many of

these contain chemicals which can corrode

the feet of the device, leaving marks on the

surface of the furniture which can be difficult

or impossible to remove.

The screen of your LCD television meets

the highest quality standards and has been

checked for pixel faults.

Despite the great care taken in manufacturing,

technological reasons make it impossible to

completely discount the possibility that some

pixels may be faulty.

Provided they are within the thresholds speci-

fied by the DIN norm, pixel faults of this kind

cannot be regarded as a defect as defined by

the warranty.

To ensure fires do not occur,

always keep candles and other

open flames away from the device.

ENGLISH

Do not connect any other equipment while the

device is switched on. Also switch off other

equipment before connecting it.

Do not plug in the power cord of the device

until you have connected the external equip-

ment and the antenna.

Make sure the mains plug is freely accessible.

Caution:

If you plan on using a wall bracket for your

television, make sure you read the assembly

manual for the wall bracket or have a spe-

cialist assemble it.

When purchasing the wall bracket, make

sure that all the fastening points on the televi-

sion are also on the wall bracket and that

they are all used when mounting it.

SETUP AND SAFETY ------------------------------------------------------------------------------------------------------

ENGLISH

Special features of your

television set

You can receive and watch digital TV channels

using your television set (via DVB-S, DVB-T and DVB-

C) – including High Definition programmes (HD).

However, the reception of digital TV channels in HD

is currently limited to a few countries in Europe.

Although this television set complies with the current

DVB-S, DVB-T and DVB-C standards (status: August

2010), the compatibility with future DVB-S satellite

transmissions as well as terrestrial DVB-T and DVB-C

cable programmes cannot be guaranteed.

Your television set can receive and process

all analogue and non-encrypted digital

TV channels. The television set is also equipped

with digital and analogue receivers.

The electronic TV guide (for digital channels

only) informs you about any schedule changes

at short notice, and provides an overview of

all the broadcasters' schedules for the next few

days. Detailed information on the individual

television programmes are – when provided

by the broadcasting station – are also avail-

able in the electronic TV guide.

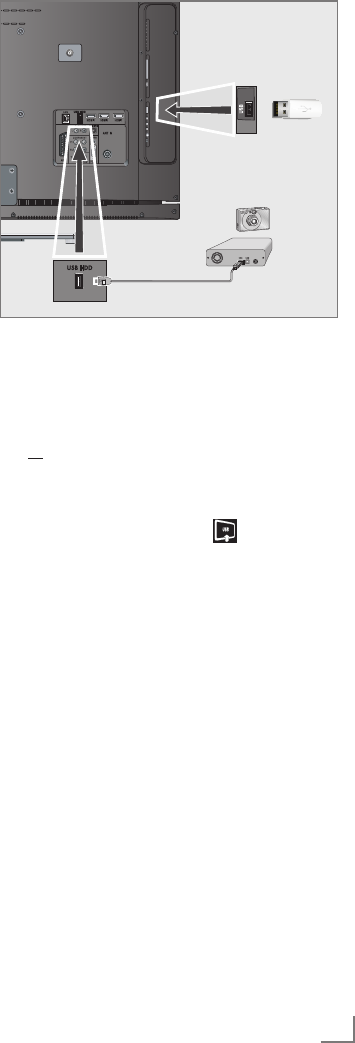

You can connect various data media, such as

an external hard drive, a USB memory stick or

a digital camera, to the USB socket. Using the

file browser, you can then select and play the

file formats of your choice (for example, MP4,

MP3 or JPEG data).

Using the time shift function, you can quickly and

easily pause a programme using the remote

control and resume it at a later stage. The pro-

gramme is recorded in an external data medium.

You can record any digital TV channels you

choose.

The TV channels are converted by the televi-

sion and saved on an external data medium

which is connected to the USB socket.

The saved programmes can be called up and

played from the archive on the external data

medium at any time.

You can also play a programme from the

archive while recording another.

 More information on recording and playing

TV programmes can be found on page 33.

GENERAL INFORMATION ---------------------------------------------------------------------------------

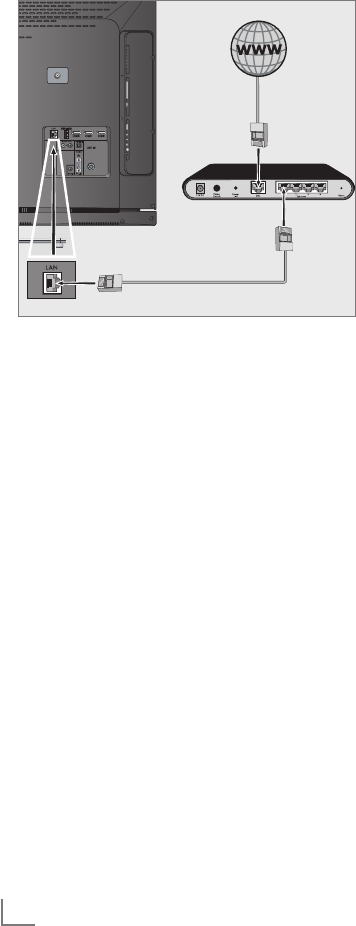

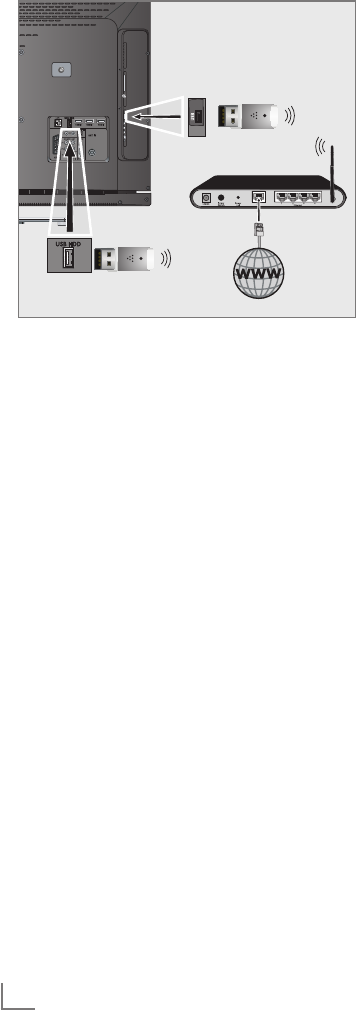

DLNA feature allows you to use a wired or

wireless (with WiFi USB dongle) local network

to access your content that were recorded

with DLNA compatible devices we use at our

daily lives such as a PC, mobile phone or NAS

(Network Attached Storage) which are oper-

ated as DMS (Digital Medial Server).

Devices that contain and serve video, music

or image files are called Server. This television

receives video, music and image files from the

server through home network, allowing you to

access and play such media even when your

television is located in a different room then

the server. A DLNA compatible device such as

a PC, mobile phone, NAS or a NAS-like (Net-

work attached storage) device which operates

as a DMS (Digital Media Server) is required

in order to use home network.

You can also listen to the internet radios with

vTuner feature, provided that the local network

to which your television is connected can con-

nect to internet.

ENGLISH

GENERAL INFORMATION ---------------------------------------------------------------------------------

Receiving digital channels

You require a satellite antenna to receive

digital satellite channels (DVB-S).

You require a digital roof antenna or indoor

antenna (passive or active indoor antenna

with its own power supply) to receive digital

television channels (DVB-T).

If you wish to receive digital television chan-

nels via your cable system (DVB-C), the an-

tenna cable for your cable operator must be

connected to the television set.

Unlike analogue broadcasting, not every

channel has its own transmission frequency.

Instead, several channels are grouped into

what are known as bouquets on a regional or

national level. You can find the current trans-

mission information on teletext from various

broadcasters, or by consulting a current TV

guide or the Internet.

Various digital television channels from private

broadcasters are encrypted (DVB-S, DVB-T

and DVB-C). Watching these channels and

the recording and playback functions are only

possible with the appropriate CI module and

a SmartCard. Ask your specialist dealer.

The range of channels available from the pub-

lic broadcasting institutions (ARD with EinsEx-

tra, EinsFestival or ZDF with ZDF Info and all

third party broadcasters) are not encrypted

and can be received without a SmartCard.

Important notes on

environmental protection

The following information will help you to save

resources – and money as well.

If you are not using your television set for

several days, you should pull out the mains

plug for environmental and safety reasons.

This way the television does not consume any

electricity.

As switching off the television set does not

completely disconnect it from the mains, pull

out the plug to disconnect it from the mains

completely.

If the device is equipped with a power switch,

switching it off using this switch will be suffi-

cient. The energy consumed by the television

set is reduced to virtually 0 W.

In standby mode, the television set uses very

low energy. However, it may be necessary

to leave the television set in standby mode

for certain functions (for example automatic

switch-on and switch-off and for timer func-

tions).

The television set uses less energy when the

brightness is reduced.

ENGLISH

CONNECTION AND PREPARATION -----------------------------------------------

Connecting the antenna and power cord

1 To receive digital satellite channels (DVB-S),

connect the satellite antenna cable to the

antenna socket »SATELLITE« on the televi-

sion set.

And/or:

To receive terrestrial digital broadcasters

(DVB-T) connect the cable for the rooftop

or indoor antenna (passive or active indoor

antenna with its own power supply) to the an-

tenna socket »ANT IN« on the television set;

2b To receive digital cable channels (DVB-C)

connect the cable for the rooftop antenna

to the antenna socket »ANT IN« on the

television set;

2c To receive analogue TV channels, connect

the cable for the rooftop antenna to the an-

tenna socket »ANT IN« on the television set

Note:

When connecting an indoor antenna you

may have to try it out at different positions

until you get the best reception.

3 Plug the power cord into a wall socket.

Note:

Do not plug in the power cord of the device

until you have connected the external equip-

ment and the antenna.

Only use the power cord supplied to connect

the television set to a suitable earthed safety

socket.

Do not use an adapter plug or extension

lead which does not meet the applicable

safety standards. Do not tamper with the

power cord.

ENGLISH

Inserting batteries into the

remote control

CONNECTION AND PREPARATION -----------------------------------------------

1 Open the battery compartment by removing

the lid.

Insert the batteries (2 x 1.5 V micro, for

example R03 or AAA). Observe the po-

larity marked in the bottom of the battery

compartment.

3 Close the battery compartment.

Note:

If the television no longer reacts properly

to remote control commands, the batteries

may be flat. Always remove used batteries.

The manufacturer accepts no liability for

damage caused by leaking batteries.

Environmental note

7 This symbol on recharge-

able batteries/batteries or

on the packaging indicates

that the rechargeable bat-

tery/battery may not be disposed of with

regular household rubbish. For certain

rechargeable batteries/batteries, this sym-

bol may be supplemented by a chemical

symbol. Symbols for mercury (Hg) or lead

(Pb) are provided if the rechargeable batter-

ies/batteries contain more than 0.0005%

mercury or more than 0.004% lead.

Rechargeable batteries/batteries, including

those which do not contain heavy metal,

may not be disposed of with household

waste. Always dispose of used batteries

in accordance with local environmental

regulations. Make enquiries about the appli-

cable disposal regulations where you live.

ENGLISH

OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------

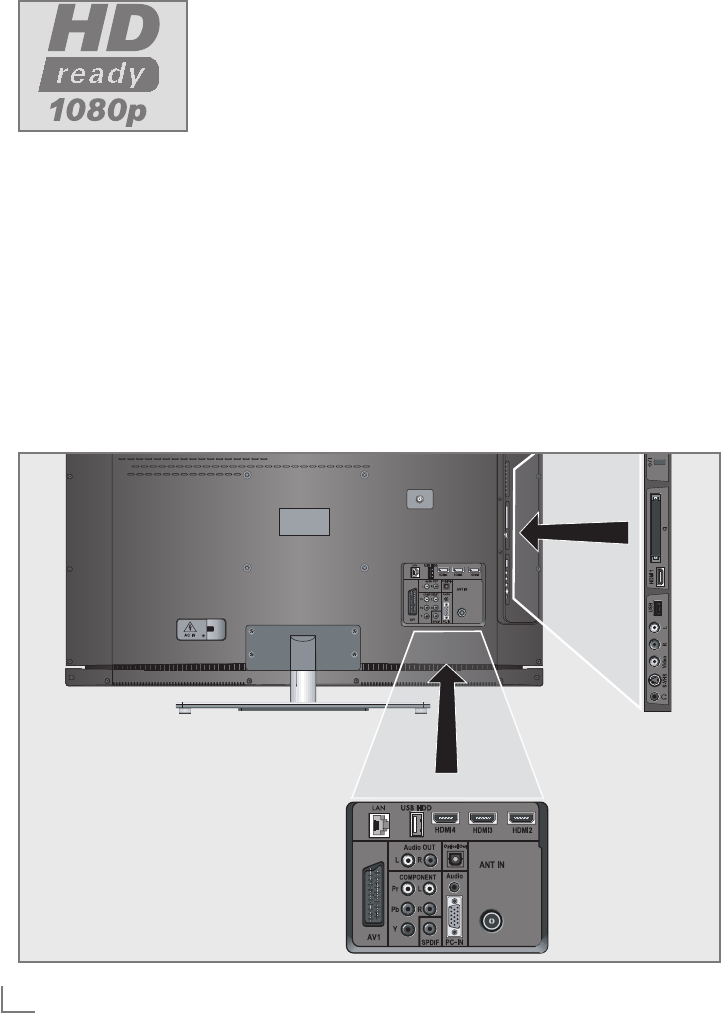

Connections on the television set

SATELLITE Antenna socket for the

satellite antenna (DVB-S).

AV1 SCART socket (FBAS signal,

RGB signal).

AUDIO OUT L R Sockets for audio output.

COMPONENT

Y Pb Pr Sockets for video input

(YUV signal).

L R Sockets for audio input

(YUV signal).

SPDIF Socket for audio output

(coaxial) for PCM/AC3

signals.

For connecting digital AV

amplifiers or AV receivers.

Optical Out Socket for audio output

(optical) for PCM/AC3

signals.

For connecting digital AV

amplifiers or AV receivers.

ENGLISH

OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------

PC Audio Socket for audio

input for a PC.

PC-IN VGA socket, video input

for PC.

ANT IN Antenna socket for a DVB-T,

DVB-C and analogue

antenna.

HDMI2 HDMI socket,

audio/video input.

HDMI3 HDMI socket,

audio/video input.

HDMI4 HDMI socket,

audio/video input.

USB HDD USB socket for external

data media without a power

supply of their own and

PVR function;

Wireless USB network de-

vice socket.

LAN Network cable connection

socket.

U Headphone jack (3.5 mm

jack plug).

S-VHS Video socket for

S-Video camcorder.

Video Video socket for

camcorder.

L R Audio socket for

camcorder.

HDMI1 HDMI socket,

audio/video input.

USB USB socket for external

data media and

PVR function;

Wireless USB network de-

vice socket.

CI Common Interface Slot.

Controls on the television set

8/I Switches the television on and

back into standby mode.

The only way to disconnect the

television from the mains supply

is to pull the plug.

V– V+ Adjusts the volume;

selects menu functions.

MENU Opens the menu.

Select a menu option with

»P+« or »P–«.

Activate the function with

»V+« or »V–«.

Confirm the function with

»V+« or »V–«.

Press »MENU« to quit the menu.

Opens the pre-selection for

AV channels.

In the menu, press »P+« or »P–«

to select and press »V+« or »V–«

to confirm.

P– P+ Switches the television on from

standby;

selects channels in steps;

selects function in the menu.

ENGLISH

OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------

The remote control – Main functions

Switches on and off

(Standby).

Opens menu for AV channels

and USB input.

Then select using »

«, »

«,

« or »

« and press

»OK«

to confirm.

Muting

Opens the »PRnP« menu.

Zapping function;

switches back one menu

level in the menus.

Opens the main menu

Opens the TOOLS menu.

Switches between

teletext and TV mode.

Opens the electronic

TV guide.

Switches on from standby;

Selects channel – in steps.

Adjusts the volume.

Navigation in the menus

Moves the cursor up

and down in the menus.

Moves the cursor to the left and

right in the menus.

Activates various functions and

save functions/settings.

Displays information.

Opens the »HDMI CEC De-

vice List«.

Opens the channel list.

Opens the selection menu to

change picture formats.

Then select with »

« or »

and press

»OK«

to confirm.

Switches on from standby;

Selects channel – directly

Selects the channel list

(»All«, »FAV 1« to »FAV 4«).

Record, play, pause and

stop (only digital television

channels - to/from external

USB device).

ENGLISH

OVERVIEW ------------------------------------------------------------------------------------------------------------------------------------

The remote control –

All functions

»« (red) Selects pages in teletext.

»« (green) Selects/activates various functions

»« (yellow) in the menus.

»« (blue)

 Starts the recording (only for digital

television channels, the recording

is made on an external data me-

dium).

8 Starts playing a programme from

an external data medium;

Repeats a recorded programme;

Starts playing in DLNA and vTuner

menu.

! Freeze frame, if no external data

medium is connected;

Playback pause;

Time shift mode (only for digital

television channels and when

an external data medium is con-

nected);

Pauses the file being played in

DLNA menu.

7 Ends playback of a programme

from an external data medium;

Ends a recording or

playback in time shift mode.

Splits the screen in teletext;

Ends playing in DLNA and vTuner

menu.

5 Switches to double character size

in teletext;

Selects the next title/next picture in

the file browser.

6 Refreshes a teletext page;

Selects the previous track/previous

picture in the file browser.

Stops scrolling through pages in

teletext;

Starts a fast reverse search in the

file browser.

Reveals answers in teletext;

Starts a fast forward search in the

file browser.

Selects different subtitles

(only for digital television channels)

Selects different audio languages

(only for digital television channels)

ENGLISH

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Initial set-up and tuning

television channels

The television set is equipped with automatic

channel search, which searches for satellite chan-

nels (DVB-S), terrestrial channels (DVB-T), cable

channels (DVB-C) and analogue channels.

You start the search and can then copy the tel-

evision channels into four favourite lists and sort

them there into your order of preference.

For DVB-S channels there are 6000 presets

available, for DVB-T and DVB-C channels 1000

presets, and 100 presets for analogue channels.

The various settings

Depending on the type of antenna connected,

you can decide which channels you would like

the television to search for.

Tunes digital television channels from the satel-

lite, from page 15.

You have two options for this search:

–

the basic installation which presets a stand-

ard selection, e.g. the satellite Astra 19.2°

East; you need only start the search;

–

the professional installation, which allows

you to make all required settings and set pa-

rameters for your receiver system.

Tunes digital terrestrial television channels, on

page 17.

Tunes digital television channels from the

cable provider, on page 17.

Tunes analogue television channels, in the

chapter “Special functions”, starting on

page 63.

Further settings for digital television channels

after the initial set-up can also be found in

the chapter “Special functions”, starting on

page 58.

Note:

Make the language and country selection for

all types, then continue reading the respective

chapter.

Selecting language, country and

operating mode

1 Switch on the television set from standby with

»8«, »1…0« or »P+« or »P-«.

–

During initial set-up, the »Installation Guide«

will be displayed.

Help:

If this menu is not displayed, restore the

television set to its default settings (see

page 49).

2 Select the menu language with »

«, »

«,

« or »

« and press »OK« to confirm.

3 Select the mode with »

« or »

« and press

»OK« to confirm.

– The settings used in »Home Mode« help to

save energy.

–

Alternatively, the menu item »Shop Mode«

can be selected which the retailer can use

for demonstrating the device functions.

Note:

End the »Shop Mode« by restoring the televi-

sion set to its default settings (see page 49).

4 Select the country in which the television set

is operated with »

«, »

« or »

« and

press »OK« to confirm.

– The »Source Setup« menu appears with the

»Connection Type« line marked.

Note:

You can find a description of how to tune

the television channel of your choice – de-

pending on the antenna connected – in the

following chapters.

ENGLISH

Tuning the television channels

from satellite (DVB-S)

You have two options for tuning digital satellite

channels.

A The easy installation,

which pre-configures all antenna settings for

the satellite channels on Astra 19.2° East.

B The advanced installation

can be used if you wish to receive satellite

channels from various satellites. To do so,

you must make the antenna settings (Satel-

lite, LNB Power, LNB Type, DISEqC Mode,

LNB Selection) for the satellites chosen.

Easy installation

1 In the »Source Setup« menu, in the »Connec-

tion Type« line, select the option »Satellite«

with »

« or »

«.

2 Select the line »Easy Installation« with »

or »

« and press »OK« to confirm.

– Other menu options will be displayed,

the satellite Astra 19.2° East is preset.

3 Start the scan with »« (green).

– The »Search results« menu appears, and

the scan for TV channels begins.

– Depending on the number of television

channels received, this can easily take a

few minutes.

– The scan is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the scan by pressing

»MENU«.

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Advanced installation

1 In the »Source Setup« menu, in the »Connec-

tion Type« line, select the option »Satellite«

with »

« or »

«.

2 Select the line »Advanced Installation« with

« or »

« and press »OK« to confirm.

– The menu appears.

3 Select the line »Satellite« with »

« or »

and press »OK« to confirm.

– The »SELECT SATELLITE« menu appears.

Select the satellites with »

«, »

« or

« and press »OK« to confirm.

Note:

The setting in the line »Transponder« is not

required for this automatic scan.

4 Select the line »LNB Power« with »

« or

«.

Depending on the type of LNB, set the LNB

power supply to »13/18 V« or »14/19 V«

with »

« or »

«.

5 Select the line »LNB Type« with »

« or »

and press »OK« to confirm.

Select the type of LNB installed with »

or »

«.

Save the selection with

»« (green)

or abort

the action with

»« (red)

Satellite ASTRA 2A°,E

Transponder 10714 MHZ H

LNB Type Universal

DISEqC Mode Off

LNB Power Off

22 kHz Auto

LNB Selection 1/4

Auto Tuning

Quality

Signal strength

Low Normal Good

Exit

Back

INSTALLATION

ANTENNA SETTINGS

Manual Tuning

20.09.2010

15:46

ENGLISH

6 Select the line »DISEqC Mode« with »

or »

«.

Select »DiSEqC 1.0« or »DiSEqC 1.1« in

accordance with the existing antenna system

with »

« or »

«.

– DiSEqC 1.0 allows up to four satellites to

be received simultaneously.

– DiSEqC 1.1 allows up to 16 satellites to be

received simultaneously.

7 Select the line »LNB Selection« with »

« or

«.

Select the setting for the respective satellites

with »

« or »

«.

8 Once the settings for the satellite have been

made, switch to the »AUTOMATIC CHAN-

NEL SEARCH« menu with »« (red).

9 Select the line »Scan Mode« with »

or »

«.

Select the scan mode with »<« or »>«

(for unencrypted channels, for encrypted

channels only, or for both).

10 Select the line »Service Type« with »

or »

«.

Use »<« or »>« to select whether you want to

search for television channels only (TV), radio

stations only (Radio) or both (Radio + TV).

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

11 Start the scan with »« (red).

– The »Results« menu appears, and the scan

for TV channels begins.

– Depending on the number of television

channels received, this can easily take a

few minutes.

– The scan is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the scan by pressing

»MENU«.

12 Press »MENU« to end the setting.

Note:

If other television channels are to be tuned

from a second satellite, proceed as follows:

Open the menu with »MENU«, select the

line »SOURCE SETUP« with »

« or »

and press »OK« to confirm. Then select the

»Automatic Channel Search« with »

« or

« and press »OK« to confirm. Confirm

the line »Select Satellite« with »OK« and

select the preferred satellite with »

«, »

«,

« or »

«. Start the scan with »« (red).

Continue the adjustment by step 7 of the

chapter.

Select Satellite ASTRA 2A , E

Service Type Radio + TV

Scan Mode Free + Scramble

Network Search Off

Connection Type Satellite

Exit

Back

SOURCE SETUP

AUTOMATIC CHANNEL SEARCH

Start Search

20.09.2010

15:46

ENGLISH

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Tuning terrestrial television

channels (DVB-T)

1 In the »Source Setup« menu, in the »Connec-

tion Type« line, select the option »Air« with

« or »

«.

2 Select the line »Scan Type« with »

« or

«.

Use »<« or »>« to set the required scan

type:

– »DTV«, scan for digital television channels;

– »ATV«, scan for analogue television

channels;

–

»ATV & DTV«, scan for analogue and

digital television channels.

Caution:

The antenna power supply (5V ) may only

be switched on if the antenna is an active

indoor antenna with a signal amplifier and it

is not already supplied with a voltage via a

mains plug (or similar supply). Otherwise

you may cause a short circuit and irrepara-

bly damage your antenna.

Select the »Active Antenna Power« with »

or »

«.

Switch on the antenna power supply for the

antenna with »

« or »

« (»On«).

4 Start the scan with »« (green).

– The »Search Results« menu appears, and

the search for TV channels begins.

– Depending on the number of television

channels received, this can easily take a

few minutes.

– The scan is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the scan by pressing

»MENU«.

5 Press »MENU« to end the setting.

Tuning television channels from

the cable provider (DVB-C)

1 In the »Source Setup« menu, in the »Connec-

tion Type« line, select the option »Cable«

with »

« or »

«.

2 Select the line »Scan Type« with »

« or

«.

Use »<« or »>« to set the required scan

type:

– »DTV«, scan for digital television channels;

– »ATV«, scan for analogue television

channels;

–

»ATV & DTV«, scan for analogue and

digital television channels.

3 Select the »Scan Type« with »

« or »

«. Se-

lect the preferred option (»Quick« or »Full«)

with »

« or »

«.

– The search function »

Quick

« sets up the

channels according to the information pro-

vided by your cable provider in the trans-

mission signal.

– If the option »Full« is selected, the entire

frequency range will be scanned. The

search can take a long time with this op-

tion. This option is recommended if your

cable provider does not support the scan

type

Quick

Note:

You can accelerate the search. To do this,

you need information about the frequency

and

network ID. You are usually able to get

this data from your cable operator or find it

in forums on the Internet.

4 Start the scan with »« (green).

–

The »Search Results« menu appears, and

the search for TV channels begins.

– Depending on the number of television

channels received, this can easily take a

few minutes.

– The scan is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the scan by pressing

»MENU«.

5 Press »MENU« to end the setting.

ENGLISH

Changing the program table for

the digital channels

Channels which are found using the scan are

saved in the »PROGRAM TABLE«.

You can delete channels which are not required

from the programe table, and lock individual

channels (Parental control).

You can also add channels to the favourites list;

in addition, you can change the order of chan-

nels within the favourites list.

With »« (green) you can display the channels

which belong to one network.

Switch to the next page in the programe table

with »P+« and to the previous page with »P-«.

With »« (yellow) you can open the »LIST

MANAGEMENT« within the programe table.

Selecting channel lists

1 Open the menu with »MENU«.

2 Select the »SOURCE SETUP« menu with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Programe Table« with »

or »

« and press »OK« to confirm.

– The menu »PROGRAM TABLE« appears.

Important:

Programe table and favourites lists are

saved separately according to the different

input sources (satellite, cable, air).

When opening the programme table, the

respective channel list for the current input

signal appears.

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

1 Das Erste

DTV

6 24

DTV

11 HD 1

DTV

16 TV Sport

DTV

2 ZDF

DTV

7 HD Sport

DTV

12 Life

DTV

17 Sat.8

DTV

3 SAT1

DTV

8 HD Test

DTV

13 Film

DTV

18 SKY

DTV

4 N24

DTV

9 3sat

DTV

14 Promo

DTV

19 TV6

DTV

5 SAT3

DTV

10 RTL

DTV

15 Sport1

DTV

20 TV5

DTV

1 Das Erste

INSTALLATION

PROGRAM TABLE

Edit Manage lists Network Sorting

Exit

Back

Network ALL

Select favourites

ENGLISH

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Creating lists of favourites

You can save your favourite channels in up to

four favourites lists (FAV 1 to FAV 4).

Notes:

Favourites lists must be created separately

for all input sources (satellite, cable and air).

You can select the favourites list by pressing

»FAV«.

1 In the »PROGRAM TABLE« menu, switch over

to the list view with »« (yellow).

2 Select the channel of your choice with »

or »

«.

3 “Push” the channel into the favourites

lists 1 to 4 with »

« or »

« and press »OK«

to confirm.

– The position in the favourites list is marked

with »✔«.

– You can enter the same channel in more

than one favourite list.

–

Each favourite list can store up to 255

channels.

Note:

Channels can also be deleted from the

favourites lists. Select

the

channel to be

deleted with »

«, »

« or »

and

press »OK« to delete it.



When deleting a channel from the favourites

list, the order within the favourites list will be

updated.

4 Press »MENU« to end the set-up.

Sorting channels in the favourite list

You can change the order of channels in the

favourites list.

1 In the »PROGRAM TABLE« menu, select the

favourites list »1« to »4«.

2 Select the channel which should be moved

with »

«, »

« or »

« and mark it with

»« (red).

3 Move the channel to its new position with

«, »

« or »

« and press »OK« to

confirm.

Notes:

Repeat steps 2 and 3 if you would like to

change other channels within the same

favourites list.

Repeat steps 1 to 3 if you would like to

change other channels in a different favour-

ites list.

4 Exit the current favourites list with »«

(blue).

– The entire programe table will appear

again.

Deleting channels

In the

»PROGRAM TABLE«

menu, select the

television channel to be deleted with

«,

« or »

and press

»« (red)

to con-

firm.

2 Delete the current channel with »« (yellow);

delete all channels with »« (blue).

3 Confirm the deletion process with »«

(green).

4 Quit the deletion process with »<«.

Skipping channels

You can mark television channels which should

be skipped when selecting with »

« or »

«.

It is still possible to select them using the number

buttons.

1 In the »PROGRAM TABLE« menu, switch over

to the list view with »« (yellow).

2 Select the preferred channel with »

or »

«.

3 Select the column »Skip« with »

« or »

and use »OK« to mark the channel.

– The channel is marked by »✔«.

Note:

Channels can also be reactivated. Select the

channel with »

« or »

«, then select the

column »Skip« and reactivate the channel

with »OK«.

ENGLISH

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Picture settings

1 Open the menu with »MENU«.

2 Select the menu item »PICTURE SETTINGS«

with »

« or »

« and press »OK« to con-

firm.

– The »PICTURE SETTINGS« menu appears.

3 Select the line »Picture Mode«, »Bright-

ness«, »Contrast«, »Sharpness«, »Colour«, or

»Colour Temperature« with »

« or »

«.

Select the value with »

« or »

« and press

»OK« to confirm.

Notes:

When changing the values with »

« or

«, the screen will be split. You can see

the current setting on the left side, the new

setting on the right side.

In the »PICTURE SETTINGS« menu you can

also find other additional settings.

4 Select the line »DNR«, »Mpeg NR«, »Vibrant

Colour«, »Perfect Clear«, »Film Mode«,

»Gamma«, »Dynamic Contrast«, »Dynamic

Backlight«, »Backlight« or »MEMC« with

« or »

«.

Select the value with »

« or »

« and press

»OK« to confirm.

Notes:

You can only select the »Mpeg NR« function

on digital and AV presets.

»Mpeg NR« reduces any interference from

artefacts (pixel blocks) from digital pro-

grammes due to MPEG compression (such

as from DVB-T receivers or DVD players).

The »Film Mode« detects and processes

feature films automatically for all channel

sources. This means you will always receive

an optimal picture.

This functions in the modi 480i, 576i and

1080i in TV playback and for other channel

sources.

If the »Film mode« is switched on for pro-

grammes without a feature film signal, minor

problems such as picture freeze, defective

subtitles or fine lines in the picture could

occur.

The function »Dynamic Contrast« adapts the

contrast dynamically and optimally for the

respective picture content.

With »Dynamic Backlight«, the device opti-

mally adapts the background lighting to the

picture content.

The »Backlight« can only be set manually

when the function »Dynamic Backlight« is

deactivated.

»MEMC« (Motion Estimation, Motion Com-

pensation) provides fluidity for the picture

in active pictures or fast camera shots.

»MEMC« will only appear in menus of LCD

products with 200 Hz PPR Feature and LED

products with 400 Hz PPR feature.

5 Press »MENU« to end the setting.

Picture Mode User

Brightness 50

Sharpness 75

Colour Temperature

DNR

Medium

Off

Contrast

100

Colour 65

Mpeg NR. Off

Exit

Back

PICTURE SETTINGS

Enhanced picture settings

20.09.2010

15:46

ENGLISH

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Sound settings

1 Open the menu with »MENU«.

2 Select the menu item »SOUND SETTINGS«

with »

« or »

« and press »OK« to con-

firm.

– The »SOUND SETTINGS« menu appears.

Note:

Additional operations are explained in the

following sections.

Volume

1 Select the line »Volume« with »

« or »

and change the setting with »

« or »

«.

Balance

1 Select the line »Balance« with »

« or »

and change the setting with »

« or »

«.

Automatic volume

Television stations broadcast at different vol-

umes. The automatic volume limiting (AVL) func-

tion means the volume is kept the same when

you switch between channels.

1 Select the line »AVL« with »

« or »

« and

select the option »On« with »

« or »

«.

Note:

If the »SRS« setting has been selected in the

»Audio Mode« line, the AVL line cannot be

selected.

Stereo/two channel sound, mono

If the device receives two-channel-sound pro-

grammes, e.g. a film with the original soundtrack

on audio channel B (display: »Dual II«) and

the dubbed version on sound channel A (dis-

play: »Dual I«), you can select the audio channel

you prefer.

If the device receives stereo or Nicam pro-

grammes, it switches automatically to stereo

sound (display: »Stereo«).

You can switch the sound to »Mono« if the stereo

sound quality is poor.

1 Select the line »Audio Type« with »

« or

« and adjust the setting with »

« or »

«.

Stereo width

This broadens the sound output for stereo pro-

grammes and improves the sound with mono

reception.

1 Select the line »Audio Mode« with »

or »

«.

2 Select the option »Spatial« with »

« or »

«.

Volume 10

Balance

Sound Type Stereo

Sound Preset

Headphone

Sound Mode

Naturel

Exit

Back

External

20.09.2010

15:46

ENGLISH

Soundeffects

This menu offers three preset sound effects

(Music, Natural and Speech) and one setting to

be created by you (User).

1 Select the line »Sound Preset« with »

« or

«.

2 Select the sound effect »Music«, »Natural«

or »Speech« by pressing »

« or »

«.

Note:

»User« option is active when »Sound mode«

setting is selected as »Normal or »Spatial«.

SRS TruSurround XT*

SRS TruSurround XT is a patented audio tech-

nology which is integrated into the television set

and only requires the built-in speakers to gener-

ate a Surround Sound effect.

1 Select the line »Audio Mode« with »

or »

«.

2 Select the option »SRS« with »

« or »

«.

3 Select the line »Sound Preset« with »

or »

«.

4 Select the sound effect »Music«, »Natural«

or »Speech« with »

« or »

«.

SETTINGS -----------------------------------------------------------------------------------------------------------------------------------------

Equalizer

Equalizer offers a sound setting that you can cre-

ate.

Equaliser appears in the menu when »Sound

mode« is selected as »Spatial« or »Normal«,

and »Sound Preset« as »User«.

1 Select »Equalizer« with »

« or »

« and

press »OK« to confirm.

The »EQUALIZER« menu appears.

Note:

If the »SRS« setting has been selected in the

»Sound Mode« line, the »Equalizer« line

will not indicate.

2 Select the frequency bandwidth »120Hz«

with »

« or »

«.

Set the preferred value with »

« or »

«.

3 Set the next frequency bandwidth with »

or »

« and repeat the setting.

4 Press »<« to save the setting.

Audio description (Audio subtitles)

Audio description is an additional audio channel

for visually-impaired persons. Descriptions are

provided of activities, surroundings, changes of

scene, gestures and actors' facial expressions.

This audio channel is transmitted simultaneously

with the normal sound on digital channels. Avail-

ability depends on the respective channel and

broadcaster.

1 Select the line »Audio Description« with »

or »

« and select the option »On« with »

or »

«.

2 Select the line »Volume« with »

« or »

and change the volume with »

« or »

«.

Exiting the setting

1 Press »MENU« to end the setting.

* Under licence from SRS Labs, Inc. TruSurround XT,

SRS and the symbol are trademarks of

SRS Labs, Inc.

ENGLISH

TELEVISION - OPERATION--------------------------------------------------------------------------------

Basic functions

Switching on and off

1 Press »8«, »1…0« or »P+« or »P-« to switch

on the television from standby mode.

2 Press »8« to switch the television to standby.

Selecting channels

1 Press »1…0« to select presets directly.

2 Select channels step by step with »P+« or

»P-«.

3 Open the channel list with »OK«, select the

preferred television channel with »

«, »

«,

« or »

« and press »OK« to confirm.

Exit the channel list with »MENU«.

Selecting channels from lists

You can select channels from various lists (e.g.

all channels, FAV 1 to FAV 4).

1 Press »FAV« to open an overview of pro-

grame tables.

– The overview is displayed.

2 Select a programe table with »

« or »

and open it with »OK«.

3 Select a television channel with »

«, »

«,

« or »

« and press »OK« to confirm.

4 Press »MENU« to exit the programe table.

Selecting a preset AV channel

1 Open the »Select Source« menu with » «.

2 Select an AV preset with »

«, »

« or

« and press »OK« to confirm.

3 Use »1…0« to switch back to the television

channel.

Adjusting the volume

1 Adjust the volume with »+ o –«.

Switching sound on/off

Press »p« to mute the sound or switch it

on again.

Displaying information

1 Display information with »?«.

– The display disappears automatically after

a short while.

Freeze-frame

If you wish to view a particular scene for longer,

you can “freeze” the frame of the current pro-

gramme.

1 Activate the freeze-frame function with »$«.

2 End the freeze-frame function with »$«.

Note:

If an external data medium is connected

to the television, the time shift function is

activated with »$«. The time shift function is

described on page 36.

Picture settings

Various picture settings are available.

1 Open the Tools menu with »TOOLS«.

2 Select the menu item »Picture Mode« with

« or »

«.

3 Select »User«, »Eco TV«, »Vivid«, »Natural«,

»Movie«, »Sports« or »Game« by pressing

« or »

«.

Note:

Picture setting »Game« can only be selected

in »HDMI«, »Component« and »PC« modes.

Audio settings

Various audio settings are available.

1 Open the Tools menu with »TOOLS«.

2 Select the menu item »Sound Preset« with

« or »

«.

3 Select the audio setting »User«, »Music«,

»Natural« or »Speech« by pressing »

« or

«.

Note:

»User« option is active when »Sound mode«

setting is selected as »Normal or »Spatial«.

ENGLISH

Audio language

Various languages are available on digital tele-

vision channels. This depends on the programme

being broadcast.

1 Open the selection menu with » «.

2 Select the language by pressing »

« or »

and press

»OK«

to confirm.

Subtitles

Various subtitles are available on digital televi-

sion channels. This depends on the programme

being broadcast.

1 Open the selection menu with » «.

2 Select the subtitles with »

« or »

« and

press

»OK«

to confirm.

Zoom function

1 Open the Tools menu with »TOOLS«.

2 Select the menu item »Zoom« with »

« or

«.

3 Press »OK« repeatedly to enlarge the

display in three steps.

Eco mode

This function allows you to reduce the power

consumption.

1 Open the Tools menu with »TOOLS«.

2 Select the menu item »Eco TV« with »

« or »

«.

3 Switch on the Eco mode with »

« or »

«.

4 Switch the Eco mode off again with »

« or »

«.

Zapping function

This function remembers the channel you are

currently watching while you switch over to other

ones (zapping).

1 Press »1…0« or »P+«, »P–« to select the

channel to be stored in the zapping memory

and press »<« to confirm.

2 Press »1…0« or »

«, »

« to switch to

another television channel.

3 Press »<« to switch between the saved

television channel and the last television

channel viewed.4 End the function

with »MENU«.

TELEVISION - OPERATION--------------------------------------------------------------------------------

Electronic TV guide

The electronic TV guide provides an overview of

all programmes that will be broadcast in the next

week (for digital channels only).

Press

»GUIDE«

to display channel informa-

tion.

Notes:

Not all channels supply provide a detailed

TV guide.

Many broadcasters transmit the current

schedule, but do not offer detailed descrip-

tions.

There are broadcasters which do not pro-

vide any information at all.

2 Press »

« or »

« to select a television

channel.

– Today's programmes on the television

channel selected are displayed.

– In addition, information about the current pro-

gramme is display with detailed information

about the channel.

3 Switch to the information about the current

programme with »

«.

Note:

7 You can open and switch off the extensive

programme information with »?«.

4 Press »

« to select information on the next

programme and, »

« to return to the infor-

mation for the current programme.

5 Select programmes on over the coming days

with »« (green), and switch back to the cur-

rent day with »« (red).

6 Switch back to the channel selection with

«.

Notes:

By pressing »« (yellow) twice, the pro-

gramme of your choice can be added to the

memory timer.

Filter for certain programmes with »«

(blue), select the channel type with »

«,

«, »

« or »

« and press »OK« to con-

firm. Programmes which match the selected

channel type are displayed.

7 Quit the electronic TV guide with »MENU«.

ENGLISH

TELEVISION - OPERATION--------------------------------------------------------------------------------

Changing the picture format

The television automatically switches to the 16:9

format if this format is detected via the SCART

socket.

1 Select the picture format with » «.

– The picture format (for example »16:9«) is

displayed.

– You can choose between the following

picture formats:

»4:3« format

The picture is shown in 4:3 format.

»16:9« and »14:9« formats

For programmes in 4:3 format, the picture is

stretched horizontally if the »16:9« format or

»14:9« format is selected.

The picture geometry is stretched horizontally.

With actual 16:9 input sources (from a set-top box

on the SCART socket) the picture fills the screen

completely and with the correct geometry.

»Subtitle« format

If you cannot see the subtitles at the bottom of

the screen, select »Subtitle«.

»LetterBox« format

The letterbox format is especially suitable for

programmes in 16:9 format.

The black borders which are usually at the top

and bottom of the screen are eliminated, 4:3 pic-

tures fill the screen.

The transmitted pictures are enlarged, but are

slightly cropped at the top and bottom. The pic-

ture geometry remains unchanged.

»Panorama« format

This setting is suitable for films in an especially

wide format.

During programmes in 4:3 format, the picture is

stretched horizontally if the »Panorama« function

is selected. The picture geometry is stretched

horizontally.

»AUTO« format

The picture format is automatically switched to

»16:9« for 16:9 programmes.

The picture format is automatically switched to

»4:3« for 4:3 programmes.

»Overscan« format

In this mode, HD pictures are not cropped by the

HDMI sockets or component sockets, and are

displayed in their original size. This only applies

in HDMI mode and for resolutions of 720p or

above.

ENGLISH

HOME NETWORK ------------------------------------------------------------------------------------------------------------

Network connection

You can establish a wired or wireless connection

between your television and the local network.

Wired network connection

1 Connect the output of external modem to

»LAN« socket with Cat 5 cable.

Note:

7 Connection cables are not supplied.

Wired network settings

There are two ways of making the wired network

settings.

A Automatic connection,

all data regarding the connection settings (»IP

Address«, »Netmask«, »Gateway« and »DNS«)

are obtained from modem automatically.

B Manual connection,

all connection settings (»IP Address«, »Net-

mask«, »Gateway« and »DNS«) must be

configured manually.

Automatic connection

Most of the home networks are Dynamic. If you

have a dynamic network, you must use a DSL

modem that supports DHCP. Modems and IP

sharers that support DHCP obtain the »DNS«

values that are required for »IP Address«, »Net-

mask«, »Gateway« and internet access auto-

matically, and thus you are not required to enter

those values manually.

Note:

7 If you do not have a dynamic network,

follow the instructions in manual connection

section.

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

« or »

and confirm with »OK«. Menu is displayed.

3 Select »Network Settings« with »

« or »

and confirm with »OK«.

– »NETWORK SETTINGS« menu is displayed.

4 Select »Connection« with »

« or »

« and

then select »Wired« with »

« or »

«.

5 Select »Connection Type« with »

« or »

and then select »Automatic« with »

« or »

«.

6 Select »Connect« with »« (red) to establish

the modem connection.

– The mesage »Testing ... Please waite«

appears.

ENGLISH

7 Press »« (green) to make sure that the

network connection is established with the

current settings.

– The messages »Testing ... Please waite«

appears, after successfull announcement

the messages »Connecting To Gateway:

Successful« and then the MAC address.

8 Press »MENU« to end the setting.

Manual connection

Certain networks require Static IP address. If

your network requires a Static IP address, you

must enter the »IP Address«, »Netmask«, »Gate-

way« and »DNS« values manually. You can ob-

tain your »IP Address«, »Netmask«, »Gateway«

and »DNS« values from your Internet Service

Provider (ISP).

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

or »

« and confirm with »OK«. Menu is

displayed.

3 Select »Network Settings« with »

« or »

and confirm with »OK«.

– »NETWORK SETTINGS« menu is displayed.

HOME NETWORK ------------------------------------------------------------------------------------------------------------

4 Select »Connection« with »

« or »

« and

then select »Wired« with »

« or »

«.

5 Select »Connection Type« with »

« or »

and then select »Manual« with »

« or »

«.

– »IP Address«, »Netmask«, »Gateway« and

»DNS« options are active.

6 Select »IP Address« with »

« and press »OK«.

Enter the IP address with »1…0« and press

»« (green) to save the value.

7 Select »Netmask« with »

« and press »OK«.

Enter the Netmask with »1…0« and press

»« (green) to save the value.

8 Select »Gateway« with »

« and press »OK«.

Enter the Gateway with »1…0« and press

»« (green) to save the value.

9 Select »DNS« with »

« and press »OK«.

Enter the DNS address with »1…0« and press

»« (green) to save the value.

10 Select »Connect« with »« (red) to establish

the modem connection.

– The mesage »Testing ... Please waite«

appears.

11 Press »« (green) to make sure that the

network connection is established with the

current settings.

– The messages »Testing ... Please waite«

appears, after successfull announcement

the messages »Connecting To Gateway:

Successful« and then the MAC address.

12 Press »MENU« to end the setting.

Connection

Netmask 255.255.255.0

IP Address

Connection Type

192.168.1.100

Otomatik

Gateway

DNS

Exit

Back

Connection Settings

Wired

Test

Connect

CONNECTED APPS

NETWORK SETTINGS

192.168.1.1

ENGLISH

Wireless network connection

1 Connect Grundig WiFi USB dongle to the

»USB« or »USB HDD« socket of your

television in order to connect the television

to a wireless network.

HOME NETWORK ------------------------------------------------------------------------------------------------------------

Notes:

7 Wireless LAN adaptor supports IEEE

802.11B/G and N communication protocols.

We recommend you to use IEEE 802.11N

protocol to obtain the best performance in HD

video playback.

7 If you use a modem that supports IEEE

802.11B/G, video playback performance

may be poor when compared to a modem

that supports IEEE 802.11N since the data

transfer rate of IEEE 802.11B/G protocol is

lower.

7 WiFi USB dongle must directly be connected

to »USB« or »USB HDD« socket; USB Hub is

not supported.

Please note that video playback performance

in a DLNA application on a wireless local

network depends on the number of users on

the network as it is the case in every wireless

network.

It is recommended to switch off the equipment

that are not in use in home network in order

to avoid unnecessary network traffic.

7 Placing the modem or wireless network

sharer on an elevated location will increase

the wireless connection reception strength.

7 Wireless connection reception strength may

vary depending on the type of the modem

and the distance between the modem and

television.

7 Modem must be transmitting its SSID in order

to establish a wireless connection. Television

can not connect to a network without SSID.

7 When network connection is established

through a wireless USB network device,

wireless network connection may be

weak depending on the the strength of the

wireless network in the medium. Extending

the wireless USB network device close to the

television with a USB extension cable will

increase the wireless network performance.

ENGLISH

HOME NETWORK ------------------------------------------------------------------------------------------------------------

Wireless network settings

There are two ways of making the wireless net-

work settings.

A Automatic connection,

»Apart from Access Point Selection, all data

regarding the connection settings (»IP Ad-

dress«, »Netmask«, »Gateway« and »DNS«)

are obtained from modem automatically.

B Manual connection,

all connection settings (»IP Address«, »Net-

mask«, »Gateway« and »DNS«) must be

configured manually.

Automatic connection

Most of the home networks are Dynamic. If you

have a dynamic network, you must use a DSL

modem that supports DHCP. Modems and IP

sharers that support DHCP obtain the »DNS«

values that are required for »IP Address«, »Net-

mask«, »Gateway« and internet access auto-

matically, and thus you are not required to enter

those values manually.

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

« or »

and confirm with »OK«. Menu is displayed.

3 Select »Network Settings« with »

« or »

and confirm with »OK«.

– »NETWORK SETTINGS« menu is displayed.

4 Select »Connection« with »

« or »

« and

then select »Wireless« with »

« or »

«.

5 Select »Connection Type« with »

« or »

and then select »Automatic« with »

« or

«.

6 Select »Select Access Point« with »

« or

« and confirm with »OK«.

– »Select Access Point« menu appears and

available wireless networks are scanned

and displayed in the menu

7 Select the network that you want to connect

with »

«, »

« or »

« and confirm with

»OK«.

– Wireless connection password screen is

displayed.

8 Select the required character with »

«, »

«,

« and »

« and move to the next character

with »OK«.

– Select »ABC« for uppercase and »abc«

for lower case and confirm with »OK«.

– Select »?@123« for numbers and symbols

and confirm with »OK«.

– Enter the password, select »Confirm« with

«, »

« or »

« and confirm with

»OK«.

Note:

7 In WEP encryption system, more than one

network password can be assigned for the

network. Your television can only connect to

network with level 1 password.

9 Select »Connect« with »« (red) to establish

the modem connection.

– The mesage »Testing ... Please waite«

appears.

10 Press »« (green) to make sure that the

network connection is established with the

current settings.

– The messages »Testing ... Please waite«

appears, after successfull announcement

the messages »Connecting To Gateway:

Successful« and then the MAC address.

11 Press »MENU« to end the setting.

Note:

7 If you do not have a dynamic network,

follow the instructions in manual connection

section.

ENGLISH

Manual connection

Certain networks require Static IP address. If

your network requires a Static IP address, you

must enter the »IP Address«, »Netmask«, »Gate-

way« and »DNS« values manually. You can ob-

tain your »IP Address«, »Netmask«, »Gateway«

and »DNS« values from your Internet Service

Provider (ISP).

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

« or »

and confirm with »OK«. Menu is displayed.

3 Select »Network Settings« with »

« or »

and confirm with »OK«.

– »NETWORK SETTINGS« menu is displayed.

4 Select »Connection« with »

« or »

« and

then select »Wireless« with »

« or »

«.

5 Select »Select Access Point« with »

« or

« and confirm with »OK«.

– »Select Access Point« menu appears and

available wireless networks are scanned

and displayed in the menu.

6 Select the network that you want to connect

with »

«, »

« or »

« and confirm with

»OK«.

– Wireless connection password screen is

displayed.

HOME NETWORK ------------------------------------------------------------------------------------------------------------

7 Select the required character with »

«, »

«,

« and »

« and move to the next character

with »OK«.

– Select »ABC« for uppercase and »abc«

for lower case and confirm with »OK«.

– Select »?@123« for numbers and symbols

and confirm with »OK«.

– Enter the password, select »Confirm« with

«, »

« or »

« and confirm with

»OK«.

Note:

7 In WEP encryption system, more than one

network password can be assigned for the

network. Your television can only connect to

network with level 1 password.

8 Select »Connection Type« with »

« or »

and then select »Manual« with »

« or »

«.

– »IP Address«, »Netmask«, »Gateway« and

»DNS« options are active.

9 Select »IP Address« with »

« and press »OK«.

Enter the IP address with »1…0« and press

»« (green) to save the value.

10 Select »Netmask« with »

« and press »OK«.

Enter the Netmask with »1…0« and press

»« (green) to save the value.

11 Select »Gateway« with »

« and press »OK«.

Enter the Gateway with »1…0« and press

»« (green) to save the value.

12 Select »DNS« with »

« and press »OK«.

Enter the DNS address with »1…0« and press

»« (green) to save the value.

13 Select »Connect« with »« (red) to establish

the modem connection.

– The mesage »Testing ... Please waite«

appears.

14 Press »« (green) to make sure that the

network connection is established with the

current settings.

– The messages »Testing ... Please waite«

appears, after successfull announcement

the messages »Connecting To Gateway:

Successful« and then the MAC address.

15 Press »MENU« to end the setting.

Connection

Netmask 255.255.255.0

IP Address

Select Access Point

Connection Type

192.168.1.100

- -

Auto

Gateway

DNS

Exit

Back

Connection Settings

Wireless

Test

Connect

CONNECTED APPS

NETWORK SETTINGS

192.168.1.1

ENGLISH

HOME NETWORK ------------------------------------------------------------------------------------------------------------

Playback the video, music and

image files with home network

connection

You can easily access the Video, music and

image files on the server through the DLNA

menu of your television.

Notes:

7 You can share your videos, music or

photographs via devices such as a PC,

Mobile Phone or NAS (Network Attached

Storage) functioning as a DLNA compatible

DMS (Digital Media Server).

7 If the DMS device and the television are

connected to the wireless network at the

same time, laggings or freezing can arise

during video playback.

7 TV can also operate with DMS software

installed in the computer, however, a full

compatible operation with software without

DMS certificate is not guaranteed.

7 When you are using a PC with Windows

OS, you can configure the Windows Media

Player (from version 11) as Digital Media

Server.

The required settings are related to the

software version.

Select the Digital Media Server

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

or »

« and confirm with »OK«. Menu is

displayed.

3 Select »DLNA« with »

« or »

« and

confirm with »OK«.

– »DLNA« menu is displayed.

4 Press »« (blue) to discover DMS

devices on home network.

– DMS devices that are discovered appears

in the menu.

Note:

7 If no DMS device appears, check the

network connection. See page 26.

5 Select the desired DMC device with »

«, »

«,

« or »

« and display its content with »OK«.

Notes:

7 File and folder structure of the DMS device

in menu may vary depending on the Digital

Media Server software in use.

7 Subtitles are not supported on video files

that are played through the DMS device.

7 Only the formats with a DLNA certificate

(»MPEG_PS_NTSC«, »MPEG_PS_PAL«,

»MPEG_TS_SD_EU« and »MPEG_TS_EU_

ISO«) are supported from among the video

files played from DMS device.

7 With high bitrate videos, distortion can be

seen.

7 Folders that appear as unknown in DLNA

application cannot be played by the TV.

Installing the codec to your computer can

solve this problem.

0 Device Found

Page: 1/1

Press BLUE key to search DMS device.

ENGLISH

7 Only the formats with a DLNA certificate

(»AAC_ADTS_320«, »LPCM«, »MP3«,

»WMABASE« and »WMAFULL«) are

supported from among the audio files

played from DMS device.

7 Only the formats with a DLNA certificate

(»JPEG_LRG«, »JPEG_MED« and »JPEG_

SM«) are supported from among the picture

files played from DMS device.

6 Press »<« to return to the DMS list page.

7 Press »GUIDE« to exit the DLNA function.

Start playback

1 In the content of the DMC device select the

required folder with »

«, »

« or »

and confirm with »OK«.

– All titels appears.

2 Select the required title with »

«, »

or »

«.

3 Start playback with »8«.

Other playback functions

1 Press »!« to pause playback.

2 Press »8« to resume playback.

3 Press »5« or »6« repeatedly until the

desired file is reached.

4 Press »7« to stop playback.

Note:

This playback functions and others you can

also select with the function menu:

»TXT« opens/closes playback functions

menu;

8« starts playback;

!« pause playback;

7« stop playback;

« and »

« search for a passage;

» « select the repeat function;

» « select the playlist;

» « displaying title informations.

HOME NETWORK ------------------------------------------------------------------------------------------------------------

vTuner internet radio

Many radio stations broadcast through the inter-

net. vTuner allows you to access many popular

radio stations on earth. Thanks to the vTuner

function of your television, you can display a

list that contains many radio stations, and select

and listen to the desired stations based on your

tastes.

Note:

7 Internet connection is required to use vTuner

function.

1 Open the menu with »MENU«.

2 Select »CONNECTED APPS« with »

or »

« and confirm with »OK«. Menu is

displayed.

3 Select »Internet Radio« with »

« or »

« and

confirm with »OK«.

– »vTuner« is displayed.

4 Select category with »

« or »

« and

display its content with OK«.

– »Select radio station with »

« or »

« and

press »OK« or »8«.

– Press »7« to end playback.

Note:

7 Sequence and the names of files and folders

in vTuner menu is updated by the vTuner

server. Thus, it may vary.

5 Press »GUIDE« to exit the vTuner function.

VTuner

Exit

Back

Favorites

Genre

Added Stations

New Stations

Location

Most Popular Stations

1/6

ENGLISH

USB RECORDING --------------------------------------------------------------------------------------------------------------

Information on recording and

playing television programmes

■ Recording and playback of television pro-

grammes is only possible with digital television

channels (DVB-S, DVB-T and DVB-C).

■ The digital television channels (DVB-S, DVB-T

and DVB-C) you are able to record and play-

back also depends on the broadcaster.

■ Recording and playback of programmes,

as well as the time shift function, can only be

carried out using an external data medium

(hard drive or USB stick). The data medium

should have a minimum storage capacity

of 2 GB.

■ Recordings can be made with most data media

on the market. However, we cannot guarantee

operation for all data media.

■ If a programme was recorded on an external

data medium, it can only be played back on

your television set. The playback of these pro-

grammes is not possible on other devices.

■ If you send your television to be repaired and

hardware components need to be replaced,

you might not be able to play the recordings

again on the repaired television.

■ Reception for SKY broadcasting service is cur-

rently only possible in Germany with a suitable

set-top box.

Possible limitations when using

an external data medium

Depending on the broadcaster, you may experi-

ence various restrictions on some of the functions

from some television channels.

GRUNDIG has no influence on

these restrictions.

■ Recording a programme on the external data

medium can be disabled by the broadcaster.

If the message »URI* protected! PVR function

is blocked« appears on the screen, then re-

cording or timeshift is restricted (one recording

possible) or disabled (recording not possible)

by the broadcaster.

* URI = User right information (Copyright in-

formation).

■ If you record and save a programme on the

archive of an external data medium, playback

can be restricted.

The broadcaster can allow you to view this

programme one or more times, but it may only

be available for a certain period of time.

■ Programmes not suitable for minors will require

the input of a PIN number immediately before

recording starts. If this authorisation is not

given, the recording may not start.

■ Copying a programme from a digital television

channel onto a video or DVD recorder using

the »AV 1« socket (analogue picture/

sound signal) can also be restricted by the

broadcaster. Prerequisite is that your device

supports the copying function.

ENGLISH

USB RECORDING --------------------------------------------------------------------------------------------------------------

Connecting external data media

Notes:

Before connecting the data medium, switch

the television to standby with

»8«

. Connect

the device and then switch the television on

again.

7 Before removing the external data medium,

the television must be switched to standby,

so that no data loss occurs.

Your television features two USB sockets,

»USB HDD« and »USB«.

»USB HDD« is used to connect data media,

which require an additional power supply

– for example, external hard disks.

1 Connect the »USB HDD« socket of the

television and the corresponding socket of

the data medium (external hard disk) using

a USB cable;

Insert the USB plug of the USB memory stick

into the »USB« socket of the television.

2 Confirm the display » « with »«

(green).

– The file browser appears.

Notes:

The »USB« socket of the television supplies

a maximum power of 500 mA in accord-

ance with USB specifications. External hard

disks which require more power may there-

fore only be connected to the »USB HDD«

of the television.

If you use a network cable for external hard

disks which have been connected to the

»USB HDD« socket of the television, this

network cable must also be disconnected

from the power supply when the television is

switched off.

External data media may not be disconnect-

ed from the television while files on the data

medium are being accessed.

Settings for USB recording

Selecting the menu

1 Open the menu with »MENU«.

2 Select the line »USB RECORDING« with

« or »

« and press »OK« to confirm.

– The »USB RECORDING« menu appears.

PRnP

Partition

Disk

Auto Preview

USB

Check Disk

Exit

Back

USB RECORDING

Manage data medium

Capacity Used %3

Used (MB) 1249

Total (MB) 38145

Remaining SD recording time 1,008 min

Remaining HD recording time 288 min

20.09.2010

15:46

ENGLISH

Switching on automatic preview

If the automatic preview is switched on, a pre-

view of the selected file appears in the file

browser.

1 Select the line »Auto Preview« with »

« or

«.

2 Switch on the function with »

« or »

(»On«).

3 Press »MENU« to end the setting.

Selecting external data media

If several external data media are connected to

the television, you can select the preferred data

medium.

Select the line »Disk« with »

« or »

2 Select the preferred data medium (»USB

HDD« or »USB«) with »

« or »

«.

3 Press »MENU« to end the setting.

Selecting a partition on the external

data medium

If the external data medium features several par-

titions, select the partition you would like to use.

1 Select the line »Partition« with »

« or »

«.

2 Select the partition you wish to use with »

or »

«.

3 Press »MENU« to end the setting.

USB RECORDING --------------------------------------------------------------------------------------------------------------

Testing the external data medium

You can subject external data media to a test

and establish whether they are suitable for the

chosen functionality.

1 Select the line »Disk« with »

« or »

«. If

several data media are connected, select the

preferred data medium with »

« or »

«.

2 Select the line »Partition« with »

« or »

«.

If several partitions are available, select the

partition you wish to use with »

« or »

«.

3 Select the line »Check Disk« with »

« or

« and press »OK« to confirm.

–

Information on the data medium is dis-

played.

4 Press »MENU« to end the setting.

ENGLISH

USB RECORDING --------------------------------------------------------------------------------------------------------------

″Pausing” time shift

programmes

You can pause the programme you are watch-

ing. This is a useful function, for example if the

telephone rings while you are watching a film

and you do not want to miss anything.

A freeze-frame display of the last scene appears

on the screen and the programme is recorded

in the time shift memory of the external data

medium.

In time shift mode you can record a maximum of

10 minutes of the current programme.

1 Press »!« to pause the current programme.

– The picture is frozen, the time shift and the

remaining recording time are displayed.

2 Press »8« to resume the programme.

–

The programme will continue to be

recorded.

Note:

7 The following functions are possible when in

time shift mode:

– Rewind, press »

« several times accord-

ing to speed (the picture freezes while

rewinding);

– Fast forward, press »

« several times

according to speed;

– Select pause with »!«.

3 Press »7« to quit the time shift function.

– The message »Live programme« appears,

and you will see the current programme

without time shift.

– The scenes in the “time shift memory” are

deleted.

Recording programmes

You can record programmes. The data for these

programmes is recorded on an external data

medium and this archive is administered via the

television.

The following approximate values apply for re-

cording:

Recording time for high-definition programmes

(HD) is 7 minutes with 1 GB of memory,

for standard programmes it is 26 minutes.

While recording, you can watch another pro-

gramme from the archive.

You cannot change presets.

One-touch programme recording

1 Select the television channel to be recorded

with » »1…0« or »P+«, »P–« and press

»« to start the recording.

– Information on the recording is displayed:

the recording symbol, the channel name,

the programme, the recording time and the

available memory space.

– After a short time this information disap-

pears; only the recording symbol flashes

on the top left of the screen.

2 End the recording with »7«.

Notes:

7 After the recording is complete, the record-

ing will be automatically saved on the exter-

nal data medium.

7 The »RECORDED FILES« menu, with the ar-

chived programmes, can be opened with

»REC.LIST«.

7 If the external data medium is disconnected

from the USB socket during recording, the

recording will be stopped automatically

and will not be saved.

7 Play your recordings, that you have record-

ed with your FAT32 formatted HDDs, in USB

mode.

ENGLISH

Recording a programme from the

channel list

1 Open the »CHANNEL LIST« with »OK«.

2 Select a television channel with »

«, »

«,

« or »

« and press »OK« to confirm.

3 Press »MENU« to exit the channel list.

4 Press » « to start recording.

– Information on the recording is displayed:

the recording symbol, the channel name,

the programme, the recording time and the

available memory space.

– After a short time this information disap-

pears; only the recording symbol flashes

on the bottom right of the screen and the

recording time is displayed.

5 Press »7« to stop recording.

Presetting programmes to be

recorded

... using the electronic TV guide

You can use data from the electronic TV guide

for recording.

25 programmes can be preset for the timer

recording or as a reminder.

Press

»GUIDE«

to display channel informa-

tion.

– The electronic TV guide appears.

Select the preferred channel with »

or »

«.

3 Switch to the information about the current

programme with »

«.

4 Select the programme of your choice with

« or »

«.

5 Confirm the programme with » «.

– The symbol » « appears after the name

of the programme, and the data has been

added to the timer.

Note:

If the data for the recording is to be changed,

use

»« (yellow)

and

»« (blue)

switch to the »SCHEDULED EVENTS«, press

»« (green)

, change the data and save it with

»« (green)

6 Press »MENU« to exit the menu.

Notes:

7 Before the timer recording begins, a warn-

ing message appears with a 20-second

countdown. You can switch over to the pro-

grammed television channel.

7 If the timer recording starts during playback,

playback is not interrupted: Recording takes

place automatically in the background as

long as you do not select »Yes« when the

timer countdown message is shown.

USB RECORDING --------------------------------------------------------------------------------------------------------------

ENGLISH

USB RECORDING --------------------------------------------------------------------------------------------------------------

... by manual data entry

You can preset up to 25 programmes for timer

recording.

Press

»GUIDE«

to display channel informa-

tion.

– The electronic TV guide appears.

2 Open the »MAKE SCHEDULE« menu by

pressing »« (yellow) twice.

3 Select the line »Type« with »

« or »

and select the option »Recording« with »

or »

«.

4 Select the line »Channel« with »

« or »

and select the channel with »

« or »

«.

5 Select the line »Mode« with »

« or »

« and

select the preferred mode (»Once«, »Every

Day« or »Weekly«) with »

« or »

«.

6 Select the line »Start« (Start recording) with

« or »

« and enter the date/time with

»1…0«.

7 Select the line »End« (Stop recording) with

« or »

« and enter the date/time with

»1…0«.

8 Save the data with »« (green).

– The programme is preset.

9 Press »MENU« to exit the menu.

Notes:

7 Before the timer recording begins, a warn-

ing message appears with a 20-second

countdown. You can switch over to the pro-

grammed television channel.

7 If the timer recording starts during playback,

playback is not interrupted: recording takes

place automatically in the background as

long as you do not select »Yes« when the

timer countdown message is shown.

Editing recording data in the

timer menu

You can edit the data for programmed timer

recordings.

Select the timer menu by pressing

»GUIDE«

»« (yellow)

and

»« (blue)

in succes-

sion.

– The

»SCHEDULED EVENTS«

menu ap-

pears.

Select the title of the programme to be

changed with »

« or »

« and activate the

timer position with

»« (green)

– The input menu is displayed.

Select the required option with »

« or

« and edit the data with »1…0« and

« or »

«.

4 Save the changes with »« (green).

– The timer has been changed.

5 Press »MENU« to close the menu.

Deleting a timer

You can delete programmed timer recordings.

Select the timer menu by pressing

»GUIDE«

»« (yellow)

and

»« (blue)

in succes-

sion.

– The

»SCHEDULED EVENTS«

menu ap-

pears.

Select the title of the programme to be deleted

with »

« or »

« and delete the timer position

with

»« (yellow)

3 Press »MENU« to close the menu.

ENGLISH

Playback

The recorded programmes – whether started

manually or using the timer function – are stored

on the external data medium. You can open the

archive on the external data medium by pressing

»REC.LIST«.

Selecting a programme from

the archive

Open the »Recorded Event« menu with

»REC.LIST«

– The menu appears.

2 Select the programme of your choice with

« or »

« and start playback with »8«.

3 Press »7« to end playback.

– The television switches over to the current

television channel.

Forward/reverse picture search

1 During playback, select the fast forward

speed (2x, 4x, 8x or 16x) with »

«;

During playback, select the rewind speed

(2x, 4x, 8x or 16x) with »

« (the picture

freezes when rewinding).

Repeating a scene (A-B)

You can mark the starting and ending point of a

scene. The scene is then repeated continuously.

1 Mark the starting point A by pressing »8« at

the required scene during playback.

–

This scene is marked as the starting

point A.

2 Mark the end point B by pressing »8«

once again at the required scene during

playback.

– This scene is marked as the end point B.

– The television repeats the programme be-

tween these two points.

3 Quit the repeat function with »7«.

USB RECORDING --------------------------------------------------------------------------------------------------------------

Playback during a recording

During a recording, you can either watch the

programme you are currently recording or watch

a different one that you have already recorded.

1 Select the channel to be recorded with

»1…0« or »P+«, »P–« and press » « to

start the recording.

2 Select the

»Recorded Event«

menu by press-

ing »REC.LIST«. Select the programme you

want with »

« or »

« and press »8« to

start playback.

–

The recording continues in the background.

3 Press »7« to end playback.

4 Press »7« to stop recording.

Deleting programmes in the

recording list

You can delete programmes from the record-

ing list.

Open the »Recorded Event« menu with

»REC.

LIST«

– The menu appears.

2 Select the programme to be deleted with

« or »

«.

3 Press »« (blue) to delete the programme.

Confirm the security query with

»«

(green)

Note:

7 You cannot delete programmes in the

»Recorded Event«

menu which are currently

being recorded or played back.

5 Press »MENU« to close the menu.

ENGLISH

USB OPERATION ---------------------------------------------------------------------------------------------------------------

File formats

Your television can work with the following file

formats using the USB sockets:

Video data

Special codecs for video compression and

decompression provide more memory space

without compromising the picture quality exces-

sively.

Your television plays video files in the formats

DIVS, XVID, H.264/MPEG-4 AVC (L4.1, 4 ref-

erence pictures), MPEG-4, MPEG-2, MPEG-1,

MJPEG and MOV.

The following file name extensions are also sup-

ported: AVI, MKV, MP4, TS, MOV, MPG, DAT.

These files can also contain audio files com-

pressed using MP3, AAC or Dolby Digital©.

Audio data

Your television can play audio data in the for-

mats MP3, AAC, WMA.

MP3 is the abbreviation for MPEG-1 Level 3 and

is based on the MPEG-1 standard, which was

developed by the MPEG (Motion Picture Expert

Group).

AAC stands for Advanced Audio Coding and

was also developed by MPEG. AAC provides

better sound quality at an identical data rate.

WMA (Windows Media Audio) is a compres-

sion standard for audio data developed by

Microsoft.

These formats allow audio files to be recorded

and played which sound as good as a CD, while

taking up only a fraction of the memory space.

File name extensions which are supported: MP3,

MP2, WMA, M4A, AAC.

MP3 files can be organised into folders and

subfolders, as on the computer.

Image data

Your television can display pictures in the formats

JPEG, PNG and BMP.

JPEG stands for Joint Picture Experts Group.

It denotes a process for compressing picture files.

PNG and BMP are process used to save image

data with no, or very little, losses.

Picture files can be stored with other types of files

on one medium.

These files can be organised into folders and

subfolders.

ENGLISH

USB OPERATION ---------------------------------------------------------------------------------------------------------------

Connecting external

data media

Before connecting the data medium, switch the

television to standby using »8«. Connect the

device and then switch the television on again.

Before removing the external data medium,

the television set must be switched to standby,

so that no data loss occurs.

Notes:

The »USB« socket of the television set

supplies a maximum power of 500 mA in

accordance with USB specifications. Exter-

nal hard disks which require more power

may therefore only be connected to the

»USB HDD« of the television set.

If you use a network cable for external

hard disks which are connected to the

»USB HDD« socket on the television, this

network cable must also be disconnected

from the power supply when the television

is switched off.

External data media may not be disconnect-

ed from the television set while files on the

data medium are being accessed.

7 A bi-directional data transfer as defined for

ITE (Information Technology Equipment)

devices in EN 55022/EN 55024 is not

possible.

7 USB transfer is not in itself an operating

mode. It is only an additional function.

1 Connect the »USB HDD« socket of the tel-

evision and the corresponding socket on

the data device (external hard drive, digital

camera, card reader or MP3 player) using a

USB cable;

Insert the USB plug of the USB memory stick

into the »USB« socket of the television set.

Confirm the display » « with

»«

(green)

– The file browser appears.

ENGLISH

USB OPERATION ---------------------------------------------------------------------------------------------------------------

The file browser

The file browser displays video, audio and

picture files stored on external data media.

If an external data medium contains files in

different formats, you can, when necessary, filter

out the formats not required.

Main menu of the file browser

1 Selected data format.

2 Name of the data medium.

3 Total number of folders on the data medium.

4 Preview of the selected file.

5 Information on the external data medium.

6 Menu navigation.

Settings in the USB

setup menu

Selecting the menu

1 Open the menu with »MENU«.

2 Select the »SOURCE SETUP« menu item with

« or »

« and press »OK« to confirm.

–

The »USB

SETUP

« menu appears.

Note:

Additional functions are explained in the

following sections.

Switching on automatic preview

If this function is switched on, a preview of the

selected file then appears in the file browser.

1 Select the line »Auto Preview« with »

or »

«.

2 Switch on the function with »

« or »

(»On«).

3 Press »MENU« to end the setting.

Selecting the display mode

1 Select »View Mode« with »

« or »

«.

2 Select the preferred option with »

« or »

«.

3 Press »MENU« to end the setting.

Setting the display duration for

pictures in a slideshow

Select »Slide Show Interval« with »

« or »

«.

2 Select the display duration (3, 5, 10 seconds)

with »

« or »

«.

3 Press »MENU« to end the setting.

DivX® VOD

You must have your device registered in order to

play the protected video that you will buy from

DivX®.

1 Select »DivX® VOD« with »

« or »

« and

confirm with »OK«.

– Registration Code appears.

2 Visit “http://vod.divx.com” and register the

device with the registration code.

3 Press »MENU« to end the setting.

DivX Certified® to play DivX® and DivX

Plus™ HD (H.264/MKV) video up to

1080p HD including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created

by DivX, Inc. This is an official DivX Certified® device that plays

DivX video. Visit divx.com for more information and software

tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® de-

vice must be registered in order to play purchased DivX Video-

on-Demand (VOD) movies. To obtain your registration code,

locate the DivX VOD section in your device USB setup menu.

Go to vod.divx.com for more information on how to complete

your registration.

USB DRIVE %3

Used (MB) 475

Total (MB) 45

VIDEO FILES

Use Control

Buttons

Speed

All

Repeat

Now

Total

ROOT


Music

Film

1 3

26 5

ENGLISH

Basic playback functions

1 Select the data medium by pressing » «,

use »

«, »

« or »

« to select the option

»USB« and press »OK« to confirm.

– The file browser appears.

2 Select the file format (video files, audio files,

picture files) with »

« or »

«.

3 Switch to the folder/file list with »OK«.

Note:

If two USB data media or one USB data

medium with several partitions is connected

to the USB sockets, the letter for the respec-

tive drive (e.g. C) appears behind the folder

symbol. Select the letter of the drive with

« or »

« and press »OK« to confirm.

4 Select the folder or file with »

« or »

« and

press »OK« to open it.

– A list of subdirectories appears.

Note:

Switch back to the main folder with »<«.

5 Select the track or picture with »

« or »

and press »8« to start playing.

–

You can view information on the film data by

pressing »?« (red).

– When playing MP3 or WMA data, infor-

mation on the album, track and singer is

displayed at the left of the menu.

– When playing picture files, you can use

»?« to display information about the reso-

lution and size.

– When playing picture data, press »

twice to enter the DivX® Settings menu.

USB OPERATION ---------------------------------------------------------------------------------------------------------------

Note:

When playing picture data, the file browser

switches off. Press »7« to display the file

browser again.

7 Press »!« to pause playback.

8 Press »8« to resume normal playback.

9 Press »7« to end playback.

The file browser appears.

Notes:

Use »

« to select »Up Folder«, when you

would like to return to the last folder. Use

»Root« (and then press »OK«) to return to

the main folder.

It is possible that files which are actually

supported do not function correctly in USB

mode. This is because certain files are not

recorded with standardised compression

processes, although they feature the “right”

file ending.

If a video file features several audio tracks

(audio streams), you can switch these over

during playback in full screen mode with »

«.

When playing music files, you can use other

options in the USB mode at the same time.

This way, you can, for example, enhance a

slideshow with music.

For films, only subtitles in the SRT format

are supported. The names of the subtitle

and film files must be identical. Otherwise,

no subtitles will be shown.

ENGLISH

USB OPERATION ---------------------------------------------------------------------------------------------------------------

Additional playback

functions

Depending on the file format, the following

additional functions are available:

Selecting chapters on DivX® files

(only video files)

1 During playback, select the next chapter

with »

«.

2 During playback, select the previous

chapter with »

«.

Note:

You can also select chapters by entering the

chapter number with »1...0«.

Selecting titles on DivX® files

(only video files)

1 During playback, select the next title with

«.

2 During playback, select the previous title

with »

«.

Playing selected titles

Only the marked tracks are played.

1 Select the titles with »

« or »

« and press

»OK« to mark it.

2 Select the next title with »

« or »

« and

press »OK« to mark it.

3 Start playback with »8«.

4 Press »7« to end playback.

Note:

To remove the marking, select the title with

« or »

« and press »OK« to remove the

marking.

Selecting a track or picture in steps

(SKIP)

1 During playback, select the next track/

picture with »6«.

2 During playback, select the previous track/

picture with »5«.

– Playback begins with the track or picture

you selected.

Selecting a certain passage for

playback

(video files only)

1 During playback, press »OK«.

2 Enter the passage (time) with »1 ... 0« and

press »« (green) or »OK« to confirm.

Fast forward

(for video and audio files only)

You can select different speeds (2-fold, 4-fold,

8-fold and 16-fold forwards and backwards).

1 Select the playback speed during playback

with »

« or »

«.

2 Press »8« to resume normal playback.

Rotating pictures

(picture files only)

You can rotate pictures by 90°.

1 During playback, press »

« or

« to rotate

the pictures by 90°.

Repeat functions

Options:

– »One Repeat«: the current track will be

repeated.

– »All Repeat«: all tracks will be repeated.

1 Open the Tools menu with »TOOLS«.

2 Select the menu item »Repeat« with »

« or

«.

3 Select »All«, »Random«, »One« or »None«

by pressing »

« or »

«.

ENGLISH

TOP text or FLOF text mode

1 Press »TXT« to switch on teletext.

2 Select teletext pages directly with »1...0«

or step by step with »

« and »

«.

Return to teletext page 100 with »?«.

Note:

7 At the bottom of the screen there is an info

bar with red, green and – depending on the

channel – yellow and blue panels. Similarly,

the remote control also features buttons with

different colours with which these pages can

be selected.

3 Go back a page with »« (red).

4 Go to the next page with »« (green).

Select a particular chapter with

»«

(yellow)

6 Select a particular subject with »« (blue).

7 Quit teletext with »TXT«.

Normal text mode

1 Press »TXT« to switch on teletext.

Press »1…0« to select teletext pages directly.

Return to teletext page 100 with »?«.

3 Go back a page with »

«.

4 Go to the next page with »

«.

5 Quit teletext with »TXT«.

Additional functions

Skipping the waiting time

While a page search is progressing, you can

switch to the TV programme.

1 Enter the teletext page number with »1…0«

and then press »6«.

– As soon as the page is found, the page

number is displayed.

2 Press »6« to switch to the teletext page.

Enlarging the character height

If you have difficulty reading the text on the

screen, you can increase the character height.

1 To enlarge the character height of a teletext

page, keep pressing »5«.

Page hold

A multiple page may contain several sub-pages,

which are automatically scrolled by the broad-

casting station.

1 Stop the automatic scrolling of the sub-pages

with »

«.

2 Quit the function with »

«.

Opening a sub-page directly

If the selected teletext page contains additional

pages, the number of the current sub-page and

the total number of pages are displayed.

1 Press » « to open the sub-page function.

2 Use »0…9« to enter the sub-page.

3 Quit the function with » «.

Revealing answers

Certain teletext pages contain hidden answers

or information.

1 Display information with »

«.

2 Press »

« to conceal the information.

Split screen

This functions allows you to display the televi-

sion channel on the left side, the teletext on the

right side.

1 Switch the function on with »7«.

– The television channel and teletext are dis-

played next to each other.

2 Switch the function off with »7«.

TELETEXT OPERATION ----------------------------------------------------------------------------------------------

ENGLISH

Note:

Additional operations are explained in the

following sections.

Language settings

Changing the menu language

1 Select the line »MENU« with »

« or »

and press »OK« to confirm.

–

The »Select Menu Language« menu

appears.

2 Select the menu language with »

«, »

«,

« or »

« and press »OK« to confirm.

3 Press »MENU« to finish the setting.

CONVENIENCE FUNCTIONS ------------------------------------------------------------------------

Opening the SETTINGS menu

1 Open the menu with »MENU«.

2 Select the »SETTINGS« menu with »

« or

« and press »OK« to confirm.

– The »SETTINGS« menu appears.

Changing the audio language

(only for digital television channels)

You can define a primary and a secondary

audio language.

1 Select the line »Audio« with »

« or »

« and

press »OK« to confirm.

–

The »Select Audio Language« menu

appears.

2 Select the audio language with »

«, »

«,

« or »

« and then use »« (red) to set

it as the primary audio language, or use

»« (green) to set it as the secondary audio

language.

– The primary and secondary language is

display at the top right in the menu.

3 Press »MENU« to end the setting.

Changing the subtitle language

and subtitle mode

(only for digital television channels)

You can switch the subtitles on and off, select the

subtitle language and allocate a second subtitle

language.

1 Select the line »Subtitle« with »

« or »

and press »OK« to confirm.

– The »Select Subtitle Language« menu ap-

pears.

2 Select the subtitle language with »

«,

«, »

« or »

«, then use »« (red) to set

it as the primary subtitle language, or use

»« (green) to set it as the secondary subti-

tle language.

– The primary and secondary language is

displayed at the top right in the menu.

3 To go back one menu level, press »<«.

4 Select the line »Subtitle Mode« with »

« or

« and then set the preferred option »Off«,

»Hard of Hearing« or »Basic« with »

« or

«.

5 Press »MENU« to end the setting.

Menu English

Subtitle English

Date & Time

Audio

English

Subtitle Mode Off

Time Adjustment

Time Zone

Auto

GMT +1

Exit

Back

SETTINGS

Date and time settings

Language settings

20.09.2010

15:46

ENGLISH

CONVENIENCE FUNCTIONS ------------------------------------------------------------------------

Setting the date and time

Your television set detects the difference in time

to Greenwich Mean Time (GMT) automatically,

as long as the channel selected transmits a time

signal. You can also set the difference in time

manually – for example, when the correct time

is not detected automatically or does not corre-

spond to local time for other reasons.

1 Select the line »Time Adjustment« with »

«,

then select the option »Manual« with »

or »

«.

– The lines »Time Zone« and »Daylight Sav-

ing« are active.

2 Select the line »Time Zone« with »

« and

press »OK« to confirm.

– The »Select Time Zone« menu appears.

3 Select the appropriate time zone with » »

«,

«, »

« or »

and press »OK« to confirm.

4 Select the line »Daylight Saving« with »

and use »

« or »

« to set the option »Auto«,

»Off« or »On«.

5 Press »MENU« to finish the setting.

Note:

If the option »Auto« is selected in the line

»Time Adjustment«, the television set auto-

matically adapts the time to the time signal

from the respective broadcaster. However,

different channels may also use time bases

which are different to those of your country;

e.g. foreign broadcasters. In these cases,

reminders and planned recordings may be

annulled due to the time difference.

Timer settings

Entering the switch-off time

(sleep timer)

In the »Sleep Timer« menu you can enter a time

for the television to switch off. After this time

has elapsed, the television switches to standby

mode.

1 Select the line »Sleep Timer« with »

« or

«.

2 Enter the switch-off time with »

« or »

«.

Note:

7 To switch off the function, use »

« or »

« to

set the switch-off time to »Off«.

3 Press »MENU« to end the set-up.

Switch-on timer

In the »Auto On« menu you can enter a switch-on

time for the television. After the preset time has

elapsed, the television switches on from standby

– at the preselected volume and the preselected

television channel.

1 Select the line »

Auto On

« with

« or »

and press »OK« to confirm

2 Select the line »Mode« with

« or »

and

use

« or »

to select when the television

should switch on.

3 Select the line »Input Source« with

« or »

and use

« or »

to select the input source.

4 Select the line »Service Type« with

« or »

and use

« or »

to select the preferred op-

tion (ATV, DTV, Radio or DATA).

5 Select the line »Channel« with

« or »

and use

« or »

to select the preferred

channel.

Note:

The line

»Channel« is only active when the in-

put signal currently in use has been set. If no

entry has been made, then the first channel of

the selected input source will be used.

ENGLISH

6 Select the line »Volume« with

« or »

and

use

« or »

to set the volume.

7 Select the line »Set Hour« with

« or »

and enter the time with »1…0«.

8 Save the data with »« (green).

Note:

You can abort the entry by pressing

»« (red)

9 Press »MENU« to end the setting.

Switch-off timer

In the »Auto Off« menu, you can enter a time

for the television to switch off. After this time has

elapsed, the television switches to standby mode.

1 Select the line

»Auto Off«

with

« or »

and press »OK« to confirm

2 Select the line »Mode« with

« or »

and

use

« or »

to set the preferred mode.

3 Select the line »Set Hour« with

« or »

and enter the time with »1…0«.

4 Save the data with »« (green).

Note:

You can abort the entry by pressing »«

(red).

5 Press »MENU« to end the setting.

Automatic switch-off (Auto Sleep)

If this function is activated, the television switches

automatically to standby after 5 minutes if no

video signal is broadcast or in accordance with

the according to European regulations, the tel-

evision switches automatically to standby after 4

hours provided that none of the buttons on the

remote control or on the television is operated

during this period.

1 Select the line »Auto Sleep« with »

« or

«.

2 Activate the function with »

« or »

(»On«).

Note:

7 To switch off the function, use »

« or »

« to

select the setting »Off«.

3 Press »MENU« to end the setting.

CONVENIENCE FUNCTIONS ------------------------------------------------------------------------

Parental control settings

Authorising programmes

There are films which may be wholly or partially

unsuitable for children.

These programmes contain information which

marks the content or scenes with access levels of

4 to 18. You can select one of the access levels,

thereby authorising playback.

1 Select the line »Parental Guidance« with

« or »

« and press »OK« to confirm.

2 Enter the PIN code »1234« with »1 ... 0«.

3 Select the access level with »

« or »

«.

4 Press »MENU« to end the setting.

Note:

7 Parental Guidance is not enabled at USB

source.

Locking menus

This function allows you to lock the »Automatic

Channel Search«, »Digital Manual Tuning«, »An-

tenna Settings« and »Program Table« menus so

that they can be only accessed by entering a

PIN code.

1 Select »Menu Lock« with »

« or »

«.

2 Enter the PIN code »1234« with »1 ... 0«.

3 Activate the lock with »

« or »

« (»On«).

4 Press »MENU« to end the setting.

Locking keys (Parental lock)

When the key lock is activated, the buttons on

the television set do not function.

1 Select the line »Keypad Lock« with »

« or

«.

2 Enter the PIN code »1234« with »1 ... 0«.

3 Activate (On) or deactivate (Off) the key lock

with »

« or »

«.

4 Press »MENU« to end the setting.

ENGLISH

CONVENIENCE FUNCTIONS ------------------------------------------------------------------------

Changing the PIN code

You can also enter a personal PIN code instead

of the default code »1234«. Please take note of

your own PIN code.

1 Select »Set PIN« with »

« or »

« and press

»OK« to confirm.

Enter the current PIN code 1 2 3 4 with

»1 ... 0«.

Enter your new four digit PIN code with

»1 ... 0«.

Enter your new four digit PIN code with

»1 ... 0« again.

5 Press »MENU« to end the setting.

Locking television channels

You can lock individual television channels, for

example channels unsuitable for children, using

a personal PIN code.

1 Open the menu with »MENU«.

2 Select the »SOURCE SETUP« menu with »

or »

« and press »OK« to confirm.

3 Select the line »Program Table« with »

« or

« and press »OK« to confirm.

– The »PROGRAM TABLE« menu is dis-

played.

4 In the »PROGRAM TABLE« menu, switch

over to the list view with »« (yellow).

5 Select the channel to be locked with »

or »

«.

6 Select the column »Lock« with »

« or »

and press »OK« to lock the channel.

7 Enter the PIN code »1234« with »1 ... 0«.

– The channel is marked using »✔«.

Note:

To remove the lock, select the channel again

with »

« or »

«, press »OK« to confirm

and then enter the PIN code 1 2 3 4 using

»1 ... 0«.

Updating software

(for digital channels only)

1 In the »SETTINGS« menu, select the line

»Check For Updates updates« with »

« or

« and press »OK« to confirm.

– A search for new software will be made

and – if available – it will be installed.

Note:

7 If a search for software updates should be

made automatically, select the line »Auto-

matic OAD« with »

« or »

« and use »

or »

« to select the option »On«.

– The software will be updated automati-

cally as far as possible.

2 Press »MENU« to end the setting.

Restoring the television to the

default settings

This function allows you to delete the channel

lists and all custom settings.

1 In the »SETTINGS« menu, select the line

»Restore Factory Defaults« with »

« or »

and press »OK« to confirm.

2 Press »

« (green) to confirm the warning

message.

– The »Source Setup« menu appears.

3 Continue the settings with the chapter “Initial

set-up and tuning television channels” on

page 14.

ENGLISH

DIGI LINK

Your television is equipped with

the DIGI LINK function.

This function uses the CEC

(Consumer Electronics Control)

protocol.

CEC allows external devices which are connect-

ed to the »HDMI« sockets by an HDMI cable

(e.g. DVD player) to be operated with a remote

control.

Prerequisite is that the devices connected support

CEC. Read the operating manual for the external

device to find out how to activate the correspond-

ing function.

The DIGI LINK functions on your

television

Switching on the television

automatically from standby

If the »Autom. switch-on TV« function is activated

(»On«), then once the external device (e.g.

DVD player) is switched on, the television also

switches on and the appropriate HDMI preset is

selected.

Automatic selection of the HDMI

preset on the television

If your television is switched on and you then

switch on the external device (e.g. DVD player),

the appropriate HDMI preset on the television

will be selected.

Selecting the menu language

The television menu language is automatically

selected on the external device (e.g. DVD player).

The external device must support this function.

Switching off the external device

automatically

If you switch your television to standby, the ex-

ternal device (if it is switched on) will also be

switched to standby.

DIGI LINK is always active on your television set.

OPERATION USING EXTERNAL DEVICES -----------------------------

Searching for and activating

external devices

You can connect up to 11 devices with DIGI LINK

functions to your television.

1 Open the CEC device list with »CEC«.

– The »HDMI CEC Device List« appears.

2 Start the device search with »« (red).

–

The devices found are displayed in the

menu.

3 Select the device for operation with »

«,

«, »

« or »

« and press »OK« to mark it.

– If the selected device is connected to a

different input to the current one, a switch

to the respective input will occur auto-

matically.

4 Press »MENU« to end the setting.

ENGLISH

OPERATION USING EXTERNAL DEVICES -----------------------------

Device operation

You can decide whether external devices should

react to your television's remote control.

1 Press » «, use »

«, »

« or »

« to

select the preset »HDMI1« to »HDMI4« and

press »OK« to confirm.

2 Open the menu with »MENU«.

3 Select the menu item »SOURCE SETUP« with

« or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

4 Select the line »Remote Control« with »

or »

«.

5 Select the type of operation (»RC Pass-

through«, »Deck« or »Tuner« with »

« or

«.

Notes:

»RC Passthrough« can be used for all devices.

»Deck« and »Tuner« can be selected in ac-

cordance with the external device which

has been connected.

Try out which type of remote control opera-

tion the external device reacts to the best.

Read about the scope of functions of the

DIGILINK-compatible device in the respec-

tive operating manual.

6 Press »MENU« to end the setting.

Switching the device to standby

This option switches the external device to

standby.

1 Press » «, use »

«, »

« or »

« to

select the preset »HDMI1« to »HDMI4« and

press »OK« to confirm.

2 Open the menu with »MENU«.

3 Select the menu item »SOURCE SETUP« with

« or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

4 Select »Device Standby« with »

« or »

and press »OK« to confirm.

– The external device switches itself off.

Source HDMI1

Device Selection GRUNDIG DVD

Remote Control RC Passthrough

Device Standby

Exit

Back

SOURCE SETUP

DIGILINK

20.09.2010

15:46

ENGLISH

OPERATION USING EXTERNAL DEVICES -----------------------------

High definition HD ready

Connect the cor-

responding input

sources (e.g. HDTV

receiver or HD-

DVD player) to the

»HDMI« sockets (for

digital HDTV sources).

This ensures that you can view digital HDTV

programmes, even if they are copy-protected

(HDCP High Bandwidth Digital Content Protec-

tion), without encountering problems.

ENGLISH

Connection options

Which television socket(s) you connect your

external devices to depends on the sockets

the external device is equipped with and the

signals which are available.

Please note: With many external devices,

the resolution of the video signal must be

adjusted to the input sockets of the television

(see the operating manual of the external

device). You can find out which values you

need to set by referring to the guidelines in

the sections about the various connection

options.

Do not connect any other equipment while

the device is switched on. Also switch off the

other equipment before connecting it.

Do not plug in the power cord of the device

until you have connected the external equip-

ment and the antenna.

Connecting external devices

... with digital audio/video signals

Suitable devices: Digital satellite receivers,

Playstation, BluRay player, DVD player/

recorder, set-top box, notebook, PCs.

Video signal: Digital video; resolution: stand-

ard 576p; HDTV 720p, 1080i, 1080p.

Audio signal: digital audio (stereo, multi-chan-

nel compression, uncompressed).

Presets »HDMI 1«, »HDMI 2«, »HDMI 3« or

»HDMI4«.

Connect the »HDMI1«, »HDMI2«, »HDMI3«

or »HDMI4« socket on the television and the

corresponding HDMI socket on the external

device using a standard HDMI cable (digital

video and audio signal).

... with analogue video signal

(progressive)

Suitable devices: DVD recorders/players,

games consoles.

Video signal: YUV; resolution: standard 576p;

HDTV 720p, 1080i, 1080p.

Audio signal: stereo, analogue.

»YPBPR« preset.

OPERATION USING EXTERNAL DEVICES -----------------------------

1 Connect the »COMPONENT Y Pb Pr«

sockets on the television to the correspond-

ing sockets of the external device with RCA

cables (video signal).

2 Connect the »COMPONENT L R« sockets

on the television to the corresponding sock-

ets of the external device with RCA cables

(audio signal).

ENGLISH

OPERATION USING EXTERNAL DEVICES -----------------------------

... using the SCART socket

(FBAS/RGB signal)

Suitable devices: Digital satellite receiver,

DVD player/recorder, set-top box, games con-

sole, video recorder, decoder.

Video signal: FBAS/RGB.

Audio signal: stereo, analogue.

»AV1« preset.

1 Connect the »AV1« socket on the television and

the corresponding socket on the external device

using a SCART cable (video and audio signal).

Activating a decoder

If a decoder is connected to the »AV1« socket,

this must be activated to provide an unencrypted

video/audio signal.

1 Open the menu with »MENU«.

2 Select »SETTINGS« with »

« or »

« and

press »OK« to confirm.

– The »SETTINGS« menu appears.

3 Select the »Decoder« with »

« or »

«.

4 Activate the function with »

« or »

(»On«).

5 Press »MENU« to end the setting.

... with S-Video signal

Suitable devices: DVD player/recorder, video

recorder, camera recorder, notebook, PC.

Video signal: Y/C.

Audio signal: stereo, analogue.

»S-VHS« preset.

1 Connect the »S-VHS« socket on the televi-

sion and the corresponding socket on the ex-

ternal device using an S-Video cable (video

signal).

2 Connect the »L R« sockets on the television

to the corresponding sockets of the external

device with RCA cables (audio signal).

... with an analogue TV signal

Suitable devices: Digital satellite receiver,

DVD player/recorder, set-top box, camera

recorder.

7 Video signal: FBAS.

7 Audio signal: stereo, analogue.

7 »AV2« preset.

1 Connect the »Video« socket on the television

to the corresponding socket of the external

device with an RCA cable (video signal).

2 Connect the »L R« sockets on the television

to the corresponding sockets of the external

device with RCA cables (audio signal).

Note:

There must not be a video signal at the

» Video« and »S-VHS« socket at the same

time. This could lead to picture disturbances.

ENGLISH

Using a DVD player,

DVD recorder, video recorder

or set-top box

1 Switch on the external device and select the

function you wish to use.

Press

» «

, use »

«, »

« or »

« to

select the preset for the input signal (»AV1«,

»AV2«, »S-VHS«, »HDMI1«, »HDMI2«,

»HDMI3«, »HDMI4« or »Component«)

and press

»OK«

to confirm.

Headphones

Connecting the headphones

1 Plug the headphone jack (3.5 mm ø jack

plug) into the headphone socket on the right

side of the television.

Changing the headphone volume

1 Open the menu with »MENU«.

2 Select the menu item »SOUND SETTINGS«

with »

« or »

« and press »OK« to con-

firm.

– The »SOUND SETTINGS« menu ap-

pears.

3 Select the line »Headphone« with »

« or

«.

4 Set the preferred volume with »

« and »

«.

5 Press »MENU« to end the setting.

Note:

Prolonged listening with headphones at loud

volumes can damage your hearing.

OPERATION USING EXTERNAL DEVICES -----------------------------

Hi-fi system/AV receiver

Connecting the hi-fi system/

AV receiver

1 Connect the »Optical Out« socket on the

television to the corresponding socket of the

device with an optical digital cable (digital

audio signal);

connect the »SPDIF« socket on the television

to the corresponding socket of the AV receiv-

er with an RCA cable (digital audio signal).

Setting the audio format

You can select whether the audio signal out-

put via the »Optical Out« or »SPDIF« socket

should be in the PCM or AC2 format.

1 Open the menu with »MENU«.

2 Select the menu item »SOUND SETTINGS«

with »

« or »

« and press »OK« to con-

firm.

– The »SOUND SETTINGS« menu appears.

3 Select »Audio Output Setup« with »

« or

« and press »OK« to confirm.

– The menu appears.

4 Select the »SPDIF output« with »

« or »

«.

5 Select the preferred audio format (»PCM« or

»Dolby* D«) with »

« or »

«.

Note:

If you wish to output the audio only via a

multi-channel amplifier/AV receiver, set the

option »TV Speaker« to »Off« in the menu.

6 Press »MENU« to end the setting.

* “Dolby” and the double-D logo are trademarks of

Dolby Laboratories.

Manufactured under licence from Dolby Laborato-

ries.

ENGLISH

Connecting a PC

1 Connect the »PC-IN« socket on the television

to the corresponding socket on the PC using

a VGA cable (video signal).

2 Connect the »PC Audio« socket on the tel-

evision to the corresponding socket on the

PC using a suitable cable (audio signal).

Note:

7 Adjust your PC to the monitor (for example,

picture resolution 1280 x 768, picture fre-

quency 60 Hz).

Selecting presets for the PC

1 Press » « and use »

«, »

« or »

to select the preset »PC« and press »OK« to

confirm.

Settings for PC mode

1 Open the menu with »MENU«.

2 Select the »SOURCE SETUP« menu item with

« or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the function or setting with »

« or

«, and then use »

«, »

« or »

«, »

« to

implement it.

OPERATION AS A PC MONITOR ----------------------------------------------------------

Options:

–

»Auto Ajust« for automatic PC configura-

tion.

– »Auto

Ajust

Mode«, select the option

»On« if the configuration should be imple-

mented automatically in PC mode.

– »Position« to configure the horizontal and

vertical picture position.

– »Size« to set the cycle frequency.

– »Phase« to eliminate flicker, unfocused

pictures or horizontal interference.

4 Press »MENU« to end the setting.

Source PC

Position

Auto Ajust

Auto

Ajust

Mode On

Size

Phase

Exit

Back

SOURCE SETUP

Extended settings

50H - 50V

20.09.2010

15:46

ENGLISH

OPERATION WITH A COMMON INTERFACE ------------------

What is a Common Interface?

7 Common Interface (CI) is an interface for

DVB receivers.

7 Encrypted channels can only be viewed

with a CA module suitable for the encryp-

tion system and in conjunction with the

corresponding smart card.

7 The television set is equipped with a Com-

mon Interface slot into which CI modules

from various providers can be inserted.

7 You can insert the provider’s smart card into

the CA module in order to enable the en-

crypted channels you wish to view.

Inserting the CA module

Note:

Switch the device off before you insert a CA

module into the »CI« slot.

1 Insert the corresponding smart card into the

CI module.

2 Insert the CI module with the smart card into

the »CI« slot on the television.

Note:

In the »CA Module« sub-menu you can see

which CA module has been inserted in the

CI slot.

7 If you are inserting a CA module into the

CI slot of the television for the first time,

you will need to wait a moment until the

CA module is detected.

Access control for CI module and

smart card

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »CA-Module« with »

« or

« and press »OK« to confirm.

Notes:

This menu provides operating instructions

and – after you enter your PIN code – ac-

cess to the PAY-TV provider's channels.

The remaining settings are described in the

operating manuals for your CI module and

smart card.

CAM is not supported in certain countries

and regions; please consult your authorised

dealer.

4 Press »MENU« to end the setting.

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Searching for digital television

channels from a satellite auto-

matically

Satellite data changes frequently, new chan-

nels are constantly being added. You should

therefore perform an automatic search from time

to time.

This searches all transponders for new channels.

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

« or »

and press »OK« to confirm.

Select the input source »Satellite« with »

«,

«, »

« or »

« and press »OK« to con-

firm.

4 Select the line »Automatic Channel Search«

with »

« or »

« and press »OK« to con-

firm.

– The menu appears.

5 Select the line »Select Satellites« with »

« or

« and press »OK« to confirm.

– The »SELECT SATELLITE« menu appears.

6 Select a satellite with »

« or »

« and press

»OK« to confirm.

7 Select the line »Scan Mode« with »

« or

«.

Select the scan mode with »<« or »>«

(for unencrypted channels, for encrypted

channels only, or both).

8 Select the line »Service Type« with »

« or

«.

Use »<« or »>« to select whether you

want to search for television channels (TV)

only, radio stations only (Radio) or both

(Radio + TV).

9 Select the line »Network Search« with »

or »

«.

Select the option »On« with »<« or »>«

– If the »Network Search« is set to »On«,

the data will be accessed via the new

transponder of the network which has

been set.

10 Start the scan with »« (red).

Note:

If the previously stored channels should be

retained in the channel list and the new

channels found be added to it, then press

»« (green).

If »« (red) is pressed, the saved channels

will be deleted from the current channel list.

– The »Results« menu appears, and the scan

for TV channels begins.

– Depending on the number of television

channels received, this can easily take a

few minutes.

– The search is complete as soon as the

»PROGRAM TABLE« appears.

Note:

You can abort the search by pressing

»MENU«.

11 Press »MENU« to end the setting.

Source Satellite

Automatic Channel Search

Antenna Settings

Signal Information

Digital Manual Tuning

Program Table

CA -Module

Exit

Back

SOURCE SETUP

DiSEqC 1.2

Off

Positioner settings

20.09.2010

15:46

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Searching for digital television

channels from a satellite auto-

matically

If you know the parameters of a new television

channel, you can also search for it manually.

Current transponder data can be found in the

teletext, in satellite TV magazines or on the

Internet.

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select »Digital Manual Tuning « with »

« or

« and press »OK« to confirm.

– The menu appears.

4 Select the line required for the parameters

with »

« or »

«.

– »Frequency (MHz)«: Enter the five-digit

frequency with »1 ... 0« .

– »Symbol Rate (kS/s)«: Enter the five-digit

symbol rate with »1 ... 0« .

– »Polarization«: Use »

« or »

« to set the

polarisation to »Horizontal« or »Vertical«.

– »Network Search«: use »

« or »

« to se-

lect the option »On« or »Off«.

– »Scan Mode«: Use »<« or »>« to select

whether you want to search for unencrypt-

ed (Unencrypted) channels only, encrypt-

ed (Encrypted) channels only, or for both

(Unencrypted + Encrypted).

– »Service Type«: Use »<« or »>« to select

whether you want to search for television

channels only (TV), radio stations only

(Radio), or both (Radio + TV).

5 Start the scan with »« (red).

– The »Results« menu appears, and the scan

for TV channels begins.

Note:

You can abort the search by pressing

»MENU«.

6 Press »MENU« to end the setting.

LNB settings

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select »Antenna Settings« with »

« or »

and press »OK« to confirm.

– The »ANTENNA SETTINGS« menu ap-

pears.

4 Select the line required for the parameters

with »

« or »

«.

– »Satellite«: »Press OK«, select a satellite

with »

«, »

« or »

« and press

»OK« to confirm.

– »Transponder«: »Press OK«, select a tran-

sponder with »

«, »

« or »

« and

press »OK« to confirm. Use »« (red) to

add a transponder, use »« (green) to

delete it, or use »« (yellow) to change

transponder data.

– »LNB Power«: Set the LNB power supply

(depending on the type of LNB) to »Off«

»13/18 V« or »14/19 V« with »

« or »

«.

– »LNB Type«: Select a type of LNB with »

or »

«. Use »« (green) to save the set-

ting, or use »« (red) to abort.

– »22 KHz«: Depending on the LNB type,

22 kHz audio is selected. For a universal

LNB, this option is set to »Auto« and cannot

be changed.

– »DISEqC mode« and »LNB selection«:

depending on the type of antenna used,

use »

« or »

« select the option »Off«,

»DiSEqC 1.0« or »DiSEqC 1.1«.

»Off«: for a satellite system with only

one antenna.

» DiSEqC 1.0«: allows up to four satel-

lites to be received simultaneously.

Under »LNB selection«, use »

« or

« to select the option »1/4«, »2/4«,

»3/4« or »4/4«.

» DiSEqC 1.1«: allows up to 16 satel-

lites to be received simultaneously.

Under »LNB selection«, use »

« or

« to select the option »1/16« to

»16/16«.

5 Press »MENU« to end the setting.

ENGLISH

Settings for motorised antennas

(DiSEqC 1.2)

Your television set supports motorised satellite

systems in compliance with DiSEqC 1.2. This

function allows the satellite antenna to be oper-

ated via the television set.

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »DiSEqC 1.2« with »

or »

«. Select the option »On« with »

or »

– The line »User Mode« is active.

Note:

Additional operations are explained in the

following sections.

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

User mode

You can adjust the alignment of the satellite an-

tenna to each individual satellite. These settings

will be saved so that the antenna can later be

easily guided to each saved alignment.

1 Select the line »User mode« with »

or »

« and press »OK« to confirm.

– The »USER MODE« menu appears.

2 Select the preferred option with »

or »

«.

– »Satellite«: »Press OK«, select a satellite

with »

«, »

« or »

« and press

»OK« to confirm.

– »Transponder«: »Press OK«, select the

transponder from which the signal is being

received with »

«, »

« or »

« and

press »OK« to confirm.

– »Moving Mode«: Use »

« or »

« to select

the option »Discrete« or »Continuous«.

– »Discrete«: Moves the antenna in defined

steps to the west and the east.

– »Continuous«: Moves the antenna to the

west or east continuously.

– »Step Size«: Use »

« or »

« to select the

number of steps with which the antenna

should turn. »Step Size« is only active

when the »Transport Mode« was set to

»Discrete«.

– »Move Motor«: Aligns the antenna with

the selected satellite. Use »

« to align it to

»West«, use »

« to align it to »East«.

– »Go To Stored Position«: Aligns the antenna

to a saved satellite position. Up to 50 posi-

tions can be saved. »Press OK« and then

select the saved position with »

« or »

«.

Press »« (green) to confirm – the anten-

na will be aligned with the saved position.

– »Store Stored Position«: The current anten-

na alignment is saved.

3 Press »MENU« to end the setting.

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Expert mode

You can restrict the antenna's range or reset

the antenna.

1 Select the line »Installer Mode« with »

« or

« and press »OK« to confirm.

– The »INSTALLER MODE« menu appears.

2 Select the preferred option with »

or »

«.

– »Limit Position«: Defines the range in

which the antenna may move. Use »

to set the western limit, use »

« to set the

eastern limit.

– »Move Motor«: Aligns the antenna with

the selected satellite. Use »

« to align the

antenna to »west«, use »

« to align the

antenna to »east«.

– »Go To Stored Position«: Press »OK« to

save the current antenna alignment.

– »Store Stored Position«: Aligns the antenna

with the reference point of the positioner.

– »Reset DiSEqC 1.2 Limit«: Resets the limit

position of the antenna.

Searching for television chan-

nels from the cable provider

automatically

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

or »

« and press »OK« to confirm.

Select the option »Cable« with »

«, »

«,

« or »

« and press »OK« to confirm.

4 Select the line »Automatic Channel Scan«

with »

« or »

« and press »OK« to con-

firm.

– The menu appears.

5 Select the line »Country« with »

« or »

and press »OK« to confirm. In the country se-

lection menu, select the country with »

«, »

«,

« or »

« and press »OK« to confirm.

6 Select the line »Scan Typ« with »

« or »

and set the option »DTV« with »

« or »

«.

7 Select the line »Cable Scan Type« with »

or »

« and set the option »Quick« or »Full«

with »

« or »

«.

– The search function »Quick« sets the chan-

nels according to the information provided

by your cable provide in the transmission

signal.

– If the option »Full« is selected, the entire fre-

quency range will be scanned. The search

can take a long time with this option. This

option is recommended if your cable pro-

vider does not support the search type

»Quick«

Note:

7 You can accelerate the search. To do this,

you need information about the frequency

and

network ID. You are usually able to get

this data from your cable operator or find it

in forums on the Internet. For example, the

frequency 402MHz and network ID 61441

can be entered for Germany.

ENGLISH

8 Start the scan with »« (red).

– All channel and favourites lists will be

deleted and compiled anew.

Note:

After starting the scan, a security query will

appear. Press »« (green) to confirm the

option »Yes«.

– The »Results« menu appears, and the scan

for TV channels begins. Depending on the

number of television channels received,

this can easily take a few minutes.

– The scan is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the search by pressing

»MENU«.

9 Press »MENU« to end the setting.

Searching for television channels

from the cable provider manu-

ally

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

« or »

and press »OK« to confirm.

Select the option »Cable« with »

«, »

«,

« or »

« and press »OK« to confirm.

4 Select » Digital Manual Tuning« with »

« or

« and press »OK« to confirm.

– The menu appears.

5 Enter the four-digit frequency with »1 ... 0«

and press »OK« to confirm.

–

The search starts after confirming, the

channels found are displayed in the »Re-

sults« menu.

6 Press »MENU« to finish the setting.

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Searching for digital terrestrial

TV channels automatically

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

or »

« and press »OK« to confirm.

Select the option »Air« with »

«, »

« or

« and press »OK« to confirm.

Caution:

The antenna power supply (line »Active

Antenna Power«) may only be switched on

if the antenna is an active indoor antenna

with a signal amplifier and it is not already

supplied with a voltage via a mains plug

(or similar supply). Otherwise you may

cause a short circuit and irreparably dam-

age your antenna.

4 Select the »Active Antenna Power« with »

or »

«. Switch on the antenna power supply

for the antenna with »

« or »

« (»On«).

5 Select the line »Automatic Channel Search«

with »

« or »

« and press »OK« to con-

firm.

– The menu appears.

6 Select the line »Country« with »

« or »

and press »OK« to confirm. In the country

selection menu, select the country with »

«,

«, »

« or »

« and press »OK« to confirm.

7 Select the line »Scan Typ« with »

« or »

and set the option »DTV« with »

« or »

«.

8 Start the scan with »« (red).

– All channel and favourites lists will be

deleted and compiled anew.

Note:

After starting the scan, a security query will

appear. Press »« (green) to confirm the

option »Yes«.

– The »Reults« menu appears, and the scan

for TV channels begins. Depending on the

number of television channels received,

this can easily take a few minutes.

– The scan is complete as soon as the

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

»PROGRAM TABLE« appears.

Note:

You can abort the search by pressing

»MENU«.

9 Press »MENU« to end the setting.

Searching for digital terrestrial

TV channels manually

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

« or »

and press »OK« to confirm.

Select the option »Air« with »

«, »

« or

« and press »OK« to confirm.

Caution:

The antenna power supply (line »Active

Antenna Power«) may only be switched on

if the antenna is an active indoor antenna

with a signal amplifier and it is not already

supplied with a voltage via a mains plug

(or similar supply). Otherwise you may

cause a short circuit and irreparably dam-

age your antenna.

4 Select the »Active Antenna Power«« with »

or »

«. Switch on the antenna power supply

for the antenna with »

« or »

« (»On«).

5 Select » Digital Manual Tuning« with »

« or

« and press »OK« to confirm.

– The menu appears.

Enter the channel number directly with

»1 ... 0« and press

»OK«

to confirm.

– After the search is complete, the channels

found are displayed in the »Results« menu.

7 Press »MENU« to finish the setting.

Tuning analogue television

channels

This setting is only necessary if you cannot re-

ceive any digital channels and you have not car-

ried out an analogue search during initial setup.

The television channels can be set directly or

using the scan.

Switching the television to

analogue reception

Note:

Analogue channels can be selected if the

option »Air« or »Cable« has been selected.

1 Open the »Select input source« menu with »

«.

2 Depending on the antenna system, select the

option »Air« or »Cable« with »

«, »

or »

« as the input source and press»OK«

to confirm.

Note:

Additional operations are explained in the

following sections.

Setting all analogue television

channels

Analogue channels are displayed in the channel

list after the digital channels.

Note:

Plug the rooftop antenna cable (for analogue

television channels) into the »ANT IN«

socket on the television.

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Source« with »

« or »

and press »OK« to confirm.

Select the option »Air« or »Cable« with »

«,

«, »

« or »

« and press »OK« to con-

firm.

4 Select the line »Automatic Channel Search«

with »

« or »

« and press »OK« to con-

firm.

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Tuning the television channels by

entering the channel numbers

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line » Analogue Manual Tuning«

with »

« or »

« and press »OK« to con-

firm.

– The menu appears.

4 Select the line »Program No« by pressing

« or »

« and use »

« or »

« to save the

5 Select the line »Country« with »

« or »

and press »OK« to confirm. In the country

selection menu, select the country with »

«,

«, »

« or »

« and press »OK« to confirm.

6 Select the line »Scan Typ« with »

« or »

and set the option »ATV« with »

« or »

«.

7 Start the scan with »« (red).

Note:

After starting the scan, a security query will

appear. Press »« (green) to confirm the

option »Yes«.

– All channel and favourites lists for the ana-

logue channels will be deleted and com-

piled anew.

– The »Results« menu appears, and the scan

for TV channels begins. Depending on the

number of television channels received,

this can easily take a few minutes.

– The search is complete as soon as the »PRO-

GRAM TABLE« appears.

Note:

You can abort the search by pressing

»MENU«.

8 Press »MENU« to end the setting.

preset.

5 Select »Band« by pressing »

« or »

« and

use »»

« or »

« to choose between »S«

(special channel) or »C« (normal channel).

6 Select the line »Channel« with »

« or »

and enter the channel number with »

« or

« step by step, or use »1…0« to enter it

directly.

Notes:

The current system is displayed in the

»System« line. If the colour or sound is

not functioning properly, select the line

»System« with »

« or »

«. Use »

« or »

to select the preferred setting.

Program No

TSystem

Band

Channel

Fine Tuning

INSTALLATION

ANALOGUE MANUAL TUNING

Auto Previous

Auto Next Store

48.25 MHz

Source Cabel

Automativ Channel Search

Analogue Manual Tuning

Signal Information

Digital Manual Tuning

Program Table

CA - Modul

Beenden

Zurück

SOURECE SETUP

20.09.2010

15:46

ENGLISH

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Changing stored analogue

channels

If channels were stored with the automatic chan-

nel search while tuning the television channels,

you can delete them. You can also store chan-

nels in a different preset, change or enter the

name of a channel as well as skip channels.

Selecting a channel list

Note:

Analogue channels can be selected if the

option »Air« or »Cable« has been selected.

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

– The »SOURCE SETUP« menu appears.

3 Select the line »Program Table« with »

« or

« and press »OK« to confirm.

– The »PROGRAME TABLE« menu appears.

Note:

Additional operations are explained in the

following sections.

Deleting channels

In the »

PROGRAME TABLE

« menu, select the

television channel to be deleted with

«,

«, »

« or »

« and press »« (red) to con-

firm.

2 Press »« (yellow) to confirm the deletion

process.

Note:

»« (blue) allows all television channels

to be deleted.

3 Press »« (green) to confirm the deletion

process.

If fine tuning is necessary, select the line

»Fine Tuning« with »

« or »

« and use »

or »

« to make the setting.

7 Press »« (blue) to save the setting.

Note:

If you wish to remedy other television

channels, repeat steps 4 to 8.

8 Press »MENU« to end the setting.

ENGLISH

Creating lists of favourites

You can select your favourite channels and

save them in up to four favourites lists (Fav 1 to

Fav 4).

1 In the »PROGRAME TABLE« menu, switch

over to the list view with »« (yellow).

Select the preferred channel with »

or »

«.

3 Use »

« or »

« to ”push“ the channel into

one of the favourites lists 1 to 4 and press

»OK« to confirm.

– The position in the favourites list is marked

with »✔«.

– You can enter the same channel in more

than one favourite list.

–

Each favourite list can store up to

255 channels.

Note:

Channels can also be deleted from favour-

ites lists. Select

the

channel to be deleted

with »

«, »

« or »

and delete it with

»OK«.



Exiting the settings

1 Press »MENU« to end the setting.

SPECIAL SETTINGS ----------------------------------------------------------------------------------------------------------

Entering channel names (8 digit

maximum)

1 In the »PROGRAME TABLE« menu, select the

television channel with »

«, »

« or

« and press »« (red) to confirm.

2 Mark the television channel with »«

(green).

3 Select the digits or letters with »

« or »

and use »

« or »

« for the next position, and

repeat the entry.

4 Save the channel name with »« (green).

Note:

If you wish to enter other channel names,

repeat steps 1 to 4.

Skipping television channels

You can highlight television channels to be

skipped when you select with »

« or »

«.

Selection is still possible using the number

buttons.

1 In the »PROGRAME TABLE« menu, switch over

to the list view with »« (yellow).

2 Select the preferred channel with »

or »

«.

3 Select the column »Skip« with »

« or »

and use »OK« to mark the channel.

– The channel is marked using »✔«.

Note:

Channels can also be reactivated. Select the

channel with »

« or »

«, then select the

column »Skip« and reactivate the channel

with »OK«.

ENGLISH

INFORMATION ---------------------------------------------------------------------------------------------------------------------

Displaying signal information

(for digital channels only)

1 Open the menu with »MENU«.

2 Select the line »SOURCE SETUP« with »

or »

« and press »OK« to confirm.

3 Select the line »Signal Information« with

« or »

« and press »OK« to confirm.

– Information on the channel, network,

modulation, symbol rate, quality and

signal strength is displayed.

Notes:

The signal information changes in ac cord-

ance with the current input source.

7 The signal properties are displayed in the

lower section of the menu. The further the

bars for »Quality« and »Signal Strenght«

extend to the right, the better the reception

signal.

7 The signal level not only depends on your

receiver system, but also on the channel

which is currently active. Remember this

when aligning your antenna based upon

the signal level display.

4 Press »MENU« to close the menu.

ENGLISH

INFORMATION ---------------------------------------------------------------------------------------------------------------------

GRUNDIG 26 VLE 8100 BG

Technical data

Operating voltage:

220–240 V,~, 50–60 Hz

Power consumption:

Operational 40 W

Standby <0.50 W

Energy Efficiency class:

Maximum power consumption:

Operational 75 W

Annual power consumption:

58 kWh

Audio output:

2 x 14 W music power output

2 x 7 Sine wave power

Rohs Limits: Pb (Lead)/Hg (Mercury)

Pb meets ROHS directive / 0 mg

Peak luminance ratio:

% 65

Default satellite:

LNB power supply:

13/18 V, 14/19 V optional, maximum 450 mA

LNB switching signal:

0/22 kHz 650mV +/- 250mVpp

DiSEqC:

1.0-operation, 1.1-operation, 1.2-operation

Digital reception ranges:

Satellite:

Ku band: 10,700 MHz – 12,750 MHz

Modulation: DVBS QPSK, DVBS2 QPSK,

8 PSK

IF band: 950 MHz – 2,150 MHz

Signal level: -25dBm to -65 dBm

Cable:

Overall band: 110 MHz – 862 MHz

Modulation: 16QAM, 32QAM, 64QAM,

128QAM and 256QAM

Symbol rate: 4.0 Msym/s to 7.0 Msym/s

Terrestrial:

VHF/UHF band, Bandwidth 7 MHz

and 8 MHz

COFDM modi: 2k and 8k

Constellation: 16QAM, 64QAM, QPSK

Analogue reception ranges:

C02 ... C80, special channels S01 ... S41

Preset channels:

TV/Radio 6000 (Satellite – DVB-S),

1000 (Cable – DVB-C) or

100 (Analogue)

1000 (Terrestrial – DVB-T) or

100 (Analogue)

9 AV, 2 USB

Screen (dm²):

Screen size:

66 cm/26 inch

Maximum resolution:

WXGA, 1366 x 768

Weight:

approx. 7 kg

Maße:

W H D 64,1 cm 41,2 cm 4,3 cm

Technical changes and errors reserved.

ENGLISH

Service information for retailers

Only operate the television

with the power supply/power

cord provided.

The product complies with the

following EU directives:

2006/95/EC directive on electrical equipment

for use within certain voltage limits.

2004/108/EC directive on electromagnetic

compatibility.

2009/125/EC directive on ecodesign require-

ments for energy-related products.

Environmental note

This product has been made

from high-quality parts and

materials which can be re-used

and recycled.

Therefore, do not dispose of the product along

with normal household waste at the end of its

service life. Take it to a collection point for the

recycling of electrical and electronic equipment.

Dispose of the used device at a collection point

for electrical and electronic equipment. The sym-

bol on the product, in the operating manual or

on the packaging indicates that recycling is pos-

sible.

Information on collection points is available from

your local authorities.

Help protect the environment by recycling used

products.

Note:

This is a Class A product. During operation

the device could cause radio interference.

In this case the user may have to remedy

this. Please contact your specialist dealer.

INFORMATION ---------------------------------------------------------------------------------------------------------------------

ENGLISH

INFORMATION ---------------------------------------------------------------------------------------------------------------------

Troubleshooting

If the information provided below does not help, please consult an authorised GRUNDIG dealer.

Please bear in mind that malfunctions can also be caused by external devices such as video recorders

or satellite receivers.

Problem Possible cause Remedy

Screen lit (snow), but no station

visible

Antenna cable Is the antenna cable connected?

No TV channel tuned Start a channel scan

Insuﬃcient contrast in picture The picture settings are not correct Adjust the brightness, contrast or colour

setting

Problem at station Try another channel

Picture and/or sound distorted Interference from other devices Place the device in a diﬀerent position

Ghosting, reﬂection Channel setting

Automatic or manual tuning/ﬁne tuning

Antenna

Have antenna cable or system checked

No colour Colour intensity too low Turn up the colour

Adjust TV standard (if setting option is

available)

Select the correct colour standard

Problem at station Try a diﬀerent channel

Picture but no sound Volume is set to a minimum Turn up or switch on the volume

Teletext impaired or absent Problem at station Try a diﬀerent channel

Television channel (no teletext)

or antenna system

Try with a diﬀerent TV channel,

carry out ﬁne tuning

Station signal too weak Check antenna

The remote control does

not work

Obstacle between remote control and

device.

Point remote control at television

Battery problem

Check batteries and replace if

necessary

Operating mode undeﬁned Switch oﬀ the television at the mains

switch for two minutes

Picture too dark in PC mode Incorrect setting for picture resolution

and picture frequency on the PC

Change settings on the PC

(e.g. 1280 x 768 resolution,

refresh rate 60 Hz)

Unable to discover DMS device DMS device is not turned on or started. Make sure that the DMS device is turned

on and started.

Network connection settings are not made. Check the network settings.

Poor picture quality (pixel) in

WLAN mode.

Poor WiFi signal due to sheelding of

the television set.

Connect the WiFi USB dongel with an

USB extension cable to the television set.

Place the WiFi USB dongle in this way

that the reception is not distored by the

television.

Grundig Lcd Tv 26 Vle 8100 Bg Users Manual

26 VLE 8100 BG to the manual 67abbfff-9a01-4f18-8f4e-02da8ba670e1

Navigation menu

Versions of this User Manual:

Views

Navigation
