Guangzhou Chicken Run Network Technology GAMESIR-G4S Game Controllers User Manual

Guangzhou Chicken Run Network Technology Co.,Ltd. Game Controllers Users Manual

User Manual

www.xiaoji.hk
QR CODE
Gamesir-G4s
Game Controllers
The Gamesir-G4s has Bluetooth connection mode. it applies to
the android device(above version4.0) and PC. This gamepad can identify all
the devices automatically, no need driver installation, button mapping setting
or root.
※Product Introduction
※Product Specifications
Product
Name Model No.
Gamesir-G4s
Working
Plaorms Android / PC
Working
Temp.
-20℃ ～ 65℃
Working
Humidity
20 ～80%
Working
Modes
Connecon
Types
Bluetooth
Charging
Voltage
5 V
baery
capacity
800 mAh
Charging
Current
A
Working
Distance within
8m
GiBox Size
Product Size Net Weight
264g(gamepad+rece-
iver+cable)
working
current approx. 66 mA
Gamesir Gamepad 4th Generaon -
Enhanced Edion
android standard / GCM / Xinput / Dinput
178 X 128 X 89 mm
155 X 102 X 65.5 mm
800m

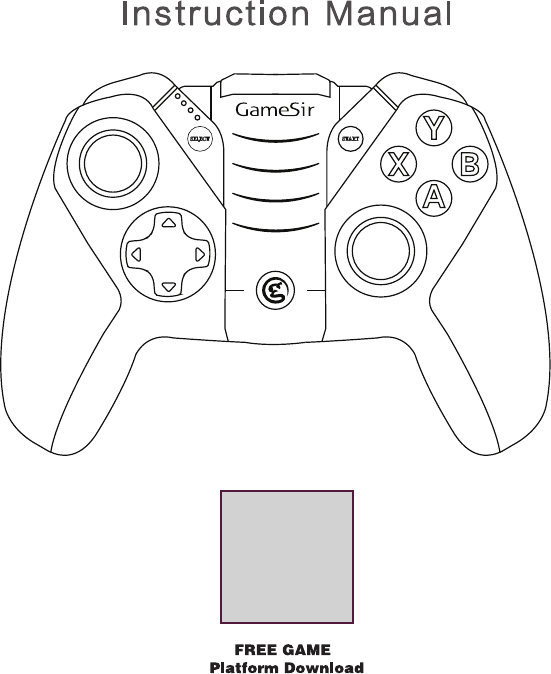

※Product Overview
L3 Button
（Left stick Click）
HOME Button
TURBO
CLEAR
USB receiver（pull back）
R3 Button
（Right stick Click）
STARTSELECT
Power indicator
D-PAD
Left Stick Right Stick
Stand(lift up)
L1 button R1 button
charging ports
L2 Button R2 Button
Y Button
X Button
B Button
A Button
Power On / Off
Power On
Press HOME buon for 2 seconds to start.
Power Off
Long press HOME buon for 5 seconds to power off.
Battery Indication
LED1-4 lights on: Above 75% remaining baery
LED1-3 lights on: 50%-75% remaining baery
LED1-2 lights on: 25%-50% remaining baery
Only LED1 light on：10%-25% remaining baery
LED1 light flashes：Less than 10% remaining baery
Charging Tips
Charge under connecon state
When connect the charging cable, LED1-4 flashes in turn, and all lights keep on
when fully charged.
※Product Functions
Sleeping Function
1.The gamepad enters sleep state aer 1-minute disconnecon.
2.The gamepad enters sleep state aer 5-minute no acon.
Adjust / Turn off the button lights
Pressing L2+R2+R3, and then press D-Pad Up/Down buons to adjust the buon lights
brightness.
Adjust gamepad vibration strength
Pressing turbo buon, then press D-Pad Up/Down buons to adjust the vibraon
strength.
※Gamepad Connection
Android Platform
Bluetooth GCM connection(Use for Happy Chick on smart phone, Android tablet
and smart TV)
a.Press HOME buon for 2 seconds to start the gamepad.
b.Open the Bluetooth on Android device.
c.Install and launch the Happy Chick,click gamepad icon to enter gamepad paring
interface.
d.Choose”Fast connect”. When “HOME” keeps blue light on means connect
successfully.
Bluetooth HID connection(Mainly use for playing android game on smart phone,
Android tablet and smart TV)
a.Open the Bluetooth on Android device.
b.Press A+HOME buon for 2 seconds to start the gamepad.
c.HOME indicator light turn green and flashes.
d.You can find “Gamesir-G4s” on the Bluetooth matching list of your Android device.
e.When “HOME” keeps green light on means connect successfully.
※Auto Reconnection
When device Bluetooth on and gamepad off
Press HOME buon for 2 seconds to start gamepad, the gamepad will reconnect with
device automacally.
When device Bluetooth off and gamepad on
Open the Bluetooth on device, the gamepad will reconnect with device.
※TURBO Function Introduction
TURBO is semi-automac, it can create one or more connuous buon press.
Setting Method
Press one or more buons (excluding D-pad, joyscks, SELECT, or START buons), and
then press " TURBO " buon to set TURBO funcon.
Clear TURBO
press the " CLEAR " buon to clear the TURBO.
Function
TURBO is used more in shoong games. Your fingers would easily get red if you
connuously press the same buon (shoong buon). With the TURBO, you can
connuous shoot by holding the shoong buon.
※Wired connection method
Connect the gamepad according to above instrucons, the gamepad enters wireless
pairing mode first, and connect with device by USB cable. (Androiddevice should
support OTG funcon if you want to use wired connecon)
When device Bluetooth off and gamepad off
Open the Bluetooth on device, press HOME buon for 2 seconds to start the gamepad,
the gamepad will reconnect with device automacally.
※Possible Problems
Why the gamepad can not be idenfied on computer?
1.Make sure your computer USB port is working.
2.USB voltage is not stable because of short power supply of computer.
3.Try another USB port.
4.Need to install X360 gamepad soware for systems below WinXP (including XP).
Why the gamepad does not work in games?
1.The game does not support gamepad.
2.Set the gamepad mode in the game before using.
Why the gamepad does not vibrate?
1. The game does not support vibraon
2. Vibraon funcon is not open in game seng.
Other
1. When the gamepad can not be turned on, it may be because of no baery, please
use USB cable to charge the gamepad.
2. When the gamepad was crashed or disconnected, please keep the device at effecve
distance, or reconnect.
3. Factory sengs reset: There is a small hole at the back of gamepad, press the hole
by using a needle to reset the factory sengs.
※Attention
1. Avoid strong vibraon, do not disassemble, refit or repair on your own.
2. Do not keep in humid, high temperature or soot place.
3. Avoid water or other liquid in gamepad, it may affect the performance of gamepad.
4. Keep away from fire, the built-in baery has danger of explosion.
5. Charging voltage is USB 3.7-5.5V DC supply (normal Android smart phone charging
power can be used)
6. Children should be under adult’s supervision to use this product.
7. Please contact the distributor or our aer-sale service staff if you have any quality
problem or suggesons.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifcations to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
