Guangzhou Netum Electronic Technology R1 barcode scanner User Manual Z 2 0
Guangzhou Netum Electronic Technology Co., Ltd. barcode scanner Z 2 0
User Manual
R
Bluetooth wireless communication
Built-in E2ROM memery
Can store 1000 pieces codes under store mode
Support Android, IOS and Windows
Capture barcode from paper and screen
Barcode Scanner Quick Start Guide
Packing list:
Barcode Scanner-1 pc
USB cable-1 pc
Bluetooth Receiver-1pc
Quick Start Guide -1 pc
*
*
*
*
Note: The device is not equipped with the charger,please
charge thedevicevia USB output charging equipment.
Bluetooth Barcode Scanner Overview
1.Operation mode
A)Basic Mode (HID) (Default)*
1) Store Mode
Netum bluetooth model integrates a high-performance processer with an effective decoding board,
combining a fast decoding speed. High precision and a high anti-interference ability in one device.
The device can easily read barcodes on paper and other surface.
No Software installation needed, connects to most devices. In this mode, the scanner interacts
with the device like a keyboard. Therefore, the scanner will work with Safari, Notes, and any
other applications that supports an active cursor.
Basic Mode (HID)
If you are heading for a working area which lies outside the Bluetooth signal range, you may
activate scanner’s store mode, following steps described below. Under this mode, all scanned data
will be stored directly into the buffer memory of the device.
Due to the fact that the data entries will be automatically wiped from the buffer memory during
upload, a data loss is possible when malfunctions occur during upload, e.g. if the working station
suffers a unanticipated system shut down.
An operation in store mode is strongly recommended under the following scenarios:
· During the scanning process, the device often leaves the Bluetooth signal range;
· Due to a high quantity of blocking objects, the Bluetooth signal’s stability can’t be ensured.

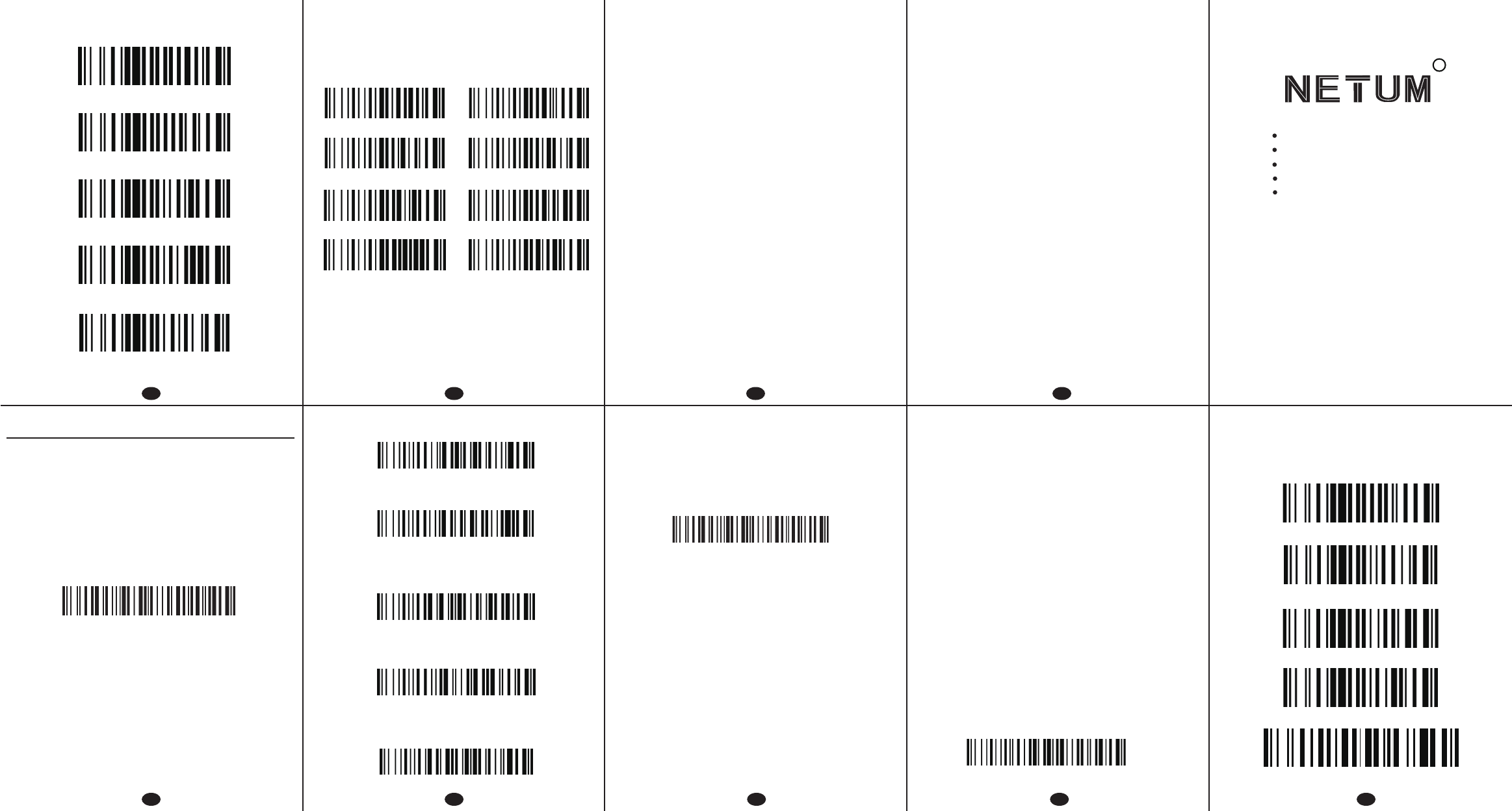

1-1)By scanning the following barcode, the store mode will be activated.
2) Normal Mode
Store Mode
1-2)By scanning the following barcode, all data in the buffer memory will be
deleted (only in store mode).
Clear All Data
1-3)By scanning the following barcode, all data entries in the buffer memory can
be manually uploaded after reconnecting to the working station (only in store
mode).
Manual Data Upload
1-4)By scanning the following barcode, the gross quantity of the uploaded data
entries will be summarised (only in store mode).
Summarising of uploaded data entry quantity
By scanning the following barcode, the device leaves the store mode, normal mode
will be reinitialised.
Normal Mode
Note: If you are in store mode and you want to shift it to HID mode you have to
first read “Normal Mode” then read “HID Mode”.
Software installation is required, If you have an application that supports mobile scanners this
is the mode recommended.
Note if you shift from HID Mode to SPP Mode , Bluetooth will disconnect it, and you need to
connect it again.
B)Application Mode (SPP)
For Android or Windows only
SPP Mode
2.Bluetooth Connection
Android: Connect Android Device in Basic Mode (HID)
1. Power on the scanner. Make sure the scanner is discoverable (unpaired).
2. Touch Home | Menu | Settings | Wireless & Networks | Bluetooth settings
3. Make sure the device has Bluetooth “On”. Scan for devices.
4. In the list of found devices, select “Netum Bluetooth”. Tap Pair.
5. The scanner will connect to the Android device.
6. The scanner will beep once after it has connected and is ready to scan barcodes.
Apple: Connect Apple iOS Device (HID)
1. Power on the scanner. Make sure the scanner is discoverable (unpaired).
2. Start a Bluetooth device search.
iOS: Tap Settings | General | Bluetooth. Turn on Bluetooth. A Bluetooth device search will begin.
3. In the device list, tap on “Netum Bluetooth”. Tap Pair.
4. The scanner will connect to the Apple device.
5. The scanner will beep once after it has connected and is ready to scan.
Note: To switch from one mode to the other you must remove te pairing information
from both devices-host device and the scanner.
Each time you power on the scanner, it will automatically try to connect to the last
device it was connected to.
Automatic Reconnections
Unpairing the scanner
• Make sure the device is in range with Bluetooth turned on.
• Pressing the trigger button will initiate the attempts to connect.
• If using Application Mode, make sure the Scanner-enabled Application is launched or
running.
• If a connection is made, the blue light will stop blinking and turn solid.
• If a connection is not made after several attempts, the scanner will emit a long beep (and the
blue light will turn off).
• Press the trigger button to re-initiate the connction process.
· Scan above code if the scanner is paired with a device, unpair it before trying to connect to a
different device
· Remove or forget the scanner from the Bluetooth list on the host device.
Important: Both above two points must be done to complete the unpairing.
Windows: Connect Windows PC(HID)
1.Power on the scanner. Make sure the scanner is discoverable (unpaired).
2. Use your computer’s Bluetooth Settings to connect to the scanner.
3. Open Devices and Printers and select “Add a device”.
3. In the device list, select “Netum Bluetooth”. Click Next.
4. If a passkey is requested, enter 0000 (four zeroes). Click OK. Or Pair Now.
5. Follow the remaining screens to complete the wizard.
Unpairing the scanner
· Select your keyboard language
· Scan the relevant keyboard codes.
· Then you can change you pc language as selected.
French Keyboard
TurkeyQ Keyboard
Portugal Keyboard
Czech Keyboard
UK Keyboard
3. Keyboard Language Setting
German Keyboard
TurkeyF Keyboard
Spain Keyboard
Italy Keyboard
America Keyboard
30s
3min 6min
60s
4.Interval time between scanner power on and turn off
12min 30min
1hour 2hour
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved
by manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Contact Information:
China
Tel.: +0086 20-6626-0708
Email: service@gzxlscan.com
Web: www.gzxlscan.com
Addr.: Unit 137, The Pacific Industry Park, Xintang Town, Zengcheng
District, Guangzhou, China/511340
Made in China
5. Support
For any inquiries or comments concerning our products, please send an email to
service@gzxlscan.com Digital manuals are available for downloading from our official
website.
