Features
-2-
Thanks for your purchase of our product. Please read through this manual before making
connections and operating this product. Retain this manual for future reference.
Bluetooth playback
AUX input
With USB charging for external device function
Note:The bluetooth speakr will turn to standby mode after 15 minutes in the absence of no source
status,standby power is less than 0.5W.

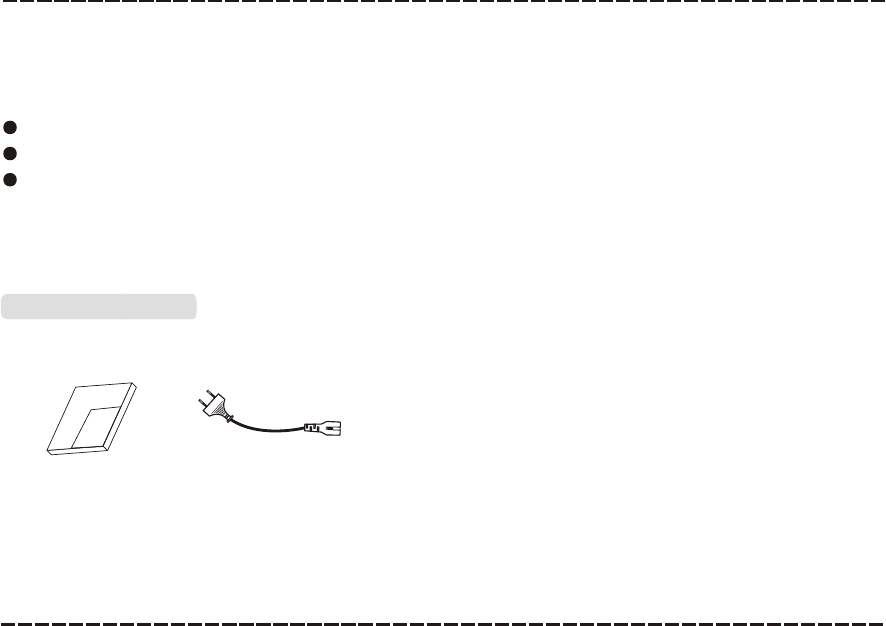

Package Contents:
User manual
User manual
AC power cord
For Your Attention
-3-
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Read these instructions – All the safety and operating instructions should be read
before this product is operated.
Keep these instructions – The safety and operating instructions should be retained
for future reference.
Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
Follow all instructions – All operating and use instructions should be followed.
Do not use this apparatus near water – The appliance should not be used near
water or moisture – for example, in a wet basement or near a swimming pool, and
the like.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacture's
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding plug. A polarized
plug has two blades with one wider than the other. A grounding plug has two
blades and a third grounding prong. The wide blade or the third prong is provided
for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart or rack is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
For Your Attention
-4-
12.
13.
14.
15.
16.
.
Unplug the apparatus during lightning storms or when unused for long periods of
time.
Unplug the apparatus during lightning storms or when unused for long periods of
time.
Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus has
been exposed to rain or moisture, does not operate normally, or has been
dropped.
WARNING：Please refer the information on exterior bottom enclosure for
electrical and safety information before installing or operating the apparatus.
WARNING：To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or
splashing and that objects filled with liquids, such as vases, shall not be placed
on apparatus
WARNING: The mains plug is used as disconnect device, the disconnect device
shall remain readily operable.
18. This equipment is a Class II or double insulated electrical appliance. It has
been designed in such a way that it does not require a safety connection to
electrical earth.
17
0- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
0- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
19.- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or back) as
there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance instructions in the
literature accompanying the appliance.
-4-
For Your Attention
means that your electrical and electronic equipment should
be desposed at the end of its life separately from your
household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or
your retailer where you purchased the product.

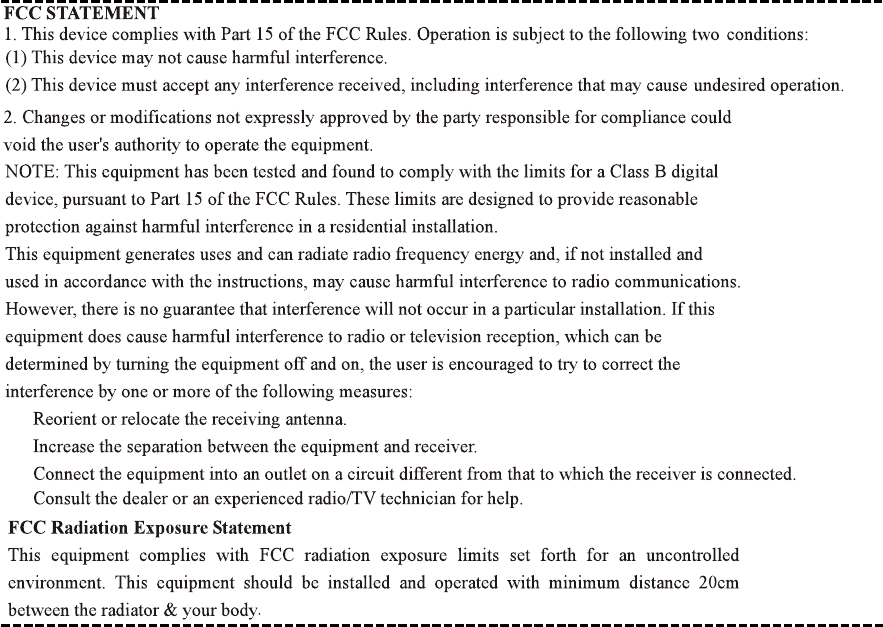

Industry Canada Notice
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference,and
(2)this device must accept any interference, including interference that may cause
Undesired operation of the device.
This Class B digital apparatus complies with Canada ICE-003.
IC:255A-Happy Plugs Medium
CAN ICES-3(B)/NMB-3(B)
-5-
For Your Attention
- French:
Le présent appareil est conforme aux CNR d'Industrie
(1) l'appareil ne doit pas produire de brouillage, et
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes :
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement."

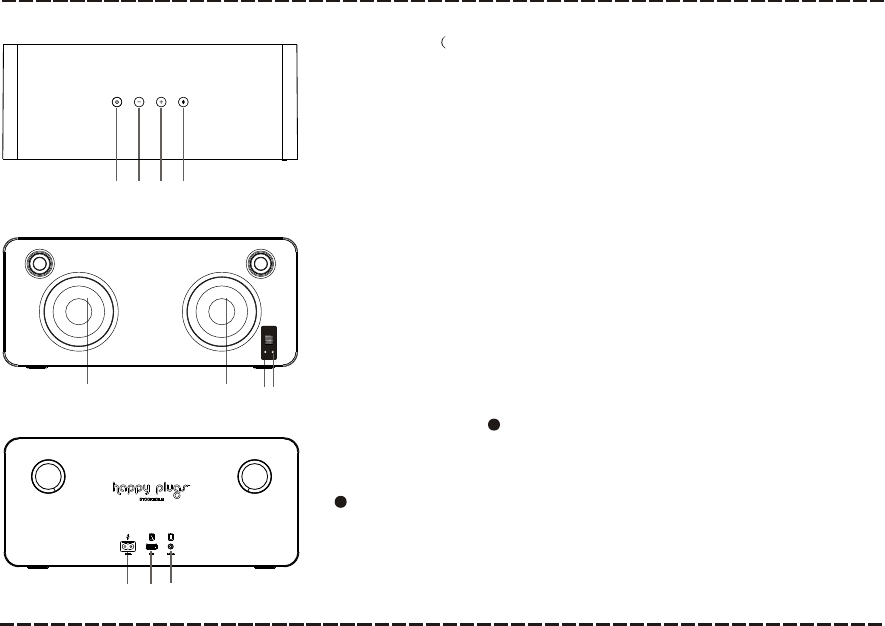

Panel
-6-
1. STANDBY press to power on,hold down to standby in power on status)
2. VOLUME- (press to turn down the volume)
3. VOLUME+ ( press to turn up the volume)
4. BLUETOOTH (press repeatedly to switch between BLUETOOTH
and AUX IN mode,when switch to bluetooth mode,the bluetooth speaker
will emit the voice of Bluetooth Mode,Pairing Device,when switch to AUX
in mode,the bluetooth speaker emit the voice of Cable Mode.hold down to
disconnect bluetooth connection)
1. POWER CORD SOCKET
2. USB SLOT (Note: Use the USB cable to connect the USB slot of the
player to other device input terminals to charge battery ,likes mobile
phone, etc no matter the speaker power on or standby mode status.)
There is no connection with the speaker after 10~15 minutes (no AUX
input, USB charge or bluetooth connection), the speaker will turn to
standby mode automatically and the standby red indicator light, press
[STANDBY] to wake up the speaker.
3. AUX IN(3.5mm)
FRONT PANEL:
123
4
REAR PANEL:
1
23
TOP PANEL:
13
1
1. SPEAKER
2. STANDBY INDICATOR(standby mode in red indicator)
3. BLUETOOTH/AUX IN INDICATOR
(Bluetooth mode in blue indicator,Aux in mode in solid yellow indicator.)
2
Connections
-7-

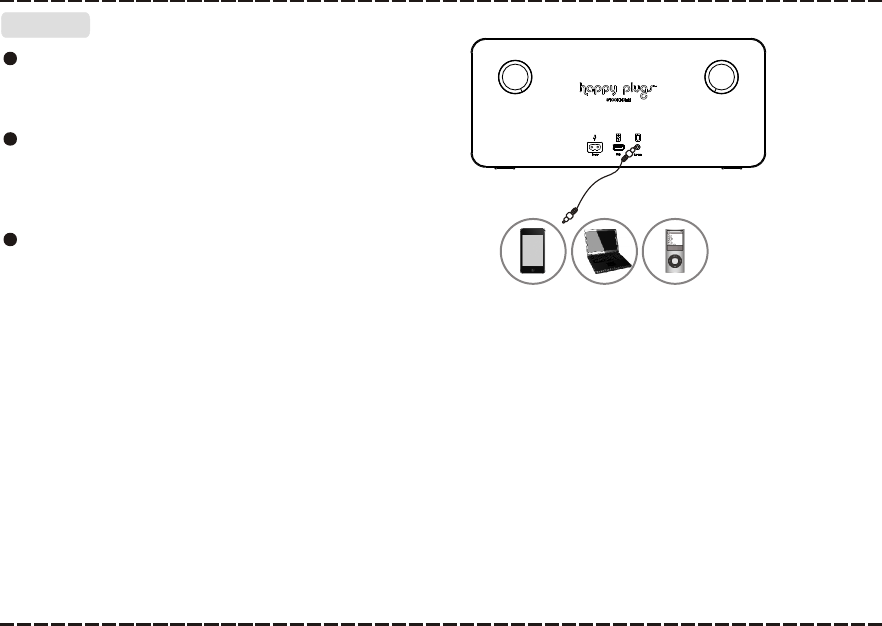

AUX IN
Use the audio cable to connect the audio output
terminals of smart phone, computer, MP3 player
to the audio input terminal (AUX IN) of this
speaker.
Press [BLUETOOTH] button to switch AUX IN
mode and the indicator on the front panel
indicates in solid yellow that the player has been
switched to AUX IN mode when the bluetooth
speaker is in bluetooth mode.
Bluetooth is disabled when you use AUX IN play
mode, and the audio playback (likes
previous/next track) is controls on your audio
device, not on the speaker. Audio device
Connections
-8-

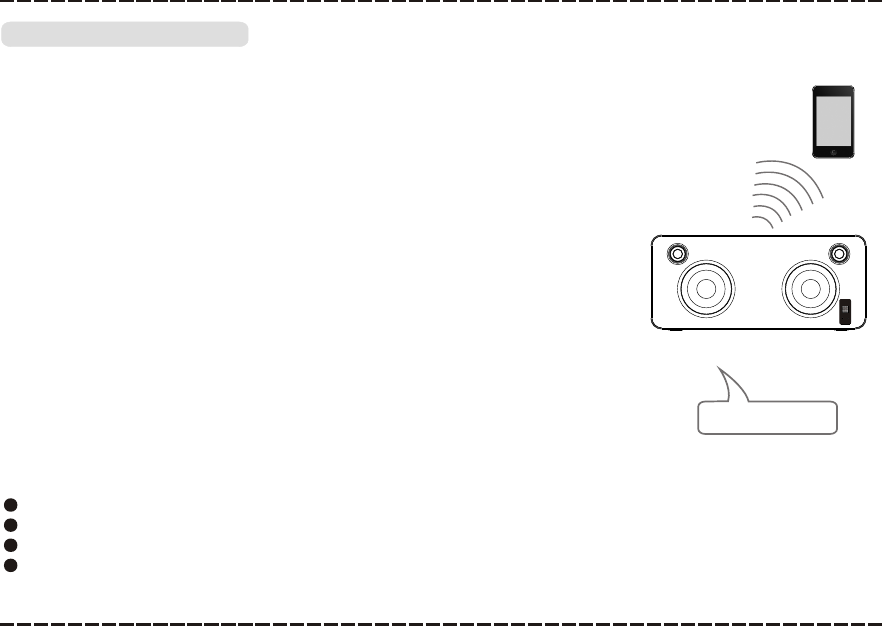

Bluetooth Connection
Use the power cord one terminal connect to power cord socket on the
bluetooth speaker,the other terminal connect to AC outlet,press standby
button power on the speaker, the blue indicator flashing quickly, you will
hear the voice prompt of Sound Piece Ready To Go,Pairing Device, the
speaker access in searching bluetooth signal status.
you
will hear the voice prompt of Device Connected, speaker was
connected to your smart phone,the blue indicator flashing
slowly,d
Device
Disconnected,Pairing Device.
The bluetooth is connected to your smart phone successfully for the first
time, disconnect the bluetooth on your smart phone then reconnected it,
the speaker will memories your smart phone and repaired automatically.
Hold down [BLUETOOTH] button for 3 seconds
when you hear the voice prompt of Device
Disconnected,Pairing Device
automatically.
Note:
Bluetooth connection range in 10 meters.
The model in your device was not deleted.
The speaker need to input the password 0000 when the matching blue
tooth device under version 2.1.
Use your smart phone to select Sound Piece on your bluetooth list ,
the
isconnected the bluetooth on your smart phone to switched off
the bluetooth connection,and you will hear the voice prompt of
to disconnect the
bluetooth connection
, clear the paired memory history by
pressing [STANDBY] button for 2 times and the speaker could not
repaired
Hold down [STANDBY] button to power off the bluetooth speaker and
you will hear the voice prompt of Sound Piece Going To Sleep.
Sound Piece
In bluetooth mode,[BLUETOOTH],[VOLUME+/-] etc. are also active.
Bluetooth
Model:Sound Piece
-9-
Troubleshooting
Before resorting to maintenance service, please kindly check by yourself with the following chart.
Sound
There is no sound or
the sound is
distorted.
The volume is set to the minimum level. Turn up the volume.
Symptom Cause(s) Remedy
The buttons on the
unit doesn't work.
Switch off and unplug the unit.
Then connect the plug to the power supply
and switch it on again.
The unit is being interfered with static electricity
etc.
The AC power cord is not connected to the power
supply or is not connected to a power supply
securely.
Please check that the AC power cord
is connected securely.
No Power
20WX2
-10-
Specifications
Power supply
AC IN ~100-240V 50/60Hz
Working
environment
Temperature -10~+35
Relative humidity
5%~90%
Speaker output (Max)
