Guangzhou Panyu Juda Car Audio Equipment BL6621 Bluetooth Speaker User Manual BL6621B Promounts PI170477 1

Guangzhou Panyu Juda Car Audio Equipment Co.,Ltd. Bluetooth Speaker BL6621B Promounts PI170477 1

User Manual

When the speaker is in working mode.
Press to temporarily pause a playback;
press it again to resume the playback.
Press this button to answer the phone call
in hands free when there is a phone call in.
Press and hold this button to disconnect
the bluetooth connections, the speaker will
turn to pairing other matching bluetooth
device when you hear the short beep sound .

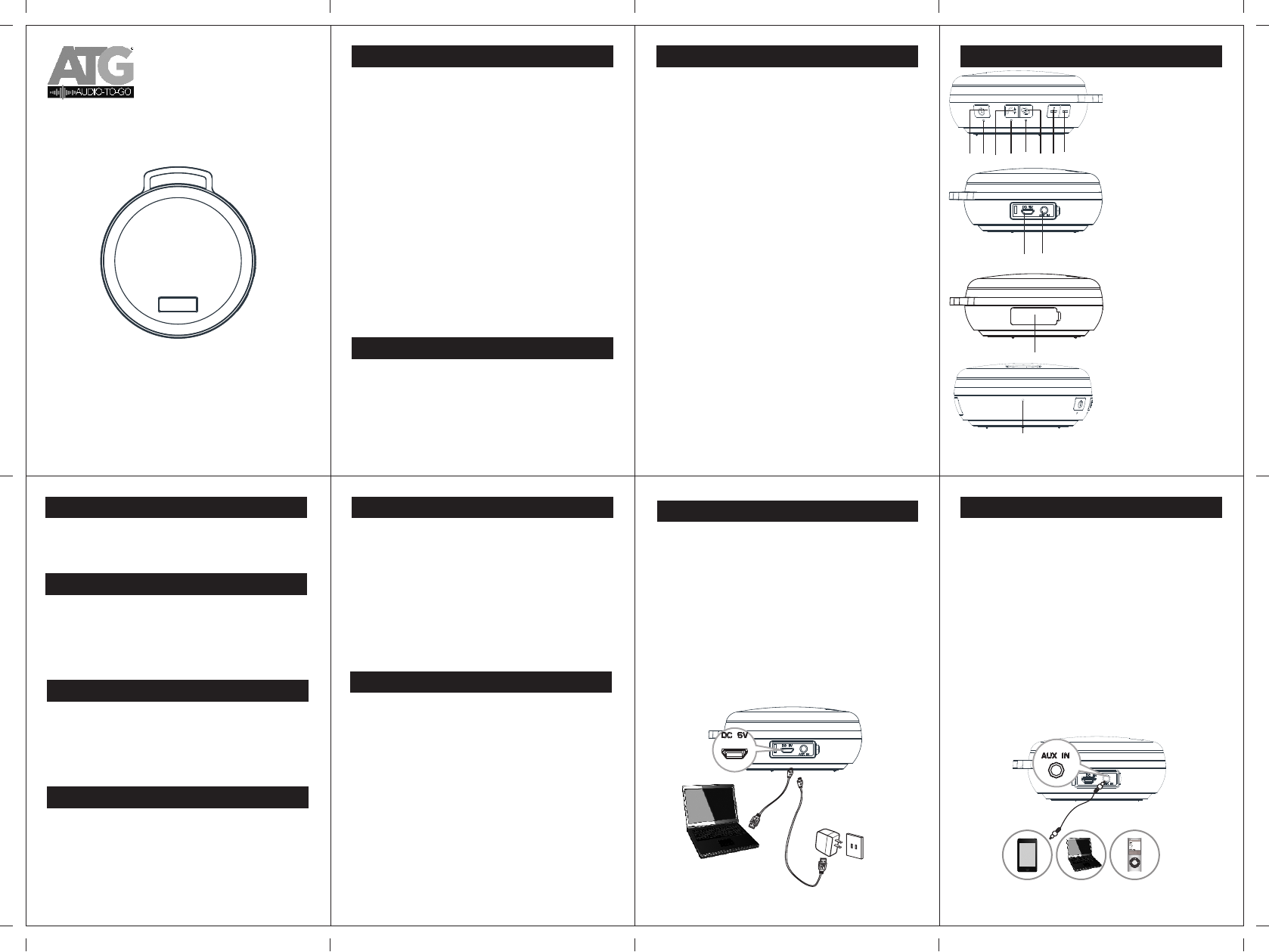

USER MANUAL
-1- -2- -3-
-4- -7--6--5-
FEATURES PANEL
PLAY/PAUSE/HANDS FREE/BLUETOOTH
LED INDICATOR STATUS
1. STANDBY
2. CHARGING
INDICATOR
3.PLAY/PAUSE
/HANDS FREE/
BLUETOOTH
4.AUX INDICATOR
5.BLUETOOTH
INDICATOR
6.TWS
7.VOLUME+
8.VOLUME-
9.DC IN 5V
10.AUX INPUT
11.SILICA GEL CAP
(PULL UP)
12.MICROPHONE
Thanks for your purchase of our product.
Please read through this manual before
making connections and operating this
product. Retain this manual for future
reference.
Bluetooth playback
AUX input
Power supply: DC-5V
Note: Use DC adapter or USB terminal to
charge battery no matter the speaker power
on or off.
In low battery status, the red indicator
flash twice every few seconds and it will
switch off automatically if no charged in low
battery status.
Speaker max output: 5W
VOLUME-
When the speaker is in working mode,
press to turn down the volume.
You will hear the beep sound when you
turn down to the minimum volume.
VOLUME+
When the speaker is in working mode,
press to turn up the volume.
You will hear the beep sound when you
turn up to the maximum volume.
AUX IN
PRECAUTION
Do not drop any objects into the unit through the
openings.
Do not spill or spray liquid of any kind on or in the
unit. It may result in a fire or electric shock.
Do not place anything heavy on the unit.
To ensure proper ventilation and proper
operation, never cover or block the slots and
opening with a cloth or other materials.
Keep the unit away from an open flame such as
fire, candle, etc.
Install the batteries correctly.
Please dispose the batteries according to the
local rule and law.
The maximum working temperature is 35
degrees Celsius.
Only use attachments/accessories specified by
the manufacturer.
Where the Mains plug is used as the disconnect
device, the disconnect device shall remain readily
operable.
Rating label are on the bottom of the unit.
WARNING: The batteries shall not be exposed to
excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is
incorrectly replaced.Replace only with the same or
equivalent type.
BLUETOOTH SPEAKER
ATGSW6621
When charging your speaker:
Solid red LED means charging.
Red LED OFF means charging complete.
When pairing bluetooth devices:
Quick flashing blue LED means bluetooth
not connected ,ready to pair.
Solid blue LED means bluetooth
connected.
When connected via AUX IN:
Solid green LED means connected.
ACCESSORY
User manual
USB cable
Carabiner
This speaker has an extra group of audio
input terminals. You can input the analogue
stereo audio signals from extra devices such
as mobile phone, computer,MP3 player, etc.
Use the audio cable to connect the audio
output terminals of mobile phone, computer,
MP3 player to the audio input terminal (AUX
IN) of this speaker.
When the speaker connect the AUX input
terminal and the green indicator of AUX keep
solid, the speaker will disconnect the
bluetooth connection automatically .
When the speaker disconnect the AUX
input terminal, the speaker will return to the
previous bluetooth connnection.
910
STANDBY/TWS
Press and hold this button to switch on the
speaker,press this button again to switch off
the speaker.
11
8
234
16
57
Press this button to connect or disconnect
the speaker bluetooth connection with the
other of the same .
TWS
12
CHARGING
This speaker has a built-in rechargeable Li-
Ion battery. Full charge the speaker before
first use.Charge the battery as follows:
Connect one end of the included USB
charging cable to the charging port on your
speaker. Then plug the other end of the USB
charging cable into a suitable port on your
computer or 5V/1A power adapter (sold
separately).
The red LED light will turn ON. When the
charge is complete the red LED light will turn
OFF.
-8- -9-
resume the playback.
Note:
Bluetooth connection range in 10 meters;
The model ATGSW6621 in your device
was not deleted;
After 10 minutes without connections, the
speaker go to dormant status and you need
to press and hold [STANDBY] button to wake
up the speaker.

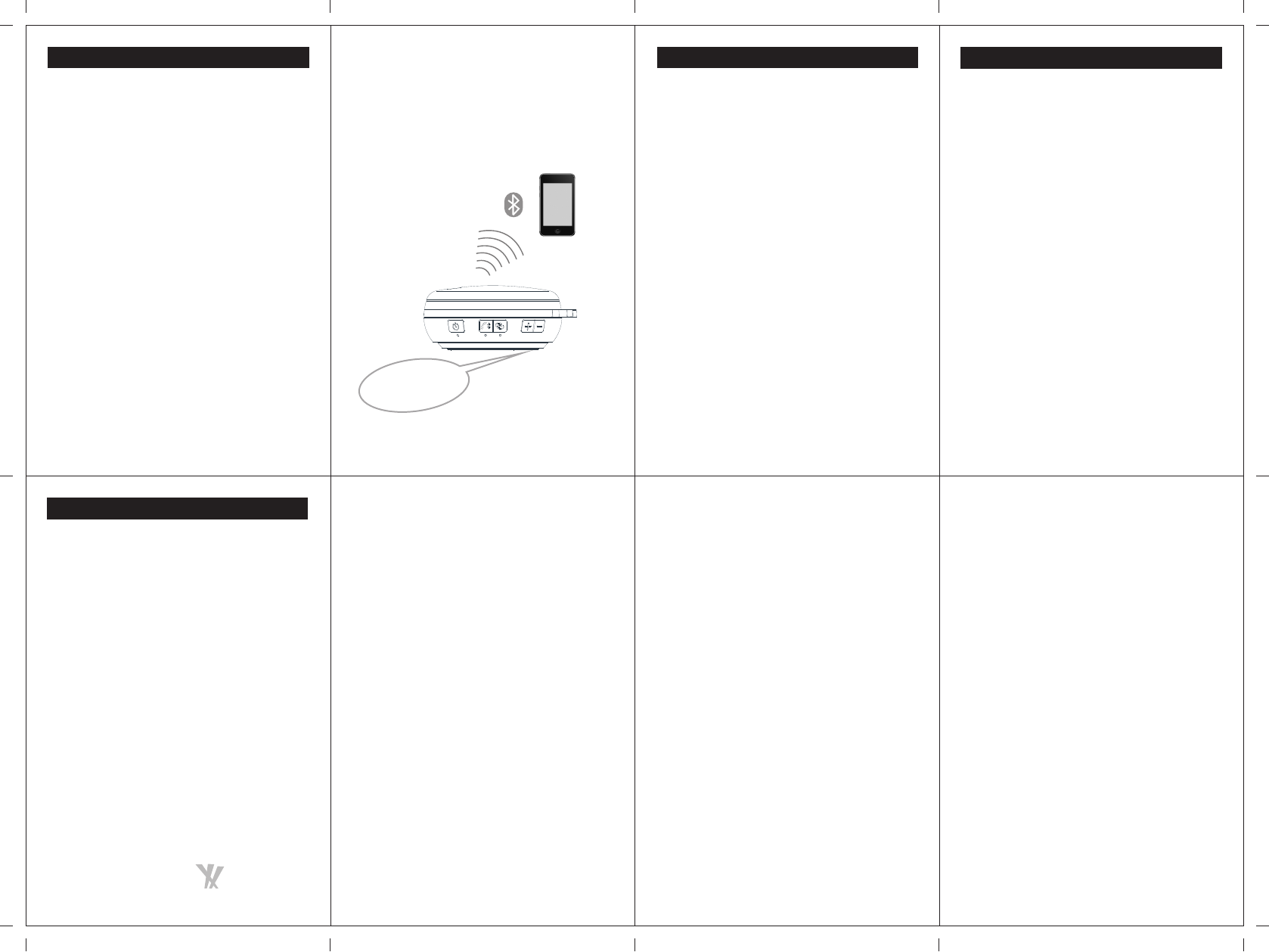

BLUETOOTH CONNECTION
The bluetooth pairing model of the
speaker is ATGSW6621, power on the
speaker by pressing and holding the
STANDBY button,the blue indicator flashing
, the speaker is in searching bluetooth signal
status,the unit will synchronize to play songs
on your smart phone while the blue indicator
keep solid blue means bluetooth was
connected successfully.
The speaker need to input the password
0000 when the matching bluetooth device
under version 2.1.
The bluetooth will turn to standby mode
after 10 minutes without connections, at this
time, press and hold [STANDBY] button to
wakes up the speaker.
When the operation too frequently or other
reason to disturb the bluetooth reconnected,
please use manually connect on the
bluetooth device.
The bluetooth is connected to your smart
phone successfully for the first time,
disconnect the bluetooth on your smart
phone then reconnected it, the speaker will
memories your smart phone and repaired
automatically.Press [PLAY/PAUSE] to
Bluetooth Model:
ATGSW6621
TWS CONNECTION
This TWS(TRUE WIRELESS STEREO)
bluetooth connection only use between the
same two speakers.
Power on both speakers, the blue LED will
begin to flash,press the TWS button on both
speakers simultaneously ,wait a few
seconds to pair automatically, once
connected successfully, the blue indicator
keep flashing is configured as the master
,the blue indicator keep solid blue is
configured as the slave .
Enable your bluetooth device and make
sure it is in searching mode.
Select “ATGSW6621” from the list of
discovered devices and connect to it.
The master speaker will act as the left
channel during TWS and will receive the
bluetooth signal,the other speaker will act as
the right channel.
If you use AUX IN mode to connect and
play music with external device, only
connect the master to play music.
-10-
FCC STATEMENT
1. This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct theinterference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
RF warning statement:The device has been
evaluated to meet general RF exposure
requirement. The device can be used in
portable exposure condition without
restriction.
-11-
-12-
WWW.teamprogressive.com
