Guangzhou Shiyuan Electronics Co., Ltd. Android Box part 1

Contents

User manual part 1

OSD User Manual
Version: V1.0
Model: A3105A(main board B.S905.5)
Description: Android Main Board
Contens
Safety Warning
1.1 Welcome page ........................................................................................................................... 4
1.2 Setup page ................................................................................................................................. 4
2.1 Main Launcher ........................................................................................................................... 5
2.2Settings ........................................................................................................................................ 9
2.3Applications ............................................................................................................................... 11
Safety Warning
Before operating the unit, please read throught this manual.
PLACEMENT
● Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
● Do not expose the unit to direct sunlight and other sources of heat.
● Do not handle liquids near or on the unit.
● Never spill liquid of any kind into the unit
● Do not put the unit near appliances that create magnetic fields.
● Do not put heavy objects on top of the unit.
TEMPERATURE
● Do not place the unit near or over a radiator or a heater register.
● If your unit is suddenly moved from a cold to a warm place, unplug the power cord for at
least two hours so that moisture that may have formed inside the unit can dry completely.
HUMIDITY
● Do not expose machine in rain, damp or place near water.
● Ensure the indoor drying, cool.
VENTILATION
● Keep the ventilation openings clear.
Install Wizard

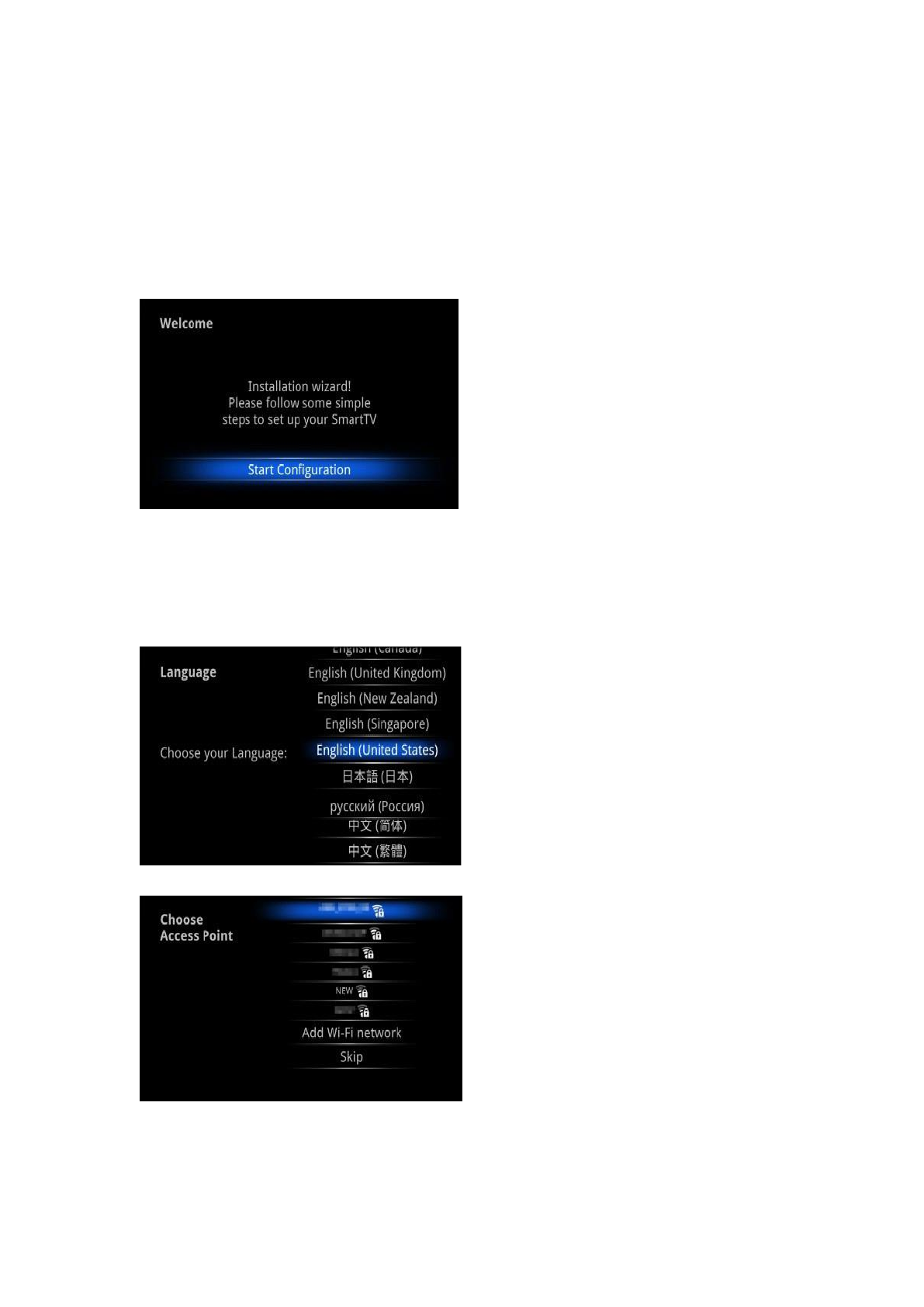

1.1 WELCOME PAGE
When the Androi d Box is first powered up,Welcome Page will be shown .
It will help you to co nfigu re th e d evice.
1.2 Setup page
Select Language:
Select network type:
+Reminder
If you want to skip this wizard,
press “HOME” key
If you have finished this wizard
once, it will not auto-open again.
+Reminder
If you do not want to choose your
network ,you can skip this step by press
“Skip”,You will also find the network settings
in function “Settings”

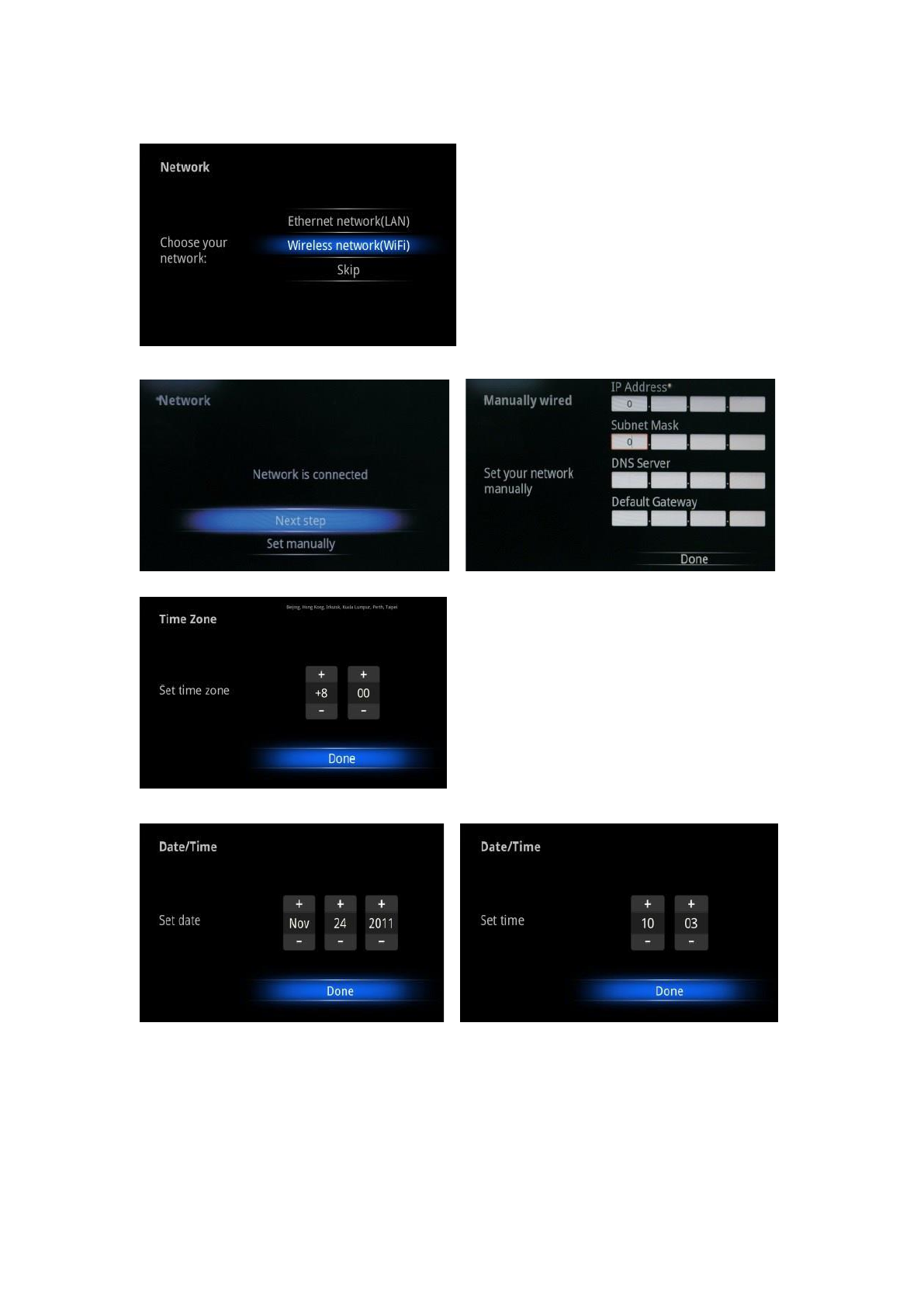

Select Wireless network(Wi-Fi)
Select Ethernet network(LAN) Configure Ethernet manually
Set up the correct Time Zone
Setup Date/Time manually
+Reminder
If choose‘Wi-Fi’, select a Wi-Fi
Access Point
If choose‘Ethernet’ ,the screen will
show Ethernet connection status
+Reminder
If network is not connected, setup the
date and time manually

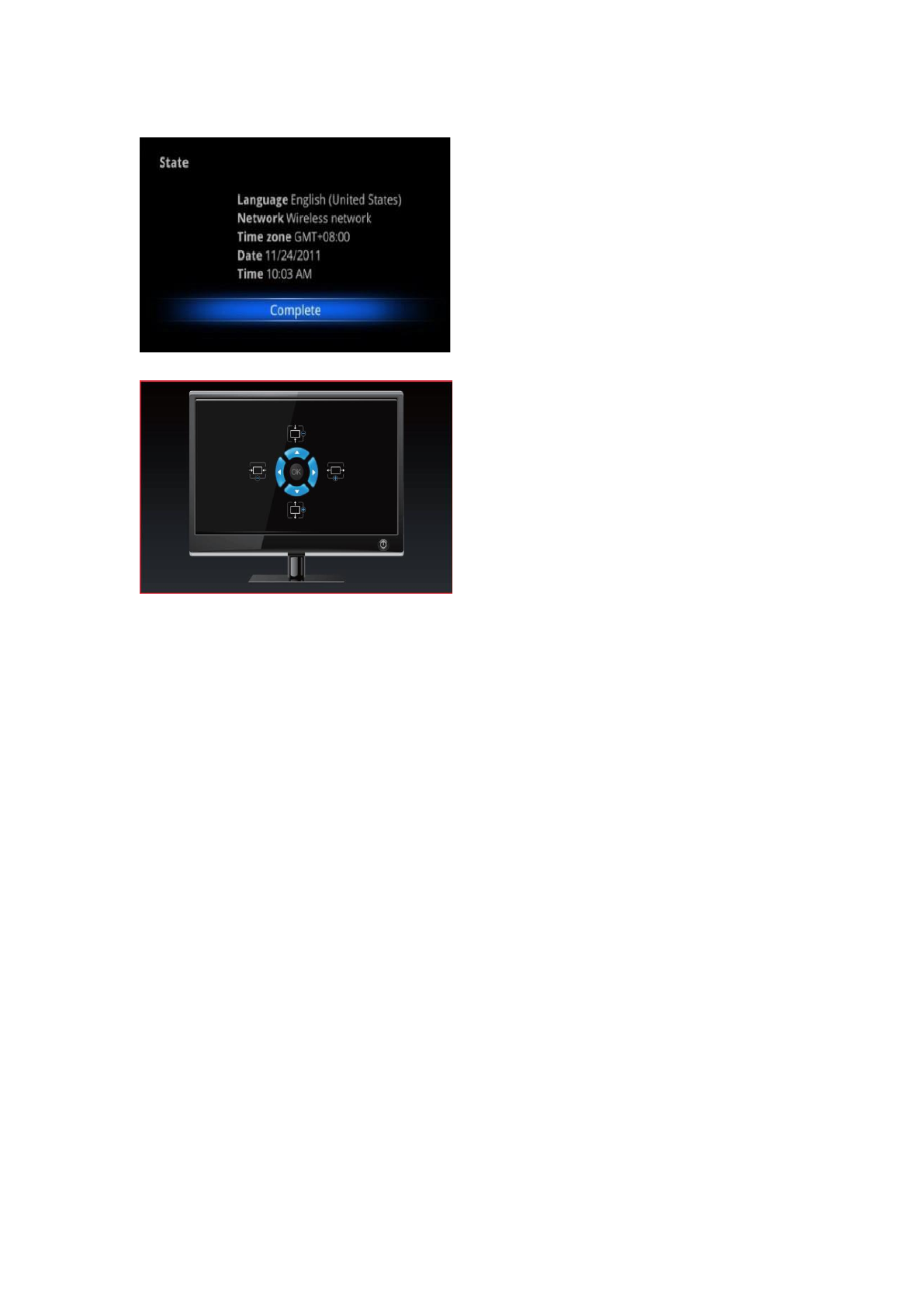

Configuration
Adjust screen size, using the arrow buttons on remote control
+Reminder
User can setup the Language, Network,
Time Zone, Data/Time, and
adjust screen size in this part
2.1 Main Launcher
Press the arrow buttons ◀/▶ to select the sub-screen and press▼into sub-screen.
FUNCTION
DESCRIPTION
Main Launcher tab contains :
Time information(You can set time
information at settings) ; USB/
Ethernet/Wifi function status(White for
working, gray for standby)
All App menu can view and select more apps.
The Browser tab contains bookmarks and
search bar. It allows you enjoy your time on
surfing Internet. You can search for
information and watch online TV etc.
FUNCTION
DESCRIPTION
Add you favorite APP to this directory.
The Settings screen contains most of the
customizing and configuration options, such as
language, aspect ratio and network settings.
Create necessary APP shortcuts to the main
launcher.
2.2 Settings
FUNCTION
DESCRIPTION
Check to turn on Wi-Fi so can connect to Wi-Fi networks
Check to receive an alert when an open Wi-Fi networks becomes available
Opens a dialog where you can add a Wi-Fi networks by entering its SSID(the name it
broadcasts) and security type
Turn on/off the Ethernet
Ethernet settings:
IP address , Subnet Mask, DNS Server, Default Gateway and etc
Turn on/off the Bluetooth
Contains all of the settings
Restore factory default
Set city
Select language
Android keyboard
Local update
Update system via update.zip from USB flash drive or micro SD
card
Net update
OTA network upgrade
Automatic date & time (Need network)
Set date
Set time
Select time zone
User 24-hour format
Select date format : dd/mm/yyyy ; mm/dd/yyyy ; yyyy/mm/dd
Android version
Build number
2.3 APPLICATIONS
Install from USB Flash Drive
1. Open the “File Browsers”
2. Choose your USB flash drive or any other mass storage’s folder
3. Find you application, and press it
4. Press the install button
5. You can find the application in tab “Apps” after installation
Download & install from Browser
1. Open the Browser.
2. Press search key and input your website address
3. Download the APK file which you like if there is a link for download
(If you have problems with downloading, please make sure there is, enough space in your internal storage)
Install from AppInstaller
1. Open the AppInstaller
2. Find the icon of the application, and enter it
3. Press the install button
4. You can find the application in tab a fter in stallation
