Guangzhou Tendystar Telecom TDS-801 BLUETOOTH HEADSET User Manual
Guangzhou Tendystar Telecom Co., Ltd. BLUETOOTH HEADSET Users Manual
users manual
Contents
Introduction
How to use
Pairing
Making and Hearing a call
Dialing
Hearing a calling
Declining a calling
Media playing
Charging
LED & Functional Alarm
Quick Tips
1
2
3
4
4
5
5
6
7
8
9

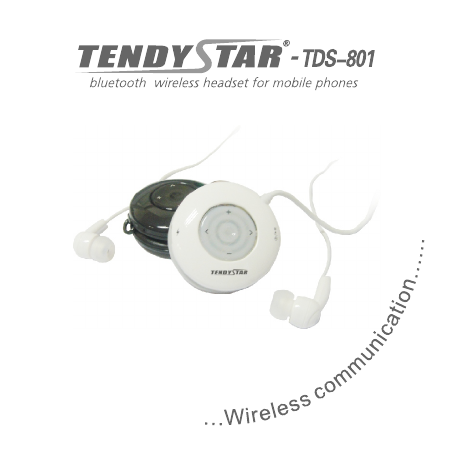

Introduction
TDS-801 looks like a round and smooth superposition
of 2 pieces dishes. It can clip to any edge of clothes with its
"mouth" in a way a sea mussel does. It is more convenient
and comfort to use as the buzzer does not contact any
place of users' body. The multifunctional panel in the central
of the buzzer makes TDS-801 much easy to operate.
Multifunctional controller and speakers are designed on the
earphone line. It fatilitates users to switch to music and an
in-coming calling freely during music-playing. TDS-801 is
powered by in-built rechargeable high-energy lithium
battery. Charging terminals are standard USB adaptors. It
has features of fast-Pairing, long standby time and unique
HIFI effect etc
1
How to use
2
Power Key Press it, turn on/ off bluetooth earphones.
Volume Key
" "\"-"
Press it to adjust volume of the
earphones.
Previous">"\
Next"<"
Press it to choose music during
music-playing.
Power On/Power Off/Play/Pause/Setup
an AV connection
Microphone Press it to search voice signal during
speaking.
USB Adapter
It is used for charging via coupling with a
computer or with bolt which is inbuilt a
USB adapter.
Call-MFB
(Answer/End/Reject/Setup a handsfree
connection)
Volume Up Button
Music-MFB
Volume Down
Button
Charge
Previous
Next
Music-MFB
Microphone
Pairing
3
Searching
Press on POWER button for 3 seconds, turn on bluetooth
earphones, it start searching at once. Meanwhile, the
indicator flashes in blue with a crisp whisper sound.
Pairing:
Press on both Power and Volume buttons for 2-3 seconds,
the indicator fashes alternately in red and blue with a crisp
whisper sound. Now the bluetooth earphones get into
pairing situation.
Pairing via Bluetooth Media Player or mobile phone.
Turn on bluetooth on a mobile phone.
Find "search Bluetooth Equiment" feature.
When searching is completed, choose bluetooth
earphone on the searched list and press it.
Input Pairing PIN code "0000" , Pairing is completed.
(Generally, Mobile phone connets with bluetooth earphone
automatically after Pairing. In the case that your mobile
phone does not connect with the bluetooth earphone auto-
maticly, please choose TDS-801 among the bluetooth
euipment list on your mobile phone. )
4
Making A Calling / Hearing A Calling
Dialing
Use
Once the bluetooth earphone connects with your mobile
phone or Media player successfully, you can hearing a
calling or enjoying music via the bluetooth earphone.
While connecting with a computer, the computer must be
inbuilt bluetooth USB adapter. When connect with a Media
player, the player must be of audio bluetooth dongle. While
connecting with an Audio bluetooth adapter, PIN code is not
needed.
Make sure that the bluetooth earphone pairs well with
your mobile phone, otherwise, please refer to PAIRING.
When make a call on your mobile phone, voice signal
transfers to the bluetooth earphone automatically.
While a call gets though, the volume in earphone can be
adjusted via the Volume button of the mobile phone or
of the bluetooth earphone
Press the multifuctional button to end a calling.
Caution
5
Hearing A Calling
Declining A Calling
When the buzzer alarms, talk directly after pressing down
the multifuctional button. Volume can be adjusted via the
volume button either of the mobile phone or the bluetooth
earphone.
To get a good sound effect, please keep a proper distance
between the microphone and the mouth during speaking.
Press down the multifuntional button to end a calling.
While the buzzer alarms, press down the multifuctional
button of the bluetooth for 2-3 minutes, the calling will be
turned off.
Media Playing
6
Make sure the Media Player pairs with the bluetooth
earphone. If not, please find the TDS-801 among the
bluetooth euipment list on the mobile phone and press it.
Then, remote control fucntion of the bluetooth earphone is
activated automatically.
Playing a video or an audio file in the Media Player,
audio frequency signal transmits to the bluetooth earphone
automatically. The volume can be adjusted by pressing
volume button " " "-" . Pressing Previous button ">"
and Next button "<" to select the music to be played.
During playing, shallow press the multifuctional button,
the music will be paused. Press the button again for 2-3
seconds, the music will continue.
During playing, media player will pause automatically
when a calling comes in. It will continue automatically
when the calling ends.
Caution
Charging
7
There are two ways to charge the bluetooth earphone,
one is via a USB cable charged on a computer. While another
is via common socket. Charging period is 2 hours. But the
first charging should be 8 hours.
1 When voltage of the battery is too low, it is a normal
case that the indicator on a charger does not work within
half hour after it is charged.
2 During charging, the indicator is red. When charging
is completed, the indicator gets into blue.
Caution
LED & Functional Alarm
8
Power On The indicator flashes in blue fastly for
3 times, and the buzzer buzzes.
Power Off
The indicator flashes in red for once,
then flashes fastly for 2 times, buzzes
for 2 times.
Pairing Mode It flashes in blue and red alternately,
no buzzing.
Charging It works in red.
Charging
Completed. It works in blue.
Calling In It flashes in blue, it buzzes till the
calling button is pressed.
Standby Mode The indicator flashes once in 3 seconds
in blue.
9
Quick Tips
1. The indicator does not work during charging.
This is caused by low voltage of the battery. In the first harl
hour of charging, it charges in tiny current mode. During this
time, it is a normal case when the indicator does not work.
2. When the sound of earphone is too blurry.
please adjust the distance between the microphone and
mouth. Sometimes, this is caused by poor signal of
comminication channel, in this case, you should turn off the
call and redial it.
3. In the case that the bluetooth earphone can not be paired.
please disconnect it from the current bluetooth equipment.
If it still does not do, please power off the bluetooth ear
phone, then restart it.
4. In the case that it can not be solved through all the above
methods, please charge both the mobile phone and the
bluetooth earphone and retry.
