The Wrangler 2625 DB is the mid-size value leader with its large

scrubber features and compact, maneuverable package.

- The 25-gal. solution and 27-gal. recovery tanks on the

Wrangler 2625 DB are 25 percent larger than tanks on

comparable mid-sized scrubbers. This translates to fewer

trips to empty and refill the machine.

- The compact body with front drive wheels and rear

casters let the Wrangler 2625 DB turn with ease, even in

constricted areas.

- Three scrub pressures allow the Wrangler 2625 DB to

take on any scrubbing task.

- Variable-speed wheel-drive assures smooth operation,

reducing operator fatigue and maintaining productivity

throughout the shift.

- Rugged 7-gauge steel frame and durable polyethylene

body withstand heavy-duty commercial use.

- The on-board battery charger allows safe, convenient

battery charging anywhere an outlet is available.

- Straight, long-lasting urethane squeegee picks up

equally well in forward and reverse.

- The Wrangler 2625 DB is available with a curved

squeegee (#2492499), an ideal option for industrial

applications. This attachment funnels water and debris to

the center of the squeegee for easy recovery.

Wrangler 2625 DB Specifications

Brush/Pad

Cleaning Path

Motor

Voltage

HP

Speed

Pressure Pad

Drivers

25 in (64 cm)

2 permanent magnets, gear drive

24V

0.75 HP

200 RPM

60 lbs (27 kg), 90 lbs (40 kg), 120 lbs (54 kg)

Two 13 in (33 cm) poly back tufted with

retaining cup

Vacuum Motor

Type

Voltage

HP

Waterlift

3-stage, bypass,

tangential

discharge

24V

0.75 HP

56 in (142 cm)

Drive System

Type

Voltage

HP Speed

Wheel-drive transaxle

24V

0.33 HP

Forward 200 ft/min (61

M), reverse 125 ft/min

(38 m)

Construction

Tank (Solution)

Tank (Recovery)

Frame

Caster

Wheels

Rotocast polyethylene 25 gal (95 l)

Rotocast Polyethylene 27 gal (102 l)

7-gage steel

One 4 in (10 cm) ball bearing swivel

caster

Two 8 in (20 cm) x 2 in (5 cm) non-

marking, slip-grip tread

Batteries

Four 6V batteries, 235 AH

Switches & Controls

Master

Propulsion

Solution

On/off

Twist grip drive control

Manual at handle bar through rigid

actuators; adjustable flow, forged

brass valve, celcon rotor, o-ring seal.

Solenoid prevents solution flow

when brushes are not moving.

Squeegee

32 in (81 cm) swing type with

breakaway feature.

Optional 35 in (89 cm) curved

squeegee available

Dimensions

Length

Width

Height

55.5 in (141 cm) 27

in (69 cm)

41 in (104 cm)

Weight

(Machine) 608 lbs (276 kg)

(Shipping) 717 lbs (326 kg)

Shipping Class

70

Warranty 3 year limited, 10-year poly parts, 3-year transaxle

Productivity

Theoretical

Practical

25,999 sq ft per hour (2,415 sq m)

12,062 sq ft per hour (1,120 sq m)

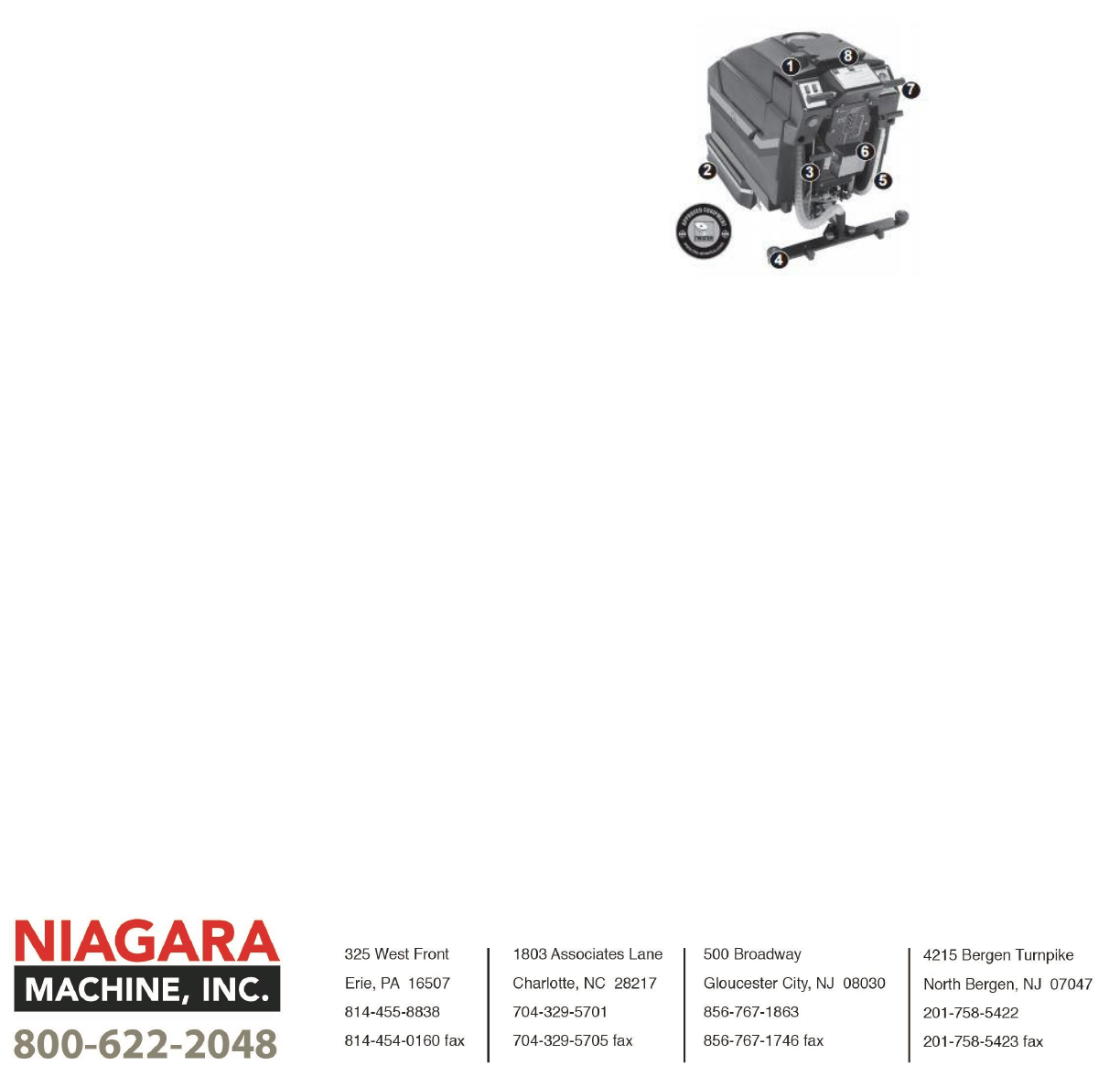

1. The percolator breaks down foam, protecting the vac

motor from damage

2. A solenoid valve near the brush head prevents solution

flow when the brushes are not moving.

3. An hour meter helps track regular maintenance

tasks.

4. The 32-in. squeegee swings wide on turns to leave

the floor drier. The breakaway feature prevents

damage if the squeegee catches on an object.

5. The clear solution tank hose indicates the amount

of cleaning solution remaining, and allows easy

draining of the solution tank.

6. On-board battery charger recharges anywhere an

outlet is available.

7. Twist-grip handles let the operator easily control the

variable-speed propulsion system.

8. The float shut-off protects the vacuum motor from

liquid or foam damage

Adjustable solution flow allows chemical and water

conservation, using only what is needed to clean the floor.

Twister approval means stone and concrete floors can be

scrubbed without harmful chemicals, protecting the

environment
