Guideline Geo CART400 User Manual Manual CART400
Mala GeoScience AB (publ) Manual CART400
Users manual
Cart400
Operating manual
Version 1.0
www.malags.com
2
Table of Contents
_________________________________________________
1 Introduction 3
1.1 Unpacking and Inspection 4
1.2 Repacking and Shipping 4
1.3 Limited Warranty and Liability 4
2 Hardware and Start Up 5
2.1 Hardware 5
2.2 Start up 6
www.malags.com
3
1 Introduction
__________________________________________________
Thank you for purchasing the CART400 system, the ultimate
system for utility detection.
Together with the RAMAC Monitor for data acquisition you
have a straightforward one-man operated array system for
utility detection and other high-resolution applications.
We at Malå GeoScience welcome comments from you
concerning the use and experience of this equipment, as well
as the contents and usefulness of this manual. Please take the
time to read through the assembling instructions carefully and
address any questions or suggestions to the following:
Main Office: Subsidiary:
Malå GeoScience Malå GeoScience USA, Inc.
Skolgatan 11 2040 Savage Rd, P.O. Box 80430
S-930 70 Malå Charleston, SC 29416
Sweden USA
Phone: +46 953 345 50 Phone: +1-843 852 5021
Fax: +46 953 345 67 Fax: +1-843 769 7397
E-mail: sales@malags.se E-mail: sales.usa@malags.se
Technical support issues can be sent to: support@malags.se
Information about MALÅ GeoSciences products is also
available on Internet: http://www.malags.com
Copyright© 2004 Malå Geoscience AB
www.malags.com
4
1.1 Unpacking and Inspection
Great care should be taken when unpacking the equipment.
Be sure to verify the contents shown on the packing list and
inspect the equipment for any loose parts or other damage. All
packing material should be preserved in the event that any
damage occurred during shipping. Any claims for shipping
damage should be filed to the carrier. Any claims for missing
equipment or parts should be filed with Mala GeoScience.
1.2 Repacking and Shipping
If original packing materials are unavailable, the equipment
should be packed in a wooden box with at least 80 mm of
absorbing material. Do not use shredded fibres, paper wood,
or wool, as these materials tend to get compacted during
shipment and permit the instruments to move around inside
the package.
1.3 Limited Warranty and Liability
Malå Geoscience warrants that, for a period of 12 months from the delivery
date to the original purchaser, Malå Geoscience products will be free from
defects in materials and workmanship. Except for the foregoing limited
warranty, Malå Geoscience disclaims all warranties, express or
implied, including nay warranty of merchantability or fitness for a
particular purpose. Malå Geoscience will repair and replace parts or
equipment which are returned to Malå Geoscience, transportation and
insurance pre-paid, without alteration or further damage, and which in Malå
Geoscience´s judgement, were defective or became defective during
normal use.
Malå Geoscience assumes no liability for any direct, indirect, special,
incidental or consequential damages or injures caused by proper or
improper operation of its equipment or software, whether or not
defective.
www.malags.com
5
2 Hardware and Start Up
__________________________________________________
2.1 Hardware

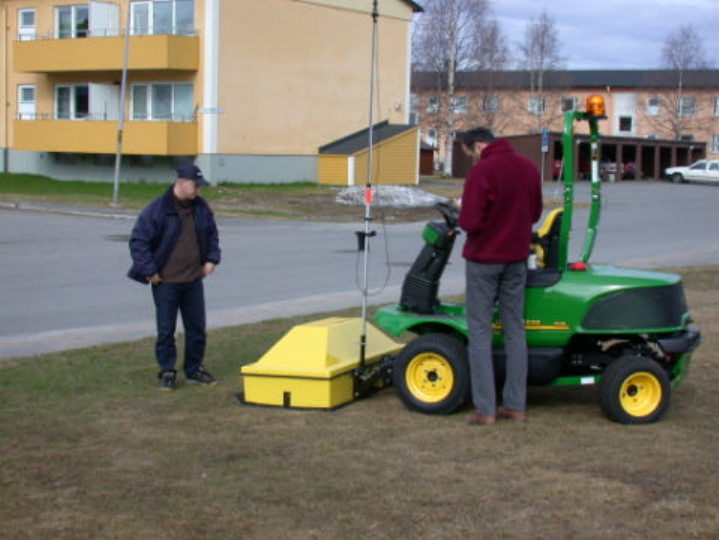

The CART400 is a 16 channel array system where the
antenna elements, cart control unit and power distribution are
mounted in a covered fibreglass box, easily mounted on a
small wheel carriage. Such as a car, a tractor or a lawn-mover.
See picture below.
www.malags.com
6
2.2 Start up
When initialising Cart 400 measurements the following easy
steps are made to connect and start up the whole GPR
system:
1. Connect the DC power input to a fully charged 12
V battery(car battery) or connect it to the 12 V
system of the vehicle (Se picture).
2. Connect the laptop to the DSUB-25 connector and
the measuring wheel to the DSUB-9 connector.
3. Turn on the power switch on the Cart400. Turn on
the laptop and start the Wincart software. Your
Cart400 is now ready for operation.
www.malags.com
7
Laptop
Measuring
wheel
Power switch
