Product: Revit Architecture 2010

Topic: Halftone Controls

Written by: Kristen Fierro, Senior Applications Engineer

Date: June 29, 2009

We now have control over what half tone means. After an object, category, or link is set to halftone, by changing

the Visibility Graphics we can control how dark or light they appear.

Let us take a look at the following view:

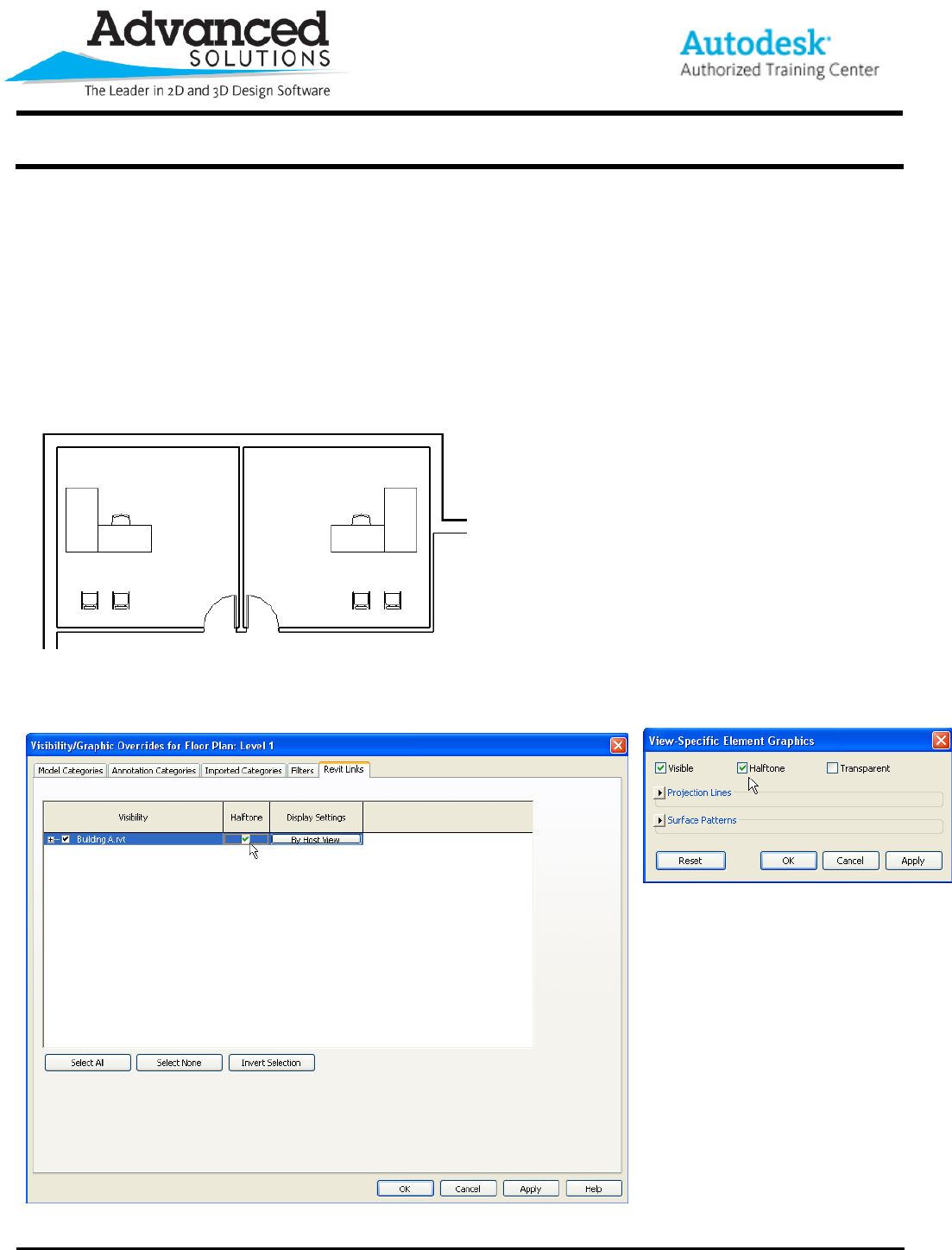

We will set the Visibility Graphics to halftone, and override the visibility of the chairs.

www.advsolinc.com

ASI Client Center

1-877-438-2741

Autodesk Products Tip & Tricks

Before After

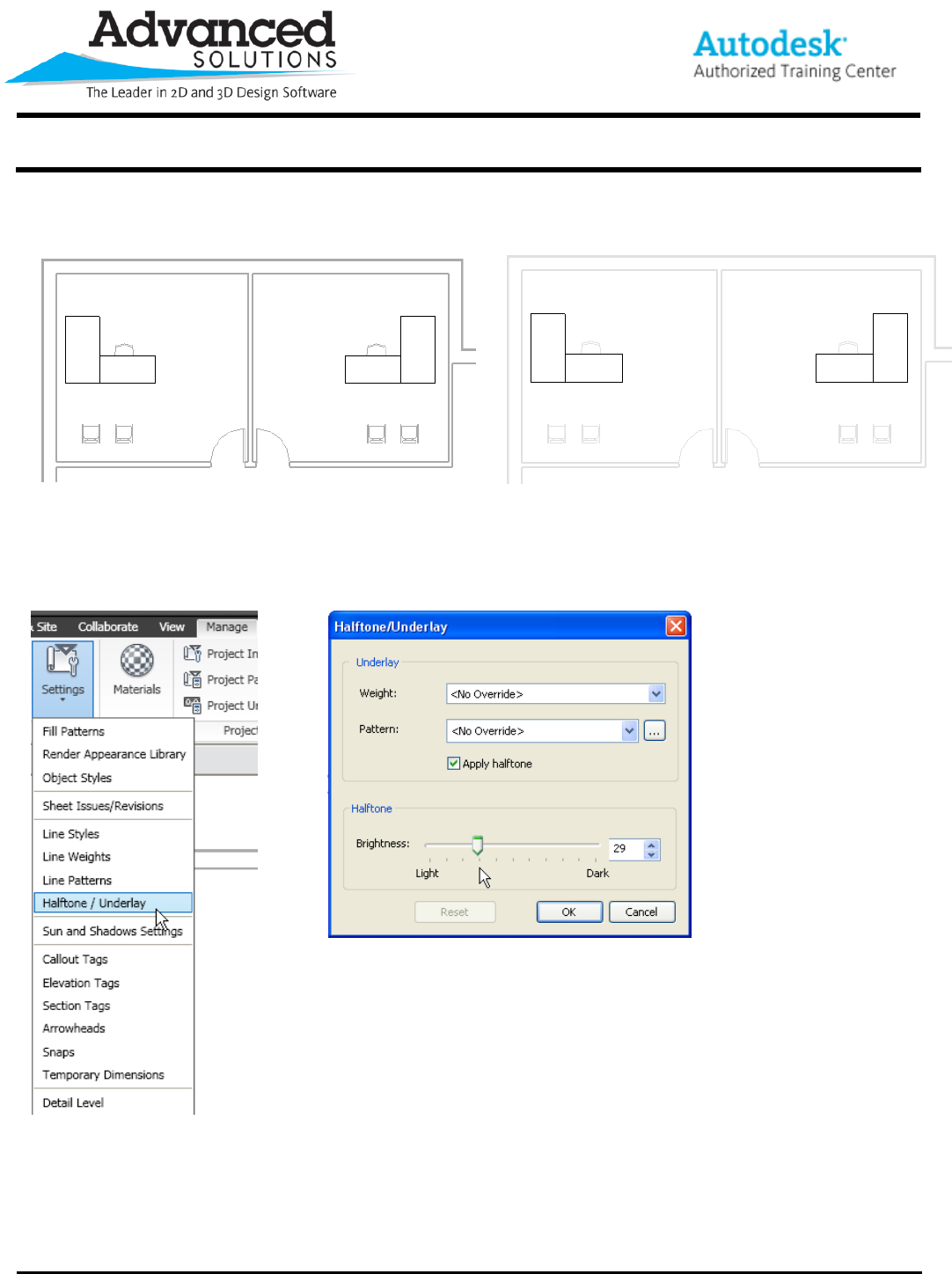

We can then go to the Manage tab, select halftone/underlay and modify the brightness.
