Product:
Revit MEP 2009
Topic:
Pipe Reducer Displaying in Plan View
Written by:
Emy McGann, BSD TE
Date:
November 14, 2008
Are the pipe reducer schematic symbols cluttering your plan views? Do you typically not show them in your plan
views/single line views? You can modify the pipe reducer family that comes with Revit MEP so they do not display
in plan view when you are in a course or medium detail level (single line pipe).
**Note: when modifying a family that comes out of the box (OOTB) with the software, it is always recommended
that you do a “save-as” and save the modified family in a directory other than the Imperial Library. This will prohibit
you from accidently over-writing the customized family when you receive an update.

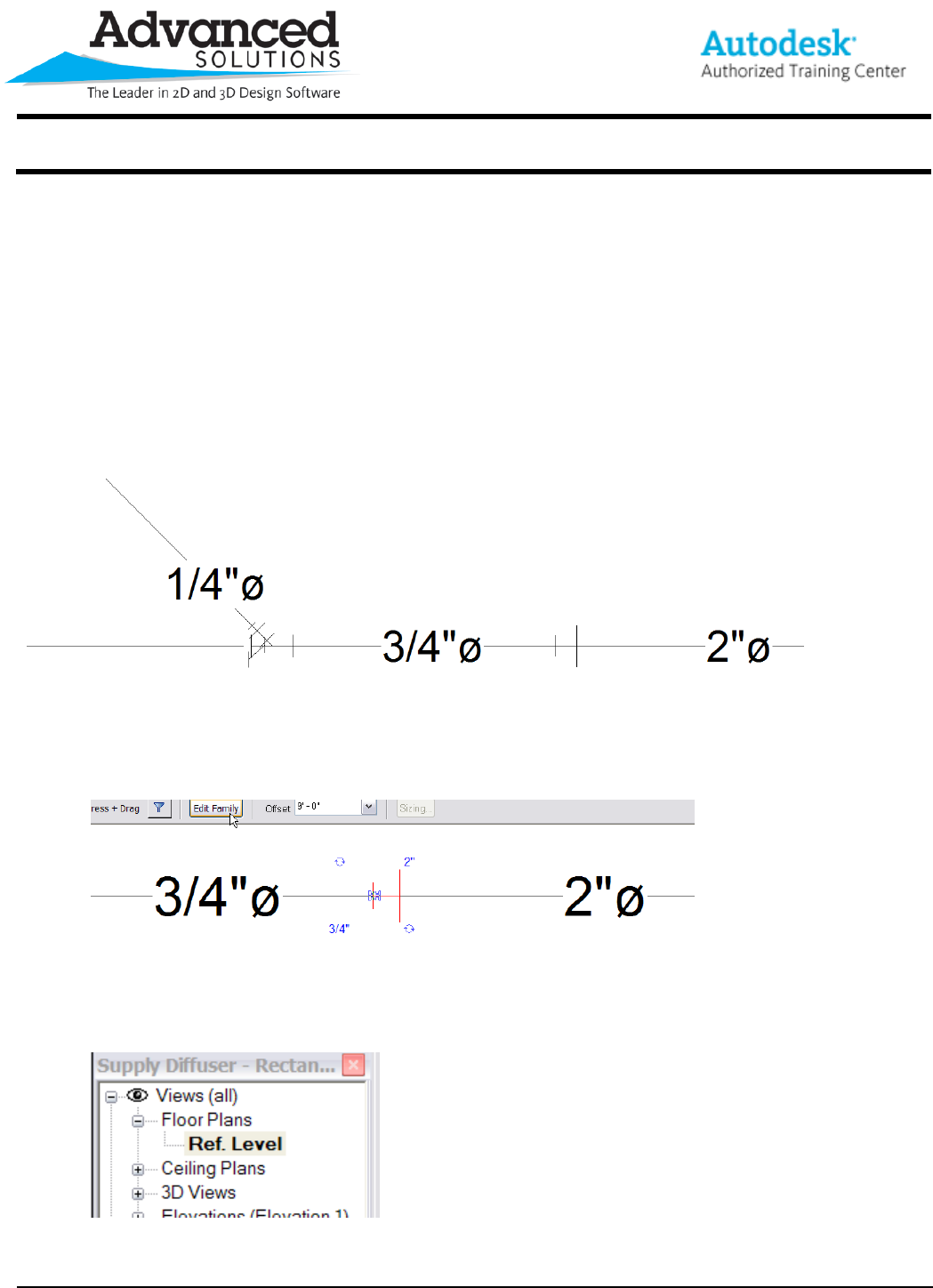

1. Select the Reducer (Pipe Transition) and choose Edit Family from the Options Bar.
Figure 1
2. Once in the Family Editor, switch to a Ref. Level view (or a plan view)
Figure 2
www.advsolinc.com
ASI Client Center
1-877-438-2741
Autodesk Products Tip & Tricks
Copyright 2008 – Advanced Solutions, Inc.

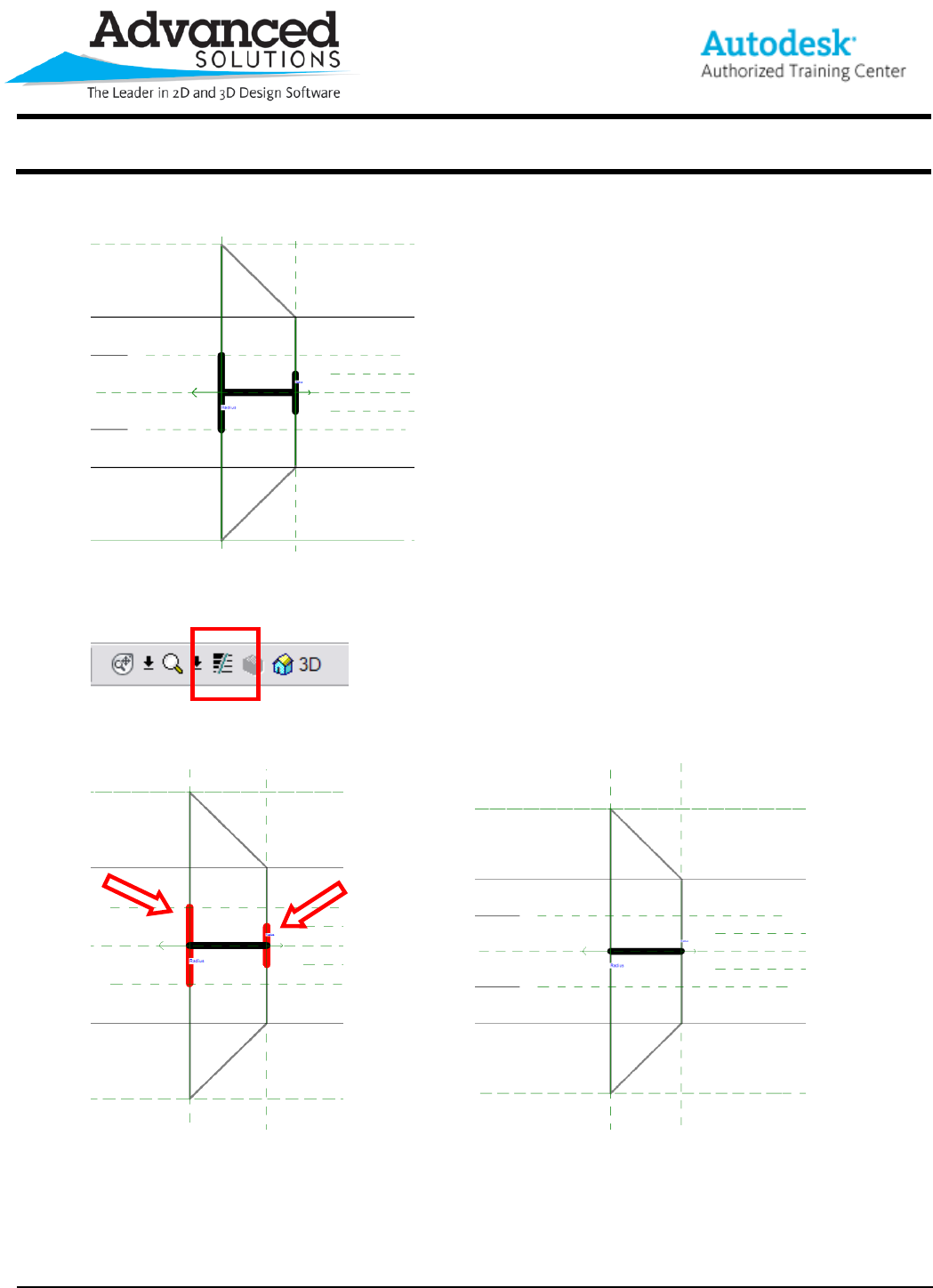

3. Zoom to the center of the family
Figure 3
Note: If you can’t see the schematic symbol as clearly as shown in Figure 3 ensure that you do not have Thin Lines
toggled on from the View toolbar
4. Select the 2 vertical Symbolic Lines and delete them. (DO NOT DELETE the horizontal line)
5. Do a “save-as” to a new directory on your computer or network.

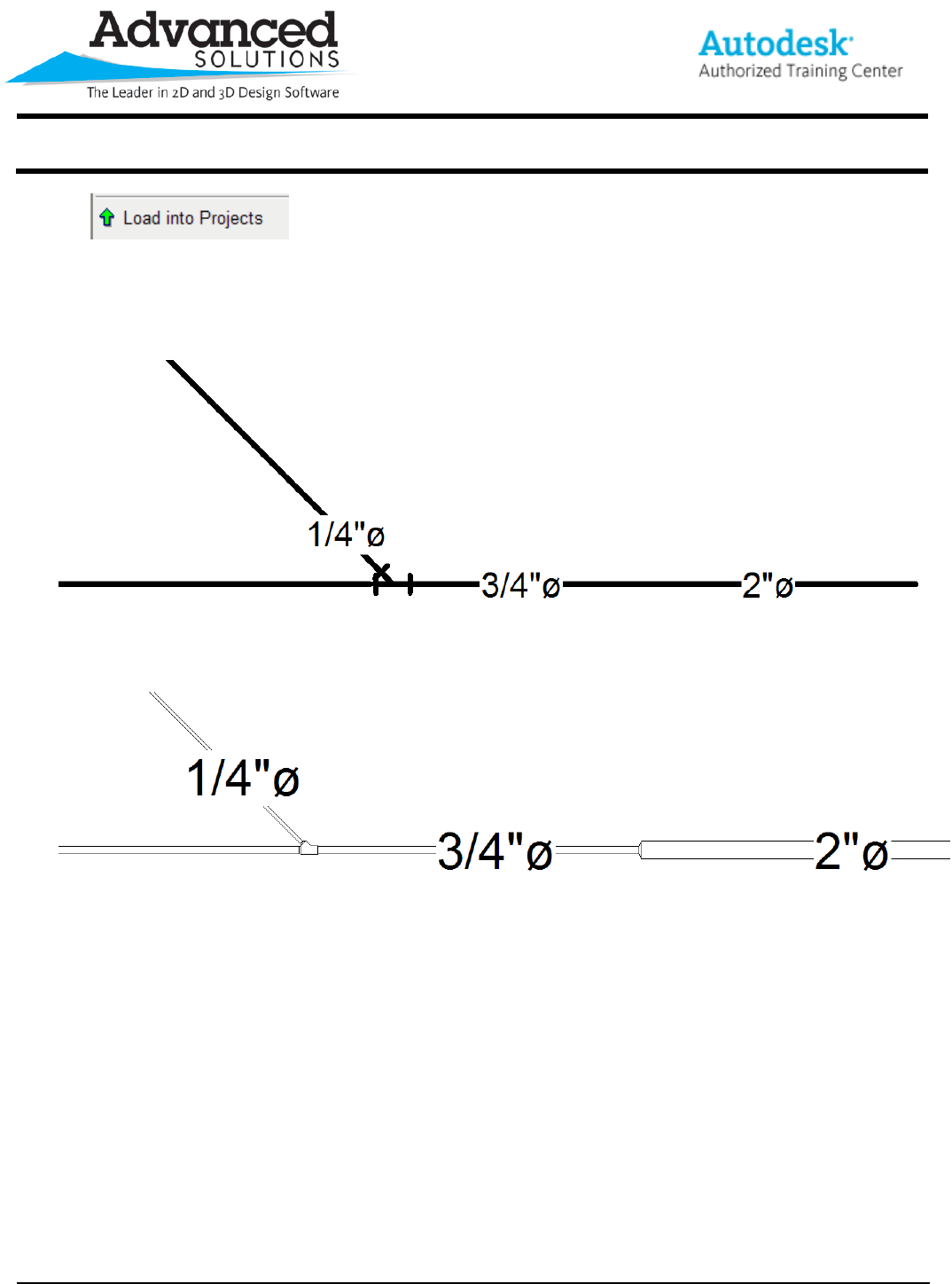

6. Select Load Into Projects from the Design Bar.
www.advsolinc.com
ASI Client Center
1-877-438-2741
Autodesk Products Tip & Tricks
Copyright 2008 – Advanced Solutions, Inc.
7. The Pipe reducers will no longer display in a Course or Medium detail level (single line pipe), but they will
be visible in a Fine detail level (double line pipe).
