Guizhou Fortuneship Technology PCD509 4G Smart Phone User Manual

Guizhou Fortuneship Technology Co., Ltd 4G Smart Phone

User manual

1 PCD509 USER MANUAL

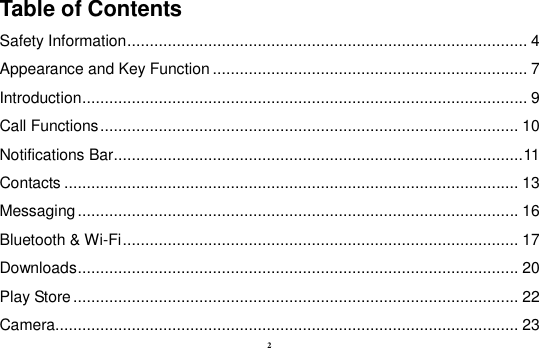

2 Table of Contents Safety Information ......................................................................................... 4 Appearance and Key Function ...................................................................... 7 Introduction ................................................................................................... 9 Call Functions ............................................................................................. 10 Notifications Bar ........................................................................................... 11 Contacts ..................................................................................................... 13 Messaging .................................................................................................. 16 Bluetooth & Wi-Fi ........................................................................................ 17 Downloads .................................................................................................. 20 Play Store ................................................................................................... 22 Camera....................................................................................................... 23

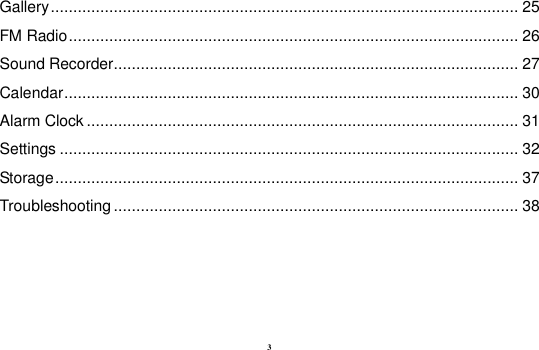

3 Gallery ........................................................................................................ 25 FM Radio .................................................................................................... 26 Sound Recorder .......................................................................................... 27 Calendar ..................................................................................................... 30 Alarm Clock ................................................................................................ 31 Settings ...................................................................................................... 32 Storage ....................................................................................................... 37 Troubleshooting .......................................................................................... 38

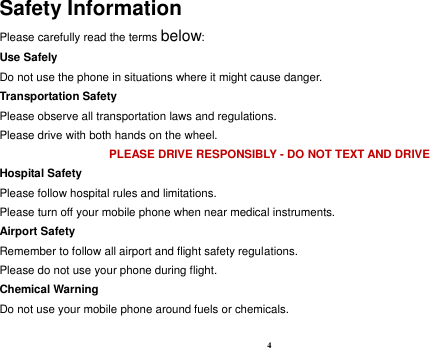

4 Safety Information Please carefully read the terms below: Use Safely Do not use the phone in situations where it might cause danger. Transportation Safety Please observe all transportation laws and regulations. Please drive with both hands on the wheel. PLEASE DRIVE RESPONSIBLY - DO NOT TEXT AND DRIVE Hospital Safety Please follow hospital rules and limitations. Please turn off your mobile phone when near medical instruments. Airport Safety Remember to follow all airport and flight safety regulations. Please do not use your phone during flight. Chemical Warning Do not use your mobile phone around fuels or chemicals.

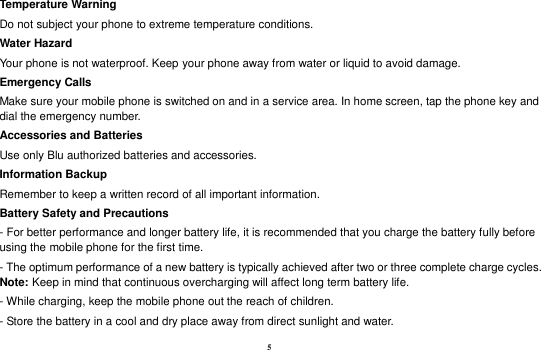

5 Temperature Warning Do not subject your phone to extreme temperature conditions. Water Hazard Your phone is not waterproof. Keep your phone away from water or liquid to avoid damage. Emergency Calls Make sure your mobile phone is switched on and in a service area. In home screen, tap the phone key and dial the emergency number. Accessories and Batteries Use only Blu authorized batteries and accessories. Information Backup Remember to keep a written record of all important information. Battery Safety and Precautions - For better performance and longer battery life, it is recommended that you charge the battery fully before using the mobile phone for the first time. - The optimum performance of a new battery is typically achieved after two or three complete charge cycles. Note: Keep in mind that continuous overcharging will affect long term battery life. - While charging, keep the mobile phone out the reach of children. - Store the battery in a cool and dry place away from direct sunlight and water.

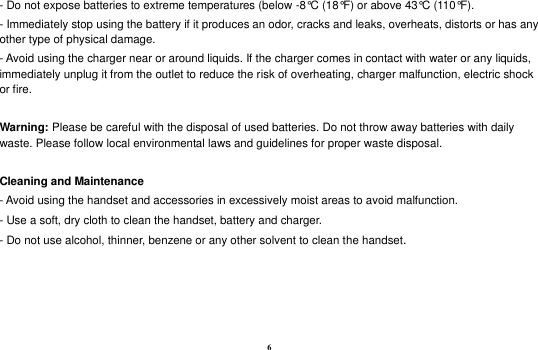

6 - Do not expose batteries to extreme temperatures (below -8°C (18°F) or above 43°C (110°F). - Immediately stop using the battery if it produces an odor, cracks and leaks, overheats, distorts or has any other type of physical damage. - Avoid using the charger near or around liquids. If the charger comes in contact with water or any liquids, immediately unplug it from the outlet to reduce the risk of overheating, charger malfunction, electric shock or fire. Warning: Please be careful with the disposal of used batteries. Do not throw away batteries with daily waste. Please follow local environmental laws and guidelines for proper waste disposal. Cleaning and Maintenance - Avoid using the handset and accessories in excessively moist areas to avoid malfunction. - Use a soft, dry cloth to clean the handset, battery and charger. - Do not use alcohol, thinner, benzene or any other solvent to clean the handset.

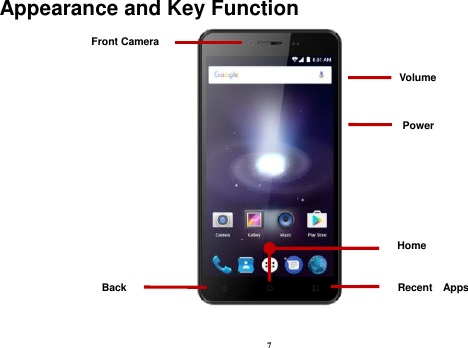

7 Appearance and Key Function Volume Power Back Home Recent Apps Front Camera

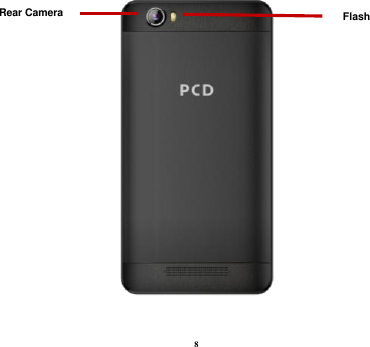

8 Rear Camera Flash

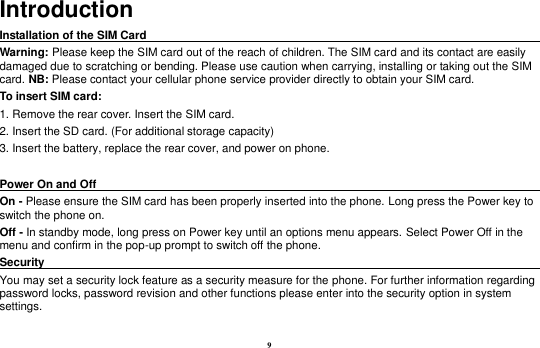

9 Introduction Installation of the SIM Card Warning: Please keep the SIM card out of the reach of children. The SIM card and its contact are easily damaged due to scratching or bending. Please use caution when carrying, installing or taking out the SIM card. NB: Please contact your cellular phone service provider directly to obtain your SIM card. To insert SIM card: 1. Remove the rear cover. Insert the SIM card. 2. Insert the SD card. (For additional storage capacity) 3. Insert the battery, replace the rear cover, and power on phone. Power On and Off On - Please ensure the SIM card has been properly inserted into the phone. Long press the Power key to switch the phone on. Off - In standby mode, long press on Power key until an options menu appears. Select Power Off in the menu and confirm in the pop-up prompt to switch off the phone. Security You may set a security lock feature as a security measure for the phone. For further information regarding password locks, password revision and other functions please enter into the security option in system settings.

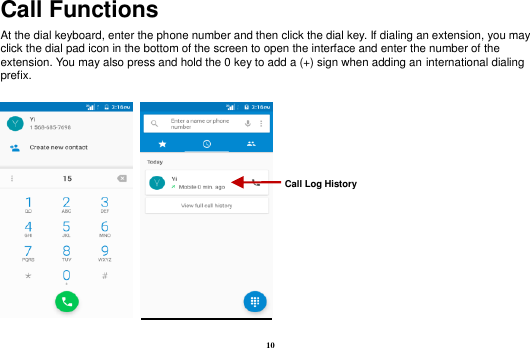

10 Call Functions At the dial keyboard, enter the phone number and then click the dial key. If dialing an extension, you may click the dial pad icon in the bottom of the screen to open the interface and enter the number of the extension. You may also press and hold the 0 key to add a (+) sign when adding an international dialing prefix. Call Log History

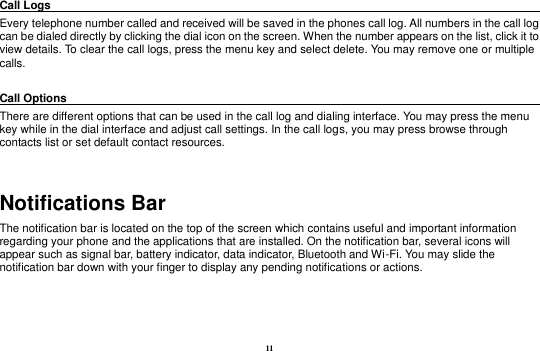

11 Call Logs Every telephone number called and received will be saved in the phones call log. All numbers in the call log can be dialed directly by clicking the dial icon on the screen. When the number appears on the list, click it to view details. To clear the call logs, press the menu key and select delete. You may remove one or multiple calls. Call Options There are different options that can be used in the call log and dialing interface. You may press the menu key while in the dial interface and adjust call settings. In the call logs, you may press browse through contacts list or set default contact resources. Notifications Bar The notification bar is located on the top of the screen which contains useful and important information regarding your phone and the applications that are installed. On the notification bar, several icons will appear such as signal bar, battery indicator, data indicator, Bluetooth and Wi-Fi. You may slide the notification bar down with your finger to display any pending notifications or actions.

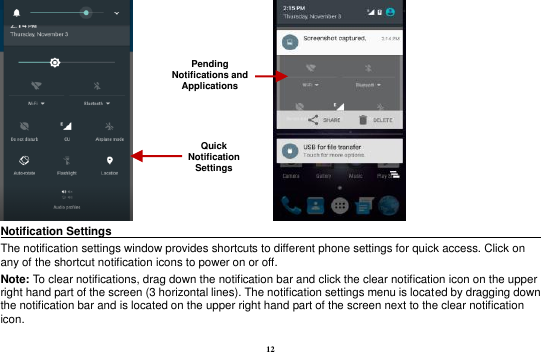

12 Notification Settings The notification settings window provides shortcuts to different phone settings for quick access. Click on any of the shortcut notification icons to power on or off. Note: To clear notifications, drag down the notification bar and click the clear notification icon on the upper right hand part of the screen (3 horizontal lines). The notification settings menu is located by dragging down the notification bar and is located on the upper right hand part of the screen next to the clear notification icon. Pending Notifications and Applications Quick Notification Settings

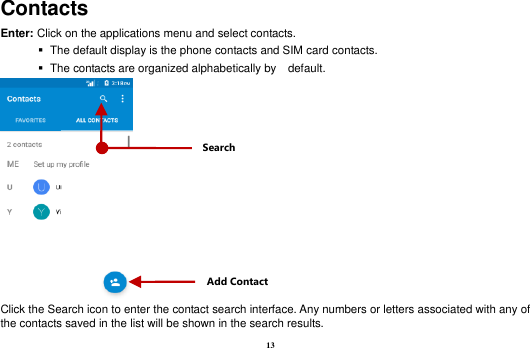

13 Contacts Enter: Click on the applications menu and select contacts.  The default display is the phone contacts and SIM card contacts.  The contacts are organized alphabetically by default. Click the Search icon to enter the contact search interface. Any numbers or letters associated with any of the contacts saved in the list will be shown in the search results. Add Contact Search

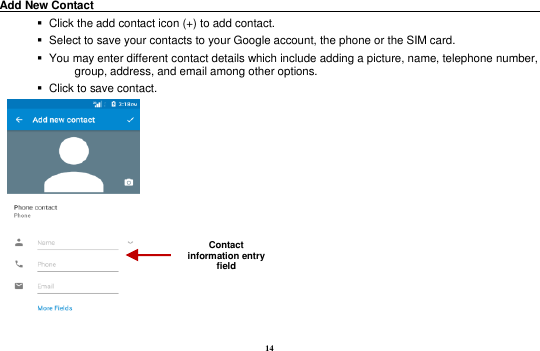

14 Add New Contact  Click the add contact icon (+) to add contact.  Select to save your contacts to your Google account, the phone or the SIM card.  You may enter different contact details which include adding a picture, name, telephone number, group, address, and email among other options.  Click to save contact. Contact information entry field

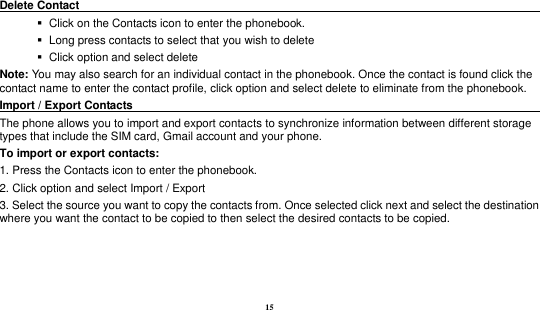

15 Delete Contact  Click on the Contacts icon to enter the phonebook.  Long press contacts to select that you wish to delete  Click option and select delete Note: You may also search for an individual contact in the phonebook. Once the contact is found click the contact name to enter the contact profile, click option and select delete to eliminate from the phonebook. Import / Export Contacts The phone allows you to import and export contacts to synchronize information between different storage types that include the SIM card, Gmail account and your phone. To import or export contacts: 1. Press the Contacts icon to enter the phonebook. 2. Click option and select Import / Export 3. Select the source you want to copy the contacts from. Once selected click next and select the destination where you want the contact to be copied to then select the desired contacts to be copied.

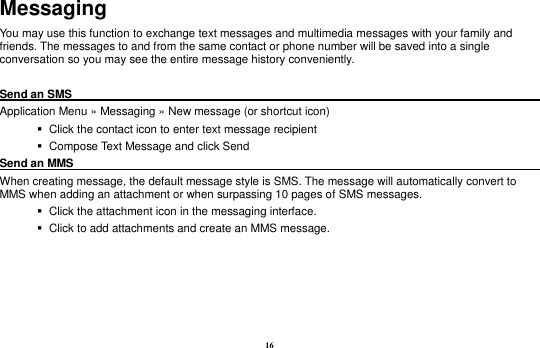

16 Messaging You may use this function to exchange text messages and multimedia messages with your family and friends. The messages to and from the same contact or phone number will be saved into a single conversation so you may see the entire message history conveniently. Send an SMS Application Menu » Messaging » New message (or shortcut icon)  Click the contact icon to enter text message recipient  Compose Text Message and click Send Send an MMS When creating message, the default message style is SMS. The message will automatically convert to MMS when adding an attachment or when surpassing 10 pages of SMS messages.  Click the attachment icon in the messaging interface.  Click to add attachments and create an MMS message.

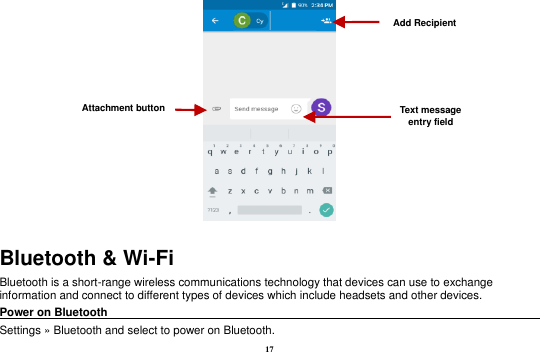

17 Bluetooth & Wi-Fi Bluetooth is a short-range wireless communications technology that devices can use to exchange information and connect to different types of devices which include headsets and other devices. Power on Bluetooth Settings » Bluetooth and select to power on Bluetooth. Attachment button Text message entry field Add Recipient

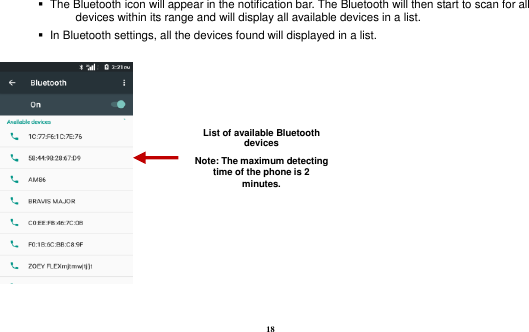

18  The Bluetooth icon will appear in the notification bar. The Bluetooth will then start to scan for all devices within its range and will display all available devices in a list.  In Bluetooth settings, all the devices found will displayed in a list. List of available Bluetooth devices Note: The maximum detecting time of the phone is 2 minutes.

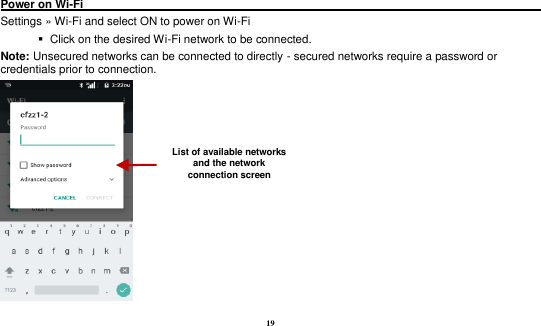

19 Power on Wi-Fi Settings » Wi-Fi and select ON to power on Wi-Fi  Click on the desired Wi-Fi network to be connected. Note: Unsecured networks can be connected to directly - secured networks require a password or credentials prior to connection. List of available networks and the network connection screen

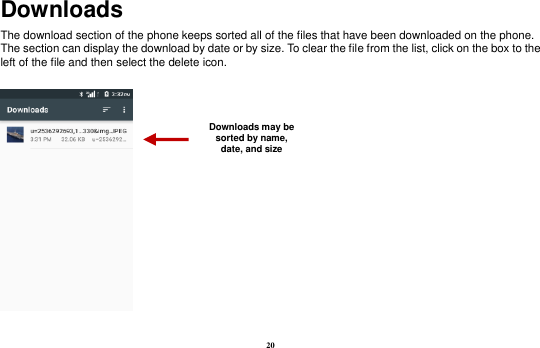

20 Downloads The download section of the phone keeps sorted all of the files that have been downloaded on the phone. The section can display the download by date or by size. To clear the file from the list, click on the box to the left of the file and then select the delete icon. Downloads may be sorted by name, date, and size

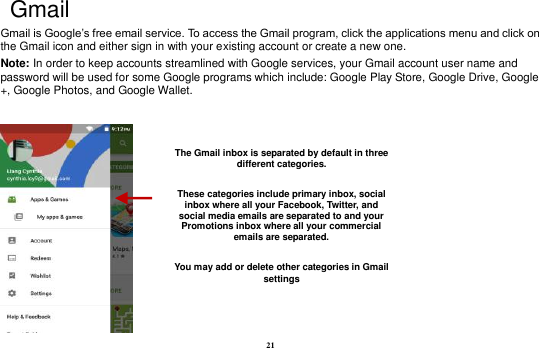

21 Gmail Gmail is Google’s free email service. To access the Gmail program, click the applications menu and click on the Gmail icon and either sign in with your existing account or create a new one. Note: In order to keep accounts streamlined with Google services, your Gmail account user name and password will be used for some Google programs which include: Google Play Store, Google Drive, Google +, Google Photos, and Google Wallet. The Gmail inbox is separated by default in three different categories. These categories include primary inbox, social inbox where all your Facebook, Twitter, and social media emails are separated to and your Promotions inbox where all your commercial emails are separated. You may add or delete other categories in Gmail settings

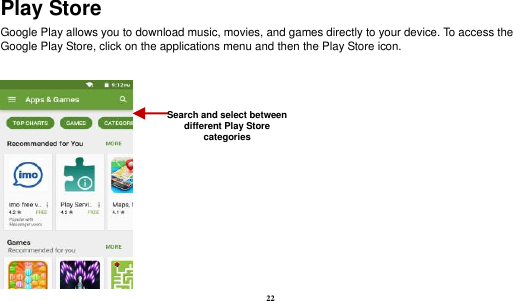

22 Play Store Google Play allows you to download music, movies, and games directly to your device. To access the Google Play Store, click on the applications menu and then the Play Store icon. Search and select between different Play Store categories

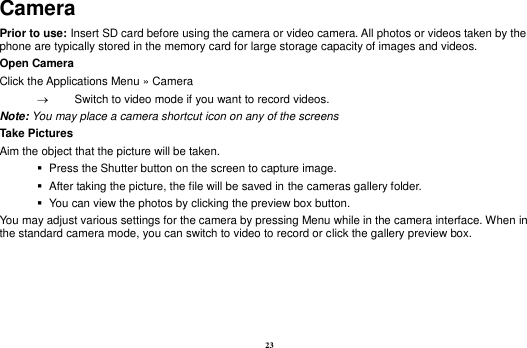

23 Camera Prior to use: Insert SD card before using the camera or video camera. All photos or videos taken by the phone are typically stored in the memory card for large storage capacity of images and videos. Open Camera Click the Applications Menu » Camera  Switch to video mode if you want to record videos. Note: You may place a camera shortcut icon on any of the screens Take Pictures Aim the object that the picture will be taken.  Press the Shutter button on the screen to capture image.  After taking the picture, the file will be saved in the cameras gallery folder.  You can view the photos by clicking the preview box button. You may adjust various settings for the camera by pressing Menu while in the camera interface. When in the standard camera mode, you can switch to video to record or click the gallery preview box.

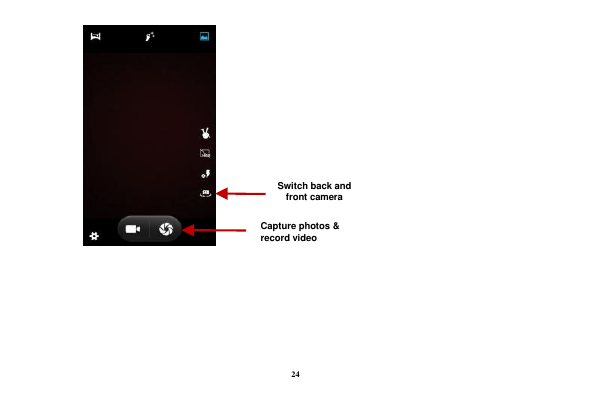

24 Capture photos & record video Switch back and front camera

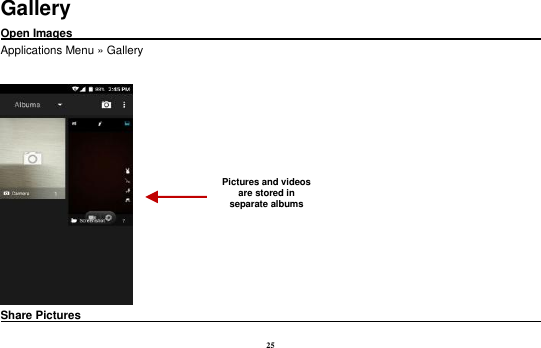

25 Gallery Open Images Applications Menu » Gallery Share Pictures Pictures and videos are stored in separate albums

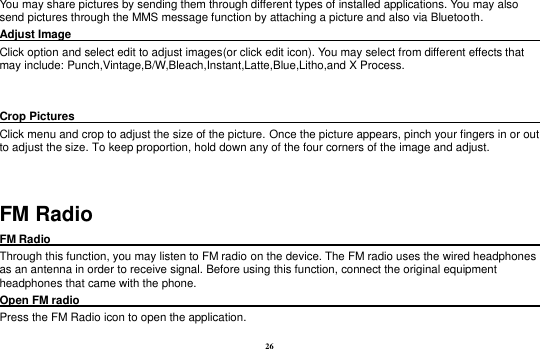

26 You may share pictures by sending them through different types of installed applications. You may also send pictures through the MMS message function by attaching a picture and also via Bluetooth. Adjust Image Click option and select edit to adjust images(or click edit icon). You may select from different effects that may include: Punch,Vintage,B/W,Bleach,Instant,Latte,Blue,Litho,and X Process. Crop Pictures Click menu and crop to adjust the size of the picture. Once the picture appears, pinch your fingers in or out to adjust the size. To keep proportion, hold down any of the four corners of the image and adjust. FM Radio FM Radio Through this function, you may listen to FM radio on the device. The FM radio uses the wired headphones as an antenna in order to receive signal. Before using this function, connect the original equipment headphones that came with the phone. Open FM radio Press the FM Radio icon to open the application.

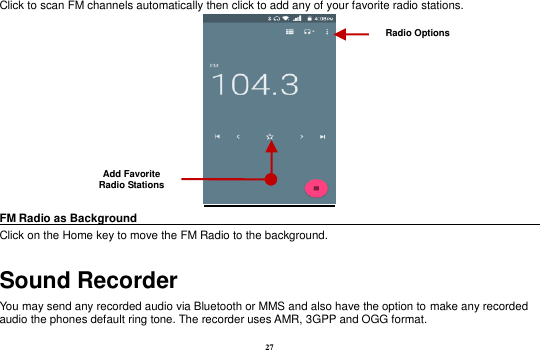

27 Click to scan FM channels automatically then click to add any of your favorite radio stations. FM Radio as Background Click on the Home key to move the FM Radio to the background. Sound Recorder You may send any recorded audio via Bluetooth or MMS and also have the option to make any recorded audio the phones default ring tone. The recorder uses AMR, 3GPP and OGG format. Radio Options Add Favorite Radio Stations

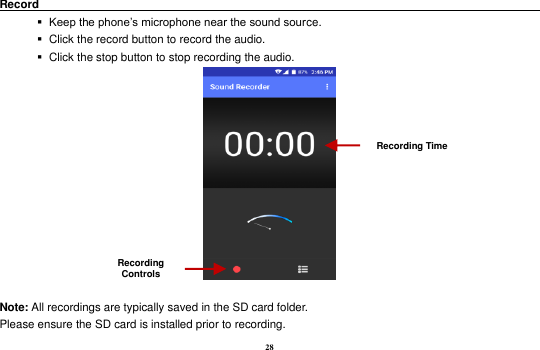

28 Record  Keep the phone’s microphone near the sound source.  Click the record button to record the audio.  Click the stop button to stop recording the audio. Note: All recordings are typically saved in the SD card folder. Please ensure the SD card is installed prior to recording. Recording Controls Recording Time

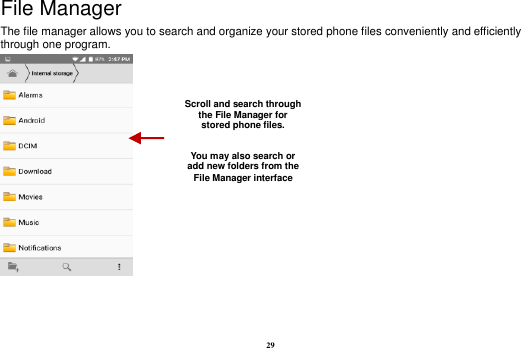

29 File Manager The file manager allows you to search and organize your stored phone files conveniently and efficiently through one program. Scroll and search through the File Manager for stored phone files. You may also search or add new folders from the File Manager interface

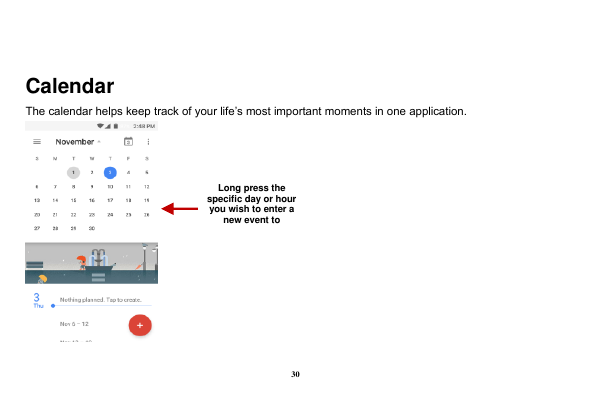

30 Calendar The calendar helps keep track of your life’s most important moments in one application. Long press the specific day or hour you wish to enter a new event to

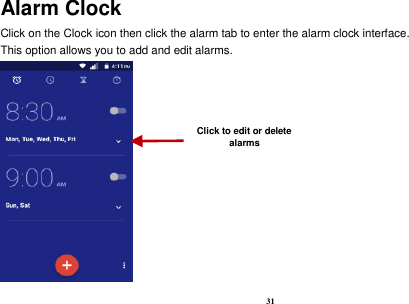

31 Alarm Clock Click on the Clock icon then click the alarm tab to enter the alarm clock interface. This option allows you to add and edit alarms. Click to edit or delete alarms

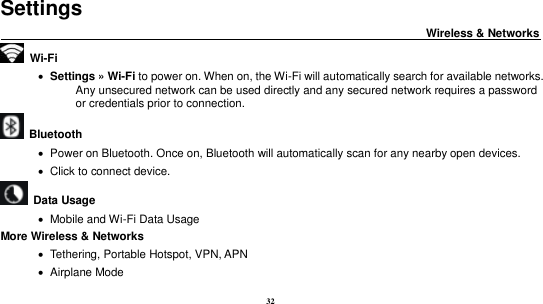

32 Settings Wireless & Networks Wi-Fi  Settings » Wi-Fi to power on. When on, the Wi-Fi will automatically search for available networks. Any unsecured network can be used directly and any secured network requires a password or credentials prior to connection. Bluetooth  Power on Bluetooth. Once on, Bluetooth will automatically scan for any nearby open devices.  Click to connect device. Data Usage  Mobile and Wi-Fi Data Usage More Wireless & Networks  Tethering, Portable Hotspot, VPN, APN  Airplane Mode

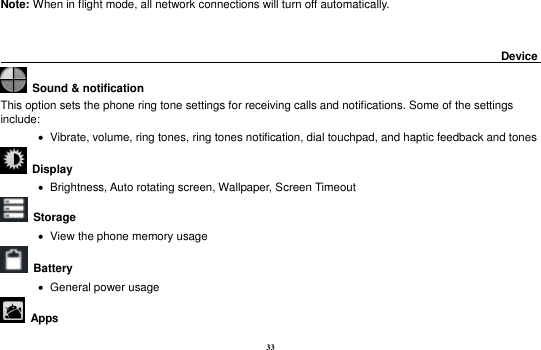

33 Note: When in flight mode, all network connections will turn off automatically. Device Sound & notification This option sets the phone ring tone settings for receiving calls and notifications. Some of the settings include:  Vibrate, volume, ring tones, ring tones notification, dial touchpad, and haptic feedback and tones Display  Brightness, Auto rotating screen, Wallpaper, Screen Timeout Storage  View the phone memory usage Battery  General power usage Apps

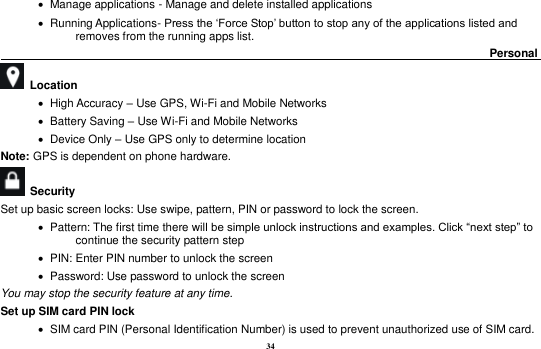

34  Manage applications - Manage and delete installed applications  Running Applications- Press the ‘Force Stop’ button to stop any of the applications listed and removes from the running apps list. Personal Location  High Accuracy – Use GPS, Wi-Fi and Mobile Networks  Battery Saving – Use Wi-Fi and Mobile Networks  Device Only – Use GPS only to determine location Note: GPS is dependent on phone hardware. Security Set up basic screen locks: Use swipe, pattern, PIN or password to lock the screen.  Pattern: The first time there will be simple unlock instructions and examples. Click “next step” to continue the security pattern step  PIN: Enter PIN number to unlock the screen  Password: Use password to unlock the screen You may stop the security feature at any time. Set up SIM card PIN lock  SIM card PIN (Personal Identification Number) is used to prevent unauthorized use of SIM card.

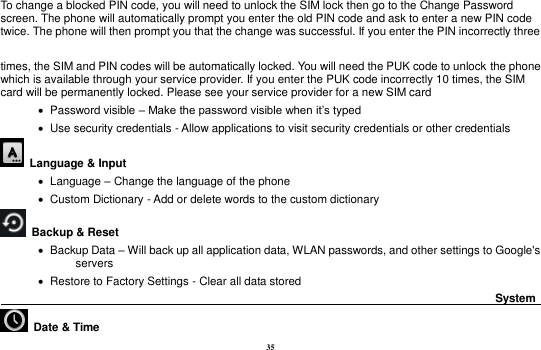

35 To change a blocked PIN code, you will need to unlock the SIM lock then go to the Change Password screen. The phone will automatically prompt you enter the old PIN code and ask to enter a new PIN code twice. The phone will then prompt you that the change was successful. If you enter the PIN incorrectly three times, the SIM and PIN codes will be automatically locked. You will need the PUK code to unlock the phone which is available through your service provider. If you enter the PUK code incorrectly 10 times, the SIM card will be permanently locked. Please see your service provider for a new SIM card  Password visible – Make the password visible when it’s typed  Use security credentials - Allow applications to visit security credentials or other credentials Language & Input  Language – Change the language of the phone  Custom Dictionary - Add or delete words to the custom dictionary Backup & Reset  Backup Data – Will back up all application data, WLAN passwords, and other settings to Google's servers  Restore to Factory Settings - Clear all data stored System Date & Time

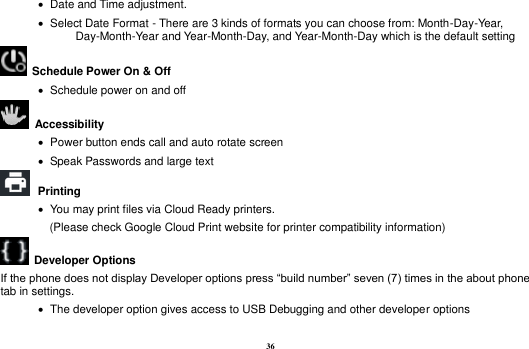

36  Date and Time adjustment.  Select Date Format - There are 3 kinds of formats you can choose from: Month-Day-Year, Day-Month-Year and Year-Month-Day, and Year-Month-Day which is the default setting Schedule Power On & Off  Schedule power on and off Accessibility  Power button ends call and auto rotate screen  Speak Passwords and large text Printing  You may print files via Cloud Ready printers. (Please check Google Cloud Print website for printer compatibility information) Developer Options If the phone does not display Developer options press “build number” seven (7) times in the about phone tab in settings.  The developer option gives access to USB Debugging and other developer options

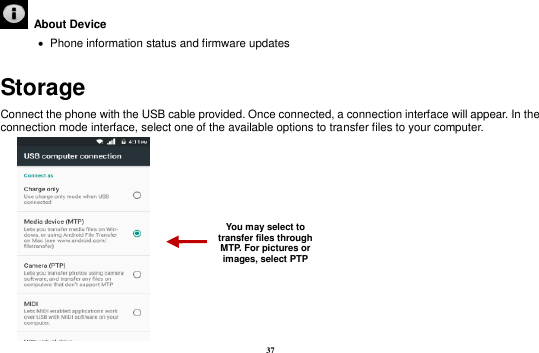

37 About Device  Phone information status and firmware updates Storage Connect the phone with the USB cable provided. Once connected, a connection interface will appear. In the connection mode interface, select one of the available options to transfer files to your computer. You may select to transfer files through MTP. For pictures or images, select PTP

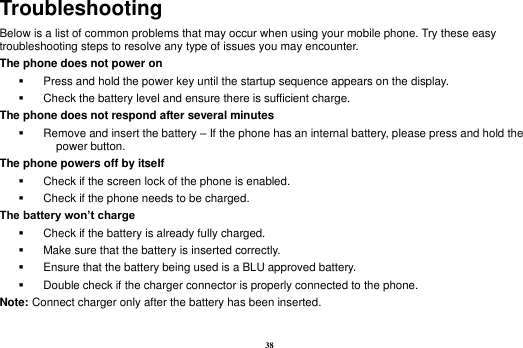

38 Troubleshooting Below is a list of common problems that may occur when using your mobile phone. Try these easy troubleshooting steps to resolve any type of issues you may encounter. The phone does not power on  Press and hold the power key until the startup sequence appears on the display.  Check the battery level and ensure there is sufficient charge. The phone does not respond after several minutes  Remove and insert the battery – If the phone has an internal battery, please press and hold the power button. The phone powers off by itself  Check if the screen lock of the phone is enabled.  Check if the phone needs to be charged. The battery won’t charge  Check if the battery is already fully charged.  Make sure that the battery is inserted correctly.  Ensure that the battery being used is a BLU approved battery.  Double check if the charger connector is properly connected to the phone. Note: Connect charger only after the battery has been inserted.

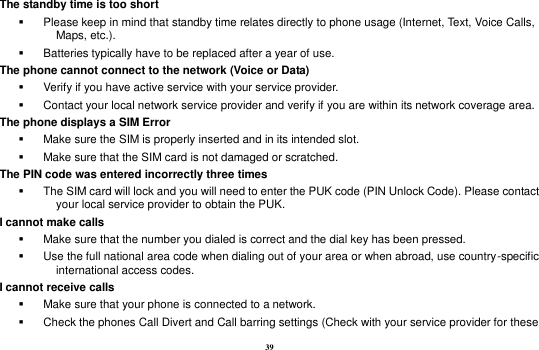

39 The standby time is too short  Please keep in mind that standby time relates directly to phone usage (Internet, Text, Voice Calls, Maps, etc.).  Batteries typically have to be replaced after a year of use. The phone cannot connect to the network (Voice or Data)  Verify if you have active service with your service provider.  Contact your local network service provider and verify if you are within its network coverage area. The phone displays a SIM Error  Make sure the SIM is properly inserted and in its intended slot.  Make sure that the SIM card is not damaged or scratched. The PIN code was entered incorrectly three times  The SIM card will lock and you will need to enter the PUK code (PIN Unlock Code). Please contact your local service provider to obtain the PUK. I cannot make calls  Make sure that the number you dialed is correct and the dial key has been pressed.  Use the full national area code when dialing out of your area or when abroad, use country-specific international access codes. I cannot receive calls  Make sure that your phone is connected to a network.  Check the phones Call Divert and Call barring settings (Check with your service provider for these

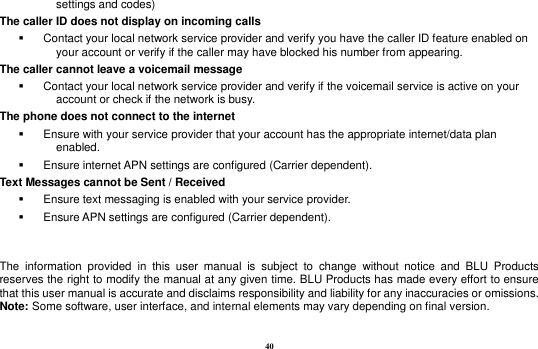

40 settings and codes) The caller ID does not display on incoming calls  Contact your local network service provider and verify you have the caller ID feature enabled on your account or verify if the caller may have blocked his number from appearing. The caller cannot leave a voicemail message  Contact your local network service provider and verify if the voicemail service is active on your account or check if the network is busy. The phone does not connect to the internet  Ensure with your service provider that your account has the appropriate internet/data plan enabled.  Ensure internet APN settings are configured (Carrier dependent). Text Messages cannot be Sent / Received  Ensure text messaging is enabled with your service provider.  Ensure APN settings are configured (Carrier dependent). The information provided in this user manual is subject to change without notice and BLU Products reserves the right to modify the manual at any given time. BLU Products has made every effort to ensure that this user manual is accurate and disclaims responsibility and liability for any inaccuracies or omissions. Note: Some software, user interface, and internal elements may vary depending on final version.

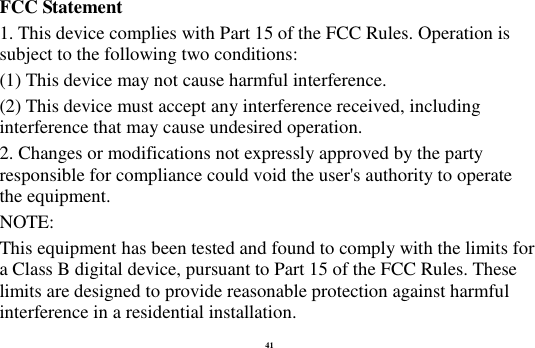

41 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

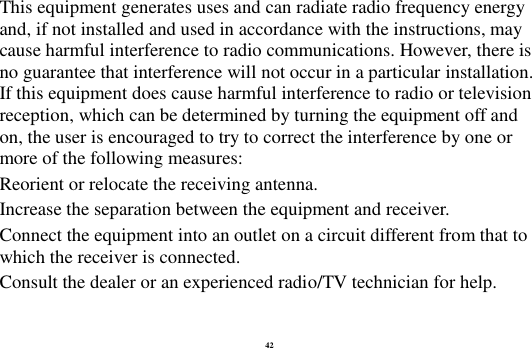

42 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

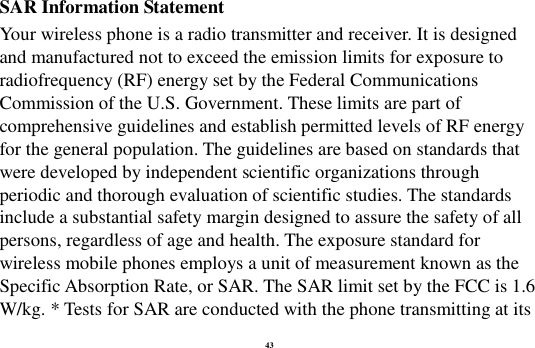

43 SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its

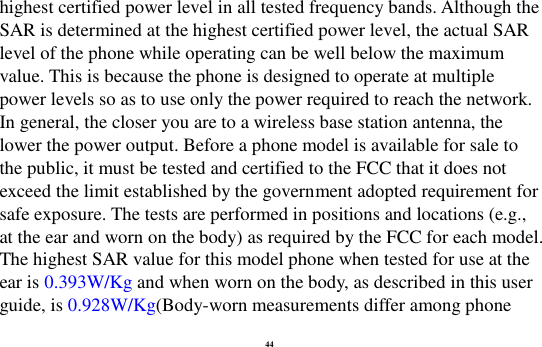

44 highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.393W/Kg and when worn on the body, as described in this user guide, is 0.928W/Kg(Body-worn measurements differ among phone

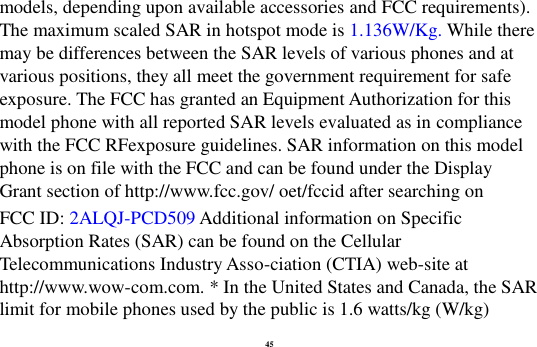

45 models, depending upon available accessories and FCC requirements). The maximum scaled SAR in hotspot mode is 1.136W/Kg. While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID: 2ALQJ-PCD509 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg)

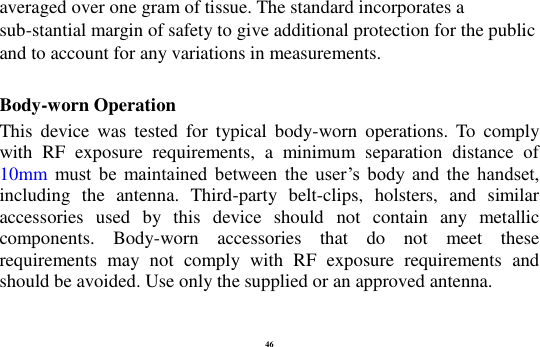

46 averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
