Guo Wei Electronics DECT80C01BS Digital Cordless Telephone With Answering Machine (Base) User Manual PD483 ATS Colombo 2 TAM
Shenzhen Guo Wei Electronics (H.K.) Co. Ltd. Digital Cordless Telephone With Answering Machine (Base) PD483 ATS Colombo 2 TAM
Users Manual
Product Definition Document SGW Europe Ltd.
PD483
Product Definition Document
Version 1.3

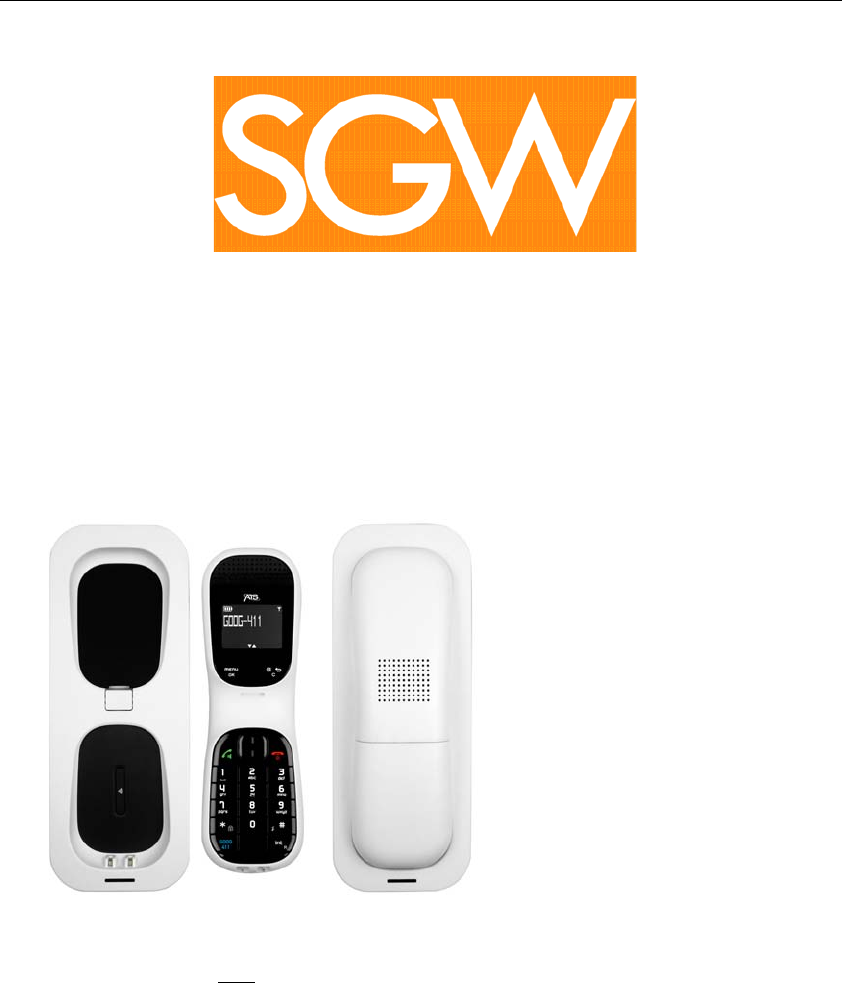

Note: This image is used for cabinet design reference only.
Customer: ATS Country: USA
Model: Colombo 2
Roadmap Number: DECT 80-4-2
Cabinet Reference: C01
Product Definition Document SGW Europe Ltd.
PD483 3
Contents
1 Feature List
1.1 Core Roadmap Features
1.2 Deviations from Core Roadmap/Remarks
2 Panel Layout
2.1 Handset
2.2 Base
2.3 Charger
Product Definition Document SGW Europe Ltd.
PD483
1 Feature List
1.1 Core Roadmap Features
DECT 80-4-2
Display and Aesthetics
Primary Liquid Crystal Display Refer to § 2.1
Secondary Display
Icon set
Key count Refer to § 2
Animations
LEDs / Indicators Refer to § 2
Display Backlight Refer to § 1.2
Backlit keypad Options Refer to § 1.2
Idle Display Handset Name, Date-Time
Other Display Options
Character Sets / Text
Font Description Alpha-numeric, upper and lower case,
some symbols
General Features
GAP Compatibility YES
Multi-base / Handset 4 Base / 5 Handsets
Base Station / Handset System Security (PIN code) 4-digit
Dialling Mode Refer to § 1.2
Paging From base to handset(s) YES
3 way conferencing (2 internal with 1 external) YES
3 way conferencing plus simultaneous intercom YES
Auto-talk / Standby Yes, user can disable Auto-talk
Recall / Flash Refer to § 1.2
Dialling Pause YES, note there is a separate 1.5 second
pause associated with a Recall stored in
memory
Pre-dialling Facility YES
Out-of-range Warning Standby : visual;
In Call : audible and visual
PABX Access code Refer to § 1.2
Restore to Default Settings Menu / key sequence
Alarm YES
Walky Talky Feature
Call Barring YES
Low Battery Warning Standby : visual
In Call : audible and visual
Call Timer YES
Handset Power On/Off YES
Microphone Mute Facility YES
Normal level 3(5 Levels available)

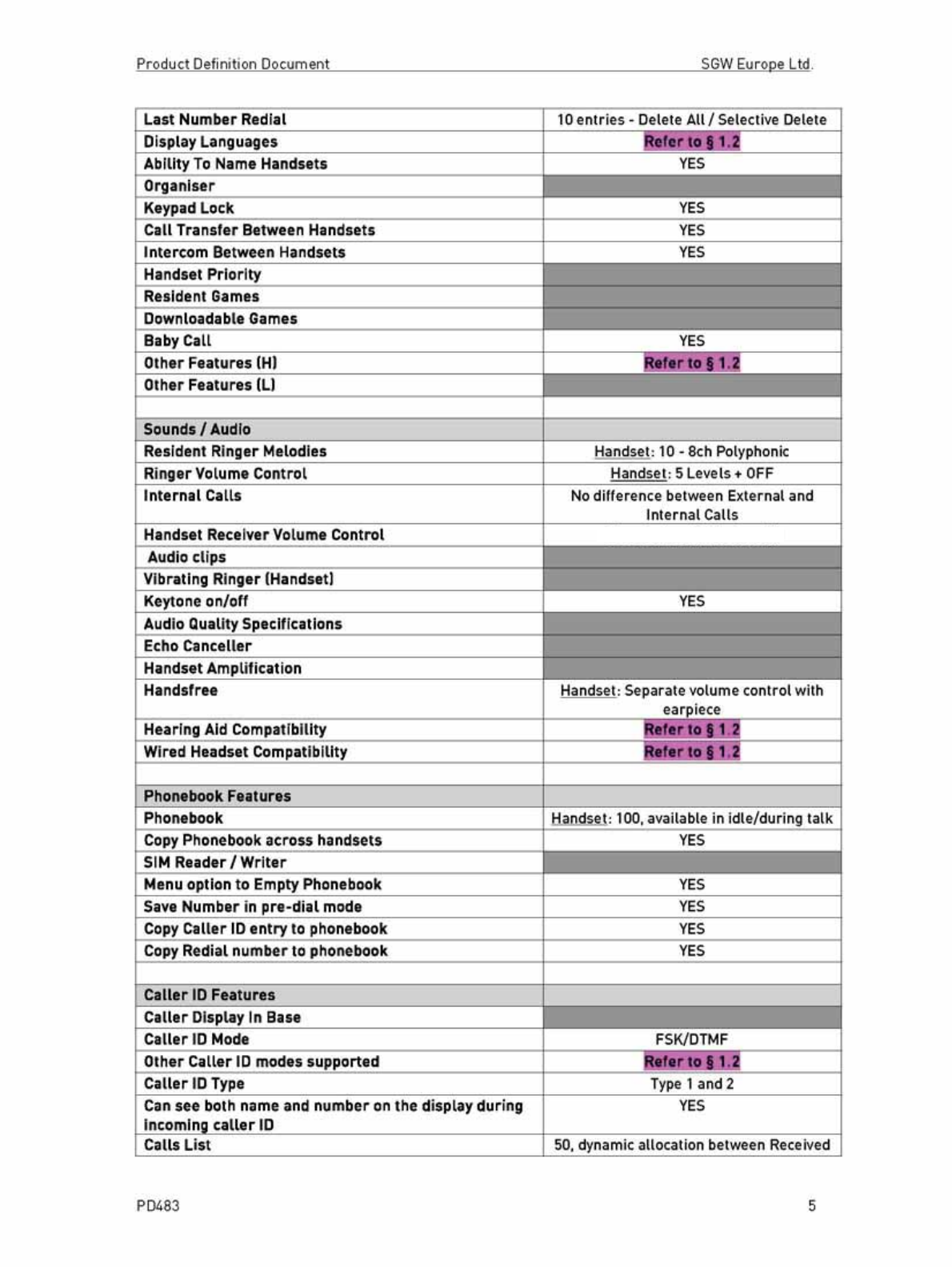

Product Definition Document SGW Europe Ltd.
PD483 6
and Missed
Caller ID matching to Phonebook Ringtones : Resident - Direct
Assignment;
Calls List Includes Time / Date of Call YES, if network does not supply date and
time, then this is taken from internal
calendar
Network Related Features
Network Services Menu Refer to § 1.2
Multi-Country Settings Refer to § 1.2
Option to Disable RPAS Refer to § 1.2
Hot Keys Refer to § 1.2
Prefix Dialling Refer to § 1.2
Area Code Management Refer to § 1.2
Network Voice Mail Indication (FSK) Refer to § 1.2
Answering Machine Features
Voice Prompts Refer to § 1.2
Outgoing Message 1 x Answer & Record, 1 x Answer only
(max recording time 3 minutes for each)
Audible Message Alert NO
Pre-recorded OGM YES
Total Recording Time (excluding voice prompts) Refer to § 1.2
Incoming Messages Each ICM: Max 3 minutes;
Max Number of messages: 59
Call Screening YES
(handset or base screening can be
enabled or disabled via handset menu)
Call Intercept YES
Memo Message YES, via Handset
Message Counter Refer to § 1.2
Message Playback Features Skip Back, Skip Forwards, Delete, Stop
Message Full Indication YES
Private Playback Via Handset YES
Ring Delay Selector 2-9, Toll Saver
Remote Access ID 4 digit, the same as PIN
Remote Access Options Messages: Play, Delete (selective), Skip
back, Skip forwards; Stop
General: Switch on/off
Technical Characteristics
Last Number Redial Memory Length Refer to § 1.2
Phonebook Name Length 12 characters
Memory Number Length 24 Digits
Handset Name Length 10 characters
Battery Type NiMH
Product Definition Document SGW Europe Ltd.
PD483 7
1.2 Deviations from Core Roadmap/Remarks
Display and Aesthetics
Display Backlight Inverse display with white backlight
Backlit keypad Options NO
General Features
Dialling Mode Please refer to default settings table
Recall / Flash Timed Break only
(Please refer to default settings table)
PABX Access code NO
Other Features (H) Baby Monitor, Call Barring, Intrusion
Mode, GOOGLE key, ECO 1 and Energy
Star Compliant
Display Languages 3 languages: English, Spanish and French
Sounds / Audio
Hearing Aid Compatibility YES
Wired Headset Compatibility NO
Caller ID Features
Other Caller ID modes supported N/A
Network Related Features
Network Services Menu Menu hidden
Option to Disable RPAS Menu selection
(Please refer to default settings table)
Hot Keys Empty
Prefix Dialling Menu settings
Area Code Management YES, 7/10/11 toggles
Network Voice Mail Indication (FSK) Yes, Handset icon
Answering Machine Features
Voice Prompts English US
Total Recording Time (excluding voice prompts) 12 minutes
Message Counter Single LED
Technical Characteristics
Last Number Redial Memory Length 24 digits
Product Definition Document SGW Europe Ltd.
PD483 8
2 Panel Layout

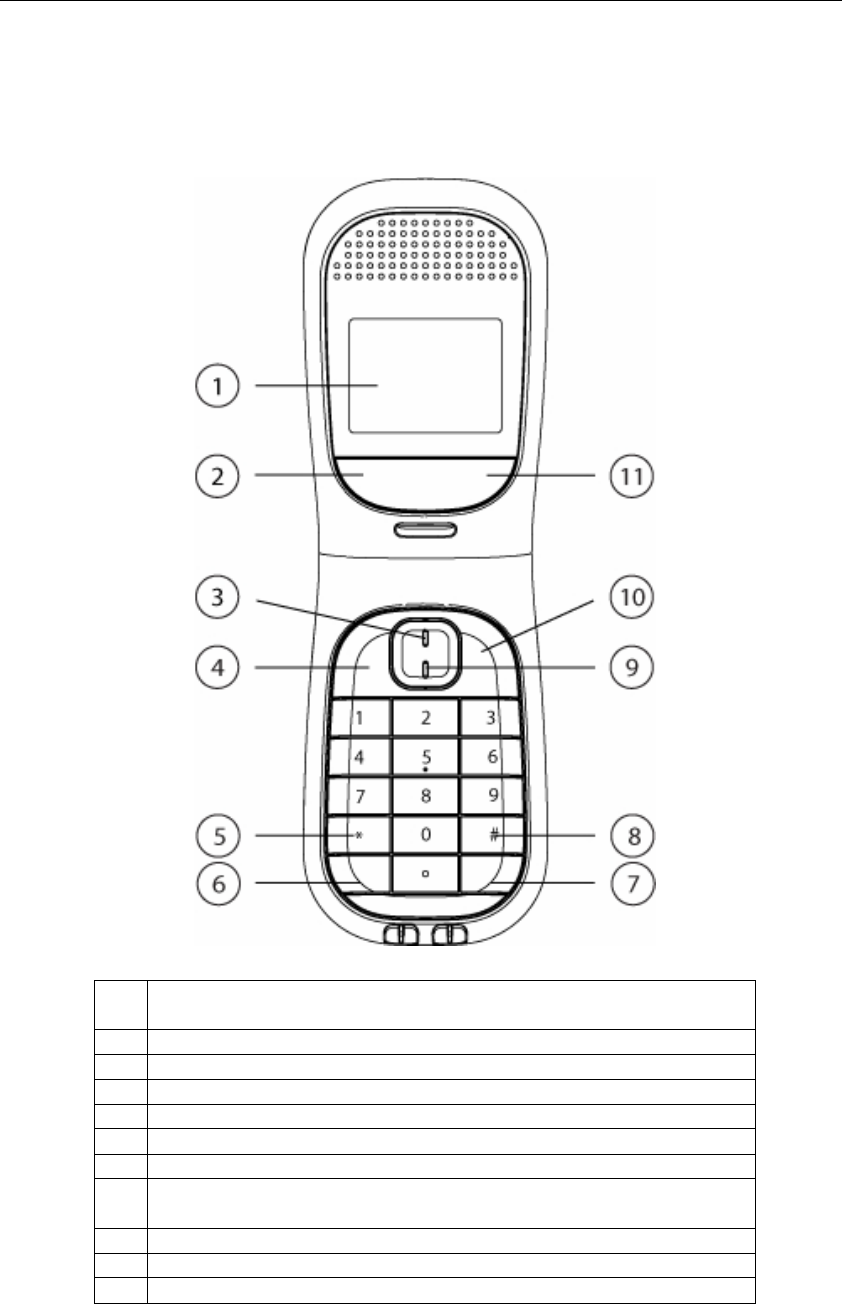

2.1 Handset
1 2-Line Black and White inverse, excluding icons; Alphanumeric Dot
Matrix; 2 x 12 characters
2 Menu / OK
3 Enter Call Log menu / Volume Up / Scroll Up / Answer Machine
4 Talk On / Handsfree
5 */ Engage Keylock / Switch from Pulse to Tone
6 Recall / Intercom
7 GOOGLE key
8 # / Ringer On/Off / Toggle upper and lower case in text editing mode
and Pause
9 Enter Phonebook names list / Volume Down / Scroll Down
10 Talk Off / Power On/Off
11 Enter Redial List / Mute / Clear / back
Note: Space is on KEY_1.
Product Definition Document SGW Europe Ltd.
PD483 9

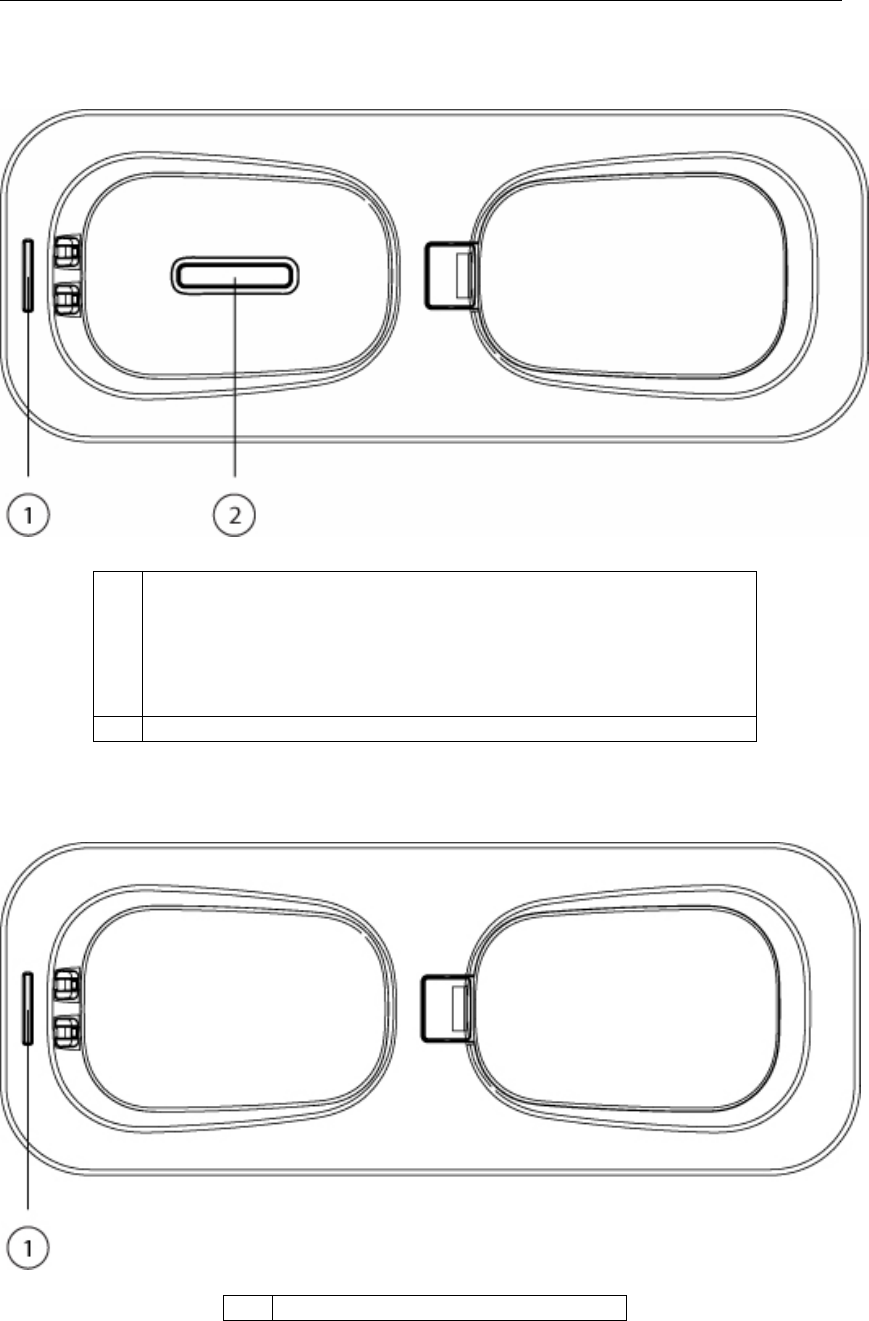

2.2 Base
1 Charging and TAM LED
HS on charging + TAM On > Orange
HS on charging + TAM On + new messages > Flashing Orange
TAM On > Green
TAM On + new messages > Flashing Green
TAM Off + charging > Red
2 Page Key
2.3 Charger
1 Charging Indicator LED
Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
This Cordless phone meets the government's requirements for exposure to radio waves.
For Handset:
Your handset is a radio transmitter and receiver. It is designed and manufactured to exceed limits for
exposure to radio frequency (RF) energy set by the Federal Communication Commission (FCC) of the
U.S Government. These limits are part of comprehensive guidelines and establish permitted levels of
RF energy for the general population. The guidelines are based on standards that were developed by
independent scientific organizations through periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed to assure the safety of all persons regardless of
age or health.
The exposure standard for handset employs a unit of measurement known as the Specific Absorption
Rate, or SAR, The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using
standard operating positions accepted by the FCC with the handset transmitting at its highest certified
power level in all tested frequency bands. Although the SAR is determined at the highest certified
power level, the actual SAR level of the phone while operating can be well below the maximum value.
This is because the handset is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a wireless base station, the lower the
power output.
Before handset is available for sale to the public in the U.S, it must be tested and certified to the FCC
that it does not exceed the limit establish for safe exposure. The tests are performed in positions and
locations (e.g, at the ear and worn on the body) reported to the FCC.
Please note that improvements to this product model could cause differences in the SAR value for later
products, in all cases, products are designed to be within the guidelines.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .
For Base:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm between
the radiator& your body.
Modifications not authorized by the manufacturer may void users authority operate this device.
Customer Information
1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the
ACTA. On bottom of this equipment is a label that contains, among other information, a
product identifier of [US: GWEW400BDECT80C01]. If requested, this number must be
provided to the telephone company.
2. If this equipment [Digital Cordless Telephone With Answering Machine] causes harm to the
telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised of your right
to file a complaint with the FCC if you believe it is necessary.
3. The telephone company may make changes in this facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to make necessary modification to
maintain uninterrupted service.
4. If you experience trouble with this equipment, you disconnect it from the network until the
problem has been corrected or until you are sure that the equipment is not malfunctioning.
5. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do
not alternate or repair any parts of device except specified.
6. Connection to party line service is subject to state tariffs. Contact the state public utility
commission public service commission or corporation commission for information.
7. If the telephone company requests information on what equipment is connected to their lines,
inform them of:
a) The telephone number that this unit is connected to,
b) The ringer equivalence number [0.0B]
c) The USOC jack required [RJ11C], and
d) The FCC Registration Number [ GWEW400BDECT80C01]
Items (b) and (d) are indicated on the label. The ringer equivalence number (REN) is used to
determine how many devices can be connected to your telephone line. In most areas, the sum
of the RENs of all devices on any one line should not exceed five (5.0). If too many devices
are attached, they may not ring properly.
Service Requirements
In the event of equipment malfunction, all repairs should be performed by our Company or an
authorized agent. It is the responsibility of users requiring service to report the need for service to
our Company or to one of our authorized agents. Service can be facilitated through our office at:
Future Call LLC
13425 S 37th Place Phoenix AZ 85044 USA
