BlueHDP+USB
User Guide
Release r01
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 2 of 14
Table of contents
1 Introduction ....................................................................................................... 3
1.1 Product description ....................................................................................... 3
1.2 Content ......................................................................................................... 3
1.2.1 LED ..................................................................................................... 4
1.2.2 Label ................................................................................................... 5
2 Installation ......................................................................................................... 6
2.1 Procedure of Installation ............................................................................... 6
3 Usage of the BlueHDP+USB with Continua Enabling Software Library (CESL) . 7
3.1 Requirements ............................................................................................... 7
3.2 Test Setup .................................................................................................... 7
3.3 Procedure of Installation ............................................................................... 8
3.4 Using the CESL Manager with BlueHDP+USB ............................................. 8
3.5 Using the CESL Agent with BlueDev+P25/G2/HDP .................................... 11
4 Firmware Upgrade ........................................................................................... 12
4.1 Stollmann BlueHDP+USB Serial Module Updater ....................................... 12
4.2 Troubleshooting .......................................................................................... 13
5 History ............................................................................................................. 14
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 3 of 14
1 Introduction
We are very pleased to see that you have purchased a Stollmann product and
would like to express our appreciation.
This documentation is valid for the following product: BlueHDP+USB
Software version 1.402 or later
1.1 Product description

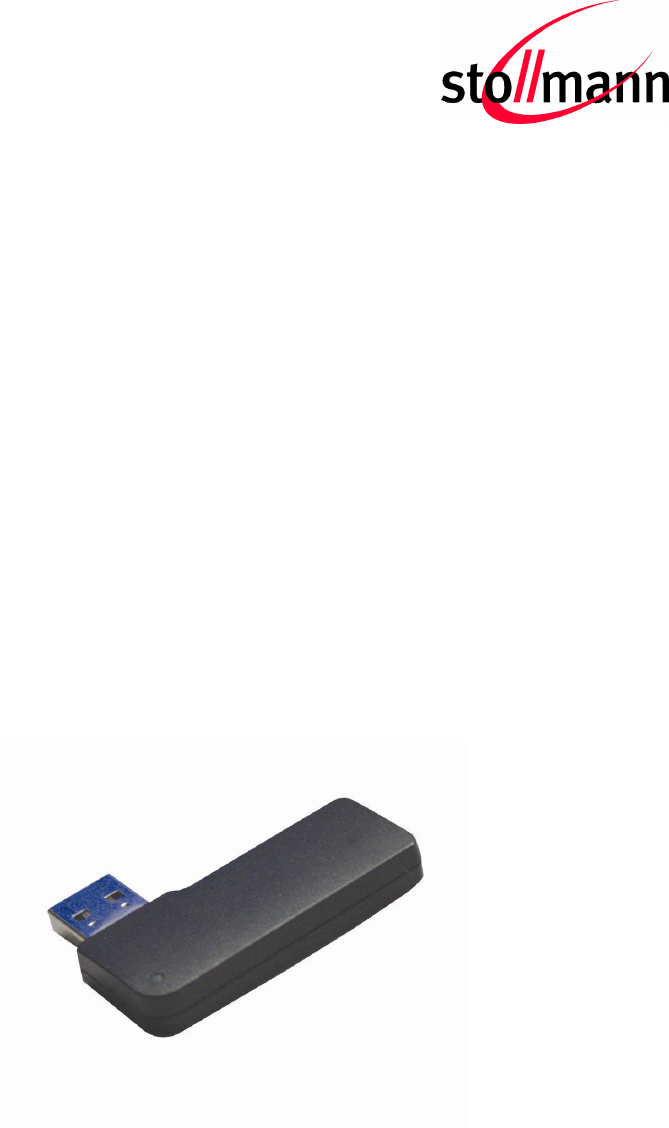

BlueHDP+USB is an active Bluetooth USB dongle. The complete Stollmann
Bluetooth stack is running in the dongle.
The following Bluetooth profiles are supported:
- HDP
- DID
- SPP
1.2 Content
This package contains the following part:
BlueHDP+USB
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 4 of 14
1.2.1 LED

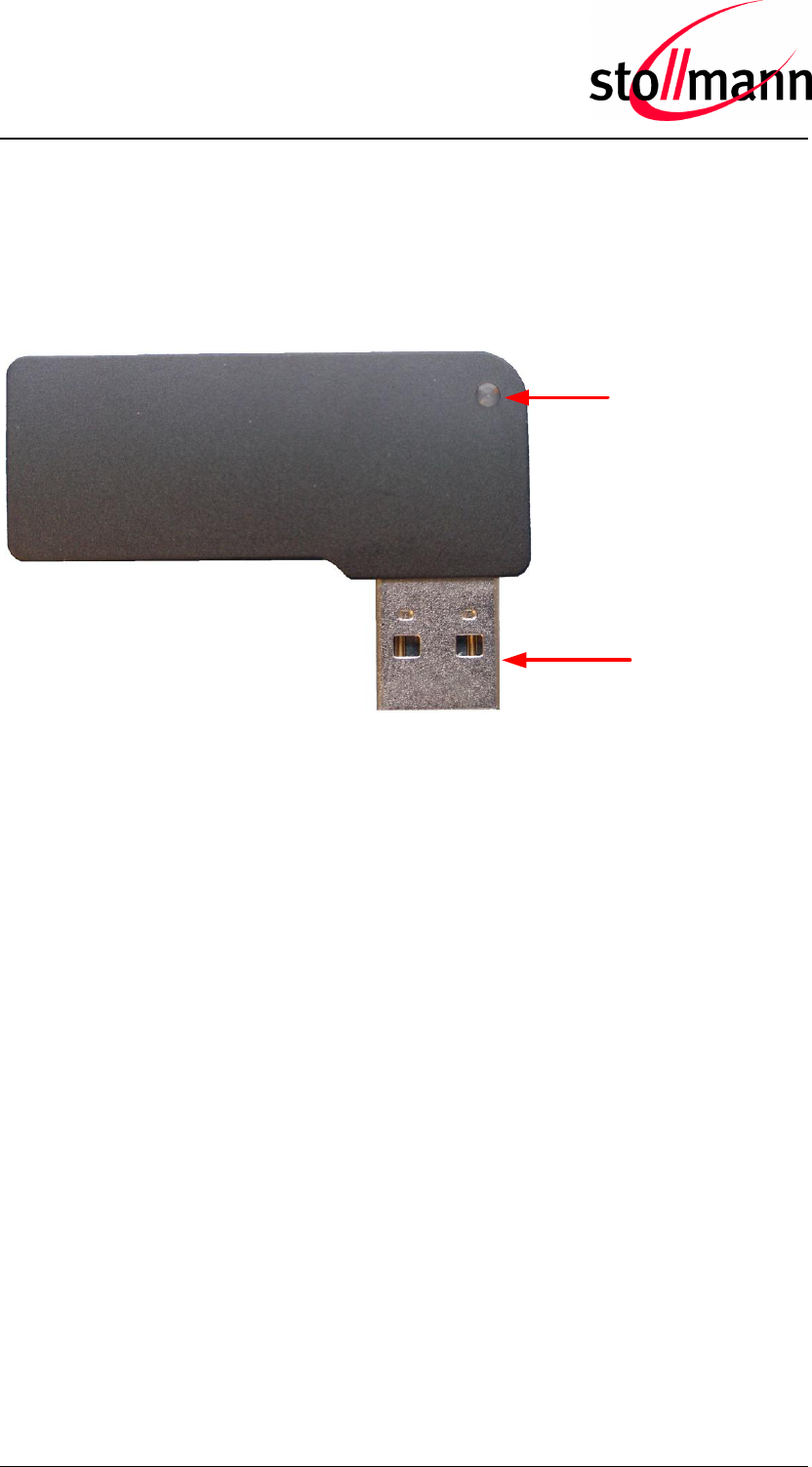

The BlueHDP+USB have an LED on the front side.
LED (green)
USB
Connector
The green LED indicates that the BlueHDP+USB is powered correct from the USB
port of the host system. There is no other functionality of the LED.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 5 of 14
1.2.2 Label
Manufacturer
CE and Bluetooth
Qualification
Product
Name
Part Number
Bluetooth
Address
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 6 of 14
2 Installation
2.1 Procedure of Installation
Connect the BlueHDP+USB to a PC USB port and install the Silabs USB to UART
Bridge driver (can be downloaded at
http://www.silabs.com/products/mcu/pages/usbtouartbridgevcpdrivers.aspx).
Find a new COM port in the device manager called “Silicon Labs CP210x USB to
UART Bridge”.
Now the BlueHDP+USB is ready to operate at the assigned COM port.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 7 of 14
3 Usage of the BlueHDP+USB with Continua Enabling
Software Library (CESL)
3.1 Requirements
- BlueHDP+USB with software version 1.402 or later
- CESL binary setup with software version 1.5 or later
- PC with Windows XP, Vista or 7 operating system
3.2 Test Setup
USB
Bluetooth
HDP Device
CESL Manager
Stollmann
BlueHDP+USB
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 8 of 14
3.3 Procedure of Installation
To operate with BlueHDP+USB and CESL binary software please install the
following software:
- BlueHDP+USB with Silabs USB to UART Bridge CP210x
- CESL binary setup v1.5 or later
After correct installation of BlueHDP+USB with Silabs USB to UART Bridge CP210x
please install the CESL binary software and follow the instructions.
3.4 Using the CESL Manager with BlueHDP+USB
Start the “Continua Manager GUI” application and modify the following parameters
in the “Edit” section:
- “Transport Settings” --> disable USB & TCP Transport
- “Transport Settings” --> enable Bluetooth Transport with according
COM-Port of BlueHDP+USB
- “WAN” --> disable Delivery to WAN Bridge

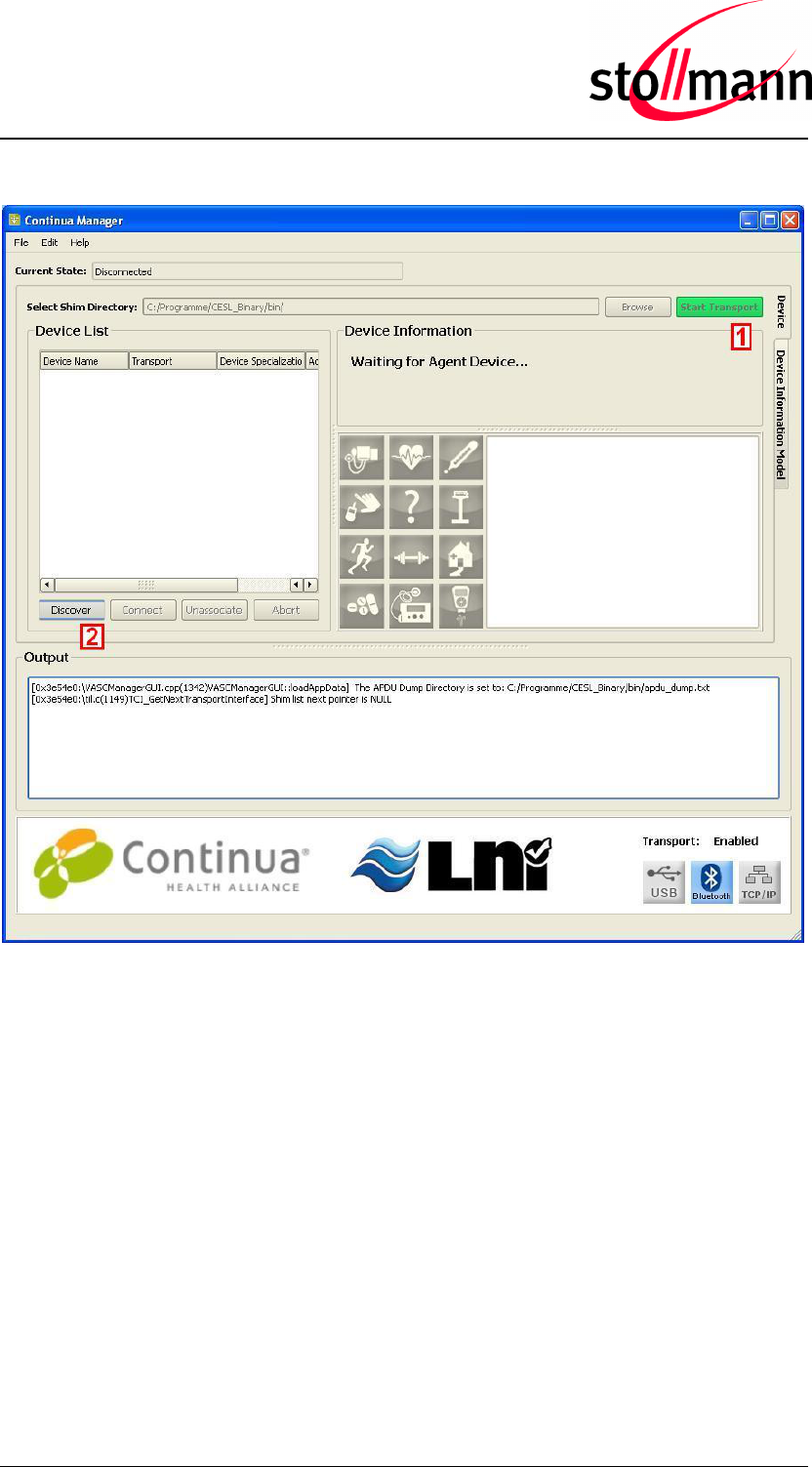

Now press “Start Transport” (1) to initialize the connected BlueHDP+USB and push
“Discover” (2) to start the device discovery of HDP Bluetooth devices in your area.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 9 of 14
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 10 of 14

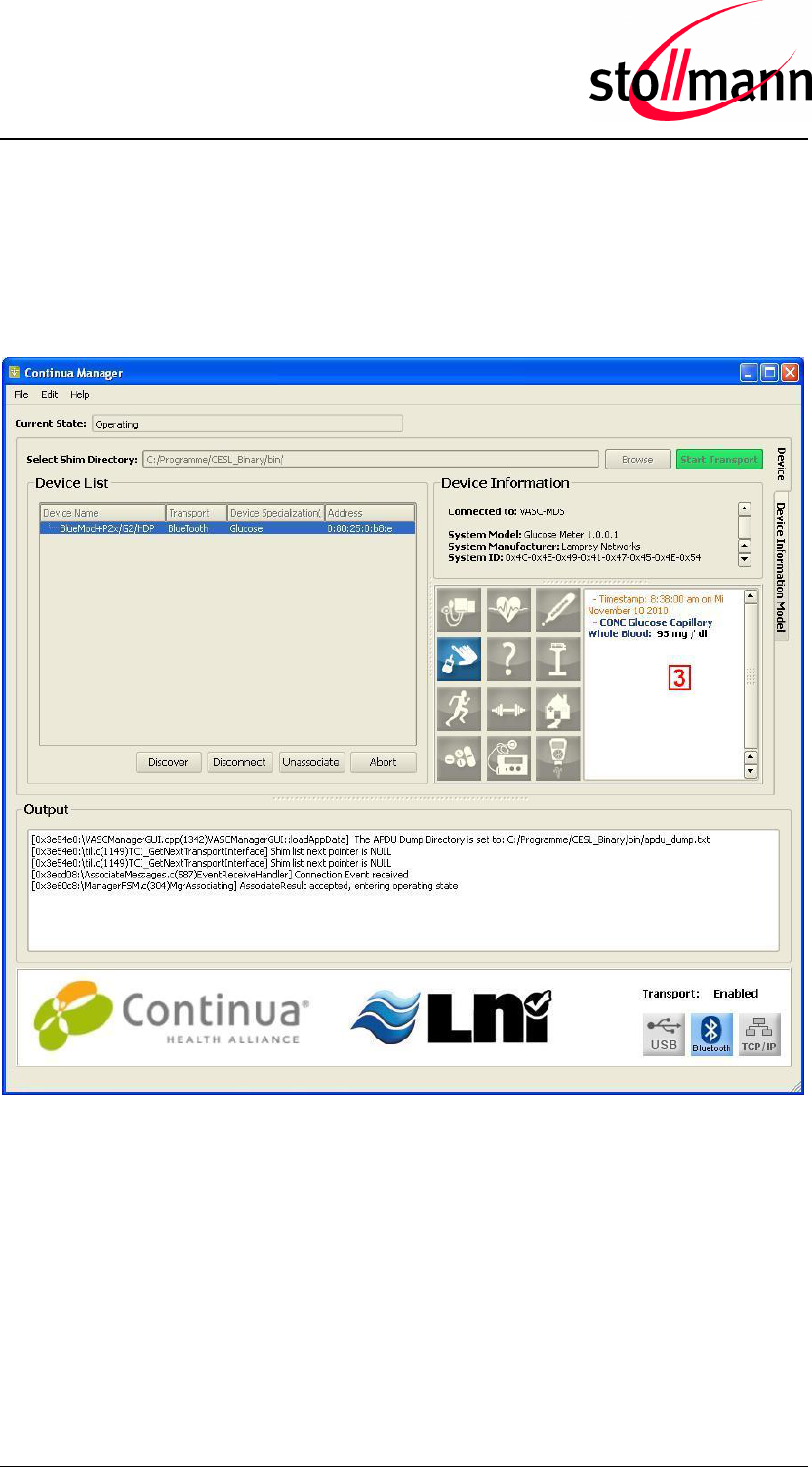

If the remote HDP device is listed in the “Device List” box, press “Connect” to
initialize the connection process.
Now both devices are connected and ready to transfer data (3).
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 11 of 14
3.5 Using the CESL Agent with BlueDev+P25/G2/HDP

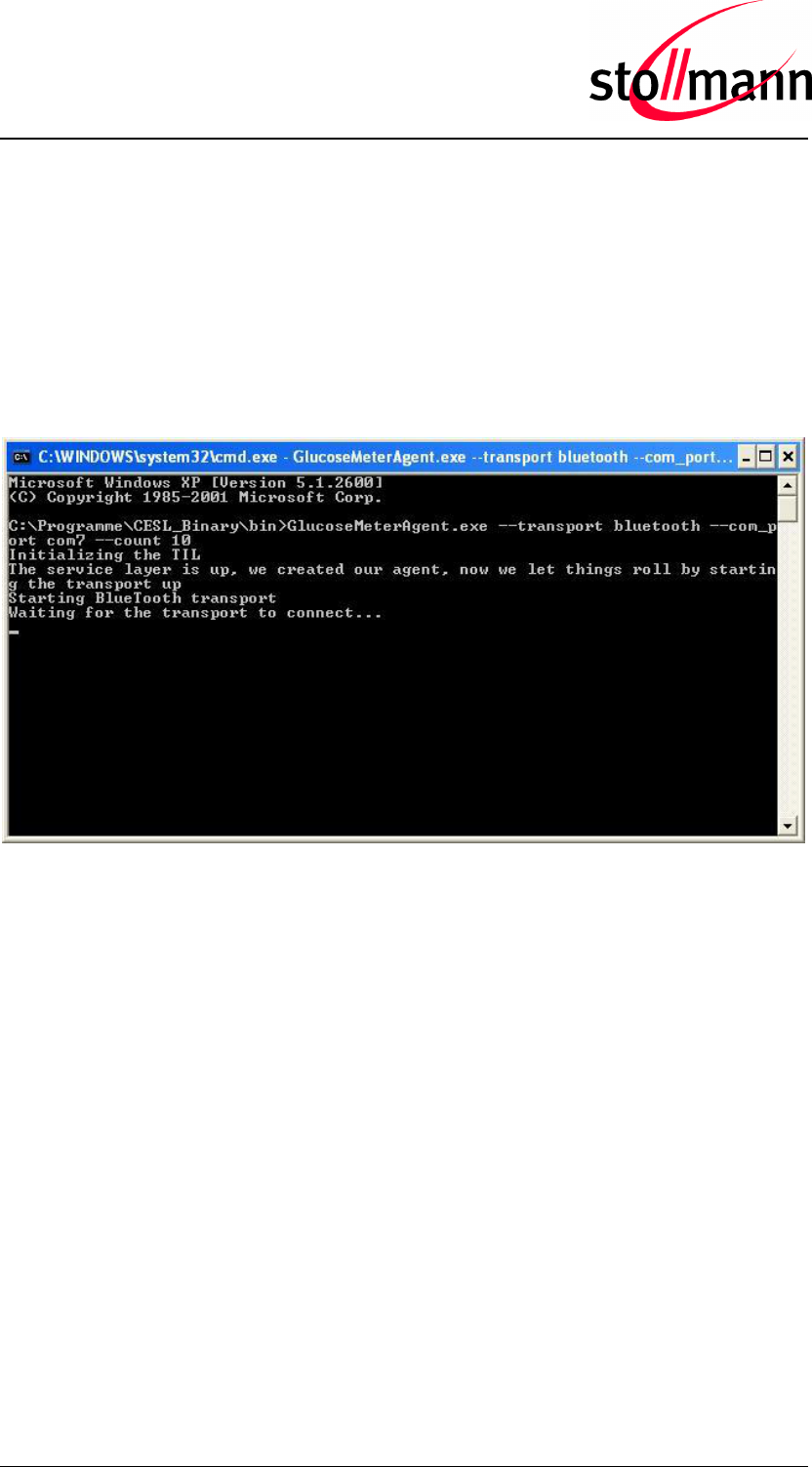

Open a command shell from the program directory of the CESL application folder
(usually “C:\Programme\CESL_Binary\bin”) and start a CESL Agent using the
command line (for example: “GlucoseMeterAgent.exe –transport Bluetooth –
com_port com7 –count 10”)
Now the CESL Agent is ready to receive an incoming HDP Bluetooth connection
from another HDP device.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 12 of 14
4 Firmware Upgrade
Stollmann provides a tool for uploading firmware into a BlueHDP+USB via serial
interface. The file name of the executable program consists of version and patch
information.
For example a firmware version 1.404 will result in the executable file
“P25G2_HDP_1_404_Setup_SR.exe”.
4.1 Stollmann BlueHDP+USB Serial Module Updater

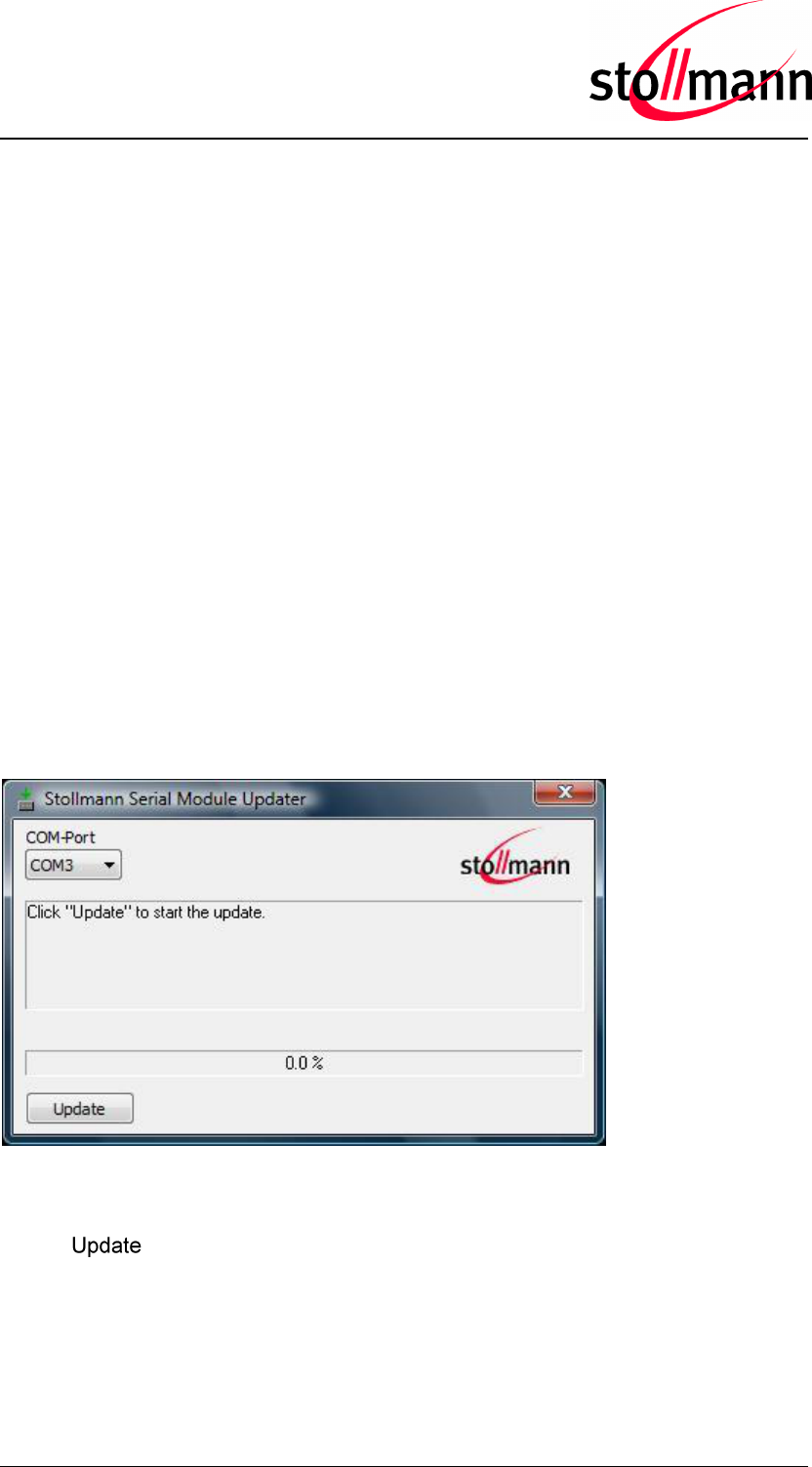

Stollmann BlueHDP+USB Serial Module Updater serves as a tool for uploading a
firmware file into a BlueHDP+USB.
The program requires a PC with at least one free COM port and Windows XP,
Windows Vista or Windows 7 as operating system.
The upload is processed via the serial port the device is attached to.
- COM-Port
The COM port the device is attached to
-
Starts the update procedure
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 13 of 14

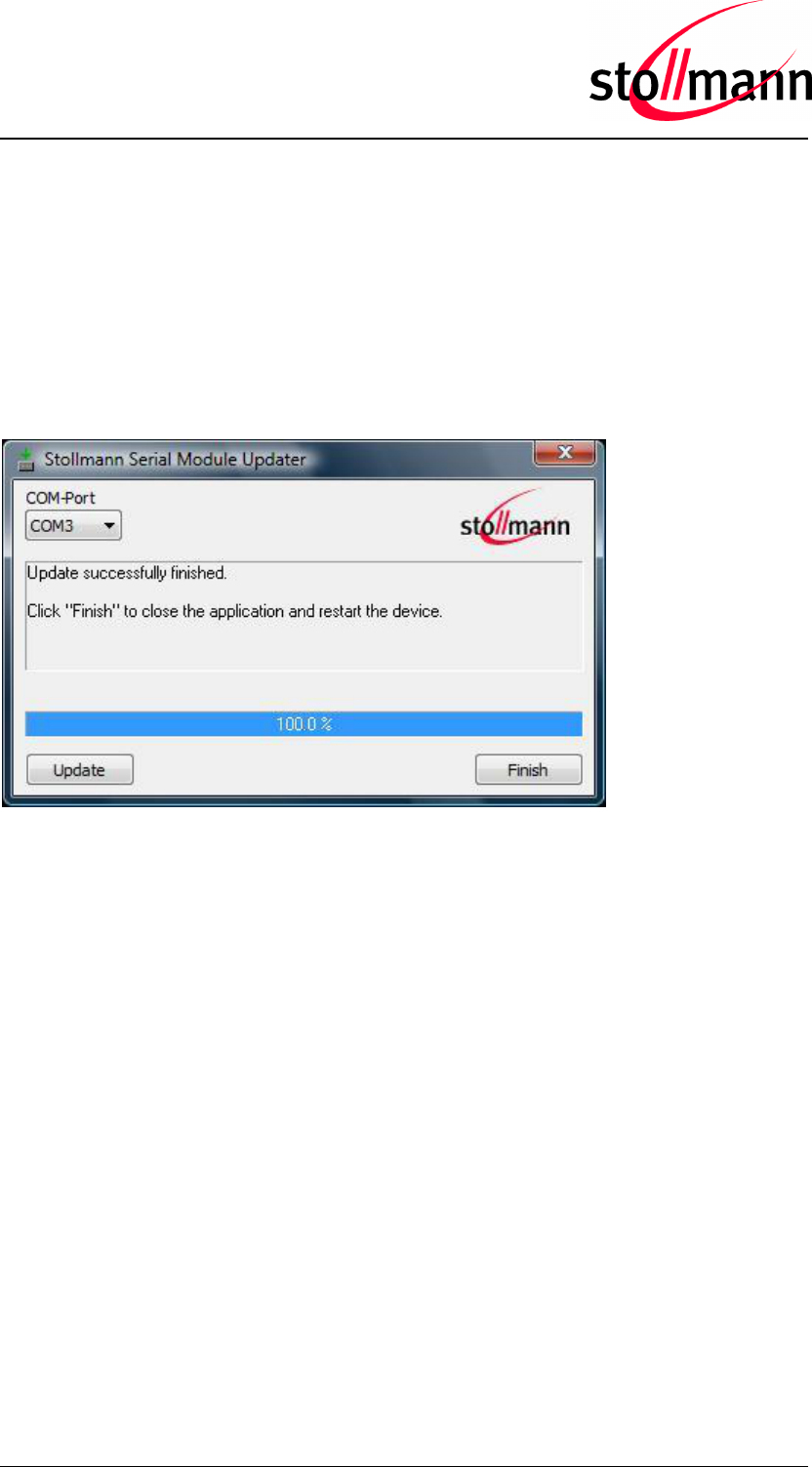

Press the „Update“ button to start the firmware update process.
Please wait while the update is being processed.
After the successful firmware update press the „Finish“ button and restart the
device.
4.2 Troubleshooting
Update won’t start when using Stollmann BlueHDP+USB Updater
Check if the right COM port is selected and make sure the port is not used by other
applications running.
Update process has been interrupted by power loss / Cable replacement on
COM port
Redo the update by restarting the Stollmann BlueHDP+USB Updater.
Firmware won’t start after serial update
Power cycle the module. If the module is still not answering to any commands, redo
the update with the Stollmann BlueHDP+USB Updater.
BlueHDP+USB
User Guide
Release r01 www.stollmann.de Page 14 of 14
5 History
Version
Release Date
By
Change description
r01d01
21.10.2010
fh
First draft
r01
16.02.2011
Mb
First release
