HANGZHOU CENTURY WB-DB308 ESL Wirless Basestation User Manual DB308 product manual jm old
HANGZHOU CENTURY CO., LTD ESL Wirless Basestation DB308 product manual jm old
User Manual
1
/
5
DB308 Product Specification
Cautious
Please thoroughly read the following safty precautions before using this system,
and properly keep the specification, so that all users of this system can be readily
available. Please observe the precautionary measures listed in this section, Otherwise,
the system may cause damage.
Warning
1. Do not disassemble the system related hardware.
2. System-related hardware products is sophisticated electronic products, attempt
to disassemble the product will cause unpredictable consequences, affecting the
normal operation of the system.
3. Avoid the electronic tag contact sharp and tough metal, the electronic tag have
too many scratches on the surface will not be able to correctly identify the price
marked.
4. To avoid the system hardware suffered a severe shock or strong vibration.
5. Do not attempt to remove system-related software, this will cause the system
to work improperly.
6. System hardware Do not touch the high temperature or immersed in water.
7. Electronic price tags with a highly efficient lithium battery, Do not thrown the
electronic price tag into the fire, Otherwise it will cause an explosion.
warning
1. Purchased accessories of this equipment should be consistent with the factory
product model. If you use other types of optional accessories, may cause instability
and lead to injuries.
2
/
5
2. Whenever must be a qualified technician to setup and maintenance.
3. If you use a shelf (optional accessory), please set aside at least 10 centimeter
distance at the top and the left、 right of the main equipment.
4. Electronic equipment is easy to receive electromagnetic wave, please avoid the
installation of this product in its vicinity, doing so may interfere with radio equipment.
5. Especially the radio equipment should be placed far from the product. Without
prompting, the equipment can radiate radio frequency signals to interfere with radio
equipment, but the RF signal strength is less than the maximum safe limits; radio
equipment should be placed outside of the instrument radiation range or consult an
experienced radio engineer. Basic Function
3
/
5
1.1 Product Brief

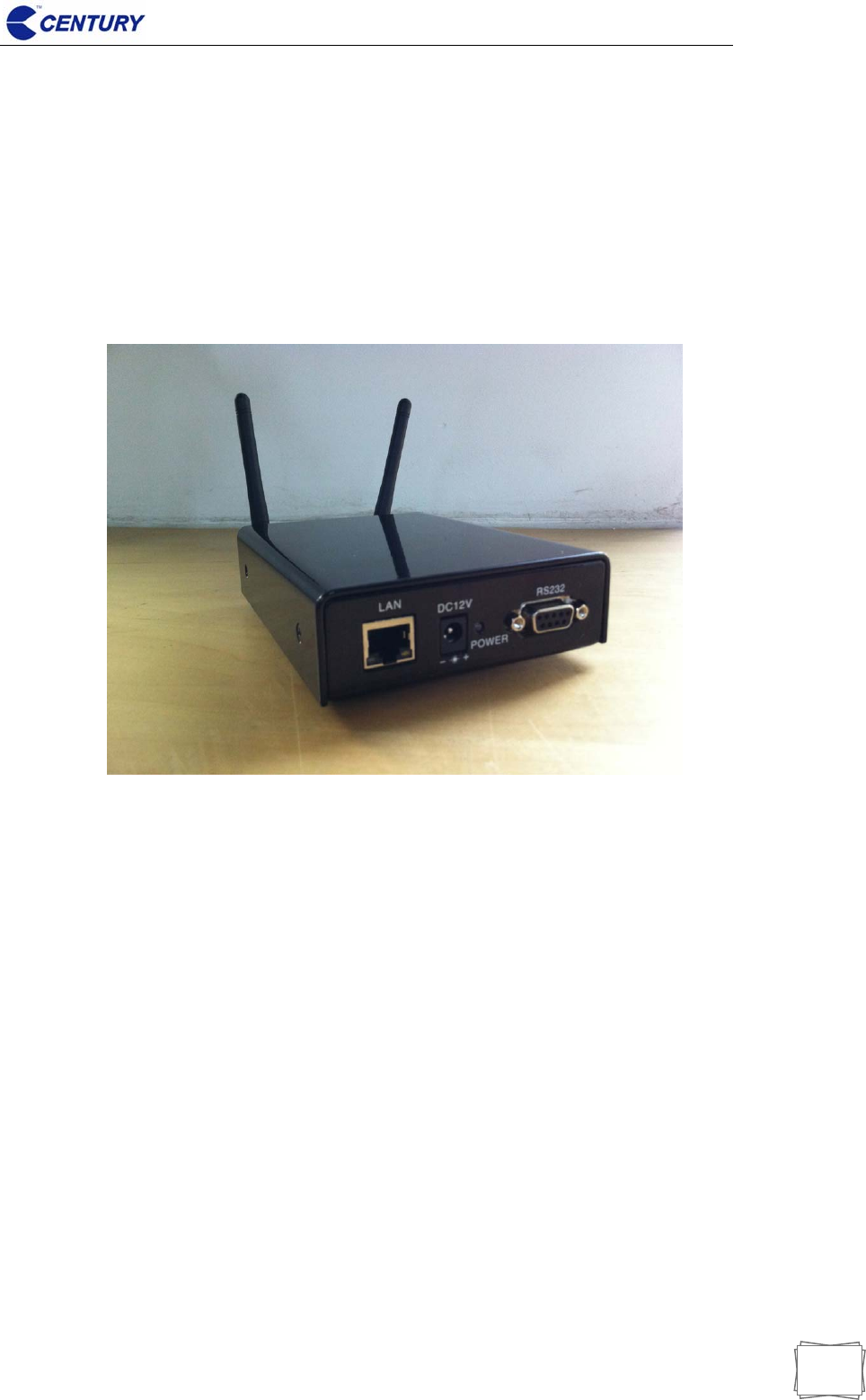

DB308 wireless base station is a new active RFID fixed base station for realizing
bidirectional communication between tag and the host system. The station is
century-cn company for electronic shelf label system (ESLs) protocol developed
products. At the same time, the protocol can be extended to other active RFID
industry application.
1.2 Instructions
DB308 wireless base stations operate in the ISM band, and can read ESL label
made by century-cn company. Its maximum reading distance is 30-50 meter ( open
areas).
Base station through a simple IP address settings, you can access the system
from the network data server and through a wireless transmitter sent to the electronic
tag, then receive electronic price tag state information from the wireless receiver
module receives, by the network to the server. The base station actually played the
role of data transfer, the entire process without human intervention.
4
/
5
1.3 Installation Types
According to the specific application environment, DB308 wireless base station
have two installation types: desktop and wall mounting.
Base station installation position mainly depends on its installation type.
According to the installation type, choose reasonable installation position. In general,
base station installation location should be safe and convenient for operation.
In addition, the antenna installation is mainly concerned with the minimum
safety distance.
1.4 Caution Items
AC power supply: 100V-240V/360mA. Please carefully check voltage range
before you use!
Checking base station and antenna installation position and direction,
whether generate signal interference when the base station exchange
information with electronic label.
When this product work (radiation microwave power), the distance between
commissioning personnel with the antenna should be at least 30 centimeter
which can meet the requirements of FCC in the United States for human
exposure to the maximum permissible radio frequency radiation terms! This
instruction is used to guide the installation and commissioning.
Any radio transmitting equipment， including this equipment, it is possible to
interfere to medical equipment without the appropritate protection. If there
are problems in this respect, please to consult with the medical equipment
manufacturer. The work of the equipment may cause interference to other
electronic devices!
5
/
5
1.5 Antenna specifications
The antenna should be consistent with the following specifications:
Frequency Range：2400-2483.5MHz
VSWR：≤1.5
Gain:<7dBi
input impedence: 50Ω
Connector: SMA Male
FCC STATEMENT:
1. This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
