Instruction Manual for smart socket
Item No. : 70011
1. Pictures
2. APP Configuration
2.1 Install apps
2.1.1. Install the software in an Android mobile phone as the attached file shows.
2.1.2. The software interface icon when installed.

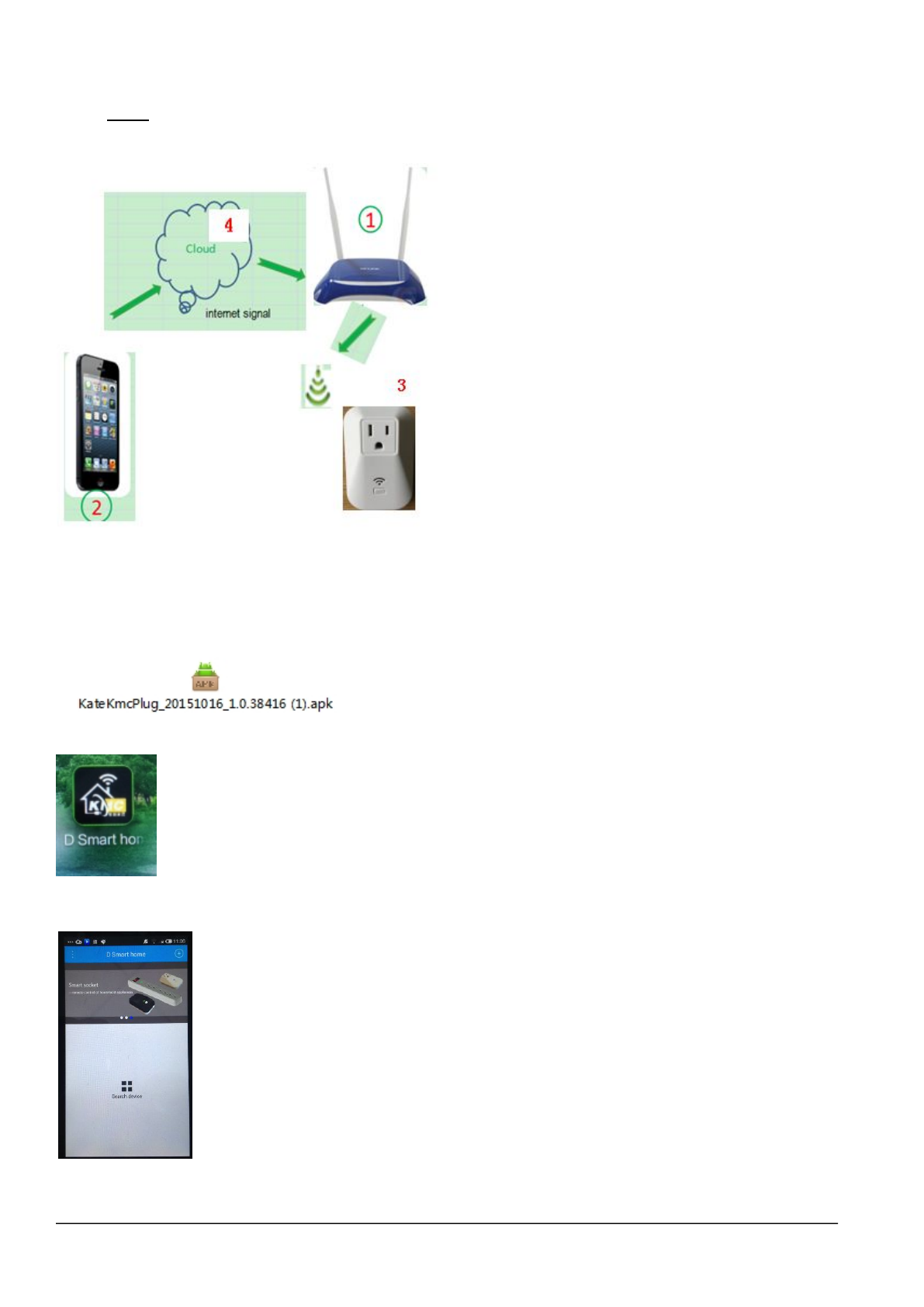

2.1.3The main interface diagram when started.
(1). Wireless router;
(2). Mobile equipment (apps)
(3). WiFi control socket
(4). Cloud sever
HANGZHOU KAITE ELECTRICAL APPLIANCE CO.,LTD.
ADRESSE: SANDU INDUSTRIAL ZONE, JIANDE CITY, ZHEJIANG PROVINCE，CHINA
E-mail: gma@powerkaite.com HTTP:ww.powerkaite.com
2.1.4Product Settings
2.1.5 Mobile phone’s matching code
2.1.6Set a password after being matched.
3. Troubleshooting
The indicator light will flash quickly when plugged in;
if the light flashes slowly, maybe it is because the
mnemonic code hasn't been eliminated when being
tested. In this condition, you need to press the button
for about 5 seconds until the LED flashes quickly
and returns to the automatic connecting status. At
the moment you can take the next step of mobile
phone’s matching code. If the socket had matched
with the WiFi, it will automatically connect and
search for the router, for instance, it will
automatically search for and connect the router after
recovering from a power cut.
HANGZHOU KAITE ELECTRICAL APPLIANCE CO.,LTD.
ADRESSE: SANDU INDUSTRIAL ZONE, JIANDE CITY, ZHEJIANG PROVINCE，CHINA
E-mail: gma@powerkaite.com HTTP:ww.powerkaite.com
2.1.7LED Indicator Statement
1. LED flashes slowly: the status of searching for the router.
2. LED flashes quickly: the status of one-click configuration.
3. LED green light stays on: the status of power on.
4. LED red light stays on: the status of shutdown.
Q1: App can not control WIFI device?,
A1: Check the LED situation of wifi device, check your wifi router connection.
Q2：Why does the operation is later or earlier than real time？
A2：Please check your smart phone or test equipment with GMT time.；
Q3: How to delete all record of wifi device?
A3: Push the button of wifi device 10 seconds more to reset default setting and clear all record
4. Product information
Items
Technical data
70011
Input: 125 V
Maximum Resistive Load:1250watt
Wifi: 2.4GHz / 802.11b/g/n
●Environment：0~30℃
●System：iOS 7.0 new , Android 4.0 new
●Wi-Fi Features: Supports standard IEEE 802.11b/g/n networks.
Easy opeartion one key setup, turn on/off multiple equipments.
Control via multiple terminals- smart phone/ tablet anywhere, local WiFi network or outer internet via 3G 4G, as well as LAN
network without internet.
Free icomen Apps for Android and iOS systems
5. Caution:
This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
HANGZHOU KAITE ELECTRICAL APPLIANCE CO.,LTD.
ADRESSE: SANDU INDUSTRIAL ZONE, JIANDE CITY, ZHEJIANG PROVINCE，CHINA
E-mail: gma@powerkaite.com HTTP:ww.powerkaite.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or
lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type
d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication
satisfaisante.
MPE Reminding
To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between
the antenna of this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
Les antennes installées doivent être situées de facon à ce que la population ne puisse
y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce
que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’
antenne.
La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au
moins 20 cm des personnes pendant son functionnement.
Caution: Risk of electric shock. Grounding continuity must be maintained.
Attention: Risque de la décharge électrique. La mise du courant a la terre doit être
continuellement maintenue
