HANK ELECTRONICS 1060 Wireless Charger Car Mount User Manual HKAP1060Q 2

HANK ELECTRONICS CO., LTD. Wireless Charger Car Mount HKAP1060Q 2

Users manual

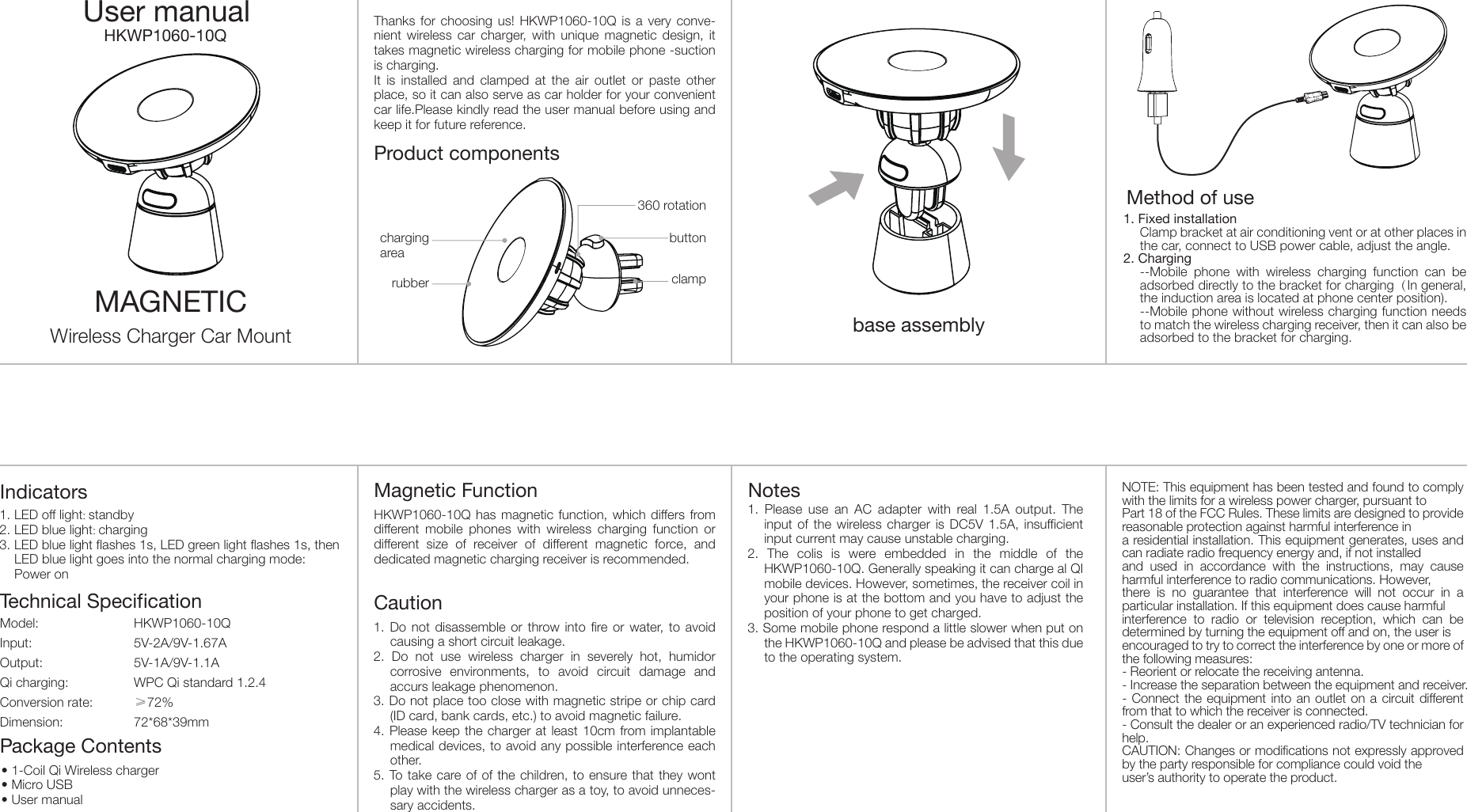

HKWP1060-10Q User manual Wireless Charger Car MountProduct componentsbase assemblyMAGNETICThanks for choosing us! HKWP1060-10Q is a very conve-nient wireless car charger, with unique magnetic design, it takes magnetic wireless charging for mobile phone -suction is charging.It is installed and clamped at the air outlet or paste other place, so it can also serve as car holder for your convenient car life.Please kindly read the user manual before using and keep it for future reference.Method of useTechnical SpecificationPackage ContentsIndicators1. Fixed installationClamp bracket at air conditioning vent or at other places in the car, connect to USB power cable, adjust the angle.2. Charging--Mobile phone with wireless charging function can beadsorbed directly to the bracket for charging（In general,the induction area is located at phone center position).--Mobile phone without wireless charging function needsto match the wireless charging receiver, then it can also be adsorbed to the bracket for charging.Magnetic FunctionHKWP1060-10Q has magnetic function, which differs from different mobile phones with wireless charging function or different size of receiver of different magnetic force, and dedicated magnetic charging receiver is recommended.NOTE: This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant toPart 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void theuser’s authority to operate the product.1. LED off light: standby2. LED blue light: charging3. LED blue light flashes 1s, LED green light flashes 1s, thenLED blue light goes into the normal charging mode:Power on•1-Coil Qi Wireless charger•Micro USB•User manual1. Please use an AC adapter with real 1.5A output. Theinput of the wireless charger is DC5V 1.5A, insufficientinput current may cause unstable charging.2. The colis is were embedded in the middle of theHKWP1060-10Q. Generally speaking it can charge al QImobile devices. However, sometimes, the receiver coil inyour phone is at the bottom and you have to adjust theposition of your phone to get charged.3. Some mobile phone respond a little slower when put onthe HKWP1060-10Q and please be advised that this due to the operating system.NotesCaution1. Do not disassemble or throw into fire or water, to avoidcausing a short circuit leakage.2. Do not use wireless charger in severely hot, humidorcorrosive environments, to avoid circuit damage andaccurs leakage phenomenon.3. Do not place too close with magnetic stripe or chip card(ID card, bank cards, etc.) to avoid magnetic failure.4. Please keep the charger at least 10cm from implantablemedical devices, to avoid any possible interference eachother.5. To take care of of the children, to ensure that they wontplay with the wireless charger as a toy, to avoid unneces-sary accidents.Model:Input:Output:Qi charging:Conversion rate:Dimension:HKWP1060-10Q5V-2A/9V-1.67A5V-1A/9V-1.1AWPC Qi standard 1.2.4≥72%72*68*39mmchargingarearubberbutton360 rotationclamp
